Thank you for purchasing HUAWEI MU509-g HSDPA Module
(hereinafter referred to as the MU509)
Note:
This manual briefly describes the preparation, the process for PCB Design, Assembly
and safety precautions.
You are recommended to read the manual before using the MU509.
Getting to Know the MU509
The package of the LGA module is 116 pin LGA with a dimension of 30 mm × 30 mm × 2.5
mm and the pitch of 1.5 mm. It is applied to the user interface board, and can be used as a
wireless terminal in a network environment.
2
3
PCB Design
CB Pad Design
To achieve high efficiency of the production and solder joints of high reliability, it is
recommended that the PCB pad size be designed as follows: the size of the middle region is
the same as the pad size of the product package; other pads are 0.05 mm larger than the
unilateral pad of the product package. For details, see the following figure:
4
Requirements on PCB Layout
Other devices must be located more than 3 mm away from the LGA module. It is
recommended to be 5 mm. The minimum distance between the LGA module and the
PCB edge is 1.5 mm.
When the PCB layout is double sided, it is recommended that the LGA module be
placed on the second side for assembly.
5
Design of Solder Mask
The PCB pad design can be solder mask defined (SMD), or non-solder mask defined
(NSMD).
NSMD is recommended. In addition, the solder mask of the NSMD pad design is larger than
the pad so the reliability of the solder joint can be improved.
The solder mask must be 100 um to150 um larger than the pad, that is, the single side of the
solder mask must be 50 um to 75 um larger than the pad. The specific size depends on the
processing capability of the PCB manufacturer.
Assembly

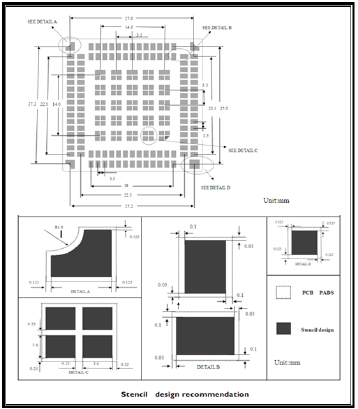

Stencil Design
It is recommended that the stencil for the LGA module be 0.12 mm in thickness. For the
stencil design, see the following figure:
6
Reflow Profile
For the soldering temperature of the LGA module, see the following figure:
7
Reflow parameters:
Preheat zone (40150°C)
Time: 60120sec
Heating rate: 0.5C/sec
Soak zone (150-20C)
Time: 60120sec
Heating rate: <1.0°C/sec
Reflow zone (> 217°C)
Time: 3090sec
Peak reflow temperature:
230260°C
Cooling zone
8
Safety Information
Read the safety information carefully to ensure the correct and safe use of your wireless
device.
Interference
Do not use your wireless device if using the device is prohibited or when it causes danger or
interference with electric devices.
Medical Device
Do not use your wireless device and follow the rules and regulations set forth by the
hospitals and health care facilities.
Some wireless devices may affect the performance of the hearing aids. For any such
problems, consult your service provider.
If you are using an electronic medical device, consult the doctor or device manufacturer
to confirm whether the radio wave affects the operation of this device.
Area with Inflammables and Explosives
To prevent explosions and fires in areas that are stored with inflammable and explosive
devices, do not use your wireless device and observe the rules. Areas stored with
inflammables and explosives include but are not limited to the following:
Gas station
Fuel depot (such as the bunk below the deck of a ship)
Container/Vehicle for storing or transporting fuels or chemical products
Area where the air contains chemical substances and particles (such as granule, dust, or
9
metal powder)
Area indicated with the "Explosives" sign
Area indicated with the "Power off bi-direction wireless equipment" sign
Area where you are generally suggested to stop the engine of a vehicle
Traffic Security
Observe local laws and regulations while using the wireless device. To prevent accidents,
do not use your wireless device while driving.
RF signals may affect electronic systems of motor vehicles. For more information,
consult the vehicle manufacturer.
In a motor vehicle, do not place the wireless device over the air bag or in the air bag
deployment area. Otherwise, the wireless device may hurt you owing to the strong
force when the air bag inflates.
Observe the rules and regulations of airline companies. When boarding, switchyou're
your wireless device. Otherwise, the radio signal of the wireless device may interfere
with the plane control signals.
Safety of Children
Do not allow children to use the wireless device without guidance. Small and sharp
components of the wireless device may cause danger to children or cause suffocation if
children swallow the components.
Environment Protection
Observe the local regulations regarding the disposal of your packaging materials, used
wireless device and accessories, and promote their recycling.
10
WEEE Approval
The wireless device is in compliance with the essential requirements and other relevant
provisions of the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE
Directive).
RoHS Approval
The wireless device is in compliance with the restriction of the use of certain hazardous
substances in electrical and electronic equipment Directive 2002/95/EC (RoHS Directive).
Laws and Regulations Observance
Observe laws and regulations when using your wireless device. Respect the privacy and legal
rights of the others.
Care and Maintenance
It is normal that your wireless device gets hot when you use or charge it. Before you clean or
maintain the wireless device, stop all applications and power off the wireless device.
Use your wireless device and accessories with care and in clean environment. Keep the
wireless device from a fire or a lit cigarette.
Protect your wireless device and accessories from water and vapor and keep them dry.
Do not drop, throw or bend your wireless device.
Clean your wireless device with a piece of damp and soft antistatic cloth. Do not use any
chemical agents (such as alcohol and benzene), chemical detergent, or powder to clean
it.
Do not leave your wireless device and accessories in a place with a considerably low or
high temperature.
11
Use only accessories of the wireless device approved by the manufacture. Contact the
authorized service center for any abnormity of the wireless device or accessories.
Do not dismantle the wireless device or accessories. Otherwise, the wireless device and
accessories are not covered by the warranty.
Emergency Call
This wireless device functions through receiving and transmitting radio signals. Therefore,
the connection cannot be guaranteed in all conditions. In an emergency, you should not rely
solely on the wireless device for essential communications.
Regulatory Information
The following approvals and notices apply in specific regions as noted.
CE Approval (European Union)
The wireless device is approved to be used in the member states of the EU. The wireless
device is in compliance with the essential requirements and other relevant provisions of the
Radio and Telecommunications Terminal Equipment Directive 1999/5/EC (R&TTE Directive).
Federal Communications Commission Notice (United States): Before a wireless device model
is available for sale to the public, it must be tested and certified to the FCC that it does not
exceed the limit established by the government-adopted requirement for safe exposure.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
12
Copyright © Huawei Technologies Co., Ltd. 2011. All rights
reserved.
No part of this document may be reproduced or transmitted in any form or by any
means without prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei
Technologies Co., Ltd. and possible licensors. Customers shall not in any manner
reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse
engineer, lease, assign, or sublicense the said software, unless such restrictions
are prohibited by applicable laws or such actions are approved by respective
copyright holders under licenses.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned are the
property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the
software installed, capacities and settings of local network, and may not be
activated or may be limited by local network operators or network service providers,
thus the descriptions herein may not exactly match the product or its accessories
you purchase.
Huawei Technologies Co., Ltd. reserves the right to change or modify any
information or specifications contained in this manual without prior notice or
obligation.
NO WARRANTY

REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE
SHALL HUAWEI TECHNOLOGIES CO., LTD. BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations
and will obtain all necessary governmental permits and licenses in order to export,
re-export or import the product mentioned in this manual including the software and
technical data therein.
Warnings and Precautions
This section contains important information pertaining to the operating instructions
of your device. It also contains information about how to use your device safely.
Read this information carefully before using the device.
Electronic Device
Do not use your device if using the device is prohibited. Do not use the device when
using the device causes danger or interference with electronic devices.
Medical Device
Follow rules and regulations set forth by hospitals and health care facilities. Do
not use your device when using the device is prohibited.
Some wireless devices may affect the performance of hearing aids or
pacemakers. For any such problems, consult your service provider.
If you are using an electronic medical device, consult the doctor or the device
manufacturer to confirm whether radio waves affect the operation of this device.
Potentially Explosive Atmosphere
Do not use your device in any area with a potentially explosive atmosphere, and
comply with all signs and instructions. Areas that may have potentially explosive
atmospheres include the areas where you would normally be advised to turn off
your vehicle engine. Triggering of sparks in such areas could cause an explosion or
a fire, resulting in bodily injuries or even deaths. Do not use your device at refueling
points such as service stations. Comply with restrictions on the use of radio
equipment in fuel depots, storage, and distribution areas, and chemical plants. In
addition, adhere to restrictions in areas where blasting operations are in progress .
Before using the device, watch out for areas that have potentially explosive
atmospheres that are often, but not always, clearly marked. Such locations include
areas below the deck on boats, chemical transfer or storage facilities, and areas
where the air contains chemicals or particles such as grain, dust, or metal powders.
Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane
or butane) whether this device can be safely used in their vicinity.
Traffic Security
Observe local laws and regulations while using the device. To prevent accidents,
do not use your wireless device while driving.
RF signals may affect electronic systems of motor vehicles. For more information,
consult the vehicle manufacturer.
In a motor vehicle, do not place the device over the air bag or in the air bag
deployment area. Otherwise, the device may hurt you owing to the strong force
when the air bag inflates.
Do not use your device while flying in an aircraft and before boarding an aircraft.
Using wireless devices in an aircraft may cause danger to the operation of the
aircraft and disrupt the wireless telephone network. It may also be considered
illegal.
Operating Environment
Do not use the device in dusty, damp, and dirty places or places with magnetic
fields. Otherwise, it may result in malfunction of the circuit.
On a stormy day with thunder, do not use your device when it is being charged, to
prevent any danger caused by lightning.
While using the device, observe the local laws and regulations, and respect
others' privacy and legal rights.
Keep the ambient temperature between -20 to +70 for using the device.
Safety of Children
Comply with all precautions with regard to children's safety. Letting the child play
with your device or its accessories, which may include parts that can be detached
from the device, may be dangerous, as it may present a choking hazard. Ensure
that small children are kept away from the device and accessories.
Accessories
Use the accessories delivered only by the manufacturer. Using accessories of other
manufacturers or vendors with this device model may invalidate any approval or
warranty applicable to the device, result in the non-operation of the device, and
cause danger.
Cleaning and Maintenance
It is normal that your wireless device gets hot when you use or charge it. Before you
clean or maintain the wireless device, stop all applications and disconnect the
wireless device from your PC.
Use your wireless device and accessories with care and in a clean environment.
Keep the wireless device away from a fire or a lit cigarette.
Protect your wireless device and accessories from water and vapor, and keep
them dry.
Do not drop, throw, or bend your wireless device.
Clean your wireless device with a piece of damp and soft antistatic cloth. Do not
use any chemical detergent, powder, or other chemical agents (such as alcohol
and benzene) to clean the device.
Comprehensive integration instructions
For proper integration of modules in the final products it is required that detailed and
comprehensive instructions must be provided to the integrators so that any
subsequent associated party (grantee, host manufacture, original equipment
manufacturer (OEM), integrator, or end-user) can clearly understand the conditions
and limitations for authorized uses of the modular transmitter. These instructions
must be included as one of the Form 731 exhibits,. While modules can provide great
flexibility for third parties without requiring additional compliance demonstrations,
additional technical requirements may call for separate equipment authorization
information for compliance demonstration (e.g. for RF exposure and hearing-aid
compatibility, for devices with specific antennas, or specific host/enclosure
configurations.) A transmitter module grantee is responsible for including the
necessary details for ensuring compliance for RF exposure requirements and the
associated usage conditions for portable, mobile and fixed-mount equipment
configurations as applicable.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions
for satisfying RF exposure compliance.
Note 1: This module has been certified to comply with RF exposure requirements
under portable or mobile or fixed condition, this module is to be installed only in
portable or mobile or fixed applications. The system antenna(s) used for this
module must not exceed 4.28dBi (850MHz) and 3.0dBi (1900MHz) for mobile
and fixed or mobile operating configurations. The antenna must be installed such
that 20 cm is maintained between the antenna(s) and the body of the user or
nearby persons.
The transmitter module may not be co-located with any other transmitter or
antenna.
FCC ID: QISMU509G
As long as the above conditions are met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this
module installed. To ensure compliance with all non-transmitter functions the
host manufacturer is responsible for ensuring compliance with the module(s)
installed and fully operational. For example, if a host was previously authorized
as an unintentional radiator under the Declaration of Conformity procedure
without a transmitter certified module and a module is added, the host
manufacturer is responsible for ensuring that the after the module is installed and
operational the host continues to be compliant with the Part 15B unintentional
radiator requirements.
In case the conditions specified above cannot be met, the FCC authorization
would no longer be considered valid and the FCC ID could not be used on the
final product. Under these circumstances, the OEM integrator will be responsible
for re-evaluating the end product (including the transmitter (s)) and obtaining a
separate FCC authorization. Additional tests for compliance with RF Exposure
compliance (i.e. portable applications) and transmitter / host specific tests could
be required.
Note 2: Any modifications made to the module will void the Grant of Certification,
this module is limited to OEM installation only and must not be sold to end-users,
end-user has no manual instructions to remove or install the device, only
software or operating procedure shall be placed in the end-user operating
manual of final products.
Note 3: The device must not transmit simultaneously with with any other antenna
or transmitter.
Note 4: The transmitter module must be installed and used in strict accordance
with the manufacturer's instructions as described in the user documentation that
comes with the host product.
FCC Statement
15.19
NOTICE:
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that
may cause undesired operation.
15.21
NOTICE:
Changes or modifications made to this device not expressly approved by Huawei
Technologies Co., Ltd. may void the FCC authorization to operate this device.
15.105
NOTE:
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this device does
cause harmful interference to radio or television reception, which can be
determined by connecting or disconnecting the device to a PC, the user is
encouraged to try to correct the interference by adopting one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the distance between the device and the receiver.
Connect the device to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio or TV technician for help.
Disposal and Recycling Information
This symbol on the device (and any included batteries) indicates that they
should not be disposed of as normal household garbage. Do not dispose of your
device or batteries as unsorted municipal waste. The device (and any batteries)
should be handed over to a certified collection point for recycling or proper disposal
at the end of their life.
For more detailed information about the recycling of the device or batteries, contact
your local city office, the household waste disposal service, or the retail store where
you purchased this device.
The disposal of this device is subject to the Waste from Electrical and Electronic
Equipment (WEEE) directive of the European Union. The reason for separating
WEEE and batteries from other waste is to minimize the potential environmental
impacts on human health of any hazardous substances that may be present.
Reduction of Hazardous Substances
This device is compliant with the EU Registration, Evaluation, Authorisation and
Restriction of Chemicals (REACH) Regulation (Regulation No 1907/2006/EC of the
European Parliament and of the Council) and the EU Restriction of Hazardous
Substances (RoHS) Directive (Directive 2002/95/EC of the European Parliament
and of the Council). For more information about the REACH compliance of the
device, visit the Web site www.huaweidevice.com/certification. You are
recommended to visit the Web site regularly for up-to-date information.
EU Regulatory Conformance
Български

1999/5/EC.
Česky

1999/5/EC.
Dansk: Huawei Technologies Co., Ltd. erklæ rer hermed at denne enhed er i
overensstemmelse med de obligatoriske krav og andre relevante bestemmelser i
direktiv 1999/5/EF.
Nederlands: Hierbij verklaart Huawei Technologies Co., Ltd. dat dit apparaat in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen
van richtlijn 1999/5/EC.
English: Hereby, Huawei Technologies Co., Ltd. declares that this device is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Eesti: Käesolevaga kinnitab Huawei Technologies Co., Ltd., et see seade vastab
Direktiivi 1999/5/EÜ hiudmistele ja teistele asjakohastele määrustele.
Suomi: Huawei Technologies Co., Ltd. vakuuttaa täten, että tä laite on
yhdenmukainen direktiivin 1999/5/EY olennaisten vaatimusten ja direktiivin muiden
asiaankuuluvien lausumien kanssa.
Français (Européen) : Huawei Technologies Co., Ltd.clare que ce produit est
conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Deutsch: Huawei Technologies Co., Ltd. erkrt hiermit, dass dieses Produkt die
erforderlichen Bestimmungen und andere relevante Verordnungen der Richtlinie
1999/5/EG einhält.
Ελληνικά:    Huawei Technologies Co., Ltd.   
          
 1999/5/.
Magyar: Jelen nyilatkozaton keresztül a Huawei Technologies Co., Ltd. kijelenti,
hogy a késk megfelel az EC/5/1999 Inyelv összes lényeges követelménnek

Gaeilge: Fogronn Huawei Technologies Co., Ltd. leis seo go bhfuil an fheiste seo
i gcomhlíonadh leis na fíor-riachtanais agus na forálacha eile maidir le Treoir
1999/5/AE.
Italiano: Col presente documento, Huawei Technologies Co., Ltd. dichiara che
questo dispositivo è conforme ai requisiti essenziali e alle altre disposizioni
applicabili della Direttiva 1999/5/CE.
Latviski

Lietuviškai

Malti: Hawnhekk, Huawei Technologies Co., Ltd. tiddikjara li dan it-
konformi mal-
1999/5/KE.
Polski: Wymieniona w tym dokumencie firma Huawei Technologies Co., Ltd.

9/5/EC.
Portugs (Europeu) : Deste modo, a Huawei Technologies Co., Ltd. declara que
este dispositivo está em conformidade com os requisitos essenciais e outras
provisões relevantes da Directiva 1999/5/CE.
Română: Prin prezenta Huawei Technologies Co., Lt

1999/5/CE.
Slovenčina
v edpismi Smernice
1999/5/ES.
Slovenščina: Huawei Technologies Co., Ltd. izjavlja, da je ta naprava v skladu z

Español (Europeo) : Con el presente documento, Huawei Technologies Co., Ltd.
declara que este dispositivo cumple con los requisitos esenciales y con las demás
disposiciones correspondientes de la Directiva 1999/5/CE.
Svenska: Huawei Technologies Co., Ltd. förklarar rmed att denna produkt
överensstämmer med de grundläggande kraven och andra relevanta föreskrifter i
direktiv 1999/5/EG.
For the declaration of conformity, visit the Web site
www.huaweidevice.com/certification.
Notice: Observe the national local regulations in the location where the device is to
be used. This device may be restricted for use in some or all member states of the
European Union (EU).
Version: V100R001_02 Part Number: 31220974

Navigation menu
