Huawei Technologies PT530 500Mbps Powerline Access Point User Manual Manual
Huawei Technologies Co.,Ltd 500Mbps Powerline Access Point Manual
Manual

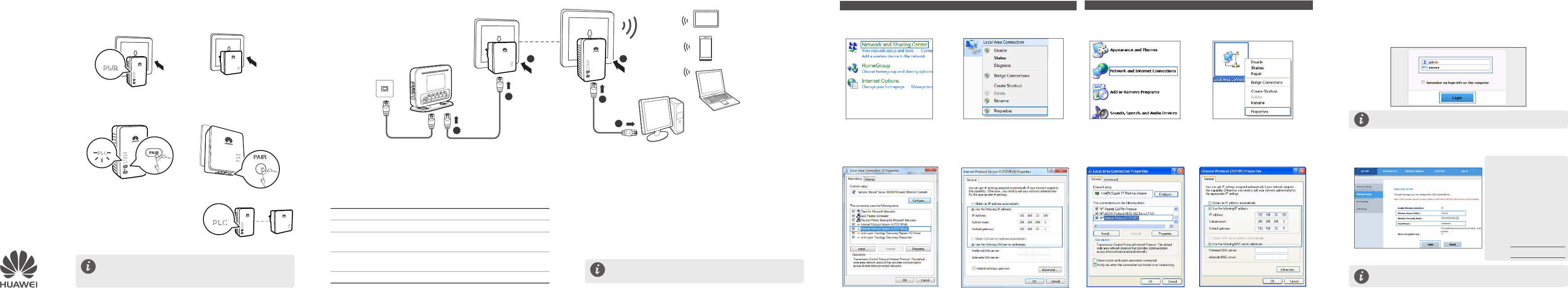

1 2 3 4 5 6
2 Connecting Cables
1. Connect one end of a network cable to the PT500.
2. Connect the other end of the same network cable to the router's LAN port.
3. Plug the PT500 into a power outlet.
Taking the paired PT530 and PT500 as an example, this section introduce the installation method of PT530 by illustrating their connection to the Internet through a router.
Connect your devices in the sequence indicated in the following gure.
After the PT530 is powered on, the PT530 indicator turns on. The following table lists how the indicators behave when the PT530 is operating correctly. If the indicators
do not behave as expected, ensure that everything is plugged in correctly.
Indicator Expected State Description
PWR Steady on The PT530 is powered on.
PLC Steady on The PT530 is paired with another
powerline device.
LAN1/LAN2 Steady on The LAN port is connected to an Ethernet
device with a network cable.
WLAN Steady on WLAN is enabled.
If the basic conguration of your router has already been set (A computer
connected to the router can directly connect to the Internet) before you install
the PT530, Ethernet devices such as a computer connecting to the PT530
with cables can access the Internet directly after the PT530 completed the
installation as the gure shows above.
For the wireless connection method to the PT530, please refer to
the following section to complete the wireless conguration.
1 Pairing Powerline Devices
This product must be used with other powerline devices. This section uses a
PT530 and a PT500 to illustrate the pairing process.
1. Plug the PT530 into a power outlet.
When the PT530 is powered on, its
PWR indicator will turns to steady on.
2. Plug the PT500 into a power
outlet nearby the PT530.
PT530
Steady on
PT500
3. Press and hold the PAIR button on the
PT530 for 1 second and then release
it. Its PLC indicator will start to blink.
PT530
Blinking
4. Within 2 minutes, press and hold
the PAIR button on the PT500 for
1 second and then release it.
PT500
PAIR
If you press the PAIR button and the PLC indicator starts to blink while
connection cannot be established, press and hold the PAIR button for 8 seconds
until the PLC indicator turns off, and then the PT530 will exit the current network.
Please repeat from step 1 to restart the pairing process.
5. Check the indicators' status on the PT530
and the PT500. If both two PLC indicators
on the PT530 and the PT500 turn to steady
on from blinking status within 10 seconds,
the connection between the PT530 and the
PT500 has been established successfully.
PT530 PT500
Steady on
4.
Connect one end of a network cable to the PT530's LAN port (either LIN1 or LAN2).
5. Connect the other end of the network cable to your computer's network port.
6. Plug the PT530 into a power outlet.
1
3
4
5
6
2
Router
PT530
Ethernet port PT500
3 Setting the Computer IP Address
Before logging in to the PT530 web management page, set the IP address of the computer that will be used for the login.
Procedure on Computers Running Windows 7
1. Choose Start > Control Panel >
Network and Internet > Network
and Sharing Center.
2. Choose Change adapter settings.
Right-click Local Area Connection
and choose Properties.
3. Double-click Internet Protocol
Version 4 (TCP/IPv4).
4. Select Use the following IP address. Set
IP address to 192.168.33.100, Subnet
mask to 255.255.255.0, and Default
gateway to 192.168.33.1. Click OK to return
to the previous dialog box and click OK.
1. Choose Start > Control Panel
> Network and Internet
Connections.
2. Click Network Connections. Right-click
Local Area Connection and choose
Properties from the shortcut menu.
Procedure on Computers Running Windows XP
3. Double-click Internet Protocol
(TCP/IP).
4. Select Use the following IP address. Set
IP address to 192.168.33.100, Subnet
mask to 255.255.255.0, and Default
gateway to 192.168.33.1. Click OK to return
to the previous dialog box and click OK.
4 Setting the PT530 Wireless Parameters
1. Open a browser. In the address box, enter 192.168.33.1. Press Enter.
2. Enter the login user name (admin by default) and password (admin by
default). Click Login.
3. Choose SETUP > Wireless Setup. Enter the SSID (WLAN name) and key you
specied into the Wireless Name(SSID) and PasssPhrase , and then click Apply.
Before the conguration, please ensure that your computer has been connected to
the PT530's LAN port and the IP address is 192.168.33.* (* indicates from 2 to 254).
For more details, please refer to the chapter 3 "Setting the Computer IP Address".
To protect against unauthorized access, change the user name and password
after the rst login.
If your router supports wireless function, setting the PT530's SSID and
password to the same values as your existing Wi-Fi network's SSID and key is
recommended.
1.Setting your SSID to a
easily recognizable name is
recommended, for example,
"Huawei".
2.Password can be set to a
combination of numbers or
letters, and the letter is case
sensitive.
You can record your SSID
and password below for later
examination:
SSID:
Key :
Quick Start
PT530 500Mbps Powerline Access Point
78910 11 12 13
6 Wireless Connection Setup
Before you proceed, make sure your computer has a network adapter installed. Then perform the following steps:
Procedure on Computers Running Windows 7
5 Resetting the Computer IP Address
After the PT530 has completed its conguration, you need to set the network
connection of your computer to obtain an IP address automatically.
1. Enter into the Internet Protocol Version 4 (TCP/IPv4). For more details,
please refer to the chapter 3 Setting the Computer IP Address, from the
step 1 to the step 3.
2. Choose Obtain an IP address automatically and Obtain DNS server
address automatically, and then click OK. Return to the previews page,
and click OK.
1. Enter into the Internet Protocol (TCP/IP). For more details, please refer to the
chapter 3 Setting the Computer IP Address, from the step 1 to the step 3.
2. Choose Obtain an IP address automatically and Obtain DNS server
address automatically , and then click OK. Return to the previews page,
and click OK.
Indicators
Indicator Status Description
PWR Steady on The PT530 is powered on.
Off The PT530 is powered off.
LAN1/LAN2
Steady on The LAN port is connected to an Ethernet device
(such as a computer) with a network cable.
Off The LAN port is not connected to any Ethernet
device.
PLC
Steady on The PT530 is connected to a powerline device.
Blinking The PT530 is searching for available networks.
Off
The PT530 is not paired with other powerline device.
The PT530 is paired but cannot nd the other
powerline device.
WLAN
Steady on WLAN is enabled.
Blinking The PT530 is attempting to connect to a wireless
client over the WLAN using the WPS function.
Off WLAN is disabled.
Buttons and ports
PAIR button
Power pins
WPS button
LAN1 network port LAN2/WAN
network port
Reset button
Power switch
Button or port Description
PAIR button
Pair/Exit button
Pair: Used to establish connection between two powerline devices.
Press and hold this button for about 1 second (from 0.5
second to 4 seconds), and then release it. The PLC indicator
will start to blink. Within 2 minutes, press the PAIR button
on the other powerline device. If PLC indicators on both two
powerline devices turn to steady on from blinking status, it
indicates that connection between the PT530 and the PT500
has been established successfully.
Exit the paring:
Used to exit the current pairing connection and prepare for a
new connection with other powerline device.
Press and hold this button for more then 8 seconds until the
PLC indicator turns off and then release it. The PT530 will
exit the pairing connection.
Reset button
used to restore the PT530 to its default settings.
After powering on the PT530, please use a needle to press and hold
this button for more than 2 seconds until all the indicators turn off.
The PT530 will restore to its default settings.
1. Click in the lower right corner
of your desktop, select the SSID
you configured in the previous
section, and click Connect.
2. In the displayed dialog box,
enter the WLAN password
you congured in the previous
section, and click OK.
3.In the wireless network list, check
the WLAN connection status.
If the status is Connected, the
computer is wirelessly connected
to the PT530.
Procedure on Computers Running Windows XP
1. Right click in the lower right
corner of your desktop. In the
displayed option menu, choose View
Available Wireless Networks.
2. Click Refresh network list. Double-
click the network you configured in
the previous section.
3. In the displayed dialog box, enter
the WLAN password you congured
in the previous section, and click
Connect.
4. In the wireless network list, check
the WLAN connection status. If the
status is Connected, the computer
is wirelessly connected to the
PT530.
Button or port Description
WPS button
WPS/WLAN button
WPS: Used to start the WPS negotiation.
Press and hold PT530's WPS button for about 1 second
(from 0.5 second to 3 seconds), and release it. The WLAN
indicator will start to blink. Within 2 minutes, press the
WPS button on the wireless terminal such as a Laptop
computer. If the WLAN indicator on the PT530 turns to
steady on from blinking status, it indicates that wireless
connection between wireless terminal and the PT530 has
been established successfully.
WLAN: Used to enable or disable the wireless network function.
Press and hold this button for more than 3 seconds until
the WLAN indicator turns to steady on to enable PT530's
wireless network function. Or press and hold this button
for more than 3 seconds until the WLAN indicator turns off
to disable the wireless network function.
Power switch Powers the PT530 on or off.
LAN1 port LAN interface used to connect to Ethernet devices, such as
computers, set-top boxes (STBs), and switches.
LAN2/WAN port
LAN interface in bridge mode:
used to connect to Ethernet devices, such as computers,
set-top boxes (STBs), and switches.
WAN interface in router mode:
used to connects to an Ethernet device that provides
Internet access, such as a modem or switch.
By default, the PT530 uses bridge mode for network connection.
You can log in to the web-based conguration utility and change it to
router mode.
Figures in this guide are for reference only. Actual products may vary.
FAQs
Q1: If I Don't Have any Router, Can I Use Two PT530 to Enable My
Computer to Access the Internet?
A1: Yes, the PT530 supports router function. You can log in to the web-based
conguration utility and set one PT530 to router mode. And this PT530 can
be used as a powerline device with wireless router function.
For more help, go to http://www.huaweidevice.com to download the User
Guide.
Obtaining More Information
For the full user guide, visit http://www.huaweidevice.com. Enter PT530 in
the website search box and press Enter.
Please visit www.huaweidevice.com/worldwide/support/hotline for
recently updated hotline and email address in your country or region.
96721971_01
Q2: What Can I Do If I Cannot Open the Web Management Page?
A2: Perform the following steps:
1.Open Internet Explorer. Choose Tools > Internet Options >
Connections > LAN settings, and ensure that all check boxes are
deselected.
2.Check that the computer IP address is 192.168.33.*. (* is any integer from
2 to 254.)
3.Check that the cables are securely connected to the PT530 and that the
LAN port's indicator is on.
If the problem persists, restore the PT530 to its default settings.
PWR LAN1
LAN2 PLC
WLAN

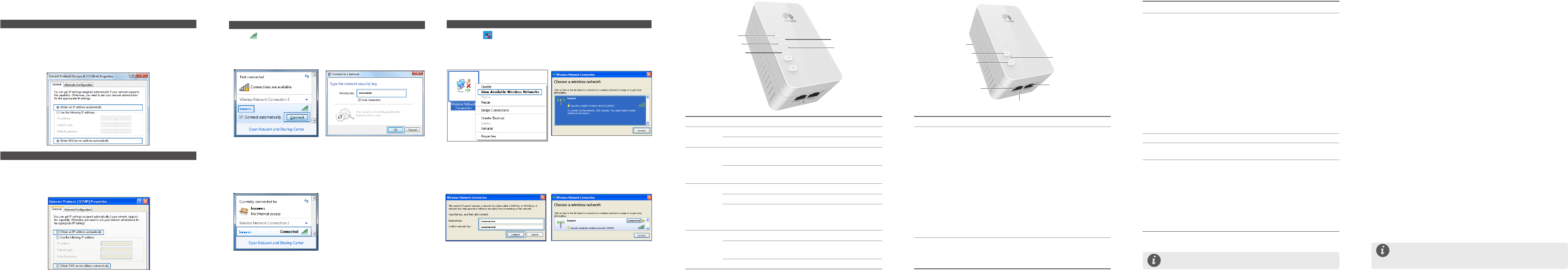

Procedure on Computers Running Windows 7
Procedure on Computers Running Windows XP
What's in the box:
PT530 (1 pc), network cable (1 pc), Quick Start (1 pc),
Safty Information & Warranty Card (1 pc) and Simple Note (1 pc)
1 2 3 4
This section contains important information about the operation of your
device. It also contains information about how to use the device safely. Read
this information carefully before using your device.
Electronic device
Do not use your device if using the device is prohibited. Do not use the
device if doing so causes danger or interference with other electronic
devices.
Interference with medical equipment
>Follow rules and regulations set forth by hospitals and health care
facilities. Do not use your device where prohibited.
>Some wireless devices may affect the performance of hearing aids or
pacemakers. Consult your service provider for more information.
>Pacemaker manufacturers recommend that a minimum distance of
15 cm be maintained between a device and a pacemaker to prevent
potential interference with the pacemaker. If using a pacemaker, hold
the device on the side opposite the pacemaker and do not carry the
device in your front pocket.
Areas with flammables and explosives
>Do not use the device where flammables or explosives are stored (in
a gas station, oil depot, or chemical plant, for example). Using your
device in these environments increases the risk of explosion or fire. In
addition, follow the instructions indicated in text or symbols.
>Do not store or transport the device in containers with flammable
liquids, gases, or explosives.
Safety Information
Operating environment
>Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using
the device in these environments may result in circuit malfunctions.
>Before connecting and disconnecting cables, stop using the device and
disconnect it from the power supply. Ensure that your hands are dry
during operation.
>Keep the device away from electronic appliances that generate strong
magnetic or electric fields, such as a microwave oven or refrigerator.
>During thunderstorms, power off your device and remove all cables
connected to it to protect against lightning strikes.
>Do not use your device during thunderstorms to protect your device
against any danger caused by lightning.
>Ideal operating temperatures are 0 ℃ to 40 ℃. Extreme heat or cold
may damage your device or accessories.
>Keep the device and accessories in a well-ventilated and cool area
away from direct sunlight. Do not enclose or cover your device with
towels or other objects. Do not place the device in a container with poor
heat dissipation, such as a box or bag.
>To protect your device or accessories from fire or electrical shock
hazards, avoid rain and moisture.
>Keep the device away from sources of heat and fire, such as a heater,
microwave oven, stove, water heater, radiator, or candle.
>Observe local laws and regulations, and respect the privacy and legal
rights of others.
>Do not block device openings. Reserve a minimum of 10 cm around the
device to dissipate heat.
>Stop using your device or applications for a while if the device is
overheated. If skin is exposed to an overheated device for an extended
period, low temperature burn symptoms, such as red spots and darker
pigmentation, may occur.
>Do not touch the device's antenna. Otherwise, communication quality
may be reduced.
>Do not allow children or pets to bite or suck the device or accessories.
Doing so may result in damage or explosion.
>The device should be installed and operated with a minimum distance
of 20 cm between the radiator and your body.
>Keep the device in a place with good reception. The distance between
the device and other metal materials (such as metal brackets or metal
doors and windows) should be greater than 25cm and the distance
between the device should be greater than 30cm.
>The RX exposure/health calculation is based on a separation distance
of 20 cm.
Child's safety
>Comply with all precautions with regard to child's safety. Letting children
play with the device or its accessories may be dangerous. The device
includes detachable parts that may present a choking hazard. Keep
away from children.
>The device and its accessories are not intended for use by children.
Children should only use the device with adult supervision.
Accessories
>Using an unapproved or incompatible power adapter, charger or battery
may cause fire, explosion or other hazards.
>Choose only accessories approved for use with this model by the
device manufacturer. The use of any other types of accessories may
void the warranty, may violate local regulations and laws, and may
be dangerous. Please contact your retailer for information about the
availability of approved accessories in your area.
Power adapter safety
>The power plug is intended to serve as a disconnect device.
>For pluggable devices, the socket-outlet shall be installed near the
devices and shall be easily accessible.
>Unplug the power adapter from electrical outlets and the device when
not in use.
>Do not drop or cause an impact to the power adapter. If it is damaged,
take it to an authorized service center for inspection.
>If the power cable is damaged (for example, the cord is exposed or
broken), or the plug loosens, stop using it at once. Continued use may
lead to electric shocks, short circuits, or fire.
>Do not touch the device or the power adapter with wet hands. Doing so
may lead to short circuits, malfunctions, or electric shocks.
>If your power adapter has been exposed to water, other liquids,
or excessive moisture, take it to an authorized service center for
inspection.
Cleaning and maintenance
>During storage, transportation, and operation of the device, keep it dry
and protect it from collision.
>Keep the device and accessories dry. Do not attempt to dry it with an
Thank you for choosing Huawei Technologies Co., Ltd. — a leading telecom
solution provider. To get better services, please read this warranty card
carefully, fill in the required information and preserve this card in good
condition.
Limited Warranty
Subject to the exclusions contained below, Huawei Technologies Co., Ltd.
(hereinafter referred to as Huawei) warrants its access terminals (“Products”)
to be free from defects in materials and workmanship under normal consumer
usage for one year from the date of purchase of the product ("Warranty
period"). During the warranty period, a Huawei authorized service partner
shall remedy defects in materials and workmanship free of charge.
Special Notice:
(1) The warranty card shall be applicable only after being stamped by the
dealer.
(2) The warranty card must be preserved in good condition and free of any
scratch or alteration.
(3) To claim such service for defects that are not included in the following
exclusion terms, the warranty card and the invoice that records the
product serial number shall be presented to a Huawei authorized service
partner.
Exclusions:
In any of the following cases, the warranty card becomes unenforceable or
inapplicable without prior notice:
(1) The defects are caused by improper handling in transportation and
assembly.
(2) The defects are caused by the fact that the product is dismantled or
altered by anyone that is not from a Huawei authorized service partner.
(3) The defects are caused by the fact that the product is used in a harsh
environment that is not suitable for the operation of the product.
Warranty Card
5 6 7 8
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Any changes or modifications to this device not expressly approved
by Huawei Technologies Co., Ltd. for compliance could void the user's
authority to operate the equipment.
web site www.huaweidevice.com/certification.
EU regulatory conformance
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this device is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
For the declaration of conformity, visit the web site www.huaweidevice.com/
certification.
The following marking is included in the product:
his device may be operated in all member states of the EU.
Observe national and local regulations where the device is used.
This device may be restricted for use, depending on the local network.
Restrictions in the 2.4 GHz band:
Norway: This subsection does not apply for the geographical area within a
radius of 20 km from the centre of Ny-Ålesund.
FCC Regulatory Compliance
FCC statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
0700
Environmental protection
>The device and its accessories (if included), such as the power adapter,
headset, and battery should not be disposed of with household
garbage.
>Disposal of the device and its accessories is subject to local
regulations. Support proper collection and recycling.
Disposal and recycling information
This symbol (with or without a solid bar) on the device, batteries (if
included), and/or the packaging, indicates that the device and its
electrical accessories (for example, a headset, adapter, or cable)
and batteries should not be disposed of as household garbage.
These items should not be disposed of as unsorted municipal waste and
should be taken to a certified collection point for recycling or proper disposal.
For more detailed information about device or battery recycling, contact your
local city office, household waste disposal service, or retail store.
Disposal of the device and batteries (if included) is subject to WEEE Directive
Recast (Directive 2012/19/EU) and Battery Directive (Directive 2006/66/
EC). The purpose of separating WEEE and batteries from other waste is to
minimize the potential environmental impacts and human health risk of any
hazardous substances that may be present.
Reduction of hazardous substances
This device is compliant with the REACH Regulation [Regulation (EC) No
1907/2006] and RoHS Directive Recast (Directive 2011/65/EU). Batteries (if
included) are compliant with the Battery Directive (Directive 2006/66/EC). For
up-to-date information about REACH and RoHS compliance, please visit the
Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved.
THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES
NOT CONSTITUTE ANY KIND OF WARRANTIES.
To better understand how we protect your personal information, please see
the privacy policy at http://consumer.huawei.com/en/privacy-policy/index.htm.
external heat source, such as a microwave oven or hair dryer.
>Do not expose your device or accessories to extreme heat or cold.
These environments may interfere with proper function and may lead to
fire or explosion.
>Avoid collision, which may lead to device malfunctions, overheating,
fire, or explosion.
>If the device is not going to be used for an extended period of time,
power it off, and remove all cables connected to it.
>If anything unusual occurs (for example, if the device emits smoke or
any unusual sound or smell), immediately stop using it, power it off,
remove all cables connected to it, and contact an authorized service
center.
>Do not trample, pull, or excessively bend any cable. Doing so may
damage the cable, causing the device to malfunction.
>Before you clean or maintain the device, stop using it, stop all
applications, and disconnect all cables connected to it.
>Do not use any chemical detergent, powder, or other chemical agents
(such as alcohol and benzene) to clean the device or accessories.
These substances may cause damage to parts or present a fire hazard.
Use a clean, soft, and dry cloth to clean the device and accessories.
>Do not place magnetic stripe cards, such as credit cards and phone
cards, near the device for extended periods of time. Otherwise the
magnetic stripe cards may be damaged.
>Do not dismantle or remanufacture the device and its accessories.
This voids the warranty and releases the manufacturer from liability for
damage. In case of damage, contact an authorized service center for
assistance or repair.
96722028_02
YOUR NAME.
Address/Postal Code.
Telephone.
Product Type.
Product Serial Number.
Purchase Date.
Invoice Number.
Dealer Name.
Dealer's Address/Telephone
Preserve well. No reissue.
Dealer's Seal:
(4) The defects are caused by any force majeure including but not limited to
fire, earthquake, lightning and tsunami.
(5) The defects are caused by the fact that the product is used or handled
improperly, roughly or not as instructed in the applicable User Guide.
(6) The normal wear and tear, including but not limited to the normal wear and
tear of the shell and the power module, shall not be covered by the limited
warranty.
(7) The warranty card is altered or illegible, or the product serial number
recorded on the warranty card is inconsistent with the actual one imprinted
or labeled on the product.
(8) The product nameplate, serial number barcode, or seal label has been
removed, erased, defaced, or is illegible.
In any case that is not covered by this limited warranty or should the warranty
expire, Huawei shall charge for the service(s) claimed for the products if the
product is still remediable.
Huawei preserves the right for interpretation of this limited warranty.
