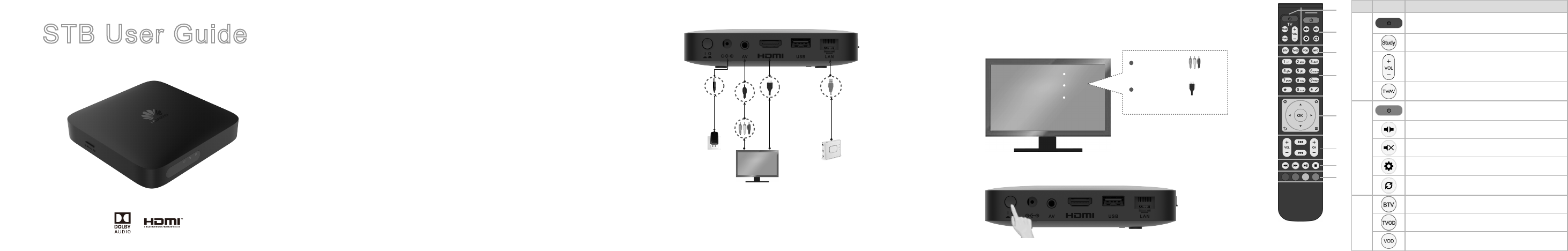

User Manual
Remote Control
1
2
3
4
5
6
7
8
3
1
2
3
DescriptionItemNo.
Switch the status of TV Set between working
and standby.
Change audio volume of TV set.
Shift video output of TV set.
Change audio tracks.
Mute/resume the audio.
Display the STB setting page.
Quickly switch to the previous channel.
Shortcut to Live TV channel list.
Shortcut to TVOD menu.
Shortcut to VOD menu.
Study the function of the TV set’s Remote
control.
Switch the status of STB between working
and standby.
Install the STB
RJ45 cable
Home gateway
Power adapter
Mini AV
cable
HDMI cable
Safety Instructions
This product should be operated only from the type of power source indicated on
the marking label.
Confirm appropriate power and cable connection before powering on the STB.
If the STB has been operating for a long time, STB temperature increases. Take
measures for heat dissipation.
Upon cleaning or long-time unused, disconnect the power cable. Do not pull on
the power cable.
When disconnecting the power cable, turn off the STB, and then grasp it by the plug.
During a lightning storm, disconnect the power cable or network cable to avoid
damage to the STB or other accidents caused by lightning strikes.
Maintenance Instructions
Shield the STB from direct sunlight and keep it away from sources of intense heat.
Install the STB in a well-ventilated position, and avoid humid and dusty places.
Use a soft cloth to clean STB surface. Never use alcohol, gasoline, or other
organic solvent.
Do not place the STB in any location that is subject to strong pressure, striking, or
vibration.
Tips on Making Repairs
Do not damage the warranty tag when removing the STB cover.
Do not allow unqualified personnel to remove the STB cover. This is to avoid
damage to the internal circuit.
If repair is required, contact the local service center.
If parts replacement is required, ensure that service technicians use the parts that
are specified by the manufacturer and have the same characteristics as the original
parts.
Precautions
Step 1 Connect Cables
Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by
copyright protection systems and the picture will be distorted on the television.
Connecting your TV directly to the Audio/Video output of your STB will assure a more vivid
picture and enhance your viewing enjoyment.
Notice:
This product incorporates copy protection technology that is protected by U.S. patents and other
Intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are
Prohibited.
Step 2 Start the STB
1. Turn on the power switch of the TV and select the correct video input mode.
2. Turn on the power switch on the rear panel of the STB.
TV
AV
HDMI
Connect the ,
choose the TV or AV.
Connect the ,
choose the HDMI.
Power switch
STB User Guide
12
FAQs
1. Black-and-white images are displayed after STB startup.
Possible Cause:
The video cable is of poor quality or is not properly connected.
Solution:
Replace and reconnect the video cable.
4. The remote control is working abnormally.
Possible Cause:
The remote control is far away from the STB.
The batteries in the remote control are low.
Solution:
Move the remote control to a workable distance.
Replace the batteries.
2. No video is displayed on the TV screen.
Possible Cause:
The video cable or network cable is not properly connected.
The STB is powered off.
The TV is in an incorrect mode.
Solution:
Verify that the video cable and network cable are properly connected.
Verify that the STB is powered on.
Verify that the TV is in the correct mode.
3. No audio is heard.
Possible Cause:
The audio cable is not properly connected.
The TV or the STB is in mute mode or the volume is extremely low.
Solution:
Verify that the audio cable is properly connected. For details, see Connect Cables.
Switch the TV and STB to the audible mode, and increase the volume.
Set Top Box (STB)
Infrared remote control
Power adapter
Mini AV cable (optional)
RJ45 cable
High Definition Multimedia Interface (HDMI) cable
Battery
User Guide
1
1
2
1
1
1
1
1
1
2
3
4
5
7
8
6
Quantity
No. Item
Items in the Packaging Box
Control Remote Study Function
Procedure
Assume that you want your STB remote control to study the function of the Power
key on your TV remote control. The procedure is as follows:
Step 1 Hold down on the TV study keypad for 3 seconds.
The indicator on your STB remote control is steady on, which indicates that the STB
has entered the study mode.
Step 2 Hold down (red) on the TV study keypad for 1 second.
The indicator on your STB remote control blinks, which indicates that your STB
remote control is ready for receiving a signal.
Precautions
If no signal is received within 10 seconds after your STB remote control enters
the study mode, the study mode exits automatically.
The keys on the TV study keypad can be used for studying the functions of keys
on your TV remote controls of various brands. Only key functions that are last
studied are saved.
If you have trouble using your STB remote control to control your TV after
performing steps 1 to 4, verify that your STB remote control is working properly.
Step 3 Aim the emission port of your TV remote control at the emission port of
your STB remote control (the distance between the two ports must be less than 3
cm), and hold down the Power key on your TV remote control for 3 seconds to send
a signal.
If the indicator on your STB remote control quickly blinks three times and then is
steady on, your STB remote control has received the signal and the study of the
Power key function is complete. Release the Power key on your TV remote control.
If the indicator on your STB remote control does not respond in the preceding
way, your STB remote control has failed to receive the signal.
Repeat steps 2 and 3.
You can repeat steps 2 and 3 to enable your STB remote control to
study the functions of the and keys on your TV remote control.
Step 4
Press to save the settings and to exit the study mode.
After that, you can control your TV by using the (red) key on the TV study
keypad.
4 5
3
4
DescriptionItemNo.
Numerals 0 to 9 and associated letters.
Enter a number sign (#).
Switch between input methods.
5
6
Shortcut to homepage.
Return to previous menu.
Move the cursor upward, downward, leftward
or rightward in EPG.
Confirm an operation.
Reserved key (defined by EPG).
Enter an asterisk (*).
Display information of current program.
Show more options menu.
Change audio volume of STB.
6
7
DescriptionItemNo.
Pause or resume program playback.
Adjust program playback progress.
8
Stop program playback.
Reserved Key (Defined by EPG).
Safety Information & Legal Notice
1
9
During playback: Change to the next or
previous channel.
Out of playback: Turn to the next or previous
page.
Seek forward by an interval while watching a
VOD/TSTV program.
Seek backward by an interval while watching a
VOD/TSTV program.
Fast rewind a VOD or TSTV program.
Fast forward a VOD or TSTV program.
