SAR Test Setup Photos
TA Technology (Shanghai) Co., Ltd.
Test Report
Report No. RZA1203-0459SAR01R1 Page 93 of 97
ANNEX H: The EUT Appearances and Test Configuration

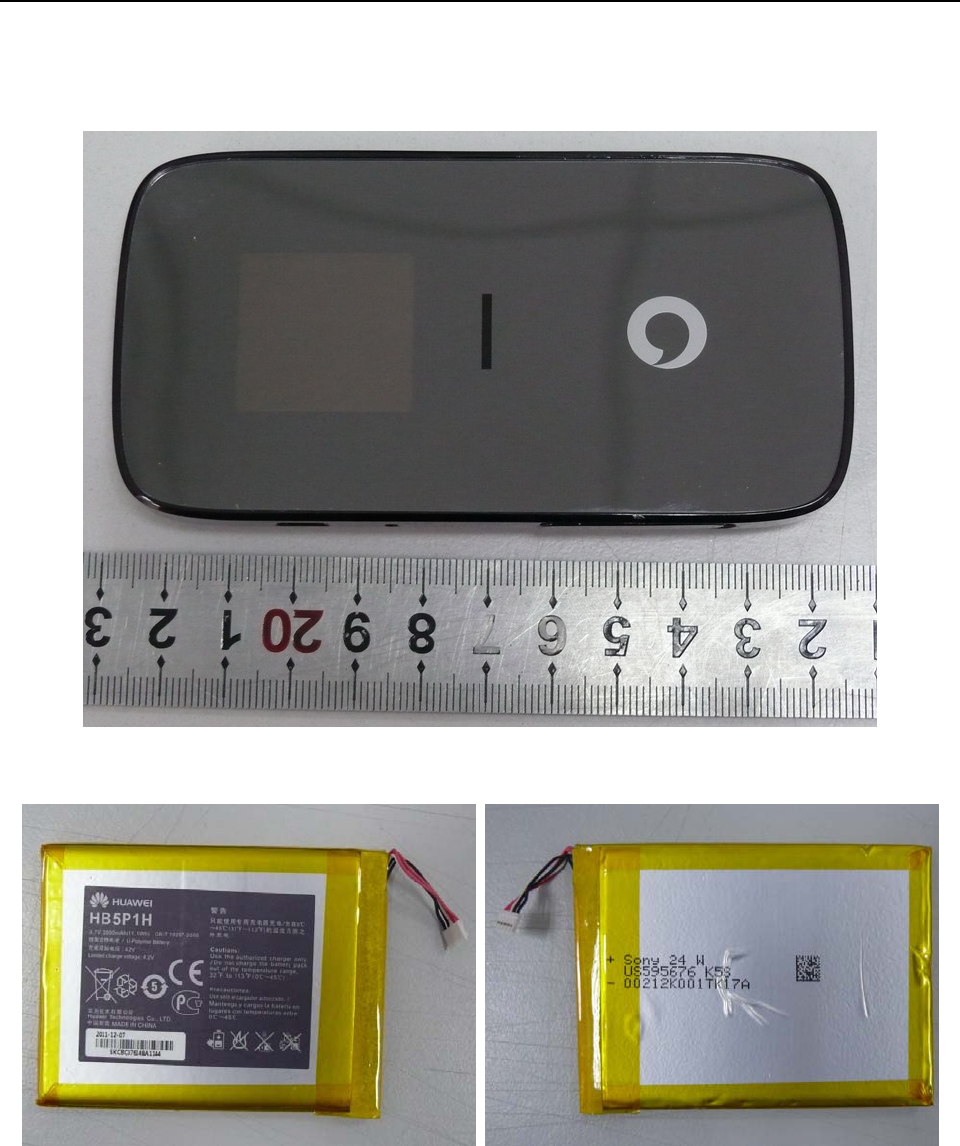

a: EUT
b: Battery
TA Technology (Shanghai) Co., Ltd.
Test Report
Report No. RZA1203-0459SAR01R1 Page 94 of 97

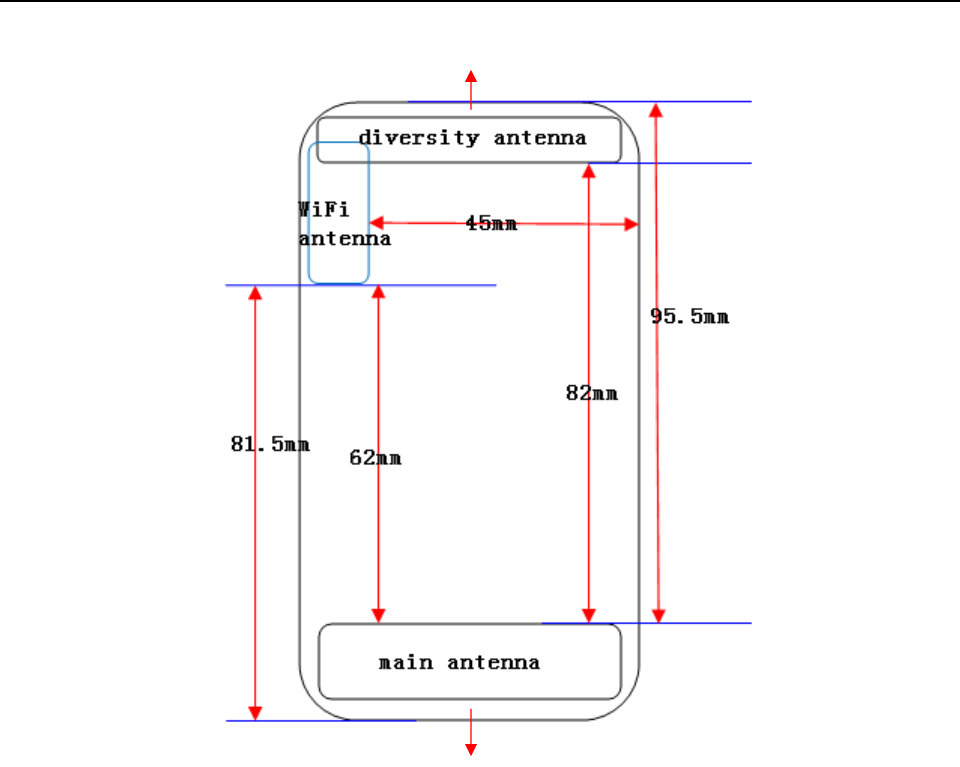

c: Antenna Schemes
Picture 4: Constituents of the EUT
Top Edge
Bottom Edge
TA Technology (Shanghai) Co., Ltd.
Test Report
Report No. RZA1203-0459SAR01R1 Page 95 of 97

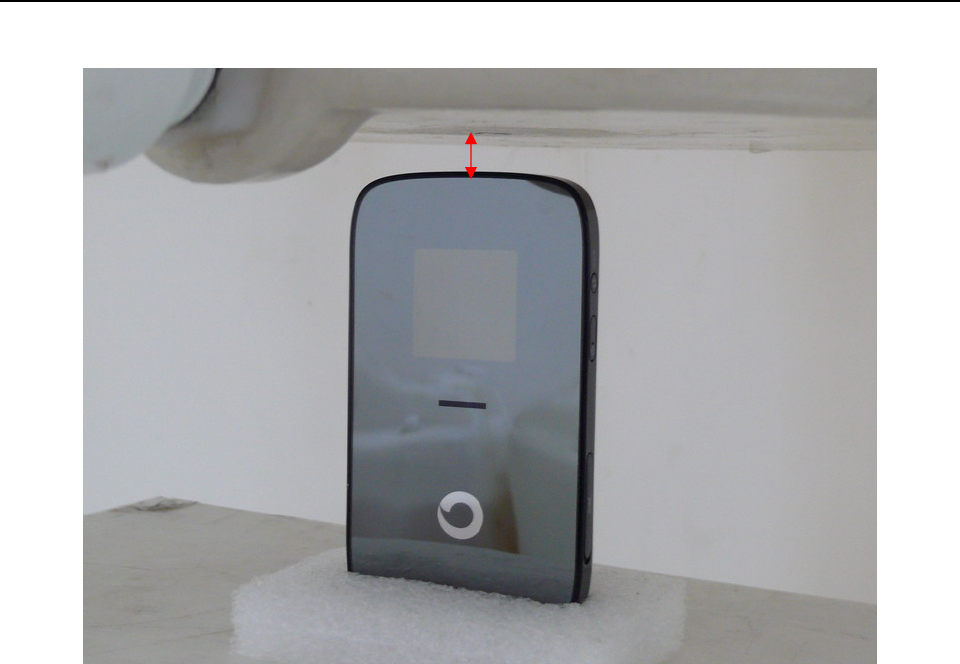

Picture 5: Test position 1

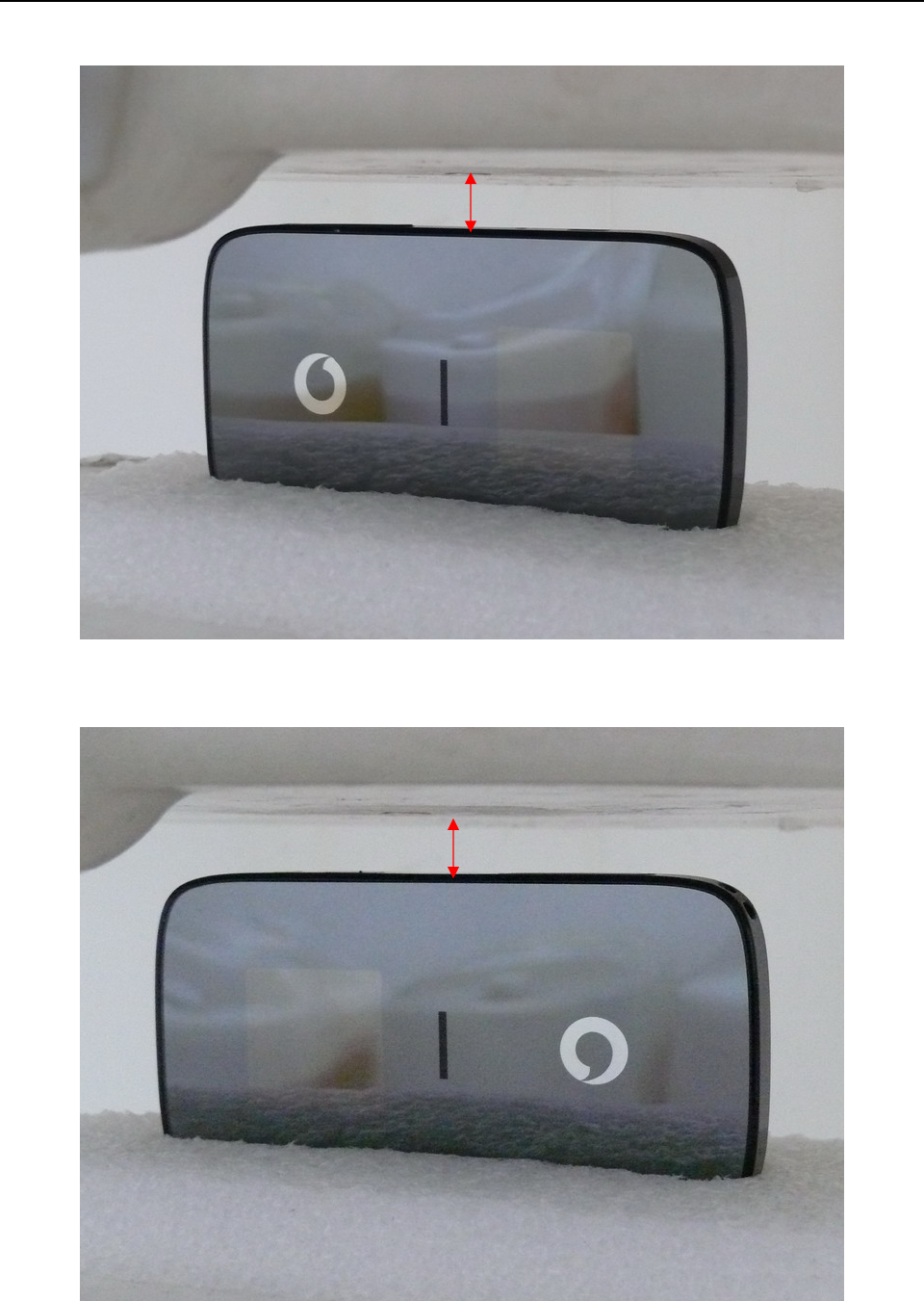

Picture 6: Test position 2
10mm
10mm
TA Technology (Shanghai) Co., Ltd.
Test Report
Report No. RZA1203-0459SAR01R1 Page 96 of 97

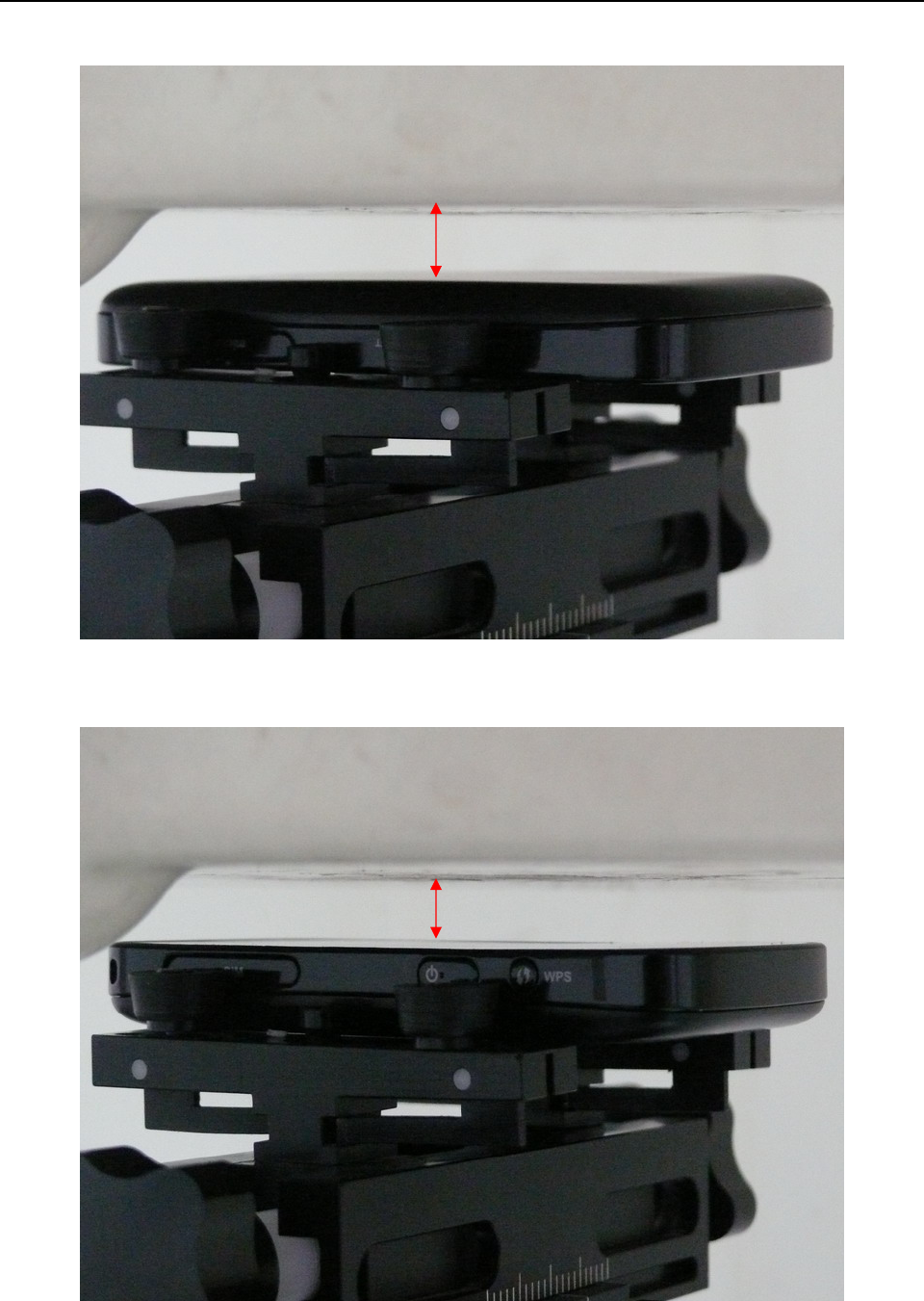

Picture 7: Test position 3
Picture 8: Test Position 4
10mm
10mm
TA Technology (Shanghai) Co., Ltd.
Test Report
Report No. RZA1203-0459SAR01R1 Page 97 of 97
Picture 9: Test Position 5
1
0
mm
