Huawei Technologies RIO-L01 Smart Phone User Manual

Huawei Technologies Co.,Ltd Smart Phone

User Manual

Quick Start Guide
RIO-L01
For more information
Read the Quick Start Guide included with your device.
Go to http://consumer.huawei.com/en/ to download the user guide
for your device (including safety information) and read the FAQ,
privacy policy, and other information.
Go to
Settings
>
About phone
>
Legal information
to read the
legal information.
Please visit http://consumer.huawei.com/en/support/hotline/ for the
most up-to-date contact information for your country or region.
All pictures and illustrations in this guide, including but not
limited to the phone color, size, and display content, are for your
reference only. The actual product may vary. Nothing in this
guide constitutes a warranty of any kind, express or implied.
Your phone at a glance
Before you start, let's take a look at your new phone.
Press and hold the power button to turn your phone on or off.
To forcibly restart your phone, press and hold the power button
until your phone vibrates.
Light sensor
Headset jack
Power button
Volume button
Micro USB port
Front camera
Earpiece
Status indicator
Microphone
Home
Return
Recent
Speaker
Getting started
Follow the instructions in the following figures to set up your phone.
Do not insert or remove a SIM card while your phone is on.
Please exercise caution when using the SIM ejector pin to avoid
hurting your fingers or damaging your phone. Store your pin in
a safe place out of the reach of children to prevent them from
swallowing it or injuring themselves by accident.
Caution
Insert the SIM card into the correct card slot to ensure that it can
be recognized by the phone.
1
3dual card single card
or
2
slot1 slot2
4

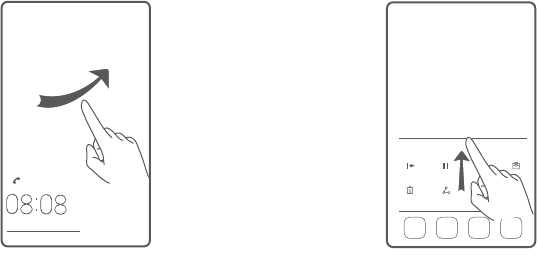

Locking and unlocking the screen
Press the power button to lock
the screen. If your phone is idle for
a specified period of time, the
screen will automatically lock
itself.
If the screen is off, press the
power button to turn it on. Slide
your finger in any direction to
unlock the screen.
Swipe up from the bottom of the
screen to open the control panel
for magazine unlock. You can also
quickly launch commonly used
applications without unlocking
the screen.

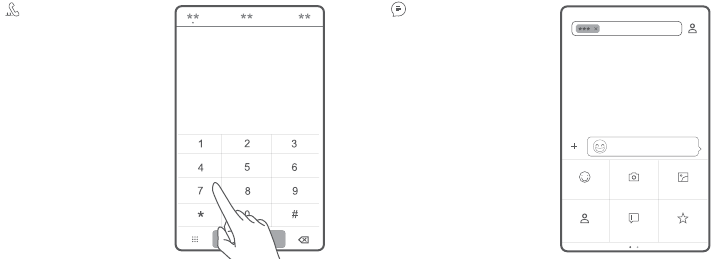

Calling and messaging
Touch to make a call using
the dialer. You can also touch a
phone number in your contacts,
or a number in a message, email,
web page, or other source to
place a call.
Touch to send a text or
multimedia message. You can
save photos, audio clips, videos,
and other attachments from
received multimedia messages.

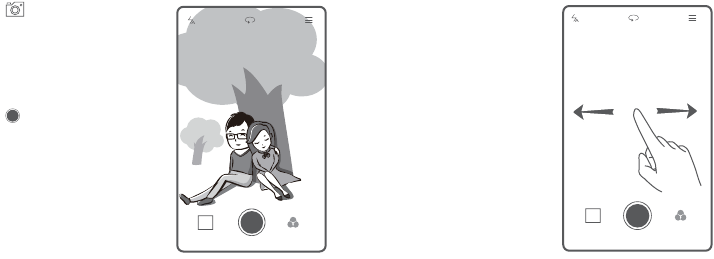

Camera
Touch .
Frame the scene you want to
capture. Let your camera focus
automatically or touch the screen
to focus on a specific object. Then
touch to take a photo.
Swipe left or right to switch
between different capture modes.
Light painting mode uses long
exposure times to capture
illuminated objects in a dark
background. Time-lapse mode
lets you record the slow
transformation of objects or
scenes, such as a blooming flower
or the setting sun.
Internet connection
You can access the Internet over
Wi-Fi or a mobile data network.
Swipe down from the status bar
to open the notification panel.
Touch to turn on mobile data.
Touch and hold to go to the
Wi-Fi settings screen. Turn on Wi-
Fi and connect to a Wi-Fi network.
Turn off mobile data when
you don't need it to reduce
your mobile data usage.
Backing up data
Touch .
Touch to open the settings
menu. You can set how often you
want to back up your data by
following the onscreen
instructions.
Touch and select the data
that you want to back up, such as
your contacts, messages, and
photos. Then follow the onscreen
instructions to complete the
backup.
Phone manager
Touch .
You can quickly scan your phone
for potential risks with one touch.
Follow the onscreen instructions
to use one-touch optimization, or
manually clean the system storage
and manage your applications.
Touch the options on the screen
to clean your system trash, set the
harassment filter, activate power
saving mode, manage your
applications' notification
permissions, and more.
Screen off gestures
Touch and then . Turn on
screen off gestures.
When the screen is off, you can
turn it on or open an app using a
predefined gesture.
One-hand layout
Swipe the navigation bar to the
left or right to adjust the screen
display area so that you can use
the phone with one hand.
When in the dialer, contacts,
messages, or email app, swipe
down on the screen to access the
content on the top of the screen
with one hand.
Safety information
This section contains important information about the operation of
your device. It also contains information about how to use the device
safely. Read this information carefully before using your device.
Electronic device
Do not use your device if using the device is prohibited. Do not use
the device if doing so causes danger or interference with other
electronic devices.
Interference with medical equipment
Follow rules and regulations set forth by hospitals and health care
facilities. Do not use your device where prohibited.
Some wireless devices may affect the performance of hearing aids
or pacemakers. Consult your service provider for more information.
Pacemaker manufacturers recommend that a minimum distance of
15 cm be maintained between a device and a pacemaker to
prevent potential interference with the pacemaker. If using a
pacemaker, hold the device on the side opposite the pacemaker
and do not carry the device in your front pocket.
Protecting your hearing when using a headset
To prevent possible hearing damage, do not listen at
high volume levels for long periods.
Using a headset at high volumes may damage your hearing. To
reduce this risk, lower the headset volume to a safe and
comfortable level.
Exposure to high volumes while driving may cause distraction and
increase your risk of an accident.
Areas with flammables and explosives
Do not use the device where flammables or explosives are stored
(in a gas station, oil depot, or chemical plant, for example). Using
your device in these environments increases the risk of explosion or
fire. In addition, follow the instructions indicated in text or symbols.
Do not store or transport the device in containers with flammable
liquids, gases, or explosives.
Traffic security
Observe local laws and regulations while using the device. To
reduce the risk of accidents, do not use your wireless device while
driving.
Concentrate on driving. Your first responsibility is to drive safely.
Do not hold the device while driving. Use hands-free accessories.
When you must make or answer a call, pull off the road safely and
park the vehicle first.
RF signals may affect the electronic systems of motor vehicles. For
more information, consult the vehicle manufacturer.
Do not place the device over the air bag or in the air bag
deployment area in a motor vehicle. Doing so may hurt you
because of the strong force when the air bag inflates.
Wireless devices may interfere with the airplane's flight system. Do
not use your device where wireless devices are not allowed
according to the airplane company's regulations.
Operating environment
Avoid dusty, damp, or dirty environments. Avoid magnetic fields.
Using the device in these environments may result in circuit
malfunctions.
Do not use your device during thunderstorms to protect your
device against any danger caused by lightning.
Ideal operating temperatures are 0 °C to 35 °C. Ideal storage
temperatures are -20 °C to 45°C. Extreme heat or cold may
damage your device or accessories.
Do not expose your device to direct sunlight (such as on a car
dashboard) for prolonged periods.
To protect your device or accessories from fire or electrical shock
hazards, avoid rain and moisture.
Keep the device away from sources of heat and fire, such as a
heater, microwave oven, stove, water heater, radiator, or candle.
Do not place sharp metal objects, such as pins, near the earpiece or
speaker. The earpiece may attract these objects and result in injury.
Stop using your device or applications for a while if the device is
overheated. If skin is exposed to an overheated device for an
extended period, low temperature burn symptoms, such as red
spots and darker pigmentation, may occur.
Do not use your device's camera flash directly in the eyes of people
or pets. Otherwise temporary loss of vision or damage to the eyes
may occur.
Do not touch the device's antenna. Otherwise, communication
quality may be reduced.
Do not allow children or pets to bite or suck the device or
accessories. Doing so may result in damage or explosion.
Observe local laws and regulations, and respect the privacy and
legal rights of others.
Child's safety
Comply with all precautions with regard to child's safety. Letting
children play with the device or its accessories may be dangerous.
The device includes detachable parts that may present a choking
hazard. Keep away from children.
The device and its accessories are not intended for use by children.
Children should only use the device with adult supervision.
Accessories
Using an unapproved or incompatible power adapter, charger or
battery may cause fire, explosion or other hazards.
Choose only accessories approved for use with this model by the
device manufacturer. The use of any other types of accessories may
void the warranty, may violate local regulations and laws, and may
be dangerous. Please contact your retailer for information about
the availability of approved accessories in your area.
Charger safety
For pluggable devices, the socket-outlet shall be installed near the
devices and shall be easily accessible.
Unplug the charger from electrical outlets and the device when not
in use.
Do not drop or cause an impact to the charger.
If the power cable is damaged (for example, the cord is exposed or
broken), or the plug loosens, stop using it at once. Continued use
may lead to electric shocks, short circuits, or fire.
Do not touch the power cord with wet hands or pull the power
cord to disconnect the charger.
Do not touch the device or the charger with wet hands. Doing so
may lead to short circuits, malfunctions, or electric shocks.
If your charger has been exposed to water, other liquids, or
excessive moisture, take it to an authorized service center for
inspection.
Ensure that the charger meets the requirements of Clause 2.5 in
IEC60950-1/EN60950-1/UL60950-1 and has been tested and
approved according to national or local standards.
Connect the device only to products with the USB-IF logo or with
USB-IF compliance program completion.
Battery safety
Do not connect battery poles with conductors, such as keys,
jewelry, or other metal materials. Doing so may short-circuit the
battery and cause injuries or burns.
Keep the battery away from excessive heat and direct sunlight. Do
not place it on or in heating devices, such as microwave ovens,
stoves, or radiators. Batteries may explode if overheated.
Do not attempt to modify or remanufacture the battery, insert
foreign objects into it, or immerse or expose it to water or other
liquids. Doing so may lead to fire, explosion, or other hazards.
If the battery leaks, ensure that the electrolyte does not make
direct contact with your skins or eyes. If the electrolyte touches
your skins or splashes into your eyes, immediately flush with clean
water and consult a doctor.
In case of battery deformation, color change, or overheating while
charging or storing, immediately stop using the device and remove
the battery. Continued use may lead to battery leakage, fire, or
explosion.
Do not put batteries in fire as they may explode. Damaged batteries
may also explode.
Dispose of used batteries in accordance with local regulations.
Improper battery use may lead to fire, explosion, or other hazards.
Do not allow children or pets to bite or suck the battery. Doing so
may result in damage or explosion.
Do not smash or pierce the battery, or expose it to high external
pressure. Doing so may lead to a short circuit or overheating.
Do not drop the device or battery. If the device or battery is
dropped, especially on a hard surface, it may be damaged.
If the device standby time shortens significantly, replace the
battery.
The device has a built-in, non-removable battery. Do not attempt
to remove the battery, otherwise the device may be damaged. To
replace the battery, take the device to an authorized service center.
Cleaning and maintenance
Keep the device and accessories dry. Do not attempt to dry it with
an external heat source, such as a microwave oven or hair dryer.
Do not expose your device or accessories to extreme heat or cold.
These environments may interfere with proper function and may
lead to fire or explosion.
Avoid collision, which may lead to device malfunctions,
overheating, fire, or explosion.
Before you clean or maintain the device, stop using it, stop all
applications, and disconnect all cables connected to it.
Do not use any chemical detergent, powder, or other chemical
agents (such as alcohol and benzene) to clean the device or
accessories. These substances may cause damage to parts or
present a fire hazard. Use a clean, soft, and dry cloth to clean the
device and accessories.
Do not place magnetic stripe cards, such as credit cards and phone
cards, near the device for extended periods of time. Otherwise the
magnetic stripe cards may be damaged.
Do not dismantle or remanufacture the device and its accessories.
This voids the warranty and releases the manufacturer from liability
for damage. In case of damage, contact an authorized service
center for assistance or repair.
If the device screen is broken in a collision, immediately stop using
the device. Do not touch or attempt to remove the broken parts.
Promptly contact an authorized service center.
Emergency calls
The availability of emergency calls is subject to your cellular network
quality, service provider policy, and local laws and regulations. Never
rely solely on your device for critical communications like medical
emergencies.
Disposal and recycling information
This symbol (with or without a solid bar) on the device,
batteries (if included), and/or the packaging, indicates
that the device and its electrical accessories (for
example, a headset, adapter, or cable) and batteries
should not be disposed of as household garbage.
These items should not be disposed of as unsorted
municipal waste and should be taken to a certified collection point for
recycling or proper disposal.
For more detailed information about device or battery recycling,
contact your local city office, household waste disposal service, or
retail store.
Disposal of the device and batteries (if included) is subject to WEEE
Directive Recast (Directive 2012/19/EU) and Battery Directive
(Directive 2006/66/EC). The purpose of separating WEEE and
batteries from other waste is to minimize the potential environmental
impacts and human health risk of any hazardous substances that may
be present.
Reduction of hazardous substances
This device is compliant with the REACH Regulation [Regulation (EC)
No 1907/2006] and RoHS Directive Recast (Directive 2011/65/EU).
Batteries (if included) are compliant with the Battery Directive
(Directive 2006/66/EC). For up-to-date information about REACH and
RoHS compliance, please visit the web site
http://consumer.huawei.com/certification.
EU regulatory conformance
Body worn operation
The device complies with RF specifications when used at a distance of
1.5 cm from your body. Ensure that the device accessories, such as a
device case and device holster, are not composed of metal
components. Keep the device away from your body to meet the
distance requirement.
Certification information (SAR)
This device meets guidelines for exposure to radio waves.
Your device is a low-power radio transmitter and receiver. As
recommended by international guidelines, the device is designed not
to exceed the limits for exposure to radio waves. These guidelines
were developed by the International Commission on Non-Ionizing
Radiation Protection (ICNIRP), an independent scientific organization,
and include safety measures designed to ensure the safety of all
users, regardless of age and health.
The Specific Absorption Rate (SAR) is the unit of measurement for the
amount of radio frequency energy absorbed by the body when using
a device. The SAR value is determined at the highest certified power
level in laboratory conditions, but the actual SAR level during
operation can be well below the value. This is because the device is
designed to use the minimum power required to reach the network.
The SAR limit adopted by Europe is 2.0 W/kg averaged over 10 grams
of tissue, and the highest SAR value for this device complies with this
limit.
The highest SAR value reported for this device type when tested at
the ear is 1.44 W/kg, and when properly worn on the body is
0.56 W/kg.
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this device is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
For the declaration of conformity, visit the web site
http://
consumer.huawei.com/certification
.
The following marking is included in the product:
This device may be operated in all member states of the EU.
Observe national and local regulations where the device is used.
This device may be restricted for use, depending on the local
network.
Restrictions in the 2.4 GHz band:
Norway
: This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund.
FCC Regulatory Compliance
Body worn operation
The device complies with RF specifications when used near your ear
or at a distance of 1.5 cm from your body. Ensure that the device
accessories, such as a device case and device holster, are not
composed of metal components. Keep the device away from your
body to meet the distance requirement.
Certification information (SAR)
This device is also designed to meet the requirements for exposure to
radio waves established by the Federal Communications Commission
(USA).
The SAR limit adopted by the USA is 1.6 W/kg averaged over one
gram of tissue. The highest SAR value reported to the FCC for this
device type complies with this limit.
The highest SAR value reported to the FCC for this device type when
using at the ear is 1.18 W/kg, and when properly worn on the body
is 0.87 W/kg, and when using the Wi-Fi hotspot function is
1.32 W/Kg.
FCC statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution:
Any changes or modifications to this device not expressly
approved by Huawei Technologies Co., Ltd. for compliance could
void the user's authority to operate the equipment.
Personal Information and Data Security
The use of some functions or third-party applications on your device
could result in your personal information and data being lost or
becoming accessible to others. Several measures are recommended
to help you protect personal and confidential information.
Place your device in a safe area to prevent it from unauthorized
use.
Set your device screen to lock and create a password or unlock
pattern to open it.
Periodically back up personal information kept on your SIM/UIM
card, memory card, or stored in your device memory. If you change
to a different device, be sure to move or delete any personal
information on your old device.
If you are worried about viruses when you receive messages or
emails from a stranger, you can delete them without opening
them.
If you use your device to browse the Internet, avoid websites that
might pose a security risk to avoid theft of your personal
information.
If you use services such as Wi-Fi tether or Bluetooth, set passwords
for these services to prevent unauthorized access. When these
services are not in use, turn them off.
Install or upgrade device security software and regularly scan for
viruses.
Be sure to obtain third-party applications from a legitimate source.
Downloaded third-party applications should be scanned for
viruses.
Install security software or patches released by Huawei or third-
party application providers.
Some applications require and transmit location information. As a
result, a third-party may be able to share your location information.
Your device may provide detection and diagnostic information to
third-party application providers. Third party vendors use this
information to improve their products and services.
If you have concerns about the security of your personal
information and data, please contact mobile@huawei.com.
Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2015. All
rights reserved.
No part of this manual may be reproduced or transmitted in any form
or by any means without prior written consent of Huawei
Technologies Co., Ltd. and its affiliates ("Huawei").
The product described in this manual may include copyrighted
software of Huawei and possible licensors. Customers shall not in any
manner reproduce, distribute, modify, decompile, disassemble,
decrypt, extract, reverse engineer, lease, assign, or sublicense the said
software, unless such restrictions are prohibited by applicable laws or
such actions are approved by respective copyright holders.
Trademarks and Permissions
, , and are trademarks or registered
trademarks of Huawei Technologies Co., Ltd.
Android™ is a trademark of Google Inc.
LTE is a trade mark of ETSI.
The
Bluetooth
®
word mark and logos are registered trademarks
owned by
Bluetooth SIG, Inc.
and any use of such marks by Huawei
Technologies Co., Ltd. is under license.
Other trademarks, product, service and company names mentioned
may be the property of their respective owners.
Notice
Some features of the product and its accessories described herein rely
on the software installed, capacities and settings of local network,
and therefore may not be activated or may be limited by local
network operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its
accessories which you purchase.
Huawei reserves the right to change or modify any information or
specifications contained in this manual without prior notice and
without any liability.
Third-Party Software Statement
Huawei does not own the intellectual property of the third-party
software and applications that are delivered with this product.
Therefore, Huawei will not provide any warranty of any kind for third
party software and applications. Neither will Huawei provide support
to customers who use third-party software and applications, nor be
responsible or liable for the functions or performance of third-party
software and applications.
Third-party software and applications services may be interrupted or
terminated at any time, and Huawei does not guarantee the
availability of any content or service. Third-party service providers
provide content and services through network or transmission tools
outside of the control of Huawei. To the greatest extent permitted by
applicable law, it is explicitly stated that Huawei shall not compensate
or be liable for services provided by third-party service providers, or
the interruption or termination of third-party contents or services.
Huawei shall not be responsible for the legality, quality, or any other
aspects of any software installed on this product, or for any
uploaded or downloaded third-party works in any form, including
but not limited to texts, images, videos, or software etc. Customers
shall bear the risk for any and all effects, including incompatibility
between the software and this product, which result from installing
software or uploading or downloading the third-party works.
This product is based on the open-source Android™ platform.
Huawei has made necessary changes to the platform. Therefore, this
product may not support all the functions that are supported by the
standard Android platform or may be incompatible with third-party
software. Huawei does not provide any warranty or representation
in connect with any such compatibility and expressly excludes all
liability in connection with such matters.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT
AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO
THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN
NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS
OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR
ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES
ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO
LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW
PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE
USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE
LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE
PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and
regulations and be responsible to obtain all necessary governmental
permits and licenses in order to export, re-export or import the
product mentioned in this manual including the software and
technical data therein.
Privacy Policy
To better understand how we protect your personal information,
please see the privacy policy at http://consumer.huawei.com/
privacy-policy.
31010UWR_01
Model: HUAWEI RIO-L01 This document is printed with soy ink.
Huawei is a responsible partner in the
stewardship of our planet and cares about
your well-being.
The N-Mark is a trademark or registered
trademark of NFC Forum, Inc. in the
United States and in other countries.

Navigation menu
