1 Product Positioning

eRelay is a wireless transport networking solution, used on the higher band of TDD

spectrum (<6GHz). As a network element (NE) in the eRelay system, eRelay remote

node(RRN) works together with eRelay BS to perform wireless backhaul.

1.1 Positioning

With the expansion of mobile broadband users (MBB), network capacity is insufficient

in some outdoor hot spot areas, affecting user experience. Operators use compact

devices such as AP, Micro, and Pico eNodeBs to cover hot spots. In the preceding

scenarios, if access devices for fixed networks, such as optical fibers, are used for

backhaul, deployment costs are high and fixed network resources are difficult to obtain.

Therefore, wireless backhaul is required to solve the problem.

As a wireless backhaul solution, eRelay adopts TDD technologies and provides high

throughput with short delay. Compared with backhaul in fixed networks, deployment

costs for eRelay are low and frequency resources are accessible. Compared with micro

waves, eRelay has advantages in transmission in non line of sight (NLOS) scenarios.

In the eRelay solution, the eRelay RRN provides wireless backhaul channels for

Served Equipments such as Macro, Micro, Pico, video surveillance, AP and fixed

network equipment. RRN access eRelay BS through air interfaces.

RRN3301 is one of the Huawei eRelay module.

Figure 1-1 shows an eRelay RRN3301.

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

Figure 1-1 eRelay RRN3301

1.2 Benefits

Larger Capacity and Throughput with Flexible Transmit Power

 A single eRelay RRN3301 can be connected to a maximum of two Served

Equipments.

 A single eRelay RRN3301 supports the maximum uplink and downlink rate of 28

Mbit/s and 80Mbit/s, respectively.

Optimized Transmission Mode with Low Costs

 eRelay RRN3301 support layer 2 switching.

Flexible Installation for Fast Network Deployment with Low CAPEX

 The eRelay RRN3301 has a highly integrated structure with a small size and light

weight, facilitating installation and maintenance and reducing the capital

expenditure (CAPEX).

 eRelay RRN3301 can be mounted onto a pole, and equipment rooms are not

required. eRelay RRN3301 can be flexibly installed on different places and

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

require small space. Therefore, sites are easily obtained, network deployment

flexibility is enhanced, and site lease costs are reduced.

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

2 Product Architecture

2.1 Overview

An eRelay RRN3301 consists of a modem, and panel antenna. Figure 2-1 shows the

eRelay RRN3301 architecture.

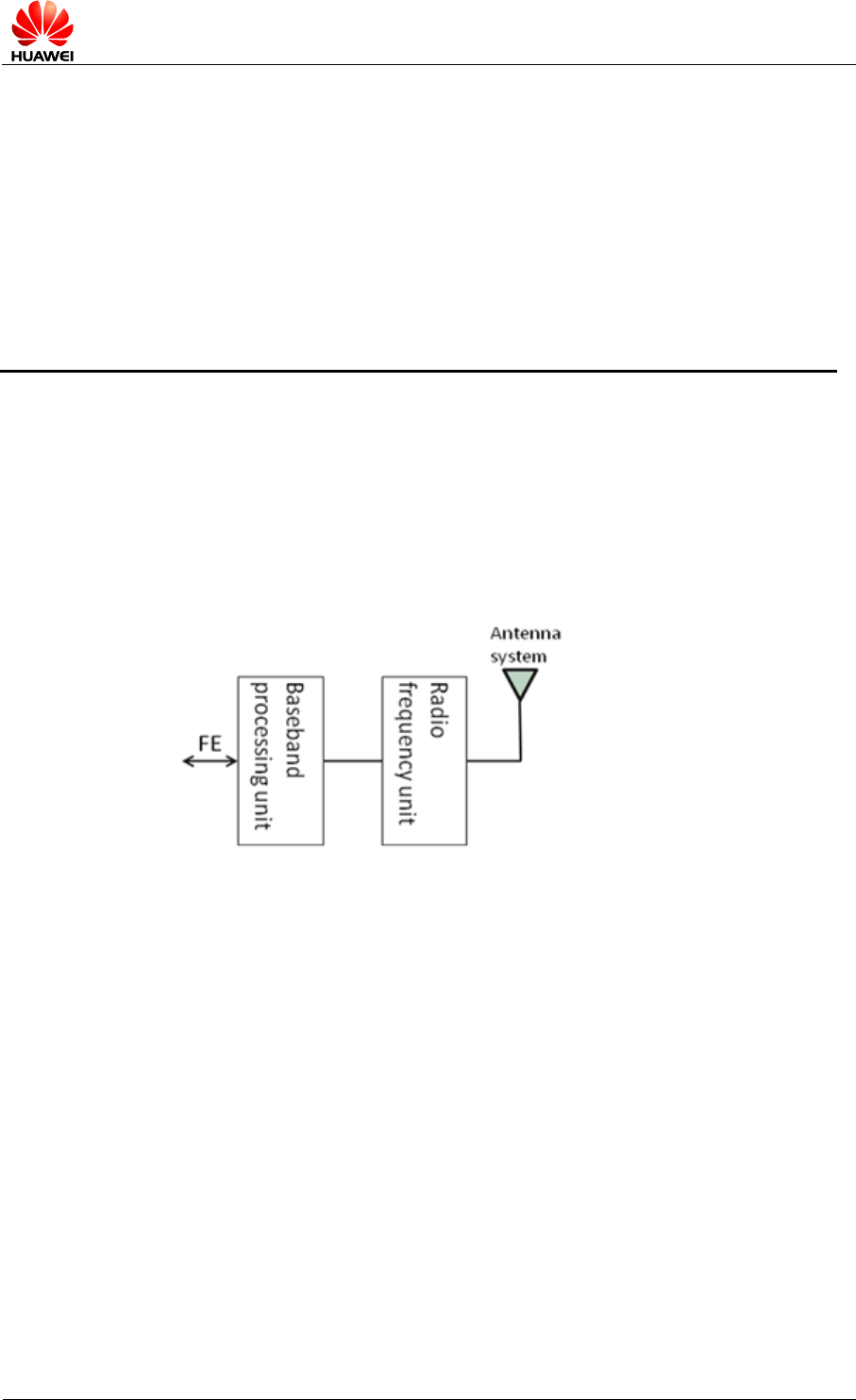

Figure 2-1 eRelay RRN3301 architecture

Modules in eRelay RRN3301 have following functions:

 The modem enables the connection between the RRN and eRelay BS over air

interfaces.

 The panel antenna provides directional transmission and receipt of LTE signals

with high gains. The specifications are as follows:

Gain: 17±1 dBi for 3.5G.

Horizontal 3dB beamwidth: 40°

Vertical3 dB beamwidth: 20°

2.2 Exterior

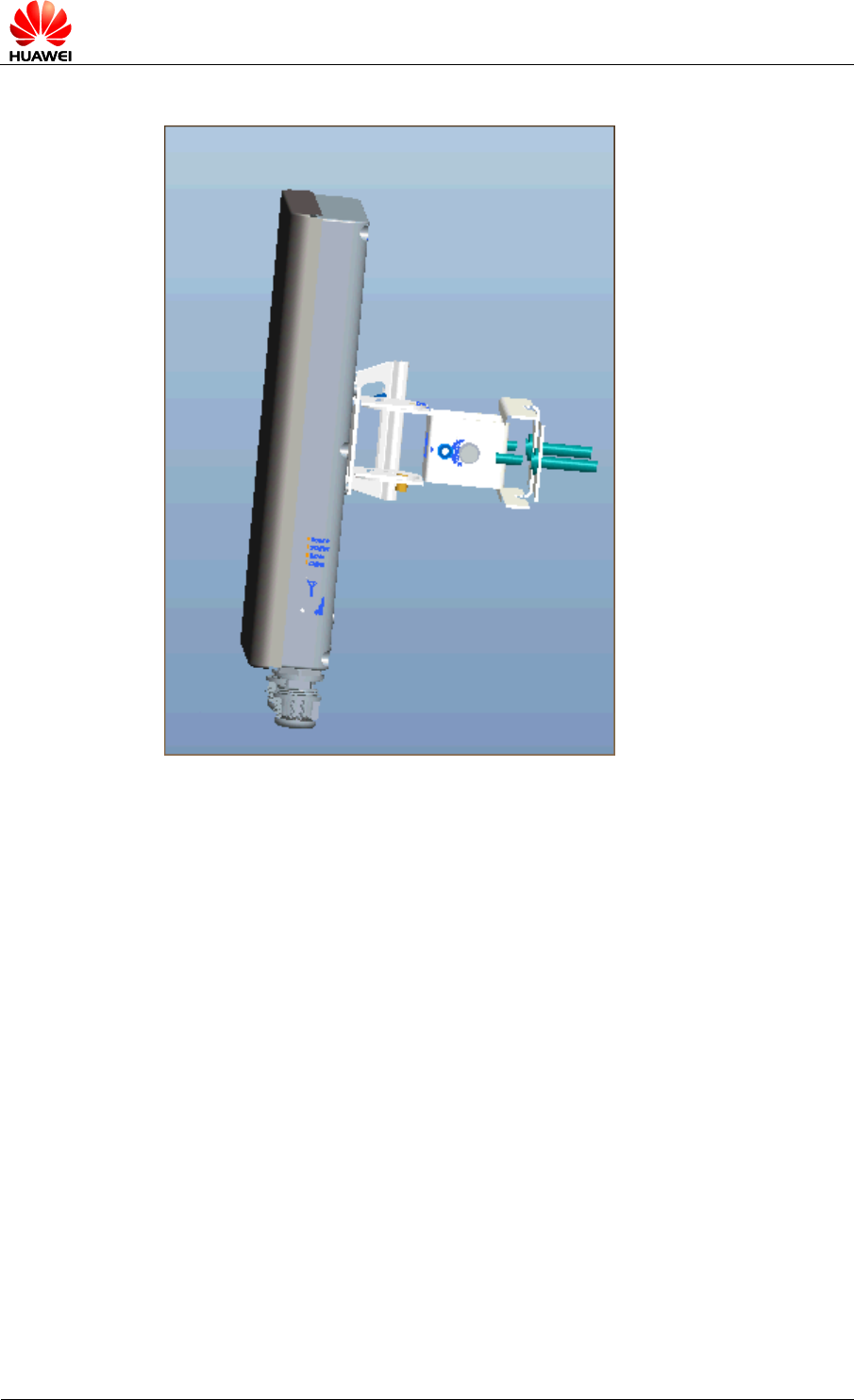

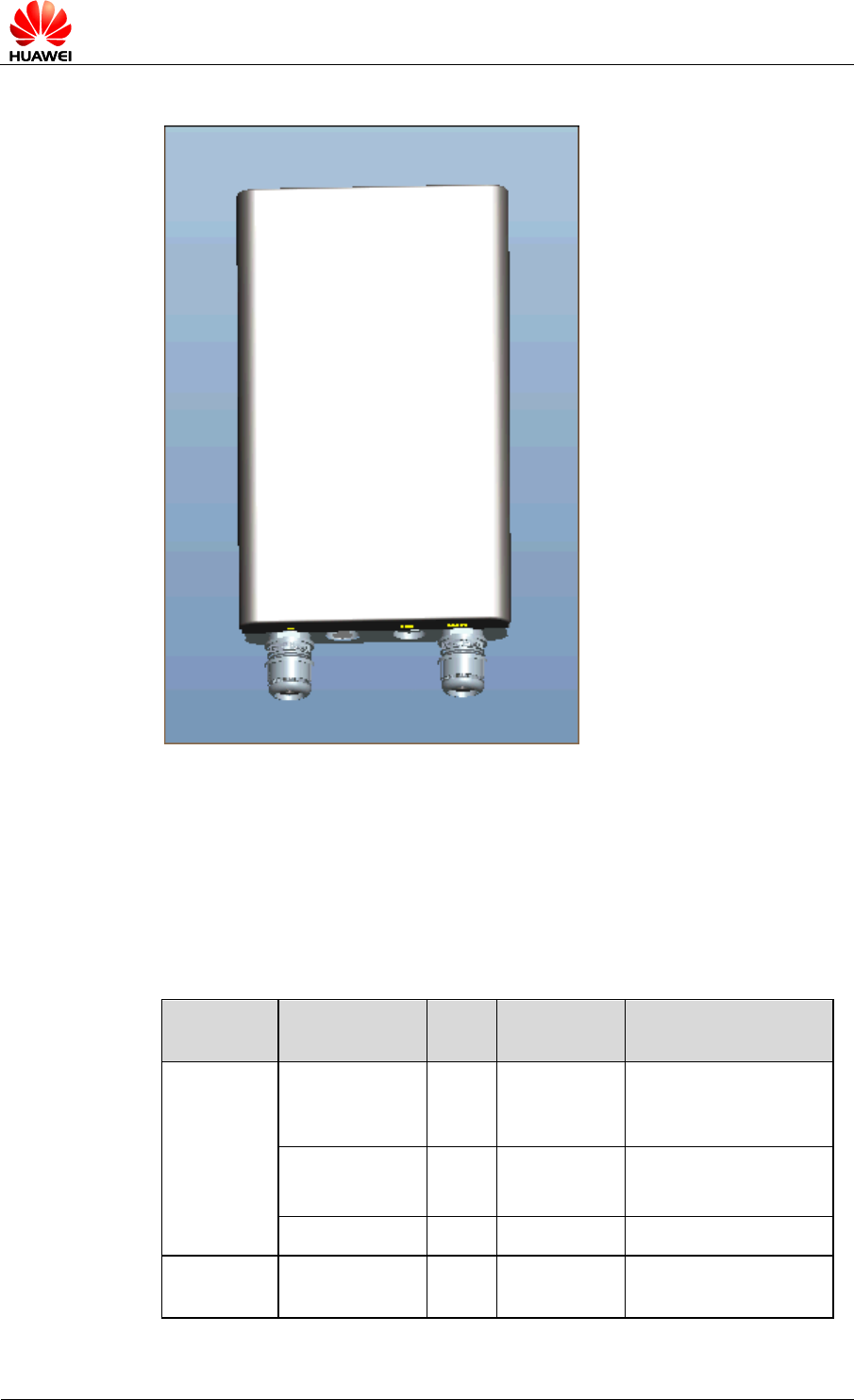

Figure 2-2 shows the eRelay RRN3301 exterior.

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

Figure 2-2 eRelay RRN3301 exterior

2.3 Ports

The eRelay RRN3301 provides ports on its bottom panel and indicator panel, as

described in Table 2-1.

Table 2-1 Ports on the eRelay RRN3301

Module

Port

Num

ber

Connector

Description

Bottom

panel

PoE/FE0

RJ45

Power over Ethernet

(PoE) or service

Ethernet port 1

DBG

USB

Combined virtual

commissioning serial

and Ethernet port

FE1

RJ45

Service Ethernet port 2

Indicator

panel

PWR, FE1, FE2, RUN,

and SIG indicators

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

3 Application Scenarios

Working together with auxiliary devices, eRelay RRN3301 can be installed indoors

and outdoors based on operator requirements.

An eRelay RRN3301 can be mounted onto a pole or on the wall, as shown in Figure

3-1 and Figure 3-2.

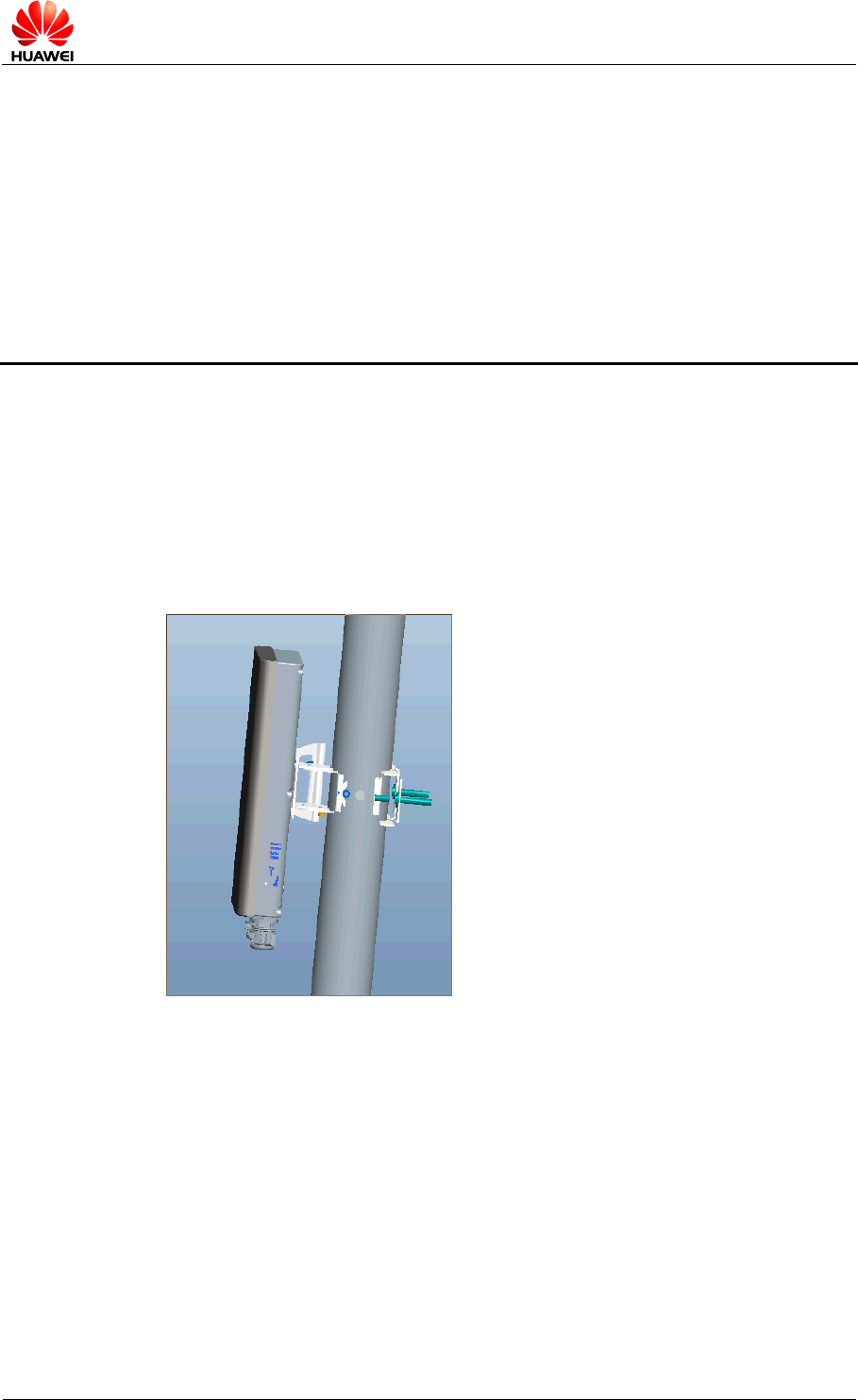

Figure 3-1 eRelay RRN3301 mounted onto the pole

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

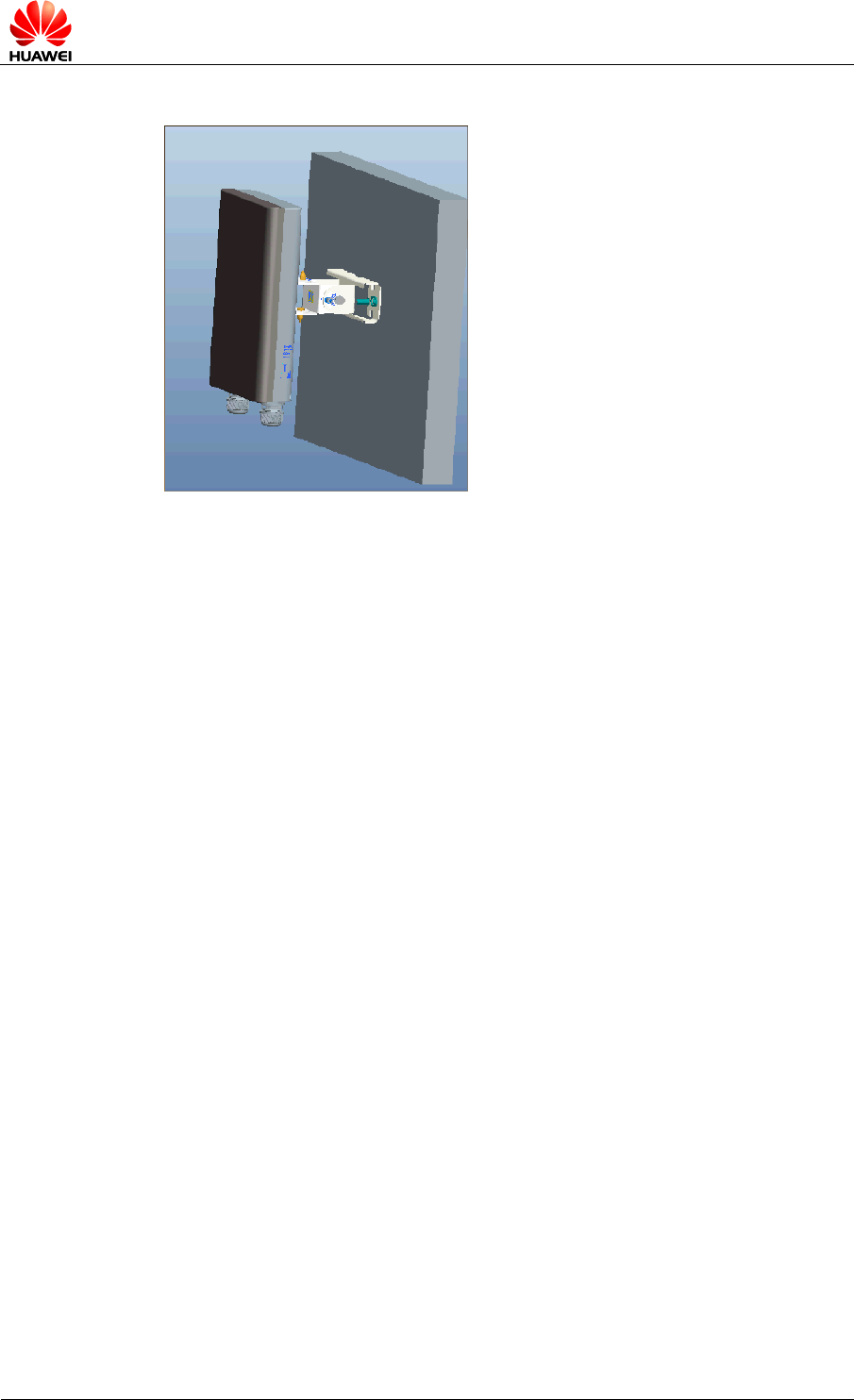

Figure 3-2 eRelay RRN3301 installed on the wall

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

4 OM

4.1 Overview

The eRelay RRN3301 will be managed as a board of BS by operation and maintenance

system.

4.2 OM Structure

Figure 4-1 shows the operation and maintenance system of the eRelay RRN3301.

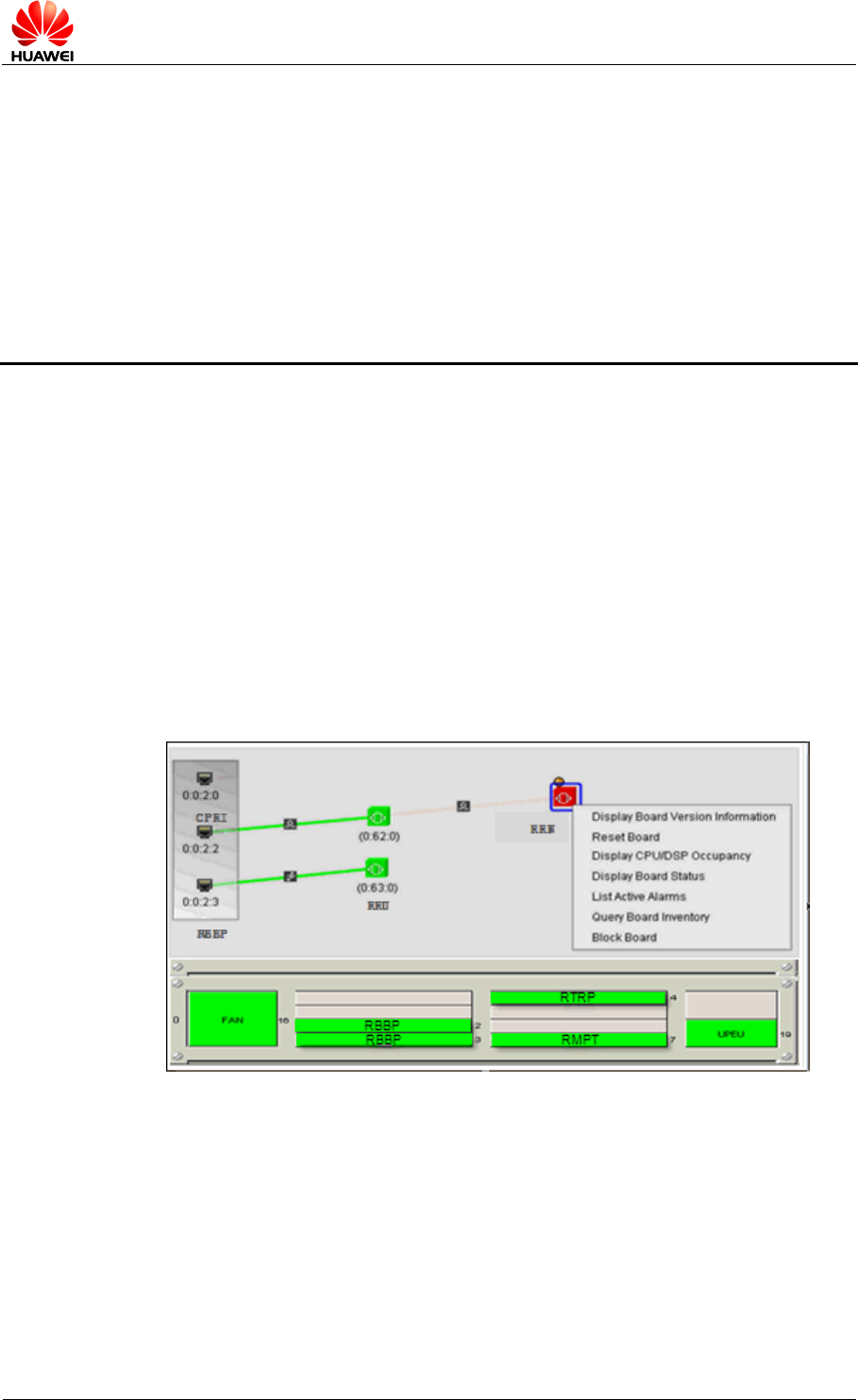

Figure 4-1 OM system of the eRelay RRN3301

The OM system consists of the LMT and the M2000.

The LMT is used to maintain a single eRelay RRN3301.

 To maintain the eRelay RRN3301 remotely, connect the LMT to the eRelay

RRN3301 through the Internet Protocol (IP) network.

The M2000, a mobile element management system provided by Huawei, is used to

remotely maintain multiple eRelay RRN3301s of different types or software versions.

The OM system provides the following functions:

 The LMT performs functions such as data configuration, alarm monitoring,

commissioning, and software upgrade.

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

 The M2000 performs functions such as data configuration, alarm monitoring,

performance monitoring, and software upgrade.

Both the LMT and the M2000 support MML and GUI modes.

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

5 Specifications

eRelay RRN3301 specifications include capacity specifications, device-related

specifications, and reliability specifications.

5.1 Capacity Specifications

Table 5-1 describes the capacity specifications for an eRelay RRN3301.

Table 5-1 Capacity specifications for an eRelay RRN3301

Item

Specifications

Maximum throughput

of a single eRelay

RRN

Downlink throughput: 80 Mbit/s

Uplink throughput: 28 Mbit/s

Maximum number of

Served Equipments

connected to a single

eRelay RRN

5.2 Device-Related Specifications

Table 5-2 describes the device specifications for an eRelay RRN3301.

Table 5-2 Device specifications for an eRelay RRN3301

Item

Specifications

eRelay RRN3301

Mode

TDD

Frequency

band

RX band

(MHz)

TX band

(MHz)

Bandwidth

(MHz)

3.5GHz

（Band 43）

3650MHz

-3675MH

3650MHz

-3675MH

10M/20M

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

Table 5-3 describes mechanical and electrical specifications for an eRelay RRN3301.

Table 5-3 Mechanical and electrical specifications for an eRelay RRN3301

Item

Specifications

Dimensions (H x W x D)

200 mm × 340 mm × 60 mm

Weight

≤3.5 kg

Power supply

PoE input: -48 V DC, 0.6 A

Table 5-4 describes the specifications for ports on the eRelay RRN3301.

Table 5-4 Specifications for ports on the eRelay RRN3301

Item

Specifications

Transmission

ports

Two fast Ethernet (FE) electrical ports, one of which supports

PoE power input.

Maintenance

port

One DBG port

Table 5-5 describes the environment and clock specifications for an eRelay RRN3301.

Table 5-5 Environment and clock specifications for an eRelay RRN3301

Item

Specifications

Operating

temperature

 –40°C to +50°C

Relative

humidity

5% RH to 95% RH

Protection class

IP65

5.3 Reliability Specifications

Reliability specifications include system availability, mean time between failures

(MTBF), mean time to repair (MTTR), and system restarting time. Table 5-6 describes

the reliability for an eRelay RRN3301.

Table 5-6 Reliability specifications for an eRelay RRN3301

Item

Specifications

System availability

≥ 99.999%

System restarting time(soft-reset)

60s

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

A Acronyms and Abbreviations

CAPEX

capital expenditure

DHCP

Dynamic Host Configuration Protocol

fast Ethernet

Internet Protocol

Long Term Evolution

MBB

mobile broadband

MTBF

mean time between failures

MTTR

mean time to repair

network element

O&M

operation and maintenance

eRelay 3.0 RRN3301 Product Description

Huawei Proprietary and Confidential

PoE

power over Ethernet

RRN

eRelay Remote Node

TDD

time division duplex

Regulatory Compliance Statement

RRN3301

0168

Issue 02

Date 2014-5-8

HUAWEI TECHNOLOGIES CO., LTD.

Issue (02) Huawei Proprietary and Confidential

No part of this document may be reproduced or transmitted in any form or by any means without prior written

consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the customer.

All or part of the products, services and features described in this document may not be within the purchase scope or

the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this

document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or

implied.

The information in this document is subject to change without notice. Every effort has been made in the preparation

of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this

document do not constitute the warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: support@huawei.com

1 Regulatory Compliance Statement

Issue (02) Huawei Proprietary and Confidential

1 Regulatory Compliance Statement

About This Chapter

1.1 Declaration of Conformity to European Directives

Declaration of Conformity to European Directives

1 Regulatory Compliance Statement

1-2 Huawei Proprietary and Confidential

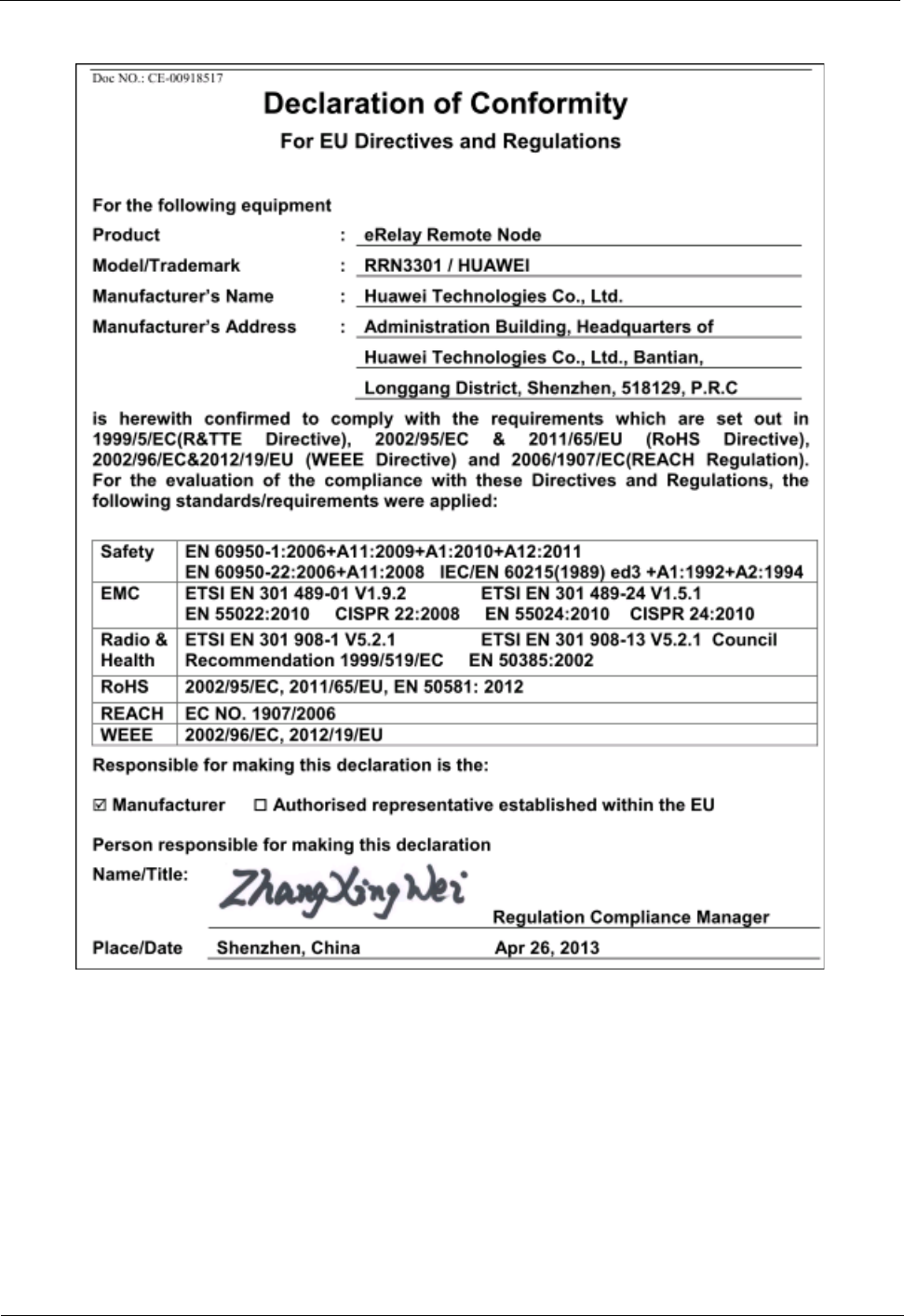

Figure 1-1 Declaration of Conformity to European Directives

2 Regulatory Compliance Information

Issue (02) Huawei Proprietary and Confidential

2 Regulatory Compliance Information

About This Chapter

2.1 Regulatory Compliance Standards

2.2 European Regulatory Compliance

2.3 U.S.A Regulatory Compliance

2.4 Japanese Regulatory Compliance

2.5 CISPR 22 Compliance

2.1 Regulatory Compliance Standards

The Product complies with the standards listed in Table 2-1.

Table 2-1 Regulatory compliance standards

Discipline Standards

EMC z CISPR22 Class B

z CISPR24

z EN55022 Class B

z EN50024

z ETSI EN 301 489 Class B

z CFR 47 FCC Part 15 Class B

z FCC Part 90z

z RSS-192

z RSS-197

z RSS-102

z ICES 003 Class B

z AS/NZS CISPR22 Class B

z GB9254 Class B

z VCCI Class B

z CNS 13438 Class B

z IEC/EN 61000-6-1

z IEC/EN 61000-6-3

2 Regulatory Compliance Information

2-4 Huawei Proprietary and Confidential

Discipline Standards

Safety z IEC 60950-1

z IEC/EN60215

z IEC/EN41003

z EN 60950-1

z UL 60950-1

z UL 60950-22

z CSA C22.2 No 60950-1

z AS/NZS 60950.1

z BS EN 60950-1

z IS 13252

z GB4943

z GB8898

RF z ETSI EN 301 908-1

z ETSI EN 301 908-13

Health z ICNIRP Guideline

z 1999-519-EC

z EN 50385

z OET Bulletin 65

z IEEE Std C95.1

z EN 60215

Environmental protection z 2002/95/EC & 2011/65/EU (RoHS)

z EC NO. 1907/2006 (REACH)

z 2002/96/EC&2012/19/EU(WEEE)

Grounding z ITU-T K.27

z ETSI EN 300 253

2 Regulatory Compliance Information

Issue (02) Huawei Proprietary and Confidential

Discipline Standards

Note:

EMC: electromagnetic compatibility

NEBS: Network Equipment Build Standard

RF: radio frequency

CISPR: International Special Committee on Radio Interference

EN: European Standard

ETSI: European Telecommunications Standards Institute

CFR: Code of Federal Regulations

FCC: Federal Communication Commission

IEC: International Electrotechnical Commission

AS/NZS: Australian/New Zealand Standard

VCCI: Voluntary Control Council for Interference

CNS: Chinese National Standard

UL: Underwriters Laboratories

CSA: Canadian Standards Association

BS: British Standard

IS: Indian Standard

GR: general requirement

FDA: Food and Drug Administration

BTS: base transceiver station

GSM: Global System for Mobile communications

WLAN: wireless local area network

ICNIRP: International Commission on Non-Ionizing Radiation Protection

OET: Office of Engineering Technology

IEEE: Institute of Electrical and Electronics Engineers

RoHS: restriction of the use of certain hazardous substances

2.2 European Regulatory Compliance

The Product complies with the following European directives and regulations.

z 2004/108/EC (EMC)

z 2006/95/EC (low voltage)

z 1999/5/EC (R&TTE)

z 2002/95/EC & 2011/65/EU (RoHS)

z EC NO. 1907/2006 (REACH)

z 2002/96/EC&2012/19/EU (WEEE)

The Product complies with Directive 2002/95/EC, 2011/65/EU and other similar regulations

from the countries outside the European Union, on the RoHS in electrical and electronic

2 Regulatory Compliance Information

2-6 Huawei Proprietary and Confidential

equipment. The device does not contain lead, mercury, cadmium, and hexavalent chromium

and brominated flame retardants (Polybrominated Biphenyls (PBB) or Polybrominated

Diphenyl Ethers (PBDE)) except for those exempted applications allowed by RoHS directive

for technical reasons.

Product complies with Regulation EC NO. 1907/2006 (REACH) and other similar regulations

from the countries outside the European Union. Huawei will notify to the European Chemical

Agency (ECHA) or the customer when necessary and regulation requires.

Product complies with Directive 2002/96/EC&2012/19/EU on waste electrical and electronic

equipment (WEEE). Huawei is responsible for recycling its end-of-life devices, and please

contact Huawei local service center when recycling is required. Huawei strictly complies with

the EU Waste Electrical and Electronic Equipment Directive (WEEE Directive) and electronic

waste management regulations enacted by different countries worldwide. In addition, Huawei

has established a system for recycling and reuse of electronic wastes, and it can provide

service of dismantling and recycling for WEEE. By Huawei recycling system, the waste can

be handled environmentally and the resource can be recycled and reused fully, which is also

Huawei WEEE stratagem in the word. Most of the materials in product are recyclable, and our

packaging is designed to be recycled and should be handled in accordance with your local

recycling policies.

In accordance with Article 11(2) in Directive 2002/96/EC&2012/19/EU (WEEE), products

were marked with the following symbol: a cross-out wheeled waste bin with a bar beneath as

below:

2.3 U.S.A Regulatory Compliance

2.3.1 FCC Part 15

The Product complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

z This device does not cause harmful interference.

z This device must accept any interference received, including interference that may cause

undesired operation.

2 Regulatory Compliance Information

Issue (02) Huawei Proprietary and Confidential

If this device is modified without authorization from Huawei, the device may no longer

comply with FCC requirements for Class B digital devices. In that a case, your right to use the

device may be limited by FCC regulations. Moreover, you may be required to correct any

interference to radio or television communications at your own expense.

This device has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This device generates, uses and radiates radio frequency energy. If it is not installed and used

in accordance with the instructions, it may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this device does cause harmful interference to radio or television reception, which can be

determined by turning the device off and on, the user may take one or more of the following

measures:

z Reorient or relocate the receiving antenna.

z Reinforce the separation between the device and receiver.

z Connect the device into an outlet on a circuit different from that to which the receiver is

connected.

z Consult the dealer or an experienced radio or TV technician for assistance.

2.4 Japanese Regulatory Compliance

2.4.1 VCCI

The Product complies with VCCI Class B by Information Technology Equipment (ITE).

The preceding translates as follows:

This is a Class B product based on the standard of the Voluntary Control Council for

Interference by Information Technology Equipment (VCCI).If this product is used

Near a radio or television receiver in a domestic environment. It may cause radio

Interference.Install and use the equipment according to the instruction manual.

2 Regulatory Compliance Information

2-8 Huawei Proprietary and Confidential

2.5 CISPR 22 Compliance

The Product complies with CISPR 22 for Class B by the ITE.

2.6 China RoHS hazardous substance table

This product described in this guide complies with the Chinese RoHS

部件名称产品中有害物质或元素的名称及含量

镉铅汞六价铬多溴联苯多溴联苯醚

Frame 〇 ╳ 〇〇〇〇

Alloy Parts 〇 ╳ 〇〇〇〇

Power Adapter 〇 ╳ 〇〇〇〇

Metal Fittings 〇〇〇〇〇〇

PCBA 〇 ╳ 〇〇〇〇

Capacitor 〇 ╳ 〇〇〇〇

Other electronics 〇 ╳ 〇〇〇〇

Screen 〇〇〇〇〇〇

Solder 〇 ╳ 〇〇〇〇

Cable ╳ ╳ 〇〇〇〇

Plastic and Polymer 〇 ╳ 〇〇〇 ╳

Label 〇〇〇〇〇〇

Battery 〇〇〇〇〇〇

2 Regulatory Compliance Information

Issue (02) Huawei Proprietary and Confidential

2.7 India RoHS hazardous substance table

The Product described in this guide complies with the Chinese RoHS

Part Descriptions Restricted Substances in Product

Cd Pb Hg Cr(VI) PBBs PBDEs

Frame 〇 ╳ 〇〇〇〇

Alloy Parts 〇 ╳ 〇〇〇〇

Power Adapter 〇 ╳ 〇〇〇〇

Metal Fittings 〇〇〇〇〇〇

PCBA 〇 ╳ 〇〇〇〇

Capacitor 〇 ╳ 〇〇〇〇

Other electronics 〇 ╳ 〇〇〇〇

Screen 〇〇〇〇〇〇

Solder 〇 ╳ 〇〇〇〇

Cable ╳ ╳ 〇〇〇〇

Plastic and Polymer 〇 ╳ 〇〇〇 ╳

Label 〇〇〇〇〇〇

Battery 〇〇〇〇〇〇

2.8 Other Markets

For relevant compliance information/documentation for markets not mentioned above,

please contact Huawei representative

Compliance and Safety Manual

RRN3301

Issue 02

Date 2014-5-8

HUAWEI TECHNOLOGIES CO., LTD.

Issue (02) Huawei Proprietary and Confidential

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute the warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: support@huawei.com

1 Safety

Issue (02) Huawei Proprietary and Confidential

1-1

1 Safety

About This Chapter

1.1 Health and Safety

1.2 Equipment Safety

1.3 Electromagnetic Field Exposure

1.1 Health and Safety

1.1.1 Overview

1.1.2 Electrical Safety

1.1.3 Inflammable Environment

1.1.4 Radiation

1.1.5 Working at Heights

1.1.6 Mechanical Safety

1.1.7 Bundling Signal Cables

1.1.1 Overview

Introduction

This section describes the safety precautions you must take before installing or maintaining

Huawei equipment.

z To ensure safety of humans and the equipment, pay attention to the safety symbols on the

equipment and all the safety instructions in this document.

z The "NOTE", "CAUTION", and "WARNING" marks in other documents do not

represent all the safety instructions. They are only supplements to the safety instructions.

z Installation and maintenance personnel must understand basic safety precautions to avoid

hazards.

z When operating Huawei equipment, in addition to following the general precautions in

this document, follow the specific safety instructions given by Huawei.

1 Safety

1-2 Huawei Proprietary and Confidential

Issue (02)

z Only trained and qualified personnel are allowed to install, operate, and maintain Huawei

equipment.

z To assure continued compliance, any changes or modifications not expressly approved

by the party responsible for compliance could void the user's authority to operate this

equipment.

Local Safety Regulations

When operating Huawei equipment, you must follow the local laws and regulations. The

safety instructions in this document are only supplements to the local laws and regulations.

General Requirements

To minimize risk of personal injury and damage to equipment, read and follow all the

precautions in this document before performing any installation or maintenance.

Ensure that the instructions provided in this document are followed completely. This section

also provides guidelines for selecting the measuring and testing devices.

Installation

z The device (or system) must be installed in an access-controlled location.

z Tighten the thumbscrews by using a tool after initial installation and subsequent access

to the panel.

Ground

z Do not damage the ground conductor or operate the device in the absence of a properly

installed ground conductor. Conduct the electrical inspection carefully.

z The device (or system) must be connected permanently to the protection ground before

an operation. The cross-sectional area of the protective ground conductor must be at least

6 mm2.

z The device must be fixed securely on the floor or other reliable objects, such as the walls

and the mounting racks before operation.

z When installing the unit, always make the ground connection first and disconnect it last

Power Supply

z For DC-supplied model: The device applies to DC power source that complies with the

Safety Extra-Low Voltage (SELV) requirements in IEC 60950-1 based safety standards.

z Prepared conductors are connected to the terminal block, and only the appropriate

AWG/Type of wire is secured with the lug terminals.

z This device relies on the building’s installation for short-circuit (overcurrent) protection.

Ensure that a fuse or circuit breaker no larger than 80 VDC, 25A for DC supplied model

is used on the phase conductors (all current-carrying conductors).

z For this device, a readily accessible disconnect device shall be incorporated external to

the equipment

1 Safety

Issue (02) Huawei Proprietary and Confidential

1-3

z To minimize the risk of fire, use only No. 26 AWG or larger telecommunication line

cord.

Human Safety

z Do not operate the device or cables during lightning strikes.

z To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to

telecommunication network voltage (TNV) circuits.

z Move or lift the chassis by holding its lower edge. Do not hold the handles on certain

modules such as power supply, fans, and boards because they cannot support the weight

of the device.

z Do not look into the optical port without eye protection.

z Do not wear jewelry or watches when you operate the device.

z Reinforced insulation or double insulation must be provided to isolate DC source from

AC mains supply.

Operator

z Only qualified professional personnel are allowed to install, configure, operate, and

disassemble the device.

z Only the personnel authenticated or authorized by Huawei are allowed to replace or

change the device of the parts of the device (including the software).

z Any fault or error that might cause safety problems must be reported immediately to a

supervisor.

z Only qualified personnel are allowed to remove or disable the safety facilities and to

troubleshoot and maintain the device.

z Ensure that the instructions provided in this document are followed completely. The

document also provides guidelines in selecting the measuring and testing device.

1.1.2 Electrical Safety

High Voltage

The high voltage power supply provides power for the device operation. Direct or indirect

contact (through damp objects) with high voltage and AC mains supply may result in fatal

danger.

z During the installation of the AC power supply facility, follow the local safety

regulations. The personnel who install the AC facility must be qualified to perform high

voltage and AC operations.

z Do not wear conductive articles, such as watches, hand chains, bracelets, and rings

during the operation.

z When water is found in the rack or the rack is damp, switch off the power supply

immediately.

z When the operation is performed in a damp environment, make sure that the device is

dry.

1 Safety

1-4 Huawei Proprietary and Confidential

Issue (02)

Non-standard and improper high voltage operations may result in fire and electric shock.

Therefore, you must abide by the local rules and regulations when bridging and wiring AC

cables. Only qualified personnel are allowed to perform high voltage and AC operations.

Before powering on a device, ground the device. Otherwise, personal injury or device damage

may be caused by high leakage current.

Thunderstorm

Do not perform any operation, including high voltage and AC operations, on a steel tower or

mast during a thunderstorm.

Tools

Dedicated tools must be used during high voltage and AC operations. Avoid using ordinary

tools.

High Electrical Leakage

Ground the device before powering it on. Otherwise, personal injury or device damage may

be caused by high leakage current.

If a "high electrical leakage" tag is present on the power terminal of the device, you must

ground the device before powering it on.

Power Cable

1 Safety

Issue (02) Huawei Proprietary and Confidential

1-5

Do not install or remove power cables when the device is on. Transient contact between the

core of the power cable and the conductor may generate electric arcs or sparks, which may

cause fire or hurt human eyes.

z Before installing or removing the power cable, turn off the power switch.

z Before connecting a power cable, check that the label on the power cable is correct.

z If the device is connected with the DC power supply, use 0.75 mm² or 18 AWG minimum

power supply cord.

z Use type H03VV-F or light PVC-sheathed flexible cord according to IEC 60227.

1.1.3 Inflammable Environment

Operating the electrical device in an inflammable environment can be fatal.

Do not place the device in an environment that has inflammable and explosive air or gas. Do

not perform any operation in this environment.

1.1.4 Radiation

Electromagnetic Field Exposure

Radio-frequency signals with high intensity are harmful to human body.

Before installing or maintaining an antenna on a steel tower or a mast with a large number of

transmitter antennas, coordinate with the parties concerned to shut down the transmitter

antennas.

When handling optical fibers, do not stand close to or look at the optical fiber outlet directly

with unprotected eyes.

1 Safety

1-6 Huawei Proprietary and Confidential

Issue (02)

General Laser Information

Laser transceivers or transmitters are used in optical transmission systems and associated test

tools. The wavelength of the laser is between 780 nm and 1600 nm. The laser transmitted

through optical fibers has very high power density and is invisible to human eyes. A beam of

light causes damage to the retina.

Laser of wavelengths used in telecommunications causes thermal damage to the retina.

Lasers used in lightwave systems have a larger beam divergence, typically 10 to 20 degrees.

Looking at an un-terminated fiber or damaged fiber with unprotected eyes at a distance

greater than 150 mm (6 inches) does not cause eye injury. Eye injury, however, may be caused

if an optical tool such as a microscope, magnifying glass, or eye loupe is used to view the

energized fiber end.

A lightwave system in normal operating mode is totally enclosed and presents no risk of eye

injury. The automatic laser shutdown (ALS) feature of the lightwave system also ensures

safety. The ALS, however, can be applied to bi-directional transmission only. If the receiver

side does not detect the laser from the transmitter side, it sends the transmitter side a signal.

Upon receiving the signal, the ALS shuts down the laser emission within 100 ms.

Safety Guidelines

Follow the following guidelines to avoid laser radiation:

z Read the instructions before installing, operating, and maintaining the device. Ignoring

the instructions can cause exposure to dangerous laser radiation.

z Wear a pair of eye-protective glasses when you are handling lasers or fibers.

z Only qualified personnel are allowed to perform laser-related operations.

z Make sure that the optical source is switched off before disconnecting optical fiber

connectors.

z Before opening the front door of an optical transmission system, make sure that you are

not exposed to laser radiation.

z Do not look at the end of an exposed fiber or an open connector when you are not sure

whether the optical source is switched off or not.

z Use an optical power meter to check that the optical source is switched off and verify

that it is off by measuring the optical power.

z Do not use an optical tool such as a microscope, a magnifying glass, or an eye loupe to

view the optical connector or fiber.

Handling Fibers

Read the instructions before handling fibers:

z Only trained and qualified personnel can cut or splice fibers.

z Before cutting or splicing a fiber, ensure that the fiber is disconnected from the optical

source. After disconnecting the fiber, use protecting caps to protect all the optical

connectors.

1.1.5 Working at Heights

1 Safety

Issue (02) Huawei Proprietary and Confidential

1-7

Avoid object falling when you work at heights.

When working at heights, fulfill the following requirements:

z Only trained personnel can work at heights.

z Prevent the devices and tools that you carry from falling down.

z Take safety and protection measures, for example, wear a helm and safety belt.

z Wear warm clothes when working at heights in a cold region.

z Before working at heights, check that all the lifting facilities are in good condition.

Hoisting Heavy Objects

Do not walk below the cantilever or hoisted objects when heavy objects are being hoisted.

z Only trained and qualified personnel can perform hoisting operations.

z Before hoisting heavy objects, check that the hoisting tools are complete and in good

condition.

z Before hoisting heavy objects, ensure that the hoisting tools are fixed to a secure object

or wall with good weight capacity.

z Issue orders with short and explicit words to avoid misoperations.

z Ensure that the angle formed by two cables is not larger than 90 degrees. See Figure 1-1.

1 Safety

1-8 Huawei Proprietary and Confidential

Issue (02)

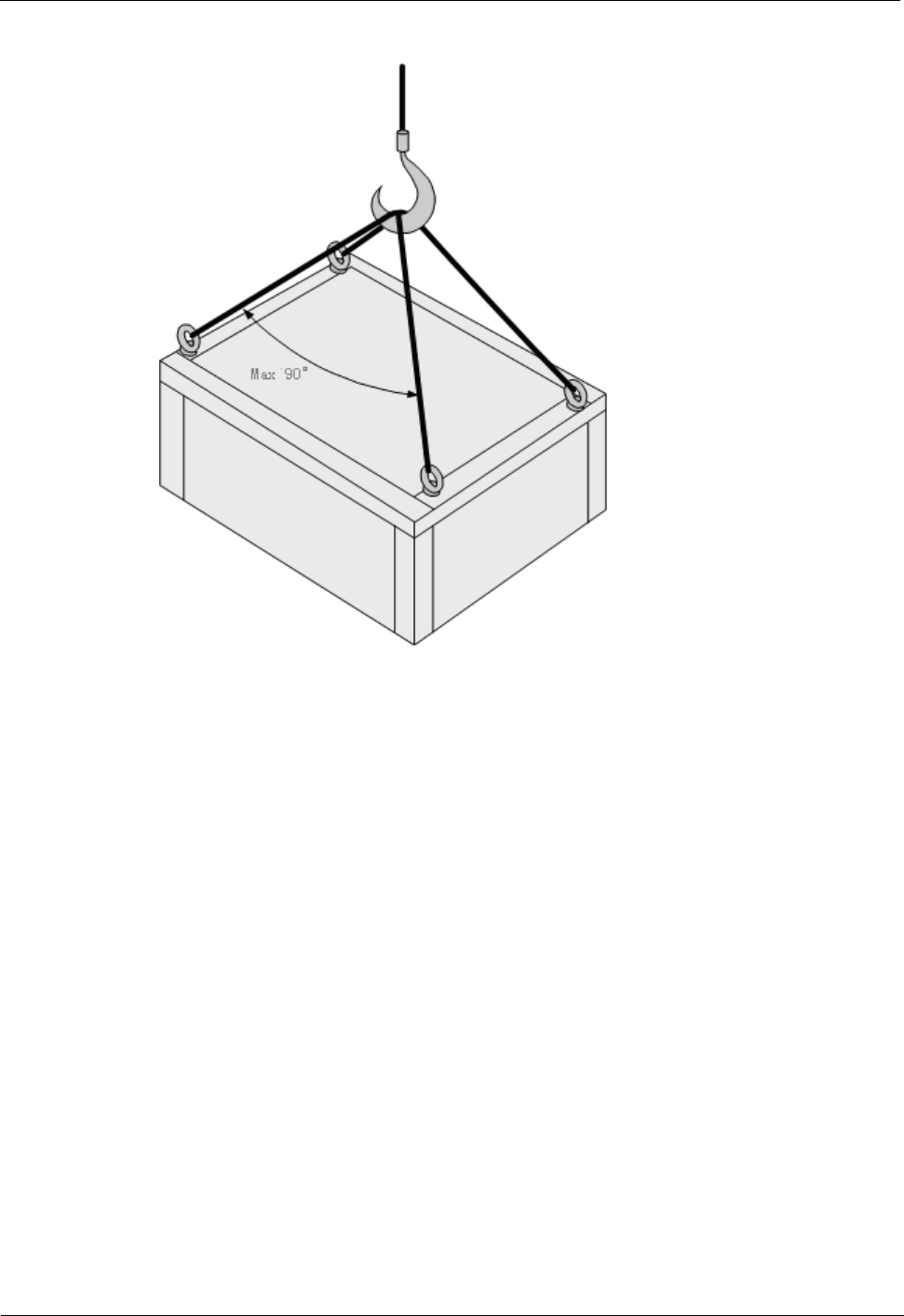

Figure 1-1 Hoisting heavy objects

Using Ladders

Checking a Ladder

z Before using a ladder, check whether the ladder is damaged. Only the ladder in good

condition can be used.

z Before using a ladder, you should know the maximum weight capacity of the ladder.

Avoid overweighing the ladder.

Placing a Ladder

The recommended gradient of ladders is 75 degrees. You can measure the gradient of the

ladder with an angle square or your arms. When using a ladder, ensure that the wider feet of

the ladder are downward, or take protection measures for the ladder feet to prevent the ladder

from sliding. Ensure that the ladder is placed securely.

Climbing Up a Ladder

When climbing up a ladder, note the following:

z Ensure that the center of gravity of your body does not deviate from the edges of the two

long sides.

z To minimize the risk of falling, hold your balance on the ladder before any operation.

1 Safety

Issue (02) Huawei Proprietary and Confidential

1-9

z Do not climb higher than the fourth rung of the ladder (counted from up to down).

z If you want to climb up a roof, ensure that the ladder top is at least one meter higher than

the roof.

1.1.6 Mechanical Safety

Drilling Holes

Do not drill the cabinet at will. Drilling holes without complying with the requirements affects

the electromagnetic shielding performance of the cabinet and damages the cables inside the

cabinet. In addition, if the scraps caused by drilling enter the cabinet, the printed circuit

boards (PCBs) may be short circuited.

z Before you drill a hole in the cabinet, wear insulated gloves and remove the internal

cables from the cabinet.

z Wear an eye protector when drilling holes. This is to prevent your eyes from being

injured by the splashing metal scraps.

z Ensure that the scraps caused by drilling do not enter the cabinet.

z Drilling holes without complying with the requirements affects the electromagnetic

shielding performance of the cabinet.

z After drilling, clean the metal scraps immediately.

Sharp Objects

Before you hold or carry a device, wear protective gloves to avoid getting injured by sharp

edges of the device.

Lifting Heavy Objects

When heavy objects are being lifted, do not stand or walk under the cantilever or the lifted

object.

1.1.7 Bundling Signal Cables

1 Safety

1-10 Huawei Proprietary and Confidential

Issue (02)

z Do not bundle signal cables with high current cables or high voltage cables.

z Maintain a minimum space of 150 mm between adjacent ties.

1.2 Equipment Safety

1.2.1 Electricity Safety

1.2.2 Electrostatic Discharge

1.2.3 Installing and Removing a Board

1.2.4 Laying Cables

1.2.1 Electricity Safety

Thunderstorm

During thunderstorms, the electromagnetic field generated in the thunderstorm area may

damage the electronic parts. To prevent damage to the device during lightning, ground the

device properly.

High Electrical Leakage

If the "high electrical leakage" tag is present on the power terminal of the device, you must

ground the device before powering it on.

Fuse

If a fuse is to be replaced, the new fuse must be of the same type and specifications.

1 Safety

Issue (02) Huawei Proprietary and Confidential

1-11

1.2.2 Electrostatic Discharge

The static electricity generated by human bodies may damage the electrostatic-sensitive

components on boards, for example, the large-scale integrated (LSI) circuits.

Human body movement, friction between human bodies and clothes, friction between shoes

and floors, or handling of plastic articles causes static electromagnetic fields on human bodies.

These static electromagnetic fields cannot be eliminated until the static is discharged.

To prevent electrostatic-sensitive components from being damaged by the static on human

bodies, you must wear a well-grounded ESD wrist strap when touching the device or handling

boards or application-specific integrated circuits (ASICs).

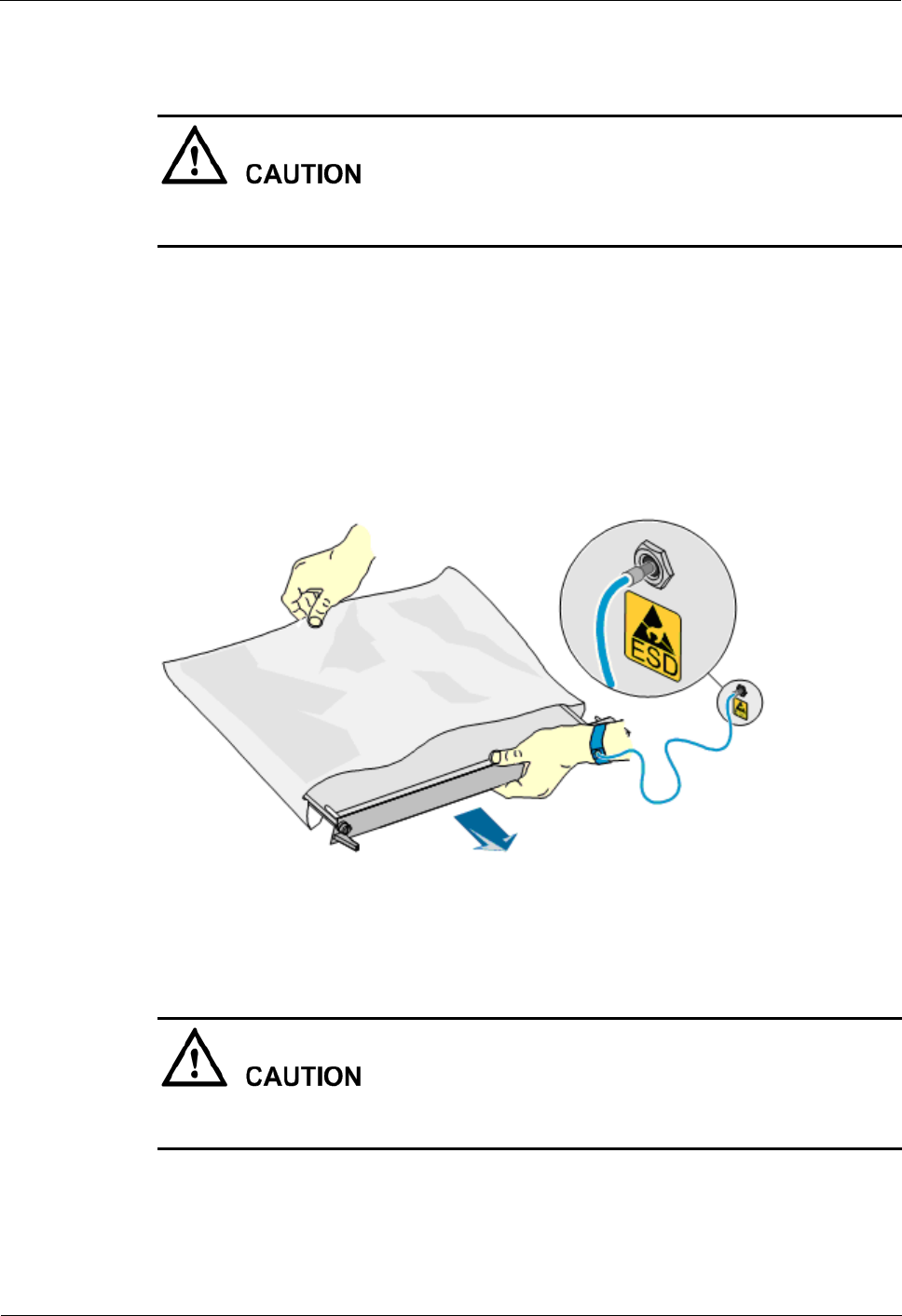

Figure 1-2 shows how to wear an ESD wrist strap.

Figure 1-2 Wearing an ESD wrist strap

1.2.3 Installing and Removing a Board

When installing a board, use proper force to prevent the pins on the backplane from being

leaned.

When installing or removing a board, note the following:

z Insert the board along the guide rails.

z Prevent the surface of a board from contacting the surface of another board. This is to

prevent the boards from being short-circuited or scratched.

1 Safety

1-12 Huawei Proprietary and Confidential

Issue (02)

z To prevent electrostatic-sensitive devices from being damaged by the ESD, do not touch

the circuits, components, connectors, or connection slots on boards.

1.2.4 Laying Cables

When the temperature is very low, violent strike or vibration may damage the cable sheathing.

To ensure safety, comply with the following requirements:

z Cables can be laid or installed only when the temperature is higher than 0 .℃

z Before laying cables which have been stored in a temperature lower than 0 , move the ℃

cables to an environment of the ambient temperature and store them at the ambient

temperature for at least 24 hours.

z Handle cables with caution, especially at a low temperature. Do not drop the cables

directly from the vehicle.

1.3 Electromagnetic Field Exposure

Introduction

The Base Transceiver Station (BTS) emits Radio Frequency (RF) radiation. Follow the local

safety regulations when installing and operating the BTS to avoid radiation hazard.

Guidelines on Limiting Exposure to Electromagnetic Fields

There are a number of international regulations, standards, and guidelines for exposure to

electromagnetic fields. Some European countries have adopted the recommendation of the

council of the European Union (1999/519/EC), released on July 12, 1999, focusing on the

hazards of exposure to electromagnetic fields. The recommendation is based on the guideline

published by the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

Location of Base Station Antennas

Base station antennas, the source of the radiation, are usually mounted:

z On freestanding towers, with a height up to 30 m

z On a tower on the top of buildings

z To the side of buildings, on rare occasions

Generally, the antenna cannot be located in a position lower than 10 m. The energy usually

forms a horizontal main beam and is slightly tilted downwards. The remaining energy forms

into weaker beams on both sides of the main beam. The main beam, however, does not reach

the ground if the antenna is around 50–200 m away from the ground.

The highest level of emission would be expected in close vicinity of the antenna and in line of

sight to the antenna.

Exclusion Zones

The requirements for exclusion zones are as follows:

z The antenna should be properly located to prevent the public from accessing the area

where the RF radiation exceeds the previously mentioned limits.

1 Safety

Issue (02) Huawei Proprietary and Confidential

1-13

z If areas with excessive RF radiation are accessible to the operation and maintenance

(O&M) personnel, ensure that they know the source of radiation and can power off or

shut down the transmitters before entering high radiation areas. In addition, such areas

must be confined within a distance of 10 m from the antennas.

z Each exclusion zone should be defined by a physical barrier and by a recognizable sign

warning the public or O&M personnel.

Guidelines on Choosing Antenna Sites

The guidelines on choosing the antenna sites are as follows:

z For roof-mounted antennas, raise the antennas above the height of the personnel who

may have to work on the rooftop.

z For roof-mounted antennas, keep the transmitter antennas away from the areas accessible

to the public, such as roof access points, telephone service points, and HVAC devices.

z For roof-mounted directional antennas, place the antennas near the periphery, and do not

make the antennas face the building.

z Consider the trade-off between large aperture antennas (lower maximum RF) and small

aperture antennas (lower visual impact).

z Keep higher-power antennas away from accessible areas.

z Keep the antennas in a site that is far away from urban areas, though this may contradict

the coverage area requirements.

z Exercise extra caution when designing co-location sites, that is, antennas owned by

different companies are located in the same site or are co-sited. This applies particularly

to sites that include high-power broadcast (FM/TV) antennas. Local zone often favors

co-location, but co-location may cause safety problems.

z Take special precautions for antenna sites near hospital and schools.

Location of BTS

The product is shielded from RF radiation hazards. The device has been tested to comply with

the radioactive spurious emission requirements of international standards or local regulations.

Therefore, the BTS under normal operating conditions does not cause danger to the public and

O&M engineers. However, the limits for RF radiation might be exceeded due to faulty

antenna cables or for other causes.

z BTS sites shall not be accessible to the public. Only authorized and trained personnel can

access BTS sites or equipment rooms.

z A sign of excessive RF radiation must be present on the doors of the sites or equipment

rooms to warn the personnel inside the site or equipment room of excessive RF radiation.

z BTS sites must be regularly monitored and inspected after installation.

Prediction of the Exposure to Electromagnetic Fields

This section provides a theoretical approach to calculate possible exposure to electromagnetic

radiation around a BTS antenna. Precise statements are possible either with measurements or

complex calculations considering the complexity of the environment, such as soil conditions,

nearby buildings and other obstacles. The complexity may cause reflection, deflection, and

scattering of electromagnetic fields.

The maximum output power (given in EIRP) of a product is usually limited by license

conditions of the network operator.

1 Safety

1-14 Huawei Proprietary and Confidential

Issue (02)

A rough estimation of the expected exposure in power flux density on a given point can be

made with the following equation:

S = (P(W) x Gnumeric)/(4 x r²(m) x π)

Where,

P = Maximum output power at antenna port of the BTS in W

Gnumeric = Numeric gain (see below)

r = Distance between the antenna and the point of exposure in meters

For the calculation of the Gnumeric,

Gnumeric = 10GdB/10

GdB = Gantenna(dB) – Bcable(dB) – Bvertical-attenutation(dB) – Bhorizontal-attenuation(dB)

B = attenuation in dB

FCC Radiation Exposure Statement To comply with FCC RF exposure requirements in

section 1.1307, a minimum separation distance of 20 cm is required between the antenna and

all public persons.

Huawei Technologies RRN3301 eRelay Remote Node User Manual

Huawei Technologies Co.,Ltd eRelay Remote Node

User Manual

Navigation menu

Namespaces

Views

Navigation
