Huawei Technologies RRU3936-850M outdoor remote radio unit User Manual RRU3936 Regulatory Compliance Statement and Information
Huawei Technologies Co.,Ltd outdoor remote radio unit RRU3936 Regulatory Compliance Statement and Information
Contents
- 1. UserManual_Regulatory_Compliance_Statement_and_Information.pdf
- 2. UserManual_Safety manual.pdf
UserManual_Regulatory_Compliance_Statement_and_Information.pdf
Regulatory Compliance Statement
RRU3936
0197
Issue 01
Date 2013-7-9
HUAWEI TECHNOLOGIES CO., LTD.
Issue (01) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. i
Copyright © Huawei Technologies Co., Ltd. 2010. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written
consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and the customer.
All or part of the products, services and features described in this document may not be within the purchase scope or
the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this
document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or
implied.
The information in this document is subject to change without notice. Every effort has been made in the preparation
of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this
document do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: support@huawei.com
1 Regulatory Compliance Statement
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. 1-1
1 Regulatory Compliance Statement
About This Chapter
1.1 Declaration of Conformity to European Directives
Declaration of Conformity to European Directives
2 Regulatory Compliance Information
2-2 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. Issue ()
Figure 1-1 Declaration of Conformity to European Directives
2 Regulatory Compliance Information
2 Regulatory Compliance Information
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. 2-3
About This Chapter
2.1 Regulatory Compliance Standards
2.2 European Regulatory Compliance
2.3 U.S.A Regulatory Compliance
2.4 Japanese Regulatory Compliance
2.5 CISPR 22 Compliance
2.1 Regulatory Compliance Standards
RRU3936 complies with the standards listed in Table 2-1.
Table 2-1 Regulatory compliance standards
Discipline Standards
EMC CISPR22 Class B
CISPR24
EN55022 Class B
EN50024
ETSI EN 301 489 Class B
CFR 47 FCC Part 15 Class B
FCC Part 2
FCC Part 27
ICES 003 Class B
AS/NZS CISPR22 Class B
GB9254 Class B
VCCI Class B
CNS 13438 Class B
IEC/EN 61000-6-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61000-6-4
2 Regulatory Compliance Information
2-4 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. Issue ()
Discipline Standards
Safety IEC 60950-1
IEC/EN60215
IEC/EN41003
EN 60950-1
UL 60950-1
UL 60950-22
CSA C22.2 No 60950-1
AS/NZS 60950.1
BS EN 60950-1
IS 13252
GB4943
GB8898
Laser safety FDA rules, 21 CFR 1040.10 and 1040.11
IEC60825-1, IEC60825-2, EN60825-1, EN60825-2
GB7247
RF ETSI EN 301 908-1
ETSI EN 301 908-8
ETSI EN 301 908-14
ETSI EN 301 908-18
ETSI EN 301 502
ETSI TS 137 141
Health ICNIRP Guideline
1999-519-EC
EN 50385
OET Bulletin 65
IEEE Std C95.1
EN 60215
Environmental protection 2002/95/EC & 2011/65/EU (RoHS)
EC NO. 1907/2006 (REACH)
2002/96/EC(WEEE)
Grounding ITU-T K.27
ETSI EN 300 253
2 Regulatory Compliance Information
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. 2-5
Discipline Standards
Note:
EMC: electromagnetic compatibility
NEBS: Network Equipment Build Standard
RF: radio frequency
CISPR: International Special Committee on Radio Interference
EN: European Standard
ETSI: European Telecommunications Standards Institute
CFR: Code of Federal Regulations
FCC: Federal Communication Commission
IEC: International Electrotechnical Commission
AS/NZS: Australian/New Zealand Standard
VCCI: Voluntary Control Council for Interference
CNS: Chinese National Standard
UL: Underwriters Laboratories
CSA: Canadian Standards Association
BS: British Standard
IS: Indian Standard
GR: general requirement
FDA: Food and Drug Administration
BTS: base transceiver station
GSM: Global System for Mobile communications
WLAN: wireless local area network
ICNIRP: International Commission on Non-Ionizing Radiation Protection
OET: Office of Engineering Technology
IEEE: Institute of Electrical and Electronics Engineers
RoHS: restriction of the use of certain hazardous substances
2.2 European Regulatory Compliance
RRU3936 complies with the following European directives and regulations.
2004/108/EC (EMC)
2006/95/EC (low voltage)
1999/5/EC (R&TTE)
2002/95/EC & 2011/65/EU (RoHS)
EC NO. 1907/2006 (REACH)
2002/96/EC (WEEE)
RRU3936 complies with Directive 2002/95/EC, 2011/65/EU and other similar regulations
from the countries outside the European Union, on the RoHS in electrical and electronic
2 Regulatory Compliance Information
2-6 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. Issue ()
equipment. The device does not contain lead, mercury, cadmium, and hexavalent chromium
and brominated flame retardants (Polybrominated Biphenyls (PBB) or Polybrominated
Diphenyl Ethers (PBDE)) except for those exempted applications allowed by RoHS directive
for technical reasons.
Product complies with Regulation EC NO. 1907/2006 (REACH) and other similar regulations
from the countries outside the European Union. Huawei will notify to the European Chemical
Agency (ECHA) or the customer when necessary and regulation requires.
Product complies with Directive 2002/96/EC on waste electrical and electronic equipment
(WEEE). Huawei is responsible for recycling its end-of-life devices, and please contact
Huawei local service center when recycling is required. Huawei strictly complies with the EU
Waste Electrical and Electronic Equipment Directive (WEEE Directive) and electronic waste
management regulations enacted by different countries worldwide. In addition, Huawei has
established a system for recycling and reuse of electronic wastes, and it can provide service of
dismantling and recycling for WEEE. By Huawei recycling system, the waste can be handled
environmentally and the resource can be recycled and reused fully, which is also Huawei
WEEE stratagem in the word. Most of the materials in product are recyclable, and our
packaging is designed to be recycled and should be handled in accordance with your local
recycling policies.
In accordance with Article 11(2) in Directive 2002/96/EC (WEEE), products were marked
with the following symbol: a cross-out wheeled waste bin with a bar beneath as below:
2.3 U.S.A Regulatory Compliance
2.3.1 FCC Part 15
2.3.1 FCC Part 15
RRU3936 complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device does not cause harmful interference.
This device must accept any interference received, including interference that may cause
undesired operation.
2 Regulatory Compliance Information
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. 2-7
If this device is modified without authorization from Huawei, the device may no longer
comply with FCC requirements for Class B digital devices. In that a case, your right to use the
device may be limited by FCC regulations. Moreover, you may be required to correct any
interference to radio or television communications at your own expense.
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This device generates, uses and radiates radio frequency energy. If it is not installed and used
in accordance with the instructions, it may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this device does cause harmful interference to radio or television reception, which can be
determined by turning the device off and on, the user may take one or more of the following
measures:
Reorient or relocate the receiving antenna.
Reinforce the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio or TV technician for assistance.
2.4 Japanese Regulatory Compliance
2.4.1 VCCI
2.4.1 VCCI

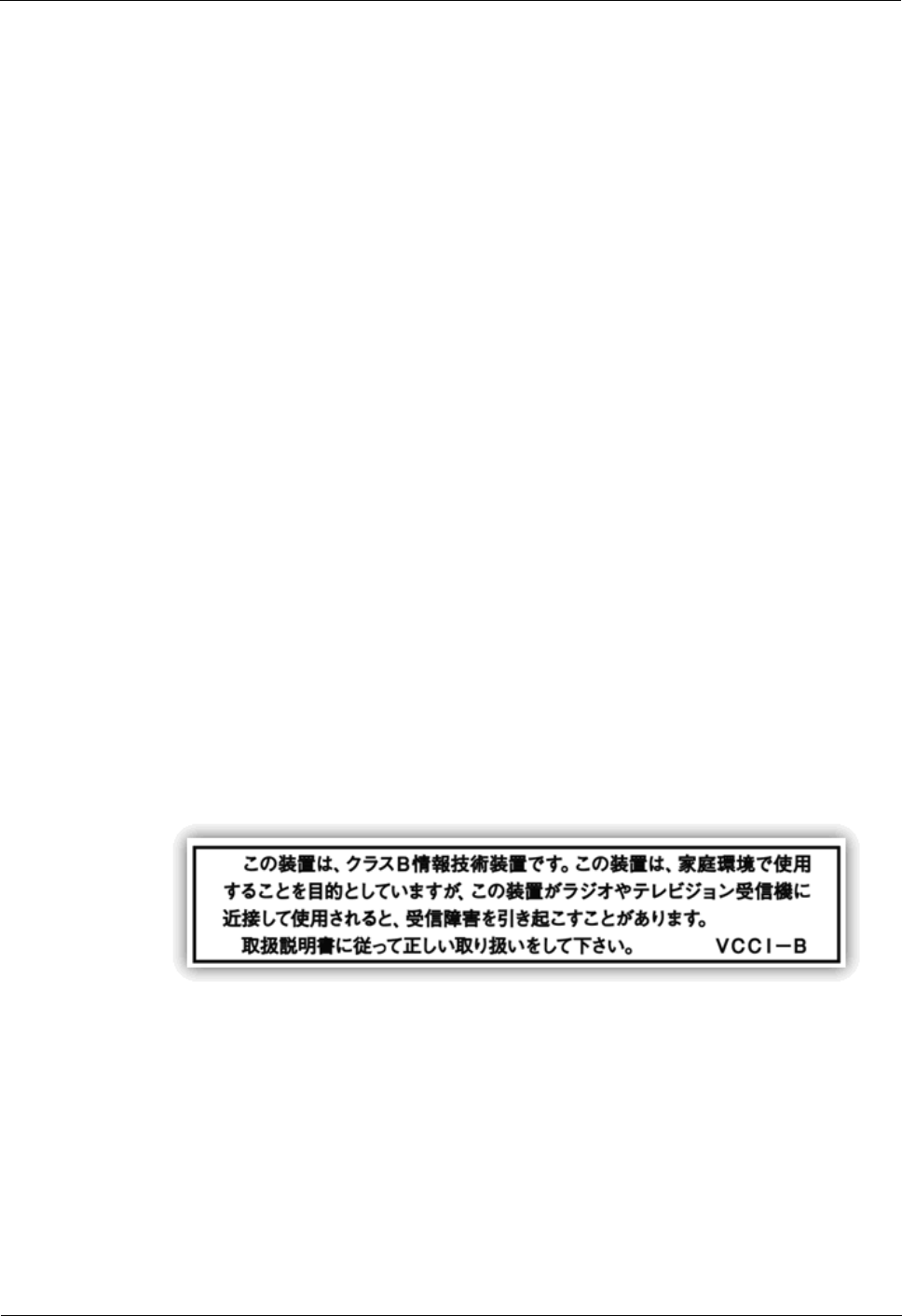

RRU3936complies with VCCI Class B by Information Technology Equipment (ITE).
The preceding translates as follows:
This is a Class B product based on the standard of the Voluntary Control Council for
Interference by Information Technology Equipment (VCCI).If this product is used
Near a radio or television receiver in a domestic environment. It may cause radio
Interference.Install and use the equipment according to the instruction manual.
2 Regulatory Compliance Information
2-8 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. Issue ()
2.5 CISPR 22 Compliance
RRU3936 complies with CISPR 22 for Class B by the ITE.
2.6 China RoHS hazardous substance table
This products described in this guide complies with the Chinese RoHS
部件名称 产品中有害物质或元素的名称及含量
镉 铅 汞 六价铬 多溴联苯 多溴联苯醚
Frame 〇 ╳ 〇 〇 〇 〇
Alloy Parts 〇 ╳ 〇 〇 〇 〇
Power Adapter 〇 ╳ 〇 〇 〇 〇
Metal Fittings 〇 〇 〇 〇 〇 〇
PCBA 〇 ╳ 〇 〇 〇 〇
Capacitor 〇 ╳ 〇 〇 〇 〇
Other electronics 〇 ╳ 〇 〇 〇 〇
Screen 〇 〇 〇 〇 〇 〇
Solder 〇 ╳ 〇 〇 〇 〇
Cable ╳ ╳ 〇 〇 〇 〇
Plastic and Polymer 〇 ╳ 〇 〇 〇 ╳
Label 〇 〇 〇 〇 〇 〇
2 Regulatory Compliance Information
Issue () Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. 2-9
Battery 〇 〇 〇 〇 〇 〇
2.7 India RoHS hazardous substance table
RRU3936 described in this guide complies with the Chinese RoHS
Part Descriptions Restricted Substances in Product
Cd Pb Hg Cr(VI) PBBs PBDEs
Frame 〇 ╳ 〇 〇 〇 〇
Alloy Parts 〇 ╳ 〇 〇 〇 〇
Power Adapter 〇 ╳ 〇 〇 〇 〇
Metal Fittings 〇 〇 〇 〇 〇 〇
PCBA 〇 ╳ 〇 〇 〇 〇
Capacitor 〇 ╳ 〇 〇 〇 〇
Other electronics 〇 ╳ 〇 〇 〇 〇
Screen 〇 〇 〇 〇 〇 〇
Solder 〇 ╳ 〇 〇 〇 〇
Cable ╳ ╳ 〇 〇 〇 〇
Plastic and Polymer 〇 ╳ 〇 〇 〇 ╳
Label 〇 〇 〇 〇 〇 〇
Battery 〇 〇 〇 〇 〇 〇
2 Regulatory Compliance Information
2-10 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. Issue ()
2.8 Other Markets
For relevant compliance information/documentation for markets not mentioned above,
please contact Huawei representative
