About This Document
Purpose
This document provides reference for planning and deploying an RRU3942 (referred to as RRU
in this document). It presents the exterior and describes the ports, functions, cable types,
connector specifications, and cable connections of the RRU.
Product Version
The following table lists the product version related to this document.
Product Name Product Version
DBS3900 V100R004C00 and later versions
DBS3900 GSM V100R013C00 and later versions
DBS3900 WCDMA V200R013C00 and later versions
DBS3900 LTE V100R005C00 and later versions
Intended Audience
This document is intended for:
lBase station installation engineers
lSystem engineers
lSite maintenance engineers
Organization
1 Changes in the RRU3942 Hardware Description
This chapter describes the changes in the RRU3942 Hardware Description.
2 RRU Introduction
RRU3942
Hardware Description About This Document
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
This chapter describes the function and exterior of the RRU as well as the ports and indicators
on the RRU.
3 RRU Cables
This chapter describes RRU cables.
4 RRU Auxiliary Devices
This chapter describes RRU auxiliary devices.
Conventions
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol Description
Indicates a hazard with a high level of risk, which if not
avoided, will result in death or serious injury.
Indicates a hazard with a medium or low level of risk, which
if not avoided, could result in minor or moderate injury.
Indicates a potentially hazardous situation, which if not
avoided, could result in equipment damage, data loss,
performance degradation, or unexpected results.
Indicates a tip that may help you solve a problem or save
time.
Provides additional information to emphasize or supplement
important points of the main text.
General Conventions
The general conventions that may be found in this document are defined as follows.
Convention Description
Times New Roman Normal paragraphs are in Times New Roman.
Boldface Names of files, directories, folders, and users are in
boldface. For example, log in as user root.
Italic Book titles are in italics.
Courier New Examples of information displayed on the screen are in
Courier New.
Command Conventions
RRU3942
Hardware Description About This Document
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iii
The command conventions that may be found in this document are defined as follows.
Convention Description
Boldface The keywords of a command line are in boldface.
Italic Command arguments are in italics.
[ ] Items (keywords or arguments) in brackets [ ] are optional.
{ x | y | ... } Optional items are grouped in braces and separated by
vertical bars. One item is selected.
[ x | y | ... ] Optional items are grouped in brackets and separated by
vertical bars. One item is selected or no item is selected.
{ x | y | ... }*Optional items are grouped in braces and separated by
vertical bars. A minimum of one item or a maximum of all
items can be selected.
[ x | y | ... ]*Optional items are grouped in brackets and separated by
vertical bars. Several items or no item can be selected.
GUI Conventions
The GUI conventions that may be found in this document are defined as follows.
Convention Description
Boldface Buttons, menus, parameters, tabs, window, and dialog titles
are in boldface. For example, click OK.
>Multi-level menus are in boldface and separated by the ">"
signs. For example, choose File > Create > Folder.
Keyboard Operations
The keyboard operations that may be found in this document are defined as follows.
Format Description
Key Press the key. For example, press Enter and press Tab.
Key 1+Key 2 Press the keys concurrently. For example, pressing Ctrl+Alt
+A means the three keys should be pressed concurrently.
Key 1, Key 2 Press the keys in turn. For example, pressing Alt, A means
the two keys should be pressed in turn.
Mouse Operations
The mouse operations that may be found in this document are defined as follows.
RRU3942
Hardware Description About This Document
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iv
Action Description
Click Select and release the primary mouse button without moving
the pointer.
Double-click Press the primary mouse button twice continuously and
quickly without moving the pointer.
Drag Press and hold the primary mouse button and move the
pointer to a certain position.
RRU3942
Hardware Description About This Document
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
v
Contents
About This Document.....................................................................................................................ii
1 Changes in the RRU3942 Hardware Description....................................................................1
2 RRU Introduction..........................................................................................................................2
2.1 RRU Functions...................................................................................................................................................3
2.2 RRU Exterior......................................................................................................................................................3
2.3 RRU Ports...........................................................................................................................................................4
2.4 RRU Indicators...................................................................................................................................................9
3 RRU Cables...................................................................................................................................11
3.1 RRU Cable List................................................................................................................................................13
3.2 RRU PGND Cable............................................................................................................................................15
3.3 RRU Power Cable............................................................................................................................................16
3.4 RRU Alarm Cable............................................................................................................................................17
3.5 CPRI Fiber Optic Cable....................................................................................................................................18
3.6 RRU RF Jumper...............................................................................................................................................21
3.7 Inter-RRU RF Cable.........................................................................................................................................22
3.8 RRU AISG Multi-Wire Cable..........................................................................................................................22
3.9 RRU AISG Extension Cable............................................................................................................................23
4 RRU Auxiliary Devices..............................................................................................................25
4.1 OCB..................................................................................................................................................................26
RRU3942
Hardware Description Contents
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
vi
1 Changes in the RRU3942 Hardware
Description
This chapter describes the changes in the RRU3942 Hardware Description.
02 (2012-06-29)
This is the second official release.
Compared with issue 01 (2012-04-25), this issue does not include any new information.
Compared with issue 01 (2012-04-25), this issue includes the following changes:
Topic Change Description
3.2 RRU PGND Cable Added the length information of the cables.
3.3 RRU Power Cable
3.7 Inter-RRU RF Cable
3.8 RRU AISG Multi-Wire Cable
3.9 RRU AISG Extension Cable
3.1 RRU Cable List Optimized the contents in this section.
Compared with issue 01 (2012-04-25), no information is deleted from this issue.
01 (2012-04-25)
This is the first official release.
Compared with draft A (2012-01-10), this issue does not include any modification.
Draft A (2012-01-10)
This is a draft.
RRU3942
Hardware Description 1 Changes in the RRU3942 Hardware Description
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1
2 RRU Introduction
About This Chapter
This chapter describes the function and exterior of the RRU as well as the ports and indicators
on the RRU.
2.1 RRU Functions
This section describes the main functions of the RRU.
2.2 RRU Exterior
This section describes the exterior and dimensions of an RRU.
2.3 RRU Ports
This section describes ports on the RRU panels. An RRU has a bottom panel, cabling cavity
panel, and indicator panel.
2.4 RRU Indicators
This section describes six indicators on an RRU. They indicate the running status.
RRU3942
Hardware Description 2 RRU Introduction
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
2.1 RRU Functions
This section describes the main functions of the RRU.
The Remote Radio Unit (RRU) performs the following functions:
lReceives downlink baseband data from the BBU and sends uplink baseband data to the
BBU.
lReceives RF signals from the antenna system, down-converts the signals to intermediate
frequency (IF) signals, amplifies the IF signals, and performs analog-to-digital conversion.
The transmit (TX) channel filters downlink signals, performs digital-to-analog conversion,
and up-converts RF signals to the TX band.
lMultiplexes receive (RX) and TX signals on the RF channel, which enables these signals
to share the same antenna path. It also filters the RX and TX signals.
lProvides a built-in Bias Tee (BT). The built-in BT couples RF signals and OOK signals
and transmits them through the TX/RX port A. The built-in BT also supplies power to the
tower mounted amplifier (TMA).
lThe RRU can be powered by the AC/DC power module. In this case, this RRU is called
AC RRU. For details about the AC/DC power module, see the AC/DC Power Module User
Guide.
2.2 RRU Exterior
This section describes the exterior and dimensions of an RRU.
Figure 2-1 shows an RRU.

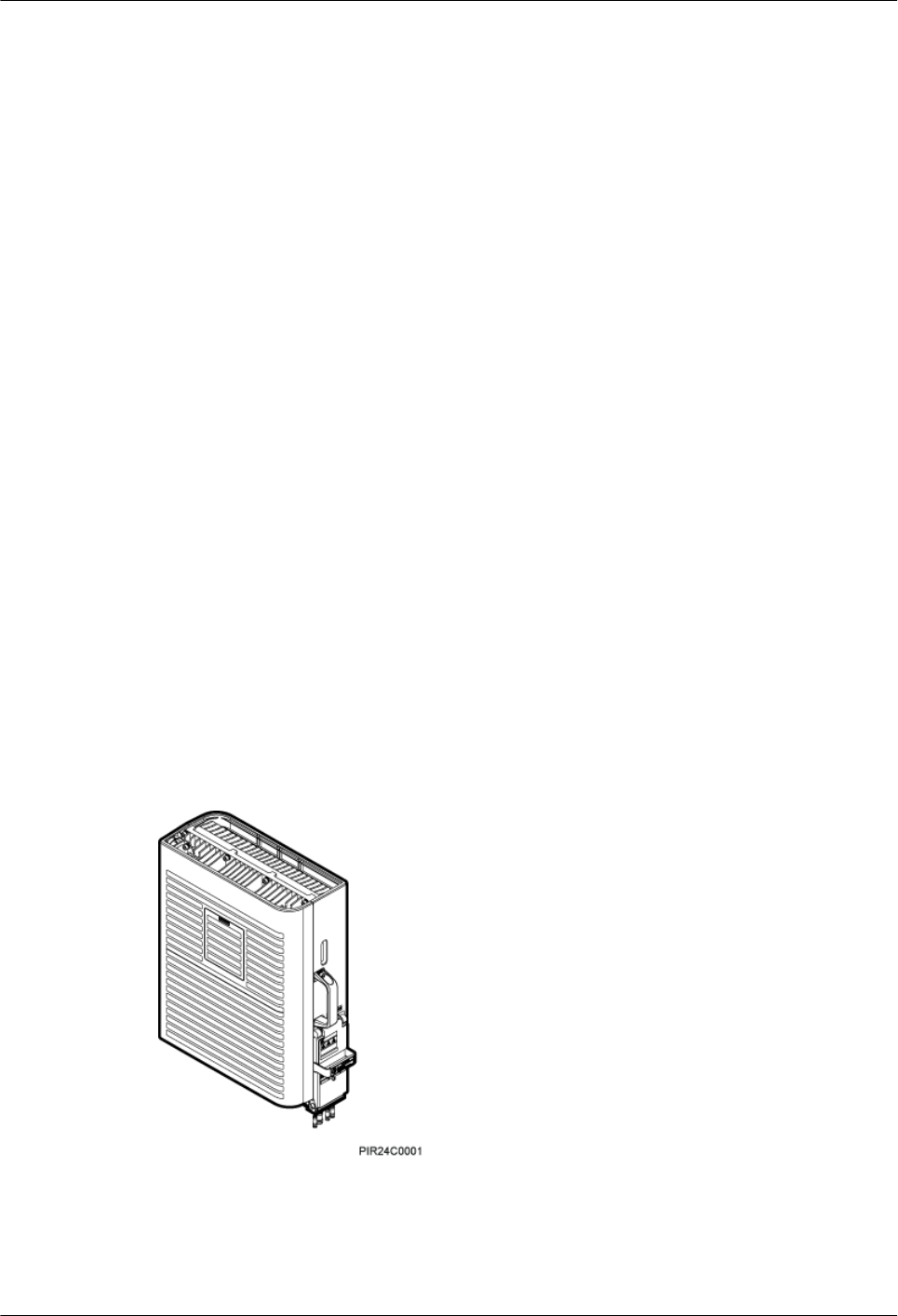

Figure 2-1 RRU exterior
Figure 2-2 shows RRU dimensions.
RRU3942
Hardware Description 2 RRU Introduction
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3

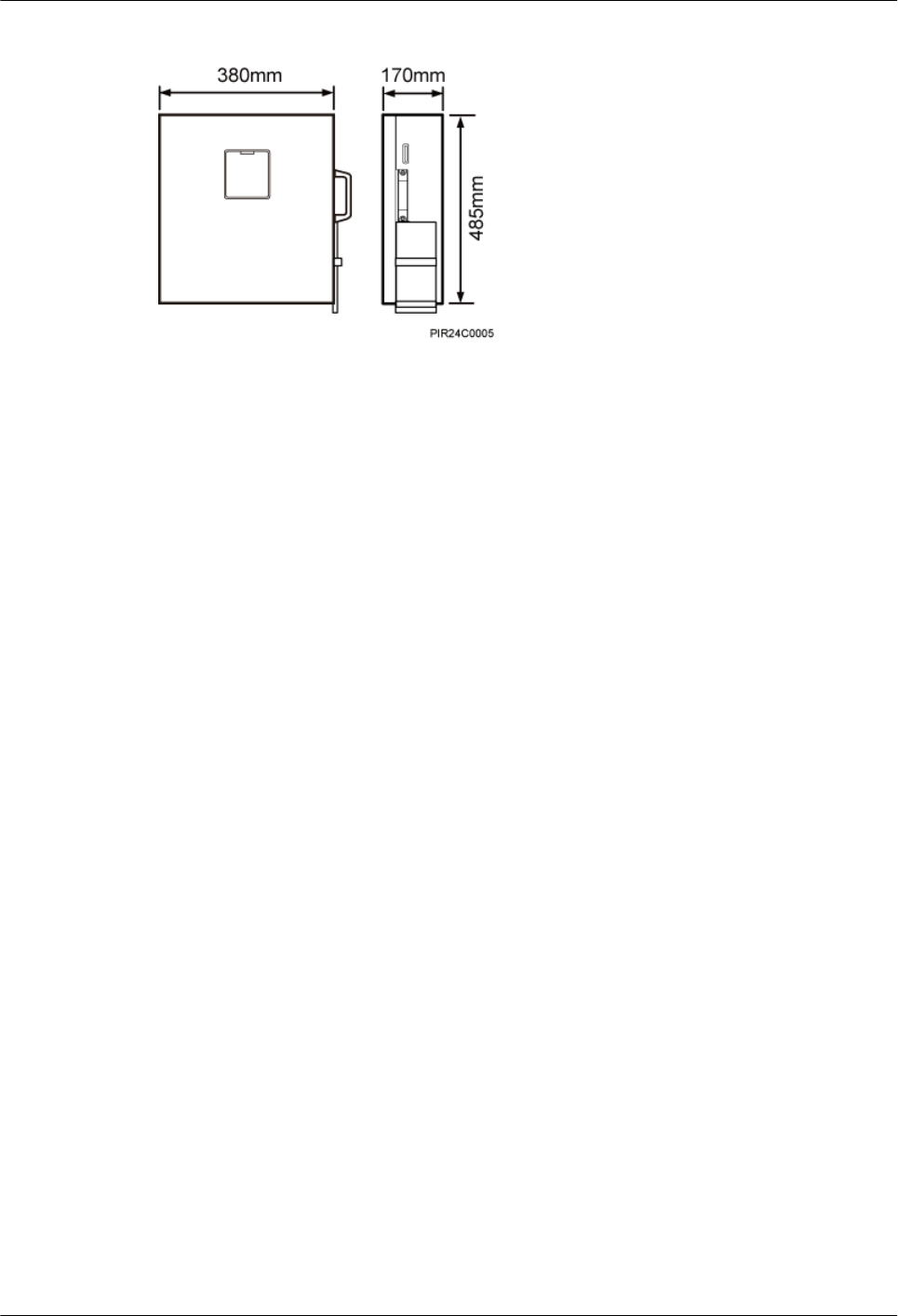

Figure 2-2 RRU dimensions
2.3 RRU Ports
This section describes ports on the RRU panels. An RRU has a bottom panel, cabling cavity
panel, and indicator panel.

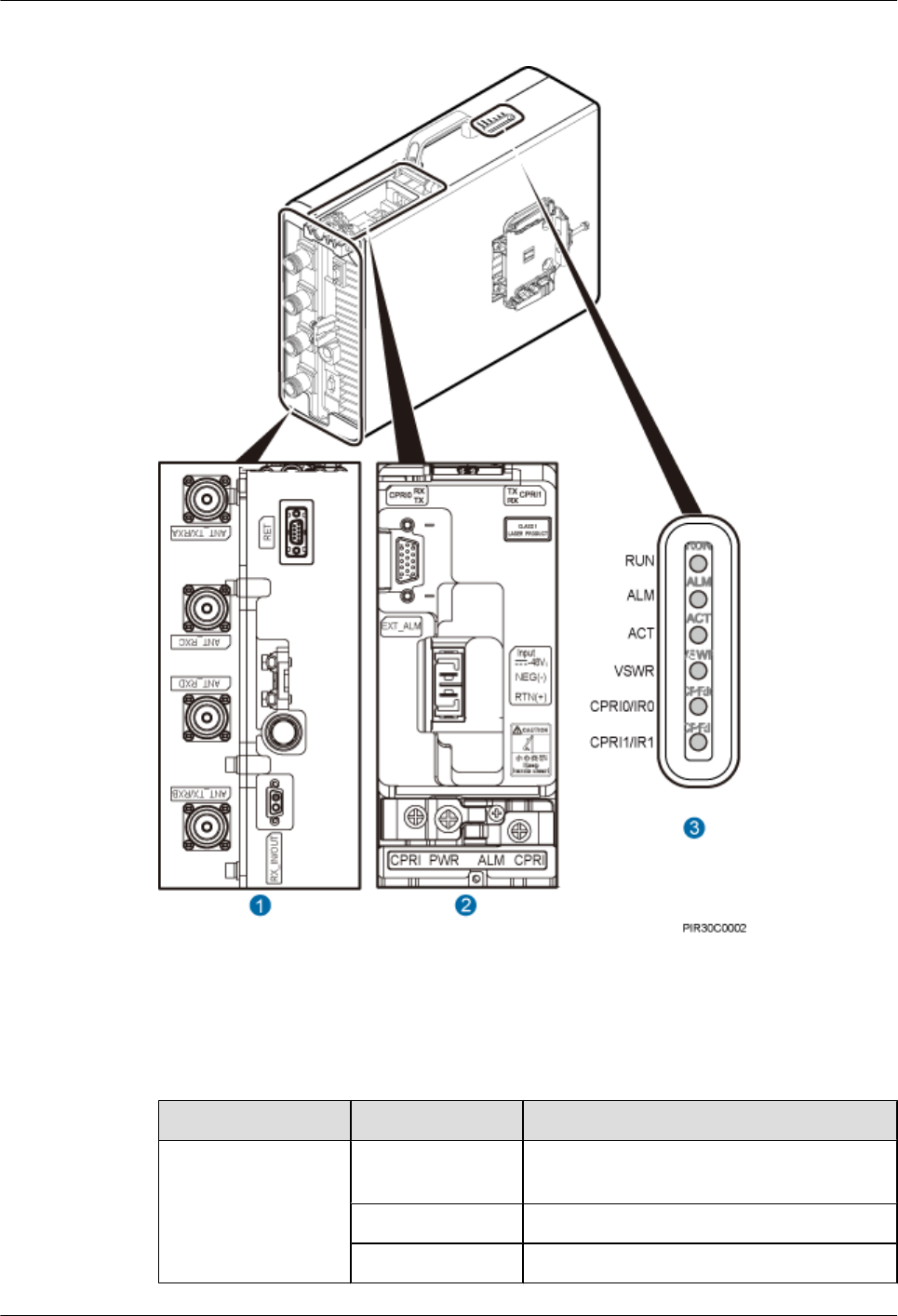

Figure 2-3 shows the ports on the RRU panels.
RRU3942
Hardware Description 2 RRU Introduction
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
Figure 2-3 Ports on the RRU panels
Table 2-1 describes ports and indicators on the RRU panels.
Table 2-1 Ports and indicators on the RRU panels
Item Silkscreen Description
(1) Ports at the bottom ANT_TX/RXA TX/RX port A, supporting RET signal
transmission
ANT_RXC RX port C
ANT_RXD Port RX port D
RRU3942
Hardware Description 2 RRU Introduction
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
Item Silkscreen Description
ANT_TX/RXB TX/RX port B
RX_IN/OUT Port for the inter-RRU RF cable
RET Communication port for the RET antenna,
supporting RET signal transmission
(2) Ports in the cabling
cavity
RTN(+) Power supply socket
NEG(-)
CPRI0 Optical/electrical port 0
CPRI1 Optical/electrical port 1
EXT_ALM Port for alarm reporting
(3) Indicators RUN For details, see 2.4 RRU Indicators.
ALM
ACT
VSWR
CPRI0/IR0
CPRI1/IR1
NOTE
The RET ports to be used are determined by the software configuration.
Table 2-2 describes how to use RF ports.
Table 2-2 Usage
Product Version TX/RX
Channe
l
Number
of Used
RF Ports
Usage Remark
lDBS3900
V100R004C00
lDBS3900 GSM
V100R013C00
lDBS3900
WCDMA
V200R013C00
1*2T2R 2 ANT_TX/RXA works with
ANT_TX/RXB.
A single
sector
RRU3942
Hardware Description 2 RRU Introduction
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
Product Version TX/RX
Channe
l
Number
of Used
RF Ports
Usage Remark
lDBS3900 GSM
V100R014C00
and later versions
1*1T2R 2 It is recommended that
ANT_TX/RXA works with
ANT_RXC.
You can also use the ports in
the following ways:
ANT_TX/RXB works with
ANT_RXD.
A single
sector
1*2T2R 2 ANT_TX/RXA works with
ANT_TX/RXB.
A single
sector
2*1T2R 4 ANT_TX/RXA works with
ANT_RXC and ANT_TX/
RXB works with
ANT_RXD .
Two sectors
lDBS3900
V100R007C00
and later versions
lDBS3900
WCDMA
V200R014C00
and later versions
lDBS3900 LTE
V100R005C00
and later versions
1*1T2R 2 It is recommended that
ANT_TX/RXA works with
ANT_RXC.
You can also use the ports in
the following ways:
ANT_TX/RXB works with
ANT_RXD.
A single
sector
1*2T2R 2 ANT_TX/RXA works with
ANT_TX/RXB.
A single
sector
1*2T4R 4 ANT_TX/RXA,
ANT_RXC, ANT_TX/
RXB, and ANT_RXD work
together.
A single
sector
2*1T2R 4 ANT_TX/RXA works with
ANT_RXC and ANT_TX/
RXB works with
ANT_RXD .
Two sectors

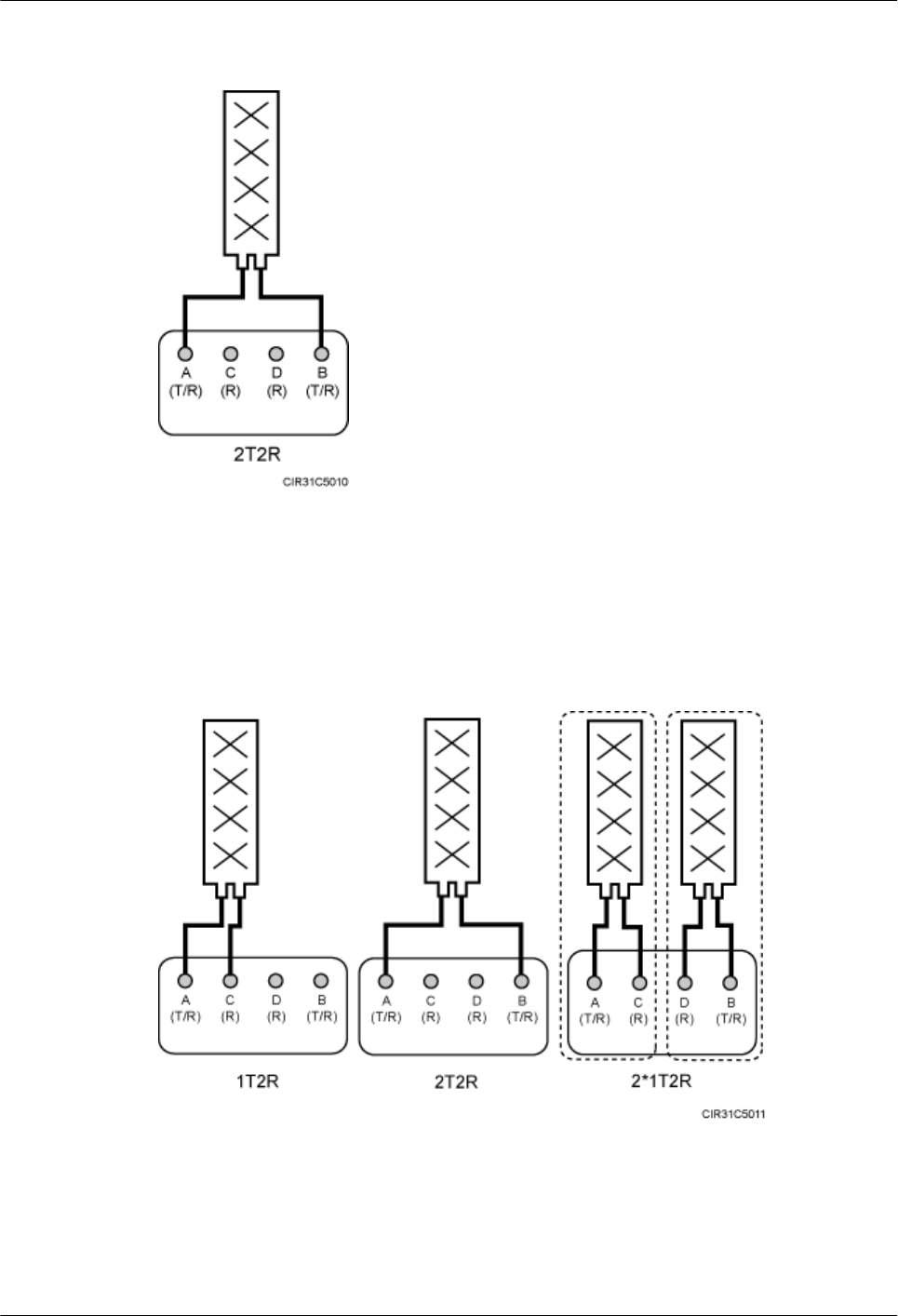

Figure 2-4 shows the recommended usage of the RF ports on an RRU3942 used for DBS3900
V100R004C00, DBS3900 GSM V100R013C00 and DBS3900 WCDMA V200R013C00.
RRU3942
Hardware Description 2 RRU Introduction
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
Figure 2-4 Recommended usage of the RF ports for DBS3900 V100R004C00, DBS3900 GSM
V100R013C00 and DBS3900 WCDMA V200R013C00
Figure 2-5 shows the recommended usage of the RF ports on an RRU3942 used for DBS3900
GSM V100R014C00 and later versions.
Figure 2-5 Recommended usage of the RF ports for DBS3900 GSM V100R014C00 and later
versions
Figure 2-6 shows the recommended usage of the RF ports on an RRU3942 used for DBS3900
V100R007C00 and later versions, DBS3900 WCDMA V200R014C00 and later versions,
DBS3900 LTE V100R005C00 and later versions.
RRU3942
Hardware Description 2 RRU Introduction
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8

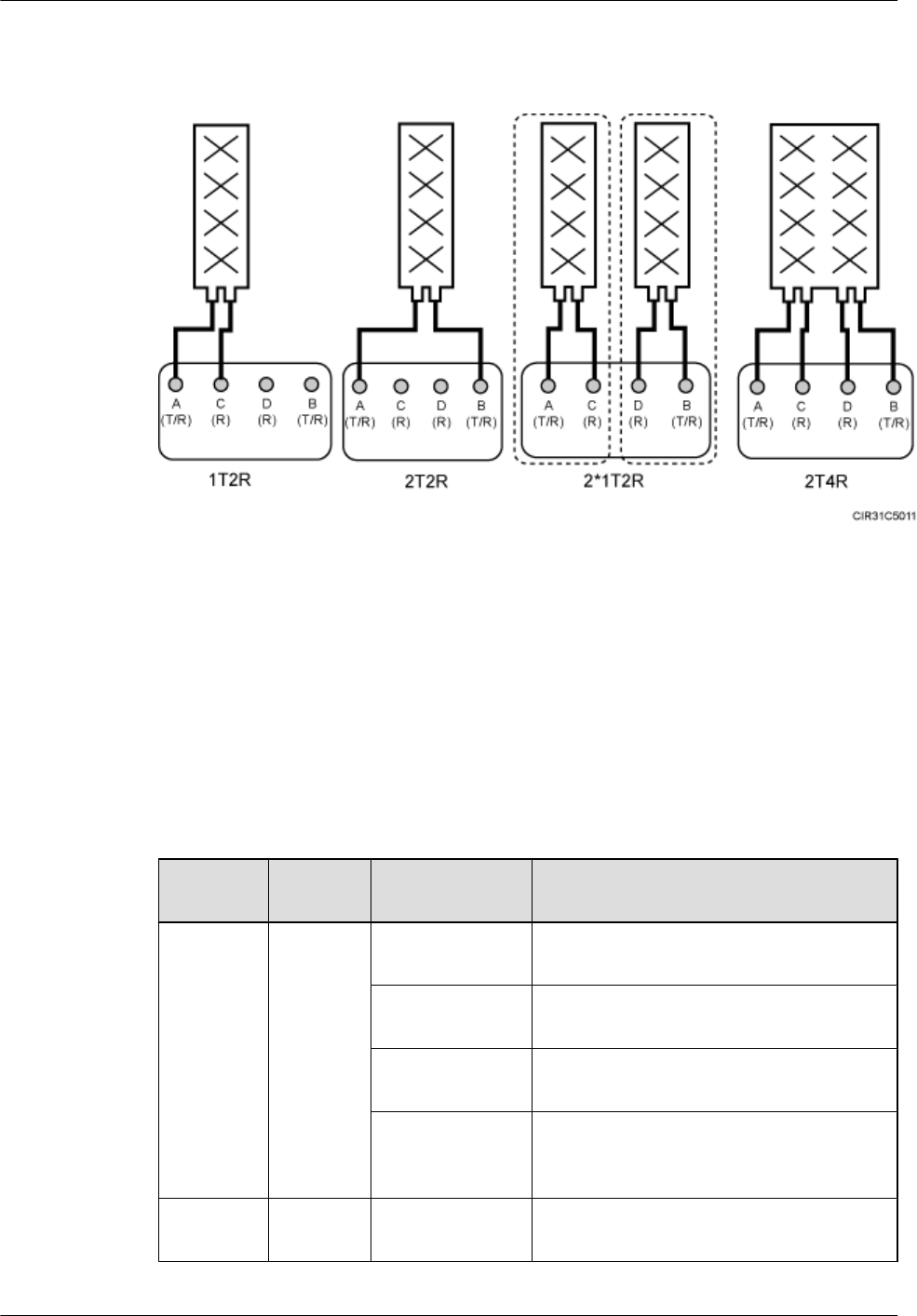

Figure 2-6 Recommended usage of the RF ports for DBS3900 V100R007C00 and later versions,
DBS3900 WCDMA V200R014C00 and later versions, DBS3900 LTE V100R005C00 and later
versions
2.4 RRU Indicators
This section describes six indicators on an RRU. They indicate the running status.
For detailed positions of RRU indicators, see 2.3 RRU Ports.
Table 2-3 describes RRU indicators.
Table 2-3 RRU indicators
Silkscree
n
Color Status Description
RUN Green Steady on There is power supply, but the module is
faulty.
Steady off There is no power supply, or the module is
faulty.
Blinking (on for
1s and off for 1s)
The board is running properly.
Blinking (on for
0.125s and off for
0.125s)
Software is being loaded to the module, or
the module is not started.
ALM Red Steady on An alarm is generated, and the module must
be replaced.
RRU3942
Hardware Description 2 RRU Introduction
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
Silkscree
n
Color Status Description
Blinking (on for
1s and off for 1s)
An alarm is generated. The alarm may be
caused by a fault on a related board or port.
Therefore, you need to locate the fault before
deciding whether to replace the module.
Steady off No alarm is generated.
ACT Green Steady on The module is running properly with TX
channels enabled or the software is being
loaded without RRU running.
Blinking (on for
1s and off for 1s)
The module is running properly with TX
channels disabled.
VSWR Red Steady off No Voltage Standing Wave Ratio (VSWR)
alarm is generated.
Blinking (on for
1s and off for 1s)
VSWR alarms are generated on the
ANT_TX/RXB port.
Steady on VSWR alarms are generated on the
ANT_TX/RXA port.
Blinking (on for
0.125s and off for
0.125s)
VSWR alarms are generated on the
ANT_TX/RXA and ANT_TX/RXB ports.
CPRI0/IR0 Red or
green
Steady green The CPRI link is functioning properly.
Steady red An optical module fails to transmit or receive
signals because the optical module is faulty
or the fiber optic cable is broken.
Blinking red (on
for 1s and off for
1s)
The CPRI link is out of lock because of
mutual lock of dual-mode clock sources or
mismatched data rates over CPRI ports.
Steady off The optical module cannot be detected, or the
CPRI cable is not connected properly.
CPRI1/IR1 Red or
green
Steady green The CPRI link is functioning properly.
Steady red An optical module fails to receive signals
because the optical module is faulty or the
fiber optic cable is broken.
Blinking red (on
for 1s and off for
1s)
The CPRI link is out of lock because of
mutual lock of dual-mode clock sources or
mismatched data rates over CPRI ports.
Steady off The optical module cannot be detected, or the
CPRI cable is not connected properly.
RRU3942
Hardware Description 2 RRU Introduction
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
3 RRU Cables
About This Chapter
This chapter describes RRU cables.
3.1 RRU Cable List
This section describes RRU cable connections.
3.2 RRU PGND Cable
An RRU PGND cable connects an RRU and a ground bar, ensuring the proper grounding of the
RRU. The maximum length of the RRU PGND cable is 30 m (98.42 ft.).
3.3 RRU Power Cable
The RRU power cable is a -48 V DC shielded cable. It feeds -48 V DC power to an RRU. The
maximum length of the RRU power cable is 50 m (164.04 ft.).
3.4 RRU Alarm Cable
The RRU alarm cable, a shielded straight-through cable, transmits alarm signals from an external
device to an RRU so that the base station monitors the operating status of external devices. The
maximum length of the RRU alarm cable is 5 m (16.40 ft.).
3.5 CPRI Fiber Optic Cable
CPRI fiber optic cables are classified into multi-mode fiber optic cables and single-mode fiber
optic cables. They transmit CPRI signals.
3.6 RRU RF Jumper
The 1/2" RRU RF jumper transmits and receives RF signals between an RRU and an antenna.
3.7 Inter-RRU RF Cable
An inter-RRU RF cable connects the RX_IN/OUT ports on two RRUs in the same cell and
transmits RF signals between the RRUs. The maximum length of the inter-RRU RF cable is 2
m (6.56 ft.).

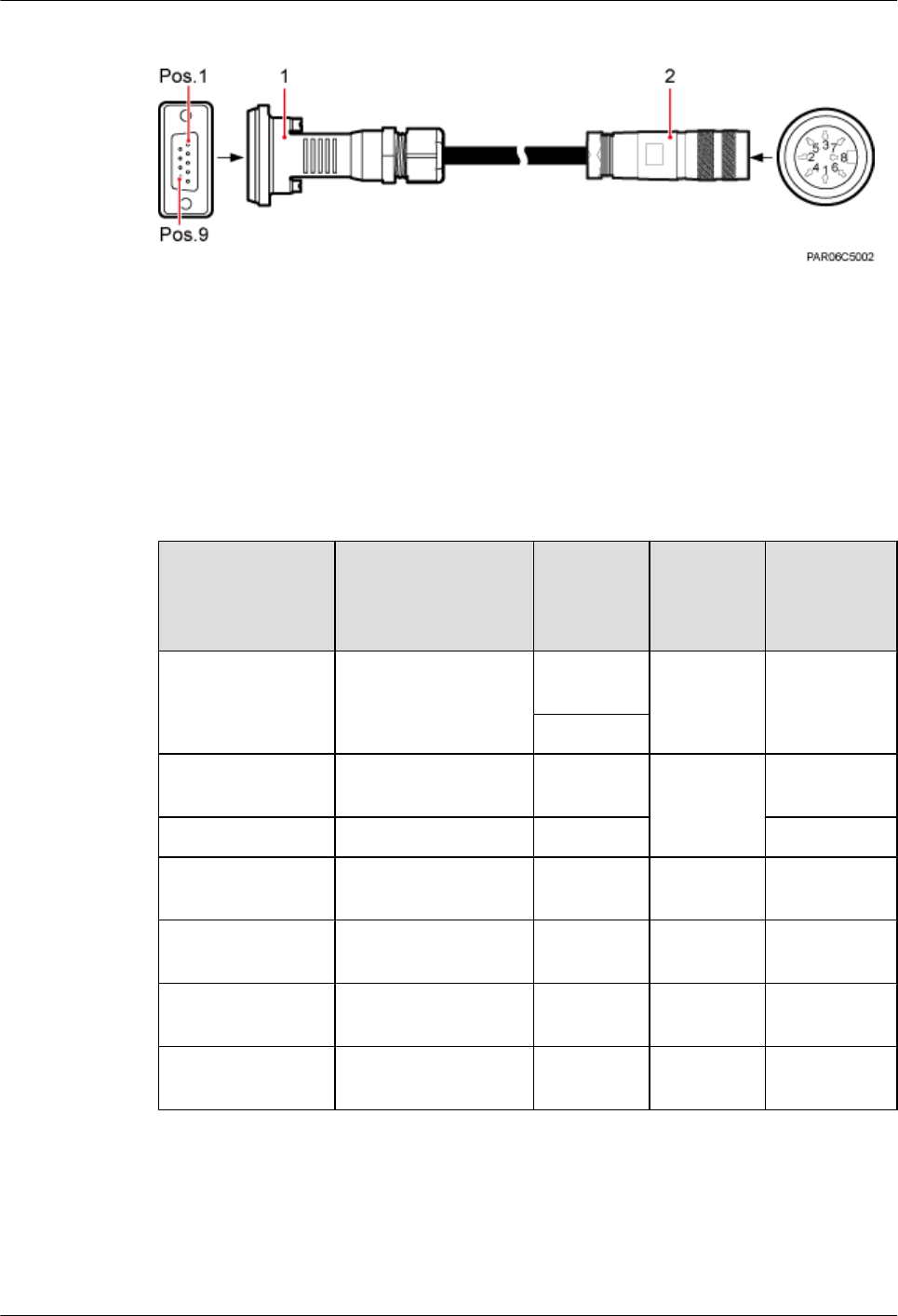

3.8 RRU AISG Multi-Wire Cable
An RRU AISG multi-wire cable connects an RRU and an RCU to transmit control signals from
a base station to an RET antenna. When the RRU is connected to the RET antenna, an AISG
multi-wire cable transmits RS485 signals. The maximum length of the AISG multi-wire cable
is 5 m (16.40 ft.).
3.9 RRU AISG Extension Cable
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
When the distance between an RRU and an RCU is longer than 5 m (16.4 ft.), an AISG multi-
wire cable is not long enough to connect the RRU and the RCU. In this case, an AISG extension
cable is used to extend the AISG multi-wire cable for transmitting RS485 signals. The maximum
length of the AISG extension cable is 15 m (49.21 ft.).
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12
3.1 RRU Cable List
This section describes RRU cable connections.
Table 3-1 lists RRU cables.
Table 3-1 RRU cables
Cable One End The Other End
Connector Installation
Position
Connector Installation
Position
3.2 RRU
PGND
Cable
OT terminal (M6,
16 mm2 or 0.025
in.2)
Ground
terminal on the
RRU
OT terminal
(M8, 16 mm2 or
0.025 in.2)
Ground terminal
on the ground bar
3.3 RRU
Power Cable
Tool-less female
connector
(pressfit type)
NEG(-) and
RTN(+) ports
on the RRU
Tool-less female
connector
(pressfit type)
One of RRU0 to
RRU5 ports on
the EPU
One of LOAD0 to
LOAD5 ports on
the DCDU-11B
3.4 RRU
Alarm Cable
DB15 male
connector
EXT_ALM
port on the
RRU
Cord end
terminal
External alarm
device
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
Cable One End The Other End
Connector Installation
Position
Connector Installation
Position
3.5 CPRI
Fiber Optic
Cable (in
multi-mode
scenarios)
DLC connector CPRI0 port on
the RRU
CPRI1 port on
the RRU
DLC connector GSM+UMTS
(GU) mode
CPRI port on the
GTMU in the
BBU
CPRI port on the
WBBP in the
BBU
GSM+LTE (GL)
mode
CPRI port on the
GTMU in the
BBU
CPRI port on the
LBBP in the BBU
UMTS+LTE
(UL) mode
CPRI port on the
WBBP in the
BBU
CPRI port on the
LBBP in the BBU
3.5 CPRI
Fiber Optic
Cable (in
single-mode
scenarios)
DLC connector CPRI0 port on
the RRU
DLC connector GSM only (LO)
mode
CPRI port on the
GTMU in the
BBU
UMTS only (LO)
mode
CPRI port on the
WBBP in the
BBU
LTE only (LO)
mode
CPRI port on the
LBBP in the BBU
3.6 RRU RF
Jumper
DIN male
connector
ANT_TX/
RXA or
ANT_TX/
RXB port on
the RRU
DIN male
connector
Antenna system
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
Cable One End The Other End
Connector Installation
Position
Connector Installation
Position
3.7 Inter-
RRU RF
Cable
DB2W2
connector
RX_IN/OUT
port on the
RRU
DB2W2
connector
RX_IN/OUT port
on the RRU
3.8 RRU
AISG Multi-
Wire Cable
Waterproofed
DB9 male
connector
RET port on
the RRU
Standard AISG
female connector
Standard AISG
male connector
on the RCU or on
the AISG
extension cable
3.9 RRU
AISG
Extension
Cable
Standard AISG
male connector
Standard AISG
female
connector on
the AISG
multi-wire
cable
Standard AISG
female connector
Standard AISG
male connector
on the RCU
3.2 RRU PGND Cable
An RRU PGND cable connects an RRU and a ground bar, ensuring the proper grounding of the
RRU. The maximum length of the RRU PGND cable is 30 m (98.42 ft.).
Exterior
An RRU PGND cable is green or green and yellow with a cross-sectional area of 16 mm2 (0.025
in.2). This cable has an OT terminal at each end. Figure 3-1 shows an RRU PGND cable.

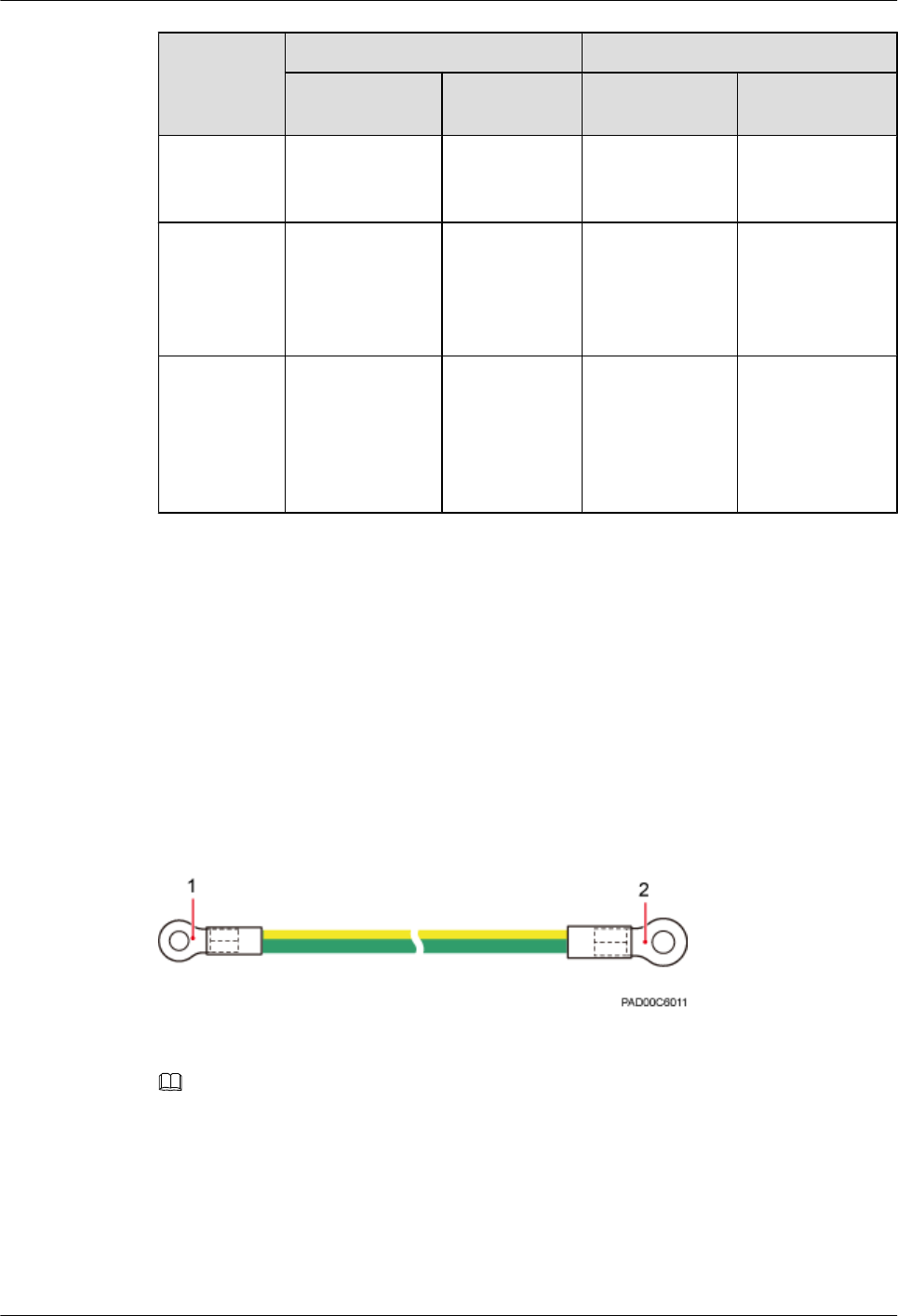

Figure 3-1 PGND cable
(1) OT terminal (M6, 16 mm2 or 0.025 in.2) (2) OT terminal (M8, 16 mm2 or 0.025 in.2)
NOTE
lIf the customer prepares the PGND cable, a copper-core cable with a cross-sectional area of 16 mm2
(0.025 in.2) or larger is recommended.
lOne OT terminal must be added to each end of the PGND cable onsite.
lYou can determine the color of the cable and whether to use corresponding two-hole OT terminals
based on local regulations.
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
Figure 3-2 shows a two-hole OT terminal.
Figure 3-2 Two-hole OT terminal
3.3 RRU Power Cable
The RRU power cable is a -48 V DC shielded cable. It feeds -48 V DC power to an RRU. The
maximum length of the RRU power cable is 50 m (164.04 ft.).
Exterior
The cross-sectional areas of the RRU power cable is 6 mm2 (0.0093 in.2). A tool-less female
connector (pressfit type) needs to be added to one end of the power cable and a corresponding
terminal needs to be added to the other end. The corresponding terminal is added to the bare
wire based on the requirements of the connector on the external power device, as shown in
Figure 3-3.

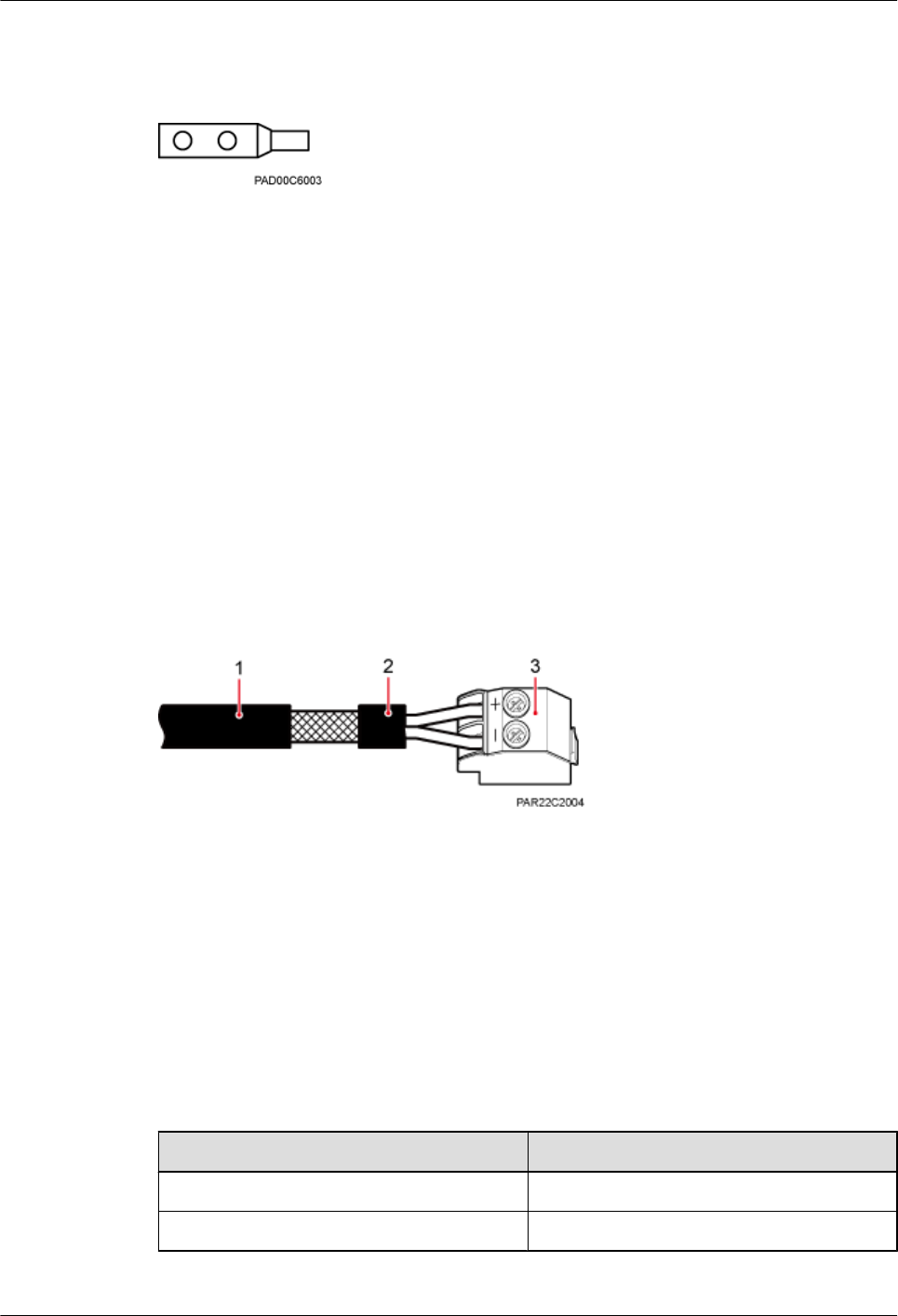

Figure 3-3 RRU power cable
(1) -48 V DC power cable (2) Shield layer (3) Tool-less female connector
(pressfit type)
Pin Assignment
The DC power input cable is a 2-wire cable. Table 3-2 and Table 3-3 describe the pin assignment
for the wires of a DC power input cable.
Table 3-2 Pin assignment for the wires of a DC power input cable (North American Standards)
Wire Color
NEG(-) Blue
RTN(+) Black
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
Table 3-3 Pin assignment for the wires of a DC power input cable (European Standards)
Wire Color
NEG(-) Blue
RTN(+) Brown
3.4 RRU Alarm Cable
The RRU alarm cable, a shielded straight-through cable, transmits alarm signals from an external
device to an RRU so that the base station monitors the operating status of external devices. The
maximum length of the RRU alarm cable is 5 m (16.40 ft.).
Exterior
An alarm cable has a DB15 male connector at one end and eight cord end terminals at the other
end, as shown in Figure 3-4.

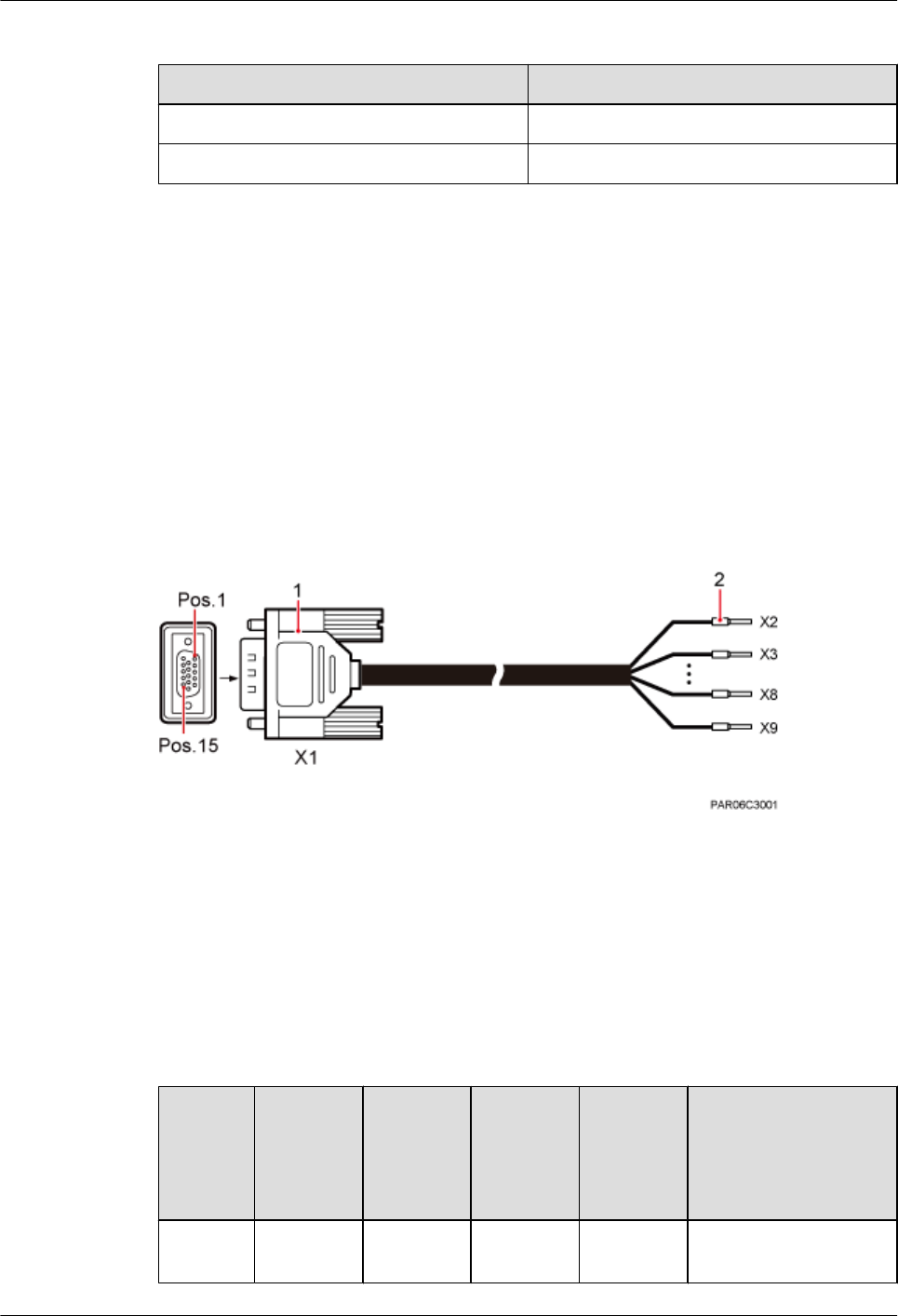

Figure 3-4 Alarm cable
(1) DB15 male connector (2) Cord end terminal
Pin Assignment
Table 3-4 describes the pin assignment for the wires of an RRU alarm cable.
Table 3-4 Pin assignment for the wires of an RRU alarm cable
RRU
Alarm
Port
Pin of the
DB15
Male
Connecto
r
Color Type Cord End
Terminal
Description
Dry
contact
X1.2 White and
blue
Twisted
pair
X2 SWITCH_INPUT0+
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
17
RRU
Alarm
Port
Pin of the
DB15
Male
Connecto
r
Color Type Cord End
Terminal
Description
X1.3 Blue X3 SWITCH_INPUT0-
(GND)
X1.6 White and
orange
Twisted
pair
X4 SWITCH_INPUT1+
X1.7 Orange X5 SWITCH_INPUT1-
(GND)
RS485 X1.10 White and
green
Twisted
pair
X6 APM RX-
X1.11 Green X7 APM RX+
X1.13 White and
brown
Twisted
pair
X8 APM TX-
X1.14 Brown X9 APM TX+
3.5 CPRI Fiber Optic Cable
CPRI fiber optic cables are classified into multi-mode fiber optic cables and single-mode fiber
optic cables. They transmit CPRI signals.
NOTE
lAn ODF can be used when the distance between a BBU and an RRU or the distance between
interconnected RRUs is longer than 100 m (328.08 ft).
lA single-mode fiber optic cable connects a BBU to an ODF or connects an ODF to an RRU.
The maximum length of a CPRI fiber optic cable is 150 m (492.12 ft) When the fiber optical
cable connects a BBU and an RRU. The length of a CPRI fiber optic cable is 10 m (32.81 ft)
when the fiber optical cable connects two RRUs.
Exterior
Figure 3-5 shows a fiber optic cable between a BBU and an RRU or between RRUs, with a
DLC connector at each end.
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
18
Figure 3-5 Fiber optical cable between a BBU and an RRU or between RRUs
(1) DLC connector (2) Branch optical fiber (3) Label on the branch optical fiber
When a fiber optical cable connects a BBU and an RRU, the optical fibers on the BBU side and
RRU side are 0.34 m (0.013 in.) and 0.03 m (0.0012 in.) long, respectively. When a fiber optical
cable connects two RRUs, the optical fibers on both RRU sides are 0.03 m (0.0012 in.) long.
Figure 3-6 shows the connections for a CPRI fiber optic cable between a BBU and an RRU.
Figure 3-6 Connections for a CPRI fiber optic cable between a BBU and an RRU
(1) CPRI fiber optic cable between a BBU and an RRU
Figure 3-7 shows a single-mode fiber optic cable between a BBU and an ODF or between an
ODF and an RRU, with a DLC connector at one end and an FC connector at the other end.
Figure 3-7 Single-mode fiber optic cable between a BBU and an ODF or between an ODF and
an RRU
(1) DLC connector (2) Branch optical fiber
(3) Label on the branch optical fiber (4) FC connector
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19
When a single-mode fiber optic cable connects a BBU and an ODF, the optical fibers on the
BBU side and ODF side are 0.34 m (0.013 in.) and 0.8 m (0.031 in.) long, respectively.
When a single-mode fiber optic cable connects an ODF and an RRU, the optical fibers on the
RRU side and ODF side are 0.03 m (0.013 in.) and 0.8 m (0.031 in.) long, respectively.

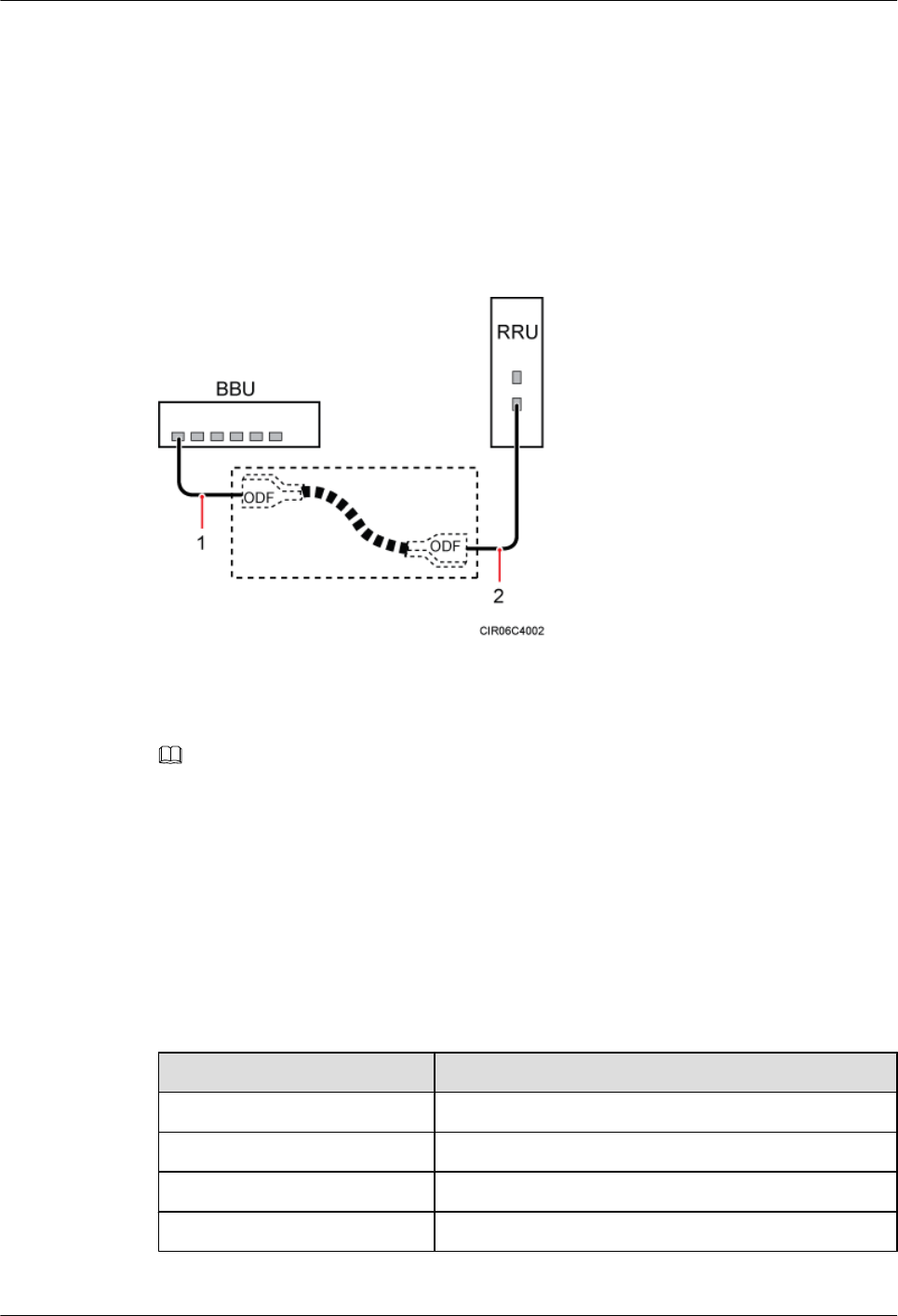

Figure 3-8 shows the connections for a single-mode CPRI fiber optic cable between a BBU and
an ODF or between an ODF and an RRU.
Figure 3-8 Connections for a single-mode fiber optic cable between a BBU and an ODF or
between an ODF and an RRU
(1) Single-mode CPRI fiber optic cable between a BBU
and an ODF
(2) Single-mode CPRI fiber optic cable between an
ODF and an RRU
NOTE
A CPRI fiber optic cable must be connected to optical modules in the CPRI ports. A multi-mode fiber optic
cable and single-mode fiber optic cable are connected to multi-mode optical modules and single-mode optical
modules, respectively.
Pin Assignment
Table 3-5, Table 3-6, and Table 3-7 describe the labels on and recommended connections for
fiber optic cables of an optical assembly.
Table 3-5 Labels on and recommended connections for optical fibers of an optical assembly
between a BBU and an RRU
Label Connected To
1A CPRI RX port on the RRU
1B CPRI TX port on the RRU
2A TX port on the BBU
2B RX port on the BBU
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
20
Table 3-6 Labels on and recommended connections for optical fibers of a fiber optic cable
between RRUs
Label Connected To
1A CPRI RX port on RRU 1
1B CPRI TX port on RRU 1
2A CPRI TX port on RRU 0
2B CPRI RX port on RRU 0
Table 3-7 Labels on and recommended connections for optical fibers of a single-mode optical
assembly between a BBU and an ODF or between an ODF and an RRU
Label Connected To
1A RX port on the BBU or CPRI RX port on the RRU
1B TX port on the BBU or CPRI TX port on the RRU
2A ODF
2B ODF
3.6 RRU RF Jumper
The 1/2" RRU RF jumper transmits and receives RF signals between an RRU and an antenna.
NOTE
lWhen the distance between an RRU and an antenna is within 14 m (45.93 ft.), connect one end of the RF
jumper to the ANT-TX/RXA or ANT-TX/RXB port at the RRU bottom, and connect the other end to the
antenna.
lWhen the distance between the RRU and the antenna exceeds 14 m (45.93 ft.), connect one end of the RF
jumper to the ANT-TX/RXA or ANT-TX/RXB port at the RRU bottom, and connect the other end to the
feeder. Then, connect the other end of the feeder to the antenna.
lIf the customer prepares the RF jumper, the length of the RF jumper should be as short as possible and not
exceed 2 m (6.56 ft.).
Exterior
An RF jumper has a DIN male connector at one end and a customized connector at the other
end.
Figure 3-9 shows an RF jumper with a DIN male connector at each end.
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
21
Figure 3-9 RF jumper
(1) DIN male connector
3.7 Inter-RRU RF Cable
An inter-RRU RF cable connects the RX_IN/OUT ports on two RRUs in the same cell and
transmits RF signals between the RRUs. The maximum length of the inter-RRU RF cable is 2
m (6.56 ft.).
Exterior
Figure 3-10 shows an inter-RRU RF cable with a DB2W2 connector at each end.
Figure 3-10 Inter-RRU RF cable
(1) DB2W2 connector
3.8 RRU AISG Multi-Wire Cable
An RRU AISG multi-wire cable connects an RRU and an RCU to transmit control signals from
a base station to an RET antenna. When the RRU is connected to the RET antenna, an AISG
multi-wire cable transmits RS485 signals. The maximum length of the AISG multi-wire cable
is 5 m (16.40 ft.).
NOTE
An RCU is a driving motor used for the phase shifter in the RET antenna. It receives control commands from a
base station and runs the commands to drive the stepper motor. Using a gear, the stepper motor drives the
adjustable phase shifter in the antenna and changes the downtilt angle.
Exterior
An AISG multi-wire cable has a waterproofed DB9 male connector at one end and a standard
AISG female connector at the other end, as shown in Figure 3-11.
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
22
Figure 3-11 AISG multi-wire cable
(1) Waterproofed DB9 male connector (2) Standard AISG female connector
Pin Assignment
Table 3-8 describes the pin assignment for the wires of an AISG multi-wire cable.
Table 3-8 Pin assignment for the wires of an AISG multi-wire cable
X1 End (Pin of the
Waterproofed
DB9 Male
Connector)
X2 End (Pin of the
Standard AISG
Female Connector)
Color Type Description
X1.1 X2.1
White and
blue Twisted
pair +12 V
Blue
X1.3 X2.3 White and
orange Twisted
pair
RS485 B
X1.5 X2.5 Orange RS485 A
X1.4 X2.4 White and
green
- GND
X1.9 and X1.4 are
interconnected.
- - - GND
- X2.1 and X2.6 are
interconnected.
- - +12 V
- X2.4 and X2.7 are
interconnected.
- - GND
3.9 RRU AISG Extension Cable
When the distance between an RRU and an RCU is longer than 5 m (16.4 ft.), an AISG multi-
wire cable is not long enough to connect the RRU and the RCU. In this case, an AISG extension
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
23
cable is used to extend the AISG multi-wire cable for transmitting RS485 signals. The maximum
length of the AISG extension cable is 15 m (49.21 ft.).
Exterior
An AISG multi-wire cable has a standard AISG male connector at one end and a standard AISG
female connector at the other end, as shown in Figure 3-12.
Figure 3-12 AISG extension cable
(1) Standard AISG male connector (2) Standard AISG female connector
Pin Assignment
Table 3-9 describes the pin assignment for the wires of an AISG extension cable.
Table 3-9 Pin assignment for the wires of an AISG extension cable
X1 End (Pin
of the
Standard
AISG Male
Connector)
X2 End (Pin
of the
Standard
AISG
Female
Connector)
Color Type Description
X1.1 X2.1 White and blue Twisted pair +12 V
Blue
X1.7 X2.7 White and orange Twisted pair DC Return A
Orange
X1.3 X2.3 White and green Twisted pair RS485 B
X1.5 X2.5 Green RS485 A
X1.6 X2.6 White and brown Twisted pair +24 V
Brown
RRU3942
Hardware Description 3 RRU Cables
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
24
4 RRU Auxiliary Devices
About This Chapter
This chapter describes RRU auxiliary devices.
4.1 OCB
An Outdoor Cable Conversion Box (OCB) interconnects cables of different core diameters.
Power cables shipped with RRUs cannot support long-distance power supply. Therefore, when
power supply is far from the equipment, cables with large core diameters are used, and an OCB
connects these cables and RRU power cables.
RRU3942
Hardware Description 4 RRU Auxiliary Devices
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
25
4.1 OCB
An Outdoor Cable Conversion Box (OCB) interconnects cables of different core diameters.
Power cables shipped with RRUs cannot support long-distance power supply. Therefore, when
power supply is far from the equipment, cables with large core diameters are used, and an OCB
connects these cables and RRU power cables.
Application Scenario of an OCB
Figure 4-1 shows the application scenario of an OCB.
Figure 4-1 Application scenario of an OCB
For details about the structure, functions, installation, and maintenance of an OCB, see the OCB
User Guide.
RRU3942
Hardware Description 4 RRU Auxiliary Devices
Issue 02 (2012-06-29) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
26
