Huawei Technologies S10-202U HUAWEI MediaPad 10 Link User Manual Quick Start

Huawei Technologies Co.,Ltd HUAWEI MediaPad 10 Link Quick Start

Contents

User manual

Quick Start
1
1 For More Help
Welcome to the bright new world of HUAWEI MediaPad 10 Link (HUAWEI
MediaPad for short).
For more help, go to http://www.huaweidevice.com to download the
User
Guide
.
To find the
User Guide
of your tablet quickly, enter HUAWEI MediaPad 10
Link in the webpage search box.
Please visit www.huaweidevice.com/worldwide/support/hotline for recently
updated hotline and email address in your country or region.
The figures in this guide are provided for your reference only.
The appearance and display features may vary slightly
depending on the actual product version.
2

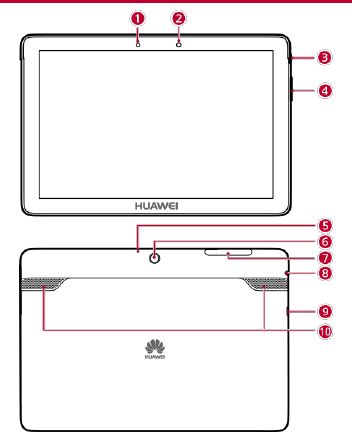

2 HUAWEI MediaPad at a Glance
1
Light sensor
2
Front camera
3
Power key
4
Volume keys
5
Microphone
6
Rear camera
7
Card slot
8
Composite
headphone/audio-input jack
9
Micro-USB Port (with the
charging function)
10
Speaker
3
3 Installing the SIM and microSD Cards
1. Open the SIM and microSD card slot cover.
2. Insert the SIM card with its gold contacts facing up, as indicated
in the preceding figure. Push the card inward until it clicks into
place.
HUAWEI MediaPad is only compatible with standard SIM cards,
whose dimensions are 0.76 mm x 15 mm x 25 mm. Inserting a
SIM card with other dimensions will damage your HUAWEI
MediaPad.
3. Insert the microSD card with its gold contacts facing up, as
indicated in the preceding figure. Push the card inward until it
clicks into place.
4. Replace the card slot cover.
Do not remove the card slot cover from the tablet.
4
4 Powering On or Off
Powering On
Press and hold the power key until HUAWEI MediaPad vibrates.
If HUAWEI MediaPad has not been used for a long time or the
battery level is low, you may not be able to power it on
immediately after you start charging the battery. Allow the
battery to charge for a few minutes before attempting to use it.
Powering Off
Press and hold the power key until a dialog box is displayed. Then follow
the onscreen instructions to power off HUAWEI MediaPad.
5 Locking the Screen
When your HUAWEI MediaPad is turned on, press the Power
button to lock the screen.
If your HUAWEI MediaPad is idle for a preset period of time, the
screen will lock automatically.
6 Unlocking the Screen
1. Press the Power button to wake up the screen.
2. Drag the lock icon to the icon on the right.
5
7 Gestures
The following simple finger gestures make it easy to use your HUAWEI
MediaPad.
6
8 Warnings and Precautions
This section contains important information about the operation of your
device. It also contains information about how to use the device safely.
Read this information carefully before using your device.
Basic Requirements
During storage, transportation, and operation of the device, keep it
dry and prevent it from colliding with other objects.
Do not dismantle the device. In case of any fault, contact an
authorized service center for assistance or repair.
Without authorization, no organization or individual can change the
mechanical, safety, or performance design of the device.
When using the device, observe all applicable laws and
regulations and respect the legal rights of other people.
Environmental Requirements for Using the Device
Keep the device far from sources of heat and fire, such as a heater
or a candle.
Keep the device far from electronic appliances that generate
strong magnetic or electric fields, such as a microwave oven or a
refrigerator.
Place the device on a stable surface.
Place the device in a cool and well-ventilated indoor area. Do not
expose the device to direct sunlight.
Keep the ambient temperature between 0°C and 35°C while the
device is being charged. Keep the ambient temperature between
0°C to 35°C for using the device powered by a battery.
Do not place any object (such as a candle or a water container) on
the device. If any foreign object or liquid enters the device, stop
using the device immediately, power it off, remove all the cables
connected to it, and then contact an authorized service center.
During thunderstorms, power off the device, and then remove all
the cables connected to it to prevent it from getting damaged due
to lightning strikes.
7
Traffic Security
Observe local laws and regulations while using the device. In addition, if
using the device while driving a vehicle, comply with the following
guidelines:
Concentrate on driving. Your first responsibility is to drive safely.
RF signals may affect electronic systems of motor vehicles. For
more information, consult the vehicle manufacturer.
In a motor vehicle, do not place the device over the air bag or in
the air bag deployment area. Otherwise, the device may hurt you
owing to the strong force when the air bag inflates.
Do not use your device while flying in an aircraft. Power off your
device before boarding an aircraft. Using wireless devices in an
aircraft may cause danger to the operation of the aircraft and
disrupt the wireless telephone network. It may also be considered
illegal.
Precautions for Using Wireless Devices
The device complies with the RF specifications when the device is
used in portable exposure conditions or at a distance of 1.5 cm
from your body.
Do not use the device where using wireless devices is prohibited
or may cause interference or danger.
The radio waves generated by the device may interfere with the
operation of electronic medical devices. If you are using any
electrical medical device, contact its manufacturer for the
restrictions on the use of the device.
Do not take the device into operating rooms, intensive care units
(ICUs), or coronary care units (CCUs).
Areas with Inflammables and Explosives
Do not use the device where inflammables or explosives are
stored, for example, in a gas station, oil depot, or chemical plant.
Otherwise, explosions or fires may occur. In addition, follow the
instructions indicated in text or symbols.
Do not store or transport the device in the same box as
inflammable liquids, gases, or explosives.
8
Accessory Requirements
Use only the accessories supplied or authorized by the device
manufacturer. Otherwise, the performance of the device may get
affected, the warranty for the device or the laws and regulations
related to telecommunications terminals may become null and void,
or an injury may occur.
Do not use the power adapter if its cable is damaged. Otherwise,
electric shocks or fires may occur.
Ensure that the power adapter meets the specifications indicated
on the device nameplate.
Ensure that the power adapter meets the requirements of Clause
2.5 in IEC60950-1/EN60950-1 and it is tested and approved
according to national or local standards.
For pluggable device, the socket-outlet shall be installed near the
device and shall be easily accessible.
Battery and Charger
Unplug the charger from the electrical plug and the device when
not in use.
If the power cable is damaged (for example, the cord is exposed or
broken), or the plug loosens, stop using the cable at once.
Otherwise, it may lead to an electric shock, a short circuit of the
charger, or a fire.
Use the AC power supply defined in the specifications of the
charger. An improper power voltage may cause a fire or a
malfunction of the charger.
CAUTION - RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
Prevention of Hearing Damage
Using a headset at high volume can damage your hearing. To reduce the
risk of damage to hearing, lower the headset volume to a safe and
comfortable level.
9
To prevent possible hearing damage, do not listen at high volume levels for
long periods.
Safety of Children
Keep the device and its accessories out of the reach of children. Otherwise,
they may damage the device and its accessories by mistake, or they may
swallow the small components of the device, causing suffocation or other
dangerous situations.
Maintenance
If the device is not used for a long time, power it off, and then
remove all the cables connected to it.
If any exception occurs, for example, if the device emits any
smoke or unusual sound or smell, stop using the device
immediately, power it off, remove all the cables connected to it,
and then contact an authorized service center.
If the device screen is broken by colliding with hard objects, do not
touch or try to remove the broken part. In this case, stop using the
device immediately, and then contact an authorized service center
in time.
Do not trample, pull, or overbend any cable. Otherwise, the cable
may get damaged, causing malfunction of the device.
Before cleaning the device, stop using it, power it off, and then
remove all the cables connected to it.
Use a clean, soft, and dry cloth to clean the device shell. Do not
use any cleaning agent or spray to clean the device shell.
Certification Information (SAR)
This device meets guidelines for exposure to radio waves.
Your device is a low-power radio transmitter and receiver. As
recommended by international guidelines, the device is designed not to
exceed the limits for exposure to radio waves. These guidelines were
developed by the independent scientific organization International
Commission on Non-Ionizing Radiation Protection (ICNIRP) and include
10
safety measures designed to ensure safety for all users, regardless of age
and health.
The Specific Absorption Rate (SAR) is the unit of measurement for the
amount of radio frequency energy absorbed by the body when using a
device. The SAR value is determined at the highest certified power level in
laboratory conditions, but the actual SAR level of the device when being
operated can be well below the value. This is because the device is
designed to use the minimum power required to reach the network.
The SAR limit adopted by USA and Canada is 1.6 watts/kilogram (W/kg)
averaged over one gram of tissue. The highest SAR value reported to the
FCC and IC for this device type when tested for use in portable exposure
conditions is 1.366 W/kg.
The SAR limit also adopted by Europe is 2.0 W/kg averaged over 10 grams
of tissue. The highest SAR value for this device type when tested in
portable exposure conditions is 0.306 W/kg.
Disposal and Recycling Information
This symbol (or without a solid bar) on the device, and/or on its
packaging, and on its batteries where included, indicates that the device
including its electrical accessories (e.g. headset, adapter, cable) and the
batteries should not be disposed of as normal household garbage. These
items should not be disposed as unsorted municipal waste and should be
handed over to a certified collection point for recycling or proper disposal at
the end of their life.
For more detailed information about the recycling of the device or batteries,
please contact your local city office, the household waste disposal service,
or the retail store where you purchased it/them.
Disposal of the device and batteries if included is subject to WEEE
Directive Recast (Directive 2012/19/EU) and Battery Directive (Directive
2006/66/EC). The purpose for separating WEEE and batteries from other
waste is to minimize the potential environmental impacts on human health
of any hazardous substances that may be present.
11
Reduction of Hazardous Substances
This device is compliant with the REACH Regulation [Regulation (EC) No
1907/2006] and RoHS Directive Recast (Directive 2011/65/EU). Batteries
where included are compliant with Battery Directive (Directive 2006/66/EC).
For more information about the REACH and RoHS compliance of the
device, please visit the Web site www.huaweidevice.com/certification. You
are recommended to visit the Web site regularly for up-to-date information.
EU Regulatory Conformance
Български



Česky



Dansk
: Huawei Technologies Co., Ltd. erklærer hermed at denne enhed er
i overensstemmelse med de obligatoriske krav og andre relevante
bestemmelser i direktiv 1999/5/EF.
Nederlands
: Hierbij verklaart Huawei Technologies Co., Ltd. dat dit
apparaat in overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/EC.
English
: Hereby, Huawei Technologies Co., Ltd. declares that this device is
in compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.
Eesti
: Käesolevaga kinnitab Huawei Technologies Co., Ltd., et see seade
vastab Direktiivi 1999/5/EÜ põhinõudmistele ja teistele asjakohastele
määrustele.
Suomi
: Huawei Technologies Co., Ltd. vakuuttaa täten, että tämä laite on
yhdenmukainen direktiivin 1999/5/EY olennaisten vaatimusten ja direktiivin
muiden asiaankuuluvien lausumien kanssa.
Français (Européen)
: Le fabricant déclare que ce produit est conforme
aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Deutsch
: Huawei Technologies Co., Ltd. erklärt hiermit, dass dieses
Produkt die erforderlichen Bestimmungen und andere relevante
Verordnungen der Richtlinie 1999/5/EG einhält.
12
Ελληνικά
:    Huawei Technologies Co., Ltd.  
        
    1999/5/..
Magyar
: Jelen nyilatkozaton keresztül a Huawei Technologies Co., Ltd.
kijelenti, hogy a készülék megfelel az EC/5/1999 Irányelv összes lényeges

Gaeilge
: Fograíonn Huawei Technologies Co., Ltd leis seo go bhfuil an
fheiste seo i gcomhlíonadh leis na fíor-riachtanais agus na forálacha eile
maidir le Treoir 1999/5/AE.
Italiano
: Col presente documento, Huawei Technologies Co., Ltd. dichiara
che questo dispositivo è conforme ai requisiti essenziali e alle altre
disposizioni applicabili della Direttiva 1999/5/CE.
Latviski

 
Lietuviškai

atitinka Direktyvos 1999/5/EC pagrindinius reikalavimus ir taikomas
s.
Malti
: Hawnhekk, Huawei Technologies Co., Ltd. tiddikjara li dan it-
hu konformi mal-
Direttiva 1999/5/KE.
Polski
: Wymieniona w tym dokumencie firma Huawei Technologies Co.,
Ltd. deklaruje, 

1999/5/EC.
Português (Europeu)
: Deste modo, a Huawei Technologies Co., Ltd.
declara que este dispositivo está em conformidade com os requi sitos
essenciais e outras provisões relevantes da Directiva 1999/5/CE.
Română


directivei 1999/5/CE.
Slovenčina
: Hua

Smernice 1999/5/ES.
13
Slovenščina
: Huawei Technologies Co., Ltd. izjavlja, da je ta naprava v
skladu z bistvenimi zahtevami in dru
1999/5/ES.
Español (Europeo)
: Con el presente documento, Huawei Technologies
Co., Ltd. declara que este dispositivo cumple con los requisitos esenciales
y con las demás disposiciones correspondientes de la Directiva 1999/5/CE.
Svenska
: Huawei Technologies Co., Ltd. förklarar härmed att denna
produkt överensstämmer med de grundläggande kraven och andra
relevanta föreskrifter i direktiv 1999/5/EG.
For the declaration of conformity, visit the Web site
www.huaweidevice.com/certification.
Notice: Observe the national local regulations in the location where the
device is to be used. This device may be restricted for use in some or all
member states of the European Union (EU).
Notice: This device may be operated in all member states of the EU.
Norway
: This subsection does not apply for the geographical area within a
radius of 20 km from the centre of Ny-Ålesund.
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
14
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly
approved by Huawei Technologies Co., Ltd. may void the FCC
authorization to operate this device.
9 Personal Information and Data Security
The use of some functions or third-party applications on your device could
result in your personal information and data being lost or becoming
accessible to others. Several measures are recommended to help you
protect personal and confidential information.
Place your device in a safe area to prevent it from unauthorized
use.
Set your device screen to lock and create a password or unlock
pattern to open it.
Periodically back up personal information kept on your memory
card, or stored in your device memory. If you change to a different
device, be sure to move or delete any personal information on your
old device.
If you are worried about viruses when you receive messages or
emails from a stranger, you can delete them without opening them.
If you use your device to browse the Internet, avoid websites that
might pose a security risk to avoid theft of your personal
information.
If you use services such as Wi-Fi or Bluetooth, set passwords for
these services to prevent unauthorized access. When these
services are not in use, turn them off.
Install or upgrade device security software and regularly scan for
viruses.
15
Be sure to obtain third-party applications from a legitimate source.
Downloaded third-party applications should be scanned for
viruses.
Install security software or patches released by Huawei or
third-party application providers.
Some applications require and transmit location information. As a
result, a third-party may be able to share your location information.
Your device may provide detection and diagnostic information to
third-party application providers. Third party vendors use this
information to improve their products and services.
If you have concerns about the security of your personal
information and data, please contact mobile@huawei.com.
10 Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2013. All rights
reserved.
No part of this document may be reproduced or transmitted in any form or
by any means without prior written consent of Huawei Technologies Co.,
Ltd. and its affiliates (Huawei).
The product described in this manual may include copyrighted software of
Huawei and possible licensors. Customers shall not in any manner
reproduce, distribute, modify, decompile, disassemble, decrypt, extract,
reverse engineer, lease, assign, or sublicense the said software, unless
such restrictions are prohibited by applicable laws or such actions are
approved by respective copyright holders.
Trademarks and Permissions
, , and are trademarks or registered
trademarks of Huawei Technologies Co., Ltd.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarked of Dolby Laboratories.
Android
TM
is a trademark of Google Inc.
16
The Bluetooth
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co.,
Ltd. is under license.
Other trademarks, product, service and company names mentioned are the
property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on
the software installed, capacities and settings of local network, and
therefore may not be activated or may be limited by local network operators
or network service providers.
Thus the descriptions herein may not match exactly the product or its
accessories you purchase.
Huawei reserves the right to change or modify any information or
specifications contained in this manual without prior notice and without any
liability.
Third-Party Software Statement
Huawei does not own the intellectual property of the third-party software
and applications that are delivered with this product. Therefore, Huawei
Technologies Co., Ltd. will not provide any warranty of any kind for
third-party software and applications. Neither will Huawei Technologies Co.,
Ltd. provide support to customers who use these third-party software and
applications, nor be responsible or liable for the functions or performance of
third-party software and applications.
Third-party software and applications services may be interrupted or
terminated at any time, and Huawei does not guarantee the availability of
any content or service. Third-party service providers provide content and
services through network or transmission tools outside of the control of
Huawei. To the greatest extent permitted by applicable law, it is explicitly
stated that Huawei shall not compensate or be liable for services provided
by third-party service providers, or the interruption or termination of
third-party contents or services.
Huawei shall not be responsible for the legality, quality, or any other
aspects of any software installed on this product, or for any uploaded or
downloaded third-party works in any form, including but not limited texts,
images, videos, or software etc. Customers shall bear the risk for any and
17
all effects, including incompatibility between the software and this product,
which result from installing software or uploading or downloading the
third-party works.
This product is based on the open- has
made necessary changes to the platform. Therefore, this product may not
support all the functions that are supported by the standard Android
platform or may be incompatible with third-party software. Huawei does not
provide any warranty and representation in connect with any such
compatability and expressly excludes all liability in connection with such
matters.
DISCLAIMER
ALL  
AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE
ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO
EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL,
INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED
SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE
FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO
LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE
LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM
THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE
LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE
PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and
regulations and be responsible to obtain all necessary governmental
permits and licenses in order to export, re-export or import the product
mentioned in this manual including the software and technical data therein.
18
Privacy Policy
Please refer to our privacy policy on our websites for the information about
how we protect your personal information.

subject to Google Permissions.
31505737_01

Navigation menu
