Huawei Technologies T201 T201 Mobile Phone User Manual
Huawei Technologies Co.,Ltd T201 Mobile Phone Users Manual

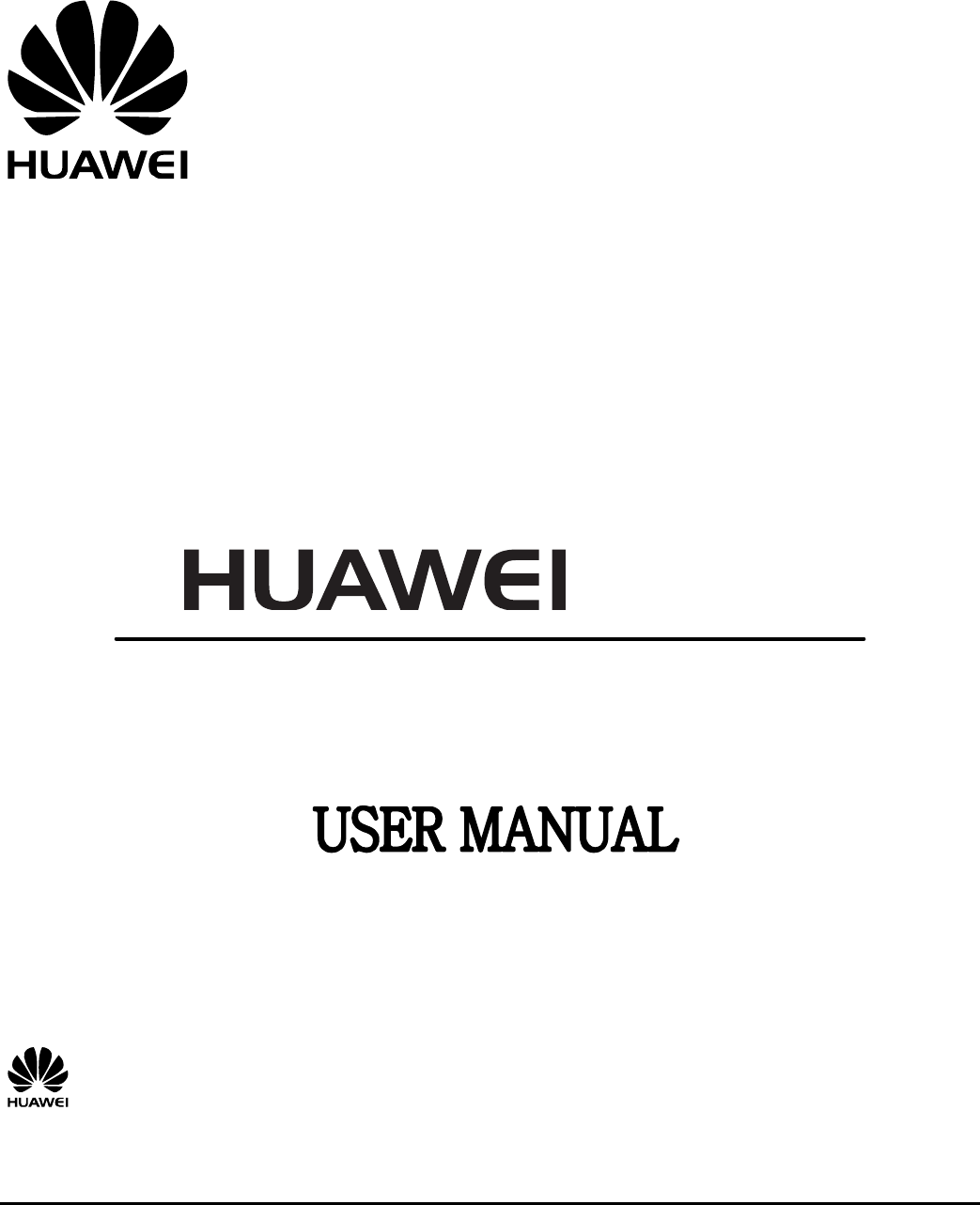

Users Manual
T201
Mobile Phone
Copyright © 2007 Huawei Technologies Co., Ltd.
and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd.
in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the
property of their respective holders. The information in this manual is subject to change without notice. Every effort
has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information,
and recommendations in this manual do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China
Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
Table of Contents
Your Phone ...............................................................................1
Keys and Functions ..................................................................2
Screen Icons..............................................................................3
Menu Tree.................................................................................5
Installing the SIM Card and Battery....錯誤! 尚未定義書籤。
Removing the Battery and SIM Card .......................................6
Charging the Battery.................................................................6
Using the Function Menu .........................................................7
Making a Call ...........................................................................8
Answering a Call ......................................................................8
Security.....................................................................................9
PIN and PUK............................................................................9
Locking the Keypad..................................................................9
Text Input Modes....................................................................10
Warnings and Precautions ......................................................10
1

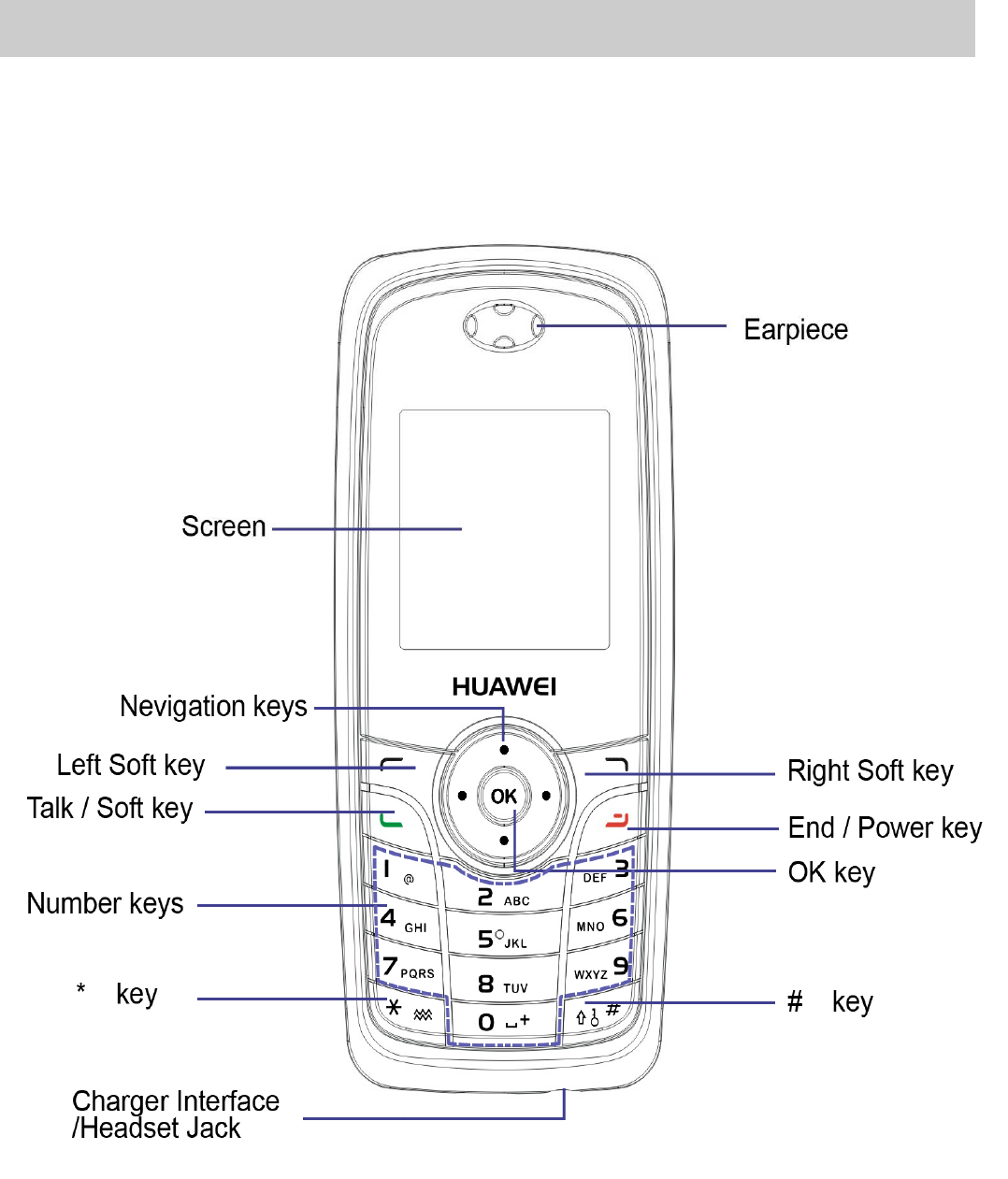

Your Phone
2
Keys and Functions
Press… To…
Follow the prompt shown on screen, press to access
the following options: “Menu”, “Select”, “OK ”or
“Option”, etc.
Press to access In-Call Menu during calls.
In the editing mode, press to clear the screen or
delete characters.
In the menu mode, press to return to upper level
menu.
In the idle mode access to Contacts easily by simply
pressing Quick Search Contacts Access key.
Press up and down arrow to scroll through the lists
when accessing menus or setting options.
Press up arrow to access the “Calendar”.
Press down arrow to access to the “Contacts”.
Press left arrow to access to the “Alarm clock ”.
Press right arrow to access to the “Write
message ”.
Press middle key to access to the “Fun &Tools ”.
3
Press… To…
Press to reject an incoming call.
Press and hold to turn on /off the phone.
Press to end an active call during calls.
Press and back to the idle mode.
Press to place a call or answer an incoming call.
In the idle mode, press to access the call records and
view the phone numbers dialed or missed recently
with 10 entries each.
Screen Icons
Icon Description Icon Description
or
Indicates signal strength
and alternate line service.
Voice Message
It is shown when
there is an unread
incoming voice
message.
Battery Charge Indicator
The longer the bar, the
more power is available in
the battery.
Silencer
It is shown when the
ringer volume is set
to Level 0 or the
Call Alert is
set to No ringer &
Vibrator.
4
Icon Description Icon Description
Roaming
It shows that you are using
a network other than your
home network.
Mute
It is shown when
you set Profiles to
Mute in the Settings
menu.
Short Message
It is solid when there is an
unread incoming text
message. It flashes when
the memory is full.
Vibrator
It is shown when
Call Alert is set to
Vibrator Only.
Alarm
It is shown when you
enable the alarm.
Earphone
Indicates the
connection of an
earphone.
Missing call
Indicates that you have
missed calls.
5
Menu Tree
1 Phone settings
2 Display settings
3 Network settings
4 Call settings
5 Shortcut
1SMS
2
3 Info service
Messages
1
2 Incoming call
3 Outgoing call
4 Missed call
5 Call duration
6 Message counter
1
2
3
4
5
1
2 Voice mailbox
3
Messages
1
2
3
4
5
6
All records
Call Register Contacts
1
2
3 Search
4Storage status
5Speed dial
6 Fixed dial
1
2
3
4
5
6
Create
View
7Enable FND
Caller groups
8
Delete all entrie
s
9Copy
10
Settings
Profiles
1 General
2 Conference
3 Outdoor
4Mute
5Customize
1
2
3
4
5
Fun&Tools
1BMI
2 Countdown
3 Stopwatch
4 Calendar
1
2
3
4
Games
1ELF
2 Snake
3 Settings
1
2
3
Organizer
1
2
3 To do list
4World clock
5Calculater
6 Unit converter
1
2
3
4
5
6
Alarm clock
Calendar
7Currency
STK
6
Installing the SIM Card and Battery.
Make sure that the angled corner is on the lower right-hand side with
the golden metallic contact surface facing downward.
Removing the Battery and SIM Card
Make sure that your phone is powered off.
Charging the Battery
Use only the approved battery and charger supplied by the phone
manufacturer.
1. Insert the connector of the travel charger into the charger jack at
the bottom of the phone.
2. If your phone is powered on, after you have connected the charger
to the AC power supply socket, the battery indicator will start
scrolling while charging begins. You can also use your phone
while charging it. If the phone is powered off, "Charging" will be
displayed on screen.
7
3. When the battery is fully charged, the battery indicator stops
scrolling. If the phone is powered off, it will inform you with the
message of "Charging completed" displayed on the screen.
Note:
When charging the battery for the first time, charge it for at
least 12 hours.
Charging duration may vary with major voltage variations.
For optimum battery performance, five hours of battery
charging is recommended.
Do not remove the battery while charging is in progress.
Otherwise it may cause damage to your phone.
Using the Function Menu
1. In the idle mode, press (menu).
2. Pressing vertically allows you to access the menus on the
function table.
3. Press (options) to access the menu options according to the
prompts on screen.
4. Enter the submenu. There are two ways to access the submenu:
Press to scroll through the lists and press the soft key
to select the desired submenu.
Enter the submenu by pressing the digit corresponding to the
submenu.
5. Press (back/cancel); or press to return to the idle
mode.
8
Making a Call
Domestic Call
1. Enter the area code and phone number. To edit the number on the
screen, press to move the cursor to the up; press to
move it to the down; press to move it to the left; press
to move it to the right. Press (Clear) to delete the
digit on the left of the cursor.
2. Press to dial the number.
3. Press to end an active call or stop dialing.
Example: You can enter 02154265588 and press to make the
phone call.
International Call
1. Enter the prefix and the phone number as follows:
Press and hold "0". Then “+” appears. Then enter the country code,
area code, and the phone number accordingly.
2. Press to make the phone call.
3. Press to end an active call or stop dialing.
Example: You can enter +862154265588 and press to make an
international phone call.
Answering a Call
1. Press to answer an incoming call.
2. Press to end the call; or press to refuse an incoming
call.
9
If you have activated the Divert call function, any incoming call will
be diverted to a specified number. For example, divert the incoming
calls to your voice mailbox. When an incoming call is refused, the
call will be diverted too.
Security
There are a number of security features provided to protect against
any unauthorized use of your SIM card and some certain features.
With the options of “On”, “Off” and “Change PIN 1”, you can set
whether a Personal Identification Number (PIN) is requested while
the phone is switched on, or edit your PIN code.
If PIN Control is activated, your phone will ask for the PIN the next
time you switch on the phone.
Note: After you have entered the PIN code, press (Ok).
PIN and PUK
The PIN code prevents the SIM card from unauthorized use. PIN
code is provided together with the SIM card. If activated, every time
you switch on the phone, you will be asked to enter the PIN.
Note: If PIN code is entered incorrectly for three consecutive times,
the SIM card will be locked automatically.
Personal Unblocking Key (PUK) is used to unblock and change the
locked PIN code. The PUK code is provided together with the SIM
card. If not provided, or if it has been lost, consult your network
service provider.
Locking the Keypad
This option allows you to change the keypad lock settings. You can
select whether to disable this function or lock the keypad 30 seconds
later when no user input is received or lock the keypad 60 seconds
later when no user input is received.
10
Text Input Modes
The phone provides five input modes for you to edit your contacts
and short messages. The input modes are also available in other
editing modes. The following five input modes are available: eZi
English, Number Input, Smart English, Upper English, Lower
English.
Upper English
Lower English
Smart English
eZi English
Number Input.
By pressing , you can switch between these input modes.
Warnings and Precautions
Electronic Device
Power off your phone near high-precision electronic devices. The
phone may affect the performance of these devices.
Such devices include hearing aids, pacemakers, fire alarm
systems, automatic gates, and other automatic-control devices. If
you are using an electronic medical device, consult the device
manufacturer to confirm whether the radio wave affects the
operation of this device.
11
Pacemaker manufacturers recommend that a minimum separation
of 15cm be maintained between a mobile phone and a pacemaker
to avoid potential interference with the pacemaker. To achieve this,
use the phone on the opposite ear to your pacemaker and do not
carry it in a breast pocket.
Hospital
Pay attention to the following points in hospitals or health care
facilities:
Do not take your phone into the operating room (OR), intensive
care unit (ICU), or coronary care unit (CCU).
Do not use your phone at places for medical treatment where
phone use is prohibited.
When using your phone near someone who is suffering from a
heart disease, turn down the ring tone volume or vibration
properly so that it does not affect the person.
Area with Inflammables and Explosives
In any area with inflammables and explosives, power off your phone
and do not take out, install or charge the battery, to avoid explosion
and fire. Areas with inflammables and explosives include, but are not
limited to:
Gas station
Area for storing fuels (such as the bunk under the deck of a ship)
Device/Vehicle for transporting and storing fuels or chemical
products
Area with chemical substances and particles (such as: granule,
dust, metal powder) in the air
Area with the sign of "Explosives"
Area with the sign of "Power off bi-direction wireless equipment"
Area where it is generally suggested to stop the engine or a
vehicle
12
Traffic Safety
Please observe local laws and regulations on phone use. Do not
use your phone while driving to avoid traffic accident.
Secure the phone on its holder. Do not place the phone on the seat
or other places where it can get loose in a sudden stop or
collision.
Use the phone after the vehicle stops at a safe place.
If your phone supports the hands-free function, or the phone can
be used with earphones, or there is any vehicle-mounted
equipment with the hands-free function, use them in emergency.
Do not place the phone over the air bag or in the air bag outspread
area. Otherwise, the phone may hurt you owing to the strong force
when the air bag inflates.
Observe the rules and regulations of airline companies. When
boarding or approaching a plane, power off the phone and take
out the battery. In areas where phone use is prohibited, power off
the phone. Otherwise, the radio signal of the phone may disturb
the plane control signals. Power off your phone before boarding
an aircraft.
Storage Environment
Do not place magnetic storage media such as magnetic cards and
floppy disks near the phone. Radiation from the phone may erase
the information stored on them.
Do not put your phone, battery, or other accessories in containers
with strong magnetic field, such as an induction cooker and a
microwave oven. Otherwise, circuit failure, fire, or explosion may
occur.
Do not leave your phone, battery, or charger in a very hot or cold
place. Otherwise, malfunction of the products, fire, or explosion
may occur.
13
Keep the ambient temperature between 0℃ and 45℃ while the
battery is being charged. Keep the ambient temperature between
–20℃ and 60℃ for storing the battery. If the ambient
temperature is too low (especially below 0℃) or too high, the
capacity and life of the battery will be reduced.
Do not place sharp metal objects such as pins near the earpiece.
The earpiece may attract these objects and hurt you when you are
using the phone.
Do not subject your phone, battery, and charger to serious
collision or shock. Otherwise, battery leakage, phone malfunction,
overheat, fire, or explosion may occur.
Do not put your phone in the back pocket of your trousers or skirt,
to avoid phone damage while seated.
Children Safety
Put your phone, battery, and charger in places beyond the reach of
children. Do not allow children to use the phone, battery, or
charger without guidance.
Do not allow children to put the battery in mouth, for electrolyte
in the battery is poisonous.
Do not allow children to touch the small fittings. Otherwise,
suffocation or gullet jam can be caused if children swallow the
small fittings.
Operating Environment
The phone, battery, and charger are not water-resistant. Keep
them dry. Protect the phone, battery and charge from water or
vapor. Do not touch the phone with a wet hand. Otherwise,
short-circuit and malfunction of the product or electric shock may
occur.
14
Do not use the phone in dusty, damp and dirty places or places
with magnetic field. Otherwise, malfunction of the circuit may
occur.
Do not power on or off the phone when it is near your ears to
avoid negative impact on your health.
When carrying or using the phone, keep the antenna at least one
inch (2.5 centimeters) away from your body, to avoid negative
impact on your health caused by radio frequency leakage.
If you feel uncomfortable (such as falling sick or qualm) after
playing games on your phone for a long time, please go to see a
doctor immediately.
On a thunder stormy day, do not use your phone outdoors or when
it is being charged.
Do not touch the antenna when a call is going on. Touching the
antenna may affect call quality and cause the phone to operate
with more power. As a result, the talk time and standby time are
shortened.
The phone may interfere with nearby TV sets, radios and PCs.
In accordance with international standards for radio frequency and
radiation, use phone accessories approved by the manufacturer
only.
While using the mobile phone, observe the local laws and
regulations, and respect others' privacy and legal rights.
Clearing and Maintenance
Before you clean or maintain the phone, power off the phone and
disconnect it from the charger. Otherwise, electric shock or
short-circuit of the battery or charger may occur.
Do not use any chemical detergent, powder, or other chemical
agent (such as alcohol and benzene) to clean the phone and the
charge. Otherwise, part damage or a fire can be caused. You can
15
clean the phone and the charger with a piece of soft antistatic
cloth that is a little wet.
Do not scratch the shell of the phone. Otherwise, the shed coating
may cause skin allergy. Once it happens, stop using the phone at
once and go to see a doctor.
Keep the plug dry when you clean it, to prevent fire.
If the phone or any of its fittings does not work, turn to the local
authorize service center for help.
Do not dismantle the mobile phone or accessories. Only an
authorized service center is allowed to maintain the mobile phone.
Environment Protection
Please observe the local regulations regarding the disposal of your
packaging materials, exhausted battery and old phone and please
promote their recycling. Do not dispose of exhausted battery or
old phone in municipal waste or fire. Otherwise, explosion may
occur.
This HUAWEI device complies with Directive 2002/95/EC on the
restriction of the use of certain hazardous substances in electrical
and electronic equipment.
: This symbol indicates that the equipment carrying this mark
must NOT be thrown into general waste but should be collected
separately and properly recycled under local regulations.
Emergency Call
You can use your phone for emergency calls. However, connections
in all conditions cannot be guaranteed. You should never rely solely
on the phone for essential communications.
Battery
Use the battery approved by the manufacturer only. Otherwise,
explosion may occur.
16
Do not dispose of the battery in fire. Otherwise, the battery may
ignite or explode.
Do not connect two poles of the battery with conductors such as
cables, jewelries or any other metal material. Otherwise, the
battery is short-circuited and it may burn your body.
Do not disassemble the battery or solder the battery poles.
Otherwise fluid leakage, overheat, fire, or explosion may occur.
If there is battery leakage, smoke, or strange smell, stop using the
battery and keep it away from open flame to avoid fire or
explosion. Then turn to an authorized maintenance engineer for
help.
If the battery fluid contacts your skin or cloth, wash with clean
water immediately to avoid irritation to the skin.
If the battery fluid gets into eyes, do not rub your eyes. Otherwise,
your eyes can be hurt. Wash with clean water and go to see a
doctor immediately.
If there is battery deformation, color change or abnormal heating
while you charge or store the battery, take it out immediately and
stop using it. Otherwise, battery leakage, overheat, explosion, or
fire may occur.
When installing the battery, do not push the battery by force lest
battery fluid leak out or the battery crack.
Do not take out the battery when the phone is turned on.
If you do not use the battery for a long time, store it in normal
temperature after charging.
Charger
Use the charger approved by the phone manufacturer only. Any
violation of this rule may result in fire or malfunction of the
charger.
17
Do not short-circuit the charger. Short-circuiting the charger may
cause fire or malfunction of the charger.
If the power cord is damaged (for example, the lead is exposed or
broken), or the plug becomes loose, stop using the cable at once.
Otherwise, electric shock, short-circuit of the charger, or fire may
occur.
Keep the charger dry. Once water or other liquid leaks into the
charger, electrical leakage or other faults may occur.
Do not use the charger in a dusty and damp environment. Keep
the power cord away from any heating appliance.
Ensure the charger is properly plugged into the power socket
properly when charging the battery. Improper insertion may result
in electric shock, fire, or explosion. To unplug the charger, pull
the plug off rather than tear the power cord.
Use the AC power supply defined in the specifications of the
charger. An improper power voltage can cause fire or malfunction
of the charger.
Do not place any heavy object on the power cord of the charger.
Do not damage, change, or pluck the power cord. Otherwise
electric shock or fire may occur.
When you are charging the battery with the charger, do not touch
the plug, power cord or the charger with a wet hand. Otherwise,
electric shock can be caused.
Once the liquid such as water leaks into the charger, remove the
plug of the charger from the socket immediately. Otherwise,
overheating, fire and other malfunction may occur.
Certification Information (SAR)
THIS DEVICE MEETS THE GOVERNMENT'S REQUIREMENTS
FOR EXPOSURE TO RADIO FREQUENCY
ELECTROMAGNETIC FIELD.
18
Your mobile phone is a low-power radio transmitter and receiver.
When it is turned on, it emits low levels of radio frequency energy
(also known as radio waves or radio frequency fields).
Governments around the world have adopted comprehensive
international safety guidelines, developed by scientific organizations,
e.g. ICNIRP (International Commission on Non-Ionizing Radiation
Protection) and IEEE (Institute of Electrical and Electronics
Engineers Inc.), through periodic and thorough evaluation of
scientific studies. These guidelines establish permitted levels of radio
wave exposure for the public. The levels include a safety margin
designed to assure the safety of all persons, regardless of age and
health, and to account for any variations in measurements.
Specific Absorption Rate (SAR) is the unit of measurement for the
amount of radio frequency energy absorbed by the body when using
a mobile phone. The SAR value is determined at the highest certified
power level in laboratory conditions, but the actual SAR level of the
mobile phone while operating can be well below the value. This is
because the mobile phone is designed to use the minimum power
required to reach the network.
All models of Huawei’s mobile phone are designed to meet radio
frequency exposure guidelines. Before a phone model is available for
sale to the public, it must be tested according to the technical
standard-EN 50361 and does not exceed the limit established by the
European Council Recommendation: 1999/519/EC for safe exposure.
The tests are performed in using positions (that is, at the ear) as
required by the EN50361 for each model.
The SAR limit adopted by FCC is 1.6 watts/kilogram (W/kg)
averaged over ten gram of tissue. The highest SAR value for this
device type when tested at the ear is 0.922 W/kg.
19
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
20
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee
of this device could void the user's authority to operate the
equipment.
Version: V100R001_01 Part Number: 3101xxxx
