Huawei Technologies T211 GSM 850/1900 MOBILE PHONE User Manual T211manual V1 0 2008 5 29
Huawei Technologies Co.,Ltd GSM 850/1900 MOBILE PHONE T211manual V1 0 2008 5 29
USERS MANUAL
T211
Mobile Phone
USER GUIDE
Copyright © 2008 Huawei Technologies Co., Ltd.
and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd.
in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the
property of their respective holders. The information in this manual is subject to change without notice. Every effort
has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information,
and recommendations in this manual do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China
Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
Table of Contents
Your Phone ...............................................................................1
Keys and Functions ..................................................................2
Screen Icons..............................................................................4
Menu Tree.................................................................................5
Installing the SIM Card and Battery.........................................6
Removing the Battery and SIM Card.......................................6
Charging the Battery.................................................................6
Using the Function Menu .........................................................7
Making a Call ...........................................................................7
Answering a Call ......................................................................8
Security.....................................................................................8
PIN and PUK............................................................................9
Locking the Keypad..................................................................9
Changing the Text Input Modes .............................................10
Entering English (eZiEn)........................................................10
Entering English (ABC, Abc and abc) ................................... 11
Entering Numbers................................................................... 11
Entering Symbols ................................................................... 11
FM Radio................................................................................11
Warnings and Precautions ......................................................12
1

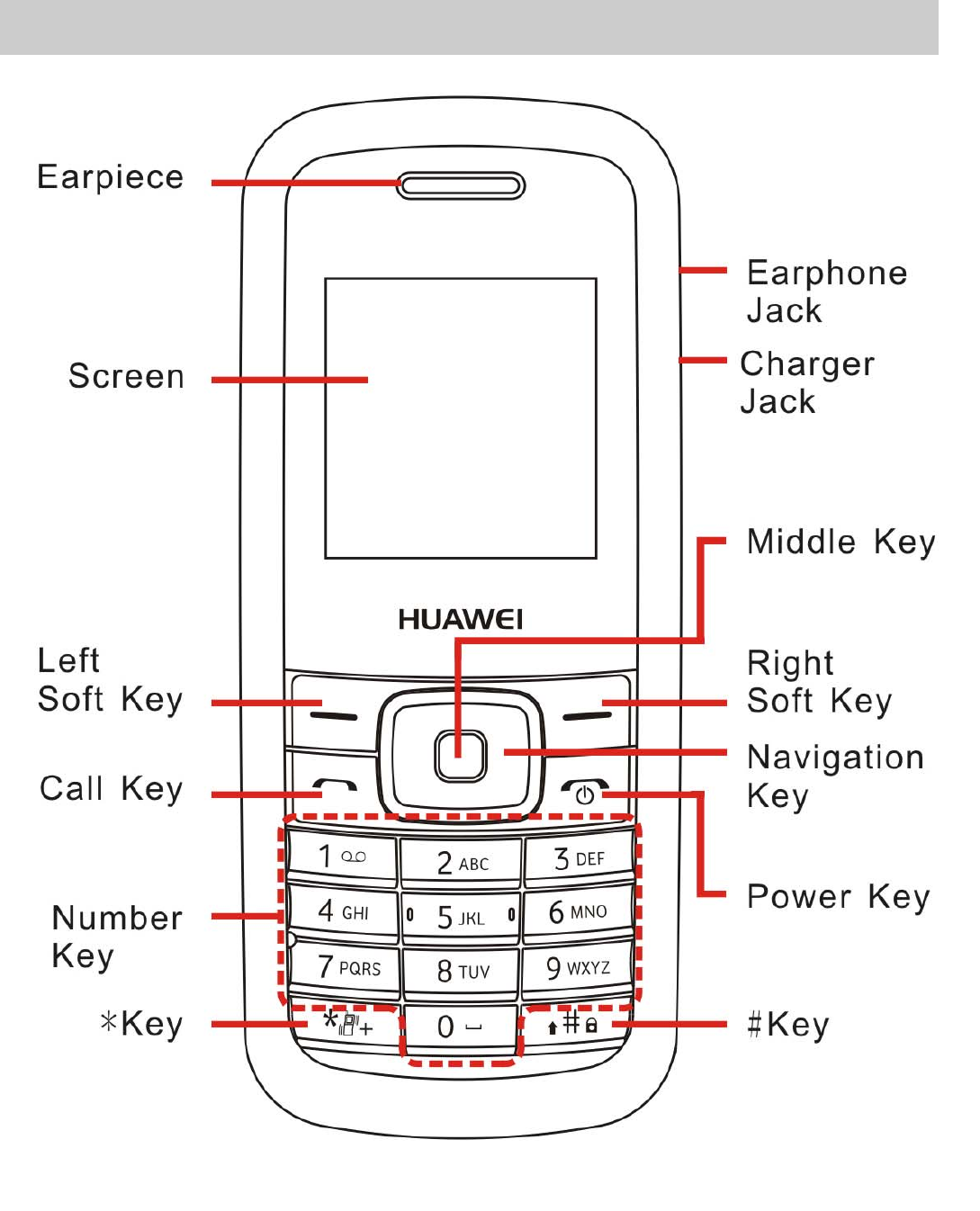

Your Phone
2
Keys and Functions
Press… To…
z View the phone numbers dialed, received or missed.
z Make or answer a call.
z Power on or off the phone (by pressing and holding
it).
z End a call or reject an incoming call.
z Return to the standby mode.
z Confirm a selection.
z Enter Fun &Tools interface in the standby mode.
Select the option displayed on the lower left corner
of the screen.
Select the option displayed on the lower right corner
of the screen.
Display the Calendar interface ( ), the Browse
interface ( ), the Alarm clock interface ( ),
the Write message interface ( ).
3
Press… To…
－
z Enter numbers and characters.
z Speed-dial phone numbers in the standby mode (by
pressing the 2-9 keys and press to make a
call).
z Select a submenu item labeled with the
corresponding number.
z Enter the * symbol.
z Enable or disable the Conference profile (by
pressing and holding it).
z Provide different functions according to the phone
features being used.
z Enter the # symbol.
z Lock the keypad in the standby mode (by pressing
and holding it).
z Provide different functions according to the phone
features being used.
4
Screen Icons
Icon Description Icon Description
or
Network signal strength Voice Message
or
No network
Network search Conference profile
Battery power level Mute profile
Roaming Outdoor profile
Short Message
Flashes when the storage is
full. Earphone
Alarm clock on Missing calls
Call forwarding
5

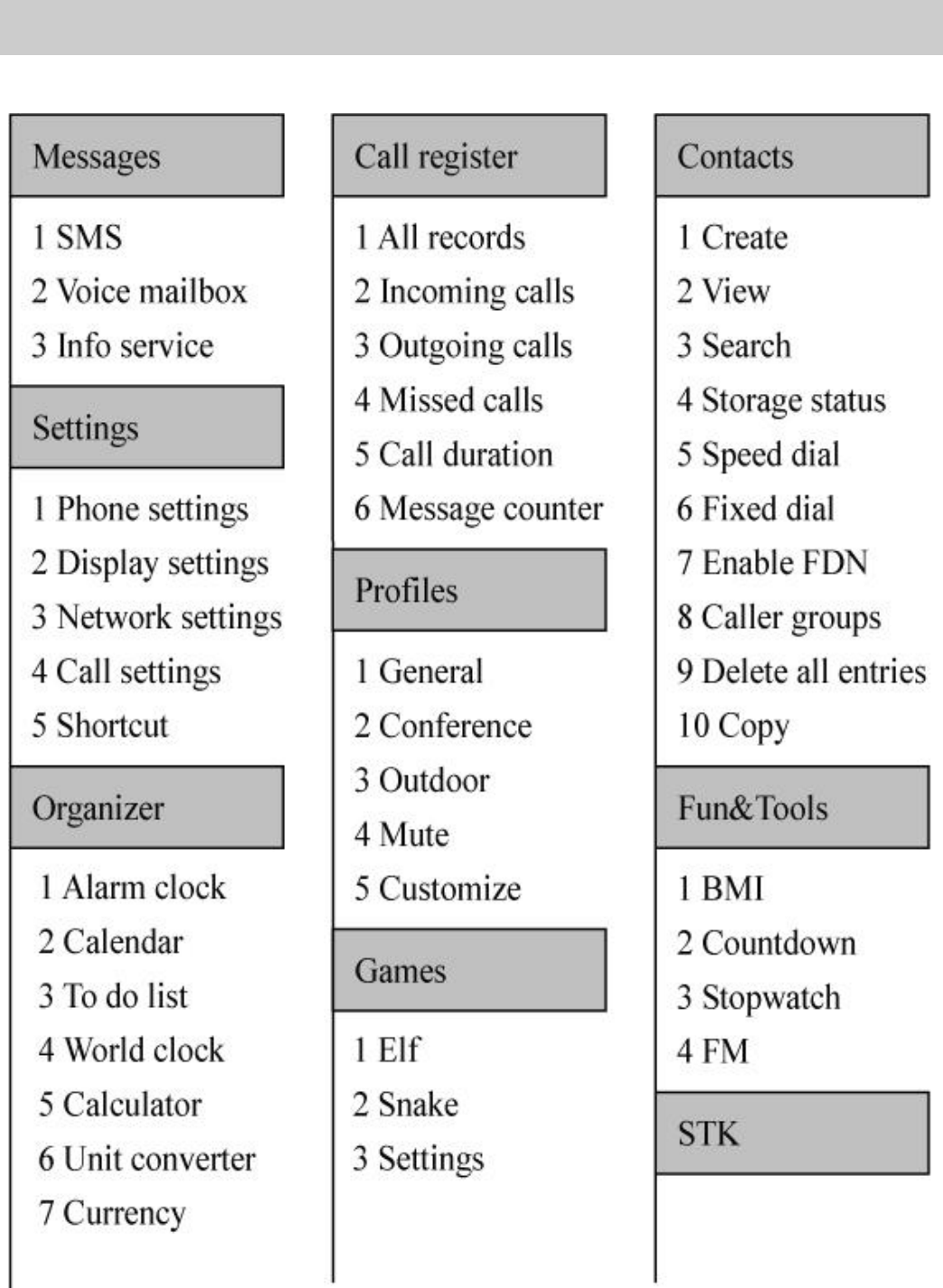

Menu Tree
6
Installing the SIM Card and Battery.
Make sure that the angled corner is on the lower right-hand side with
the golden metallic contact surface facing downward.
Removing the Battery and SIM Card
Make sure that your phone is powered off.
Charging the Battery
1. Connect the charger to the charger interface at the bottom of your
phone.
2. Connect the charger to an AC power socket
3. During the charging, the charging icon is displaying in animation.
4. When the charging icon becomes static, the battery is fully
charged. Disconnect the charger from the AC power socket. If the
phone is powered off, it will inform you with the message of
"Charging completed" displayed on the screen.
5. Disconnect the charger from the phone.
7
Using the Function Menu
1. In the standby mode, press (Menu) to display the menu
interface.
2. Press to scroll to a menu item.
3. Press (Select) to display the menu.
4. Display the submenu in either of the ways:
z Press to scroll to a submenu item and press
(Select) to display the submenu.
z Press the number key corresponding to the number of a submenu
to display it.
5. Press (Back) to return to the previous menu or quit the
function menu.
Press to return to the standby mode.
Making a Call
1. In the standby mode, enter a phone number.
To make an international call, enter the prefix and the phone
number as follows: Press and hold "0", and "+" appears. Then
enter the number to be dialed, in the format of "country code +
region code + phone number".
2. Press to make the phone call.
3. Press to end an active call or stop dialing.
8
Note z When the phone is locked, enter the lock code to unlock
the phone first; otherwise, you can make emergency calls
or answer calls only.
z In the standby mode, press to view all call records.
Select a record and press to dial.
z Select a contact from the contacts and press to dial.
z Select a message in the inbox and press (Option),
then select Dial back to make a call.
Answering a Call
When there is an incoming call, you can press to answer it;
Press to reject the call.
z If the Any key answer function is enabled, you can press any key
except , and to answer an incoming call.
z If the Divert call function is enabled, any incoming call will be
diverted to a specified number. For example, divert the incoming
calls to your voice mailbox. When an incoming call is refused, the
call will be diverted too.
Security
There are a number of security features provided to protect against
any unauthorized use of your SIM card and some certain features.
With the options of On, Off and Change PIN 1, you can set whether
a Personal Identification Number (PIN) is requested while the phone
is switched on, or edit your PIN code.
If PIN Control is activated, your phone will ask for the PIN the next
time you switch on the phone.
9
PIN and PUK
The personal identity number (PIN) protects your SIM card from
unauthorized use. The personal unlocking key (PUK) can unblock
the blocked PIN. Both PIN and PUK are delivered with the SIM card.
For details, consult your service provider.
If you enter wrong PINs for a specified number of times
consecutively, the phone asks you to enter the PUK code.
If you enter wrong PUKs for a specified number of times
consecutively, the SIM card is invalidated permanently. Contact your
service provider for a new card.
Locking the Keypad
In the standby mode, press for 3 seconds to lock the keypad.
When the keypad is locked, you can press to answer an
incoming call or make emergency calls.
You can press then to unlock the keypad.
When the Keypad lock function is enabled, if there is no operation
on the phone for a preset period in the standby mode, the keypad is
locked automatically.
10
Changing the Text Input Modes
The indicator of the current text input mode is displayed on the
screen. In the editing mode, press to change the input mode.
Note z In the editing mode, press (Delete) once to
delete the letter on the left of the cursor.
z In the "eZiEn" input mode, press to enter a
space. In the "ABC", "Abc" or "abc" input mode, press
once to enter a space, twice to enter "0".
z In the "ABC" , "Abc" or "abc" input mode, press
repeatedly to select and enter the commonly used
punctuations. In the "eZiEn" input mode, press
to enter a full stop.
Entering English (eZiEn)
In the "eZiEn" input mode, do the following to enter the English
letters:
1. Press each key only once according to the spelling sequence of
the desired word. Then the phone displays the commonly used
word according to the numeric sequence of key presses.
2. Press to scroll to the desired word.
3. Press to switch the selected characters between upper case
and lower case.
4. Press and to select the desired word and press to
enter the word.
Press to enter the word and a space.
11
Entering English (ABC, Abc and abc)
In the "ABC", "Abc" or "abc" input mode, you can press a key
labeled the desired letters once to enter the first letter on the key,
twice to enter the second letter on the key, and so on.
If the letter you want to enter is on the same key as the previous one,
you can enter the letter only after the cursor appears again or after
you press to move the cursor to the next space.
Entering Numbers
In the "123" input mode, press a key labeled the desired number.
Entering Symbols
1. In any input mode, press to display a symbol list.
2. Press to scroll to the desired symbol.
3. Press (OK) or to enter the symbol.
FM Radio
1. Insert the headset to the headset jack properly.
2. Select Fun&Tools and press and to scroll to
FM. Press (Select) to select it. After loading, the phone
plays a program.
3. In the FM screen:
z Press and to select the channel.
z Press and to adjust the volume.
z Press to turn on/off the radio.
12
Warnings and Precautions
Electronic Device
z Power off your phone near high-precision electronic devices. The
phone may affect the performance of these devices.
z Such devices include hearing aids, pacemakers, fire alarm
systems, automatic gates, and other automatic-control devices. If
you are using an electronic medical device, consult the device
manufacturer to confirm whether the radio wave affects the
operation of this device.
z Pacemaker manufacturers recommend that a minimum separation
of 15cm be maintained between a mobile phone and a pacemaker
to avoid potential interference with the pacemaker. To achieve this,
use the phone on the opposite ear to your pacemaker and do not
carry it in a breast pocket.
Hospital
Pay attention to the following points in hospitals or health care
facilities:
z Do not take your phone into the operating room (OR), intensive
care unit (ICU), or coronary care unit (CCU).
z Do not use your phone at places for medical treatment where
phone use is prohibited.
z When using your phone near someone who is suffering from a
heart disease, turn down the ring tone volume or vibration
properly so that it does not affect the person.
Area with Inflammables and Explosives
In any area with inflammables and explosives, power off your phone
and do not take out, install or charge the battery, to avoid explosion
and fire. Areas with inflammables and explosives include, but are not
limited to:
13
z Gas station
z Area for storing fuels (such as the bunk under the deck of a ship)
z Device/Vehicle for transporting and storing fuels or chemical
products
z Area with chemical substances and particles (such as: granule,
dust, metal powder) in the air
z Area with the sign of "Explosives"
z Area with the sign of "Power off bi-direction wireless equipment"
z Area where it is generally suggested to stop the engine or a
vehicle
Traffic Safety
z Please observe local laws and regulations on phone use. Do not
use your phone while driving to avoid traffic accident.
z Secure the phone on its holder. Do not place the phone on the seat
or other places where it can get loose in a sudden stop or
collision.
z Use the phone after the vehicle stops at a safe place.
z If your phone supports the hands-free function, or the phone can
be used with earphones, or there is any vehicle-mounted
equipment with the hands-free function, use them in emergency.
z Do not place the phone over the air bag or in the air bag outspread
area. Otherwise, the phone may hurt you owing to the strong force
when the air bag inflates.
z Observe the rules and regulations of airline companies. When
boarding or approaching a plane, power off the phone and take
out the battery. In areas where phone use is prohibited, power off
the phone. Otherwise, the radio signal of the phone may disturb
the plane control signals. Power off your phone before boarding
an aircraft.
14
Storage Environment
z Do not place magnetic storage media such as magnetic cards and
floppy disks near the phone. Radiation from the phone may erase
the information stored on them.
z Do not put your phone, battery, or other accessories in containers
with strong magnetic field, such as an induction cooker and a
microwave oven. Otherwise, circuit failure, fire, or explosion may
occur.
z Do not leave your phone, battery, or charger in a very hot or cold
place. Otherwise, malfunction of the products, fire, or explosion
may occur.
z Keep the ambient temperature between 0℃ and 40℃ while the
battery is being charged. Keep the ambient temperature between
–20℃ and 60℃ for storing the battery. If the ambient
temperature is too low (especially below 0℃) or too high, the
capacity and life of the battery will be reduced.
z Do not place sharp metal objects such as pins near the earpiece.
The earpiece may attract these objects and hurt you when you are
using the phone.
z Do not subject your phone, battery, and charger to serious
collision or shock. Otherwise, battery leakage, phone malfunction,
overheat, fire, or explosion may occur.
z Do not put your phone in the back pocket of your trousers or skirt,
to avoid phone damage while seated.
Children Safety
z Put your phone, battery, and charger in places beyond the reach of
children. Do not allow children to use the phone, battery, or
charger without guidance.
z Do not allow children to put the battery in mouth, for electrolyte
in the battery is poisonous.
15
z Do not allow children to touch the small fittings. Otherwise,
suffocation or gullet jam can be caused if children swallow the
small fittings.
Operating Environment
z The phone, battery, and charger are not water-resistant. Keep
them dry. Protect the phone, battery and charge from water or
vapor. Do not touch the phone with a wet hand. Otherwise,
short-circuit and malfunction of the product or electric shock may
occur.
z Do not use the phone in dusty, damp and dirty places or places
with magnetic field. Otherwise, malfunction of the circuit may
occur.
z Do not power on or off the phone when it is near your ears to
avoid negative impact on your health.
z When carrying or using the phone, keep the antenna at least one
inch (2.5 centimeters) away from your body, to avoid negative
impact on your health caused by radio frequency leakage.
z If you feel uncomfortable (such as falling sick or qualm) after
playing games on your phone for a long time, please go to see a
doctor immediately.
z On a thunder stormy day, do not use your phone outdoors or when
it is being charged.
z Do not touch the antenna when a call is going on. Touching the
antenna may affect call quality and cause the phone to operate
with more power. As a result, the talk time and standby time are
shortened.
z The phone may interfere with nearby TV sets, radios and PCs.
z In accordance with international standards for radio frequency and
radiation, use phone accessories approved by the manufacturer
only.
16
z While using the mobile phone, observe the local laws and
regulations, and respect others' privacy and legal rights.
z Operation temperature: 0℃ - 40℃
z The phone cannot be used at an altitude higher than 2000 meters.
Clearing and Maintenance
z Before you clean or maintain the phone, power off the phone and
disconnect it from the charger. Otherwise, electric shock or
short-circuit of the battery or charger may occur.
z Do not use any chemical detergent, powder, or other chemical
agent (such as alcohol and benzene) to clean the phone and the
charge. Otherwise, part damage or a fire can be caused. You can
clean the phone and the charger with a piece of soft antistatic
cloth that is a little wet.
z Do not scratch the shell of the phone. Otherwise, the shed coating
may cause skin allergy. Once it happens, stop using the phone at
once and go to see a doctor.
z Keep the plug dry when you clean it, to prevent fire.
z If the phone or any of its fittings does not work, turn to the local
authorize service center for help.
z Do not dismantle the mobile phone or accessories. Only an
authorized service center is allowed to maintain the mobile phone.
Environment Protection
z Please observe the local regulations regarding the disposal of your
packaging materials, exhausted battery and old phone and please
promote their recycling. Do not dispose of exhausted battery or
old phone in municipal waste or fire. Otherwise, explosion may
occur.
z This HUAWEI device complies with Directive 2002/95/EC on the
restriction of the use of certain hazardous substances in electrical
and electronic equipment.
17
z : This symbol indicates that the equipment carrying this mark
must NOT be thrown into general waste but should be collected
separately and properly recycled under local regulations.
Emergency Call
You can use your phone for emergency calls. However, connections
in all conditions cannot be guaranteed. You should never rely solely
on the phone for essential communications.
Battery
z Use the battery approved by the manufacturer only. Otherwise,
explosion may occur.
z Do not dispose of the battery in fire. Otherwise, the battery may
ignite or explode.
z Do not connect two poles of the battery with conductors such as
cables, jewelries or any other metal material. Otherwise, the
battery is short-circuited and it may burn your body.
z Do not disassemble the battery or solder the battery poles.
Otherwise fluid leakage, overheat, fire, or explosion may occur.
z If there is battery leakage, smoke, or strange smell, stop using the
battery and keep it away from open flame to avoid fire or
explosion. Then turn to an authorized maintenance engineer for
help.
z If the battery fluid contacts your skin or cloth, wash with clean
water immediately to avoid irritation to the skin.
z If the battery fluid gets into eyes, do not rub your eyes. Otherwise,
your eyes can be hurt. Wash with clean water and go to see a
doctor immediately.
z If there is battery deformation, color change or abnormal heating
while you charge or store the battery, take it out immediately and
stop using it. Otherwise, battery leakage, overheat, explosion, or
fire may occur.
18
z When installing the battery, do not push the battery by force lest
battery fluid leak out or the battery crack.
z Do not take out the battery when the phone is turned on.
z If you do not use the battery for a long time, store it in normal
temperature after charging.
Charger
z Attention: Please check the model of charger firstly before using
with this mobile phone. This mobile phone is intended to use
when supplied with power from DSA-5W-05 FEU .
z Use the charger approved by the phone manufacturer only. Any
violation of this rule may result in fire or malfunction of the
charger.
z Do not short-circuit the charger. Short-circuiting the charger may
cause fire or malfunction of the charger.
z If the power cord is damaged (for example, the lead is exposed or
broken), or the plug becomes loose, stop using the cable at once.
Otherwise, electric shock, short-circuit of the charger, or fire may
occur.
z Keep the charger dry. Once water or other liquid leaks into the
charger, electrical leakage or other faults may occur.
z Do not use the charger in a dusty and damp environment. Keep
the power cord away from any heating appliance.
z Ensure the charger is properly plugged into the power socket
properly when charging the battery. Improper insertion may result
in electric shock, fire, or explosion. To unplug the charger, pull
the plug off rather than tear the power cord.
z Use the AC power supply defined in the specifications of the
charger. An improper power voltage can cause fire or malfunction
of the charger.
19
z Do not place any heavy object on the power cord of the charger.
Do not damage, change, or pluck the power cord. Otherwise
electric shock or fire may occur.
z When you are charging the battery with the charger, do not touch
the plug, power cord or the charger with a wet hand. Otherwise,
electric shock can be caused.
z Once the liquid such as water leaks into the charger, remove the
plug of the charger from the socket immediately. Otherwise,
overheating, fire and other malfunction may occur.
Certification Information
FCC Regulations:
zThis mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
zThis mobile phone has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
20
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to operate
the equipment.
RF Exposure Information (SAR)
This model phone meets the government’s requirements for exposure
to radio waves.
This phone is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The
SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are
conducted using standard operating positions accepted by the FCC
with the phone transmitting at its highest certified power level in all
tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is because
the phone is designed to operate at multiple power levels so as to use
only the poser required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the power
output.
21
The highest SAR value for the model phone as reported to the FCC
when tested for use at the ear is 0.83W/kg.
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display
Grant section of http://www.fcc.gov/oet/fccid after searching on FCC
ID: QIST211.
SAR compliance for body-worn operations is restricted to belt-clips,
holsters, or similar accessories that have no metallic component in
the assembly and which provide at least 1.5 cm separation between
the device and the users body.
