Huawei Technologies T330 GSM 850/1900 Mobile Phone User Manual T330 updated0314
Huawei Technologies Co.,Ltd GSM 850/1900 Mobile Phone T330 updated0314
User Manual updated0314
![](/img.php?id=917120&img=bg1.png)
T330
GSM Mobile Phone
Copyright © 2008 Huawei Technologies Co., Ltd.
and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd.
in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the
property of their respective holders. The information in this manual is subject to change without notice. Every effort
has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information,
and recommendations in this manual do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China
Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
![](/img.php?id=917120&img=bg2.png)
1
Your Phone
Earpiece
Screen
Navigation keys
Left Soft key Right Soft key
Talk Soft key/End Power ke
y
/
OK key
*key #key
Charger interface
Headset jack/
Number keys
![](/img.php?id=917120&img=bg3.png)
2
Keys and Functions
Press… To…
View the dialed, received or missed calls in the idle
mode.
Make or answer a call.
Power on or off the phone (by pressing and holding
it).
End a call or reject an incoming call.
Return to the idle mode.
Confirm a selection.
Select the option displayed on the lower left corner of
the screen.
Select the option displayed on the lower right corner of
the screen.
Display the Shortcuts interface ( ), the FM
Radio interface ( ), the Alarm interface ( ),
and the Inbox interface ( ) in the standby mode.
![](/img.php?id=917120&img=bg4.png)
3
Press… To…
–
Enter numbers and characters.
Speed-dial phone numbers in the idle mode (by long
pressing 2-9 keys).
Select a submenu item labeled with the
corresponding number.
Enter the * symbol.
Enable the Meeting or Outdoor profile (by pressing
and holding it) in the idle mode.
When editing, press it to display the symbol list.
Enter the # symbol.
Lock the keypad in the standby mode (by pressing
and holding it).
Unlock the keypad by pressing and .
Press it to switch between input modes when editing.
Screen Icons
Icon Description Icon Description
Network signal strength Indoor mode
Phone lock enabled Meeting mode
New voice mail Alarm clock on
No service Headset
![](/img.php?id=917120&img=bg5.png)
4
Icon Description Icon Description
Message received Roaming
General mode Battery level
Missed calls Outdoor mode
![](/img.php?id=917120&img=bg6.png)
5
Menu Tree
![](/img.php?id=917120&img=bg7.png)
6

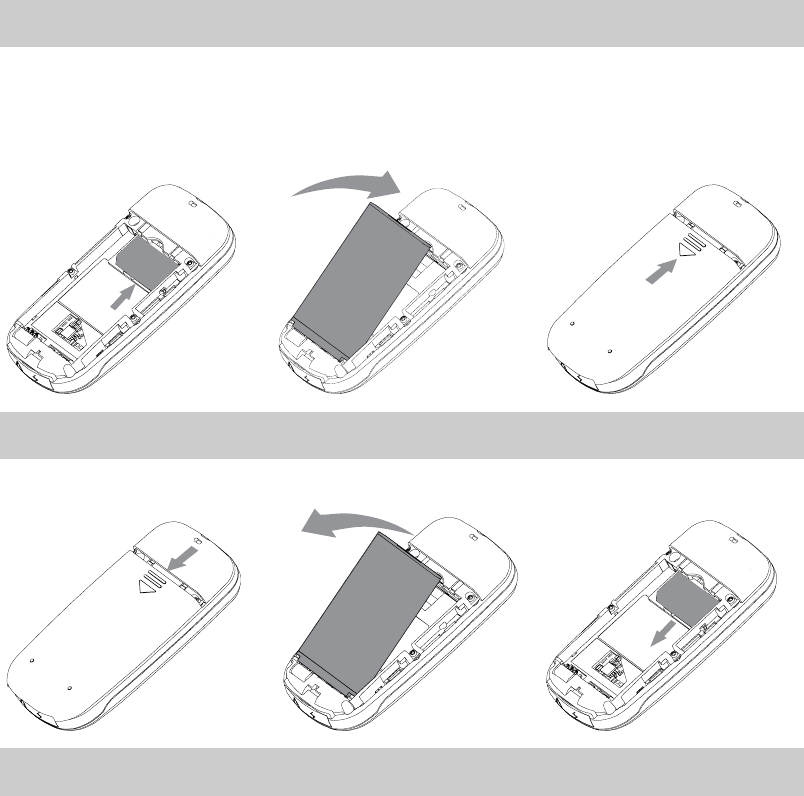

Installing the SIM Card and Battery
Consult the network operator whether a SIM card is needed.
Make sure that the golden area on the SIM card is facing downwards
and the cut-off edge is correctly aligned with the card holder.
Removing the Battery and SIM Card
Make sure that your phone is powered off.
Charging the Battery
1. Connect the charger to the charger interface at the bottom of your
phone.
Make sure that the arrow on the charger connector faces the front
side of the phone.
2. Connect the charger to an AC power socket.
3. During the charging, the charging icon is displaying in animation.
![](/img.php?id=917120&img=bg8.png)
7
4. When the charging icon becomes static, the battery is fully
charged. Disconnect the charger from the AC power socket.
5. Press the gray buttons on both sides of the charger connector
inwards to disconnect the charger from the phone.
Using the Function Menu
1. In the idle mode, press (
Menu) to display the menu
interface.
2. Press to scroll to a menu item.
3. Press (
Ok) to display the menu.
4. Display the submenu in either of the ways:
Press to scroll to a submenu item and press (
Ok)
to display the submenu.
Press the number key corresponding to the number of a submenu
to display it.
5. Press (Back) to return to the previous menu or quit the
function menu.
Press to return to the idle mode.
Making a Call
1. In the standby mode, enter a phone number.
To make a domestic call, enter the area code and phone number. To
edit the number on the screen, press to move the cursor to the
left; press to move it to the right. Press (
Clear) to
delete the digit on the left of the cursor.
![](/img.php?id=917120&img=bg9.png)
8
To make an international call, press and hold to enter the
international long distance code of "+". Then enter the number to
be dialed, in the format of "country code + region code + phone
number".
2. Press to dial the number.
3. Press to end the call.
Note When the phone is locked, enter the lock code to unlock
the phone first; otherwise, you can make emergency calls
or answer calls only.
In the standby mode, press to view the dialed calls.
Select a record and press to dial.
Select a contact from the phonebook and press to
dial.
Select a message in the inbox and press (Option),
then select Use Number, then choose Dial to make a call.
Answering a Call
When there is an incoming call, you can press to answer it;
Press or to reject the call.
If the Any-key Answer function is enabled, you can press any
key except and to answer an incoming call.
If the Headset Auto Answer function is enabled, and the headset
is connected to the phone, the incoming call is answered
automatically.
If the headset is connected to the phone, you can press the button
on the headset cable to answer or end a call.
![](/img.php?id=917120&img=bga.png)
9
Phone Lock
The phone lock protects your phone from unauthorized use. You can
change it into any numeric string.
If the phone lock function is enabled, you need to enter the correct
phone lock code when the phone is powered on or in the standby
mode.
PIN and PUK
The personal identity number (PIN) protects your SIM card from
unauthorized use. The PIN unlocking key (PUK) can unblock the
blocked PIN. Both PIN and PUK are delivered with the SIM card.
For details, consult your service provider.
If you enter wrong PINs for a specified number of times
consecutively, the phone asks you to enter the PUK code.
If you enter wrong PUKs for a specified number of times
consecutively, the SIM card is invalidated permanently. Contact your
service provider for a new card.
Locking the Keypad
In the standby mode, press for 3 seconds to lock the keypad.
When the keypad is locked, you can press to answer an
incoming call or make emergency calls.
You can press and to unlock the keypad.
When the Auto Keypad Lock function is enabled, if there is no
operation on the phone for a preset period in the standby mode, the
keypad is locked automatically.
![](/img.php?id=917120&img=bgb.png)
10
Changing the Text Input Modes
The indicator of the current text input mode is displayed on the
screen. In the editing mode, press to change the input mode.
Note In the editing mode, press (
Clear) once to delete
the letter on the left of the cursor. Press and hold
(Clear) to delete all the letters at a time.
In the "eZi ABC", "eZi abc", "eZi Abc" input mode,
press to enter a space. In the "ABC", " abc " or
" Abc " input mode, press once to enter a space,
twice to enter "0".
In the "ABC" , "abc" or "Abc" input mode, press
repeatedly to select and enter the commonly used
punctuations. In the "eZi ABC", "eZi abc", "eZi Abc"
input mode, press to enter a full stop.
Entering English
In the "eZi ABC", "eZi abc", "eZi Abc" input mode, do the following
to enter the English letters:
1. Press each key only once according to the spelling sequence of
the desired word. Then the phone displays the commonly used
word according to the numeric sequence of key presses.
2. Press and to scroll to the desired word.
3. Press and to enter the word.
Press to enter the word and a space.
![](/img.php?id=917120&img=bgc.png)
11
Entering English (ABC, abc and Abc)
In the "ABC" ,"abc" or "Abc" input mode, you can press a key
labeled the desired letters once to enter the first letter on the key,
twice to enter the second letter on the key, and so on.
If the letter you want to enter is on the same key as the previous one,
you can enter the latter only after the cursor appears again or after
you press to move the cursor to the next space.
Entering Numbers
In the "123" input mode, press a key labeled the desired number.
Entering Symbols
1. In any input mode, press to display a symbol list.
2. Press to scroll to the desired symbol.
3. Press (
OK) or to enter the symbol.
![](/img.php?id=917120&img=bgd.png)
12
FM Radio
Your phone integrates a frequency modulation (FM) radio. Before
listening to the radio, insert the headset to the headset jack.
Note The headset cable functions as the antenna. When
listening to the radio, do not bind or wind the headset
cable. Keep the headset cable straight for a better
effect.
1. Switching on/off the Radio
Insert the headset to the headset jack properly. In the idle mode,
select Menu > FM Radio. After loading, the phone plays a program.
Press (Option), select Settings>Loud Speaker On/Off to
enable/disable the speaker.
In the FM Radio screen:
Press and to select the channel.
Press and to adjust the volume.
Press to switch on/off the radio.
Note When the FM Radio is switched on and the
Background Play is set to On, the phone still plays
the program and displays the current frequency in the
idle mode. The FM Radio will be switched off
automatically after you are not on the FM Radio
interface if the Background Play is set to Off.
2. Searching for a channel
Automatic Tuning
In the FM Radio screen, press (
Option) to select Preset
Auto Search. Press Yes to search.
![](/img.php?id=917120&img=bge.png)
13
The phone automatically searches for channels and saves them to
the channel list.
Manual tuning
In the FM Radio screen, press and to tune by 0.1 MHz.
Then the phone searches for channels with the frequency from 87.5
MHz to 108 MHz.
Setting a Frequency
In the FM Radio screen, press (
Option) , then press
Manual Input.
Enter a frequency:
A frequency must range from 87.5 MHz to 108 MHz.
Press (
Clear) to clear the settings. Press to complete
the settings and return to the FM Radio screen.
3. Deleting a channel
Press and to select a channel to delete in the
channel list.
Press (
Ok) or to delete the channel.
Press (
Back) to return to the FM Radio screen.
![](/img.php?id=917120&img=bgf.png)
14
Warnings and Precautions
Electronic Device
Power off your phone near high-precision electronic devices. The
phone may affect the performance of these devices.
Such devices include hearing aids, pacemakers, fire alarm
systems, automatic gates, and other automatic-control devices. If
you are using an electronic medical device, consult the device
manufacturer to confirm whether the radio wave affects the
operation of this device.
Pacemaker manufacturers recommend that a minimum separation
of 15cm be maintained between a mobile phone and a pacemaker
to avoid potential interference with the pacemaker. To achieve this,
use the phone on the opposite ear to your pacemaker and do not
carry it in a breast pocket.
Hospital
Pay attention to the following points in hospitals or health care
facilities:
Do not take your phone into the operating room (OR), intensive
care unit (ICU), or coronary care unit (CCU).
Do not use your phone at places for medical treatment where
phone use is prohibited.
When using your phone near someone who is suffering from a
heart disease, turn down the ring tone volume or vibration
properly so that it does not affect the person.
Area with Inflammables and Explosives
In any area with inflammables and explosives, power off your phone
and do not take out, install or charge the battery, to avoid explosion
and fire. Areas with inflammables and explosives include, but are not
limited to:
15
Gas station
Area for storing fuels (such as the bunk under the deck of a ship)
Device/Vehicle for transporting and storing fuels or chemical
products
Area with chemical substances and particles (such as: granule,
dust, metal powder) in the air
Area with the sign of "Explosives"
Area with the sign of "Power off bi-direction wireless equipment"
Area where it is generally suggested to stop the engine or a
vehicle
Traffic Safety
Please observe local laws and regulations on phone use. Do not
use your phone while driving to avoid traffic accident.
Secure the phone on its holder. Do not place the phone on the seat
or other places where it can get loose in a sudden stop or
collision.
Use the phone after the vehicle stops at a safe place.
If your phone supports the hands-free function, or the phone can
be used with earphones, or there is any vehicle-mounted
equipment with the hands-free function, use them in emergency.
Do not place the phone over the air bag or in the air bag outspread
area. Otherwise, the phone may hurt you owing to the strong force
when the air bag inflates.
Observe the rules and regulations of airline companies. When
boarding or approaching a plane, power off the phone and take
out the battery. In areas where phone use is prohibited, power off
the phone. Otherwise, the radio signal of the phone may disturb
the plane control signals. Power off your phone before boarding
an aircraft.
16
Storage Environment
Do not place magnetic storage media such as magnetic cards and
floppy disks near the phone. Radiation from the phone may erase
the information stored on them.
Do not put your phone, battery, or other accessories in containers
with strong magnetic field, such as an induction cooker and a
microwave oven. Otherwise, circuit failure, fire, or explosion may
occur.
Do not leave your phone, battery, or charger in a very hot or cold
place. Otherwise, malfunction of the products, fire, or explosion
may occur.
Keep the ambient temperature between 0℃ and 45℃ while the
battery is being charged. Keep the ambient temperature between
–20℃ and 60℃ for storing the battery. If the ambient
temperature is too low (especially below 0℃) or too high, the
capacity and life of the battery will be reduced.
Do not place sharp metal objects such as pins near the earpiece.
The earpiece may attract these objects and hurt you when you are
using the phone.
Do not subject your phone, battery, and charger to serious
collision or shock. Otherwise, battery leakage, phone malfunction,
overheat, fire, or explosion may occur.
Do not put your phone in the back pocket of your trousers or skirt,
to avoid phone damage while seated.
Children Safety
Put your phone, battery, and charger in places beyond the reach of
children. Do not allow children to use the phone, battery, or
charger without guidance.
Do not allow children to put the battery in mouth, for electrolyte
in the battery is poisonous.
17
Do not allow children to touch the small fittings. Otherwise,
suffocation or gullet jam can be caused if children swallow the
small fittings.
Operating Environment
The phone, battery, and charger are not water-resistant. Keep
them dry. Protect the phone, battery and charge from water or
vapor. Do not touch the phone with a wet hand. Otherwise,
short-circuit and malfunction of the product or electric shock may
occur.
Do not use the phone in dusty, damp and dirty places or places
with magnetic field. Otherwise, malfunction of the circuit may
occur.
Do not power on or off the phone when it is near your ears to
avoid negative impact on your health.
When carrying or using the phone, keep the antenna at least one
inch (2.5 centimeters) away from your body, to avoid negative
impact on your health caused by radio frequency leakage.
If you feel uncomfortable (such as falling sick or qualm) after
playing games on your phone for a long time, please go to see a
doctor immediately.
On a thunder stormy day, do not use your phone outdoors or when
it is being charged.
Do not touch the antenna when a call is going on. Touching the
antenna may affect call quality and cause the phone to operate
with more power. As a result, the talk time and standby time are
shortened.
The phone may interfere with nearby TV sets, radios and PCs.
In accordance with international standards for radio frequency and
radiation, use phone accessories approved by the manufacturer
only.
18
While using the mobile phone, observe the local laws and
regulations, and respect others' privacy and legal rights.
Clearing and Maintenance
Before you clean or maintain the phone, power off the phone and
disconnect it from the charger. Otherwise, electric shock or
short-circuit of the battery or charger may occur.
Do not use any chemical detergent, powder, or other chemical
agent (such as alcohol and benzene) to clean the phone and the
charge. Otherwise, part damage or a fire can be caused. You can
clean the phone and the charger with a piece of soft antistatic
cloth that is a little wet.
Do not scratch the shell of the phone. Otherwise, the shed coating
may cause skin allergy. Once it happens, stop using the phone at
once and go to see a doctor.
Keep the plug dry when you clean it, to prevent fire.
If the phone or any of its fittings does not work, turn to the local
authorize service center for help.
Do not dismantle the mobile phone or accessories. Only an
authorized service center is allowed to maintain the mobile phone.
Environment Protection
Please observe the local regulations regarding the disposal of your
packaging materials, exhausted battery and old phone and please
promote their recycling. Do not dispose of exhausted battery or
old phone in municipal waste or fire. Otherwise, explosion may
occur.
This HUAWEI device complies with Directive 2002/95/EC on the
restriction of the use of certain hazardous substances in electrical
and electronic equipment.
![](/img.php?id=917120&img=bg14.png)
19
: This symbol indicates that the equipment carrying this mark
must NOT be thrown into general waste but should be collected
separately and properly recycled under local regulations.
Emergency Call
You can use your phone for emergency calls. However, connections
in all conditions cannot be guaranteed. You should never rely solely
on the phone for essential communications.
Battery
Use the battery approved by the manufacturer only. Otherwise,
explosion may occur.
Do not dispose of the battery in fire. Otherwise, the battery may
ignite or explode.
Do not connect two poles of the battery with conductors such as
cables, jewelries or any other metal material. Otherwise, the
battery is short-circuited and it may burn your body.
Do not disassemble the battery or solder the battery poles.
Otherwise fluid leakage, overheat, fire, or explosion may occur.
If there is battery leakage, smoke, or strange smell, stop using the
battery and keep it away from open flame to avoid fire or
explosion. Then turn to an authorized maintenance engineer for
help.
If the battery fluid contacts your skin or cloth, wash with clean
water immediately to avoid irritation to the skin.
If the battery fluid gets into eyes, do not rub your eyes. Otherwise,
your eyes can be hurt. Wash with clean water and go to see a
doctor immediately.
If there is battery deformation, color change or abnormal heating
while you charge or store the battery, take it out immediately and
stop using it. Otherwise, battery leakage, overheat, explosion, or
fire may occur.
20
When installing the battery, do not push the battery by force lest
battery fluid leak out or the battery crack.
Do not take out the battery when the phone is turned on.
If you do not use the battery for a long time, store it in normal
temperature after charging.
Charger
Use the charger approved by the phone manufacturer only. Any
violation of this rule may result in fire or malfunction of the
charger.
Do not short-circuit the charger. Short-circuiting the charger may
cause fire or malfunction of the charger.
If the power cord is damaged (for example, the lead is exposed or
broken), or the plug becomes loose, stop using the cable at once.
Otherwise, electric shock, short-circuit of the charger, or fire may
occur.
Keep the charger dry. Once water or other liquid leaks into the
charger, electrical leakage or other faults may occur.
Do not use the charger in a dusty and damp environment. Keep
the power cord away from any heating appliance.
Ensure the charger is properly plugged into the power socket
properly when charging the battery. Improper insertion may result
in electric shock, fire, or explosion. To unplug the charger, pull
the plug off rather than tear the power cord.
Use the AC power supply defined in the specifications of the
charger. An improper power voltage can cause fire or malfunction
of the charger.
Do not place any heavy object on the power cord of the charger.
Do not damage, change, or pluck the power cord. Otherwise
electric shock or fire may occur.
21
When you are charging the battery with the charger, do not touch
the plug, power cord or the charger with a wet hand. Otherwise,
electric shock can be caused.
Once the liquid such as water leaks into the charger, remove the
plug of the charger from the socket immediately. Otherwise,
overheating, fire and other malfunction may occur.
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This device complies with part 15 of the FCC Rules. Operation is
subject to the condition that this device does not cause harmful
interference.
This mobile device meets guidelines for exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is designed
not to exceed the limits for exposure to radio waves recommended by
international guidelines.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
22
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee
of this device could void the user's authority to operate the
equipment.
Body-worn operations are restricted to belt-clips, holsters or similar
accessories that have no metallic component in the assembly and
must provide at least 1.5 cm separation between the device and the
user’s body.
RF exposure warning: The equipment complies with FCC RF
exposure limits set forth for an uncontrolled environment. The
equipment must not be co-located or operating in conjunction with
any other antenna or transmitter.
SAR Value: 0.860W/g.
