1 Getting to Know Your Phone
1
79
10
11
12
13
14
2
3
4
5
8
6

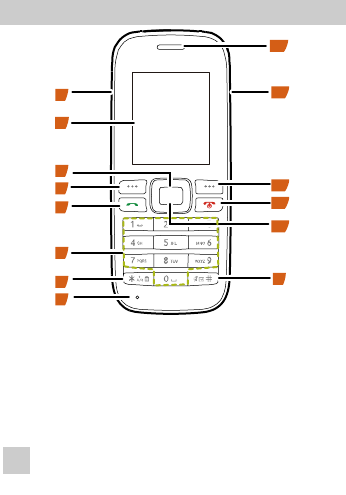

1 Headset jack 2 Screen
3 Navigation key 4 Left soft key
5 Dial key 6 Number keys
7 * key 8 Microphone
9 # key 10 OK key
11 End key 12 Right soft key
13 Charger interface 14 Earpiece/Loudspeaker
Note
The figures in this document are only for your
reference. Though the actual product may be different,
the functions of the product will remain the same.
4
2 Getting Started

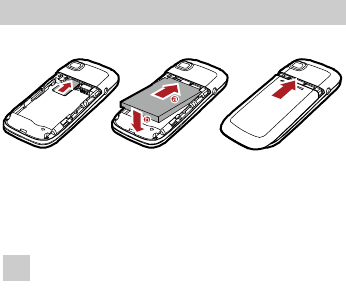

Loading the SIM Card and the Battery
Charging the Battery
1. Connect the charger to the charger interface on the phone.
2. Connect the charger to an AC power socket.
3. During the charging process, the charging icon is in an
animated status.
Note
When you start to charge a completely exhausted
battery, the charging icon may appear on the screen
several minutes later.
4. When all bars of the charging icon are displayed and keep
static, the battery is fully charged. Then you can disconnect
the charger from the AC power socket.
5. Disconnect the charger from the phone.
5
3 Keys and Functions
Note
The four navigation keys are represented by (up),
(down), (left), and (right) in this
document.

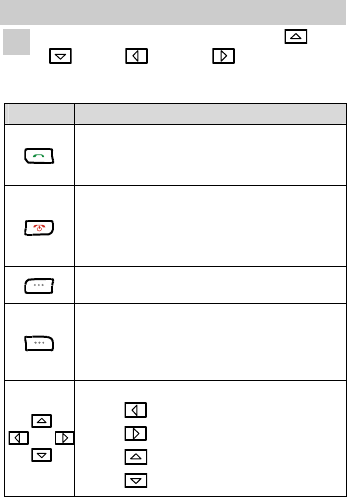

Press… To…
z Access the Dialed screen in standby mode (by
pressing it).
z Make a call or answer an incoming call.
z Power on or off the phone (by pressing and
holding it).
z End a call or reject an incoming call.
z Return to the standby mode.
Select the option displayed on the lower left
corner of the screen.
z Access the Browser screen in standby mode
(by pressing it).
z Select the option displayed on the lower right
corner of the screen.
In standby mode,
z Press to write a message.
z Press to access the My files screen.
z Press to start the Camera.
z Press to the Contacts screen.
6

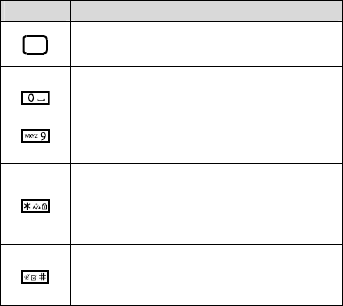

Press… To…
z Display the main menu in standby mode.
z Confirm a selection.
…
z Enter numbers, letters, and symbols.
z Call the voice mail center in standby mode (by
pressing and holding the 1 key).
z Speed-dial a phone number in standby mode
(by pressing and holding the 2-9 key).
z Enter the * symbol, + symbol, or P character by
pressing it once, twice, three times.
z Lock the keypad (by pressing and holding it).
z Change input modes when editing texts.
z Enter the # symbol.
z Switch between the Silent and Normal profiles
(by pressing and holding it).
7
4 Screen Icons
Note
The screen icons are displayed on the upper area of the
screen when the phone is in standby mode.

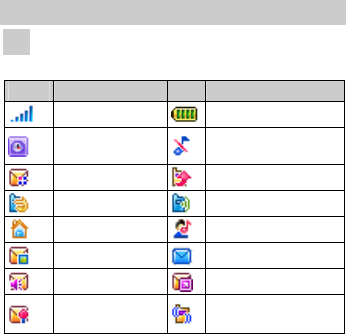

Icon Description Icon Description
Signal strength Battery power level
An alarm clock is
enabled. Silent profile
OTA message Calls forwarding
Headset profile Normal profile
Activity profile Meeting profile
MMS SMS
Voice mail Push messages
Broadcast message Vibrancy only,
Vibrate and ring
8
5 Menu Tree
Camera Browser Calls
Resolution
Self timer
Night mode
Image quality
Shutter tone
Go to my files
Homepage
Enter URL
Bookmarks
Internet settings
Music
Search
Ringtones
Pictures
News
Sport
My Browser
Missed
Received
Dialed
Organiser & Tools Messaging My files
STK
FM radio
Alarms
Calendar
Calculator
Write message
SMS
MMS
Message templates
Call voice mail
Push messages
Broadcast message
Message settings
Pictures
Ringtones
Music
Other
Memory status
9
Profiles Contacts Settings
Normal
Silent
Meeting
Activity
Headset
Add new contact
Call
Edit before call
Send SMS
Send MMS
Delete
Copy
Mark
Mark all
Settings
Memory status
Phone settings
Display settings
Message settings
Call settings
Contact settings
Security
Connectivity
6 Voice Services
Making a Call
Note
When the phone is locked, you need to unlock the
phone first. Otherwise, you can make only emergency
calls and answer calls.
z Making a Call by Entering the Phone Number
In standby mode, press the number keys to enter a phone
number, and then press to make the call.
To make an international call, press twice to enter +.
Then enter the international long distance code, country code
or region code, area code, and phone number in sequence.
To call a phone number with an extension, press three
times to insert P between the phone number and the
extension number.
10
z Making a Call from the Call Logs
In standby mode, press to access the Dialed screen.
Scroll to the number you want to dial and press the dial key.
z Making a Call from Contacts
Scroll to the number you want to dial in Contacts and press
the dial key.
z Making a Call from the Inbox
Select a message sent by the contact to be called in the inbox,
and then press .
Answering a Call
When there is an incoming call, press to answer it; press
(Mute) to mute the ringtone.
Rejecting or Ending a Call
Press to reject or end a call.
Call Settings
1. Activate or deactivate the loudspeaker as follows:
Press to activate or deactivate the loudspeaker of your
phone.
2. Adjust the volume as follows:
During a call, press or to access the volume
adjustment screen. Then, press to raise the volume and
press to lower the volume.
3. Mute or unmute the microphone as follows:
Press (Mute) to mute the microphone. Then the other
party cannot hear your voice. If the microphone is muted,
press (Unmute) to unmute the microphone.
11
7 Text Entry
Text Input Modes
The indicator of the current input mode is displayed on the
upper left corner of the screen. You can press to change
the input mode.

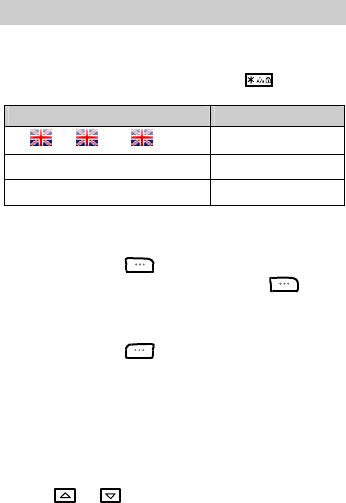

Indicator Text Input Mode
Abc , abc , ABC Predictive
Abc, abc, ABC Multi-tap
123 Numbers
Deleting the Text
In editing mode, press (Clear) once to delete the letter to
the left of the cursor. Alternatively, press and hold
(Clear) to clear all letters at one time.
Changing the Text Input Language
In editing mode, press (Option) and choose Input
options > Input language. Then select the text input language
as required.
Predictive Text Input
1. Corresponding to the sequence of the word, press the key
labeled with the required letter once.
Then the phone displays the commonly used words
according to the sequence of key presses.
2. Press or to view words.
12
3. Press to enter the desired word.
Multi-tap Text Input
The alphabetical text input allows you to enter uppercase or
lowercase English letters. You can press the key labeled with the
desired letter once to enter the first letter on the key, twice to
enter the second letter on the key, and so on.
Entering Numbers
z In "123" input mode, press number keys to enter numbers.
z In other text input mode, press and hold the key until the
number appears.
Entering Symbols
1. Press to display the symbol list.
2. Press , , , or . to select a symbol.
3. Press to enter the symbol.
Other Operations
In predictive text input mode
z Press to enter a space; press and hold the to
enter 0.
z Press to enter a period.
In multi-tap text input mode
z Press once to enter a period; press repeatedly
to enter other symbols.
z Press once to enter a space; press twice
consecutively to enter 0.
13
8 SMS
Writing and Sending a Text Message
1. Choose Menu > Messaging > Write message > SMS.
2. Edit a text message.
3. Press and select Add from contacts to add a phone
number from contacts, or select Enter phone number to
directly enter a phone number.
4. Press to send the text message.
Reading a Message
1. Choose Menu > Messaging > SMS > Inbox.
2. Press or to select a text message.
3. Press to read the text message.
9 MMS
Writing and Sending a Multimedia
Message
1. Choose Menu > Messaging > Write Message > MMS.
2. Select To, Cc, or Bcc.
Press and choose Options > Add from contacts to
add a phone number from contacts or choose Options > Edit
to directly enter a phone number.
3. Select Subject.
Press and enter the subject of the multimedia message
in Subject.
14
4. Select Content.
Press and edit the text content of the multimedia
message. You can also add images, ringtones, and music
stored in My files to the multimedia message.
5. Choose Options > Send to send the multimedia message.
Note
The capacity of a multimedia message can be up to 300
KB, including the attached file and slide.
Viewing a Multimedia Message
1. Choose Menu > Messaging > MMS > Inbox.
2. Press or to select a multimedia message.
3. Press to read the multimedia message.
10 Radio
Switching On the Radio
1. Insert the headset into the headset jack properly, and keep the
headset cable straight for better broadcasting effect.
2. Choose Menu > Organiser & Tools > FM radio.
3. Press (Options) to select Auto Tuning.
4. After tuning, the phone displays the Channel list. Press
or to scroll to the required channel.
You can also press (Back) to return to the FM main
screen. Then, press or to scroll to the required
channel; press or to adjust the volume.
15
Operations On the FM Main Screen
z Press and hold to switch between the loudspeaker and
the headset.
z Press number keys 0–9 to switch between radio channels
Switching Off the Radio
1. Choose Menu > Organiser & Tools > FM radio.
2. Press (Options) to select Switch off.
11 Camera
1. Choose Menu > Camera to access the preview mode.
2. Focus the lens on the scene. Press to increase the
luminance; press to decrease the luminance. You can
also press (Options) and select other settings for
taking a picture.
3. After you complete the settings, press to take a picture.
Then the picture is automatically saved in the Pictures
folder.
4. Press (Options) to perform the following operations:
z Send by MMS: Send the picture through the MMS.
z Set as wallpaper: Set the picture as the wallpaper.
z Delete: Delete the picture.
12 WAP
It allows your phone to access the specified services provided by
network service providers, and allows you to enjoy the mobile
life easily. For example, you can browse the Internet and
download your favorite pictures, ringtones, or music.
16
For more information about this function, consult your service
provider.
13 Warnings and Precautions
Electronic Device
z Power off your phone near high-precision electronic devices.
The phone may affect the performance of these devices.
z Such devices include hearing aids, pacemakers, fire alarm
systems, automatic gates, and other automatic control devices.
If you are using an electronic medical device, consult the
device manufacturer to confirm whether the radio wave
affects the operation of this device.
z Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone
and a pacemaker to avoid potential interference with the
pacemaker. To achieve this, use the phone on the opposite ear
to your pacemaker and do not carry it in a front pocket.
Hospital
Pay attention to the following points at hospitals or health care
facilities:
z Do not take your phone into the operating room (OR),
intensive care unit (ICU), or coronary care unit (CCU).
z Do not use your phone at places for medical treatment where
using a phone is prohibited.
z When using your phone near someone who is suffering from
a heart disease, turn down the ringtone volume or vibration
properly so that it does not affect the person.
17
Area with Inflammables and Explosives
In any area with inflammables and explosives, power off your
phone and do not take out, install or charge the battery, to avoid
explosion and fire. Areas with inflammables and explosives
include, but are not limited to the following:
z Gas station
z Area for storing fuels (such as the bunk under the deck of a
ship)
z Device/vehicle for transporting and storing fuels or chemical
products
z Area with chemical substances and particles (such as granule,
dust and metal powder) in the air
z Area with the sign of "Explosives"
z Area with the sign of "Power off bi-directional wireless
equipment"
z Area where it is generally suggested to stop the engine of a
vehicle
Traffic Safety
z Observe local laws and regulations on phone use. Do not use
your phone while driving to avoid traffic accident.
z Secure the phone on its holder. Do not place the phone on the
seat or other places where it can fall in a jerk or collision.
z Use the phone after the vehicle stops at a safe place.
z If your phone supports the hands-free function, or the phone
can be used with earphones, or there is any vehicle-mounted
equipment with hands-free function, use them in emergency.
z Do not place the phone over the air bag or in the air bag
outspread area. Otherwise, the phone may hurt you owing to
the strong force when the air bag inflates.
18
z Observe the rules and regulations of airline companies. When
boarding or approaching an aircraft, power off the phone and
take out the battery. In areas where using a phone is
prohibited, power off the phone. Otherwise, the radio signal
of the phone may interfere with the aircraft control signals.
Power off your phone before boarding an aircraft.
Storage Environment
z Do not place magnetic storage media such as magnetic cards
and floppy disks near the phone. Radiation from the phone
may erase the information stored on them.
z Do not place your phone, battery, or other accessories in
containers with strong magnetic field, such as an induction
cooker and a microwave oven. Otherwise, circuit failure, fire,
or explosion may occur.
z Do not leave your phone, battery, or charger in a very hot or
cold place. Otherwise, malfunction of the products, fire, or
explosion may occur.
z Keep the ambient temperature between 0℃ and 45℃ while
the battery is being charged. Keep the ambient temperature
between –20℃ and 60℃ for storing the battery. If the
ambient temperature is too low (especially below 0℃) or too
high, the capacity and life of the battery will be reduced.
z Do not place sharp metal objects such as pins near the
earpiece. The earpiece may attract these objects that can hurt
you when you are using the phone.
z Do not subject your phone, battery, and charger to serious
collision or shock. Otherwise, battery leakage, phone
malfunction, overheat, fire, or explosion may occur.
z Do not put your phone in the back pocket of your trousers or
skirt, to avoid phone damage while seated.
19
Children Safety
z Put your phone, battery, and charger at places beyond the
reach of children. Do not allow children to use the phone,
battery, or charger without guidance.
z Do not allow children to put the battery in mouth, for
electrolyte in the battery is poisonous.
z Do not allow children to touch the small fittings. Otherwise,
suffocation or gullet jam can be caused if children swallow
the small fittings.
Operating Environment
z The phone, battery, and charger are not water-resistant. Keep
them dry. Protect the phone, battery and charger from water
or vapor. Do not touch the phone with a wet hand. Otherwise,
short-circuit and malfunction of the product or electric shock
may occur.
z Do not use the phone in dusty, damp and dirty places or
places with magnetic field. Otherwise, malfunction of the
circuit may occur.
z Do not power on or off the phone when it is near your ears to
avoid negative impact on your health.
z When carrying or using the phone, keep the antenna at least
one inch (2.5 cm) away from your body, to avoid negative
impact on your health caused by radio frequency leakage.
z If you feel uncomfortable (such as falling sick or qualm)
after playing games on your phone for a long time, consult a
doctor immediately.
z On a thunder and stormy day, do not use your phone
outdoors or when it is being charged.
z Do not touch the antenna when a call is going on. Touching
the antenna may affect call quality and cause the phone to
20
operate with more power. As a result, the talk time and
standby time are shortened.
z The phone may interfere with nearby TV sets, radios and
PCs.
z In accordance with international standards for radio
frequency and radiation, use phone accessories approved by
the manufacturer only.
z While using the mobile phone, observe the local laws and
regulations, and respect others' privacy and legal rights.
Clearing and Maintenance
z Before you clean or maintain the phone, power off the phone
and disconnect it from the charger. Otherwise, electric shock
or short-circuit of the battery or charger may occur.
z Do not use any chemical detergent, powder, or other
chemical agent (such as alcohol and benzene) to clean the
phone and the charger. Otherwise, part damage or a fire can
be caused. You can clean the phone and the charger with a
piece of soft antistatic cloth that is a little wet.
z Do not scratch the shell of the phone. Otherwise, the shed
coating may cause skin allergy. Once it happens, stop using
the phone at once and go to see a doctor.
z Keep the plug dry when you clean it, to prevent fire.
z If the phone or any of its fittings does not work, turn to the
locally authorized service center for help.
z Do not dismantle the mobile phone or accessories. Only an
authorized service center is allowed to maintain the mobile
phone.
21
Environment Protection
z Please observe the local regulations regarding the disposal of
your packaging materials, exhausted battery and old phone,
and please promote their recycling. Do not dispose of
exhausted battery or old phone in municipal waste or fire.
Otherwise, explosion may occur.
z This HUAWEI device complies with Directive 2002/95/EC
on the restriction of the use of certain hazardous substances
in electrical and electronic equipment.
z : This symbol indicates that the equipment carrying this
mark must not be thrown into general waste but should be
collected separately and properly recycled under local
regulations.
Emergency Call
You can use your phone for emergency calls. However,
connections in all conditions cannot be guaranteed. You should
never rely solely on the phone for essential communications.
Battery
z Use the battery approved by the manufacturer only.
Otherwise, explosion may occur.
z Do not dispose of the battery in fire. Otherwise, the battery
may ignite or explode.
z Do not connect two poles of the battery with conductors such
as cables, jewelries or any other metal material. Otherwise,
the battery is short-circuited and it may burn your body.
z Do not disassemble the battery or solder the battery poles.
Otherwise, fluid leakage, overheat, fire, or explosion may
occur.
22
z If there is battery leakage, smoke, or strange smell, stop
using the battery and keep it away from open flame to avoid
fire or explosion. Then turn to an authorized maintenance
engineer for help.
z If the battery fluid contacts your skin or cloth, wash with
clean water immediately to avoid irritation to the skin.
z If the battery fluid gets into eyes, do not rub your eyes.
Otherwise, your eyes can be hurt. Wash with clean water and
go to see a doctor immediately.
z If there is battery deformation, color change or abnormal
heating while you charge or store the battery, take it out
immediately and stop using it. Otherwise, battery leakage,
overheat, explosion, or fire may occur.
z When installing the battery, do not push the battery by force
lest battery fluid leaks out or the battery cracks.
z Do not take out the battery when the phone is turned on.
z If you do not use the battery for a long time, store it in
normal temperature after being charged.
Charger
z Use the charger approved by the phone manufacturer only.
Any violation of this rule may result in fire or malfunction of
the charger.
z Do not short-circuit the charger. Short-circuiting the charger
may cause fire or malfunction of the charger.
z If the power cord is damaged (for example, the lead is
exposed or broken), or the plug becomes loose, stop using
the cable at once. Otherwise, electric shock, short-circuit of
the charger, or fire may occur.
z Keep the charger dry. Once water or other liquid leaks into
the charger, electrical leakage or other faults may occur.
23
z Do not use the charger in a dusty and damp environment.
Keep the power cord away from any heating appliance.
z Ensure the charger is properly plugged into the power socket
when charging the battery. Improper insertion may result in
electric shock, fire, or explosion. To unplug the charger, pull
the plug off rather than tear the power cord.
z Use the AC power supply defined in the specifications of the
charger. An improper power voltage can cause fire or
malfunction of the charger.
z Do not place any heavy object on the power cord of the
charger. Do not damage, change, or pluck the power cord.
Otherwise electric shock or fire may occur.
z When you are charging the battery with the charger, do not
touch the plug, power cord or the charger with a wet hand.
Otherwise, electric shock can be caused.
z Once the liquid such as water leaks into the charger, remove
the plug of the charger from the socket immediately.
Otherwise, overheating, fire and other malfunction may
occur.
Certification Information (SAR)
THIS DEVICE MEETS THE GOVERNMENT'S
REQUIREMENTS FOR EXPOSURE TO RADIO
FREQUENCY ELECTROMAGNETIC FIELD.
Your mobile phone is a low-power radio transmitter and
receiver. When it is turned on, it emits low levels of radio
frequency energy (also known as radio waves or radio frequency
fields).
Governments around the world have adopted comprehensive
international safety guidelines, developed by scientific
organizations, e.g. ICNIRP (International Commission on
Non-Ionizing Radiation Protection) and IEEE (Institute of
24
Electrical and Electronics Engineers Inc.), through periodic and
thorough evaluation of scientific studies. These guidelines
establish permitted levels of radio wave exposure for the general
population. The levels include a safety margin designed to
assure the safety of all persons, regardless of age and health, and
to account for any variations in measurements.
Specific Absorption Rate (SAR) is the unit of measurement for
the amount of radio frequency energy absorbed by the body
when using a mobile phone. The SAR value is determined at the
highest certified power level in laboratory conditions, but the
actual SAR level of the mobile phone while operating can be
well below the value. This is because the mobile phone is
designed to use the minimum power required to reach the
network.
All models of Huawei’s mobile phone are designed to meet
radio frequency exposure guidelines. Before a phone model is
available for sale to the public, it must be tested and certified to
the FCC that it does not exceed the limit established by the
government-adopted requirement for safe exposure. The tests
are performed in positions and locations (that is, at the ear and
worn on the body) as required by the FCC for each model. For
body worn operation, this phone has been tested and meets FCC
RF exposure guidelines when the handset is positioned a
minimum of 20 mm from the body with an accessory that
contains no metal part. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
The SAR limit adopted by the USA and Canada is 1.6
watts/kilogram (W/kg) averaged over one gram of tissue. The
highest SAR value reported to the FCC and IC for this device
type when tested for use at the ear is 1.140 W/kg, and when
properly worn on the body is 1.110 W/kg.
The SAR limit adopted by the CNIRP is 2.0 W/kg over one
gram of tissue. The value guarantees a safe distance to protect
25
mobile phone users and the difference caused by measurement
errors. Under different test requirements and frequency, the
value varies.
Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. Operation is subject to the condition that this device
does not cause harmful interface.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
Body Worn Operation Important safety information regarding
radiofrequency radiation (RF) exposure To ensure compliance
with RF exposure guidelines the device must be used with a
minimum of 2.0 cm separation from the body. Failure to observe
these instructions could result in your RF exposure exceeding
the relevant guideline limits.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
z Reorient or relocate the receiving antenna.
26
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for
help.
Warning: Changes or modifications made to this
equipment not expressly approved by HUAWEI may
void the FCC authorization to operate this equipment.
