Huawei Technologies TE10 Videoconferencing Endpoint User Manual Product Description

Huawei Technologies Co.,Ltd Videoconferencing Endpoint Product Description

Users Manual

TE10 Videoconferencing Endpoint
V500R003C20
Product Description
Issue
01
Date
2016-07-30
HUAWEI TECHNOLOGIES CO., LTD.
Issue 01 (2016-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i
Copyright © Huawei Technologies Co., Ltd. 2016. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees or
representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website:
http://e.huawei.com
TE10 Videoconferencing Endpoint
Product Description
About This Document
Issue 01 (2016-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
About This Document
Purpose
This document provides the positioning, highlights, networking schemes, features, and
technical specifications of the HUAWEI TE10 videoconferencing endpoint (TE10 or endpoint
for short).
Intended Audience
This document is intended for:
End users
Agents
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in equipment damage, data loss,
performance deterioration, or unanticipated results.
NOTICE is used to address practices not related to
personal injury.
Calls attention to important information, best practices
and tips.
NOTE is used to address information not related to
personal injury, equipment damage, and environment
TE10 Videoconferencing Endpoint
Product Description
About This Document
Issue 01 (2016-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iii
Symbol
Description
deterioration.
Change History
Changes between document issues are cumulative. The latest document issue contains all the
changes made in earlier issues.
Issue 01 (2016-07-30)
This issue is the first official release.
TE10 Videoconferencing Endpoint
Product Description
Contents
Issue 01 (2016-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iv
Contents
About This Document .................................................................................................................... ii
1 Product Positioning ...................................................................................................................... 1
2 Product Structure........................................................................................................................... 2
2.1 Appearance ................................................................................................................................................................... 2
2.2 Front Panel and Rear Panel ........................................................................................................................................... 3
3 Technical Specifications .............................................................................................................. 7
3.1 Physical Specifications ................................................................................................................................................. 7
TE10 Videoconferencing Endpoint
Product Description
1 Product Positioning
Issue 01 (2016-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1
1 Product Positioning
The TE10 is an integrated high definition (HD) videoconferencing endpoint with a minimalist
design. It can connect to networks over Wi-Fi and interwork with various cloud platforms.
The TE10 is an innovative product that can also offer cloud services.

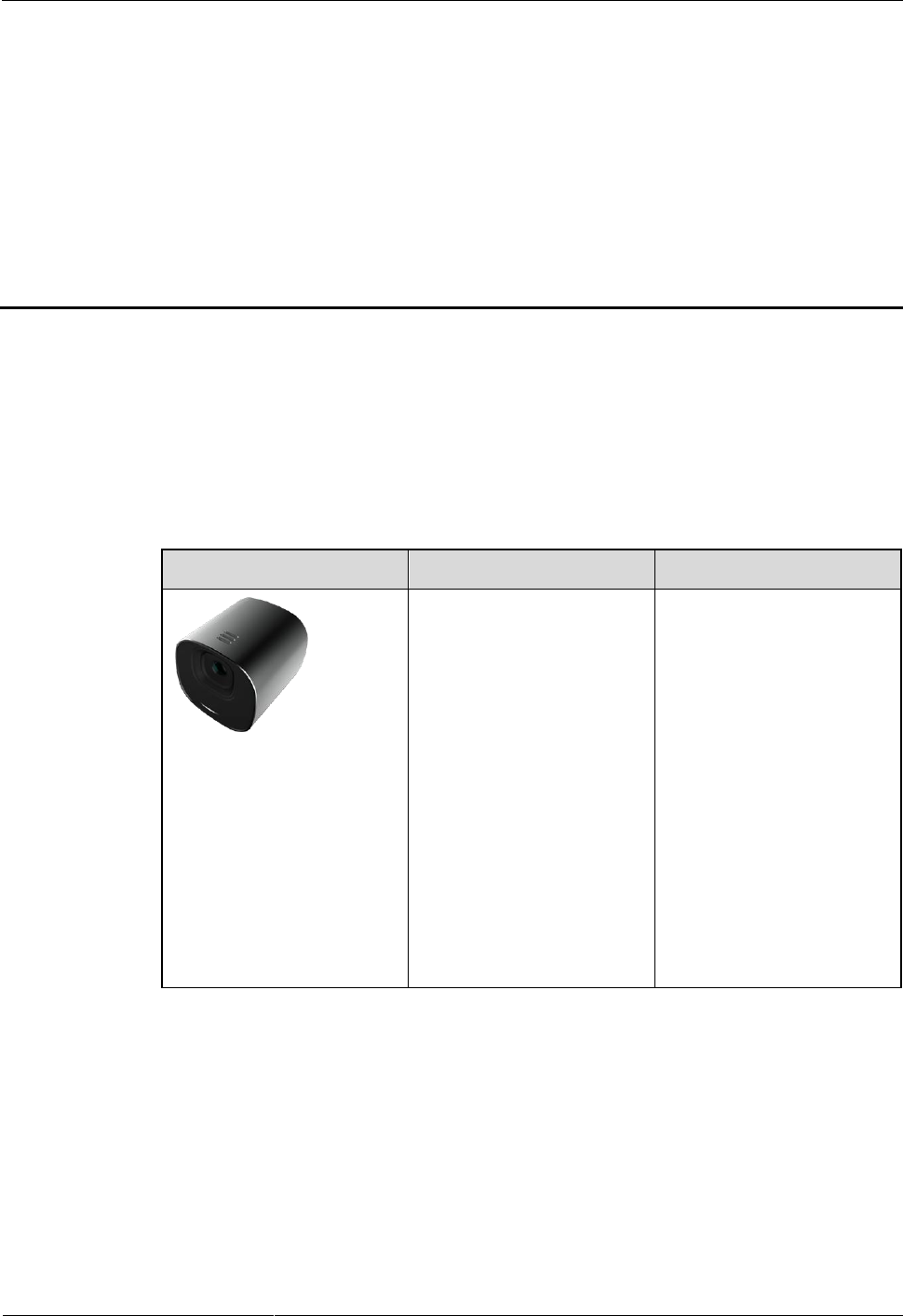

Table 1-1 describes the features and application scenarios of the TE10.
Table 1-1 TE10 features and application scenarios
TE10
Feature
Application Scenario
Integrates a camera,
three stereo
microphones, and a
speaker.
Enables video
communication after
having the power cable,
video output cable, and
network cable well
connected.
Adopts a compact design
and a metal shell, which
is easy to move and
install.
Supports a resolution of
up to 720p 30 fps.
Small conference rooms
(less than 20 m2)
TE10 Videoconferencing Endpoint
Product Description
2 Product Structure
Issue 01 (2016-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
2 Product Structure
2.1 Appearance

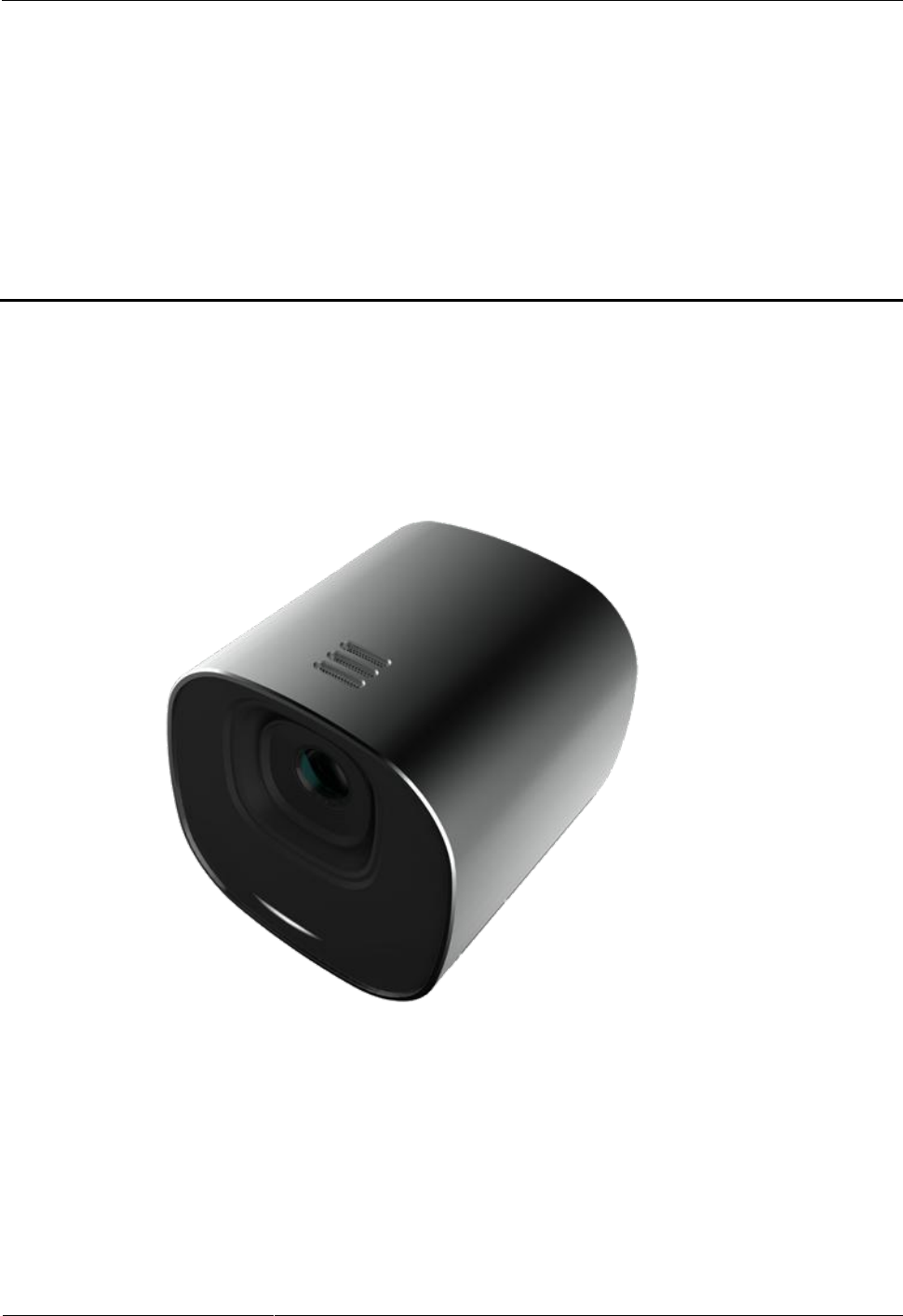

The TE10, as shown in Figure 2-1, is sleek, compact, and aesthetically pleasing.
Figure 2-1 Appearance of the TE10

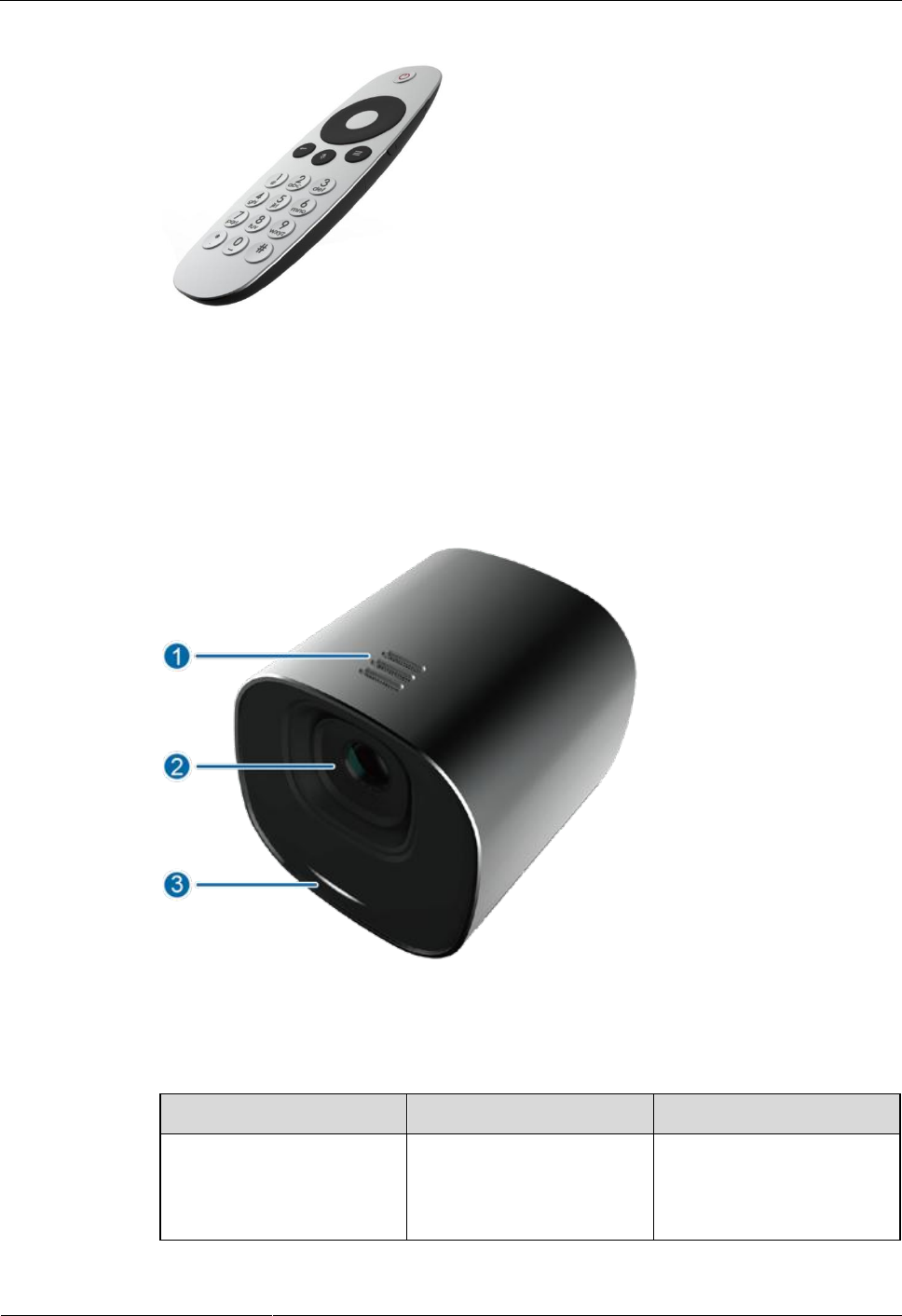

Figure 2-2 shows the remote control that comes with a TE10.
TE10 Videoconferencing Endpoint
Product Description
2 Product Structure
Issue 01 (2016-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3
Figure 2-2 Remote control
2.2 Front Panel and Rear Panel
Figure 2-3 shows the TE10 front panel.
Figure 2-3 Front panel
Table 2-1 describes the components on the front panel.
Table 2-1 Components on the front panel
No.
Component
Description
1
Built-in microphone
Provides 180-degree sound
pickup for the local site,
with an optimal range of six
meters.
TE10 Videoconferencing Endpoint
Product Description
2 Product Structure
Issue 01 (2016-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
No.
Component
Description
2
Lens
Supports 3x digital zoom
and 108-degree wide angle.
3
Status indicator
Shows whether the TE10 is
running, sleeping,
upgrading, or
malfunctioning.
Table 2-2 describes the TE10 indicator status.
Table 2-2 TE10 indicator status
When The Indicator Is...
The TE10 Is...
Off
Powered off.
Blinking white twice per second
Powering on.
Blinking white four times per second
Being upgraded.
Steady white
Working properly.
Blinking white once
Responding to the press on a button on the
remote control.
Blinking white (on for 1s, off for 2s)
Standby.
Steady red
Having a hardware fault.
Steady orange
Having a software fault.
Blinking orange twice per second
Overheated.
Figure 2-4 shows the TE10 rear panel.
TE10 Videoconferencing Endpoint
Product Description
2 Product Structure
Issue 01 (2016-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
Figure 2-4 Rear panel
Table 2-3 describes the components on the rear panel.
Table 2-3 Components on the rear panel
No.
Component
Description
1
Built-in speaker
Used for audio output.
2
USB port
Connects to a USB device,
for example, U flash drive
and wired/wireless keyboard
or mouse.
3
Power port
Connects to a power supply.
Voltage: 100 V to 240 V AC
or 12 V DC
Current: 1 A
Frequency: 50 Hz or 60 Hz
4
HDMI OUT
Connects to a TV set or
monitor to deliver video,
presentation, and audio of
the local or remote site.
This port supports a
resolution of up to 1080p 60
fps.
5
LINE OUT
3.5 mm (0.14 in.) audio
output port, which connects
TE10 Videoconferencing Endpoint
Product Description
2 Product Structure
Issue 01 (2016-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
No.
Component
Description
to the audio input port on a
monitor or an external
speaker.
6
LAN
Ethernet port that supports
10/100/1000 Mbit/s full
duplex.
7
RST
Reset button.
When the TE10 is
powering on, press and
hold this button for 3s to
reset the TE10 to the
pre-installed system
version.
When the TE10 is
running, press and hold
this button for 10s to
reset the TE10 to factory
settings.
When you press and hold
this button for 3s, the
system will prompt you
that your TE10 will be
reset to factory settings if
you press and hold this
button for 10s.
TE10 Videoconferencing Endpoint
Product Description
错误!文档中没有指定样式的文字。错误!文档中
有指定样式的文字。
Issue 01 (2016-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
3 Technical Specifications
3.1 Physical Specifications
Table 3-1 lists the physical specifications of the TE10.
Table 3-1 TE10 physical specifications
Item
Specifications
Electricity supply requirements
Power supply
100240 V AC or 12 V DC
Working frequency
5060 Hz
Maximum power consumption
8 W
Working state environment requirements
Ambient temperature
C to 40°C (32°F to 104°F)
Relative humidity
10% to 80%
Ambient noise
< 46 dBA SPL
Minimum illuminance
7 lux
Recommended illuminance
> 300 lux
Non-working state environment requirements
Ambient temperature
40°C to +70°C (40°F to 158°F)
Relative humidity
0% to 95%
Dimensions and weight
Endpoint dimensions (H x W x D)
90 mm x 90 mm x 90 mm
Package dimensions (H x W x D)
(To be determined.)
Net weight
500 g
Gross weight
(To be determined.)
TE10 Videoconferencing Endpoint
Product Description
错误!文档中没有指定样式的文字。错误!文档中
有指定样式的文字。
Issue 01 (2016-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
Item
Specifications
Built-in camera features
Image sensor
(To be determined.)
2-megapixel, 1/3-inch CMOS
Resolution
720p 30 fps
Lens
Zoom: 3x digital zoom (optical zoom not
supported)
Focal length: F = 3.9 mm to 46.8 mm
Lens aperture: F1.8 to F2.8
Maximum horizontal field of view: 108°
Auto White Balance (AWB), Auto
Exposure (AE)
Three video modes that can be switched
flexibly: standard, vivid, and natural
Support for ePTZ control
Exposure
Automatic or manual
White balance
Automatic or manual
Built-in microphone
Sound pickup
The TE10 supports 180-degree audio pickup
at a radius of up to 6 meters.
Bluetooth features
Maximum working range without
obstruction
10 m
Number of Bluetooth speakers (with
embedded sound pickup) that can be
connected
1
