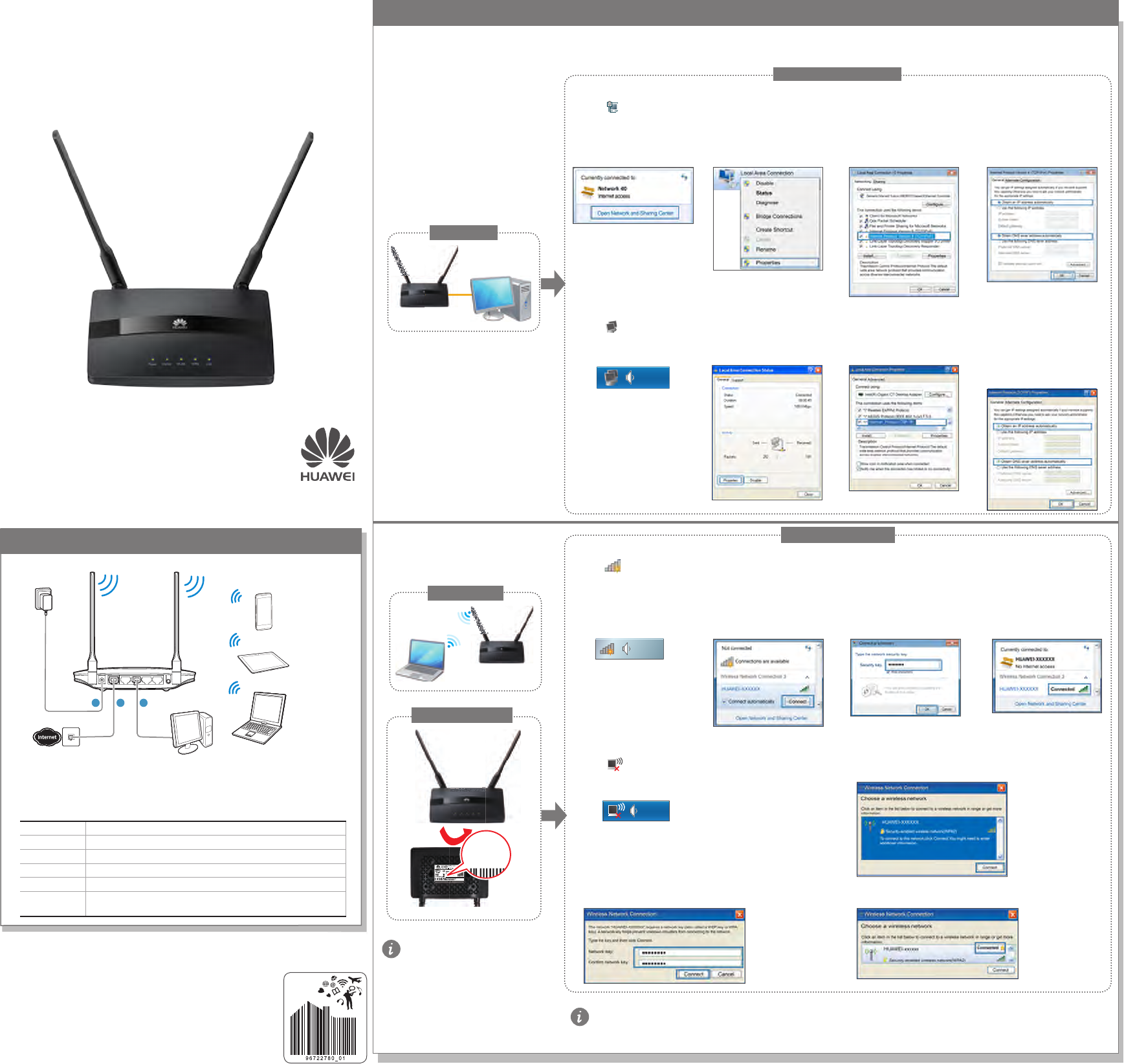

Quick Start
WS319 300Mbps Wireless Router
2 Building a network connection with computer
1 Connecting Devices
SSID: XXXX
WLAN Key:
1. Click in the lower right
corner of your desktop.
2. From the wireless network
list, select the WLAN
provided by the WS319.
Click Connect.
3. In the displayed dialog box,
enter the WLAN password
and click OK.
4. In the wireless network list,
check the WLAN connection
status. If the status is
Connected, the computer is
wirelessly connected to the
WS319.
1. Click in the lower right
corner of your desktop,
choose Open Network and
Sharing Center.
2. Choose Change
adapter settings.
Right-click Local Area
Connection and choose
Properties.
Procedure on Computers Running Windows 7.
Procedure on Computers Running Windows 7
3. Double-click Internet
Protocol Version 4 (TCP/
IPv4).
4. Select Obtain an IP
address automatically
and Obtain DNS server
address automatically.
Click OK.
Mode Ⅱ
Wireless connection
Mode Ⅰ
Wired connection
If the wireless device (laptop, tablet, or mobile phone) has been WPS-capable, you can use the WPS-capable to establish a wireless
connection between them. For more help，visit http://consumer.huawei.com/en/ to obtain the WS319 user guide.
Please ensure that your computer has
installed and enabled the wireless
network adapter.
View SSID and WLAN key
Setting the Computer IP Address
Wireless Connection Setup
Procedure on Computers Running Windows XP.
Procedure on Computers Running Windows XP.
1. Click in the lower right
corner of your desktop.
2. In the displayed dialog box,
click Properties.
3. Double-click Internet
Protocol (TCP/IP).
4. Select Obtain an IP
address automatically
and Obtain DNS server
address automatically.
Click OK.
1. Click in the lower right
corner of your desktop.
2. From the wireless network list, select the WLAN provided by the WS319. Click
Connect.
3. In the displayed dialog box, enter the
WLAN password and click Connect. 4. In the wireless network list, check the WLAN connection status. If the status is
Connected, the computer is wirelessly connected to the WS319.
Connect the cables as shown in the gure above, and plug the power adapter into the
wall-mounted power outlet to power on the WS319.
After the WS319 is powered on, the WS319 power indicator turns on.
The following table lists how the indicators behave when the WS319 is operating correctly.
If the indicators do not behave as expected, ensure that everything is plugged in correctly.
Indicator Working
Power Steady on
Internet Steady on
WLAN Steady on
WPS Steady off
LAN Steady on ( A LAN port is connected to a computer or other Ethernet
device through a network cable.)
Connect your devices in the sequence indicated in the following gure.
Before conguring the router, you need to build the network connection between this device and the router.
Wired connection applies to the computers without wireless network adapter. Wireless connection applies to the devices supporting wireless Internet access, such as smart
phone and tablet.
Wireless connection
16:30
15:30
16:30
For More Help
Please visit www.huaweidevice.com/worldwide/support/hotline for recently
updated hotline and email address in your country or region.
Copyright © Huawei Technologies Co., Ltd. 2014. All rights
reserved.
THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES
NOT CONSTITUTE ANY KIND OF WARRANTIES.
Privacy Policy
To better understand how we protect your personal information, please see
the privacy policy at http://consumer.huawei.com/privacy-policy.
Wired connection
WS319
LAN1 LAN2 LAN3 LAN4WAN
Power WPS/Reset
312Desktop computer
Laptop computer
Pad
Smart Phone
Power cable
Network cable Network cable

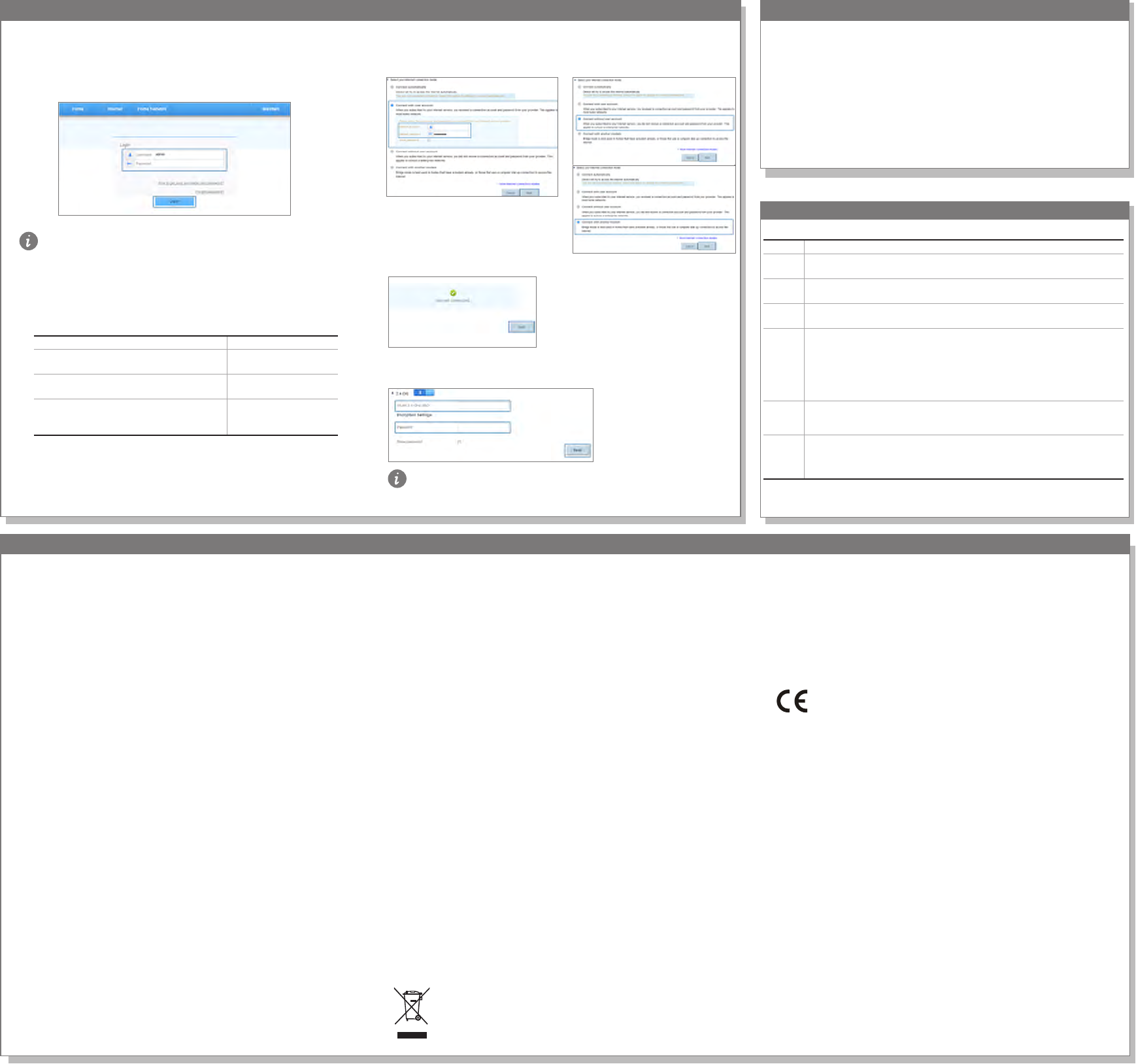

3 Quick Setup
6 Safety Information
Scenario Connection Type
The account name and password are provided by
your Internet Service Provider (ISP). Connect with user account
No parameter is provided by your ISP. The IP address
is automatically assigned by the ISP. Connect without user account
The account name and password are provided by
your ISP, and you want to set up a dial-up connection
on one computer only.
Connect with another modem
4 FAQs
5 Appendix (Indicators and Buttons)
Indicator Expected State
Power • Steady off (WS319 is powered off.)
• Steady on (WS319 is powered on.)
Internet • Steady on (The WS319 is connected to the Internet.)
• Steady off (The WS319 WAN port is not connected to any device.）
WLAN • Steady on (WLAN is enabled.)
• Steady off (WLAN is disabled.)
WPS
• Steady on (WS319 is connected to a wireless client, such as a computer with a
wireless network adapter, over the WLAN using the Wi-Fi Protected Setup (WPS)
function.The WPS indicator is steady on for 300 seconds.)
• Blinking (WS319 is attempting to connect to a wireless client over the WLAN
using the WPS function. The WPS indicator blinks for 120 seconds or less.)
• Steady off (WPS is disabled)
LAN
• Steady on (A LAN port is connected to a computer or other Ethernet device through a
network cable. )
• Steady off (No LAN port is connected to a computer or other Ethernet device. )
WPS/
Reset
• When the WS319 is powered on, Press to start Wi-Fi protected setup (WPS)
negotiation.
• When the WS319 is powered on, Press it (more than 6 seconds). The WS319 will
restore to its default settings.
you log in to the WS319. Select a network connection type, set the Internet
connection parameters, and click Next.
4. Click Next, set WLAN parameters.
3. The setup wizard will automatically be displayed the rst time
1. Open a browser. In the address box, enter http://mediarouter.home. Press Enter.
2. Enter the login password (admin by default). Click Login.Q: What Can I Do If I Cannot Open the Web Management Page?
A: Perform the following steps:
1. Check that the cables are securely connected to the WS319 and that the LAN port's
indicator is on.
2. Open Internet Explorer. Choose Tools > Internet Options > Connections > LAN
settings, and ensure that all check boxes are deselected.
If the problem persists, restore the WS319 to its default settings.
This section contains important information about the operation of your device. It also contains
information about how to use the device safely. Read this information carefully before using your
device.
Electronic device
Do not use your device if using the device is prohibited. Do not use the device if doing so causes
danger or interference with other electronic devices.
Interference with medical equipment
>Follow rules and regulations set forth by hospitals and health care facilities. Do not use your
device where prohibited.
>Some wireless devices may affect the performance of hearing aids orpacemakers. Consult your
service provider for more information.
>Pacemaker manufacturers recommend that a minimum distance of 15cm be maintained between
a device and a pacemaker to prevent potential interference with the pacemaker. If using a
pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in
your front pocket.
Areas with ammables and explosives
>Do not use the device where ammables or explosives are stored (in a gas station, oil depot,
or chemical plant, for example). Using your device in these environments increases the risk of
explosion or re. In addition, follow the instructions indicated in text or symbols.
>Do not store or transport the device in containers with ammable liquids, gases, or explosives.
Operating environment
>Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these
environments may result in circuit malfunctions.
>Before connecting and disconnecting cables, stop using the device and disconnect it from the
power supply. Ensure that your hands are dry during operation.
>Place the device on a stable surface.
>Keep the device away from electronic appliances that generate strong magnetic or electric elds,
such as a microwave oven or refrigerator.
>During thunderstorms, power off your device and remove all cables connected to it to protect
against lightning strikes.
>Do not use your device during thunderstorms to protect your device against any danger caused
by lightning.
>Ideal operating temperatures are 0°C to 40°C. Extreme heat or cold may damage your device or
accessories.
>Keep the device and accessories in a well-ventilated and cool area away from direct sunlight.
Do not enclose or cover your device with towels or other objects. Do not place the device in a
container with poor heat dissipation, such as a box or bag.
>To protect your device or accessories from fire or electrical shock hazards, avoid rain and
moisture.
>Keep the device away from sources of heat and re, such as a heater, microwave oven, stove,
water heater, radiator, or candle.
>Do not place any object, such as a candle or a water container, on the device. If any foreign
object or liquid enters the device, immediately stop using it, power it off, and remove all cables
connected to it. Then, contact an authorized service center.
>Do not block device openings. Reserve a minimum of 10 cm around the device to dissipate heat.
>Stop using your device or applications for a while if the device is overheated. If skin is exposed to
an overheated device for an extended period, low temperature burn symptoms, such as red spots
and darker pigmentation, may occur.
>Do not touch the device's antenna. Otherwise, communication quality may be reduced.
>Do not allow children or pets to bite or suck the device or accessories. Doing so may result in
damage or explosion.
>The device should be installed and operated with a minimum distance of 20cm between the
radiator and your body.
>Keep the device in a place with good reception. The distance between the device and other metal
materials (such as metal brackets or metal doors and windows) should be greater than 25cm and
the distance between the device should be greater than 30cm.
Child's safety
Comply with all precautions with regard to child's safety. Letting children play with the device or its
accessories may be dangerous. The device includes detachable parts that may present a choking
hazard. Keep away from children.
Accessories
>Using an unapproved or incompatible power adapter, charger or battery may cause re, explosion or
other hazards.
>Choose only accessories approved for use with this model by the device manufacturer. The use of
any other types of accessories may void the warranty, may violate local regulations and laws, and
may be dangerous. Please contact your retailer for information about the availability of approved
accessories in your area.
Power adapter safety
>The power plug is intended to serve as a disconnect device.
>For pluggable devices, the socket-outlet shall be installed near the devices and shall be easily
accessible.
>Unplug the power adapter from electrical outlets and the device when not in use.
>Do not drop or cause an impact to the power adapter. If it is damaged, take it to an authorized
service center for inspection.
>If the power cable is damaged (for example, the cord is exposed or broken), or the plug loosens, stop
using it at once. Continued use may lead to electric shocks, short circuits, or re.
>If your device has been exposed to water, other liquids, or excessive moisture, take it to an
authorized service center for inspection.
>Ensure that the power adapter meets the requirements of Clause 2.5 in IEC60950-1/EN60950-1 and
has been tested and approved according to national or local standards.
Cleaning and maintenance
>During storage, transportation, and operation of the device, keep it dry and protect it from collision.
>If the device is not going to be used for an extended period of time, power it off, and remove all
cables connected to it.
>If anything unusual occurs (for example, if the device emits smoke or any unusual sound or smell),
immediately stop using it, power it off, remove all cables connected to it, and contact an authorized
service center.
>Do not trample, pull, or excessively bend any cable. Doing so may damage the cable, causing the
device to malfunction.
>Before you clean or maintain the device, stop using it, stop all applications, and disconnect all cables
connected to it.
>Do not use any chemical detergent, powder, or other chemical agents (such as alcohol and benzene)
to clean the device or accessories. These substances may cause damage to parts or present a re
hazard. Use a clean, soft, and dry cloth to clean the device and accessories.
>Keep the device and accessories dry. Do not attempt to dry it with an external heat source, such as a
microwave oven or hair dryer.
>Avoid collision, which may lead to device malfunctions, overheating, re, or explosion.
>Do not expose your device or accessories to extreme heat or cold. These environments may interfere
with proper function and may lead to re or explosion.
>Do not place magnetic stripe cards, such as credit cards and phone cards, near the device for
extended periods of time. Otherwise the magnetic stripe cards may be damaged.
>Do not dismantle or remanufacture the device and its accessories. In case of damage, contact an
authorized service center for assistance or repair.
Disposal and recycling information
This symbol (with or without a solid bar) on the device, batteries (if included), and/or the
packaging, indicates that the device and its electrical accessories (for example, a headset,
adapter, or cable) and batteries should not be disposed of as household garbage. These
items should not be disposed of as unsorted municipal waste and should be taken to a
certied collection point for recycling or proper disposal.
For more detailed information about device or battery recycling, contact your local city
ofce, household waste disposal service, or retail store.
Disposal of the device and batteries (if included) is subject to WEEE Directive Recast (Directive
2012/19/EU) and Battery Directive (Directive 2006/66/EC). The purpose of separating WEEE and
batteries from other waste is to minimize the potential environmental impacts and human health risk
of any hazardous substances that may be present.
Reduction of hazardous substances
This device is compliant with the REACH Regulation [Regulation (EC) No 1907/2006] and RoHS
Directive Recast (Directive 2011/65/EU). Batteries (if included) are compliant with the Battery
Directive (Directive 2006/66/EC). For up-to-date information about REACH and RoHS compliance,
please visit the web site www.huaweidevice.com/certication.
EU regulatory conformance
Hereby, Huawei Technologies Co., Ltd. declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
For the declaration of conformity, visit the web site www.huaweidevice.com/certication.
The following marking is included in the product:
0678
This device may be operated in all member states of the EU. Observe national and local regulations
where the device is used. This device may be restricted for use, depending on the local network.
Restrictions in the 2.4 GHz band:
Norway: This subsection does not apply for the geographical area within a radius of 20 km from the
centre of Ny-Ålesund.
FCC Regulatory Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment
and it also complies with Part 15 of the FCC RF Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Caution: Any changes or modications to this device not expressly approved by Huawei
Technologies Co., Ltd. for compliance could void the user's authority to operate the equipment.
Recommended to choose Connect automatically. You can also refer to the
following table to configure the network connection.
To protect against unauthorized access, change your password after the first
login.
5. In WLAN 2.4 GHz SSID and Password, the SSID (WLAN
name) and key you specied, and then click Save.
>To protect your wireless network from unauthorized access, change the password
promptly after setup.
>After the SSID and password had been changed, your computer should use the
new ones to establish a wireless connection to the WS319.
>If you selected Connect with user account
enter the parameters provided by your
Internet Service Provider (ISP) and click
Next.
>If you selected Connect without
user account or Connect with
another modem, click Next.
