Huawei Technologies WS329 300Mbps Wireless Router User Manual

Huawei Technologies Co.,Ltd 300Mbps Wireless Router

User Manual

Quick Start
WS329 300Mbps Wireless Router
1
1Obtaining More Information
Thanks for purchasing the WS329 300Mbps Wireless Router (WS329 for short).
This quick start will show you how to connect your WS329 to a network and access the
Internet. The figures in this guide are for reference only. The appearance and display
features may vary slightly depending on the actual product version.
For the full user guide, visit http://www.huaweidevice.com. Enter WS329 in the website
search box and press Enter.
Please visit www.huaweidevice.com/worldwide/support/hotline for recently updated
hotline and email address in your country or region.
2Connecting Cables
Connect your devices in the sequence indicated in the following gure.
Packing list:
1 x WS329, 1 x power adapter, 1 x network cable, 1 x Quick Start and 1 x Warranty Card.
When conguring the WS329 for the rst time, use an Ethernet cable to connect
the WS329 to a computer.
12
3
WS329
2
3Powering On
To power on the WS329, press its On/Off button.
After the WS329 is powered on, the WS329 indicator turns on.
The following table lists how the indicators behave when the WS329 is operating correctly.
If the indicators do not behave as expected, ensure that everything is plugged in correctly.
Indicator Expected State
Power Steady on (On/Off button pressed )
Internet Blinking (WAN port connected to a network)
WLAN Blinking (WLAN enabled)
WPS Steady off (WPS disabled)
Blinking (WPS enabled)
LAN1~LAN4 Steady on (indicator of the connected LAN port)
4Setting the Computer IP Address
1. Choose Start > Control Panel >
Network and Internet > Network
and Sharing Center.
2. Choose Change adapter settings.
Right-click Local Area Connection and
choose Properties.
The following example uses Windows 7 to describe how to set the computer IP address:
3
1. Open a browser. In the address box, enter 192.168.3.1. Press Enter. Enter the login
user name (admin by default) and password (admin by default). Click Login.
2. On the Home tab, click Connect to internet. Then select a network connection type
and set network parameters based on the network provided by your Internet service
provider.
To protect against unauthorized access, change your user name and password
after the rst login.
5Quick Setup

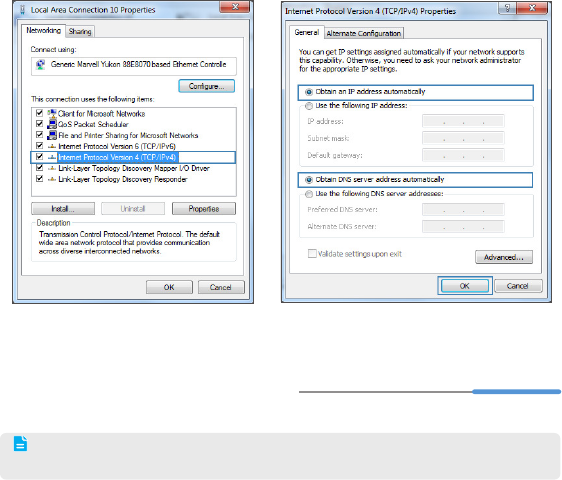

3. Double-click Internet Protocol
Version 4 (TCP/IPv4).
4. S e l e c t Obtain an IP address
automatically and Obtain DNS server
address automatically. Click OK.
4
The following example uses Windows 7 to describe how to set up a wireless connection:
6Wireless Connection Setup
The default WLAN key is printed on the router's rear label. To protect your wireless
network from unauthorized access, change the key promptly after setup.
1. Choose Start > Control Panel >
Network and Internet > Network
and Sharing Center > Change
adapter settings. Right-click Local
Area Connection, and choose
Connect / Disconnect.
2. From the wireless network list, select
the WLAN provided by the WS329.
Click Connect.
3. In the displayed dialog box, enter the
WLAN key and click OK.
4. In the wireless network list, check
t h e WL A N c o n n e c t i o n s t a t u s .
If the s tatus i s Connected, the
computer is wirelessly connected to
the WS329.
5
7Safety information
This section contains important information about the operation of your device. It also contains
information about how to use the device safely. Read this information carefully before using your device.
Electronic device
Do not use your device if using the device is prohibited. Do not use the device if doing so causes
danger or interference with other electronic devices.
Interference with medical equipment
>Follow rules and regulations set forth by hospitals and health care facilities.Do not use your
device where prohibited.
>Some wireless devices may affect the performance of hearing aids orpacemakers. Consult your
service provider for more information.
>Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained
between a device and a pacemaker to prevent potential interference with the pacemaker. If using
a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in
your front pocket.

>
or chemical plant, for example). Using your device in these environments increases the risk of

>
Operating environment
>Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these
environments may result in circuit malfunctions.
>Before connecting and disconnecting cables, stop using the device and disconnect it from the
power supply. Ensure that your hands are dry during operation.
>Place the device on a stable surface.
>
such as a microwave oven or refrigerator.
>During thunderstorms, power off your device and remove all cables connected to it to protect
against lightning strikes.
>Do not use your device during thunderstorms to protect your device against any danger caused
by lightning.
>Ideal operating temperatures are 0°C to 40°C. Ideal storage temperatures are 0°C to 40°C.
Extreme heat or cold may damage your device or accessories.
>Keep the device and accessories in a well-ventilated and cool area away from direct sunlight.
Do not enclose or cover your device with towels or other objects. Do not place the device in a
container with poor heat dissipation, such as a box or bag.
>To protect your device or accessories from fire or electrical shock hazards, avoid rain and
moisture.
>
water heater, radiator, or candle.
>Do not place any object, such as a candle or a water container, on the device. If any foreign

connected to it. Then, contact an authorized service center.
>Do not block device openings. Reserve a minimum of 10 cm around the device to dissipate heat.
>Stop using your device or applications for a while if the device is overheated. If skin is exposed
to an overheated device for an extended period, low temperature burn symptoms, such as red
spots and darker pigmentation, may occur.
>
>Do not allow children or pets to bite or suck the device or accessories. Doing so may result in
damage or explosion.
6
>The device should be installed and operated with a minimum distance of 20 cm between the
radiator and your body.
>Keep the device in a place with good reception. The distance between the device and other metal

the distance between the device should be greater than 30cm.
Child's safety
Comply with all precautions with regard to child's safety. Letting children play with the device or its
accessories may be dangerous. The device includes detachable parts that may present a choking
hazard. Keep away from children.
Accessories
>
or other hazards.
>Choose only accessories approved for use with this model by the device manufacturer. The
use of any other types of accessories may void the warranty, may violate local regulations and
laws, and may be dangerous. Please contact your retailer for information about the availability of
approved accessories in your area.
Power adapter safety
>The power plug is intended to serve as a disconnect device.
>For pluggable devices, the socket-outlet shall be installed near the devices and shall be easily
accessible.
>Unplug the power adapter from electrical outlets and the device when not in use.
>Do not drop or cause an impact to the power adapter. If it is damaged, take it to an authorized
service center for inspection.
>

>
authorized service center for inspection.
>
and has been tested and approved according to national or local standards.
Cleaning and maintenance
>During storage, transportation, and operation of the device, keep it dry and protect it from
collision.
>If the device is not going to be used for an extended period of time, power it off, and remove all
cables connected to it.
>
smell), immediately stop using it, power it off, remove all cables connected to it, and contact an
authorized service center.
>Do not trample, pull, or excessively bend any cable. Doing so may damage the cable, causing
the device to malfunction.
>Before you clean or maintain the device, stop using it, stop all applications, and disconnect all
cables connected to it.
>
benzene) to clean the device or accessories. These substances may cause damage to parts or

>Keep the device and accessories dry. Do not attempt to dry it with an external heat source, such
as a microwave oven or hair dryer.
>
>Do not expose your device or accessories to extreme heat or cold. These environments may

>Do not place magnetic stripe cards, such as credit cards and phone cards, near the device for
extended periods of time. Otherwise the magnetic stripe cards may be damaged.
>Do not dismantle or remanufacture the device and its accessories. In case of damage, contact an
authorized service center for assistance or repair.
Disposal and recycling information
7


headset, adapter, or cable) and batteries should not be disposed of as household
garbage. These items should not be disposed of as unsorted municipal waste and should


household waste disposal service, or retail store.


batteries from other waste is to minimize the potential environmental impacts and human health risk
of any hazardous substances that may be present.
Reduction of hazardous substances
This device is compliant with the REACH Regulation [Regulation (EC) No 1907/2006] and
RoHS Directive Recast (Directive 2011/65/EU). Batteries (if included) are compliant with the
Battery Directive (Directive 2006/66/EC). For up-to-date information about REACH and RoHS

EU regulatory conformance
Hereby, Huawei Technologies Co., Ltd. declares that this device is in compliance with the essential


The following marking is included in the product:
0979
This device may be operated in all member states of the EU.
Observe national and local regulations where the device is used.
This device may be restricted for use, depending on the local network.




Dansk: Huawei Technologies Co., Ltd. erklærer hermed at denne enhed er i overensstemmelse med

Nederlands: Hierbij verklaart Huawei Technologies Co., Ltd. dat dit apparaat in overeenstemming is

Eesti
EÜ põhinõudmistele ja teistele asjakohastele määrustele.
Suomi: Huawei Technologies Co., Ltd. vakuuttaa täten, että tämä laite on yhdenmukainen direktiivin

Français (Européen) 

Deutsch: Huawei Technologies Co., Ltd. erklärt hiermit, dass dieses Produkt die erforderlichen



Magyar: Jelen nyilatkozaton keresztül a Huawei Technologies Co., Ltd. kijelenti, hogy a készülék

Gaeilge: Fograíonn Huawei Technologies Co., Ltd leis seo go bhfuil an fheiste seo i gcomhlíonadh
8

Italiano

Latviski

Lietuviškai

Malti

Polski


Português (Europeu) 






: Huawei Technologies Co., Ltd. izjavlja, da je ta naprava v skladu z bistvenimi

Español (Europeo) 


Svenska


Restrictions in the 2.4 GHz band:
Norway: This subsection does not apply for the geographical area within a radius of 20 km from the

FCC Regulatory Compliance

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection


may cause harmful interference to radio communications. However, there is no guarantee


and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.


onnected.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

interference received, including interference that may cause undesired operation.
Caution
Huawei Technologies Co., Ltd. for compliance could void the user's authority to

Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved.


The product described in this manual may include copyrighted software of Huawei and possible
licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble,
decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such
restrictions are prohibited by applicable laws or such actions are approved by respective copyright
holders.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei Technologies
Co., Ltd.
Other trademarks, product, service and company names mentioned may be the property of their
respective owners.
Notice
Some features of the product and its accessories described herein rely on the software installed,
capacities and settings of local network, and therefore may not be activated or may be limited by
local network operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories which you
purchase.

manual without prior notice and without any liability.
DISCLAIMER














Customers shall comply with all applicable export or import laws and regulations and be responsible
to obtain all necessary governmental permits and licenses in order to export, re-export or import the
product mentioned in this manual including the software and technical data therein.
Privacy Policy
Please refer to our privacy policy on our websites for the information about how we protect your
personal information.

Navigation menu
