[STC]User manual_ver01
![](/img.php?id=3346535&img=bg1.png)
Watt
Quick Start Guide
![](/img.php?id=3346535&img=bg2.png)
1
Getting to Know Your
1
2
3
Notebook
Front side with display open
1 Ambient Light Sensor (hidden)
4
2 Front-facing Camera
3 Camera Indicator LED
4 Display
5 Power Button
6 Speaker
7 Keyboard 11 5
6
8 Touchpad
9 Right Button 7
10
Left Button
11
Speaker
8
10
9
« Quick Start Guide » | 2
![](/img.php?id=3346535&img=bg3.png)
Left side
1 Type-C USB Port
2 Headset Jack (3.5mm)
Right side
1
2
1 Type-C USB Port
1
2
Charging the Notebook
Your notebook has a built-in (non-
removable) rechargeable battery. Connect
the supplied AC power adapter and Type-C
USB charging cable to charge your
notebook until the charging indicator LED
lights up green. The Type-C USB port on the
right side cannot be used for charging.
3 | « Quick Start Guide »
![](/img.php?id=3346535&img=bg4.png)
3
Setting up Your Notebook

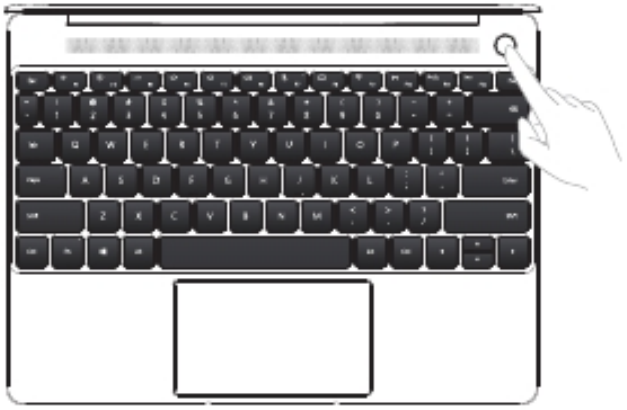

Press the power button to turn on your notebook. Follow the on-screen instructions to complete the
initial setup.
· Connect to the internet.
· Sign in to your notebook using a Microsoft account. If you have ever used Microsoft services like
Outlook.com, Hotmail, OneDrive, Skype, Xbox, and Office 365, the email address and password
that you use for any of those services is your Microsoft account.
« Quick Start Guide » | 4
![](/img.php?id=3346535&img=bg5.png)
4
Start Using Your Notebook
Start menu
To open the Start menu, click at the
bottom-left corner.
· Click Settings to access the system
settings.
· Click Power to shut down or restart
your notebook, or enable Sleep mode.
· Click All apps to view all apps.
ACTION CENTER
To launch ACTION CENTER, click on the
far right of the taskbar. Action Center displays
all system and app notifications. It also
provides shortcuts to frequently used settings.
5 | « Quick Start Guide »
![](/img.php?id=3346535&img=bg6.png)
5
Protecting Your Notebook
Prevent others from using your notebook
without your permission by locking the screen
and setting a picture password, PIN or
password.
Lock the screen of your notebook
There are two quick ways you can lock your
Windows 10 screen.
· Hold down Windows Key and press L.
· Hold down Ctrl and Alt and then press
Delete.
Set the sign-in options
Open Start menu, and then select Settings >
Accounts > Sign-in options. Choose one of the following:
Require sign-in, Password, PIN, or Picture password.
« Quick Start Guide » | 6
6
Safety information
This section contains important information about the operation of your device. It also contains
information about how to use the device safely. Read this information carefully before using your
device.
Electronic device
Do not use your device if using the device is prohibited. Do not use the device if doing so causes
danger or interference with other electronic devices.
Interference with medical equipment
· Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device
where prohibited.
· Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your
service provider for more information.
· Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between
a device and a pacemaker to prevent potential interference with the pacemaker. If using a
pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your
front pocket.
7 | « Quick Start Guide »
![](/img.php?id=3346535&img=bg8.png)
Protecting your hearing when using a headset
·
To prevent possible hearing damage, do not listen at high volume levels for long
periods.
· Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset
volume to a safe and comfortable level.
· Exposure to high volumes while driving may cause distraction and increase your risk of an
accident.
Areas with flammables and explosives
· Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or
chemical plant, for example). Using your device in these environments increases the risk of
explosion or fire. In addition, follow the instructions indicated in text or symbols.
· Do not store or transport the device in containers with flammable liquids, gases, or explosives.
Traffic security
· Observe local laws and regulations while using the device. To reduce the risk of accidents, do not
use your wireless device while driving.
· Concentrate on driving. Your first responsibility is to drive safely.
· RF signals may affect the electronic systems of motor vehicles. For more information, consult the
vehicle manufacturer.
« Quick Start Guide » | 8
·
Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing
so may hurt you because of the strong force when the air bag inflates.
· Wireless devices may interfere with the airplane's flight system. Do not use your device where
wireless devices are not allowed according to the airplane company's regulations.
Operating environment
· Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these
environments may result in circuit malfunctions.
· Do not use your device during thunderstorms to protect your device against any danger caused by
lightning.
· Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are –10 °C to 45 °C.
Extreme heat or cold may damage your device or accessories.
· Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods.
· To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture.
· Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove,
water heater, radiator, or candle.
· Do not place sharp metal objects, such as pins, near the earpiece or speaker. The earpiece may
attract these objects and result in injury.
· Stop using your device or applications for a while if the device is overheated. If skin is exposed to
an overheated device for an extended period, low temperature burn symptoms, such as red spots
and darker pigmentation, may occur.
· Do not touch the device's antenna. Otherwise, communication quality may be reduced.
9 | « Quick Start Guide »
·
Do not allow children or pets to bite or suck the device or accessories. Doing so may result in
damage or explosion.
· Observe local laws and regulations, and respect the privacy and legal rights of others.
Child's safety
· Comply with all precautions with regard to child's safety. Letting children play with the device or its
accessories may be dangerous. The device includes detachable parts that may present a choking
hazard. Keep away from children.
· The device and its accessories are not intended for use by children. Children should only use the
device with adult supervision.
Accessories
· Using an unapproved or incompatible power adapter, charger or battery may cause fire, explosion
or other hazards.
· Choose only accessories approved for use with this model by the device manufacturer. The use of
any other types of accessories may void the warranty, may violate local regulations and laws, and
may be dangerous. Please contact your retailer for information about the availability of approved
accessories in your area.
Charger safety
· For pluggable devices, the socket-outlet shall be installed near the devices and shall be easily
accessible.
· Unplug the charger from electrical outlets and the device when not in use.
« Quick Start Guide » | 10
·
Do not drop or cause an impact to the charger.
· If the power cable is damaged (for example, the cord is exposed or broken), or the plug loosens,
stop using it at once. Continued use may lead to electric shocks, short circuits, or fire.
· Do not touch the power cord with wet hands or pull the power cord to disconnect the charger.
· Do not touch the device or the charger with wet hands. Doing so may lead to short circuits,
malfunctions, or electric shocks.
· If your charger has been exposed to water, other liquids, or excessive moisture, take it to an
authorized service center for inspection.
· Ensure that the charger meets the requirements of Clause 2.5 in IEC60950-1/EN60950-1/
UL60950-1 and has been tested and approved according to national or local standards.
Battery safety
· Do not connect battery poles with conductors, such as keys, jewelry, or other metal materials.
Doing so may short-circuit the battery and cause injuries or burns.
· Keep the battery away from excessive heat and direct sunlight. Do not place it on or in heating
devices, such as microwave ovens, stoves, or radiators. Batteries may explode if overheated.
· Do not attempt to modify or remanufacture the battery, insert foreign objects into it, or immerse or
expose it to water or other liquids. Doing so may lead to fire, explosion, or other hazards.
· If the battery leaks, ensure that the electrolyte does not make direct contact with your skins or eyes.
If the electrolyte touches your skins or splashes into your eyes, immediately flush with clean water
and consult a doctor.
· Do not put batteries in fire as they may explode. Damaged batteries may also explode.
11 | « Quick Start Guide »
·
Dispose of used batteries in accordance with local regulations. Improper battery use may lead to
fire, explosion, or other hazards.
· Do not allow children or pets to bite or suck the battery. Doing so may result in damage or
explosion.
· Do not smash or pierce the battery, or expose it to high external pressure. Doing so may lead to a
short circuit or overheating.
· Do not drop the device or battery. If the device or battery is dropped, especially on a hard surface,
it may be damaged.
· The device has a built-in, non-removable battery. Do not attempt to remove the battery, otherwise
the device may be damaged. To replace the battery, take the device to an authorized service
center.
· Use the battery only with a charging system that is IEEE-Std-1725 standard qualified. The use of
an unqualified battery or charger may lead to fire, explosion, leakage, or other hazards.
· Replace the battery only with an IEEE-Std-1725 standard qualified battery. The use of an
unqualified battery may lead to fire, explosion, leakage, or other hazards. Do not disassemble or
open, crush, bend or deform, puncture or shred the battery. Otherwise, it may lead to electrolyte
leakage, overheating, fire, or explosion.
· Do not solder battery poles or dismantle the battery. Doing so may lead to electrolyte leakage,
excessive heat, fire, or explosion.
« Quick Start Guide » | 12
Cleaning and maintenance
· Keep the device and accessories dry. Do not attempt to dry it with an external heat source, such as
a microwave oven or hair dryer.
· Do not expose your device or accessories to extreme heat or cold. These environments may
interfere with proper function and may lead to fire or explosion.
· Avoid collision, which may lead to device malfunctions, overheating, fire, or explosion.
· Before you clean or maintain the device, stop using it, stop all applications, and disconnect all
cables connected to it.
· Do not use any chemical detergent, powder, or other chemical agents (such as alcohol and
benzene) to clean the device or accessories. These substances may cause damage to parts or
present a fire hazard. Use a clean, soft, and dry cloth to clean the device and accessories.
· Do not place magnetic stripe cards, such as credit cards and phone cards, near the device for
extended periods of time. Otherwise the magnetic stripe cards may be damaged.
· Do not dismantle or remanufacture the device and its accessories. This voids the warranty and
releases the manufacturer from liability for damage. In case of damage, contact an authorized
service center for assistance or repair.
· If the device screen is broken in a collision, immediately stop using the device. Do not touch or
attempt to remove the broken parts. Promptly contact an authorized service center.
Environmental protection
· The device and its accessories (if included), such as the power adapter, headset, and battery
should not be disposed of with household garbage.
13 | « Quick Start Guide »
![](/img.php?id=3346535&img=bge.png)
·
Disposal of the device and its accessories is subject to local regulations. Support proper collection
and recycling.
Disposal and recycling information
This symbol (with or without a solid bar) on the device, batteries (if included), and/or the
packaging, indicates that the device and its electrical accessories (for example, a headset,
adapter, or cable) and batteries should not be disposed of as household garbage. These
items should not be disposed of as unsorted municipal waste and should be taken to a
certified collection point for recycling or proper disposal.
For more detailed information about device or battery recycling, contact your local city office, household
waste disposal service, or retail store.
Disposal of the device and batteries (if included) is subject to WEEE Directive Recast (Directive 2012/
19/EU) and Battery Directive (Directive 2006/66/EC). The purpose of separating WEEE and batteries
from other waste is to minimize the potential environmental impacts and human health risk of any
hazardous substances that may be present.
Reduction of hazardous substances
This device is compliant with the REACH Regulation [Regulation (EC) No 1907/2006] and RoHS
Directive Recast (Directive 2011/65/EU). Batteries (if included) are compliant with the Battery Directive
(Directive 2006/66/EC). For up-to-date information about REACH and RoHS compliance, please visit
the web site http://consumer.huawei.com/certification.
« Quick Start Guide » | 14
EU regulatory conformance
Body worn operation
The device complies with RF specifications when used at a distance of 0 mm from your body. Ensure
that the device accessories, such as a device case and device holster, are not composed of metal
components. Keep the device away from your body to meet the distance requirement.
Certification information (SAR)
This device meets guidelines for exposure to radio waves.
Your device is a low-power radio transmitter and receiver. As recommended by international guidelines,
the device is designed not to exceed the limits for exposure to radio waves. These guidelines were
developed by the International Commission on Non-Ionizing Radiation Protection (ICNIRP), an
independent scientific organization, and include safety measures designed to ensure the safety of all
users, regardless of age and health.
The Specific Absorption Rate (SAR) is the unit of measurement for the amount of radio frequency
energy absorbed by the body when using a device. The SAR value is determined at the highest
certified power level in laboratory conditions, but the actual SAR level during operation can be well
below the value. This is because the device is designed to use the minimum power required to reach
the network.
The SAR limit adopted by Europe is 2.0 W/kg averaged over 10 grams of tissue, and the highest SAR
value for this device complies with this limit.
The highest SAR value reported for this device type when tested in portable exposure
conditions is 0.32 W/kg.
15 | « Quick Start Guide »
![](/img.php?id=3346535&img=bg10.png)
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
For the declaration of conformity, visit the web site http://consumer.huawei.com/certification.
The following marking is included in the product:
This device may be operated in all member states of the EU.
Observe national and local regulations where the device is used.
This device may be restricted for use, depending on the local network.
Restrictions in the 2.4 GHz band:
Norway: This subsection does not apply for the geographical area within a radius of 20 km from the
centre of Ny-Ålesund.
Restrictions in the 5 GHz band:
WLAN function of this device is restricted only to indoor use when operating in the 5150 to 5350 MHz
frequency range.
« Quick Start Guide » | 16
FCC Regulatory Compliance
Certification information (SAR)
This device is also designed to meet the requirements for exposure to radio waves established by the
Federal Communications Commission (USA).
The SAR limit adopted by the USA is 1.6 W/kg averaged over one gram of tissue. The highest SAR
value reported to the FCC for this device type complies with this limit.
The highest SAR value reported to the FCC for this device type when using in portable
exposure conditions is 1.07 W/kg.
FCC statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
17 | « Quick Start Guide »
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Caution: Any changes or modifications to this device not expressly approved by Huawei Technologies
Co., Ltd. for compliance could void the user's authority to operate the equipment.
Restrictions in the 5 GHz band:
Within the 5.15 to 5.25 GHz band, UNII devices will be restricted to indoor operations to reduce any
potential for harmful interference to co-channel Mobile Satellite System (MSS) operations.
IC statement
Canada, Industrie Canada (IC)
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de classe B est conforme à la norme NMB-003.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the
Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio
exempts de licence.L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage adioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
RF Radiation Exposure Statement:
For body worn operation, this device has been tested and meets RF exposure guidelines when used with an
accessory that contains no metal.
Déclaration de l'exposition aux radiations RF:
Pour le fonctionnement du corps, ce dispositif a été testé et répond aux directives d'exposition RF lorsqu'il est utilisé
avec un accessoire qui ne contient pas de métal.
7
Personal Information and Data Security
The use of some functions or third-party applications on your device could result in your personal
information and data being lost or becoming accessible to others. Several measures are recommended
to help you protect personal and confidential information.
· Place your device in a safe area to prevent it from unauthorized use.
· Set your device screen to lock and create a password or unlock pattern to open it.
· If you are worried about viruses when you receive messages or emails from a stranger, you can
delete them without opening them.
· If you use your device to browse the Internet, avoid websites that might pose a security risk to
avoid theft of your personal information.
« Quick Start Guide » | 18
·
If you use services such as Wi-Fi or Bluetooth, set passwords for these services to prevent
unauthorized access. When these services are not in use, turn them off.
· Install or upgrade device security software and regularly scan for viruses.
· Be sure to obtain third-party applications from a legitimate source. Downloaded third-party
applications should be scanned for viruses.
· Install security software or patches released by Huawei or third-party application providers.
· Some applications require and transmit location information. As a result, a third-party may be able
to share your location information.
· Your device may provide detection and diagnostic information to third-party application providers.
Third party vendors use this information to improve their products and services.
· If you have concerns about the security of your personal information and data, please contact
mobile@huawei.com.
19 | « Quick Start Guide »
![](/img.php?id=3346535&img=bg15.png)
8
Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2017. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd. and its affiliates (“Huawei”).
The product described in this manual may include copyrighted software of Huawei and possible
licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble,
decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such
restrictions are prohibited by applicable laws or such actions are approved by respective copyright
holders.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned may be the property of their
respective owners.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are registered
trademarks of Dolby Laboratories.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by Huawei Technologies Co., Ltd. is under license. Wi-Fi, the Wi-Fi CERTIFIED
logo, and the Wi-Fi logo are trademarks of Wi-Fi Alliance.
Microsoft and Windows are trademarks of the Microsoft group of companies.
« Quick Start Guide » | 20
Other trademarks, product, service and company names mentioned may be the property of their
respective owners.
Notice
Some features of the product and its accessories described herein rely on the software installed,
capacities and settings of local network, and therefore may not be activated or may be limited by local
network operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories which you purchase.
Huawei reserves the right to change or modify any information or specifications contained in this
manual without prior notice and without any liability.
Third-Party Software Statement
Huawei does not own the intellectual property of the third-party software and applications that are
delivered with this product. Therefore, Huawei will not provide any warranty of any kind for third party
software and applications. Neither will Huawei provide support to customers who use third-party
software and applications, nor be responsible or liable for the functions or performance of third-party
software and applications.
Third-party software and applications services may be interrupted or terminated at any time, and
Huawei does not guarantee the availability of any content or service. Third-party service providers
provide content and services through network or transmission tools outside of the control of Huawei. To
the greatest extent permitted by applicable law, it is explicitly stated that Huawei shall not compensate
or be liable for services provided by third-party service providers, or the interruption or termination of
third-party contents or services.
21 | « Quick Start Guide »
Huawei shall not be responsible for the legality, quality, or any other aspects of any software installed
on this product, or for any uploaded or downloaded third-party works in any form, including but not
limited to texts, images, videos, or software etc. Customers shall bear the risk for any and all effects,
including incompatibility between the software and this product, which result from installing software or
uploading or downloading the third-party works.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,
RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI
BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR
LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED
SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL
INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI
ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED
TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.
« Quick Start Guide » | 22
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and be responsible to
obtain all necessary governmental permits and licenses in order to export, re-export or import the
product mentioned in this manual including the software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see the privacy policy at
http://consumer.huawei.com/privacy-policy.
9
For More Help
For more help, go to http://consumer.huawei.com/en/ to download the User Guide.
Please visit http://consumer.huawei.com/en/support/hotline for recently updated hotline and email
address in your country or region.
The figures in this guide are provided for your reference only. The appearance and display features
may vary slightly depending on the actual product version.
23 | « Quick Start Guide »
