Huawei Technologies Y520-U33 WCDMA Digital Mobile Phone User Manual
Huawei Technologies Co.,Ltd WCDMA Digital Mobile Phone
User Manual
1
Dual-Card Dual-Standby
Your mobile phone supports dual-card dual-standby mode,
which can significantly reduce power consumpt ion and increase
your phone's standby time. Note that two restrict ions exist:
When you make calls using one SIM card, the other SIM card
is disabled.
For example, when you make calls using SIM card 1,
SIM card 2 cannot be used to answer calls or access
the Internet. If someone calls SIM card 2, the caller
will hear a voice message like "The subscriber you
dialed is out of the service zone" or "The subscriber
you dialed is not able to answer your call, please try
again later." This is because your mobile phone
cannot access the network with both SIM cards at
the same time and has nothing to do with your
service provider's network condit ion. It is
recommended that you subscribe to services such
as voicemail or missed-call reminders from your
service provider to avoid the inconvenience caused
by missed calls.
When you are using one SIM card's data services, you can
receive calls and messages using the other SIM card, but
data services will be interrupted.
For example, when SIM card 1's data services are in
use, you can use SIM card 2 for calling and
messaging, but SIM card 1's data services will be
interrupted as a result. When the call using SIM
card 2 is terminated, or the message is received or
sent, you can resume using SIM card 1's data
services.
2

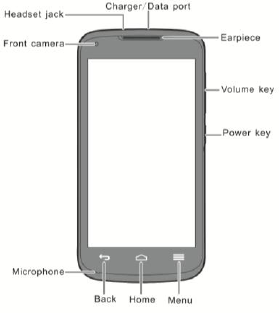

Getting to know your phone
Thank you for choosing the HUAWEI smartphone.
First, let's take a look at a few basics.
Press and hold the power button to power on your phone. After
your phone is powered up, you can use the power button to turn
the screen off and on.
3
Preparing your phone

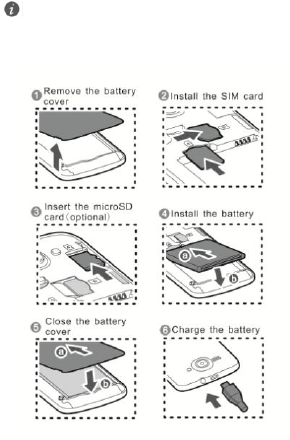

To insert the SIM card, the battery and a microSD card please
perform the steps shown in the following figures.
Your phone is shipped with the battery part ially charged. It is
recommended that you fully charge the battery before using it
for the first t ime.
When fastening the battery cover, fasten its upper part
first and then press down the lower part unt il completely
fastened.
4
Dual-Card Management
Your mobile phone supports access to both WCDMA and GSM
networks. Follow the onscreen instruct ions or the quick start
guide to install SIM cards.
1.
On the home screen, touch > .
2.
Touch
SIM management
to activate the SIM cards.
5

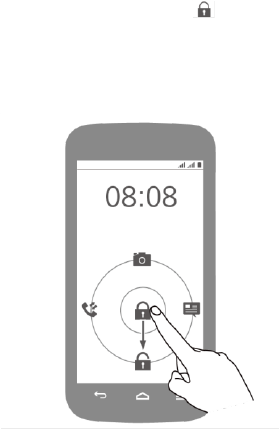

Locking and unlocking the
screen
When you are not using your phone, press the power button to
turn off the screen.
After being idle for a specified period of t ime, your phone
automat ically locks its screen.
Follow the onscreen instruct ions and drag to unlock the
screen or open an applicat ion.
6
Making a call
Touch to open the dialer.
You can dial a phone number directly or touch to choose
a contact.
You can also touch a phone number in places like messages,
email and webpages to make a call.

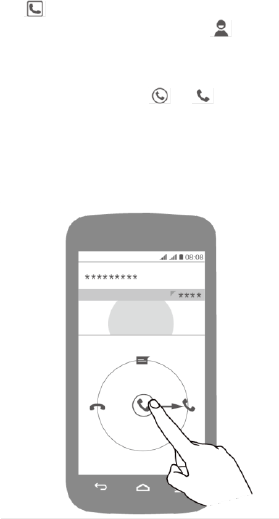

To answer an incoming call, drag to .
7

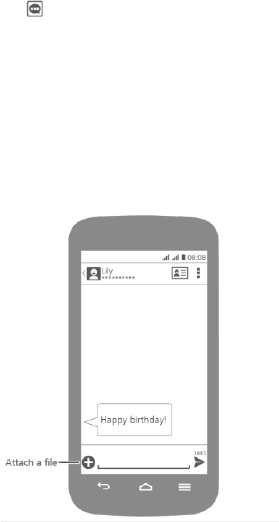

Sending messages
Touch to open
Messaging
.
Adding a photo or audio clip to a text message turns it into a
multimedia message.
You can also save attachments from mult imedia messages.
8
Taking a photo or video
Touch to open
Camera
.
In photo mode, touch to take a photo.
In video mode, frame the scene and touch to record a
video.
Your phone does not support autofocus and may not be
able to properly scan QR codes.
9

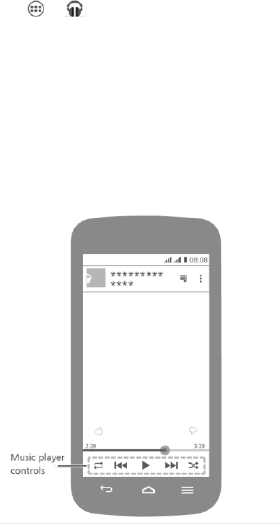

Listening to music
Touch > to open
Play Music
.
You can copy songs to your phone and immerse yourself with
extraordinary audio experience anytime.
You can play songs by artist, album and more.
10

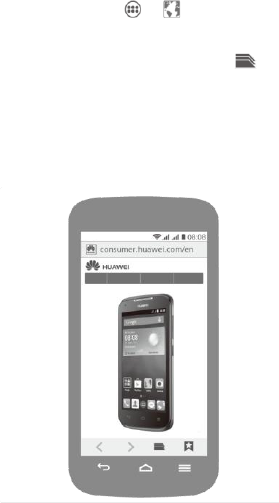

Surfing the web
On the home screen, touch > to open
Browser
.
You can start surfing the web right away using your phone's
browser and stay on ball with up-to-date news and informat ion.
Your browser supports mult i-page browsing. Touch to
switch between pages.
11
Wi-Fi hotspot
Your phone can also funct ion as a Wi-Fi hotspot for other
devices, sharing its mobile data connect ion.
1. Touch > More… > Tethering & portable
hotspot.
2. Touch Wi-Fi hotspot to turn on hotspot.

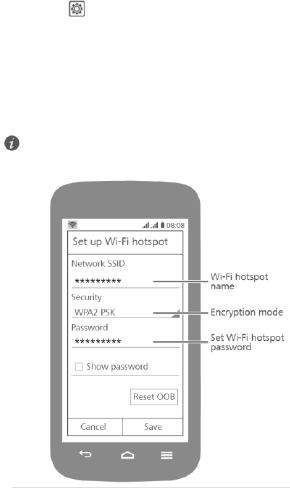

3. Touch Wi-Fi hotspot > Set up Wi-Fi hotspot, you can
name the Wi-Fi hotspot, select an encryption mode,
set the key to the Wi-Fi hotspot.
4. On the device you want to use, search for and connect
to your phone's Wi-Fi network.
By default, the Wi-Fi hotspot turns off after being idle for
5 minutes.
12
Others
In certain locations or weather condit ions, GPS posit ioning
informat ion may not be accurate.
Your phone may experience lag when there is insufficient
memory or there are too many applicat ions running in the
background.
For more help
Search for and download the User Guide from
http://consumer.huawei.com/en/.
Please visit http://consumer.huawei.com/en/support/hotline for
recently updated hotline and email address in your country or
region.
13
Personal Information and Data
Security
The use of some functions or third-party applications on your
device could result in your personal information and data being
lost or becoming accessible to others. Several measures are
recommended to help you protect personal and confidential
information.
Place your device in a safe area to prevent it from
unauthorized use.
Set your device screen to lock and create a password or
unlock pattern to open it.
Periodically back up personal informat ion kept on your
SIM/USIM card, memory card, or stored in your device
memory. If you change to a different device, be sure to
move or delete any personal informat ion on your old device.
If you are worried about viruses when you receive messages
or emails from a stranger, you can delete them without
opening them.
If you use your device to browse the Internet, avoid websites
that might pose a security risk to avoid theft of your
personal informat ion.
If you use services such as Wi-Fi tether or Bluetooth, set
passwords for these services to prevent unauthorized access.
When these services are not in use, turn them off.
Install or upgrade device security software and regularly
scan for viruses.
Be sure to obtain third-party applicat ions from a
legit imate
source. Downloaded third-party applicat ions should be
scanned for viruses.
Install security software or patches released by Huawei or
third-party applicat ion providers.
14
Some applicat ions require and transmit location
informat ion. As a result, a third-party may be able to share
your locat ion informat ion.
Your device may provide detect ion and diagnost ic
informat ion to third-party application providers. Third party
vendors use this informat ion to improve their products and
services.
If you have concerns about the security of your personal
informat ion and data, please contact mobile@huawei.com.
Safety information
This sect ion contains important informat ion about the
operation of your device. It also contains information about
how to use the device safely. Read this informat ion carefully
before using your device.
Electronic device
Do not use your device if using the device is prohibited. Do not
use the device if doing so causes danger or interference with
other electronic devices.
Interference with medical equipment
Follow rules and regulat ions set forth by hospitals and
health care facilit ies. Do not use your device where
prohibited.
Some wireless devices may affect the performance of
hearing aids or pacemakers. Consult your service provider
for more informat ion.
Pacemaker manufacturers recommend that a minimum
distance of 15 cm be maintained between a device and a
pacemaker to prevent potent ial interference with the
pacemaker. If using a pacemaker, hold the device on the side
15
opposite the pacemaker and do not carry the device in your
front pocket.
Protect ing your hearing when using a
headset
To prevent possible hearing damage, do not
listen at high volume levels for long periods.
Using a headset at high volumes may damage your hearing.
To reduce this risk, lower the headset volume to a safe and
comfortable level.
Exposure to high volumes while driving may cause
distraction and increase your risk of an accident.
Areas with flammables and explosives
Do not use the device where flammables or explosives are
stored (in a gas stat ion, oil depot, or chemical plant, for
example). Using your device in these environments increases
the risk of explosion or fire. In addit ion, follow the
instruct ions indicated in text or symbols.
Do not store or transport the device in containers with
flammable liquids, gases, or explosives.
Traffic security
Observe local laws and regulations while using the device.
To reduce the risk of accidents, do not use your wireless
device while driving.
Concentrate on driving. Your first responsibility is to drive
safely.
Do not hold the device while driving. Use hands-free
accessories.
16
When you must make or answer a call, pull of the road safely
and park the vehicle first.
RF signals may affect the electronic systems of motor
vehicles. For more informat ion, consult the vehicle
manufacturer.
Do not place the device over the air bag or in the air bag
deployment area in a motor vehicle. Doing so may hurt you
because of the strong force when the air bag inflates.
Do not use your device while flying in an aircraft or
immediately before boarding. Using wireless devices in an
aircraft may disrupt wireless networks, present a hazard to
aircraft operat ion, or be illegal.
Operat ing environment
Avoid dusty, damp, or dirty environments. Avoid magnet ic
fields. Using the device in these environments may result in
circuit malfunct ions.
Do not use your device during thunderstorms to protect
your device against any danger caused by lightning.
Ideal operat ing temperatures are 0°C to 35°C. Ideal storage
temperatures are 0°C to 35°C. Extreme heat or cold may
damage your device or accessories.
Do not expose your device to direct sunlight (such as on a
car dashboard) for prolonged periods.
To protect your device or accessories from f ire or electrical
shock hazards, avoid rain and moisture.
Keep the device away from sources of heat and f ire, such as
a heater, microwave oven, stove, water heater, radiator, or
candle.
Do not place sharp metal objects, such as pins, near the
earpiece or speaker. The earpiece may attract these objects
and result in injury.
17
Stop using your device or applicat ions for a while if the
device is overheated. If skin is exposed to an overheated
device for an extended period, low temperature burn
symptoms, such as red spots and darker pigmentat ion, may
occur.
Do not use your device's camera flash directly in the eyes of
people or pets. Otherwise temporary loss of vision or
damage to the eyes may occur.
Do not touch the device's antenna. Otherwise,
communicat ion quality may be reduced.
Do not allow children or pets to bite or suck the device or
accessories. Doing so may result in damage or explosion.
Observe local laws and regulations, and respect the privacy
and legal rights of others.
Child's safety
Comply with all precaut ions with regard to child's safety.
Lett ing children play with the device or its accessories may
be dangerous. The device includes detachable parts that
may present a choking hazard. Keep away from children.
The device and its accessories are not intended for use by
children. Children should only use the device with adult
supervision.
Accessories
Using an unapproved or incompat ible power adapter,
charger or battery may cause fire, explosion or other
hazards.
Choose only accessories approved for use with this model by
the device manufacturer. The use of any other types of
accessories may void the warranty, may violate local
regulat ions and laws, and may be dangerous. Please contact
18
your retailer for informat ion about the availability of
approved accessories in your area.
Charger safety
For pluggable devices, the socket-outlet shall be installed
near the devices and shall be easily accessible.
Unplug the charger from electrical outlets and the device
when not in use.
Do not drop or cause an impact to the charger.
If the power cable is damaged (for example, the cord is
exposed or broken), or the plug loosens, stop using it at once.
Cont inued use may lead to electric shocks, short circuits, or
fire.
Do not touch the power cord with wet hands or pull the
power cord to disconnect the charger.
Do not touch the device or the charger with wet hands.
Doing so may lead to short circuits, malfunct ions, or electric
shocks.
If your charger has been exposed to water, other liquids, or
excessive moisture, take it to an authorized service center
for inspection.
Ensure that the charger meets the requirements of Clause
2.5 in IEC60950-1/EN60950-1 and has been tested and
approved according to nat ional or local standards.
Connect the device only to products with the USB-IF logo or
with USB-IF compliance program complet ion.
Battery safety
Do not connect battery poles with conductors, such as keys,
jewelry, or other metal materials. Doing so may short-circuit
the battery and cause injuries or burns.
Keep the battery away from excessive heat and direct
sunlight. Do not place it on or in heat ing devices, such as
19
microwave ovens, stoves, or radiators. Batteries may
explode if overheated.
Do not attempt to modify or remanufacture the battery,
insert foreign objects into it, or immerse or expose it to
water or other liquids. Doing so may lead to fire, explosion,
or other hazards.
If the battery leaks, ensure that the electrolyte does not
make direct contact with your skins or eyes. If the
electrolyte touches your skins or splashes into your eyes,
immediately flush with clean water and consult a doctor.
In case of battery deformat ion, color change, or overheating
while charging or storing, immediately stop using the device
and remove the battery. Cont inued use may lead to battery
leakage, fire, or explosion.
Do not put batteries in fire as they may explode. Damaged
batteries may also explode.
Dispose of used batteries in accordance with local
regulat ions. Improper battery use may lead to fire,
explosion, or other hazards.
Do not allow children or pets to bite or suck the battery.
Doing so may result in damage or explosion.
Do not smash or pierce the battery, or expose it to high
external pressure. Doing so may lead to a short circuit or
overheat ing.
Do not drop the device or battery. If the device or battery is
dropped, especially on a hard surface, and may be
damaged.
If the device standby time shortens significantly, replace the
battery.
20
Cleaning and maintenance
Keep the device and accessories dry. Do not attempt to dry
it with an external heat source, such as a microwave oven or
hair dryer.
Do not expose your device or accessories to extreme heat or
cold. These environments may interfere with proper
funct ion and may lead to fire or explosion.
Avoid collision, which may lead to device malfunct ions,
overheat ing, fire, or explosion.
Before you clean or maintain the device, stop using it, stop
all applicat ions, and disconnect all cables connected to it.
Do not use any chemical detergent, powder, or other
chemical agents (such as alcohol and benzene) to clean the
device or accessories. These substances may cause damage
to parts or present a fire hazard. Use a clean, soft, and dry
cloth to clean the device and accessories.
Do not place magnet ic stripe cards, such as credit cards and
phone cards, near the device for extended periods of t ime.
Otherwise the magnet ic stripe cards may be damaged.
Do not dismantle or remanufacture the device and its
accessories. This voids the warranty and releases the
manufacturer from liability for damage. In case of damage,
contact an authorized service center for assistance or repair.
If the device screen is broken in a collision, immediately stop
using the device. Do not touch or attempt to remove the
broken parts. Promptly contact an authorized service center.
Emergency calls
The availability of emergency calls is subject to your cellular
network quality, service provider policy, and local laws and
regulat ions. Never rely solely on your device for critical
communicat ions like medical emergencies.
21
Environmental protection
The device and its accessories (if included), such as the
power adapter, headset, and battery should not be disposed
of with household garbage.
Disposal of the device and its accessories is subject to local
regulat ions. Support proper collect ion and recycling.
EU regulatory conformance
Body worn operation
The device complies with RF specif icat ions when used near
your ear or at a distance of 1.0 cm from your body. Ensure that
the device accessories, such as a device case and device holster,
are not composed of metal components. Keep the device away
from your body to meet the distance requirement.
Certification information (SAR)
This device meets guidelines for exposure to radio waves.
Your device is a low-power radio transmitter and receiver. As
recommended by internat ional guidelines, the device is
designed not to exceed the limits for exposure to radio waves.
These guidelines were developed by the Internat ional
Commission on Non-Ionizing Radiat ion Protection (ICNIRP), an
independent scient ific organizat ion, and include safety
measures designed to ensure the safety of all users, regardless
of age and health.
The Specific Absorpt ion Rate (SAR) is the unit of measurement
for the amount of radio frequency energy absorbed by the body
when using a device. The SAR value is determined at the highest
cert ified power level in laboratory condit ions, but the actual
SAR level during operat ion can be well below the value. This is
because the device is designed to use the minimum power
required to reach the network.
The SAR limit adopted by Europe is 2.0 W/kg averaged over 10
grams of t issue, and the highest SAR value for this device
complies with this limit.
22
The highest SAR value reported for this device type when tested
at the ear is 0.502 W/kg, and when properly worn on the body is
0.752 W/kg.
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this device
is in compliance with the essential requirements and other
relevant provisions of Direct ive 1999/5/EC.
For the declarat ion of conformity, visit the web site
http://consumer.huawei.com/cert ification.
The following marking is included in the product:
This device may be operated in all member states of the EU.
Observe nat ional and local regulat ions where the device is
used.
This device may be restricted for use, depending on the local
network.
FCC Regulatory Compliance
Body worn operat ion
The device complies with RF specif icat ions when used near
your ear or at a distance of 1.0 cm from your body. Ensure that
the device accessories, such as a device case and device holster,
are not composed of metal components. Keep the device away
from your body to meet the distance requirement.
Certification information (SAR)
This device is also designed to meet the requirements for
exposure to radio waves established by the Federal
Communicat ions Commission (USA).
The SAR limit adopted by the USA is 1.6 W/kg averaged over
one gram of t issue. The highest SAR value reported to the FCC
for this device type complies with this limit.
The highest SAR value reported to the FCC for this device type
when using at the ear is 0.746/kg, and when properly worn on
23
the body is 1.164/kg, and when using the Wi-Fi hotspot funct ion
is 1.347/Kg.
FCC statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protect ion against harmful interference in a residential
installat ion. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communicat ions. However, there is no
guarantee that interference will not occur in a particular
installat ion. If this equipment does cause harmful interference
to radio or television recept ion, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separat ion between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operat ion is
subject to the following two condit ions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operat ion.
Caution:
Any changes or modificat ions to this device not
expressly approved by Huawei Technologies Co., Ltd. for
compliance could void the user's authority to operate the
equipment.
24
Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2014. All
rights reserved.
Trademarks and Permissions
, , and are trademarks or
registered trademarks of Huawei Technologies Co., Ltd.
Android™ is a trademark of Google Inc.
The Bluetooth
®
word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by
Huawei Technologies Co., Ltd. is under license.
Other trademarks, product, service and company names
ment ioned may be the property of their respective owners.
Third-Party Software Statement
Huawei does not own the intellectual property of the
third-party software and applicat ions that are delivered with
this product. Therefore, Huawei will not provide any warranty of
any kind for third party software and applicat ions. Neither will
Huawei provide support to customers who use third-party
software and applications, nor be responsible or liable for the
funct ions or performance of third-party software and
applications.
Third-party software and applicat ions services may be
interrupted or terminated at any time, and Huawei does not
guarantee the availability of any content or service. Third-party
service providers provide content and services through network
or transmission tools outside of the control of Huawei. To the
greatest extent permitted by applicable law, it is explicitly
stated that Huawei shall not compensate or be liable for
25
services provided by third-party service providers, or the
interrupt ion or terminat ion of third-party contents or services.
Huawei shall not be responsible for the legality, quality, or any
other aspects of any software installed on this product, or for
any uploaded or downloaded third-party works in any form,
including but not limited to texts, images, videos, or software
etc. Customers shall bear the risk for any and all effects,
including incompat ibility between the software and this
product, which result from installing software or uploading or
downloading the third-party works.
This product is based on the open-source Android
™
platform.
Huawei has made necessary changes to the platform. Therefore,
this product may not support all the functions that are
supported by the standard Android platform or may be
incompat ible with third-party software. Huawei does not
provide any warranty or representation in connect with any
such compat ibility and expressly excludes all liability in
connect ion with such matters.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED
“
AS IS
”
.
EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO
WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE
ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR
LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL
SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF
WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT
APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT
26
APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF
HUAWEI ARISING FROM THE USE OF THE PRODUCT
DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE
AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS
PRODUCT.
Privacy Policy
To better understand how we protect your personal information,
please see the privacy policy at
http://consumer.huawei.com/privacy-policy.
