LET’S GET THIS SHOW
ON THE ROAD
Your Telstra Pre-Paid 4G USB+Wi-Fi
Plus has been tested to deliver you
access to great coverage and speeds on
Australia’s best mobile network.
This guide will help you get connected
as quickly and as easily as possible. It’ll
guide you through installation and run
through all the handy extra features that
are included.
If all goes to plan you’ll be up and running
in no time, so you can get connected
whilst on the move.
WHAT’S
INSIDE
03 Safety first
05 Let’s get started
09 Getting connected
15 Monitoring your data usage
17 Wi-Fi home page
22 Extra features
25 Problem solving
29 Extra bits you should know
LET’S GET THIS SHOW
ON THE ROAD
2
SAFETY
FIRST
3
Please read all the safety notices before using this
device. This device is designed to be used at least
20 cm from your body. Do not use the device near
fuel or chemicals or in any prescribed area such as
service stations, refineries, hospitals and aircraft.
Obey all warning signs where posted.
Radio frequency safety information
The device has an internal antenna. For optimum
performance with minimum power consumption
do not shield the device or cover with any object.
Covering the antenna affects signal quality, may
cause the router to operate at a higher power level
than needed, and may shorten battery life.
Radio frequency energy
Your wireless device is a low-power radio
transmitter and receiver. When switched on it
intermittently transmits radio frequency (RF) energy
(radio waves). The transmit power level is optimised
for best performance and automatically reduces
when there is good quality reception. Maximum
power is only used at the edge of network coverage
so under most circumstances the power output is
very low. Under poor network conditions the device
transmits at a higher power, may get hot and have a
significantly shorter battery life.
SAFETY
FIRST
Declaration of conformity –
specific absorption rate (SAR)
The wireless device is designed to be used at least
20 cm from the body. We declare that the product
detailed in this manual, and in combination with
our accessories, conform with the essential
requirements of The Radio Communications
Standard (Electro-magnetic IC Radiation
Human Exposure) 2003 and the Australian
Communications and Media Authority Section 376
of the Telecommunications Act 1997 when used at a
distance of not less than 20 cm from the body. The
worst case SAR result for 10g tissue size measured
at 15mm distances is 0.451 W/Kg.
ROHS declaration
(reduction of hazardous substances)
This device is compliant with the REACH Regulation
(Regulation EC No 1907/2006) and RoHS Directive
Recast (Directive 2011/65/EU). Batteries are
compliant with the Battery Directive (Directive
2006/66/EC). For up to date information about
REACH and RoHS compliance visit
consumer.huawei.com/certification
N14036
4
Your package contains the following:
•Telstra Pre-Paid 4G USB+Wi-Fi Plus device
with SIM card inserted
•Lanyard(attachedtodevicecap)
•ThisGettingStartedGuide
•TelstraPre-PaidWelcomeGuide
•Wi-Fisecuritycard
•Manufacturer’swarrantycard
LET’S GET
STARTED
5
Your package contains the following:
•Telstra Pre-Paid 4G USB+Wi-Fi Plus device
with SIM card inserted
•Lanyard(attachedtodevicecap)
•ThisGettingStartedGuide
•TelstraPre-PaidWelcomeGuide
•Wi-Fisecuritycard
•Manufacturer’swarrantycard
LET’S GET
STARTED
6
YOUR TELSTRA
PREPAID 4G
USB+WIFI PLUS
Wi-Fi indicator
6
Data usage/activation
indicator
Network
indicator
External antenna ports (TS9)
You need the following information to log on to your
Telstra Pre-Paid 4G USB+Wi-Fi Plus.
You can change the Wi-Fi Name and Wi-Fi Password
to your own preferences via the Wi-Fi home page.
See page 17.
Quick reference section
Default Wi-Fi Name
(SSID)
Displayed on your Wi-Fi
security card or under the
cover of your device.
Default Wi-Fi
Password
(Security Key)
Case sensitive and is
displayed on your Wi-Fi
security card or under the
cover of your device.
Wi-Fi home page http://m.home
Wi-Fi homepage:
username
password
admin
admin

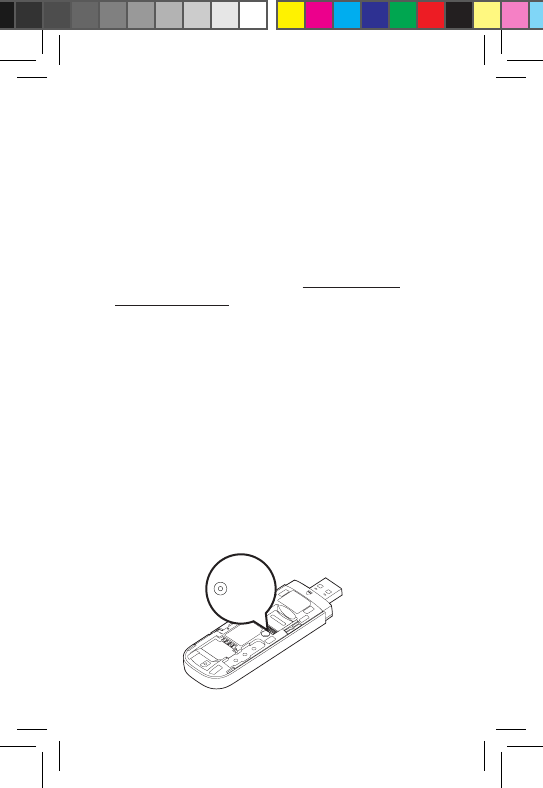

Restore Defaults To reset your device hold
down the Reset button
located under the cover.
This will restore default
passwords.
7
8
The LED indicators show you the status of your
device:
LED Indicators Status
Data Usage
Flashing Amber You need to activate your
Pre-Paid service
Solid Green Pre-Paid service is active
Solid Amber Your data is low
Solid Red Your credit has expired or
you have used all data
Green Flashing Software update available
Network Signal
Blue 3G service available
Cyan 4G service available
Red No network available
9
GETTING
CONNECTED
1. Insert SIM card (if required)
•YourSIMcardshouldalreadybeinserted.Youcan
check to make sure.
•Removecapfromtopofyourdevice.Toremove
the cover gently push down and slide off as shown
below.
•ToinsertyourSIMcard(fullsize/2FF),slideinas
shown with the chip facing down. Ensure you push it
in all the way.
Lanyard
2. Plug into USB power source and connect
You can connect your device via USB or Wi-Fi.
Connect via USB
•InsertUSBintoUSBportonyourPCorother
compatible device.
•TheSetupWizardwillrunautomaticallyandaftera
couple of minutes a new desktop icon called Telstra
Pre-Paid 4G USB+Wi-Fi will be installed.
•Youcandoubleclickontheiconoropenabrowser
and type in http://m.home to manage your
connection settings if required. If the Setup Wizard
doesn’t start automatically then select Computer
from your Desktop or Start Menu. Select the file
AutoRun.exe and follow the prompts.
You are now ready to activate your SIM card.
10
GETTING
CONNECTED
Connect via Wi-Fi
•EnsuretheUSBispluggedintoapowersourcesuch
as a PC or AC adapter.
•Checkyourcomputerorothercompatibledevice
has Wi-Fi enabled and search for wireless networks.
Refer to your Wi-Fi enabled device manual for further
details on searching for wireless networks.
•SelecttheWi-Finame(SSID)andWi-Fipassword
(security key) as shown on your security card.
11
12
Searching for wireless networks
For Windows Click on the Internet Access
icon, usually found on the
very bottom right of your
screen. This should show
you available networks.
For Mac Go to the Wi-Fi menu and
select network.
If you’re using an older
Mac OS version, you can
also access Network
Preferences in the
Apple menu.
For tablets Usually found in ‘settings’.
You can purchase an AC adapter to power your
device and also use as a Wi-Fi hotspot without
having to plug your device into a computer. You
can purchase an adapter from most Telstra
retailers.
AC adapter required output: 5V, >=750mA.
13
3. Activate your Pre-Paid service
•ActivateviatheWi-Fihomepage,athttp://m.home
A blue pop up box will appear, make a note of
your service number. Click ‘OK’ and follow
the prompts
or
•Activateonlineviatelstra.com/activate
For more information on activating or managing your
service see your Telstra Pre-Paid Welcome Guide.
Once you have activated your service, restart
your device.
Your service number will be displayed on your
Wi-Fi home page at ht tp://m.home
Make a note of this service number if
contacting Telstra so we can access your
account details.
14
4. Ending your session
•Todisconnect,unplugyourdevicefromthepower
source or disable your Wi-Fi connection from your
Wi-Fi enabled device.
MONITORING
YOUR DATA USAGE
15
Data Usage LED indicators
Solid Green Pre-Paid service is active
Solid Amber Your data is low
Solid Red Your credit has expired or
you have used all data
Data usage
indicator
On-device data usage meter
Your device’s LED indicator will change colour to
indicate your data usage. Your estimated usage will
be updated approximately every 2 hours.
16
Device home page usage meter
The status bar at the top of your Wi-Fi home page
shows a data usage meter. The status bar shows
the approximate amount of data used.
This status bar will also notify you when your
balance is running low or if your credit has expired.
All recent usage may take up to 2 hours to update.
You can manage your device settings and monitor
data usage via your Wi-Fi home page. You can only
access the Wi-Fi home page while connected to the
device’s Wi-Fi network.
Login to your Wi-Fi home page
•ConnecttotheWi-Finetwork.Seepage10
and follow Step 2 onwards for details.
•Openawebbrowserandenterhttp://m.home
in the address bar.
•EnterthelogindetailsshownbelowintheAdmin
login field and click OK.
User Name: admin
Password: admin
For full details on using your Wi-Fi home page
click on Help.
WI-FI
HOME PAGE
17
Your Service Number will be displayed on your
Wi-Fi Home Page. Make a note of this service
number if contacting Telstra so we can access
your account details.
Getting the most from your Wi-Fi home page
The status bar at the top of the page shows icons
displaying signal strength, connected users and
messages.
In addition you can also monitor data usage and
receive notifications of software updates and
data usage.
18
Quick setup wizard
Use the Quick Setup Wizard to change key settings
including Wi-Fi Name (SSID) and Wi-Fi Password
(WPA pre-shared key/Security Key).
19
How to change Wi-Fi Password (security key)
and/or Wi-Fi Name (SSID)
•GotoSettingsTab.
•SelectWLAN,thenselectWLANBasicSettings.
•InputanewWi-FiPasswordintothefieldWPA
pre-shared key or input a new Wi-Fi Name into the
field SSID, then click Apply.
If changing your password please ensure you keep a
record of it and store in a safe place.
20
How to change Wi-Fi home page password
•GotoSettingsTab.
•SelectSystem,thenselectModifyAdminPassword.
•EnterCurrentpasswordthenNewpasswordand
click Apply.
21
The Wi-Fi home page username cannot be
changed from the default ‘admin’.
Using a memory card
You can use your device as a storage drive to store or
transfer files. Your device works with a micro SD card
up to 32GB. To insert memory card:
•Removecoverbyslidingoff.Thememorycardslotis
located beneath the metal clasp as shown in the
image below.
•Pushbackthemetalclaspthenliftitup.
•Placememorycardintheslot.
•Toclose,pushthemetalclaspbackdownthenslide
it forward to secure.
EXTRA
FEATURES
22
1
1
2 3
1
Software updates
Updating your device software when updates are
available helps to ensure your device continues to
give maximum performance.
•Softwareupdateswillbesenttoyourdevice
automatically.
•Whenanupdateisavailablethedatausage
indicator will flash green.
•YoucanvisittheWi-Fihomepageformore
information at http://m.home
23
When downloading updates, standard data
charges apply.
24
International roaming
Get connected when you’re travelling overseas with
Telstra Pre-Paid international roaming.
International roaming is already set up on your
Telstra Pre-Paid service, however you will need to
enable this via your Wi-Fi settings at http://m.home
Different rates apply to use your service
overseas. For a full list of countries and charges for
international roaming see telstra.com.au/overseas
Using an external antenna
Using an external antenna may be recommended
in areas of lower coverage to improve your device
performance. Mimo Dual TS9 antennas are
available from your retailer. Insert the connectors
carefully to avoid damage to your device.
External antenna ports (TS9)
PROBLEM
SOLVING
For more help topics chat to us at livechat.telstra.com
25
Why can’t I connect?
If you are having an issue accessing the internet
try the following suggestions:
•Doyouhaveanyrechargedatacredit?Yourdevice
data usage LED will be red if your credit has expired,
or visit m.telstra.com to view your balance.
•Disconnectyourdevicebyunpluggingitfromthe
USB port and wait 10 seconds, then reconnect your
device.
•Restartyourcomputer.
•Turnoffortemporarilydisableanysecurity
programs or firewalls.
•Ifpossibletryusinganothercomputeror
Wi-Fi device to connect.
PROBLEM
SOLVING
26
Frequently asked questions
How do I go back to the Wi-Fi home page?
Open your browser and type in http://m.home
or ht tp://192.168.1.1
What is my Admin Password?
The Admin Password for the Wi-Fi home page (Web
Interface) enables you to configure your device.
The default Admin Password is: admin
What do I do if I changed the Wi-Fi Password
or Admin Password and then forgot it?
If you have changed your Admin Password or Wi-Fi
Password and subsequently forgotten it, press and
hold the reset button located near SIM slot for 5
seconds to restore factory defaults. All settings will
be reset to the default values.
RESET
RESET
Network and
Frequency Band
4G 700/1800/2100/2600 MHz
3G 850/2100 MHz
Wi-Fi working range Approx 25m radius in free space
Wi-Fi Connections Supports up to 5 users
Dimensions (W×H×D) 94 x 30 x 14mm
Weight 145g
microSD™ or
microSDHC™ card
Up to 32GB
Operating Systems Windows® 7 and 8 (32/64 bit),
Vista (SP2, 32/64 bit) and XP (SP3,
Media Centre Editions, 32/64 bit)
Mac OS X 10.7 and later
Technical specifications
27
Warranty and support
•AllcallsandsupportforPINnumbers,SIMcard
registration, account and billing information,
network services
•GeneralenquiriesshouldbedirectedtoTelstraat
livechat.telstra.com
•Seeyourwarrantycardforwarrantyand
service information.
•ViewFrequentlyAskedQuestionsonline
at http://consumer.huawei.com/au
28
EXTRA BITS
YOU SHOULD KNOW
Coverage
The Telstra Mobile Network offers 4GX in selected
areas of Perth, Sydney, Darwin, Adelaide,
Brisbane, Hobart and selected regional areas
and is progressively rolling out to more places.
In other coverage areas around Australia, you’ll
automatically switch to our fastest available 4G,
which is offered in all capital CBDs and associated
airports, many surrounding suburban areas and in
over 300 regional areas, or our 3G. Check coverage
at telstra.com/coverage
Network lock
•YourdeviceislockedtotheTelstranetwork.
•Whenyouinsertanon-TelstraSIMcardyou
are presented with unlock instructions.
•ContactTelstratoobtainyour8digitunlockcode.
•Anunlockingfeemayapply.
•5incorrectattemptswillblocktheunlockprocess
and the device will then only work with a Telstra
SIM card.
•ContactTelstraformoreinformation.
29
EXTRA BITS
YOU SHOULD KNOW
Windows is a trade mark of the Microsoft group of
companies. The spectrum device is a trade mark of
Telstra Corporation Limited. ™ and ® are trade marks
and registered trade marks of Telstra Corporation
Limited, ABN 33 051 775 556.
30

Navigation menu
