The HUAWEI B310s-22 LTE CPE (B310s-22 for short) is a wireless gateway that integrates

LTE and high-speed Ethernet uplink access, which provides users with flexible and

diversified data access and voice services.

The frequency bands of the product are as follows.

- LTE: Band 1/3/7/8/20/38

FDD 2100 MHz/1800 MHz/2600 MHz/900 MHz/800 MHz TDD 2600 MHz

- UMTS: Band 1/8 2100 MHz/900 MHz

- GSM: Band 2/3/5/8 1900 MHz/1800 MHz/850 MHz/900 MHz

The B310s-22 supports the following standards:

- Long Term Evolution (LTE)

- Dual Carrier High Speed Packet Access Plus (DC-HSPA+)

- High Speed Packet Access Plus (HSPA+)

- High Speed Packet Access (HSPA)

- Wideband Code Division Multiple Access (WCDMA)

- Enhanced Data Rates for Global Evolution (EDGE)

- General Packet Radio Service (System) (GPRS)

- Global System for Mobile Communications (GSM)

- Gigabit Ethernet (GE)

The B310s-22 supports wired and wireless network access, and provides data routing service.

The B310s-22 provides the following services:

- Data service

- Voice service

- SMS

- Security service

- Local maintenance management function

HUAWEI B310s-22 LTE CPE

Product Description

1 Product Overview

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

Figure 1-1 B310s-22 appearance

HUAWEI B310s-22 LTE CPE

Product Description

2 Features

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

2 Features

The B310s-22 mainly supports the following features:

- Access to LTE/DC-HSPA+/HSPA+/HSPA/WCDMA/EDGE/GPRS/GSM wireless

networks

- Access to Gigabit Ethernet networks

- High-speed data access:

− LTE FDD: DL 150 Mbps, UL 50 Mbps

− LTE TDD: DL 112 Mbps, UL 10 Mbps

− DC-HSPA+: DL 42 Mbps, UL 5.76 Mbps

− HSPA+: DL 21 Mbps (64QAM) / 28 Mbps (MIMO), UL 5.76 Mbps

− HSPA: DL 14.4 Mbps, UL 5.76 Mbps

− WCDMA PS: 384 kbps

− EDGE: DL 296 kbps, UL 236.8 kbps

− GPRS: 85.6 kbps

- Support maximum data transmission rate of 300 Mbps 802.11b/g/n

- SMS

- IPv4 /IPv6 dual stack

- Compatibility with RJ11 telephone ports; can be set to Voice over Internet Protocol

( Vo I P ) or Circuit Switch (CS) voice mode

- External antenna port

- Support for HUAWEI HiLink App

- WPS 2.0

- HOTA updates

- Built-in DHCP Server, DNS RELAY and NAT

- Security services. Provides instant protection to block potential security risks and

intrusion attempts

- Windows 8.1, Windows 8, Windows 7, Windows Vista SP1/SP2, Windows XP SP3, and

Mac OS X 10.9, 10.8, and 10.7 with latest upgrades

- User-friendly design of LED indicator. Easy to observe the status of equipment.

HUAWEI B310s-22 LTE CPE

Product Description

3 Technical Specifications

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

3 Technical Specifications

3.1 Hardware Specifications

Table 3-1 Technical specifications of the B310s-22 main unit

Item Description

Technical

standard

WAN - Mobile Network:

LTE/DC-HSPA+/HSPA+/HSPA/WCDMA/EDGE/

GPRS/GSM

- Gigabit Ethernet: IEEE 802.3/802.3u

LAN IEEE 802.3/802.3u

WLAN IEEE 802.11b/g/n

Working

frequency band

LTE Band 1/3/7/8/20/38

FDD 2100 MHz/1800 MHz/2600 MHz/900 MHz/800

MHz

TDD 2600 MHz

UMTS Band 1/8 2100 MHz/900 MHz

GSM Band 2/3/5/8 1900 MHz/1800 MHz/850 MHz/900

MHz

WLAN 2.400 GHz - 2.4835 GHz

Data service LTE FDD DL 150 Mbps, UL 50 Mbps

LTE TDD - Configuration 1: DL 80 Mbps, UL 20 Mbps

- Configuration 2: DL 112 Mbps, UL 10 Mbps

DC-HSPA+ DL 42 Mbps, UL 5.76 Mbps

HSPA+ DL 21 Mbps (64QAM) / 28 Mbps (MIMO)

UL 5.76 Mbps

HSPA DL 14.4 Mbps, 10.2 Mbps, 7.2 Mbps, 3.6 Mbps

UL 5.76 Mbps, 2 Mbps

HUAWEI B310s-22 LTE CPE

Product Description

3 Technical Specifications

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

Item Description

WCDMA PS DL 384 kbps, UL 384 kbps

EDGE DL 296 kbps, UL 236.8 kbps (depending on the

network configuration)

GPRS DL 85.6 kbps, UL 85.6 kbps (depending on the

network configuration)

WLAN - 802.11b: 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps

- 802.11g: 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps,

18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps

- 802.11n: 300 Mbps (HT40 MCS15), 144.4 Mbps

(HT20 MCS15)

External port - One power adapter port

- One WAN/LAN port (RJ45)

- One phone port (RJ11)

- Two external LTE antenna ports (SMA-J1.5)

- One SIM card slot

Antenna - Built-in LTE/UMTS/GSM primary antenna

- Built-in LTE/UMTS secondary antenna

- Built-in WLAN 2.4G antenna

Indicator - One power indicator

- One Internet status indicator

- One Wi-Fi/WPS indicator

- One LAN indicator

- One group of signal strength indicators

Button - One Power ON or OFF switch

- One WPS button

- One Reset button

Maximum

transmit power

LTE Conform to 3GPP Power Class 3 Definition

UMTS Conform to 3GPP Power Class 3 Definition

GSM Conform to 3GPP Power Class 3 Definition

WLAN 802.11b 16 dBm(+3 dB/-3 dB)@11 Mbps

802.11g - 17 dBm(+3 dB/-3 dB)@6 Mbps

- 17 dBm(+3 dB/-3 dB)@54 Mbps

802.11n - 17 dBm(+3 dB/-3 dB)@MCS0

- 17 dBm(+3 dB/-3 dB)@MCS7

HUAWEI B310s-22 LTE CPE

Product Description

3 Technical Specifications

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

Item Description

Receiving

sensitivity

LTE Conform to 3GPP Definition

UMTS - 2100 MHz: -106.7 dBm@3.84 MHz

- 900MHz: -103.7 dBm@3.84 MHz

GSM -104 dBm

WLAN 802.11b Typ. -92 dBm@1 Mbps

Typ. -85 dBm@11 Mbps

802.11g Typ. -88 dBm@6 Mbps

Typ. -70 dBm@54 Mbps

802.11n

HT20

Typ. -88 dBm@MCS0

Typ. -68 dBm@MCS7

802.11n

HT40

Typ. -84 dBm@MCS0

Typ. -66 dBm@MCS7

Power

consumption

< 12 W

AC/DC

power supply

- AC: 100 V - 240 V

- DC: 12 V/1 A

Dimensions

(Maximum)

181 mm (Width) x 126 mm (High) x 36 mm (Deep)

Weight About 226 g (excluding the power adapter)

Temperature - Working temperature: 0°C to 40°C

- Storage temperature: -20°C to +70°C

Humidity 5% - 95%

3.2 Antenna Specifications

Table 3-2 LTE /UMTS/GSM primary antenna specifications

Item Description

Frequency - 703 MHz - 960 MHz

- 1710 MHz - 2690 MHz

Input

impedance

50 Ω

Standing wave

ratio

< 3

HUAWEI B310s-22 LTE CPE

Product Description

3 Technical Specifications

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

Item Description

Efficiency ≥ -4.5 dB@703MHz – 960 MHz

≥ -3.5 dB@1710MHz – 2690 MHz

H side gain ≥ 1 dBi (horizontal level)

Polarization Linear polarization

Table 3-3 LTE /UMTS secondary antenna specifications

Item Description

Frequency - 703 MHz - 960 MHz

- 1710 MHz - 2690 MHz

Input

impedance

50 Ω

Standing wave

ratio

< 3

Efficiency ≥ -4.5 dB@703MHz – 960 MHz

≥ -3.5 dB@1710MHz – 2690 MHz

H side gain ≥ 1 dBi (horizontal level)

Polarization Linear polarization

Table 3-4 WLAN 2.4 GHz antenna specifications

Item Description

Frequency 2.400 GHz - 2.4835 GHz

Input

impedance

50 Ω

Standing wave

ratio

< 2

Efficiency ≥ -3 dB

H side gain ≥ 1 dBi (horizontal level)

Polarization Linear polarization

HUAWEI B310s-22 LTE CPE

Product Description

3 Technical Specifications

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

3.3 Software Specifications

Table 3-5 Software specifications

Item Description

Mobile network APN management

Gigabit Ethernet - WAN/LAN auto-negotiation

- PPPoE username and password

SMS - Writing, sending, and receiving messages

- Sending/Receiving extra-long messages

- Storage: Up to 500 messages can be saved in the internal memory

of the B310s-22

Voice service VoIP voice - SIP voice services

- G.722/G.711a/G.711u/G.729/G.726 encoding and

decoding

CS voice - CS voice services over UMTS/GSM networks

- CSFB

Gateway Router Default routing (the routing address is 0.0.0.0). You

can set the WAN connection to the default routing to

generate default routing table items

DHCP

Server

- The default gateway address is 192.168.8.1

- The default IP addresses of the DHCP server is

from 192.168.8.100 to 192.168.8.254. The IP

addresses can be customized.

- The default DHCP lease is 24 hours

- The DHCP Server can be enabled or disabled

- The address pool of the DHCP server can be

configured

- The lease can be configured

NAT - NAT, NAPT (compliant with RFC2663, RFC3022

and RFC3027)

- CONE NAT

- Fragment message identification for normal NAT

- ALG

ARP

ICMP

DNS Relay

IPv6/IPv4 dual stack

HUAWEI B310s-22 LTE CPE

Product Description

3 Technical Specifications

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

Item Description

VPN passthrough

Firewall setup Firewall switch

URL filter

LAN IP Filter

Virtual server (Port forwarding)

Special Applications (Port triggering)

DMZ service

UPnP Service

ALG settings

MAC address

authentication

- White list

- Black list

- The preceding two lists cannot coexist

- Up to 10 MAC address items

Remote

management

TR069 (Customized)

LAN 10 Mbps, 100 Mbps, and 1000 Mbps auto-negotiation

MDI/MDIX auto-sensing

IEEE 802.3/802.3u is compatible

WLAN IEEE 802.11b/g/n

4 SSID broadcast and hiding are supported in maximum.

WPS 2.0

WMM

Encryption - WEP

- AES

- TKIP+AES

Security mode - WPA2.0 PSK

- WPA1.0+WPA2.0 PSK

- WEP Shared Key (four keys at most)

- Open

STA management - Supports inquiry of STA status

- Supports limit of access users (Access from

up to 32 users)

Huawei HiLink

App

View service provider's name, the roaming status and signal strength.

View the data traffic usage and SMS.

HUAWEI B310s-22 LTE CPE

Product Description

3 Technical Specifications

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

Item Description

Manage the connected devices.

Change SSID and password.

System

requirement

Operating

System

- Windows 8.1, Windows 8, Windows 7, Windows

Vista SP1/SP2, Windows XP SP3

- Mac OS X 10.9, 10.8, and 10.7 with latest

upgrades

Web browser - IE 8.0 (Windows XP)

- IE 8.0 and above (Windows 7/Vista)

- IE 10.0 and above (Windows 8)

- Firefox 24.0 and above

- Safari 6.0 and above (MAC)

- Opera 12.0 and above

- Chrome 27.0 and above

HUAWEI B310s-22 LTE CPE

Product Description

4 Services and Applications

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

4 Services and Applications

4.1 Data Services

The B310s-22 can access the Internet through mobile networks, and Ethernet networks. By

connecting to the B310s-22 using Wi-Fi or a network cable, users can get access to

high-speed Internet services and establish a local area network (LAN).

4.1.1 Accessing the Internet Through a Mobile Network

(LTE/UMTS/GSM)

The B310s-22 can access the Internet through mobile networks.

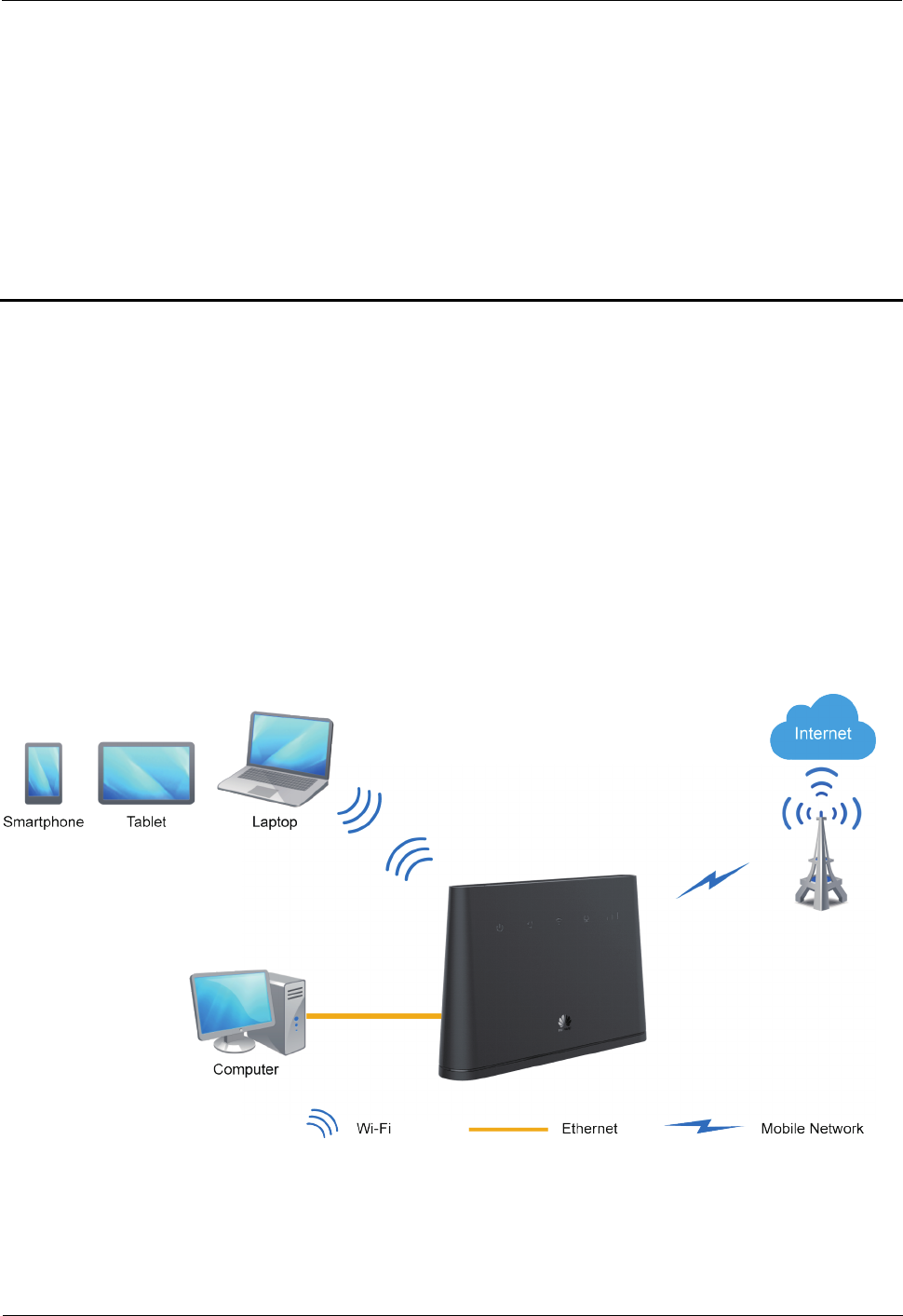

Figure 4-1 Accessing the Internet through a mobile network

HUAWEI B310s-22 LTE CPE

Product Description

4 Services and Applications

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

4.1.2 Accessing the Internet Through an Ethernet Network

Connect the B310s-22's WAN/LAN port to a wall-mounted Ethernet port using a network

cable.

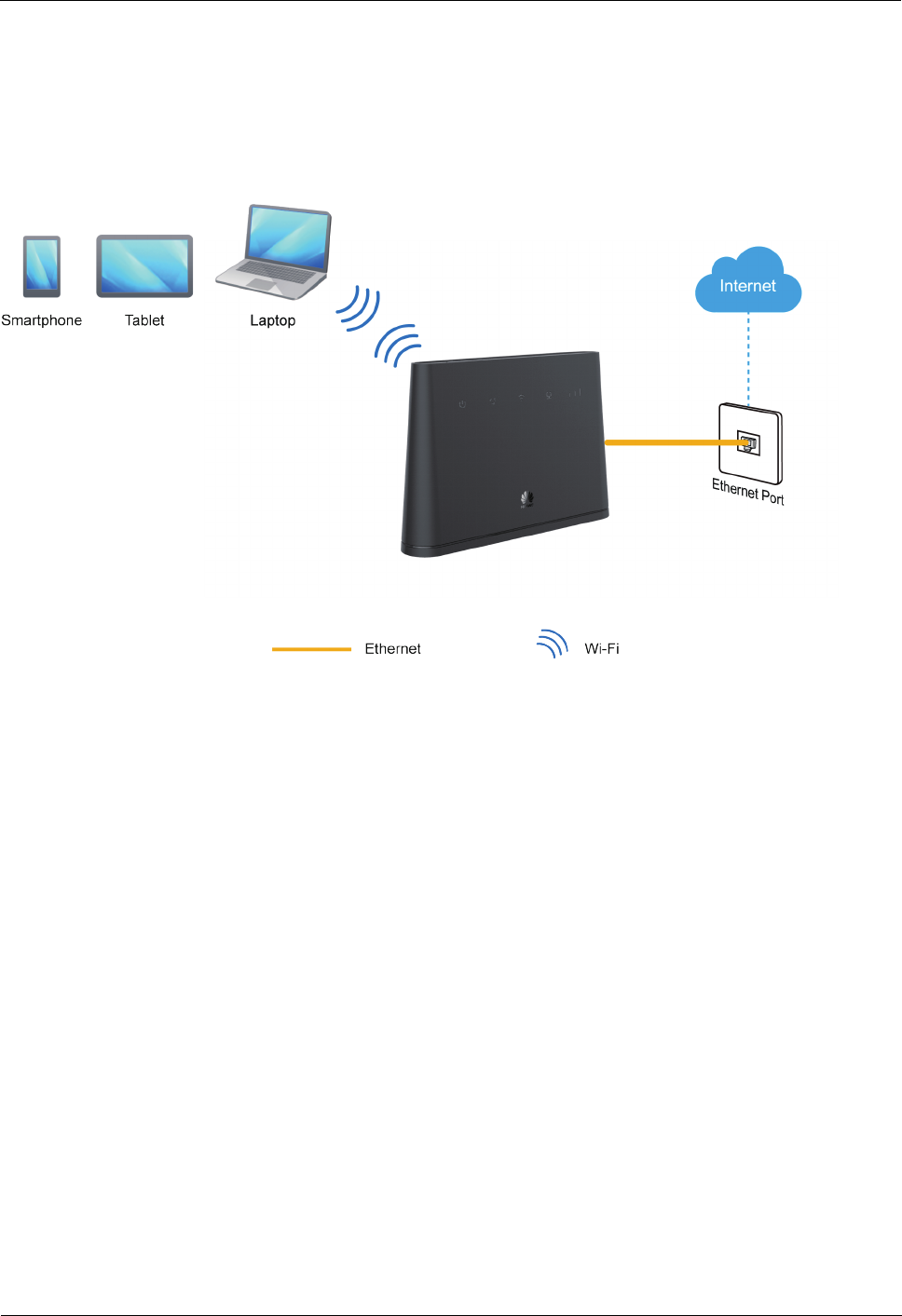

Figure 4-2 Accessing the Internet through an Ethernet network

4.2 Voice Services

The B310s-22 provides one telephone port that can be connected to telephones for calling.

HUAWEI B310s-22 LTE CPE

Product Description

4 Services and Applications

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

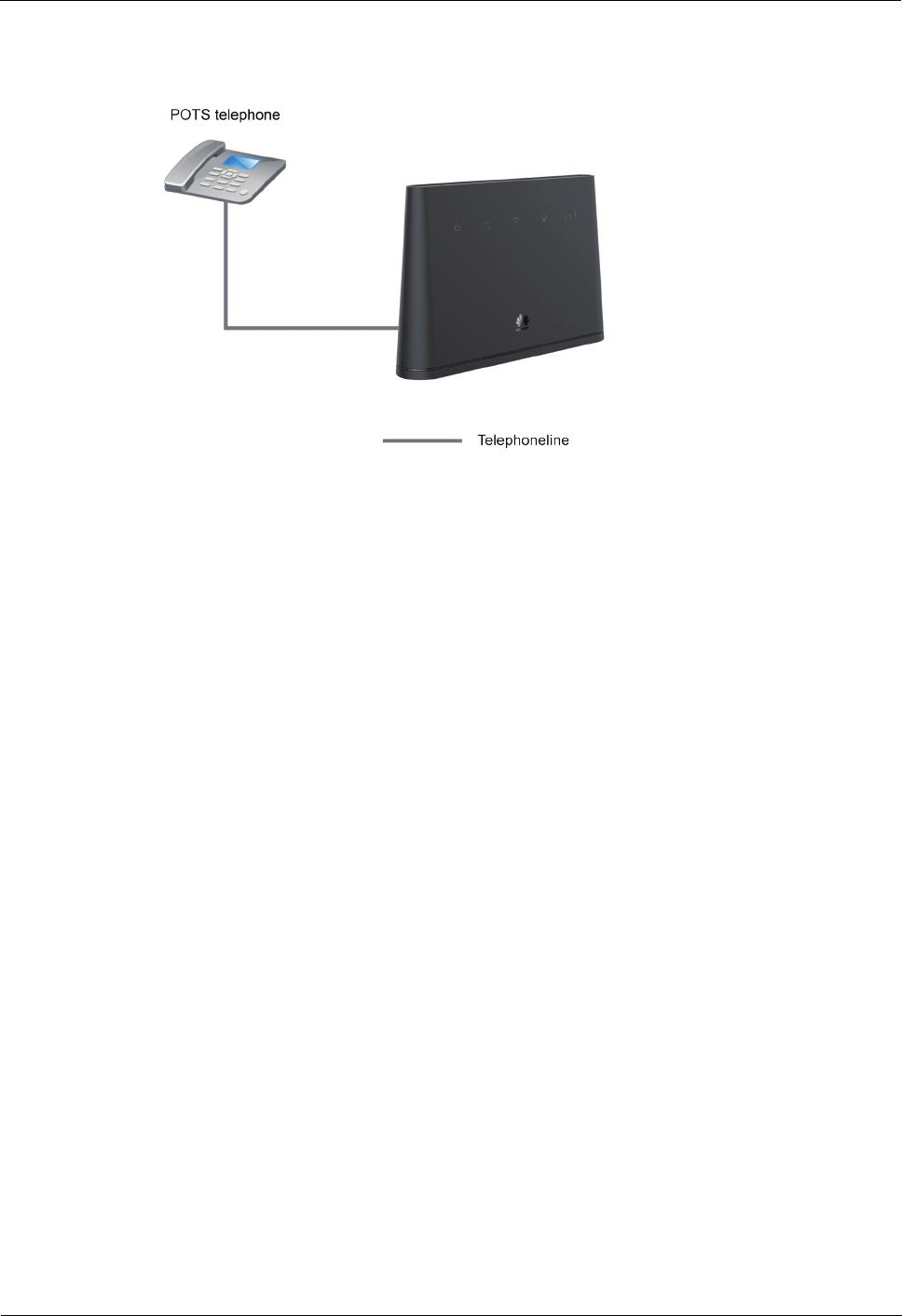

Figure 4-3 Connecting telephones to the B310s-22

4.3 SMS

The B310s-22 supports message writing/sending/receiving and group sending (up to 50

contacts at a time). You can manage messages through the Web page, such as inbox, outbox,

draft.

4.4 Security Service

The B310s-22 supports various security features, such as the firewall, user authentication, and

PIN protection, protect users against security threats from the Internet when users are using

network services.

4.5 Local management and maintenance

The B310s-22 supports local configuration through the Web page. You can accomplish device

management, network configuration and ensure normal and stable performance.

HUAWEI B310s-22 LTE CPE

Product Description

5 System Structure

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

5 System Structure

5.1 System Architecture Diagram

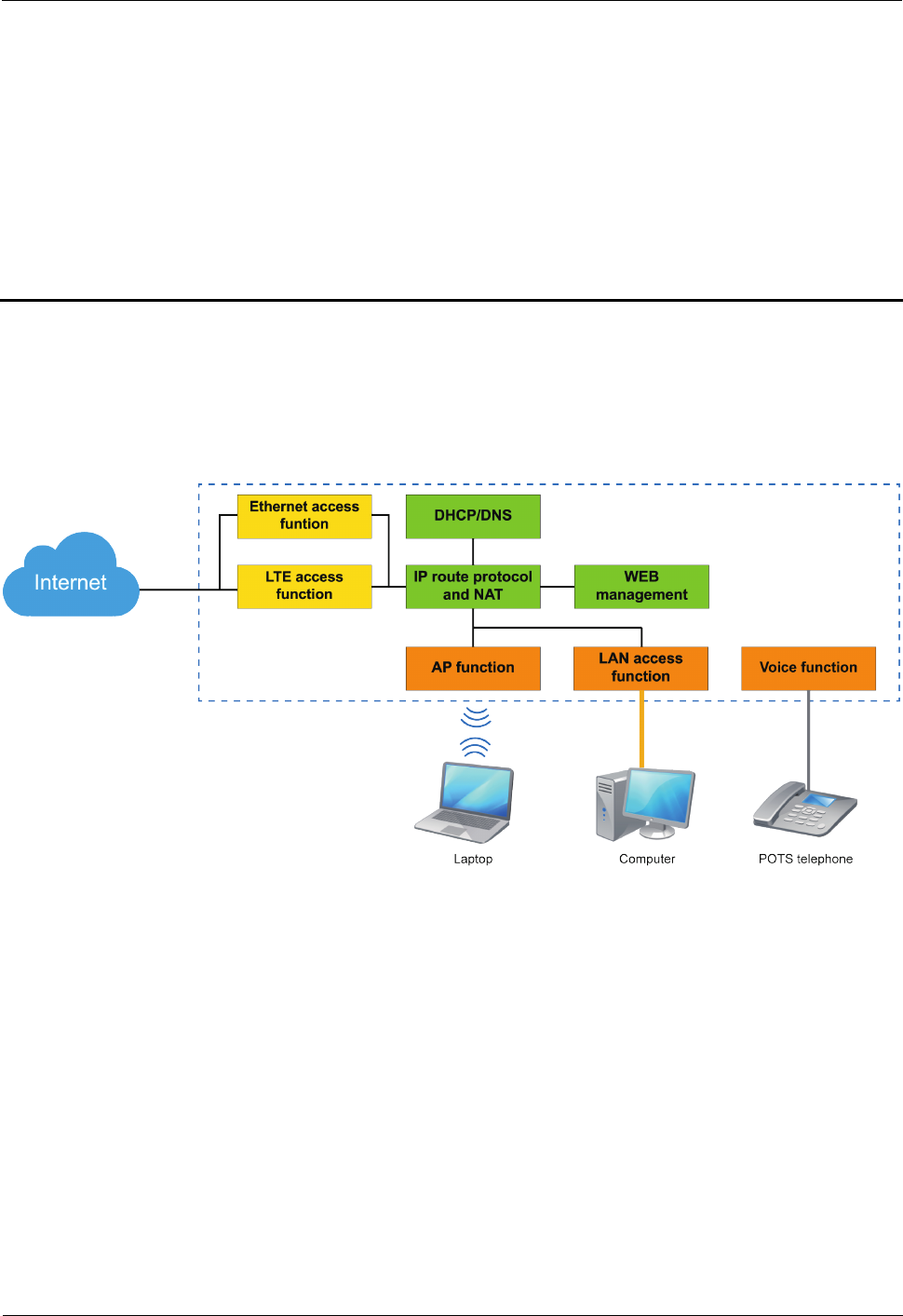

Figure 5-1 System architecture

5.2 Functional Modules

- Mobile network access: The B310s-22 adopts the LTE/UMTS/GSM access technology at

the WAN side, can access the wireless broadband packet-based.

- WLAN AP function: 802.11b/g/n compliant WLAN AP interface is provided, used for

wireless networking at home. The interface is compliant with the IEEE 802.11b/g/n

standard and the WPA-PSK/WPA2-PSK/WEP security authentication.

- DHCP/DNS: The DHCP server dynamically allocates IP addresses to PCs. The DNS

parses domain names.

- Web management: You can configure, modify and query the configuration information of

the B310s-22.

- Routing and NAT: High-speed routing capability. With the built-in NAT, the B310s-22,

together with wireless broadband packet-based network devices, can provide flexible

broadband access solutions and networking schemes.

HUAWEI B310s-22 LTE CPE

Product Description

6 Packing List

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

6 Packing List

Table 6–1 shows the devices and accessories of the B310s-22.

Table 6-1 Packing list

Description Quantity Remarks

Wireless Gateway 1 Standard

Power supply adapter 1 Standard

Quick Start 1 Standard

Ethernet cable 1 Standard

Warranty card 1 Optional

Phone cable 1 Optional

HU AWEI B310s-22 wireless gateway also provide external antenna as optional for you to

choose.

HUAWEI B310s-22 LTE CPE

Product Description

A Acronyms and Abbreviations

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

A Acronyms and Abbreviations

AC Alternating Current

ARP Address Resolution Protocol

AP Access Point

APN Access Point Name

CPE Customer Premises Equipment

CS Circuit Switch

CSFB Circuit Switched Fallback

DHCP Dynamic Host Configuration Protocol

DL Downlink

DNS Domain Name Server

GE Gigabit Ethernet

HSPA High Speed Packet Access

HSPA+ High Speed Packet Access Plus

HSDPA High Speed Downlink Packet Access

HSUPA High Speed Uplink Packet Access

HT High Throughput

IP Internet Protocol

HUAWEI B310s-22 LTE CPE

Product Description

A Acronyms and Abbreviations

Issue 01 (2015-03-20)

Huawei Proprietary and Confidential

ICMP Internet Control Message Protocol

LAN Local Area Network

LED Light Emitting Diode

LTE Long Term Evolution

MCS Modulation and Coding Scheme

NAT Network Address Translation

POTS Plain Old Telephone Service

TKIP Temporal Key Integrity Protocol

UMTS Universal Mobile Telecommunications System

UL Uplink

VoIP Voice over Internet Protocol

WAN Wide Area Network

WLAN Wireless Local Area Network

WCDMA Wideband Code Division Multiple Access

Wi-Fi Wireless Fidelity

Huawei B310s 22 Product Description (V200R001 01,English)

HUAWEI-B310s-22-Prod.. HUAWEI-B310s-22-Product-Description-V200R001_01English

Navigation menu

Versions of this User Manual:

Views

Navigation
