HUAWEI TECHNOLOGIES CO., LTD. www.huawei.com
HUAWEI TECHNOLOGIES CO., LTD. www.huawei.com

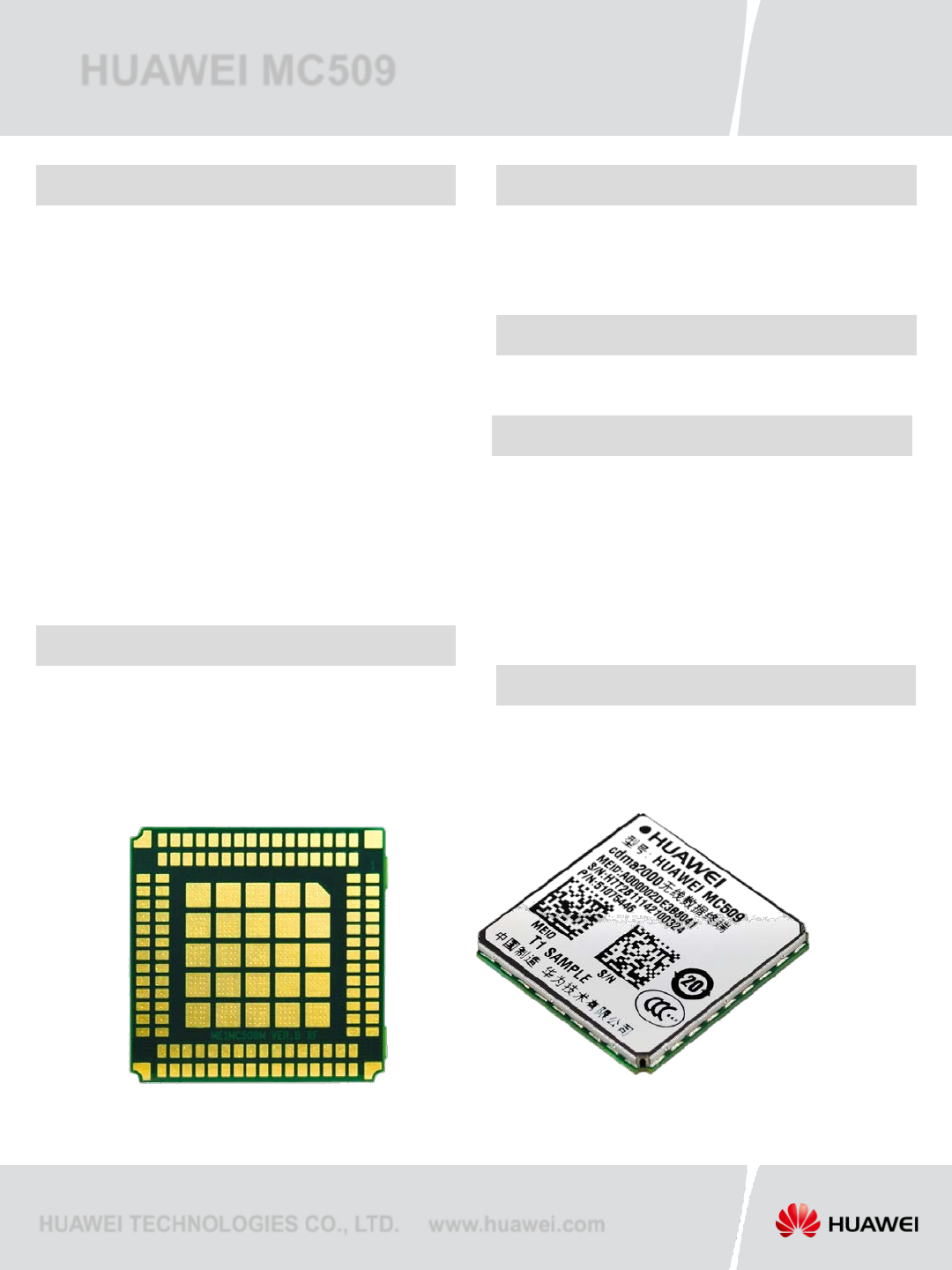

HUAWEI MC509
•Chipset: QCS6085
• CDMA Dual-Band 800/1900 MHz
• GPS: Standalone
• Max. transmitter power
CDMA 800 MHz: +24 dBm (Power Class 3)
CDMA 1900 MHz: +24 dBm (Power Class 2)
• Control via AT commands
IS 707A AT commands
Huawei extended AT command
• Embedded TCP/IP and UDP/IP protocol stack
• Power supply: 3.3V~4.2V (recommend 3.8V)
•Temperature range
Normal Operation: -20 to 70°C
Extended Operation: -：–30°C ~ –20°C to +70°C ~
+75°C
Storage: -40 to 85°C
• Humidity: 5%~ 95%
• Dimensions: 30mm×30mm×2.65mm
• Weight: 5.5g
• Analog audio
• Vocoder: 13K QCELP/EVRC/EVRC-B
• Emergency call support
• Antenna connector
• External interface: LGA, 145 PIN
1 x 8 serial interfaces: UART
PCM Voice
GPIO
USB2.0 Full Speed
control interfaces
Power on
Reset
UIM card interfaces
• 3C
• CTA
• FCC
• RoHS
Product features
Voice features
Interfaces
Approvals & Certifications
• CDMA2000 1X RTT: DL 153.6kbps / UL 153.6kbps
• CDMA2000 1XEV-DO Rev.0: DL 2.4Mbps / UL 153.6kbps
• CDMA2000 1XEV-DO Rev.A: DL 3.1Mbps / UL 1.8Mbps
Data features
• MO / MT Text modes
SMS features
Note:
Please refer to the latest version of Hardware Guide about the specifications. Huawei reserves the right to make changes or improvements
to any to the products without prior notice.
