HUAWEI ME909u-523 LTE LGA Module
V100R001
Application Guide
Issue
04
Date
2014-12-08
Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written
consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei").
The product described in this manual may include copyrighted software of Huawei and possible licensors.
Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract,
reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by
applicable laws or such actions are approved by respective copyright holders.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.
LTE is a trade mark of ETSI.
Other trademarks, product, service and company names mentioned may be the property of their respective
owners.
Notice
Some features of the product and its accessories described herein rely on the software installed, capacities
and settings of local network, and therefore may not be activated or may be limited by local network
operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories which you purchase.
Huawei reserves the right to change or modify any information or specifications contained in this manual
without prior notice and without any liability.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE
LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS
MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE
LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF
PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS
REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL
INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING
FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE
AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and be responsible to
obtain all necessary governmental permits and licenses in order to export, re-export or import the product
mentioned in this manual including the software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see the privacy policy at
http://consumer.huawei.com/privacy-policy.
About This Document
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3
About This Document
Revision History
Document
Version
Date
Chapter
Description
01
2014-05-22
Creation
02
2014-09-05
2.3.1
Updated reference process
15
Added chapter 15:
FOTA Application Scenarios
03
2014-10-30
12.1.4
Updated the description of step 1
04
2014-12-08
8.3.2
Updated notes of USB and sleep
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Contents
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
Contents
1 Overview ......................................................................................................................................... 9
1.1 Conventions and Definitions ............................................................................................................ 9
1.1.1 Conventions ............................................................................................................................. 9
1.1.2 Definitions ................................................................................................................................ 9
1.2 Basic AT Command Processing Principles .................................................................................... 10
1.2.1 Ports ...................................................................................................................................... 10
1.2.2 AT Command Processing Mechanism................................................................................... 10
1.2.3 Recommended Timeout Mechanism for AT Commands Processed by a Host..................... 13
2 Initialization Application Scenarios ....................................................................................... 15
2.1 Startup Indication ^SYSSTART ...................................................................................................... 15
2.1.1 Reference Process ................................................................................................................ 15
2.1.2 Troubleshooting ..................................................................................................................... 15
2.2 Querying Basic Information ............................................................................................................ 16
2.2.1 Reference Process ................................................................................................................ 16
2.2.2 Troubleshooting ..................................................................................................................... 16
2.3 Network Service Operations .......................................................................................................... 17
2.3.1 Reference Process ................................................................................................................ 17
2.3.2 Troubleshooting ..................................................................................................................... 18
3 Network Searching and Registration Application Scenarios............................................. 19
3.1 Searching and Registering Network............................................................................................... 19
3.1.1 Reference Process ................................................................................................................ 19
3.1.2 Troubleshooting ..................................................................................................................... 21
4 ECM Application Scenarios ...................................................................................................... 22
4.1 ECM Dialing ................................................................................................................................... 22
4.1.1 Reference Process ................................................................................................................ 22
4.1.2 Troubleshooting ..................................................................................................................... 23
4.2 Querying the Dial-up Connection State .......................................................................................... 23
4.2.1 Reference Process ................................................................................................................ 23
4.2.2 Troubleshooting ..................................................................................................................... 24
4.3 Disconnecting the Dial-up Connection ........................................................................................... 24
4.3.1 Reference Process ................................................................................................................ 24
4.3.2 Troubleshooting ..................................................................................................................... 24
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Contents
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
5 SMS Application Scenarios ...................................................................................................... 25
5.1 Overview ........................................................................................................................................ 25
5.2 Initializing SMS ............................................................................................................................... 27
5.2.1 Reference Process ................................................................................................................ 27
5.2.2 Troubleshooting ..................................................................................................................... 30
5.3 Sending Short Messages ............................................................................................................... 30
5.3.1 Reference Process ................................................................................................................ 30
5.3.2 Troubleshooting ..................................................................................................................... 32
5.4 Reading Short Messages ............................................................................................................... 32
5.4.1 Reference Process ................................................................................................................ 32
5.4.2 Troubleshooting ..................................................................................................................... 34
5.5 Deleting Short Messages ............................................................................................................... 35
5.5.1 Reference Process ................................................................................................................ 35
5.5.2 Troubleshooting ..................................................................................................................... 36
6 Phonebook Application Scenarios .......................................................................................... 37
6.1 Overview ........................................................................................................................................ 37
6.2 Memory Operations ........................................................................................................................ 37
6.2.1 Reference Process ................................................................................................................ 37
6.2.2 Troubleshooting ..................................................................................................................... 38
6.3 Reading Phonebook Entries .......................................................................................................... 39
6.3.1 Reference Process ................................................................................................................ 39
6.3.2 Troubleshooting ..................................................................................................................... 40
6.4 Writing/Deleting Phonebook Entries .............................................................................................. 41
6.4.1 Reference Process ................................................................................................................ 41
6.4.2 Troubleshooting ..................................................................................................................... 42
6.5 Searching for Phonebook Entries .................................................................................................. 43
6.5.1 Reference Process ................................................................................................................ 43
6.5.2 Troubleshooting ..................................................................................................................... 44
6.6 Querying User Number .................................................................................................................. 44
6.6.1 Reference Process ................................................................................................................ 44
6.6.2 Troubleshooting ..................................................................................................................... 44
6.7 Setting the TE's Character Sets ..................................................................................................... 45
6.7.1 Reference Process ................................................................................................................ 45
6.7.2 Troubleshooting ..................................................................................................................... 46
7 SIM Operation Application Scenarios .................................................................................... 47
7.1 PIN Operations ............................................................................................................................... 47
7.1.1 Reference Process ................................................................................................................ 47
7.1.2 Troubleshooting ..................................................................................................................... 49
7.2 CRSM Command ........................................................................................................................... 49
7.2.1 Reference Process ................................................................................................................ 49
7.2.2 Troubleshooting ..................................................................................................................... 51
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Contents
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
8 Sleeping and Waking Up Application Scenarios ................................................................. 52
8.1 Hardware Interfaces ....................................................................................................................... 53

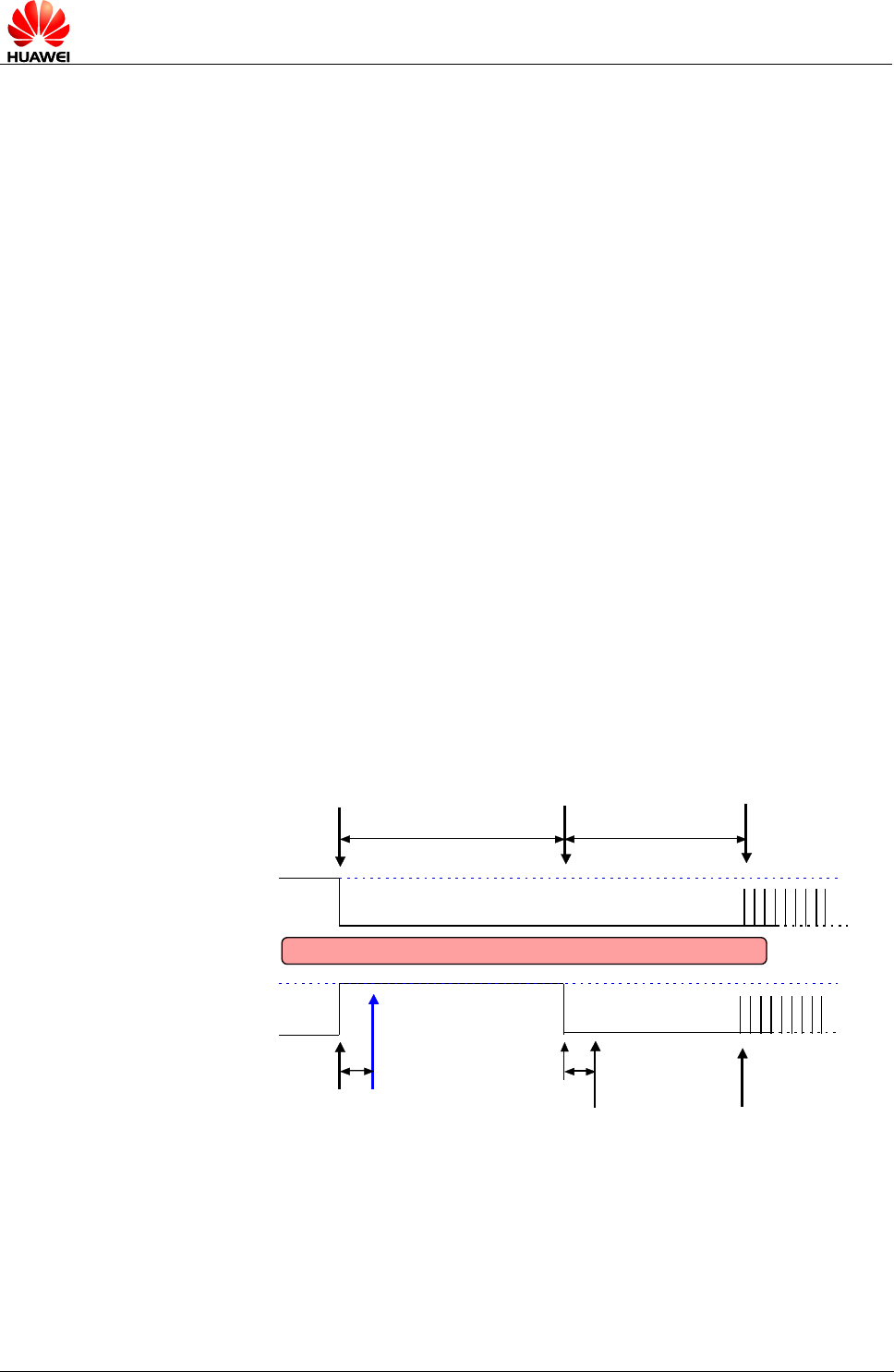

8.2 Sequence Diagram......................................................................................................................... 54
8.3 Software Interfaces ........................................................................................................................ 56
8.3.1 Principle ................................................................................................................................. 56
8.3.2 USB and Sleep ...................................................................................................................... 58
8.3.3 UART and Sleep .................................................................................................................... 58
8.3.4 Module Wake-up .................................................................................................................... 58
8.3.5 Host Woken up by Module .................................................................................................... 59
8.4 Application Scenarios: System with USB Connection only ............................................................ 60
8.4.1 Hardware Connection ............................................................................................................ 60
8.4.2 Software Procedure ............................................................................................................... 60
8.4.3 Advantages ............................................................................................................................ 61
8.5 Application Scenarios: System with USB and WAKEUP_OUT ...................................................... 61
8.5.1 Hardware Connection ............................................................................................................ 61
8.5.2 Software Procedure ............................................................................................................... 61
8.5.3 Advantages ............................................................................................................................ 62
8.6 System with Other Connection Methods ........................................................................................ 62
9 Thermal Protection Application Scenarios ............................................................................ 63
9.1 Pre-configuration ............................................................................................................................ 63
9.1.1 Troubleshooting ..................................................................................................................... 63
9.2 Thermal Protection Process ........................................................................................................... 63
10 Module Powering Off and Resetting Application Scenarios ........................................... 65
10.1 Restarting the ME ......................................................................................................................... 65
10.1.1 Reference Process .............................................................................................................. 65
10.1.2 Troubleshooting ................................................................................................................... 65
10.2 Powering Off ME .......................................................................................................................... 65
10.2.1 Reference Process .............................................................................................................. 65
10.2.2 Troubleshooting ................................................................................................................... 66
11 GPS Application Scenarios ..................................................................................................... 67
11.1 Introduction to GPS ...................................................................................................................... 67
11.1.1 GPS Positioning Methods .................................................................................................... 67
11.1.2 GPS Ports ............................................................................................................................ 69
11.2 Standalone Positioning ................................................................................................................. 70
11.3 MSB Positioning Using the User Plane Protocol .......................................................................... 71
11.4 MSA Positioning Using the User Plane Protocol .......................................................................... 72
11.5 XTRA Positioning .......................................................................................................................... 73
11.6 GNSS Positioning ......................................................................................................................... 74
12 Local Upgrade Application Scenarios ................................................................................... 76
12.1 Starting the Local Upgrade ........................................................................................................... 76
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Contents
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
12.1.1 Full Upgrade Flow ............................................................................................................... 76
12.1.2 Launch the Local Upgrade .................................................................................................. 77
12.1.3 Transfer the Upgrade File .................................................................................................... 77
12.1.4 Test ...................................................................................................................................... 78
12.1.5 Reference Process .............................................................................................................. 81
12.1.6 Troubleshooting ................................................................................................................... 82
12.2 Reporting the Local Upgrade State .............................................................................................. 82
12.2.1 Reference Process .............................................................................................................. 82
12.2.2 Troubleshooting ................................................................................................................... 82
13 LED Indication Application Scenarios ................................................................................. 83
13.1 Overview ...................................................................................................................................... 83
13.2 LED Setting Operations ............................................................................................................... 84
13.2.1 Reference Process .............................................................................................................. 84
13.2.2 Troubleshooting ................................................................................................................... 85
14 Serial Port Configuration Application Scenarios ............................................................... 86
14.1 Baud Rate Configuration .............................................................................................................. 86
14.1.1 Reference Process .............................................................................................................. 86
14.1.2 Troubleshooting ................................................................................................................... 86
14.2 Setting Hardware Flow Control .................................................................................................... 87
14.2.1 Reference Process .............................................................................................................. 87
14.2.2 Troubleshooting ................................................................................................................... 87
15 FOTA Application Scenarios .................................................................................................. 88
15.1 FOTA Process .............................................................................................................................. 88
15.1.1 Upgrade Module Firmware Over Air Through Delta Package ............................................. 88
15.1.2 Procedure for FOTA Implementation ................................................................................... 88
15.2 Setting FOTA Mode ...................................................................................................................... 91
15.2.1 Reference Process .............................................................................................................. 91
15.2.2 Troubleshooting ................................................................................................................... 91
15.3 Setting FOTA Connection Parameters ......................................................................................... 92
15.3.1 Reference Process .............................................................................................................. 92
15.3.2 Troubleshooting ................................................................................................................... 92
15.4 Manually Querying for Upgrade Firmware Version ...................................................................... 93
15.4.1 Reference Process .............................................................................................................. 93
15.4.2 Troubleshooting ................................................................................................................... 94
15.5 Periodically Querying the Version ................................................................................................ 95
15.5.1 Reference Process .............................................................................................................. 95
15.5.2 Troubleshooting ................................................................................................................... 95
15.6 Manually Downloading the Version .............................................................................................. 96
15.6.1 Reference Process .............................................................................................................. 96
15.6.2 Troubleshooting ................................................................................................................... 97
15.7 Automatically Downloading the Firmware .................................................................................... 98
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Contents
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
15.7.1 Reference Process .............................................................................................................. 98
15.7.2 Troubleshooting ................................................................................................................... 98
15.8 Using the Resumable Data Transfer Function ............................................................................. 98
15.8.1 Reference Process .............................................................................................................. 98
15.8.2 Troubleshooting ................................................................................................................... 99
15.9 Manually Cancelling the Download .............................................................................................. 99
15.9.1 Reference Process .............................................................................................................. 99
15.9.2 Troubleshooting ................................................................................................................. 100
15.10 Manually Upgrading the Version .............................................................................................. 100
15.10.1 Reference Process .......................................................................................................... 100
15.10.2 Troubleshooting ............................................................................................................... 101
15.11 Automatically Upgrading the Version ........................................................................................ 101
15.11.1 Reference Process .......................................................................................................... 101
15.11.2 Troubleshooting ............................................................................................................... 102
16 Appendix .................................................................................................................................. 103
16.1 Relative Documents ................................................................................................................... 103
16.2 Acronyms and Abbreviations ...................................................................................................... 103
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Overview
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
1 Overview
This document is intended to provide references for customers to choose appropriate
command sequences to start using the ME909u-523 module in a faster manner. This
document also contains examples and relevant description.
This document will be updated based on customers' requirements.
1.1 Conventions and Definitions
1.1.1 Conventions
Convention
Description
<…>
Value range of AT command parameters
XXXX
Personal Identification Number (PIN), Personal Unlock Key
(PUK), or password
1.1.2 Definitions
Term
Definition
Connected
Indicates that a link has been set up between two
modules or a module and a terminal.
Registered
Indicates that the module is registered with a
LTE/UMTS/GSM network.
Module
HUAWEI LTE module
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Overview
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
Application Mobile equipment
network
1.2 Basic AT Command Processing Principles
1.2.1 Ports
The ME909u-523 module provides four ports to interact with its host:
- MODEM port: simulated using USB, for AT command interaction and
establishing data connection.
Port name: HUAWEI Mobile Connect-Modem
- PCUI port: simulated using USB, for AT command interaction only.
Port name: HUAWEI Mobile Connect-PCUI Interface
- ECM port: simulated using USB, for establishing communication connection.
Port name: CDC Ethernet Control Model (ECM)
- NMEA port: simulated using USB, sending unsolicited indications for NMEA
positioning data and sending GPS AT command.
Port name: HUAWEI Mobile Connect-GPS Interface
NOTE
The ME909u-523 module does not support the modem dialing-up.
The ME909u-523 also provides a port for debugging:
- DIAG port: Simulated using USB, for DIAG (diagnostic) command interaction
(mainly used to debug modules at present).
Port name: HUAWEI Mobile Connect-Application Interface
A host controls a module using AT commands. If AT commands are unavailable, a
module can be deemed as unavailable.
1.2.2 AT Command Processing Mechanism
A module processes AT commands from the ports (MODEM, PCUI, GPS and UART)
in series. An AT command can be processed when and only when the previous AT
command processing has been completed. If the module is processing an AT
command, a new AT command from the same port will be ignored and other
commands from other ports will be buffered until the current AT command is
processed.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Overview
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
This rule also applies to COM ports converted from USB ports.
The processing of an AT command starts when the AT command is entered from the
TE, and ends when the UE (the module) returns all the results in response the
command.

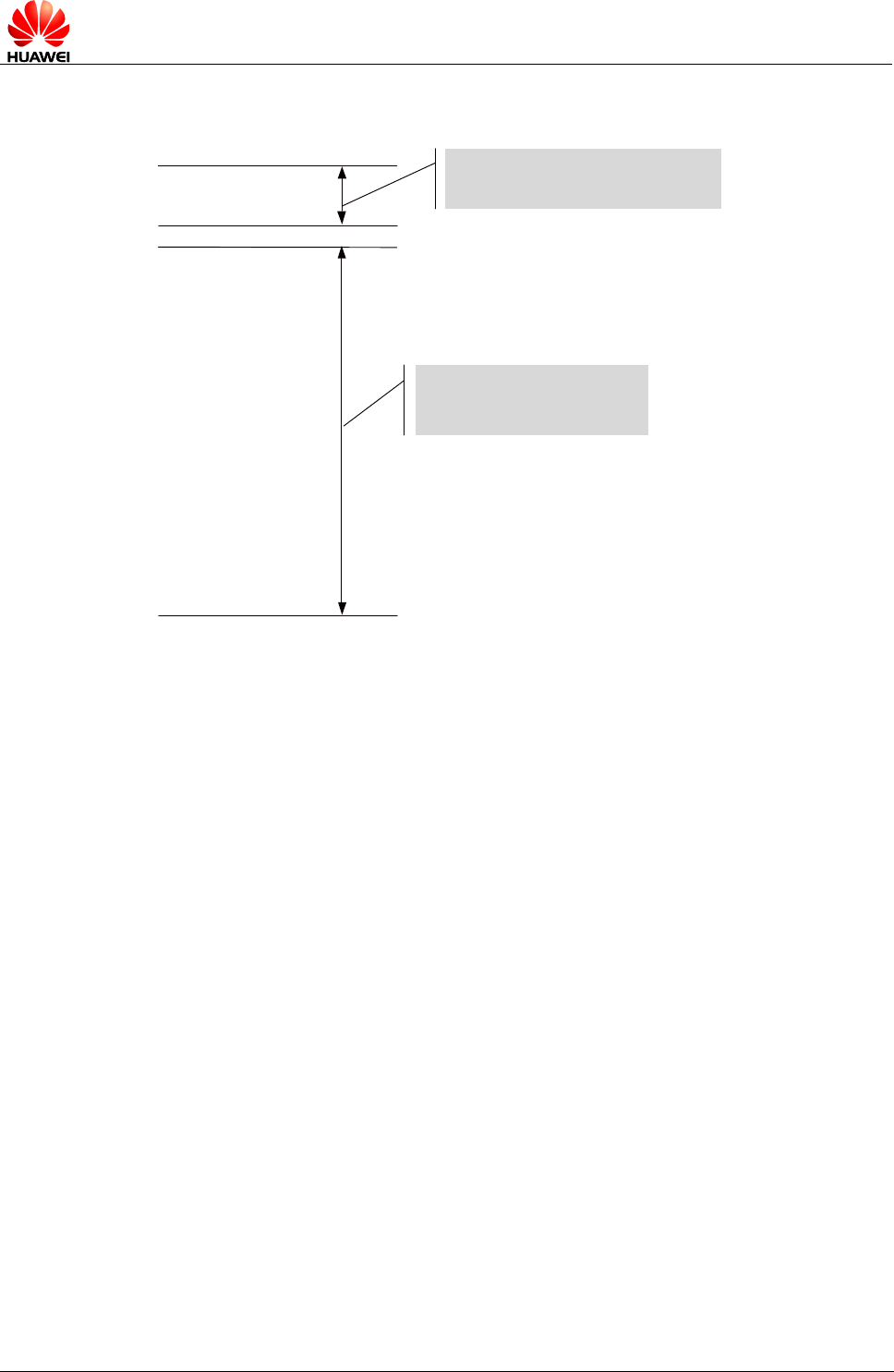

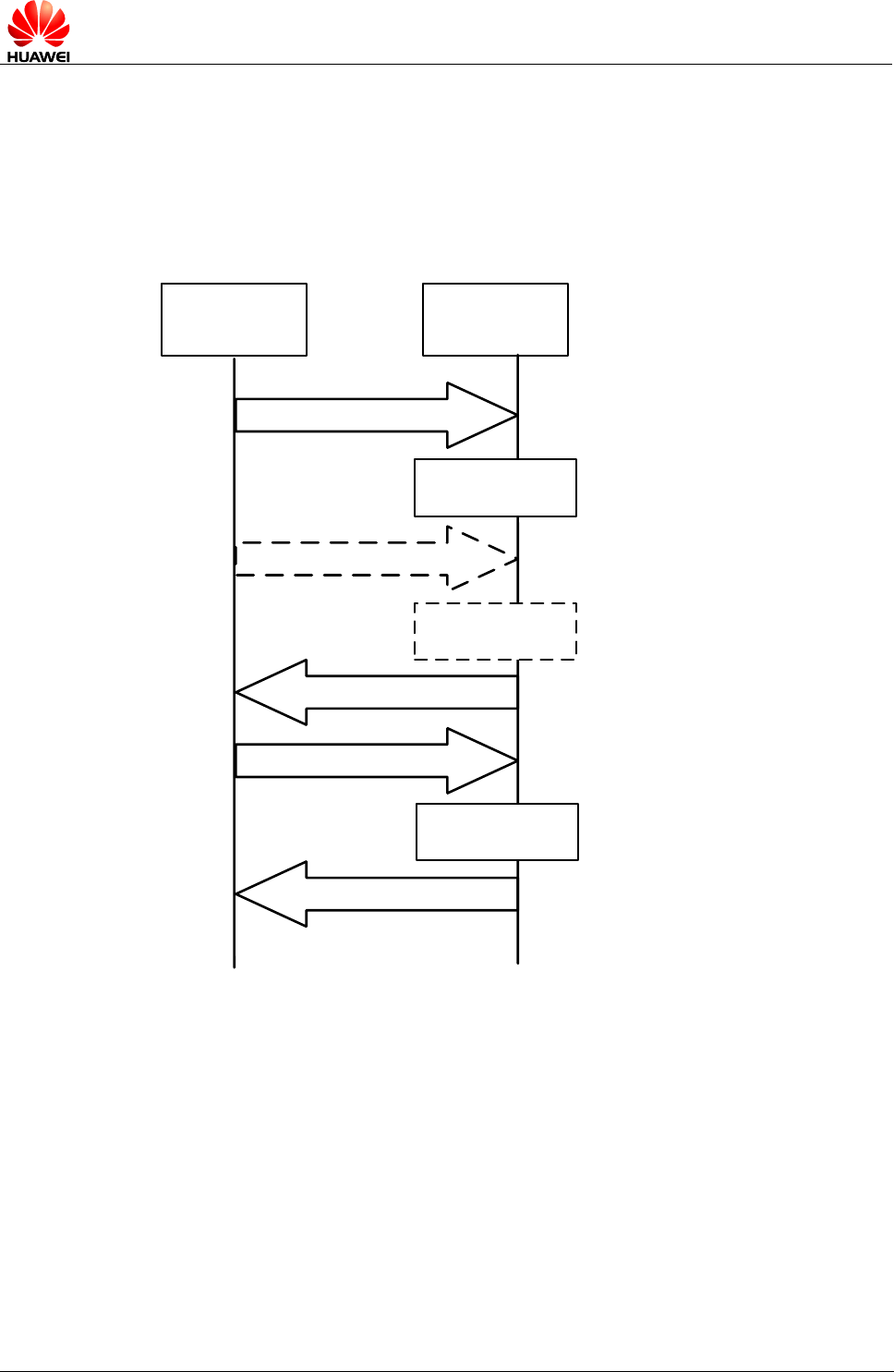

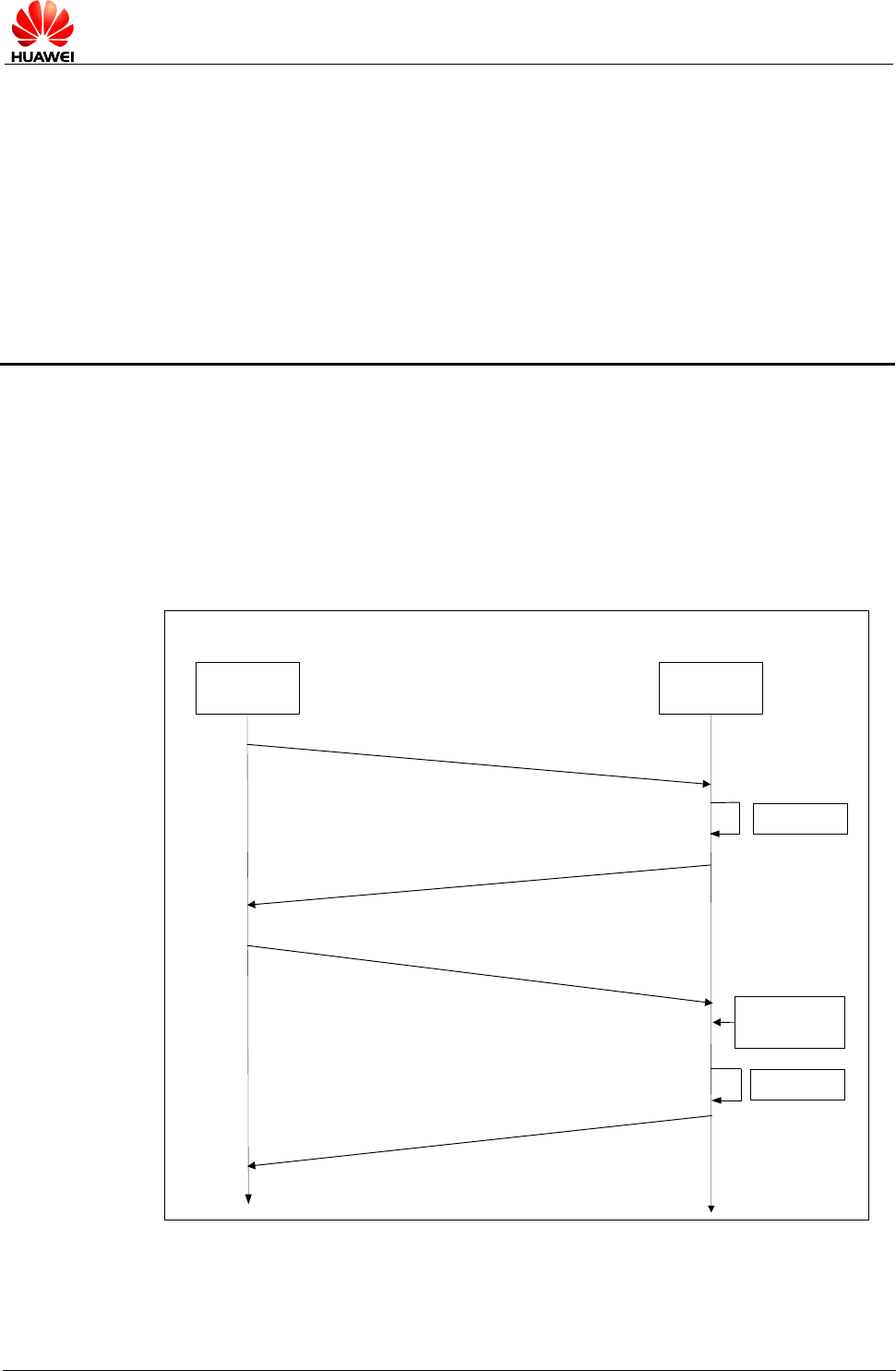

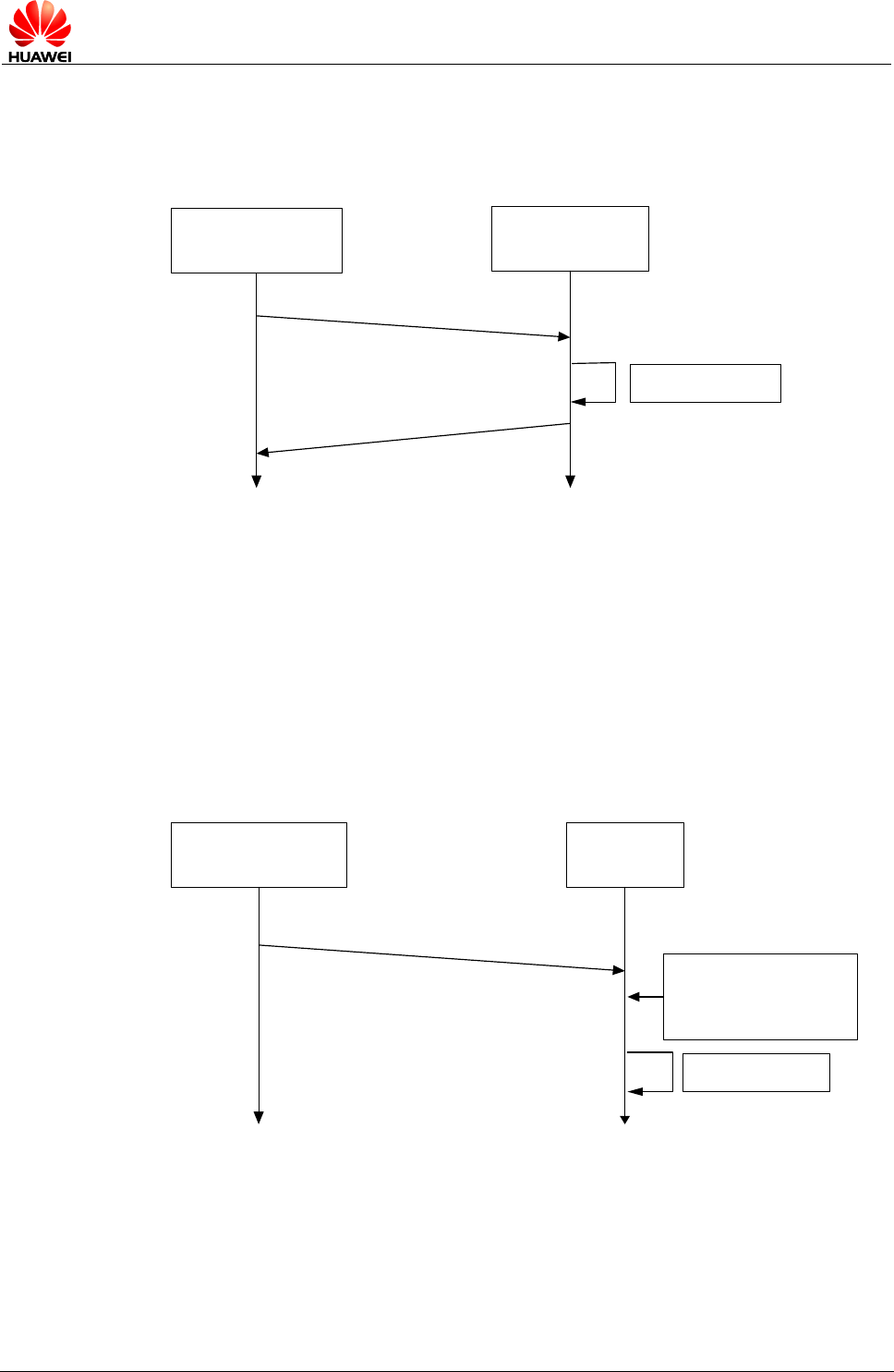

Figure 1-1 AT command processing sequence diagram
TE UE
AT command 1
AT command 2
Return results of AT command 1
AT command 3
Ignore AT
command 2
Process AT
command 1
Process AT
command 3
Return results of AT command 3
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Overview
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12
Example:
AT
+
CPIN
?
+
CPIN
:
READY
OK
AT
+
CMGL
=
4
+
CMGL
:
0
,
3
,,
19
07813108608805
F
911320
B
813109730116
F
20000
A
705
B
3
D
84
C
4603
+
CMGL
:
1
,
2
,,
18
07813108608805
F
931
FF
0
B
813109730155
F
30000
A
704
F
4
F
29
C
0
E
+
CMGL
:
2
,
2
,,
18
07813108608805
F
931
FF
0
B
813109730155
F
30000
A
704
F
4
F
29
C
0
E
+
CMGL
:
3
,
2
,,
28
07813108608805
F
931
FF
0
B
813109730155
F
30000
A
71061
F
69
CAC
2
EBF
69
B
5
FA
4
D
36
CBC
168
+
CMGL
:
4
,
2
,,
24
07813108608805
F
931
FF
0
B
813109730155
F
30000
A
70
BB
05
C
2
D
5
DB
7
C
1
D
4
ECB
4
1
A
+
CMGL
:
5
,
2
,,
22
07813108608805
F
931
FF
0
B
813109730155
F
30000
A
7096
E
333
B
8
DCBE
77079
+
CMGL
:
6
,
2
,,
22
07813108608805
F
931
FF
0
B
813109730155
F
30000
A
70930598
D
26
A
7
DBDF
68
OK
All AT commands entered during
this period of time will be
ignored.
All AT commands entered
during this period of time will
be ignored.
Some special AT commands can be aborted by new AT commands. Such special
commands are called abortive commands.
The ME909u-523 supports the following abortive AT commands:
- The AT+COPS Set command
- AT+CLCK
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Overview
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
Example:
AT+COPS=1,2,23415
OK
Before the results ofAT+COPS
is returned, enter any characters
(such as"AT"), the module will
terminate the processing of
AT+COPS and returnOK. The
entered characters are used to
abort the command only .
Some commands can be executed when SIM card is inserted. It would return to SIM
failure if SIM card is not inserted. For more information, see Property Description of
related AT in HUAWEI ME909u-523 LTE LGA Module AT Command Interface Specification.
Example:
AT+CREG?
+CME ERROR: SIM failure
NOTE
SIM failure indicates that SIM card is not inserted.
1.2.3 Recommended Timeout Mechanism for AT Commands
Processed by a Host
A module processes AT commands in series. Do not send another AT command
before the result for the current command is returned or the current command times
out (except when the current command is an abortive AT command). The following
table lists AT command timeout durations (starting from the time when an AT
command arrives at a port).
Table 1-1 AT command timeout duration
AT Command
Timeout Duration
General AT commands
30s
AT+CMSS/AT+CMGS (used to send text
messages)
60s
AT+COPS=? (used to search for networks)
120s
After an AT command times out, it is recommended that the host check whether the
module is functioning normally. The following procedure is provided for your
reference:
1. The host sends AT to the module.
2. If the module returns failure information, go to step 5.
3. If the module returns success information, the module is functioning normally.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Overview
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
4. If the host times out (the host waits for a response for over 30 seconds) three
times when waiting for the response from the module, go to step 5. Otherwise go
to step 1.
5. The host deems that the current module does not exist or is unavailable. Close
the port, stop sending all AT commands, exit the procedure to determine
whether the module is normal, and re-search for modules.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Initialization Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
2 Initialization Application Scenarios
2.1 Startup Indication ^SYSSTART
2.1.1 Reference Process
Command
Description
A module, without solicitation, presents ^SYSSTART to
its host to indicate that the module is starting.
^SYSSTART
Indicate that a module is starting.
NOTE
- ^SYSSTART is presented only when a module is starting and will not be presented after a
module has started.
- ^SYSSTART is presented only after the radio frequency (RF) initialization completes and
will not be presented in offline mode.
- ^SYSSTART is only report on URAT port, USB port not demanded.
2.1.2 Troubleshooting
Scenario
Possible Error
Information
Solution
The module presents
^SYSSTART during startup.
After that, the module
presents ^SYSSTART again.
Indicate that the
module has been
reset.
If ^SYSSTART is presented
repeatedly, send the module
to the specified repair center.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Initialization Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
2.2 Querying Basic Information
2.2.1 Reference Process
Command
Description
AT+GMR/CGMR
Query software version.
Software version
OK
Software version. e.g. 11.430.37.00.00
AT+GMI/CGMI
Query manufacturer identification.
Manufacturer
Identification
OK
For example: Huawei Technologies Co., Ltd.
AT+GMM/CGMM
Query model identification.
Model identification
OK
For example: ME909u-523
AT+GSN/CGSN
Query product IMEI.
IMEI
OK
For example: 865261010004010
NOTE
The previously listed commands are query commands and cannot be used to configure
settings.
2.2.2 Troubleshooting
Scenario
Possible Error
Information
Solution
AT+GSN/CGSN
+CME ERROR: memory
failure
This error occurs when a
module's IMEI is not specified.
This problem is solved after
the IMEI is written into the
module.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Initialization Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
17
2.3 Network Service Operations
2.3.1 Reference Process
Command
Description
AT+CFUN?
Query a module's current mode. 1 indicates
online mode.
+CFUN: 1
OK
AT+CPIN?
Query whether a module's SIM card is
password protected. READY indicates that
the SIM card is ready.
+CPIN: READY
OK
AT^HCSQ?
Query the network signal quality.
^HCSQ: "WCDMA",30,30,58
OK
AT+COPS?
Return the current network selection mode,
information about the operator with which
the module is registered, and the wireless
access standard.
+COPS: "Network status
information"
OK
For example: +COPS: 1,0, "China Mobile
Com"
AT+COPS=0
Automatically search for networks.
OK
AT+CREG?
Query the state of the currently registered
network.
+CREG: 0,1
OK
AT+CREG=1
Set the +CREG unsolicited indication.
OK
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Initialization Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
18
AT+CGDCONT=1,"IP","CMNET"[1]
Set specific PDP context. It is an example of
packet data service settings. Set the PDP
context required by packet data service dial-
up.
OK
NOTE
[1] Set the correct APN when data service is initialized.
2.3.2 Troubleshooting
Scenario
Possible Error Information
Solution
AT+COPS?
+CME ERROR: SIM failure
No SIM card is detected. Insert
a SIM card.
AT+CREG?
+CME ERROR: SIM failure
No SIM card is detected. Insert
a SIM card.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Network Searching and Registration Application
Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19
3 Network Searching and Registration
Application Scenarios
3.1 Searching and Registering Network
3.1.1 Reference Process
Command
Description
AT+COPS=0
Enable automatic search for networks.
OK
AT+COPS=1,2,"46000"
Manual search for the appointed network.
OK
AT+COPS=?
Search for all networks, and return the
networks.
OK
AT+CREG=2
Enable the unsolicited indication when
network registration state changes.
OK
AT^SYSCFGEX="00",3FFFFFFF
,1,2,7FFFFFFFFFFFFFFF,,
Set the system mode, network access order,
frequency band, roaming support, domain,
and other features.
OK
AT^SYSINFOEX
Query the system service state, domain,
roaming status, and system mode.
^SYSINFOEX:
1,0,1,255,,3,"WCDMA",41,"WCDMA"
OK
AT^HCSQ?
Query the signal quality.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Network Searching and Registration Application
Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
20
Command
Description
^HCSQ: "WCDMA",15,12,46
OK

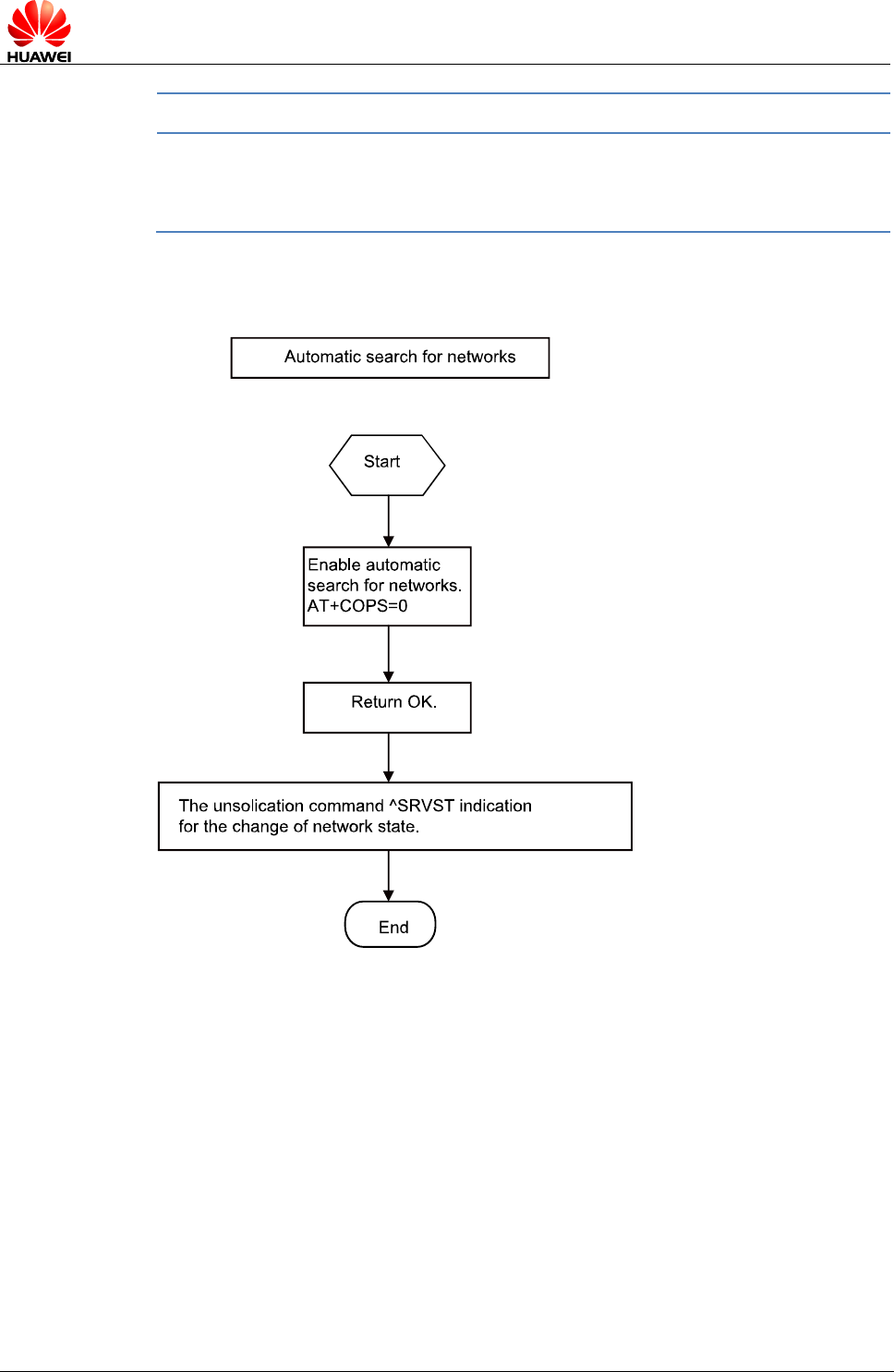

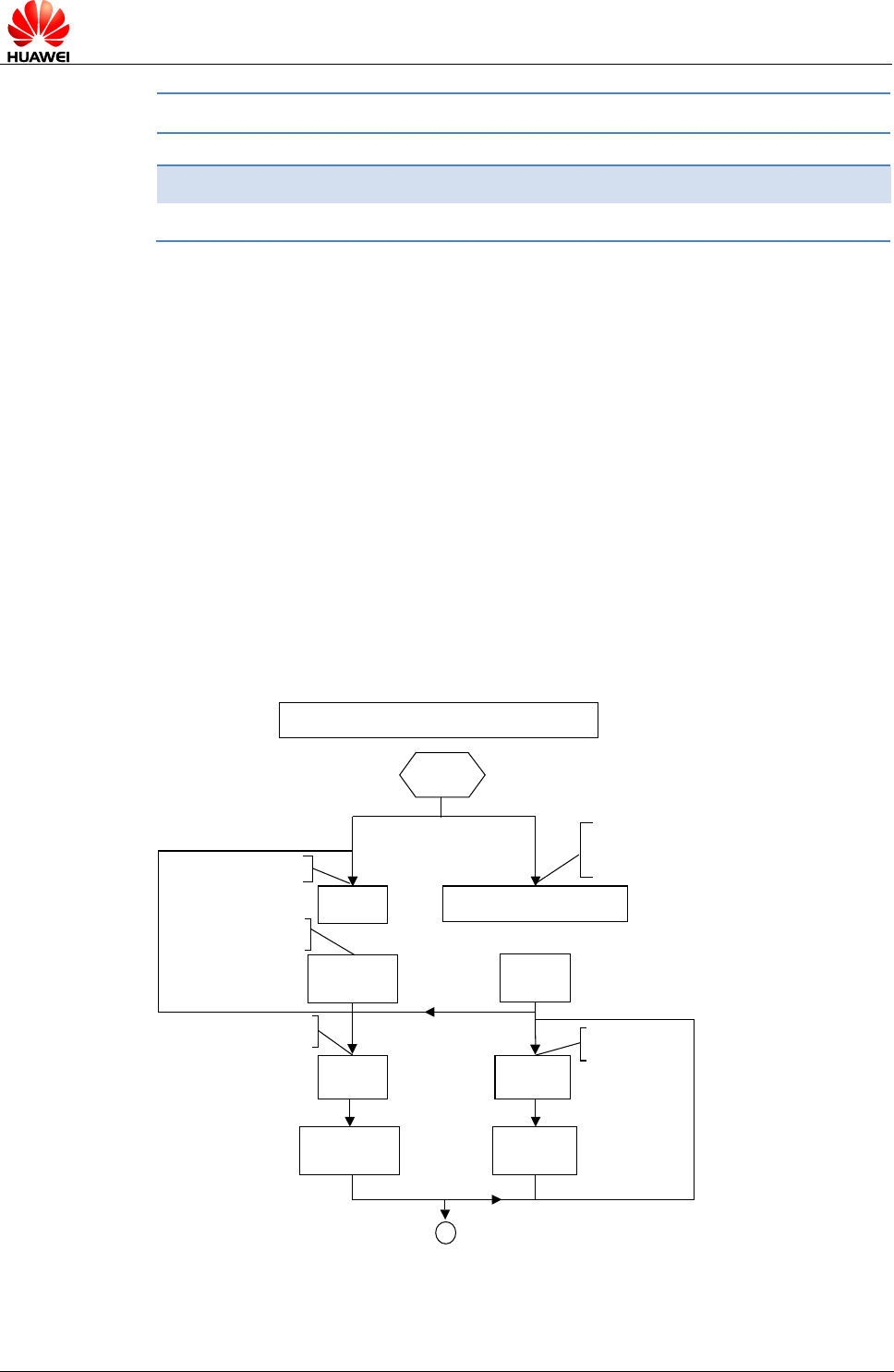

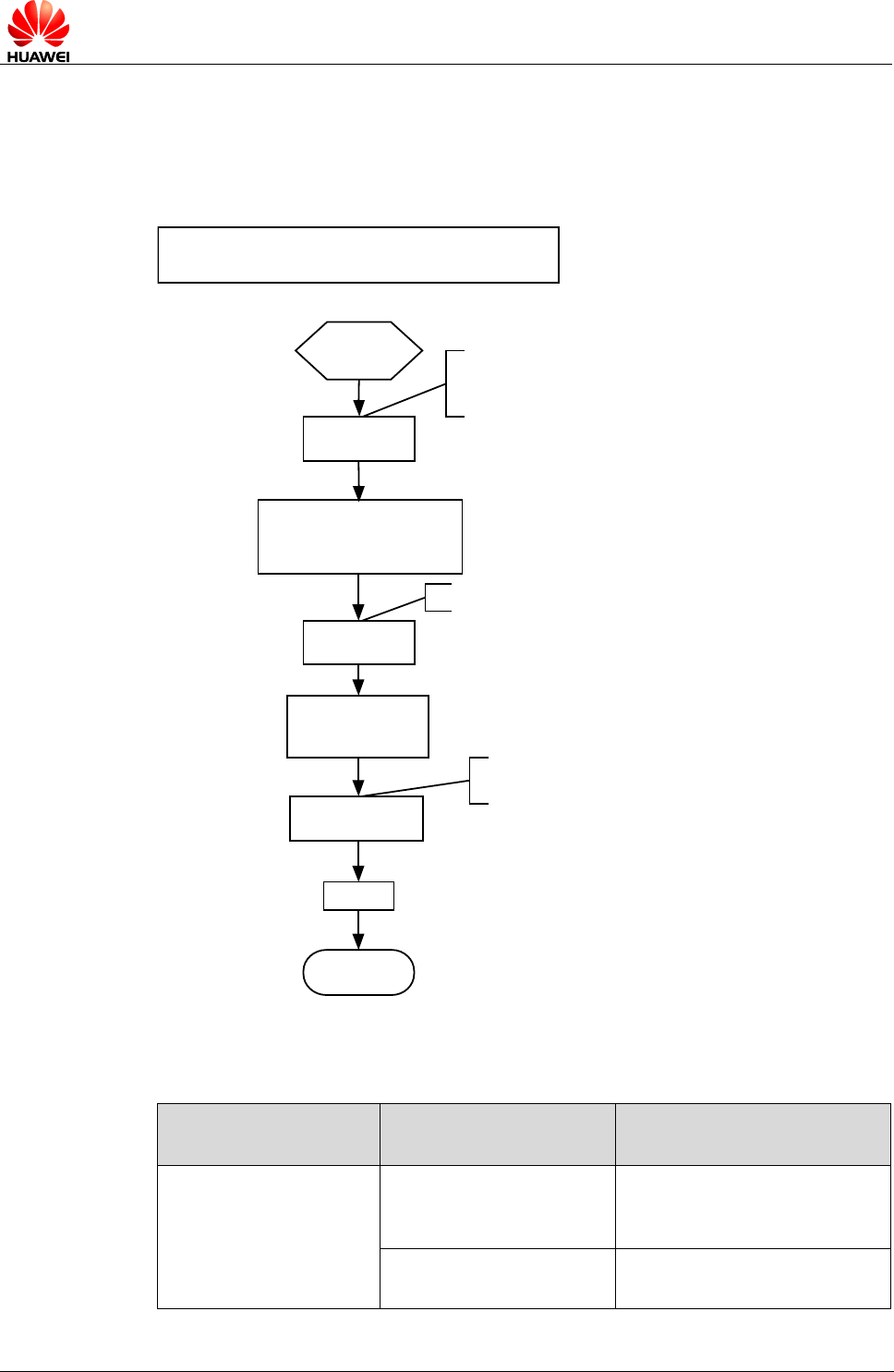

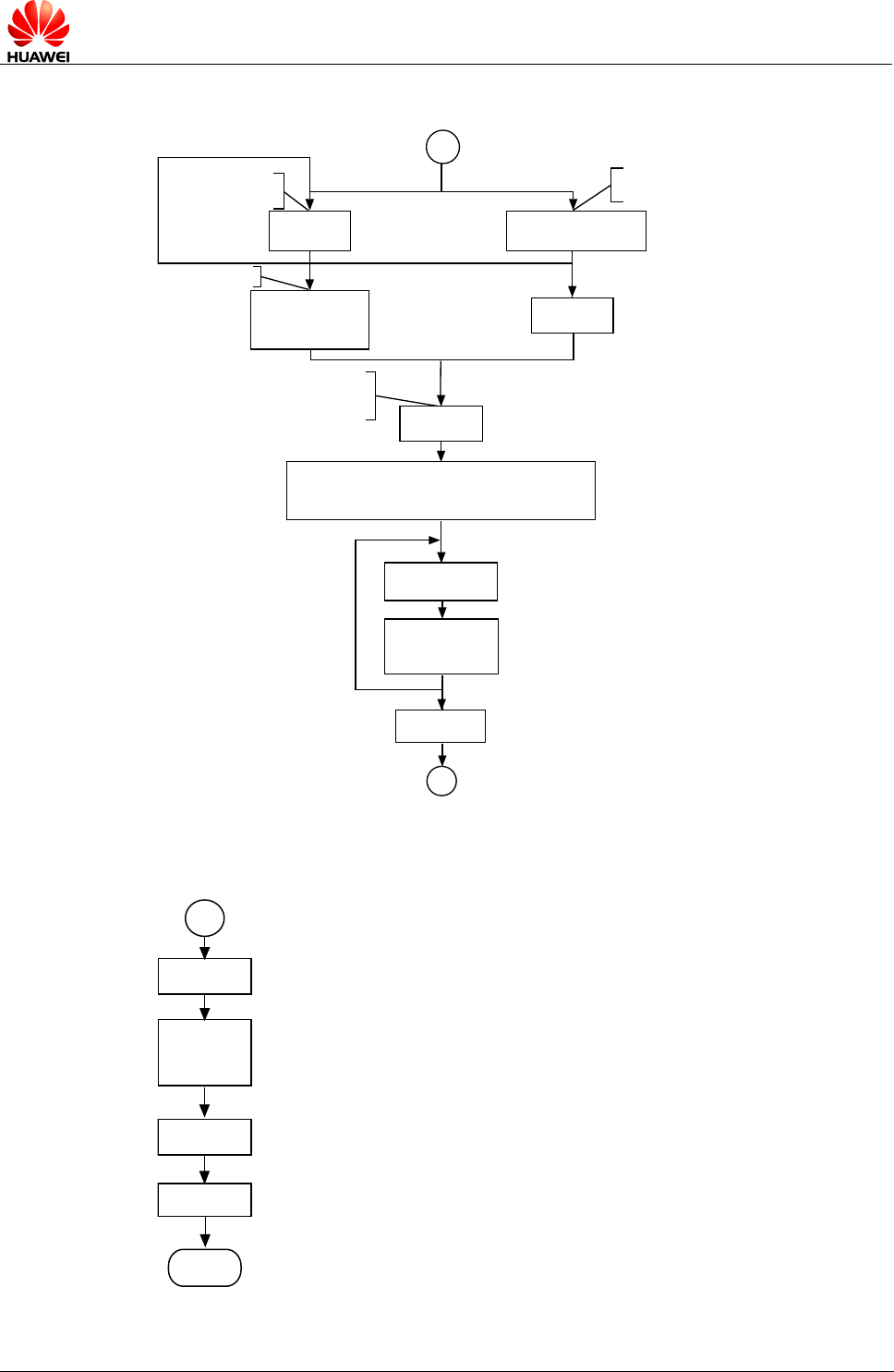

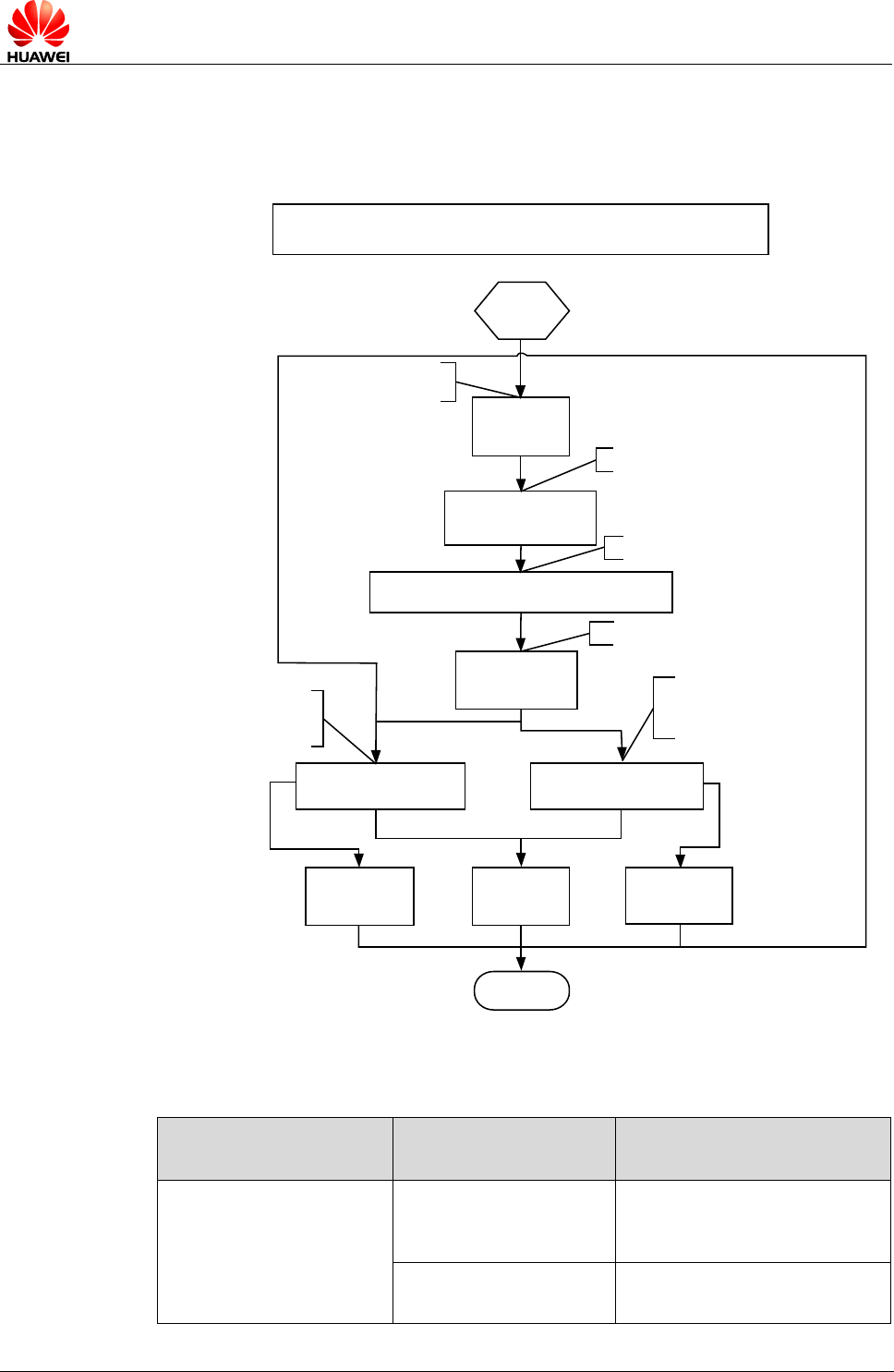

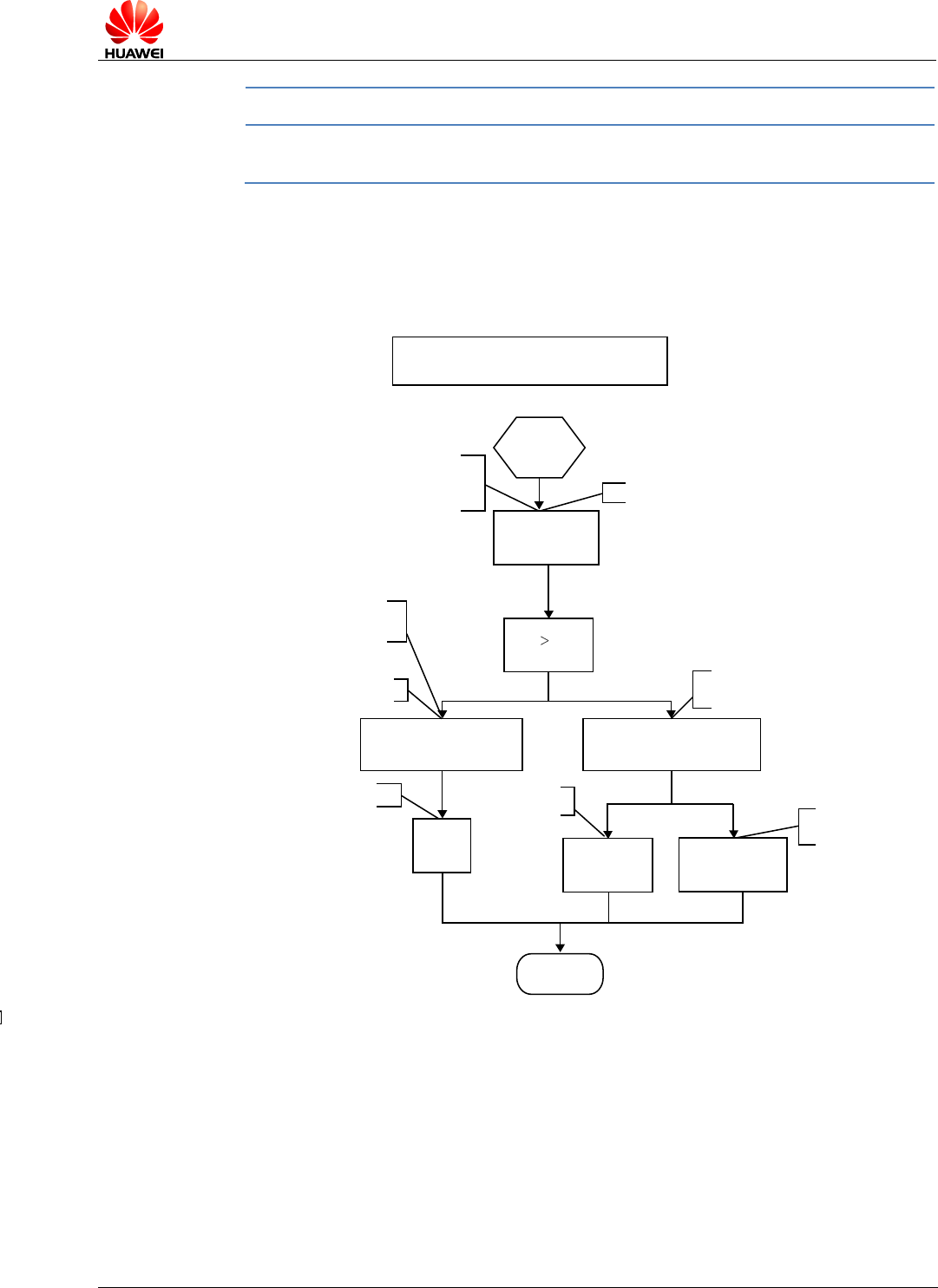

Figure 3-1 Automatic search for networks
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Network Searching and Registration Application
Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
21

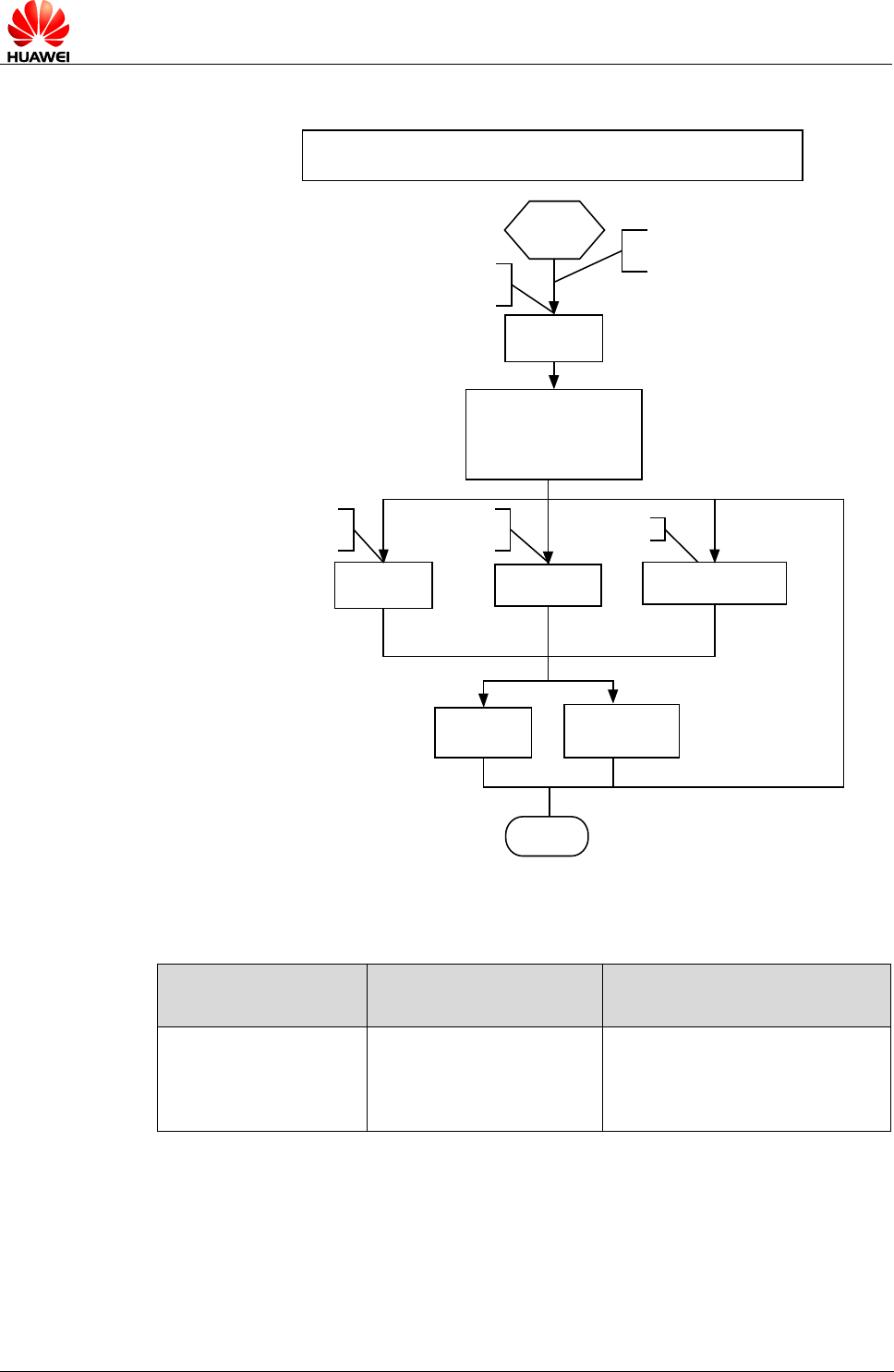

Figure 3-2 Manual search for networks
3.1.2 Troubleshooting
Scenario
Possible Error
Information
Solution
AT+COPS?
+CME ERROR: SIM
failure
No SIM card is detected. Insert
a SIM card.
AT+CREG?
+CME ERROR: SIM
failure
No SIM card is detected. Insert
a SIM card.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
ECM Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
22
4 ECM Application Scenarios
4.1 ECM Dialing
4.1.1 Reference Process
Command
Description
AT^NDISDUP=?
Check the parameter range supported by
the command.
^NDISDUP: (1-16),(0-1)
OK
AT^NDISDUP=1,1,"1234"
Set up a dial-up connection using the
APN provided by the network server.
OK
^NDISSTAT: 1,,,"IPV4"
The command is successfully executed.
Report the dial-up connection state.
AT^NDISDUP=1,1,"4321","huawei",
"huawei",1
Set up a dial-up connection using the
account, password, and authentication
mode provided by the network server.
OK
^NDISSTAT: 1,,,"IPV4"
The command is successfully executed.
Report the dial-up connection state.
The process of obtaining the IP address:
1. After host application sending AT^NDISDUP command to launch or terminal the
ECM connection, Huawei module will report the ^NDISSTAT command to
indicate the connection state.
2. Host application can get the connection state from ^NDISSTAT report, if the
connection state updated, the host application should to launch the dhcp client to
update the ECM IP address or disable the ECM.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
ECM Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
23
3. Host application also can send AT command AT^NDISSTATQRY? to query the
current ECM connection state, and determine to update or disable the ECM by
the dhcp client.
4.1.2 Troubleshooting
Scenario
Possible Error
Information
Solution
AT^NDISDUP=1,1,"1234"
+CME ERROR: SIM
failure
No SIM card is
detected. Insert a SIM
card.
AT^NDISDUP=1,1,"4321",
"huaei","huawei",1
OK
^NDISSTAT: 0,33,,"IPV4"
^NDISEND:1,29
NDISEND indicates the
failure reason during
the dial-up.
29 indicates that the
authenticated
information is not
correct.
AT^NDISDUP=1,1,"abcd"
OK
^NDISSTAT: 0,33,,"IPV4"
^NDISEND:1,33
NDISEND indicates the
failure reason during
the dial-up.
33 indicates that
request service is not
specified.
In this case, the
network don not
support this APN
"abcd".
4.2 Querying the Dial-up Connection State
4.2.1 Reference Process
Command
Description
AT^NDISSTATQRY?
Query the dial-up connection state.
^NDISSTATQRY: 0,0,,"IPV4"
OK
Report that the connection is not set up.
AT^NDISSTATQRY?
Query the dial-up connection state.
^NDISSTATQRY: 1,,, "IPV4"
OK
Report that the connection is set up.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
ECM Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
24
4.2.2 Troubleshooting
None
4.3 Disconnecting the Dial-up Connection
4.3.1 Reference Process
Command
Description
AT^NDISDUP=1,0
Disconnect the dial-up connection.
OK
^NDISSTAT:0,,,"IPV4"
The command is successfully executed.
IPv4 changes from the connected state to
the disconnected state.
4.3.2 Troubleshooting
None
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SMS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
25
5 SMS Application Scenarios
5.1 Overview
Short Message Service (SMS) is a text messaging service using a service center (SC)
to transfer short text messages between MEs and Short Message Entities (SMEs).
A message must contain the following information before it is sent:
For a PDU mode message:
- Length of TPDU package
- Message content: To compose or send a PDU mode message, the message
must contain all the message attributes and be encoded in PDU format. A PDU
consists of the following:
− Service Center Address (SCA): composed of the address length, SCA type
and SCA reverse byte.
− First octet: contains the message type indicator, TP-RP, TP-UDHI, TP-SRR,
TP-VPF, TP-RD, and TP-MTI.
− Short text message statement.
− Destination address: consisting of the destination address, address length
and destination address type.
− Protocol identifier.
− Data encoding scheme.
− Validity duration.
− Data length.
− User data: consisting of the user data header and the data encoded in PDU
format.
Figure 5-1 shows an example of data encoded in PDU format of submitted type.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SMS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
26
Figure 5-1 Example of data encoded in PDU format of submitted type
Figure 5-2 shows the general SMS process.
Figure 5-2 General SMS process
SMS
Start
SMS initialization
Delete short
messages
Write short
messages
Receive
short messages
Read short
messages
Send short
messages Status report
End
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SMS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
27
5.2 Initializing SMS
5.2.1 Reference Process
Command
Description
AT+CSCA?
Query the SMSC address.
+CSCA:
"13800688509",129
OK
AT+CSCA="+8613800755
500"
Set the SMSC address to the SMSC number of
China Mobile's Shenzhen Branch.
OK
AT+CSMS?
Query the short message service type.
+CSMS: 0,1,1,1
OK
AT+CNMI?
Query the configuration of the new message
indications to TE.
+CNMI: 0,0,0,0,0
OK
AT+CNMI=2,1,2,2,0
Configure the new message indications to TE.
OK
AT+CPMS?
Query the preferred short message storage.
+CPMS: "SM",12,20,"SM",12,20,"SM",12,20
OK
AT+CPMS="SM"
Set SM as short message storage medium.
OK
AT+CGSMS?
Query the MO SMS bearer domain.
+CGSMS: 1
OK
AT+CMGF?
Query the short message format.
+CMGF: 0
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SMS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
28
Command
Description
OK
AT+CMGF=0
Set the short message format to PDU.
OK
Use the AT+CMGF command to set short message format: AT+CMGF=0 sets the
short message format to PDU.
The SMSC address provided by the service provider must be specified. In PDU mode,
the SMSC address is contained in the PDU packets. Therefore, in PDU mode, the
AT+CSCA command is optional.
To use the SMS features specified in the GSM 07.05 Phase 2+, the AT+CSMS
command must be used to enable the features.
Use the AT+CNMI command to set the unsolicited indications.
Use the AT+CPMS command to select the preferred short message storage (SIM or
ME). The ME909u-523 supports only the SM (SIM card) storage.
Use the AT+CGSMS command to select the MO SMS bearer domain (PS or CS
domain). For ME909u-523, the CS domain is the preferred MO bearer domain.
Figure 5-3 SMS initialization process – part 1
SMS initialization
Start
Query the SMSC
address.
Set the SMSC address to the SMSC
number of China Mobile's
Shenzhen Branch.
Set the message
service type.
Require the message
service type.
AT+CSCA?
AT+CSMS? AT+CSMS=1
+CSCA: "",129
OK
+CSMS: 0,1,1,1
OK
*
OK
AT+CSCA="+8613800755500"
+CSMS: 1,1,1
OK
Example: SMSC
address is not specified.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SMS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
29
Figure 5-4 SMS initialization process – part 2
Query the unsolicited
indication state.
Enable the notification
of new messages.
Default values
Query the preferred storage
for the current message.
*
AT+CPMS?
AT+CGSMS?
+CNMI: 0,0,0,0,0
OK
AT+CNMI=2,1,2,2,0
+CGSMS: 1
OK
*
OK
+CPMS: "SM",13,20,"SM",13,20,"SM",13,20
OK
AT+CNMI?
AT+CMGF=0
Figure 5-5 SMS initialization process – part 3
End
OK
AT+CMGF=0
AT+CMGF?
*
+CMGF:0
OK
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SMS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
30
5.2.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Error information is
returned in response to
one of the previous
commands.
+CME ERROR: SIM
PIN required
Enter the correct PIN.
+CMS ERROR: SIM
busy
SIM card initialization has not
completed. Try again later.
5.3 Sending Short Messages
5.3.1 Reference Process
Command
Description
AT+CMGF=0
Set the short message format to PDU.
OK
AT+CSCA?
Query the SMSC address.
+CSCA: "13800688509",129
OK
AT+CMGS=18
>0031000B813109731147F4
0000FF04F4F29C0E\x0A
Send a PDU message without the service center
address. The value of SMSC address is the setting
of +CSCA command.
+CMGS: 168
OK
The message is successfully sent.
AT+CMGS=18
>0891683108608805F93100
0B813109731147F40000FF0
4F4F29C0E\x1A
Send a PDU message with the correct service
center address.
+CMGS: 169
OK
The message is successfully sent.
AT+CMGS=18
>0891683108608805F03100
0B813109731147F40011FF0
4F4F29C0E\x1A
Send a PDU message with the wrong service
center address.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SMS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
31
Command
Description
+CMS ERROR: Network out
of order
The message is unsuccessfully sent.
Messages in PDU format must be converted using external tools or users' software.
Tools for encoding and parsing messages in PDU format are available on the Internet.
Figure 5-6 Sending short messages in PDU format
Sending messages in PDU format
Start
Send a short message
(given that the PDU length is 18) SMS initialization
PDU message
without SCA
Press <ctrl-Z> to send
the command.
Press <ESC> to cancel
the command
Example: Message
not sent Message sent
unsuccessfully
End
AT+CMGS=18
+CMS ERROR:
Network out of
order
OK
0031000B813109731147F4
0000FF04F4F29C0E
<ESC>
0891683108608805F931000B
813109731147F40000FF04F4
F29C0E<ctrl-Z>
+CMGS:1
OK
Message sent
successfully
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SMS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
32
5.3.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Error information is
returned in response
to one of the previous
commands.
+CMS ERROR:
Network out of order
Check the validity of the
service center address or the
state of the current network.
5.4 Reading Short Messages
5.4.1 Reference Process
Command
Description
AT+CMGL=0
List all received unread messages.
+CMGL: 2,0,,48
0891683108608805F9040D916831
09732097F2000001432619001001
F506215744FD3D1A0E930C8429
6D9EC370BFDE86C2F23228FFA
EFF00
+CMGL: 4,0,,64
0891683108608805F9040D916831
09732097F2000001403261310500
32506215744FD3D1A0E930C8429
6D9EC370BFDBE83C2B0380F6A
97416FF7B80C6AVFE5E510
OK
The format of short messages can refer to
the AT+CMGL command.
AT+CMGR=4
Read the message stored in the message
storage location 4.
+CMGR: 1,,64
0891683108608805F9040D916831
09732097F2000001403261310500
32506215744FD3D1A0E930C8429
6D9EC370BFDBE83C2B0380F6A
97416FF7B80C6AVFE5E510
OK
The format of short messages can refer to
the AT+CMGR command.
There are two methods to read short messages:
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SMS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
33
- Method 1: Use the AT+CMGL command to list the messages that are in
specified state and stored in the preferred message storage. The following table
describes the message states. If the message sate is received unread
messages, the REC UNREAD state will be changed to REC READ after the
AT+CMGL command is executed.
Message State
PDU Mode
Received unread messages
0
Received read messages
1
Stored unsent messages
2
Stored sent messages
3
All messages
4
- Method 2: Use the AT+CMGR command to read a message from a specified
storage location in the message storage. If the message is a received unread
message, its state will be changed to REC READ after it is read using the
AT+CMGR command.
You can use the AT+CMGL command to list all short messages so that you can view
the messages' storage locations.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SMS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
34

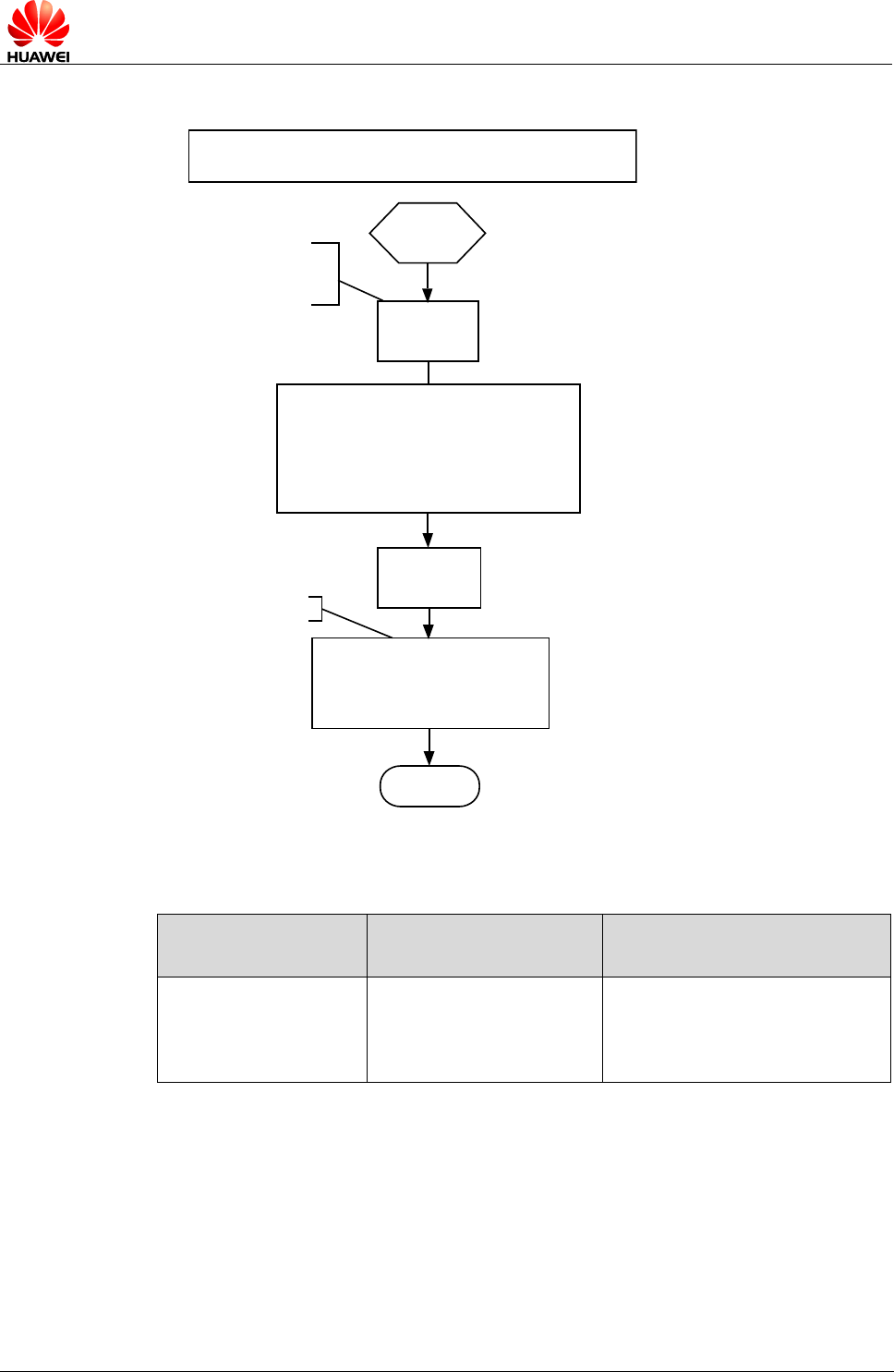

Figure 5-7 Reading short messages
Reading short messages
Start
List received unread
messages in PDU format
+CMGL:<index1>,0,,<length>
<pdu> (messages in PDU format)
......
+CMGL:<indexn>,0,,<length>
<pdu> (messages in PDU format)
OK
PDU format
+CMGR:n,,<length>
<pdu> (messages in PDU format)
OK
End
AT+CMGL=0
AT+CMGR=n
5.4.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Error information is
returned in response
to one of the previous
commands.
+CMS ERROR: invalid
memory index
Check the validity of the index.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SMS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
35
5.5 Deleting Short Messages
5.5.1 Reference Process
Command
Description
AT+CMGF=0
Set the message format to PDU mode.
OK
AT+CMGL=4
List all short messages (PDU mode).
+CMGL: 6,2,,30
0011000A9171798762130000A713C8329BFD6681D0EF3B282C2F83F2EFFA0F
+CMGL: 11,1,,36
0791947106004013240C9194715982699000003080413115748013C8329BFD66
81D0EF3B282C2F83F2EFFA0F
OK
AT+CMGD=1
Delete the message stored in storage location 1.
OK
- Either all messages stored in the preferred message storage or a message
stored in the specified storage location in the preferred message storage can be
deleted.
- All read or unread messages that have been received can be deleted.
- If no messages are stored in the preferred message storage, "OK" is returned
when the action to delete messages is completed.
- Meanings of the DelFlag value:
− 1: Delete all read messages in the preferred message storage, and keep the
unread, sent and unsent messages.
− 2: Delete all read and sent messages in the preferred message storage, and
keep the unread and unsent messages.
− 3: Delete all read, sent, and unsent messages in the preferred message
storage, and keep the unread messages.
− 4: Delete all messages in the preferred message storage, including the
unread messages.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SMS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
36
Figure 5-8 Deleting short message
Deleting short messages
Start Prerequisite:
SMS has been initialized.
Example: Lists all short
messages in PDU format.
Delete the message
stored in
location n in the preferred
storage.
Equivalent to
AT+CMGD=n
End
OK
+CMSERROR:
AT+CMGD=n AT+CMGD=n,0
AT+CMGL=4
AT+CMGD=x,DelFlag
X:(0-999)
+CMGL: 1,<parameters>
07919471060040
+CMGL: 2,<parameters>
07919471060040
......
invalid memory
index
5.5.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Error information is
returned in response
to one of the previous
commands.
+CMS ERROR: invalid
memory index
Check the validity of the index.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Phonebook Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
37
6 Phonebook Application Scenarios
6.1 Overview
As a product embedded into a host, the phonebook scenarios include that read, write,
query and delete the phonebook entries in the SIM card.
Read Phonebook: use the AT+CPBR command to read phonebook entries.
Write phonebook: use the AT+CPBW command to save the phonebook entries into
the SIM card.
Delete phonebook: use AT+CPBW command to delete the phonebook entries in the
SIM card.
6.2 Memory Operations
6.2.1 Reference Process
Command
Description
AT+CPBS=?
Query the current storage type.
+CPBS: ("SM","EN","ON")
OK
AT+CPBS="SM"
Set the current storage type to "SM".
OK
AT+CPBS?
241 indicates that 241 entries have been
stored in the storage. 250 indicates that the
maximum storage capacity of the current
storage ("SM") is 250 entries.
+CPBS: "SM",241,250
OK
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Phonebook Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
38
Note that the AT commands for reading and writing phonebook entries can be used
only after the phonebook storage is selected. To select a phonebook storage, use the
AT+CPBS command.

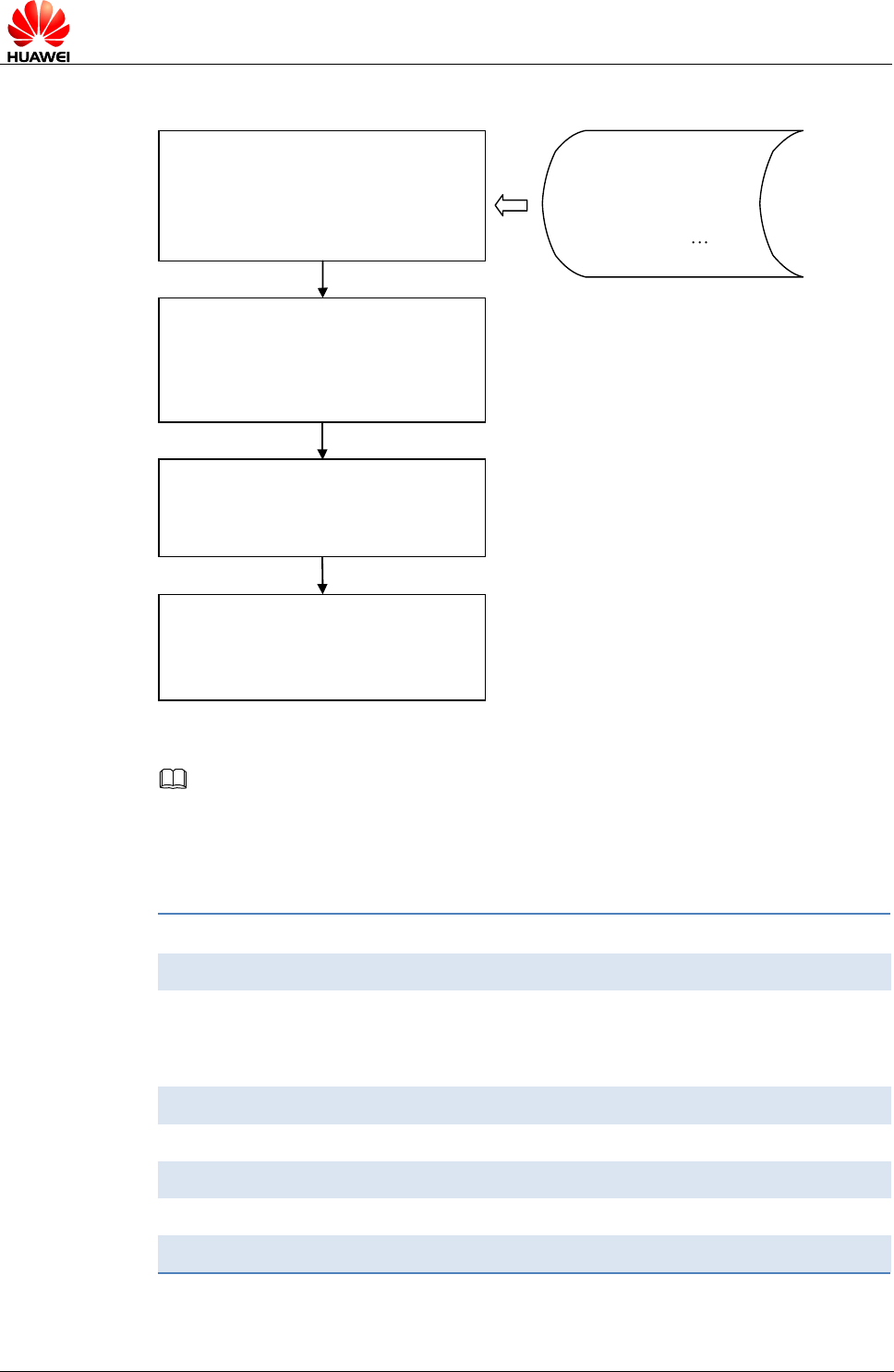

Figure 6-1 Initializing the phonebook
Initializing the phonebook
Start Query the available
storage types for the phonebook.
Query the current phonebook storage.
Select SM as the storage type
End
OK
AT+CPBS=“SM”
+CPBS:“ON”,0,0
OK
AT+CPBS?
AT+CPBS=?
+CPBS:(“SM”, “EN”,“ON”)
OK
6.2.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Error information is
returned in response to
one of the previous
commands.
+CME ERROR: SIM
busy
Phonebook initialization has
not completed. Try again
later.
+CME ERROR: SIM PIN
required
Enter the correct PIN.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Phonebook Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
39
Scenario
Possible Error
Information
Solution
+CME ERROR: SIM
PUK required
Enter the correct PUK.
6.3 Reading Phonebook Entries
6.3.1 Reference Process
Command
Description
AT+CPBS?
Query the phonebook storage
selection and the maximum number
of entries that can be stored.
+CPBS: "SM",9,20
OK
AT+CPBR=1,20
List all phonebook entries by their
indexes.
+CPBR: 1,"+491765864491",145,"John Smith"
+CPBR: 2,"+44545896638",145,"Paul Williams"
+CPBR: 3,"+44556565657",145,"Joe Anderson"
+CPBR: 4,"+445636934485",145,"Oscar Thomso”
+CPBR: 5,"+445565656899",145,"Hannah Adams"
+CPBR: 6,"+447982865563",145,"Samantha Young"
+CPBR: 7,"+449585315798",145,"Alexis Wright"
+CPBR: 8,"+445415454646",145,"Abigail Cox"
+CPBR: 12,"+446565689115",145,"Kyla Clark"
OK
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Phonebook Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
40
Figure 6-2 Reading phonebook entries
6.3.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Error information is
returned in response
to one of the previous
commands.
+CME ERROR: SIM
busy
Phonebook initialization has
not completed. Try again later.
+CME ERROR: SIM PIN
required
Enter the correct PIN.
+CME ERROR: SIM
PUK required
Enter the correct PUK.
AT+CPBR=<index1>
+CME ERROR: invalid
index
The index is invalid. Check
that index 1 is within the
supported range.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Phonebook Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
41
Scenario
Possible Error
Information
Solution
AT+CPBR=<index1>
,<index2>
+CME ERROR: invalid
index
The index is invalid. Check
that index 1 and index 2 are
within the supported range and
that index 1 is not greater than
index 2.
AT+CPBR=<index1>
+CME ERROR: not
found
No entries are found in the
storage locations in index 1.
Check that there have been
entries successfully written into
these locations.
AT+CPBR=<index1>
,<index2>
+CME ERROR: not
found
No entries are found in the
storage locations between
index 1 and index 2. Check
that there have been entries
successfully written into these
locations.
6.4 Writing/Deleting Phonebook Entries
6.4.1 Reference Process
Command
Description
AT+CPBR=?
Query the ranges of parameters related to the
phonebook entries.
+CPBR: (1-250),24,14
OK
AT+CPBW="5","13903702
805",,"test"
Write a phonebook record.
OK
AT+CPBW=1
Delete the entry in index 1 in the phonebook.
OK
There are two methods to edit phonebook entries using the AT+CPBW command:
- Write an entry to a specified location. This method edits the location where a
phonebook entry exists or writes a new entry to a vacant location.
- Write a new phonebook entry to the next location of a location that already has a
phonebook entry. This method does not require a specified storage location. The
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Phonebook Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
42
AT+CPBW command can be used to edit phonebook entries of the "SM" or "ON"
type.
Figure 6-3 Writing phonebook entries
Writing phonebook entries
Start
AT+CPBR=?
+CPBR: (1-250),20,16
OK
+CPBR: 1,"+491765864491",145,"John Smith"
+CPBR: 3,"+441236548545",145,"Emily Miller"
Query the ranges of
parameters related
to the phonebook
entries.
Parameter ranges
Read all phonebook entries.
Read all the returned results.
Write phonebook
parameters.
AT+CPBW=,"+44546465
4568",145,"Paul Williams"
OK
+CEM ERROR:
memory full
+CEM ERROR:
invalid index
AT+CPBW=1,"+44546465
4568",145,"Paul Williams"
Write a phonebook
entry to a vacant location.
Write a phonebook entry
to a specified location.
Note: If an entry already
exists in the location,
the entry will be overwritten.
End
6.4.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Error information is
returned in response to
one of the previous
commands.
+CME ERROR: SIM
busy
Phonebook initialization has
not completed. Try again
later.
+CME ERROR: SIM
PIN required
Enter the correct PIN.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Phonebook Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
43
Scenario
Possible Error
Information
Solution
+CME ERROR: SIM
PUK required
Enter the correct PUK.
Error information is
returned when writing an
entry into the
phonebook.
+CME ERROR: dial
string too long
Check that the phone
number is not too long.
Error information is
returned in response to
one of the previous
commands.
+CME ERROR:
invalid index
Check that the location index
and phone number type are
valid.
Error information is
returned when writing an
entry into the
phonebook.
+CME ERROR:
invalid characters in
dial string
The phone number to be
written into the phonebook
contains invalid characters.
Delete the invalid characters
and try again.
AT+CPBW=,"123456789
01234567890123",128,"
80534E4E3A"
+CME ERROR:
memory full
The storage is full. Delete
some entries and try again.
6.5 Searching for Phonebook Entries
6.5.1 Reference Process
Command
Description
AT+CPBF=<findtext>
Search the current storage for
phonebook entries that contain
the <findtext> field.
+CBPF: <index1>,<number>,<type>,<text>
+CBPF: <index2>,<number>,<type>,<text>
...
OK
AT+CPBF=?
Return the maximum phone
number length and maximum
name length supported by the
current phonebook storage.
+CPBF: <nlength>,<tlength>
OK
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Phonebook Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
44
6.5.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Error information is returned
in response to one of the
previous commands.
+CME ERROR: SIM
busy
Phonebook initialization has
not completed. Try again
later.
+CME ERROR: SIM
PIN required
Enter the correct PIN.
+CME ERROR: SIM
PUK required
Enter the correct PUK.
AT+CPBF=<findtext>
+CME ERROR: not
found
No matches were found.
Check whether the current
phonebook storage has
entries that match the search
criterion.
6.6 Querying User Number
6.6.1 Reference Process
Command
Description
AT+CNUM
Query the SIM number.
+CNUM: [<alpha1>],<number1>,<type1>
+CNUM: [<alpha2>],<number2>,<type2>
...
OK
6.6.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Error information is
returned in response to
one of the previous
commands.
+CME ERROR: SIM
busy
Phonebook initialization has
not completed. Try again
later.
+CME ERROR: SIM PIN
required
Enter the correct PIN.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Phonebook Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
45
Scenario
Possible Error
Information
Solution
+CME ERROR: SIM
PUK required
Enter the correct PUK.
6.7 Setting the TE's Character Sets
6.7.1 Reference Process
Command
Description
AT+CSCS=?
Query the character sets supported by the
UE.
+CSCS: ("IRA","GSM","UCS2")
OK
AT+CSCS?
Query the current character set.
+CSCS: "IRA"
OK
AT+CPBR=1
Read the first phonebook entry. The TE
character set is the International
Reference Alphabet (IRA). The content of
the first entry's name field is "HUAWEI".
+CPBR: 1,"0123456789",129,"HUAWEI"
OK
AT+CSCS="UCS2"
Set the TE's character set to UCS
alphabet.
OK
AT+CPBW=1,"0123456789",129,"00
4800550041005700450049"
The character set is the UCS alphabet.
The content of the phonebook entry's
name field is
004800550041005700450049, which is
"HUAWEI" in the IRA.
OK
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Phonebook Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
46
Command
Description
AT+CPBR=1
Read the first phonebook entry. The TE
character set is UCS alphabet. The
content of the first entry's name field is
004800550041005700450049 ("HUAWEI"
in the IRA).
+CPBR: 1,"0123456789",129,"004800550041005700450049"
OK
6.7.2 Troubleshooting
None
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SIM Operation Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
47
7 SIM Operation Application Scenarios
7.1 PIN Operations
7.1.1 Reference Process
Command
Description
AT+CLCK="SC",1,"<pwd>"
Enable PIN authentication. (<pwd>
specifies the PIN. See note 1.)
OK
AT+CLCK="SC",2
Request the SIM card state.
+CLCK: 1
OK
"+CLCK: 1" means that the SIM card is
not blocked.
AT+CLCK="SC",0," <pwd>"
Disable the SIM card lock. (<pwd>
specifies the PIN. See note 1.)
OK
AT+CLCK="SC",2
Request the SIM card state.
+CLCK: 0
OK
"+CLCK: 0" means that the SIM card is
not blocked.
AT+CLCK="SC",1,"<pwd>"
Enable PIN authentication. (<pwd>
specifies the PIN. See note 1.)
OK
AT+CPIN="<pwd>"
Request the PIN after the module
restarts.
OK
AT+CPIN?
Request the PIN state.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SIM Operation Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
48
Command
Description
+CPIN: READY
OK
AT+CLCK="SC",2
Request the SIM card state.
+CLCK: 1
OK
"+CLCK: 1" means that the SIM card is
not blocked.
AT+CPWD="SC","<oldpwd>","1234"
Change the PIN (1234 will be the new
PIN).
OK
AT+CPWD="SC","1113","1233"
Enter an incorrect PIN (first attempt).
+CME ERROR: incorrect password
AT+CPWD="SC","3333","1233"
Enter an incorrect PIN (second attempt).
+CME ERROR: incorrect password
AT+CPWD="SC","4711","1233"
Enter an incorrect PIN (third attempt).
+CME ERROR: SIM PUK required
AT+CPIN?
Check whether the password is
requested.
+CPIN: SIM PUK
OK
AT+CPIN="12345678","0000"
Enter the SIM PUK and specify the new
SIM PIN (activate new "SC" lock).
OK
NOTE
- After PIN authentication is enabled using AT+CLCK, the module must be restarted for the
change to take effect.
- Either AT^CPIN or AT+CPIN can be used to authenticate the PIN.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SIM Operation Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
49
7.1.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Enable PIN authentication.
AT+CLCK="SC",1,"<pwd>"
+CME ERROR:
operation not
allowed
If PIN authentication has
been enabled, it cannot be
enabled again. Check
whether PIN authentication
has been enabled.
Enter the PIN.
AT+CPIN="<pwd>"
+CME ERROR:
incorrect
password
Enter the correct PIN. The
original PIN is provided by
the operator.
+CME ERROR:
SIM PUK required
Incorrect PINs have been
entered three times and the
SIM card is blocked. Run
AT+CPIN="<PUK>","<pwd>
" to enter the PUK to unblock
the SIM card. The PUK is
provided by the operator and
cannot be changed by users.
If incorrect PUKs are entered
10 times, the SIM card will be
permanently blocked.
Changes the PIN.
AT+CPWD="SC","<oldpwd
>","<newpwd>"
+CME ERROR:
incorrect
password
<oldpwd> must be the
current PIN. Like the PIN
authentication, if incorrect
PINs are entered three times,
the PUK will be required. If
incorrect PUKs are entered
10 times, the SIM card will be
permanently blocked.
7.2 CRSM Command
7.2.1 Reference Process
Command
Description
AT+CRSM=176,12258,0,0,10
Read the file EFiccid with a transparent
structure. (12258 is 0X2FE2, the
EFiccid file's FID).
+CRSM: 144,0,"<record>"
OK
After the command is processed
successfully, the EFiccid file's content
(<record>) is returned.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SIM Operation Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
50
Command
Description
AT+CRSM=178,28476,1,4,176,,"7F10"
Use an absolute path to read the first
entry from the EFsms file on the SIM
card's DFtelecom folder.
+CRSM: 144,0,"<record>"
OK
<record> is the content of the first entry.
The length of <record> is 176 bytes.
AT+CRSM=192,12258
Get response of EFiccid.
+CRSM: 144,0,"<response>"
OK
<response> is the response data of
EFiccid. For details about <response>,
refer to the ETSI TS 102.221 protocol.
AT+CRSM=214,28421,0,0,2,"0012"
Update the content of the transparent
structure EFli file on the SIM card.
+CRSM: 144,0,""
OK
Update succeeded.
AT+CRSM=220,28476,1,4,176,"1111",
"7F10"
Update the content of the linear fixed
structure EFsms file on the SIM card.
+CRSM: 144,0,""
OK
Update succeeded.
AT+CRSM=242
Obtain the current directory information.
+CRSM: 108,"<length>","<status>"
OK
<length> indicates <status>’s length in
byte.
<status> indicates the current directory
status by hexadecimal.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
SIM Operation Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
51
NOTE
- To read or update a file, appropriate commands must be used according to the file's
structure type (for details, refer to the description of file properties in the 3GPP TS 31.102
protocol). For transparent structure files, use 176 (Read Binary) and 214 (Update Binary).
For linear fixed structure files, use 178 (Read Record) and 220 (Update Record).
- If <pathid> is not contained in the command, the module will prefer to access the files with
the same FID in the current directory.
- Files can be accessed only when the access criteria are met. Otherwise the SIM card will
return PSWs indicating that the access authentication failed. If an EF file's read privilege is
PIN protected and the module does not have the PIN authenticated, PSWs indicating that
the access authentication failed will be returned after the AT+CRSM command is used to
read the EF file.
- To use the AT+CRSM command to access the file content on the SIM card, the parameters
contained in the command must strictly meet the requirements in the ETSI TS 102.221 and
3GPP TS 31.102. For detailed requirements, refer to the ETSI TS 102.221 and 3GPP TS
31.102.
7.2.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Update the content of the
linear fixed structure EFsms
file on the SIM card.
AT+CRSM=178,12258,0,0,
10
+CRSM: 105,129,""
OK
The status word (SW)
indicates a Read command
error occurred. Files with a
transparent structure should be
read using 176 (READ
BINARY).
Update the content of the
linear fixed structure EFsms
file on the SIM card.
AT+CRSM=220,28476,1,4,
176,"1111","7F10"
+CRSM: 105,130,""
OK
The PSW indicates that the
security conditions were not
met. To update the EFsms
file, the correct PIN is
required.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Sleeping and Waking Up Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
52
8 Sleeping and Waking Up Application
Scenarios
As an embedded component in the host, the module also consumes power, which
increases the power consumption of the integrated product. Therefore, the most
important task of power management is to reduce the power consumption of the
integrated product by enabling the module's sleep mode when necessary.
The host and the module need to wake each other up from sleep if communication is
required. Therefore, another task of power management is to provide a wake-up
control mechanism for the host and module.
Power management involves three parts: the host system software (including the
USB driver/UART driver/GPIO driver/sleep mechanism functions), connection
hardware between the host and module, and the module's software wake-up
mechanism.
This chapter is mainly concerned with the module's software wakeup mechanism,
including the wake-up principle, how USB related events impact on the waking up of
the module and remotely waking up the module, and how the module remotely wakes
up the host.
This chapter briefly describes the power management related connection hardware
between the host and module.
This chapter does not describe the host system software. For example, if the host
runs on a Windows or Mac system, Huawei will provide a USB driver program
corresponding to the module. If the host runs on an Android system, Huawei will
provide Guide to Kernel Driver Integration in Linux for Huawei Modules for users to
configure the USB-based wakeup function of the module. If the host runs on a Linux
system, power management is supported only when the Linux Kernel version is
2.6.35 or later.
This document describes typical module application scenarios. A host can be
designed based on the actual system features and the application scenarios of the
module to reduce power consumption of both the module and integrated product.
After the host is designed as recommended by this document, the module's power
consumption and the whole unit's power consumption can meet the performance
requirements. For details, see related description in the product manual.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Sleeping and Waking Up Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
53
NOTE
To set the host to be in the standby state, check the module’s GPS service state first. If the
GPS service is enabled, the host should send AT^WPEND to disable the GPS service.
Otherwise, the module cannot enter sleep mode.
8.1 Hardware Interfaces
The module communicates with the host using mainly USB or UART. For details
about pins related to power management, see Table 8-1 .
For corresponding interface numbers and reference design for the pins, see HUAWEI
ME909u-523 LTE LGA Module Hardware Guide or HUAWEI ME909u-523 LTE Mini
PCIe Module Hardware Guide.
Table 8-1 Power management related pins
Interface
Pin name
Direction
Functional Description
Diagram
PCIE
WAKE#
Output
When a wake-up source arrives, this
pin output a low-level-voltage pulse
lasting for 1s during which if other
wake-up sources arrive, the module
will ignore the later wake-up requests.
In other words, the module will not
output a second pulse during this 1s.
Figure 8-1

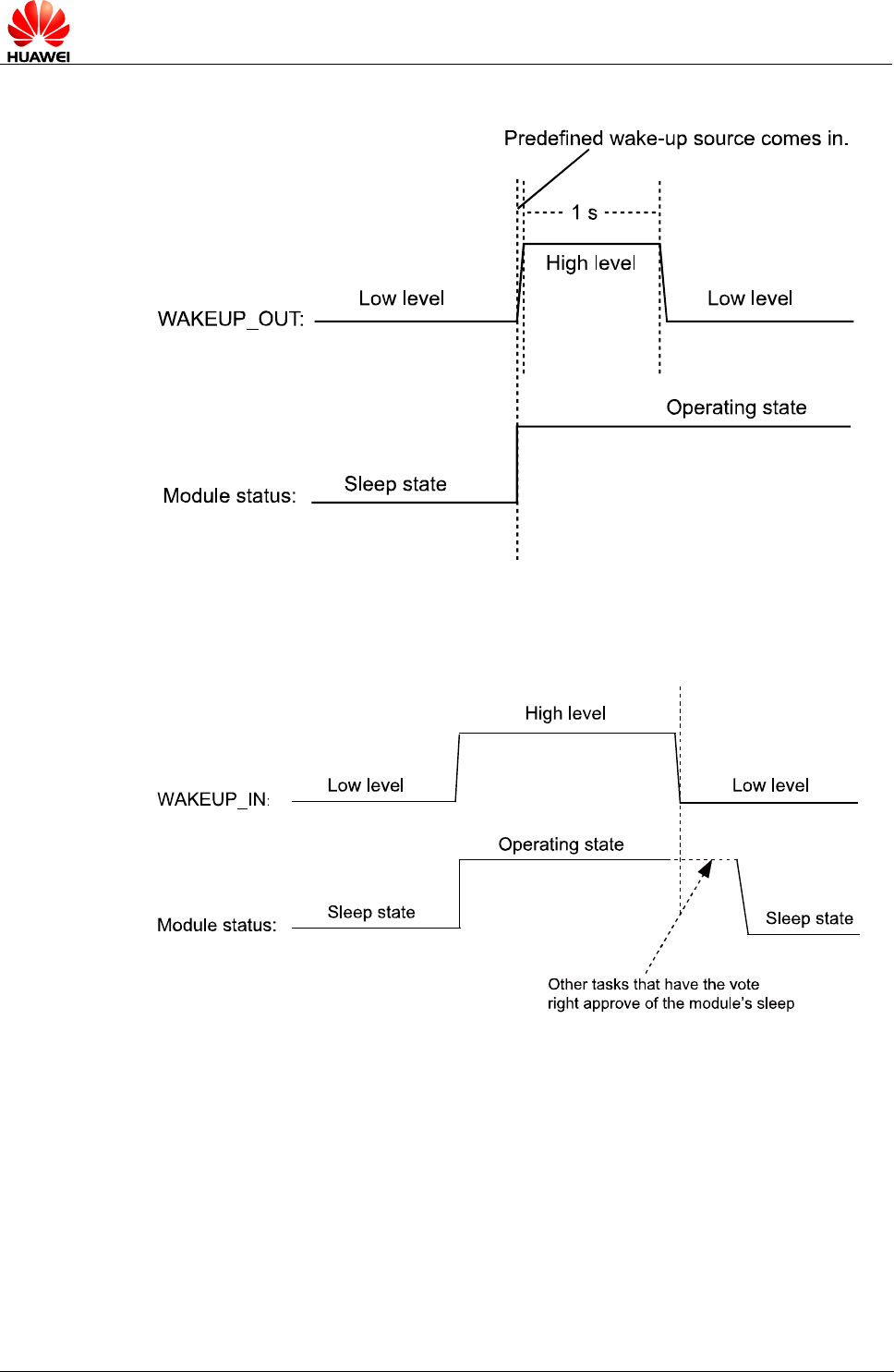

LGA
WAKEUP_OUT
Output
When a wake-up source arrives, this
pin output a high-level-voltage pulse
lasting for 1s during which if other
wake-up sources arrive, the module
will ignore the later wake-up requests.
In other words, the module will not
output a second pulse during this 1s.
Figure 8-2
LGA
WAKEUP_IN
Input
When the pin carries a high-level
voltage, the states of the module are
as follows:
The module will be prohibited to enter
sleep mode if the module is awake.
The module will be woken up if the
module is in sleep mode.
When the pin carries a low-level
voltage, the module is allowed to enter
sleep mode. (By default, the pin is set
to INPUT/PD, which is, the software
detects a low-level voltage on the pin
when the pin is not connected.)
Figure 8-3
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Sleeping and Waking Up Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
54
Interface
Pin name
Direction
Functional Description
Diagram
LGA
SLEEP_STATUS
Output
Indicate the state of the module.
When the pin carries a high-level
voltage, the module is in working
mode. When the pin carries a low-
level voltage, the module is in sleep
mode.
Figure 8-4
NOTE
The PCIE interface does not support UART.
8.2 Sequence Diagram
Figure 8-1 WAKE# PIN output sequence
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Sleeping and Waking Up Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
55
Figure 8-2 WAKEUP_OUT PIN output sequence
Figure 8-3 WAKEUP_IN PIN input sequence
About the vote, see section 8.3.1 .
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Sleeping and Waking Up Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
56

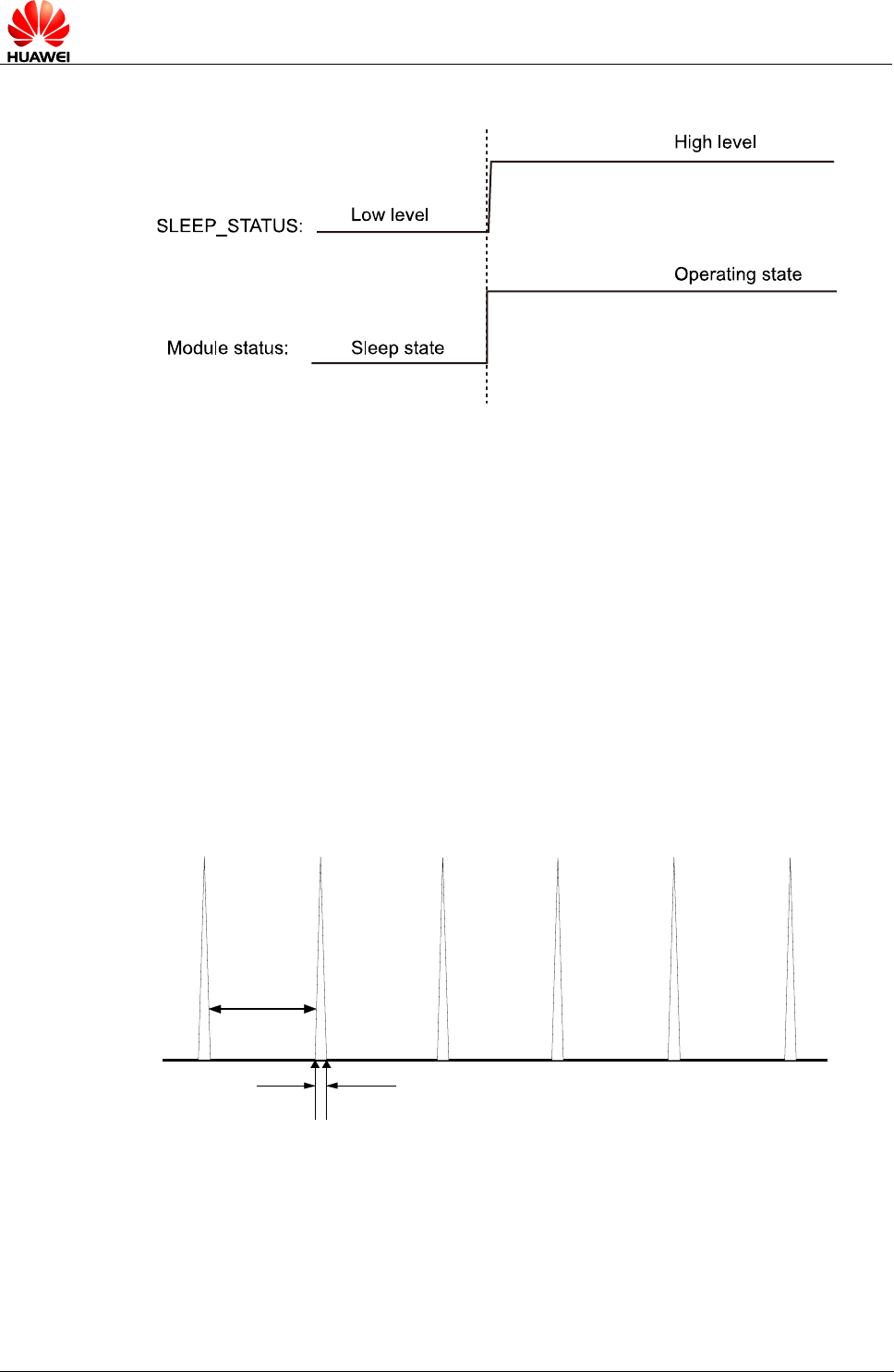

Figure 8-4 SLEEP_STATUS PIN output sequence
8.3 Software Interfaces
8.3.1 Principle
The module runs on a multi-task software system. The sleep task is granted with the
lowest priority and assigned to detect whether the module can enter sleep mode.
Other tasks (such as the RF, SIM card, USB) have voting rights. They vote to decide
whether the module can enter sleep mode. When no other tasks are running, the
sleep task is executed. If the sleep task detects that all other tasks agree on the
module's sleep, the module enters sleep mode, as shown in Figure 8-5 . At this time,
the baseband chip reduces the work frequency, and the RF enters the Discontinuous
Reception (DRX) mode.
Figure 8-5 Currency state when the module is in sleep mode
T 2 ( S E E
LP )
T 1 ( W a k eu p )
For more information about the module's sleep procedure, see Figure 8-6 .
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Sleeping and Waking Up Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
57
NOTE
The module's sleep mode is different from working mode or flight mode set using the
AT+CFUN command. The RF will be turned off when the module enters LPM mode using the
command AT+CFUN=0 while the RF will enter DRX mode without being turned off when the
module is in sleep mode. For more details, refer to HUAWEI ME909u-523 LTE LGA Module AT
Command Interface Specification.
The module enters sleep mode automatically when the sleep task detects that all
other tasks agree on the module's sleep. The sleep period of the module depends on
the current working state and circumstance. The period may last for several seconds,
or up to several minutes.

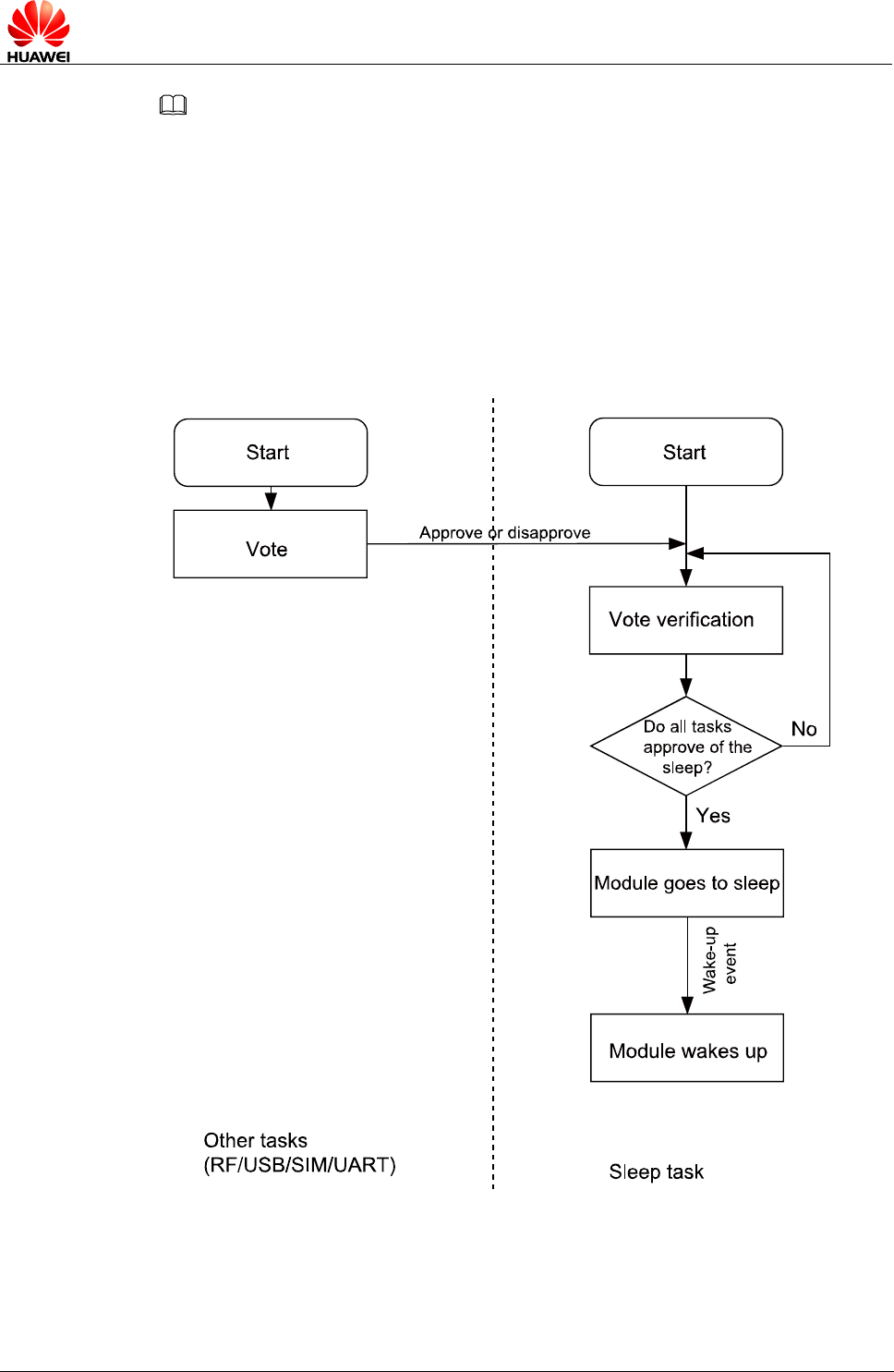

Figure 8-6 Sleep procedure
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Sleeping and Waking Up Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
58
8.3.2 USB and Sleep
USB is an important communication channel between the module and the host.
According to the USB protocol, normally a hub or a root hub periodically sends Start
of Frame (SOF) data packages (one data package per ms using full-speed USB and
one package per 125 µs using high-speed USB). Through this mechanism, USB
always votes to stop the module from entering sleep mode.
When the USB driver provided by Huawei detects that the module and the host have
not exchanged data in 5 seconds, the USB driver will enable the port's suspend
feature, stopping SOF data packages being sent and suspending the USB controller.
This enables the USB to vote to agree the module's sleep.
NOTE
- If the USB driver used is developed by users or is integrated with external application,
ensure that the USB driver supports the USB suspend features (including selective
suspend and global suspend, as defined in the USB standard.)
- Before the D+/D– connection between the host and the module disconnects, the
AT^WAKEUPCFG=1,1,x command (x is determined by the customers based on the
HUAWEI ME909u-523 LTE LGA Module AT Command Interface Specification) must be
sent to disable the USB remote wake-up function. Otherwise, after the module is woken up,
it cannot enter sleep mode again because it keeps waking up the host over the USB.
- After the D+/D– connection between the host and the module resumes, the
AT^WAKEUPCFG =1,3,x command (x is determined by the customers based on the
HUAWEI ME909u-523 LTE LGA Module AT Command Interface Specification) must be
sent to enable the USB remote wake-up function. Otherwise, the module cannot wake up
the host over the USB.
8.3.3 UART and Sleep
UART is an important communication channel between the module and the host. If
the host uses UART (a TTL level Interface), it can connect to the module's UART
directly. If the host uses RS232, it can connect to the module's UART through a
conversion chip such as MAX232.
NOTE
If the module is in sleep state, the host send data to module only by UART that can’t wakeup
the module. It must be used with WAKEUP_IN pin.
8.3.4 Module Wake-up
RF periodically wakes up the module based on the DRX cycle (depending on the
actual configuration of the network system), as shown in Figure 8-5 .
Other aperiodic events include:
1. The host sends data using USB or pulls WAKEUP_IN up.
2. Changes on the network, for example, an incoming call, an incoming text
message, a signal change, a network working mode change, a network search,
an IP data package (when a dial-up network connection is set up).
3. Software system events such as a timer
4. Abnormal events, for example, an antenna drops or a SIM card becomes loose.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Sleeping and Waking Up Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
59
8.3.5 Host Woken up by Module
Wake-up Source
A wake-up source is a module event that can wake up the host, for example, an
incoming voice call, a text message, data (PPP data, TCP/UDP data from the
network), and unsolicited messages.
Remotely Waking up the Host Using USB
When the host is in sleep mode and the USB controller is in suspended mode, if the
module needs to send data to the host (for example, a wake-up source has arrived),
the module sends a remote wake-up signal that lasts 3 ms to inform the host to start
USB resume (as shown in Figure 8-7 ). To complete the procedure, the following
conditions must be met:
1. The USB controller on the host supports USB remote wake-up and can wake up
the host.
2. The USB driver enables or disables remote wake-up by executing
SET_FEATURE and CLEAR_FEATURE commands. Therefore, remote wake-up
must be enabled on the USB driver before USB enters suspended mode.
3. When the host receives the remote wake-up signal from the module, the host
needs to send a full speed K signal that lasts at least 20 ms. When the USB
controller resumes, the host must send the SOF token within 3 ms from the
startup of the idle state. Otherwise, the module enters suspended mode again,
as shown in Figure 8-7 .
Figure 8-7 USB resume time sequence
FS idle FSK HS idle uSOF
D+
D-
HS HubHS Device
Start of
Resume
Signaling 3ms
Device sees
first activity
Start of
Resume
Signaling
>20ms <3.0ms
Signaling Signaling
<1.33us
Device
Resumed
if remote
wake up
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Sleeping and Waking Up Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
60

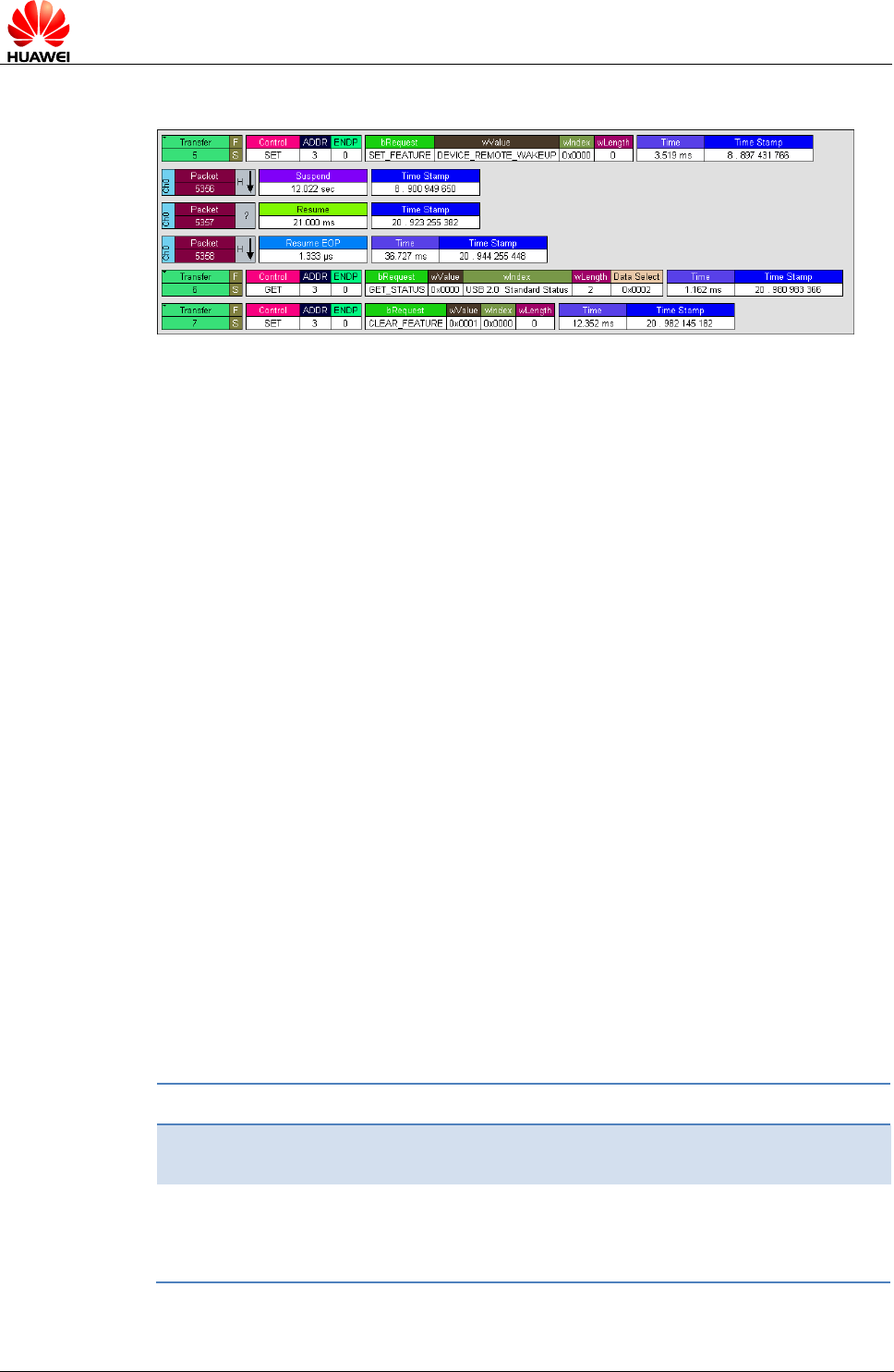

Figure 8-8 Successful procedure of remote wake-up
WAKEUP_OUT Waking up the Host
The module will output a 1s pulse using WAKE# as shown in Figure 8-1 or
WAKEUP_OUT as shown in Figure 8-2 when a wake-up source arrives. The host
wakes itself up after detecting the level change.
Remote Wake-up Configuration
The power consumption of the host increases if it is frequently woken up. The host
can configure the module's wake-up sources using ^WAKEUPCFG and ^CURC
command so as to reduce the power consumption.
The ^WAKEUPCFG command can be used to choose wake-up sources and the
wake-up channel (USB or WAKEUP_OUT). The ^CURC command can choose
unsolicited messages. For more details, refer to AT Command Interface Specification.
8.4 Application Scenarios: System with USB Connection
only
A host runs on Android, with support for USB suspend, USB remote resume, voice
calling, and text messages.
8.4.1 Hardware Connection
The host connects to the module using USB.
8.4.2 Software Procedure
Command
Description
AT^WAKEUPCFG=?
Query the parameter range of
WAKEUPCFG.
^WAKEUPCFG: (0-1),(0-3),(0-15)
OK
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Sleeping and Waking Up Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
61
Command
Description
AT^WAKEUPCFG=1,2,15
Configure the module to make sure
that incoming calls, text messages,
data, and unsolicited messages can
remotely wake up the host using
USB.
OK
AT^CURC=?
Query the parameter range of
CURC.
^CURC: (0-1)
OK
8.4.3 Advantages
With software configuration, while the system requirements (calling and text
messages) are met, the number of times the host is woken up by unsolicited
messages, and consequently the power consumption, are reduced.
8.5 Application Scenarios: System with USB and
WAKEUP_OUT
A host running Android, with support for text messages, but has not USB remote
resume or voice calling.
8.5.1 Hardware Connection
The host must connect to the module using USB and WAKEUP_OUT pins
8.5.2 Software Procedure
Command
Description
AT^WAKEUPCFG=?
Query the parameter range of
WAKEUPCFG.
^WAKEUPCFG: (0-1),(0-3),(0-15)
OK
AT^WAKEUPCFG=1,1,14
Configure the module to make sure
that text messages, data, and
unsolicited messages can remotely
wake up the host using the
WAKEUP_OUT pin.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Sleeping and Waking Up Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
62
OK
AT^CURC=?
Query the parameter range of CURC.
^CURC: (0-1)
OK
8.5.3 Advantages
A solution is provided for systems not supporting USB remote resume.
With software configuration, while the system requirements (calling and text
messages) are met, the number of times the host is woken up by unsolicited
messages, and consequently the power consumption, are reduced.
8.6 System with Other Connection Methods
If the host can be connected to the module only using UART, you can refer to the
HUAWEI ME909u-523 LTE LGA Module Hardware Guide or HUAWEI ME909u-523
LTE Mini PCIe Module Hardware Guide. If the host can connect to the module using
USB/UART/WAKEUP_OUT and can support USB remote wake-up and UART remote
wake-up, prioritize USB remote wake-up over WAKEUP_OUT remote wake-up. For
details about the software procedure, refer to the earlier sections while considering
the host system feature.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Thermal Protection Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
63
9 Thermal Protection Application Scenarios
9.1 Pre-configuration
Command
Description
^THERM: 1
When the temperature is higher than the temperature
protection threshold, the module enables thermal
protection: The module turns off its RF and reports to
the host.
^THERM: 0
When the temperature is lower than the temperature
protection hysteresis threshold, the module disables
thermal protection: turns on its RF and reports to the
host.
9.1.1 Troubleshooting
None
9.2 Thermal Protection Process
- When the module's temperature is lower than 101°C , the module works normally.
- When the module's temperature is higher than 101°C , the module enables
thermal protection: turns off its RF transmission and presents the ^THERM: 1
indication. When the module's temperature is higher than 107°C, the module will
turn off after 15 seconds. When the module's temperature is lower than 93°C ,
the module disables thermal protection: turns on its RF transmission, and
presents the ^THERM: 0 indication.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Thermal Protection Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
64
NOTE
- During an emergency call, if thermal protection is enabled, the module will present an
indication but will not take thermal protection actions such as turning off its RF or shutting
down.
- After thermal protection is enabled, users cannot make emergency calls.
- Thermal protection is designed to protect the module from being damaged by over
temperature. To work in high temperature environments, both the module and its peripheral
components must be able to resist the same temperature.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Module Powering Off and Resetting Application
Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
65
10 Module Powering Off and Resetting
Application Scenarios
10.1 Restarting the ME
10.1.1 Reference Process
Command
Description
AT+CFUN=1,1
Restart the module.
OK
The ME can be reset or restarted using the AT+CFUN command. After the restart,
the module must register with the network and authenticate its SIM card’s PIN.
10.1.2 Troubleshooting
None
10.2 Powering Off ME
10.2.1 Reference Process
Command
Description
AT^MSO
Power off the module.
OK
After the command is received, the module will power-off.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Module Powering Off and Resetting Application
Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
66
10.2.2 Troubleshooting
None
HUAWEI ME909u-523 LTE LGA Module
Application Guide
GPS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
67
11 GPS Application Scenarios
11.1 Introduction to GPS
11.1.1 GPS Positioning Methods
Table 11-1 GPS positioning methods
Positioning
methods
Description
Benefits
Drawbacks
Standalone
This is a traditional GPS
positioning method. Using
this method, a module
receives satellite signals
directly and makes
calculations to obtain
positioning results.
No communication with the
network is invoked, incurring
no data traffic between the
module and the network.
Long time to first
fix (TTFF) in code
mode.
Mobile Station
Based (MSB)
positioning
using the User
Plane Protocol
Requests the assistant
data from the network to
assist and accelerate the
positioning. This method is
one of the Assisted GPS
(A-GPS) methods.
- Significantly reduces the
TTFF after cold start and
increases the rate of
successful positioning.
- Enables positioning in
environments with very poor
satellite signals.
Requires the
assistant data from
the network,
incurring network
traffic.
Mobile Station
Assisted (MSA)
using the User
Plane Protocol
Requests data from the
network to assist and
accelerate the positioning.
After receiving satellite
data, the module sends the
satellite data to the
network for calculations,
and the network returns
the calculation results to
the module. This method is
one of the A-GPS
methods.
- Reduces the TTFF after cold
start and increases the rate
of successful positioning.
- Hands most workload to the
network, reducing the
module's workload.
- Enables positioning in
environments with poor
satellite signals (network
dependent).
Requires complex
interaction with the
network, incurring
network traffic.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
GPS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
68
Positioning
methods
Description
Benefits
Drawbacks
XTRA
positioning
Downloads XTRA data
from the Qualcomm's
XTRA server to assist
positioning. The XTRA
data is valid for 7 days.
- Reduces the TTFF after cold
start.
- Long valid period for the
XTRA data, eliminating
frequent data downloading.
- Cannot reduce
the TTFF after
cold start as
significantly as
the A-GPS
methods.
- The XTRA data's
ability to assist
positioning
declines as time
goes by.
Cell ID
Base station mode, this
approach will be based
on the cell ID number of
the mobile terminal is
located to determine the
location of the user.
This mode can be use when
other optioning methods are
failed.
Very low accuracy.
Global
navigation
satellite system
(abbreviated as
GNSS)
Uses both the GPS and
GLONASS for positioning.
Using more satellites,
increases the successful
positioning rate and the
positioning accuracy.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
GPS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
69
11.1.2 GPS Ports

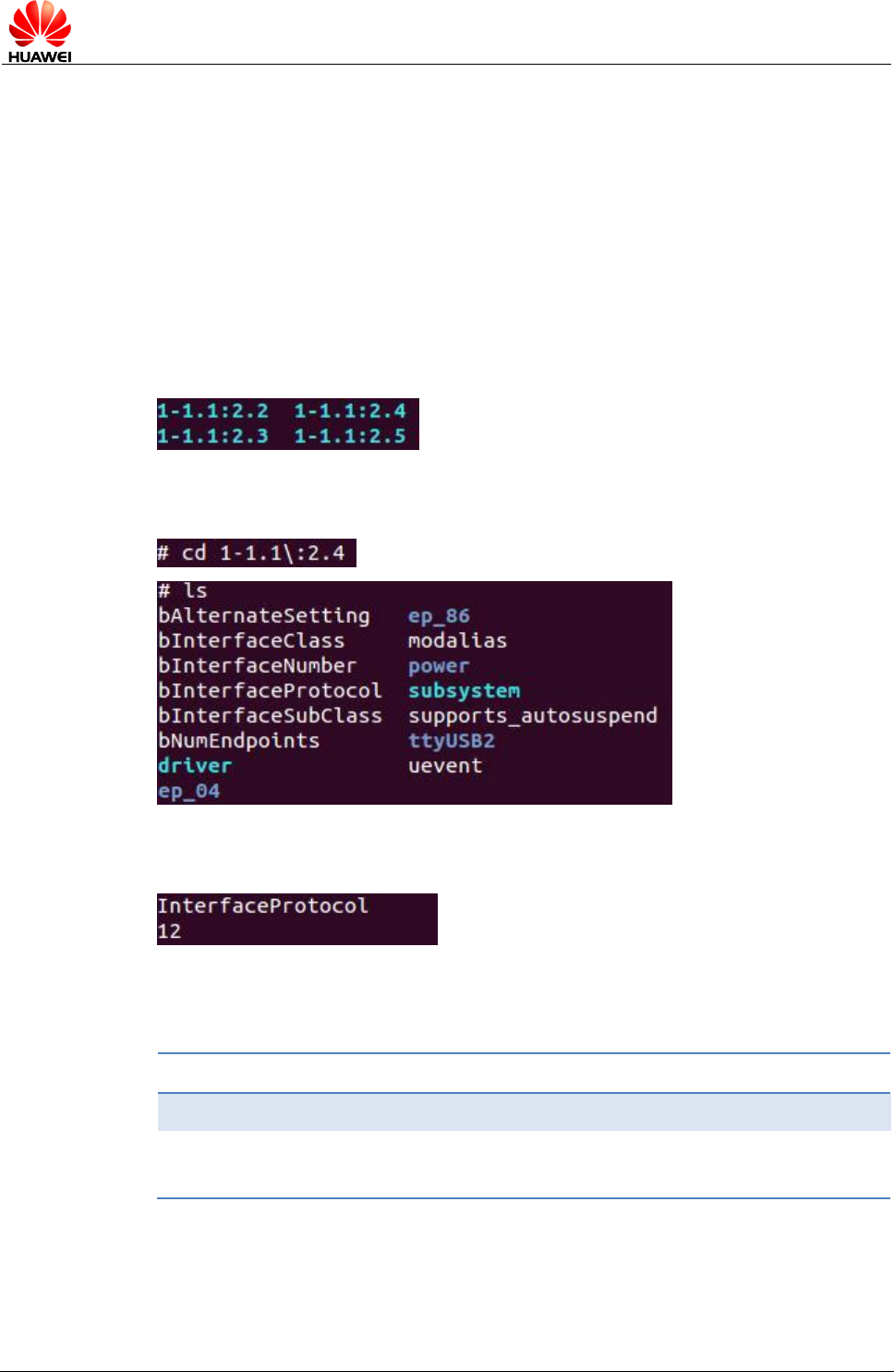

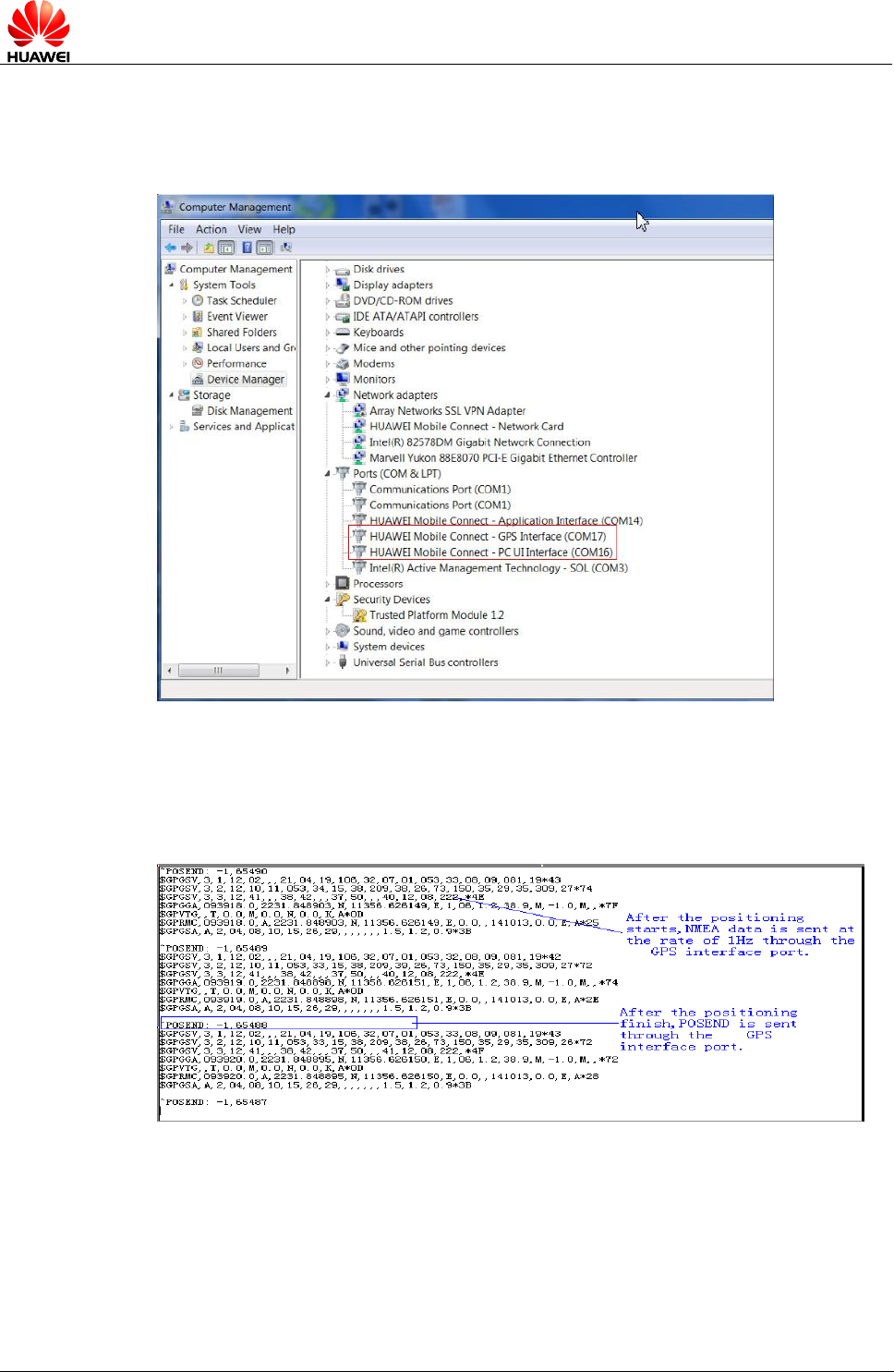

Figure 11-1 GPS Interface detected after the module is connected to a computer
GPS Interface port is used to send GPS-related AT commands and unsolicited
indications for NMEA positioning data.
Figure 11-2 Data sent through the GPS interface ports
HUAWEI ME909u-523 LTE LGA Module
Application Guide
GPS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
70
11.2 Standalone Positioning
Command
Description
AT^WPDOM=0
Set the positioning method to
Standalone.
OK
AT^WPDST=0
Set the session type to single
positioning.
OK
AT^WPDST=1
Set the session type to tracking and
positioning.
OK
AT^WPDFR=65535,1
Set the number of positioning times
and the interval between each
positioning for the tracking and
positioning. If the session is a single
positioning, you do not need to set
these parameters.
OK
AT^WPQOS=255,500
Set the positioning service quality. The
first parameter indicates the response
time, and the second indicates the
horizontal accuracy threshold.
OK
AT^WPDGP
Start positioning.
OK
^POSEND: -1,9
The first value indicates positioning
end reason, and the second indicates
the left positioning times.
NOTE
- The Standalone method can be used when the module has no SIM card inserted.
- If there is an ongoing positioning session, the session must be terminated before setting
the positioning parameters so that the parameters can take effect for the positioning to be
started. This rule applies to all positioning methods.
- Execute AT^WPEND command can terminate the current positioning session.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
GPS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
71
11.3 MSB Positioning Using the User Plane Protocol
Command
Description
AT^WPDOM=5
Set the positioning method to MSB.
OK
AT^WPDST=1
Set the session type to tracking and
positioning.
OK
AT^WPDFR=65535,1
Set the number of positioning times
and the interval between each
positioning for the tracking and
positioning.
OK
AT^WPQOS=255,500
Set the positioning service quality.
The first parameter indicates the
response time, and the second
indicates the horizontal accuracy
threshold..
OK
AT^WPURL=SUPL.GOOGLE.COM:7276
Set the A-GPS server address and
port number. This address is just
Google AGPS server. Some of the
AGPS server requires certificate
authentication.
OK
AT+CGDCONT=15,"IP","CMNET"
Set the PDP context required by A-
GPS dial-up. By default, A-GPS dial-
up uses the fifteenth PDP context.
"CMNET" is the APN of network that
module have registered.
OK
AT^WPDGP
Start positioning.
OK
^POSEND: -1,9
The first value indicates positioning
end reason, and the second indicates
the left positioning times.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
GPS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
72
NOTE
- The MSB method requires the module to register with a network, and will incur data traffic
during positioning. When the MSB positioning fails, the module will automatically switch to
the Standalone positioning if NV3756=1, but will not switch to the Standalone positioning if
NV3756=0.
- During the AGPS positioning process, please do not search the network, because this
operation will influence the positioning time.
11.4 MSA Positioning Using the User Plane Protocol
Command
Description
AT^WPDOM=1
Set the positioning method to MSA.
OK
AT^WPDST=1
Set the session type to tracking and
positioning.
OK
AT^WPDFR=65535,1
Set the number of positioning times
and the interval between each
positioning for the tracking and
positioning.
OK
AT^WPQOS=255,500
Set the positioning service quality.
The first parameter indicates the
response time, and the second
indicates the horizontal accuracy
threshold.
OK
AT^WPURL=SUPL.GOOGLE.COM:7276
Set the A-GPS server address and
port number. This address is just
Google AGPS server. Some of the
AGPS server requires certificate
authentication.
OK
AT+CGDCONT=15,"IP","CMNET"
Set the PDP context required by A-
GPS dial-up. By default, A-GPS dial-
up uses the fifteenth PDP context.
"CMNET" is the APN of network that
module have registered.
OK
AT^WPDGP
Start positioning.
OK
HUAWEI ME909u-523 LTE LGA Module
Application Guide
GPS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
73
NOTE
- The MSA method requires the module to register with a network, and incurs data traffic
during positioning. If GPS response time in the positioning QoS is set to a too small value,
the MSA positioning may fail.
- During the AGPS positioning process, please do not search the network, because this
operation will influence the positioning time.
11.5 XTRA Positioning
Command
Description
AT^WPDOM=6
Set the positioning method to gpsOneXTRA.
OK
AT^XTRASTA
Query the status of XTRA data. If the date of the
obtained XTRA data is more than seven days
earlier than the current date, the XTRA data is
invalid, and the module needs to download new
XTRA data. (The XTRA data's ability to assist
positioning declines as time goes by. Therefore, it
would be appropriate to set the XTRA data's valid
period to three days. You can also download the
latest XTRA data without querying the existing
XTRA data information.)
OK
^XDSTATUS: 0,0,0,0
Notify XTRA data query result.
AT^XTRATIME……
Upper layer applications use this command to
access the SNTP server to obtain the current time
information, and inject the information into the
module.
OK
^TIMESETRULT: 0
Notify XTRA time injected result.
AT^XTRADATA……
Upper layer applications use this command to
access the XTRA server to download XTRA data,
packetize the data, and inject the data into the
module. (You can also inject the XTRA data from
the host into the module.)
There are two types of XTRA files stored on the
XTRA server:
- Xtra.bin file: contains predicted two-line orbital
elements for GPS satellites, about 45 KB.
- Xtra2.bin file: contains predicted two-line orbital
elements for GPS and GLONASS satellites,
about 80 KB.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
GPS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
74
Command
Description
OK
^DATASETRULT: 50
Notify XTRA data injected result.
AT^WPDST=1
Set the session type to tracking and positioning.
OK
AT^WPDFR=65535,1
Set the number of positioning times and the
interval between each positioning for the tracking
and positioning.
OK
AT^WPQOS=255,500
Set the positioning service quality. The first
parameter indicates the response time, and the
second indicates the horizontal accuracy
threshold.
OK
AT^WPDGP
Start positioning.
OK
^POSEND: -1,9
The first value indicates positioning end reason,
and the second indicates the left positioning times.
NOTE
XTRA date must be injected before XTRA data is injected.
11.6 GNSS Positioning
The GNSS positioning uses both the GPS and GLONASS satellites for positioning.
Command
Description
AT^WGNSS=1
Set GNSS as the positioning system to use both
the GPS and GLONASS satellites for positioning.
To switch from one positioning system to another,
the module must restart. To switch the module to
use GPS satellites only, run AT^WGNSS=0 and
restart the module.
OK
HUAWEI ME909u-523 LTE LGA Module
Application Guide
GPS Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
75
Command
Description
AT^WPDOM=a value within
the value range
For the MSA and MSB positioning methods, the
data obtained from the server is two-line orbital
elements of GPS satellites, which will not help the
GLONASS positioning, but the module will still
search for GLONASS satellites.
OK
AT^WPDST=1
Set the session type to tracking and positioning.
OK
AT^WPDFR=65535,1
Set the number of positioning times and the
interval between each positioning for the tracking
and positioning.
OK
AT^WPQOS=255,500
Set the positioning service quality. The first
parameter indicates the response time, and the
second indicates the horizontal accuracy
threshold.
OK
AT^WPDGP
Start positioning.
OK
^POSEND: -1,9
The first value indicates positioning end reason,
and the second indicates the left positioning times.
NOTE
After AT^WGNSS is executed, the module must be restarted to allow the settings configured
by AT^WGNSS to take effect.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Local Upgrade Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
76
12 Local Upgrade Application Scenarios
12.1 Starting the Local Upgrade
12.1.1 Full Upgrade Flow
Figure 12-1 Full upgrade flow
AP Module
Full upgrade
AT^FWLOAD=0
‘>’and‘C’
Through the 1K-Xmodem protocol to send update
file
^FWLSTATE report upgrade state
Module
Reset
send update file
complete
Module
Reset
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Local Upgrade Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
77
12.1.2 Launch the Local Upgrade
Figure 12-2 Launch the upgrade flow
Host Application Module
ACK characters
'>'a nd 'C'
Module Reset
AT^FWLOAD=0
The local upgrade can be used on PCUI port. After the host application sends the
"AT^FWLOAD" command, the module will be reset to start the upgrade flow. And
then the ACK characters '>' and 'C' will be returned to inform that the host application
can receive firmware data. The character '>' is only reported once, and the duration
between two 'C' characters will be about 10 seconds. And there are maximum ten 'C'
characters will be reported before the module finally return failed upgrade state.
12.1.3 Transfer the Upgrade File
Figure 12-3 Transfer the upgrade file
Module Reset
File transfer is
completed, and
firmware starts to
upgrade
Use the 1K-Xmodem
protocol to transfer the
upgrade file
Host Application Module
After the upgrade file is transferred to the module, the module will start to upgrade
the firmware directly. Finally, the module will be automatically reset to finish the
upgrade flow. The host application should re-open the module's port and wait for the
upgrade state AT command "AT^FWLSTATE".
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Local Upgrade Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
78
12.1.4 Test
Tools and Test Steps
This section takes the full upgrade flow for example; the test is taken on Windows 7
or XP system with Hyper Terminal tool.
NOTE
The Hyper Terminal tool supports 1k-Xmodem protocol to transfer files.

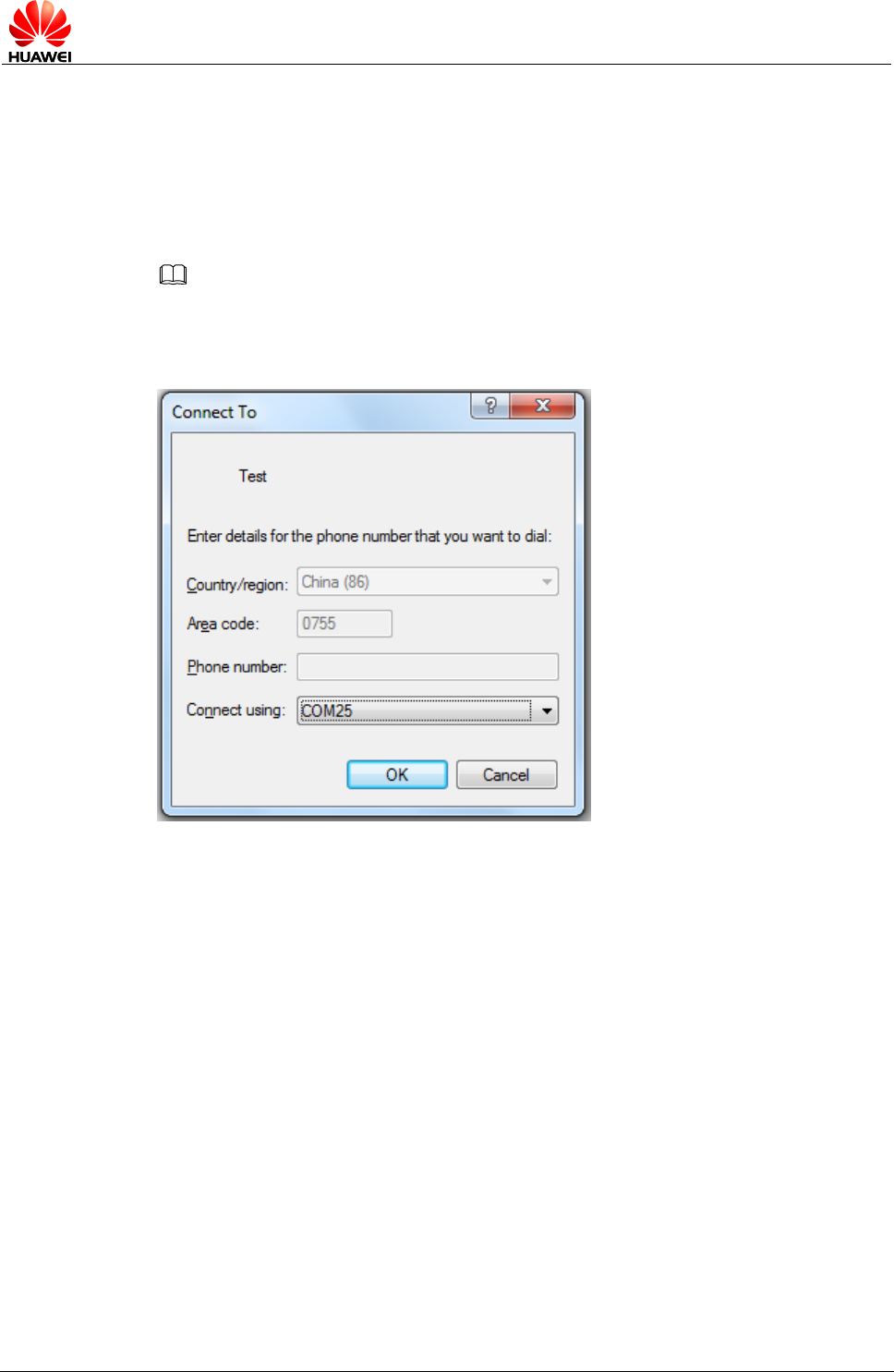

Step 1 Open the Hyper Terminal tool and choose the PCUI port number. (In this document,
the PCUI port is COM25.)

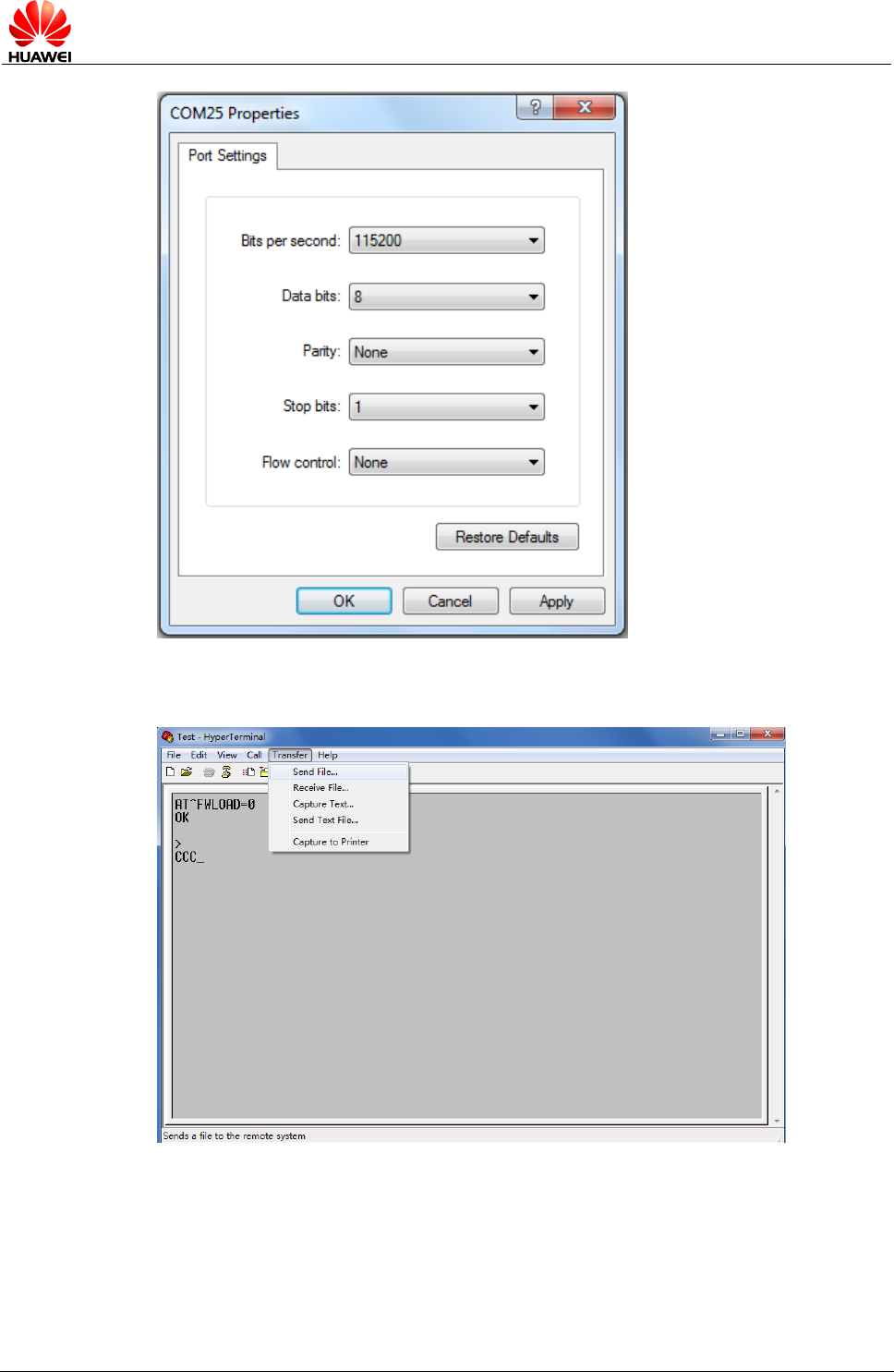

Step 2 Set the parameters of the COM25 port.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Local Upgrade Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
79

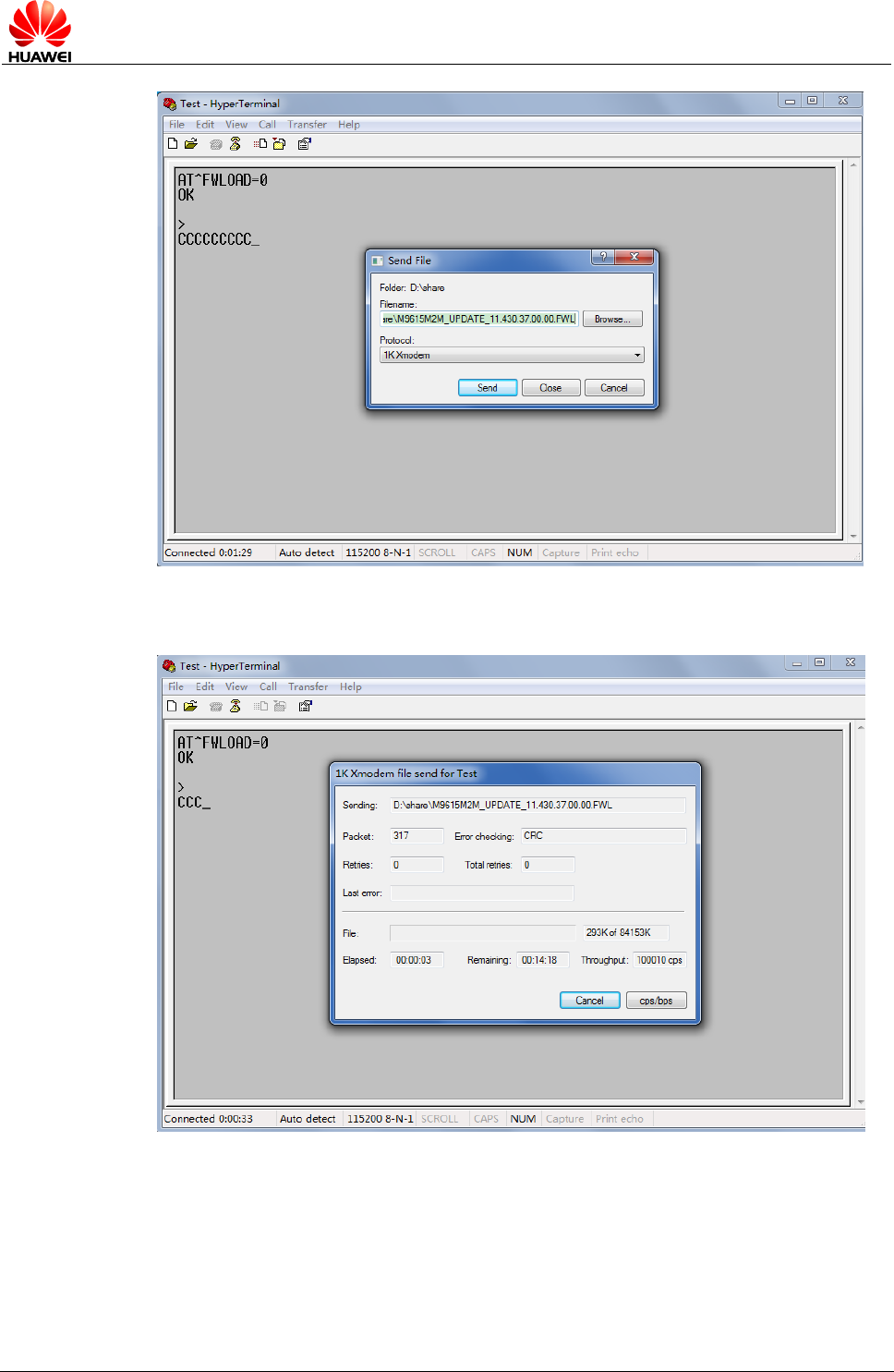

Step 3 Run the AT^FWLOAD=0 command, and launch a full upgrade.
Step 4 Choose the file which will be sent to the module and choose the 1K Xmodem
protocol.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Local Upgrade Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
80
Step 5 Begin to transfer the local file to the module flash.
Step 6 After finishing the file transmission, start the upgrade. And the module will reset
automatically to finish the upgrade.
- If the upgrade is successful, the module will return ^FWLSTATE: 90.
- If the upgrade comes across some error, the ^FWLSTATE will give an error
code.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Local Upgrade Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
81
Requirement of the AP
The AP is required to have 4 KB RAM at least (used to store the cache data). If AP
needs to support the full upgrade, AP FLASH memory must be larger than 80 MB
(the full size of ME909u-523 firmware upgrade files is 80 MB).
1. AP should be able to access and load the upgrade files.
2. AP should have a file transmission tool, this tool need to support 1K-Xmodem
protocol.
Finding the PCUI port on Android and Linux System
Step 1 Enter /sys/bus/usb/drivers/option, and look out the following types of folders.
Step 2 Enter these folders, and view the bInterfaceProtocol value.
If the bInterfaceProtocol value is 12, the port is PCUI.
12.1.5 Reference Process
Command
Description
AT^FWLOAD=0
Start the full upgrade.
>
C
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Local Upgrade Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
82
NOTE
- After the module reports 'C', the host transmits the upgrade package to the module using
the 1K-Xmodem protocol.
- Full upgrade only supports on USB PCUI port.
12.1.6 Troubleshooting
If using the full upgrade on some hosts, after the module is restarted, the PCUI port
number may be changed. So you need to find the corresponding port, and then send
the local upgrade package.
12.2 Reporting the Local Upgrade State
12.2.1 Reference Process
Command
Description
AT^FWLOAD=0
>
C
The board restarts, and the
upgrade starts.
^FWLSTATE: 90
Report that the local upgrade succeeds.
NOTE
After the data have been transmitted completely and successfully, the MT will not send OK to
the TE.
12.2.2 Troubleshooting
None
HUAWEI ME909u-523 LTE LGA Module
Application Guide
LED Indication Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
83
13 LED Indication Application Scenarios
13.1 Overview
Light Emitting Diode (LED) indicates the MT's current state. Table 13-1 shows the
HUAWEI default LED program, including LED mode to different states.
Table 13-1 HUAWEI default LED program
LED Mode
Service State
Permanently off
Off line
100 ms on/100ms off/100 ms on/1700ms off
Power on Initialization
100 ms on/100ms off/100 ms on/1700ms off
Register fail and no service
100 ms on/100ms off/100 ms on/1700ms off
Connect to no service area
100 ms on/1900ms off
Register on WCDMA
Permanently on
Connect on WCDMA
Permanently on
Transmit data on WCDMA
Permanently on
Connect on HSPA
Permanently on
Transmit on HSPA
100 ms on/1900ms off
Register on LTE
Permanently on
Connect on LTE
Permanently on
Transmit data on LTE
NOTE
LED ON indicates LED GPIO High and LED OFF indicates LED GPIO Low.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
LED Indication Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
84
13.2 LED Setting Operations
13.2.1 Reference Process
Command
Description
AT^LEDCTRL=?
Check the parameter range supported by
the command.
^LEDCTRL: (0-2),00003FFF,(0-1),(1-100),(1-100),(1-100),(1-100)
OK
AT^LEDCTRL?
Query the current LED program, 1
indicates adapting HUAWEI default
program.
^LEDCTRL: 1
OK
AT^LEDCTRL=0
Turn off LED function.
OK
AT^LEDCTRL=1
Configure HUAWEI default program.
OK
AT^LEDCTRL=2,00000001,0
Configure that offline state LED mode is
Permanently off.
OK
AT^LEDCTRL=2,00000001,1,10,10
Configure that offline state LED mode is
single flash and cycle time is 2s (1s on/1s
off).
OK
AT^LEDCTRL=2,00000001,1,1,1,1,17
Configure that offline state LED mode is
double flash and cycle time is 2s (0.1s
on/0.1s off/0.1s on/1.7s off).
OK
AT^LEDCTRL=2,0000000F,1,1,1,1,17
Configure that offline, power on
initialization, register fail no service and
connect to no service state LED mode
are double flash. Cycle time is 2s (0.1s
on/0.1s off/0.1s on/1.7s off).
OK
AT^LEDCTRL=2,00007000,1
Configure that register successful on
LTE, connect and transmit state LED
mode are Permanently on.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
LED Indication Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
85
Command
Description
OK
AT^LEDCTRL=2,3FFFFFFF ,1
Configure that all service state LED
modes are Permanently on.
OK
NOTE
After LED mode is configured, it will take effective immediately. We suggest to configure all the
LED modes corresponding to its service states. If one LED mode does not configure, the
corresponding service state will adapt LED mode to Permanently OFF.
13.2.2 Troubleshooting
None
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Serial Port Configuration Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
86
14 Serial Port Configuration Application
Scenarios
14.1 Baud Rate Configuration
14.1.1 Reference Process
Command
Description
AT+IPR?
Query the baud rate currently used by a module.
+IPR: 115200
OK
AT+IPR="<baud rate>"
Set a module's baud rate. After a new baud rate is
specified, the module communicates using the new
baud rate.
OK
NOTE
- If a module's baud rate is too low, its communication speed will be slow.
- At present, the ME909u-523 supports the following baud rates: 600, 1200, 2400, 4800,
9600, 19200, 38400, 57600, and 115200.
- In future, the higher speed baud rate may be supported, such as 230400, 460800, 921600,
1000000, 1500000, 2500000, 3000000, 3500000 and 4000000
14.1.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Specify a baud rate not
supported by a
module.
AT+IPR="<baud rate>"
ERROR
Check that the specified
baud rate is within the range
of supported baud rates.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Serial Port Configuration Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
87
14.2 Setting Hardware Flow Control
14.2.1 Reference Process
Command
Description
AT+IFC=0,0
Turn hardware flow control off. After hardware flow
control is turned off, communication between the UE and
the DTC is not restricted by flow control.
OK
AT+IFC=2,2
Turn hardware flow control on. After hardware flow
control is turned on, communication between the UE and
the TE is restricted by flow control: Data transmission
stops when UE's or TE's buffer level exceeds 80% and
resumes when the buffer level is below 20%.
OK
14.2.2 Troubleshooting
None
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
88
15 FOTA Application Scenarios
15.1 FOTA Process
15.1.1 Upgrade Module Firmware Over Air Through Delta
Package

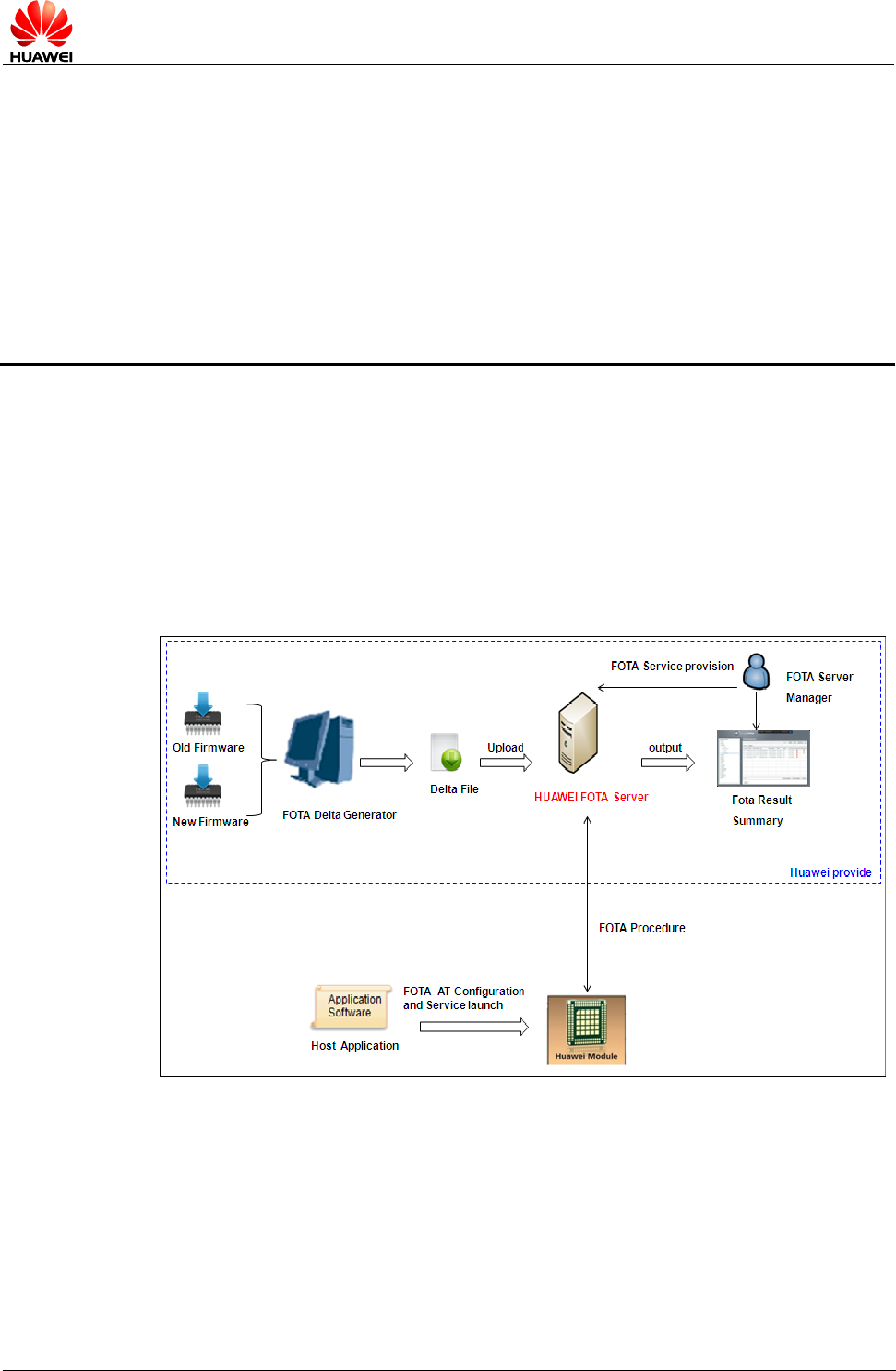

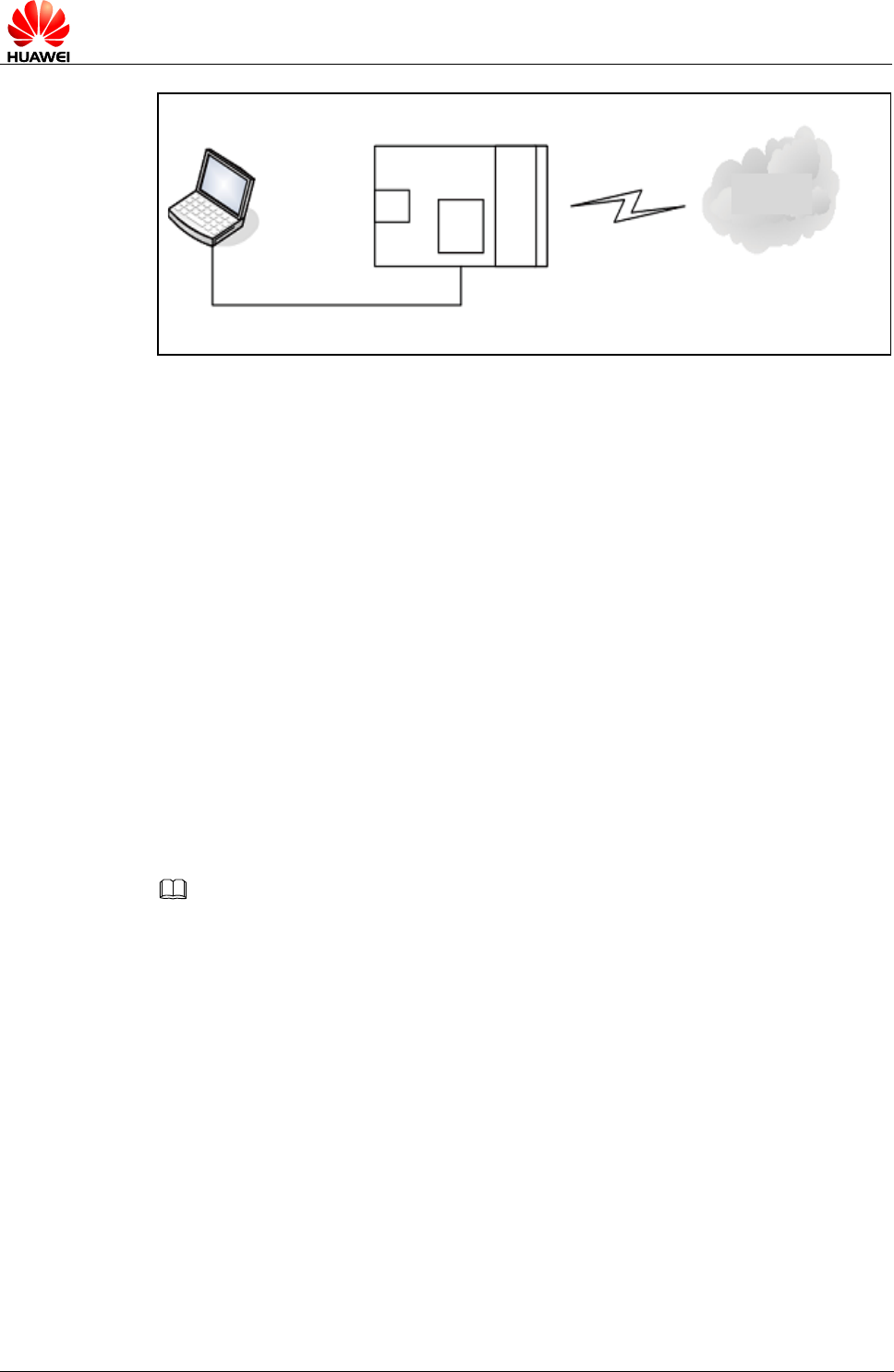

Figure 15-1 Upgrade module firmware over air through delta package
15.1.2 Procedure for FOTA Implementation
This section describes the workflow of HUAWEI Module FOTA feature.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
89

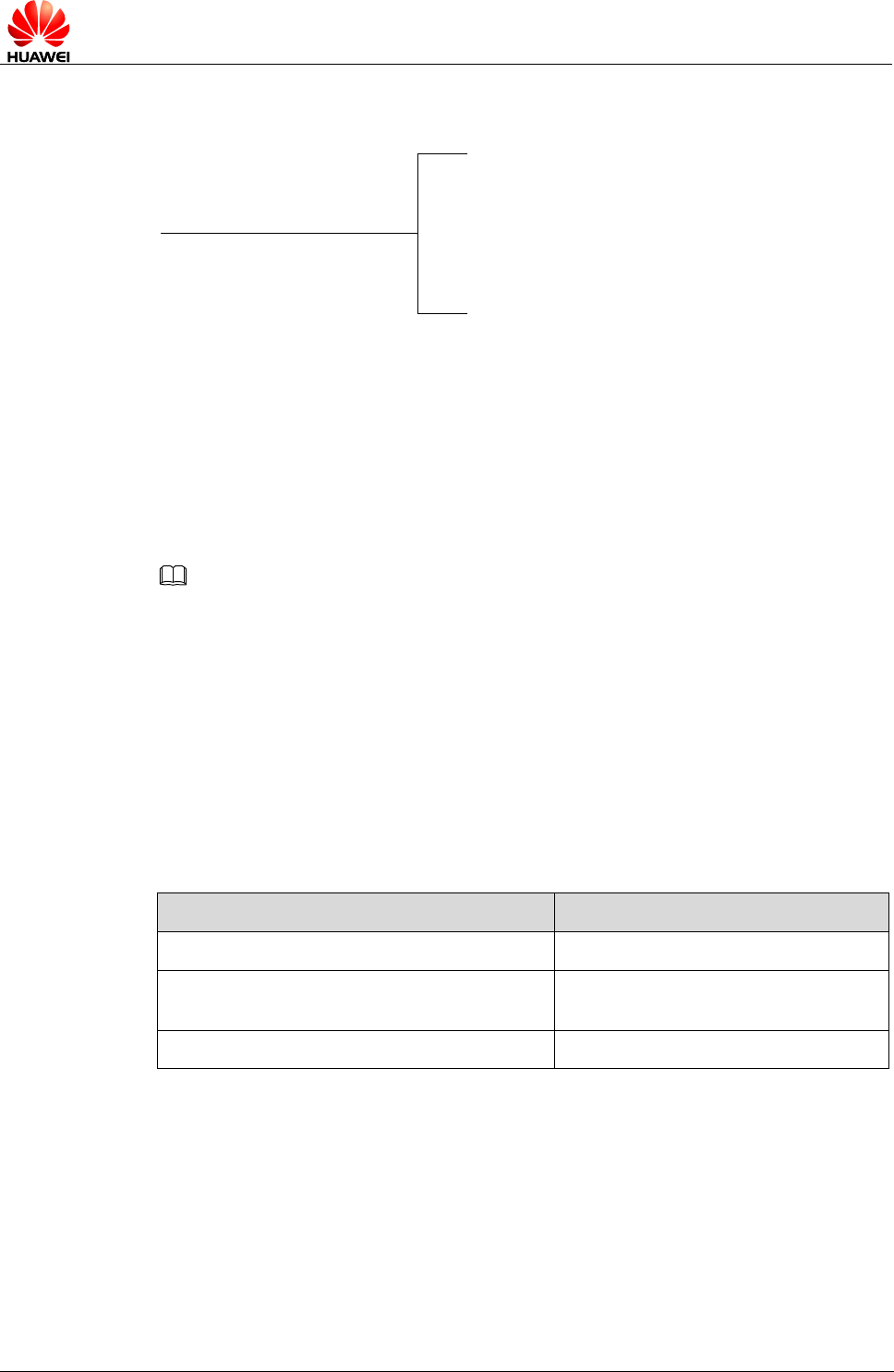

Figure 15-2 FOTA data flow
Step 1: Consolidate the modules
information which firmwares need to be
upgraded and provide it to Huawei
FAE.
Step 2: After Huawei completes the
FOTA service provisioning, Huawei
FAE will inform customers that the FOTA
service is ready to launch.
Step 3: Customers inform their
application to start FOTA operation
through SMS or socket data command.
Step 4: HUAWEI FOTA server manager
provides the corresponding statics for
the FOTA service result.
Module model,
IMEI, original FW
version, target FW
version, country
and location
NOTE
If the module is powered off during the firmware installing progress, after the module is
restarted, the firmware will resume installing at the last point.
AT command example (after customer application received SMS from HUAWEI FOTA
server or socket command to perform FOTA upgrade):
Command
Description
AT+GMR
Query the module's software version.
12.815.01.03.00
OK
AT^FOTACFG="1234","","",2[1]
Configure APN.
OK
AT^FOTAMODE=0,0,1,1
Set FOTA mode.
OK
AT^FOTASTATE?
^FOTASTATE: 10
Indicate that the FOTA state is idle.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
90
OK
AT^FOTADET
Start to detect if new version exists in
Huawei FOTA server.
OK
^FOTASTATE: 11
^FOTASTATE:
12,12.815.01.04.00,79114,"Support
send sms background"
Get the module's new version
"12.815.01.04.00".
AT^FOTADL=1
Start to download the new version and
upgrade.
OK
^FOTASTATE: 30
Indicate that it is downloading FW delta file.
AT^FOTADLQ
Query file download.
^FOTADLQ: 1,"IMAGE",1324,1324
^FOTADLQ: 2,"XNV",47104,77778
OK
^FOTASTATE: 40
^FOTASTATE: 50
^FOTASTATE: 90
Indicate that FW delta file is completely
downloaded.
Indicate that FW is ready to update.
After few minutes, FW is successfully
upgraded.
AT+GMR
Query the module's software version after
the upgrade.
12.815.01.04.00
OK
The software version has been changed.
NOTE
[1] <APN> should be configured before any FOTA function is enabled. Here is an example and
the module needs to be configured according to the specific network.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
91
15.2 Setting FOTA Mode
15.2.1 Reference Process
Command
Description
AT^FOTAMODE=?
Check the parameter range supported by
the command.
^FOTAMODE: (0-1),(0-1),(0-1),(0-1),(1-65535)
OK
AT^FOTAMODE?
Query the current settings.
^FOTAMODE: 0,0,0,1,7
OK
Return the current FOTA mode: manual
query, manual download, manual upgrade,
and resumable data transfer enabled
The value 7 indicates that the query cycle is
seven days, which is meaningless when
manual query is used.
AT^FOTAMODE=1,1,1,1,15
Configure FOTA mode as auto query, auto
download, auto upgrade, and resumable
data transfer enabled. And the auto query
cycle is set to 15 days.
OK
NOTE
- Parameter settings are all saved upon power-off.
- All parameters will be restored to their default values after the upgrade.
15.2.2 Troubleshooting
Scenario
Possible Error
Information
Solution
An error message is
returned.
+CME ERROR: Error
command parameters
The parameter is incorrectly
set. For details, see the latest
version of HUAWEI ME909u-
523 LTE LGA Module AT
Command Interface
Specification.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
92
15.3 Setting FOTA Connection Parameters
15.3.1 Reference Process
Command
Description
AT^FOTACFG="cmnet","","",2
Set the APN to cmnet and authentication mode
to CHAP. Leaves the user name and password
blank. These parameters should be set
according to the contracted values.
OK
AT^FOTACFG?
Query the current settings.
^FOTACFG: "cmnet","","",2
OK
NOTE
- Parameter settings are all saved upon power-off.
- <APN> may be modified by other operations, so <APN> should be configured before any
FOTA function is enabled.
- This command does not provide a test command. For details, see the latest version of
HUAWEI ME909u-523 LTE LGA Module AT Command Interface Specification.
15.3.2 Troubleshooting
Scenario
Possible Error
Information
Solution
An error message is
returned.
+CME ERROR:
Operation not
supported
The operation is not
supported. For details,
see the latest version of
HUAWEI ME909u-523
LTE LGA Module AT
Command Interface
Specification.
An error message is
returned.
+CME ERROR: Error
command parameters
The parameter is
incorrectly set. For
details, see the latest
version of HUAWEI
ME909u-523 LTE LGA
Module AT Command
Interface Specification.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
93
15.4 Manually Querying for Upgrade Firmware Version
15.4.1 Reference Process
Description
This command is used to configure the
PDP context. For example, sets the
APN to cmnet (the value of APN is
provided by the network server) and
authentication mode to CHAP.
Configure FOTA mode as manual
query, manual download, manual
upgrade, and resumable data transfer
enabled.
Query the current FOTA state.
Indicate that the FOTA state is idle.
Check for updates.Ensure that the
module is registered with a valid
network before you run this command.
Return OK (success) or return +CME
ERROR (failure).
Report that the query operation is in
process.
Report information about the new
version, including the version number,
size of the file to be downloaded, and
change description.
Query the current FOTA state.
Indicate that a new version is found.
Delete the detected new version.
Query the current FOTA state.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
94
Indicate that the FOTA state is idle.
Check for updates after deleting the
new version on the server.
Report that no new version is found.
NOTE
- Version detection is allowed only if the FOTA state is idle.
- If the module is undergoing the PS data service or IPSTACK service, the FOTA service
cannot be initiated, including version detection, download, and upgrade.
- The parameter <description> of the ^FOTASTATE command is a string composed of
ASCII characters. This parameter is used to describe the changed items (corresponding to
the feature items in changelog.xml in the upgrade package) of the new version. The
parameter contains a maximum of five records, each containing up to 255 characters.
Records are separated by semicolon.
15.4.2 Troubleshooting
Scenario
Possible Error
Information
Solution
An error message is
returned.
+CME ERROR: FOTA is
in collision state
Check whether the PS data
service or IPSTACK service
is going on, or use
AT^FOTASTATE?
command to check whether
the FOTA state is idle.
An error message is
returned.
+CME ERROR: Previous
command is not
complete
Wait for the previous
command to be completely
executed.
An error message is
returned.
+CME ERROR: SIM PIN
required
Use the PIN to unlock the
SIM card.
The module reports a
query failure.
^FOTASTATE:
13,<error_code>
Upon a query failure, the
module restores the FOTA
state to idle and deletes the
downloaded files. For error
codes, see the latest
version of HUAWEI
ME909u-523 LTE LGA
Module AT Command
Interface Specification.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
95
15.5 Periodically Querying the Version
15.5.1 Reference Process
Command
Description
AT^FOTAMODE=1,0,0,1,7
Configure FOTA mode as auto query, auto
download, auto upgrade, and resumable
data transfer enabled and the query cycle
to seven days.
OK
The command is successfully executed.
The module automatically checks for
updates when the query time arrives.
^FOTASTATE: 11
^FOTASTATE:
12,12.815.01.04.00,79114,"Support
send sms background"
Report that the query operation is in
process.
Report information about the new version.
NOTE
- Periodical query is based on either of the two timekeeping modes: network timekeeping or
local timekeeping. If network timekeeping is unavailable, local timekeeping is used. Local
timekeeping may not be accurate.
- Local timekeeping is affected by AT+CCLK command. Upon a power-off event, the CCLK
value changes to 1980. After you choose to use local timekeeping and change the CCLK
value, the query operation cannot be carried out at the correct time.
15.5.2 Troubleshooting
Scenario
Possible Error
Information
Solution
Auto query is in
use.
No query operation is
initiated when the query
time arrives.
1. Check if the FOTA state is idle.
If not, change the FOTA state to
idle by using the AT^FOTADL=0
command.
2. Check whether the PS data
service or IPSTACK service is
going on. If yes, terminate the
service.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
96
15.6 Manually Downloading the Version
15.6.1 Reference Process
Command
Description
AT^FOTASTATE?
Query the current FOTA state.
^FOTASTATE: 12
OK
Indicate that a new version is found.
AT^FOTADL=1
Run this command to manually
download the version or to resume data
transfer.
OK
^FOTASTATE: 30
The command is successfully executed.
Report that the download is in process.
AT^FOTADL=2
Run this command to manually
download Pause.
OK
^FOTASTATE: 31
The command is successfully executed.
Report that the download is pending. If
the resumable data transfer mode is
disabled, the command will return
"+CME ERROR: Operation not
supported".
AT^FOTADL=1
Run this command to manually
download the version or to resume data
transfer.
OK
^FOTASTATE: 30
The command is successfully executed.
Report that the download is in process.
AT^FOTADLQ
Query the download progress.
^FOTADLQ: 1,"IMAGE",1324,1324
^FOTADLQ: 2,"XNV",47104,77778
OK
Return that the IMAGE file size is 1324
bytes, and 1324 bytes have been
downloaded.
The XNV file size is 77778 bytes, and
47104 bytes have been downloaded.
^FOTASTATE: 40
Report that the version is completely
downloaded and passes the MD5
verification.
AT^FOTADL=?
Query the parameters supported by the
command.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
97
^FOTADL: (0-2)
OK
Return the supported parameters.
0: not to download.
1: download.
2: download pause
NOTE
- Version download is allowed only if the FOTA state is 12 (new version detected) and 31
(download pending).
- The prerequisites for version download and query are:
Module registered with a valid network.
No ongoing PS data service or IPSTACK service.
15.6.2 Troubleshooting
Scenario
Possible Error
Information
Solution
An error message is
returned.
+CME ERROR:
Operation not
supported
The command is
incorrect.
An error message is
returned.
+CME ERROR: SIM PIN
required
Use the PIN to unlock the
SIM card.
An error message is
returned.
ERROR
The command is
executed in incorrect
FOTA state. Ensure that
the FOTA state is 12 or
31 before you run the
command.
The module reports a
download failure.
^FOTASTATE:
20,<error_code>
Upon a download failure,
the module restores the
FOTA state to idle and
deletes the downloaded
file. For error codes, see
the latest version of
HUAWEI ME909u-523
LTE LGA Module AT
Command Interface
Specification.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
98
15.7 Automatically Downloading the Firmware
15.7.1 Reference Process
Command
AT^FOTAMODE=0,1,0,1
OK
AT^FOTADET
OK
^FOTASTATE: 11
^FOTASTATE:
12,12.815.01.01.00,79102,"Support
send sms background"
^FOTASTATE: 30
^FOTASTATE: 40
15.7.2 Troubleshooting
None
15.8 Using the Resumable Data Transfer Function
15.8.1 Reference Process
Description
Enable resumable data transfer.
Query the FOTA state.
Indicate that the download is pending.
Resume the transmission from the
break point.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
99
Report that the download is in process.
Report that the download is complete.
NOTE
If resumable data transfer is disabled, the download pending due to network disconnection or
TCP link breakoff will be regarded as a download error.
15.8.2 Troubleshooting
Scenario
Possible Error
Information
Solution
The function of
resumable data transfer
is disabled, and the
network or TCP link is
disconnected.
^FOTASTATE: 20,18
Or other download error
The module deletes the
downloaded file and
restores the FOTA state
to idle.
The function of
resumable data transfer
is enabled, and the
module is powered off.
^FOTASTATE: 31
The module prompts that
the download can be
resumed.
15.9 Manually Cancelling the Download
15.9.1 Reference Process
Description
Initiate the version download.
Report that the download is in process.
Cancel the download, delete the
downloaded file, and restore the FOTA
state to idle.
The command is successfully executed.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
100
Report that the operation to cancel the
download is complete. The FOTA state
is idle.
15.9.2 Troubleshooting
None
15.10 Manually Upgrading the Version
15.10.1 Reference Process
Command
Description
AT^FOTASTATE?
^FOTASTATE: 40
OK
Report that the download is complete.
AT^FWUP
Run this command to manually start the
upgrade.
OK
^FOTASTATE: 50
^FOTASTATE: 90
The command is successfully executed.
Report that the upgrade starts. The module
restarts, and then starts the upgrade.
Report that the upgrade succeeds.
NOTE
- The module restarts several times during the upgrade. Ensure that during this process, the
module is powered on. Do not send AT commands during the upgrade.
- If the upgrade fails, the module enters forcible loading mode, you can perform any of the
following:
1. One-click upgrade from devices running Windows (full upgrade using the .exe file)
2. Upgrade from devices that run Android or Linux using UpdateWizard (full upgrade using
the .bin file)
3. Local upgrade no matter the host having the operation system or not (for details, see
chapter 12 .
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
101
15.10.2 Troubleshooting
Scenario
Possible Error
Information
Solution
An error message is
returned.
+CME ERROR: Previous
command is not
complete
Wait for the previous
command to be completely
executed.
An error message is
returned.
+CME ERROR: FOTA is
in collision state
1. Check whether the PS
data service or IPSTACK
service is going on.
2. Check that the FOTA
state is not 40 (download is
complete).
An error message is
returned.
ERROR
The command format is
incorrect. Please see the
latest version of HUAWEI
ME909u-523 LTE LGA
Module AT Command
Interface Specification.
The module reports an
upgrade failure.
^FOTASTATE:
80,<error_code>
The module automatically
changes the FOTA state to
idle and deletes the
downloaded file. You can
use the AT^FOTADL=0
command to set the FOTA
state to idle manually. For
error codes, see the latest
version of HUAWEI
ME909u-523 LTE LGA
Module AT Command
Interface Specification.
15.11 Automatically Upgrading the Version
15.11.1 Reference Process
Command
Description
AT^FOTAMODE=0,1,1,1
Configure FOTA mode as auto
download and auto upgrade.
OK
AT^FOTADET
Check for upgrades.
HUAWEI ME909u-523 LTE LGA Module
Application Guide
FOTA Application Scenarios
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
102
OK
^FOTASTATE: 11
^FOTASTATE:
12,12.815.01.02.00,79114,"Support
send sms background"
^FOTASTATE: 30
^FOTASTATE: 40
^FOTASTATE: 50
^FOTASTATE: 90
Return information about the new
version.
Automatically download the version.
Report that the version is completely
downloaded and passes the MD5
verification.
Report that the module is ready for the
upgrade.
Report that the upgrade succeeds.
AT^FOTASTATE?
Query the FOTA state.
^FOTASTATE: 10
OK
The FOTA state changes to idle after
the upgrade.
15.11.2 Troubleshooting
None
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Appendix
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
103
16 Appendix
16.1 Relative Documents
1. HUAWEI ME909u-523 LTE LGA Module AT Command Interface Specification
2. 3GPP TS 27.007 AT command set for User Equipment (UE)
3. 3GPP TS 27.005 Equipment (DTE-DCE) interface for Short Message Service
(SMS) and Cell Broadcast Service (CBS)
4. 3GPP TS 23.040 Technical realization of the Short Message Service(SMS)
5. 3GPP TS 31.102 Universal Subscriber Identity Module(USIM) application
6. 3GPP TS 24.008 Mobile radio interface Layer 3 specification; Core network
protocols; Stage 3
7. 3GPP TS 29.002 Mobile Application Part (MAP) specification
8. 3GPP TS 22.004 General on supplementary services
9. ETSI TS 102.221 Smart Cards; UICC-Terminal interface; Physical and logical
characteristics
16.2 Acronyms and Abbreviations
Table 16-1 List of Abbreviations
Acronym or Abbreviation
Expansion
3GPP
Third Generation Partnership Project
AGPS
Assisted Global Positioning System
APN
Access Point Name
AT
Attention
CS
Circuit Switched (CS) domain
DCE
Data Circuit Equipment
DTE
Data Terminal Equipment
ECM
Ethernet Control Model
HUAWEI ME909u-523 LTE LGA Module
Application Guide
Appendix
Issue 04 (2014-12-08)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
104
Acronym or Abbreviation
Expansion
GPRS
General Packet Radio Service
GPS
Global Positioning System
GSM
Global System for Mobile Communications
IMEI
International Mobile Equipment Identity
IP
Internet Protocol
LTE
Long Term Evolution
ME
Mobile Equipment
PDP
Packet Data Protocol
PDU
Protocol Data Unit
PIN
Personal Identity Number
PPP
Point-to-Point Protocol
PUK
PIN Unblocking Key
PS
Packet Switched (PS) domain
QoS
Quality of Service
SIM
Subscriber Identity Module
SMS
Short Message Service
TE
Terminal Equipment
UART
Universal Asynchronous Receiver/Transmitter
UE
User Equipment
UMTS
Universal Mobile Telecommunications System
USIM
Universal Subscriber Identity Module
WCDMA
Wideband CDMA
Table 16-2 Phonebook-related abbreviations
Abbreviation
Full Name
SM
SIM phonebook
EN
SIM emergency number
ON
SIM own numbers
