Huawei Me909U 521 Users Manual 目录 (Contents)

ME909u-521 to the manual c981d2a2-78c2-4f97-a21c-daeadf03196b

2015-01-24

: Huawei Huawei-Me909U-521-Users-Manual-316575 huawei-me909u-521-users-manual-316575 huawei pdf

Open the PDF directly: View PDF .
Page Count: 67

Revision History
1 Overview
2 Initialization Application Scenarios
3 Network Searching and Regis tration Application Scenarios
- 3.1 Searching and Registering Network
  - 3.1.1 Reference Process

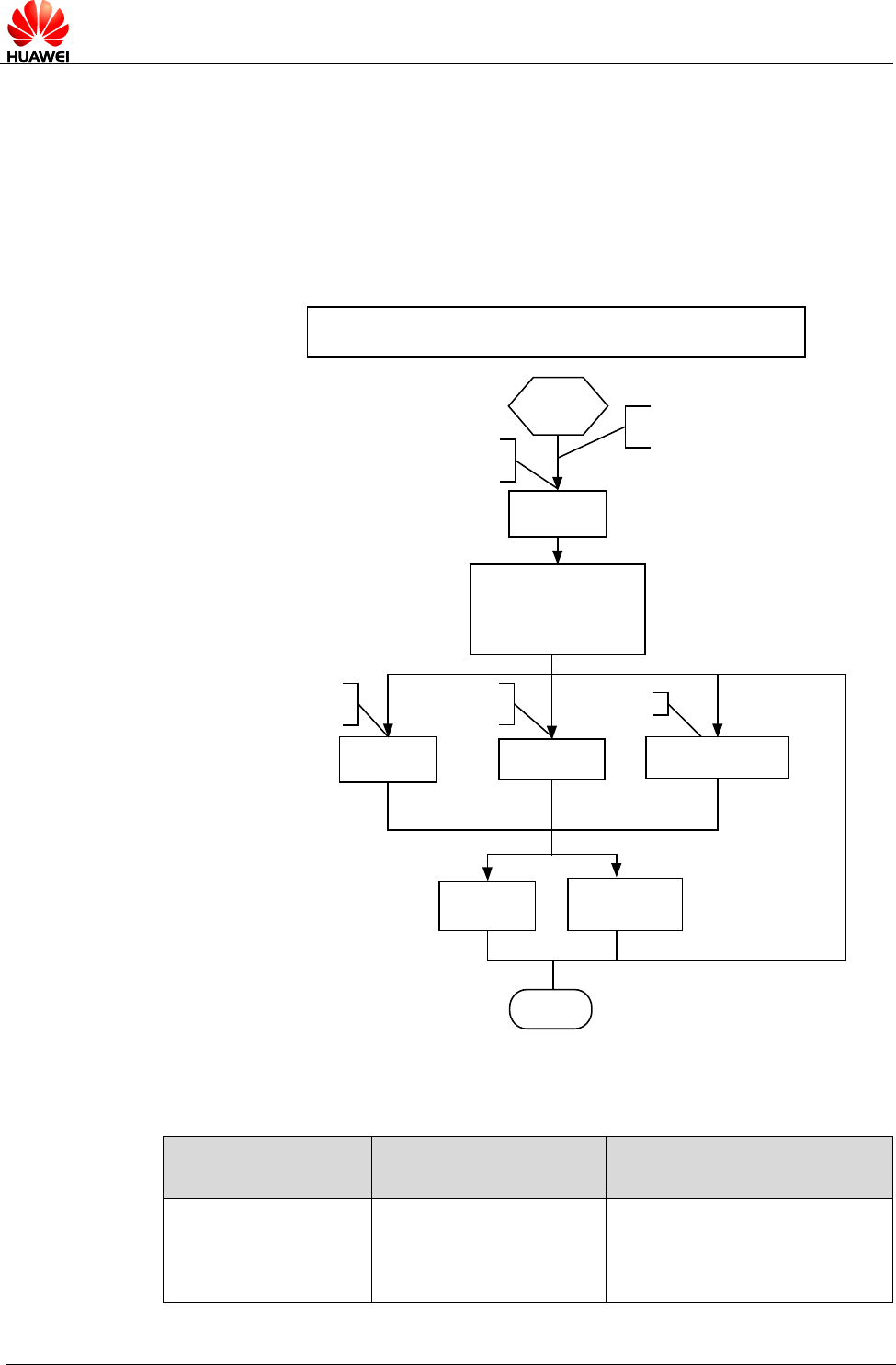

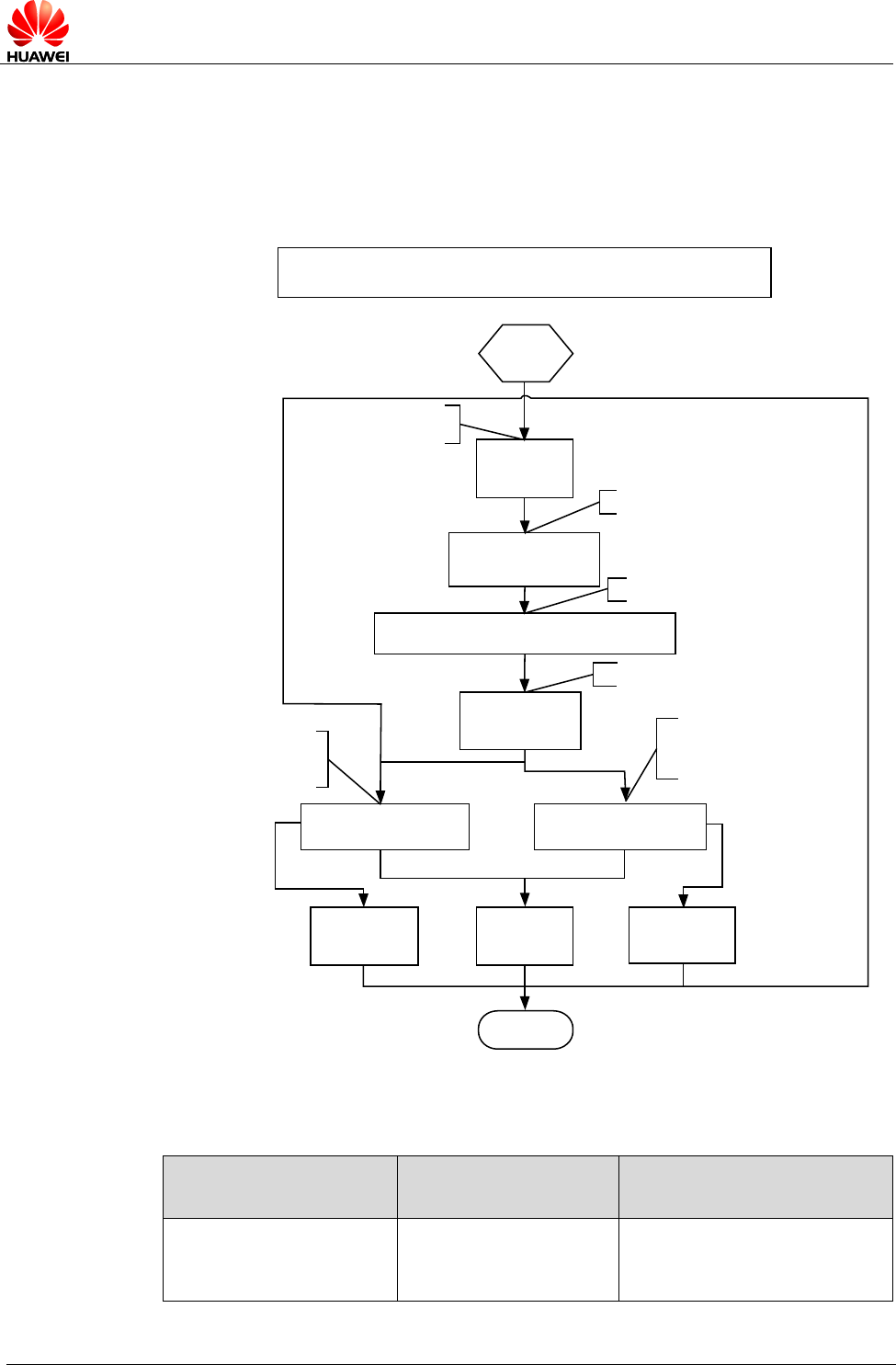

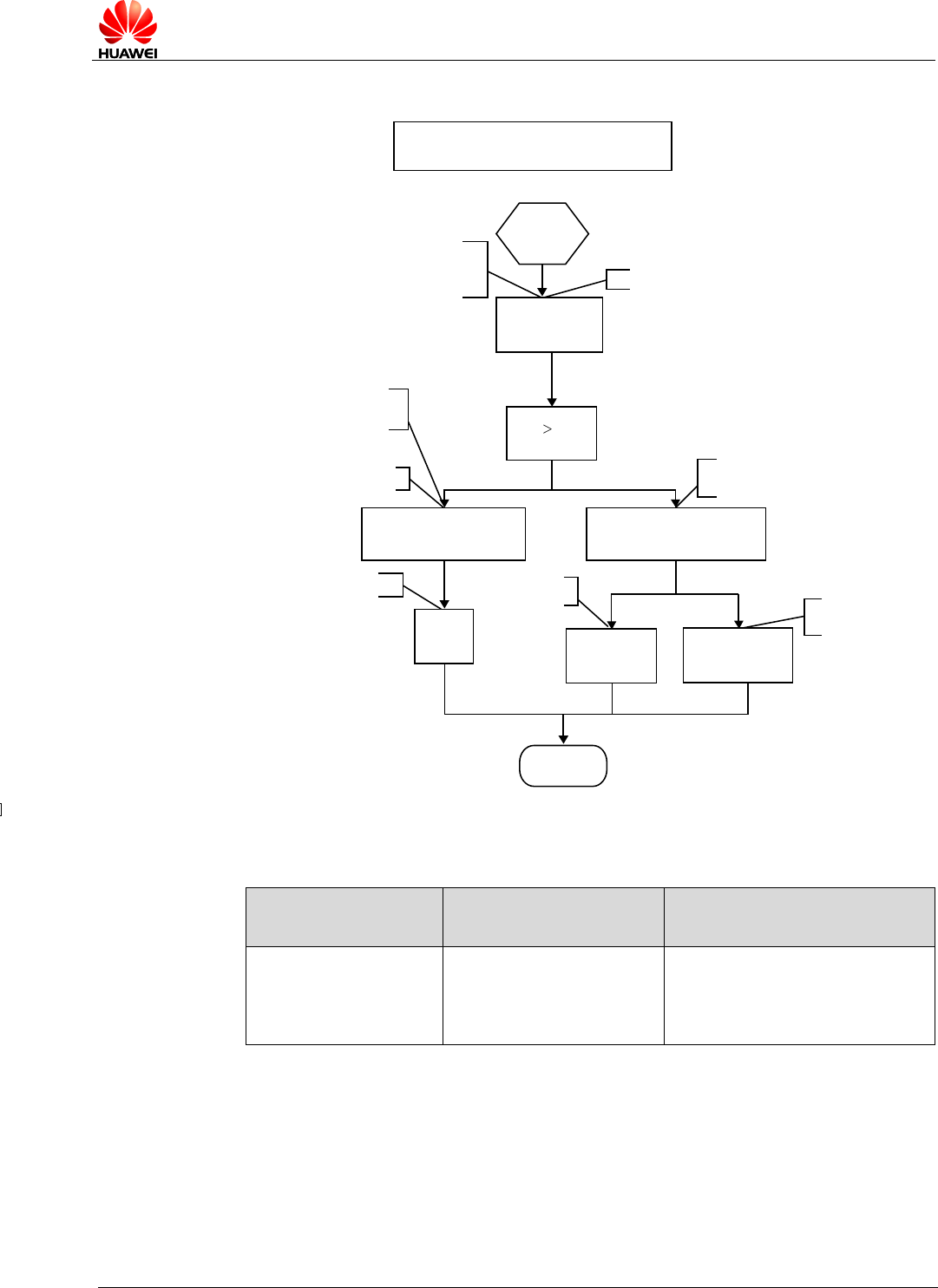

    - Figure 3-1 Automatic search for networks
    - Figure 3-2 Manual search for networks
  - 3.1.2 Troubleshooting
4 ECM Application Scenarios
5 SMS Application Scenarios
6 Phonebook Application Scenarios
7 SIM Operation Application Scenarios
- 7.1 PIN Operations
  - 7.1.1 Reference Process
  - 7.1.2 Troubleshooting
- 7.2 CRSM Command
  - 7.2.1 Reference Process
  - 7.2.2 Troubleshooting
8 Sleeping and Waking Up Application Scenarios
9 Thermal Protection Application Scenarios
- 9.1 Pre-configuration
  - 9.1.1 Troubleshooting
- 9.2 Thermal Protection Process
10 Module Powering Off and Resetting Application Scenarios
- 10.1 Restarting the ME
  - 10.1.1 Reference Process
  - 10.1.2 Troubleshooting
- 10.2 Power Off ME
  - 10.2.1 Reference Process
  - 10.2.2 Troubleshooting
11 Appendix
- 11.1 Relative Documents
- 11.2 Acronyms and Abbreviations
  - Table 11-1 List of Abbreviations
  - Table 11-2 Phonebook-related abbreviations

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Issue

Date

2013-07-05

Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. For

any assistance, please contact our local office or company headquarters.

Huawei Technologies Co., Ltd.

Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People’s Republic of China

Tel: +86-755-28780808 Global Hotline: +86-755-28560808 Website: www.huawei.com

E-mail: mobile@huawei.com

Please refer color and shape to product. Huawei reserves the right to make changes or improvements to any

of the products without prior notice.

No part of this document may be reproduced or transmitted in any form or by any means without prior written

consent of Huawei Technologies Co., Ltd.

The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and

possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble,

decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions

are prohibited by applicable laws or such actions are approved by respective copyright holders under

licenses.

Trademarks and Permissions

, , and

are trademarks or registered trademarks of Huawei Technologies Co., Ltd.

Other trademarks, product, service and company names mentioned are the property of their respective

owners.

Notice

Some features of the product and its accessories described herein rely on the software installed, capacities

and settings of local network, and may not be activated or may be limited by local network operators or

network service providers, thus the descriptions herein may not exactly match the product or its accessories

you purchase.

Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications

contained in this manual without prior notice or obligation.

NO WARRANTY

THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE

LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS

MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI

TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR

CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR

ANTICIPATED SAVINGS.

Import and Export Regulations

Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary

governmental permits and licenses in order to export, re-export or import the product mentioned in this

manual including the software and technical data therein.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

About This Document

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

About This Document

Revision History

Document

Version

Date

Chapter

Description

2013-07-05

Creation

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Contents

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Contents

1 Overview ......................................................................................................................................... 7

1.1 Conventions and Definitions ............................................................................................................ 7

1.1.1 Conventions ............................................................................................................................. 7

1.1.2 Definitions ................................................................................................................................ 7

1.2 Organization of This Document ........................................................................................................ 8

1.3 Basic AT Command Processing Principles ...................................................................................... 9

1.3.1 Ports ........................................................................................................................................ 9

1.3.2 AT Command Processing Mechanism..................................................................................... 9

1.3.3 Recommended Timeout Mechanism for AT Commands Processed by a Host..................... 12

2 Initialization Application Scenarios ....................................................................................... 14

2.1 Startup Indication ^SYSSTART ...................................................................................................... 14

2.1.1 Reference Process ................................................................................................................ 14

2.1.2 Troubleshooting ..................................................................................................................... 14

2.2 Querying Basic Information ............................................................................................................ 15

2.2.1 Reference Process ................................................................................................................ 15

2.2.2 Troubleshooting ..................................................................................................................... 15

2.3 Network Service Operations .......................................................................................................... 16

2.3.1 Reference Process ................................................................................................................ 16

2.3.2 Troubleshooting ..................................................................................................................... 17

3 Network Searching and Registration Application Scenarios............................................. 18

3.1 Searching and Registering Network............................................................................................... 18

3.1.1 Reference Process ................................................................................................................ 18

3.1.2 Troubleshooting ..................................................................................................................... 20

4 ECM Application Scenarios ...................................................................................................... 21

4.1 ECM Dialing ................................................................................................................................... 21

4.1.1 Reference Process ................................................................................................................ 21

4.1.2 Troubleshooting ..................................................................................................................... 22

4.2 Querying the Dial-up Connection State .......................................................................................... 22

4.2.1 Reference Process ................................................................................................................ 22

4.2.2 Troubleshooting ..................................................................................................................... 23

4.3 Disconnecting the Dial-up Connection ........................................................................................... 23

4.3.1 Reference Process ................................................................................................................ 23

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Contents

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

4.3.2 Troubleshooting ..................................................................................................................... 23

5 SMS Application Scenarios ...................................................................................................... 24

5.1 Overview ........................................................................................................................................ 24

5.2 Initializing SMS ............................................................................................................................... 26

5.2.1 Reference Process ................................................................................................................ 26

5.2.2 Troubleshooting ..................................................................................................................... 29

5.3 Sending Short Message ................................................................................................................. 29

5.3.1 Reference Process ................................................................................................................ 29

5.3.2 Troubleshooting ..................................................................................................................... 31

5.4 Reading Short Messages ............................................................................................................... 32

5.4.1 Reference Process ................................................................................................................ 32

5.4.2 Troubleshooting ..................................................................................................................... 34

5.5 Deleting Short Messages ............................................................................................................... 34

5.5.1 Reference Process ................................................................................................................ 34

5.5.2 Troubleshooting ..................................................................................................................... 35

6 Phonebook Application Scenarios .......................................................................................... 36

6.1 Overview ........................................................................................................................................ 36

6.2 Memory Operations ........................................................................................................................ 36

6.2.1 Reference Process ................................................................................................................ 36

6.2.2 Troubleshooting ..................................................................................................................... 37

6.3 Reading Phonebook Entries .......................................................................................................... 38

6.3.1 Reference Process ................................................................................................................ 38

6.3.2 Troubleshooting ..................................................................................................................... 39

6.3.3 Writing/Deleting Phonebook Entries ...................................................................................... 40

6.3.4 Reference Process ................................................................................................................ 40

6.3.5 Troubleshooting ..................................................................................................................... 41

6.4 Searching for Phonebook Entries .................................................................................................. 42

6.4.1 Reference Process ................................................................................................................ 42

6.4.2 Troubleshooting ..................................................................................................................... 43

6.5 Querying User Number .................................................................................................................. 43

6.5.1 Reference Process ................................................................................................................ 43

6.5.2 Troubleshooting ..................................................................................................................... 44

6.6 Setting the TE's Character Sets ..................................................................................................... 44

6.6.1 Reference Process ................................................................................................................ 44

6.6.2 Troubleshooting ..................................................................................................................... 45

7 SIM Operation Application Scenarios .................................................................................... 46

7.1 PIN Operations ............................................................................................................................... 46

7.1.1 Reference Process ................................................................................................................ 46

7.1.2 Troubleshooting ..................................................................................................................... 47

7.2 CRSM Command ........................................................................................................................... 48

7.2.1 Reference Process ................................................................................................................ 48

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Contents

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

7.2.2 Troubleshooting ..................................................................................................................... 50

8 Sleeping and Waking Up Application Scenarios ................................................................. 51

8.1 Hardware Interfaces ....................................................................................................................... 52

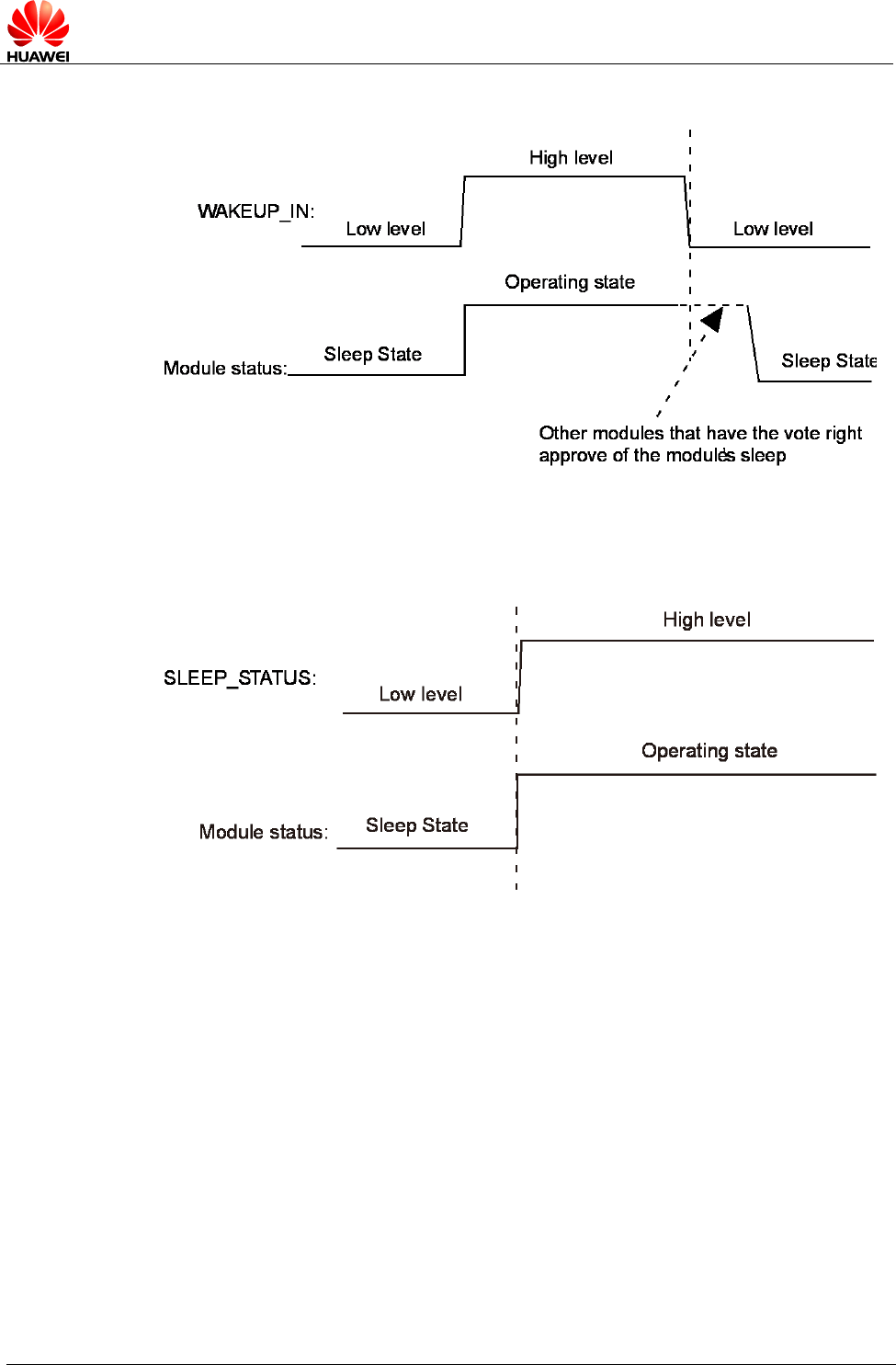

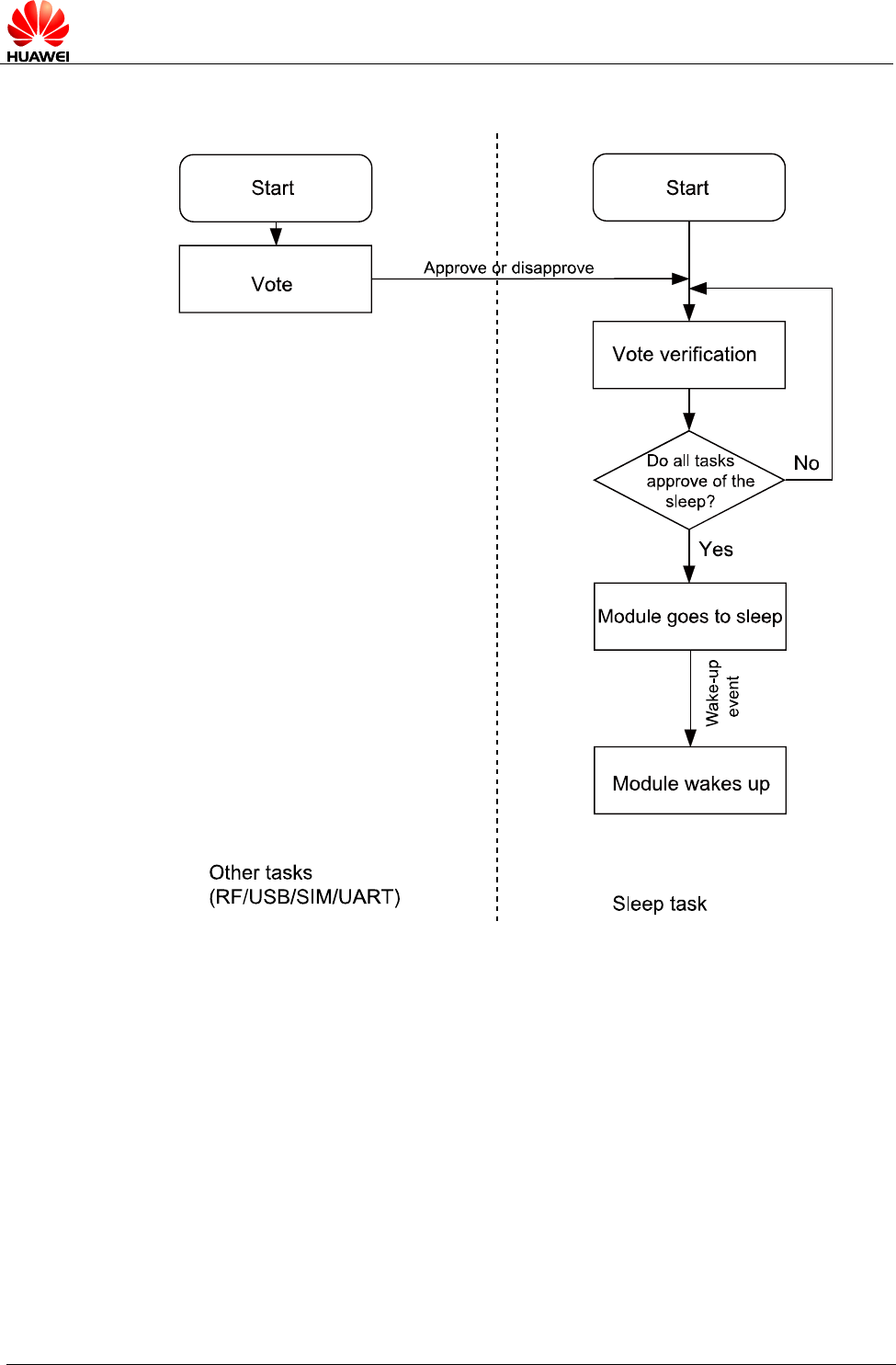

8.2 Sequence Diagram......................................................................................................................... 53

8.3 Software Interfaces ........................................................................................................................ 54

8.3.1 Principle ................................................................................................................................. 54

8.3.2 USB and Sleep ...................................................................................................................... 56

8.3.3 UART and Sleep .................................................................................................................... 57

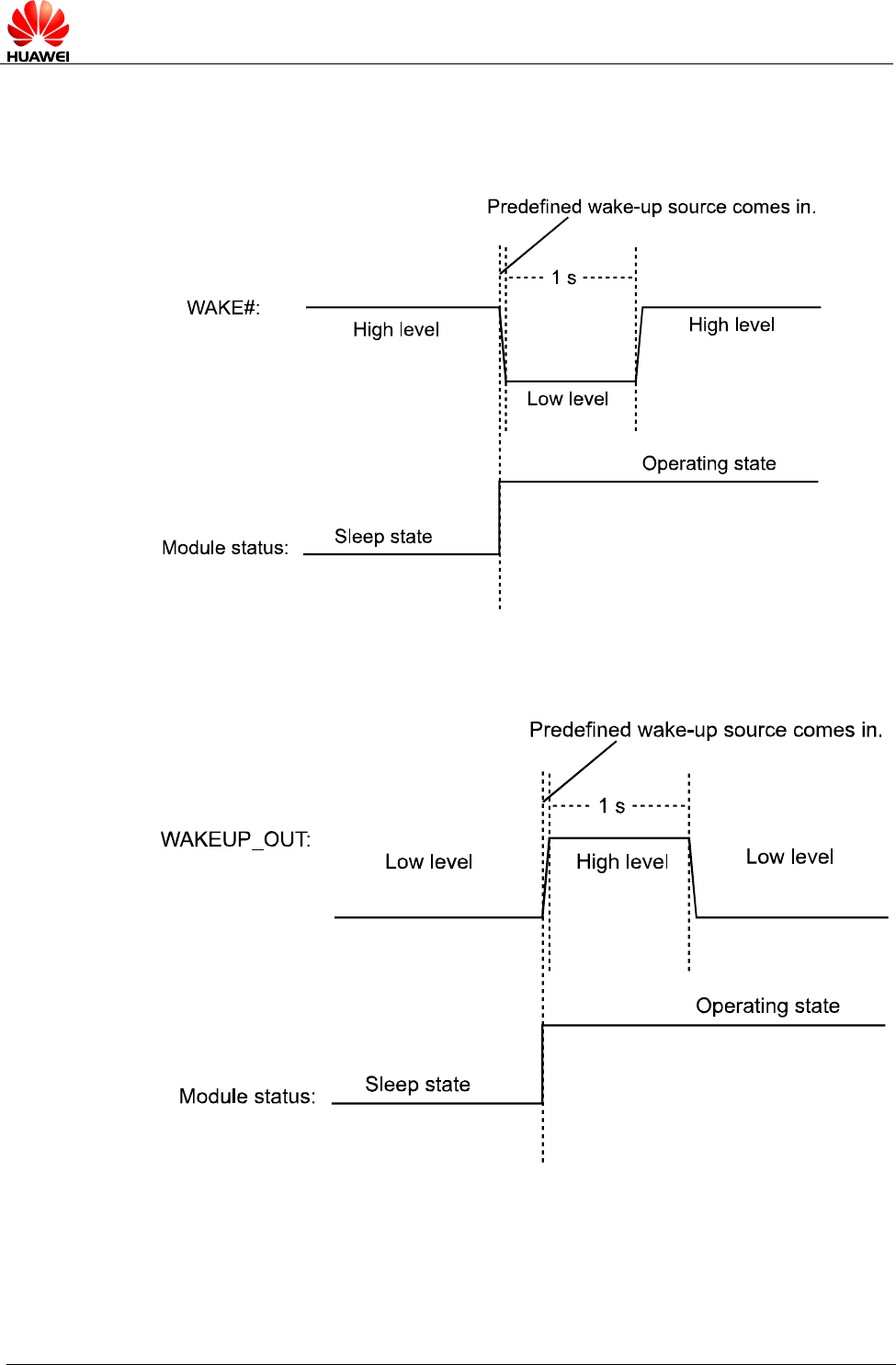

8.3.4 Module Wake-up .................................................................................................................... 57

8.3.5 Host Woken up by Module .................................................................................................... 57

8.4 Application Scenarios: System with USB Connection only ............................................................ 59

8.4.1 Hardware Connection ............................................................................................................ 59

8.4.2 Software Procedure ............................................................................................................... 59

8.4.3 Advantages ............................................................................................................................ 60

8.5 Application Scenarios: System with USB and WAKEUP_OUT ...................................................... 60

8.5.1 Hardware Connection ............................................................................................................ 60

8.5.2 Software Procedure ............................................................................................................... 60

8.5.3 Advantages ............................................................................................................................ 61

8.6 System with Other Connection Methods ........................................................................................ 61

9 Thermal Protection Application Scenarios ............................................................................ 62

9.1 Pre-configuration ............................................................................................................................ 62

9.1.1 Troubleshooting ..................................................................................................................... 62

9.2 Thermal Protection Process ........................................................................................................... 62

10 Module Powering Off and Resetting Application Scenarios ........................................... 64

10.1 Restarting the ME ......................................................................................................................... 64

10.1.1 Reference Process .............................................................................................................. 64

10.1.2 Troubleshooting ................................................................................................................... 64

10.2 Power Off ME ............................................................................................................................... 64

10.2.1 Reference Process .............................................................................................................. 64

10.2.2 Troubleshooting ................................................................................................................... 65

11 Appendix .................................................................................................................................... 66

11.1 Relative Documents ..................................................................................................................... 66

11.2 Acronyms and Abbreviations ........................................................................................................ 66

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Overview

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

1 Overview

This document is intended to provide references for customers to choose appropriate

command sequences to start using the ME909u-521 module in a faster manner. This

document also contains examples and relevant description.

This document will be updated based on customers' requirements.

1.1 Conventions and Definitions

1.1.1 Conventions

Convention

Description

<…>

Value range of AT command parameters

XXXX

Personal Identification Number (PIN), Personal Unlock Key

(PUK), or password

1.1.2 Definitions

Term

Definition

Connected

Indicates that a link has been set up between two

modules or a module and a terminal.

Registered

Indicates that the module is registered with a

LTE/UMTS/GSM network.

Module

HUAWEI LTE module

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Overview

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

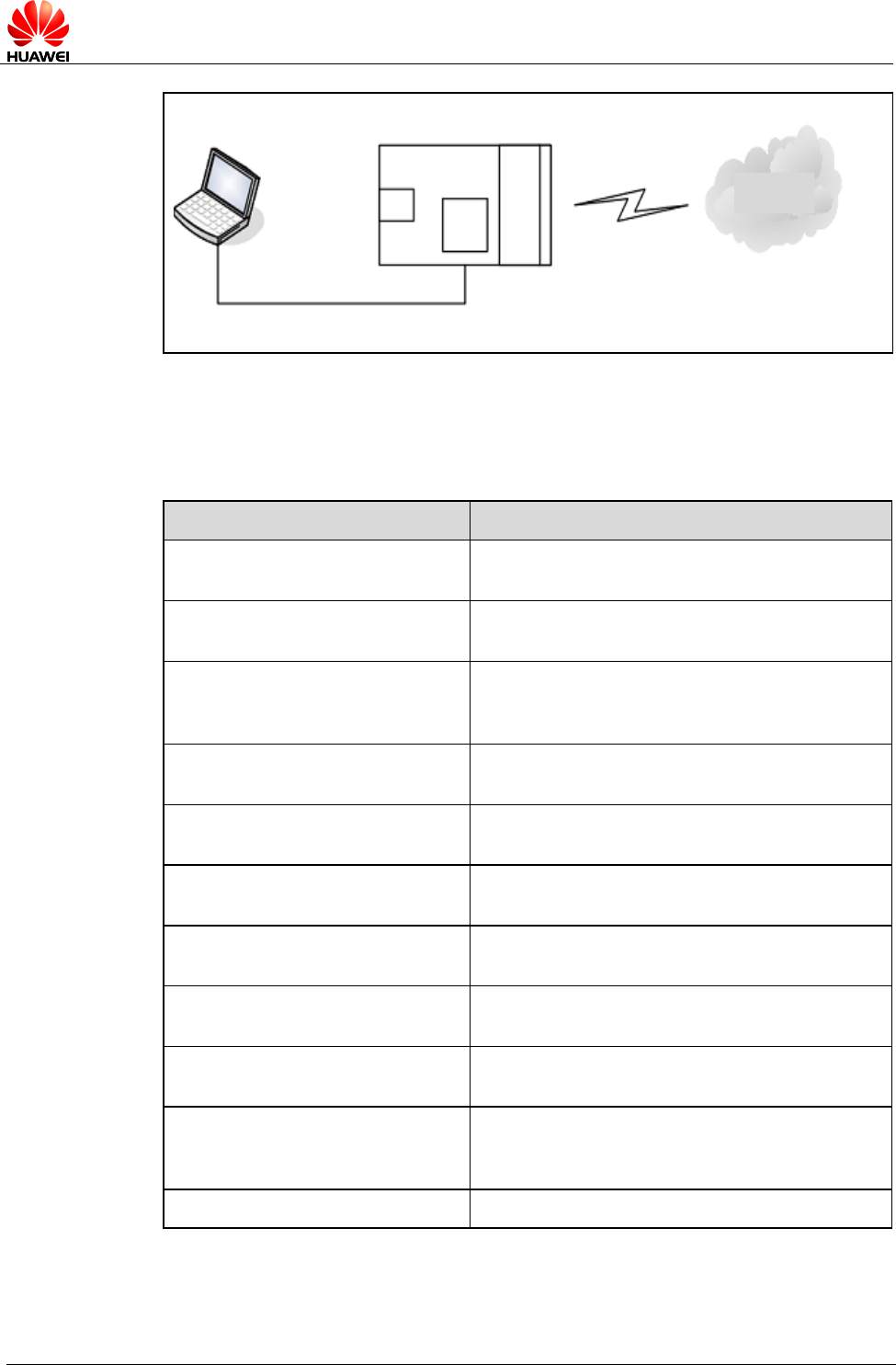

Application Mobile equipment

network

1.2 Organization of This Document

Chapter

Description

Chapter 1 Overview

Describes the contents and organization of this

document

Chapter 2 Initialization

Application Scenarios

Describes scenarios for initialization

Chapter 3 Network Searching

and Registration Application

Scenarios

Describes scenarios for network searching and

registration

Chapter 4 ECM Application

Scenarios

Describes scenarios for ECM

Chapter 5 SMS Application

Scenarios

Describes scenarios for the text message

Chapter 6 Phonebook

Application Scenarios

Describes scenarios for phonebook

Chapter 7 SIM Operation

Application Scenarios

Describes scenarios for PIN management

Chapter 8 Sleeping and Waking

Up Application Scenarios

Describes scenarios for power management

Chapter 9 Thermal Protection

Application Scenarios

Describes scenarios for thermal protection

Chapter 10 Module Powering Off

and Resetting Application

Scenarios

Describes scenarios for powering off and

restarting

Chapter11 Appendix

Appendix

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Overview

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

1.3 Basic AT Command Processing Principles

1.3.1 Ports

The ME909u-521 module provides three ports to interact with its host:

- MODEM port: simulated using USB, for AT command interaction and

establishing data connection.

Port name: HUAWEI Mobile Connect-3G Modem

- PCUI port: simulated using USB, for AT command interaction only.

Port name: HUAWEI Mobile Connect-3G PCUI Interface

- ECM port: simulated using USB, for establishing communication connection.

Port name: CDC Ethernet Control Model (ECM)

The ME909u-521 also provides a port for debugging:

- DIAG port: Simulated using USB, for DIAG (diagnostic) command interaction

(mainly used to debug modules at present).

Port name: HUAWEI Mobile Connect-3G Application Interface

A host controls a module using AT commands. If AT commands are unavailable, a

module can be deemed as unavailable.

1.3.2 AT Command Processing Mechanism

A module processes AT commands from the ports (MODEM, PCUI) in series. An AT

command can be processed when and only when the previous AT command

processing has been completed. If the module is processing an AT command, a new

AT command from the same port will be ignored and other commands from other

ports will be buffered until the current AT command is processed.

This rule also applies to COM ports converted from USB ports.

The processing of an AT command starts when the AT command is entered from the

TE, and ends when the UE (the module) returns all the results in response the

command.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Overview

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

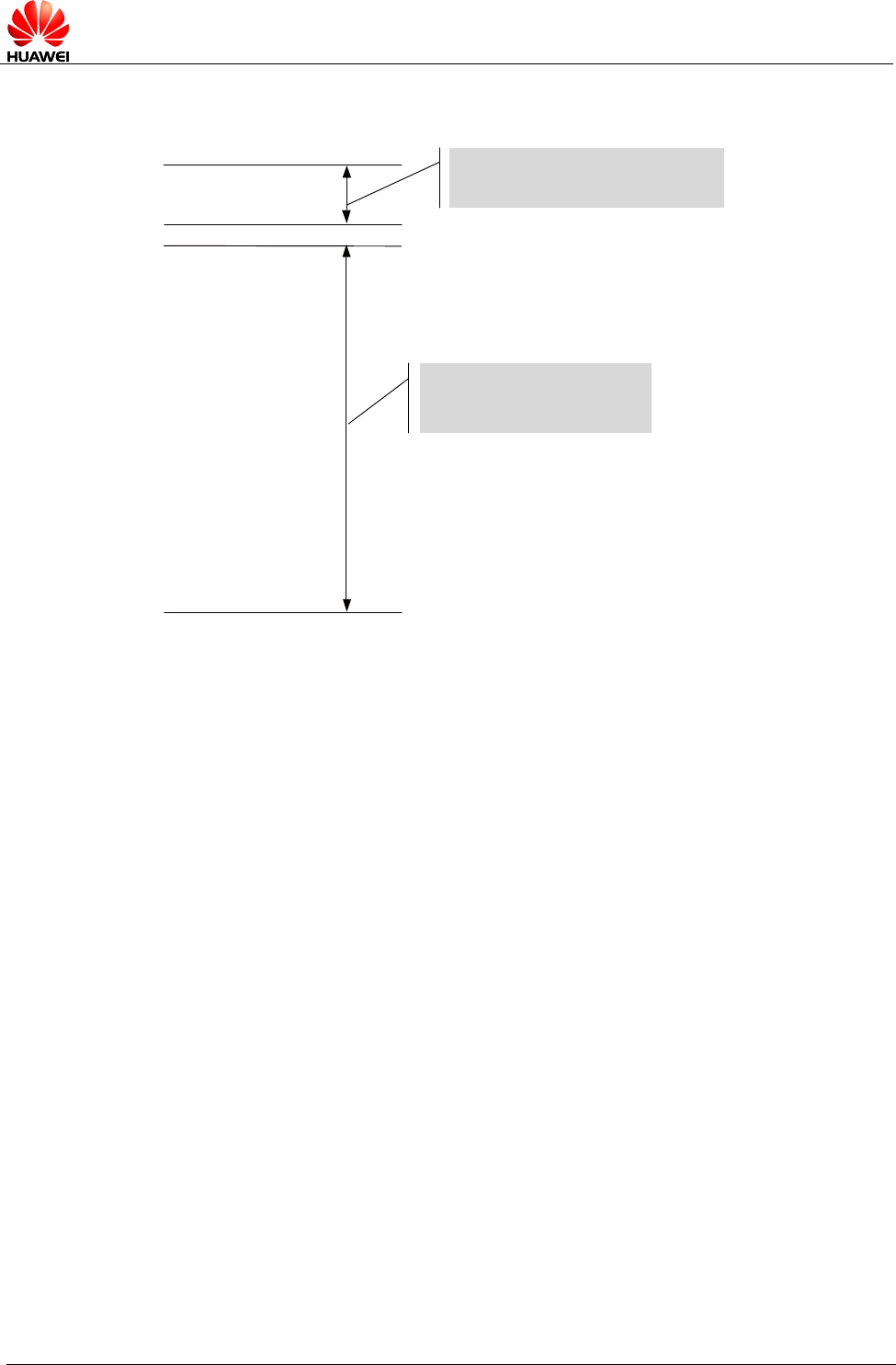

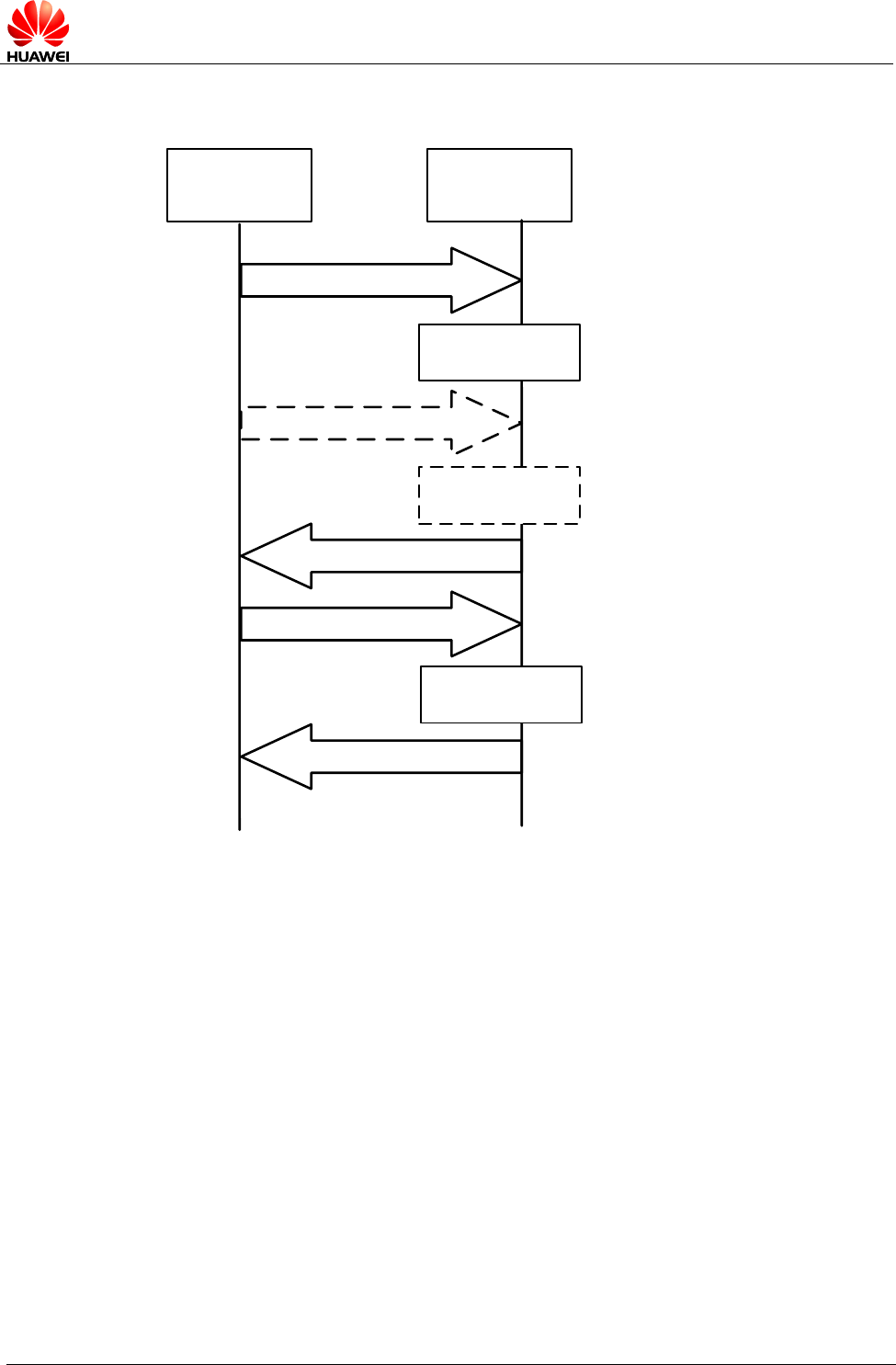

Figure 1-1 AT command processing sequence diagram

TE UE

AT command 1

AT command 2

Return results of AT command 1

AT command 3

Ignore AT

command 2

Process AT

command 1

Process AT

command 3

Return results of AT command 3

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Overview

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Example:

CPIN

READY

CMGL

07813108608805

911320

813109730116

20000

705

4603

CMGL

07813108608805

931

813109730155

30000

704

CMGL

07813108608805

931

813109730155

30000

704

CMGL

07813108608805

931

813109730155

30000

71061

CAC

EBF

CBC

168

CMGL

07813108608805

931

813109730155

30000

ECB

CMGL

07813108608805

931

813109730155

30000

7096

333

DCBE

77079

CMGL

07813108608805

931

813109730155

30000

70930598

DBDF

All AT commands entered during

this period of time will be

ignored.

All AT commands entered

during this period of time will

be ignored.

Some special AT commands can be aborted by new AT commands. Such special

commands are called abortive commands.

The ME909u-521 supports the following abortive AT commands:

- The AT+COPS Set command

- AT+CLCK

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Overview

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Example:

AT+COPS=1,2,23415

Before the results ofAT+COPS

is returned, enter any characters

(such as"AT"), the module will

terminate the processing of

AT+COPS and returnOK. The

entered characters are used to

abort the command only .

Some commands can be executed when SIM card is inserted. It would return to SIM

failure if SIM card is not inserted. For more information, see Property Description of

related AT in HUAWEI ME909u-521 LTE LGA Module AT Command Interface Specification.

Example:

AT+CREG?

+CME ERROR: SIM failure

Note:

SIM failure indicate that SIM card is not inserted.

1.3.3 Recommended Timeout Mechanism for AT Commands

Processed by a Host

A module processes AT commands in series. Do not send another AT command

before the result for the current command is returned or the current command times

out (except when the current command is an abortive AT command). The following

table lists AT command timeout durations (starting from the time when an AT

command arrives at a port).

Table 1-1 AT command timeout duration

AT Command

Timeout Duration

General AT commands

30s

AT+CMSS/AT+CMGS (used to send text

messages)

60s

AT+COPS=? (used to search for networks)

120s

After an AT command times out, it is recommended that the host check whether the

module is functioning normally. The following procedure is provided for your

reference:

1. The host sends AT to the module.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Overview

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

2. If the module returns failure information, go to step 5.

3. If the module returns success information, the module is functioning normally.

4. If the host times out (the host waits for a response for over 30 seconds) three

times when waiting for the response from the module, go to step 5. Otherwise go

to step 1.

5. The host deems that the current module does not exist or is unavailable. Close

the port, stop sending all AT commands, exit the procedure to determine

whether the module is normal, and re-search for modules.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Initialization Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

2 Initialization Application Scenarios

2.1 Startup Indication ^SYSSTART

2.1.1 Reference Process

Command

Description

A module, without solicitation, presents ^SYSSTART to

its host to indicate that the module is starting.

^SYSSTART

Indicate that a module is starting.

Notes:

- ^SYSSTART is presented only when a module is starting and will not be presented after a

module has started.

- ^SYSSTART is presented only after the radio frequency (RF) initialization completes and

will not be presented in offline mode.

2.1.2 Troubleshooting

Scenario

Possible Error

Information

Solution

The module presents

^SYSSTART during startup.

After that, the module

presents ^SYSSTART again.

Indicate that the

module has been

reset.

If ^SYSSTART is presented

repeatedly, send the module

to the specified repair center.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Initialization Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

2.2 Querying Basic Information

2.2.1 Reference Process

Command

Description

AT+GMR/CGMR

Query software version.

Software version

Software version. e.g. 11.103.03.00.00

AT+GMI/CGMI

Query manufacturer identification.

Manufacturer

Identification

For example: Huawei Technologies Co., Ltd.

AT+GMM/CGMM

Query model identification.

Model identification

For example: ME909u-521

AT+GSN/CGSN

Query product IMEI.

IMEI

For example: 865261010004010

Note:

The previously listed commands are Query commands and cannot be used to configure

settings.

2.2.2 Troubleshooting

Scenario

Possible Error

Information

Solution

AT+GSN/CGSN

+CME ERROR: memory

failure

This error occurs when a

module's IMEI is not specified.

This problem is solved after

the IMEI is written into the

module.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Initialization Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

2.3 Network Service Operations

2.3.1 Reference Process

Command

Description

AT+CFUN?

Query a module's current mode. 1 indicates online

mode.

+CFUN: 1

AT+CPIN?

Query whether a module's SIM card is password

protected. READY indicates that the SIM card is

ready.

+CPIN: READY

AT^HCSQ?

Query the network signal quality.

^HCSQ:

"WCDMA",30,30,58

AT+COPS?

Return the current network selection mode,

information about the operator with which the

module is registered, and the wireless access

standard.

+COPS: "Network status

information"

For example: +COPS: 1,0, "China Mobile Com"

AT+COPS=0

Automatically search for networks.

AT+CREG?

Query the state of the currently registered network.

+CREG: 0,1

AT+CREG=1

Set the +CREG unsolicited indication.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Initialization Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

2.3.2 Troubleshooting

Scenario

Possible Error Information

Solution

AT+COPS?

+CME ERROR: SIM failure

No SIM card is detected. Insert

a SIM card.

AT+CREG?

+CME ERROR: SIM failure

No SIM card is detected. Insert

a SIM card.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Network Searching and Registration Application

Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

3 Network Searching and Registration

Application Scenarios

3.1 Searching and Registering Network

3.1.1 Reference Process

Command

Description

AT+COPS=0

Enable automatic search for networks.

AT+COPS=1,2,"46000"

Manual search for the appointed network.

AT+COPS=?

Search for all networks, and return the

networks.

AT+CREG=2

Enable the unsolicited indication when

network registration state changes.

AT^SYSCFGEX="00",3FFFFFFF

,1,2,7FFFFFFFFFFFFFFF,,

Set the system mode, network access order,

frequency band, roaming support, domain,

and other features.

AT^SYSINFOEX

Query the system service state, domain,

roaming status, and system mode.

^SYSINFOEX:

2,3,0,1,,1,"GSM",3,"EDGE"

AT^HCSQ?

Query the signal quality.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Network Searching and Registration Application

Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Command

Description

^HCSQ:"GSM",73

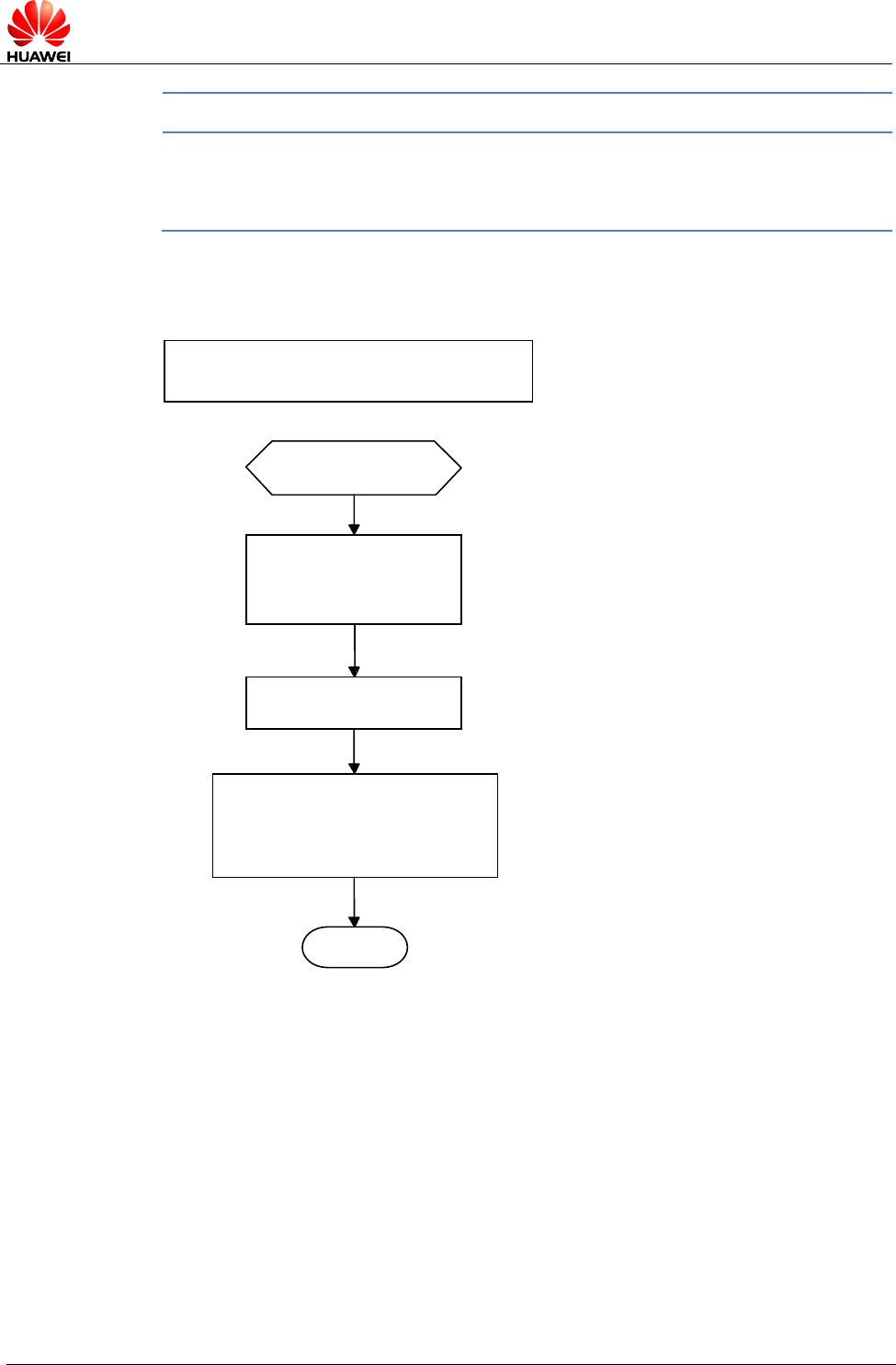

Figure 3-1 Automatic search for networks

Automatic search for networks

Start

Enable automatic

search for networks.

AT+COPS=0

End

Return OK

The unsolication command

^SRVST indication for

the change of network state.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Network Searching and Registration Application

Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Figure 3-2 Manual search for networks

Manual search for networks

Start

Enable automatic

search for networks.

AT+COPS=?

Display the

networks found.

Select and register with a network.

AT+COPS=1[,<format>[,<oper>[,<rat>]]]

End

3.1.2 Troubleshooting

Scenario

Possible Error

Information

Solution

AT+COPS?

+CME ERROR: SIM

failure

No SIM card is detected. Insert

a SIM card.

AT+CREG?

+CME ERROR: SIM

failure

No SIM card is detected. Insert

a SIM card.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

ECM Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

4 ECM Application Scenarios

4.1 ECM Dialing

4.1.1 Reference Process

Command

Description

AT^NDISDUP=?

Check the parameter range supported by

the command.

^NDISDUP: (1-16),(0-1)

AT^NDISDUP=1,1,"1234"

Set up a dial-up connection using the

APN provided by the network server.

^NDISSTAT: 1,,,"IPV4"

The command is successfully executed.

Report the dial-up connection state.

AT^NDISDUP=1,1,"4321","huawei",

"huawei",1

Set up a dial-up connection using the

account, password, and authentication

mode provided by the network server.

^NDISSTAT: 1,,,"IPV4"

The command is successfully executed.

Report the dial-up connection state.

The process of obtaining the IP address:

1. After the dial-up is successful, the module will establish the DHCP service

automatically.

2. The PC driver will get the dial-up state and send net_ready state to the network

manage.

3. The network manage sends the DHCP service discover.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

ECM Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

4. The module responses the service discover, and then sends the IP and DNS

address which is obtained from the PDP active process to the network managing

device.

4.1.2 Troubleshooting

Scenario

Possible Error Information

Solution

AT^NDISDUP=1,1,"1234

+CME ERROR: SIM failure

No SIM card is

detected. Insert a SIM

card.

AT^NDISDUP=1,1,"4321

","huaei","huawei",1

^NDISSTAT: 0,33,,"IPV4"

^NDISEND:1,29

NDISEND indicates the

failure reason during the

dial-up.

29 indicates that the

authenticated

information is not

correct.

AT^NDISDUP=1,1,"abcd

^NDISSTAT: 0,33,,"IPV4"

^NDISEND:1,33

NDISEND indicates the

failure reason during the

dial-up.

33 indicates that request

service is not specified.

In this case, the network

don not support this

APN "abcd".

4.2 Querying the Dial-up Connection State

4.2.1 Reference Process

Command

Description

AT^NDISSTATQRY?

Query the dial-up connection state.

^NDISSTATQRY: 0,0,,IPV4

Report that the connection is not set up.

AT^NDISSTATQRY?

Query the dial-up connection state.

^NDISSTATQRY: 1,,,IPV4

Report that the connection is set up.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

ECM Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

4.2.2 Troubleshooting

None

4.3 Disconnecting the Dial-up Connection

4.3.1 Reference Process

Command

Description

AT^NDISDUP=1,0

Disconnect the dial-up connection.

^NDISSTAT:0,,,"IPV4"

The command is successfully executed.

IPv4 changes from the connected state to

the disconnected state.

4.3.2 Troubleshooting

None

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SMS Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

5 SMS Application Scenarios

5.1 Overview

Short Message Service (SMS) is a text messaging service using a service center(SC)

to transfer short text messages between GSM MEs and Short Message Entities

(SMEs). ME909u-521 only supports protocol data unit (PDU) mode message.

A message must contain the following information before it is sent:

For a PDU mode message:

- Length of TPDU package

- Message content: To compose or send a PDU mode message, the message

must contain all the message attributes and be encoded in PDU format. A PDU

consists of the following:

− Service Center Address (SCA): composed of the address length, SCA type

and SCA reverse byte.

− First octet: contains the message type indicator, TP-RP, TP-UDHI, TP-SRR,

TP-VPF, TP-RD, and TP-MTI.

− Short text message statement.

− Destination address: consisting of the destination address, address length

and destination address type.

− Protocol identifier.

− Data encoding scheme.

− Validity duration.

− Data length.

− User data: consisting of the user data header and the data encoded in PDU

format.

Figure 5-1 shows an example of data encoded in PDU format of submitted type.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SMS Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Figure 5-1 Example of data encoded in PDU format of submitted type

Figure 5-2 shows the general SMS process.

Figure 5-2 General SMS process

SMS

Start

SMS initialization

Delete short

messages

Write short

messages

Receive

short messages

Read short

messages

Send short

messages Status report

End

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SMS Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

5.2 Initializing SMS

5.2.1 Reference Process

Command

Description

AT+CSCA?

Query the SMSC address.

+CSCA:

"13800688509",129

AT+CSCA="+8613800755

500"

Set the SMSC address to the SMSC number of

China Mobile's Shenzhen Branch.

AT+CSMS?

Query the short message service type.

+CSMS: 0,1,1,1

AT+CNMI?

Query the configuration of the new message

indications to TE.

+CNMI: 0,0,0,0,0

AT+CNMI=2,1,2,2,0

Configure the new message indications to TE.

AT+CPMS?

Query the preferred short message storage.

+CPMS:

"SM",12,20,"SM",12,20,"S

M",12,20

AT+CPMS="SM"

Set SM as short message storage medium.

AT+CGSMS?

Query the MO SMS bearer domain.

+CGSMS: 1

AT+CMGF?

Query the short message format.

+CMGF: 0

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SMS Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Command

Description

AT+CMGF=0

Set the short message format to PDU.

Use the AT+CMGF command to set short message format: AT+CMGF=0 sets the

short message format to PDU.

The SMSC address provided by the service provider must be specified. In PDU mode,

the SMSC address is contained in the PDU packets. Therefore, in PDU mode, the

AT+CSCA command is optional.

To use the SMS features specified in the GSM 07.05 Phase 2+, the AT+CSMS

command must be used to enable the features.

Use the AT+CNMI command to set the unsolicited indications.

Use the AT+CPMS command to select the preferred short message storage (SIM or

ME). The ME909u-521 supports only the SM (SIM card) storage.

Use the AT+CGSMS command to select the MO SMS bearer domain (PS or CS

domain). For ME909u-521, the CS domain is the preferred MO bearer domain.

Figure 5-3 SMS initialization process – part 1

SMS initialization

Start

Query the SMSC

address.

Set the SMSC address to the SMSC

number of China Mobile's

Shenzhen Branch.

Set the message

service type.

Require the message

service type.

AT+CSCA?

AT+CSMS? AT+CSMS=1

+CSCA: "",129

+CSMS: 0,1,1,1

AT+CSCA="+8613800755500"

+CSMS: 1,1,1

Example: SMSC

address is not specified.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SMS Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Figure 5-4 SMS initialization process – part 2

Query the unsolicited

indication state.

Enable the notification

of new messages.

Default values

Query the preferred storage

for the current message.

AT+CPMS?

AT+CGSMS?

+CNMI: 0,0,0,0,0

AT+CNMI=2,1,2,2,0

+CGSMS: 1

+CPMS: "SM",13,20,"SM",13,20,"SM",13,20

AT+CNMI?

AT+CMGF=0

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SMS Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

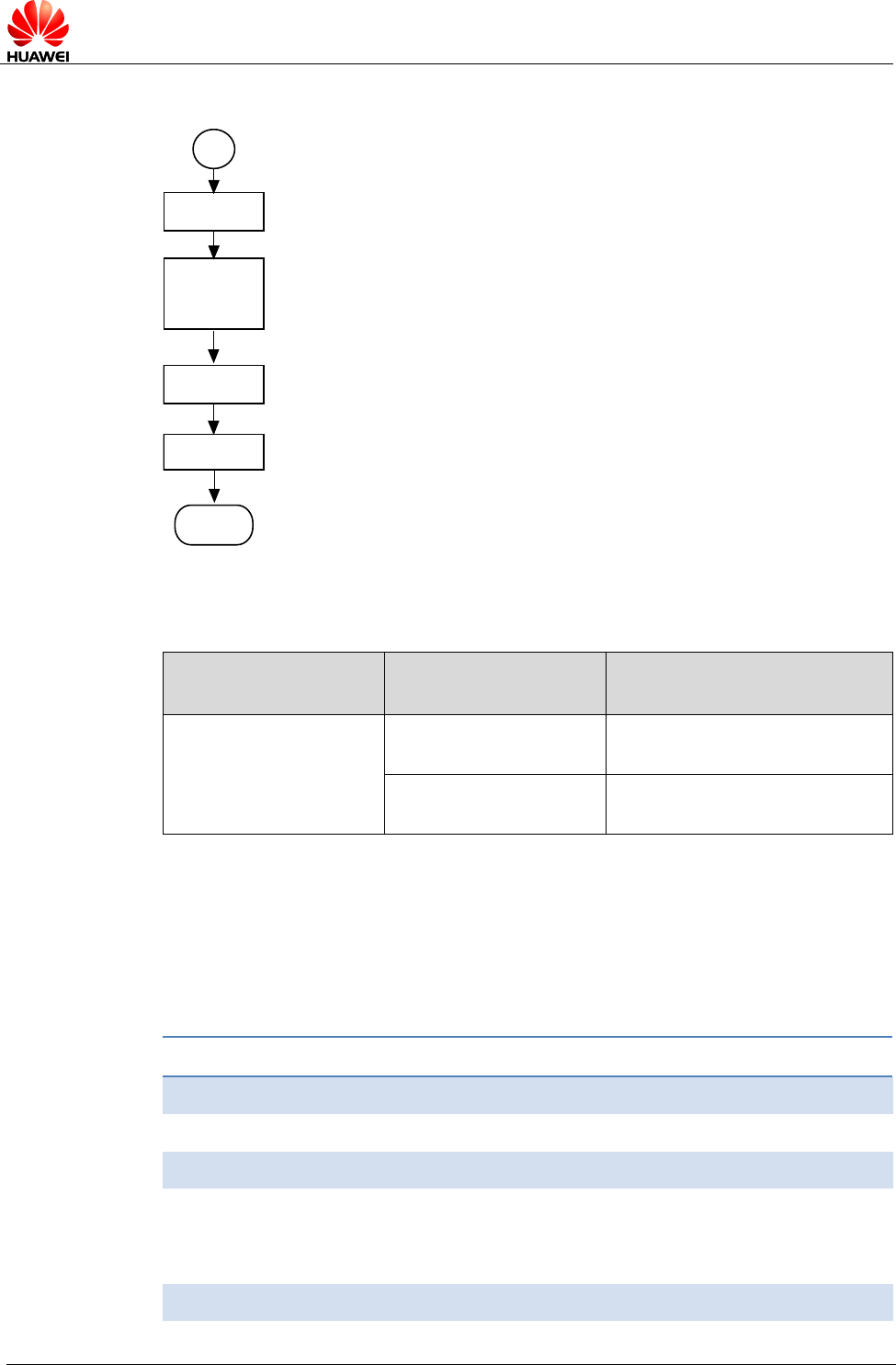

Figure 5-5 SMS initialization process – part 3

End

AT+CMGF=0

AT+CMGF?

+CMGF:0

5.2.2 Troubleshooting

Scenario

Possible Error

Information

Solution

Error information is

returned in response to

one of the previous

commands.

+CME ERROR: SIM

PIN required

Enter the correct PIN.

+CMS ERROR: SIM

busy

SIM card initialization has not

completed. Try again later.

5.3 Sending Short Message

5.3.1 Reference Process

Command

Description

AT+CMGF=0

Set the short message format to PDU.

AT+CSCA?

Query the SMSC address.

+CSCA: "13800688509",129

AT+CMGS=18

Send a PDU message without the service center

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SMS Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Command

Description

>0031000B813109731147F4

0000FF04F4F29C0E\x0A

address. The value of SMSC address is the setting

of +CSCA command.

+CMGS: 168

The message is successfully sent.

AT+CMGS=18

>0891683108608805F93100

0B813109731147F40000FF0

4F4F29C0E\x1A

Send a PDU message with the correct service

center address.

+CMGS: 169

The message is successfully sent.

AT+CMGS=18

>0891683108608805F03100

0B813109731147F40011FF0

4F4F29C0E\x1A

Send a PDU message with the wrong service

center address.

+CMS ERROR: Network out

of order

The message is unsuccessfully sent.

Messages in PDU format must be converted using external tools or users' software.

Tools for encoding and parsing messages in PDU format are available on the Internet.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SMS Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Figure 5-6 Sending short messages in PDU format

Sending messages in PDU format

Start

Send a short message

(given that the PDU length is 18) SMS initialization

PDU message

without SCA

Press <ctrl-Z> to send

the command.

Press <ESC> to cancel

the command

Example: Message

not sent Message sent

unsuccessfully

End

AT+CMGS=18

+CMS ERROR:

Network out of

order

0031000B813109731147F4

0000FF04F4F29C0E

<ESC>

0891683108608805F931000B

813109731147F40000FF04F4

F29C0E<ctrl-Z>

+CMGS:1

Message sent

successfully

5.3.2 Troubleshooting

Scenario

Possible Error

Information

Solution

Error information is

returned in response

to one of the previous

commands.

+CMS ERROR: Network

out of order

Check the validity of the

service center address or the

state of the current network.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SMS Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

5.4 Reading Short Messages

5.4.1 Reference Process

Command

Description

AT+CMGL=0

List all received unread messages.

+CMGL: 2,0,,48

0891683108608805F9040D916831

09732097F2000001432619001001

F506215744FD3D1A0E930C8429

6D9EC370BFDE86C2F23228FFA

EFF00

+CMGL: 4,0,,64

0891683108608805F9040D916831

09732097F2000001403261310500

32506215744FD3D1A0E930C8429

6D9EC370BFDBE83C2B0380F6A

97416FF7B80C6AVFE5E510

The format of short messages can refer to

the AT+CMGL command.

AT+CMGR=4

Read the message stored in the message

storage location 4.

+CMGR: 1,,64

0891683108608805F9040D916831

09732097F2000001403261310500

32506215744FD3D1A0E930C8429

6D9EC370BFDBE83C2B0380F6A

97416FF7B80C6AVFE5E510

The format of short messages can refer to

the AT+CMGR command.

There are two methods to read short messages:

- Method 1: Use the AT+CMGL command to list the messages that are in

specified state and stored in the preferred message storage. The following table

describes the message states. If the message sate is received unread

messages, the REC UNREAD state will be changed to REC READ after the

AT+CMGL command is executed.

Message State

PDU Mode

Received unread messages

Received read messages

Stored unsent messages

Stored sent messages

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SMS Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Message State

PDU Mode

All messages

- Method 2: Use the AT+CMGR command to read a message from a specified

storage location in the message storage. If the message is a received unread

message, its state will be changed to REC READ after it is read using the

AT+CMGR command.

You can use the AT+CMGL command to list all short messages so that you can view

the messages' storage locations.

Figure 5-7 Reading short messages

Reading short messages

Start

List received unread

messages in PDU format

+CMGL:<index1>,0,,<length>

<pdu> (messages in PDU format)

......

+CMGL:<indexn>,0,,<length>

<pdu> (messages in PDU format)

PDU format

+CMGR:n,,<length>

<pdu> (messages in PDU format)

End

AT+CMGL=0

AT+CMGR=n

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SMS Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

5.4.2 Troubleshooting

Scenario

Possible Error

Information

Solution

Error information is

returned in response

to one of the previous

commands.

+CMS ERROR: invalid

memory index

Check the validity of the index.

5.5 Deleting Short Messages

5.5.1 Reference Process

Command

Description

AT+CMGF=0

Set the message format to PDU mode.

AT+CMGL=4

List all short messages (PDU mode).

+CMGL: 6,2,,30

0011000A917179876213000

0A713C8329BFD6681D0EF

3B282C2F83F2EFFA0F

+CMGL: 11,1,,36

0791947106004013240C919

47159826990000030804131

15748013C8329BFD6681D0

EF3B282C2F83F2EFFA0F

AT+CMGD=1

Delete the message stored in storage location 1.

- Either all messages stored in the preferred message storage or a message

stored in the specified storage location in the preferred message storage can be

deleted.

- All read or unread messages that have been received can be deleted.

- If no messages are stored in the preferred message storage, "OK" is returned

when the action to delete messages is completed.

- Meanings of the DelFlag value:

− 1: Delete all read messages in the preferred message storage, and keep the

unread, sent and unsent messages.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SMS Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

− 2: Delete all read and sent messages in the preferred message storage, and

keep the unread and unsent messages.

− 3: Delete all read, sent, and unsent messages in the preferred message

storage, and keep the unread messages.

− 4: Delete all messages in the preferred message storage, including the

unread messages.

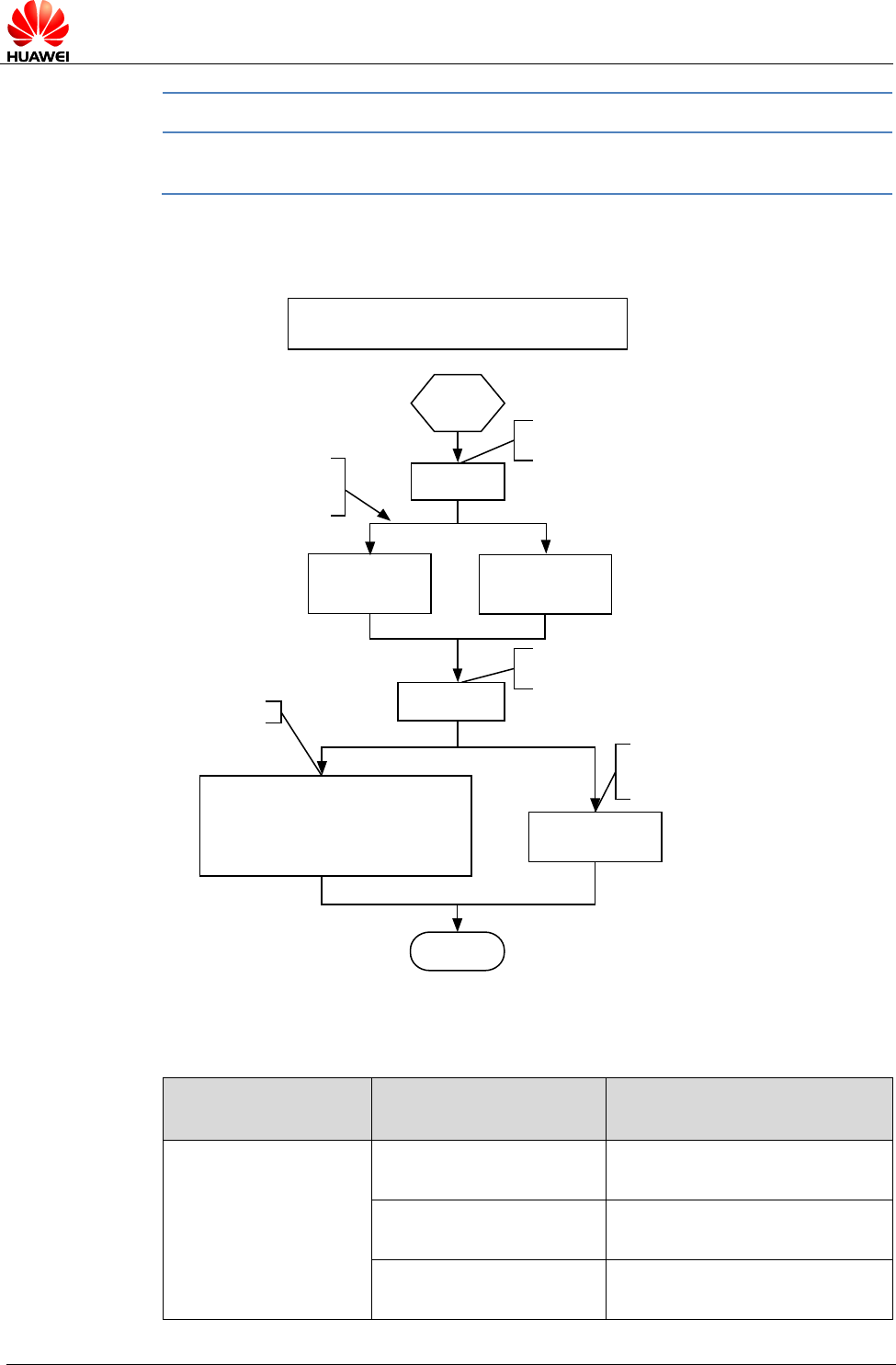

Figure 5-8 Deleting short message

Deleting short messages

Start Prerequisite:

SMS has been initialized.

Example: Lists all short

messages in PDU format.

Delete the message

stored in

location n in the preferred

storage.

Equivalent to

AT+CMGD=n

End

+CMSERROR:

AT+CMGD=n AT+CMGD=n,0

AT+CMGL=4

AT+CMGD=x,DelFlag

X:(0-999)

+CMGL: 1,<parameters>

07919471060040

+CMGL: 2,<parameters>

07919471060040

......

invalid memory

index

5.5.2 Troubleshooting

Scenario

Possible Error

Information

Solution

Error information is

returned in response

to one of the previous

commands.

+CMS ERROR: invalid

memory index

Check the validity of the index.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Phonebook Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

6 Phonebook Application Scenarios

6.1 Overview

As a product embedded into a host, the phonebook scenarios include that read, write,

query and delete the phonebook entries in the SIM card.

Read Phonebook: use the AT+CPBR command to read phonebook entries.

Write phonebook: use the AT+CPBW command to save the phonebook entries into

the SIM card.

Delete phonebook: use AT+CPBW command to delete the phonebook entries in the

SIM card.

6.2 Memory Operations

6.2.1 Reference Process

Command

Description

AT+CPBS=?

Query the current storage type.

+CPBS: ("SM","EN","ON")

AT+CPBS="SM"

Set the current storage type to "SM".

AT+CPBS?

241 indicates that 241 entries have been

stored in the storage. 250 indicates that the

maximum storage capacity of the current

storage ("SM") is 250 entries.

+CPBS: "SM",241,250

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Phonebook Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Note that the AT commands for reading and writing phonebook entries can be used

only after the phonebook storage is selected. To select a phonebook storage, use the

AT+CPBS command.

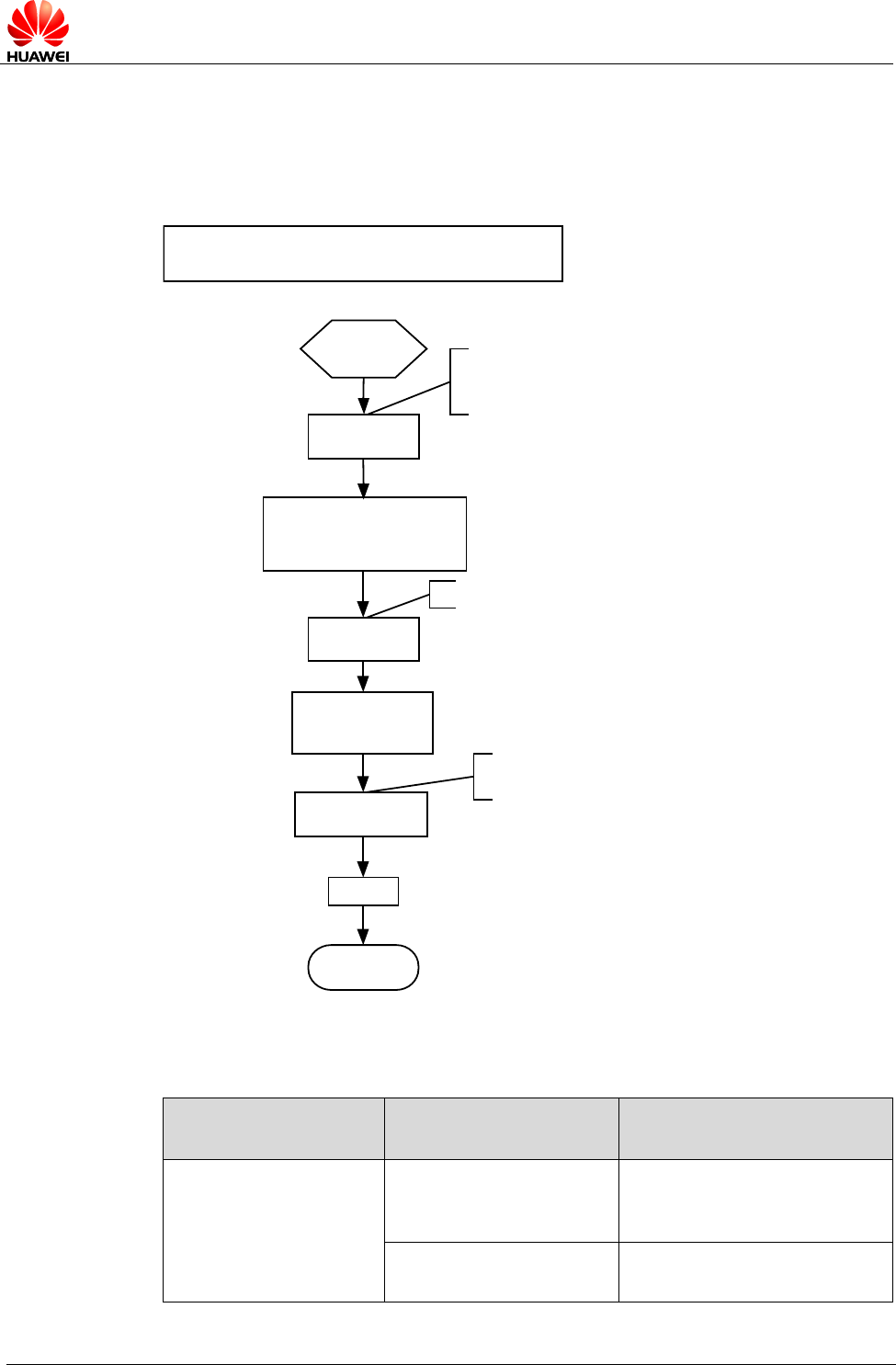

Figure 6-1 Initializing the phonebook

Initializing the phonebook

Start Query the available

storage types for the phonebook.

Query the current phonebook storage.

Select SM as the storage type

End

AT+CPBS=“SM”

+CPBS:“ON”,0,0

AT+CPBS?

AT+CPBS=?

+CPBS:(“SM”,“EN”,“ON”)

6.2.2 Troubleshooting

Scenario

Possible Error

Information

Solution

Error information is

returned in response to

one of the previous

commands.

+CME ERROR: SIM

busy

Phonebook initialization has

not completed. Try again

later.

+CME ERROR: SIM PIN

required

Enter the correct PIN.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Phonebook Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Scenario

Possible Error

Information

Solution

+CME ERROR: SIM

PUK required

Enter the correct PUK.

6.3 Reading Phonebook Entries

6.3.1 Reference Process

Command

Description

AT+CPBS?

Query the phonebook storage selection and the

maximum number of entries that can be stored.

+CPBS: "SM",9,20

AT+CPBR=1,20

List all phonebook entries by their indexes.

+CPBR:

1,"+491765864491",145,"J

ohn Smith"

+CPBR:

2,"+44545896638",145,"Pa

ul Williams"

+CPBR:

3,"+44556565657",145,"Jo

e Anderson"

+CPBR:

4,"+445636934485",145,"

Oscar Thomso”

+CPBR:

5,"+445565656899",145,"H

annah Adams"

+CPBR:

6,"+447982865563",145,"S

amantha Young"

+CPBR:

7,"+449585315798",145,"A

lexis Wright"

+CPBR:

8,"+445415454646",145,"A

bigail Cox"

+CPBR:

12,"+446565689115",145,"

Kyla Clark"

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Phonebook Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Command

Description

Figure 6-2 Reading phonebook entries

Reading phonebook entries

Start

Query the current phonebook storage type.

Initialize the

phonebook.

FD phonebook can store

up to 10 entries; currently 3

entries are stored.

Correct response

Lists all phonebook entries from location x to location y.

The ending location is greater

than the greatest phonebook entry index.

End

+CPBS:“SM”,4,250

+CPBS:“ON”,1,4

AT+CPBR=x,y

+CME ERROR:

invalid index

+CPBR:

1,“+491765864491”,145,“JohnSmith”

+CPBR:

2,“+445564854245”,145,“AshleyJones”

...

6.3.2 Troubleshooting

Scenario

Possible Error

Information

Solution

Error information is

returned in response

to one of the previous

commands.

+CME ERROR: SIM

busy

Phonebook initialization has

not completed. Try again later.

+CME ERROR: SIM PIN

required

Enter the correct PIN.

+CME ERROR: SIM

PUK required

Enter the correct PUK.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Phonebook Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Scenario

Possible Error

Information

Solution

AT+CPBR=<index1>

+CME ERROR: invalid

index

The index is invalid. Check

that index 1 is within the

supported range.

AT+CPBR=<index1>,

+CME ERROR: invalid

index

The index is invalid. Check

that index 1 and index 2 are

within the supported range and

that index 1 is not greater than

index 2.

AT+CPBR=<index1>

+CME ERROR: not

found

No entries are found in the

storage locations in index 1.

Check that there have been

entries successfully written into

these locations.

AT+CPBR=<index1>,

+CME ERROR: not

found

No entries are found in the

storage locations between

index 1 and index 2. Check

that there have been entries

successfully written into these

locations.

6.3.3 Writing/Deleting Phonebook Entries

6.3.4 Reference Process

Command

Description

AT+CPBR=?

Query the ranges of parameters related to the

phonebook entries.

+CPBR: (1-250),24,14

AT+CPBW="5","13903702

805",,"test"

Write a phonebook record.

AT+CPBW=1

Delete the entry in index 1 in the phonebook.

There are two methods to edit phonebook entries using the AT+CPBW command:

- Write an entry to a specified location. This method edits the location where a

phonebook entry exists or writes a new entry to a vacant location.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Phonebook Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

- Write a new phonebook entry to the next location of a location that already has a

phonebook entry. This method does not require a specified storage location. The

AT+CPBW command can be used to edit phonebook entries of the "SM" or "ON"

type.

Figure 6-3 Writing phonebook entries

Writing phonebook entries

Start

AT+CPBR=?

+CPBR: (1-250),20,16

+CPBR: 1,"+491765864491",145,"John Smith"

+CPBR: 3,"+441236548545",145,"Emily Miller"

Query the ranges of

parameters related

to the phonebook

entries.

Parameter ranges

Read all phonebook entries.

Read all the returned results.

Write phonebook

parameters.

AT+CPBW=,"+44546465

4568",145,"Paul Williams"

+CEM ERROR:

memory full

+CEM ERROR:

invalid index

AT+CPBW=1,"+44546465

4568",145,"Paul Williams"

Write a phonebook

entry to a vacant location.

Write a phonebook entry

to a specified location.

Note: If an entry already

exists in the location,

the entry will be overwritten.

End

6.3.5 Troubleshooting

Scenario

Possible Error

Information

Solution

Error information is

returned in response to

one of the previous

+CME ERROR: SIM

busy

Phonebook initialization has

not completed. Try again

later.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Phonebook Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Scenario

Possible Error

Information

Solution

commands.

+CME ERROR: SIM

PIN required

Enter the correct PIN.

+CME ERROR: SIM

PUK required

Enter the correct PUK.

Error information is

returned when writing an

entry into the

phonebook.

+CME ERROR: dial

string too long

Check that the phone

number is not too long.

Error information is

returned in response to

one of the previous

commands.

+CME ERROR: invalid

index

Check that the location index

and phone number type are

valid.

Error information is

returned when writing an

entry into the

phonebook.

+CME ERROR: invalid

characters in dial string

The phone number to be

written into the phonebook

contains invalid characters.

Delete the invalid characters

and try again.

AT+CPBW=,"123456789

01234567890123",128,"

80534E4E3A"

+CME ERROR:

memory full

The storage is full. Delete

some entries and try again.

6.4 Searching for Phonebook Entries

6.4.1 Reference Process

Command

Description

AT+CPBF=<findtext>

Search the current storage for

phonebook entries that contain

the <findtext> field.

+CBPF: <index1>,<number>,<type>,<text>

+CBPF: <index2>,<number>,<type>,<text>

...

AT+CPBF=?

Return the maximum phone

number length and maximum

name length supported by the

current phonebook storage.

+CPBF: <nlength>,<tlength>

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Phonebook Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

6.4.2 Troubleshooting

Scenario

Possible Error

Information

Solution

Error information is returned

in response to one of the

previous commands.

+CME ERROR: SIM

busy

Phonebook initialization has

not completed. Try again

later.

+CME ERROR: SIM

PIN required

Enter the correct PIN.

+CME ERROR: SIM

PUK required

Enter the correct PUK.

AT+CPBF=<findtext>

+CME ERROR: not

found

No matches were found.

Check whether the current

phonebook storage has

entries that match the search

criterion.

6.5 Querying User Number

6.5.1 Reference Process

Command

Description

AT+CNUM

Query the SIM number.

+CNUM: [<alpha1>],<number1>,<type1>

+CNUM: [<alpha2>],<number2>,<type2>

...

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Phonebook Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

6.5.2 Troubleshooting

Scenario

Possible Error

Information

Solution

Error information is

returned in response to

one of the previous

commands.

+CME ERROR: SIM

busy

Phonebook initialization has

not completed. Try again

later.

+CME ERROR: SIM PIN

required

Enter the correct PIN.

+CME ERROR: SIM

PUK required

Enter the correct PUK.

6.6 Setting the TE's Character Sets

6.6.1 Reference Process

Command

Description

AT+CSCS=?

Query the character sets supported by the

UE.

+CSCS: ("IRA","GSM","UCS2")

AT+CSCS?

Query the current character set.

+CSCS: "IRA"

AT+CPBR=1

Read the first phonebook entry. The TE

character set is the International

Reference Alphabet (IRA). The content of

the first entry's name field is "HUAWEI".

+CPBR:

1,"0123456789",129,"HUAWEI"

AT+CSCS="UCS2"

Set the TE's character set to UCS

alphabet.

AT+CPBW=1,"0123456789",129,"00

4800550041005700450049"

The character set is the UCS alphabet.

The content of the phonebook entry's

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Phonebook Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

name field is

004800550041005700450049, which is

"HUAWEI" in the IRA.

AT+CPBR=1

Read the first phonebook entry. The TE

character set is UCS alphabet. The

content of the first entry's name field is

004800550041005700450049 ("HUAWEI"

in the IRA).

+CPBR:

1,"0123456789",129,"004800550041

005700450049"

6.6.2 Troubleshooting

None

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SIM Operation Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

7 SIM Operation Application Scenarios

7.1 PIN Operations

7.1.1 Reference Process

Command

Description

AT+CLCK="SC",1,"<pwd>"

Enable PIN authentication. (<pwd>

specifies the PIN. See note 1.)

AT+CLCK="SC",2

Request the SIM card state.

+CLCK: 1

"+CLCK: 1" means that the SIM card is

not blocked.

AT+CLCK="SC",0," <pwd>"

Disable the SIM card lock. (<pwd>

specifies the PIN. See note 1.)

AT+CLCK="SC",2

Request the SIM card state.

+CLCK: 0

"+CLCK: 0" means that the SIM card is

not blocked.

AT+CLCK="SC",1,"<pwd>"

Enable PIN authentication. (<pwd>

specifies the PIN. See note 1.)

AT+CPIN="<pwd>"

Request the PIN after the module

restarts.

AT+CPIN?

Request the PIN state.

+CPIN: READY

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SIM Operation Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

AT+CLCK="SC",2

Request the SIM card state.

+CLCK: 1

"+CLCK: 1" means that the SIM card is

not blocked.

AT+CPWD="SC","<oldpwd>","1234"

Change the PIN (1234 will be the new

PIN).

AT+CPWD="SC","1113","1233"

Enter an incorrect PIN (first attempt).

+CME ERROR: incorrect password

AT+CPWD="SC","3333","1233"

Enter an incorrect PIN (second attempt).

+CME ERROR: incorrect password

AT+CPWD="SC","4711","1233"

Enter an incorrect PIN (third attempt).

+CME ERROR: SIM PUK required

AT+CPIN?

Check whether the password is

requested.

+CPIN: SIM PUK

AT+CPIN="12345678","0000"

Enter the SIM PUK and specify the new

SIM PIN (activate new "SC" lock).

Notes:

- After PIN authentication is enabled using +CLCK, the module must be restarted for the

change to take effect.

- Either ^CPIN or +CPIN can be used to authenticate the PIN.

7.1.2 Troubleshooting

Scenario

Possible Error

Information

Solution

Enable PIN authentication.

AT+CLCK="SC",1,"<pwd>"

+CME ERROR:

operation not

allowed

If PIN authentication has

been enabled, it cannot be

enabled again. Check

whether PIN authentication

has been enabled.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SIM Operation Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Scenario

Possible Error

Information

Solution

Enter the PIN.

AT+CPIN="<pwd>"

+CME ERROR:

incorrect password

Enter the correct PIN. The

original PIN is provided by

the operator.

+CME ERROR: SIM

PUK required

Incorrect PINs have been

entered three times and the

SIM card is blocked. Run

AT+CPIN="<PUK>","<pwd>

" to enter the PUK to unblock

the SIM card. The PUK is

provided by the operator and

cannot be changed by users.

If incorrect PUKs are entered

10 times, the SIM card will be

permanently blocked.

Changes the PIN.

AT+CPWD="SC","<oldpwd

>","<newpwd>"

+CME ERROR:

incorrect password

<oldpwd> must be the

current PIN. Like the PIN

authentication, if incorrect

PINs are entered three times,

the PUK will be required. If

incorrect PUKs are entered

10 times, the SIM card will be

permanently blocked.

7.2 CRSM Command

7.2.1 Reference Process

Command

Description

AT+CRSM=176,12258,0,0,10

Read the file EFiccid with a transparent

structure. (12258 is 0X2FE2, the

EFiccid file's FID).

+CRSM: 144,0,"<record>"

After the command is processed

successfully, the EFiccid file's content

(<record>) is returned.

AT+CRSM=178,28476,1,4,176,,"7F10"

Use an absolute path to read the first

entry from the EFsms file on the SIM

card's DFtelecom folder.

+CRSM: 144,0,"<record>"

<record> is the content of the first entry.

The length of <record> is 176 bytes.

AT+CRSM=192,12258

Get response of EFiccid.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SIM Operation Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

+CRSM: 144,0,"<response>"

<response> is the response data of

EFiccid. For details about <response>,

refer to the ETSI TS 102.221 protocol.

AT+CRSM=214,28421,0,0,2,"0012"

Update the content of the transparent

structure EFli file on the SIM card.

+CRSM: 144,0,""

Update succeeded.

AT+CRSM=220,28476,1,4,176,"1111",

"7F10"

Update the content of the linear fixed

structure EFsms file on the SIM card.

+CRSM: 144,0,""

Update succeeded.

AT+CRSM=242

Obtain the current directory information.

+CRSM: 108,"<length>","<status>"

<length> indicates <status>’s length in

byte.

<status> indicates the current directory

status by hexadecimal.

Notes:

- To read or update a file, appropriate commands must be used according to the file's

structure type (for details, refer to the description of file properties in the 3GPP TS 31.102

protocol). For transparent structure files, use 176 (Read Binary) and 214 (Update Binary).

For linear fixed structure files, use 178 (Read Record) and 220 (Update Record).

- If <pathid> is not contained in the command, the module will prefer to access the files with

the same FID in the current directory.

- Files can be accessed only when the access criteria are met. Otherwise the SIM card will

return PSWs indicating that the access authentication failed. If an EF file's read privilege is

PIN protected and the module does not have the PIN authenticated, PSWs indicating that

the access authentication failed will be returned after the +CRSM command is used to read

the EF file.

- To use the +CRSM command to access the file content on the SIM card, the parameters

contained in the command must strictly meet the requirements in the ETSI TS 10.2221 and

3GPP TS 31.102. For detailed requirements, refer to the ETSI TS 102.221 and 3GPP TS

31.102

HUAWEI ME909u-521 LTE LGA Module

Application Guide

SIM Operation Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

7.2.2 Troubleshooting

Scenario

Possible Error

Information

Solution

Update the content of the

linear fixed structure EFsms

file on the SIM card.

AT+CRSM=178,12258,0,0,

+CRSM: 105,129,""

The status word (SW)

indicates a Read command

error occurred. Files with a

transparent structure should be

read using 176 (READ

BINARY).

Update the content of the

linear fixed structure EFsms

file on the SIM card.

AT+CRSM=220,28476,1,4,

176,"1111","7F10"

+CRSM: 105,130,""

The PSW indicates that the

security conditions were not

met. To update the EFsms

file, the correct PIN is

required.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Sleeping and Waking Up Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

8 Sleeping and Waking Up Application

Scenarios

As an embedded component in the host, the module also consumes power, which

increases the power consumption of the integrated product. Therefore, the most

important task of power management is to reduce the power consumption of the

integrated product by enabling the module's sleep mode when necessary.

The host and the module need to wake each other up from sleep if communication is

required. Therefore, another task of power management is to provide a wake-up

control mechanism for the host and module.

Power management involves three parts: the host system software (including the

USB driver/UART driver/GPIO driver/sleep mechanism functions), connection

hardware between the host and module, and the module's software wake-up

mechanism.

This chapter is mainly concerned with the module's software wakeup mechanism,

including the wake-up principle, how USB related events impact on the waking up of

the module and remotely waking up the module, and how the module remotely wakes

up the host.

This chapter briefly describes the power management related connection hardware

between the host and module.

This chapter does not describe the host system software. For example, if the host

runs on a Windows or Mac system, Huawei will provide a USB driver program

corresponding to the module. If the host runs on an Android system, Huawei will

provide HUAWEI Module Android RIL Integration Guide for users to configure the

USB-based wakeup function of the module. If the host runs on a Linux system, power

management is supported only when the Linux Kernel version is 2.6.35 or later.

This document describes typical module application scenarios. A host can be

designed based on the actual system features and the application scenarios of the

module to reduce power consumption of both the module and integrated product.

After the host is designed as recommended by this document, the module's power

consumption and the whole unit's power consumption can meet the performance

requirements. For details, see related description in the product manual.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Sleeping and Waking Up Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

8.1 Hardware Interfaces

The module communicates with the host using mainly USB or UART. For details

about pins related to power management, see Table 8-1 .

For corresponding interface numbers and reference design for the pins, see

Hardware Guide for each product.

Table 8-1 Power management related pins

Interface

Pin name

Direction

Functional Description

Diagram

PCIE

WAKE#

Output

When a wake-up source arrives, this

pin output a low-level-voltage pulse

lasting for 1s during which if other

wake-up sources arrive, the module

will ignore the later wake-up requests.

In other words, the module will not

output a second pulse during this 1s.

Figure 8-1

LGA

WAKEUP_OUT

Output

When a wake-up source arrives, this

pin output a high-level-voltage pulse

lasting for 1s during which if other

wake-up sources arrive, the module

will ignore the later wake-up requests.

In other words, the module will not

output a second pulse during this 1s.

Figure 8-2

LGA

WAKEUP_IN

Input

When the pin carries a high-level

voltage, the states of the module are

as follows:

The module will be prohibited to enter

sleep mode if the module is awake.

The module will be woken up if the

module is in sleep mode.

When the pin carries a low-level

voltage, the module is allowed to enter

sleep mode. (By default, the pin is set

to INPUT/PD, which is, the software

detects a low-level voltage on the pin

when the pin is not connected.)

Figure 8-3

LGA

SLEEP_STATUS

Output

Indicate the state of the module.

When the pin carries a high-level

voltage, the module is in working

mode. When the pin carries a low-

level voltage, the module is in sleep

mode.

Figure 8-4

Note:

The PCIE interface does not support UART.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Sleeping and Waking Up Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

8.2 Sequence Diagram

Figure 8-1 WAKE# PIN output sequence

Figure 8-2 WAKEUP_OUT PIN output sequence

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Sleeping and Waking Up Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Figure 8-3 WAKEUP_IN PIN input sequence

About the vote, see section 8.3.1 .

Figure 8-4 SLEEP_STATUS PIN output sequence

8.3 Software Interfaces

8.3.1 Principle

The module runs on a multi-task software system. The sleep task is granted with the

lowest priority and assigned to detect whether the module can enter sleep mode.

Other tasks (such as the RF, SIM card, USB) have voting rights. They vote to decide

whether the module can enter sleep mode. When no other tasks are running, the

sleep task is executed. If the sleep task detects that all other tasks agree on the

module's sleep, the module enters sleep mode, as shown in Figure 8-5 . At this time,

the baseband chip reduces the work frequency, and the RF enters the Discontinuous

Reception (DRX) mode.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Sleeping and Waking Up Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

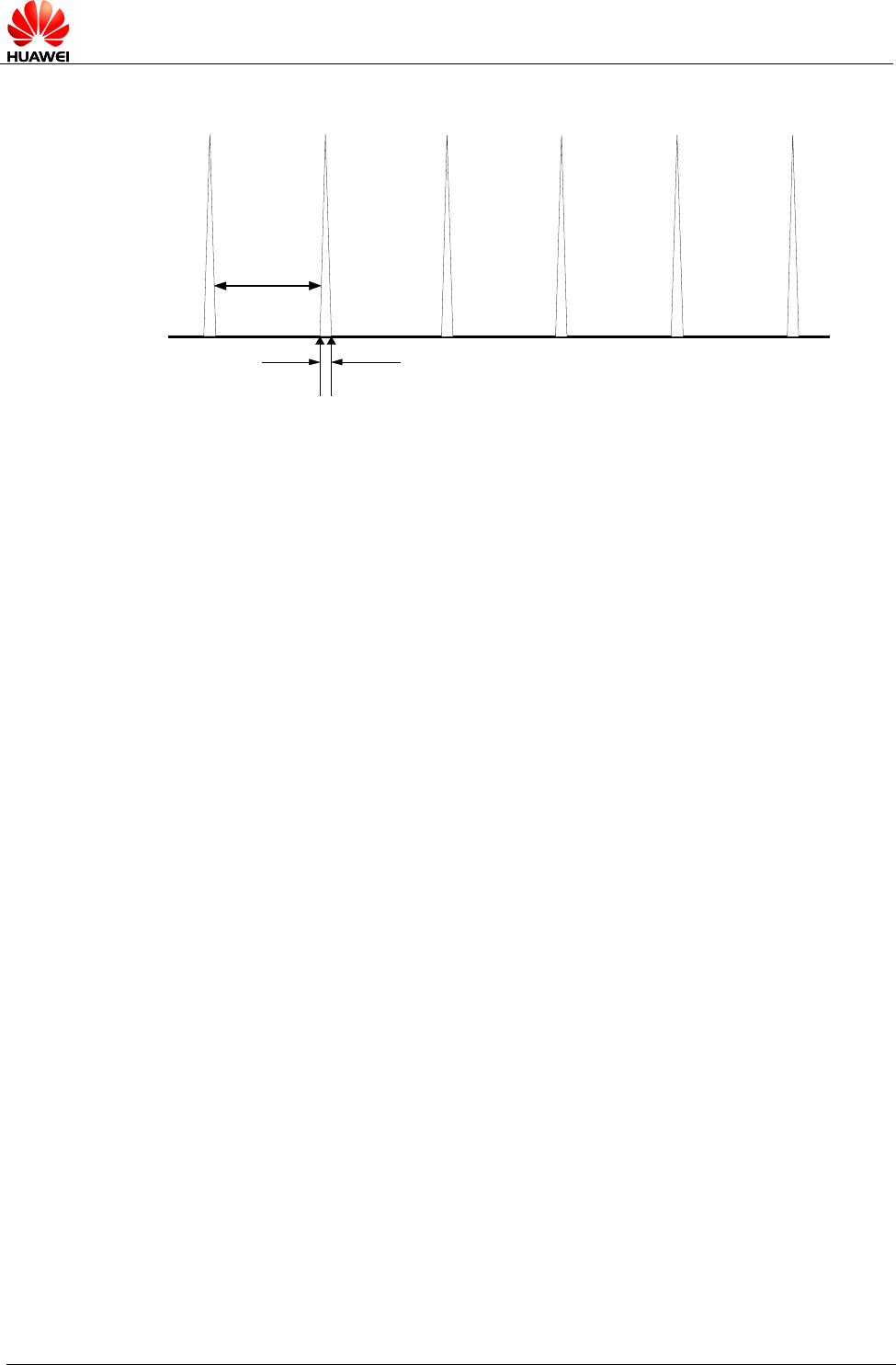

Figure 8-5 Currency state when the module is in sleep mode

T 2 ( S E E

LP )

T 1 ( W ak e u p )

For more information about the module's sleep procedure, see Figure 8-6

Note:

The module's sleep mode is different from working mode or flight mode set using the

AT+CFUN command. The RF will be turned off when the module enters LPM mode using the

command AT+CFUN=0 while the RF will enter DRX mode without being turned off when the

module is in sleep mode. For more details, refer to HUAWEI ME909u-521 LTE LGA Module AT

Command Interface Specification.

The module enters sleep mode automatically when the sleep task detects that all

other tasks agree on the module's sleep. The sleep period of the module depends on

the current working state and circumstance. The period may last for several seconds,

or up to several minutes.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Sleeping and Waking Up Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Figure 8-6 Sleep procedure

8.3.2 USB and Sleep

USB is an important communication channel between the module and the host.

According to the USB protocol, normally a hub or a root hub periodically sends Start

of Frame (SOF) data packages (one data package per ms using full-speed USB and

one package per 125 µs using high-speed USB). Through this mechanism, USB

always votes to stop the module from entering sleep mode.

When the USB driver provided by Huawei detects that the module and the host have

not exchanged data in 5 seconds, the USB driver will enable the port's suspend

feature, stopping SOF data packages being sent and suspending the USB controller.

This enables the USB to vote to agree the module's sleep.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Sleeping and Waking Up Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Note:

If the USB driver used is developed by users or is integrated with external application, ensure

that the USB driver supports the USB suspend features (including selective suspend and

global suspend, as defined in the USB standard.)

8.3.3 UART and Sleep

UART is an important communication channel between the module and the host. If

the host uses UART (a TTL level Interface), it can connect to the module's UART

directly. If the host uses RS232, it can connect to the module's UART through a

conversion chip such as MAX232.

Note:

If the module is in sleep state, the host send data to module only by UART that can’t wakeup

the module. It must be used with WAKEUP_IN pin.

8.3.4 Module Wake-up

RF periodically wakes up the module based on the DRX cycle (depending on the

actual configuration of the network system), as shown in Figure 8-5 .

Other aperiodic events include:

1. The host sends data using USB or pulls WAKEUP_IN up.

2. Changes on the network, for example, an incoming call, an incoming text

message, a signal change, a network working mode change, a network search,

an IP data package (when a dial-up network connection is set up).

3. Software system events such as a timer

4. Abnormal events, for example, an antenna drops or a SIM card becomes loose.

8.3.5 Host Woken up by Module

Wake-up Source

A wake-up source is a module event that can wake up the host, for example, an

incoming voice call, a text message, data (PPP data, TCP/UDP data from the

network), and unsolicited messages.

Remotely Waking up the Host Using USB

When the host is in sleep mode and the USB controller is in suspended mode, if the

module needs to send data to the host (for example, a wake-up source has arrived),

the module sends a remote wake-up signal that lasts 3 ms to inform the host to start

USB resume (as shown in Figure 8-7 ). To complete the procedure, the following

conditions must be met:

1. The USB controller on the host supports USB remote wake-up and can wake up

the host.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Sleeping and Waking Up Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

2. The USB driver enables or disables remote wake-up by executing

SET_FEATURE and CLEAR_FEATURE commands. Therefore, remote wake-up

must be enabled on the USB driver before USB enters suspended mode.

3. When the host receives the remote wake-up signal from the module, the host

needs to send a full speed K signal that lasts at least 20 ms. When the USB

controller resumes, the host must send the SOF token within 3 ms from the

startup of the idle state. Otherwise, the module enters suspended mode again,

as shown in Figure 8-7 .

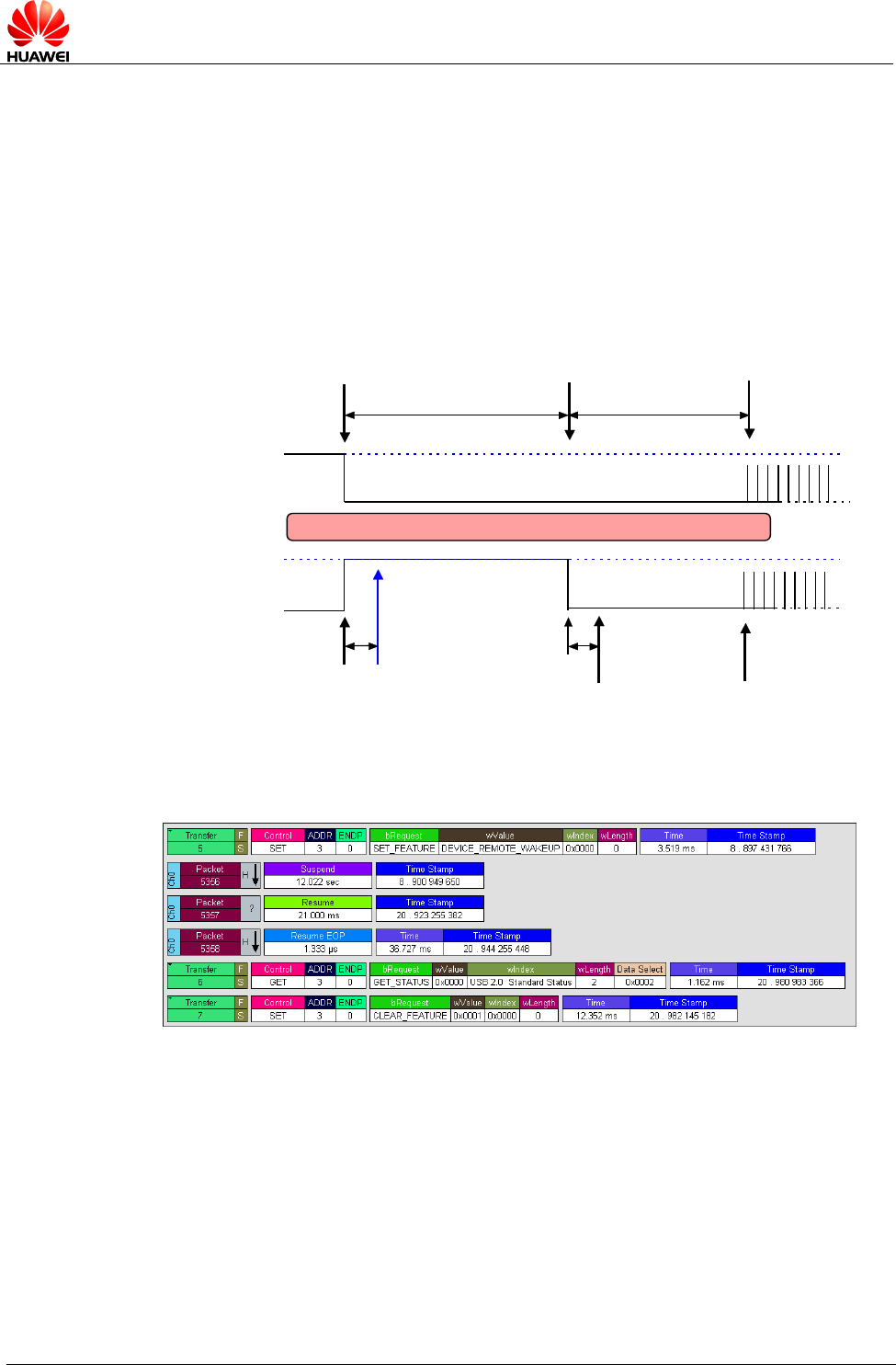

Figure 8-7 USB resume time sequence

FS idle FSK HS idle uSOF

D+

D-

HS HubHS Device

Start of

Resume

Signaling 3ms

Device sees

first activity

Start of

Resume

Signaling

>20ms <3.0ms

Signaling Signaling

<1.33us

Device

Resumed

if remote

wake up

Figure 8-8 Successful procedure of remote wake-up

WAKEUP_OUT Waking up the Host

The module will output a 1s pulse using WAKE# as shown in Figure 8-1 or

WAKEUP_OUT as shown in Figure 8-2 when a wake-up source arrives. The host

wakes itself up after detecting the level change.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Sleeping and Waking Up Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Remote Wake-up Configuration

The power consumption of the host increases if it is frequently woken up. The host

can configure the module's wake-up sources using ^WAKEUPCFG and ^CURC

command so as to reduce the power consumption.

The ^WAKEUPCFG command can be used to choose wake-up sources and the

wake-up channel (USB or WAKEUP_OUT). The ^CURC command can choose

unsolicited messages. For more details, refer to AT Command Interface Specification.

8.4 Application Scenarios: System with USB Connection

only

A host running Android, with support for USB suspend, USB remote resume, voice

calling, and text messages.

8.4.1 Hardware Connection

The host connects to the module using USB.

8.4.2 Software Procedure

Command

Description

AT^WAKEUPCFG=?

Query the parameter range of

WAKEUPCFG.

^WAKEUPCFG: (0-1),(0-3),(0-15)

AT^WAKEUPCFG=1,2,15

Configure the module to make sure

that incoming calls, text messages,

data, and unsolicited messages can

remotely wake up the host using

USB.

AT^CURC=?

Query the parameter range of

CURC.

^CURC: (0-2)

AT^CURC=2,820,1FFFFFFFFFFFFFFF

The host wakes up from sleep if any

of the following occurs: The SIM

card state changes such as the SIM

card is removed (^SIMST); the

number of text messages exceeds

the limit (^SMMEMFULL). Other

unsolicited messages are saved in

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Sleeping and Waking Up Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

the cache when the host is in sleep

mode, and reported to the host

when it wakes up.

8.4.3 Advantages

With software configuration, while the system requirements (calling and text

messages) are met, the number of times the host is woken up by unsolicited

messages, and consequently the power consumption, are reduced.

8.5 Application Scenarios: System with USB and

WAKEUP_OUT

A host running Android, with support for text messages, but not USB remote resume

or voice calling.

8.5.1 Hardware Connection

The host must connect to the module using USB and WAKEUP_OUT pins

8.5.2 Software Procedure

Command

Description

AT^WAKEUPCFG=?

Query the parameter range of

WAKEUPCFG.

^WAKEUPCFG: (0-1),(0-3),(0-15)

AT^WAKEUPCFG=1,1,14

Configure the module to make sure

that text messages, data, and

unsolicited messages can remotely

wake up the host using the

WAKEUP_OUT pin.

AT^CURC=?

Query the parameter range of CURC.

^CURC: (0-2)

AT^CURC=2,820,1FFFFFFFFFFFFFFF

The host wakes up from sleep if

either of the following occurs: The

SIM card state changes, such as the

SIM card is removed (^SIMST); the

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Sleeping and Waking Up Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

number of text messages exceeds

the limit (^SMMEMFULL). Other

unsolicited messages are saved in

the cache when the host is in sleep

mode, and reported to the host when

it wakes up.

When the host is awake, unsolicited

messages are reported to the host.

8.5.3 Advantages

A solution is provided for systems not supporting USB remote resume.

With software configuration, while the system requirements (calling and text

messages) are met, the number of times the host is woken up by unsolicited

messages, and consequently the power consumption, are reduced.

8.6 System with Other Connection Methods

If the host can be connected to the module only using UART, refer to the HUAWEI

ME909 Series LTE LGA Module Brief Hardware Guide. If the host can connect to the

module using USB/UART/WAKEUP_OUT and can support USB remote wake-up and

UART remote wake-up, prioritize USB remote wake-up over WAKEUP_OUT remote

wake-up. For details about the software procedure, refer to the earlier sections while

considering the host system feature.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Thermal Protection Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

9 Thermal Protection Application Scenarios

9.1 Pre-configuration

Command

Description

AT^CURC=2,0x8000000000,0x8000000000

Enable the thermal protection

unsolicited indication when the

module is working or in sleep

mode.

^THERM: 1

When the temperature is higher

than the temperature protection

threshold, the module enables

thermal protection: The module

turns off its RF and reports to the

host.

^THERM: 0

When the temperature is lower than

the temperature protection

hysteresis threshold, the module

disables thermal protection: turns

on its RF and reports to the host.

9.1.1 Troubleshooting

None

9.2 Thermal Protection Process

- When the module's temperature is lower than 99°C , the module works normally.

- When the module's temperature is higher than 99°C , the module enables

thermal protection: turns off its RF transmission and presents the ^THERM: 1

indication. When the module's temperature is lower than 85°C , the module

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Thermal Protection Application Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

disables thermal protection: turns on its RF transmission, and presents the

^THERM: 0 indication.

Notes:

- During an emergency call, if thermal protection is enabled, the module will present an

indication but will not take thermal protection actions such as turning off its RF or shutting

down.

- After thermal protection is enabled, users cannot make emergency calls.

- Thermal protection is designed to protect the module from being damaged by

overtemperature. To work in high temperature environments, both the module and its

peripheral components must be able to resist the same temperature.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Module Powering Off and Resetting Application

Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

10 Module Powering Off and Resetting

Application Scenarios

10.1 Restarting the ME

10.1.1 Reference Process

Command

Description

AT+CFUN=1,1

Restart the module.

The ME can be reset or restarted using the AT+CFUN command. After the restart,

the module must register with the network and authenticate its SIM card’s PIN.

10.1.2 Troubleshooting

None

10.2 Power Off ME

10.2.1 Reference Process

Command

Description

AT^MSO

Power off the module.

After the command is received, the module will only do the preparative work of

power-off such as deregister. The host should cut off the power in order to finish the

power-off operation.

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Module Powering Off and Resetting Application

Scenarios

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

10.2.2 Troubleshooting

None

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Appendix

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

11 Appendix

11.1 Relative Documents

1. HUAWEI ME909u-521 LTE LGA Module AT Command Interface Specification

2. 3GPP 27.007 AT command set for User Equipment (UE)

3. 3GPP 27.005 Equipment (DTE-DCE) interface for Short Message Service

(SMS) and Cell Broadcast Service (CBS)

4. 3GPP 23.040 Technical realization of the Short Message Service(SMS)

5. 3GPP 31.102 Universal Subscriber Identity Module(USIM) application

6. 3GPP 24.008 Mobile radio interface Layer 3 specification; Core network

protocols; Stage 3

7. 3GPP 29.002 Mobile Application Part (MAP) specification

8. 3GPP 22.004 General on supplementary services

9. ETSI TS 102.221 Smart Cards; UICC-Terminal interface; Physical and logical

characteristics

11.2 Acronyms and Abbreviations

Table 11-1 List of Abbreviations

Acronym or Abbreviation

Expansion

3GPP

Third Generation Partnership Project

APN

Access Point Name

Attention

Circuit Switched (CS) domain

DCE

Data Circuit Equipment

DTE

Data Terminal Equipment

GPRS

General Packet Radio Service

GSM

Global System for Mobile Communications

HUAWEI ME909u-521 LTE LGA Module

Application Guide

Appendix

Issue 01 (2013-07-05)

Huawei Proprietary and Confidential

Acronym or Abbreviation

Expansion

IMEI

International Mobile Equipment Identity

Internet Protocol

LTE

Long Term Evolution

Mobile Equipment

Mobile Station

PDP

Packet Data Protocol

PDU

Protocol Data Unit

Personal Identity Number

PPP

Point-to-Point Protocol

PUK

PIN Unblocking Key

Packet Switched (PS) domain

QoS

Quality of Service

SIM

Subscriber Identity Module

SMS

Short Message Service

Terminal Equipment

User Equipment

UMTS

Universal Mobile Telecommunications System

USIM

Universal Subscriber Identity Module

WCDMA

Wideband CDMA

Table 11-2 Phonebook-related abbreviations

Abbreviation

Full Name

SIM phonebook

SIM emergency number

SIM own numbers
