Hubsan HBS-H107DRX X4 FPV mini quadcopter User Manual H107 V2 20120905
Hubsan (HK) Industrial Co., Ltd. X4 FPV mini quadcopter H107 V2 20120905
Hubsan >
Users Manual
®
2.4GHZ RC SERIES 4 CHANNEL
H107D-A05 Transmitter
H107D X4 FPV mini quadcopter
1 INTRODUCTION
Thank you for buying HUBSAN products. The quadcopter is designed as an easy to use, full
featured RC model capable of hovering, fast forward, and aerobatic ight manoeuvres.
Please read the manual carefully and follow all instructions in this. Be sure to retain the
manual for future reference, routine maintenance, and tuning.
1.1 Important Notes
This RC quadcopter is not a toy, it utilizes various high-techs to provide superior
performance.
Please read this manual carefully before operating this product. Any improper use of this
product will result in serious injury. Be aware of your personal safety, safety of others and
your surrounding environment.
We recommend that you obtain the assistance of an experienced pilot before attempting
to y our product for the rst time.
2.1 Caution
R/C quadcopter have parts that move at high speed, thus posing a certain degree of
danger. Pilots are responsible for any actions resulting in damage or injury from the
improper operation of their R/C aircraft models.
Choose a wide open space without obstacles. Do not operate R/C aircraft near buildings,
crowds of people, high voltage cables, or trees to ensure the safety of yourself, others
and your model.
Operate this unit within your ability. Do not y when tired or after drinking or when
impaired by medication. Improper operation may cause damage to people and property.

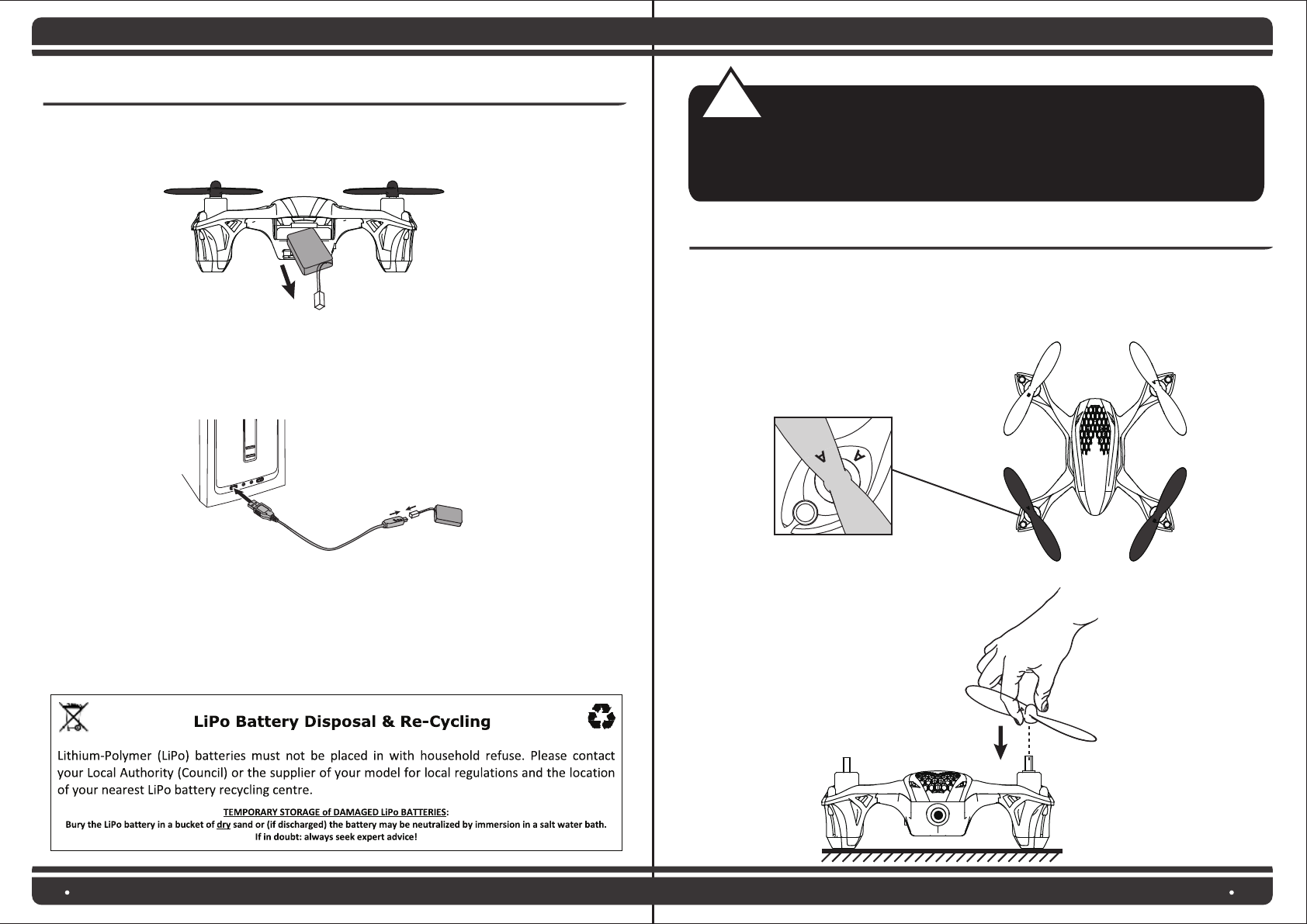

2.2 LiPo Battery Recharging
Your quadcopter is powered by a Lithium-Polymer (LiPo) battery.
Never recharge your battery whilst it is inserted in your model. It can catch re leading to
the total destruction of the item.
If you do not plan to y your model for a week or more, store the battery approximately
50% charged to maintain battery performance and life. To achieve a 50% charge, y the
model until the battery requires recharging. Charge the battery for half the time typically
required to fully charge the battery.
2 SAFETY NOTES
Charge and store LiPo batteries in a location where a battery re or explosion
(including smoke hazard) will not endanger life or property.
Keep LiPo batteries away from children and animals.
Consider how you would deal with a LiPo battery re/explosion as part of your
normal home Fire Safety & Evacuation Planning.
Never charge the LiPo battery that has ballooned or swelled due to
over-/under-charging or from a crash.
Never charge the LiPo battery that has been punctured or damaged in a crash
(After a crash, inspect the battery pack for the sign of damage. Discard in
accordance with your country’s recycling laws.).
Never charge the LiPo battery in a moving vehicle.
Never over charge the LiPo battery.
Never leave the LiPo battery unattended during recharging.
Do not charge LiPo batteries near ammable materials or liquids.
Ensure that charging leads are connected correctly. Reverse polarity charging can
lead to battery damage or a re or explosion.
Have a suitable re extinguisher(electrical type) OR a large bucket of dry sand near
the charging area . Do not try to extinguish electrical (LiPo) battery res with water.
Reduce risks from re/explosion by storing and charging LiPo batteries inside a
suitable container: a LiPo Sack or metal/ceramic container is advised.
Monitor recharging LiPo batteries for signs of overheating.
Protect your LiPo battery from accidental damage during storage and
transportation. (Do not put battery packs in pockets or bags where they can short
circuit or can come into contact with sharp or metallic objects.).
If your LiPo battery is subjected to a shock (such as a helicopter crash) you should
place it in a metal container and observe for signs of swelling or heating for at least
30 minutes.
Do not attempt to disassemble or modify or repair the LiPo battery.
LiPo batteries are dier from conventional batteries in that their chemical contents are
encased in a relatively insubstantial foil packaging. This has the advantage of
signicantly reducing their weight, but does make them more susceptible to damage if
roughly or inappropriately handled. As with all batteries, there is a risk of re or
explosion if safety practices are ignored:
!
THE HUBSAN X42
THE HUBSAN X4 1
2.3 Prevent Moisture
R/C models are composed of many precision electrical components.
Store the battery and model in a dry area at room temperature. Exposure to water or
moisture may cause the model to malfunction resulting in loss of responsiveness, or a
crash.
2.4 Proper Operation
For safety please only use Hubsan’s spare parts for replacement.
2.5 Always Be Aware Of The Rotating Propellers
When in operation, the propellers will be spinning at high speed. The prop blades are
capable of inicting serious body injury and damage to the property.
Be cautious of your actions and careful to keep your body and loose clothing away from
the blades. Never take your eyes o the model or leave it unattended while it is turned on.
Stop operation immediately if the model ies out of your view. Once landed, immediately
turn o the model and transmitter.
2.6 Avoid Flying Alone
Beginners and all First Pilot View(FPV) iers should avoid ying alone when learning ight
skills. It is advised that an experienced pilot be in nearby guidance.
CAREFULLY INSPECT THE X4 BEFORE EVERY FLIGHT
• Before operation, please check the batteries of the transmitter and receiver are charged
enough for the ight.
• Before turning on the transmitter, please check that the throttle stick is in the full down
position.
• Carefully check rotor blades and rotor holders. Broken or premature failure of parts will
result in a dangerous situation.
• Check the battery and power plug are securely fastened. Vibration and violent ight
may lead the plug loosen and result in loss of control.
• When turning on the unit, please follow the power on/off procedure: for Power ON-
please turn on the transmitter rst, and then turn on the receiver. For Power OFF- please
turn o the receiver rst and then turn o the transmitter. Improper procedure may
cause loss of control of the quadcopter .
3 SAFETY CHECK BEFORE FLYING
THE HUBSAN X4 3
THE HUBSAN X4
22
FCC Warning:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
--- Reorient or relocate the receiving antenna.
--- Increase the separation between the equipment and receiver.
--- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--- Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modiycations to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

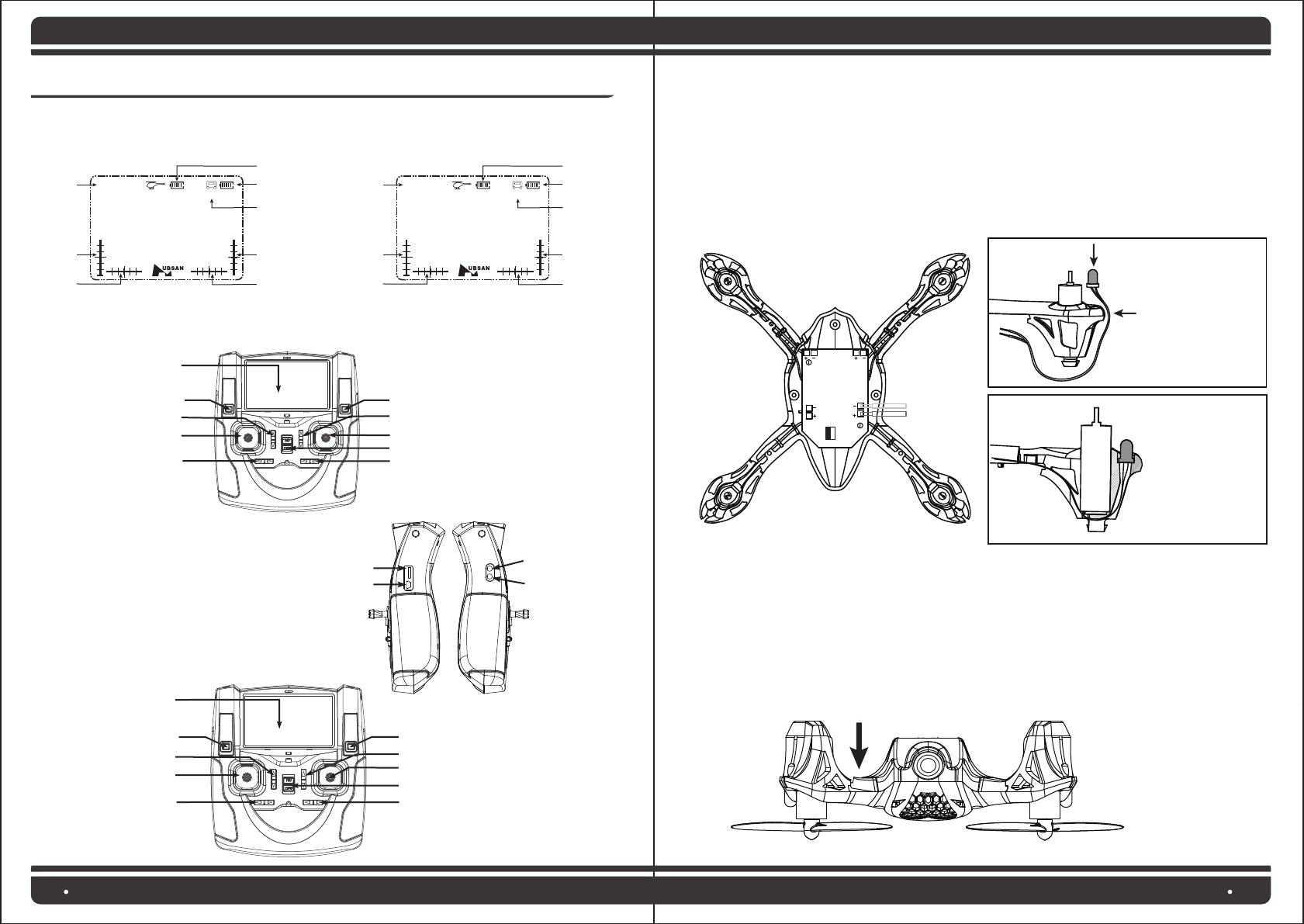

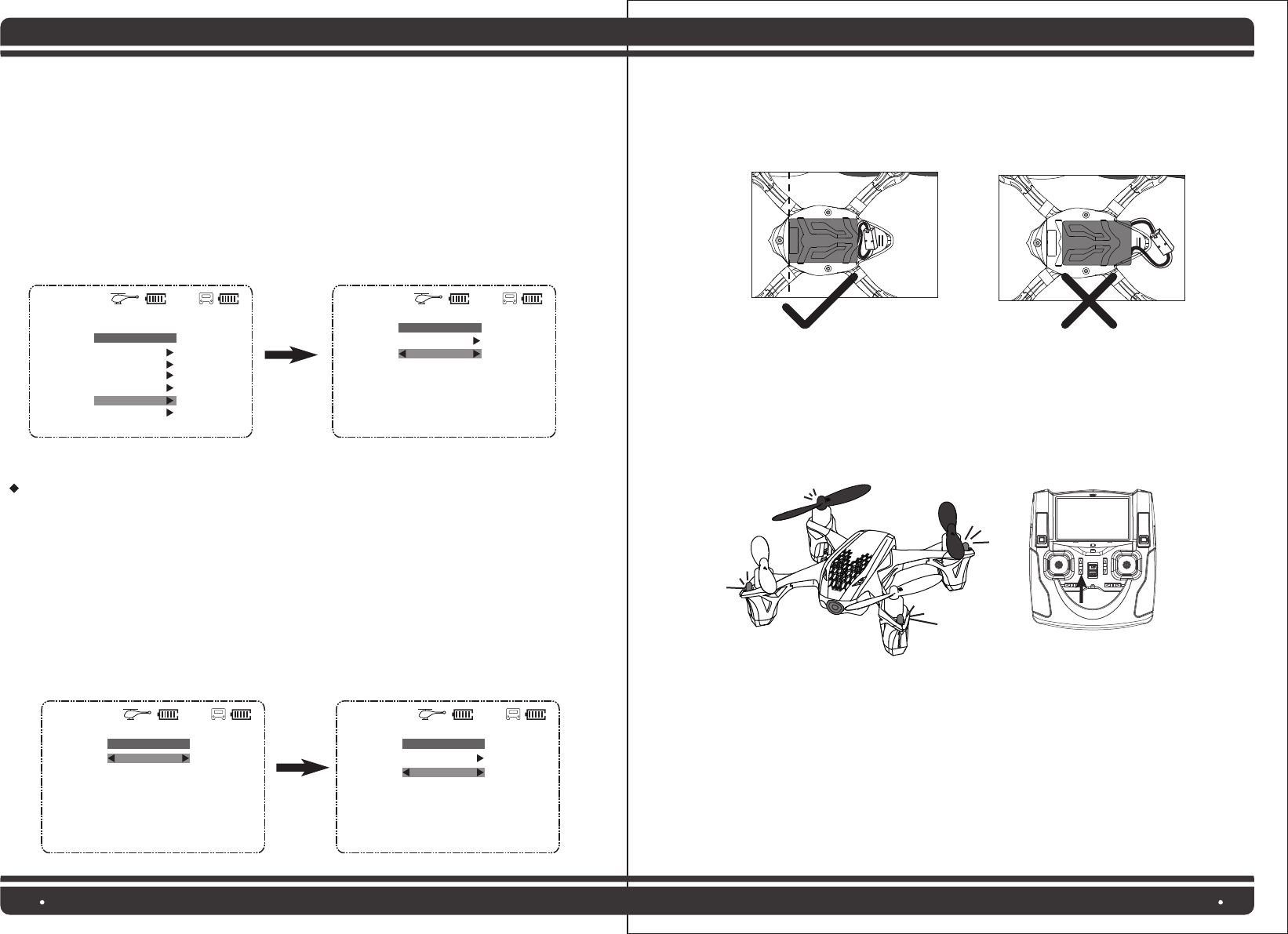

4.1 Identication and functions of the Main Menu
TRANSMITTER
Main Menu
(MODE 1) (MODE 2)
4 TRANSMITTER H107D-A05
THE HUBSAN X4 21THE HUBSAN X44
11. The motors are a little gritty and do not spin as freely after crashes.
Answer: You can hear grinding and see that motor is not spinning freely by icking the prop.
Press the shaft down from the top of the prop and motor to x the problem, or replace the
motor.
12. The arm of the X4 separates after a hard landing or crash.
Answer: This is a special design to absorb the impact from hard crashes. Simply force the arms to
snap back into the joint position by hand as shown in the picture.
10. LED removal & installation.
Removal: Unscrew and remove the lower shell and the rubber feet. Then unsolder the red and
yellow wires.
Installation: Solder the red wire on anode/positive (+), the yellow on cathode/negative (-), press
the LED wires rst, then the motor wires in the leg slots. Install the lower shell, then the rubber
feet. You can determine the color of the LED lights by looking at the color of the LED wire
insulation at the bottom of the LED lens: red color is red light, blue color is blue light.
H107 FAQ
LED
LED
LED
LED Yellow
Red
1. First line up the wires with
the slots. The LED's black
insulated cathode(-) wire
must be outermost.
2. Line up the LED to the round
holder slot. Press the wires
carefylly into the slot and secure
them neatly into the arm.
Installation is complete

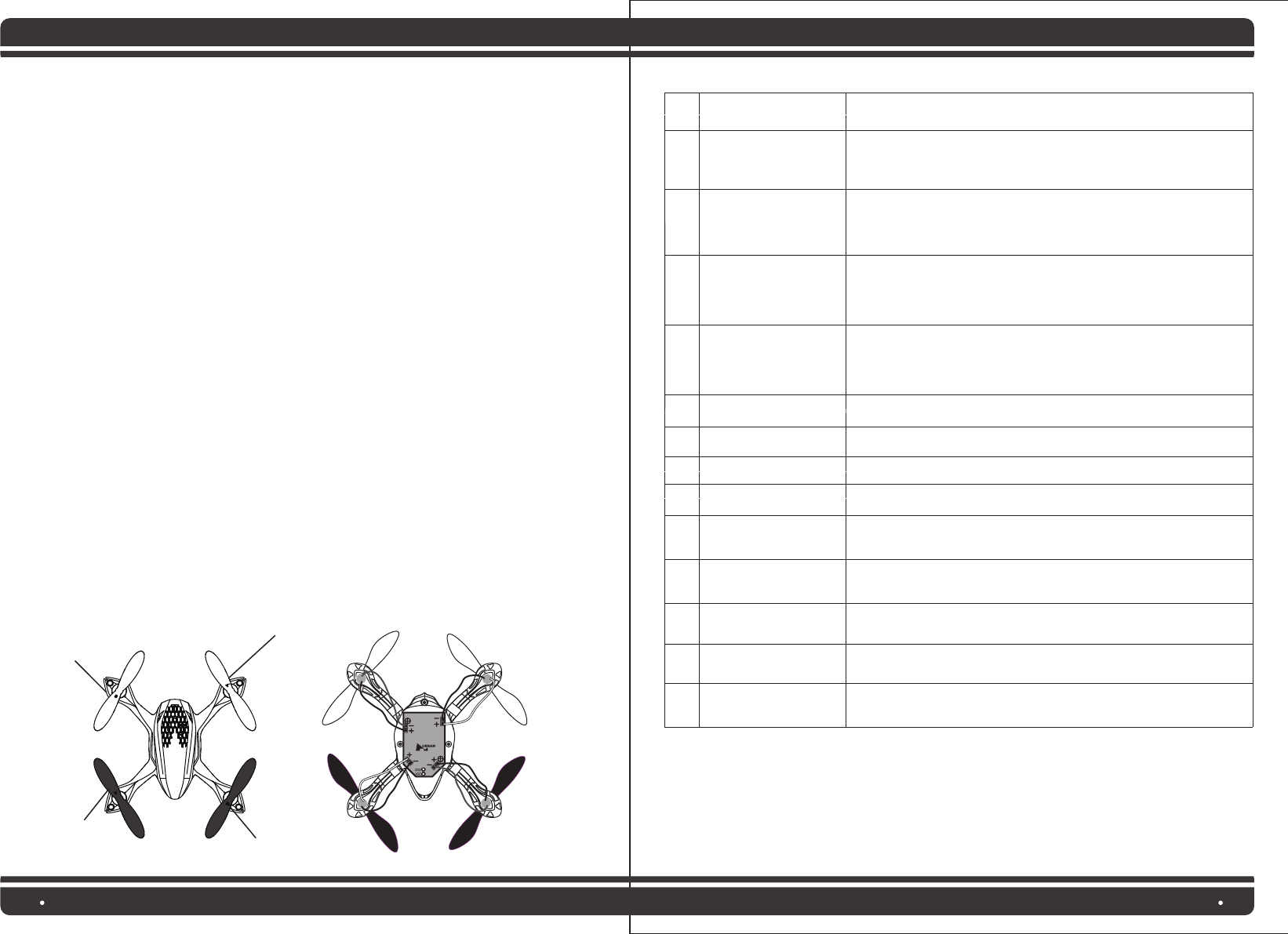

Anatomy
(MODE 1)
(MODE 2)
0:08:49 TX Battery voltage
Heli Battery voltage
Rudder trim
Elevator trim
Throttle trim
Aileron trim
REC
Recording
On time
0:08:49 TX Battery voltage
Heli Battery voltage
Rudder trim
Elevator trim Throttle trim
Aileron trim
REC
Recording
On time
8 Recording
4 Elevator Trim
2
Elevator/Aileron Stick
5 Rudder Trim
LCD
6 Throttle Trim
1 Throttle/Rudder Stick
7 Power SW
3 Aileron Trim
No use now
4 Elevator Trim
(2) Elevator/Rudder Stick
5 Rudder Trim
LCD
6 Throttle Trim
8 Recording
(1) Throttle /Aileron stick
7 Power SW
3 Aileron Trim
No use now
SD Card
9 USB socket
10 Video glasses socket
11 Earphone socket
4.2 Battery Mounting
Notice: >Do not mix old and new batteries
>Do not mix dierent types of batteries
>Do not charge non-rechargeable battery.
>Only use 4XAA batteries, using incorrect batteries can cause damage .
MODE 2
MODE 1
MODE 1
MODE 2

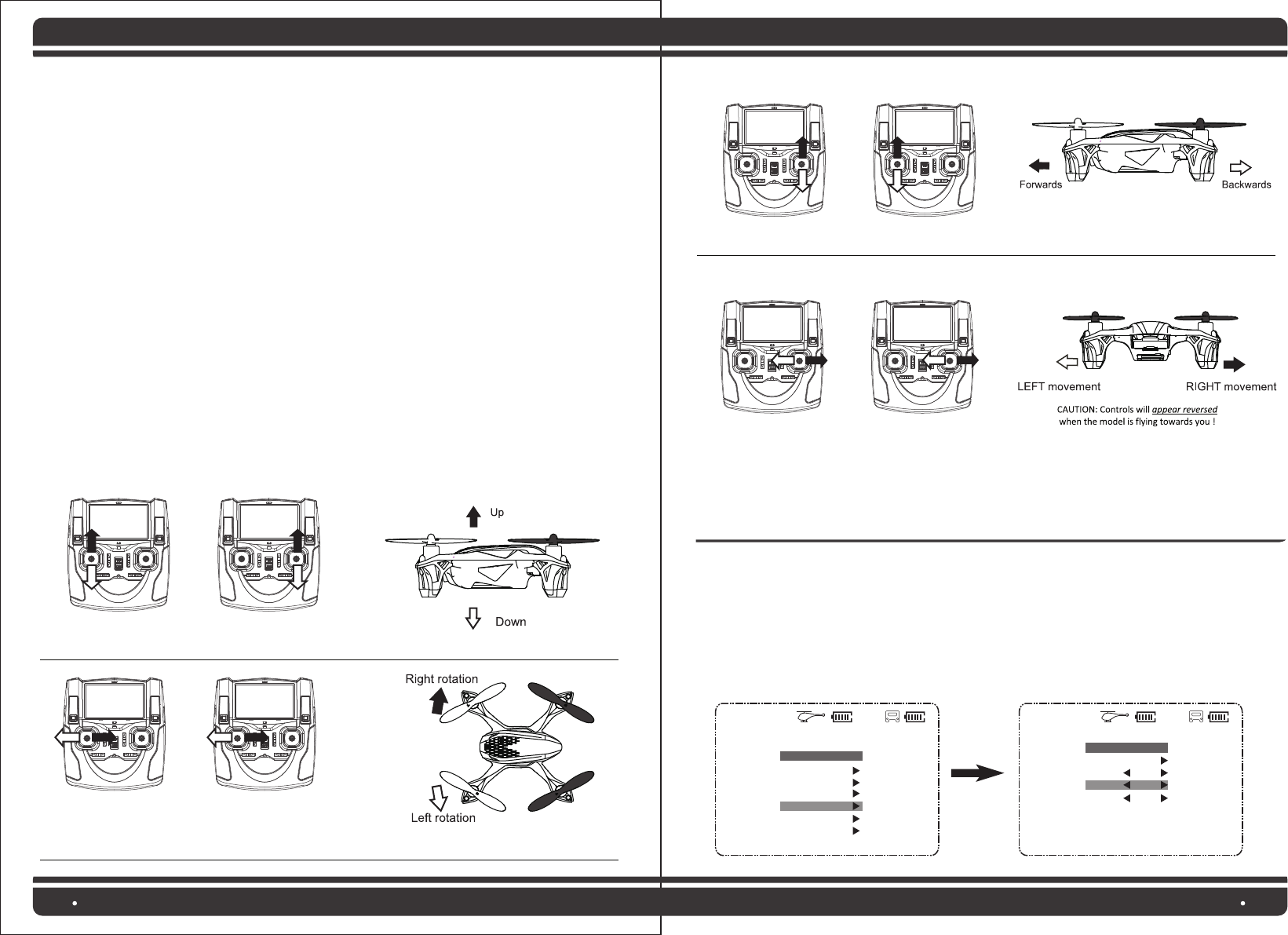

Input Key Function
S/N Identication Function
1 Throttle/Rudder Stick
2 Elevator/Aileron Stick

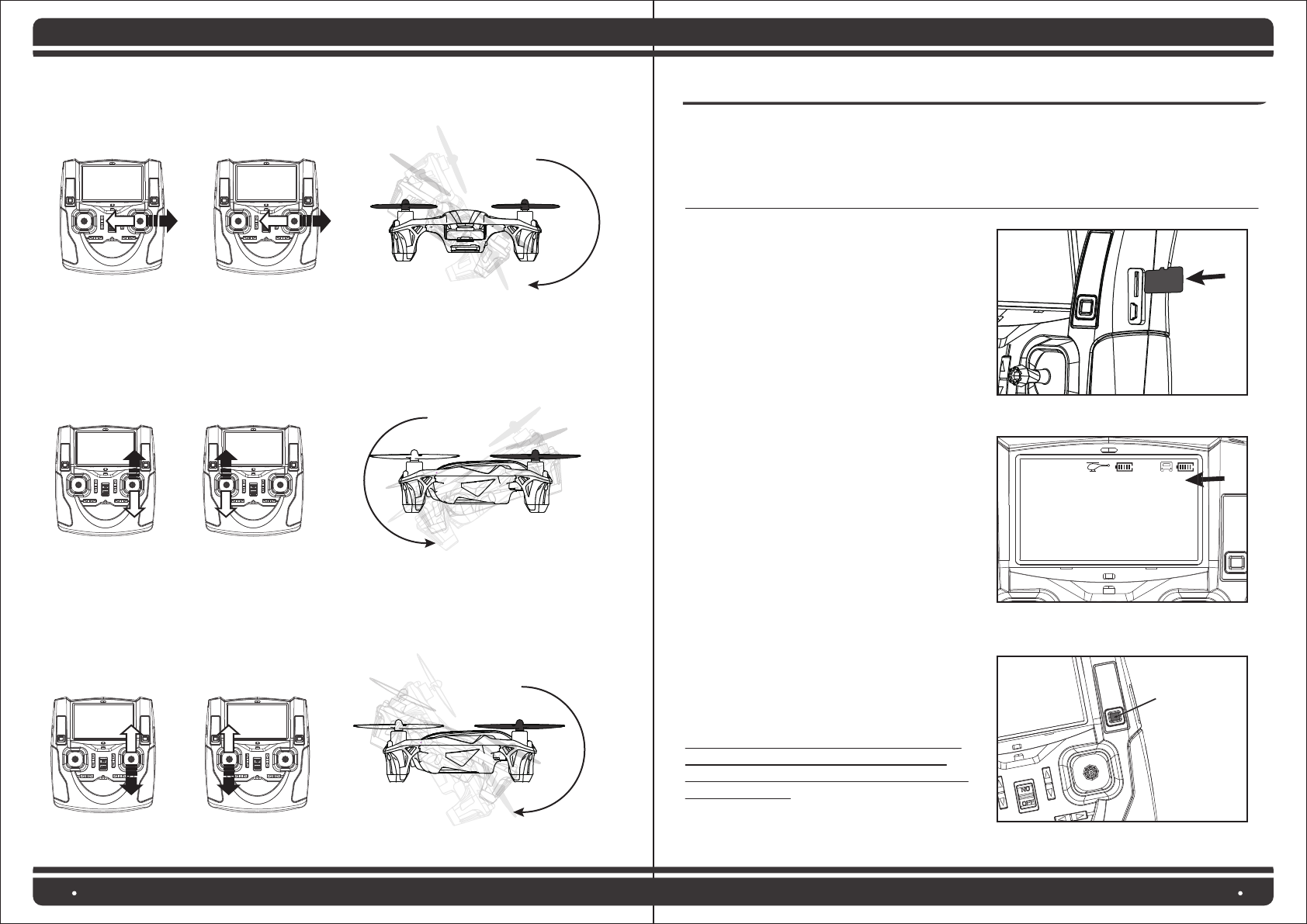

Forward and backward movement of the stick makes the quadcopter
move forward and backward respectively. Left and right movement of
the stick makes the quadcopter drift sideways left/right respectively.
(1)
Throttle /Aileron stick
Forward and backward movement of the stick will make the quadcopter
increase or decrease speed respectively.Left and right movement
of the stick makes the quadcopter roll left/right to initiate a banked turn.
(2)
Elevator/Rudder Stick
Forward and backward movement of the stick makes the quadcopter
nose point up/down respectively. Left and right movement of the
stick makes the quadcopter yaw left/right respectively.
3 Aileron Trim
Aileron trim adjusts for left and right drift.
4 Elevator Trim
Elevator trim adjusts for forward and backward drift.
5 Rudder Trim
Rudder trim adjusts for drift of left and right rotation or yaw.
6 Throttle Trim
Throttle trim normally left at neutral. The lower trim turns LEDs on and o.
7
8
9
10
11
Power SW
Recording
USB socket
Video glasses socket
Earphone socket
Pushing the switch up turns on the transmitter. Pushing it down turns it
o.
Forward and backward movement of the stick makes the quadcopter
ascend and descend respectively. Left and right movement of the stick will
rotate the quadcopter’s fuselage left/right respectively.
THE HUBSAN X4 5THE HUBSAN X420
B
B
A
A
White
White
Black
Black
Blue
Blue
Red
Red
(Bottom View)
H107D FAQ
The new model can support for video recording. Press the Recording button
for 1 second to conrm or exit.
1.Transmitter and X4 will not bind.
Answer: Throttle position needs to be fully minimized. Please do not move the transmitter sticks or
trims during initial power-on binding.
2. Transmitter LED light came on and then suddenly went o.
Answer: Replace new AA batteries
3. LCD transmitter not showing the setting interface after holding down the joystick for 1 second.
Answer: The throttle stick is not in the lowest position.
4The quality of the video is not good, and it stutters.
Answer: Please use brand HD SDHC card, such as Kingston Micro SDHC class6 4G card. Do a format
in the Transmitter using the SD format menu button.
5. Gyro not working well
Answer: (1) Battery voltage too low. (2) Re-bind (3) Land on to the ground with the throttle fully
minimized for 3 seconds and take o again.
6. Unable to Flip
Answer: (1) Press the Elevator stick straight in one time to enter into the expert(ip) mode. (2) In the
expert(ip) mode, the sensitivity on each channel should be above 90%, you can program the
sensitivity in the setup menu. Please check manual 4.4 Stick Sensitivity Adjustment. (3) Press the
Elevator stick straight in to turn o anti-ip. (4) Lipo power is too low and needs to be recharged.
7. Quadcopter is shaking or oscillating with noise.
Answer: Please check to see that the motors, canopy, body and props are all properly positioned.
8. Switching between low and high rates on the transmitter is not very user-friendly.
Answer: Press the Elevator stick briey only one time to switch on/o the expert mode(red ashing
TX LED) and normal mode(green solid LED). The word "Expert" will also appear at the bottom center
on the LCD.
9. Can not take o.
Answer: (1) Wrong installation of the props. Props are marked with "A"(CW) and "B"(CCW). Please
check the pictures below for the correct order. (2) Wrong installation of motors. Please check to
make sure that each motor is installed in its correct position. There are two dierent types of motors
with dierent motor wire colors. Please check the pictures below for the correct order.
White A
White B
Red A
Red B
(Top View)
Only for engineer to upgrade the software, please do not use it to connect
computer
Connect Hubsan H510 video glasses, which not included and need purchase
Connect earphone after we upgrade the transmitter, now there is no voice
transmission
11
Return the cover
Take out the cover Install 4 x AA battery
according to the correct polarities
THE HUBSAN X4 19THE HUBSAN X46

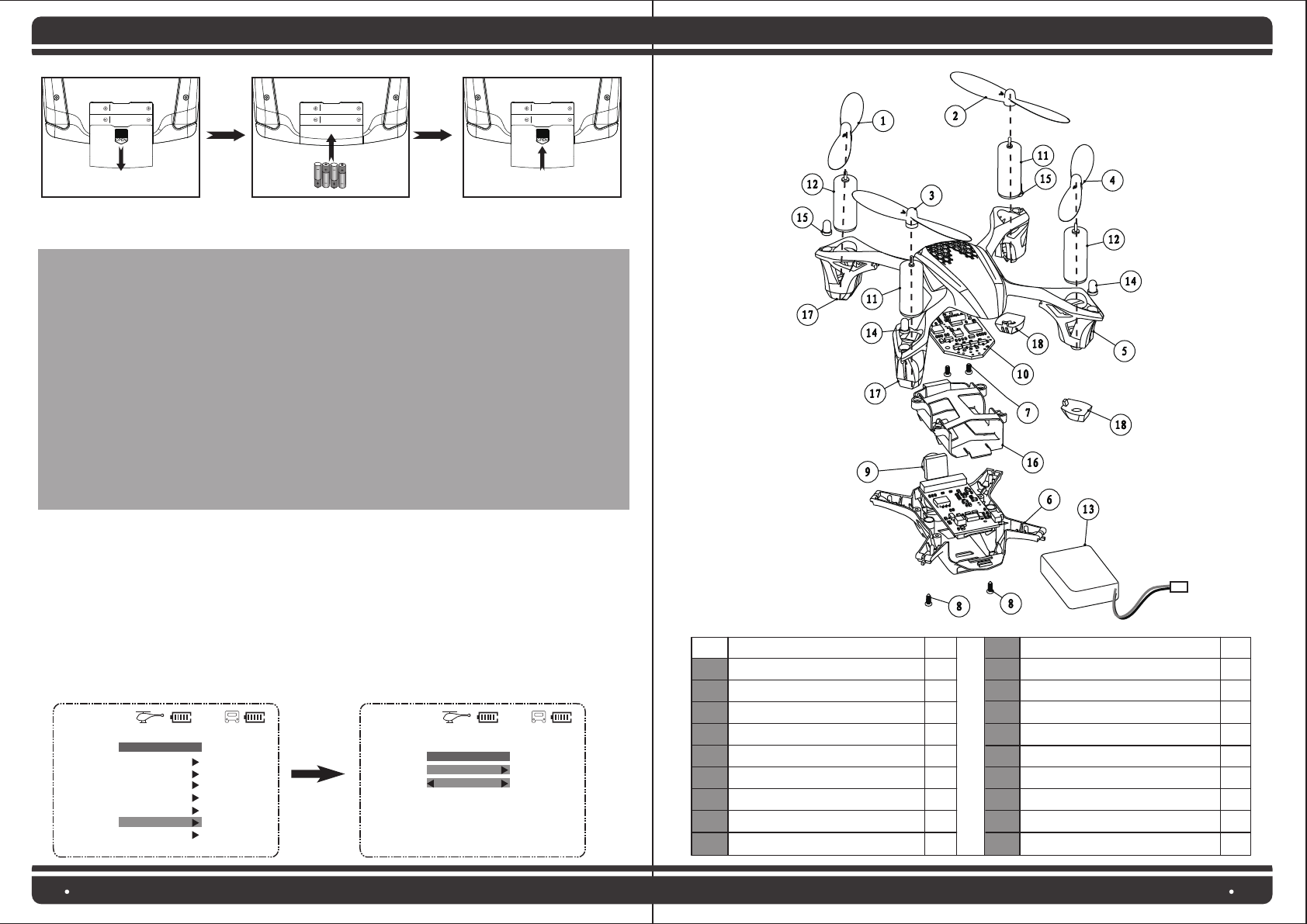

Exploded View
1White blade B
9Camera PCB module
10
820 motor(clockwise)
11
820 motor(anticlockwise)
12
Li-po battery
13
LED(Red)
14
LED(Blue)
15
17 Rubber feet-1
2White blade A
3Red blade A
4Red blade B
5Upper shell
6Lower shell
7Screw(PB1.4*3)
8Screw(PA1.4*4)
No PART NAME QTY QTYNo PART NAME
1
1
1
1
1
1
2
2
1
FPV RX 1
2
2
1
2
2
2
18 Rubber feet-2 2
16 Battery box 1
PUSH PUSH
10
13
5
7
8 8
11
12
1 2
12 3
11
4
14
15
14
15
9 16
18
18
17
17
6
4.3 Frequency selectable 5.8Ghz
Your transmitter will automatically nd the best frequency to ensure the quality live video
transmission. in case there is any interference in your location, you can change the setting
from the range 5.745 to 5.865 Ghz to get longer range and better video transmission.
Press down the ELEVATOR stick for 1 second to enter setting status, move the stick
up/down to choose
5.8G FREQUENCE
, push the ELEVATOR stick to the right and move the
stick up/down to select the frequency set, set what frequency you need by pushing the
stick left/right, exit this setting as the displayed arrows show. Or hold down the ELEVATOR
stick for 2 seconds to exit.
0:08:49
MAIN MENU 5.8G FREQUENCE
Play Record
Set Real Time
Format SD Card
Set Reverse
Set Sensitive
5.8G Frequence
Exit
0:08:49
Exit
5810MHz
1. The video will stop when the TX battery is low.
2. When the SD card is full, it can’t record anymore and the screen will display “SD Full”.
3. It is best to use a 4G+, and class 4+ SD card. Format in the transmitter before use.
4. When the power on the TX is low, the red LED will blink quickly and the LCD screen will turn
black. The TX and X4 will not bind if the batteries are low. Please replace with new batteries.
5. If the batteries in the TX are running low whilst ying the X4, you will still have control. Please
land the X4 and then replace batteries in the TX.
6. The TX can only use 4XAA batteries or NI-MH AA batteries, other batteries will damage the TX.
Notice：
7THE HUBSAN X4 7THE HUBSAN X418

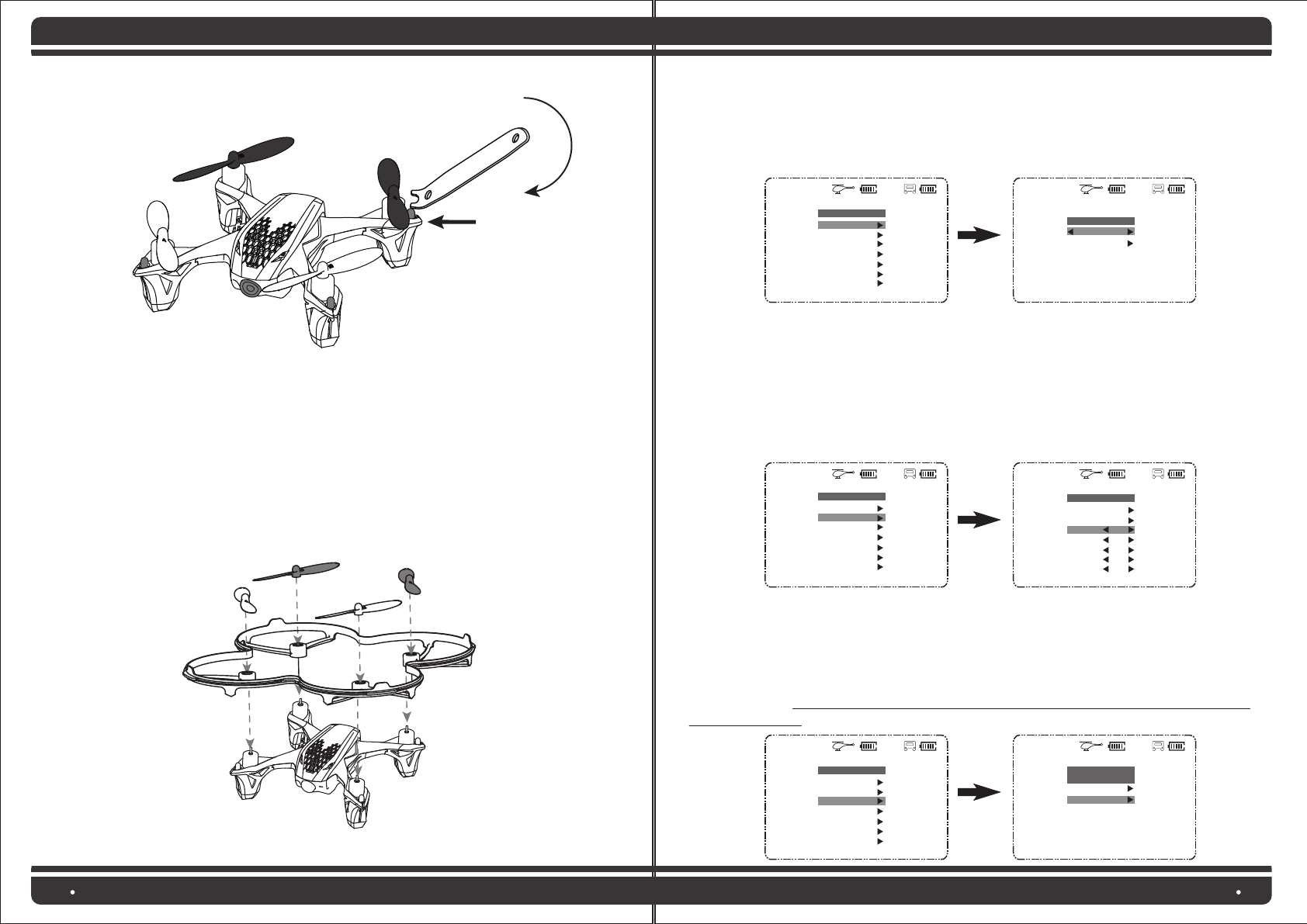

Removing Props: Hold the prop, insert the U wrench under the prop, press down and
the prop will easily come o the motor shaft.
The propellors are dangerous when the quadcopter is ying. To avoid injury or
damage, please consider installing the protection cover.
Instructions:
Remove the props. Position the cover’s four holes with the motors. Press each of them
on the motors, then re-install the props in their correct positions on the X4 .
When removing the protection cover, please remove the props rst as in the above
steps, and pinch o the protection cover from each motor. After any crash landing,
please check to make sure the protection cover is still on tight, and make sure the
body, motors and props are not damaged.
4.5 Set Real Time
Your transmitter can set a real time clock. Once you set the time it can display the real time
in your time zone.
Press down the ELEVATOR stick for 1 second to enter setting status, move the stick
up/down to choose SET REAL TIME, push the ELEVATOR stick to the right, move it
up/down to choose and push right/left to set the time. After nishing, exit by pushing the
ELEVATOR stick to the left. Hold down the ELEVATOR stick for 2 seconds to exit.
4.6 Format SD Card
Insert your SD card into the transmitter. The transmitter can format your SD card.
Press down the ELEVATOR stick for 1 second to enter setting status, move the stick
up/down to choose FORMAT SD CARD, push the ELEVATOR stick to the right, move it
up/down to choose and push right to conrm or exit. Hold down the ELEVATOR stick for 2
seconds to exit. WARNING! ALWAYS FORMAT AND ACTIVATE CAMERA RECORDING
BEFORE FLIGHT!
0:08:49
MAIN MENU
Play Record
Set Real Time
Format SD Card
Set Reverse
Set Sensitive
5.8G Frequence
Exit
0:08:49
Set Real Time
Exit not Save
Exit and save
Year : 2000
Month : 01
Date : 01
Hour : 00
Minute : 02
0:08:49
MAIN MENU
Play Record
Set Real Time
Format SD Card
Set Reverse
Set Sensitive
5.8G Frequence
Exit
0:08:49
Format SD Card
Are you sure:
NO
YES
4.4 Play Record
Your transmitter can play the video recording that you saved.
Press down the ELEVATOR stick for 1 second to enter setting status, move the stick
up/down to choose PLAY RECORD, push the ELEVATOR stick to the right, push right/left
to choose NEXT/STOP. Hold down the ELEVATOR stick for 2 seconds to exit.
0:08:49
MAIN MENU PLAY RECORD
Play Record
Set Real Time
Format SD Card
Set Reverse
Set Sensitive
5.8G Frequence
Exit
0:08:49
PREV NEXT
001.avi 00:01
Stop and Exit
002.avi 00:00
89THE HUBSAN X4 17THE HUBSAN X48
In Expert Mode, the X4 can y at high speeds and do ips. if you don’t need
it to ip, you can select anti-ip mode. Press the throttle stick to select or deselect
anti-ip. OFF=one TX beep=it can’t ip. ON=two TX beeps=It can do ips. Note that
when the X4 runs out of lipo power, it also can’t ip.
!
The X4’s props are not identical. Each prop is labeled with an A or B. When installing
replacement props, be certain to install them as shown. The X4 will not y, and will ip
and crash if the props are not installed in their proper locations.
FRONT
Installation: Pinch the prop hub, line up the hole to the motor shaft, press it rmly
but gently straight down.
9 PROPELLER INSTALLATION AND REMOVAL
A
B
5.2 Please refer to 2.2. Safety Advisory Notice
Always partially charge your LiPo battery before storage. LiPo batteries retain the power
over a reasonable period; It is not normally necessary to recharge stored LiPo batteries
unless stored for periods longer than 3-6 months.
If your LiPo battery has been over-discharged, it will not be possible to recharge it again.
5.1 The quadcopter is equipped with a 3.7V 380mAh Lipo battery
5.1.1 Take out the battery from the bottom of the X4
3.7V 240mAh
5.1.2 Connect the battery with USB charger, the LED light is ON whilst charging and
turns OFF when charging is complete.The USB charger can connect to any
smartphone charger except Iphone, also can connect to the USB socket in cars.The
voltage of the USB is +5±0.5V.
5 LI-PO BATTERY CHARGING
3.7V 380mAh
8.3.3 Forward ip
Pull the joystick to the back and then quickly push the joystick to the front and release
the stick to the center after the ip.
8.3.4 Backward ip
Push the joystick to the front and then quickly pull the joystick to the back and release
the stick to the center after the ip.
THE HUBSAN X4 9THE HUBSAN X416
6 VIDEO RECORDING
8.3.2 Right side ip
Push the joystick to the full left side and then quickly push the joystick to full right and
release the stick to the center after the ip.
MODE 2 MODE 1
MODE 2 MODE 1
MODE 2 MODE 1
6.3 Start/Stop recording using the remote.
WARNING! First activate the camera before
flight in order to make sure the SD card is
formatted. Formatting while in flight will result
in loss of control.
6.1 Insert the SD card
Note:
Always turn OFF the power of the transmitter before inserting or removing the SD card.
Always stop the video recording function and power o the battery rstly, and then you
can take out the SD card.
WARNING! ALWAYS FORMAT AND ACTIVATE CAMERA RECORDING BEFORE FLIGHT!
Note:Carefully and properly orient the SD card for
insertion in the TX. (See the picture to the right)
Avoid removing the SD card and re-inserting again
too quickly otherwise the recording module will
not work properly
6.2 The screen will display REC in red and
blinking when recording is started.(See the
right picture)
Press the button to
switch ON/OFF
video recording
0:08:49
REC
SD
7.1.3 Apply power on the X4 by connecting the battery plug with correct polarity. Please
rst disconnect the X4 battery plug and then turn o the TX when you stop ying.
THE HUBSAN X4 15THE HUBSAN X410
7.1 Power-On (Failsafe) Procedure
Your X4's ight contoller is coded with a Power-On failsafe.
This is designed to ensure that the X4’s motor will not start unless it detects a suitable
radio-control signal when the LiPo battery is connected. The correct Start-Up sequence is
as follows:
7.1.1 Make sure the throttle stick is in the full down position.
7.1.2 Power on the transmitter and the red LED will be blinking. Please do not move any
other stick or trim before the TX and X4 match code and bind, or the X4 will drift. The TX
LED will turn green when the TX binds with the X4.
7 START TO FLY
MODE 2 MODE 1
8.3 Aerial Flip Tips.
8.3.1 Left side ip
Push the joystick to the right side and then quickly push the joystick to the left and then
release the stick to the center position after the ip.
Your X4 can do 360° ips by pushing the joysticks as described below. For
proper ip execution, make certain that the X4 is close to level, within a 30° angle with
the ground, and add some climb throttle before you move the pitch and roll sticks.
!
The ip maneuver will only work in the the EXPERT MODE when anti-ip is not selected.
You need to press the elevator stick one time to switch into the expert mode. To select
anti-ip momentarily press the throttle stick in: anti-ip=one beep. ip=two beeps.
MODE 2 MODE 1
3.7V 380mAh
THE HUBSAN X4 11THE HUBSAN X414
7.1.4 Insert the battery into the bottom of your X4. Make sure the battery and wires are
pushed into the end of the battery compartment, so they will not negatively aect the
center of gravity(COG) and cause unstable ight. Please twist the wires and squeeze
them into the notched holder as the picture shows, to prevent inight shaking or
oscillations.
7.1.5 About LED lights:
After a “beep”, and the red LED on the transmitter turns green, the 6 lights on the X4
will be on solid indicating that the bind code is matched. The LEDs will be on and
night ying is possible. Press the lower throttle trim for about 1 second to turn the
LEDs on or o. Even if you select the LEDs o, they will blink when the lipo power is
low. NOTE: The LEDs will blink when the quadcopter runs out of power or the X4
code does not bind with the TX.
3.7V 380mAh
3.7V 380mAh
(MODE 2)
8.2 SENSITIVITY SET UP
If you would like to change the sensitivity of any of the stick functions then follow
instructions below. A higher sensitivity value will enable larger/faster movement of the
aircraft,while a lower sensitivity value will enable smaller/slower movement.
Press down the ELEVATOR stick for 1 second to enter setting status, move the stick
up/down to choose SET SENSITIVE, push the ELEVATOR stick to the right, press the
elevator/ aileron/ rudder trim to set the sensitivity. Push the elevator stick to the right
to exit . Hold down the ELEVATOR stick for 2 seconds to exit the setup menu.
In expert mode, the sensitivity can be adjusted even further (up to 100) to give the
user even more ability to manoeuvre the aircraft. Follow instructions below to switch
this on/off.
Press down the ELEVATOR stick for 1 second to enter setting status, move the stick
up/down to choose SET SENSITIVE, push the ELEVATOR stick to the right, choose NORMAL
MODE, push the ELEVATOR stick to the right to enter into the expert mode, press the
elevator/ aileron/ rudder trim to set the sensitivity. Push the ELEVATOR stick to the right to
exit this set. Hold down the ELEVATOR stick for 2 seconds to exit.
EXPERT MODE
0:08:49
MAIN MENU
0:08:49
Set Sensitive
Elevator :
Aileron :
Rudder :
50
50
50
Play Record
Set Real Time
Format SD Card
Set Reverse
Set Sensitive
5.8G Frequence
Normal mode
0:08:49
Set Sensitive
Elevator :
Aileron :
Rudder :
50
50
50
Normal mode
0:08:49
Set Sensitive
Elevator :
Aileron :
Rudder :
100
100
90
Expert mode
Exit
Exit
First Pilot View(FPV) Instructions:
For those just starting FPV with the Hubsan H107D please start S-L-O-W-L-Y and use the
following guidance:
1. Learn how to y the X4 and maintain control both indoors and outdoors at an altitude
no higher than 10 feet before you advance to FPV ight and higher altitudes. A large
part of being successful in FPV is training your ngers and brain to know how the model
will respond with your inputs so you can predetermine your stick movements. It is very
dierent to look at an LCD or goggles and determine hover, altitude and speed. You will
need to visually correlate and remember how the model reacts with stick movements
and also the dierences of those movements when in no wind and windy conditions.
Aileron (Cyclic Roll) moves your quadcopter ‘sideways’ Left/Right
7.2 Transmitter sticks and X4 control responses
CAUTION: To avoid loss of control: ALWAYS move the TX sticks S-L-O-W-L-Y! Be aware
that control inputs will reduce available lift . Be ready to use a little extra throttle to
maintain height during maneuvers.
Throttle (Collective Power) increases/decreases the altitude of your quadcopter
Rudder (Collective Torque Yaw) rotates your quadcopter’s fuselage Left / Right
Elevator (Cyclic Pitch) moves your quadcopter Forwards/Backwards
THE HUBSAN X4 13THE HUBSAN X412
8 ADVANCED PERFORMANCE SETUP
MODE 2 MODE 1
MODE 2 MODE 1
MODE 2 MODE 1
MODE 2 MODE 1
8.1 Reversing channel setup
If you would like to reverse any of the stick functions due to personal preference then
follow the instructions below. Be aware that this will change the controls back to front.
Press down the ELEVATOR stick for 1 second to enter setting status, move the stick
up/down to choose SET REVERSE, push the ELEVATOR stick to the right, move it
up/down to choose and push right to conrm or exit. Hold down the ELEVATOR stick for
2 seconds to exit.
0:08:49
MAIN MENU
0:08:49
Set Reverse
Play Record
Set Real Time
Format SD Card
Set Reverse
Set Sensitive
5.8G Frequence
Normal
Exit
Normal
Elevator
Rudder
Aileron Revers
2. When ying indoors or outdoors allow for plenty of free space with no couches, tables,
trees buildings or other objects that you might y into. A large area with soft grass is a
perfect outdoor area to learn to y. An asphalt parking lot is a terrible place to learn to y.
It is recommended that you use a safety spotter for your FPV ights!
3. First learn to master hovering, then master ying a square or rectangular pattern by
recognizing features that are picked out before you begin your FPV ight.
4. The X4 prop guard is excellent to use indoors if required for your personal skill level, but
using outside is optional and less desirable in many cases. Most iers will want to remove it
in order to gain some ight performance. The reason is that any wind when using the prop
guard will make it more dicult to y especially during FPV. Despite the safety feature and
protection when using some kind of prop guard, all multi-copters lose ight performance
when prop guards are used and will perform much better without them. You should also
adjust your rates a bit higher for outdoor ight to something like 70 for pitch and roll. The
X4 default expert rate settings will be too high for most new iers and even skilled iers for
FPV. So as a suggestion for practice just increase the beginner values to about 70 when
you are ready for outdoor FPV ying.
