Technical Description and User’s Manual of the HUF14632 Door-Handle with NFC
PDSPE1 - R.Muñiz Page 1 of 8 22.05.2015

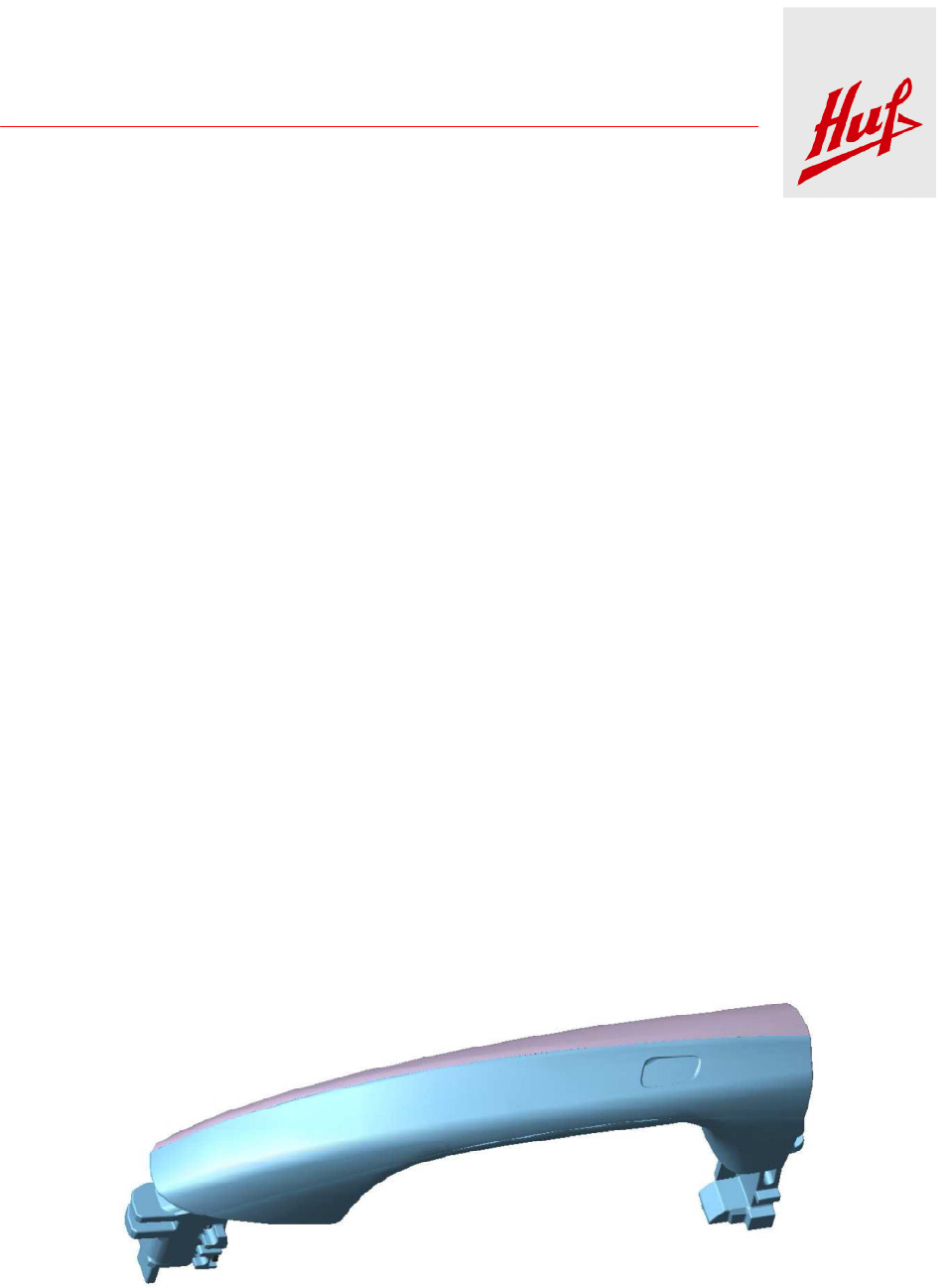

Huf Hülsbeck & Fürst
Technical Description
and
User’s Manual
of the
Door-Handle with NFC
Model: HUF14632
Technical Description and User’s Manual of the HUF14632 Door-Handle with NFC
PDSPE1 - R.Muñiz Page 2 of 8 22.05.2015
Huf Hülsbeck & Fürst
Contents
1 General description of the door-handle ..................................................................................................... 3
2 Communication Interfaces ......................................................................................................................... 4
3 Block diagram ............................................................................................................................................ 5
4 Technical data ........................................................................................................................................... 5
4.1 Electrical characteristics ..................................................................................................................... 5
4.2 Connector definition ............................................................................................................................ 5
4.3 General NFC specification .................................................................................................................. 6
5 Declaration of Conformity, product Label .................................................................................................. 7
5.1 Radio equipment authorization to FCC in USA .................................................................................. 7
5.2 Radio equipment authorization to RSS-210 in Canada ...................................................................... 7
5.3 Location of product label ..................................................................................................................... 8
Technical Description and User’s Manual of the HUF14632 Door-Handle with NFC
PDSPE1 - R.Muñiz Page 3 of 8 22.05.2015
Huf Hülsbeck & Fürst

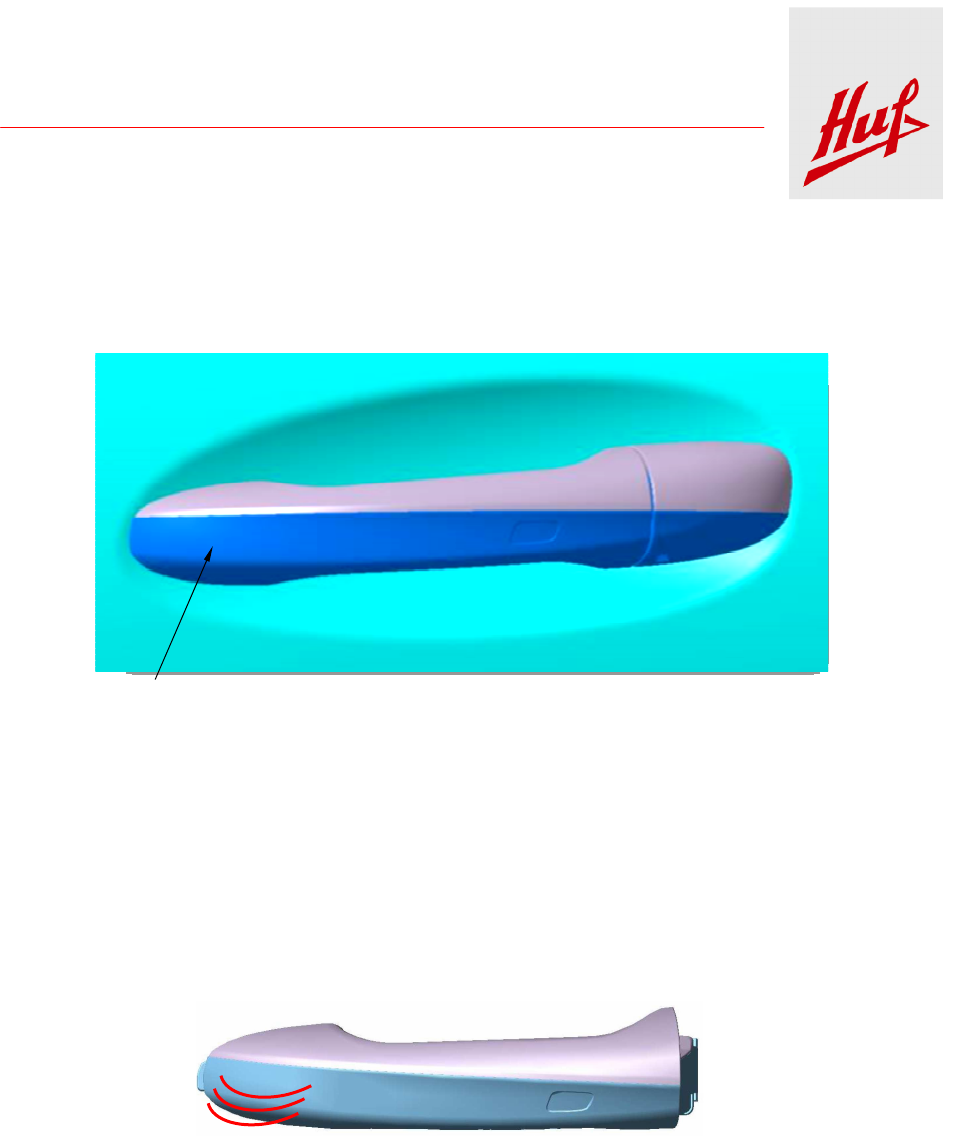

1 General description of the door-handle
The Door-Handle HUF14632 with NFC is equipped with sensors that enables users of a car with passive
entry system to lock/unlock the doors by carrying the key fob or an authorised NFC-Device with them.
NFC-Antenna
Unlock/Lock
NFC-Reader:
When an NFC-Device approaches to the NFC-Antenna, the door handle sends a signal to the electronic
control unit to initiate the authorisation sequence for unlocking or locking the door.
NFC detection
area
Technical Description and User’s Manual of the HUF14632 Door-Handle with NFC
PDSPE1 - R.Muñiz Page 4 of 8 22.05.2015
Huf Hülsbeck & Fürst
2 Communication Interfaces

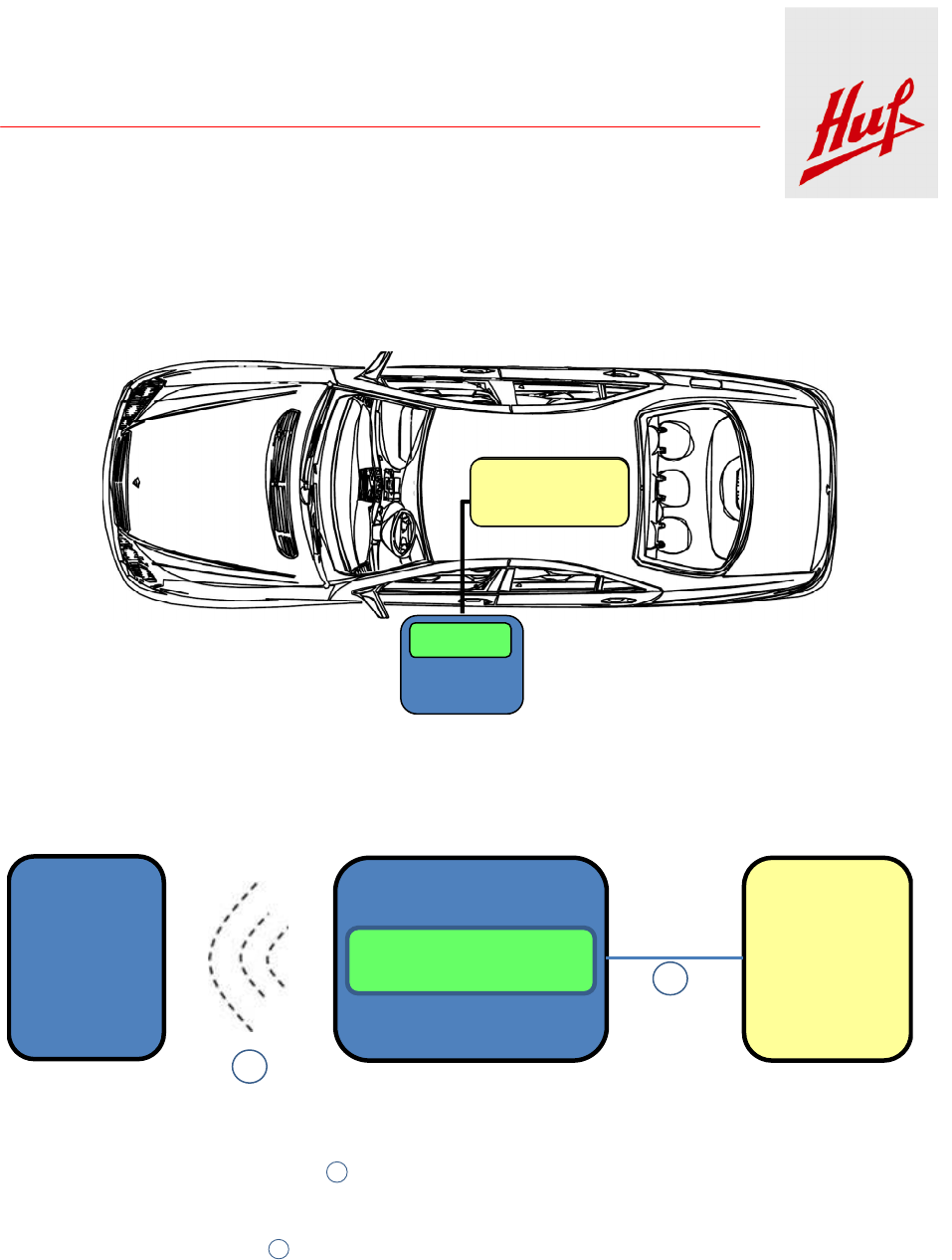

Following picture shows a simplified diagram of the system.
KeylessGo-ECU
Door-Handle
(driver’s door)
Electronic
with NFC
The door-handle communicates with the Electronic Control Unit (ECU) by using one-wire interface and
with the NFC-Device by using Near Field Communication.
NFC Device
Door-Handle
(driver’s door)
Electronic with NFC
ECU
1
2
Communication with the NFC-Device
Near Field Communication between the door-handle and the NFC-Device.
Communication with the ECU
Bidirectional communication with the ECU during the NFC-authorisation sequence
1
2
ECU
Technical Description and User’s Manual of the HUF14632 Door-Handle with NFC
PDSPE1 - R.Muñiz Page 5 of 8 22.05.2015
Huf Hülsbeck & Fürst

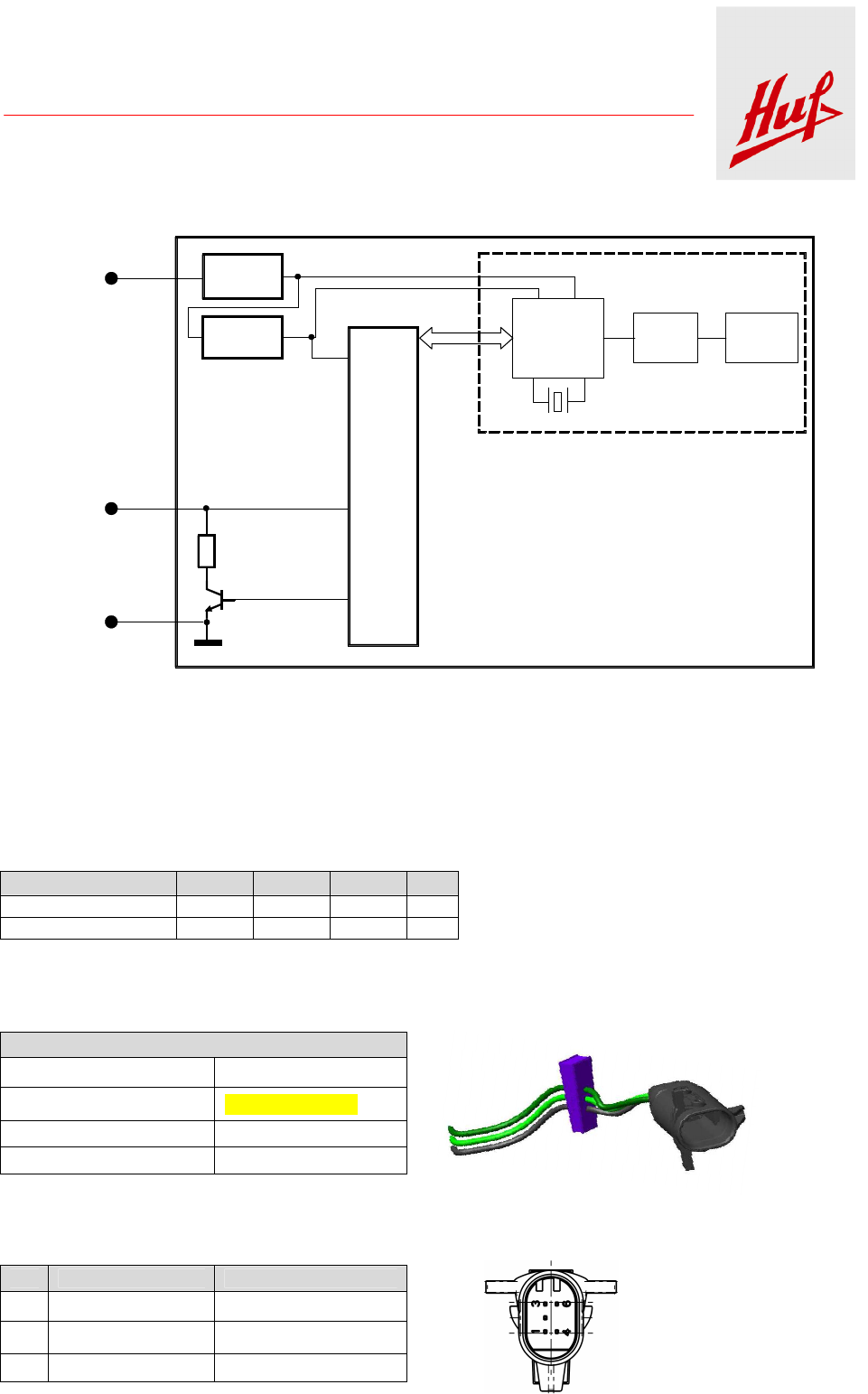

3 Block diagram
2,5V-Regulator
IC100
T601
KG/EDS-TX
Door-Handle
1
2
3
EDS-RX
µC
5V-Regulator
IC101
IC202
R607
NFC Reader
DC
Supply
Data
Ground
AS3915-AQFT
IC401
SPI
Filter Antenna
(13.56MHz)
27.12MHz
4 Technical data
4.1 Electrical characteristics
min. typ. max. Unit
Voltage
8 12 16 V
Temperature
-40 +85 °C
4.2 Connector definition
Connector pin-out description:
Connector on Handle side
Manufacturer Delphi
Part Number A 213 540 65 00
Type Male
Number of positions 6
PIN Function Wire Colour
1 Data yellow
2 Ground black
3 Power supply red
Technical Description and User’s Manual of the HUF14632 Door-Handle with NFC
PDSPE1 - R.Muñiz Page 6 of 8 22.05.2015
Huf Hülsbeck & Fürst
4.3 General NFC specification
Standards: ISO 14443-A
ISO 14443-B
Communication role: Proximity Coupling Device (PCD)
Anti-collision support: Yes
Communication range: ≤ 3cm approx. (dependent on Proximity Integrated Circuit Card (PICC))
Type of NFC antenna: PCB Loop antenna
NFC Frequency rate: 13,56 MHz ± 7 kHz
Data rate: 106 kb/s
Type of modulation: ISO 14443-A Load modulation OOK
ISO 14443-B Load modulation AM
Test Modes NFC Field-On: The Door-Handle produces a high frequency electro-
magnetic field (13,56 MHz)
NFC-A Frames: The Door-Handle produces frames of high frequency
electromagnetic field (13,56 MHz) and modulates its amplitude according
to ISO 14443-A in order to transmit data. The Inter-frame space is 5ms
NFC-B Frames: The Door-Handle produces frames of high frequency
electromagnetic field (13,56 MHz) and modulates its amplitude ISO
14443-B in order to transmit data. The Inter-frame space is 5ms
Technical Description and User’s Manual of the HUF14632 Door-Handle with NFC
PDSPE1 - R.Muñiz Page 7 of 8 22.05.2015
Huf Hülsbeck & Fürst
5 Declaration of Conformity, product Label
5.1 Radio equipment authorization to FCC in USA
FCC ID: YGOHUF14632
The transmitter will be supplied as an original equipment device to the car manufacturer.
According to 47 CFR 15.19 (labelling requirements) the car manufacturer will print the following text in
the appropriate User’s Manual of the car:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause un-
desired operation.
Usually this is followed by the following FCC caution:
Any changes or modification not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
5.2 Radio equipment authorization to RSS-210 in Canada
IC: 4008C- HUF14632
The transmitter will be supplied as an original equipment device to the car manufacturer.
According to RSS-210 (labelling requirements) the car manufacturer will print the following text in the
appropriate User’s Manual of the car:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause un-
desired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, mêmesi le brouillage
est susceptible d'en compromettre le fonctionnement.
Usually this is followed by the following RSS caution:
Any changes or modification not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
Technical Description and User’s Manual of the HUF14632 Door-Handle with NFC
PDSPE1 - R.Muñiz Page 8 of 8 22.05.2015
Huf Hülsbeck & Fürst

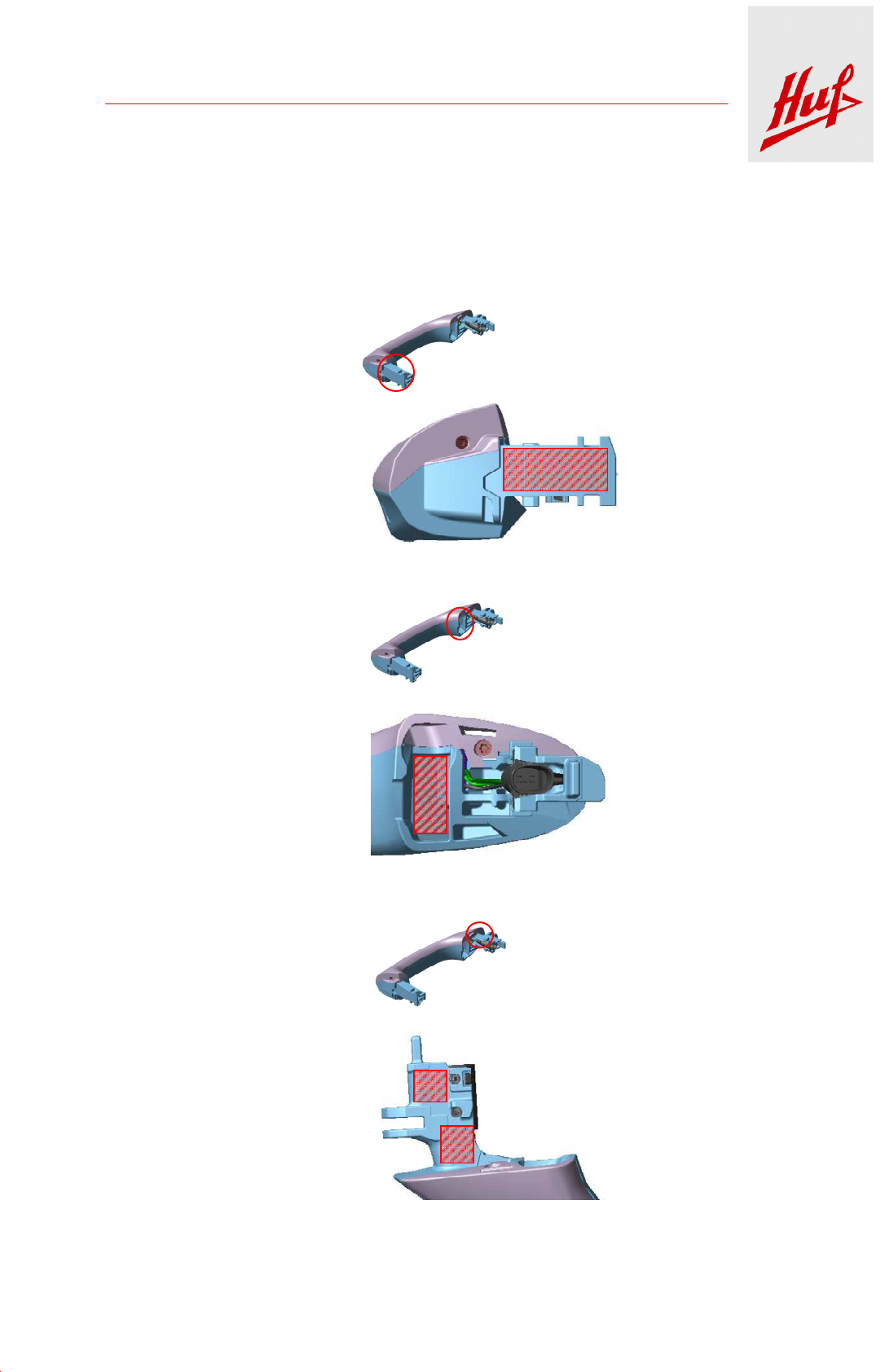

5.3 Location of product label
The labelling with radio certification marks, the product model and the manufacturer logo, country code
and control identification data can be found at the door-handle.
Position of the labelling for radio certification:
Position of the labelling with the product model:
Position of the labelling with manufacturer logo, country code and control identification data:
