Huf Huelsbeck & Fuerst GmbH & Co. KG RRNM-IDG
User Manual
Technical Description and User’s Manual of the RRNM-IDG
PDSCA1 - S. van den Boom Page 1 of 6 09.12.16
Huf Hülsbeck & Fürst
Technical Description
and
User’s Manual
of the
HUF7059
Technical Description and User’s Manual of the RRNM-IDG
PDSCA1 - S. van den Boom Page 2 of 6 09.12.16
Huf Hülsbeck & Fürst
Contents
1 General operation of the HUF7059 ........................................................................................................... 3
2 Operating frequencies of RF transmission ................................................................................................ 3
3 Block diagram ............................................................................................................................................ 3
4 Technical data ........................................................................................................................................... 4
4.1 Electrical characteristics ..................................................................................................................... 4
4.2 General RF specification ..................................................................................................................... 4
4.3 Disposal .............................................................................................................................................. 4
5 Declaration of Conformity, product Label .................................................................................................. 5
5.1 Radio equipment authorization to FCC in USA .................................................................................. 5
5.2 Radio equipment authorization to RSS-210 in Canada ...................................................................... 5
5.3 Location of product label ..................................................................................................................... 5
5.4 Examples for homologation marking .................................................................................................. 6
Technical Description and User’s Manual of the RRNM-IDG
PDSCA1 - S. van den Boom Page 3 of 6 09.12.16
Huf Hülsbeck & Fürst
1 General operation of the HUF7059
The RF remote control consists of an RF transceiver. The HUF7059 is used to transmit the information
for locking or unlocking the vehicle by a bi-directional RF transmission for normal remote operation by
pressing a button and via a LF Wake-up.
In general, the following functions are provided:
- Lock the vehicle
- Unlock the vehicle
- Unlock the vehicle’s trunk
- Activate special function
- Engine start of the car (via passive function)
For emergency start – when the battery power is too low – the HUF7059 has a bi-directional LF-
Transponder interface.
2 Operating frequencies of RF transmission
Channel 1
Channel 2
433.20 MHz 434.64 MHz

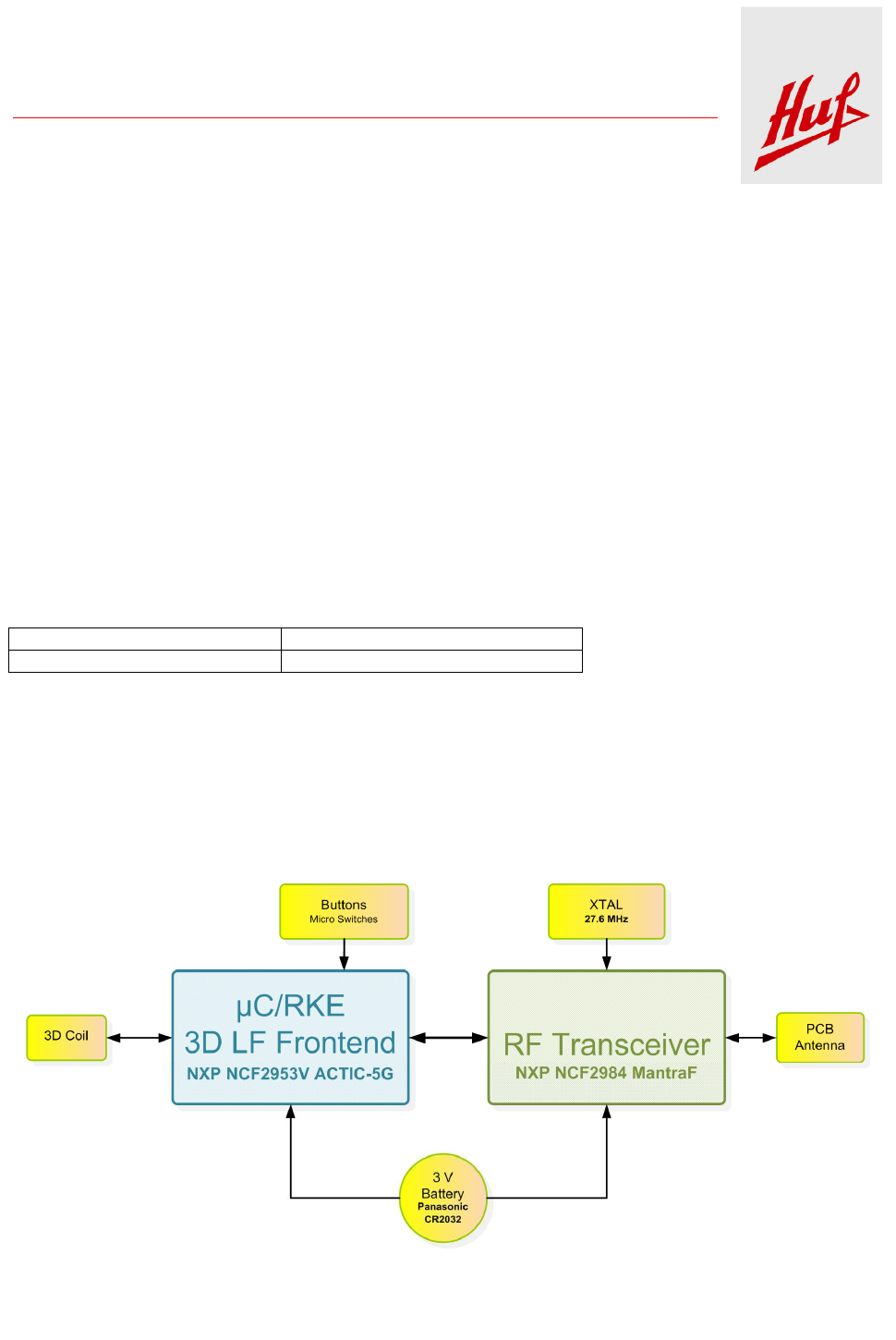

3 Block diagram
General overview:
Technical Description and User’s Manual of the RRNM-IDG
PDSCA1 - S. van den Boom Page 4 of 6 09.12.16
Huf Hülsbeck & Fürst
4 Technical data
Dimensions (with inserted emergency key): ca. 83 mm x 43 mm x 17 mm
Weight (including emergency key): ca. 89 g
4.1 Electrical characteristics
Power supply: Battery type CR2032
Supply voltage: Maximum 3.2 V
Minimum 1.7 V
Type of battery: Manganese dioxide lithium
Temperature range: -10 °C … +60 °C (Remote function, due to battery limits)
-40 °C … +85 °C (Transponder function)
4.2 General RF specification
Carrier frequency: 433.20 / 434.64 MHz
Transmission power: max. -17 dBm
Type of modulation: FSK
Type of RF antenna: PCB loop antenna
4.3 Disposal
An old battery must be lodged at a collection point or the service.
Technical Description and User’s Manual of the RRNM-IDG
PDSCA1 - S. van den Boom Page 5 of 6 09.12.16
Huf Hülsbeck & Fürst
5 Declaration of Conformity, product Label
5.1 Radio equipment authorization to FCC in USA
FCC ID: YGOHUF7059
According to 47 CFR 15.19 (labelling requirements) the car manufacturer will print the following text in
the appropriate User’s Manual of the car:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause un-
desired operation.
Usually this is followed by the following FCC caution:
Any changes or modification not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
5.2 Radio equipment authorization to RSS-210 in Canada
IC ID: 4008C-HUF7059
According to RSS-210 (labelling requirements) the car manufacturer will print the following text in the
appropriate User’s Manual of the car:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause un-
desired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, mêmesi le brouillage
est susceptible d'en compromettre le fonctionnement.
Usually this is followed by the following RSS caution:
Any changes or modification not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.

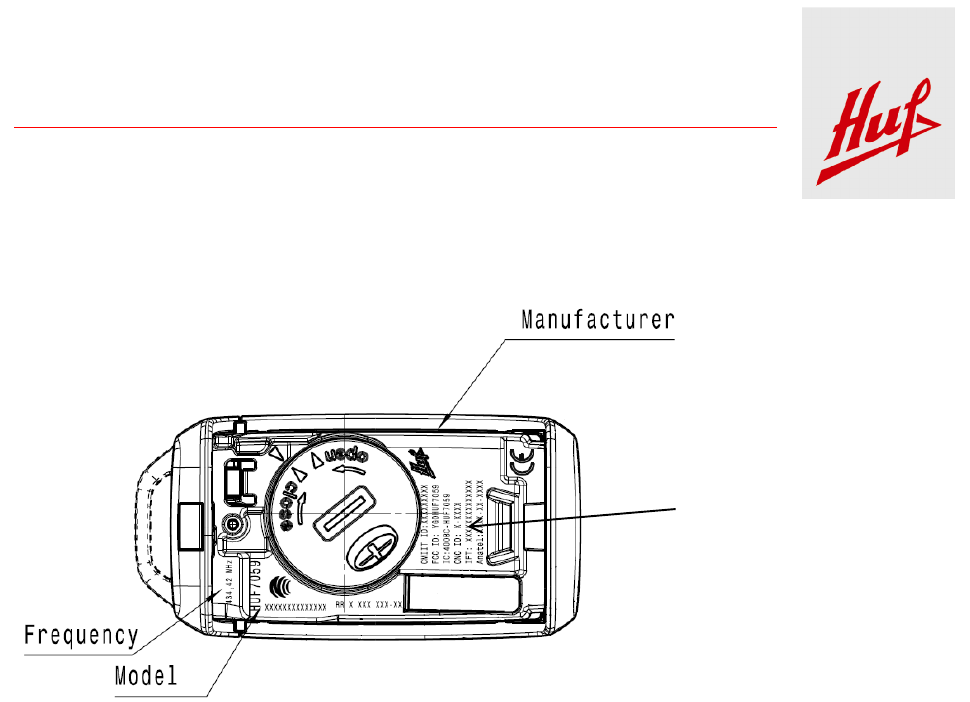

5.3 Location of product label
The product label with FCC ID and IC certification number can be found on the ID device underneath the
leather cover.
Technical Description and User’s Manual of the RRNM-IDG
PDSCA1 - S. van den Boom Page 6 of 6 09.12.16
Huf Hülsbeck & Fürst
5.4 Examples for homologation marking
Homologation
Marking
