Product_Information_Summary
Project: MDE_HUF_1302#BMW#KRS
BMW Keyless Ride System
Manufactured by Huf Hülsbeck & Fürst
Type Approval information summary to be used for application and certification issues
Basic product information:
Brand
BMW
Manufacturer
Huf Hülsbeck & Fürst GmbH & Co. KG
Kind of Device / Function
keyless Ride System with RF transceiver for BMW Motorcycles
Models
ID Device : HUF5750
ELV incl. ECU: HUF8465
Technology/Wirelessprotocol
RF
Antenna info (type/gain)
PCB Loop antenna
LF frequency:
125 and 134.45 kHz
Modulation
FSK
Carrier frequency model
HUF5750 + HUF8465: 434.42 MHz (1 channel) Rest of the World
Power supply
Lithium battery
Output power
HUF5750+ HUF8465: -17.6 dBm EIRP
Number of Channels
1 - 2
Dimensions (w / l / d )
64 mm x 34.5 mm x 18.3 mm
Temperature range
-20°C … +60°C (Remote function, due to battery)
-20°C … +85°C (Transponder function)
Manufactured in [year]
2013
Supply voltage:
Maximum 3.2V
Typical 3.0V
Minimum 2.2V
Standard(s) Applied
EN60950-1; EN301489-1 & -3; EN300220-1 & -2; EN300330-1 & -2; FCC Part 15.231&15.209
Made in Country
Germany

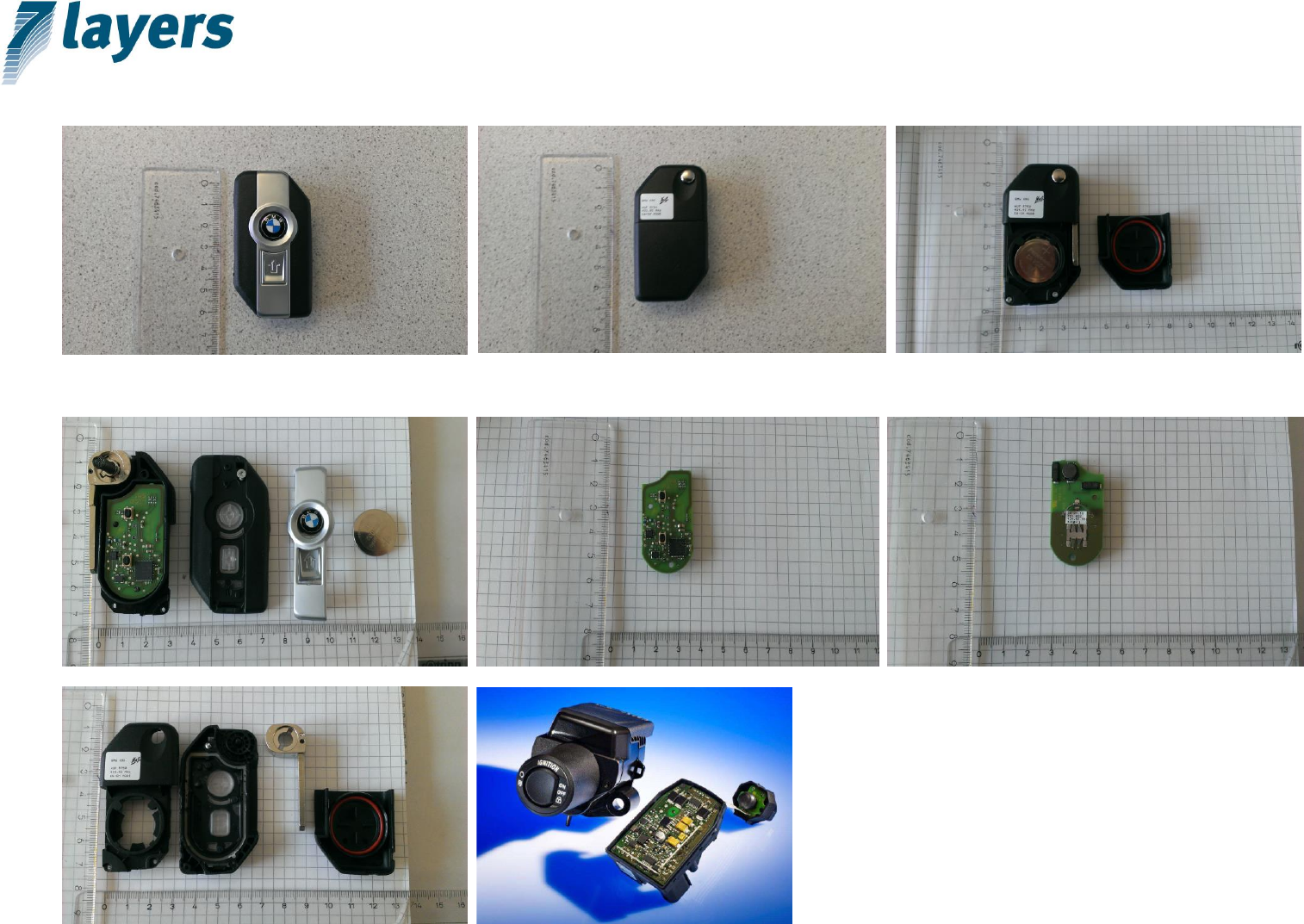

External Picture(s)
Internal Picture (s)
Short Description:
The motorbike’s KR-system is part of the BMW motorcycle version K48. It allows the user to mobilize or immobilize the motorcycle by use of
a valid remote key. It’s available for three different RF- carrier frequencies: 315,0 MHz (Japan), 433,92 MHz (Korea) and 434,42 MHz (RoW).
The KR-system consists the two main components:
BMW Keyless Ride ECU
BMW Keyless Ride ID Device
The interactions between the KR ECU and the ID device (remote key) are performed in the two different ways:
1. Normal mode: The unidirectional RF- communication uses the multi-band RF-Receiver which is the user standard mode.
2. Emergency mode: The bidirectional LF- communication based on Transponder LF-Base station and it´s helpful in cases when the ID device
battery is discharged.
