Huf Tools LSPG010125 Inductive Key Reader User Manual Operational description

Huf Tools GmbH Inductive Key Reader Operational description

User Manual

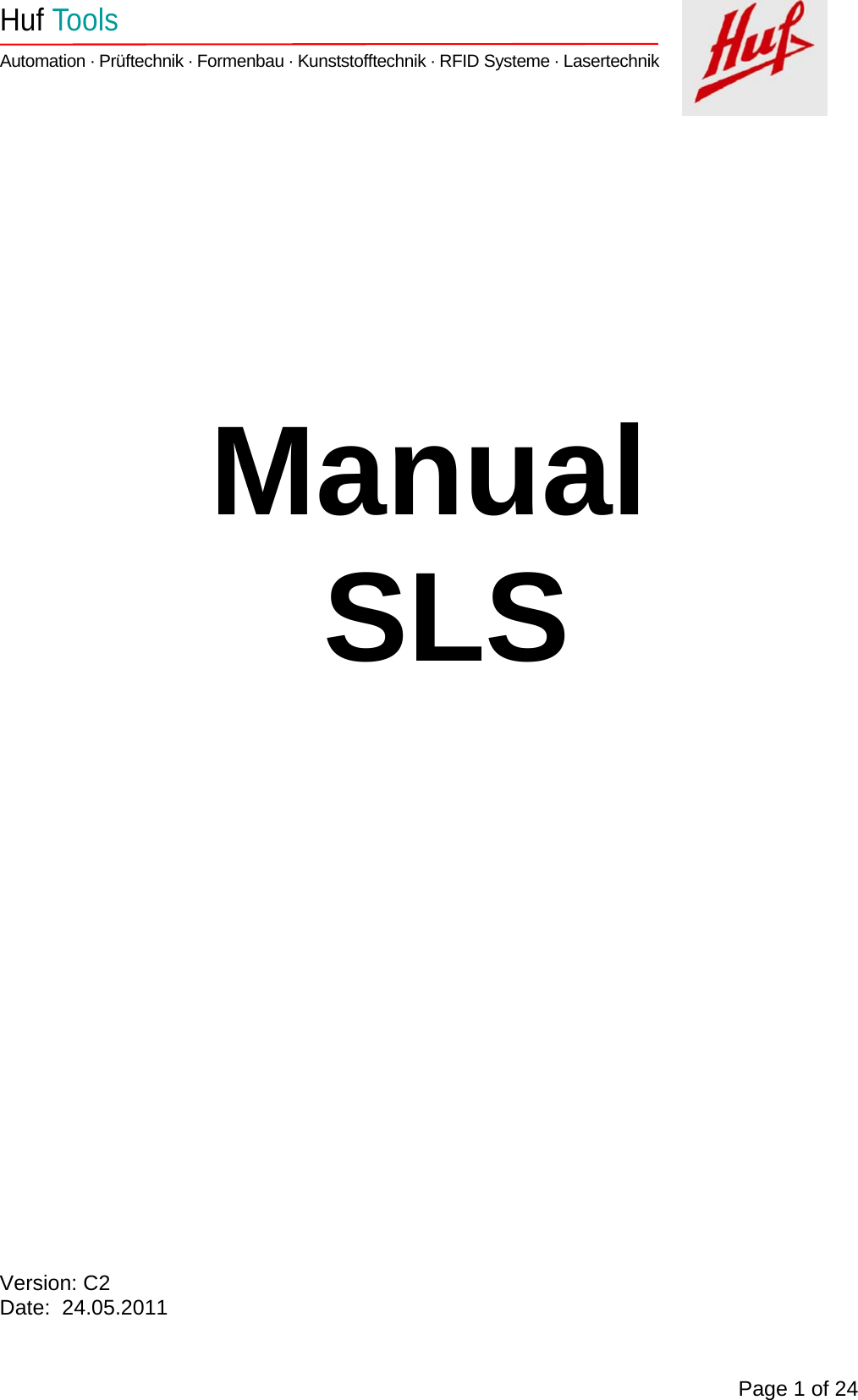

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 1 of 24 Manual SLS Version: C2 Date: 24.05.2011

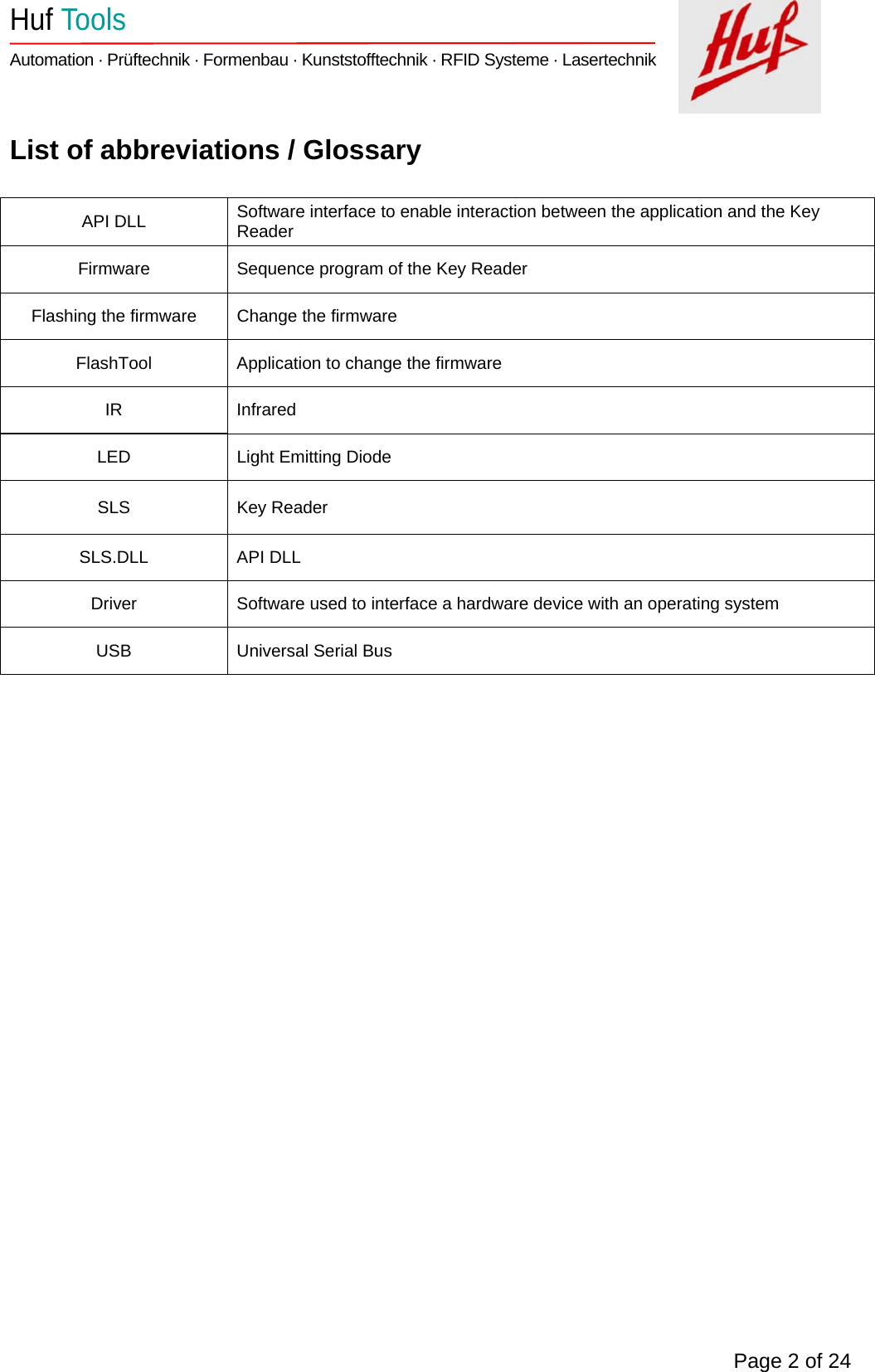

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 2 of 24 List of abbreviations / Glossary API DLL Software interface to enable interaction between the application and the Key Reader Firmware Sequence program of the Key Reader Flashing the firmware Change the firmware FlashTool Application to change the firmware IR Infrared LED Light Emitting Diode SLS Key Reader SLS.DLL API DLL Driver Software used to interface a hardware device with an operating system USB Universal Serial Bus

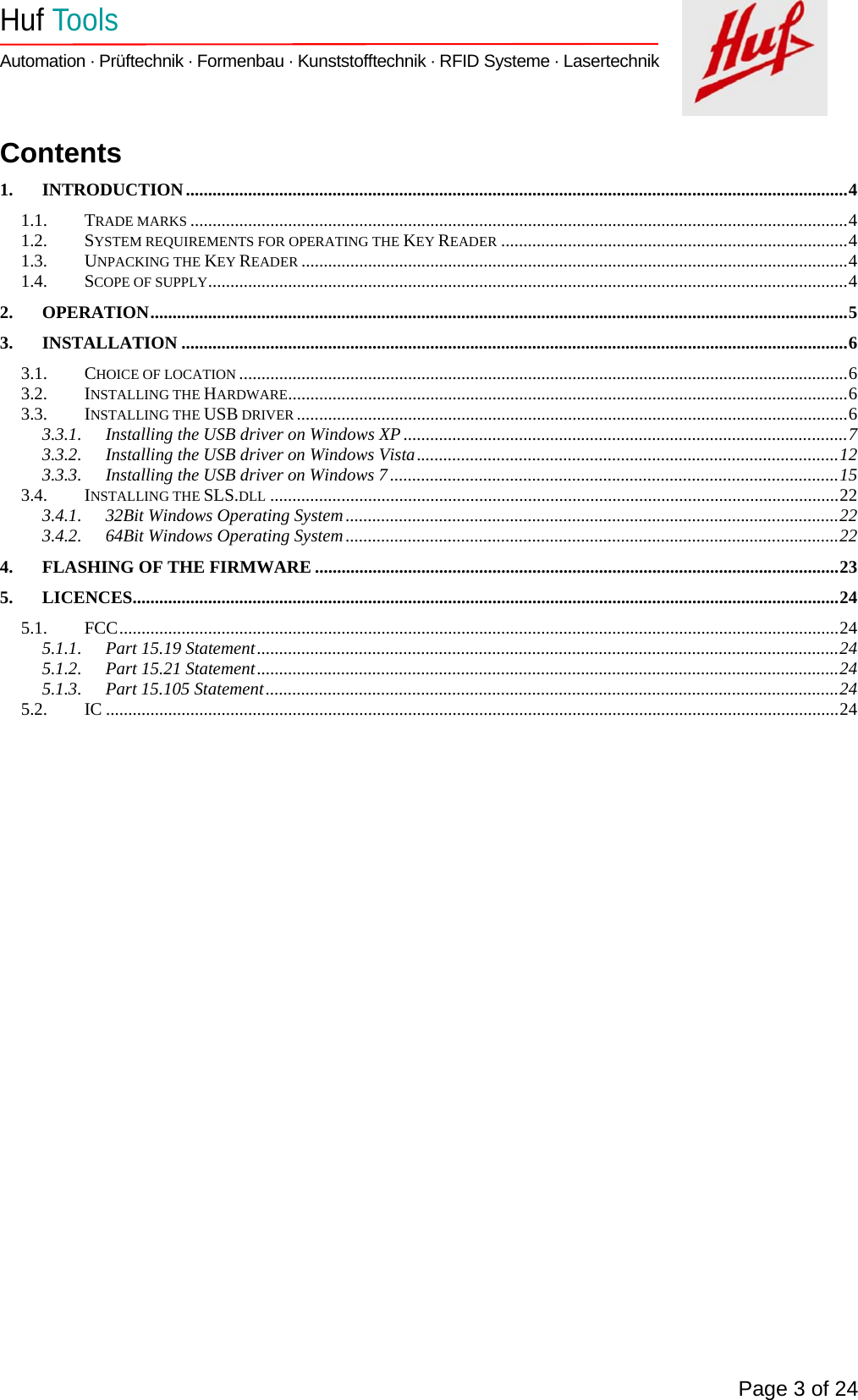

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 3 of 24 Contents 1.INTRODUCTION ..................................................................................................................................................... 41.1.TRADE MARKS .................................................................................................................................................... 41.2.SYSTEM REQUIREMENTS FOR OPERATING THE KEY READER .............................................................................. 41.3.UNPACKING THE KEY READER ........................................................................................................................... 41.4.SCOPE OF SUPPLY ................................................................................................................................................ 42.OPERATION ............................................................................................................................................................. 53.INSTALLATION ...................................................................................................................................................... 63.1.CHOICE OF LOCATION ......................................................................................................................................... 63.2.INSTALLING THE HARDWARE.............................................................................................................................. 63.3.INSTALLING THE USB DRIVER ............................................................................................................................ 63.3.1.Installing the USB driver on Windows XP .................................................................................................... 73.3.2.Installing the USB driver on Windows Vista ............................................................................................... 123.3.3.Installing the USB driver on Windows 7 ..................................................................................................... 153.4.INSTALLING THE SLS.DLL ................................................................................................................................ 223.4.1.32Bit Windows Operating System ............................................................................................................... 223.4.2.64Bit Windows Operating System ............................................................................................................... 224.FLASHING OF THE FIRMWARE ...................................................................................................................... 235.LICENCES ............................................................................................................................................................... 245.1.FCC .................................................................................................................................................................. 245.1.1.Part 15.19 Statement ................................................................................................................................... 245.1.2.Part 15.21 Statement ................................................................................................................................... 245.1.3.Part 15.105 Statement ................................................................................................................................. 245.2.IC ..................................................................................................................................................................... 24

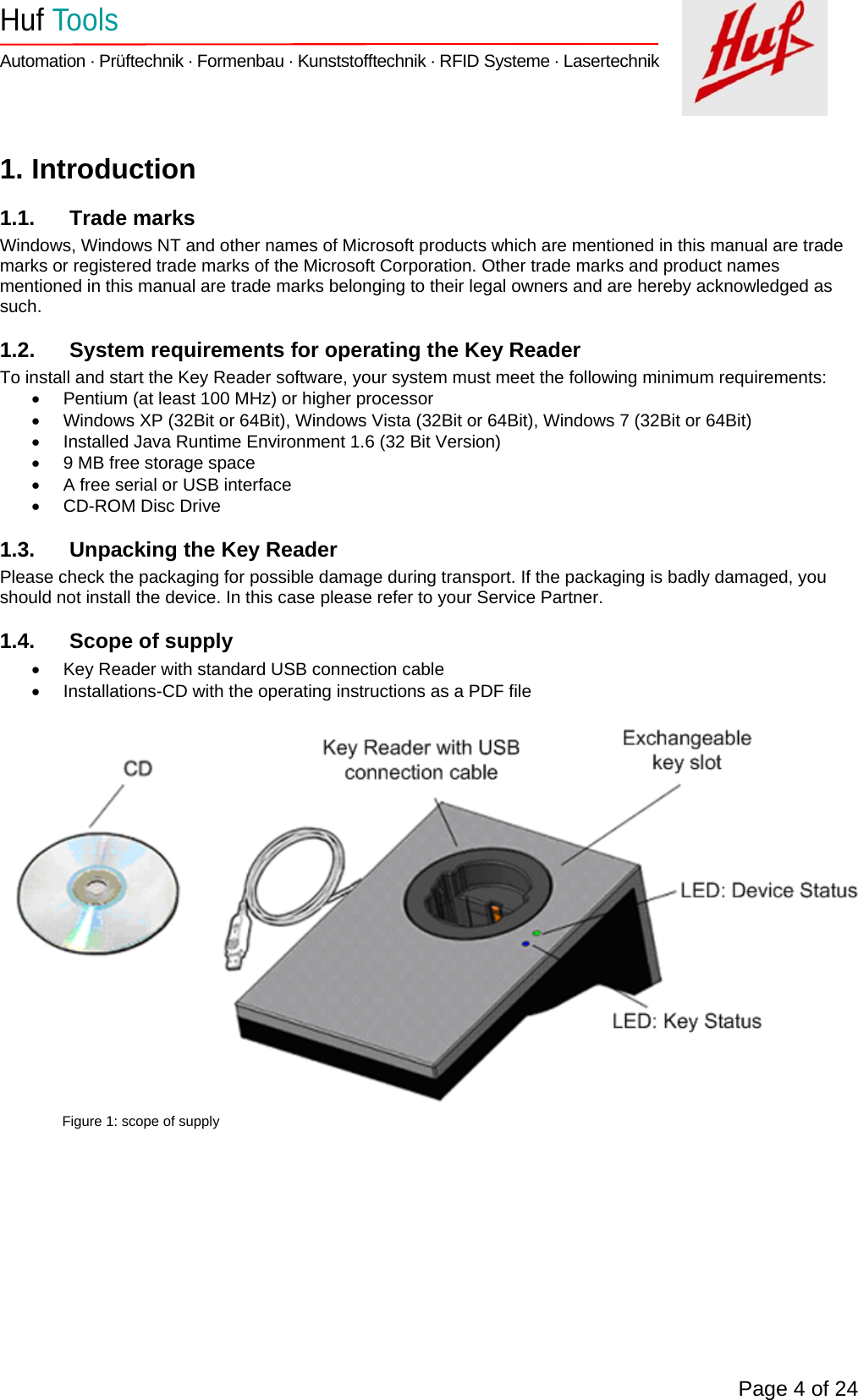

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 4 of 24 1. Introduction 1.1. Trade marks Windows, Windows NT and other names of Microsoft products which are mentioned in this manual are trade marks or registered trade marks of the Microsoft Corporation. Other trade marks and product names mentioned in this manual are trade marks belonging to their legal owners and are hereby acknowledged as such. 1.2. System requirements for operating the Key Reader To install and start the Key Reader software, your system must meet the following minimum requirements: • Pentium (at least 100 MHz) or higher processor • Windows XP (32Bit or 64Bit), Windows Vista (32Bit or 64Bit), Windows 7 (32Bit or 64Bit) • Installed Java Runtime Environment 1.6 (32 Bit Version) • 9 MB free storage space • A free serial or USB interface • CD-ROM Disc Drive 1.3. Unpacking the Key Reader Please check the packaging for possible damage during transport. If the packaging is badly damaged, you should not install the device. In this case please refer to your Service Partner. 1.4. Scope of supply • Key Reader with standard USB connection cable • Installations-CD with the operating instructions as a PDF file Figure 1: scope of supply

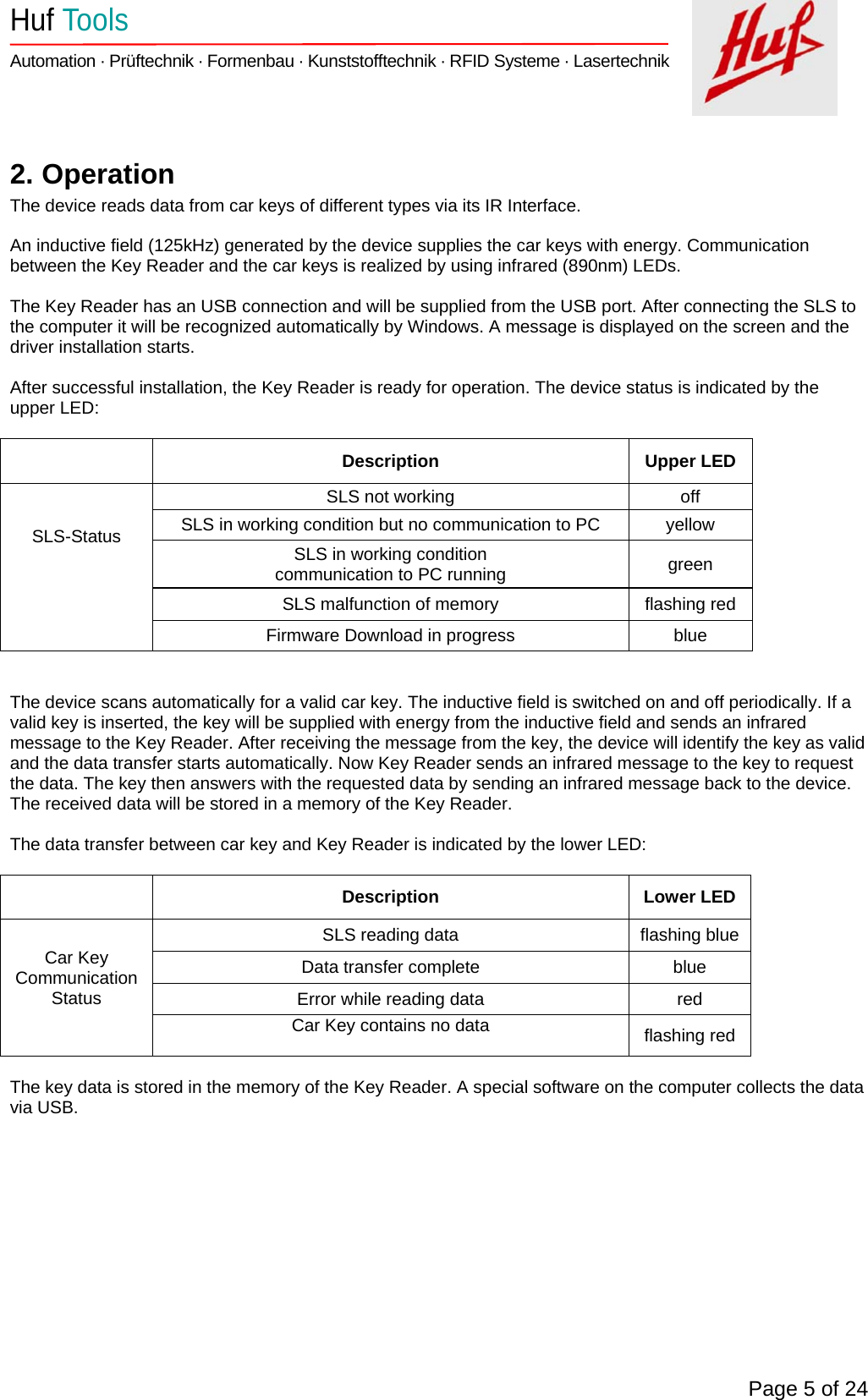

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 5 of 24 2. Operation The device reads data from car keys of different types via its IR Interface. An inductive field (125kHz) generated by the device supplies the car keys with energy. Communication between the Key Reader and the car keys is realized by using infrared (890nm) LEDs. The Key Reader has an USB connection and will be supplied from the USB port. After connecting the SLS to the computer it will be recognized automatically by Windows. A message is displayed on the screen and the driver installation starts. After successful installation, the Key Reader is ready for operation. The device status is indicated by the upper LED: Description Upper LED SLS-Status SLS not working off SLS in working condition but no communication to PC yellow SLS in working condition communication to PC running green SLS malfunction of memory flashing red Firmware Download in progress blue The device scans automatically for a valid car key. The inductive field is switched on and off periodically. If a valid key is inserted, the key will be supplied with energy from the inductive field and sends an infrared message to the Key Reader. After receiving the message from the key, the device will identify the key as valid and the data transfer starts automatically. Now Key Reader sends an infrared message to the key to request the data. The key then answers with the requested data by sending an infrared message back to the device. The received data will be stored in a memory of the Key Reader. The data transfer between car key and Key Reader is indicated by the lower LED: Description Lower LED Car Key Communication Status SLS reading data flashing blue Data transfer complete blue Error while reading data red Car Key contains no data flashing red The key data is stored in the memory of the Key Reader. A special software on the computer collects the data via USB.

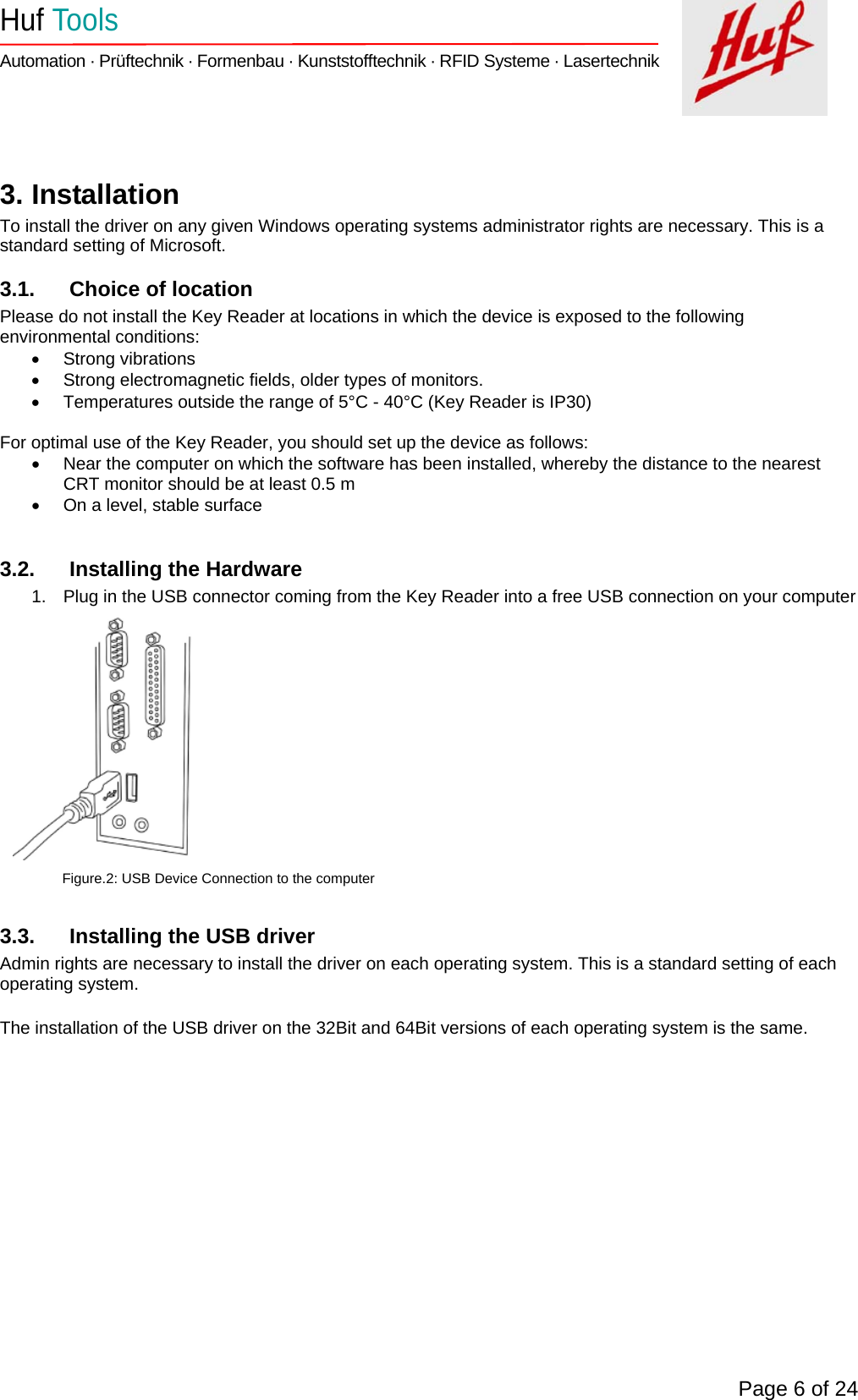

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 6 of 24 3. Installation To install the driver on any given Windows operating systems administrator rights are necessary. This is a standard setting of Microsoft. 3.1. Choice of location Please do not install the Key Reader at locations in which the device is exposed to the following environmental conditions: • Strong vibrations • Strong electromagnetic fields, older types of monitors. • Temperatures outside the range of 5°C - 40°C (Key Reader is IP30) For optimal use of the Key Reader, you should set up the device as follows: • Near the computer on which the software has been installed, whereby the distance to the nearest CRT monitor should be at least 0.5 m • On a level, stable surface 3.2. Installing the Hardware 1. Plug in the USB connector coming from the Key Reader into a free USB connection on your computer Figure.2: USB Device Connection to the computer 3.3. Installing the USB driver Admin rights are necessary to install the driver on each operating system. This is a standard setting of each operating system. The installation of the USB driver on the 32Bit and 64Bit versions of each operating system is the same.

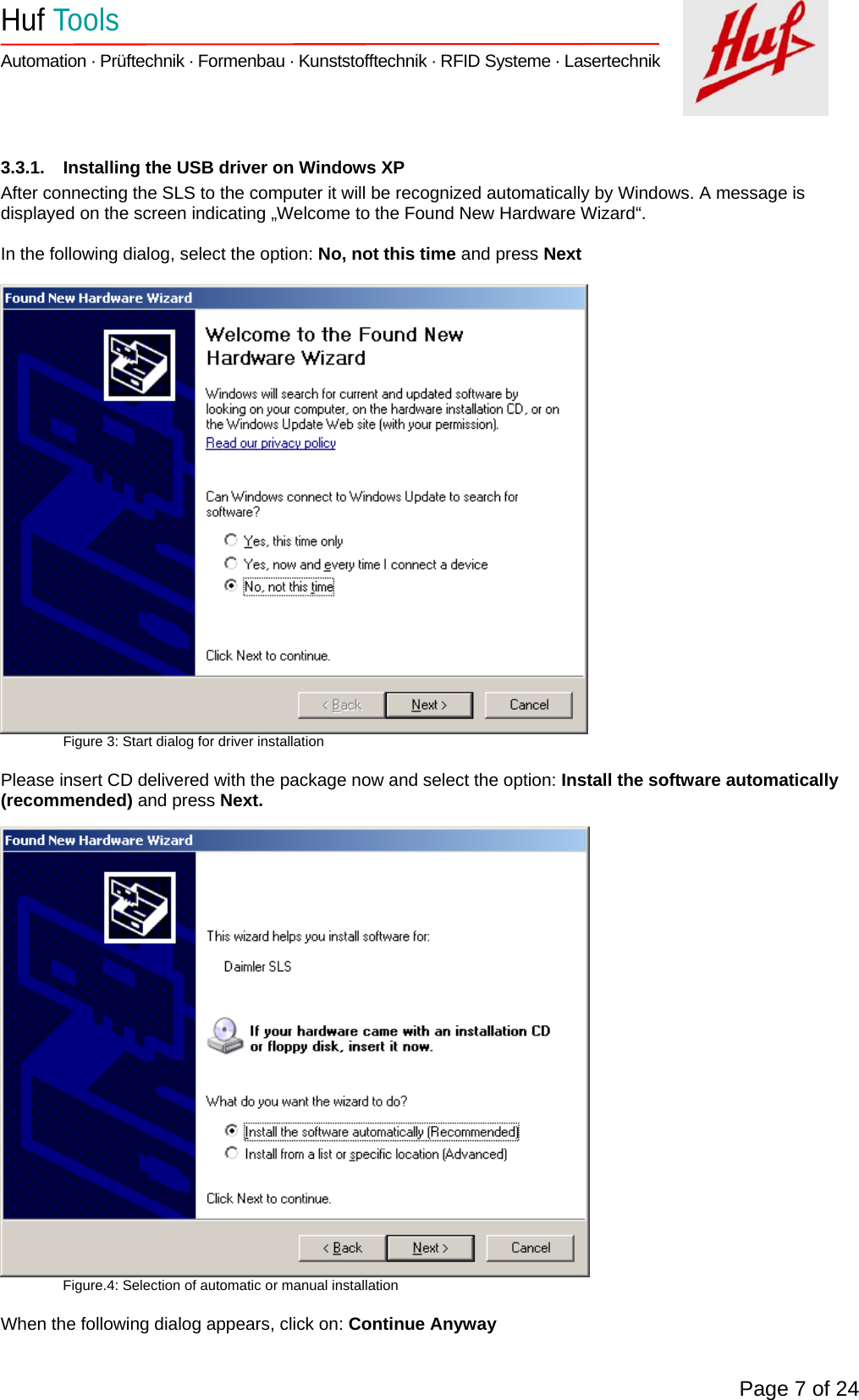

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 7 of 24 3.3.1. Installing the USB driver on Windows XP After connecting the SLS to the computer it will be recognized automatically by Windows. A message is displayed on the screen indicating „Welcome to the Found New Hardware Wizard“. In the following dialog, select the option: No, not this time and press Next Figure 3: Start dialog for driver installation Please insert CD delivered with the package now and select the option: Install the software automatically (recommended) and press Next. Figure.4: Selection of automatic or manual installation When the following dialog appears, click on: Continue Anyway

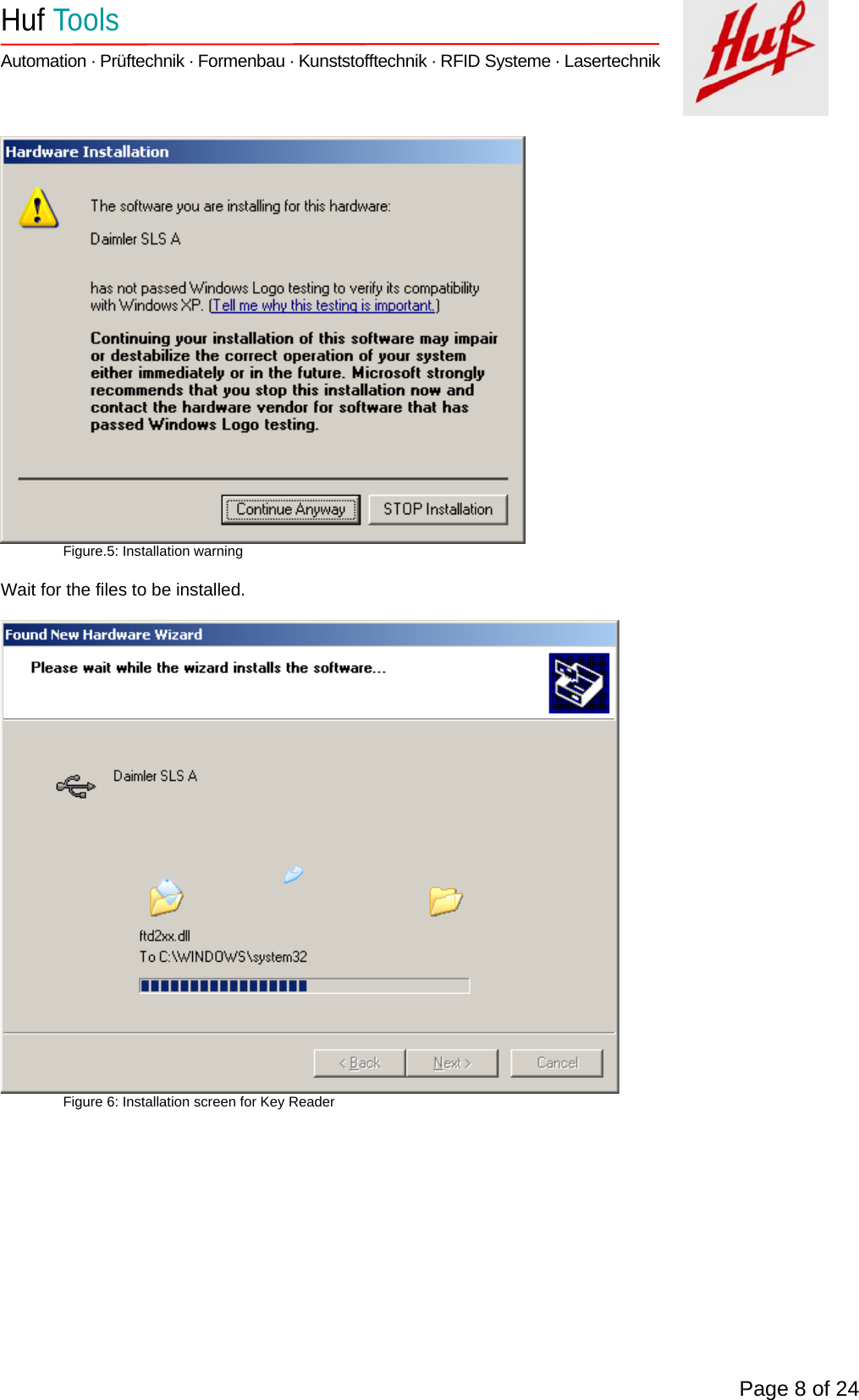

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 8 of 24 Figure.5: Installation warning Wait for the files to be installed. Figure 6: Installation screen for Key Reader

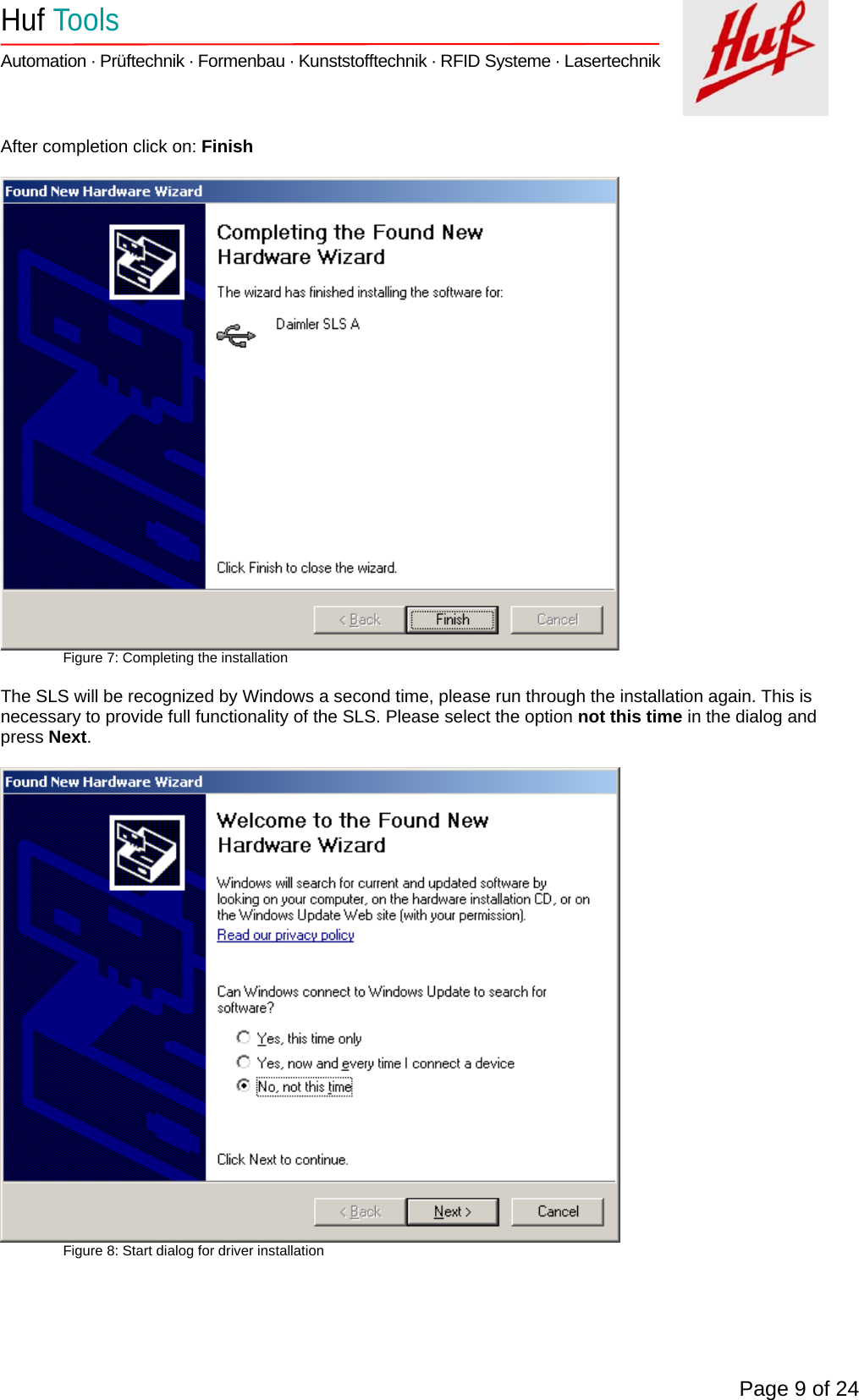

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 9 of 24 After completion click on: Finish Figure 7: Completing the installation The SLS will be recognized by Windows a second time, please run through the installation again. This is necessary to provide full functionality of the SLS. Please select the option not this time in the dialog and press Next. Figure 8: Start dialog for driver installation
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 10 of 24 Please insert CD delivered with the package now and select the option: Install the software automatically (recommended) and press Next. Figure 9: Selection of automatic or manual installation When the following dialog appears, click on: Continue Anyway Figure 10: Installation warning
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 11 of 24 Wait for the files to be installed. Figure.11: Installation screen for Key Reader After completion click on: Finish Figure 12: Completing the installation Installation is complete now.

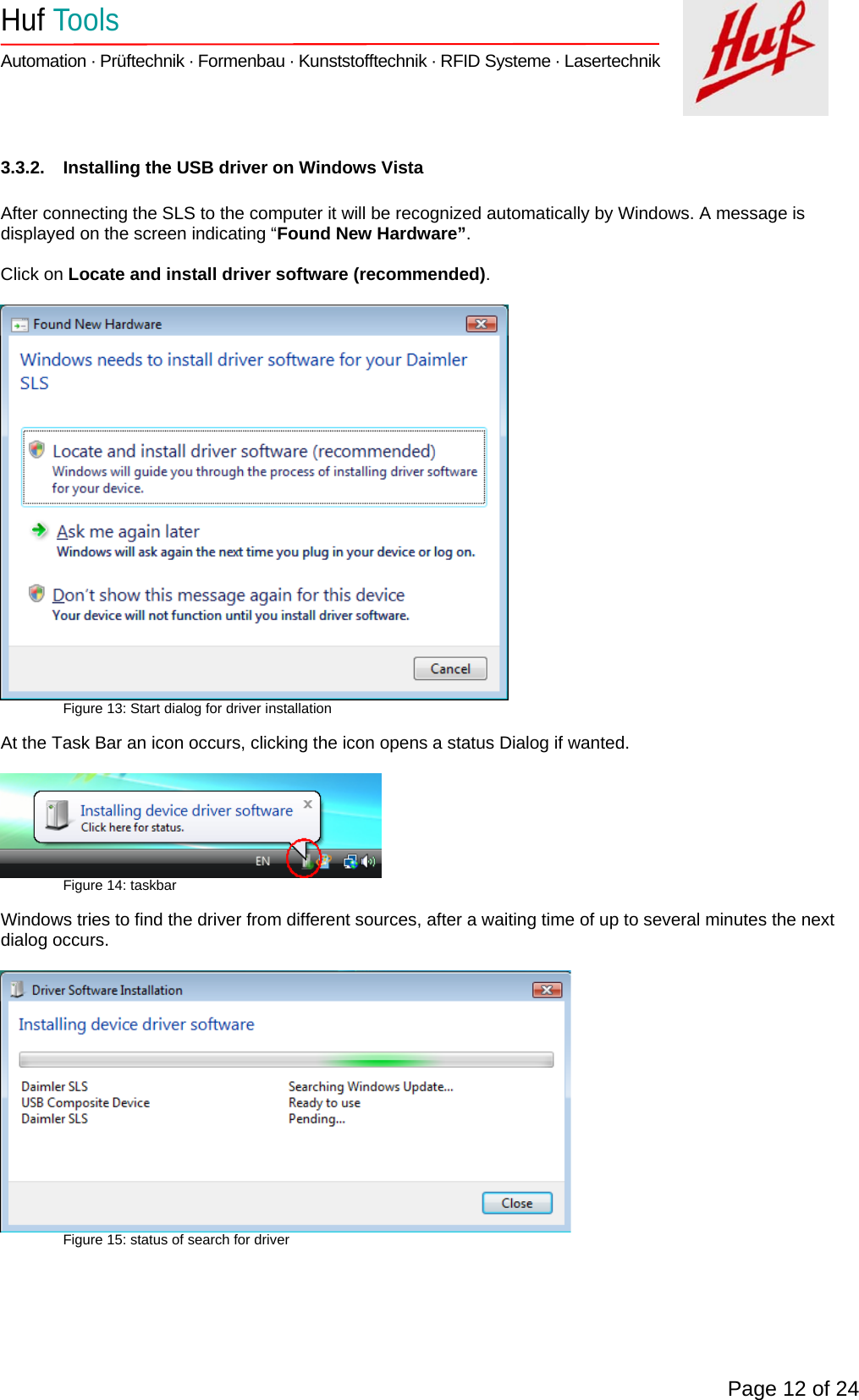

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 12 of 24 3.3.2. Installing the USB driver on Windows Vista After connecting the SLS to the computer it will be recognized automatically by Windows. A message is displayed on the screen indicating “Found New Hardware”. Click on Locate and install driver software (recommended). Figure 13: Start dialog for driver installation At the Task Bar an icon occurs, clicking the icon opens a status Dialog if wanted. Figure 14: taskbar Windows tries to find the driver from different sources, after a waiting time of up to several minutes the next dialog occurs. Figure 15: status of search for driver
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 13 of 24 The hardware manager opens, please insert the CD delivered with the package. Now the driver will be found quickly. Figure 16: search for driver on CD The USB driver is not certified, it may cause appearance of warnings. In this case carry on with the installation process, the software will not harm any function of your computer. Select install driver software anyway. Figure 17: Installation warning
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 14 of 24 The driver is installed now. Please click on Close. Figure 18: Finish of installation The SLS will be recognized by Windows a second time, Windows must install the driver again. This is necessary to provide full functionality of the SLS. The installation process can take a few minutes. Figure 19: Installation of second port Figure 20: Installation finished Installation is complete now.
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 15 of 24 3.3.3. Installing the USB driver on Windows 7 After connecting the SLS to the computer it will be recognized automatically by Windows. A message is shown on the screen, that the driver will be installed. Figure 21: Windows install message After a short time an error message appears, indicating the driver was not installed. Figure 22: Error Message The driver has to be installed manually. Please open the device Manager. The device Manager is a part of the operating system. More information about the device manager is in the help of the operating system. Now there are displayed two unknown devices with a Daimler SLS description. Right click on the upper device and choose Update Driver Software. Figure 23: Device Manager

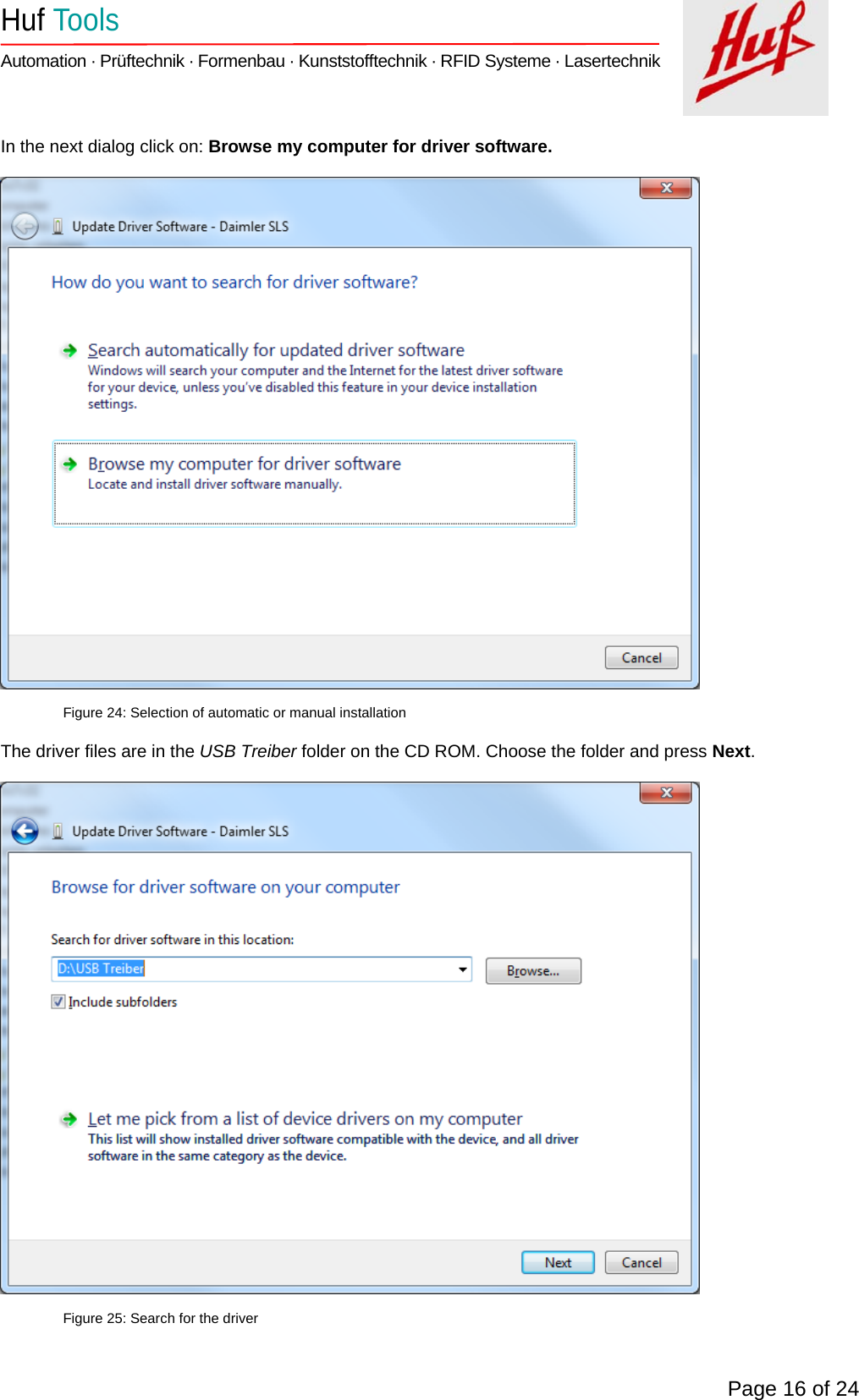

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 16 of 24 In the next dialog click on: Browse my computer for driver software. Figure 24: Selection of automatic or manual installation The driver files are in the USB Treiber folder on the CD ROM. Choose the folder and press Next. Figure 25: Search for the driver

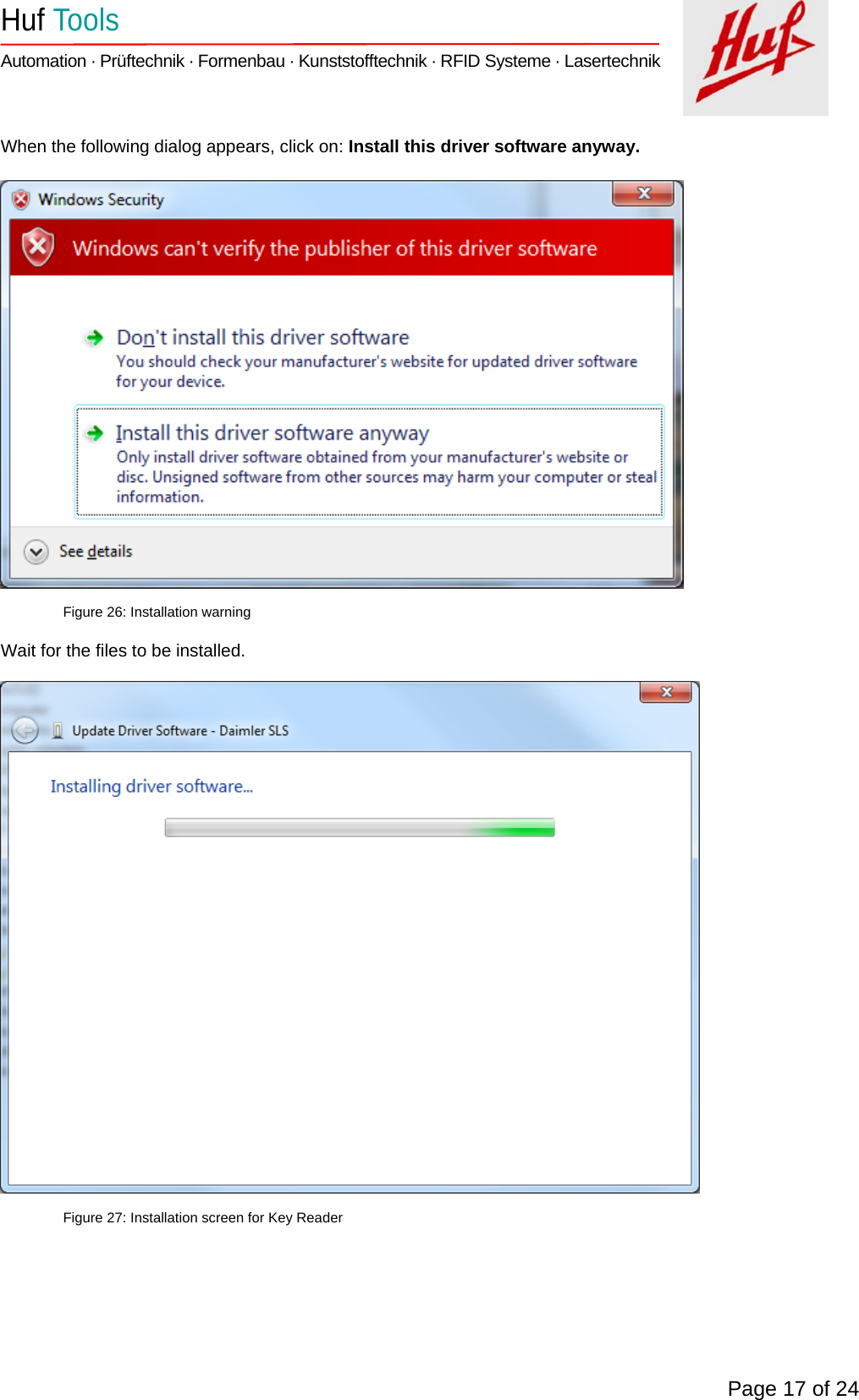

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 17 of 24 When the following dialog appears, click on: Install this driver software anyway. Figure 26: Installation warning Wait for the files to be installed. Figure 27: Installation screen for Key Reader
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 18 of 24 After completion click on: Close Figure 28: Completing the installation There is still a remaining unknown Daimler SLS device displayed. Right click on this device an choose Update Driver Software. Figure 29: Device Manager
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 19 of 24 In the next dialog click on: Browse my computer for driver software. Figure 30: Selection of automatic or manual installation The driver files are in the USB Treiber folder on the CD ROM. Choose the folder and press Next. Figure 31: Search for the driver
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 20 of 24 When the following dialog appears, click on: Install this driver software anyway Figure 32: Installation warning Wait for the files to be installed. Figure 33: Installation screen for Key Reader
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 21 of 24 After completion click on: Close Figure 34: Completing the installation Now installation is complete.
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 22 of 24 3.4. Installing the SLS.dll The SLS.DLL represents the application interface (API) between an application program and the SLS. It must be stored on the target system to enable the functions for different applications. The installation location could be different and depends on the operating system. Furthermore it is important, that the java runtime environment 1.6 is installed as 32Bit Version for every operation system, because the SLS.dll is a 32 Bit API and doesn’t work with a 64Bit java runtime environment. 3.4.1. 32Bit Windows Operating System The SLS.DLL has to be copied to the windows subdirectory System32. 3.4.2. 64Bit Windows Operating System The SLS.SLL has to be copied to the windows subdirectory SysWOW64.
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 23 of 24 4. Flashing of the Firmware The firmware of the Key Reader can be updated with a standalone windows application (FlashTool). To change the firmware, all applications that use the Key Reader have to be closed. It is possible to download any version of the firmware to the SLS. So it is possible to downgrade the SLS. It is not possible to back up the current firmware of the SLS. Now the FlashTool to update the firmware could be started. The place, where the FlashTool is started, is irrelevant. No more files are needed. Figure 36: Windows application to download the new firmware The button “Start Download” starts the download of the firmware. During the download the upper LED of the SLS illuminates blue. After a successful download the SLS will restart and the new firmware is active. Figure 37: Completing the download Close the download application and the Key Reader could be used from any other application again. If the download was not successfully finished and the Key Reader doesn’t works correctly, try to download again the firmware.
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik Page 24 of 24 5. Licences 5.1. FCC 5.1.1. Part 15.19 Statement NOTICE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 5.1.2. Part 15.21 Statement NOTICE: Changes or modifications made to this equipment not expressly approved by (manufacturer name) may void the FCC authorization to operate this equipment. 5.1.3. Part 15.105 Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 5.2. IC RSS-GEN – User Manual Statements (English/French) Licence exempt This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le onctionnement.
