Huges Hi Tech DG406 BT USB AV/HS/HCI DONGLE User Manual installation guide

Users Manual

INSTALLATION OF IVT BLUESOLEIL

1. Execute Setup.exe provided in the CD-ROM:

2. When asked to select the language for the installation, choose

English:

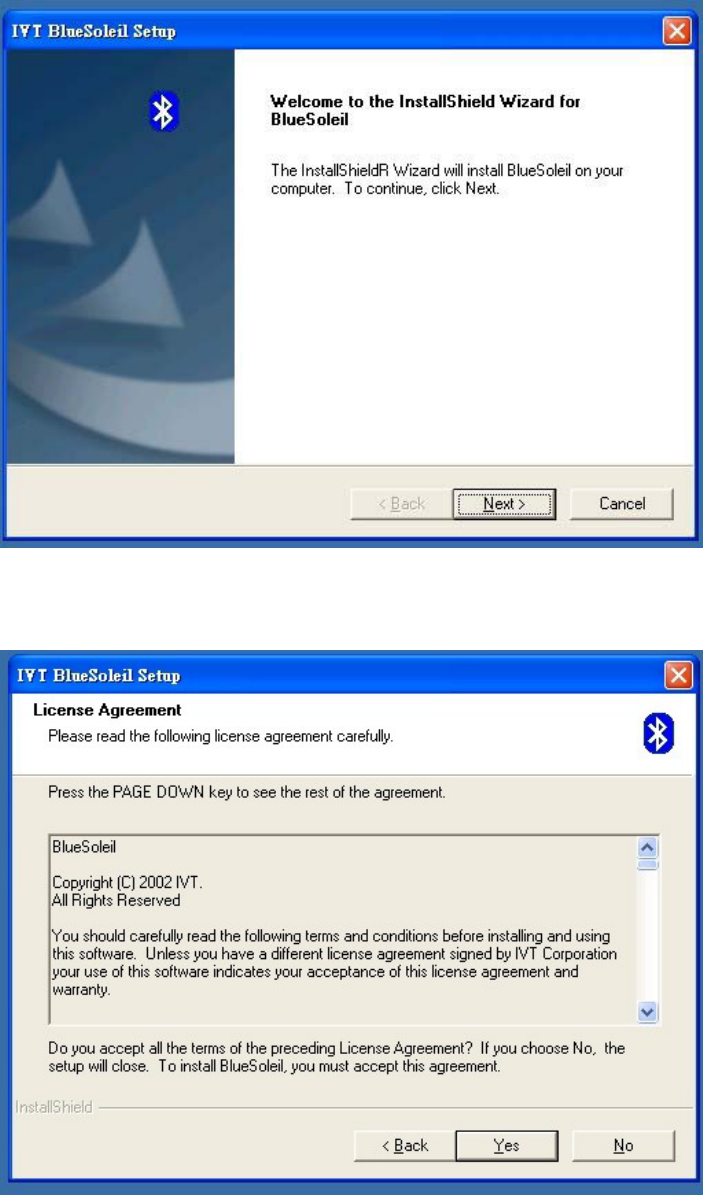

3. Click “Next” to start installation:

4. Click “Yes” to accept the License Agreement and continue

installation:

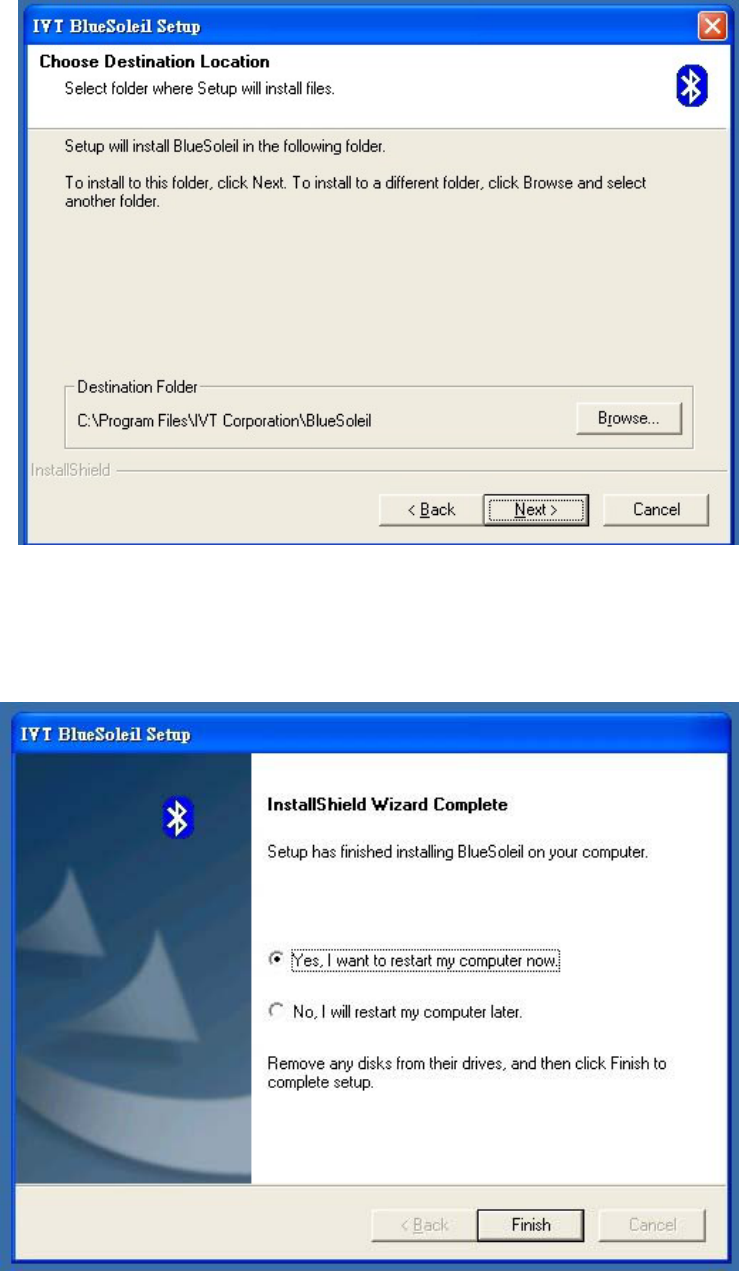

5. Choose the path you want the program to be installed to and

click “Next”:

6. After installing IVT, the program will prompt to restart the

computer:

7. Once the computer restarts, the IVT BlueSoleil program will

start automatically. If it doesn’t start, click Program->IVT

BlueSoleil -> BlueSoleil to start the BlueSoleil Window:

8. BlueSoleil will prompt you to install the Bluetooth device.

After installing the device, a dialog window will prompt you

to enter device name and type:

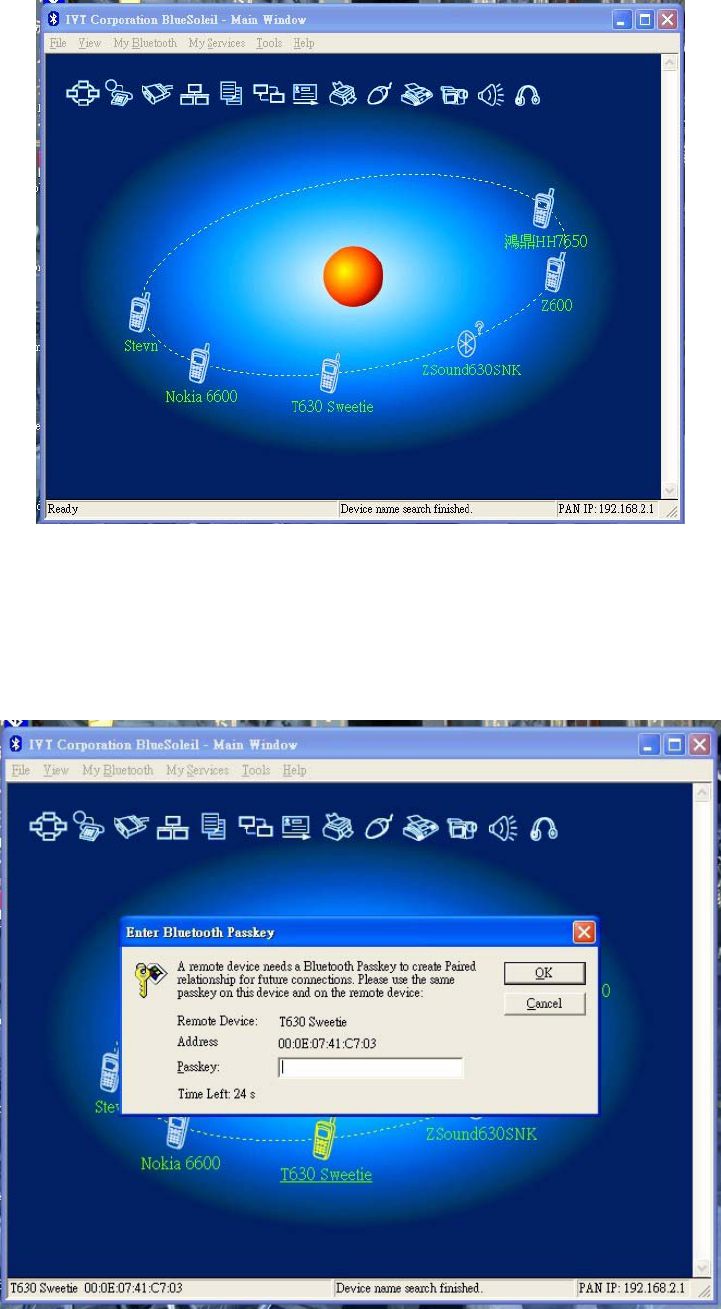

9. Press F5 to refresh and update the search for Bluetooth

devices:

10. Hover the Mouse over the device you want to pair to and

right-click to select pair. The program prompts for a

passkey:

11. Once the selected device is paired with the USB dongle,

there will be a tiny red check next to it. BlueSoleil will also

highlight all the available services provided by the device:

Caution:

This equipment complies with FCC radiation exposure limits set forth for

an uncontrolled environment. End users must follow the specific

operating instructions for satisfying RF exposure compliance. This

transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

Notice:

Any changes or modification not expressly approved by the party

responsible could void the user’s authority to operate the device.
