Huges Hi Tech HS304 Bluetooth Headset User Manual Bluetooth headset user guide
Huges Hi-Tech Inc Bluetooth Headset Bluetooth headset user guide
User Manual
Bluetooth headset user guide

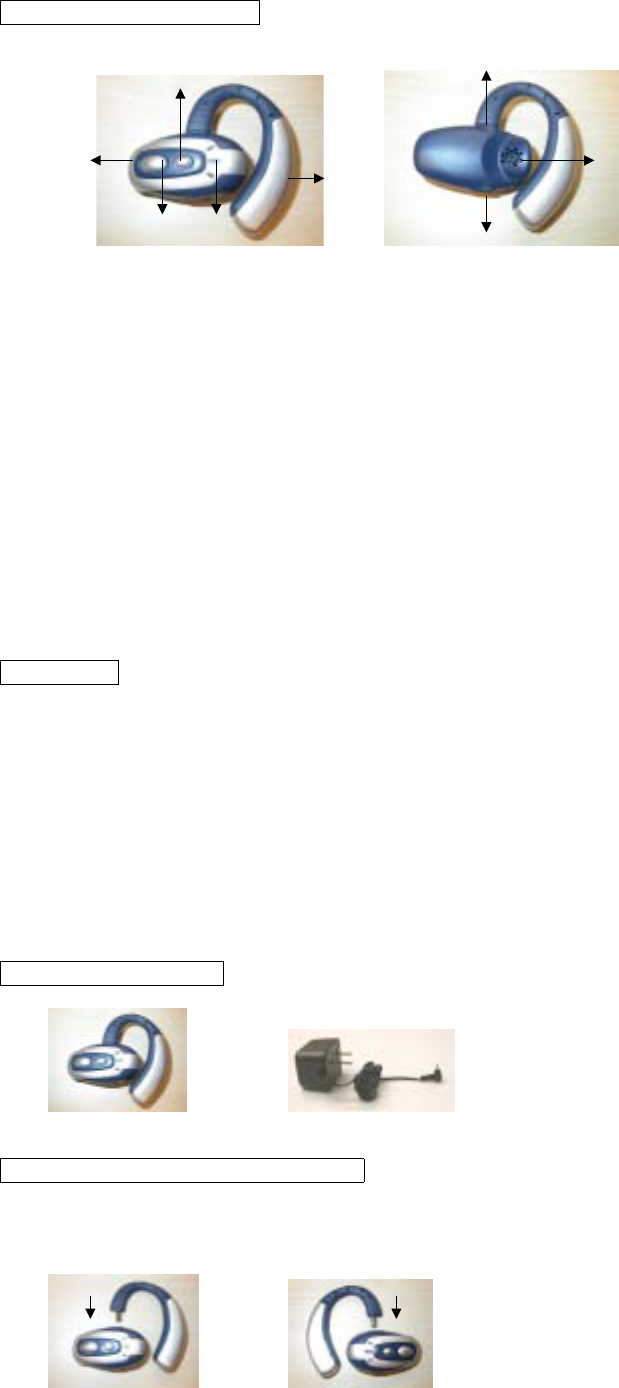

Bluetooth headset features
1) Talk Key, Volume up and Power -
To accept/end call; Volume up of the headset. Turn power ON or OFF of the headset.
2) Talk key & Volume down -
To accept/end call; Volume down of the headset.
3) Microphone -
Voice input for outgoing audio.
4) LED indication -
Light indication of the headset status.
5) Ear hook -
Wear the headset on ear.
6) Ear hook –socket - (Back of the headset)
Socket to connect the ear hook to headset
7) Speaker – (Back of the headset)
Listen for incoming audio.
8) Charging port – (Back of the headset)
Plug for charging the battery.
Introduction
This bluetooth headset is a light weight wireless system utilizing bluetooth wireless technology. The headset
contains a microphone and a speaker; it’s for hands free communications with mobile phones. The power is
provided by integral rechargeable battery.
Any device that you want to use with this Bluetooth headset must be compatible with Bluetooth technology
version 1.1 and support the product and make sure that you:
1. Fully charge headset at least 12 hours before you use it the first time.
2. Pair the headset with your Bluetooth phone or other devices before you start making calls.
Note: When you open the packing, you’ll notice the ear hook (inside with battery) is separate from the main
headset, it’s for battery power saving concern.
What's in the package?
1. One bluetooth headset. 2. One adaptor
3. One user guide 4. One hanging string

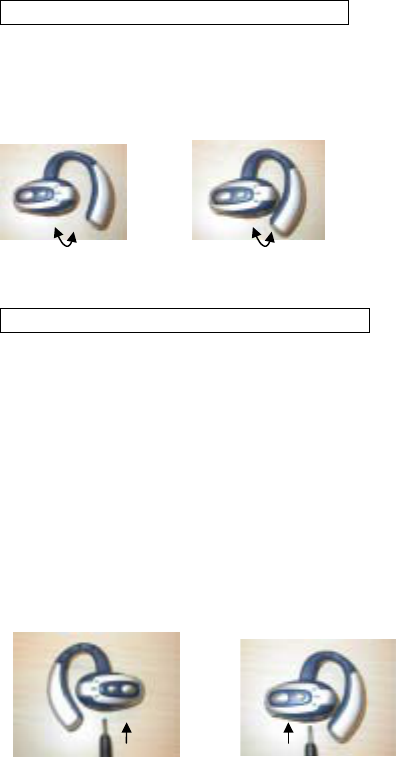

Choose right or left ear wearing style
Headset can be worn on either ear by adjust the ear hook.
Note: The ear hook can plug into the socket by either side of the headset. Please see below.
3
1
2
7
6
8
7
5
Adjustable hook’s angle for your ear
You can use the adjustable hook to wear it more comfortable to your ear. Please see below.
Important: Please be careful when you are adjusting the hook’s angle. Do not force it too much which to avoid
it getting any damages happened.
Prepare to use your Bluetooth headset
1. Charging and battery time
Before use your headset, you need to fully charge the battery.
NOTE: When the headset is under charging, it stays on “OFF” mode. You’ll need to turn “ON” the headset to
use after the charging.
A. Connect the adaptor into an electrical outlet.
B. Plug the adaptor's connector into charging port.
C. While charging, the blue indicator light will stay solid on, when charging is completed, the light will be off.
Then you can take the adaptor's connector out from the headset and disconnect the adaptor from the
electrical outlet.
D. Charging time is about 2.5-3 hours. (Note: First time use, please charge at least 12 hours)
Note: The ear hook socket port and the power charging port is the same, it means you can either use
one port to insert the ear hook, while the other port to charging the battery.
2. Linking the headset to the phone (Pairing)
Before you use your headset for the first time, you must pair the headset to a Bluetooth phone. The Bluetooth
connection between the headset and your phone can be established by setting up a paired link. With a paired
link, the phone remembers the headset's ID, and process with future use.
3. Pairing the headset to the phone
Before you can pair your headset you need to put it into pairing mode.
Note: Pairing must be done every time while the headset establishes a link with a different Bluetooth phone.
Pairing mode can be entered by 2 methods:
One: When you charge the headset, the headset will automatically enter pairing mode. It will directly enter the
blow C. stage. Or
Two: Enter from the power OFF state. You will need to start from the below B. stage.
NOTE: During pairing, it is recommended that the headset and phone distance is as close as possible with no
solid objects in between.
To proceed pairing the headset with the bluetooth phone, please follow below stages:
A. Check the mobile phone user guide, and then find out the locations of Bluetooth device discovery.
B. Ensure headset is switched off.
C. Press and hold the bigger button for about 3 seconds, blue LED rapid flashing. This means the headset is
in pairing mode.
D. Perform a Bluetooth device discovery from the mobile phone. NOTE: It may take several seconds to
establish connections.
E. The phone's display will advise that it has found HH304 and ask you to confirm that you want to pair with it.
Confirm this.
F. Enter the passkey 1234, when your phone menu prompts you, and the phone will start to pair the headset.
G. Your phone screen will advise that pairing has been successful, and the blue LED on your headset will
change state, it will flash once every 3 sec. when Bluetooth pairing has been established.
If the pairing fails, the blue LED keep rapid flashing for about 2 minutes, then stop. A re-pairing procedure is
needed. Please refer to above A. ~ G.
NOTE: Your phone screen will also give the status. Once the headset and phone have successfully paired,
you are ready to place and receive calls.
Turning your headset ON and OFF
To switch your headset on, press the bigger button for about 3 seconds, the blue LED rapid flashing, release
the button. The headset power is turn ON. After 2 minutes, the LED will slow flash; indicate headset is
awaiting a call.
To switch your headset off, press and hold bigger button for 3 seconds until there are 5 times blue LED
flashing, release the button. You will find no LED indication.
Making a call with the headset by voice dialing
If your bluetooth phone supports voice dialing, you can use this feature with the headset. Please refer to your
phone's user guide for more information on voice control.
1. Voice dialing to your phone must be turned on and voice tags stored.
2. The headset power is ON.
3. Press the bigger button once on the headset.
4. A short tone will prompt you and you can speak the voice “tag” name as entered in the phone’s voice dial
phone book.
5. The phone automatically dials your selection, and you see the details of the call on the phone screen.
6. When connected, you are free to communicate normally by the headset.
NOTE: Make sure the headset and the cell phone are under link stage. For the examples of Ericsson and
Nokia cell phones, the and symbols mean "link" status. For Nokia cell phone, it is necessary to press
the bigger button once to make the symbols on the cell phone when the headset is out of 10 meters,
power off or after charging.
Last number redials from headset
Press the smaller button on the headset to redial the last number dialed.
Note: Your bluetooth phone must support handsfree profile.
Making a call from the mobile phone
1. Using the phone's keypad, dial the phone number.
2. To send the call, press the phone's SEND/CALL key the phone initiates the all.
3. The call will then transfer automatically to the headset when connection is made.
Ending a call from the headset
To end a call, press any button on headset.
Or you can end the call from the phone key pad.
Or when the other side hangs up the phone, the call ends automatically.
Receiving/Answering a call
If there is an incoming call, a ring tone will sound in your headset; just press any button on headset to answer
the call.
If your cell phone supports auto answering a call, the headset will take the incoming call and you don't need to
press any button.
Reject incoming call
Press the bigger button for 3 seconds on the headset to reject an incoming call.
Note: Your bluetooth phone must support handsfree profile.
Speaker volume control button
Headset offers adjust of speaker volume by press the volume up or down button.
Volume up and volume down button will regulate the volume to the speaker. One step per key press
increases / decreases the desired volume until a satisfactory level is reached. An audible tone is played for
each step +/- and when either the minimum or maximum volume has been achieved.
Low battery warning
The headset needs re-charging when the blue LED is quick flash 6 times every 3 sec. You can also hear a
special tone of DO-LU-DO-LU-DO from the headset every about 40 sec.
Once the low battery warning starts, there will be around 10 minutes talk time left, charging the headset is
necessary.
Audio and visual indicators
Visual LED chart:
Headset state LED indication state Remark
Standby Flash 1 time every 3 seconds In headset profile
Flash 3 times every 3 seconds In handsfree profile
Initial a call (Use voice dial) Flash 2 times every 3 seconds
During a call Flash 4 times every 3 seconds
Power on/off Flash 5 times every 3 seconds
Low battery Flash 6 times every 3 seconds
Pairing LED rapid flashes for 2 minutes Each time turn power on and charging
headset will automatically enter the
pairing
Audio indicator chart:
Headset state Audio indication
Volume button Repeated single tone when the button either lower
or upper is pressed.
Incoming call Ring tone
Low battery DO-LU-DO-LU-DO tone every 40 sec.
Initiate voice dial Headset rings as cell phone default sound.
Bluetooth headset specification
Compatible bluetooth 1.1 headset profile and handsfree profile
Maximum distance 30 Feet (10 meters)
Weight of headset 18.5 g
Typical standby time 168 hours
Typical talk time 5 hours
Typical re-charge time 2.5-3 hours
Battery type Li-ion rechargeable
NOTE: Talk time and standby time are varied according to different mobile phones.
Storage of headset
1. Always store the headset and audio gateway safety protected.
2. Avoid storage at high temperatures (above 60 C/134 F) such as in a hot vehicle or in direct sunlight.
(Storage at high temperature can degrade performance and reduce battery life.)
3. Do not expose the headset and audio gateway or any of its supplied parts to rain or other liquids.
Certification and safety approvals/general information
This product is CE, FCC, BQB marked. Please note that this product uses radio frequency bands not
harmonized within EU. Within the EU, this product is intended to be used in Austria, Belgium, Denmark,
Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden,
United Kingdom and within EFTA in Iceland, Norway and Switzerland.
Users are not permitted to make changes or modify the device in any way. Changes or modifications not
expressly approved by your distributor will void the users' authority to operate the equipment.
Bluetooth is a trade mark owned by Bluetooth SIG, Inc.
Caution:
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Important information on safe and efficient operation. Read this information before using your phone. Users
are not permitted to make changes or modify the device in any way. Changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Warranty and parts replacement
Battery: This headset is equipped with a lithium polymer rechargeable battery. Replacement or service must
be done at a qualified service center or returned to the manufacturer.
Use only the battery supplied.
Use only the supplied and approved AC charger.
We warrant this product against all defects in material and workmanship for a period of one year from the date
of original purchase. The conditions of this warranty and our responsibilities under this warranty are as follows:
* The warranty is limited to the original purchaser.
* A copy of your receipt or other proof of purchase is required. Without proof of purchase, your warranty is
defined as beginning on the date of manufacture as labeled on the products.
* The warranty is void if the serial number, date code label or product label is removed, or if the product has
been subject to physical abuse, improper installation, modification, or repair by unauthorized third parties.
* The responsibility of our products shall be limited to the repair or replacement of the product at it's sole
discretion.
* Any implied warranty on our products is limited to one year from the date of purchase on all parts, including
any cords and connectors.
* Specifically exempt from any warranty are limited-life consumable components subject to normal wear and
tear, such as microphone, decorative finishes, batteries, and other accessories.
* We are not liable for any incidental or consequential damages arising from the use or misuse of any our
product.
* This warranty gives you specific rights and you may have other rights which vary from area to area.
* Unless otherwise instructed in the user guide, the user may not, under any circumstances, attempt to
perform service, adjustments or repairs on this unit, whether in or out of warranty. It must be returned to the
purchase point, factory or authorized service agency for all such work.
* We will not assume any responsibility for any loss or damage incurred in shipping. Any repair work on our
products by unauthorized third parties voids any warranty.
FCC Statement
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
User Information
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired operation.
To comply with FCC RF exposure requirement, this device and its antenna must be co-located or operating in the
conjunction with any other antenna or transmitter.
