Remote Terminal
Installation and
User Manual
1027144–0001 Revision Dii
For important standards compliance information, see appendix B.
Copyright 1999–2000 Hughes Network Systems, a Hughes Electronics Corporation company
All rights reserved. This publication and its contents are proprietary to Hughes Network
Systems, a Hughes Electronics Corporation company. No part of this publication may be
reproduced in any form or by any means without the written permission of Hughes Network
Systems, 11717 Exploration Lane, Germantown, Maryland 20876.
Hughes Network Systems has made every effort to ensure the correctness and completeness
of the material in this document. Hughes Network Systems shall not be liable for errors
contained herein. The information in this document is subject to change without notice.
Hughes Network Systems makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of merchantability and fitness for a
particular purpose.
Trademarks
AIReach is a trademark of Hughes Network Systems. Other trademarks, marks, names, or
product names referenced in this publication are the property of their respective owners, and
Hughes Network Systems neither endorses nor otherwise sponsors any such products or
services referred to herein.
1027144–0001 Revision D iii
RT installation
Contents
About this manual vii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important safety information ix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 Installation summary 1–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 Remote terminal (RT) reference drawing 1–2. . . . . . . . . . . . . . . . . . . . .
1.2 Installation summary and checklist 1–3. . . . . . . . . . . . . . . . . . . . . . . . . .
2 Prerequisites 2–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1 Review site data and plans 2–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Plan ahead for building access 2–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Tools needed for installation 2–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.4 Specialized materials 2–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.5 Prerequisites for commissioning 2–7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Installing indoor RT equipment 3–1. . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Rack grounding 3–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 Installing IDUs 3–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3 Power supplies 3–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4 Installing the CCM 3–23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5 SSIs 3–27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.6 Installing expansion IDUs (EIDUs) 3–34. . . . . . . . . . . . . . . . . . . . . . . . .
4 Installing IFL cables 4–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1 Handling materials 4–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2 IFL cable specifications 4–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3 Overview: IFL plan 4–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4 Determining the IFL cable route 4–5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.5 Penetrating the roof 4–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.6 Installing the penetration sleeve 4–7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.7 Installing the IFL cable inside the building 4–8. . . . . . . . . . . . . . . . . . . .
4.8 Installing the RT lightning arrestor 4–9. . . . . . . . . . . . . . . . . . . . . . . . . .
4.9 Installing the IFL cable on the roof 4–13. . . . . . . . . . . . . . . . . . . . . . . . . .
5 Installing mast mounts 5–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1 Overview 5–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2 ODU location 5–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.3 Roof types 5–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.4 Mast mount types 5–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.5 Standard nonpenetrating mount 5–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.6 Using existing structures as ODU mounts 5–11. . . . . . . . . . . . . . . . . . . .
1027144–0001 Revision Div RT installation
6 Installing ODUs 6–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1 Introduction 6–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2 Transporting the ODU to the roof 6–4. . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3 Preparing to install the antenna mount 6–5. . . . . . . . . . . . . . . . . . . . . . .
6.4 Installing the antenna mount 6–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5 Attaching the antenna to the mount 6–10. . . . . . . . . . . . . . . . . . . . . . . . . .
6.6 Initial (coarse) antenna azimuth adjustment 6–14. . . . . . . . . . . . . . . . . . .
6.7 Initial (coarse) antenna elevation adjustment 6–17. . . . . . . . . . . . . . . . . .
6.8 Installing a mechanical attenuator 6–19. . . . . . . . . . . . . . . . . . . . . . . . . . .
6.9 Attaching the transceiver to the antenna 6–21. . . . . . . . . . . . . . . . . . . . . .
6.10 Grounding the ODU 6–23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.11 Connecting the IFL to the ODU 6–25. . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Commissioning the RT 7–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1 Prerequisites for commissioning 7–2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2 Connecting the IFL to the CCM (IDU) 7–3. . . . . . . . . . . . . . . . . . . . . . .
7.3 Front panel LCD operation 7–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.4 Pointing the antenna 7–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5 Verifying HT acquisition 7–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.6 Entering an attenuator value 7–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.7 Checking component status 7–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.8 Verifying the RT’s operational state 7–17. . . . . . . . . . . . . . . . . . . . . . . . .
7.9 RT to HT connection tests 7–18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Final steps 8–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.1 Weatherproofing 8–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8.2 Inspection, cleanup, and sign–off 8–3. . . . . . . . . . . . . . . . . . . . . . . . . . .
8.3 Connecting customer equipment 8–3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Troubleshooting 9–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.1 Troubleshooting flow charts 9–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9.2 Additional troubleshooting information 9–6. . . . . . . . . . . . . . . . . . . . . .
9.3 Repair or replacement service 9–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 Maintenance 10–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.1 Adding or moving SSIs 10–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.2 Replacing components 10–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.3 Replacing the ODU 10–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.4 Replacing the IDU chassis 10–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.5 Replacing the CCM 10–12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.6 Replacing SSIs 10–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.7 Replacing the IFL 10–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.8 Dismantling an RT 10–16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1027144–0001 Revision D v
RT installation
A Acronyms and abbreviations A- 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B Standards compliance B–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B.1 Outdoor unit B–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B.2 Indoor unit (ac) B–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C Terminating the IFL cable C–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C.1 Cable parts and terminology C–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C.2 Preparing the cable end C–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C.3 Attaching the connector C–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C.4 Applying heat–shrink tubing C–11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . follows appendix C
1027144–0001 Revision Dvi RT installation
1027144–0001 Revision D About this manual vii
RT installation
About this manual
This manual provides instructions for installing and using
AIReachBroadband point–to–multipoint remote terminal (RT)
equipment.
This manual is intended for use by qualified equipment installers.
Installers must understand:
•Electronics fundamentals
•Cabling and connection practices
•Electrical circuits and grounding practices
•The importance of safety precautions
Installers must also be familiar with:
•Radio frequency (RF) fundamentals
•Applicable electrical, building, fire, and
safety codes and regulations
Note: HNS recommends a team of two installers to install the
AIReach Broadband indoor and outdoor equipment.
The instructions in this manual are organized according to tasks
and are intended to be followed in sequential order.
For site preparation instructions, see:
•Hub and Remote Terminal Site Preparation Guide,
document number 1027032–0001
For hub site installation instructions, see:
•Hub Installation and User Manual,
document number 1027145–0001
This manual primarily describes equipment manufactured and/or
provided by Hughes Network Systems (HNS), but in some cases
also refers to equipment that may be supplied by another vendor.
HNS equipment deliverables are defined in the customer
contract. Some equipment referred to in this manual may be
provided by the customer, as stated in the customer’s contract.
User qualifications
Organization
Related publications
HNS- and
customer-provided
equipment
1027144–0001 Revision D viii About this manual RT installation
Revision record
Revision Date of issue Scope
AApril 21, 1999 Released for UL approval.
BJune 8, 1999 Added new and updated information.
CAugust 9, 1999 Added troubleshooting and maintenance
information.
DMarch 1, 2000 Revised order of Installation steps. Added
overall installation checklist. Added information
for new antenna mount design, and updated
various other information.
1027144–0001 Revision D Important safety information ix
RT installation
Important safety information
For your own safety and protection, read this safety section
carefully. Keep this safety information where you can refer to it if
necessary.
This section introduces the types of warnings used in this manual
to alert you to possible safety hazards that could be encountered
while installing AIReach Broadband equipment.
DANGER
Fall hazard: Where you see this symbol
and DANGER heading, strictly follow the
warning instructions to avoid personal
injury or death from falling.
DANGER
Electric shock hazard: Where you see this
symbol and DANGER heading, strictly
follow the warning instructions to avoid
electric shock injury or death.
WARNING
Potential radio frequency (RF) hazard:
Where you see this alert symbol and
WARNING heading, strictly follow the
warning instructions to avoid injury to
eyes or other personal injury.
WARNING
Where you see this symbol and WARNING
heading, strictly follow the warning
instructions to avoid personal injury.
Types of warnings used
in this manual
1027144–0001 Revision D x Important safety information RT installation
This manual includes the following safety warnings:
DANGER
If you have to walk on a roof or use a ladder
to access an installation site or equipment,
follow these precautions to prevent personal
injury or death:
•Do not walk near the edge of the roof.
•Watch out for overhead power lines.
Stay at least 6 meters (20 feet) from
power lines.
•Walk only on sound roof structures.
•Do not work on a roof or ladder in
high wind, rain, lightning, or other
adverse weather conditions.
•Follow all safety precautions from the
ladder or antenna manufacturer.
•Do not walk on a roof if a storm is
visible—even if the storm is distant.
Lightning can travel and strike in
advance of a storm.
WARNING

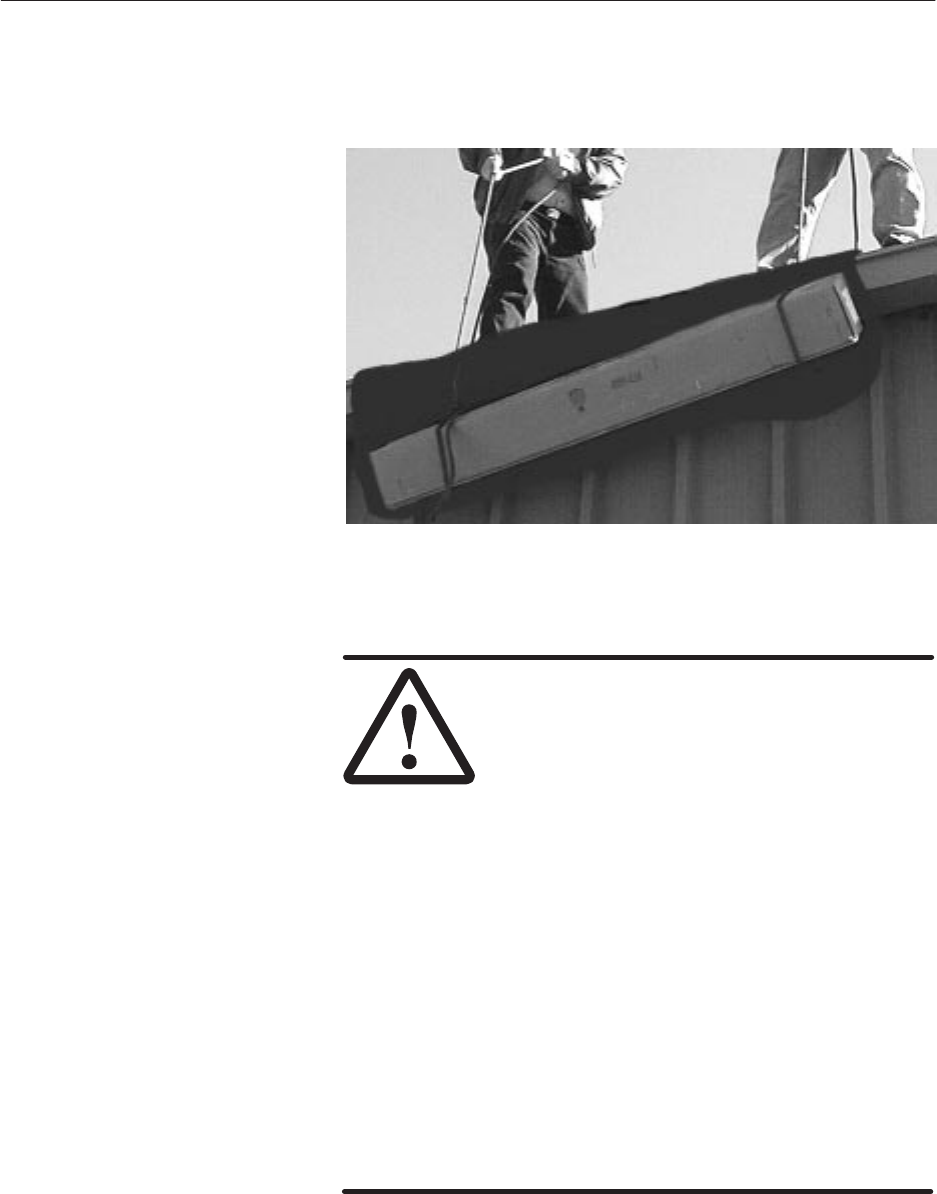

If you need to hoist materials to the
installation location, observe these
precautions to avoid personal injury:
•Use a rope strong enough to support
all of the materials that need to be
hoisted.
•Never stand under the rope while
materials are being hoisted.
•Hoist one concrete block at a time.
•Pass the rope through the
center
hole
of each concrete block. If you use the
hole on either end, the end can break
off, allowing the concrete block to fall.
•Be advised that the contents of the
mount kit can fall through the end of
the box if the box is tilted—especially
if the box has been damaged.
•Use a back brace.
Warnings appearing in
this manual
1027144–0001 Revision D Important safety information xi
RT installation
WARNING

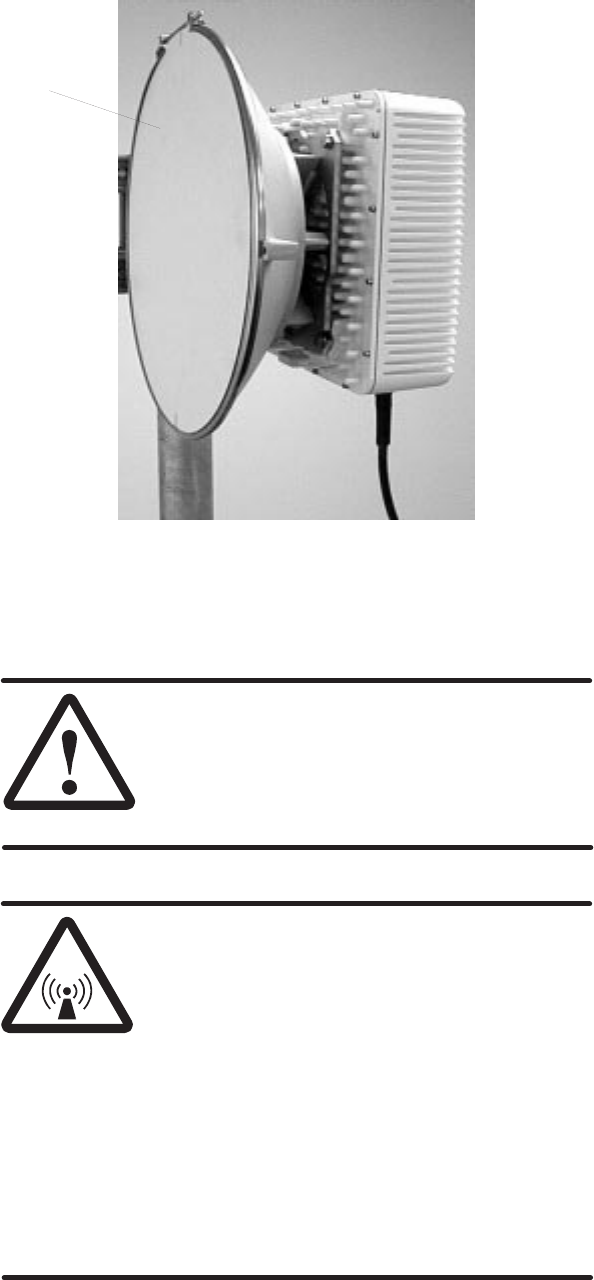

Potential radio frequency (RF) hazard:
•Keep away from the front of the
outdoor unit (ODU) antenna while the
ODU is operating. Note that you cannot
tell from outward appearance whether
the ODU is operating or not.
•Be careful with respect to the ODU you
are installing and ODUs that may
already be operating in the installation
area.
Failure to observe these warnings could
result in injury to eyes or other personal
injury.
WARNING
To avoid the risk of electric shock and
exposure to potentially harmful radio
frequency (RF) waves, make sure the IDU is
turned off, if already installed, before
installing the mechanical attenuator.
Failure to observe these warnings could
result in personal injury.
WARNING
To help avoid death, injury, or damage from a
lightning strike, you
must
install a lightning
arrestor where the IFL enters the building.
The warning immediately below applies only to IDUs with
a dual ac or dc power supply:
WARNING
Multiple power connectors. Disconnect
both ac and dc power before servicing.
1027144–0001 Revision D xii Important safety information RT installation
WARNING
To avoid the risk of electric shock,
remove power from the power circuit
before connecting power cables to the
IDU power supply.
WARNING

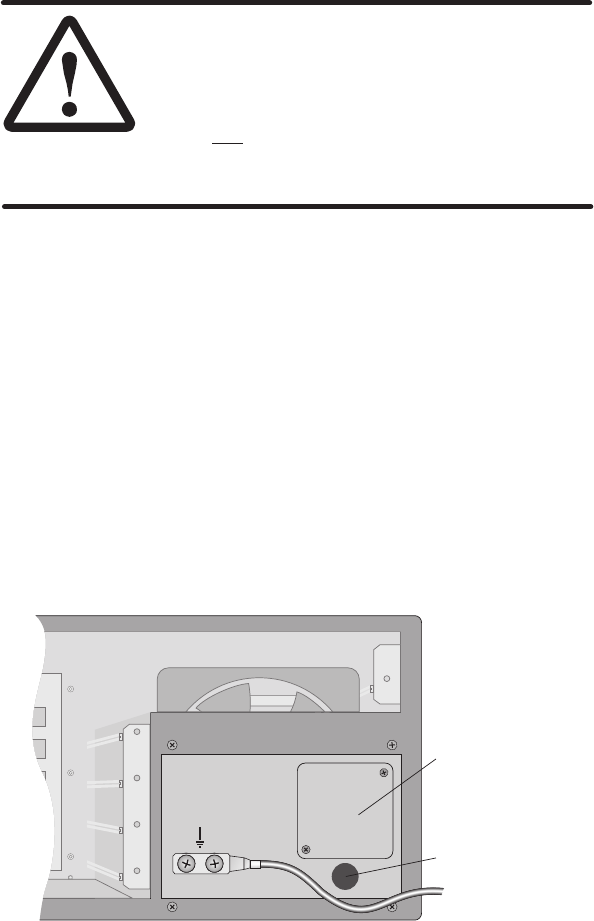

The IDU chassis must be solidly bonded to a
low–impedance ground (earth) source.
To avoid the risk of electric shock and/or
equipment damage, do not apply power to
the IDU chassis without a ground reference.
WARNING
To avoid the risk of electric shock, make
sure the dc power source breaker is off
before installing a remote power–off
circuit. Use a continuity tester to verify
that power is off.
RT INSTALLATION
1027144–0001 Revision D Installation summary 1–1
RT installation
Chapter 1
Installation summary
This chapter includes:
•Remote terminal (RT) reference drawing – page 1–2
•RT installation summary and checklist – page 1–3
The installation summary previews the entire RT installation
process and serves as a quick reference. For detailed information,
see chapters 2 through 8.
1027144–0001 Revision D 1–2 Installation summary RT installation

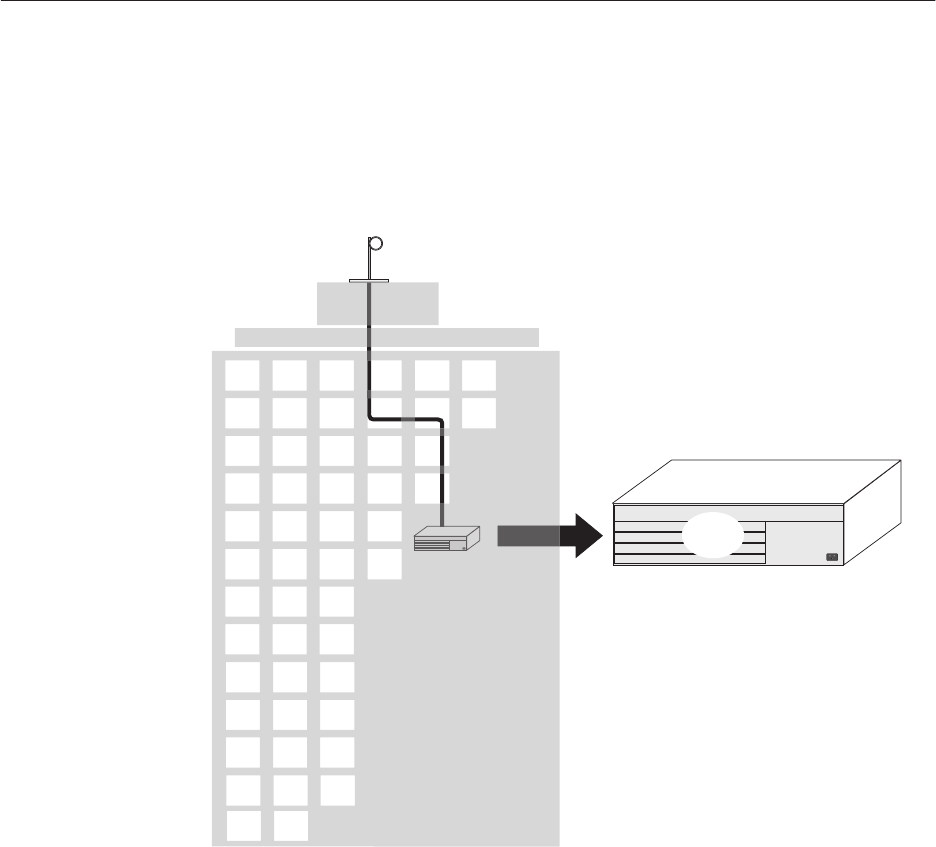

Figure 1-1 is provided as a reference. It illustrates the main RT
components:
•Outdoor unit (ODU)
•Intrafacility link (IFL)
•Indoor equipment

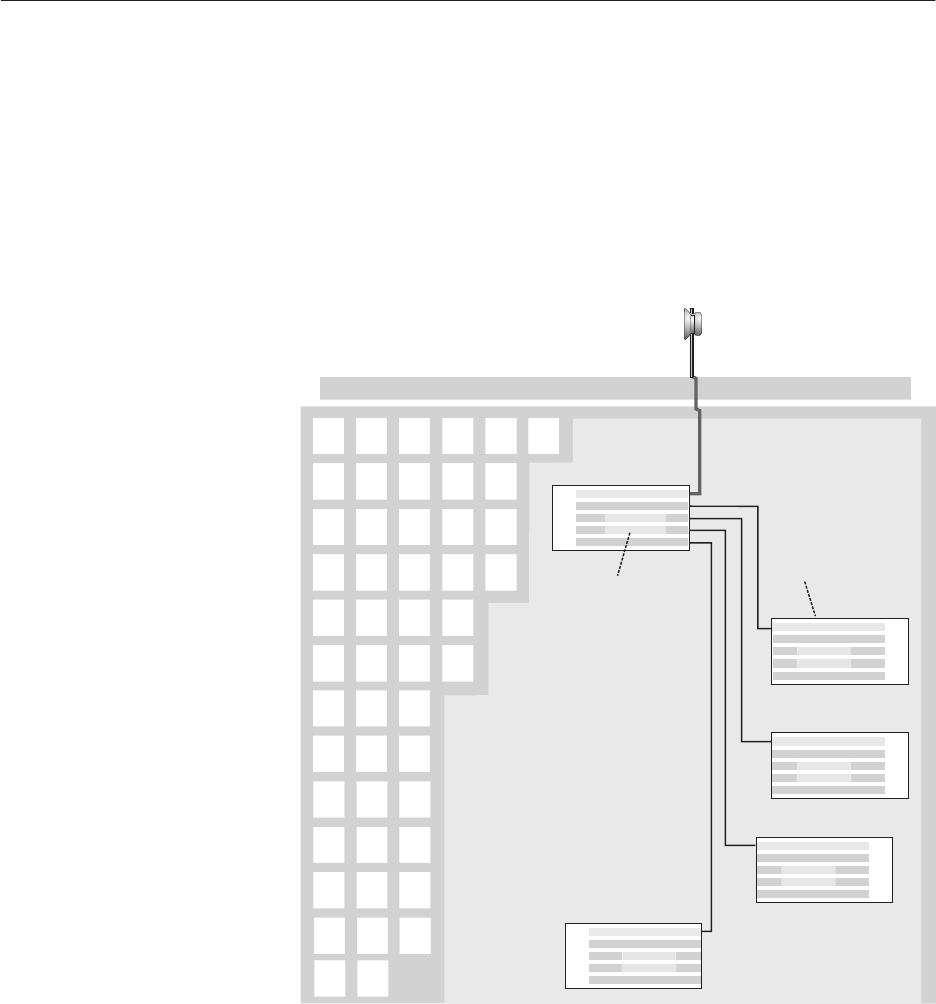

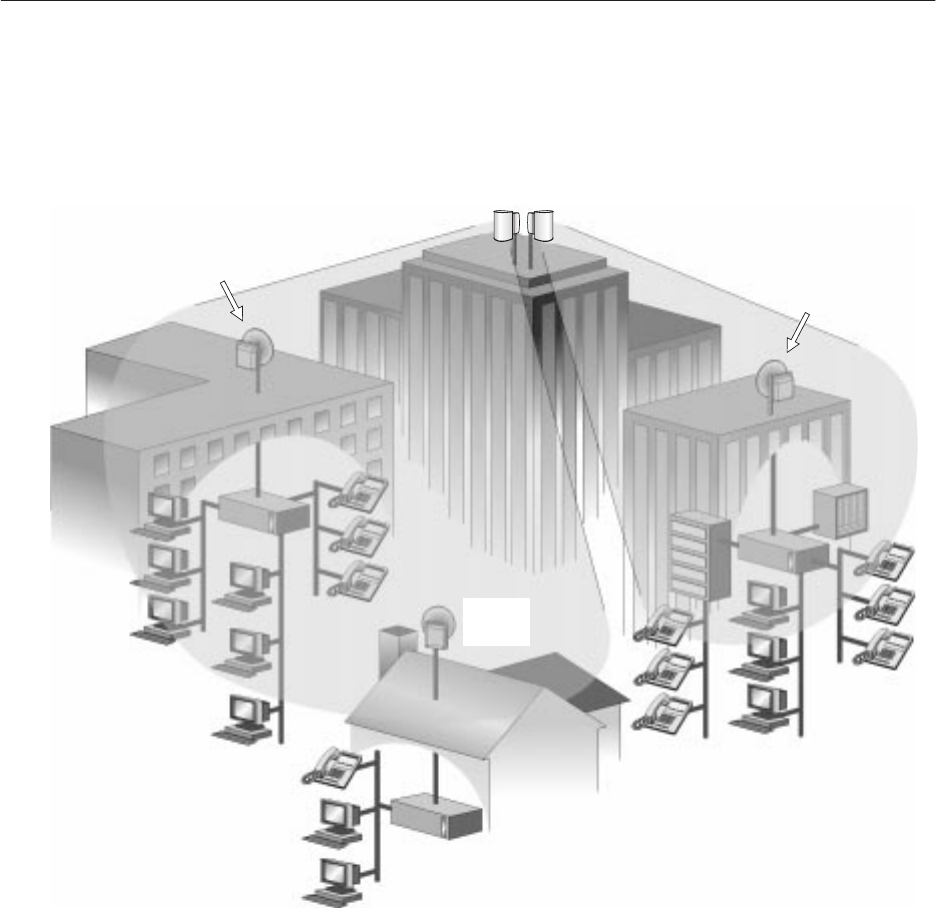

Figure 1-1 RT equipment
rt011
RT ODU
IDU
RT indoor
equipment
IFL
1.1
Remote terminal
(RT) reference
drawing
1027144–0001 Revision D Installation summary 1–3
RT installation
Components to be installed
The following AIReach Broadband components are installed at the
RT site:
•ODU(s) – Integrated antenna and transceiver
•IFL
•Indoor unit(s) (IDU), including:
- IDU channel and control module (CCM)
- IDU service–specific interfaces (SSIs)
Summary of installation steps
RT installation consists of the following main tasks:
Ground the rack (if a rack is used) – page 3–2
Install IDU chassis – page 3–3
Ground the IDU chassis – page 3–11 (ac) or 3–14 (dc)
Connect power to power supply – page 3–12 (ac) or 3–14 (dc)
Install CCM – page 3–23
CCM power–on test – page 3–25
Install SSIs – page 3–27
Install expansion IDUs (EIDUs) (if used) – page 3–34
Determine IFL cable route – page 4–5
Install the IFL cable (inside the building) – page 4–8
Install IFL lightning arrestor – page 4–9
Ground the lightning arrestor– page 4–12
Install the IFL cable (on the roof) – page 4–13
Test the IFL cable – page 4–14
1.2
Installation
summary and
checklist
1027144–0001 Revision D 1–4 Installation summary RT installation
Install the mast mount – page 5–4
Install the antenna mount – page 6–8
Attach the antenna to the mount – page 6–10
Adjust the antenna azimuth – page 6–14
Adjust the antenna elevation – page 6–17
Install the mechanical attenuator (if required) – page 6–19
Attach the transceiver to the antenna – page 6–21
Ground the ODU – page 6–23
Connect the IFL to the ODU – page 6–25
Connect the IFL to the CCM (IDU) – page 7–3
Point the antenna (with voltmeter) – page 7–9
Verify HT acquisition – page 7–13
Enter an attenuator value – page 7–13
Check CCM, SSI, and ODU status – page 7–14
Verify the RT’s operational state – page 7–17
Perform RT to HT connection tests – page 7–18
Weatherproof connections – page 8–2
Obtain customer signoff – page 8–3
For detailed installation instructions, see chapters 2 through 8.
RT INSTALLATION
1027144–0001 Revision D Prerequisites 2–1
RT installation
Chapter 2
Prerequisites
This chapter discusses steps that are required prior to installation
of AIReach Broadband equipment. It includes:
•Reviewing site data and plans – page 2–1
•Planning ahead for building access – page 2–2
•Tools needed for installation – page 2–3
•Prerequisites for commissioning – page 2–7
Before you begin installing the equipment, review all previously
collected site data and site plans for information you will need to
install the indoor and outdoor equipment, including the IFL
(intrafacility link). For more information on the equipment to be
installed, see section 1.1.
Review:
•The completed Site Data Record from the Hub and Remote
Terminal Site Preparation Guide – The Site Data Record is
completed during and after the pre–installation site survey.
It includes the site address, planned services, information
concerning potential sources of interference, IFL
information, and much other information.
•Site drawings and photographs – These should include
information about the site environment, existing equipment
and building features, equipment to be installed, IFL
routing, customer equipment to be connected to AIReach
Broadband equipment, and other information.
•Planning the ODU location, a section in the Hub and
Remote Terminal Site Preparation Guide – The ODU
location should already be selected; however, this section
contains information that is useful for the installer to know.
2.1
Review site data
and plans
1027144–0001 Revision D 2–2 Prerequisites RT installation
Before you go to the installation site, make sure you have all
necessary information (such as contact names and phone
numbers) for accessing all parts of the building you will need
to visit (roof, equipment rooms—which may be in the basement),
and other locations. This information should be available in the
Site Data Record, which is completed as part of the site survey.
Recommendations:
•Know who to contact for assistance (name, phone number,
working hours).
•Get good directions or a building map or floor plan, if
possible.
•You may need a key or pass code to gain access to the roof.
•Make all necessary arrangements for facility support and
building access before you go to the installation site.
2.2
Plan ahead for
building access
1027144–0001 Revision D Prerequisites 2–3
RT installation
To install and commission AIReach Broadband remote terminal
equipment, you need the tools listed in table 2-1 . You may need
general–purpose tools in addition to the specific tools listed here.
Table 2-1 Tools required for RT installation
(includes tools for IFL installation, antenna pointing, and initial testing)
√Item Purpose (or other comments)
Ladder May or may not be required; depends on building
Rope To hoist tools and equipment up ladders. Rope
must be long enough for ladders at the site. Must
be able to hold
at least
35 pounds (16 kilograms).
This is the ODU weight. IFL cable is likely to
weigh more.

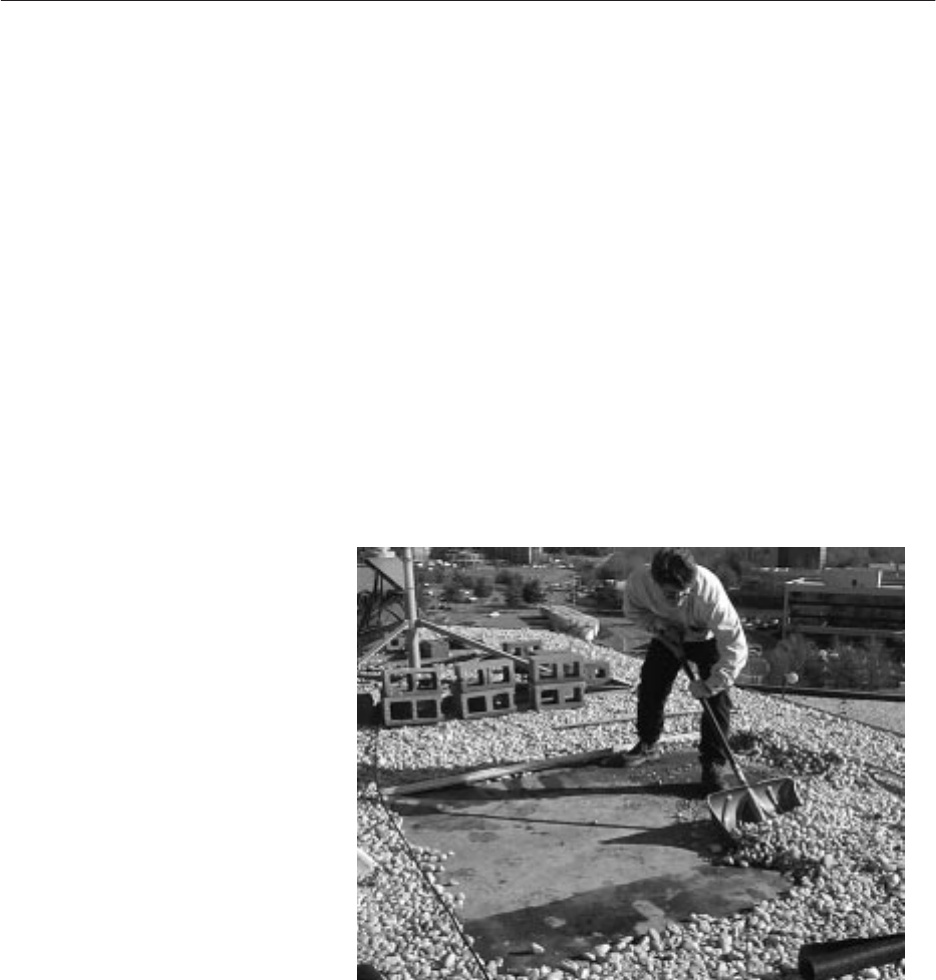

Snow shovel or
heavy–duty push broom To move roof gravel away from the ODU
installation site
1/2–inch drill Cordless drill preferred for work on roof. Drill with
power cord required for heavy–duty work (such
as mounting a rack to the floor).
Drill with bits for wood and
masonry. May be needed for IFL installation
Combination wrenches:
7/16 inch, 9/16 inch
10 millimeter, 13 millimeter
For installing the mast mount and antenna mount
Ratchet wrench with
9/16–inch socket For installing the mast mount
3/8–inch torque wrench with
13–millimeter deep socket Required for installing the antenna mount
5/32–inch (4–millimeter)
torque hex key wrench Used to tighten the radome band clamp
No. 6 Phillips screwdriver Needed to attach IDU chassis mounting ears if
IDU chassis is rack mounted
1000° heat gun For applying shrink wrap tubing to protect cable
terminations
Cable cutters
Diagonal cutters (wire cutters)
Flush mount cutters
2.3
Tools needed for
installation
1027144–0001 Revision D 2–4 Prerequisites RT installation
Table 2-1 Tools required for RT installation – Cont’d.
(includes tools for IFL installation, antenna pointing, and initial testing)
√Purpose (or other comments)Item
Excelta CX–1–78–1 cable
stripping tool Manufacturer: Excelta Corp., Buellton, CA
Crimp tool for #2 and #6
AWG ground lugs Manufacturer: Thomas & Betts, Memphis, TN
HCT–231 crimp tool For terminating N–type connectors
Channel locks
Soft jaw pliers Grip tool with soft surface, for gripping and
turning N–type connectors
Band cutters To remove shipping bands from mast mount
pieces
Carpenter’s knife
Splicer’s knife To terminate cables
Binoculars Suggested, for RT installation, if the HT is too far
to see
Flashlight Primarily for IFL installation
100–foot tape measure
(metric equivalent: 30.5 meters) For measuring cable runs
Large backpack or
padded bag To haul ODU transceiver and antenna to the roof
Digital voltmeter For pointing and testing
dc voltage measurement accuracy: 0.3%
Test cable terminated with
F–connector and alligator
clips
Used to connect voltmeter to ODU for antenna
pointing
Test set(s)
(DS1, DS3, or both) For commissioning tests. Test set type(s) needed
depends on services the RT supports (DS1, DS3,
or both).
1027144–0001 Revision D Prerequisites 2–5
RT installation
Table 2-1 Tools required for RT installation – Cont’d.
(includes tools for IFL installation, antenna pointing, and initial testing)
√Purpose (or other comments)Item
Detailed local map Used to locate the HT. Must show true north,
streets, buildings, and landmarks. Helpful if the
map shows magnetic declination (or magnetic
north versus true north). A U.S. Geological
Survey map is recommended. A travel map will
suffice if it shows sufficient detail.
Ruler or straight edge Used to mark directions on map
Pencil or broad–tip pen Used to add markings to local map
Protractor May be useful as an aid in pointing the antenna.
Must show 0° increments from 0° to 180°.
Compass May be useful as an aid in pointing the antenna.
Must be accurate to within ±1°
Personnel safety lines For safety on roof
Back brace To protect against back injury while hoisting or
lifting equipment and installation materials
Note: Vendor names, model numbers, and part numbers identify equipment known to
be suitable. Other comparable equipment may also be suitable.
1027144–0001 Revision D 2–6 Prerequisites RT installation
To install AIReach Broadband RT equipment, you will need the
materials listed in table 2-2 . This is a list of key, mostly
specialized materials. It is not a comprehensive list. In addition to
the listed materials, installers should carry materials that are
commonly required to install outdoor telecommunications
equipment.
Table 2-2 Specialized materials required for RT installation
√Item Purpose (or other comments)
IFL cable For specifications, see page 4–3.
Ground cable IDU, ac (if not grounded through the power
cable): No. 16 AWG, green
IDU, dc: No. 14 AWG, green
ODU and lightning arrestor: No. 6 AWG or
greater, green
For rack installations (rack to ground bar): No. 2
AWG, green, stranded, and shielded
Connectors:
N type, F type, BNC N connectors, for IFL cable, see page 4–4.
F and BNC connectors – used to attach voltmeter
to ODU for antenna pointing; see page 7–10.
Bannana plug Used to attach voltmeter to ODU for antenna
pointing; see page 7–10.

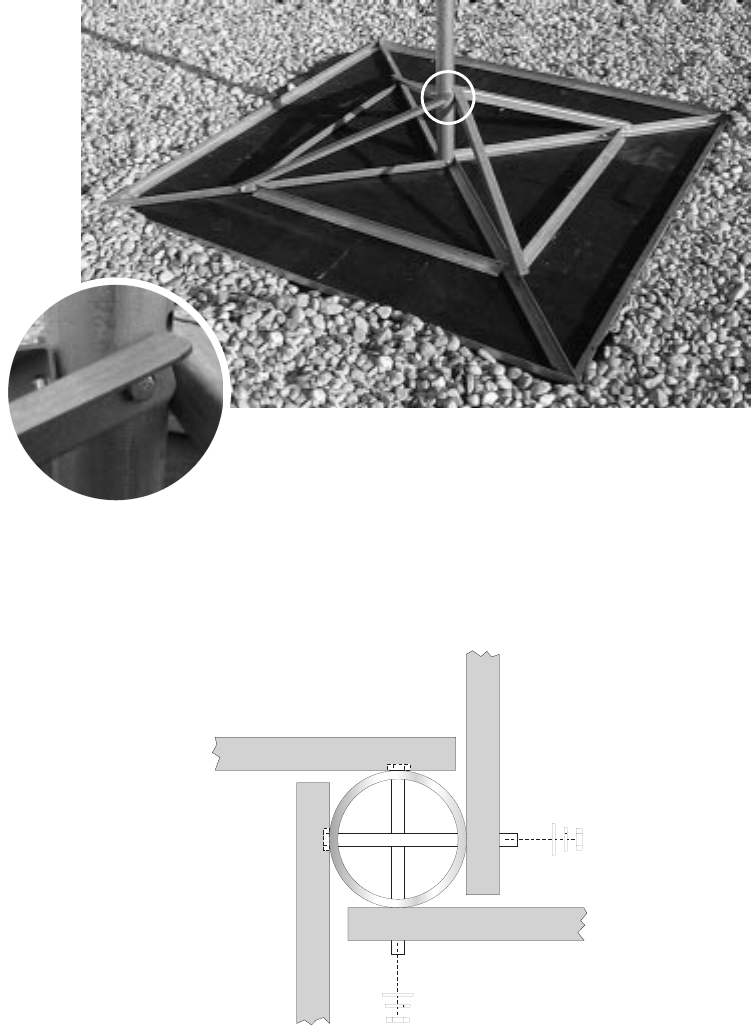

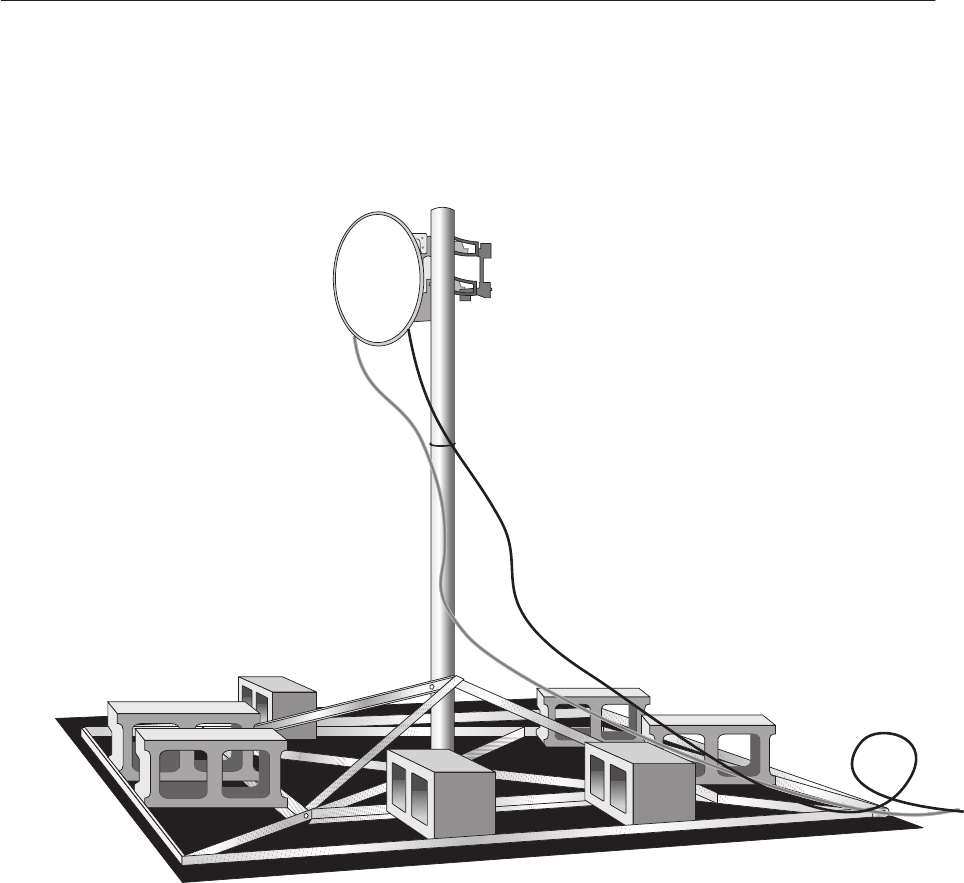

Concrete blocks Used to anchor mast mount. For details, see
section 5.5 on page 5–4.
Weatherproofing compound Used to seal outdoor IFL connections. See
section 8.1 on page 8–2.
Outdoor waterproof tape Used to seal outdoor IFL connections. See
section 8.1 on page 8–2.
2.4
Specialized
materials
1027144–0001 Revision D Prerequisites 2–7
RT installation
You will not be able to commission the RT (as detailed in chapter
7) unless the Element Management System (EMS) is operational.
Specific requirements for commissioning are:
The EMS hardware and software must be installed and
operational.
The EMS database must be loaded and operational.
The EMS operator has to enter the hub MAC address
into the EMS database.
The hub and HT are installed and operational. The HT must
be properly aligned.
Additional prerequisites for commissioning are listed in chapter 7.
The additional prerequisites are satisfied when the RT is properly
installed. The prerequisites listed above must be accomplished
prior to RT installation—or commissioning will be delayed
until they are accomplished.
2.5
Prerequisites for
commissioning
RT INSTALLATION
1027144–0001 Revision D Installing indoor RT equipment 3–1
RT installation
Chapter 3
Installing indoor RT equipment
This chapter includes:
•Rack grounding
•Installing indoor units (IDUs)
•Power supplies – page 3–8
•Installing the CCM – page 3–23
•CCM power–on test – page 3–25
•SSIs – page 3–27
•Installing expansion IDUs (EIDUs) – page 3–34
For IDU standards compliance information, see appendix B
(page B–3).
1027144–0001 Revision D 3–2 Installing indoor RT equipment RT installation
If the RT IDU will be mounted in a rack, the rack must be
grounded, as shown in figure 3-1:
1. Run a ground wire from the rack location to the master
ground bar in the equipment room. This wire must be No. 2
AWG, green, stranded, and shielded.
2. Ground the rack by connecting a No. 6 AWG wire from the
rack to the No. 2 AWG ground wire.
Use a 2–hole lug to connect the No. 6 AWG wire to the
rack. Remove paint and apply anti–oxidant as shown in the
illustration.
T0006050
Top of rack
from rear
Lug connection
close up view
Frame
lug
Remove paint to
bare metal, on
both sides, and
apply anti-oxidant.
Metal rack
HTAP connector
with cover
No. 2 AWG wire
(green) to master
No. 6 AWG wire
Frame
lug
To a subsequent
rack (if present)
Figure 3-1 Rack ground connections
3.1
Rack grounding
1027144–0001 Revision D Installing indoor RT equipment 3–3
RT installation
Figures 3-2 and 3-3 show the RT indoor unit (IDU), which houses
the channel and control module (CCM) and service–specific
interfaces (SSIs). The IDU chassis is shipped with the power
supply installed, but the CCM and SSIs are not installed.
For IDU standards compliance information, see appendix B
(page B–3).

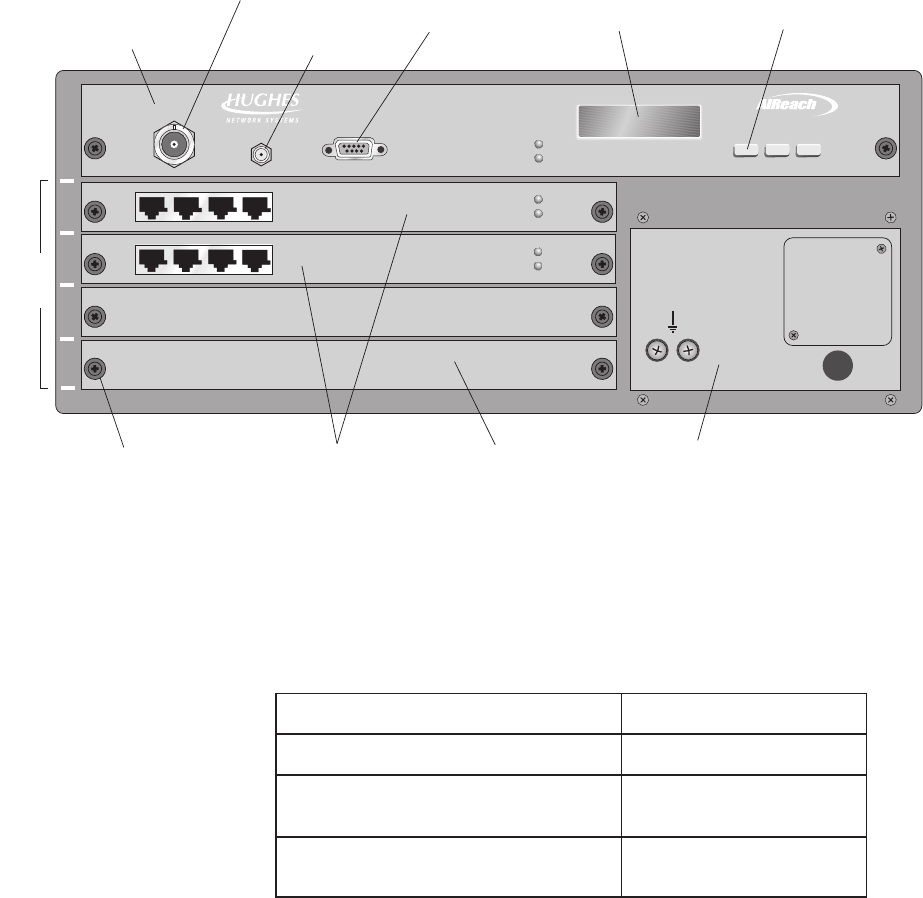

Figures 3-2 and 3-3 identify the main IDU components.

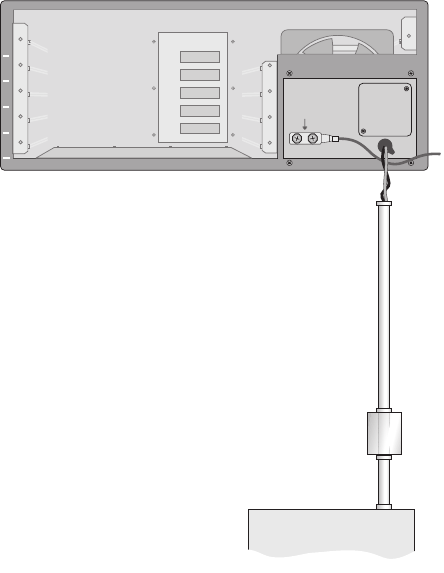

1
2
3
4
5
TM
BROADBAND
RT CCM
ENTERPREVNEXT
T0009045
Channel and
control module
(CCM)
Service-specific
interface (SSI)
Blank panel
Thumbscrew AC power supply
Liquid crystal
display (LCD)
Control pushbuttons
(for LCD)
IFL
interface
Maintenance
port
SSI
slots
Power supply may be ac (as shown
here), dc, or dual mode (ac or dc).
Auxiliary
IF port
Figure 3-2 RT IDU main components (shown: IDU with ac power supply)
3.2
Installing IDUs
IDU components
1027144–0001 Revision D 3–4 Installing indoor RT equipment RT installation
1
2
3
4
5
TM
BROADBAND
RT CCM
ENTERNEXT PREV
T0009048
Channel and
control module
(CCM)
Service-specific
interface (SSI)
Blank panel
Thumbscrew DC power supply
Liquid crystal
display (LCD)
Control pushbuttons
(for LCD)
IFL
interface Maintenance
port
SSI
slots
Auxiliary
IF port
Figure 3-3 RT IDU with dc power supply
Three IDU chassis types are available, each with a different power
supply option:
Table 3-1 IDU types
IDU type HNS part number
IDU chassis with ac power supply 1026356–0001
IDU chassis with dc power supply
(–48 Vdc) 1026356–0002
IDU chassis with dual mode (ac or
dc) power supply 1026356–0003
The power supply is not user replaceable.
Before you install the IDU chassis, make sure a power source is
available. If it is not, you may have to select a different location
for the IDU or install an electrical receptacle.
Note: The IDU is an industrial product. For safety and security
reasons, it must be installed in an area that is accessible only to
authorized servicing personnel.
IDU chassis types
Prerequisites
1027144–0001 Revision D Installing indoor RT equipment 3–5
RT installation
The IDU can be used on a tabletop or installed in a 19–inch
(48.3–centimeter) rack. With optional adapter brackets, the IDU
can also be installed in a 23–inch (58.4–centimeter) rack.
Safety guidelines
Observe these guidelines from Underwriters Laboratories Inc.
(UL) when you install IDU chassis in a rack (any rack):
•Make sure the power requirements of the IDU chassis plus
the cumulative power draw of other equipment in the rack
do not overload the supply circuit and/or wiring of the rack.
•The IDU weighs about 20 pounds (about 9 kilograms).
Have someone help you when you lift the IDU chassis to
install it in the rack.
•Always load the rack from bottom to top to ensure a stable
and safe rack.
•Installation of the IDU chassis within the rack system
should not reduce air–flow within the rack.
•The maximum recommended ambient temperature for the
IDU chassis is 50 °C (122°F).
•While installing the IDU chassis into the rack, make sure
you maintain a proper earth grounding for the equipment.
Mounting options
Rack mounting
1027144–0001 Revision D 3–6 Installing indoor RT equipment RT installation
Rack mounting instructions
To mount the IDU chassis in a rack, you need the rack mounting
brackets included in HNS kit 1027191–0001. This kit includes two
brackets and six Phillips SEMS screws for attaching the bracket to
the IDU.
To mount the IDU chassis in a rack, follow these steps:
1. Attach the rack mounting brackets as shown in figure 3-4.
Be sure to use the correct sets of holes (front or midpoint)
for each bracket, as indicated in figure 3-4.
Figure 3-4 Attaching rack mounting brackets to the IDU chassis
hb032
Mounting
bracket
Attach bracket here
for .enclosed rack
Attach bracket here
for .open rack
Front
1027144–0001 Revision D Installing indoor RT equipment 3–7
RT installation
2. Screw the two upper mounting screws into the rack (one on
each side), at the desired installation height. Refer to figure
3-5.
Do not tighten the screws all the way—this allows you to
hang the chassis by the top “teardrop” holes on the brackets
(in step 3).
(The four mounting screws that screw into the rack should
be provided with the rack.)

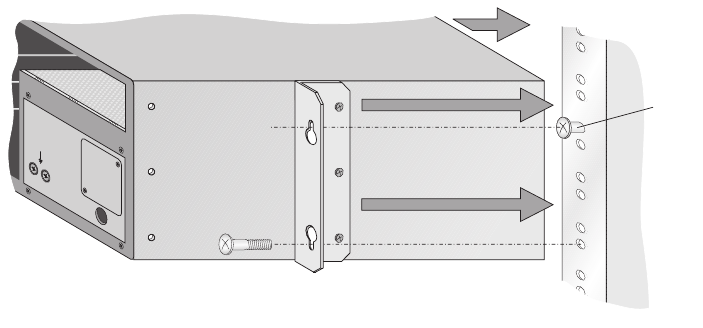

Figure 3-5 Installing the IDU chassis in a rack
hb033
Rack
Front
Leave part
of the upper
mounting
screws
exposed
so you can
hang the
brackets
on them.
3. Place the chassis into the rack, and slip the top hole of each
bracket over the heads of the upper mounting screws in the
rack.
4. Support the chassis with one hand while you install and
tighten the two lower screws.
5. Tighten the two upper screws.
1027144–0001 Revision D 3–8 Installing indoor RT equipment RT installation
The IDU power supply is installed in the chassis at the factory.
However, you need to make sure the power supply is grounded
and connect power to the power supply. Detailed instructions for
these steps follow.
The IDU chassis may be equipped with an ac, dc, or dual (ac or
dc) power supply, depending on the local power environment. In
the following sections, make sure you follow all instructions for
the type of power supply your IDU chassis has.
Do not attempt to replace or substitute power supplies. If there
is a problem with a power supply, return the chassis to HNS for
repair or replacement.

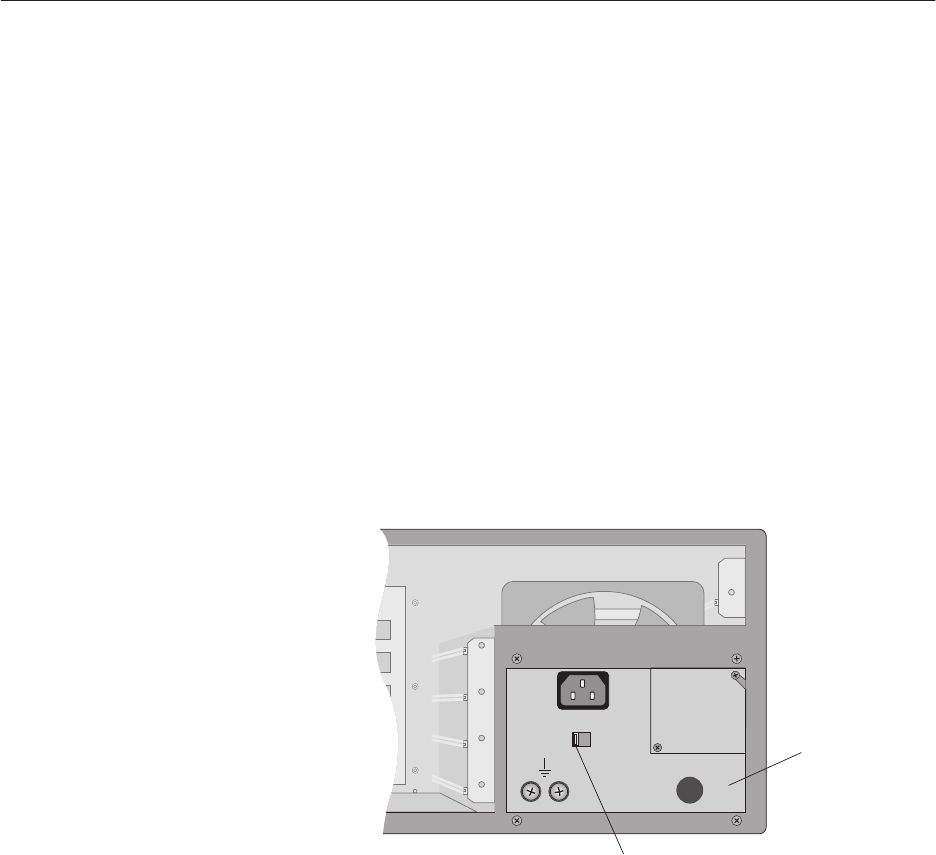

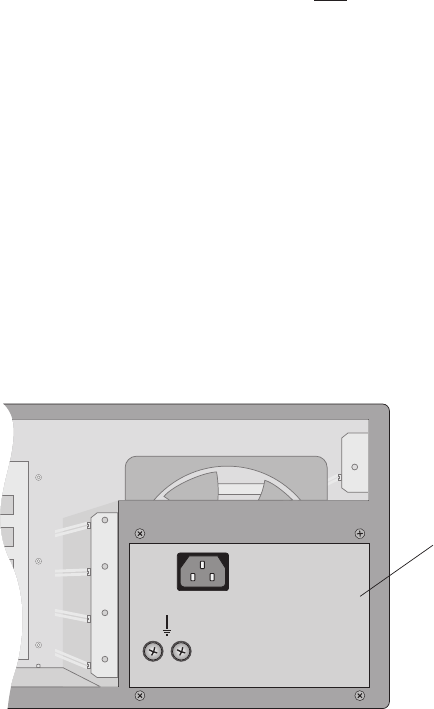

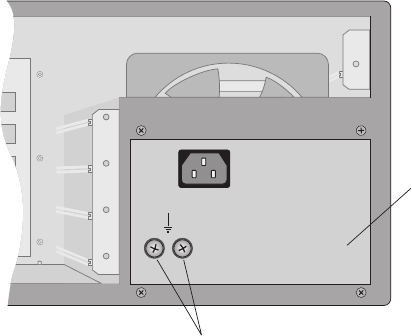

The dual ac or dc power supply (figure 3-6) can be used with an ac
or dc power source. A recessed switch on the front of the power
supply is used to select ac or dc operation.
T0006026
AC DC
Dual ac/dc
power supply
AC/DC switch
Figure 3-6 Dual ac or dc power supply
Selecting ac or dc power
Follow these instructions to set the power supply for ac or dc
operation:
To use the dual power supply with ac power:
Make sure the switch is in the AC position; then follow the
instructions below for ac power supplies.
Note: The AC–DC switch is recessed to prevent accidental
switching. Use a flathead screwdriver to change the switch
position.
3.3
Power supplies
Power supply options
Dual (ac or dc) power
supply
1027144–0001 Revision D Installing indoor RT equipment 3–9
RT installation
To use the dual power supply with dc power:
Make sure the switch is in the DC position; then follow the
instructions below for dc power supplies.
Labels on dual power supply
A label on the dual ac or dc power supply warns:
WARNING
MULTIPLE POWER
CONNECTORS.
DISCONNECT BOTH
AC & DC POWER
BEFORE SERVICING.
Servicing personnel must heed this warning. Note that the IDU
and power supply should be serviced only by HNS.
A second label on the dual ac or dc power supply advises:
CAUTION
THIS EQUIPMENT HAS A
CONNECTION BETWEEN
THE EARTHED CONDUCTOR
OF THE D.C. SUPPLY CIRCUIT
AND THE EARTHING CONDUCTOR.
SEE EARTHING INSTRUCTIONS

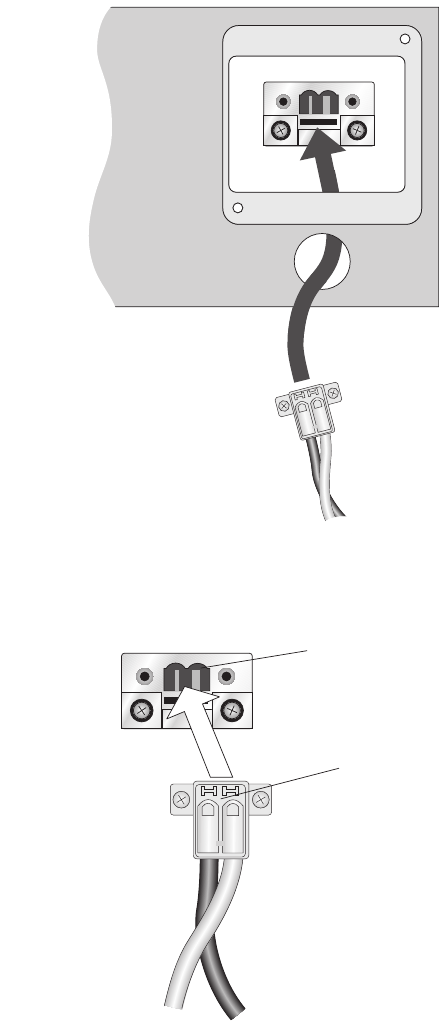

To disconnect dc power, unplug the terminal block (shown on
page 3–16). Do not remove the wires from the terminal block
while it is plugged in. If you do, the IDU chassis will not be
grounded.
Additional instructions
If the power supply is a dual ac or dc unit, follow the instructions
in the following sections for both ac and dc power supplies.
1027144–0001 Revision D 3–10 Installing indoor RT equipment RT installation
Additional instructions
If the power supply is a dual ac or dc unit, follow the instructions
in the following sections for both ac and dc power supplies.
IDU chassis with an ac power supply (figure 3-7) or dual ac or dc
power supply are equipped with a recessed IEC–320–C13
connector and a 7.5–foot (2.3–meter) power cable (HNS
9003024–0013). The power cable includes a NEMA 5–15–P plug
to connect to the power source (receptacle). The cable is rated at
125 Vac, 10 amperes, and is equipped with an internal ground
(earth) conductor.
The primary input requirements for the ac power supply are:
Voltage: 100 – 240 Vac
Current: 6.4 amperes maximum
Frequency: 50 – 60 Hz
Figure 3-7 AC power supply
AC power supply
hb048
AC power supply
1027144–0001 Revision D Installing indoor RT equipment 3–11
RT installation
Important: In the United States and some international markets,
the required ground bond is provided by the grounding conductor
in the cable and ac service conductors. If grounding is provided
through the grounding conductor and service conductors, no
additional grounding is required.
In environments where ac grounding conductors are not
available, a separate bonding conductor is required.
If a separate bonding conductor is required, ground the ac power
supply as follows:
1. Use a 2–hole lug to connect a No. 16 AWG ground wire to
the ground terminals on the front of the power supply. See
figure 3-8.
Figure 3-8 Ground terminals on ac power supply
AC power supply
hb052
Ground terminals
2. Connect the other end of the ground wire to the rack ground
bar. If the IDU chassis is not rack mounted, connect the
ground wire to a ground point such as a water pipe or
building steel.
Grounding the ac IDU
chassis
1027144–0001 Revision D 3–12 Installing indoor RT equipment RT installation
WARNING
The IDU chassis must be solidly bonded to a
low–impedance ground (earth) source.
To avoid the risk of electric shock and/or
equipment damage, do not apply power to
the IDU chassis without a ground reference.
CAUTION
If the ODU and lightning arrestor are not
connected to the IFL, do not power on the
IDU chassis without first making sure the
IFL is not connected to the IDU chassis.
Failure to observe this instruction could
result in damage to the equipment.
To connect ac power:
1. Measure the voltage level of the power source to make
sure it can accommodate the total IDU and ODU power
requirements.
(The IDU supplies power to the ODU through the IFL.)
If the voltage level cannot accommodate the IDU and ODU,
the power source must be upgraded before you can proceed.
2. Connect the power cable to the IEC–320–C13 connector on
the power supply.
3. Route and secure the cable to avoid physical damage.
4. Connect the plug end of the cable to a dedicated ac power
source.
Important: In the United States, ac–power IDU chassis
must be connected to a dedicated power circuit with a
15–ampere single–pole breaker. The circuit must not
include unrelated equipment.
Connecting ac power
1027144–0001 Revision D Installing indoor RT equipment 3–13
RT installation
Figure 3-9 shows an IDU chassis with a dc power supply.
A power cable is not supplied with the dc IDU chassis because
cable requirements vary, depending on where the chassis will be
used.
The power input requirement for the dc power supply (and dc
portion of the dual ac or dc power supply) is –42 to –56 Vdc.
Figure 3-9 DC power supply
hb050
DC power supply
Label on dc power supply
A label on the dc power supply advises:
CAUTION
THIS EQUIPMENT HAS A
CONNECTION BETWEEN
THE EARTHED CONDUCTOR
OF THE D.C. SUPPLY CIRCUIT
AND THE EARTHING CONDUCTOR.
SEE EARTHING INSTRUCTIONS
To disconnect dc power, unplug the terminal block (shown on
page 3–16). Do not remove the wires from the terminal block
while it is plugged in. If you do, the IDU chassis will not be
grounded.
DC power supply
1027144–0001 Revision D 3–14 Installing indoor RT equipment RT installation
Ground IDU chassis with a dc power supply as follows:
1. Use a 2–hole lug to connect a No. 14 AWG ground wire to
the ground terminals on the front of the power supply
(figure 3-10).
T0006049
DC power supply
Ground terminals

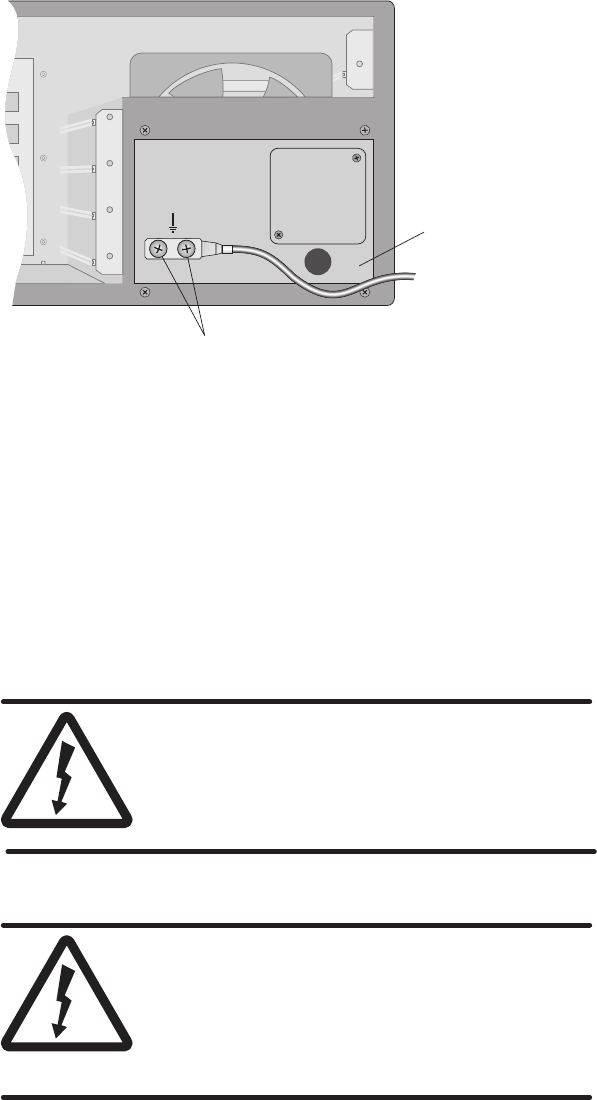

Figure 3-10 Ground terminals on dc power supply
2. Connect the other end of the ground wire to the rack ground
bar. If the IDU chassis is not rack mounted, connect the
ground wire to a ground point such as a water pipe or
building steel.
WARNING
To avoid the risk of electric shock,
remove power from the power circuit
before connecting power cables to the
IDU chassis power supply.
WARNING
The IDU chassis must be solidly bonded to a
low–impedance ground (earth) source.
To avoid the risk of electric shock and/or
equipment damage, do not apply power to
the IDU chassis without a ground reference.
Grounding the dc IDU
chassis
Connecting dc power
1027144–0001 Revision D Installing indoor RT equipment 3–15
RT installation
CAUTION
If the ODU and lightning arrestor are not
connected to the IFL, do not power on the
IDU chassis without first making sure the
IFL is not connected to the IDU chassis.
Failure to observe this instruction could
result in damage to the equipment.
To connect power cables from the dc power source (usually a
rectifier) to the dc power supply, follow the steps below.
1. Measure the voltage level of the power source to verify it
can accommodate the total IDU and ODU power
requirements.
(The IDU supplies power to the ODU through the IFL.)
If the voltage level cannot accommodate the IDU and ODU,
the power source must be upgraded before you can proceed.
2. Remove power from the power circuit.

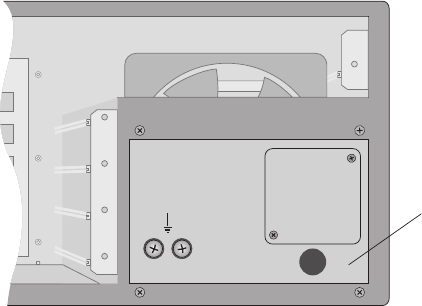

3. Loosen the two Phillips screws from the square terminal
block cover plate on the front of the power supply.

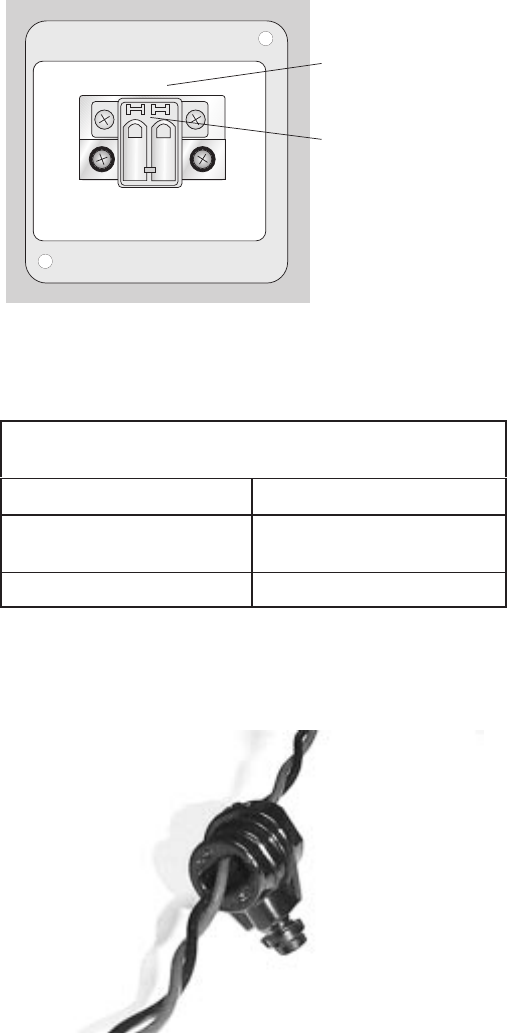

Terminal block
cover plate
(Remove)
T0006051
Conduit opening
4. Rotate the protective plate to expose the terminal block.
1027144–0001 Revision D 3–16 Installing indoor RT equipment RT installation
• Follow steps 5 through 14 to insert the power cable wires into
the power supply terminal block:
5. Unplug the terminal block from the power supply socket.
hb108
Plug-in terminal
block
Power supply
(+)RETURN
(-)48VDC
6. Strip both wires from the power source to about ¼ inch (6
centimeters) from the end.
Note: Wires used with the terminal block must meet
these specifications:
Composition Solid or stranded
Wire cross–sectional
area 0.2 to 2.5 square
millimeters
Rated gauge 12 to 24 AWG
7. Twist the wires as shown in the photo below.
8. Insert both wires through the plastic strain relief bushing
(HNS 9005614–0001).
Strain relief
bushing
T0006062
1027144–0001 Revision D Installing indoor RT equipment 3–17
RT installation
9. Lay the terminal block on a flat surface, with the wire entry
holes facing up.
10. Use a small, flat–blade screwdriver (or similar tool) to press
in the tab above the wire entry hole on the terminal block.
Hold the tab in.
Press and hold
tab to insert wire.

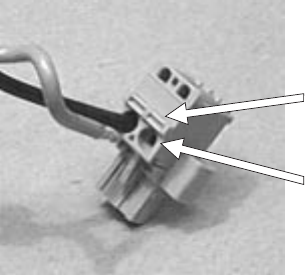

Terminal block with
one wire inserted
Wire entry holes
hb004
11. While holding the tab in, insert the stripped wire end.
Important: Insert the return (+) wire from the dc power source
into the terminal block so it will connect to the power supply
terminal marked (+) Return when the terminal block is plugged
in. Likewise, insert the –48 Vdc (–) wire so it will connect to the
–48 VDC (–) power supply terminal.
12. When the wire is fully inserted, release the tab.
13. Gently tug the wire to make sure it is securely inserted.
14. Repeat steps 10 through 13 for the second wire.
• At this point, both wires are inserted into the terminal block.
1027144–0001 Revision D 3–18 Installing indoor RT equipment RT installation
15. Insert the terminal block through the conduit opening and
guide it up to the socket.
Socket
Terminal block
Conduit opening
hb051
(+)RETURN
(-)48VDC
16. Plug the terminal block into the power supply terminal
socket.
hb046
(+)RETURN
(-)48VDC
Socket
Terminal block
1027144–0001 Revision D Installing indoor RT equipment 3–19
RT installation
17. Snap the strain relief bushing into the conduit opening.
18. Tighten the screw on the strain relief bushing just enough to
hold the wires in place. Do not overtighten.
19. Replace the protective plate and tighten the screws.
• This completes the power connections.
The chassis does not have a power off/on switch. In normal
operation, power is always on. If you need to power off the IDU:
•Break the power circuit at the rack fuse panel,
•Break the power circuit at the external fuse or circuit
breaker panel, or
•Use an optional remote power–off circuit.
This section applies only to dc power circuits.
The circuit from the dc power source (usually rectifiers) to the
IDU chassis must include a circuit breaker or other disconnect
device that meets the following Underwriters Laboratories (UL)
requirements:
To install dc power for the IDU chassis, a readily
accessible disconnect device shall be installed
or should be readily available at the site where
the IDU chassis is installed. The disconnect
device must be a UL–listed circuit breaker rated
at 60 Vdc, 6.3 amperes minimum, 15 amperes
maximum.
Powering off the dc IDU
Remote dc
power–off circuit
1027144–0001 Revision D 3–20 Installing indoor RT equipment RT installation
If the rectifier–to–chassis power circuit does not include a suitable
circuit breaker, you can satisfy the disconnect requirement by
including a remote power–off switch as shown in figures 3-11 and
3-12. If the power circuit already includes a suitable circuit
breaker, skip this section.
1
2
3
4
5
T0006052
DC power cable
Conduit
Remote
power-off
circuit
Rectifier
IDU chassis
Ground
Figure 3-11 The remote power–off circuit (if needed) is
installed between the IDU chassis and dc power source.
1027144–0001 Revision D Installing indoor RT equipment 3–21
RT installation
WARNING
To avoid the risk of electric shock, make
sure the dc power source breaker is off
before installing a remote power–off
circuit. Use a continuity tester to verify
that power is off.
To install a power–off circuit (if needed), follow these steps:
1. Make sure the rectifier breaker switch is off.
2. Install a UL–approved terminal block inside a UL–approved
electrical junction box as shown in figure 3-12.

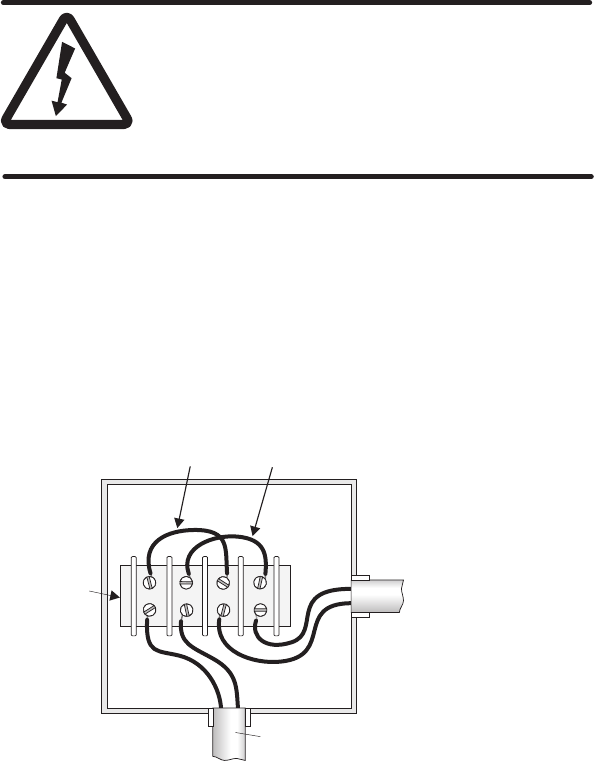

Figure 3-12 Remote power–off circuit
hb001
++
––
Use only UL
listed parts.
Junction
box
Terminal
block
Output from
dc power rectifier
Input to IDU
chassis
Conduit with conduit coupler
Jumper 1 Jumper 2
Use insulated jumpers
connect remote power-off
switch in series.
or
3. Choose one of the following three options:
If you plan to add a power–off switch later, install jumpers 1
and 2, and replace the junction box cover. This completes
the circuit installation.
If you are installing a double–pole remote power–off switch,
use a double–pole, single–throw switch rated at 60 Vdc, 15
amperes (minimum):
In place of jumper 1, wire the switch between the (+)
terminal from the rectifier and the (+) terminal from
the IDU.
In place of jumper 2, and wire the switch between the
(–) terminal from the rectifier and the (–) terminal
from the IDU.
1027144–0001 Revision D 3–22 Installing indoor RT equipment RT installation
If you are installing a single–pole remote power–off switch,
use a single–pole, single–throw switch rated at 60 Vdc, 15
amperes (minimum):
Install jumper 1.
In place of jumper 2, wire the switch between the (–)
terminal from the rectifier and the (–) terminal from
the IDU chassis.
• If you installed a switch, follow steps 4 through 9 to test the
switch:
4. Place the remote power–off switch in the open position.
5. Replace the junction box cover.
6. Turn on the dc breaker.
7. Close the power–off switch. Confirm that the chassis is
receiving power.
8. Open the switch again. Confirm that the chassis is no longer
powered. If the switch does not operate correctly, turn the
rectifier breaker off and make sure the circuit is connected
as shown in figure 3-12.
9. If the switch operates correctly, leave it in the open position
with the breaker off.
Do not install the channel and control module (CCM) or
service–specific interfaces (SSIs) yet.
To test the IDU chassis and power supply, perform these steps
without a CCM or SSIs:
1. If the IDU chassis is dc powered, inspect the power supply
wiring to verify that the polarity is correct.
2. Power on the IDU—with no modules installed; then check
to make sure no breakers have tripped or fuses have blown.
If a breaker trips or fuse blows, be sure to troubleshoot
and correct the problem before proceeding.
Power–on inspection
and test
1027144–0001 Revision D Installing indoor RT equipment 3–23
RT installation
A channel and control module (CCM) must be installed in the top
slot (slot 1) of the IDU chassis. For an RT IDU, the CCM must be
a CCM RT (HNS 1027181–0002), as shown in figure 3-13.
Liquid crystal
display (LCD)
Control pushbuttons
(for LCD)
IFL
interface
Maintenance
port
T0009046
Auxiliary
IF port
TM
BROADBAND
RT CCM
ENTERNEXT PREV

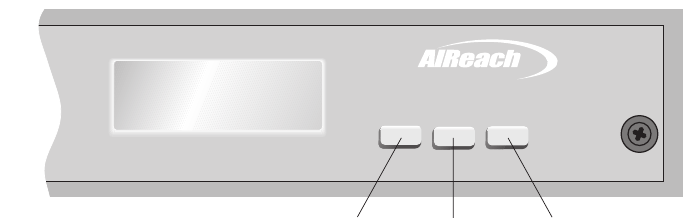

Figure 3-13 CCM RT
The CCM supports the interface modules installed in the IDU
chassis by performing control, bus, upconversion, and
downconversion functions. These modules—SSIs—are described
in section 3.5.
To install the CCM RT, follow the steps below:

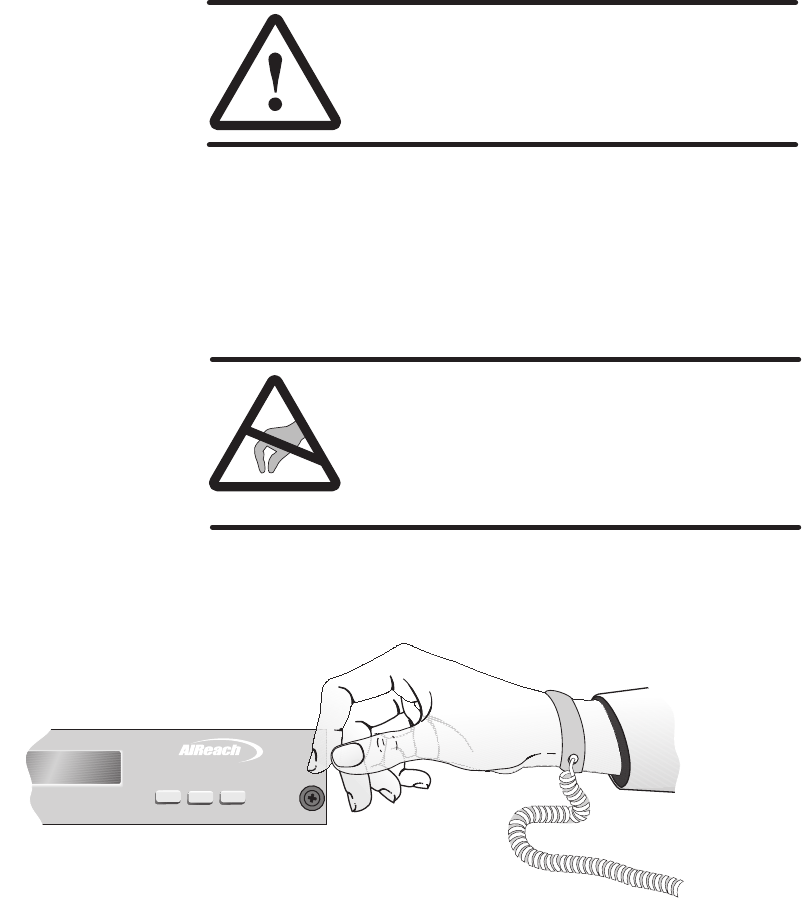

CAUTION
Always wear a new or recently tested
electrostatic discharge (ESD) wrist strap
(figure 3-14) when handling circuit
modules. Failure to use a wrist strap may
result in damage to components.
TM
BROADBAND
ENTERPREVNEXT
T0009051
Wrist
strap
Connect to
IDU chassis
ground terminal.
Figure 3-14 ESD wrist strap
3.4
Installing the CCM
1027144–0001 Revision D 3–24 Installing indoor RT equipment RT installation

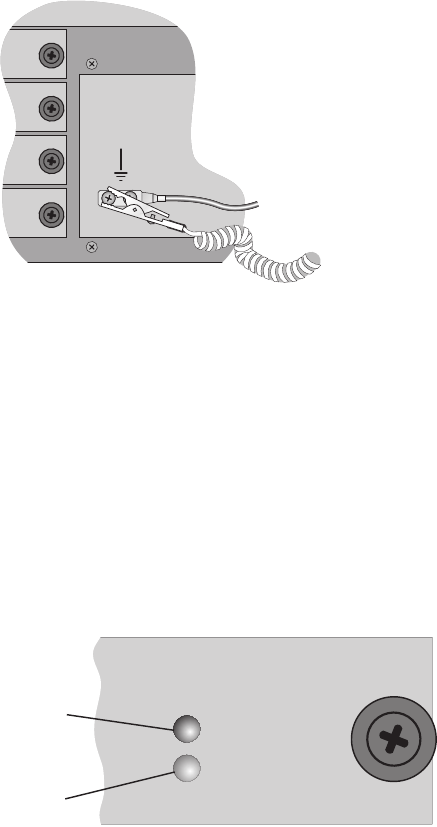

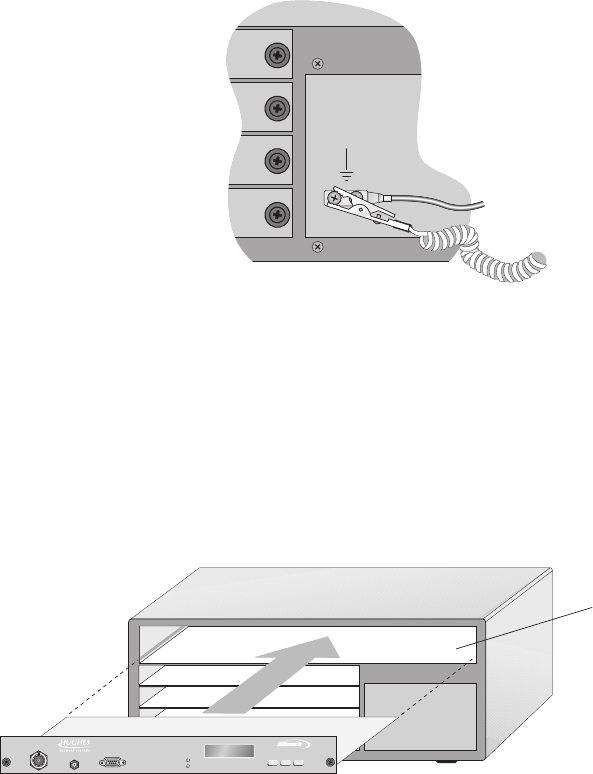

1. Wrap the ESD strap snugly around your wrist and connect
the alligator clip to one of the ground terminals on the IDU
chassis power supply.
T0006053
2. Remove the CCM from its ESD protective packaging.
Retain the packaging in case it is necessary to return the
CCM for repair.

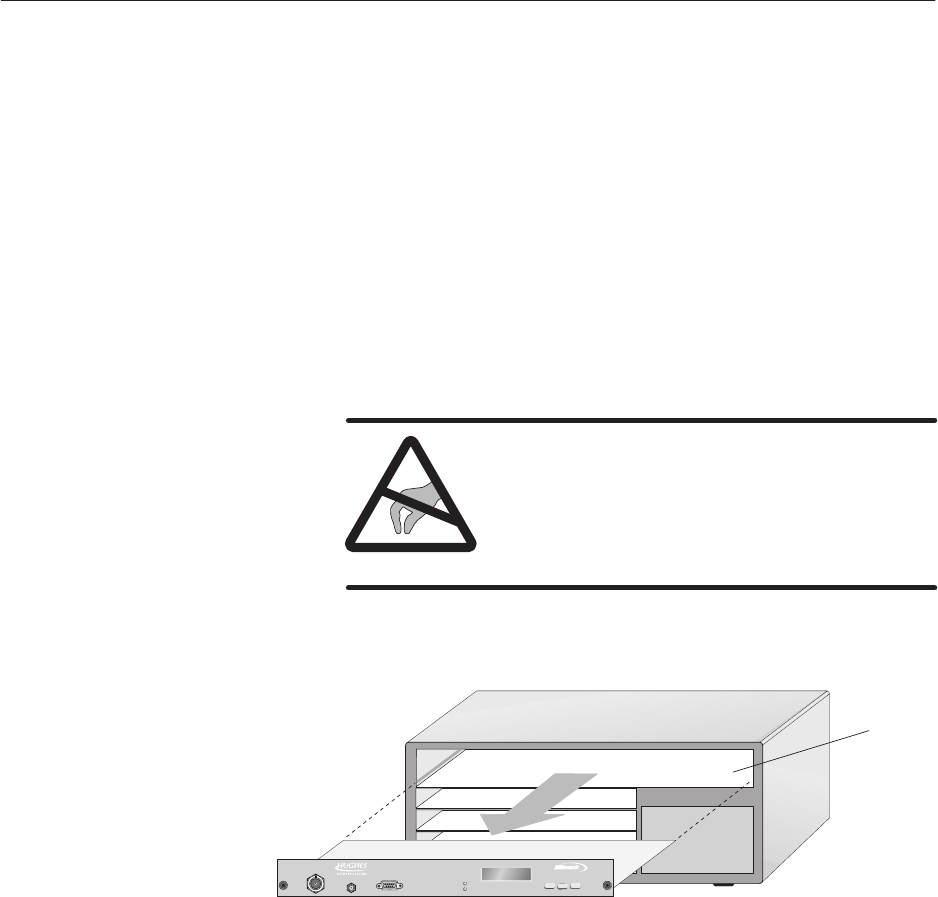

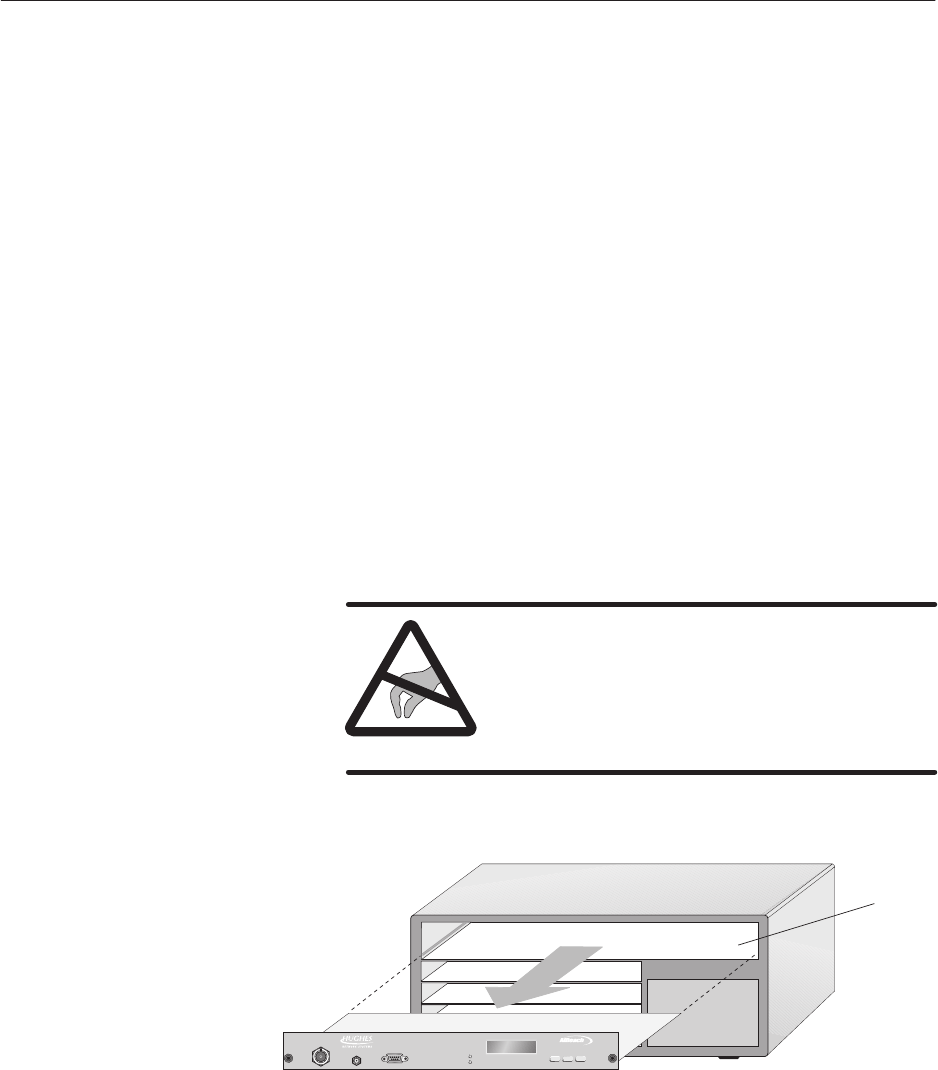

3. Slide the module into the guides on each side of the top
chassis module slot (slot 1) and push it firmly into place
until the CCM front panel is flush with the front of the
chassis.
rt024
CCM slot
TM
BROADBAND
RT CCM
4. Tighten the thumbscrews at each end of the CCM.
To tighten the thumbscrews, push them toward the IDU
chassis and turn them clockwise. To fully tighten the
thumbscrews, use a Phillips screwdriver.
1027144–0001 Revision D Installing indoor RT equipment 3–25
RT installation
Test the CCM for proper operation, as follows:
1. Apply power to the IDU chassis.

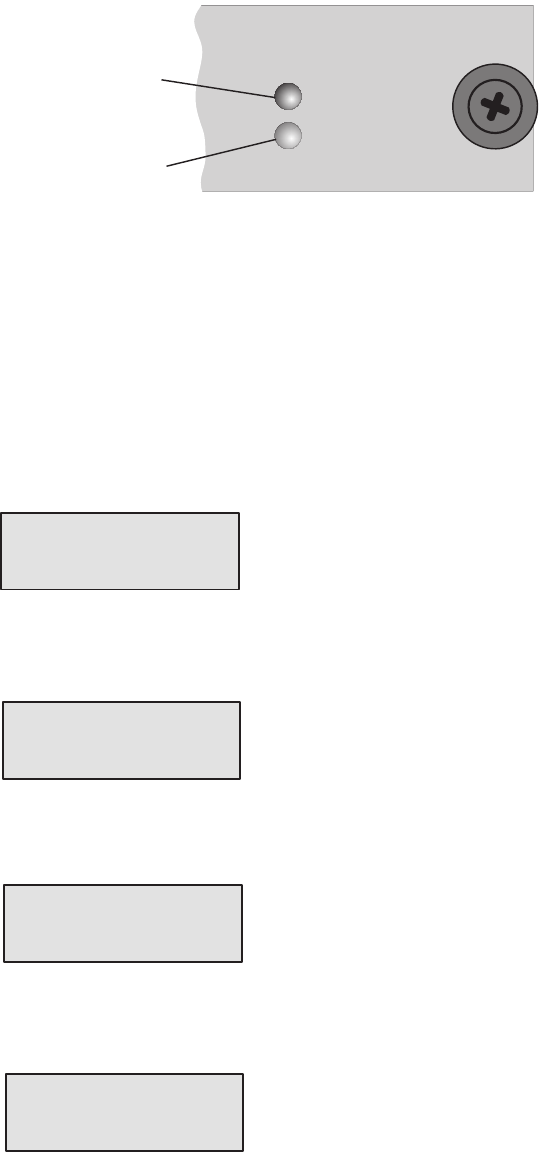

2. Observe the LEDs on the CCM front panel:
OK
STATUS
ALARM
()Red
On: Hardware failure
()Green
On: Normal operation
or CCM startup
T0009052

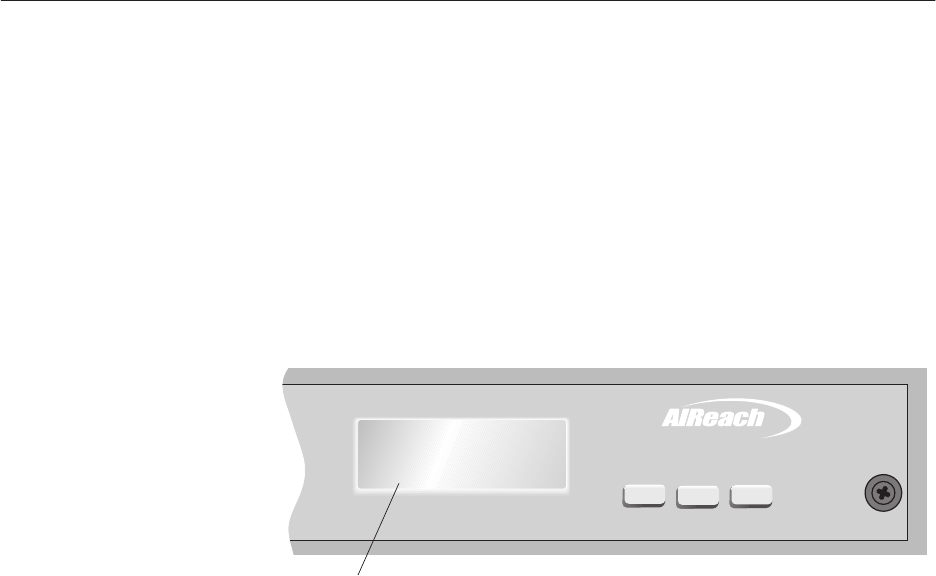

3. Also observe the CCM startup diagnostics (SUDS) on the
CCM’s front panel LCD:
SUDS start on powerup. While they run, the CCM front
panel shows the following messages, in the sequence
shown.
Equipment function is normal when you see the
messages shown below and no failure messages.
Initial powerup
SUDS CPU Reg OK
SUDS DRAM OK
CPU registers and dynamic
RAM are tested.
Timer test
SUDS Timer Test Timers are tested.
Watchdog timer test
SUDS WDT Test The watch dog timer
is tested.
PCI test
SUDS PCI Test The PCI controller is tested.
CCM power–on test
(SUDS)
1027144–0001 Revision D 3–26 Installing indoor RT equipment RT installation
Static dual port RAM test
SUDS SDPRAM Test Static dual port RAM is tested.
Serial port 1 test
SUDS Ser 1 Test Serial port 1 is tested.
Serial port 2 test
SUDS Ser 2 Test Serial port 2 is tested.
Successful test completion
This message indicates that startup diagnostics have
successfully completed:
SUDS Completed
Failure indication
If a failure occurs during any of the tests listed above,
the LCD message sequence stops. The LCD shows the test
that failed on the first line and FAILED (flashing) on the
second line, as in the example below.
SUDS Ser 2 Test
FAILED
This screen indicates that
serial port 2 failed diagnostics.
The LCD remains inactive unless you power the CCM off,
then on. This restarts SUDS.
If any CCM component fails, replace the CCM.
After SUDS are complete, the LCD displays the CCM boot
up sequence. At this point, you only need to verify that
SUDS have completed.
Leave power on while you install the SSIs (next).
1027144–0001 Revision D Installing indoor RT equipment 3–27
RT installation
Service–specific interface modules (SSIs) provide interfaces to
support specific network services. SSI types used depend on the
needs of the customer network.
The following SSIs can be installed in the RT IDU chassis:
•Quad–DS1 (HNS 1027070–0001)
•DS3–TDM (HNS 1027094–0001)
•Universal–DS1 (HNS 3003132–0001)
•DS3–ATM (HNS 3003136–0002)
•DS3–Transparent (HNS 1027094–0002)
The following RT SSIs are currently in development:
•MPEG
•Ethernet 10BaseT/100BaseT
SSIs are installed in slots 2 through 5 in the RT IDU chassis.
For explanation of SSI LEDs, see page 3–29.
The Quad–DS1 SSI, shown in figure 3-15, provides up to a four
T1 or E1 line link between the HT and RT.
QUAD DS1-SSI
OK
STATUS
ALARM
PORT 1 PORT 2 PORT 3 PORT 4
T0090038 SSI status
LEDs
RJ-48X connectors

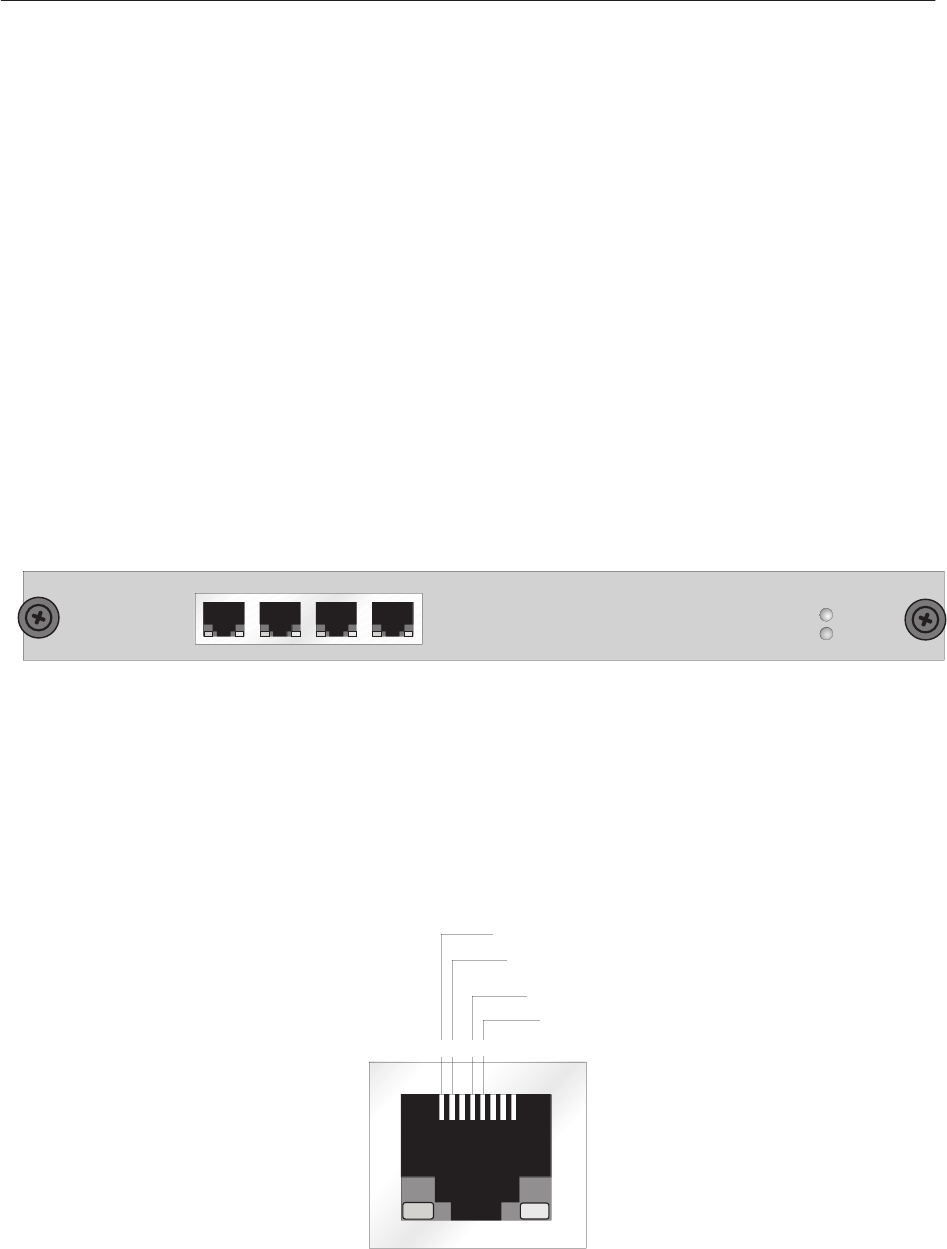

Figure 3-15 Quad–DS1 SSI
The maximum cable length for a Quad–DS1 SSI is 655 feet
(199.6 meters).
Pinouts for the RJ–48X connectors on the Quad–DS1 SSI are
shown in figure 3-16.
Pin 1 - R1 signal (Ring - RX in)
Pin 2 - T1 signal (Tip - RX in)
Pin 4 - R signal (Ring - TX out)
Pin 5 - T signal (Tip - TX out)
Only pins 1, 2, 4, and 5 are used.
T0009040
1245
Figure 3-16 RJ–48X connector pinouts
3.5
SSIs
Quad–DS1
1027144–0001 Revision D 3–28 Installing indoor RT equipment RT installation

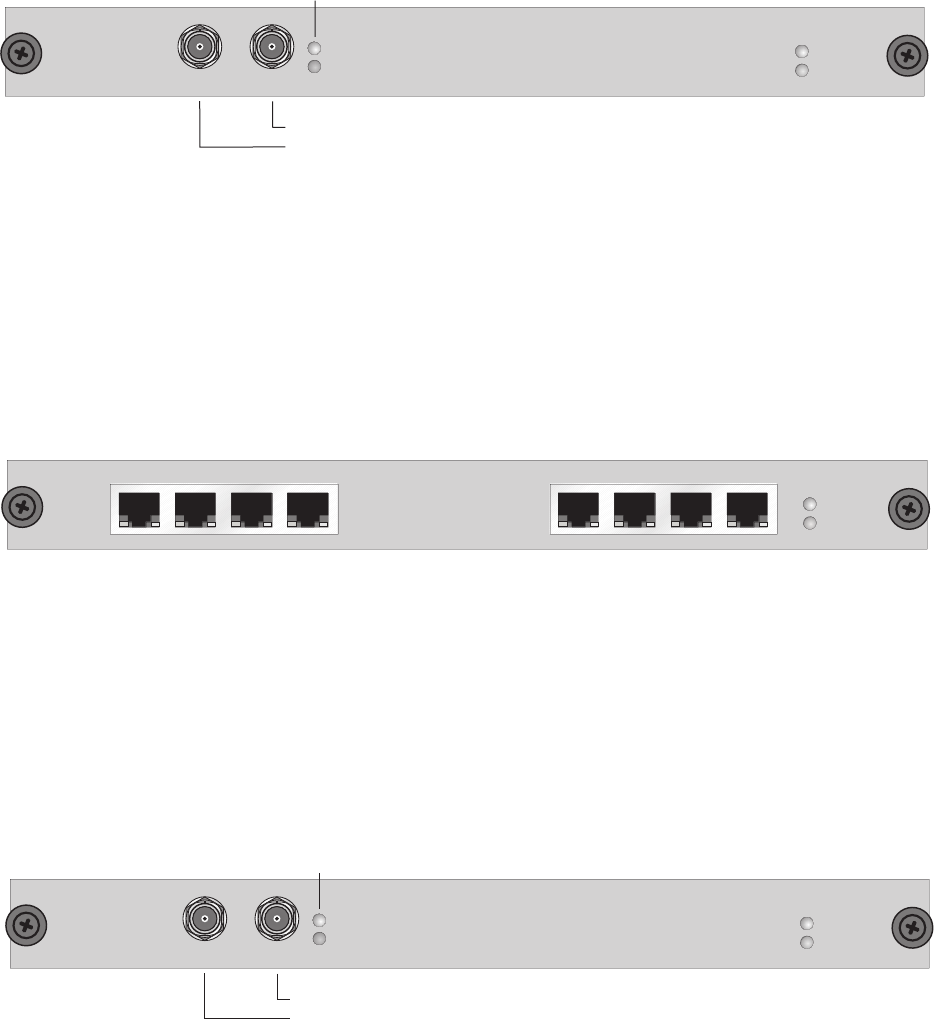

The DS3–TDM SSI, shown in figure 3-17, provides a structured
or transparent D3 service link between the HT and RT.
Tx
ALARM
OK
Rx
TDM SSI
3
DS
T0006022
BNC Rx connector
BNC Tx connector
OK
STATUS
ALARM
SSI status
LEDs
Link status LEDs
Figure 3-17 DS3–TDM SSI
The maximum cable length for a DS3–TDM SSI is 450 feet
(137.2 meters).
The Universal–DS1 SSI, shown in figure 3-18, provides a link to
the HT that can carry up to eight T1 or eight E1 lines.
Figure 3-18 Universal–DS1 SSI
UNIVERSAL SSI
OK
STATUS
ALARM
PORT 1 PORT 2 PORT 3 PORT 4 PORT 5 PORT 6 PORT 7 PORT 8
T0009039
SSI status LEDs
RJ-48X connectors RJ-48X connectors
The maximum cable length for a Universal–DS1 SSI is 655
feet (199.6 meters).
The DS3–ATM SSI, shown in figure 3-19, provides an ATM link
between the RT and the HT.
T0009005
BNC Rx connector
BNC Tx connector
Tx
ALARM
OK
Rx
ATM SSI3DS
OK
STATUS
ALARM
Link status LEDs
SSI status
LEDs
Figure 3-19 DS3–ATM SSI
The maximum cable length for a DS3–ATM SSI is 450 feet
(137.2 meters).
DS3–TDM
Universal–DS1
DS3–ATM
1027144–0001 Revision D Installing indoor RT equipment 3–29
RT installation
The DS3–transparent SSI, shown in figure 3-20, supports an
unencumbered DS3 point–to–point service. The DS3 framing
structure, clocking, and control bits are transported without
visibility to the AIReach Broadband system.
Tx
ALARM
OK
Rx
TRNSP SSI3DS
OK
STATUS
ALARM
T0006023
BNC Rx connector
BNC Tx connector
Link status LEDs
SSI status
LEDs

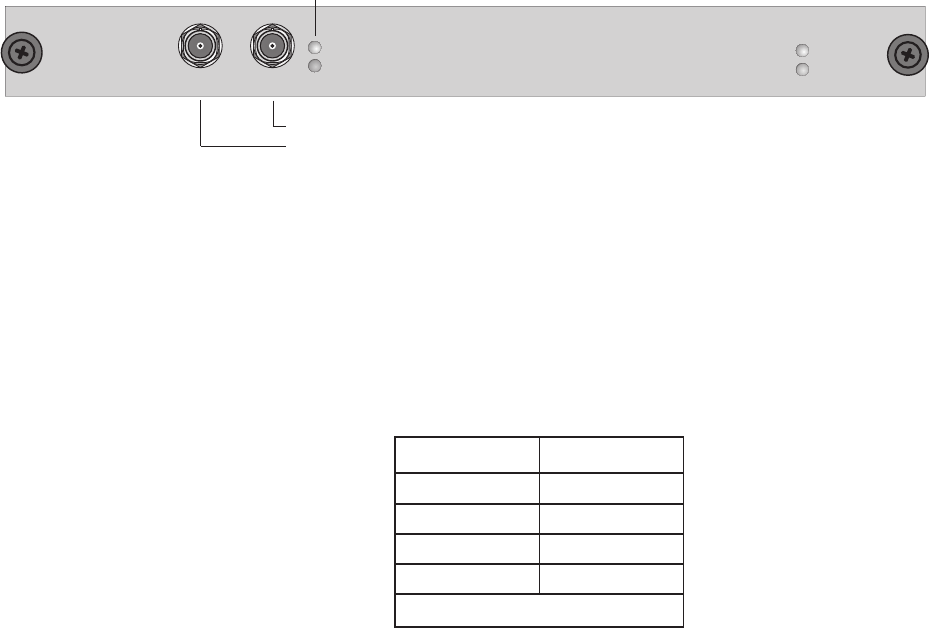

Figure 3-20 DS3–transparent SSI
The maximum cable length for a DS3–transparent SSI is
450 feet (137.2 meters).
SSIs are installed in slots 2 through 5 in the RT IDU chassis and
are numbered SSI 1 through SSI 4, according to their positions in
the chassis:
Chassis slot SSI number
2 1
3 2
4 3
5 4
Slot 1 is occupied by the CCM.
LEDs on SSIs and fiber extender modules (FEMs) show:
•Module status (all SSIs and FEMs)
•Link status (if applicable)
•Line (or port) status (if applicable)
The subsections below show which LEDs are included on each
SSI or FEM and explain the meaning of the various LED on–off
conditions.
DS3–transparent
Numbering of chassis
slots and SSIs
SSI (and FEM) LEDs
1027144–0001 Revision D 3–30 Installing indoor RT equipment RT installation

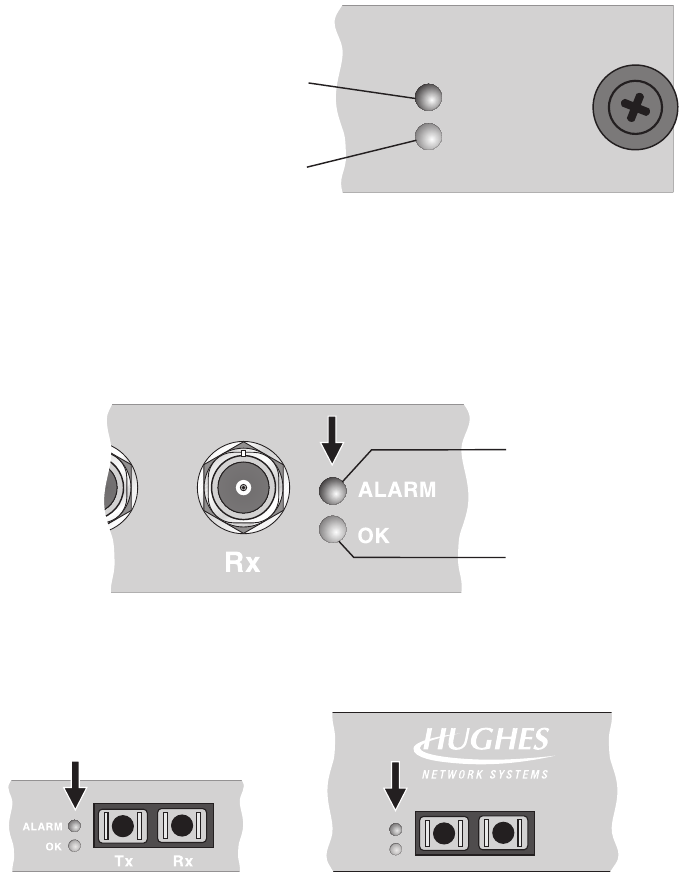

Module status LEDs
Included on: All SSIs and FEMs
OK
STATUS
ALARM
()Red
On
Flashing
: Hardware failure
:TDM bus
communication failure
()Green
On: Normal operation
or module startup
T0009035
Link status LEDs
Included on: DS3–TDM, DS3–ATM, and DS–3 transparent SSIs
IDU FEM and EIDU FEM
LED indications are the same for SSIs and FEMs.
T0009036
IDU FEM
OK
ALARM
Tx Rx
EIDU FEM
Arrows point to
link status LEDs.
()Red
On: Alarm
()Green
On: Normal operation
SSI
1027144–0001 Revision D Installing indoor RT equipment 3–31
RT installation

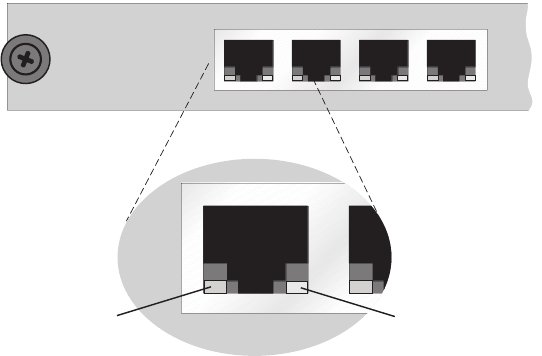

Line status LEDs
Included on: Quad–DS1 and Universal DS–1 SSIs
T0009037
PORT 1 PORT 2 PORT 3 PORT 4
PORT 1 PO
Both LEDs off:
Port in service -
no alarms present
()
: Port in service - yellow alarm or
test condition present
Yellow
On
()
: Port in service - red alarm
(Loss of signal or loss of frame)
Red
On
1027144–0001 Revision D 3–32 Installing indoor RT equipment RT installation
Look at the hub network schematic or other configuration
document to determine:
•How many SSIs to install
•What type(s) of SSIs to install
•Which SSI to install in each IDU chassis slot
Follow these steps to install SSIs:
CAUTION
To maintain proper airflow and protect
against RF interference, keep any empty
chassis slots covered with blank panels.
1. If a blank panel is installed in the slot where you will install
the SSI, loosen the thumbscrews on the blank panel and
remove it.
Keep the blank panel for future use.
CAUTION
Always wear a new or recently tested
electrostatic discharge (ESD) wrist strap
(figure 3-21) when handling circuit
modules. Failure to use a wrist strap may
result in damage to components.
Figure 3-21 ESD wrist strap
TM
BROADBAND
ENTERPREVNEXT
T0009051
Wrist
strap
Connect to
IDU chassis
ground terminal.
SSI physical
configuration
Installing SSIs
1027144–0001 Revision D Installing indoor RT equipment 3–33
RT installation
2. Wrap the ESD strap snugly around your wrist and connect
the alligator clip to one of the ground terminals on the front
of the IDU chassis power supply.
T0006053
3. Remove the SSI from its ESD protective packaging.
Retain the packaging in case it is necessary to return the
SSI for repair.
4. Slide the SSI into the guides on each side of the chassis SSI
slot and push it firmly into place until the front of the SSI is
flush with the front of the IDU chassis.
5. When the SSI receives power through contact with the IDU
backplane, it automatically initiates startup diagnostics.
Watch the LEDs to see the diagnostic results:
OK
STATUS
ALARM
()Red
On
Flashing
: Hardware failure
:TDM bus
communication failure
()Green
On: Normal operation
or module startup
T0009035
6. Tighten the thumbscrews at each end of the SSI.
To tighten the thumbscrews, push them toward the IDU
chassis and turn them clockwise. To fully tighten the
thumbscrews, use a Phillips screwdriver.
7. Repeat steps 1 through 6 for each SSI.
8. If any SSI slots are empty, cover the slot with a blank panel.
(If you need additional blank panels, order HNS part
1026730–0001.)
9. Remove power from the IDU chassis.
This completes the IDU installation.
1027144–0001 Revision D 3–34 Installing indoor RT equipment RT installation
If more than 4 SSIs are required at a single site, or SSIs need to be
physically distributed (on different floors, for example), one or
more expansion IDUs (EIDUs) may be installed, at remote sites
only. A single IDU can accommodate up to 4 EIDUs (16 SSI slots)
as shown in figure 3-22.
Fiber extender modules (FEMs) and multimode fiber cable are
used to link EIDUs to the IDU. The FEM links carry both ATM
and TDM traffic.
Refer to the site plan to determine how many EIDUs are to be
installed and where they are to be installed.
ODU
EIDU
FEM
4 SSIs
EIDU
FEM
4 SSIs
EIDU
FEM
4 SSIs
EIDU
FEM
4 SSIs
(In CCM slot)
IFL
Fiber
links
Maximum
link
distance:
2250 feet
(685.8
meters)
CCM
(In SSI slots)
IDU
4 FEMs
rt065
Figure 3-22 EIDUs used to distribute
SSIs throughout a remote site building
The EIDU can be used on a tabletop or installed in a 19–inch
(48.3–centimeter) rack. With optional adapter brackets, the EIDU
can also be installed in a 23–inch (58.4–centimeter) rack.
Note: HNS does not provide a rack for EIDU installation.
If you are installing the EIDU in a rack, refer to the prerequisites,
safety guidelines, and instructions provided on pages 3–4
through 3–7.
3.6
Installing expansion
IDUs (EIDUs)
Mounting options
Rack mounting
1027144–0001 Revision D Installing indoor RT equipment 3–35
RT installation
EIDU power supply specifications and requirements are the same
as those for the IDU chassis. To connect power to the EIDU
chassis, refer to section 3.3.
The IDU–EIDU subsystem includes two types of fiber extender
modules (FEMs), which facilitate the fiber links between the IDU
and the EIDU:
•IDU FEMs – IDU FEMs provide the interface on the IDU
for the link to/from the EIDU (as shown in figure 3-22).
IDU FEMs are installed in SSI slots in the IDU chassis, as
shown in figure 3-23. IDU FEMs and SSIs may be installed
in the same chassis.
T0009056
IDU
IDU FEM
SSI
slots
Figure 3-23 IDU FEM (installed in SSI slot)
•EIDU FEM – The EIDU FEM provides the interface on the
EIDU for the fiber link to/from the IDU (as shown in figure
3-22).
The EIDU FEM is installed in the CCM slot of the EIDU
chassis, as shown in figure 3-24.
T0009057
CCM slot
EIDU
EIDU FEM
Figure 3-24 EIDU FEM (installed in CCM slot)
Power supplies
Two type of FEMs
1027144–0001 Revision D 3–36 Installing indoor RT equipment RT installation
Figure 3-25 shows an IDU FEM and an EIDU FEM, their SC
connectors, and other front panel features.
IDU FEM
OK
STATUS
ALARM
OK
ALARM
Tx Rx
TM
BROADBAND
EIDU FEM
ENTERNEXT PREV
OK
STATUS
ALARM
OK
ALARM
Tx Rx
Liquid crystal
display (LCD)
Control pushbuttons
(for LCD)
Maintenance
port
T0009041
IDU FEM
EIDU FEM
Dual SC connector
Dual SC connector
Link status
LEDs
FEM status
LEDs
(Fits into SSI slot)
(Fits into CCM slot)

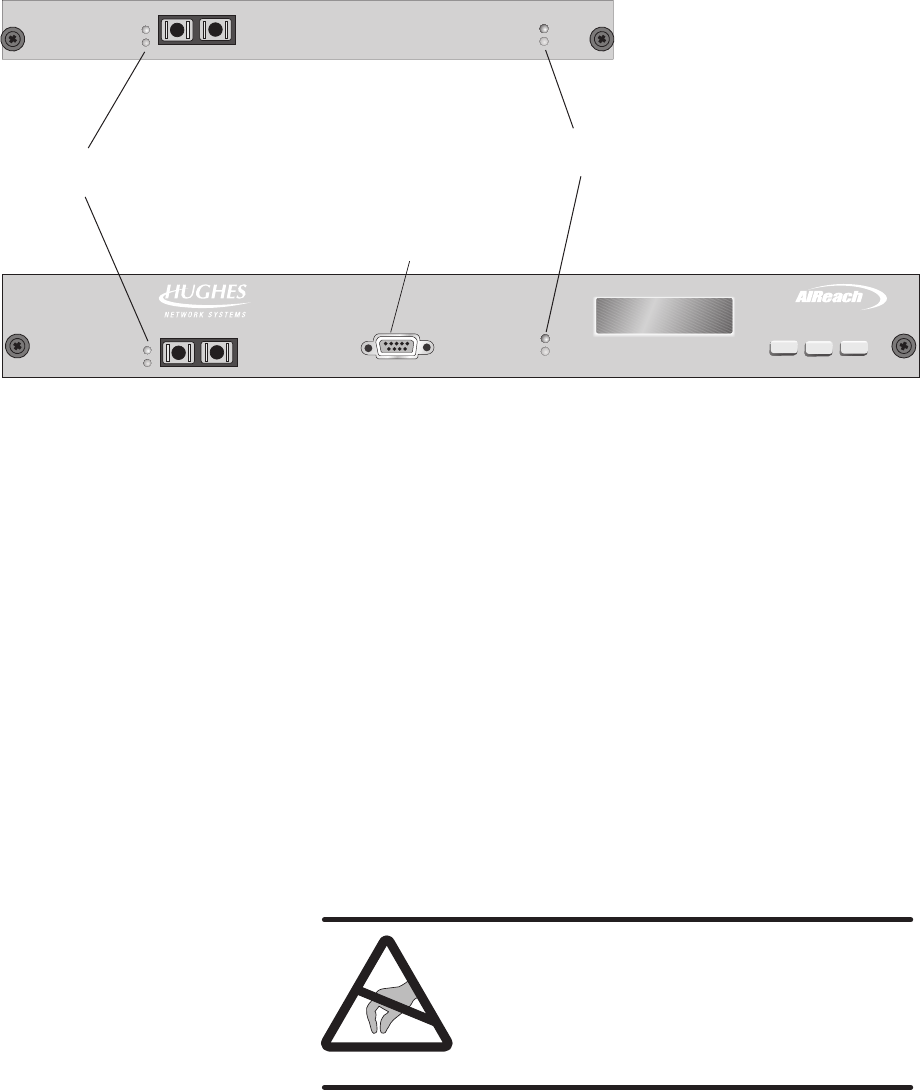

Figure 3-25 IDU FEM and EIDU FEM
For explanation of the FEM LEDs, see page 3–29.
Each EIDU requires an EIDU FEM, which connects to an IDU
FEM. (This is illustrated in figure 3-22.) To install an IDU FEM or
EIDU FEM:
1. If a blank panel is installed in the slot where you will install
the FEM, loosen the thumbscrews on the blank panel and
remove it.
CAUTION
Always wear a new or recently tested
electrostatic discharge (ESD) wrist strap
(figure 3-26) when handling circuit
modules. Failure to use a wrist strap may
result in damage to components.
Installing FEMs
1027144–0001 Revision D Installing indoor RT equipment 3–37
RT installation
Figure 3-26 ESD wrist strap
rt063
Wrist
strap
Connect to IDU or
EIDU chassis
ground terminal.
2. Wrap the ESD strap snugly around your wrist and connect
the alligator clip to one of the ground terminals on the front
of the chassis power supply.
3. Remove the FEM from its ESD protective packaging.
Retain the packaging in case it is necessary to return the
FEM for repair.
4. Slide the FEM into the guides on each side of the chassis
slot and push it firmly into place until the front of the FEM
is flush with the front of the chassis.

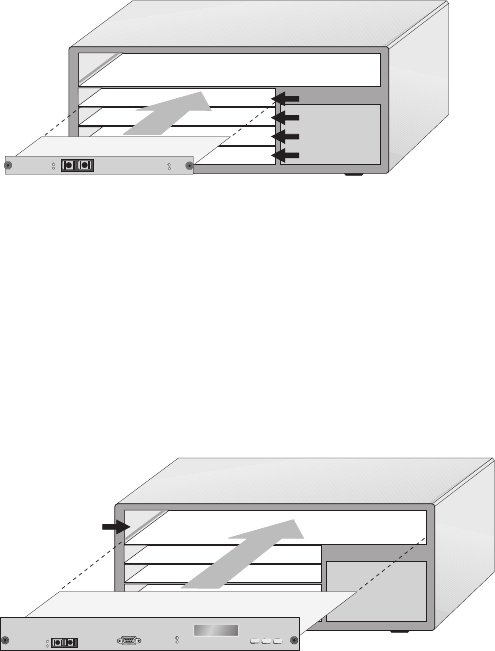

T0009058
IDU
EIDU
EIDU FEM
IDU FEM
CCM slot
SSI
slots
5. Tighten the thumbscrews at each end of the FEM.
To tighten the thumbscrews, push them toward the IDU
chassis and turn them clockwise. To fully tighten the
thumbscrews, use a Phillips screwdriver.
6. Repeat steps 1 through 5 for each FEM.
1027144–0001 Revision D 3–38 Installing indoor RT equipment RT installation
7. If any chassis slots are empty, cover the slot with a blank
panel.
(If you need additional blank panels, order HNS part
1026730–0001.)
8. Connect each EIDU FEM to an IDU FEM, as illustrated in
figure 3-22.
If you are installing multiple EIDUs, you can connect any
EIDU FEM to any IDU FEM.
Use 62.5/125–micrometer multimode optical fiber cable
terminated with SC connectors to connect the FEMs. An SC
connector is shown below.
SC connector
T0009054
Connect TX to RX:
IDU TX port to EIDU RX port
EIDU TX port to IDU RX port
RT INSTALLATION
1027144–0001 Revision D Installing IFL cables 4–1
RT installation
Chapter 4
Installing IFL cables
This chapter includes:
•Handling materials – page 4–2
•IFL cable specifications– page 4–3
•Overview: IFL plan – page 4–4
•Determining the IFL cable route – page 4–5
•Penetrating the roof – page 4–6
•Installing the penetration sleeve – page 4–7
•Installing the IFL cable inside the building – page 4–8
•Installing the RT lightning arrestor – page 4–9
•Installing the IFL cable on the roof – page 4–13
•Testing the IFL cable – page 4–14
Appendix C covers IFL cable termination in detail.
DANGER
Do not work on a ladder or roof without
first reading the safety warnings on page x
of this manual. Failure to observe these
warnings could result in personal injury or
death.
Note: The lightning arrestor and penetration sleeves referred to
and illustrated in these instructions are not specific parts available
from HNS. They are presented to illustrate a typical solution for
providing grounded lightning arrestor protection for one or more
IFL cables. Other solutions are acceptable as long as they comply
with the IFL grounding requirements specified in the Hub and
Remote Terminal Site Preparation Guide.
1027144–0001 Revision D 4–2 Installing IFL cables RT installation
Depending on the installation location, you may have to hoist the
mount kit, ballast (concrete blocks), IFL cable, and tools to the
rooftop as shown in figure 4-1. Using two or more people for this
task will save considerable time.
Figure 4-1 Hoisting materials to the installation location
T0006060
WARNING
If you need to hoist materials to the
installation location, observe these
precautions to avoid personal injury:
•Use a rope strong enough to support
all of the materials that need to be
hoisted.
•Never stand under the rope while
materials are being hoisted.
•Hoist one concrete block at a time.
•Pass the rope through the
center
hole
of each concrete block. If you use the
hole on either end, the end can break
off, allowing the concrete block to fall.
•Be advised that the contents of the
mount kit can fall through the end of
the box if the box is tilted—especially
if the box has been damaged.
•Use a back brace.
If possible, do not hoist the ODU transceiver and antenna on a
rope. If possible, carry these components in a backpack or padded
bag.
4.1
Handling materials
1027144–0001 Revision D Installing IFL cables 4–3
RT installation

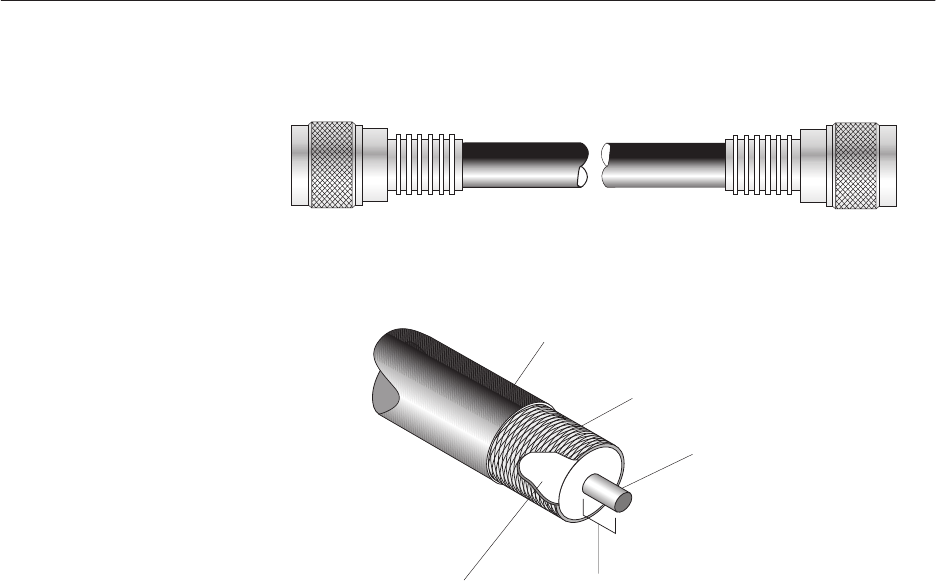

The intrafacility (IFL) cable specified for AIReach Broadband
installations is a Type 3 VSAT coaxial cable, HNS 1010812–0001
(1,000–foot / 305–meter spool). This cable is non plenum, CMG
UL/C (UL) approved. An acceptable alternative is LMR–400
plenum cable (available from Times Microwave Systems,
Wallingford, CT). For additional specifications, see the Hub and
Remote Terminal Site Preparation Guide.
The following Underwriters Laboratories (UL) requirement
applies to the IFL cable:
The IFL cable must be installed in a
metal conduit and grounded according
to NEC article 800–40. If the IFL cable will
not
be installed in a metal conduit, the
cable must be a plenum cable, UL/C(UL)
approved, with a CMR rating (or higher).
For specific grounding instructions, see Grounding the lightning
arrestor in section 4.8. Refer also to the grounding guidelines
included in the Hub and Remote Terminal Site Preparation Guide.
4.2
IFL cable
specifications
1027144–0001 Revision D 4–4 Installing IFL cables RT installation
Figure 4-2 shows the IFL and lightning arrestor. A lightning
arrestor is required on the roof at the IFL building
penetration point.
Figure 4-2 shows how the IFL cable is installed in two segments
to accommodate the lightning arrestor:
•One segment from the IDU to the rooftop lightning arrestor
•One segment from the lightning arrestor to the ODU
ODU
(not installed yet)
T0009059
IFL
(cable
segment 1)
Roof
IDU
(Not to scale)
IFL
(cable segment 2)
Lightning arrestor
assembly
RF
arrestor
Figure 4-2 IFL plan
Because the IFL cable is installed in two segments, it is cut and
terminated (with an N–type connector) in four locations, as shown
in figure 4-3.
N
ODU
IFL
Lightning
arrestor
T0009002
IFL
Roof
IDU
N
N
N
N= N connector location

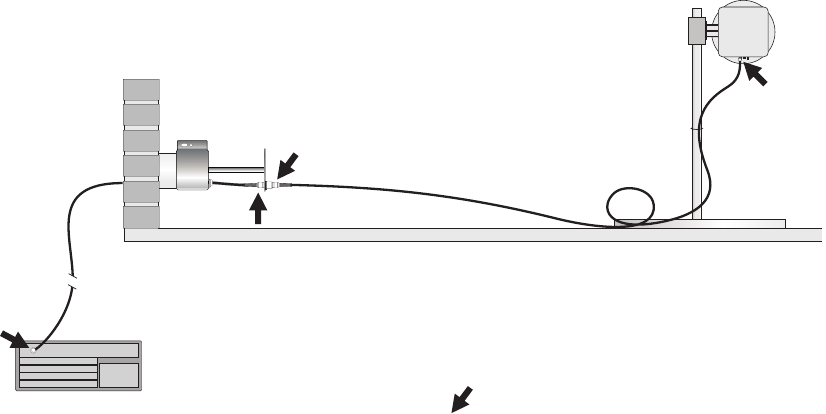

Figure 4-3 Four locations where N connectors are installed
4.3
Overview: IFL plan
IFL connections
1027144–0001 Revision D Installing IFL cables 4–5
RT installation
Detailed instructions for installing the IFL and lightning arrestor
are included in the following sections.
Determine the IFL cable route, from ODU to IDU. Consider the
guidelines below. Every building and rooftop is unique; for this
reason, some of these guidelines may not apply to your
installation:
•The most important considerations are the ODU and IDU
locations and the building entry point. The entry point
should be as close as possible to the ODU. Refer to the RT
rooftop drawings. (See also page 5–3.)
•The maximum IFL cable length is 1000 feet (305 meters).
•Where possible, use existing conduit.
•You must use a pull box to facilitate pulling cables through
conduits if routing cable through bends totaling more than
360°.
•If existing conduits can not be used and the cable will be
exposed, refer to building codes to determine proper cable
insulation type. For example, plenum rated cable must be
used if cable will be run above suspended ceilings.
•If you are installing the IFL cable(s) inside a conduit
that contains power cables, you must use plenum–rated
cable.
•Look for cable routes that will be easily accessible, such as
stacked telco closets etc.
•Older buildings may not have stacked telco closets. You
may have to route the cable back and forth, from one side of
the building to the other.

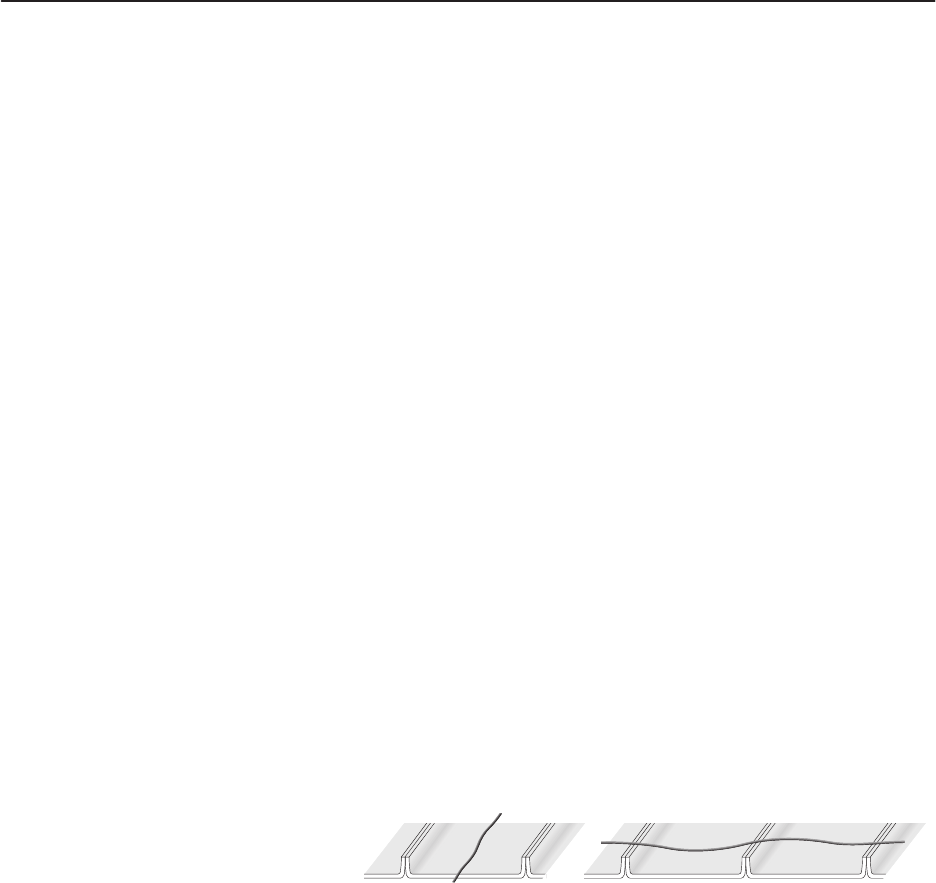

•Never run the IFL cable across corrugated roofing. Run the
cable in the corrugation trough:
hb009
Roof
Yes No
Cable
4.4
Determining the IFL
cable route
1027144–0001 Revision D 4–6 Installing IFL cables RT installation
Follow the steps below to drill a hole for the IFL cable only when
there is not an existing entry you can use.
1. Go to the roof.
2. Determine where the IFL cable will penetrate the roof.
Refer to the RT rooftop drawings.
Before you drill, consider these guidelines:
•Important: Do not penetrate any part of the building
structure without first making sure you have the explicit
permission of the customer and building owner.
•Horizontal penetration is preferable to vertical penetration.
(A horizontal hole is less likely to leak.)
•Take care not to destroy cabling or wiring under the roof or
inside the wall.
•Round penetration holes are preferred over square holes.
(They are easier to make and seal.)
3. Drill a 2–inch (51–millimeter) diameter hole at the building
penetration point.
Building
penetration
point
Building surface
2 inches
(51 mm)
rt038
4.5
Penetrating the roof
1027144–0001 Revision D Installing IFL cables 4–7
RT installation
The IFL cable must be routed through a penetration sleeve before
it is connected to the lightning arrestor. The lightning arrestor is
attached to the penetration sleeve after cable installation.
1. Use twelve screws to attach the RT penetration sleeve
(sleeve and coupling) to the building surface at the building
penetration point. See figure 4-4.
The type of screw used depends on the roof thickness and
surface composition. The screws must hold the sleeve
securely.
Note: If space is limited, use a 90° sweep, as illustrated in
figure 4-4.
Screws
(12 total)
Building
penetration
point
T0006059
Penetration sleeve
with sweep
Sweep

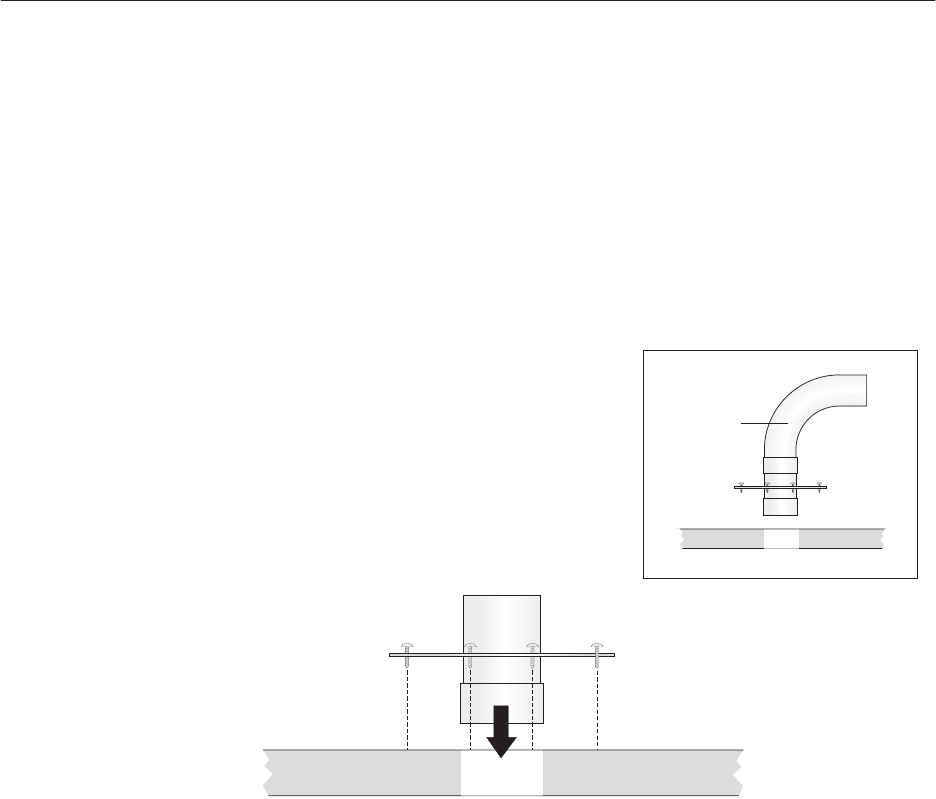

Figure 4-4 Installing the RT penetration sleeve
2. Weatherproof the penetration sleeve by applying silicone
caulk or other weatherproofing material to the bolt hole
areas and the surface of the sleeve plate.
Note: Silicone caulk may not be suitable for certain types
of roofs.
4.6
Installing the
penetration sleeve
1027144–0001 Revision D 4–8 Installing IFL cables RT installation
You install the IFL cable in two segments, as shown in figure 4-2
(page 4–4). To install the first cable segment—from the IDU
chassis location to the lightning arrestor—follow the instructions
and guidelines below. Because every building has unique features,
it is not possible to give exact instructions.
1. Measure the cable run length from the IDU chassis location
to the lightning arrestor location (IFL building entry point).
Allow for routing around obstacles and a service loop
(excess cable, in case there is any reason to later cut and
re–terminate the cable).
2. Run the cable from the IDU chassis location, through an
existing conduit if possible, through the RT penetration
sleeve (figure 4-4), to the lightning arrestor location.
Use a stand so the cable spool spins freely as it is pulled.
Leave a service loop.
CAUTION
Avoid making sharp bends in the IFL cable.
The minimum bend radius for IFL cable is 2
inches (51 millimeters). Sharper bends may
cause permanent damage to the cable.
3. Cut the cable at the IDU chassis location and at the
lightning arrestor.
Important: Cut the cable 2 feet (0.6 meters) beyond the
lightning arrestor location (building penetration point).
4. Terminate the cable end at the IDU chassis location with an
N–type connector. For detailed instructions for connecting
an N connector, see appendix C.
Important: Sound IFL cable connections are critical for
proper operation of the AIReach Broadband system.
Therefore, be very careful in terminating the cable. Refer to
the detailed instructions in appendix C if necessary.
Attach N connectors after you route and install the
cable, not before.
Note: The IFL cable installation is completed in section 4.9.
4.7
Installing the IFL
cable inside the
building
1027144–0001 Revision D Installing IFL cables 4–9
RT installation
All AIReach Broadband IFL cables must connect to a
grounded lightning arrestor (provided by HNS) at the building
penetration point, as shown in figure 4-2 (page 4–4) and
explained in this section.
WARNING
To help avoid death, injury, or damage from
a lightning strike, you
must
install a
lightning arrestor where the IFL enters the
building.
Figure 4-5 identifies the components of a typical RT lightning
arrestor. The design illustrated here (see also figure 4-6) can
accommodate one or two IFL cables for up to two RTs.
Figure 4-5 Typical RT lightning arrestor
Restraining
fitting
RF arrestor
rt033
Ground bar
Go to the roof to install the lightning arrestor.
4.8
Installing the RT
lightning arrestor
1027144–0001 Revision D 4–10 Installing IFL cables RT installation
Follow these steps to route the IFL cable through the lightning
arrestor and then connect the cable to the RF arrestor:
1. Attach an RF arrestor to the arrestor body with a 3/4–inch
(19–millimeter) nut. See figure 4-6.
The illustrated lightning arrestor design can accommodate
one or two RF arrestors, to provide protection for one or
two IFL cables.

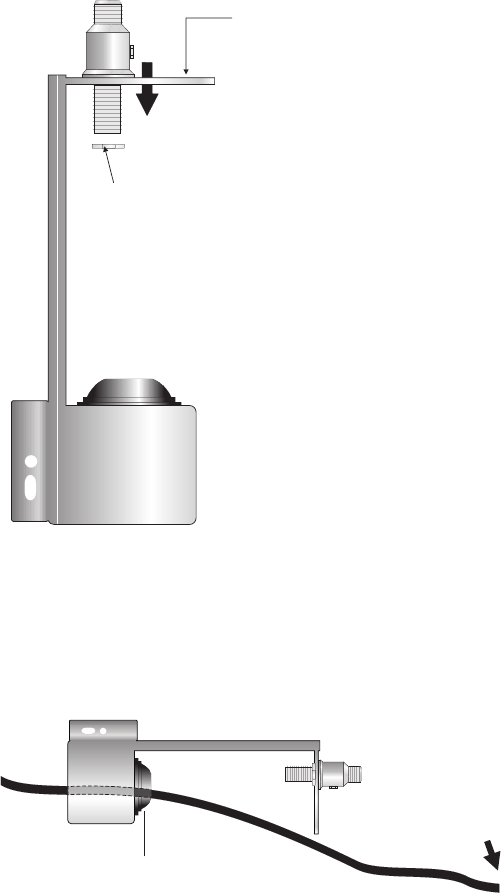

Figure 4-6 Attaching the arrestor to the arrestor body
rt034
3/4-inch
(19-millimeter)
nut
Location of second arrestor, if 2
IFLs are installed.
2. Route the cable from the IDU chassis location through the
base of the lightning arrestor and the restraining fitting, as
shown in figure 4-7.
Figure 4-7 Routing the IFL cable
T0009003
From
IDU
Restraining
fitting
Terminate with
N connector
here.
3. Terminate the end of the IFL cable with an N connector.
For detailed instructions for connecting an N connector, see
appendix C.
4. Connect the cable to the RF arrestor, as shown in figure 4-8.
Connecting the IFL
cable to the RF arrestor
1027144–0001 Revision D Installing IFL cables 4–11
RT installation

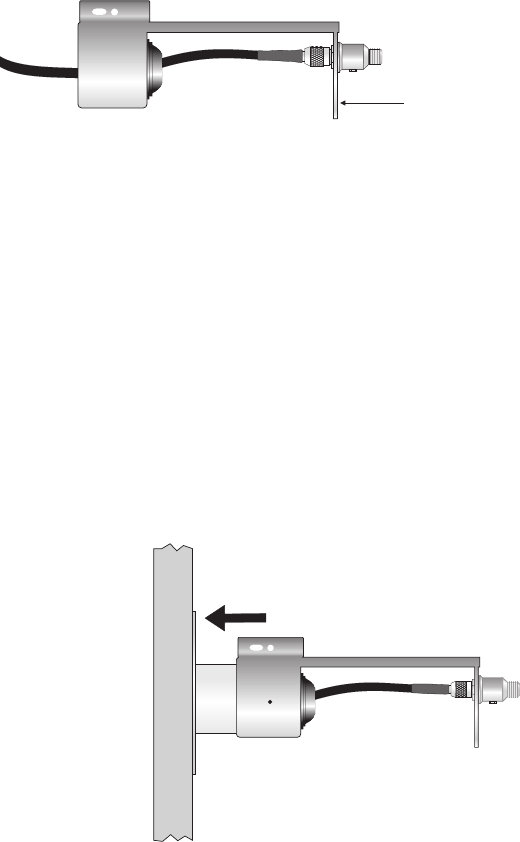

Figure 4-8 Connecting the IFL cable to the arrestor
rt036
Location of second arrestor,
if 2 IFLs are installed.
5. Working from inside the arrestor body, use a wrench to
tighten the restraining fitting.
6. If you are installing a second IFL cable, repeat steps 1
through 5.
Attach the lightning arrestor to the penetration sleeve:
1. Slide the lightning arrestor over the sleeve, as shown in
figure 4-9.
2. Fasten the lightning arrestor to the sleeve with a screw.
Figure 4-9 Attaching the lightning arrestor to the sleeve
rt037
Slide the lightning arrestor
over the sleeve.
Attaching the arrestor
to the penetration
sleeve
1027144–0001 Revision D 4–12 Installing IFL cables RT installation
Follow these steps to ground the lightning arrestor:
1. Connect one end of the ground cable (No. 6 AWG or
greater, green) to the lightning arrestor ground bar, as
shown in figure 4-10.
Figure 4-10 RT lightning arrestor grounding connections
rt051
To ground
point
Ground cable
No. 6 AWG or greater
Single-hole compression lug
Ground bar
2. Route the ground cable to the ground point.
When routing the ground cable, you must:
•Secure the ground cable at 5–foot (1.5–meter)
intervals.
•Keep the ground cable at least 3 feet (0.9 meters)
away from non–grounded metal objects.
•Make sure all bends in the cable have a sweeping
radius of more than 8 inches (20.3 centimeters).
3. Connect the RT lightning arrestor to the same ground
(reference) point as the ODU ground. See section 6.10.
4. Apply anti–oxidant (HNS 9008224–0002) to each ground
lug.
5. Apply 1/2–inch (13–millimeter) heat shrink tubing (HNS
9007488–0005) to each ground lug after the connection is
complete.
Important: You must slip the heat shrink onto the cable
before you make the connections.
Grounding the RT
lightning arrestor
1027144–0001 Revision D Installing IFL cables 4–13
RT installation
To install the second IFL cable segment—from the lightning
arrestor to the ODU—follow the instructions and guidelines
below. Because every rooftop has unique features, it is not
possible to give exact instructions.
Connect the IFL to the lightning arrestor as follows:
1. Measure the cable run length from the lightning arrestor to
the ODU. Allow for routing around obstacles and a service
loop (excess cable, in case there is any reason to later cut
and re–terminate the cable).
2. Run the cable from the lightning arrestor to the ODU
location, and leave enough cable for a service loop.
For now, you must leave the cable unconnected because the
ODU is not installed yet. You will connect the IFL to the
ODU later, after the ODU is installed.
CAUTION
Avoid making sharp bends in the IFL cable.
The minimum bend radius for IFL cable is 2
inches (51 millimeters). Sharper bends may
cause permanent damage to the cable.
3. Cut the cable at the lightning arrestor and at the ODU.
4. Terminate both ends of the cable segment with N
connectors. For detailed instructions for connecting N
connectors, see appendix C.
4.9
Installing the IFL
cable on the roof
Connecting to the
lightning arrestor
1027144–0001 Revision D 4–14 Installing IFL cables RT installation
5. Connect the IFL cable to the RF arrestor, as shown in figure
4-11.
You connect the other end of the cable to the ODU later,
after you install the ODU.

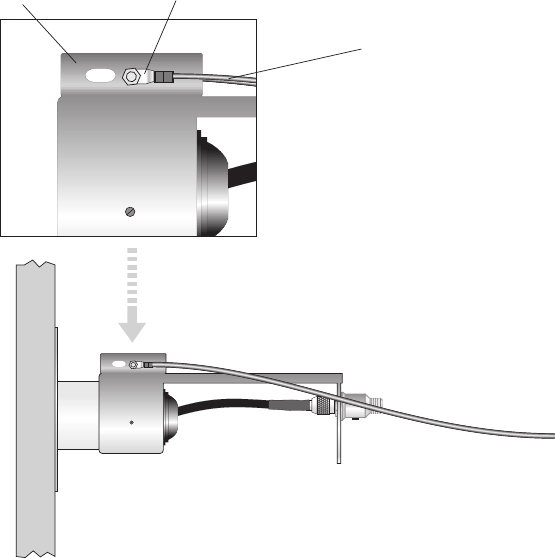

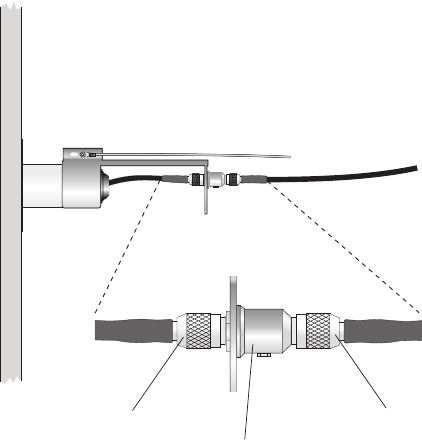

Figure 4-11 Connecting the IFL to the RF arrestor
Ground wire
IFL
To ODU
N connector
RF arrestor
N connector
T0009013
Do not apply permanent weatherproofing until the RT has
been commissioned and tested. If the weather is wet or windy,
a temporary tape seal is recommended. Weatherproofing is
covered in section 8.1.
Test the IFL cable and connectors as follows:
1. Check each connector: Use a multimeter or continuity tester
to check for continuity (a short circuit) between the center
conductor and the connector body (outer shell).
If the meter or tester does not indicate an open (no
connection), the connector or cable is defective and must be
replaced.
2. Check the connectors and cable:
a. Using a small jumper cable, attach a jumper clip to
the center conductor of the connector on one end of
the cable.
b. Attach the other end of the jumper to the connector
body, so the center conductor and connector body
make electrical contact.
c. At the other end of the cable (at the IDU location),
use a multimeter to measure the resistance between
the center conductor and connector.
Resistance should be less than 10 ohms. If it is
greater than that find and correct the problem.
Testing the IFL cable
1027144–0001 Revision D Installing IFL cables 4–15
RT installation
After running the cable, finish the cable installation as follows:
1. Support the cable above the roof surface with a cable trough
or wood blocks approximately 4 inches by 4 inches by 4
inches (10 centimeters by 10 centimeters by 10
centimeters):
hb010
2. Tie down cable runs on the roof and at the IDU location
with tie–wraps.
3. Seal the IFL rooftop entry point with weatherproofing
caulk.
4. Label both ends of the IFL cable to identify the cable in an
appropriate manner. This is especially important if you are
installing multiple IFL cables. (To order IFL labels, request
HNS part number 9005328–0055.)
Finishing the cable
installation
RT INSTALLATION
1027144–0001 Revision D Installing mast mounts 5–1
RT installation
Chapter 5
Installing mast mounts
This chapter includes:
•Overview – page 5–2
•ODU location – page 5–3
•Roof types – page 5–3
•Mast mount types – page 5–3
•Standard nonpenetrating mount – page 5–4
•Existing structures – page 5–11
DANGER
Do not work on a ladder or roof without
first reading the safety warnings on page x
of this manual. Failure to observe these
warnings could result in personal injury or
death.
1027144–0001 Revision D 5–2 Installing mast mounts RT installation
Typically, the installers assemble a nonpenetrating roof mount for
each ODU to be installed. In some cases, a different type of mast
mount may be used, or an existing structure may be used.
The mount supports the mast in a vertical or horizontal position,
and the ODU is mounted on the mast, as shown in figure 5-1.
Figure 5-1 Mast mount supporting mast and ODU
rt009
5.1
Overview
1027144–0001 Revision D Installing mast mounts 5–3
RT installation
Site preparation personnel specify the ODU location as part of
preparing the RT rooftop drawing.
1. Use the RT rooftop drawing to determine where to install
the mount (at the ODU location) and locate the IFL entry
point.
2. Make sure the roof penetration or entry point for the IFL is
suitable.
Important: The location(s) used for ODU installation must meet
the requirements listed in the Hub and Remote Terminal Site
Preparation Guide. Key considerations include:
•Line of sight
•Distance from HT
•IFL entry location
•Sources of interference
•Safety
•Ground point location
•Access
•Security
For details, see the Site Preparation Guide.
Many roof types are suitable for AIReach Broadband ODU
installations. Mount installation procedures for the following
common roof types are described later in this chapter:
•Rubber cap sheet/ glued rubber cap sheet
•Loose gravel on rubber cap sheet
•Corrugated metal
The roof type is a factor in the type of mast mount selected. Also,
some mount installation steps may be different, depending on the
roof type.
The following options are available for mounting a mast to
support the ODU:
•Nonpenetrating roof mount – This mount, essentially a
flat platform assembled from a kit, is suitable for most
applications. It can be used on various flat roof types. For
details, see section 5.5.
•Existing structure – An existing structure such as an
antenna tower can be used as a mast, or a mast can be
mounted to the structure, if the structure meets the
requirements given in the Hub and Remote Terminal Site
Preparation Guide.
5.2
ODU location
5.3
Roof types
5.4
Mast mount types
1027144–0001 Revision D 5–4 Installing mast mounts RT installation
The standard nonpenetrating roof mount, HNS 9200375–0001, is a
flat, metal–frame mount assembled from a kit. It requires a
6.5–by–6.5–foot space (1.98 by 1.98 meters) and includes a 7–foot
(2.1–meter) mast. You install the mount on a rubber pad; concrete
blocks are added for ballast.
The standard mount can be used on a variety of flat roof types, as
detailed below.
Instructions are given below for various types of roofs. See also
the manufacturer’s instructions, which are included in the mount
shipping carton.
Most flat roofs are topped with:
•Glued rubber cap sheet or
•Rubber cap sheet with gravel
Follow these instructions for either type of roof:
1. If the cap sheet is covered with gravel, use a push broom or
snow shovel to clear the gravel from the area where the
mount will be installed, as shown in figure 5-2.
Figure 5-2 Clearing gravel from the installation location
T0006061
2. Place the rubber pad on the roof surface where the mount
will be assembled.
5.5
Standard
nonpenetrating
mount
Flat roof – rubber sheet
(with or without gravel)
1027144–0001 Revision D Installing mast mounts 5–5
RT installation
Figure 5-3 identifies the main mount components.
Figure 5-3 Mount components
Outer
base angle
Diagonal
base angle
Inner
brace angle
Mast
Mast
brace angle
rt015
Rubber
pad
•Follow steps 3 through 10 to assemble the mount.
3. Place the mount’s four outer base angles on the rubber pad.
4. Place the mount’s diagonal base angles on the rubber pad
and connect them to the outer base angles at the locations
circled in figure 5-4.

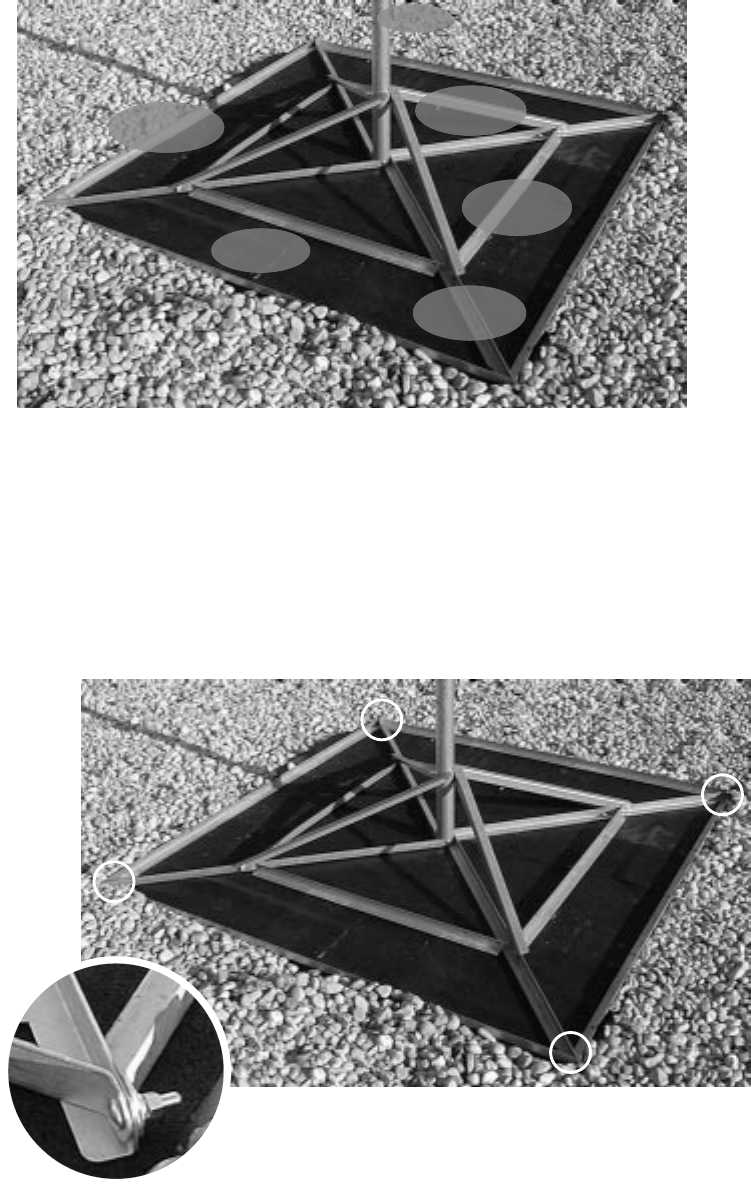

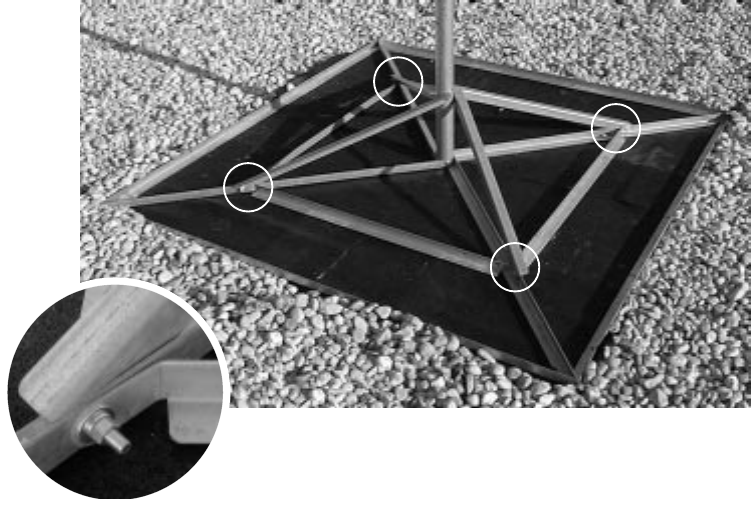

Figure 5-4 Connecting diagonal base angles to outer base angles
Carriage bolt
1
1
1
1
2
2
2
2
Flat washer
Lock washer
Hex nut
rt013
1027144–0001 Revision D 5–6 Installing mast mounts RT installation
5. Place the mast between the diagonal base angles. Secure the
diagonal base angles to the mast as shown in figure 5-5.
1
1
1
1
2
2
2
2
Bolt
Flat washer
Lock washer
Hex nut
rt014

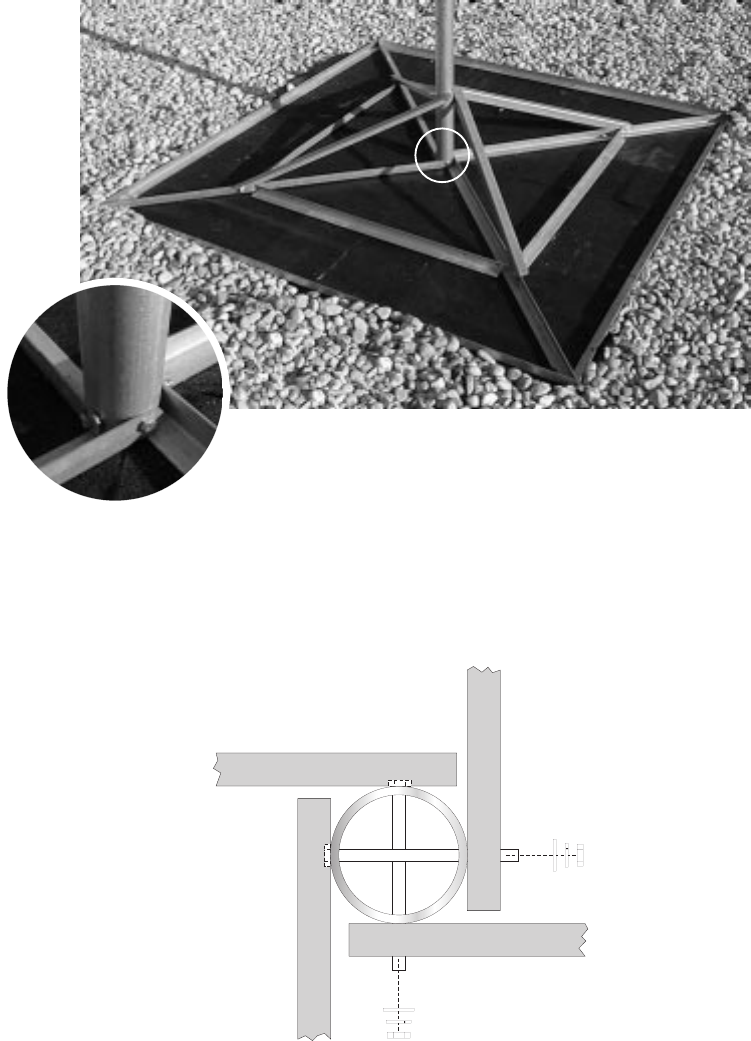

Figure 5-5 Attaching the diagonal base angles to the mast
Diagonal base angles opposite each other are secured to the
mast with one set of hardware as shown below.
rt042
1027144–0001 Revision D Installing mast mounts 5–7
RT installation
6. Attach the mast brace angles to the mast. See figure 5-6.
Figure 5-6 Attaching the mast brace angles to the mast
Carriage bolt
1
1
1
1
2
2
2
2
Flat washer
Lock washer
Hex nut
rt041
Mast brace angles opposite each other are secured to the
mast with one set of hardware as shown below.
rt042
1027144–0001 Revision D 5–8 Installing mast mounts RT installation
7. Place the inner brace angles on the rubber pad and connect
them to the diagonal base angles and mast brace angles as
shown in figure 5-7.
Figure 5-7 Attaching inner brace angles to diagonal base
angles and mast brace angles
Carriage bolt
1
1
1
1
2
2
2
2
Flat washer
Lock washer
Hex nut
rt016
8. Refer to the Site Data Record (from the site survey) to
determine how many concrete blocks are required to anchor
the mount.
1027144–0001 Revision D Installing mast mounts 5–9
RT installation
9. Place the concrete blocks on the mount so they are evenly
spaced, with the ends of each block anchoring both the
inner and outer base angles, as shown in figure 5-8.
Figure 5-8 Proper placement of concrete blocks on the mount
T0009060
10. When the mount installation is complete, if the roof is
covered with gravel, replace gravel up to the outside edges
of the mount. See figure 5-8.
Do not replace gravel in the area inside the mount base.
Leave the rubber pad exposed.
This section explains how to install the standard nonpenetrating
roof mount on a corrugated metal roof.
Special requirements:
•Pressure treated lumber, as specified in step 1 below,
and
•Twelve 1–inch–long (2.5–centimeter) lag bolts.
1. Obtain five pieces of pressure treated lumber, each 4 inches
by 4 inches by 8 feet long (10 centimeters by 10 centimeters
by 2.44 meters long).
2. Important: Select an area of the roof that is supported by a
metal I–beam to install the mount.
3. Cut the rubber pad into strips 4 inches wide by 8 feet long
(10 centimeters wide by 2.44 meters long).
4. Use 5–penny shingle nails to nail one strip of rubber pad to
one surface of each piece of lumber. See figure 5-9.
Corrugated metal
1027144–0001 Revision D 5–10 Installing mast mounts RT installation
5. Lay out the 4 x 4s, as shown in figure 5-9, so that each
piece is:
- In the recessed portion of the roof
- Parallel to the raised seams
- Equally spaced to support the mast, mount braces and
sides, and concrete blocks, as shown in figure 5-9.
Lay the lumber with the pad side down, so that the pad is
between the roof and the lumber.

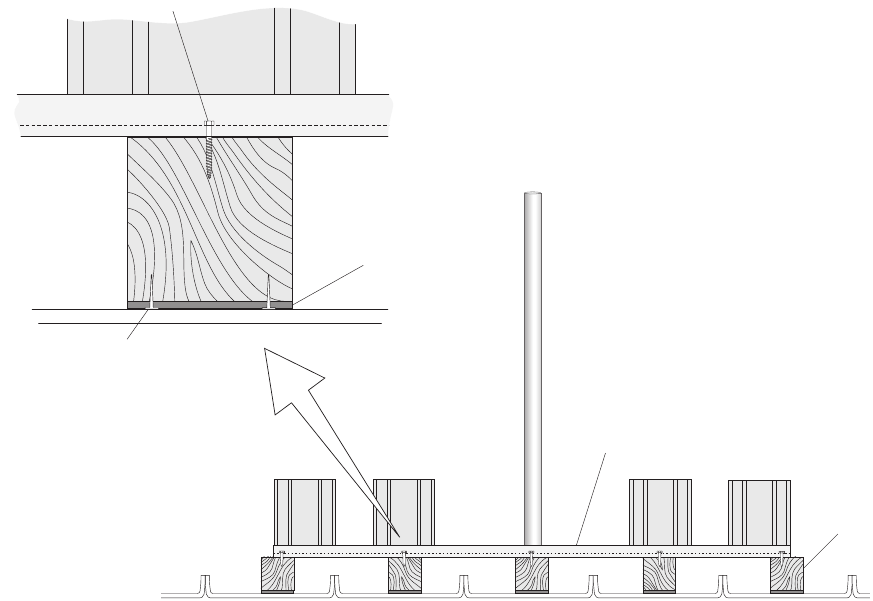

Figure 5-9 Supporting the mount on a corrugated aluminum roof
Mast
Roof
Cinder block
(ballast)
Cinder
block
Roof
Detail
Rubber pad
(strip)
Wood
(4x4)
Wood
(4x4)
Mast mount
(assembled from kit)
Mast
mount
Lag bolt
hb008
Nail
End view
6. Follow steps 1 through 10 starting on page 5–4 to
assemble the mount.
Assemble the mount on the 4 x 4s so that when completed,
the mount is elevated above the aluminum roof.
7. Make sure the mount is evenly positioned on the 4 x 4s,
then use lag bolts to bolt the mount to the 4 x 4s.
Install the bolts through the holes in the mount’s outer
frame and into the wood. Use one bolt at each end of each
piece of lumber (as shown in figure 5-9). Use one bolt at the
center of each remaining side of the mount.
8. Add the required number of concrete blocks for ballast. See
steps 8 and 9 on page 5–8.
1027144–0001 Revision D Installing mast mounts 5–11
RT installation
In some cases, you may be able to mount an ODU to an existing
structure, such as a tower built to support communications
antennas.
The key factors for determining if an existing structure can be
used as mast are that the structure must:
•Be securely attached to the building (and capable of
sustaining specified wind loadings).
•Have an outside diameter of 2.0 to 4.5 inches.
•Meet line of sight (LOS) requirements.
Important: In addition to these criteria, the structure must also
meet other requirements listed in the Hub and Remote Terminal
Site Preparation Guide.
5.6
Using existing
structures as ODU
mounts
RT INSTALLATION
1027144–0001 Revision D Installing ODUs 6–1
RT installation
Chapter 6
Installing ODUs
This chapter explains how to install RT ODUs. It includes:
•Introduction – page 6–2
•Transporting the ODU to the roof – page 6–4
•Preparing to install the antenna mount – page 6–5
•Installing the antenna mount – page 6–8
•Attaching the antenna to the mount – page 6–10
•Adjusting the antenna azimuth (coarse adjustment) –
page 6–14
•Adjusting the antenna elevation (coarse adjustment) –
page 6–17
•Installing a mechanical attenuator – page 6–19
•Attaching the transceiver to the antenna – page 6–21
•Grounding the ODU – page 6–23
•Connecting the IFL to the ODU – page 6–25
For ODU standards compliance information, see appendix B
(page B–2).
For ODU location requirements, see page 5–3.
1027144–0001 Revision D 6–2 Installing ODUs RT installation
For conceptual reference, figure 6-1 illustrates how hub terminal
(HT) ODUs communicate with remote terminal (RT) ODUs. The
remote terminal (RT) outdoor unit (ODU) and integrated antenna
attach to a mount installed on a vertical or horizontal mast, as
shown in figure 6-2.
T0006019
Hub terminals
Remote
terminal
Remote terminal
Remote terminal
Figure 6-1 Hub ODUs communicating with RT ODUs
Note: The ODU installation instructions in this chapter are for the
typical case of an ODU mounted on a vertical mast. If the ODU is
mounted on a horizontal pipe, these instructions must be carefully
interpreted to account for the different mount and ODU position.
6.1
Introduction
1027144–0001 Revision D Installing ODUs 6–3
RT installation
Figure 6-2 ODU (installed)
T0009055
ODU
transceiver
Mast
Antenna
When installing ODUs, observe the following safety warnings:
DANGER
Do not work on a ladder or roof without
first reading the safety warnings on page x
of this manual. Failure to observe these
warnings could result in personal injury or
death.
WARNING
Potential radio frequency (RF) hazard:
•Keep away from the front of the outdoor
unit (ODU) antenna while the ODU is
operating. Note that you cannot tell from
outward appearance whether the ODU is
operating or not.
•Be careful with respect to the ODU you
are installing and ODUs that may
already be operating in the installation
area.
Failure to observe these warnings could result
in injury to eyes or other personal injury.
Safety warnings
1027144–0001 Revision D 6–4 Installing ODUs RT installation
Before you can install and commission the outdoor RT equipment:
•The hub must be installed and operational.
•The RT ESN (electronic serial number) must be entered in
the EMS database.
•The mast must be installed.
The mast must have an outside diameter of 2.0 to
4.5 inches (5.5 to 11.4 centimeters) and must be securely
mounted in a vertical or horizontal position. If the mast is
not installed, you will need to install it before you
proceed. For additional details concerning the mast, see the
AIReach Broadband Hub and Remote Terminal Site
Preparation Guide.
Before starting, make sure you have:
•Antenna mount
•Antenna
•Transceiver
•3/8–inch torque wrench with 13–millimeter deep socket
•5/32–inch (4–millimeter) torque hex key wrench
Unpack the ODU transceiver and antenna before going up to the
roof. Carry the transceiver and antenna to the roof—in separate
trips—in a backpack or padded bag. Make sure the transceiver or
antenna is secured in the backpack or bag.
Prerequisites
6.2
Transporting the
ODU to the roof
1027144–0001 Revision D Installing ODUs 6–5
RT installation
The antenna mount (HNS 1029056–0005) is shipped fully
assembled. Figure 6-3 shows an exploded view to show all the
parts. However, you do not need to take the mount apart to install
it, unless you need to reverse the mast clamp. (The mast clamp is
reversible, as explained later.)

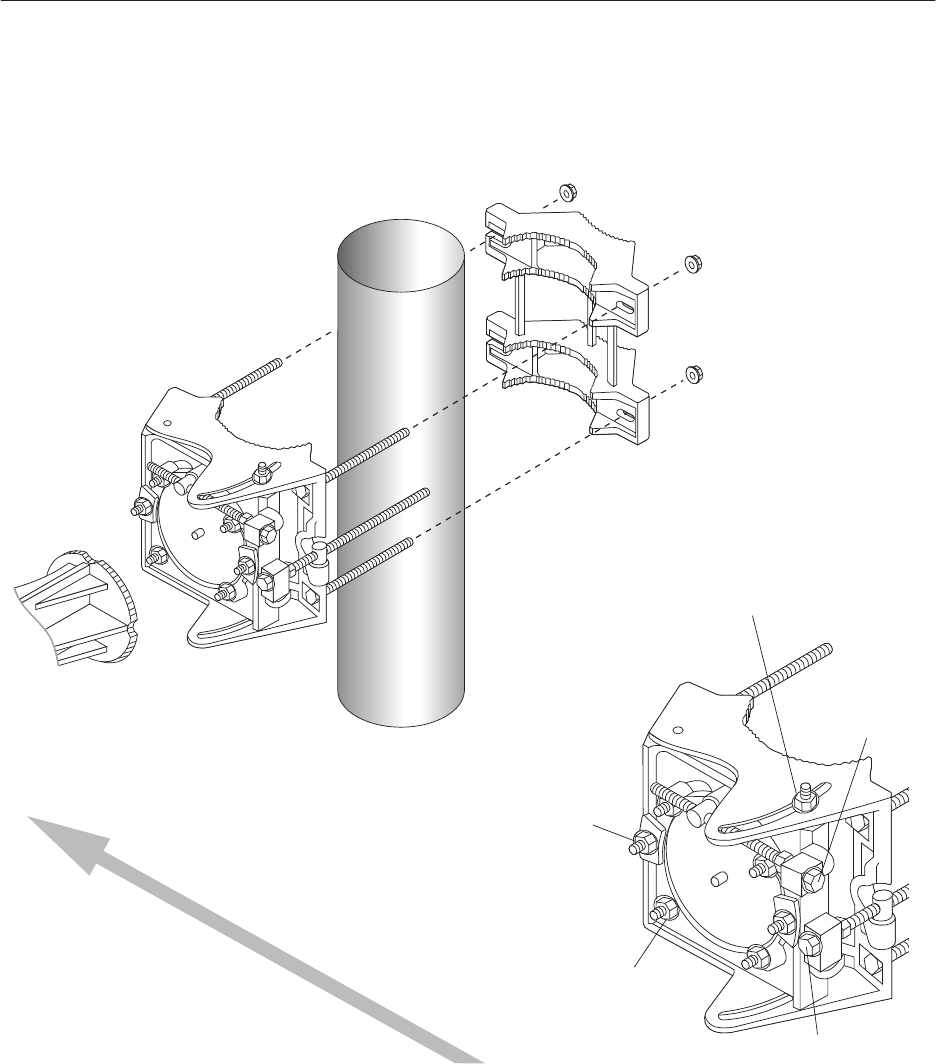

Antenna
bracket
Mast clamp
(rear part of antenna mount)
Mast interface
(front of
antenna
mount)
Mast
Mast interface - detail
Azimuth locking nuts
(2, top and bottom)
Elevation
locking nuts (2)
Antenna bracket
locking nuts (4)
Fine azimuth
adjuster
Fine
elevation
adjuster
HT direction
Mast clamp nuts (4)
T0009019
Figure 6-3 Antenna mount
The antenna mount design allows you to install and tighten the
mount and antenna and then adjust the antenna azimuth and
elevation without loosening the mount or antenna. Parts of the
mast interface move to allow these adjustments.
6.3
Preparing to install
the antenna mount
1027144–0001 Revision D 6–6 Installing ODUs RT installation
Important: To correctly install the antenna mount, read and
carefully follow all instructions in this section (6.3) through
section 6.7.
Prepare the mount for installation:
1. Turn the fine azimuth adjuster as necessary to position the
clevis (barrel) approximately in the middle of the threaded
part of the adjuster. See figure 6-4.
This step ensures that you will be able to adjust the adjuster
as necessary in either direction.
Do not turn the nut behind the block that holds the fine
azimuth adjuster.
T0009020
Fine azimuth
adjuster
Fine elevation
adjuster
Turn to
adjust. Do not
turn.
Clevis
Begin with clevis approximately
in the middle of the adjuster.

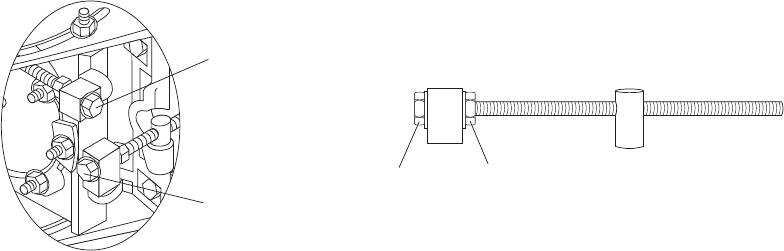

Figure 6-4 Fine azimuth and elevation adjusters
2. Turn the fine elevation adjuster as necessary to position the
clevis approximately in the middle of the threaded part of
the adjuster. See figure 6-4.
Do not turn the nut behind the block that holds the fine
elevation adjuster.
1027144–0001 Revision D Installing ODUs 6–7
RT installation
Determine (approximately) how high on the mast to install the
mount:
1. Determine the approximate desired antenna installation
height:
The ODU/antenna must be installed in line of sight with
the hub terminal (HT), with no obstructions. As a
general rule, install the RT ODU as high as possible on the
mast to avoid obstructions, unless the work order or RF
survey specifies the ODU height.
2. Refer to figure 6-5 for the mount position relative to the
position of the (not yet installed) antenna. As shown in this
illustration, when the antenna is installed (later), the antenna
vertical center is at the same height as the vertical center of
the mount.
T0009022
Antenna
(front)
Mast
Antenna
center
The antenna is
not installed yet.
It is shown here to
illustrate that the
vertical centers of
the antenna mount
and the antenna
are at the same
height.

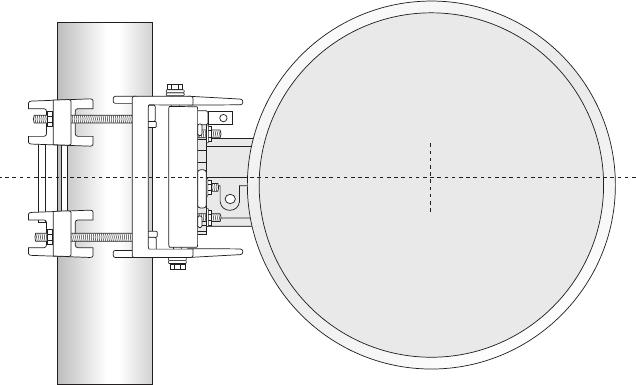

Figure 6-5 Antenna mount height relative to desired antenna height
ODU height
1027144–0001 Revision D 6–8 Installing ODUs RT installation
Follow the steps below to install the antenna mount.

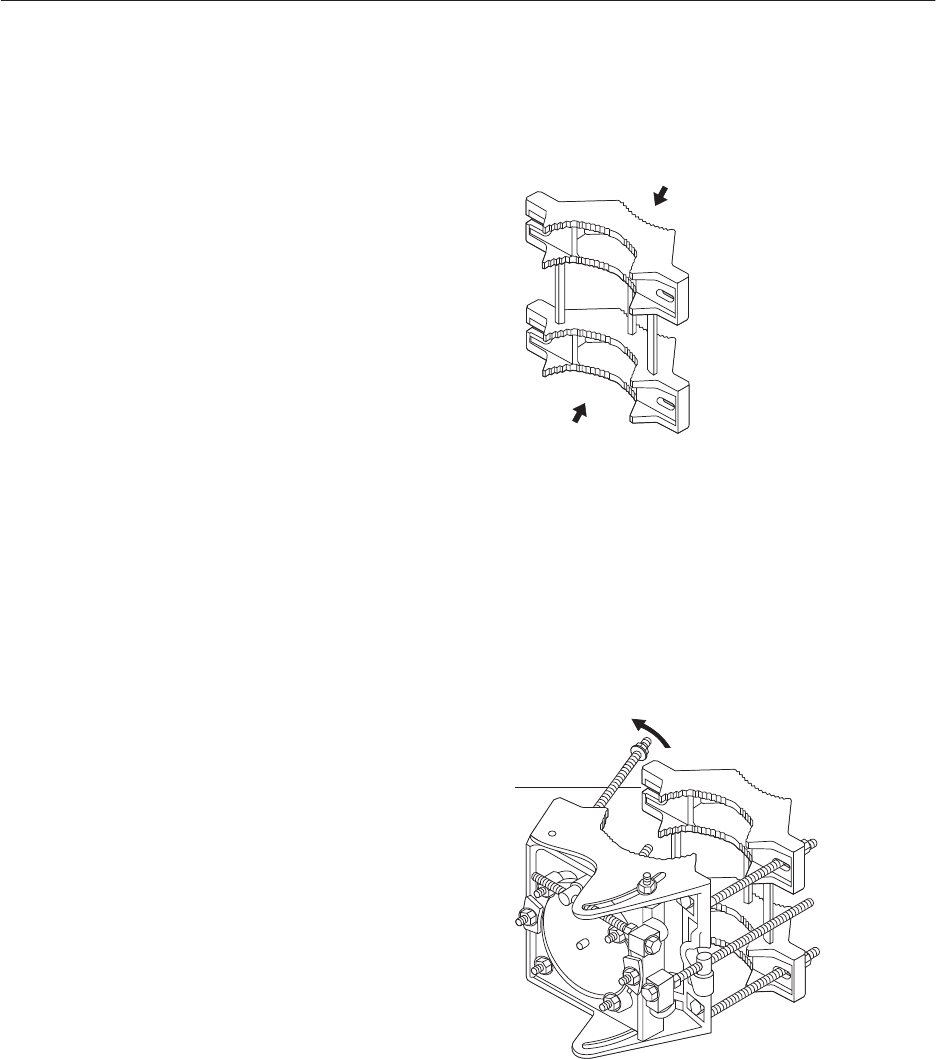

1. Determine which side of the mast clamp to use:
T0009024
Mast clamp
Use this side against the mast if the
mast outside diameter is
.
less than
3.5 inches (8.9 centimeters)
Use this side against the mast if the
mast outside diameter is 3.5 inches
(8.9 centimeters) or larger.
2. One side of the mast clamp has two open–end bolt holes
that allow the long bolts that are attached to the mast
interface to swing in or out. See figure 6-6. At the side of
the mount where the two open–end bolt holes are, swing the
two bolts outward so you can open the mount enough to
place it around the mast.
T0009032
Open-end
bolt hole
Figure 6-6 Opening the mount
6.4
Installing the
antenna mount
1027144–0001 Revision D Installing ODUs 6–9
RT installation
3. Place the mount on the mast, as shown in figure 6-7.
The fine azimuth adjuster must be on the side of the
mount opposite the HT direction, as illustrated in figure
6-7. This allows you to make azimuth and elevation
adjustments from behind the antenna, so you can stay out of
the beam area.
To get the azimuth adjuster on the side opposite the HT
direction, you may have to turn the entire mount 180°,
depending on whether the ODU will be mounted to the left
or right of the mast.
(If you are facing the mast interface—as a reference—it
doesn’t matter whether the mount swings open to the right
or to the left, as long as the azimuth adjuster is opposite the
HT direction.)

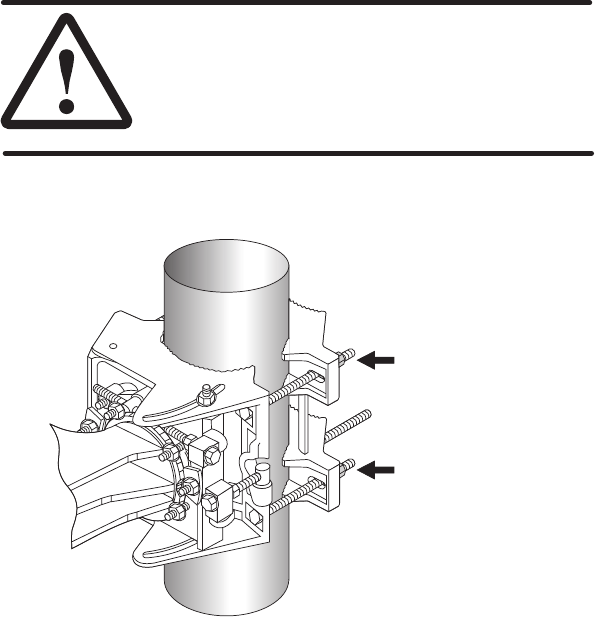

4. Swing the clamp toward the interface until you can
“capture” the clamp by swiveling the free–swinging bolts
into the two slots in the clamp, as shown in figure 6-7.
Mast
clamp
1. Swing clamp toward interface.
2. Swivel bolt into slot.
T0009025
1
2
HT direction
Fine azimuth
adjuster

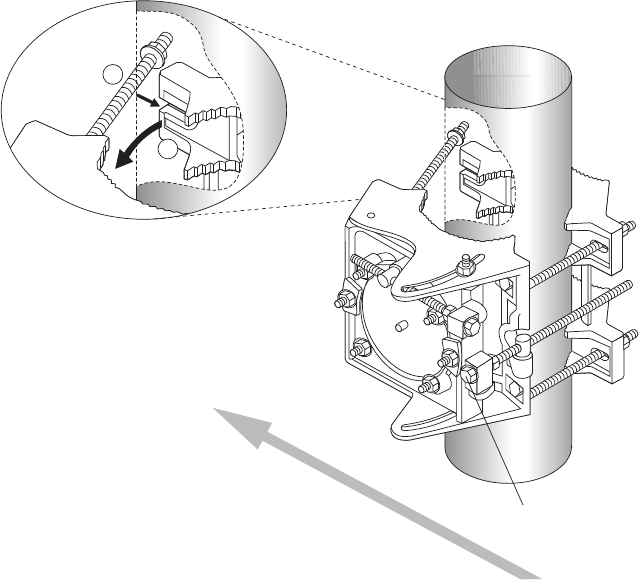

Figure 6-7 Installing the antenna mount
5. Finger tighten the four mast clamp nuts.
Tighten the nuts enough to hold the mount to the mast, but
leave them loose enough so you can smoothly pivot the
mast interface and mast clamp around the mast to permit
coarse azimuth adjustment.
(You fully tighten the mast clamp nuts later.)
1027144–0001 Revision D 6–10 Installing ODUs RT installation
Follow the instructions in this section to attach the antenna to the
mount.
Before mounting the antenna, check to make sure the radome
drain groove and clamp are at the bottom of the antenna, with
respect to the position the antenna will be in when it is mounted.
See figures 6-8 and 6-9.
Drain
groove
Clamp:
20 inch-pounds
(2.3 Newton-meters)
T0009026

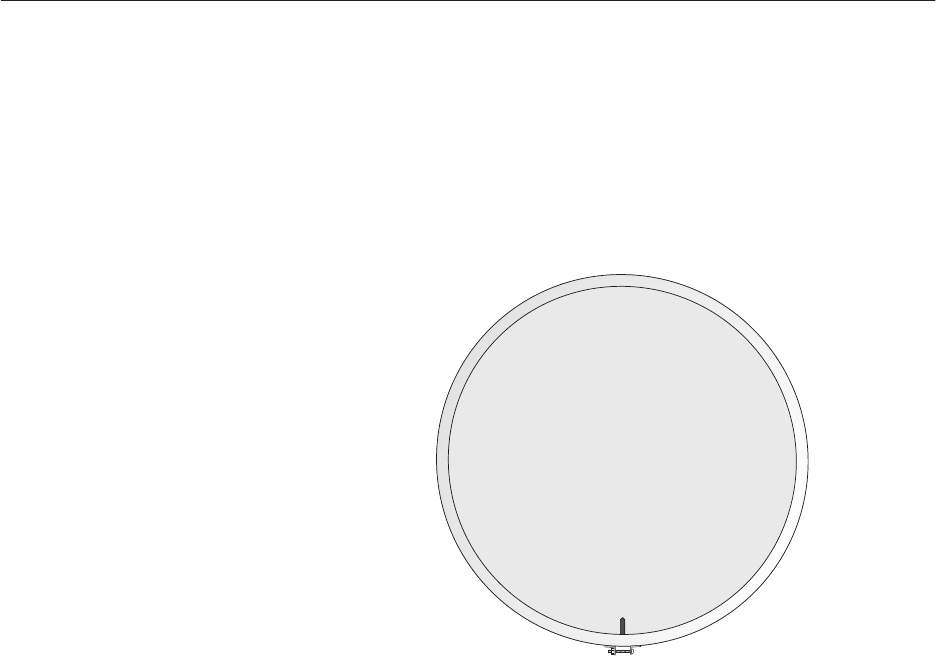

Figure 6-8 Radome drain groove
6.5
Attaching the
antenna to the
mount
Checking the radome
drain position
1027144–0001 Revision D Installing ODUs 6–11
RT installation

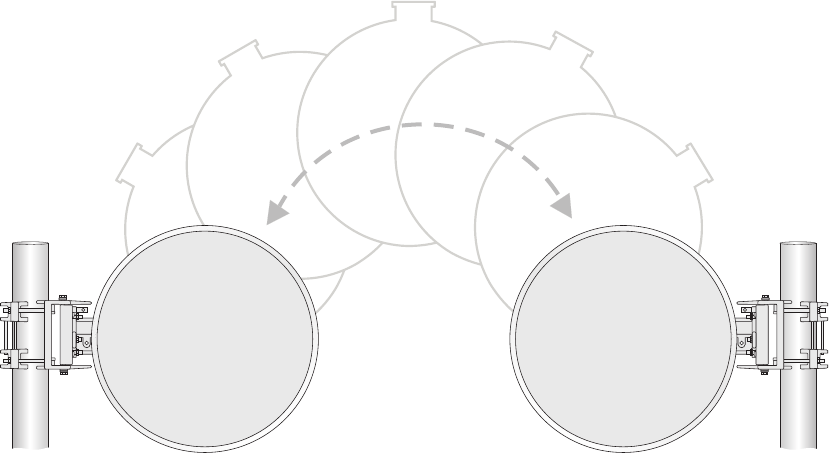

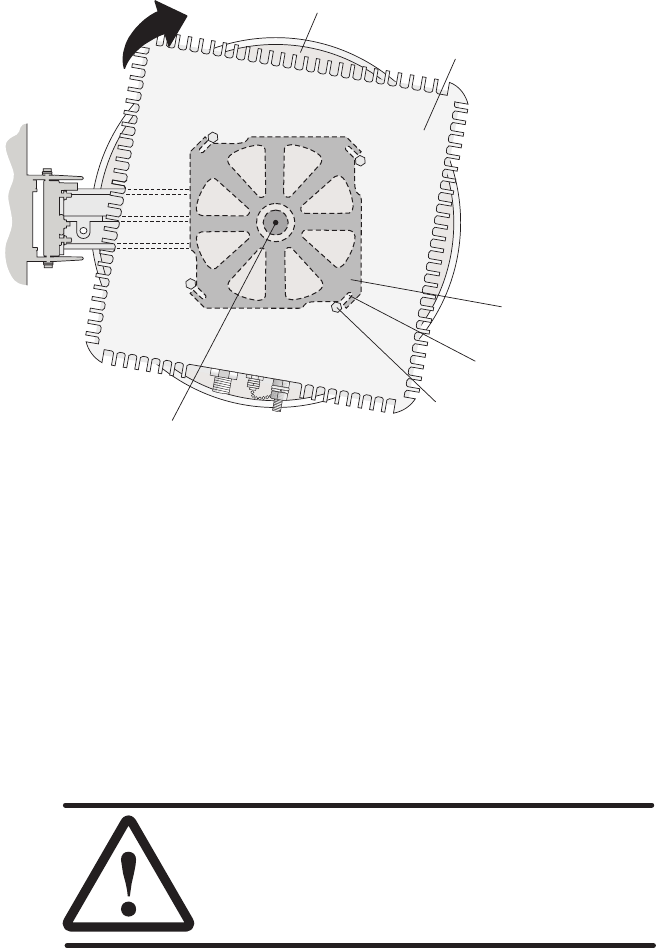

Note: The RT antenna can be rotated 180°, as shown
below, to attach to a mount to the right or left. If you rotate
the antenna this way, make sure the radome drain will be at
the bottom of the antenna, when mounted.
T0009004
Figure 6-9 The RT antenna can be rotated to attach to the right or left
If the radome drain groove is at the bottom of the antenna,
proceed to section 6.6.
If the drain groove is not at the bottom of the antenna, rotate the
radome panel as follows:
1. Using a 5/32–inch (4–millimeter) torque hex key wrench,
loosen the radome band clamp locking nut.
2. Rotate the radome panel until the band clamp and drain
groove are located at the bottom of the antenna (as it will be
mounted).
3. Tighten the radome band clamp locking nut to 20
inch–pounds torque (2.3 Newton–meters).
Changing the drain
position
1027144–0001 Revision D 6–12 Installing ODUs RT installation
Attach the antenna to the mount as follows:
1. With the radome facing the HT direction, position the
round, flat surface of the antenna bracket approximately
1 inch (2.5 centimeters) from the mast interface.
2. Rotate the antenna approximately 45° away from the HT
until the antenna bracket reliefs (curved indentations) are
aligned with the four nuts on the mast interface, as shown in
figure 6-10.

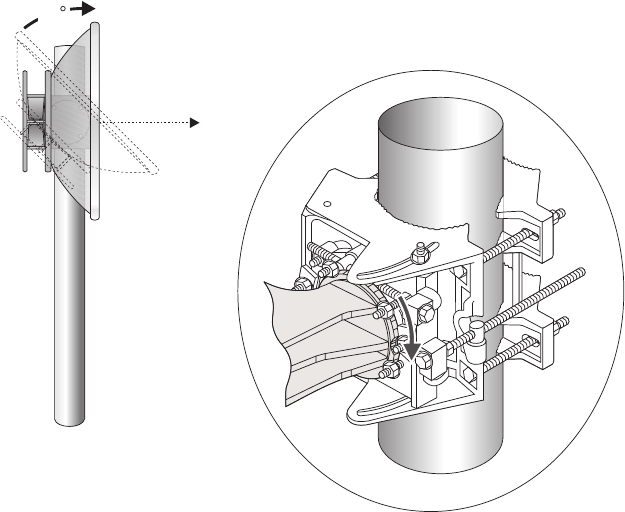

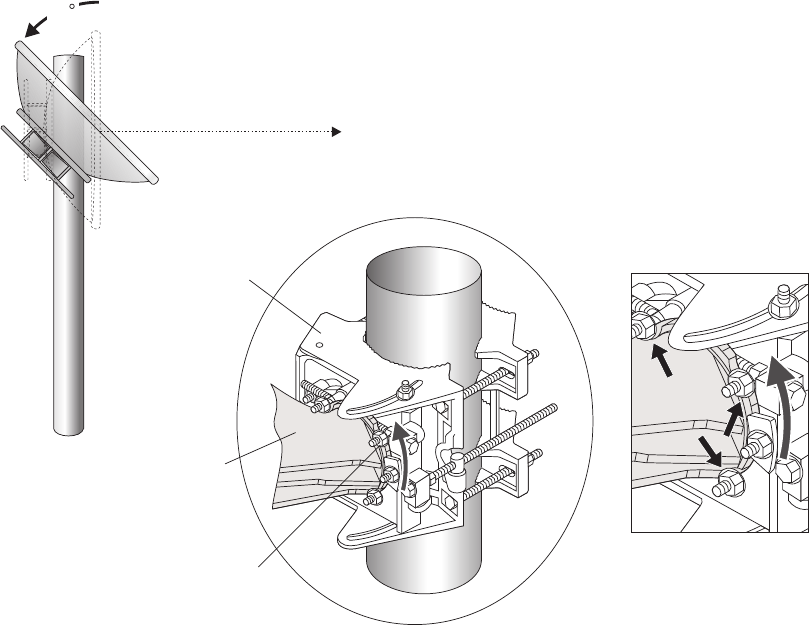

T0009027
Line of sight to HT
45
Close-up view:
Antenna bracket reliefs (4)
Relief
Antenna bracket
locking nut (1 of 4)
Antenna
bracket
Mast
interface
Figure 6-10 Rotating the antenna so the antenna
bracket can be placed against the mast interface
3. Press the antenna against the mast interface.
Attaching the antenna
1027144–0001 Revision D Installing ODUs 6–13
RT installation
4. Rotate the antenna approximately 45° toward the HT, to the
upright (or nearly upright) position, as shown in figure
6-11—then finger tighten the antenna bracket locking nuts.
The antenna is now “captured” by the antenna mount.
However, because the antenna bracket nuts are not fully
tightened, you can rotate the antenna to adjust its elevation.

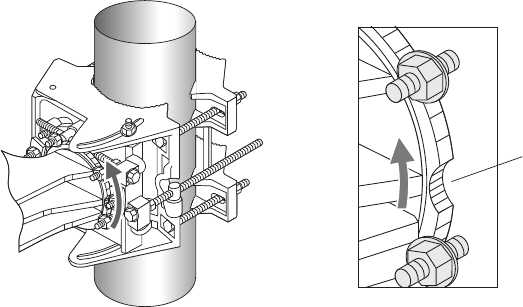

T0009028
45
Figure 6-11 Rotating the antenna to the
upright installation position
1027144–0001 Revision D 6–14 Installing ODUs RT installation
To adjust the antenna azimuth (horizontal pointing direction), you
move the antenna and mount to the left or right, as illustrated in
figure 6-12. You adjust the azimuth until the antenna is pointed at
the HT.

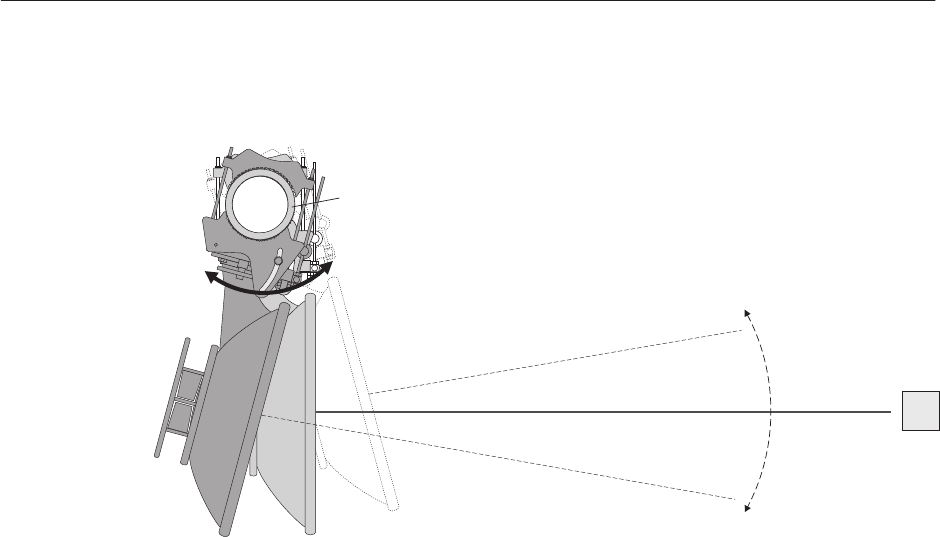

Mast
RT antenna
HT
Pointing direction
T0009029
Top view
Left
Right
adjusted
by 10 .°
+
_
Antenna
azimuth
can be
Figure 6-12 Antenna azimuth adjustment (to right or left)
You adjust the antenna azimuth in two stages:
1. Coarse adjustment, using the built–in antenna boresight, as
detailed in this section (steps 1 through 3 on page 6–15).
2. Electronic pointing, using a voltmeter and integrated system
software (section 7.4). This procedure, a part of the RT
commissioning process, refines the azimuth adjustment to
point the antenna as accurately as possible.
6.6
Initial (coarse)
antenna azimuth
adjustment
1027144–0001 Revision D Installing ODUs 6–15
RT installation
Obtain a coarse azimuth adjustment as follows:
1. Stand behind the antenna so you can see through the
antenna boresight (shown in figure 6-13).

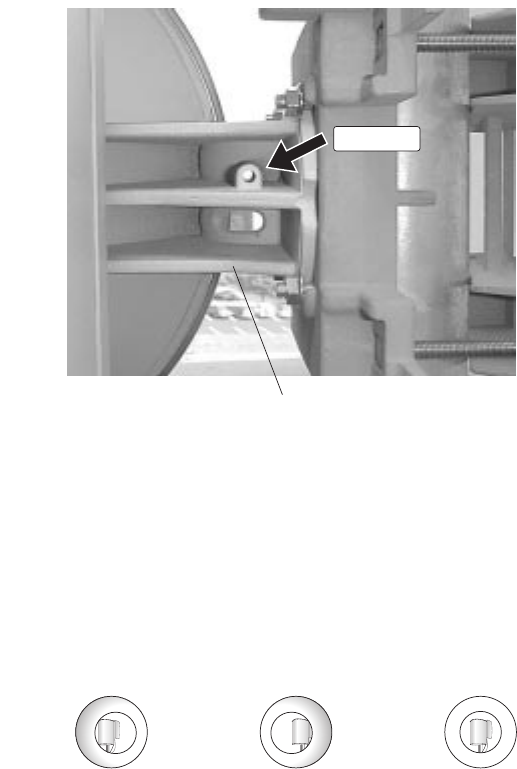

rt026
Boresight
Antenna bracket
Figure 6-13 Boresight location
2. Using the boresight for reference, rotate the antenna and
antenna mount horizontally around the mast (by hand, not
by using the azimuth adjuster), until you can see the HT in
the horizontal center of the boresight, with no shadow
inside the boresight to the left or right. See figure 6-14.
(You should not need to use the fine azimuth adjuster until
you point the antenna with the voltmeter.)
T0009008
Adjust
azimuth
to left.
Adjust
azimuth
to right.
Azimuth
properly
adjusted
Boresight
Figure 6-14 Using the boresight to adjust azimuth
Coarse azimuth
adjustment
1027144–0001 Revision D 6–16 Installing ODUs RT installation
3. When the azimuth is properly adjusted, use a torque
wrench with a deep socket to tighten the four mast
clamp nuts to 16 foot–pounds torque (21.7 Newton–
meters). See figure 6-15. Tighten each bolt a little at a
time, moving from bolt to bolt in an X pattern.
CAUTION
Correct torque is
essential
for successful
installation and adjustment. Tighten nuts to
the exact torque stated. Incorrect torque
may result in damage to equipment.

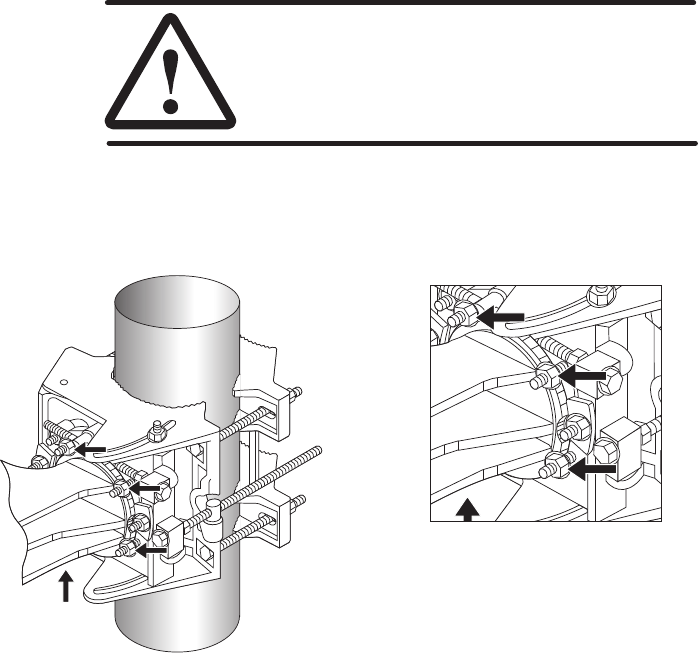

Figure 6-15 Mast clamp nuts
T0006057
Mast clamp nuts
(Only 2 of the 4 nuts
are visible in this
illustration.)
1027144–0001 Revision D Installing ODUs 6–17
RT installation
To adjust the antenna elevation (upward or downward pointing
direction), you rotate the antenna upward or downward, as
illustrated in figure 6-16, until the elevation is set as desired.

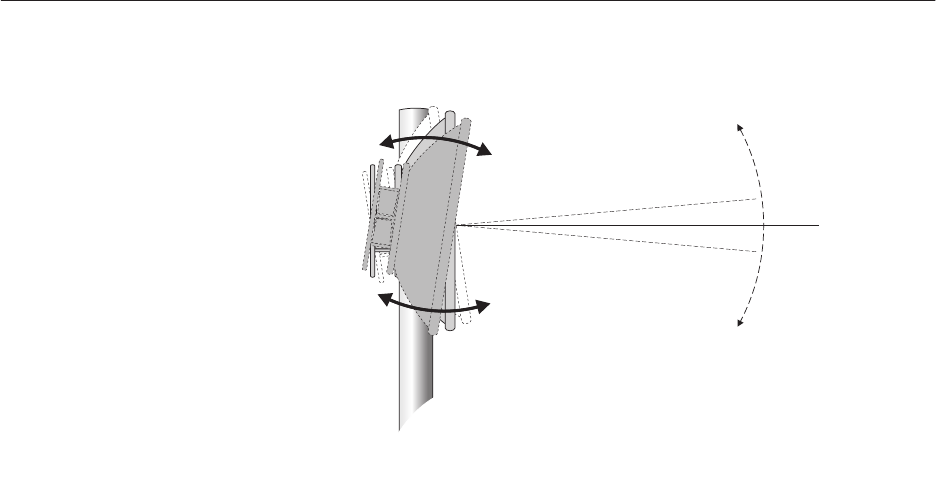

T0009030
Antenna
(front)
Side view
0elevation°
Downward
elevation
Upward
elevation
Figure 6-16 Antenna elevation adjustment
(upward or downward adjustment)
You adjust the antenna elevation in two stages:
1. Coarse adjustment, using the built–in antenna boresight
(steps 1 and 2, on page 6–18).
2. Electronic pointing, using a voltmeter and integrated system
software (section 7.4). This procedure, a part of the RT
commissioning process, refines the elevation adjustment to
point the antenna as accurately as possible.
6.7
Initial (coarse)
antenna elevation
adjustment
1027144–0001 Revision D 6–18 Installing ODUs RT installation
Obtain a coarse elevation adjustment as follows:
1. Using the boresight for reference, rotate the antenna (by
hand) as shown in figure 6-16 until you can see the HT in
the vertical center of the boresight, with no shadow inside
the top or bottom of the boresight. See figure 6-14.
If the antenna does not rotate freely, loosen each of the
antenna bracket nuts slightly.
(You should not need to use the fine elevation adjuster until
you point the antenna with the voltmeter.)
Figure 6-17 Using the boresight to adjust elevation
T0009009
Adjust
elevation
upward.
Adjust
elevation
downward.
Elevation
properly
adjusted
Boresight
2. When the elevation is properly adjusted, tighten the four
antenna bracket nuts to 16 foot–pounds torque (21.7
Newton–meters). See figure 6-18.

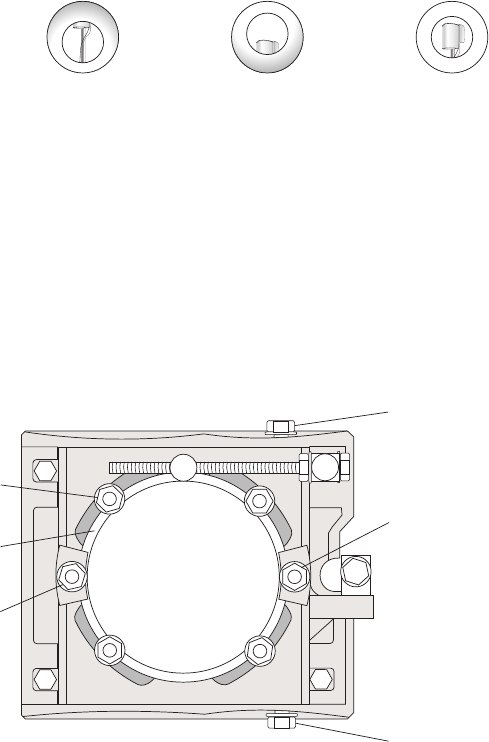

T0009031
Tighten
Tighten
Tighten
Tighten
Antenna bracket
locking nut
Elevation locking nut
(Leave loose for later
adjustment.)
Elevation locking nut
(Leave loose.)
Azimuth locking nut
(Leave loose.)
Azimuth locking nut
(Leave loose.)
Antenna bracket
Figure 6-18 Antenna bracket locking nuts (and other nuts)
At this point, the four antenna bracket locking nuts and the
four mast clamp nuts should be tight (torqued as specified).
Leave the two azimuth locking nuts and two elevation
locking nuts loose, to allow for later adjustments. See figure
6-18.
Coarse elevation
adjustment
1027144–0001 Revision D Installing ODUs 6–19
RT installation
You must use a mechanical attenuator (figure 6-19) if:
•The RT is within 328 feet to 1,312 feet (100 to 400 meters)
of the HT.
•The RT pointing voltage, obtained from a voltmeter,
exceeds 4.1 volts.
•The installation work order instructs you to use it.
If none of these applies, go on to section 6.9.

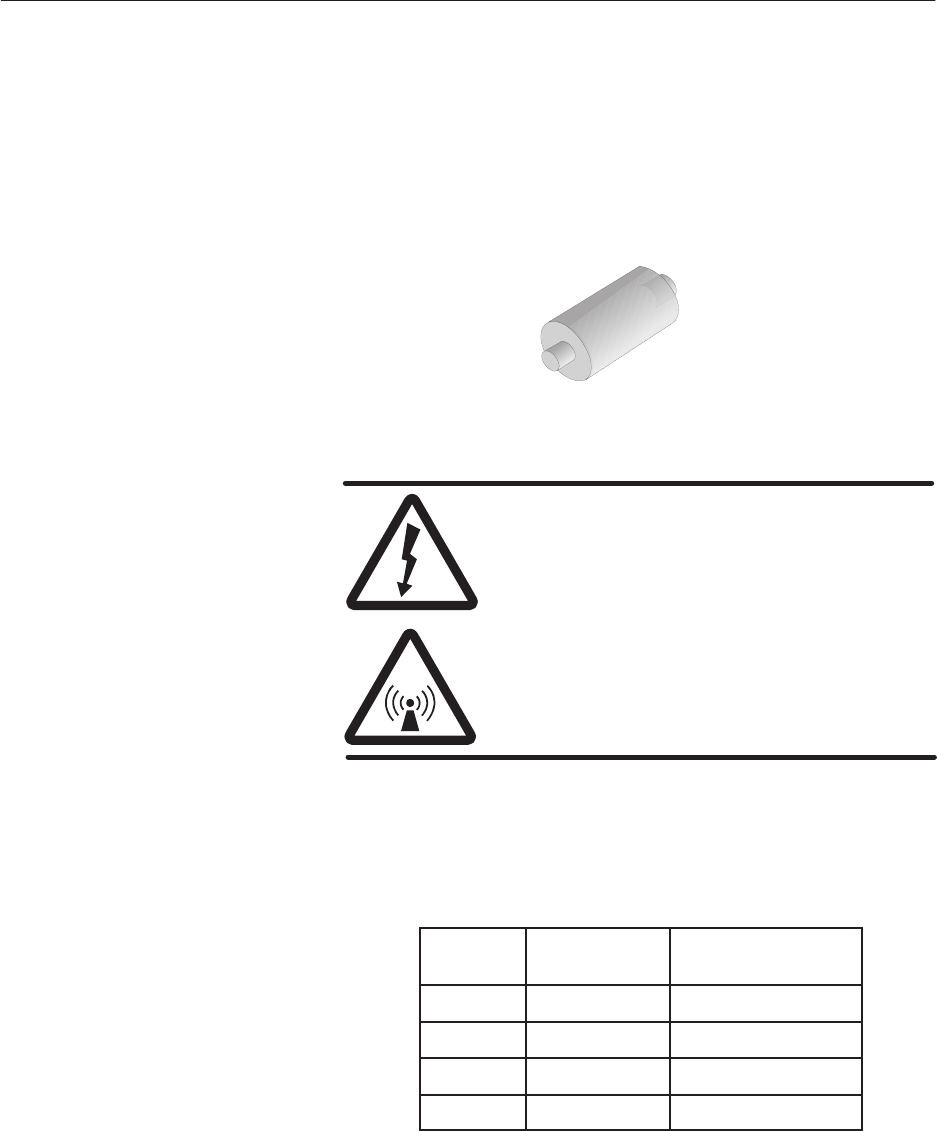

Figure 6-19 Mechanical attenuator
rt006
WARNING
To avoid the risk of electric shock and
exposure to potentially harmful radio
frequency (RF) waves, make sure the IDU is
turned off, if already installed, before
installing the mechanical attenuator.
Failure to observe these warnings could
result in personal injury.
Use the attenuator size (in decibels) specified in the installation
work order and/or Site Data Record. The attenuator size is
indicated by a dot on the attenuator barrel:
Dot color Attenuator
size, dB Use only for . . .
White 10 24 GHz antenna
Green 20 24 GHz antenna
No dot 10 38 GHz antenna
Red 20 38 GHz antenna
6.8
Installing a
mechanical
attenuator
Attenuator size
1027144–0001 Revision D 6–20 Installing ODUs RT installation
Follow these steps to install the mechanical attenuator:
1. Locate the circular waveguide on the rear of the antenna.
See figure 6-20.
2. Insert the mechanical attenuator in the circular waveguide,
as shown in figure 6-20.
Important: Do not fully insert the mechanical attenuator.
Ensure that part of the attenuator is exposed so it can be
removed if necessary.

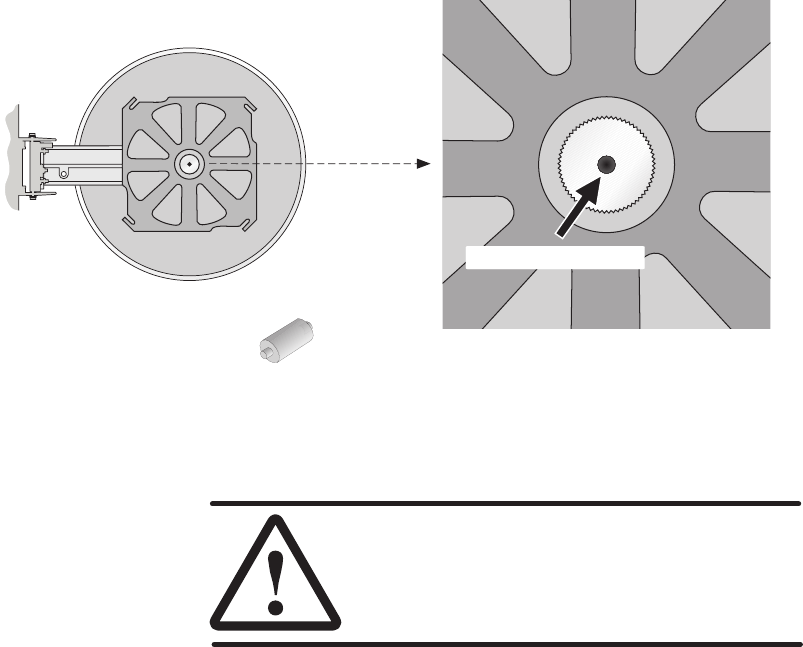

T0009015
Close-up of waveguide
Insert attenuator here.
Attenuator
Figure 6-20 Installing the mechanical attenuator
CAUTION
Do not allow dirt, dust, moisture, or other
contaminants to enter the waveguide.
If you have installed an attenuator, make a note of its size (for
example, 20 dB). You will need this information when you
commission the RT.
Inserting the attenuator
1027144–0001 Revision D Installing ODUs 6–21
RT installation
Follow these steps to attach the transceiver to the antenna:
1. Remove the plastic plug from the antenna waveguide and
the plastic cap from the transceiver coupling.
CAUTION
Always keep the waveguide and coupling
plugs in place when the transceiver is
detached from the antenna, to prevent
contamination.
2. Position the transceiver so its four mounting bolts are
aligned with the four grooves on the antenna flange, as
shown in figure 6-21.

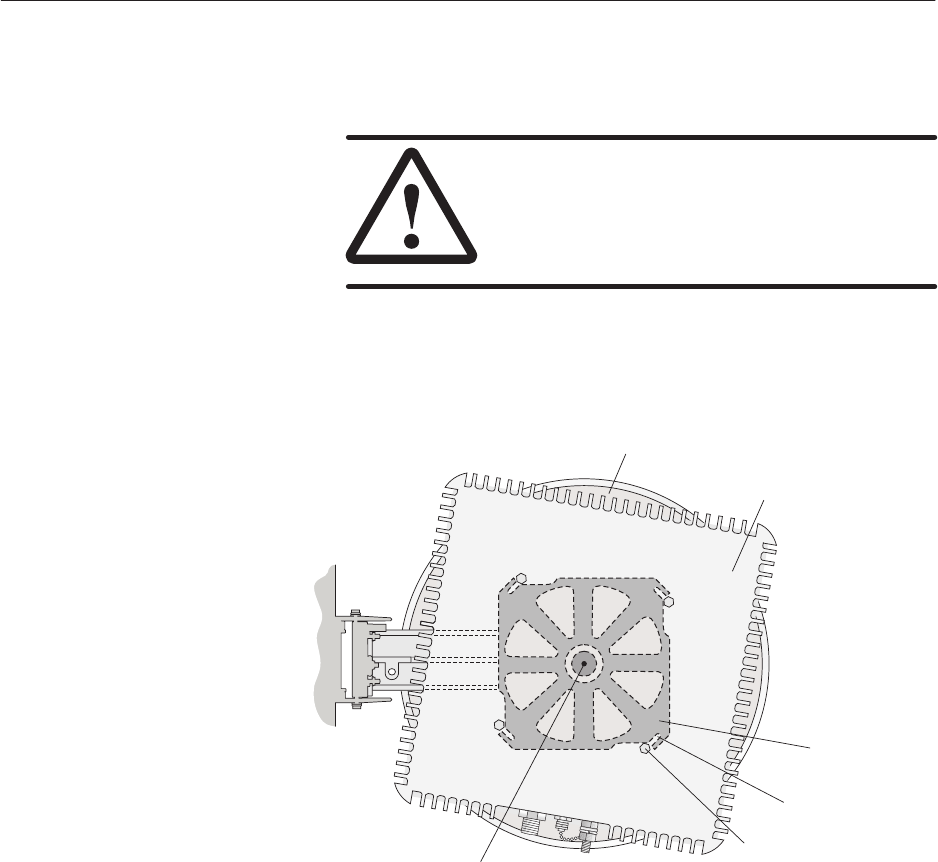

Transceiver
Mounting bolt
(Attached to transceiver
)
Antenna flange
Waveguide
Flange groove
Antenna
T0009010
Figure 6-21 Aligning the transceiver mounting bolts
6.9
Attaching the
transceiver to the
antenna
1027144–0001 Revision D 6–22 Installing ODUs RT installation
3. Rotate the transceiver, making sure the transceiver’s
mounting bolts slide into the grooves in the antenna flange.
(The direction of rotation depends on the orientation of the
antenna bracket—to the right or left.) If the mounting bolts
will not slide into the grooves, loosen the bolts. See figure
6-22.

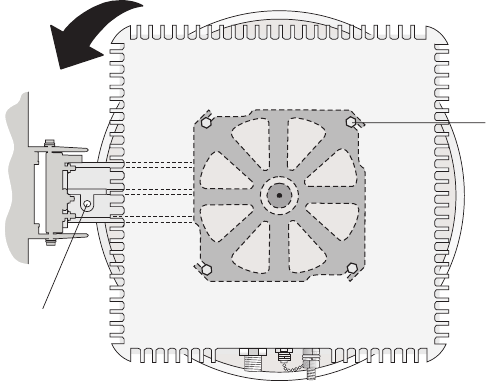

T0009011
Boresight
Mounting bolts must be
fully inserted in flange
grooves.
Rotate transceiver to slide bolts into grooves.
(Rotation direction depends on orientation
of antenna bracket to right or left.)
Figure 6-22 Rotating the mounting bolts into the grooves
4. Fully tighten the transceiver mounting bolts.
5. After tightening the transceiver, look through the boresight
to make sure the antenna is still pointed at the HT.
The ODU is now installed, but still needs to be grounded,
connected to the IFL, and electronically pointed.
1027144–0001 Revision D Installing ODUs 6–23
RT installation
Grounding the ODU requires several connections, as shown in
figure 6-23. In making the ground connections, follow these
practices:
•For all ODU ground connections, use compression
connectors (such as compression lugs or compression
clamps).
•For all threaded ground connections, use a flat washer and
lock washer (with the lock washer next to the nut).
Ground the ODU as follows:
1. Connect one end of the ground cable (No. 6 AWG or
greater, green) to the ODU ground connector, which is
shown in figure 6-23.
2. Connect the ground cable to a bolted joint on the mast
mount.
Important: For this connection, strip the cable but do not
cut it. See figure 6-23. The cable continues from the bolted
joint to the ground point.
3. Connect the ground cable to a suitable ground point on the
rooftop.
The best ground point for the ODU is an earth–referenced
roof ring conductor that follows the perimeter of the
building, constructed according to the requirements of
NFPA 780 or a similar regulatory code. However, such a
conductor is not always present. Other alternatives are
acceptable, as long as they comply with the grounding
requirements detailed in the Hub and Remote Terminal Site
Preparation Guide.
Building steel can also be used as a ground point. However,
before using building steel, verify that the steel structure
is electrically continuous throughout the entire building
and that it is properly connected to earth ground. For
detailed grounding requirements, see the Hub and Remote
Terminal Site Preparation Guide.
4. Apply anti–oxidant (HNS 9008224–0002) to each ground
lug (points 1, 2, and 3 in figure 6-23).
5. Apply 1/2–inch (13–millimeter) heat shrink tubing (HNS
9007488–0005) to each ground lug after the connection is
complete.
Important: You must slip the heat shrink onto the cable
before you make the connections.
Note: A resistance of less than 5 ohms is desirable from the
ODU to earth, including the earth field.
6.10
Grounding the ODU
1027144–0001 Revision D 6–24 Installing ODUs RT installation
T0009012
Transceiver
Antenna
Ground
point
Ground
cable
2-hole compression lug
(Shown: Bond to structural steel)
Ground point
on roof
3.
ODU
side view
Apply anti-oxidant
and heat shrink to
all ground lugs.
End view
Clamp-type ground connector.
Strip cable at clamp.
Bolted joint on
mast mount
2.
View from rear
Transceiver
Single-hole
compression lug
Ground cable
No. 6 AWG
or greater
ODU ground connector
1.
Figure 6-23 ODU grounding connections
1027144–0001 Revision D Installing ODUs 6–25
RT installation
Lightning protection is provided by grounding the ODU as stated
above and installing a lightning arrestor where the IFL cable
enters the roof (as explained in section 4.8). The ODU ground
and IFL lightning arrestor must both be bonded to the same
ground (reference) point.
Connect the IFL to the ODU as shown in figure 6-24.

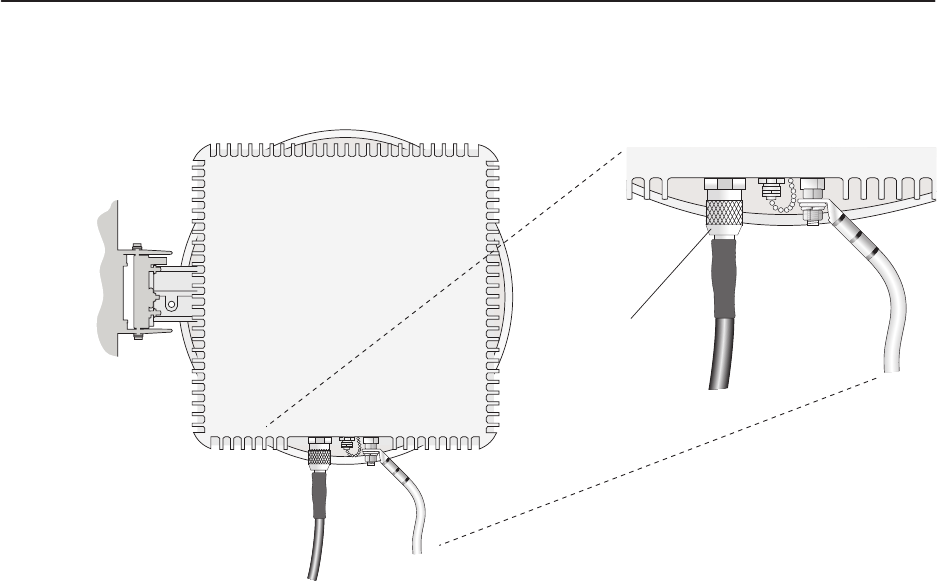

T0009014
IFL
Ground
wire
Rear view
N connector
Figure 6-24 Connecting the IFL to the ODU
Do not apply permanent weatherproofing until the RT has
been commissioned and tested. If the weather is wet or windy,
a temporary tape seal is recommended. Weatherproofing is
covered in section 8.1.
At this point, antenna installation is complete, and the antenna is
visually pointed. Later, when you commission the RT, you will use
a voltmeter to electronically point the antenna as accurately as
possible.
Lightning protection
6.11
Connecting the IFL
to the ODU
RT INSTALLATION
1027144–0001 Revision D Commissioning the RT 7–1
RT installation
Chapter 7
Commissioning the RT
This chapter includes:
•Prerequisites for commissioning – page 7–2
•Connecting the IFL to the CCM – page 7–3
•Front panel LCD operation – page 7–4
•Pointing the antenna – page 7–8
•Verifying HT acquisition – page 7–13
•Entering an attenuator value – page 7–13
•Checking the CCM, SSI, and ODU status – page 7–14
•Verifying the RT’s operational state – page 7–17
•RT to HT connection tests – page 7–18
Commissioning refers to final installation, adjustment, and
verification procedures necessary to ensure that the newly installed
RT is operational.
Observe these safety warnings while commissioning RTs:
DANGER
Do not work on a ladder or roof without
first reading the safety warnings on page x
of this manual. Failure to observe these
warnings could result in personal injury or
death.
WARNING
Potential radio frequency (RF) hazard:
•Keep away from the front of the
outdoor unit (ODU) antenna while the
ODU is operating. Note that you cannot
tell from outward appearance whether
the ODU is operating or not.
•Be careful with respect to the ODU you
are installing and ODUs that may
already be operating in the installation
area.
Failure to observe these warnings could
result in injury to eyes or other personal
injury.
Safety warnings
1027144–0001 Revision D 7–2 Commissioning the RT RT installation
To ensure successful commissioning, you must verify that the
prerequisites listed below have been accomplished. These tasks
must all be completed prior to commissioning. If any of them has
not been done, make sure they are completed before you proceed
with commissioning.
The RT ODU, IFL, and IDU must be installed and connected.
If you have followed all previous instructions, this
prerequisite is satisfied when you connect the IFL to the
CCM (IDU), as instructed on page 7–4.
The ODU must be coarsely (approximately) pointed toward
the HT, as explained in chapter 6.
The Element Management System (EMS) hardware and
software must be installed and operational.
All physical LAN connections between the RT and EMS
must be completed.
The EMS database must be loaded and operational.
The EMS operator must enter the RT electronic serial number
(ESN) into the EMS database.
The RT ESN is printed on a tag attached to the CCM and can
also be read from the CCM LCD—from the Main Menu ESN
display.
The installer must know the (RT) ODU frequency to be used
and the identification number of the HT the RT will
communicate with. These are provided by network planning
personnel.
The hub and HT must be installed and operational. The HT
must be properly aligned.
The CCM must be installed in the IDU. (SSIs are not
required for commissioning.)
Note: The RT cannot be located closer than 109 yards (100
meters) from the HT.
7.1
Prerequisites for
commissioning
1027144–0001 Revision D Commissioning the RT 7–3
RT installation
Connect the IFL cable to the CCM (IDU):
1. Go to the IDU location.
2. Make sure power to the IDU is off (or disconnected).
A label on the CCM front panel advises:
CAUTION: POWER DOWN
ODU BEFORE CONNECTING
OR DISCONNECTING IF
Removing power from the IDU powers down the ODU.
Make sure the IDU is powered off before you connect or
disconnect the IFL cable.

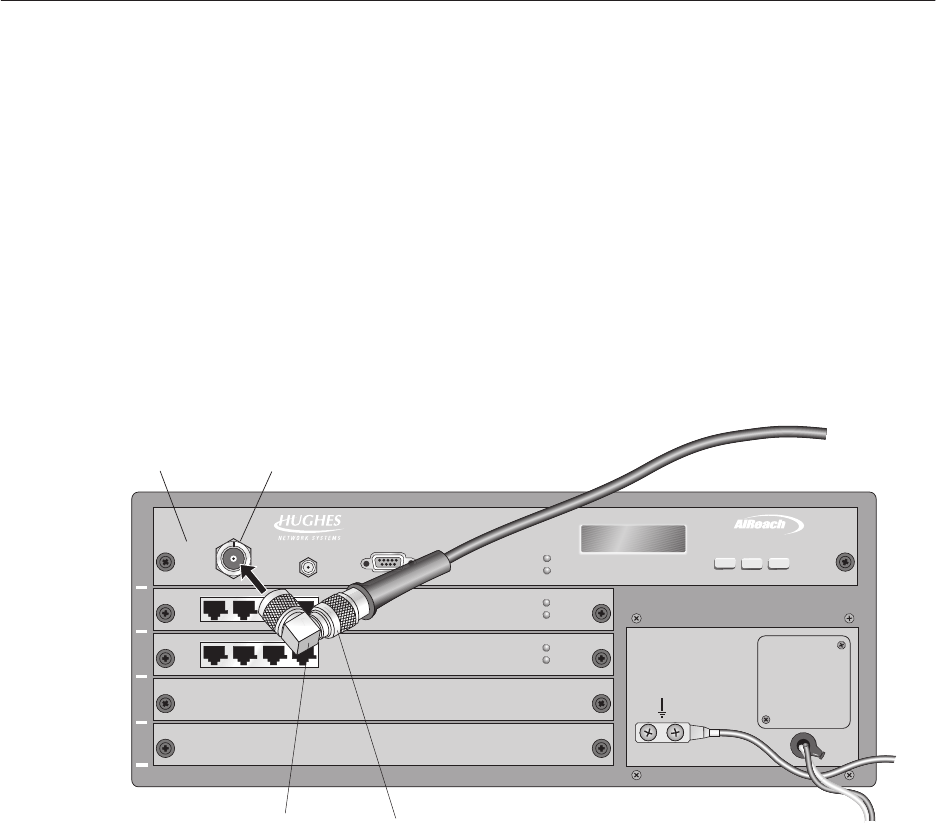

3. Using a 90° adapter, connect the IFL (N connector) to the
CCM IFL interface, as shown in figure 7-1.
1
2
3
4
5
TM
BROADBAND
ENTERPREVNEXT
RT CCM
T0009047
CCM
IDU
IFL
interface
IFL
N connector
90 adapter°
Figure 7-1 Connecting the IFL cable
4. Power on the IDU.
7.2
Connecting the IFL
to the CCM (IDU)
1027144–0001 Revision D 7–4 Commissioning the RT RT installation
This section describes how to use the LCD and buttons on the
CCM front panel (figure 7-2). You need to use the LCD to
commission the RT.
The LCD:
•Shows CCM startup diagnostics (SUDS) tests as they occur
•Shows the system boot up sequence
•Shows the software loading sequence
•Indicates the status and operational state of system
components
•Provides functions necessary for commissioning the RT
Figure 7-2 CCM front panel LCD
TM
BROADBAND
Main Menu
Install
ENTERPREVNEXT
T0009049
LCD
7.3
Front panel LCD
operation
1027144–0001 Revision D Commissioning the RT 7–5
RT installation
When the CCM/ IDU is powered up or reset:
•SUDS run automatically.
•When SUDS are completed, the CCM LCD displays a
SUDS Completed message.
•The LCD then displays:
Initializing
Press Enter for Menu
To access the CCM LCD Main Menu, press the ENTER button on
the CCM front panel while the Initializing screen is displayed.
This puts the IDU into diagnostic mode. The LCD shows the Main
Menu:
Main Menu
Status
Note: After the CCM downloads its software and is operational
(when it displays RT Disabled), you can access the Main Menu
by pressing ENTER.
Accessing the LCD
Main Menu
1027144–0001 Revision D 7–6 Commissioning the RT RT installation
The menu map (figure 7-3) shows the available menu options for
RTs.
Note: Menu options are not the same for RTs and HTs.
Figure 7-3 LCD menu map for RT CCM
Main Menu
Install Main Menu
Status Main Menu
ESN Main Menu
Exit
T0009006
Status menu
Install menu
Install
Freq Install
Mech Attn Install
ODU Cable Install
Restart Freq Acq Install
Exit
Exits to
Main Menu
Status
CCM Status
ODU
Status
SSI n
SSI 1 - SSI 4
Status
Exit
Exits to
Main Menu
LCD menu map
1027144–0001 Revision D Commissioning the RT 7–7
RT installation
The CCM button functions are explained in figure 7-4:
TM
BROADBAND
Main Menu
Status
ENTERPREVNEXT
T0009050
Scroll to
next menu
option
Scroll to
previous
menu option
Select
(Selects currently
displayed option
or menu)
Figure 7-4 CCM front panel button functions
Exit options
If you select Exit from the Main Menu . . .
. . . while the system is operating, it remains in
operational mode.
. . . when the system is not in operational mode, the
CCM reboots.
If you select Exit from the Status or Install menu, the display
returns to the Main Menu.
CCM button functions
1027144–0001 Revision D 7–8 Commissioning the RT RT installation
Following the RT antenna installation instructions in chapter 6,
you pointed the antenna approximately toward the HT, using the
boresight. This section explains how to fine tune the pointing
adjustments, using a digital voltmeter.
To point the antenna, follow steps 1 through 12 below.
Before you can point the antenna using the voltmeter, you must
first put the IDU into Install mode and select the (RT) ODU
frequency, as follows:
1. From the IDU (CCM) LCD Main Menu, select Install
mode, and press the ENTER button.
Main Menu
Install
The LCD displays:
Install
RT at HT
2. Press ENTER, select No, and press ENTER again.
3. Select Frequency (frequency function) and press ENTER.
Install
Frequency
4. The LCD displays Freq and a frequency value:
Freq
8B4
5. Scroll to the correct ODU frequency. Scroll up (NEXT) for
a higher frequency; scroll down (PREV) for a lower
frequency.
The frequencies you can select on the bottom line are
preset, based on the installed ODU. The correct RT
frequency is the same as the HT frequency, except “B”
(indicating remote), as in 8B4, replaces “A”.
Important: If you do not see the correct frequency on the
LCD, you may have installed the wrong ODU for the site
(high band instead of low band, or vice versa). If the wrong
ODU is installed, the LCD will not display the correct
7.4
Pointing the
antenna
Selecting the ODU
frequency
1027144–0001 Revision D Commissioning the RT 7–9
RT installation
frequency as one of the available choices. You will not be
able to proceed until the correct ODU is installed.
6. Press ENTER when the LCD shows the correct frequency,
for example:
Freq Set
8B4
Go to the roof and proceed with steps 7 through 12.
While you are pointing the antenna, the LCD shows
Freq Acq in Prog (frequency acquisition in progress).
When the RT acquiress the HT frequency, the LCD shows
Acq Ack: HT 2 (acquisition acknowledged—in this
example, frequency acquired from HT 2).
Follow these steps to fine–tune the azimuth and elevation
adjustments made when the antenna was installed (sections 6.6
and 6.7).
7. Take the digital voltmeter and torque wrench (with deep
socket) to the ODU.
8. Make sure the azimuth and elevation locking nuts on the
antenna mount are loose—just loose enough to allow the
antenna to rotate (for elevation adjustment) and move in
azimuth. These nuts are shown in figure 7-5.

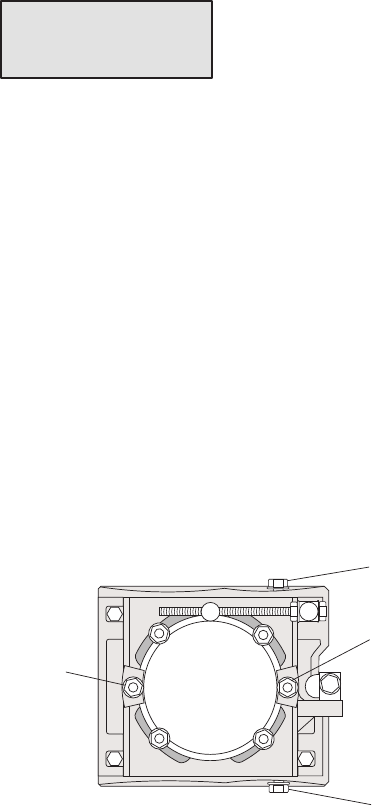

Figure 7-5 Azimuth and elevation locking nuts
T0009033
Elevation
locking nut
Elevation
locking nut
Azimuth
locking nut
Azimuth
locking nut
Voltmeter pointing and
final adjustments
1027144–0001 Revision D 7–10 Commissioning the RT RT installation
9. Connect a digital voltmeter to the F connector on the ODU,
as shown in figure 7-6, and select the 0 to 10 volt or 0 to 5
volt range.

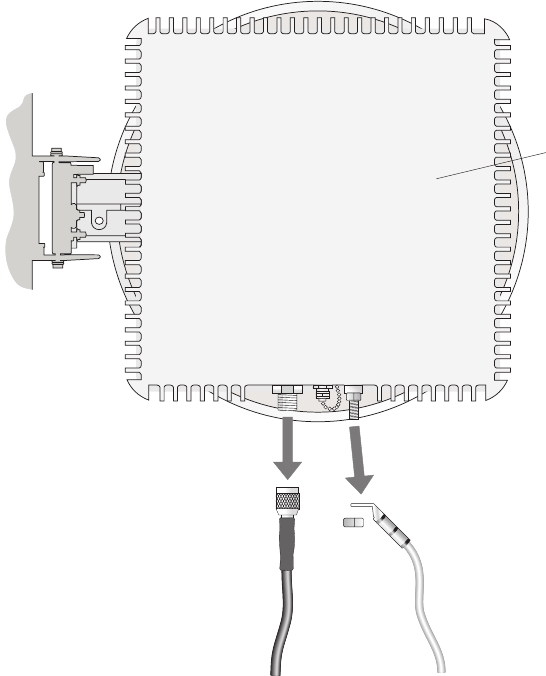

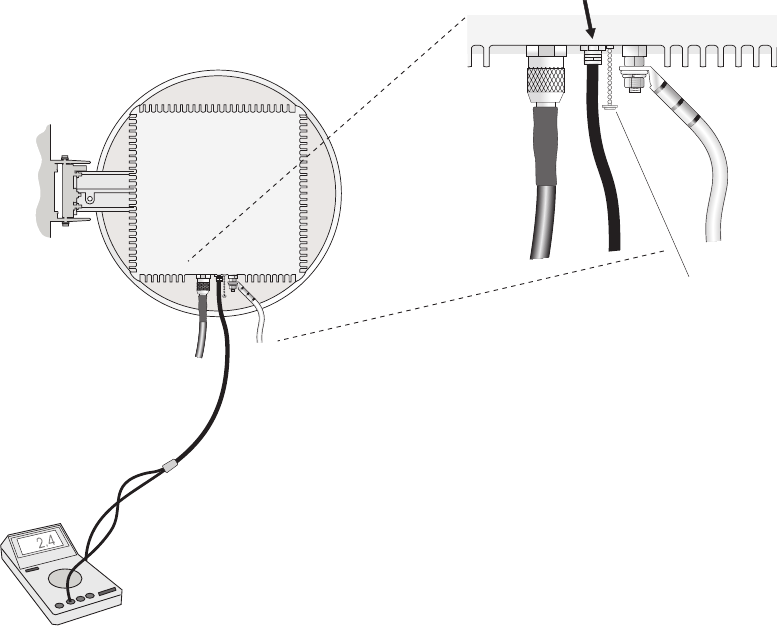

Figure 7-6 Connecting the digital voltmeter to the ODU
T0009016
Digital
voltmeter
IFL Ground
wire
Use F connector to connect
cable to (center) pointing port.
BNC connector with
banana plug
Rear view
Protective cap
for pointing port
1027144–0001 Revision D Commissioning the RT 7–11
RT installation
10. Observe the reading on the voltmeter as you fine adjust the
azimuth and elevation (steps 11 and 12):
11. Fine adjust the azimuth:
a. Using a wrench, slowly rotate the fine azimuth
adjuster (shown in figure 7-7).
b. Adjust until you see the highest obtainable voltage
reading on the voltmeter.

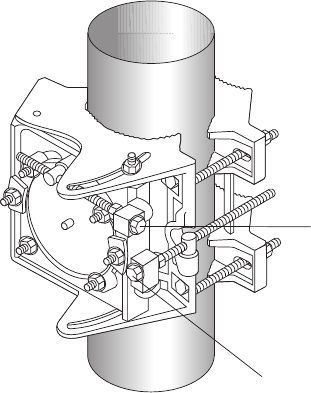

T0009034
Fine azimuth
adjuster
Fine elevation
adjuster
Figure 7-7 Fine azimuth adjuster and fine elevation adjuster
12. Fine adjust the elevation:
a. Using a wrench, slowly rotate the fine elevation
adjuster (shown in figure 7-7).
b. Adjust until you see the highest obtainable voltage
reading on the voltmeter.
The antenna is properly pointed when the peak
voltage is between 0.2 volts and 3.9 volts, with no
oscillation.
c. When the peak voltage reading remains steady
between 0.2 volts and 3.9 volts, tighten the azimuth
and elevation locking nuts (figure 7-5) to
16 foot–pounds (21.7 Newton–meters) torque.
If you cannot obtain a steady voltmeter reading
between 0.2 volts and 3.9 volts, refer to table 7-1 for
the appropriate corrective action.
1027144–0001 Revision D 7–12 Commissioning the RT RT installation
Table 7-1 Voltage indications for RT antenna pointing
Peak voltmeter reading Indication Corrective action
Current voltage level with
oscillation up to 4.1 V
. (The
reading intermittently peaks
at the current voltage level
for 2 seconds and then
rises to 4.1 V for 1 second.)
HT not acquired HT acquisition has not
occurred. Continue
pointing the antenna.
0.2 V to 3.9 V with no
oscillation Correct HT
acquired (Corrective action is not
required.) Continue with
the installation.
3.9 V to 4.1 V with no
oscillation Correct HT
acquired HT acquisition has
occurred but you must
install a mechanical
attenuator before
continuing with the
installation, refer to
section 6.8.
Current voltage level with
oscillation to 0 V.
(The
reading intermittently peaks
at the current voltage level
for 2 seconds and then
drops to 0 V for 1 second.)
Wrong HT
acquired RT has been denied
acquisition by the wrong
HT. You must follow the
procedures listed in
Repointing the RT
antenna
below before
proceeding.
When you finish pointing, make sure all of the azimuth and
elevation locking nuts are tightened to 16 foot–pounds (21.7
Newton–meters).
Follow the steps below to repoint the RT antenna only if the ODU
has acquired the wrong HT.
(If you have successfully pointed the antenna—with a steady
voltmeter reading between 0.2 volts and 3.9 volts—you do not
need to follow steps 1 and 2 below; go on to section 7.5.)
1. Repeat steps 7 through 12 (voltmeter pointing and final
adjustments).
2. If you cannot obtain the correct voltmeter readings because
the antenna is grossly mispointed, you may have to repeat
the azimuth and elevation adjustment procedures explained
in sections 6.6 and 6.7 (respectively).
If you encounter problems in pointing the antenna that are not
addressed above, refer to chapter 9. See the chart titled
Troubleshooting: RT antenna pointing.
Repointing the
RT antenna
Troubleshooting
1027144–0001 Revision D Commissioning the RT 7–13
RT installation
Return to the IDU location to verify that the RT has acquired the
HT:
1. Observe the CCM LCD to verify that the RT has
successfully acquired the HT frequency.
The following display indicates that the RT has successfully
acquired the HT.
Install
Acq Ack: HT nnn nnn = HT ID
Note: The LCD will display Acq Deny (acquisition
denied) if:
•The RT’s ESN has not been entered in the EMS
database, or
•The RT is pointed toward the wrong HT.
Specify the appropriate attenuator value, and then take the IDU
out of Install mode:
1. Scroll to the attenuator option:
Install
Mech Attn
2. Scroll to the attenuator selection display:
Mech Attn
20 dB
3. Scroll until the LCD shows the size of the installed
mechanical attenuator. If no attenuator is installed, select
0 dB. Press ENTER.
4. Take the IDU out of Install mode: Select Exit and press
ENTER.
Install
Exit
7.5
Verifying HT
acquisition
7.6
Entering an
attenuator value
1027144–0001 Revision D 7–14 Commissioning the RT RT installation
Use the LCD Status option to check the status of the CCM, SSIs,
and ODU, as explained in the following sections.
Note: You can only perform the CCM, SSI, and ODU status
checks after the HT has been acquired.
Check the CCM status as follows:
1. Press ENTER on the CCM front panel.
The LCD shows:
Main Menu
Install
2. Use the NEXT button to scroll to:
Main Menu
Status
3. Press ENTER, to go to (select) the Status menu:
Status
CCM
4. Press ENTER to show the CCM status:
CCM
OK
The possible status conditions for CCMs, SSIs, and the
ODU are:
OK The component is operational.
Degraded The component is not fully operational.*
Failed The component has failed.
Unknown The CCM cannot communicate with the
component.
Action for “Failed” or “Degraded”status
If the LCD shows Failed for any component, replace the
component.
If you see Degraded during installation, replace the
component. However, if you see Degraded while the
system is operational, under some circumstances you may
not need to replace the component (for example, if a failed
port is not needed).
7.7
Checking
component status
Check CCM status
1027144–0001 Revision D Commissioning the RT 7–15
RT installation
Check the status of the installed SSIs as follows:
(Note that SSIs are not required for commissioning. They can be
installed after RT commissioning.)
1. From the Status / CCM display, shown below,
Status
CCM
press the NEXT button to scroll to the SSI status menu:
Status
SSI 1
2. Use the NEXT or PREV button to scroll to the SSI you
want to check:
Status
SSI 2
Note: SSIs are numbered SSI 1 through SSI 4, according to
their positions in the IDU chassis:
Chassis slot SSI number
2 1
3 2
4 3
5 4
Slot 1 is occupied by the CCM.
3. Press ENTER to show the status of the selected SSI:
SSI 2
OK
The possible status conditions for SSIs are:
OK
Degraded
Failed
Unknown
(as explained on page 7–14)
Check the status of each installed SSI.
Check SSI status
1027144–0001 Revision D 7–16 Commissioning the RT RT installation
Check the status of the ODU as follows:
1. From the Status / SSI 1 display, shown below,
Status
SSI 1
press NEXT to scroll to the ODU status menu:
Status
ODU
2. Press ENTER to show the ODU status:
ODU
OK
The possible status conditions for the ODU are:
OK
Degraded
Failed
Unknown
(as explained on page 7–14)
Note: You will not see ODU status information if the ODU
is not connected (via the IFL) to the IDU. The status will be
Unknown.
If a failure is indicated for any component, replace the failed
component. Run SUDS, and check the status of the new
component.
3. Exit the Status menu: Scroll to:
Status
Exit
and then press ENTER.
4. Exit the Main Menu: Scroll to:
Main Menu
Exit
and then press ENTER.
Check ODU status
1027144–0001 Revision D Commissioning the RT 7–17
RT installation
After acquiring the HT, the CCM automatically loads its software
and configuration data and becomes operational. This is indicated
by RT Enabled on the LCD.
Before performing the RT to HT connection tests described in
section 7.9, make sure the LCD shows:
RT Freq 8B4
Enabled
(Frequency is
specific to RT)
The RT Enabled message indicates that the equipment is
operational.
If SSIs are installed but not yet configured through the EMS, the
operational status will be RT Disabled.
The possible operational states are:
Enabled RT is ready for service.
Disabled Equipment is operational, but RT
is not ready for service.
Degraded One or more components is not
fully operational.
Enabled
Degraded RT is ready for service, but one
or more components is not fully
operational.
Enabled
In Test All of the RT’s SSIs are in test
mode.
At this point, RT commissioning is complete, except for the RT to
HT tests described in section 7.9. You may or may not be able to
complete these tests, depending on whether or not other network
components are installed and operational. (See the test
requirements listed in section 7.9.)
Leave the RT powered on for testing and operation.
7.8
Verifying the RT’s
operational state
1027144–0001 Revision D 7–18 Commissioning the RT RT installation
Perform the applicable tests described below if the newly installed
RT meets the listed requirements. If the RT/network does not yet
meet these requirements, perform the tests at a later time.

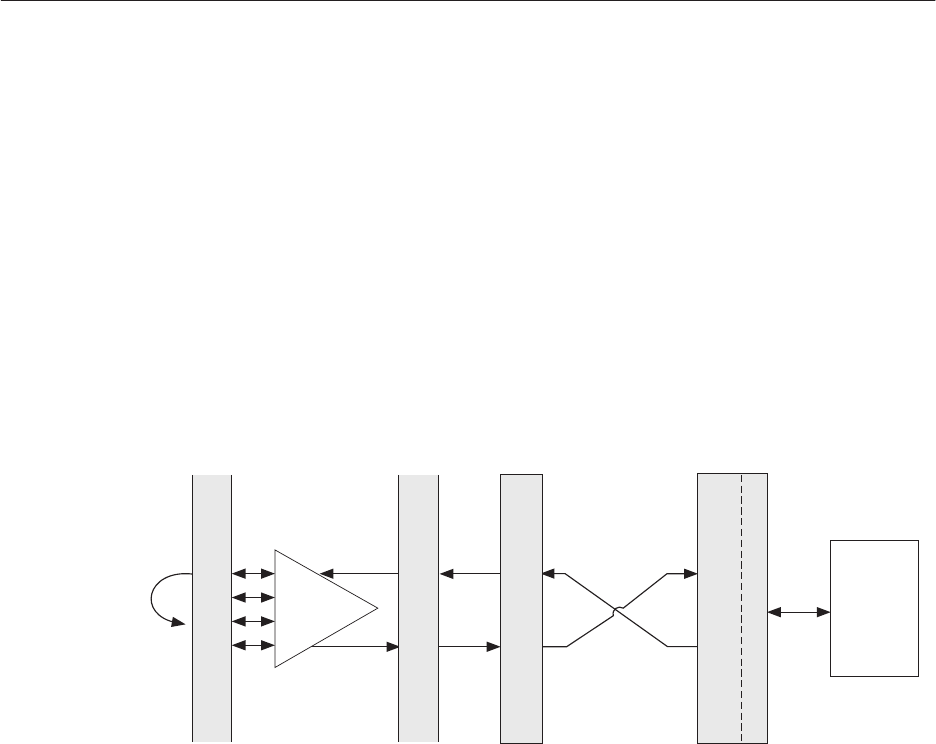

This test verifies the DS1 connection from the RT to the HT.
Requirements
The DS1 test described below requires the following:
•The RT must be fully installed, commissioned (except for
tests), and in contact with the EMS through the hub.
•The HT must be operational and in contact with the EMS.
•DS1 services must be configured and provisioned.
•There must be no alarms present at the RT location.
•A loopback connector must be connected to the input/out
port of the patch panel, as illustrated in figure 7-8.
Figure 7-8 RT to HT connection test setup
DS3
mux
Bit error
rate test
set
P
a
t
c
h
p
a
n
e
l
HT RT
P
a
t
c
h
p
a
n
e
l
Hub site
Customer premises
Loopback
connector
QRSS (2E20-1
pseudo-random)
test pattern
DS1
DS3 DS3
DS1
Over the air
interface
T0009007
Test procedure
1. Connect a DS1 test set to the out/input points at DS1 RJ–48
port on the SSI board.
2. Select:
- QRSS (quasi random signal source) test pattern
- Recovered clock
- DS1 interface
3. Run the test for 1 hour.
Results
The RT passes if there are no errors and no clock or frame slips
during the test.
Record the results on the form on the following page (or make a
photocopy).
7.9
RT to HT connection
tests
DS1 test
1027144–0001 Revision D Commissioning the RT 7–19
RT installation
RT to HT DS1 test results
RT location: ____________________________________________
Test successful? ___ Yes ___ No RSSI __________
If not successful, complete:
Bit error rate _______________ Frame slips _______________
Frame errors _______________ Clock slips ________________
Trouble report generated? ___ Yes ___ No
If yes, report number: ____________________
If applicable: Faulty module part number ______________________
Serial number _____________________
If applicable: Replacement board part number __________________
Serial number______________________
BER test printout attached? ___ Yes ___ No
Comments:
_________________________________________________________________________________
_________________________________________________________________________________
Tested by (print name and sign): _______________________________________________________
Customer (print name and sign): ________________________________________________________
Date __________________________
1027144–0001 Revision D 7–20 Commissioning the RT RT installation
This test verifies the DS3 connection from the RT to the HT.
Requirements
The DS3 test described below requires the following:
•The RT must be fully installed, commissioned (except for
tests), and in contact with the EMS through the hub.
•The HT must be operational and in contact with the EMS.
•DS3 services must be configured and provisioned.
•There must be no alarms present at the RT location.
•A loopback connector must be connected to the input/out
port at the patch panel nearest to the HT. (Figure 7-8
indicates a loopback connector but also shows the patch
panel nearest to the HT.)
Test procedure
1. Connect a DS1 test set to the out/input connector on the
Universal SSI board.
2. Select:
- Correct coding
- Correct framing
- Recovered clock
- DS1 interface
The configured DS0 may be dropped from the DS1 data
stream and tested using QRSS test patten.
3. Run the test for 1 hour.
Results
The RT passes if there are no errors and no clock or frame slips
during the test.
Record the results on the form on the following page (or make a
photocopy).
DS3 test
1027144–0001 Revision D Commissioning the RT 7–21
RT installation
RT to HT DS3 test results
RT location: ____________________________________________
Number of configured DS0: ________________________________
Test successful? ___ Yes ___ No RSSI __________
If not successful, complete:
Bit error rate _______________ Frame slips _______________
Frame errors _______________ Clock slips ________________
Trouble report generated? ___ Yes ___ No
If yes, report number: ____________________
If applicable: Faulty module part number ______________________
Serial number _____________________
If applicable: Replacement board part number __________________
Serial number______________________
BER test printout attached? ___ Yes ___ No
Comments:
_________________________________________________________________________________
_________________________________________________________________________________
Tested by (print name and sign): _______________________________________________________
Customer (print name and sign): ________________________________________________________
Date __________________________
1027144–0001 Revision D 7–22 Commissioning the RT RT installation
This test verifies the fractional DS3 connection from the HT to the
RT.
Requirements
The fractional DS3 test described below requires the following:
•The RT must be fully installed, commissioned (except for
tests), and in contact with the EMS through the hub.
•The HT must be operational and in contact with the EMS.
•Fractional DS3/DS1 services must be configured and
provisioned.
•There must be no alarms present at the RT location.
•A loopback connector must be connected at the HT, either
at the input/out port connector of the HT DS3 SSI or at the
DS3 patch panel. (Refer to figure 7-8.)
Test procedure
1. Connect a DS3 test set to the out/input connector on the RT
DS3 SSI.
2. Select:
- C bit framing
- Recovered clock
- DS3 interface
Fractional DS1 services may be dropped from the DS3 data
stream and tested using QRSS test pattern.
3. Run the test for 1 hour.
Results
The RT passes if there are no errors and no clock or frame slips
during the test.
Record the results on the form on the following page (or make a
photocopy).
Fractional DS3 test
1027144–0001 Revision D Commissioning the RT 7–23
RT installation
RT to HT fractional DS3 test results
RT location: ____________________________________________
Number of DS1s tested ______
Test successful? ___ Yes ___ No RSSI __________
If not successful, complete:
Bit error rate _______________ Frame slips _______________
Frame errors _______________ Clock slips ________________
Trouble report generated? ___ Yes ___ No
If yes, report number: ____________________
If applicable: Faulty module part number ______________________
Serial number _____________________
If applicable: Replacement board part number __________________
Serial number______________________
BER test printout attached? ___ Yes ___ No
Comments:
_________________________________________________________________________________
_________________________________________________________________________________
Tested by (print name and sign): _______________________________________________________
Customer (print name and sign): ________________________________________________________
Date __________________________
RT INSTALLATION
1027144–0001 Revision D Final steps 8–1
RT installation
Chapter 8
Final steps
This chapter describes the final steps to take before you leave the
customer site after completing the installation:
•Weatherproofing – page 8–2
•Inspection, cleanup, and customer sign–off – page 8–3
•Connecting customer equipment – page 8–3
Observe these safety warnings while performing final inspections
and related tasks:
DANGER
Do not work on a ladder or roof without
first reading the safety warnings on page x
of this manual. Failure to observe these
warnings could result in personal injury or
death.
WARNING
Potential radio frequency (RF) hazard:
•Keep away from the front of the
outdoor unit (ODU) antenna while the
ODU is operating. Note that you cannot
tell from outward appearance whether
the ODU is operating or not.
•Be careful with respect to the ODU you
are installing and ODUs that may
already be operating in the installation
area.
Failure to observe these warnings could
result in injury to eyes or other personal
injury.
Safety warnings
1027144–0001 Revision D 8–2 Final steps RT installation
After the RT has been successfully commissioned, go to the ODU
and seal all outdoor IFL connections (including connections to the
lightning arrestor assembly). Use weatherproofing compound and
waterproof tape to protect against moisture penetration:
See figure 8-1.
1. Starting at the connector end, wrap waterproof electrical
tape around the connector and part of the cable.
2. Cover the electrical tape with weatherproofing compound,
and work the compound into all joints and cracks where
water could enter.
3. Smooth the weatherproofing compound, giving the
connection a tapered appearance, as shown in figure 8-1.
4. Again starting at the connector end, wrap a second layer of
electrical tape around (on top of) the weatherproofing
compound.
5. Press the tape into the weatherproofing compound.
The resulting seal should be tight and compact, with no
loose tape ends.
CAUTION
Outdoor connectors are subject to
moisture contamination. Even minute
amounts of water vapor can condense
and cause a short circuit. Thoroughly
seal all outdoor IFL connections with
weatherproofing compound and tape.

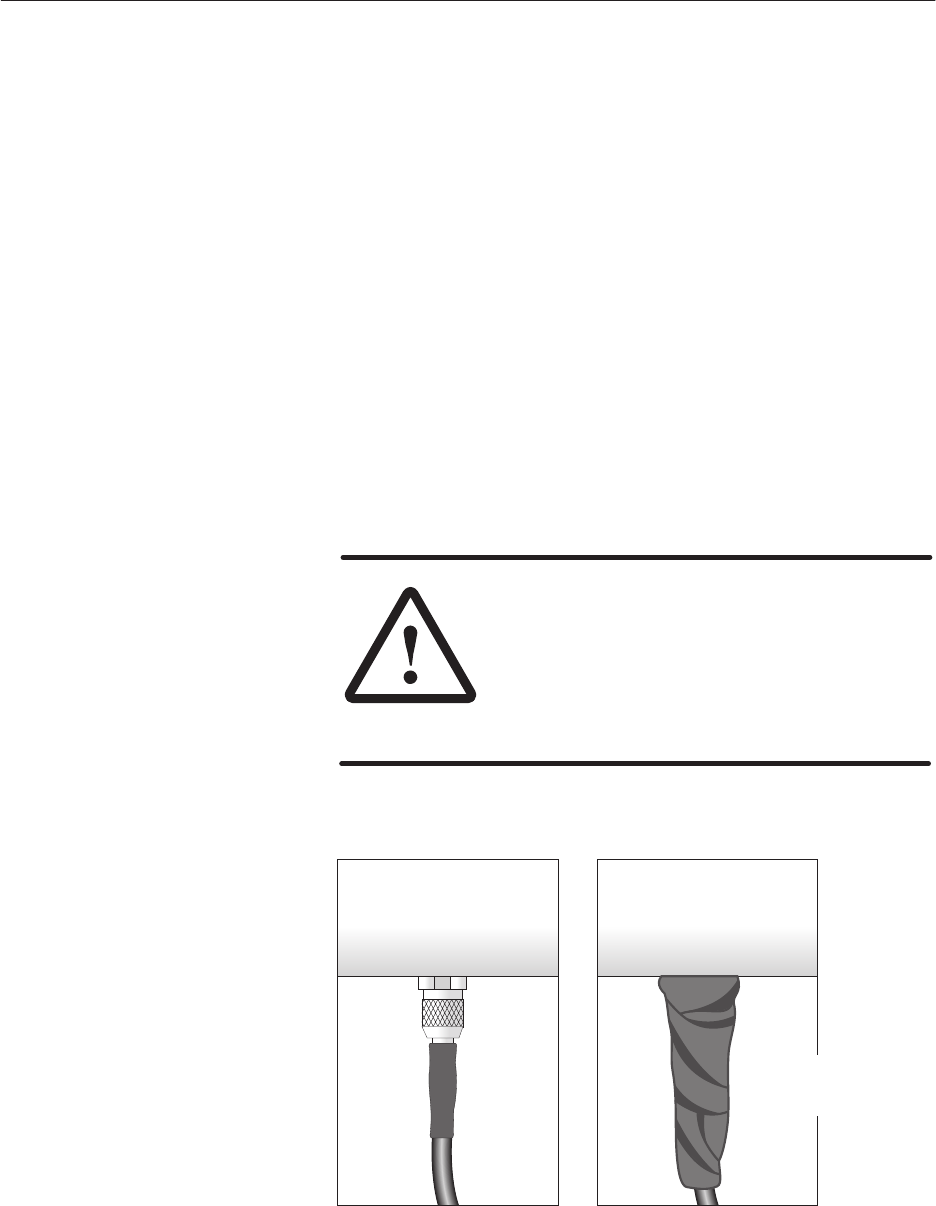

Figure 8-1 Applying weatherproofing compound and tape
Before weatherproofing After weatherproofing
Heat
shrink Weatherproofing
compound and tape
T0006027
8.1
Weatherproofing
1027144–0001 Revision D Final steps 8–3
RT installation
After all equipment is installed and commissioned, visit each
installation area to inspect the equipment and make sure the area is
left clean and orderly.
Inspect all equipment to make sure:
•All cables are dressed (as necessary) and not bent
excessively.
•All connections are secure.
•IFL connections are properly waterproofed.
•IDUs, racks, and ODUs are properly grounded.
•Antenna mount bolts are tightened.
•ODU adjusters and the temporary installation collar have
been removed for future use.
Clean up all installation areas:
•Make sure no tools or other objects are left on or near the
equipment.
•Remove or neatly store any excess materials.
•Remove all debris.
Before leaving the site, notify the appropriate customer
representative that the work has been completed. Ask the
representative to sign the work order, indicating that the
equipment has been installed and has passed the initial loopback
verification test(s).
The customer is responsible for connecting customer equipment to
the AIReach Broadband equipment through connections to
service–specific interface modules (SSI) modules. Refer to section
3.5 for information on the services and specific interfaces
provided by each SSI type.
8.2
Inspection, cleanup,
and sign–off
Inspection
Cleanup
Customer sign–off
8.3
Connecting
customer
equipment
RT INSTALLATION
1027144–0001 Revision D Troubleshooting 9–1RT installation
Chapter 9
Troubleshooting
This chapter includes:
•Troubleshooting flow charts – page 9–1
•Service information – page 9–6
The troubleshooting flow charts in this chapter will help isolate
most problems you might encounter during installation and
operation of the AIReach Broadband system.
Each flow chart begins with a specific problem, then leads you to
specific corrective actions you should take. Where actions are
numbered in these charts, you many not need to perform all of
the actions. Perform the actions in order, and check after each
action to see if the problem has been resolved. Proceed to the
next action only if the previous action did not correct the
problem.
The information in this chapter is intended for use by technicians
experienced in electronics troubleshooting. Therefore, it suggests
corrective actions but does not include detailed instructions for
each action.
9.1
Troubleshooting
flow charts
1027144–0001 Revision D 9–2 Troubleshooting RT installation
Troubleshooting the CCM
CCM will not
power up.
Is the correct
voltage present at
the IDU chassis
input?
Does chassis
cooling fan operate
when power is
applied?
Check power
source.
Replace CCM.
Replace
IDU chassis.
Yes
Yes
No
No
hb109
Problem:
1027144–0001 Revision D Troubleshooting 9–3RT installation
CCM failed startup
diagnostics (SUDS).
Replace CCM.
Problem:
During CCM bootup / hardware
initialization, LCD displays any of
the following messages, indicating
a device failure:
Host Cfg Failed
PLX Failed
PLX IO Failed
LAN Failed
RCC FPGA Failed
BSB FPGA Failed
QPIG FPGA Failed
Tim syn Failed
Replace CCM.
hb110
Problem:
Troubleshooting the CCM -
Continued
1027144–0001 Revision D 9–4 Troubleshooting RT installation
1. Select Install from the LCD Main Menu.
2. Point the RT antenna in the direction of the
HT.
3. Enter the RT serial number in the EMS
database.
4. Make sure the RT ODU frequency is selected
via the LCD Freq function.
5. Check IFL cable for continuity, and check IFL
connectors.
6. Replace CCM.
7. Replace ODU.
Cannot find the HT.
Problem:
rt068
Troubleshooting: RT antenna pointing
1. Read voltage on voltmeter; refer to table
2. Move the antenna in azimuth. If the voltage
does not vary as you move the antenna, the
CCM may be faulty. Continue with the steps
below.
3. Check
the ODU frequency via the LCD Freq function.
Power the CCM off and then on (by removing it
and then reinserting it); then make sure the ODU
frequency is still correct.
4. Replace CCM.
Select Install from the LCD Main Menu.
Yes
No
Can you detect
voltage at the
ODU pointing
connector?
7-1 .
1027144–0001 Revision D Troubleshooting 9–5RT installation
rt070
CCM will not download
its software over the air
(No "Loading Software"
message on LCD.)
Problem:
Troubleshooting: CCM won't download
1. Replace ODU.
2. Replace CCM.
1027144–0001 Revision D 9–6 Troubleshooting RT installation
rt069
After CCM has downloaded
its software, CCM LCD shows
"RT Disabled" message.
Problem:
Troubleshooting: "RT Disabled"
If Status screen shows
"Degraded" or
"Unknown" for any
component . . .
Check CCM,
SSIs, and ODU
via CCM LCD
Status menu.
If Status screen shows
"CCM Failed" or
"SSI Failed" . . .
(number)
Refer to
section
If Status screen shows
"ODU Failed" . . .
Replace the
CCM or
indicated SSI.
1. Check IFL cable
for continuity.
2. Check IFL cable
connectors.
3. Replace ODU.
Are SSIs
installed and
configured?
"RT Disabled" message is
normal if SSIs have not been
installed and configured.
Yes
No
7.7.
IDU chassis fan doesn’t work. If the chassis is a dc powered unit,
make sure the polarity of the wires to the power supply is not
reversed.
If you find a faulty component, contact your contract administer to
arrange for repair or replacement.
9.2
Additional
troubleshooting
information
9.3
Repair or
replacement service
RT INSTALLATION
1027144–0001 Revision D Maintenance 10–1RT installation
Chapter 10
Maintenance
The AIReach Broadband physical system requires no routine
maintenance. However, to facilitate expansion, reconfiguration, or
repairs, you may need to add, move, or replace components. This
chapter includes instructions for:
•Adding or moving SSIs – page 10–2
•Replacing components – page 10–3
•Replacing the ODU – page 10–3
•Replacing the IDU chassis – page 10–10
•Replacing the CCM – page 10–12
•Replacing SSIs – page 10–13
•Replacing the IFL – page 10–14
•Dismantling an RT – page 10–16
1027144–0001 Revision D 10–2 Maintenance RT installation
Notify the EMS operator before you add or move SSIs. Make
sure the EMS operator has performed any prerequisite steps that
may be necessary before you add or move an SSI.
For instructions on replacing SSIs, see section 10.6.
CAUTION
Always wear a new or recently tested
electrostatic discharge (ESD) wrist strap
(figure 3-14) when handling circuit
modules. Failure to use a wrist strap may
result in damage to components.
You can install additional SSIs while the system is powered on. To
add an SSI, follow the instructions in section 3.5 (page 3–27).
After installing an SSI, use the CCM LCD Status function to
check its operational status. The LCD should display OK. (For an
explanation of the CCM LCD Status function, see section 7.7.)
SSIs are hot–swappable, meaning you can move them from one
slot to another or to another chassis while the chassis are powered
on.
To move an SSI:
1. Loosen the thumbscrews at each end of the SSI.
2. Using an ESD wrist strap connected to a chassis ground
terminal, slide the SSI out of its slot.
3. Move the SSI to its new location and insert it into the slot.
4. Tighten the thumbscrews at each end of the SSI.
5. Use the CCM LCD to check the SSI status. (For details, see
section 7.7).
10.1
Adding or moving
SSIs
Adding SSIs
Moving SSIs
1027144–0001 Revision D Maintenance 10–3RT installation
The following RT components can be replaced at the installation
site if a problem is attributed to the component:
•ODU
•IDU chassis
•CCM
•SSIs
•IFL
Specific instructions for replacing each component follow, in
sections 10.3 through 10.7.
If the ODU is faulty, you normally replace the transceiver only
(which contains the ODU electronics). Replace the antenna only if
it is physically damaged (for example, wind or water damage) or
has some other known problem.
DANGER
Do not work on a ladder or roof without
first reading the safety warnings on page x
of this manual. Failure to observe these
warnings could result in personal injury or
death.
WARNING
Potential radio frequency (RF) hazard:
•Keep away from the front of the
outdoor unit (ODU) antenna while the
ODU is operating. Note that you cannot
tell from outward appearance whether
the ODU is operating or not.
•Be careful with respect to the ODU you
are installing and ODUs that may
already be operating in the installation
area.
Failure to observe these warnings could
result in injury to eyes or other personal
injury.
10.2
Replacing
components
10.3
Replacing the ODU
1027144–0001 Revision D 10–4 Maintenance RT installation
To replace the transceiver, follow these steps:
Removing the existing transceiver
1. Make sure the EMS operator has taken the RT out of
service.
2. At the IDU location: Remove power from the IDU chassis
power supply.
3. On the roof: Disconnect the ground cable and IFL from the
ODU transceiver, as shown in figure 10-1.
IFL
T0009017
Transceiver
Ground
Figure 10-1 Disconnecting the ODU
ground and IFL cables
Replacing the
transceiver
1027144–0001 Revision D Maintenance 10–5RT installation
4. Loosen the four transceiver mounting bolts (shown in figure
10-2).
T0009018
Rotate transceiver to slide bolts out of grooves.
(Rotation direction depends on orientation
of antenna bracket to right or left.)
Transceiver
Mounting bolt
(Attached to transceiver
)
Antenna flange
Waveguide
Flange groove
Antenna
Figure 10-2 Removing the transceiver
5. Rotate the transceiver until the bolts slide out of the four
grooves in the antenna bracket. (The direction of rotation
depends on the orientation of the antenna bracket—to the
right or left.) If the mounting bolts will not slide into the
grooves, loosen the bolts. See figure 10-2.
Important: A mechanical attenuator may be installed
(previously) in the antenna waveguide. If an attenuator is
installed, make sure it does not get lost or misplaced. Leave
the attenuator in the waveguide.
CAUTION
Do not allow dirt, dirt, moisture, or other
contaminants to enter the waveguide.
6. Cover the transceiver coupling (center hole) with a plastic
coupling plug (if available) or tape to prevent
contamination.
1027144–0001 Revision D 10–6 Maintenance RT installation
Installing the replacement transceiver
7. To install the replacement transceiver, follow the steps in
section 6.9 (page 6–21).
Important: If a mechanical attenuator was previously
installed in the antenna waveguide, make sure it is still in
place in the waveguide before you attach the transceiver to
the antenna.
8. Connect the IFL cable to the IFL connector on the
transceiver.
9. Ground the ODU, as explained in section 6.10 (page 6–23).
10. After you replace the transceiver:
- Go to the next subsection (Replacing the antenna) only
if you need to replace the antenna.
- Apply power to the IDU chassis power supply.
- Use a voltmeter to check the ODU pointing voltage, as
explained in section 7.4.
- Use the CCM LCD to check the ODU status. (For
details, see section 7.7).
- Notify the EMS operator that the RT is ready to resume
service.
If you are replacing the transceiver only, you should not need to
repoint the antenna.
1027144–0001 Revision D Maintenance 10–7RT installation
If you need to replace the antenna, follow these steps:
Removing the existing antenna
1. Remove the transceiver (steps 1 through 6 above, beginning
on page 10–4). Be sure to remove power from the IDU
chassis power supply.
Important: A mechanical attenuator may be installed
(previously) in the antenna waveguide. If an attenuator is
installed, make sure it does not get lost or misplaced. Leave
the attenuator in the waveguide.
CAUTION
Do not allow dirt, dust, moisture, or other
contaminants to enter the waveguide.
2. Loosen the four antenna bracket locking nuts.
Figure 10-3 Antenna bracket locking nuts
T0009043
Arrows point to antenna bracket
locking nuts. (One is not visible.)
Antenna
mount
Antenna
bracket Close-up view
Replacing the antenna
1027144–0001 Revision D 10–8 Maintenance RT installation
3. Rotate the antenna (clockwise or counterclockwise) until
the antenna bracket reliefs (curved indentations) are aligned
with the four nuts on the mast interface, as shown in figure
10-4.
Figure 10-4 Removing the antenna
T0009044
Rotate antenna and antenna bracket
until reliefs are aligned with the
4 antenna bracket locking nuts.
Antenna
mount
Antenna
bracket
Close-up view
Relief
Nut
4. Move the antenna away from the mast interface.
5. Cover the antenna waveguide (center hole) with a plastic
plug or tape to protect against contamination.
1027144–0001 Revision D Maintenance 10–9RT installation
Installing the replacement antenna
6. Attach the replacement antenna to the mount, as explained
in section 6.5 (page 6–10).
7. Point the replacement antenna by adjusting the azimuth and
elevation as detailed in chapter 6.
8. Attach the transceiver to the antenna, as explained in
section 6.9 (page 6–21).
Important: If a mechanical attenuator was previously
installed in the antenna waveguide, make sure it is still in
place in the waveguide before you attach the transceiver to
the antenna.
9. Connect the IFL cable to the IFL connector on the
transceiver.
10. Ground the ODU, as explained in section 6.10 (page 6–23).
11. Apply power to the IDU chassis power supply (section 3.3,
page 3–8).
12. Use the CCM LCD to check the ODU status. (For details,
see section 7.7).
13. Re–point the antenna with a voltmeter as explained in
chapter 7.
14. Notify the EMS operator that the RT is ready to resume
service.
1027144–0001 Revision D 10–10 Maintenance RT installation
Do not attempt to service or replace the IDU chassis power supply.
If there is a problem with the power supply, replace the entire
IDU chassis.
To replace the IDU chassis, follow these steps:
If you need additional details concerning the instructions below,
see chapter 3.
Removing the existing IDU chassis
1. Make sure the EMS operator has taken the RT out of
service.
2. Remove power from the IDU chassis power supply.
3. Mark each cable or otherwise note where each cable is
connected.
4. Remove all cables from all modules.
5. Remove the CCM:
a. Loosen the thumbscrews at each end.
b. Using an ESD wrist strap connected to a chassis
ground terminal, slide the CCM out of its slot, as
shown in figure 10-5.
CAUTION
Always wear a new or recently tested
electrostatic discharge (ESD) wrist strap
(figure 3-14) when handling circuit
modules. Failure to use a wrist strap may
result in damage to components.
rt073
CCM slot
TM
BROADBAND
RT CCM
Figure 10-5 Removing the CCM
10.4
Replacing the IDU
chassis
1027144–0001 Revision D Maintenance 10–11RT installation
6. Place the CCM in its ESD protective packaging.
7. Remove all SSIs:
a. Using a piece of tape on the SSI front panel, mark the
slot number where each SSI was installed.
b. Loosen the thumbscrews at each end.
c. Using an ESD wrist strap connected to a chassis
ground terminal, slide the SSI out of its slot.
8. Place each SSI in ESD protective packaging.
9. If the IDU chassis is rack mounted, remove the four
mounting screws and remove the chassis from the rack.
10. Remove the rack mounting brackets from the chassis.
Installing the replacement IDU chassis
Refer to the instructions in chapter 3 to:
11. Install the replacement chassis in a rack, if the original
chassis was installed in a rack (section 3.2).
12. Re–connect power to the IDU chassis power supply
(section 3.3).
13. Conduct a power–on test (section 3.3).
14. Re–install the CCM (section 3.4).
15. Re–install the SSIs (section 3.5).
Install each SSI in the slot it was in before. Refer to the slot
numbers you marked on the tape on each SSI.
16. Re–connect the IFL cable and all other cables to the CCM
and SSIs.
1027144–0001 Revision D 10–12 Maintenance RT installation
If you need to replace the CCM, follow these steps:
If you need additional details concerning the instructions below,
see section 3.4 (page 3–23).
Removing the existing CCM
1. Make sure the EMS operator has taken the RT out of
service.
2. Remove power from the IDU chassis power supply.
3. Loosen the thumbscrews at each end of the (existing) CCM.
4. Using an ESD wrist strap connected to a chassis ground
terminal, slide the CCM out of its slot, as shown in
figure 10-6.
CAUTION
Always wear a new or recently tested
electrostatic discharge (ESD) wrist strap
(figure 3-14) when handling circuit
modules. Failure to use a wrist strap may
result in damage to components.
Figure 10-6 Removing the CCM
rt073
CCM slot
TM
BROADBAND
RT CCM
5. Place the CCM in ESD protective packaging.
Installing the replacement CCM
6. Slide the replacement CCM into the CCM slot (slot 1).
7. Tighten the thumbscrews at each end of the CCM.
8. Apply power to the IDU chassis power supply.
9. Use the CCM LCD to check the CCM status. (For details,
see section 7.7).
10. Notify the EMS operator that the RT is ready to resume
service.
10.5
Replacing the CCM
1027144–0001 Revision D Maintenance 10–13RT installation
To replace an SSI, follow the steps below.
SSIs are hot swappable, so you do not need to power off the IDU
to replace an SSI. If you need additional details concerning the
instructions below, see section 3.5 (page 3–27).
Removing the SSI
1. Note which slot the SSI to be replaced is in.
2. Loosen the thumbscrews at each end of the SSI.
3. Using an ESD wrist strap connected to a chassis ground
terminal, slide the SSI out of its slot.
CAUTION
Always wear a new or recently tested
electrostatic discharge (ESD) wrist strap
(figure 3-14) when handling circuit
modules. Failure to use a wrist strap may
result in damage to components.
4. Place the SSI in ESD protective packaging.
Installing the replacement SSI
5. Slide the replacement SSI into the slot from which you
removed the previously installed SSI.
6. Tighten the thumbscrews at each end of the SSI.
7. Use the CCM LCD to check the SSI status. (For details, see
section 7.7).
8. Notify the EMS operator that the replacement SSI is ready
for service.
10.6
Replacing SSIs
1027144–0001 Revision D 10–14 Maintenance RT installation
If you suspect problems with the IFL, check all IFL connections
and then test the IFL. Replace the IFL only if there is a known
problem that cannot be corrected any other way.
DANGER
Do not work on a ladder or roof without
first reading the safety warnings on page x
of this manual. Failure to observe these
warnings could result in personal injury or
death.
WARNING
Potential radio frequency (RF) hazard:
•Keep away from the front of the
outdoor unit (ODU) antenna while the
ODU is operating. Note that you cannot
tell from outward appearance whether
the ODU is operating or not.
•Be careful with respect to the ODU you
are installing and ODUs that may
already be operating in the installation
area.
Failure to observe these warnings could
result in injury to eyes or other personal
injury.
10.7
Replacing the IFL
1027144–0001 Revision D Maintenance 10–15RT installation
Environments where IFL cables are installed vary widely.
Therefore, use the general instructions below as guidelines.
If you need to replace the IFL:
1. Make sure the EMS operator has taken the RT out of
service.
2. Remove power from the IDU chassis power supply.
3. Disconnect all four IFL N connectors, as shown in
figure 10-7:
- 1 connector at the IDU
- 1 connector at the ODU
- 2 connectors at the lightning arrestor
N
ODU
IFL
Lightning
arrestor
T0009002
IFL
Roof
IDU
N
N
N
N= N connector location
Figure 10-7 Disconnect N connectors at the
four locations shown here
4. Remove the two IFL cable segments:
- From IDU to the lightning arrestor
- From the lightning arrestor to the ODU
5. Install the replacement IFL cable according to the
instructions in chapter 4.
1027144–0001 Revision D 10–16 Maintenance RT installation
If you need to dismantle an entire RT, follow the steps below.
DANGER
Do not work on a ladder or roof without
first reading the safety warnings on page x
of this manual. Failure to observe these
warnings could result in personal injury or
death.
WARNING
Potential radio frequency (RF) hazard:
•Keep away from the front of the
outdoor unit (ODU) antenna while the
ODU is operating. Note that you cannot
tell from outward appearance whether
the ODU is operating or not.
•Be careful with respect to the ODU you
are installing and ODUs that may
already be operating in the installation
area.
Failure to observe these warnings could
result in injury to eyes or other personal
injury.
Follow these steps:
1. Make sure the EMS operator has taken the RT out of
service.
2. Remove power from the IDU chassis power supply.
3. On the roof: Disconnect the IFL and ground cable from the
ODU. See section 10.3.
4. Remove the transceiver. See section 10.3.
5. Remove the antenna. See section 10.3.
6. Disassemble the mast and mast mount.
7. At the IDU location: Remove all cables from all modules.
If the cables will be reused, mark them to identify them.
8. Optional: Remove the CCM and SSIs from the chassis.
(Depending on what you will do with the equipment, you
might want to leave the CCM and SSIs installed.) See
sections 10.5 and 10.6.
9. Remove the IDU chassis.
10. Remove the IFL cable and lightning arrestor (unless the
lightning arrestor is being used for another RT or will be
reused).
10.8
Dismantling an RT
1027144–0001 Revision D A- 1
Appendix A
Acronyms and abbreviations
ac – alternating current
ATM – asynchronous transfer mode
AWG – American wire gauge
BER – bit error rate
BSP – baseband signal processor
C – Celsius
CCM – channel and control module
cm – centimeter
CMR – communication riser
CPU – central processing unit
dB – decibel
dc – direct current
DRAM – dynamic RAM
EIDU – expansion indoor unit
EMS – Element Management System
ESD – electrostatic discharge
ESN – electronic serial number
F – Fahrenheit
FCC – Federal Communications Commission
FEM – fiber extender module
FRAD – frame relay access device
ft – foot
HNS – Hughes Network Systems
HT – hub terminal
Hz – hertz
ID – identification
IDU – indoor unit
IEC – International Electrotechnical Commission
IF – intermediate frequency
IFL – intrafacility link
in. – inch
LAN – local area network
lb – pound(s)
LCD – liquid crystal display
LED – light emitting diode
LOS – line of sight
m – meter
MAC – media access control
mm – millimeter
NEBS – Network Equipment Building Standards
NEC – National Electric Code
NEMA – National Electrical Manufacturing
Association
NFPA – National Fire Protection Association
ODU – outdoor unit
PC – personal computer
PCI – PC interface
PMP – point–to–multipoint
QRSS – quasi random signal source
RAM – random–access memory
RF – radio frequency
ROM – read–only memory
RSSI – received signal strength indication
RT – remote terminal
SC – signaling controller
SDRAM – static dual port RAM
SSI – service–specific interface
SUDS – startup diagnostics
TAC – Technical Assistance Center
TDM – time division multiplexing
UL – Underwriters Laboratories
V – volt
Vac – volt, alternating current
Vdc – volt, direct current
VSAT – very small aperture terminal
WND – Wireless Networks Division
WDT – watch dog timer
1027144–0001 Revision D Standards compliance B–1RT installation
Appendix B
Standards compliance
This appendix includes standards compliance information for the
AIReach Broadband outdoor unit (ODU) and ac power indoor unit
(IDU). Information is included for:
•Interference standards compliance
•Underwriters Laboratories, Inc., safety compliance
•RF, electrical fast transient, and ESD immunity
B.1
1027144–0001 Revision D B–2 Standards compliance RT installation
This section provides information on the AIReach Broadband
outdoor unit (ODU).
This equipment complies with Part 15 of United States Federal
Communication Commission (FCC) Rules. Operation is subject to
the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with this
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause interference, in which case the user will be
required to correct the interference at the user’s own expense.
Type acceptance: FCC Part 101
This class A digital apparatus meets all requirements of the
Canadian Interference–Causing Equipment Regulations.
Cet appareil numérique de la Classe A respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
This equipment has been evaluated by Underwriters Laboratories
Inc. (UL) and determined to be in compliance with the Standard
for Safety of Information Technology Equipment Including
Electrical Business Equipment, UL 1950, third edition; and
Canadian Standards Association CAN/CSA C22.2 No. 950–95,
third edition. This equipment is UL listed and UL certified for
Canada as Information Technology Equipment.
The ODU complies with requirements of the National Electric
Code (NEC), article 800.
The ODU complies with EN 55022.
Outdoor unit
FCC compliance
Canadian interference
compliance
Underwriters
Laboratories (UL)
National Electric Code
(NEC)
Emissions
B.2
1027144–0001 Revision D Standards compliance B–3RT installation
This section provides information on the AIReach Broadband
ac power indoor unit (IDU).
This equipment complies with Part 15 of United States Federal
Communication Commission (FCC) Rules. Operation is subject to
the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with this
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause interference, in which case the user will be
required to correct the interference at the user’s own expense.
This class A digital apparatus meets all requirements of the
Canadian Interference–Causing Equipment Regulations.
Cet appareil numérique de la Classe A respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
This equipment has been evaluated by Underwriters Laboratories
Inc. (UL) and determined to be in compliance with the Standard
for Safety of Information Technology Equipment Including
Electrical Business Equipment, UL 1950, third edition; and
Canadian Standards Association CAN/CSA C22.2 No. 950–95,
third edition. This equipment is UL listed and UL certified for
Canada as Information Technology Equipment.
The ODU complies with the following immunity standards of the
International Electrotechnical Commission (IEC):
•Radio frequency immunity – IEC 801–3 (3 V/m)
•Electrical fast transient immunity – IEC 801–4
•Electrostatic discharge immunity – 25 KV level tested using
method in IEC 801–2
The ODU complies with EN 55022.
Indoor unit (ac)
FCC compliance
Canadian interference
compliance
Underwriters
Laboratories (UL)
Immunity
Emissions
1027144–0001 Revision D Terminating the IFL cable C–1RT installation
Appendix C
Terminating the IFL cable
This appendix explains in detail how to terminate the IFL cable
ends by attaching an N–type connector. It includes:
•Cable parts and terminology – page C–2
•Preparing the cable end – page C–3
•Attaching the connector – page C–6
•Applying heat–shrink tubing – page C–11
As part of the RT IFL installation, you attach N connectors in four
locations, as shown in figure 4-3 (on page 4–4):
•One N connector at the IDU location
•Two N connectors to connect to the lightning arrestor
assembly
•One N connector at the ODU location
Important: Sound IFL cable connections are critical for
proper operation of the AIReach Broadband system.
Therefore, be very careful in terminating the cable. If you are
unsure about the success of any of the following steps, repeat
them.
Attach N connectors after you route and install the cable, not
before.
Note: The instructions below are for the connectors in HNS kit
9006284–0002. If you use a different N–type connector, follow the
manufacturer’s instructions.
C.1
1027144–0001 Revision D C–2 Terminating the IFL cable RT installation
Figure C-1 shows the main cable components.
Figure C-1 IFL cable components
hb013
Outer jacket
Braid
Center conductor
(solid or stranded copper)
7/32 inch
(6 millimeters)
Dielectric
(foam or flexible plastic)
N connector N connector
IFL cable, terminated - shown without heat-shrink tubing
HNS kit 9006284–0002 contains two N connectors.
Cable parts and
terminolo
gy
C.2
1027144–0001 Revision D Terminating the IFL cable C–3RT installation
Prepare the cable end as follows:
1. Inspect the cable end for damage from handling and trim off
any damaged portions.
2. Cut the cable as cleanly and squarely as possible.
3. Slip the crimp ring and a piece of heat–shrink tubing
(HNS9007488–0005) onto the cable, as shown in figure
C-2.

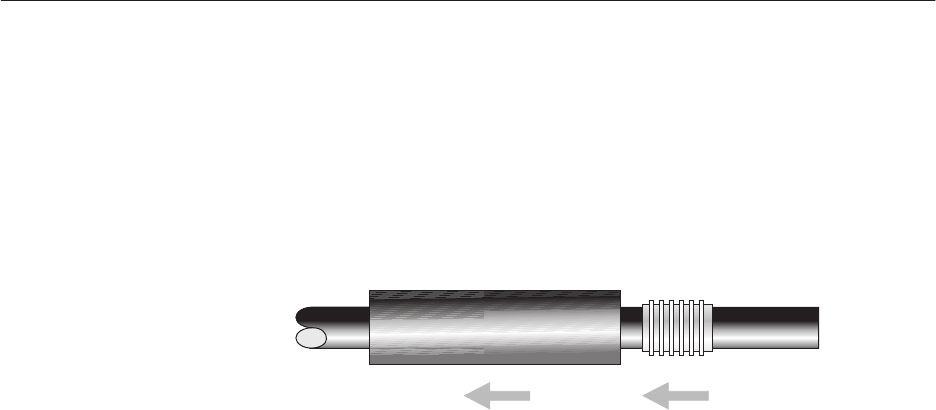

Figure C-2 Slipping the crimp ring and
heat–shrink tubing onto the cable
Heat-shrink tubing Crimp
ring
hb014
Butt-cut
cable end
4. Use the spin–stripping tool (Excelta CX 1–78–1, gold
color–coded) to remove the cable jacket and dielectric,
leaving about 7/32 inch (6 millimeters) of the center
conductor exposed, as shown in figure C-3.
a. Open the stripping jaws of the spin–stripping tool
enough to allow the cable end to enter the cable
barrel fully. (See figure C-3.)
b. While holding the cable firmly in the tool and tightly
against the cable stop, squeeze the stripper jaws.
c. Rotate the tool around the cable two or three times
until the outer cable jacket and dielectric are
completely cut through, but do not score the center
conductor. Rotate the tool in the direction indicated in
figure C-3.
d. Remove the cut–off end of the cable jacket and
dielectric.
Preparing the cable
end
1027144–0001 Revision D C–4 Terminating the IFL cable RT installation

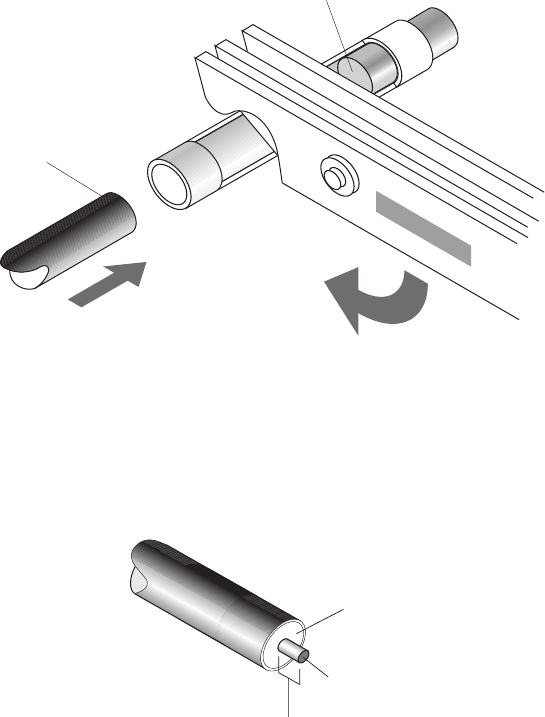

Figure C-3 Using the spin–stripping tool to
expose the center conductor
hb012
Stripper
jaws
Gold-colored
cable stop
Barrel
Butt-cut
cable end
Squeeze and rotate
tool to strip cable.
2.
1. Insert cable
into barrel.
3. Remove jacket and dielectric
to expose center conductor.
Jacket
Dielectric
Center conductor
7/32 inch
(6 millimeters)
1027144–0001 Revision D Terminating the IFL cable C–5RT installation
5. Using a razor knife, carefully slit the outer jacket as shown
in figure C-4.
Cut around the cable; then cut from the cable end to the first
cut. Cut completely through the jacket, but do not cut into
the braid.
6. Using the razor knife or a pair of diagonal cutters, lift the
jacket and peel it away as shown in figure C-4.
Remove jacket.
hb016
1
2
5/8 inch
(16 millimeters)
Figure C-4 Cutting and removing the jacket
7. Check:
- Braid for nicked or broken strands
- Dielectric end for a straight cut
- Center conductor for nicks and a straight cut
If you see significant damage to the braid, dielectric, or
conductor, you must cut the cable and start over. (Start
with step 1.)
C.3
1027144–0001 Revision D C–6 Terminating the IFL cable RT installation

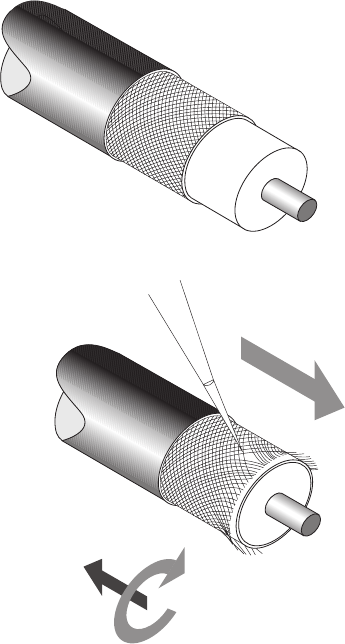

8. Flare the braid slightly and trim to 7/16 inch (11
millimeters), as shown in figure C-5.
Jacket
Braid
hb093
7/16 inch
(11 millimeters)
Figure C-5 Braid, flared and trimmed
9. Cut approximately 1/4 inch (6 millimeters) of the excess
braid so that all braids will be under the crimp ring when
the connector is completed.
The following steps explain how to attach the IFL (N) connector.
The same type of connector is used at both ends. The connector
includes a plastic guide pin to protect the dielectric during
installation, as shown in figure C-6.
Crimp
ring
Insulating
washer
Center
pin
Plastic
guide
pin
T0006020
Support
shoulder Jam
nut
Connector body
Collar
Figure C-6 IFL (N) connector (HNS 9006284–0002)
Do not remove the plastic guide pin until instructed to do so
(step 4 on page C–8).
CAUTION
Do not install the center pin without the
plastic guide pin—doing so will damage
the dielectric material inside the connector
body.
Attaching the
connector
1027144–0001 Revision D Terminating the IFL cable C–7RT installation
To install the cable connector, follow these steps.
1. Place the insulating washer against the dielectric.

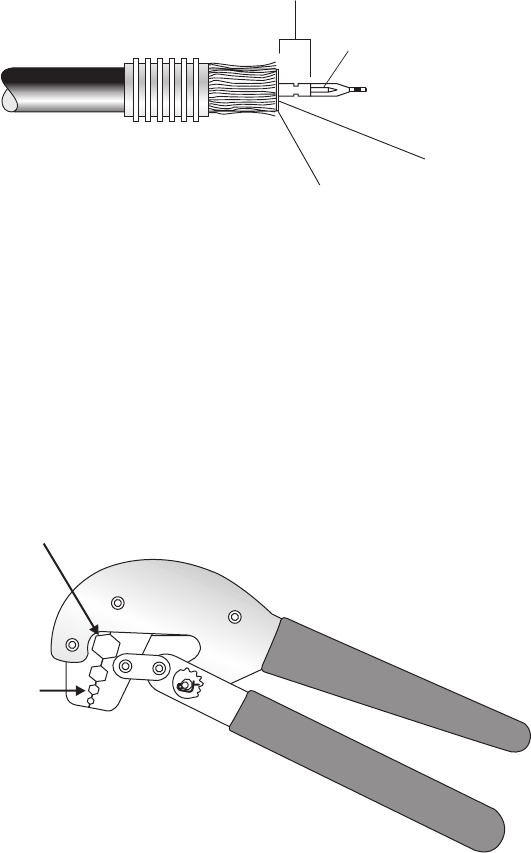

2. Push the center pin (with guide pin attached) over the cable
center conductor, as shown in figure C-7.
T0006021
Crimp
area
Center
pin
Guide pin
Crimp flush
with washer.
Insulating
washer
Figure C-7 Installing the insulator and center pin
3. Use the HCT–231 crimp tool (figure C-8) to crimp the
center pin flush with the washer, as shown in figure C-7.
If the center pin is bent after crimping, cut the cable,
re–strip it, and attach a new center pin.
HCT - 231
Use
setting to crimp
center pin.
0.108
Use setting to crimp
the crimp ring
0.475
—but not yet.
This is a later step.
hb021
Figure C-8 Crimping tool
1027144–0001 Revision D C–8 Terminating the IFL cable RT installation

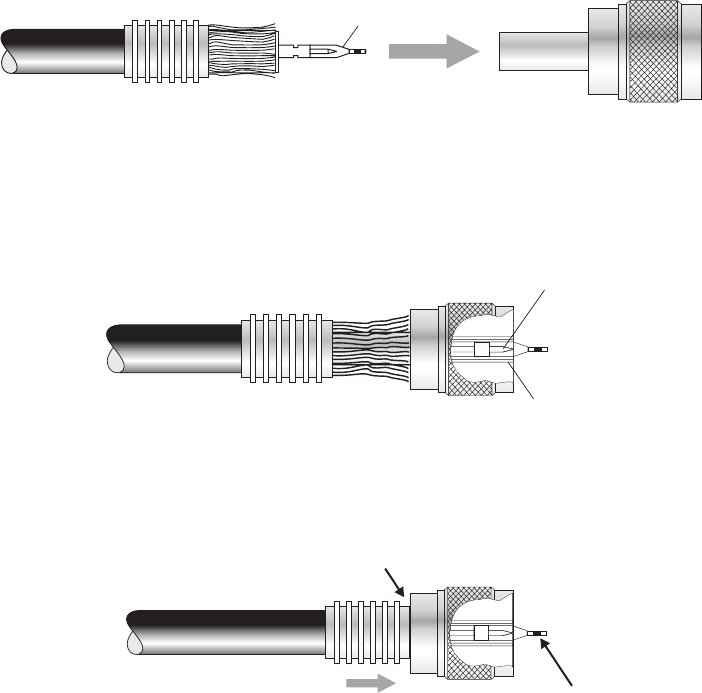

4. Follow the instructions in figure C-9 to install the connector
body and crimp ring, and remove the guide pin.
hb022
Connector
body
Guide pin and
center pin
1. Insert guide pin through back of
connector body until the cable stops.
Crimp
ring Center pin
Guide pin
Ground socket
Center pin inside connector body
Slide crimp ring over
braid and into recess.
2. Remove and
discard guide pin.
3.
Recess
Figure C-9 Installing the connector body and crimp ring
5. Important: Verify that the center pin aligns flush or
within 1/64–inch from the ground socket edge.
If the pin is not flush or within this range, the connection
will probably be faulty.
1027144–0001 Revision D Terminating the IFL cable C–9RT installation
6. Comb the braid only if the crimp ring will not fit over the
shoulder and braid. If the crimp ring fits over the
shoulder and braid, skip to step 7).
a. Insert a pick or scribe into the braid and carefully
comb the strands as shown in figure C-10.
Start combing at the cut end. Comb the strands
around the entire perimeter. Work backward, from the
cut end toward the jacket—but always combing away
from the jacket, as shown in figure C-10.
Figure C-10 Combing the braid
Jacket
Braid
Comb action
Direction of travel
hb017
Note: Comb the braid all the way back to the jacket.
If part of the braid is uncombed at the jacket end,
stretching will cause the jacket and center pin to
become loose, resulting in poor conductivity.
b. Re–trim the braid to 7/16 inches (6 millimeters), as
shown in figure C-5.
1027144–0001 Revision D C–10 Terminating the IFL cable RT installation
7. While holding the connector assembly together snugly,
position the HCT–231 crimping tool, at setting 0.475, onto
the area shown in figure C-11 and securely crimp the crimp
ring into place.
CAUTION
To avoid damaging the connector body,
make sure the crimping tool does not
touch the connector jam nut.
Crimp
hb024
Maximum gap
(exposed braid):
0.03 inch (0.8 millimeter)
Best if no gap.
Figure C-11 Crimp location
Note: If the crimp ring slips and results in a gap greater
than 0.03 inch (0.8 millimeter) between the crimp ring and
the connector collar, reject the connection. Cut off the
connector and start over.
C.4
1027144–0001 Revision D Terminating the IFL cable C–11RT installation
Apply the heat–shrink tubing as follows:
1. Position the heat–shrink tubing near (but not touching) the
jam nut, so it covers the crimp ring and a portion of the
connector collar, as shown in figure C-12.

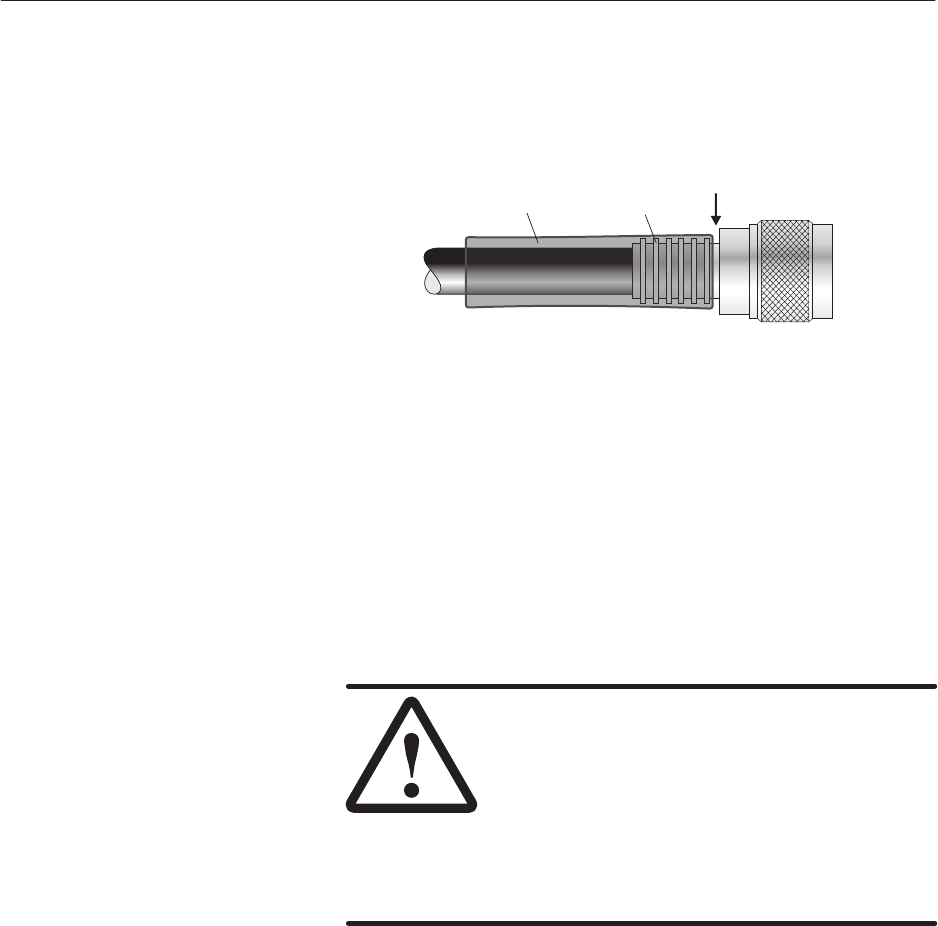

Figure C-12 Heat–shrink tubing,
properly placed for shrinking
Heat-shrink
tubing
hb026
Collar Jam
nut
Crimp
ring
2. Using a heat gun, heat-shrink the tubing until it snugly fits
around the cable, crimp ring, and part of the connector
collar.
Point the connector upward. Begin heating at the connector
end, and work toward the cable. The adhesive should flow
away from the jam nut.
CAUTION
Do not allow the cable jacket and dielectric
to overheat. This can damage the cable and
cause cable failure.
During heating, the tubing may shift and
the adhesive lining may bleed. Make sure
the adhesive does not bleed onto the jam
nut and damage the connector.
To install another N connector, repeat all steps above, beginning
with the section Preparing the cable ends (page C–3).
Applying
heat–shrink tubin
g
1027144–0001 Revision D Index-1
Index
A
Abbreviations (identified), A- 1
Access, buildings and equipment locations, 2–2
Acronyms (identified), A- 1
Adding SSIs, 10–2
Adjusters for antenna azimuth and elevation,
6–6, 7–11
Antenna
adjusting azimuth, 6–14
coarse adjustment, 6–14
fine adjustment, 7–11
adjusting elevation, coarse adjustment, 6–17
attaching to the antenna mount, 6–12
pointing, 7–8
fine azimuth adjustment, 7–9
fine elevation adjustment, 7–9
initial (coarse) azimuth adjustment, 6–14
initial (coarse) elevation adjustment, 6–17
troubleshooting, 9–4
voltage indications, 7–11
replacing, 10–7
repointing, 7–12
Antenna boresight, 6–15
Antenna mount
installing, 6–5, 6–8
parts (illustrated), 6–5
torque, 6–16, 6–18
torque wrench, 6–4
ATM. See OC3c–ATM SSI
Attenuator, 7–12
entering the attenuator value, 7–13
installing, 6–19
replacing the antenna, 10–7
replacing transceiver, 10–5
size, 6–19
Azimuth
adjusting
coarse adjustment, 6–14
fine adjustment, 7–11
explained and illustrated, 6–14
Azimuth/elevation adjusters. See Adjusters for
azimuth and elevation
B
Ballast. See Concrete blocks
Bend radius (IFL cable), 4–8, 4–13
Blocks. See Concrete blocks (ballast)
Boresight, 6–15
Buttons on CCM, 7–5
functions, 7–7
C
Cable length
DS3–ATM, 3–28
DS3–TDM SSI, 3–28
DS3–Transparent SSI, 3–29
IFL, 4–5
Quad–DS1 SSI, 3–27
Universal–DS1 SSI, 3–28
Canadian Interference–Causing Equipment
Regulations, B–2, B–3
Canadian Standards Association, B–2, B–3
CCM
button functions, 7–7
buttons on front panel, 7–5
configuration downloading, 7–17
functions, 3–23
installing, 3–23
LEDs, 3–25
operational state, 7–17
power–on test, 3–25
replacing, 10–12
status, 7–14
SUDS, 3–25
troubleshooting, 9–2
Channel and control module. See CCM
Chassis. See IDU chassis
Checklist
installation tasks, 1–3
materials, 2–6
tools, 2–3
1027144–0001 Revision DIndex-2
Commissioning
defined, 7–1
pointing the antenna, 7–8
prerequisites, 2–7, 7–2
procedures, 7–1
RT ESN, 7–2
Components to be installed, 1–3
Concrete blocks (ballast), 5–8
arrangement on mount, 5–9
Configuration downloading (CCM), 7–17
Connections, weatherproofing, 8–2
Corrugated metal roof, 5–9
Crimp tool, C–7
Customer equipment, connecting, 8–3
Customer sign–off, 8–3
D
Diagnostic mode, 7–5
Diameter of ODU mast, 6–4
Dismantling an RT, 10–16
Distance, RT to HT, 6–19
Distance – RT to HT, 7–2
Documents, related, vii
Drain groove (antenna), 6–10
Drawings
hub network schematic, 2–1
hub rooftop drawing, 2–1
RT reference drawing, 1–2
DS1 test, 7–18
DS3 test, 7–20
DS3 test (fractional DS3), 7–22
DS3–ATM SSI, 3–28
DS3–TDM SSI, 3–28
DS3–Transparent SSI, 3–29
E
EIDU
installing, 3–34
mounting, 3–34
power supplies, 3–35
uses, 3–34
EIDU FEM, 3–35
Electronic serial number. See ESN
Element Management System. See EMS
Elevation
adjusting
coarse adjustment, 6–17
fine adjustment, 7–11
explained and illustrated, 6–17
Emissions, B–2, B–3
EMS, 2–7
database, 7–2
ENTER button (CCM), 7–7
Equipment from other vendors, vii
Equipment to be installed, 2–1
ESN, 7–2
location, 7–2
Existing structures as ODU mounts, 5–11
Exit (LCD), 7–7
Expansion IDU. See EIDU
F
F connector for connecting voltmeter, 7–10
Failure indication on CCM LCD, 3–26
FCC, B–2, B–3
FEMs, 3–34
EIDU FEMs, 3–35
IDU FEMs, 3–35
installing, 3–36
SSIs, 3–29
types, 3–35
where installed, 3–35
Fiber extender modules. See FEMs
Fractional DS3 test, 7–22
Frequency, ODU, selecting, 7–8
Frequency acquisition (Freq Acq), 7–9
Front panel display. See LCD
1027144–0001 Revision D Index-3
G
Grounding
lightning arrestor, 4–12
ODU, 6–23
power supply
ac, 3–11
dc, 3–13, 3–14
dual ac or dc, 3–9
H
Handling materials, 4–2
Heat–shrink tubing (for IFL cable) , C–3, C–11
Horizontal mast, 6–2
HT
acquisition, 7–13
ID, 7–13
Hub installation, vii
I
IDU, 3–3
See also IDU chassis
components, 3–3
illustrated, 3–3
standards compliance, B–3
IDU chassis
See also IDU
connecting the IFL, 7–3
dccircuit breaker, 3–19
disconnect device, 3–19
power–off circuit, 3–19
power–on test, 3–22
powering off, 3–19
Install mode, 7–8
LCD. See LCD
power supply, 3–4, 3–8
ac, 3–10
dc, 3–13
dual ac or dc, 3–8
rack mounting, 3–5
options, 3–5
replacing, 10–10
slots, numbering of, 3–3
specifications. See Hub and Remote Terminal
Site Preparation Guide
temperature, 3–5
types, 3–4
IDU FEM, 3–35
IEC, B–3
IFL cable
bend radius, 4–8, 4–13
connecting to CCM (IDU), 7–3
connecting to ODU, 6–25
connections, 4–4
finishing the installation, 4–15
installing inside the building, 4–8
installing on the roof, 4–13
length, 4–8, 4–13
maximum, 4–5
moisture contamination, 8–2
penetration sleeve, 4–7
plan, 4–4
plenum (in conduit with power cables), 4–5
replacing, 10–14
routing guidelines, 4–5
specifications, 4–3
terminating, 4–8, C–1
testing, 4–14
UL requirements, 4–3
weatherproofing connections, 8–2
Immunity, B–3
Indoor unit. See IDU and IDU chassis
Inspecting the installed equipment, 8–3
Install mode, 7–8
Installation checklist (summary), 1–3
Installers
number needed, vii, 4–2
qualifications, vii
Intrafacility link. See IFL cable
L
LCD, 7–4
button functions, 7–7
buttons (for scrolling, selecting), 7–5
configuration downloading (CCM), 7–17
diagnostic mode, 7–5
exit, 7–7
menu map, 7–6
operational state, 7–17
RT Enabled message, 7–17
status conditions (explained), 7–14
status of CCM, SSIs, or ODU, 7–14
SUDS (diagnostics) sequence, 3–25, 7–4
1027144–0001 Revision DIndex-4
LEDs
CCM, 3–25
FEMs, 3–29
SSIs, 3–29, 3–33
Lightning arrestor (for IFL), 4–4, 4–9
grounding, 4–12
Lightning protection, 6–25
Liquid crystal display. See LCD
Location
IDU, 3–4
ODU, 5–3
M
Main Menu (CCM LCD), 7–5
Maintenance, 10–1
Maps, local, requirements, 2–5
Mast
diameter, 6–4
horizontal, 6–2
Mast mount, 5–2
location, 5–3
standard type, 5–4
assembly instructions, 5–4
types, 5–3
using existing structures, 5–11
Materials
handling, 4–2
required for installation, 2–6
Mechanical attenuator, 7–12
entering the attenuator value, 7–13
installing, 6–19
replacing the antenna, 10–7
replacing tranceiver, 10–5
Menu map for CCM LCD, 7–6
Moisture contamination, 8–2
Mounts. See Mast mount and Antenna mount
Moving SSIs, 10–2
Multiple IFL cables, 4–11
N
N connectors
attaching to IFL cable, C–6
location (IFL cable), 4–4, C–1
National Electric Code (NEC), B–2
NEXT button (CCM), 7–7
Numbering
IDU chassis slots, 3–29, 7–15
SSIs, 3–29, 7–15
O
ODU, 6–1
connecting the IFL cable, 6–25
connecting voltmeter for antenna pointing,
7–10
frequency, selecting, 7–8
grounding, 6–23
illustration, 6–3
location, 2–1
replacing, 10–3
standards compliance, B–2
status, 7–16
transporting to the roof, 6–4
ODU location, 5–3
Operational state, 7–17
possible states, 7–17
Outdoor unit. See ODU
P
Penetrating the roof, 4–6
Penetration sleeve, 4–7
Personnel
number of installers, vii
qualifications, installers, vii
Pinouts, RJ–48X connectors on Quad–DS1 SSI,
3–27
Pointing the antenna, 7–8
fine adjustments, 7–9
initial (coarse) azimuth adjustment, 6–14
initial (coarse) elevation adjustment, 6–17
troubleshooting, 9–4
voltage indications, 7–11
voltmeter, 7–8
1027144–0001 Revision D Index-5
Power input requirement
ac power supply, 3–10
dc power supply, 3–13
Power supply (IDU), 3–4, 3–8
ac, 3–10
connecting power, 3–12
grounding, 3–11
power input requirement, 3–10
dc, 3–13
connecting power, 3–15
grounding, 3–13, 3–14
power input requirement, 3–13
powering off, 3–19
dual ac or dc, 3–8
See also Power supply (IDU), dc
grounding, 3–9
Power–on test, CCM, 3–25
Prerequisites
commissioning, 2–7, 7–2
installation, 2–1
PREV button (CCM), 7–7
Publications, related, vii
Q
Quad–DS1 SSI, 3–27
pinouts for RJ–48X connectors, 3–27
Qualifications for installers, vii
R
Rack
grounding, 3–2
mounting, 3–5
options, 3–5
safety guidelines, 3–5
Related publications, vii
Remote terminal. See RT
Repairs, 9–6
Replacing
antenna, 10–7
CCM, 10–12
faulty components, 9–6
IDU chassis, 10–10
IFL, 10–14
ODU, 10–3
SSIs, 10–13
transceiver, 10–4
Repointing the antenna, 7–12
RF arrestor, 4–10, 4–14
Roof types, 5–3
corrugated metal, 5–9
RT
defined, 1–2
dismantling, 10–16
RT Enabled message, 7–17
RT to HT connections tests, 7–18
S
Safety information, ix
rack mounting, 3–5
Service loops, 4–8
Service–specific interface. See SSI
Site Data Record, 2–1
Site preparation, vii
Slots, IDU chassis
numbering of, 3–3
where CCM and SSIs are installed, 3–23,
3–27, 3–29, 7–15
Spin–stripping tool (for IFL cable), C–3
SSIs
adding, 10–2
DS3–ATM, 3–28
DS3–TDM, 3–28
DS3–Transparent, 3–29
function, 3–27
hot swapping, 10–2
installing, 3–32
chassis slots, 3–27, 3–29, 7–15
LEDs, 3–29, 3–33
moving, 10–2
numbering, 3–29, 7–15
Quad–DS1, 3–27
replacing, 10–13
status, 7–15
types, 3–27
Universal–DS1, 3–28
Standards compliance, B–1
Startup diagnostics. See SUDS
State, 7–17
Status of CCM, SSIs, or ODU, 7–14
1027144–0001 Revision DIndex-6
SUDS, 3–25, 7–4
failure indication, 3–26
test and display sequence, 3–25, 7–4
Summary of installation, 1–3
T
Task checklist, 1–3
Temperature, IDU chassis, 3–5
Terminating the IFL cable, 4–8, C–1
Test set, 2–4
Testing
DS1 test, 7–18
DS3 test, 7–20
fractional DS3 test, 7–22
IFL cable and connectors, 4–14
RT to HT connections, 7–18
Tools required for installation, 2–3
Torque
antenna mount, 6–16, 6–18
radome band clamp (on antenna), 6–11
Torque wrench for antenna mount, 6–4
Transceiver
attaching to the antenna, 6–21
replacing, 10–4
Troubleshooting, 9–1
antenna pointing, 9–4
CCM, 9–2
CCM won’t download, 9–5
RT Disabled message, 9–6
U
Underwriters Laboratories (UL), B–2, B–3
Universal–DS1 SSI, 3–28
V
Voltage indications for antenna pointing, 7–11
Voltmeter (used for antenna pointing), 2–4,
6–14, 7–8
connecting to ODU, 7–10
W
Warnings (safety), explained, ix
Waveguide, 6–20, 10–7
Weatherproofing, 4–14, 6–25, 8–2
Wrist strap (ESD), 3–23, 3–32, 3–36, 10–2,
10–10, 10–12
