G10T Wireless Graphics Tablet
User Manual
For Windows and Macintosh OS
G10T Wireless Graphics Tablet
1 / 21 www.huion.com
Precautions
1. Please read this manual carefully before using, and keep it well for future reference.
2. Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do
not use any kind of detergents.
3. Don’t expose this product to water or other liquids. Take care to never spill liquids onto the
tablet and pen. Exposing this product to water or other liquids may cause product malfunction or
electrical shock.
4. Do not place the tablet on a place which is unstable or children can easily reach to prevent it
from falling from a height to avoid danger. Prevent children from swallowing the pen nib or side
switch. The pen nib, side switch, or other movable parts may accidentally be pulled out if children
are biting on them.
5. Power off your tablet in locations where/when electronic devices is not allowed. Because the
tablet may cause other electronic devices to malfunction in some locations where/when the use
of electronic devices is not allowed, such as within an airplane, be sure to turn off the tablet.
6. To protect your tablet and saving power, please switch off the power when it is not in use.
7. Do not disassemble the tablet and pen. Do not disassemble or otherwise modify the tablet or
pen. Such action may cause heat generation, ignition, electronic shock, or other damage,
including human injury. Disassembly of the product will void your warranty.
8. While getting the components replaced, you are supposed to guarantee that the repairman is
using the substitute components specified by the manufacture. Unauthorized component
replacement might cause fire, electric shocks or other dangers.
9. Do not insert foreign material into the USB port or any other opening of this product. If a metal
object or foreign material is inserted into a port or other opening of this product it may cause the
product to malfunction or burn out, or cause electronic shock.
10. Tablet and Digital pen has a lithium battery, which should be charged in time when low
battery, and at the same time should be charged every 3 months, otherwise it will cause lithium
battery damage.
11. The nib of the digital pen can’t be pressed when it is placed, otherwise the pen can’t enter the
power-saving state, which is easy to cause lithium battery over-discharge damage.
G10T Wireless Graphics Tablet
2 / 21 www.huion.com
Contents
1. Tablet Overview ...................................................................................................................................................... 3
1.1 Tablet Introduction .................................................................................................................................... 3
1.2 Product and Accessories ......................................................................................................................... 3
1.3 Tablet Connection ...................................................................................................................................... 5
1.4 Driver Installation....................................................................................................................................... 6
1.5 Pen Nib Replacement ............................................................................................................................... 7
1.6 Charging the Pen ....................................................................................................................................... 7
2. Product Basic Operation ...................................................................................................................................... 8
2.1 Using The Pen ............................................................................................................................................. 8
2.2 Using the Tablet ...................................................................................................................................... 10
3. Function Setting .................................................................................................................................................. 12
3.1 Device Connection Prompt.................................................................................................................. 12
3.2 Working Area Setting ............................................................................................................................ 12
3.3 Press Keys Function Setting ................................................................................................................ 14
3.4 Pen Button Setting ................................................................................................................................. 14
3.5 Pressure Sensitivity Setting.................................................................................................................. 15
3.6 Pen Pressure Testing .............................................................................................................................. 15
3.7 Enable the Windows Ink feature ........................................................................................................ 16
3.8 Data export and import ........................................................................................................................ 16
4. Specifications ....................................................................................................................................................... 17
5. Trouble Shooting ................................................................................................................................................ 18
5.1 Possible Breakdowns Related to TABLET ......................................................................................... 18
5.2 Possible Breakdowns Related to SYSTEM ....................................................................................... 18
6. FCC Notice.............................................................................................................................................. .......19
G10T Wireless Graphics Tablet
3 / 21 www.huion.com
1.Tablet Overview
1.1 Tablet Introduction
Thanks for choosing HUION® INSPIROY® G10T wireless graphics tablet. This is a
new generation of portable professional drawing tablet, which can greatly improve
your work efficiency of painting and creation, and full of fun. You can freely painting
and writing, depicting different lines and colors, just as the pen write on the paper,
which brings you a real shock experience.
To give you a better understanding and using of your Inspiroy, please read this user
manual carefully. The user manual only shows the information under Windows,
unless otherwise noted, this information applies to both Windows and Macintosh
systems.
1.2 Product and Accessories

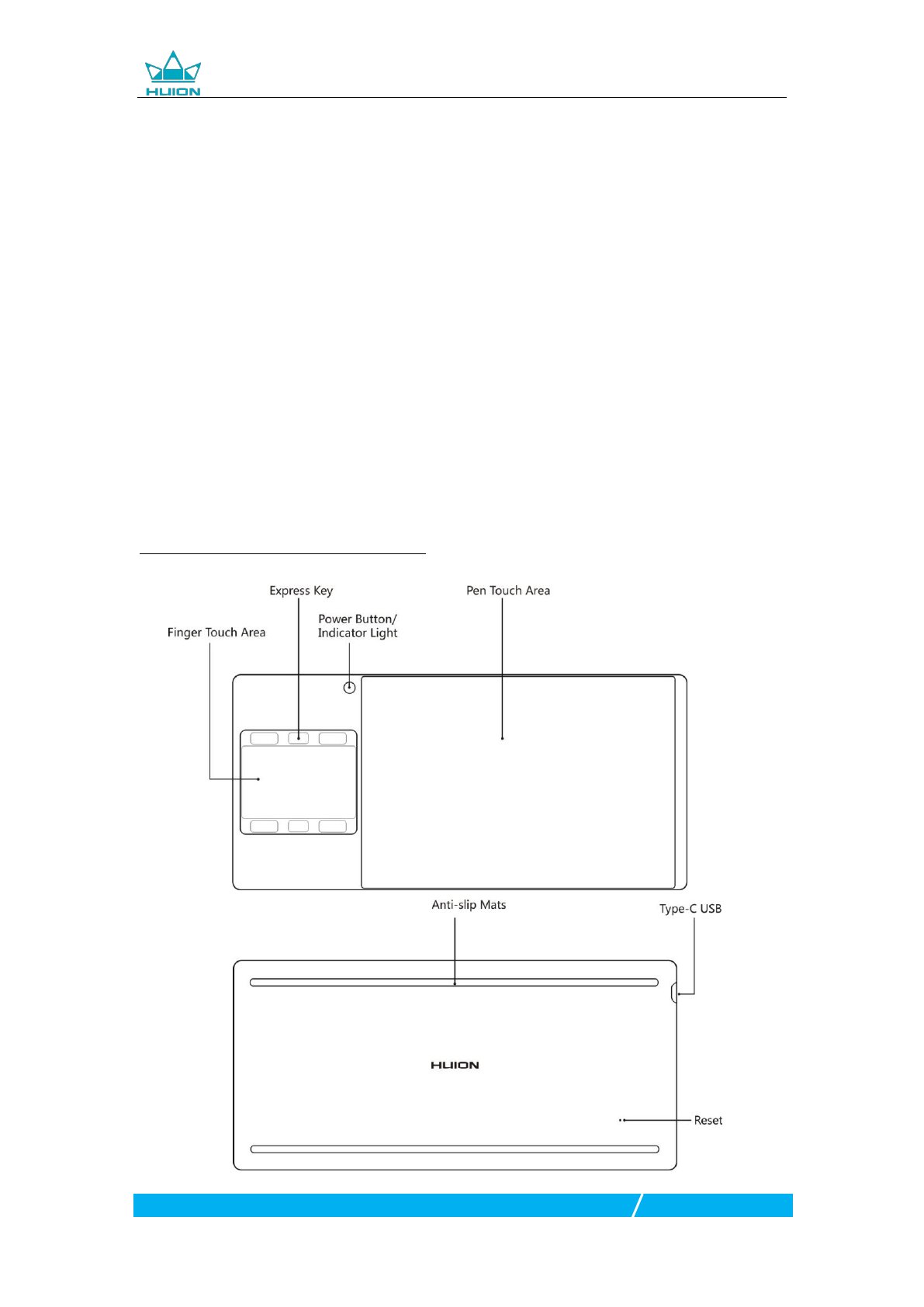

1.2.1 INSPIROY G10T Graphics Tablet
G10T Wireless Graphics Tablet
4 / 21 www.huion.com

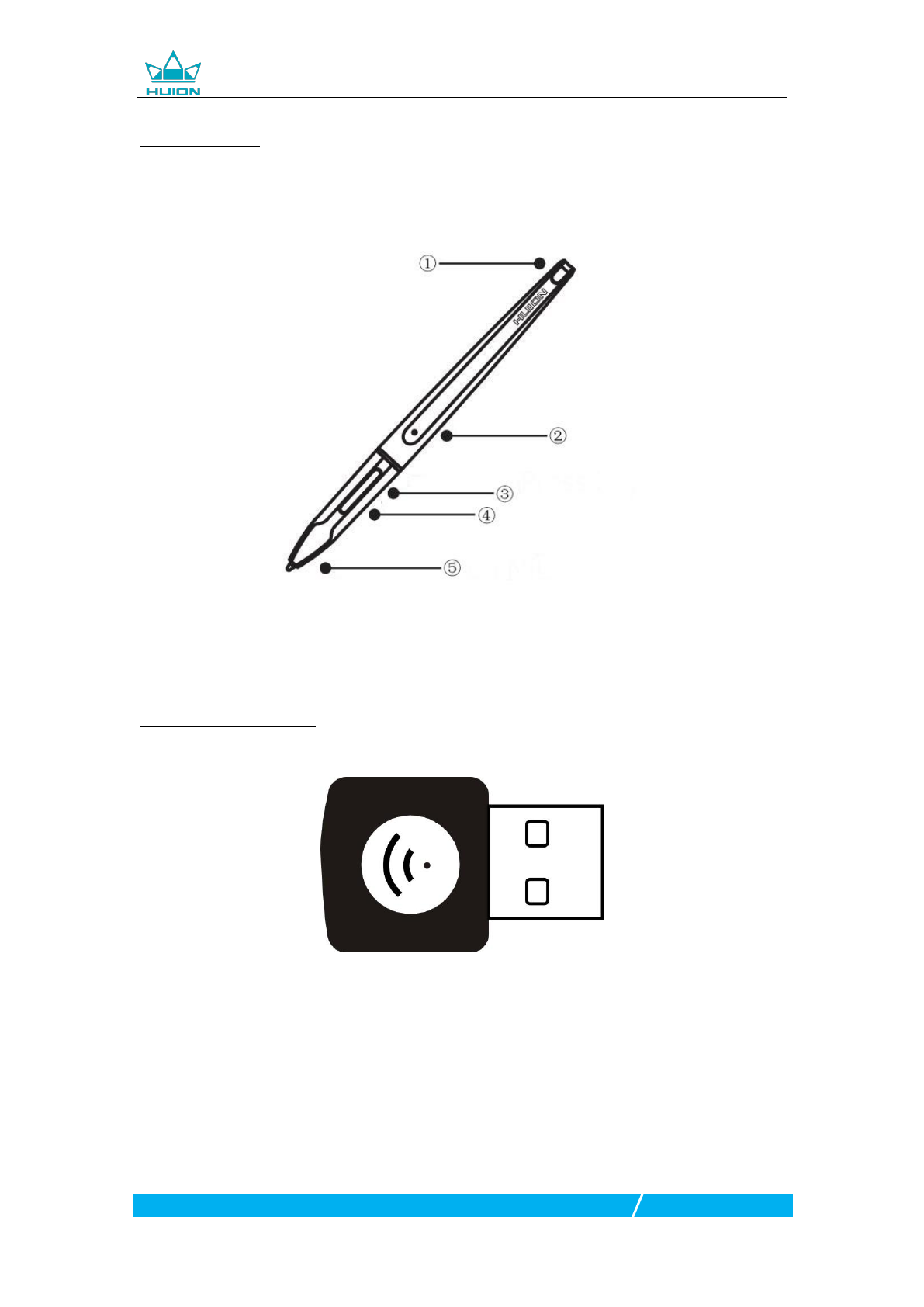

1.2.2 Stylus Pen
The stylus pen is a rechargeable pen with 2048 levels pressure sensitivity and
can be used for 350hrs with full battery.
① Charging Port ② Charge Lamp ③ Upper Button ④ Lower Button ⑤Nib
1.2.3 Wireless Receiver
When using wireless mode, please insert the receiver into your computer and
unplug the USB-C cable in the same time.
G10T Wireless Graphics Tablet
5 / 21 www.huion.com

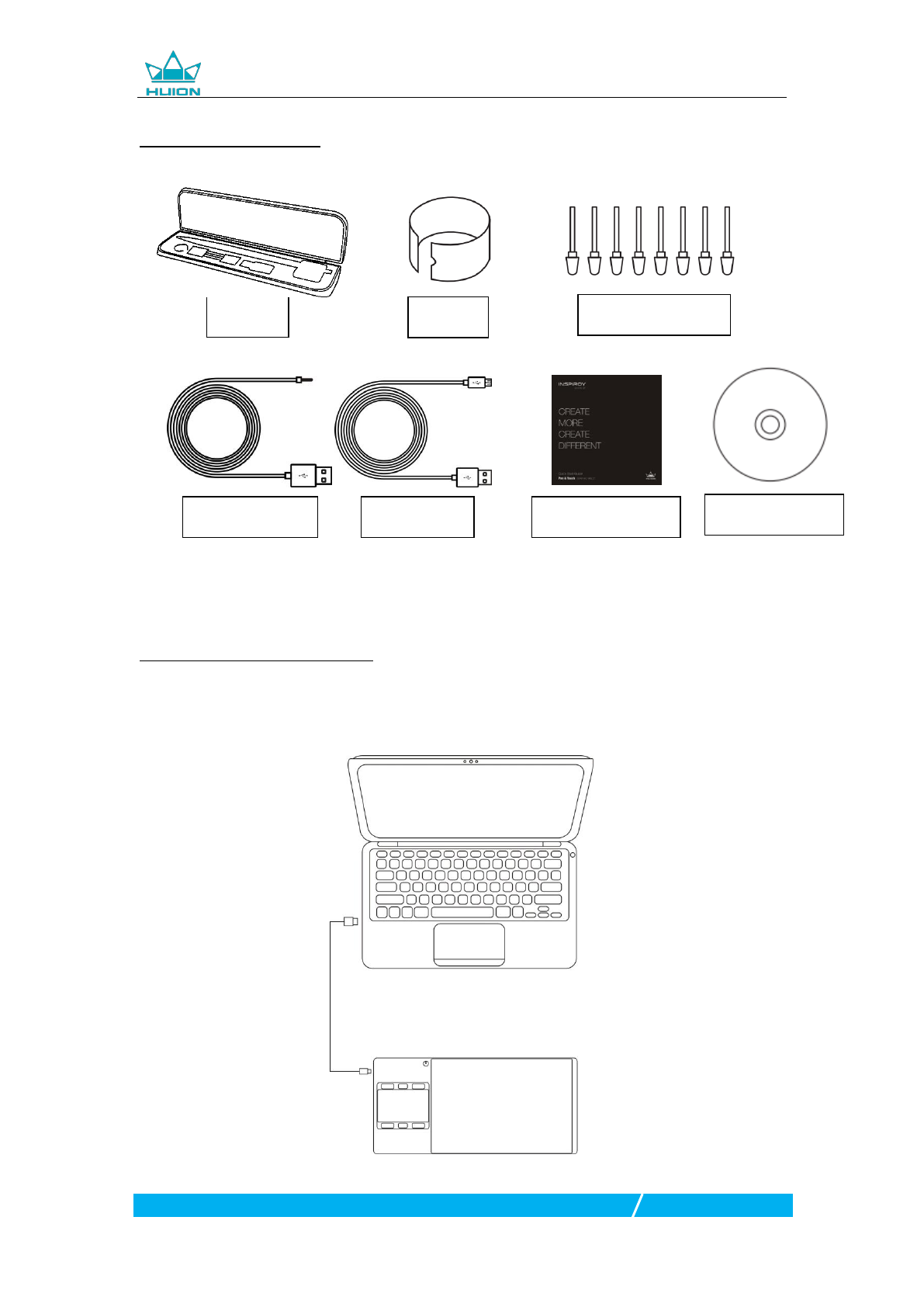

1.2.4 Other Accessories
1.3 Tablet Connection

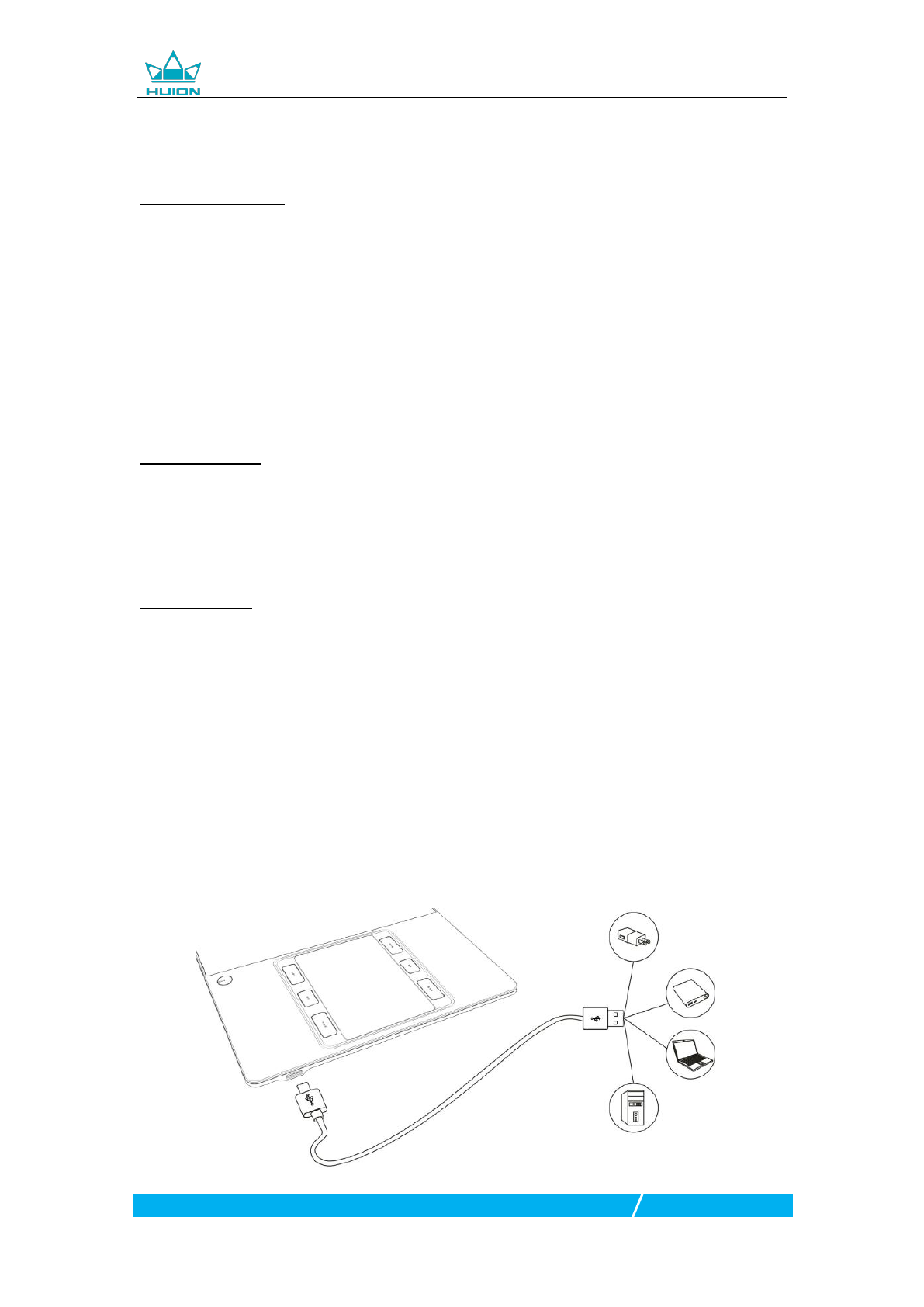

1.3.1 Wired Mode Connection
1. Connect to the internet(not essential).
2. Close all graphic software and anti-virus program.
3. Connect the USB-C cable to your computer.
Pen Box
Nib Clip
Replacement Nibs
USB-C Cable
Charging Cable
Installation CD
Quick Start Guide
G10T Wireless Graphics Tablet
6 / 21 www.huion.com
1.3.2 Wireless Mode Connection
1. Insert the wireless receiver to your computer.
2. Install the driver to your computer.
3. Press the power button to power on the tablet.
1.4 Driver Installation
1.4.1 OS Support
Windows 7/ 8/ 8.1/ 10，MAC OS X 10.10 and later
1.4.2 Install via CD
Open the CD folder, click driver program and finish the installation following the
instruction.
1.4.3 Install via Download
If you don’t have a CD/DVD drive, you can download the driver from our website:
www.huion.com
After finishing installation, you can find the driver icon in the system tray area,
which means the driver was installed successfully; When you connect the display
to computer, the icon will change to color , which means the driver has already
recognized the display and you can start using it now。
Notice：
1. Before installing, you need to uninstall other driver of similar products, including
the old driver of this product.
2. Before installing, please close all graphics software to avoid unnecessary mistake.
3. Before installing, please close all anti-virus software to avoid unnecessary
mistake.
G10T Wireless Graphics Tablet
7 / 21 www.huion.com

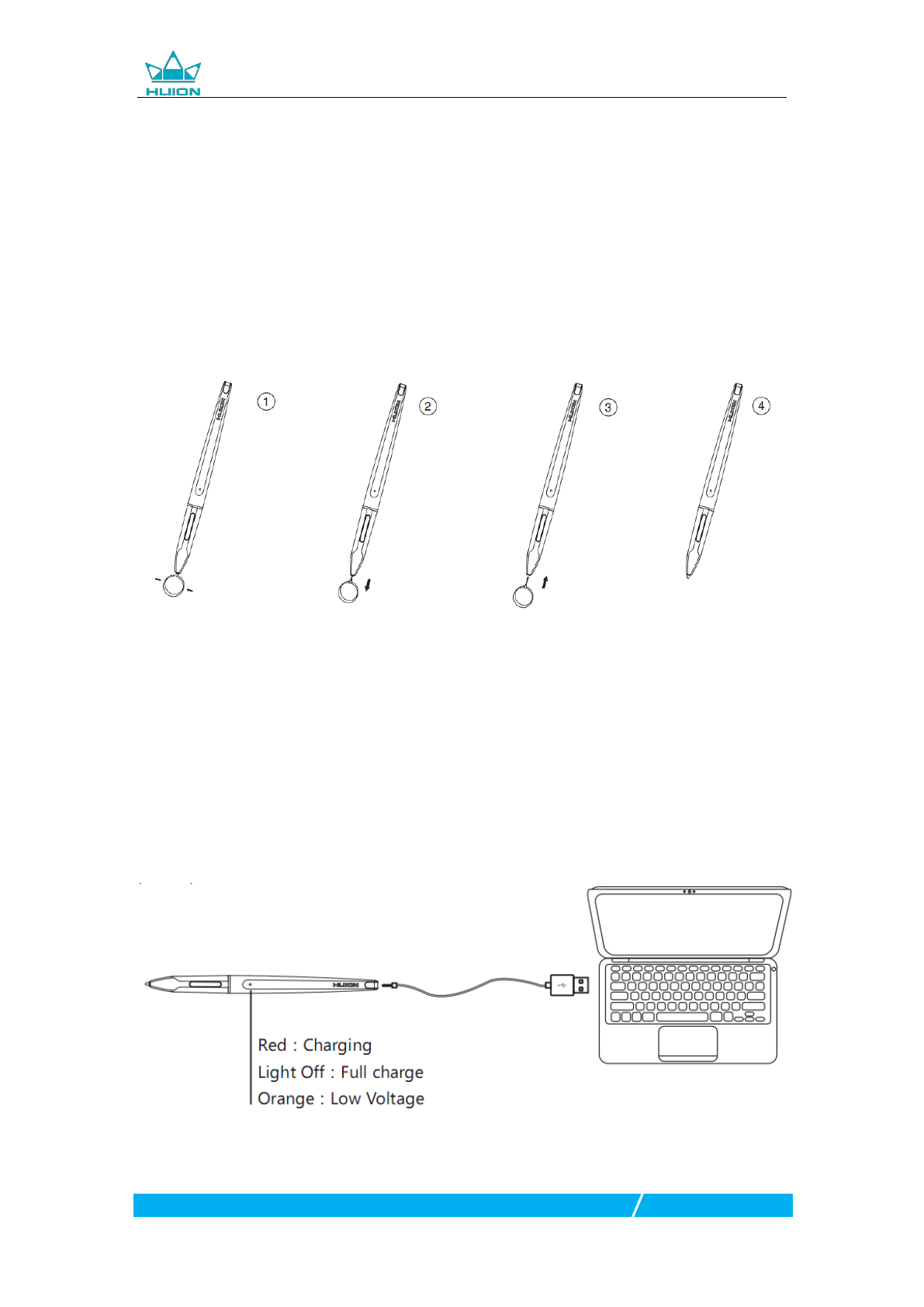

1.5 Pen Nib Replacement
1. The nib will be wear out after using for a long time, then you need to replace a
new nib.
2. Take out the new nib and clip from pen box.
3. Clasp the old nib and pull it straight out of the pen using the nib clip.
4. Slide the end of the new nib straight into the barrel of the pen and push the nib
slowly and firmly until it stops.
1.6 Charging the Pen
1. When the indicator on the pen shows orange, it means the voltage of the pen is
low, and then you need to charge the pen.
2. Charge the pen with the attached charging cable. Insert one end of the charging
cable into the rear of the stylus charging port, the other end can be connected to a
computer, power supply or power bank.
G10T Wireless Graphics Tablet
8 / 21 www.huion.com
2. Product Basic Operation
2.1 Using The Pen

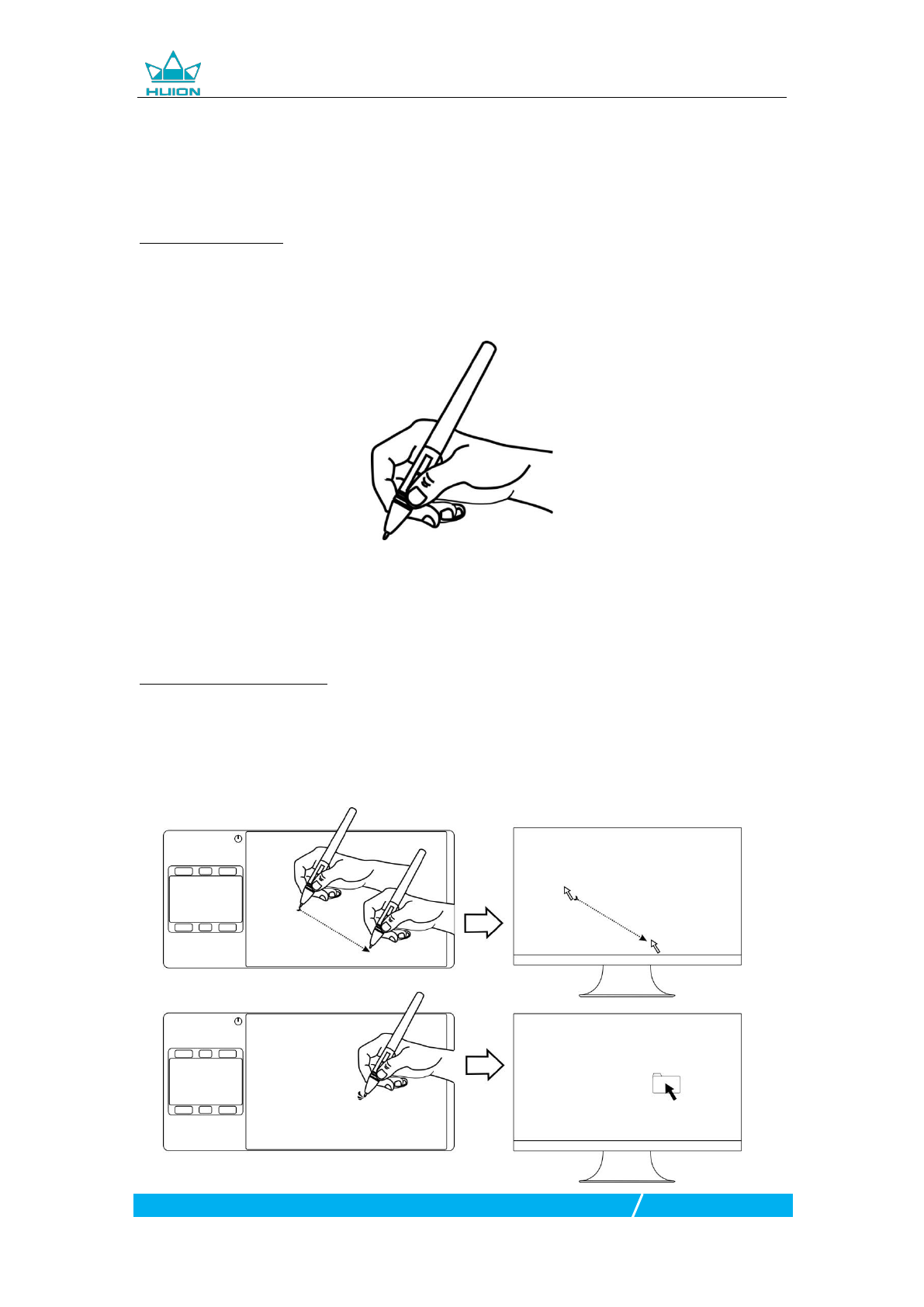

2.1.1 Hold the pen
Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can
toggle the side switch easily with your thumb or forefinger. Be careful not to
accidentally press the switch while drawing or positioning with the pen.
Notice：When not in use, place the pen in the pen case or on the desk. Do not place
the pen on the surface of screen, which may interfere with the use of other screen
cursor positioning equipment, may also cause your computer can not enter the
sleep state.
2.1.2 Position the cursor
Move the pen slightly above the active area without touching the screen surface,
the cursor will move to the new position accordingly.
Press the pen tip on the screen to make a selection. Tap the screen once with the
pen tip, or touch it to the screen with enough pressure to register a click.
G10T Wireless Graphics Tablet
9 / 21 www.huion.com

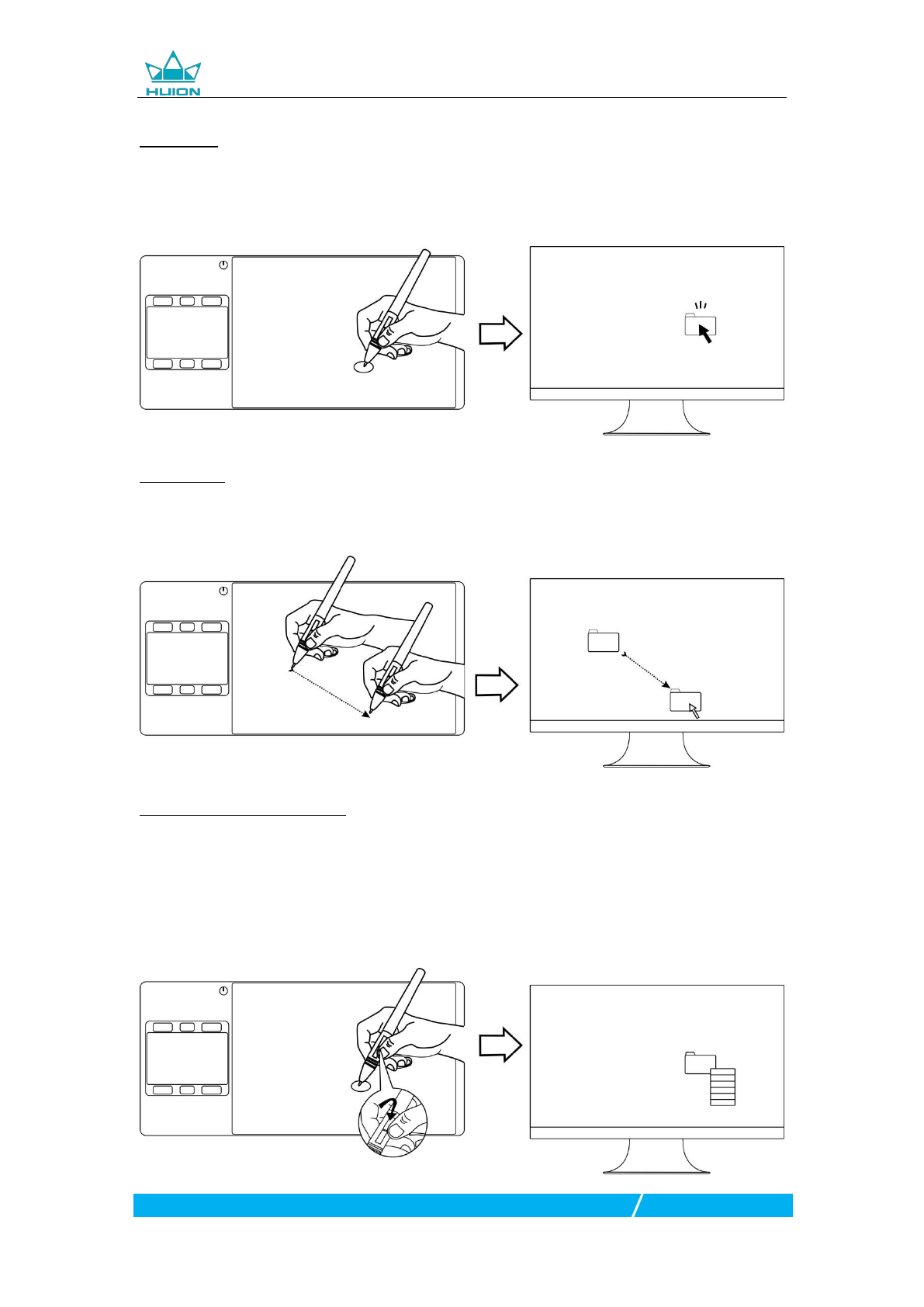

2.1.3 Click
Use the pen tip to tap once on the screen to produce a click. Tap to highlight or
select an item on the screen and double-click to open it.
2.1.4 Move
Select the object, then slide the pen tip across the screen to move it.
2.1.5 Using the side switch
The side switch of the pen can be set to two different customizable functions.
You can use the side switch whenever the pen tip is within 10mm of the display
active area.
You do not have to touch the pen tip to the display in order to use the switch.
G10T Wireless Graphics Tablet
10 / 21 www.huion.com
2.2 Using the Tablet
2.2.1 Power Switch
1. The power switch was placed on the top left side of the tablet, when you use the
tablet on wireless mode, you need to turn on the power switch before using.
2. When not use the tablet for 15 minutes or press the power button for 3 seconds,
it will enter sleep mode.
3. LED indicator:
When working: White-detected pen or touch signal, Off-no pen or touch signal,
Red flash-Voltage is low, need to be charged.
When charging: Red-Charging, Off-Full Charge.
2.2.2 Press Keys
There are 6 press keys on the top left side of the tablet, which you can modify the
function on the driver according to your own habits, which will help to improve
your work efficiency.
2.2.3 Charging
1. Before using the tablet for the first time in wireless mode, you should fully charge
the tablet battery. Do this by connecting the USB cable between tablet and a
primary USB port on your computer, or to a powered USB port.
2. The USB cable is used for charging the battery, and also for operating the tablet
as a wired USB tablet. The battery will charge whenever the USB cable is connected
and the battery is not fully charged.
3. It will take about 7 hours to fully charge an empty battery. The actual charge time
depends on current battery level and tablet use while charging. The battery status
indicator shows RED when charging, and will be OFF when fully charged.
4. Whenever the tablet is connected to computer with USB cable, the wireless mode
will be disabled.
G10T Wireless Graphics Tablet
11 / 21 www.huion.com
2.2.4 Touch Pad

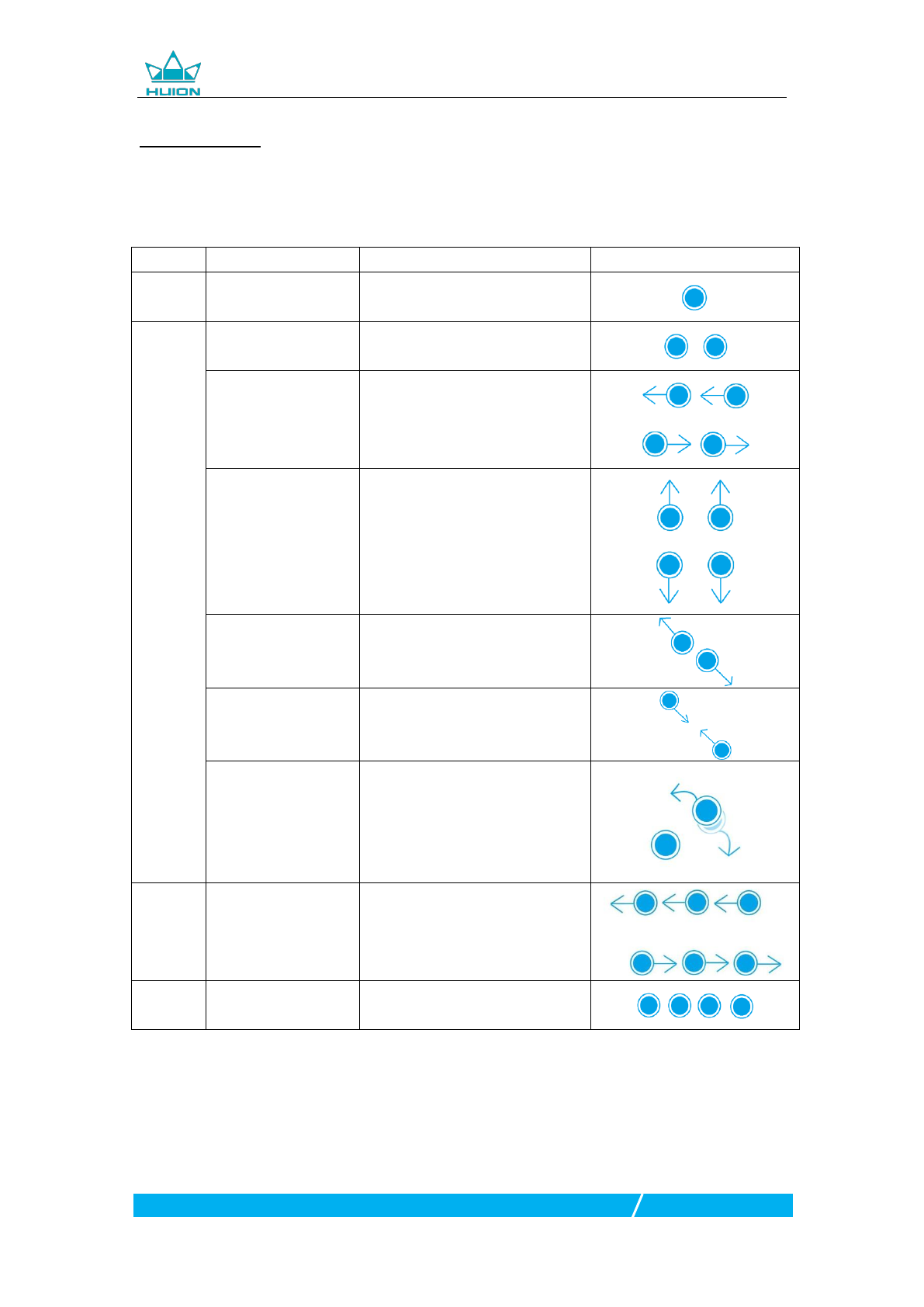

The top left side of the tablet is provided with a touch pad, you can achieve some
basic operation with simple gestures, the default functions of the gestures are as
follows:
Movement
Function
Gesture
Tap the touchpad
with one finger
Simulate the left mouse button
Tap the touchpad
with two fingers
Simulate the right mouse
button
Swipe left/right with
two fingers
Toggles the previous / next item
Scroll up/down with
two fingers
Scroll
Move two fingers
apart
Zoom in
Pinch two fingers
together
Zoom out
Put one finger on
the bottom left
corner, and another
finger move toward
to left/right
clockwise and Anticlockwise
rotation(only support part of
software)
Swipe left/right with
three fingers
Switch tasks
Tap the touchpad
with four fingers
Display Desktop
Notice:
1. The above gestures only support some software
2. Some of the gestures may not working on different OS version
3. Touch function can be disabled in the driver
G10T Wireless Graphics Tablet
12 / 21 www.huion.com
3. Function Setting

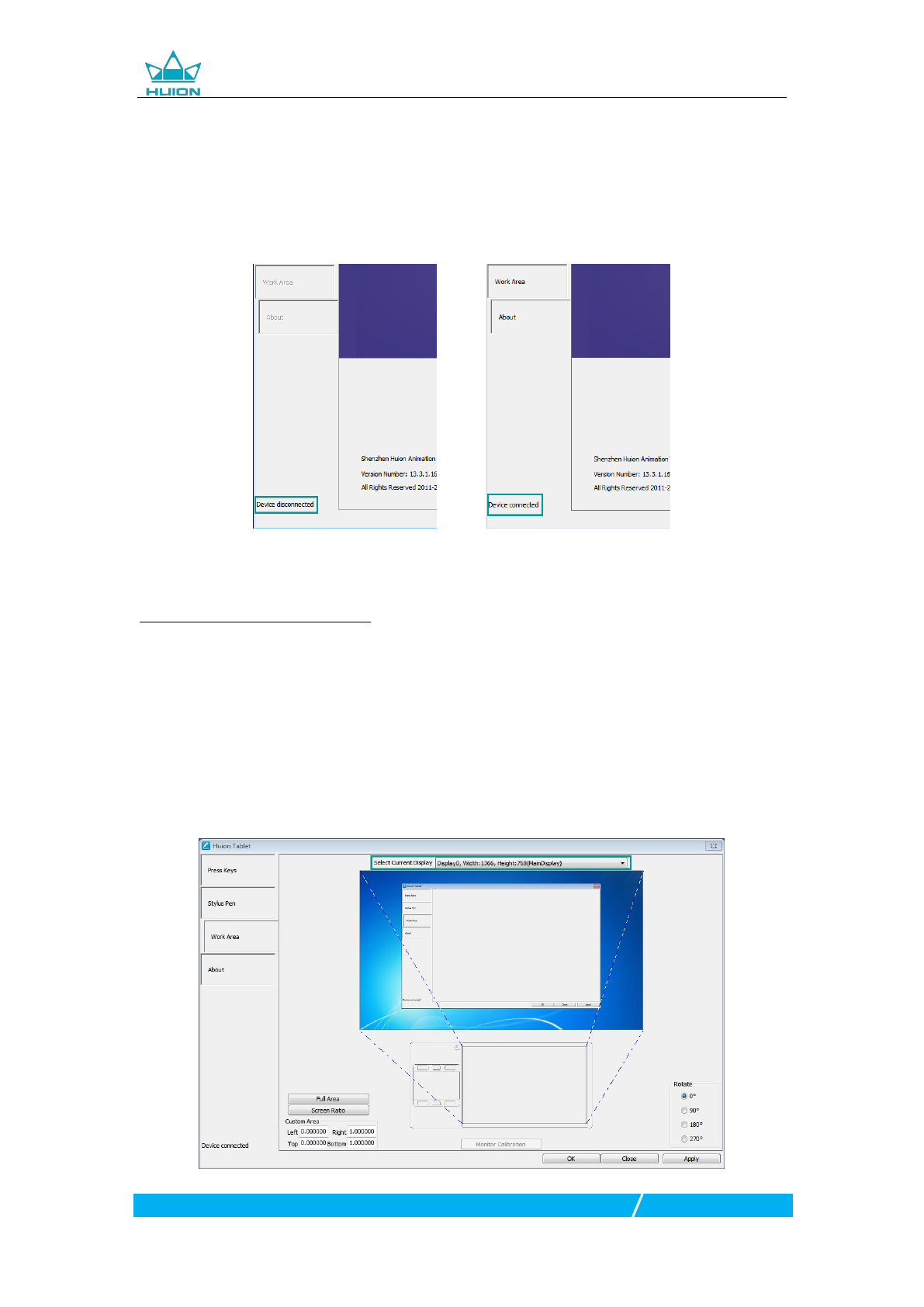

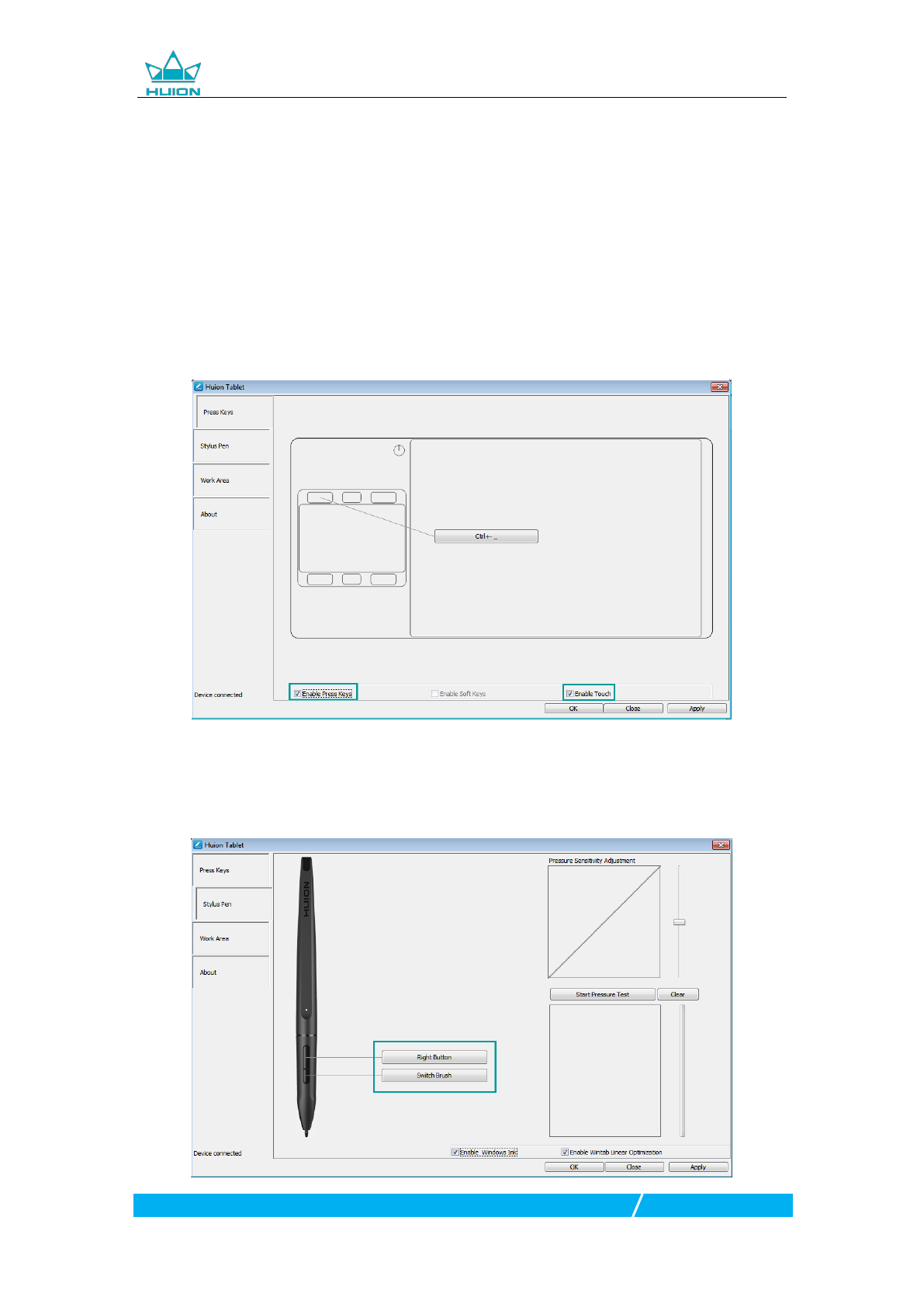

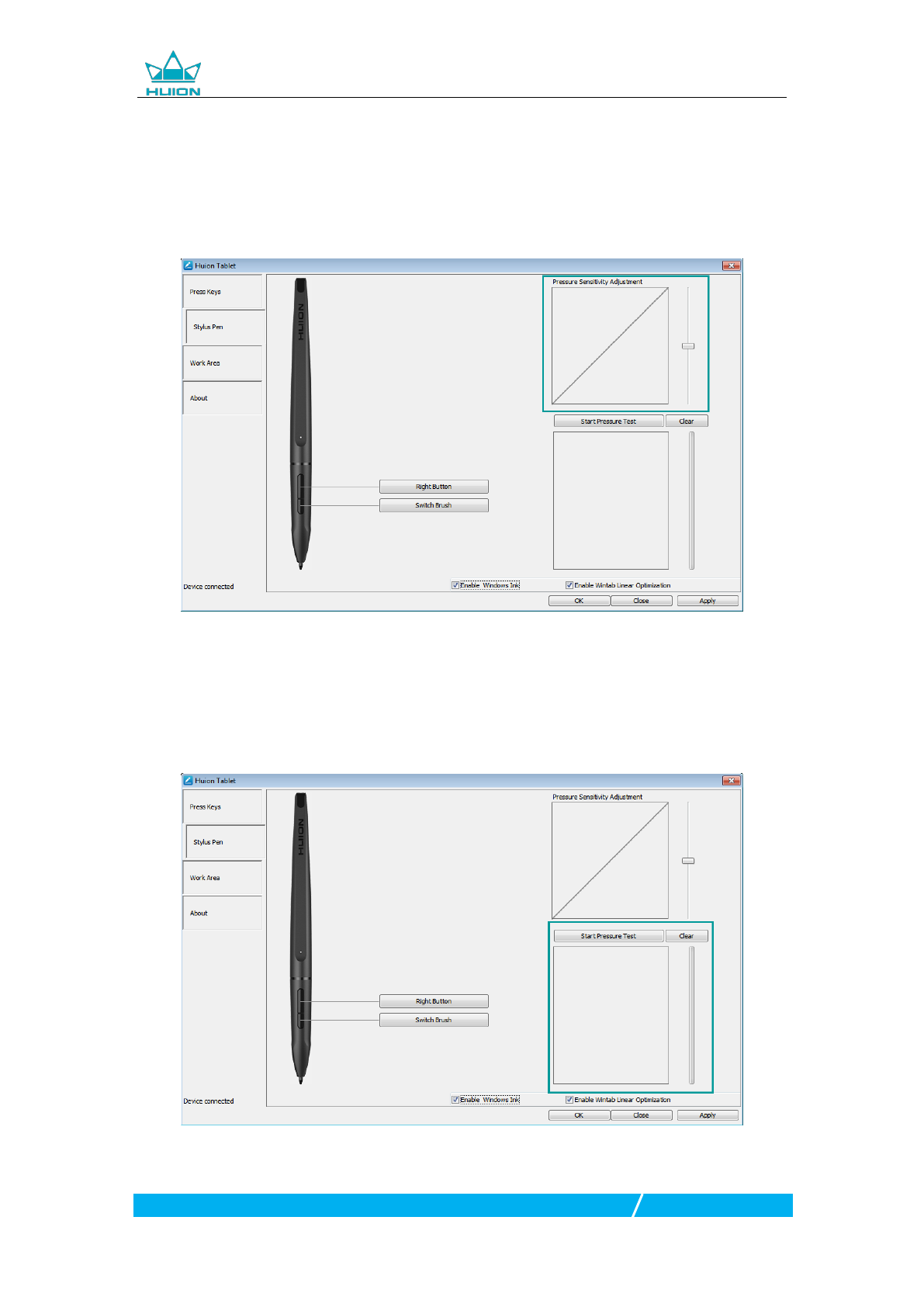

3.1 Device Connection Prompt
1. Device disconnected：The display didn’t connected to your computer.
2. Device connected：The display has already connected to your computer.

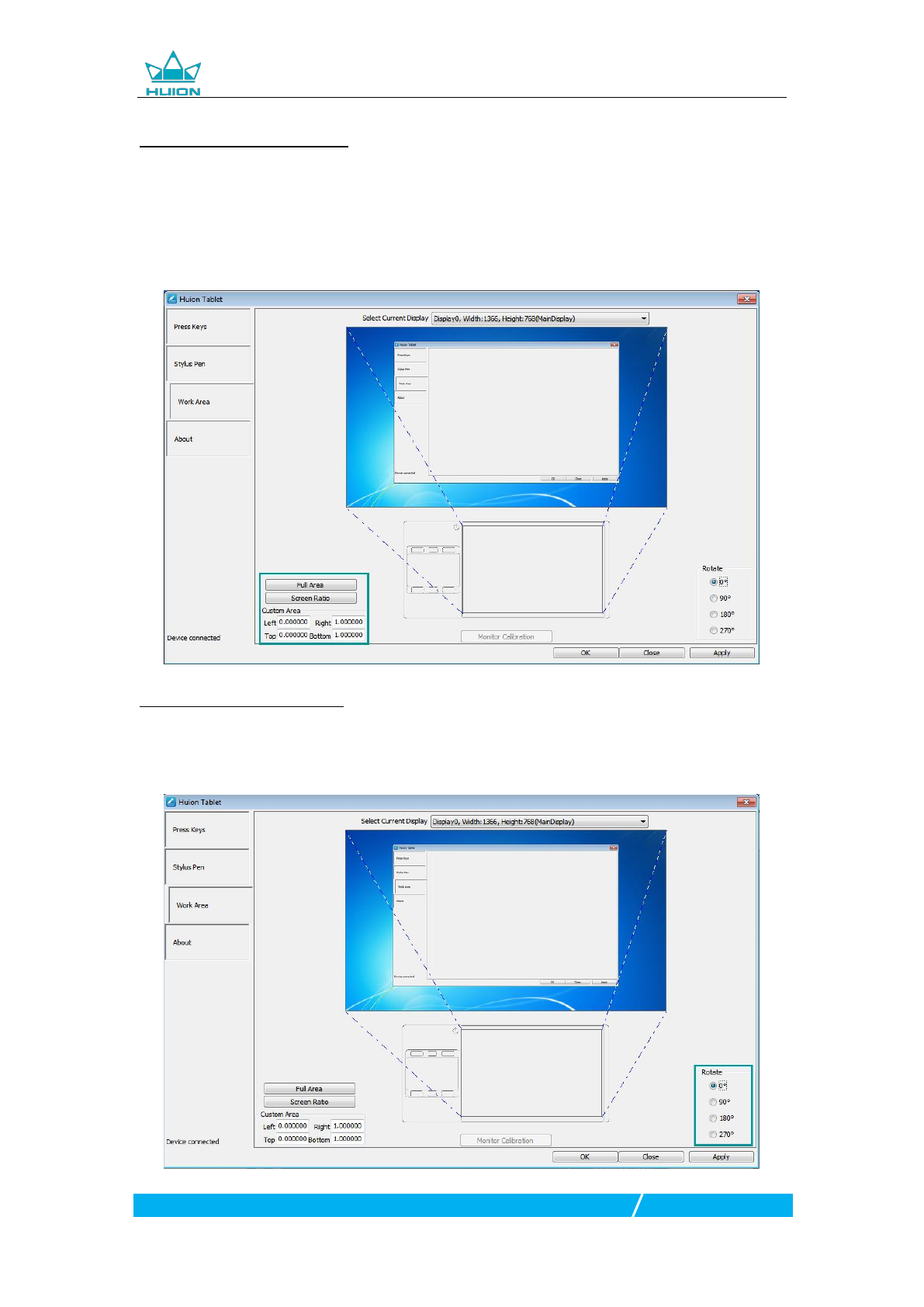

3.2 Working Area Setting
3.2.1 Using Multiple Monitors
Select the Working Area tab to define the relationship between pen movement on
the tablet and cursor movement on the monitor screen.
By default the entire active area of tablet maps to the entire monitor. If more than
one monitor is in use and you are in extended mode, you need to choose on the
driver which monitor your tablet will map to.
If your monitors are in mirror mode (All monitors display the same content), the
tablet maps to the entire space on each monitor and the screen cursor is displayed
on each monitor simultaneously.
G10T Wireless Graphics Tablet
13 / 21 www.huion.com
3.2.2 Working Area Setting
Define the tablet area that will be mapped to the screen area.
1. Full Area: the entire active area of the tablet. This is the default setting.
2. Customized Area: 1.> Enter coordinate values. or 2>. Drag the corners of the
foreground graphic to select the screen area.
3.2.3 Rotate Working Area
By changing the direction of the tablet to adapt to the left and right hand operation.
We provide four directions of choice.
G10T Wireless Graphics Tablet
14 / 21 www.huion.com
3.3 Press Keys Function Setting
Default Setting：Place the cursor on the button or click the button icon to see the
default values for the press keys
Customize Press：Select the function to be achieved on the pop-up dialog box, then
click APPLY or OK to take effect.
Touch Bar：you can slide up and down to achieve zoom function.
Enable/Disable Press Key: Check/Uncheck”Enable Press key”
Enable/Disable Touch Bar: Check/Uncheck”Enable Touch”
3.4 Pen Button Setting
Select the function to be achieved on the pop-up dialog box, then click APPLY or
OK to take effect.
G10T Wireless Graphics Tablet
15 / 21 www.huion.com
3.5 Pressure Sensitivity Setting
The pressure sensitivity will be changed by dragging the slider up and down, the
smaller the value, the more sensitive the pressure.
3.6 Pen Pressure Testing
Click “start pressure test”, you can gradually apply pressure to the stylus on the
screen to test the pressure level. Click “Clear” button to clear all the ink.
G10T Wireless Graphics Tablet
16 / 21 www.huion.com

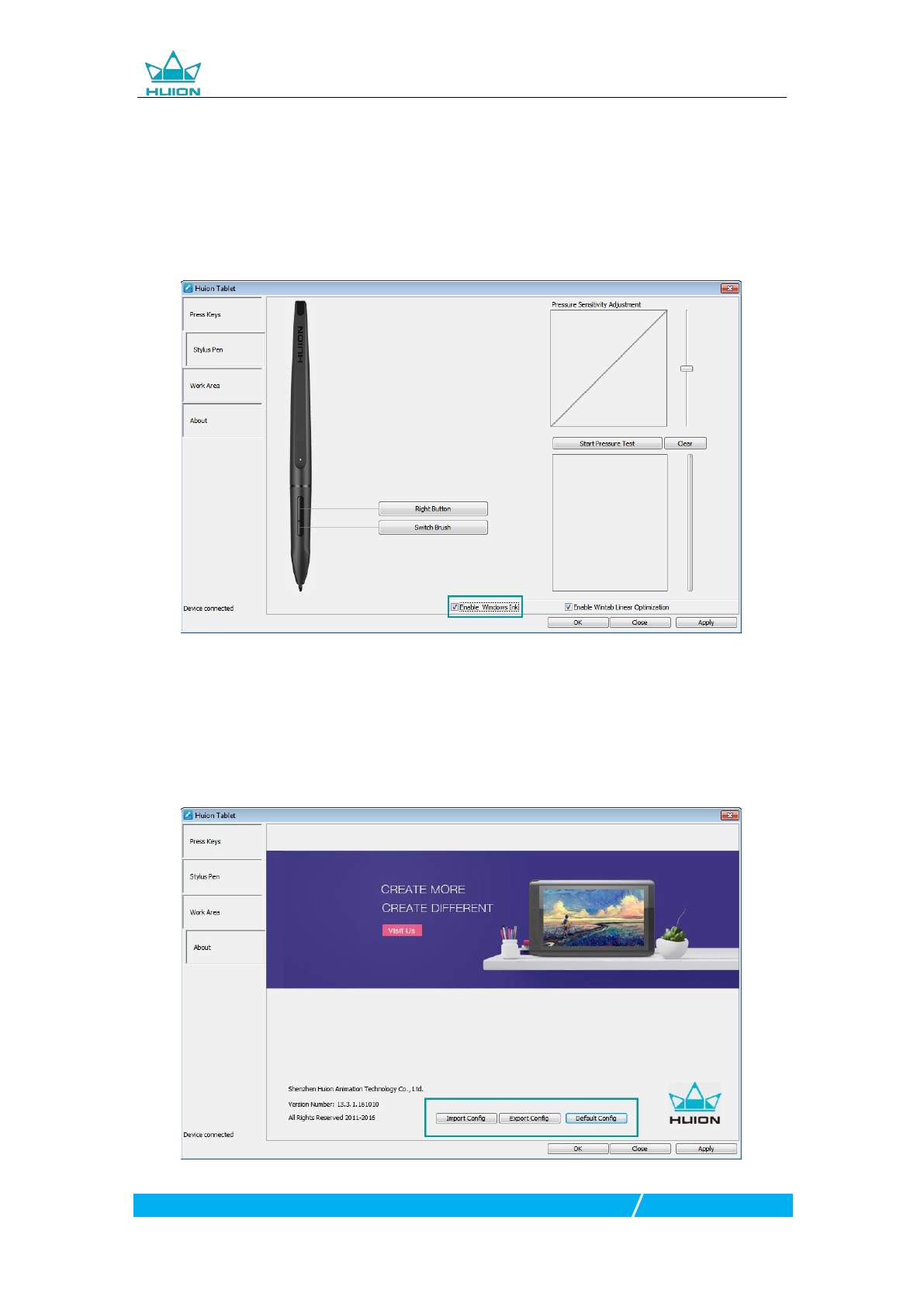

3.7 Enable the Windows Ink feature
Microsoft Windows provides extensive support for pen input. Pen features are
supported in Microsoft Office、Windows Journal、Adobe Photoshop CC 2014、
SketchBook6 or latest version
3.8 Data export and import
The driver supports exporting and importing your custom configuration data of the
product, which is convenient for you to use different software to avoid the trouble
of repeated settings.
G10T Wireless Graphics Tablet
17 / 21 www.huion.com
4. Specifications
Wireless Graphics Tablet
Model
G10T
Touch Technology
Cordless Active EMR + Capacitive Touch
Working Area
Pen：254 x 158.8mm
Finger：93.6 x 59.2mm
Dimension
374 x 177 x 9mm
Net Weight
0.7kg
Gross Weight
1.4kg
Touch Resolution
5080LPI
Report Rate
233PPS
Pen Sensing Height
12mm
Interface
Type-C USB
Press Keys
6 Customized Press Keys
Wireless
2.4G
Wireless Distance
Approx. 6m
Battery Capacity
2500mAh
Working Power Consumption
（wireless mode）
Approx. 48mA
Sleep Power Consumption
（wireless mode）
Approx. 500uA
Charge Time
Approx. 7hrs
Life Time
Approx. 40hrs
OS Support
Windows 7/8/8.1/10,
MAC 10.10 or later
Stylus Pen
Model
PE150
Dimension
177.5 x 13.5 x 13.5mm
Weight
16.5g
Pressure
2048Levels
Battery Capacity
Approx. 80mAh
Power Consumption
Approx. 200uA
Sleep Power Consumption
Approx. 33uA
Charge Time
Approx. 1.3hrs
Life Time
Approx. 350hrs
Automatic Sleep Time
15min
Pen Tilt
±45°
Accuracy
±0.3mm
G10T Wireless Graphics Tablet
18 / 21 www.huion.com
5. Trouble Shooting
5.1 Possible Breakdowns Related to TABLET
Abnormal Phenomena
Possible Solutions
While using the tablet, the battery
indicator flashes red
The battery voltage is low, please recharge the tablet in time.
The pen does not work
1. Make sure power is on
2. Make sure you are using the pen that originally came with your tablet.
3. Make sure the pen is with enough power, if not, please charge the pen
4. Make sure you installed the driver correctly.
The touch pad does not work
1. Make sure the touch function was enabled in the driver.
2. Make sure you are using the right gesture.
3. The gestures only work on part of software
Press Keys does not work
1. Make sure the Press Keys function were enabled in the driver.
2. Make sure you have correctly defined the Press Keys.
The cursor is not stable or the drawing
line is not straight when using wireless
mode
1. Make sure there is no other 2.4G device surround, cause it may affect
the tablet function
2. Make sure there is no barrier between the tablet and receiver.
The computer can’t enter sleep mode
When you are not using the tablet, please do not put the pen on the
surface of the tablet, which will keep the computer awake.
The side button of the pen doesn’t
work
When pressing the side button, please make sure that the nib didn’t
touch the glass surface and the distance between the nib and surface is
within 10mm
5.2 Possible Breakdowns Related to SYSTEM
Abnormal Phenomena
Possible Solutions
The computer can’t recognize the
tablet or the wireless receiver
Make sure the function of the USB port is normal, if not, please change
to another USB port.
The tablet charging progress seems to
stop whenever the computer enters
sleep mode
It might because the system stops powering the USB port. Then you can
adjust your system power or energy saver settings so that the computer
can’t enter sleep mode while the tablet is charging.
For more information, please contact us with our email：service@huion.com
G10T Wireless Graphics Tablet
19/21 www.huion.com
6. FCC Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that
this device does not cause harmful interference (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC ID: 2AFEJ-H16WT

Navigation menu
