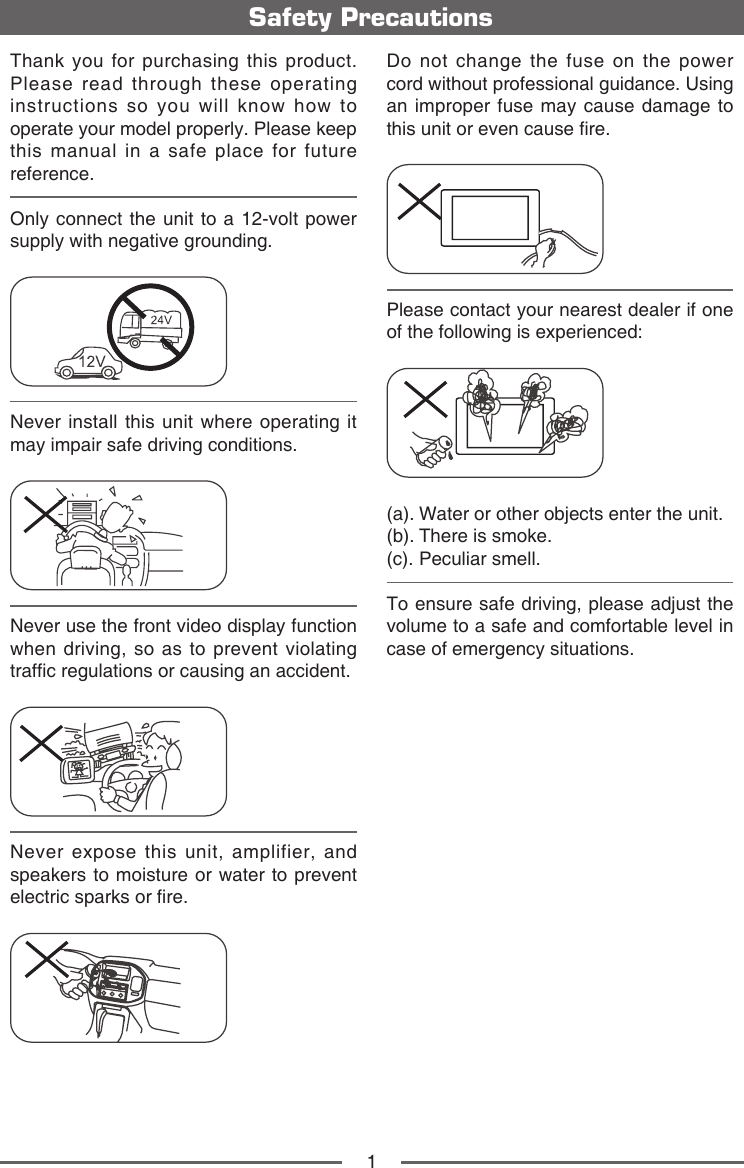

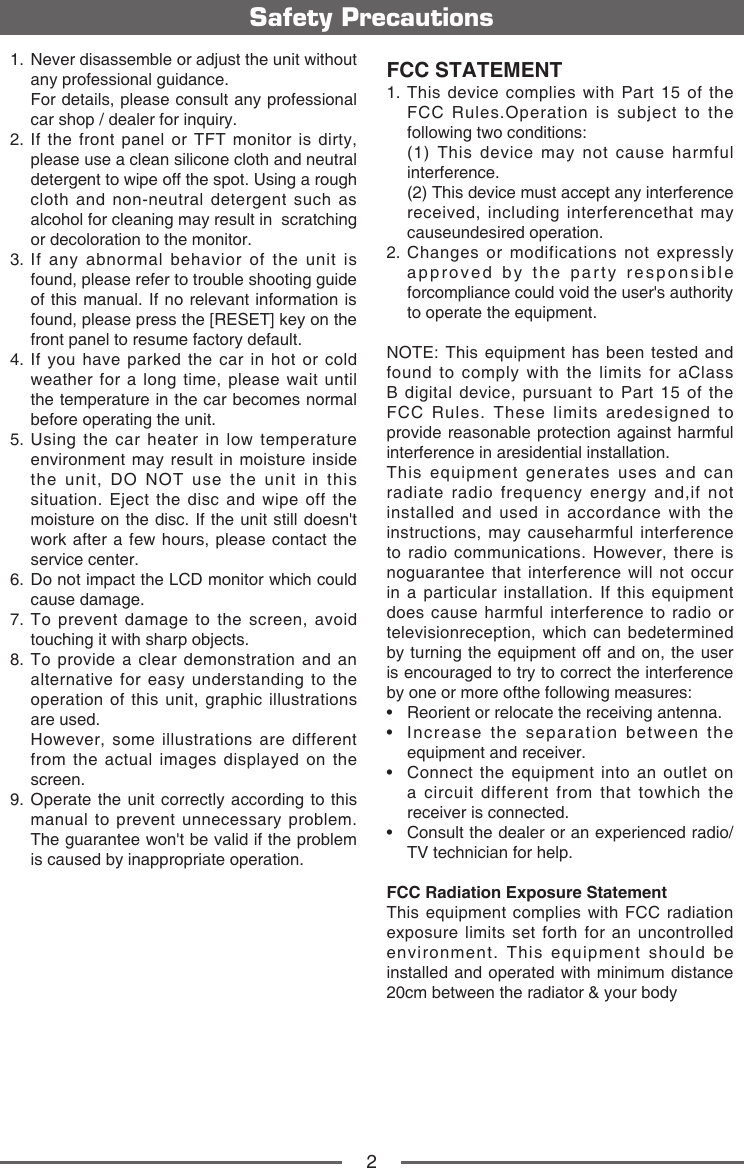

![2Safety Precautions1. Never disassemble or adjust the unit without any professional guidance. For details, please consult any professional car shop / dealer for inquiry.2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to wipe off the spot. Using a rough cloth and non-neutral detergent such as alcohol for cleaning may result in scratching or decoloration to the monitor.3. If any abnormal behavior of the unit is found, please refer to trouble shooting guide of this manual. If no relevant information is found, please press the [RESET] key on the front panel to resume factory default.4. If you have parked the car in hot or cold weather for a long time, please wait until the temperature in the car becomes normal before operating the unit.5. Using the car heater in low temperature environment may result in moisture inside the unit, DO NOT use the unit in this situation. Eject the disc and wipe off the moisture on the disc. If the unit still doesn't work after a few hours, please contact the service center.6. Do not impact the LCD monitor which could cause damage.7. To prevent damage to the screen, avoid touching it with sharp objects.8. To provide a clear demonstration and an alternative for easy understanding to the operation of this unit, graphic illustrations are used. However, some illustrations are different from the actual images displayed on the screen.9. Operate the unit correctly according to this manual to prevent unnecessary problem. The guarantee won't be valid if the problem is caused by inappropriate operation.FCC STATEMENT1. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interferencethat may causeundesired operation.2. Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation.This equipment generates uses and can radiate radio frequency energy and,if not installed and used in accordance with the instructions, may causeharmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televisionreception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more ofthe following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that towhich the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-3.png)

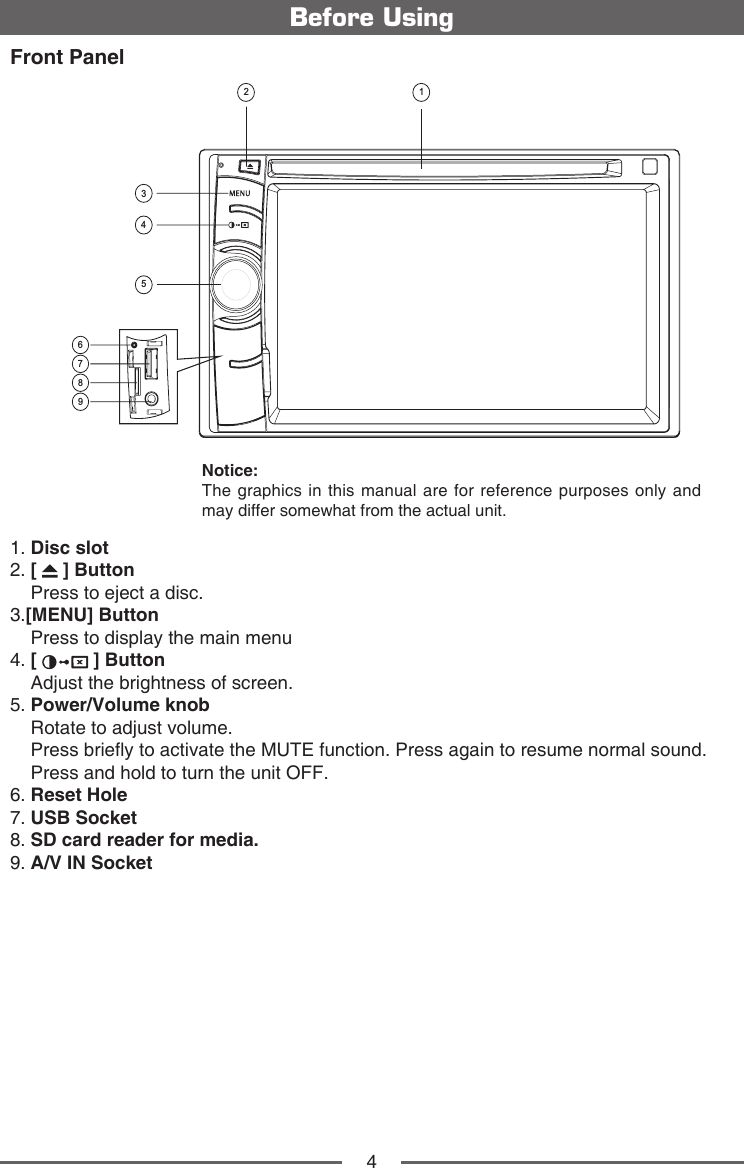

![4Front PanelBefore Using1. Disc slot2. [ ] Button Press to eject a disc.3.[MENU] Button Press to display the main menu 4. [ ] Button Adjust the brightness of screen. 5. Power/Volume knob Rotate to adjust volume. Press briey to activate the MUTE function. Press again to resume normal sound. Press and hold to turn the unit OFF. 6. Reset Hole7. USB Socket 8. SD card reader for media.9. A/V IN SocketNotice:The graphics in this manual are for reference purposes only and may differ somewhat from the actual unit.132547689](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-5.png)

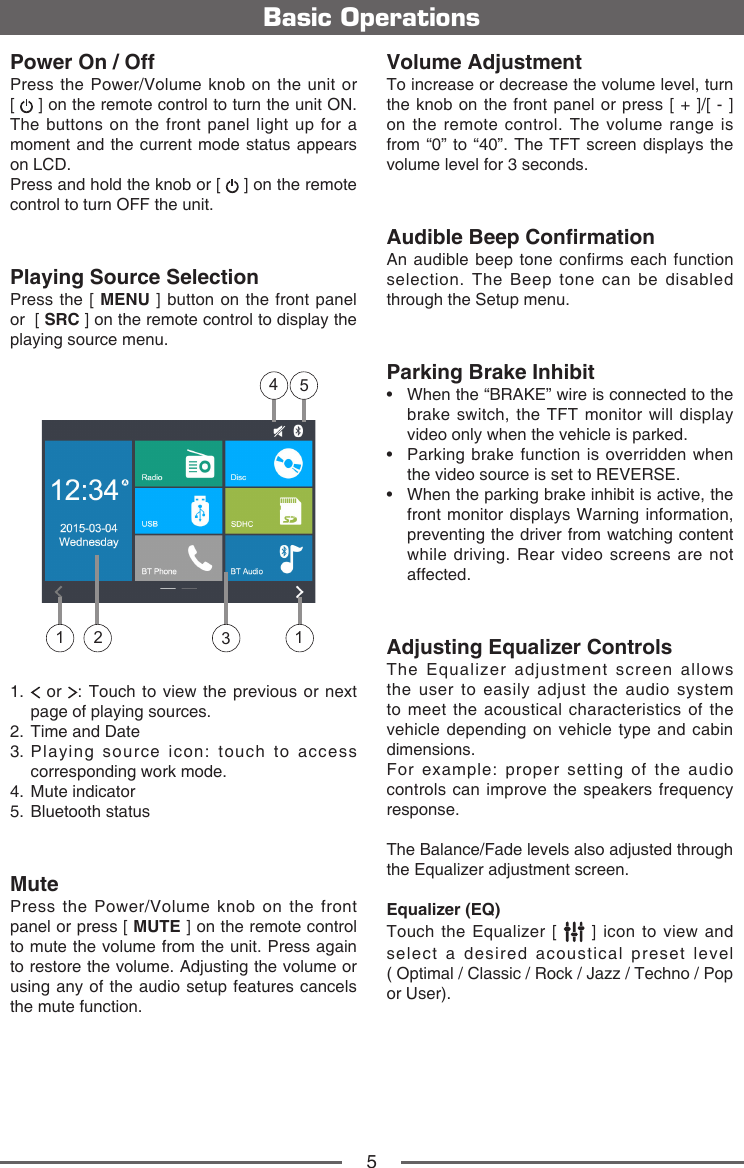

![5Power On / OffPress the Power/Volume knob on the unit or [ ] on the remote control to turn the unit ON. The buttons on the front panel light up for a moment and the current mode status appears on LCD. Press and hold the knob or [ ] on the remote control to turn OFF the unit. Playing Source SelectionPress the [ MENU ] button on the front panel or [ SRC ] on the remote control to display the playing source menu.13541 21. or : Touch to view the previous or next page of playing sources.2. Time and Date3. Playing source icon: touch to access corresponding work mode.4. Mute indicator5. Bluetooth statusMutePress the Power/Volume knob on the front panel or press [ MUTE ] on the remote control to mute the volume from the unit. Press again to restore the volume. Adjusting the volume or using any of the audio setup features cancels the mute function. Basic OperationsVolume AdjustmentTo increase or decrease the volume level, turn the knob on the front panel or press [ + ]/[ - ] on the remote control. The volume range is from “0” to “40”. The TFT screen displays the volume level for 3 seconds.Audible Beep ConrmationAn audible beep tone confirms each function selection. The Beep tone can be disabled through the Setup menu.Parking Brake Inhibit• When the “BRAKE” wire is connected to the brake switch, the TFT monitor will display video only when the vehicle is parked.• Parking brake function is overridden when the video source is set to REVERSE.• When the parking brake inhibit is active, the front monitor displays Warning information, preventing the driver from watching content while driving. Rear video screens are not affected.Adjusting Equalizer ControlsThe Equalizer adjustment screen allows the user to easily adjust the audio system to meet the acoustical characteristics of the vehicle depending on vehicle type and cabin dimensions. For example: proper setting of the audio controls can improve the speakers frequency response. The Balance/Fade levels also adjusted through the Equalizer adjustment screen.Equalizer (EQ)Touch the Equalizer [ ] icon to view and select a desired acoustical preset level ( Optimal / Classic / Rock / Jazz / Techno / Pop or User).](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-6.png)

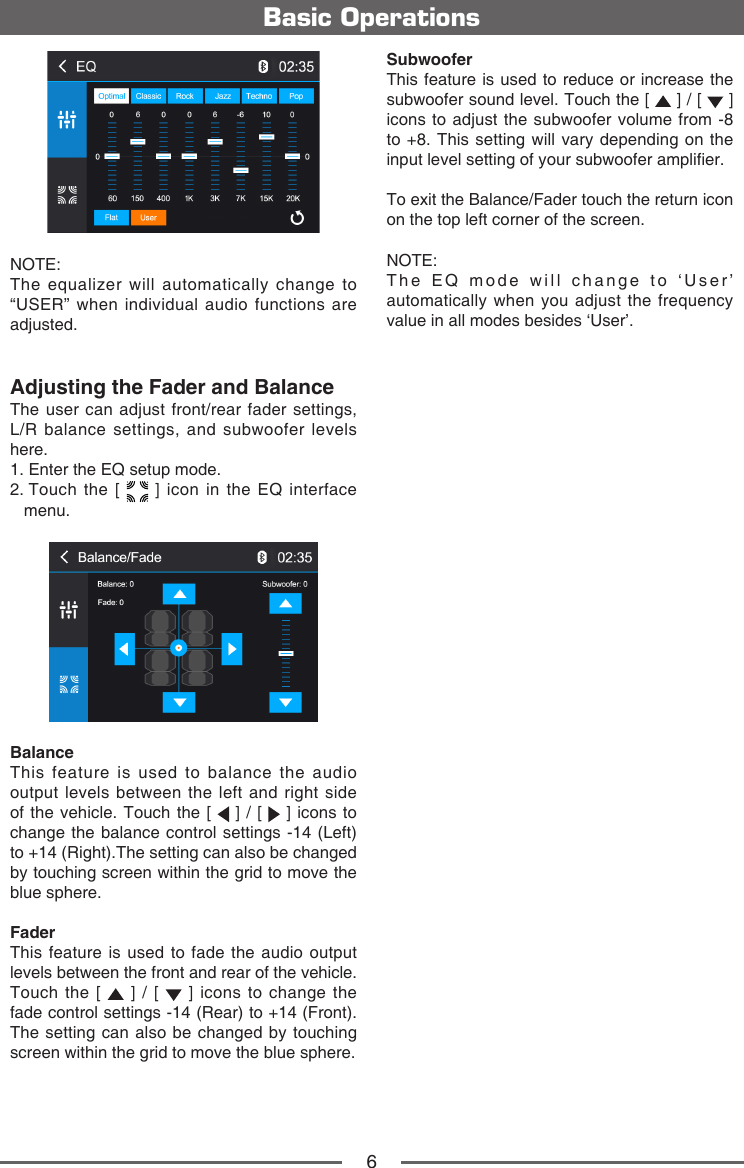

![6Basic OperationsNOTE: The equalizer will automatically change to “USER” when individual audio functions are adjusted.Adjusting the Fader and BalanceThe user can adjust front/rear fader settings, L/R balance settings, and subwoofer levels here.1. Enter the EQ setup mode.2. Touch the [ ] icon in the EQ interface menu.Balance This feature is used to balance the audio output levels between the left and right side of the vehicle. Touch the [ ] / [ ] icons to change the balance control settings -14 (Left) to +14 (Right).The setting can also be changed by touching screen within the grid to move the blue sphere.FaderThis feature is used to fade the audio output levels between the front and rear of the vehicle. Touch the [ ] / [ ] icons to change the fade control settings -14 (Rear) to +14 (Front). The setting can also be changed by touching screen within the grid to move the blue sphere.SubwooferThis feature is used to reduce or increase the subwoofer sound level. Touch the [ ] / [ ] icons to adjust the subwoofer volume from -8 to +8. This setting will vary depending on the input level setting of your subwoofer amplier.To exit the Balance/Fader touch the return icon on the top left corner of the screen.NOTE: The EQ mode will change to ‘User’ automatically when you adjust the frequency value in all modes besides ‘User’.](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-7.png)

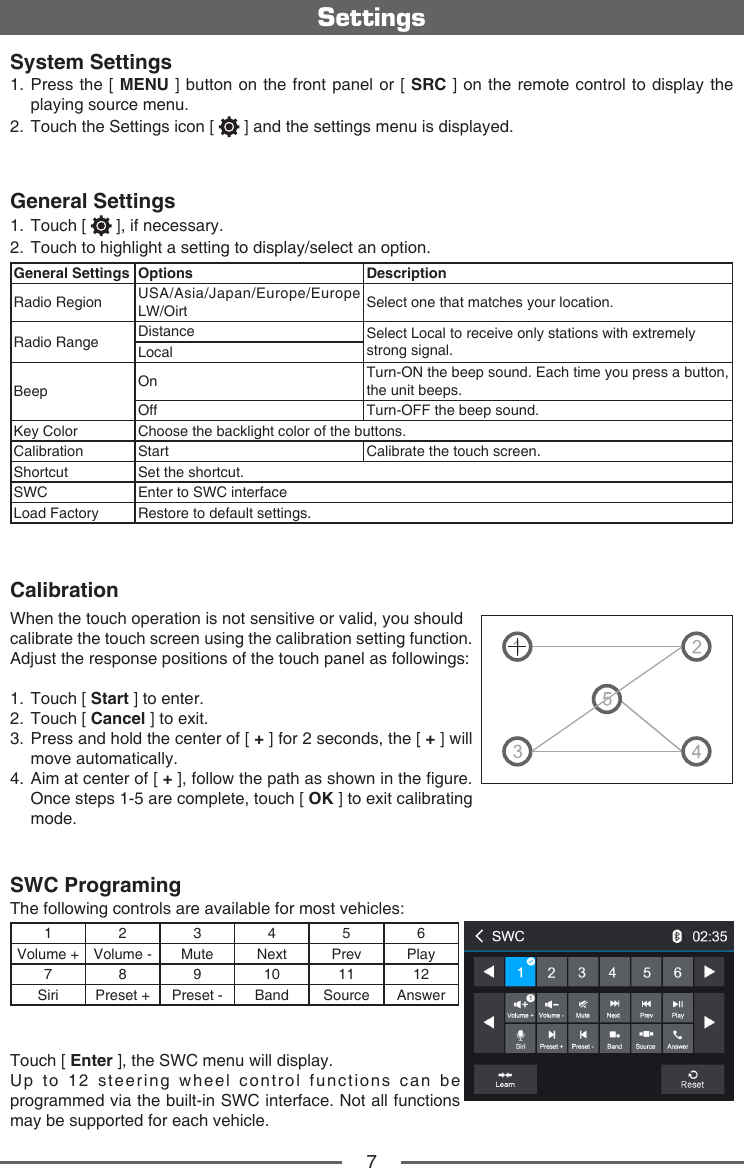

![7System Settings1. Press the [ MENU ] button on the front panel or [ SRC ] on the remote control to display the playing source menu. 2. Touch the Settings icon [ ] and the settings menu is displayed.General Settings1. Touch [ ], if necessary.2. Touch to highlight a setting to display/select an option.General Settings Options DescriptionRadio Region USA/Asia/Japan/Europe/Europe LW/Oirt Select one that matches your location.Radio Range Distance Select Local to receive only stations with extremely strong signal.LocalBeep On Turn-ON the beep sound. Each time you press a button,the unit beeps.Off Turn-OFF the beep sound.Key Color Choose the backlight color of the buttons.Calibration Start Calibrate the touch screen.Shortcut Set the shortcut.SWC Enter to SWC interfaceLoad Factory Restore to default settings.CalibrationWhen the touch operation is not sensitive or valid, you should calibrate the touch screen using the calibration setting function.Adjust the response positions of the touch panel as followings:1. Touch [ Start ] to enter.2. Touch [ Cancel ] to exit.3. Press and hold the center of [ + ] for 2 seconds, the [ + ] will move automatically.4. Aim at center of [ + ], follow the path as shown in the gure. Once steps 1-5 are complete, touch [ OK ] to exit calibrating mode.SWC ProgramingThe following controls are available for most vehicles:123456Volume + Volume - Mute Next Prev Play7 8 9 10 11 12Siri Preset + Preset - Band Source AnswerTouch [ Enter ], the SWC menu will display.Up to 12 steering wheel control functions can be programmed via the built-in SWC interface. Not all functions may be supported for each vehicle.Settings](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-8.png)

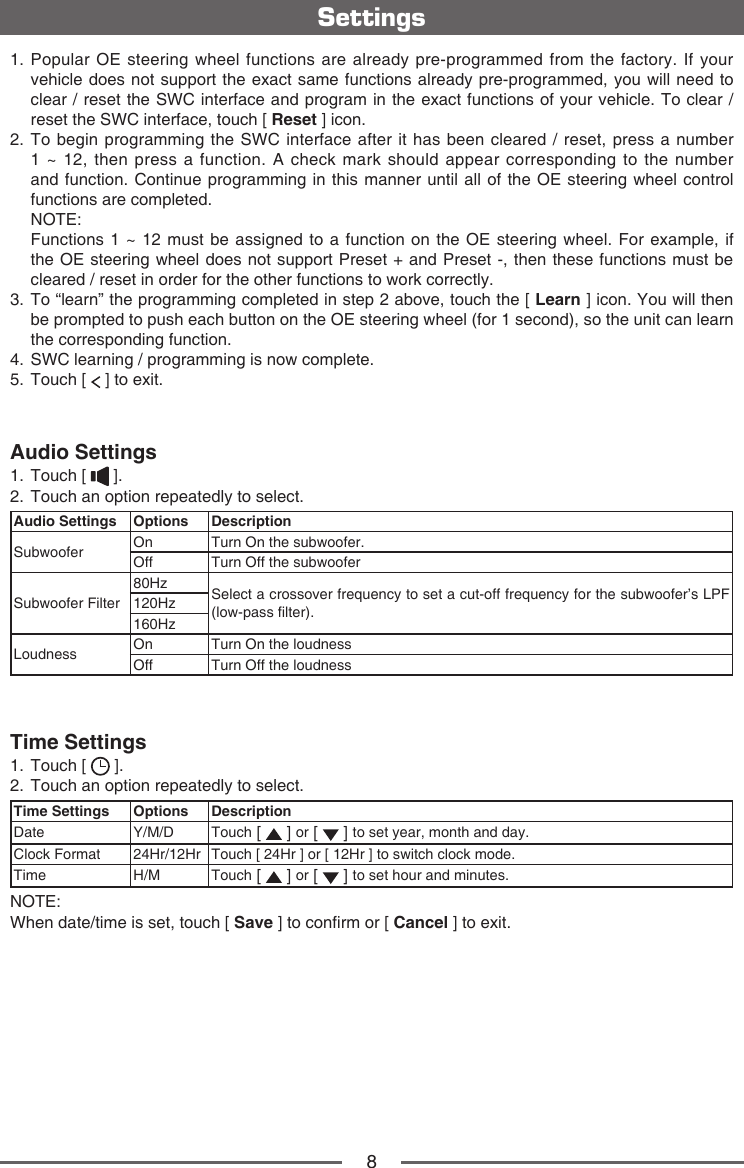

![81. Popular OE steering wheel functions are already pre-programmed from the factory. If your vehicle does not support the exact same functions already pre-programmed, you will need to clear / reset the SWC interface and program in the exact functions of your vehicle. To clear / reset the SWC interface, touch [ Reset ] icon.2. To begin programming the SWC interface after it has been cleared / reset, press a number 1 ~ 12, then press a function. A check mark should appear corresponding to the number and function. Continue programming in this manner until all of the OE steering wheel control functions are completed. NOTE: Functions 1 ~ 12 must be assigned to a function on the OE steering wheel. For example, if the OE steering wheel does not support Preset + and Preset -, then these functions must be cleared / reset in order for the other functions to work correctly.3. To “learn” the programming completed in step 2 above, touch the [ Learn ] icon. You will then be prompted to push each button on the OE steering wheel (for 1 second), so the unit can learn the corresponding function.4. SWC learning / programming is now complete.5. Touch [ ] to exit.Audio Settings1. Touch [ ].2. Touch an option repeatedly to select.Audio Settings Options DescriptionSubwoofer On Turn On the subwoofer.Off Turn Off the subwooferSubwoofer Filter80Hz Select a crossover frequency to set a cut-off frequency for the subwoofer’s LPF (low-pass lter).120Hz160HzLoudness On Turn On the loudnessOff Turn Off the loudnessTime Settings1. Touch [ ].2. Touch an option repeatedly to select.Time Settings Options DescriptionDate Y/M/D Touch [ ] or [ ] to set year, month and day.Clock Format 24Hr/12Hr Touch [ 24Hr ] or [ 12Hr ] to switch clock mode.Time H/M Touch [ ] or [ ] to set hour and minutes.NOTE:When date/time is set, touch [ Save ] to conrm or [ Cancel ] to exit.Settings](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-9.png)

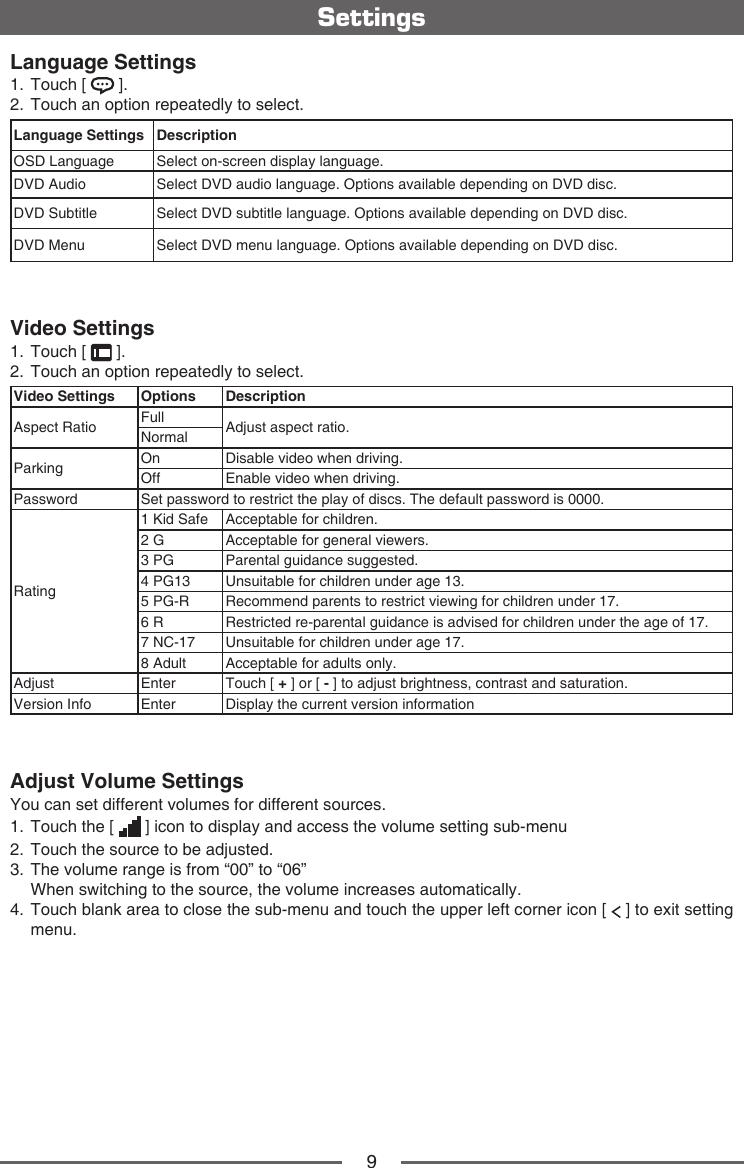

![9SettingsLanguage Settings1. Touch [ ].2. Touch an option repeatedly to select.Language Settings DescriptionOSD Language Select on-screen display language.DVD Audio Select DVD audio language. Options available depending on DVD disc.DVD Subtitle Select DVD subtitle language. Options available depending on DVD disc.DVD Menu Select DVD menu language. Options available depending on DVD disc.Video Settings1. Touch [ ].2. Touch an option repeatedly to select.Video Settings Options DescriptionAspect Ratio Full Adjust aspect ratio.NormalParking On Disable video when driving.Off Enable video when driving.Password Set password to restrict the play of discs. The default password is 0000.Rating1 Kid Safe Acceptable for children.2 G Acceptable for general viewers.3 PG Parental guidance suggested.4 PG13 Unsuitable for children under age 13.5 PG-R Recommend parents to restrict viewing for children under 17.6 R Restricted re-parental guidance is advised for children under the age of 17.7 NC-17 Unsuitable for children under age 17.8 Adult Acceptable for adults only.Adjust Enter Touch [ + ] or [ - ] to adjust brightness, contrast and saturation.Version Info Enter Display the current version informationAdjust Volume SettingsYou can set different volumes for different sources.1. Touch the [ ] icon to display and access the volume setting sub-menu2. Touch the source to be adjusted.3. The volume range is from “00” to “06” When switching to the source, the volume increases automatically.4. Touch blank area to close the sub-menu and touch the upper left corner icon [ ] to exit setting menu.](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-10.png)

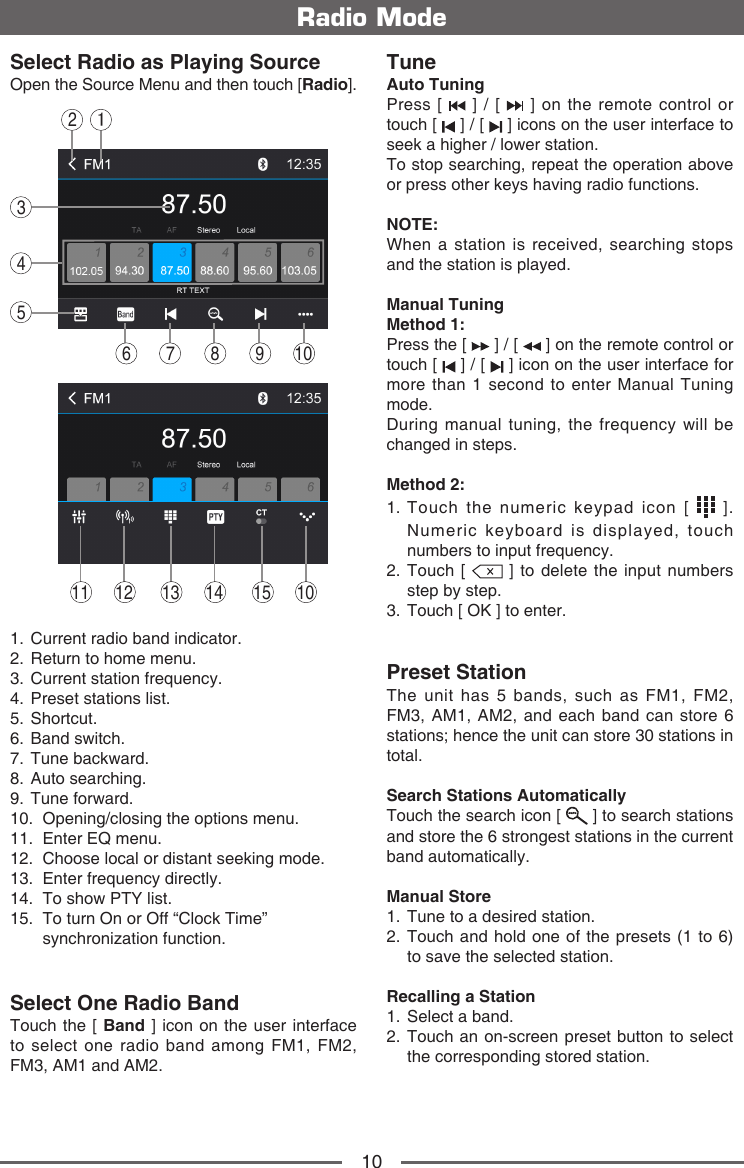

![10Radio ModeSelect Radio as Playing SourceOpen the Source Menu and then touch [Radio].143256 7 8 10914131211 15 101. Current radio band indicator.2. Return to home menu.3. Current station frequency.4. Preset stations list.5. Shortcut.6. Band switch.7. Tune backward.8. Auto searching.9. Tune forward.10. Opening/closing the options menu.11. Enter EQ menu.12. Choose local or distant seeking mode.13. Enter frequency directly.14. To show PTY list.15. To turn On or Off “Clock Time” synchronization function.Select One Radio BandTouch the [ Band ] icon on the user interface to select one radio band among FM1, FM2, FM3, AM1 and AM2.TuneAuto TuningPress [ ] / [ ] on the remote control or touch [ ] / [ ] icons on the user interface to seek a higher / lower station.To stop searching, repeat the operation above or press other keys having radio functions.NOTE:When a station is received, searching stops and the station is played.Manual TuningMethod 1: Press the [ ] / [ ] on the remote control or touch [ ] / [ ] icon on the user interface for more than 1 second to enter Manual Tuning mode.During manual tuning, the frequency will be changed in steps.Method 2: 1. Touch the numeric keypad icon [ ]. Numeric keyboard is displayed, touch numbers to input frequency.2. Touch [ ] to delete the input numbers step by step.3. Touch [ OK ] to enter. Preset StationThe unit has 5 bands, such as FM1, FM2, FM3, AM1, AM2, and each band can store 6 stations; hence the unit can store 30 stations in total.Search Stations AutomaticallyTouch the search icon [ ] to search stations and store the 6 strongest stations in the current band automatically.Manual Store1. Tune to a desired station.2. Touch and hold one of the presets (1 to 6) to save the selected station.Recalling a Station1. Select a band.2. Touch an on-screen preset button to select the corresponding stored station.](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-11.png)

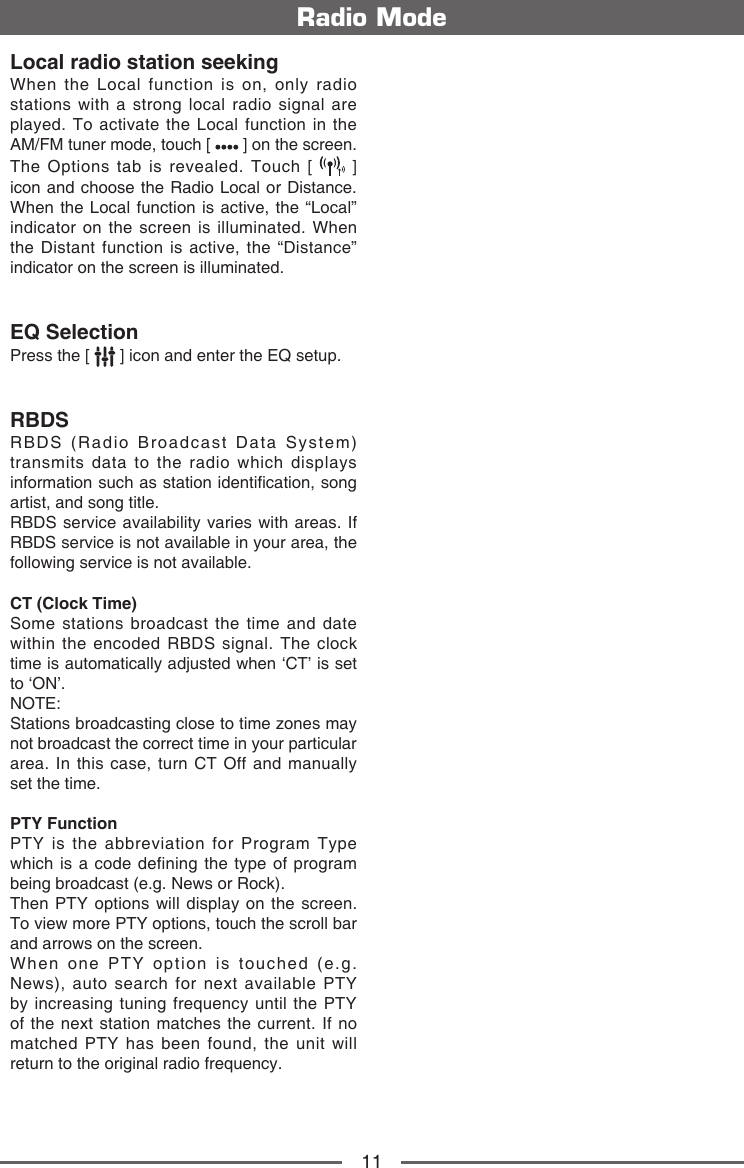

![11Radio ModeLocal radio station seekingWhen the Local function is on, only radio stations with a strong local radio signal are played. To activate the Local function in the AM/FM tuner mode, touch [ ] on the screen. The Options tab is revealed. Touch [ ] icon and choose the Radio Local or Distance. When the Local function is active, the “Local” indicator on the screen is illuminated. When the Distant function is active, the “Distance” indicator on the screen is illuminated.EQ SelectionPress the [ ] icon and enter the EQ setup.RBDSRBDS (Radio Broadcast Data System) transmits data to the radio which displays information such as station identication, song artist, and song title.RBDS service availability varies with areas. If RBDS service is not available in your area, the following service is not available.CT (Clock Time)Some stations broadcast the time and date within the encoded RBDS signal. The clock time is automatically adjusted when ‘CT’ is set to ‘ON’.NOTE: Stations broadcasting close to time zones may not broadcast the correct time in your particular area. In this case, turn CT Off and manually set the time.PTY Function PTY is the abbreviation for Program Type which is a code defining the type of program being broadcast (e.g. News or Rock). Then PTY options will display on the screen. To view more PTY options, touch the scroll bar and arrows on the screen. When one PTY option is touched (e.g. News), auto search for next available PTY by increasing tuning frequency until the PTY of the next station matches the current. If no matched PTY has been found, the unit will return to the original radio frequency.](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-12.png)

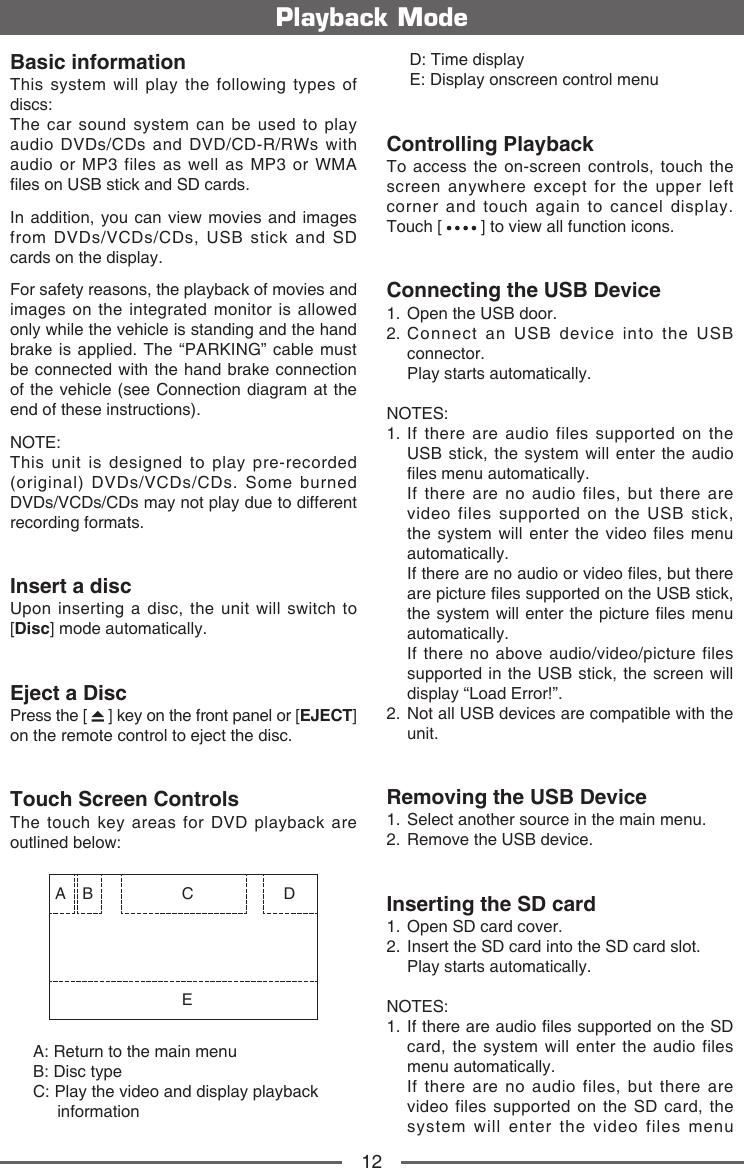

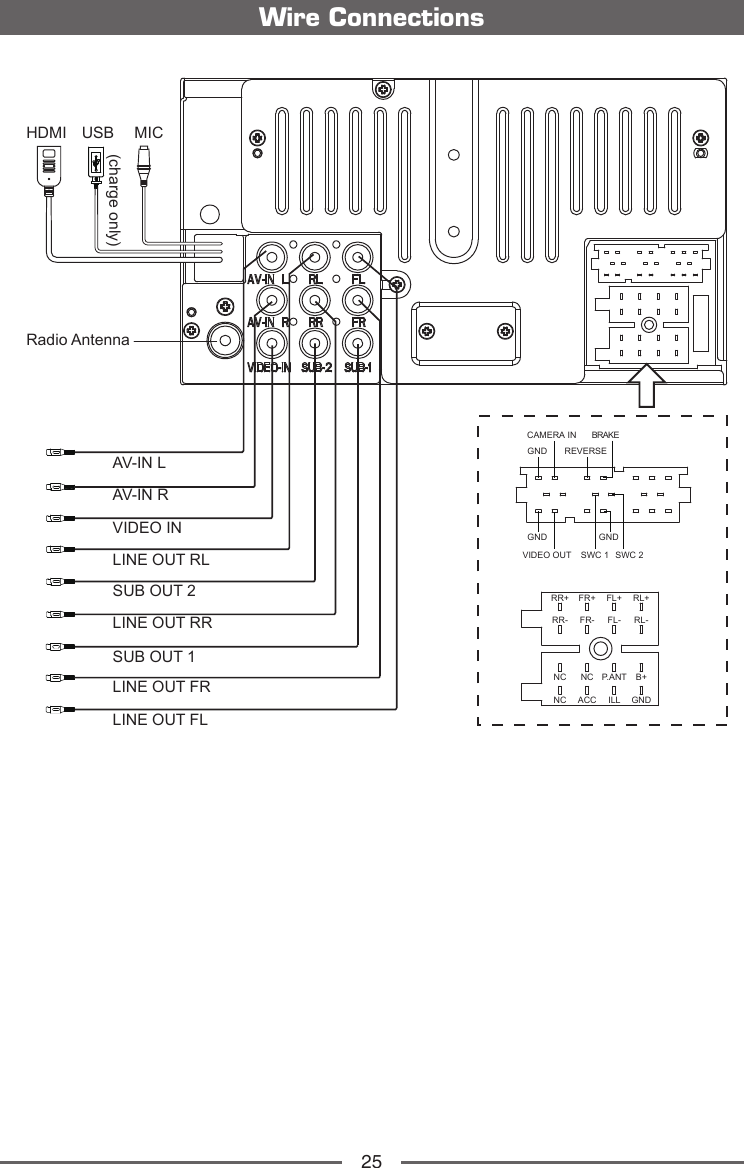

![12Basic informationThis system will play the following types of discs:The car sound system can be used to play audio DVDs/CDs and DVD/CD-R/RWs with audio or MP3 files as well as MP3 or WMA les on USB stick and SD cards.In addition, you can view movies and images from DVDs/VCDs/CDs, USB stick and SD cards on the display.For safety reasons, the playback of movies and images on the integrated monitor is allowed only while the vehicle is standing and the hand brake is applied. The “PARKING” cable must be connected with the hand brake connection of the vehicle (see Connection diagram at the end of these instructions).NOTE:This unit is designed to play pre-recorded (original) DVDs/VCDs/CDs. Some burned DVDs/VCDs/CDs may not play due to different recording formats. Insert a discUpon inserting a disc, the unit will switch to [Disc] mode automatically.Eject a DiscPress the [ ] key on the front panel or [EJECT] on the remote control to eject the disc.Touch Screen ControlsThe touch key areas for DVD playback are outlined below:A B CED A: Return to the main menu B: Disc type C: Play the video and display playback informationPlayback Mode D: Time display E: Display onscreen control menuControlling PlaybackTo access the on-screen controls, touch the screen anywhere except for the upper left corner and touch again to cancel display. Touch [ ] to view all function icons.Connecting the USB Device1. Open the USB door.2. Connect an USB device into the USB connector. Play starts automatically.NOTES:1. If there are audio files supported on the USB stick, the system will enter the audio les menu automatically. If there are no audio files, but there are video files supported on the USB stick, the system will enter the video files menu automatically. If there are no audio or video les, but there are picture les supported on the USB stick, the system will enter the picture les menu automatically. If there no above audio/video/picture files supported in the USB stick, the screen will display “Load Error!”.2. Not all USB devices are compatible with the unit.Removing the USB Device1. Select another source in the main menu.2. Remove the USB device.Inserting the SD card1. Open SD card cover.2. Insert the SD card into the SD card slot. Play starts automatically.NOTES:1. If there are audio les supported on the SD card, the system will enter the audio files menu automatically. If there are no audio files, but there are video files supported on the SD card, the system will enter the video files menu](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-13.png)

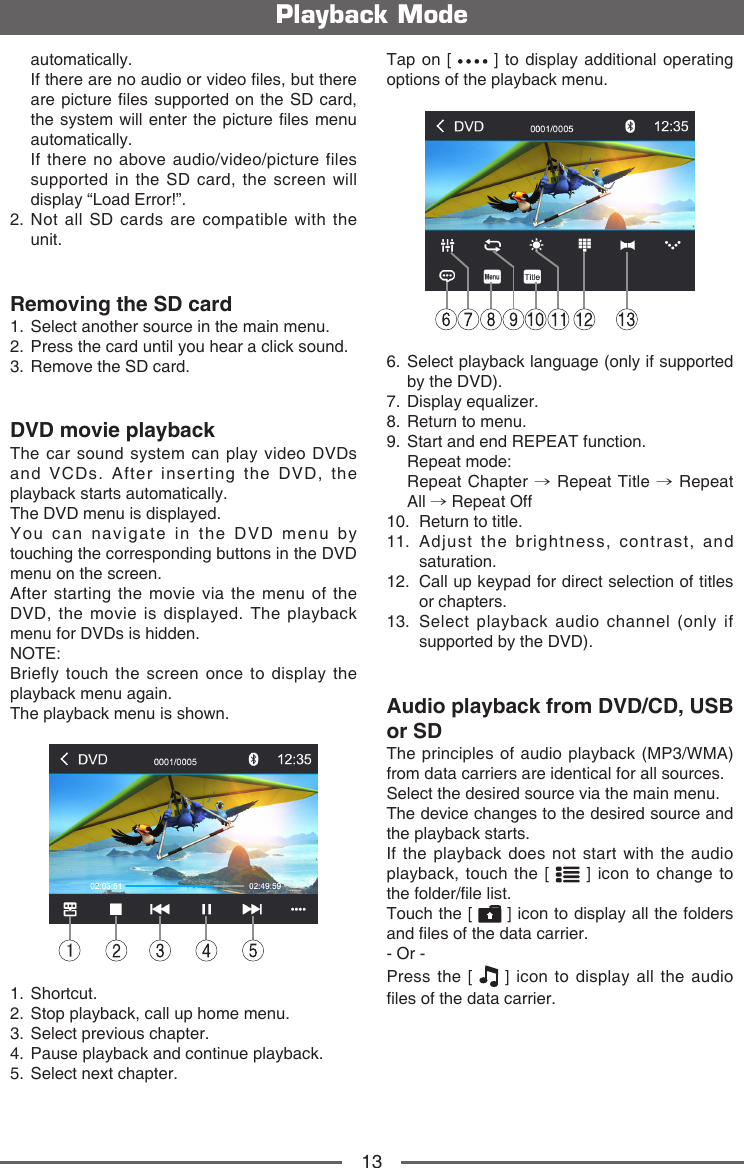

![13Playback Modeautomatically. If there are no audio or video les, but there are picture les supported on the SD card, the system will enter the picture les menu automatically. If there no above audio/video/picture files supported in the SD card, the screen will display “Load Error!”.2. Not all SD cards are compatible with the unit.Removing the SD card1. Select another source in the main menu.2. Press the card until you hear a click sound.3. Remove the SD card.DVD movie playbackThe car sound system can play video DVDs and VCDs. After inserting the DVD, the playback starts automatically.The DVD menu is displayed.You can navigate in the DVD menu by touching the corresponding buttons in the DVD menu on the screen.After starting the movie via the menu of the DVD, the movie is displayed. The playback menu for DVDs is hidden.NOTE:Briefly touch the screen once to display the playback menu again.The playback menu is shown.11. Shortcut.2. Stop playback, call up home menu.3. Select previous chapter.4. Pause playback and continue playback.5. Select next chapter.Tap on [ ] to display additional operating options of the playback menu.6. Select playback language (only if supported by the DVD).7. Display equalizer.8. Return to menu.9. Start and end REPEAT function. Repeat mode: Repeat Chapter → Repeat Title → Repeat All → Repeat Off10. Return to title.11. Adjust the brightness, contrast, and saturation.12. Call up keypad for direct selection of titles or chapters.13. Select playback audio channel (only if supported by the DVD).Audio playback from DVD/CD, USB or SDThe principles of audio playback (MP3/WMA) from data carriers are identical for all sources.Select the desired source via the main menu.The device changes to the desired source and the playback starts.If the playback does not start with the audio playback, touch the [ ] icon to change to the folder/le list.Touch the [ ] icon to display all the folders and les of the data carrier.- Or -Press the [ ] icon to display all the audio les of the data carrier.](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-14.png)

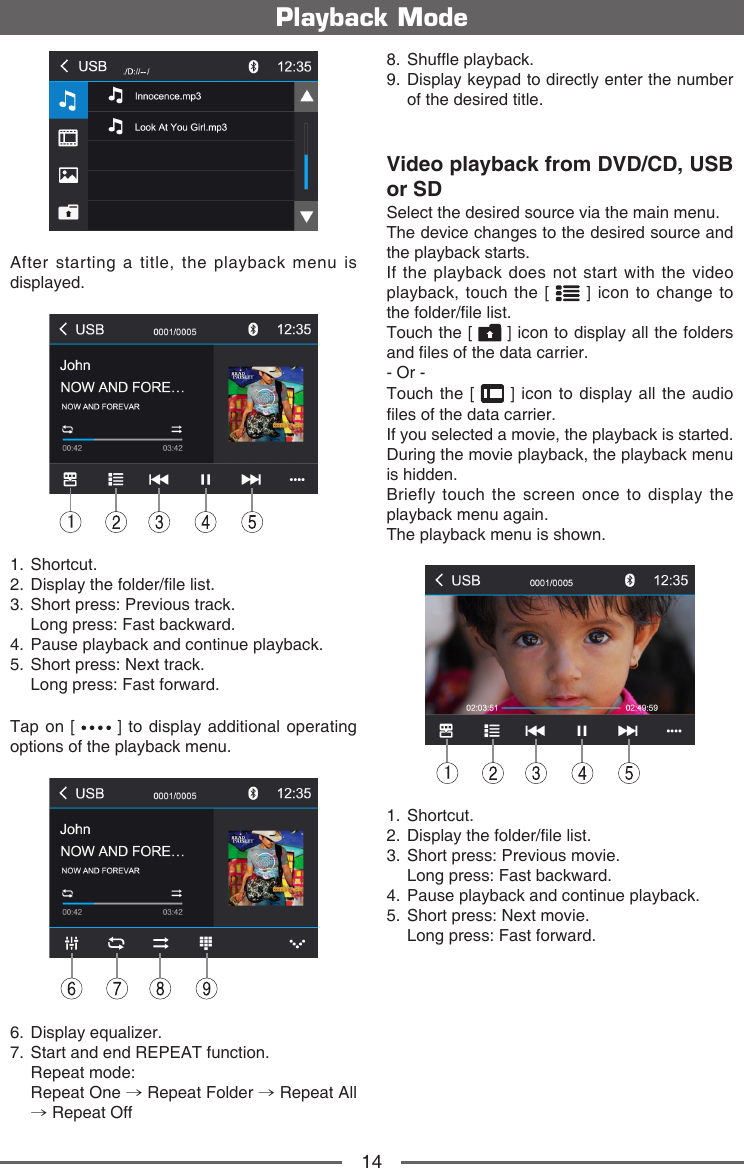

![14Playback ModeAfter starting a title, the playback menu is displayed.11. Shortcut.2. Display the folder/le list.3. Short press: Previous track. Long press: Fast backward.4. Pause playback and continue playback.5. Short press: Next track. Long press: Fast forward.Tap on [ ] to display additional operating options of the playback menu.6. Display equalizer.7. Start and end REPEAT function. Repeat mode: Repeat One → Repeat Folder → Repeat All → Repeat Off8. Shufe playback.9. Display keypad to directly enter the number of the desired title.Video playback from DVD/CD, USB or SDSelect the desired source via the main menu.The device changes to the desired source and the playback starts.If the playback does not start with the video playback, touch the [ ] icon to change to the folder/le list.Touch the [ ] icon to display all the folders and les of the data carrier.- Or -Touch the [ ] icon to display all the audio les of the data carrier.If you selected a movie, the playback is started. During the movie playback, the playback menu is hidden.Briefly touch the screen once to display the playback menu again.The playback menu is shown.11. Shortcut.2. Display the folder/le list.3. Short press: Previous movie. Long press: Fast backward.4. Pause playback and continue playback.5. Short press: Next movie. Long press: Fast forward.](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-15.png)

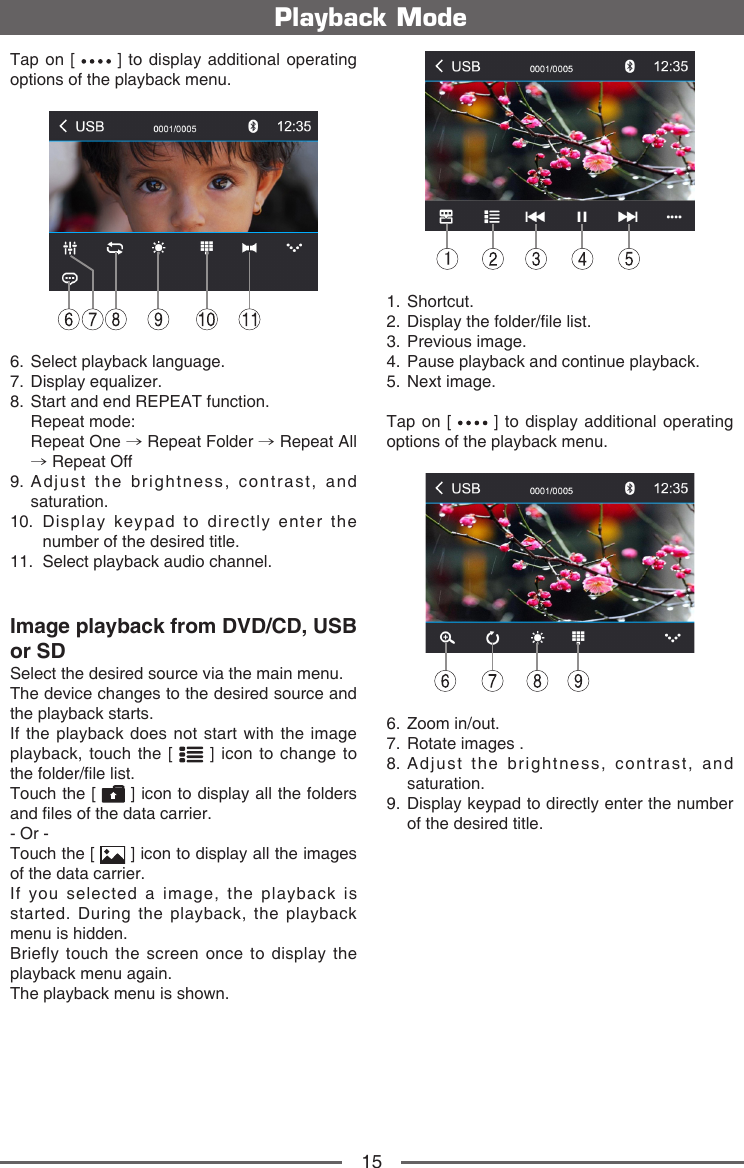

![15Playback ModeTap on [ ] to display additional operating options of the playback menu.6. Select playback language.7. Display equalizer.8. Start and end REPEAT function. Repeat mode: Repeat One → Repeat Folder → Repeat All → Repeat Off9. Adjust the brightness, contrast, and saturation.10. Display keypad to directly enter the number of the desired title.11. Select playback audio channel.Image playback from DVD/CD, USB or SDSelect the desired source via the main menu.The device changes to the desired source and the playback starts.If the playback does not start with the image playback, touch the [ ] icon to change to the folder/le list.Touch the [ ] icon to display all the folders and les of the data carrier.- Or -Touch the [ ] icon to display all the images of the data carrier.If you selected a image, the playback is started. During the playback, the playback menu is hidden.Briefly touch the screen once to display the playback menu again.The playback menu is shown.11. Shortcut.2. Display the folder/le list.3. Previous image.4. Pause playback and continue playback.5. Next image.Tap on [ ] to display additional operating options of the playback menu.6. Zoom in/out.7. Rotate images .8. Adjust the brightness, contrast, and saturation.9. Display keypad to directly enter the number of the desired title.](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-16.png)

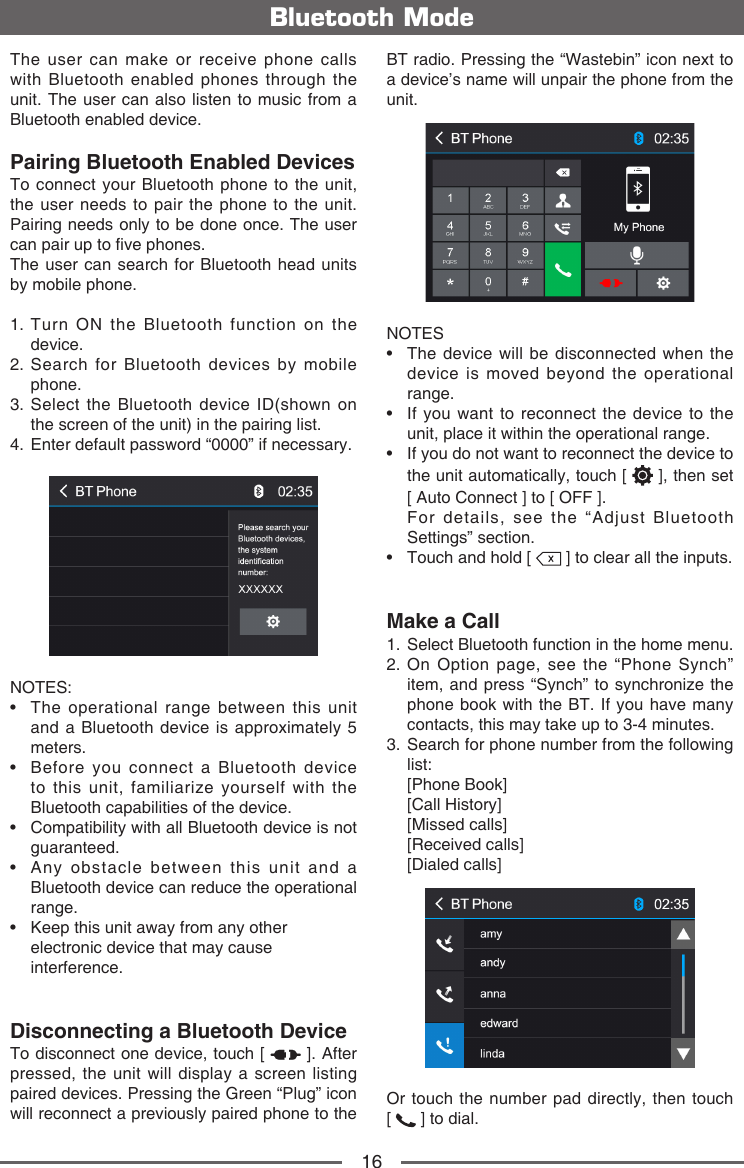

![16The user can make or receive phone calls with Bluetooth enabled phones through the unit. The user can also listen to music from a Bluetooth enabled device.Pairing Bluetooth Enabled DevicesTo connect your Bluetooth phone to the unit, the user needs to pair the phone to the unit. Pairing needs only to be done once. The user can pair up to ve phones.The user can search for Bluetooth head units by mobile phone.1. Turn ON the Bluetooth function on the device.2. Search for Bluetooth devices by mobile phone. 3. Select the Bluetooth device ID(shown on the screen of the unit) in the pairing list.4. Enter default password “0000” if necessary.NOTES:• The operational range between this unit and a Bluetooth device is approximately 5 meters.• Before you connect a Bluetooth device to this unit, familiarize yourself with the Bluetooth capabilities of the device.• Compatibility with all Bluetooth device is not guaranteed.• Any obstacle between this unit and a Bluetooth device can reduce the operational range.• Keep this unit away from any other electronic device that may cause interference.Disconnecting a Bluetooth DeviceTo disconnect one device, touch [ ]. After pressed, the unit will display a screen listing paired devices. Pressing the Green “Plug” icon will reconnect a previously paired phone to the Bluetooth ModeBT radio. Pressing the “Wastebin” icon next to a device’s name will unpair the phone from the unit.NOTES• The device will be disconnected when the device is moved beyond the operational range.• If you want to reconnect the device to the unit, place it within the operational range.• If you do not want to reconnect the device to the unit automatically, touch [ ], then set [ Auto Connect ] to [ OFF ]. For details, see the “Adjust Bluetooth Settings” section.• Touch and hold [ ] to clear all the inputs.Make a Call1. Select Bluetooth function in the home menu.2. On Option page, see the “Phone Synch” item, and press “Synch” to synchronize the phone book with the BT. If you have many contacts, this may take up to 3-4 minutes.3. Search for phone number from the following list: [Phone Book] [Call History] [Missed calls] [Received calls] [Dialed calls]Or touch the number pad directly, then touch [ ] to dial.](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-17.png)

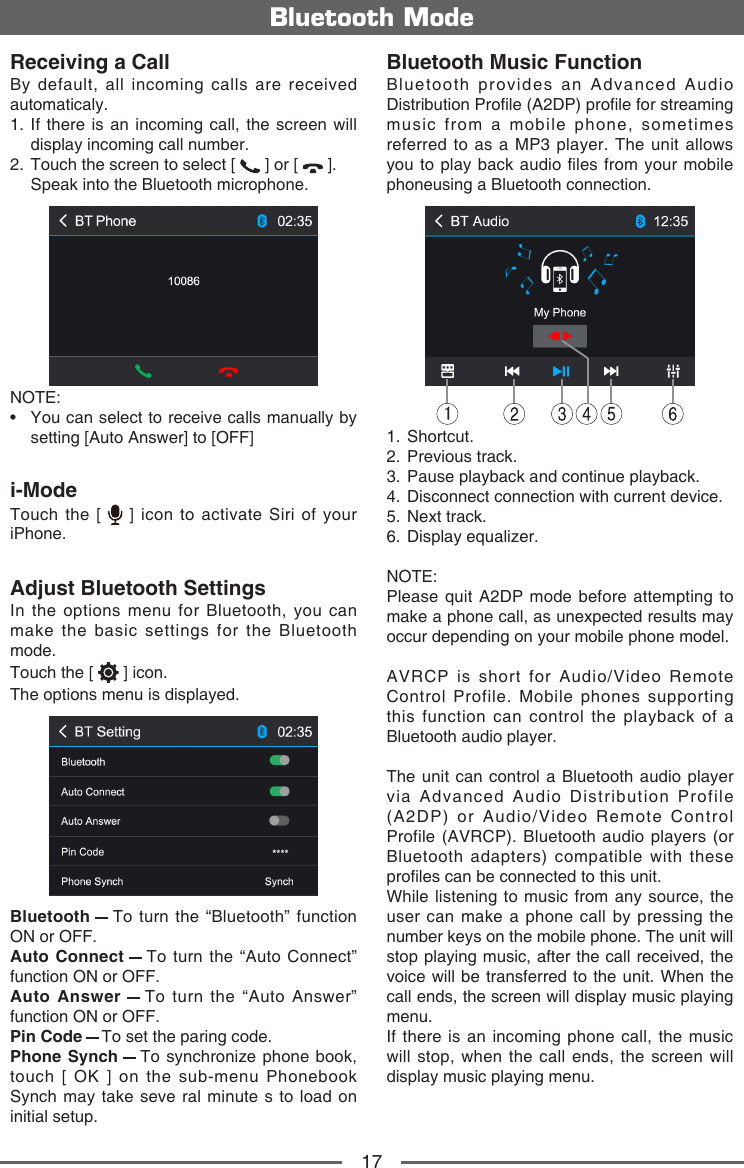

![17Bluetooth ModeReceiving a CallBy default, all incoming calls are received automaticaly.1. If there is an incoming call, the screen will display incoming call number. 2. Touch the screen to select [ ] or [ ]. Speak into the Bluetooth microphone.NOTE:• You can select to receive calls manually by setting [Auto Answer] to [OFF]i-ModeTouch the [ ] icon to activate Siri of your iPhone.Adjust Bluetooth SettingsIn the options menu for Bluetooth, you can make the basic settings for the Bluetooth mode.Touch the [ ] icon.The options menu is displayed.Bluetooth To turn the “Bluetooth” function ON or OFF.Auto Connect To turn the “Auto Connect” function ON or OFF.Auto Answer To turn the “Auto Answer” function ON or OFF.Pin Code To set the paring code.Phone Synch To synchronize phone book, touch [ OK ] on the sub-menu Phonebook Synch may take seve ral minute s to load on initial setup.Bluetooth Music FunctionBluetooth provides an Advanced Audio Distribution Prole (A2DP) prole for streaming music from a mobile phone, sometimes referred to as a MP3 player. The unit allows you to play back audio les from your mobile phoneusing a Bluetooth connection.11. Shortcut.2. Previous track.3. Pause playback and continue playback.4. Disconnect connection with current device.5. Next track.6. Display equalizer.NOTE: Please quit A2DP mode before attempting to make a phone call, as unexpected results may occur depending on your mobile phone model.AVRCP is short for Audio/Video Remote Control Profile. Mobile phones supporting this function can control the playback of a Bluetooth audio player.The unit can control a Bluetooth audio player via Advanced Audio Distribution Profile (A2DP) or Audio/Video Remote Control Profile (AVRCP). Bluetooth audio players (or Bluetooth adapters) compatible with these proles can be connected to this unit.While listening to music from any source, the user can make a phone call by pressing the number keys on the mobile phone. The unit will stop playing music, after the call received, the voice will be transferred to the unit. When the call ends, the screen will display music playing menu.If there is an incoming phone call, the music will stop, when the call ends, the screen will display music playing menu.](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-18.png)

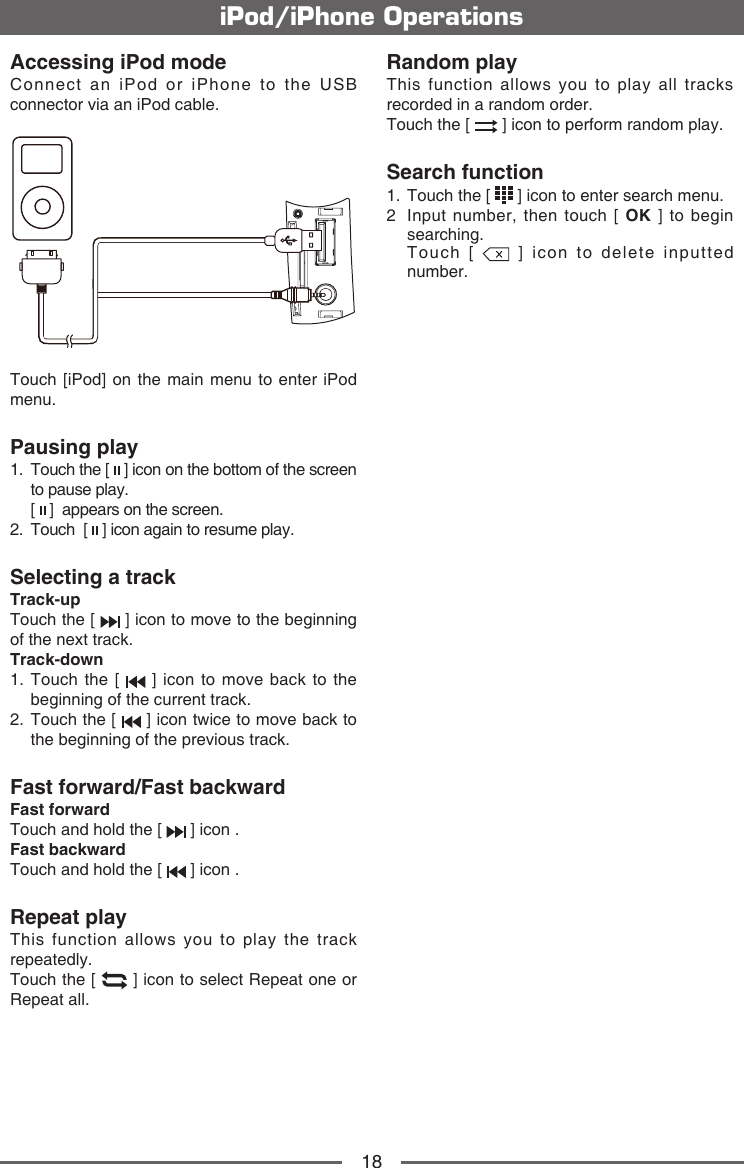

![18iPod/iPhone OperationsAccessing iPod modeConnect an iPod or iPhone to the USB connector via an iPod cable.Touch [iPod] on the main menu to enter iPod menu.Pausing play1. Touch the [ ] icon on the bottom of the screen to pause play. [ ] appears on the screen.2. Touch [ ] icon again to resume play.Selecting a trackTrack-up Touch the [ ] icon to move to the beginning of the next track.Track-down1. Touch the [ ] icon to move back to the beginning of the current track.2. Touch the [ ] icon twice to move back to the beginning of the previous track.Fast forward/Fast backwardFast forwardTouch and hold the [ ] icon .Fast backward Touch and hold the [ ] icon .Repeat playThis function allows you to play the track repeatedly.Touch the [ ] icon to select Repeat one or Repeat all.Random playThis function allows you to play all tracks recorded in a random order.Touch the [ ] icon to perform random play.Search function1. Touch the [ ] icon to enter search menu. 2 Input number, then touch [ OK ] to begin searching. Touch [ ] icon to delete inputted number.](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-19.png)

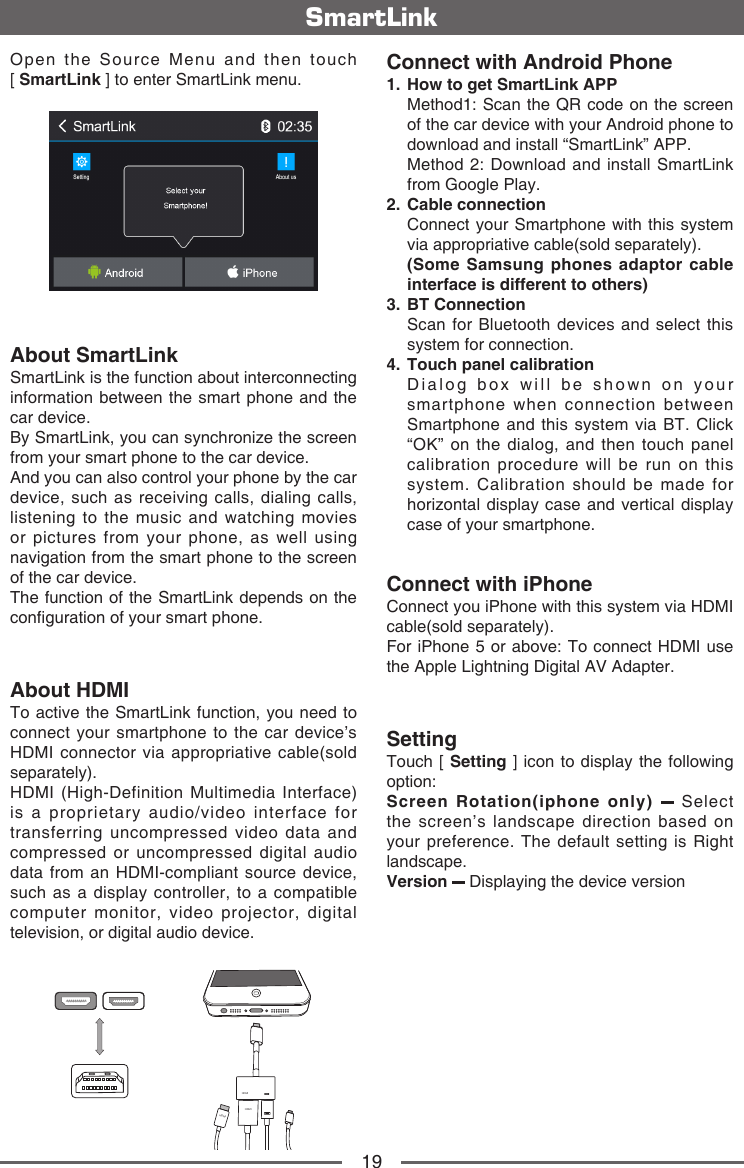

![19SmartLinkOpen the Source Menu and then touch [ SmartLink ] to enter SmartLink menu.About SmartLinkSmartLink is the function about interconnecting information between the smart phone and the car device.By SmartLink, you can synchronize the screen from your smart phone to the car device. And you can also control your phone by the car device, such as receiving calls, dialing calls, listening to the music and watching movies or pictures from your phone, as well using navigation from the smart phone to the screen of the car device.The function of the SmartLink depends on the conguration of your smart phone.About HDMITo active the SmartLink function, you need to connect your smartphone to the car device’s HDMI connector via appropriative cable(sold separately).HDMI (High-Definition Multimedia Interface) is a proprietary audio/video interface for transferring uncompressed video data and compressed or uncompressed digital audio data from an HDMI-compliant source device, such as a display controller, to a compatible computer monitor, video projector, digital television, or digital audio device. HDMIHDMIHDMIHDMIConnect with Android Phone1. How to get SmartLink APP Method1: Scan the QR code on the screen of the car device with your Android phone to download and install “SmartLink” APP. Method 2: Download and install SmartLink from Google Play.2. Cable connection Connect your Smartphone with this system via appropriative cable(sold separately). (Some Samsung phones adaptor cable interface is different to others)3. BT Connection Scan for Bluetooth devices and select this system for connection.4. Touch panel calibration Dialog box will be shown on your smartphone when connection between Smartphone and this system via BT. Click “OK” on the dialog, and then touch panel calibration procedure will be run on this system. Calibration should be made for horizontal display case and vertical display case of your smartphone.Connect with iPhoneConnect you iPhone with this system via HDMI cable(sold separately). For iPhone 5 or above: To connect HDMI use the Apple Lightning Digital AV Adapter.SettingTouch [ Setting ] icon to display the following option:Screen Rotation(iphone only) Select the screen’s landscape direction based on your preference. The default setting is Right landscape.Version Displaying the device version](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-20.png)

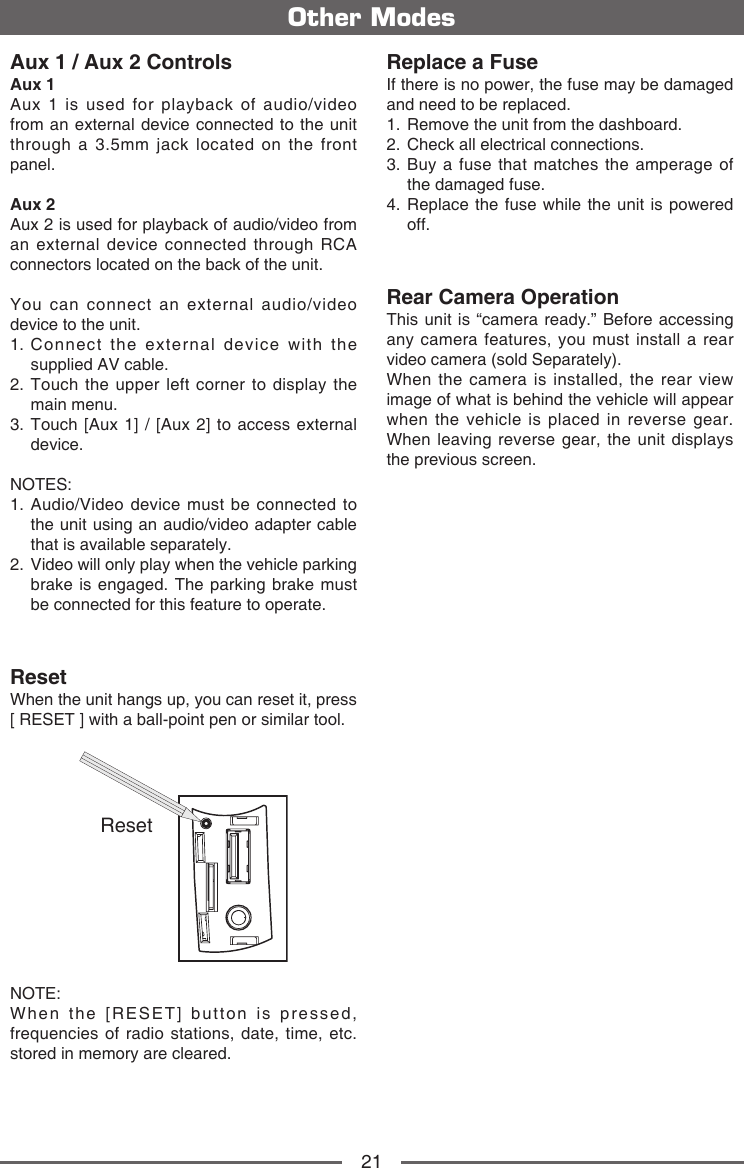

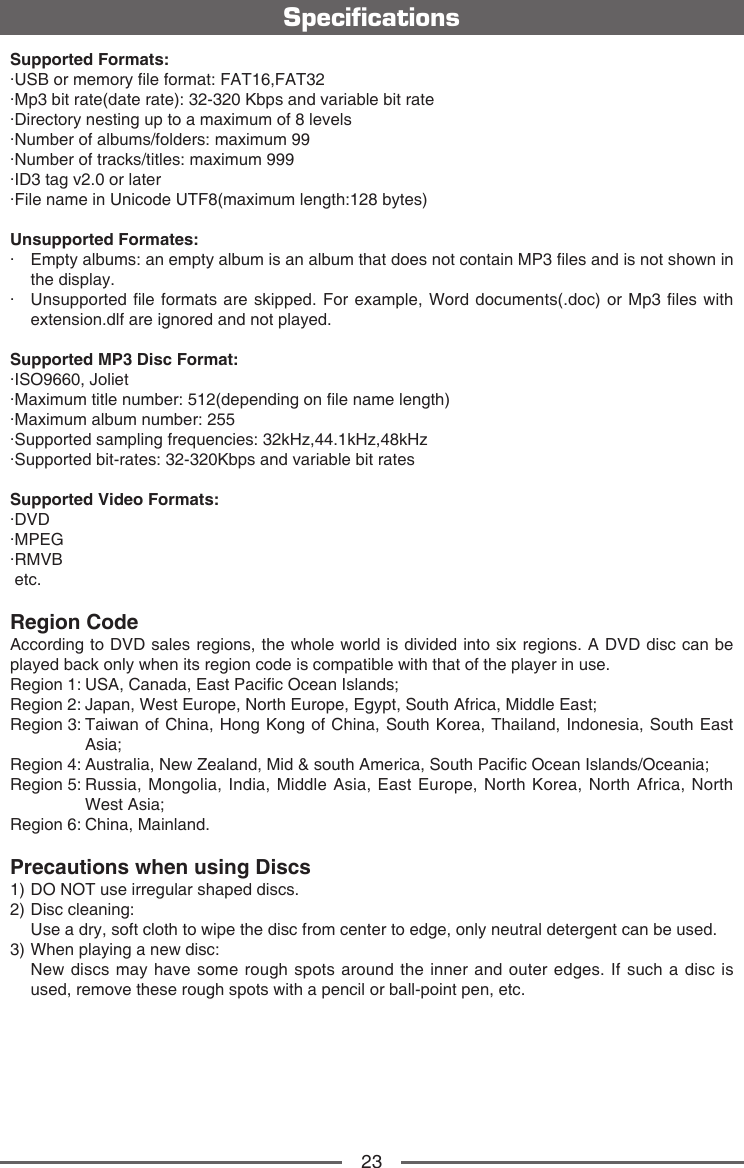

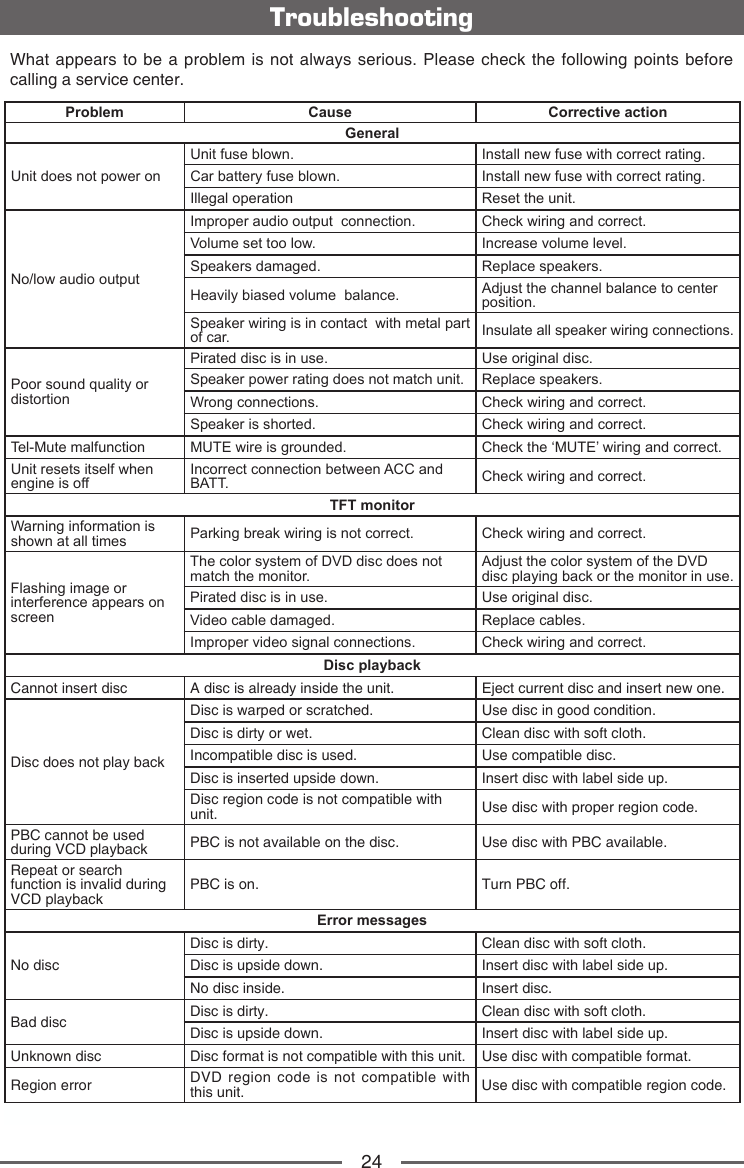

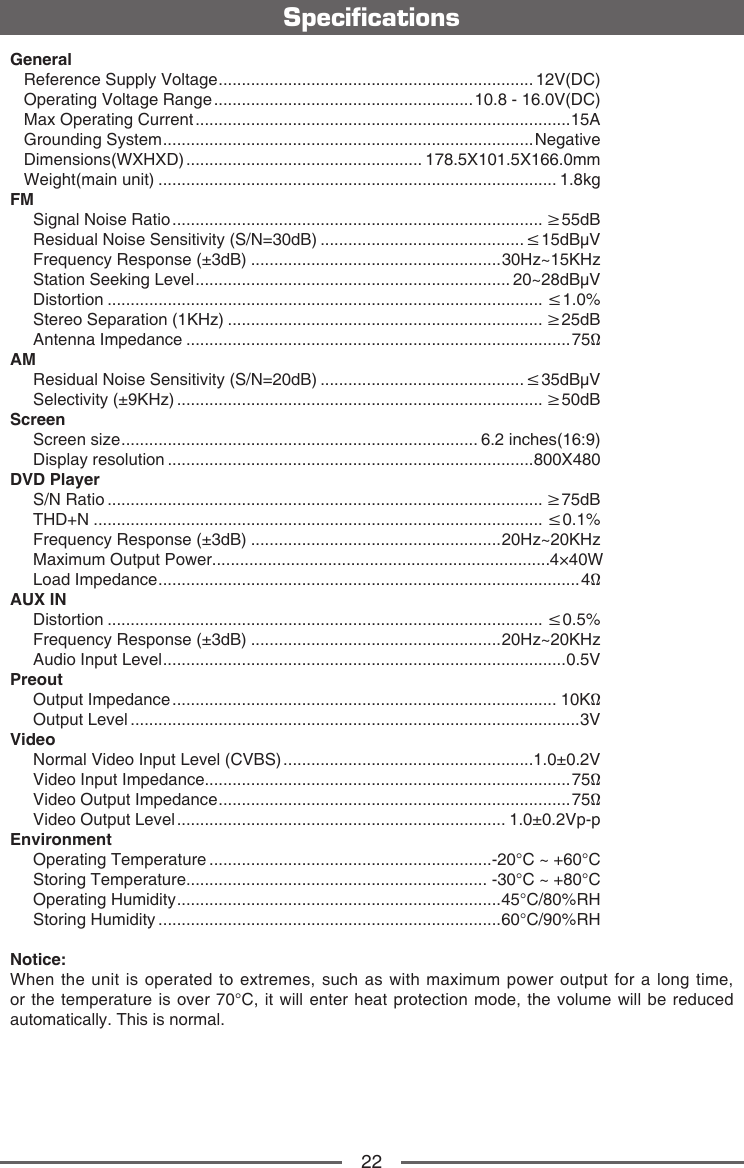

![21Aux 1 / Aux 2 ControlsAux 1Aux 1 is used for playback of audio/video from an external device connected to the unit through a 3.5mm jack located on the front panel.Aux 2Aux 2 is used for playback of audio/video from an external device connected through RCA connectors located on the back of the unit.You can connect an external audio/video device to the unit.1. Connect the external device with the supplied AV cable.2. Touch the upper left corner to display the main menu.3. Touch [Aux 1] / [Aux 2] to access external device.NOTES: 1. Audio/Video device must be connected to the unit using an audio/video adapter cable that is available separately.2. Video will only play when the vehicle parking brake is engaged. The parking brake must be connected for this feature to operate.ResetWhen the unit hangs up, you can reset it, press [ RESET ] with a ball-point pen or similar tool.ResetNOTE: When the [RESET] button is pressed, frequencies of radio stations, date, time, etc. stored in memory are cleared.Other ModesReplace a FuseIf there is no power, the fuse may be damaged and need to be replaced.1. Remove the unit from the dashboard.2. Check all electrical connections.3. Buy a fuse that matches the amperage of the damaged fuse.4. Replace the fuse while the unit is powered off.Rear Camera OperationThis unit is “camera ready.” Before accessing any camera features, you must install a rear video camera (sold Separately).When the camera is installed, the rear view image of what is behind the vehicle will appear when the vehicle is placed in reverse gear. When leaving reverse gear, the unit displays the previous screen.](https://usermanual.wiki/HUIZHOU-FORYOU-GENERAL-ELECTRONICS/K17/User-Guide-2785396-Page-22.png)
