HUIZHOU FORYOU GENERAL ELECTRONICS VX3024 Car Multimedia Player User Manual

HUIZHOU FORYOU GENERAL ELECTRONICS CO.,LTD. Car Multimedia Player

User manual

VX3024Operating Instructions6.2” Double DIN Multimedia ReceiverDVD / Built-in Bluetooth / Compatible with iPhone /Compatible with iPod / Pandora Link / USB / Aux In

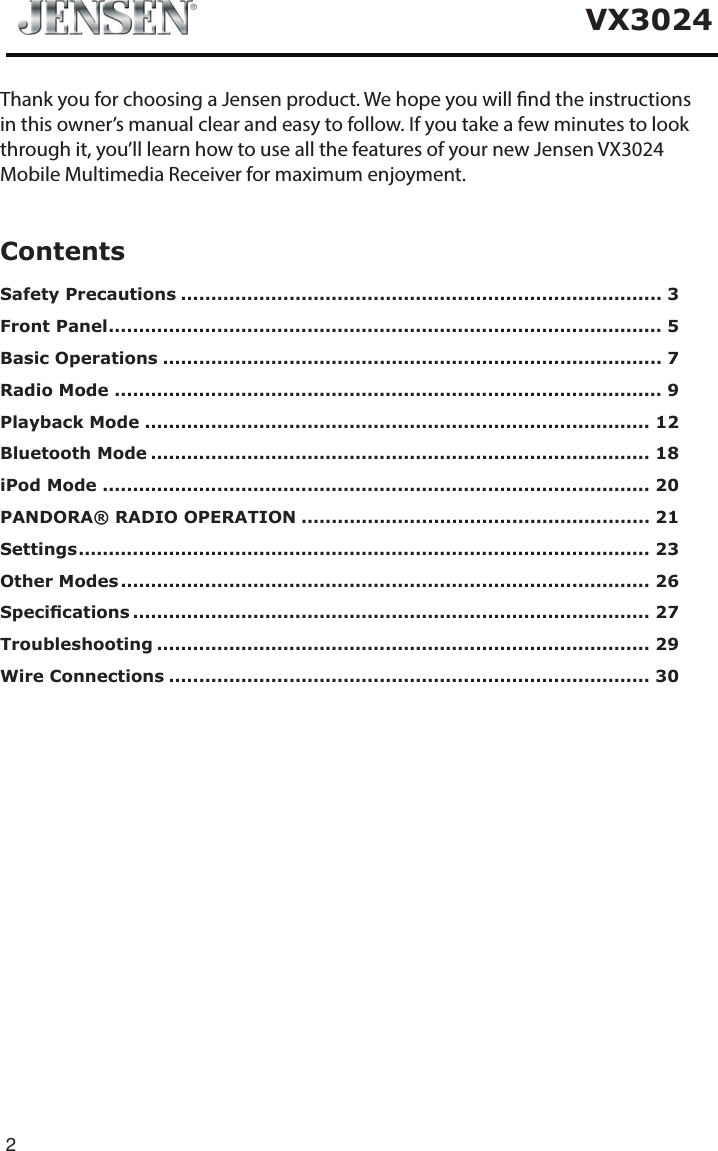

2VX3024ContentsSafety Precautions ................................................................................ 3Front Panel ............................................................................................ 5Basic Operations ................................................................................... 7Radio Mode ........................................................................................... 9Playback Mode .................................................................................... 12Bluetooth Mode ................................................................................... 18iPod Mode ........................................................................................... 20PANDORA® RADIO OPERATION .......................................................... 21Settings ............................................................................................... 23Other Modes ........................................................................................ 26Specications ...................................................................................... 27Troubleshooting .................................................................................. 29Wire Connections ................................................................................ 30Thank you for choosing a Jensen product. We hope you will nd the instructionsin this owner’s manual clear and easy to follow. If you take a few minutes to lookthrough it, you’ll learn how to use all the features of your new Jensen VX3024Mobile Multimedia Receiver for maximum enjoyment.

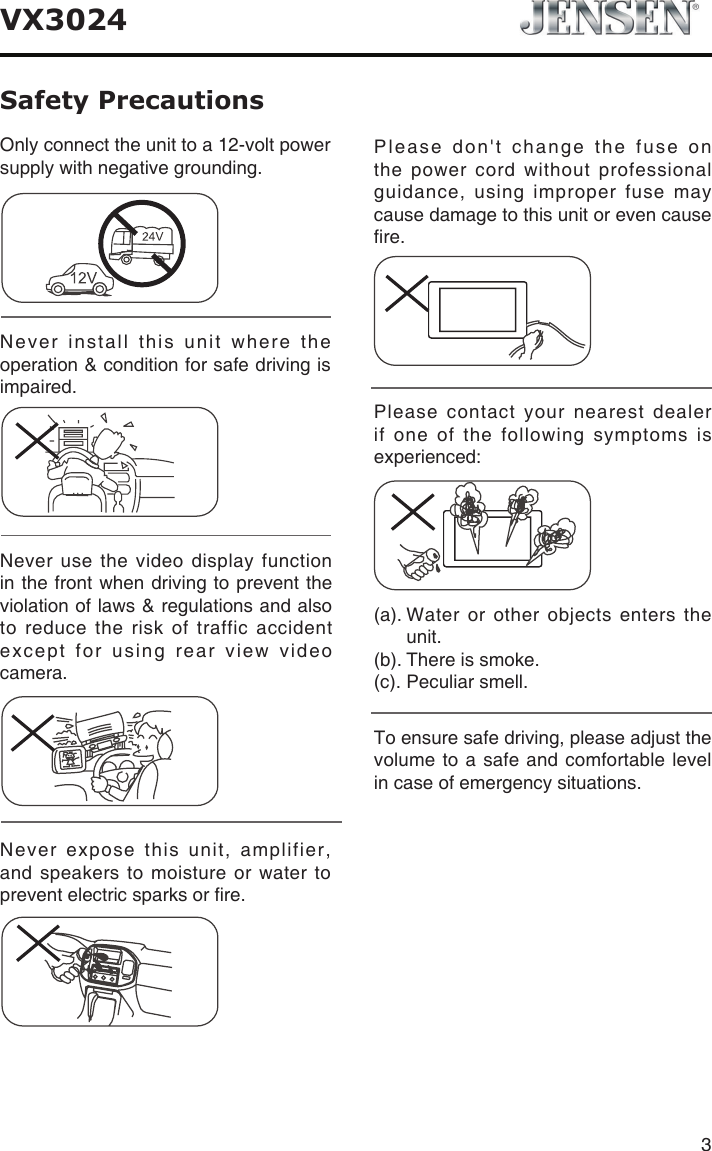

3VX3024Safety PrecautionsNever expose this unit, amplifier, and speakers to moisture or water to prevent electric sparks or re.Please don't change the fuse on the power cord without professional guidance, using improper fuse may cause damage to this unit or even cause re.Please contact your nearest dealer if one of the following symptoms is experienced:(a). Water or other objects enters the unit. (b). There is smoke. (c). Peculiar smell.Only connect the unit to a 12-volt power supply with negative grounding.Never install this unit where the operation & condition for safe driving is impaired.Never use the video display function in the front when driving to prevent the violation of laws & regulations and also to reduce the risk of traffic accident except for using rear view video camera.To ensure safe driving, please adjust the volume to a safe and comfortable level in case of emergency situations.

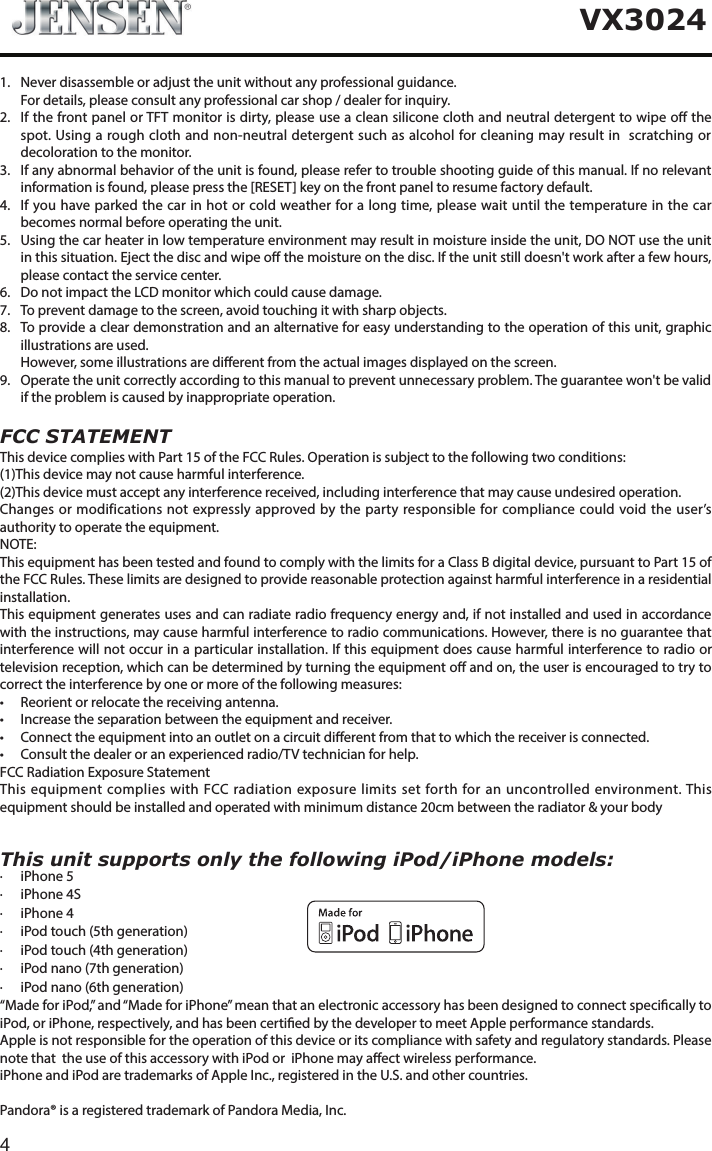

4VX3024This unit supports only the following iPod/iPhone models:· iPhone 5· iPhone 4S· iPhone 4· iPod touch (5th generation)· iPod touch (4th generation)· iPod nano (7th generation)· iPod nano (6th generation)“Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specically to iPod, or iPhone, respectively, and has been certied by the developer to meet Apple performance standards.Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may aect wireless performance. iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.Pandora® is a registered trademark of Pandora Media, Inc.1. Never disassemble or adjust the unit without any professional guidance. For details, please consult any professional car shop / dealer for inquiry.2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to wipe o the spot. Using a rough cloth and non-neutral detergent such as alcohol for cleaning may result in scratching or decoloration to the monitor.3. If any abnormal behavior of the unit is found, please refer to trouble shooting guide of this manual. If no relevant information is found, please press the [RESET] key on the front panel to resume factory default.4. If you have parked the car in hot or cold weather for a long time, please wait until the temperature in the car becomes normal before operating the unit.5. Using the car heater in low temperature environment may result in moisture inside the unit, DO NOT use the unit in this situation. Eject the disc and wipe o the moisture on the disc. If the unit still doesn't work after a few hours, please contact the service center.6. Do not impact the LCD monitor which could cause damage.7. To prevent damage to the screen, avoid touching it with sharp objects.8. To provide a clear demonstration and an alternative for easy understanding to the operation of this unit, graphic illustrations are used. However, some illustrations are dierent from the actual images displayed on the screen.9. Operate the unit correctly according to this manual to prevent unnecessary problem. The guarantee won't be valid if the problem is caused by inappropriate operation. FCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorientorrelocatethereceivingantenna.• Increasetheseparationbetweentheequipmentandreceiver.• Connecttheequipmentintoanoutletonacircuitdierentfromthattowhichthereceiverisconnected.• Consultthedealeroranexperiencedradio/TVtechnicianforhelp. FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

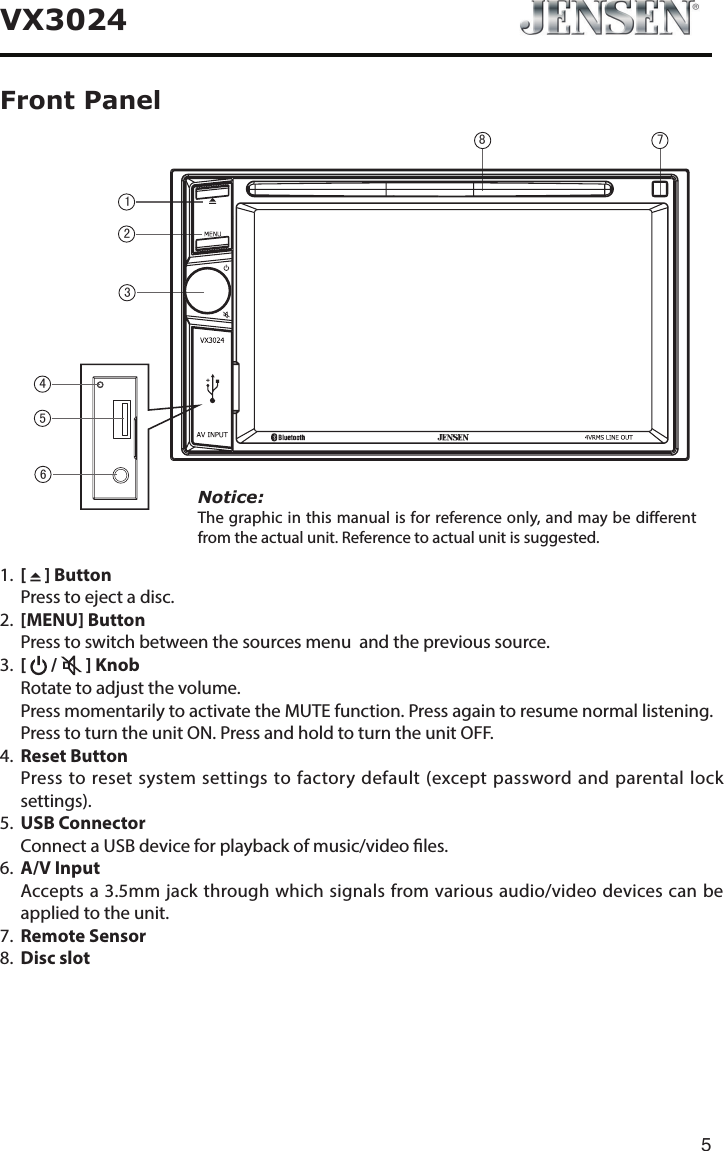

5VX3024Front Panel1. [ ] Button Press to eject a disc.2. [MENU] Button Press to switch between the sources menu and the previous source.3. [ / ] Knob Rotate to adjust the volume. Press momentarily to activate the MUTE function. Press again to resume normal listening. Press to turn the unit ON. Press and hold to turn the unit OFF. 4. Reset Button Press to reset system settings to factory default (except password and parental lock settings).5. USB Connector Connect a USB device for playback of music/video les.6. A/V Input Accepts a 3.5mm jack through which signals from various audio/video devices can be applied to the unit.7. Remote Sensor8. Disc slotNotice:The graphic in this manual is for reference only, and may be different from the actual unit. Reference to actual unit is suggested.12634578

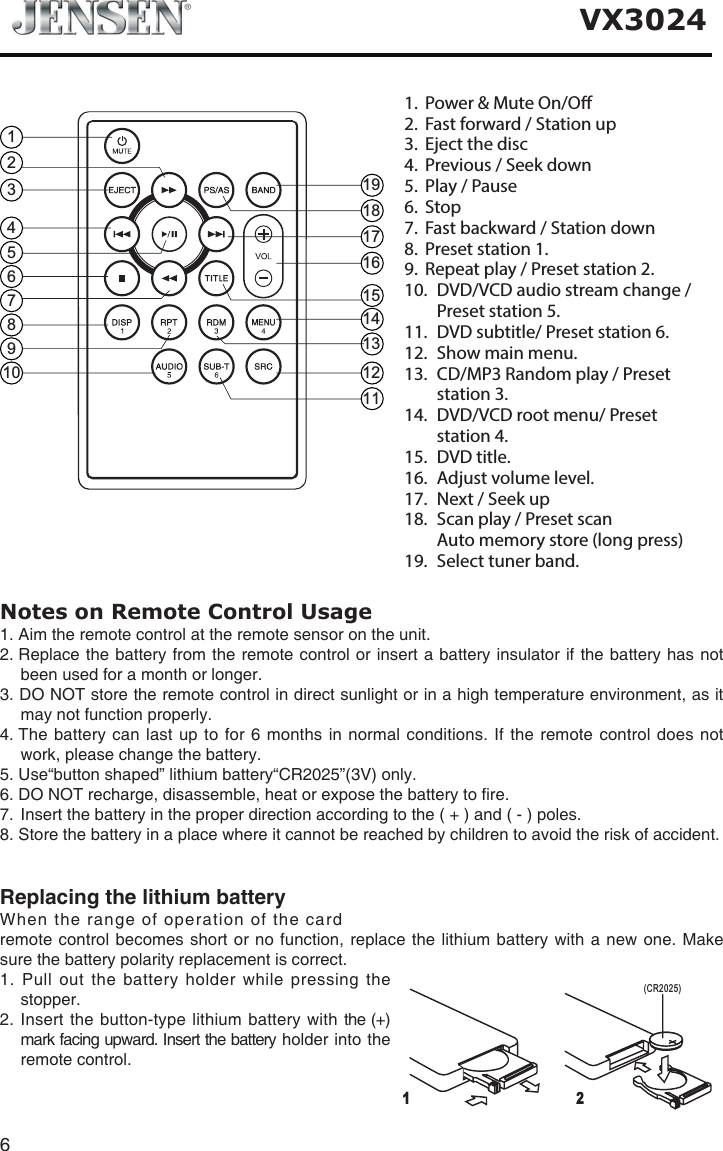

6VX30241. Power & Mute On/O2. Fast forward / Station up3. Eject the disc4. Previous / Seek down5. Play / Pause6. Stop7. Fast backward / Station down8. Preset station 1.9. Repeat play / Preset station 2.10. DVD/VCD audio stream change / Preset station 5.11. DVD subtitle/ Preset station 6.12. Show main menu.13. CD/MP3 Random play / Preset station 3.14. DVD/VCD root menu/ Preset station 4.15. DVD title.16. Adjust volume level.17. Next / Seek up18. Scan play / Preset scan Auto memory store (long press)19. Select tuner band.12345678910111213141516171819Notes on Remote Control Usage1. Aim the remote control at the remote sensor on the unit.2. Replace the battery from the remote control or insert a battery insulator if the battery has not been used for a month or longer.3. DO NOT store the remote control in direct sunlight or in a high temperature environment, as it may not function properly.4. The battery can last up to for 6 months in normal conditions. If the remote control does not work, please change the battery.5. Use“button shaped” lithium battery“CR2025”(3V) only.6. DO NOT recharge, disassemble, heat or expose the battery to re.7. Insert the battery in the proper direction according to the ( + ) and ( - ) poles.8. Store the battery in a place where it cannot be reached by children to avoid the risk of accident.Replacing the lithium battery When the range of operation of the card remote control becomes short or no function, replace the lithium battery with a new one. Make sure the battery polarity replacement is correct. 1. Pull out the battery holder while pressing the stopper. 2. Insert the button-type lithium battery with the (+) mark facing upward. Insert the battery holder into the remote control.12(CR2025)

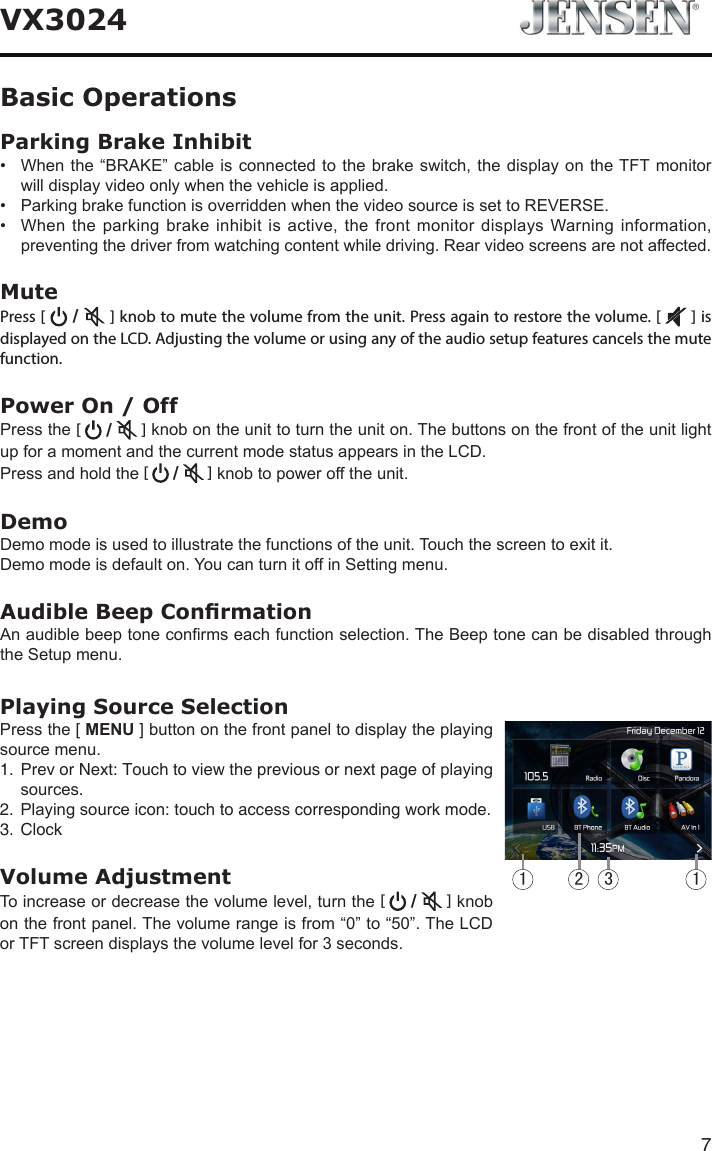

7VX3024Parking Brake Inhibit• Whenthe“BRAKE” cableisconnected tothe brakeswitch,thedisplayon theTFTmonitorwilldisplayvideoonlywhenthevehicleisapplied.• ParkingbrakefunctionisoverriddenwhenthevideosourceissettoREVERSE.• Whentheparkingbrakeinhibitisactive,thefrontmonitordisplaysWarninginformation,preventingthedriverfromwatchingcontentwhiledriving.Rearvideoscreensarenotaffected.MutePress [ / ] knob to mute the volume from the unit. Press again to restore the volume. [ ] is displayed on the LCD. Adjusting the volume or using any of the audio setup features cancels the mute function. Power On / OffPressthe[ / ]knobontheunittoturntheuniton.ThebuttonsonthefrontoftheunitlightupforamomentandthecurrentmodestatusappearsintheLCD.Pressandholdthe[ / ]knobtopowerofftheunit.DemoDemomodeisusedtoillustratethefunctionsoftheunit.Touchthescreentoexitit.Demomodeisdefaulton.YoucanturnitoffinSettingmenu.Audible Beep ConrmationAnaudiblebeeptoneconrmseachfunctionselection.TheBeeptonecanbedisabledthroughtheSetupmenu.Playing Source SelectionPressthe[ MENU]buttononthefrontpaneltodisplaytheplayingsourcemenu.1. Prev or Next: Touch to view the previous or next page of playingsources.2. Playingsource icon: touch to access corresponding work mode.3. ClockVolume AdjustmentToincreaseordecreasethevolumelevel,turnthe[ / ]knobonthefrontpanel.Thevolumerangeisfrom“0”to“50”.TheLCDorTFTscreendisplaysthevolumelevelfor3seconds.1 123Basic Operations

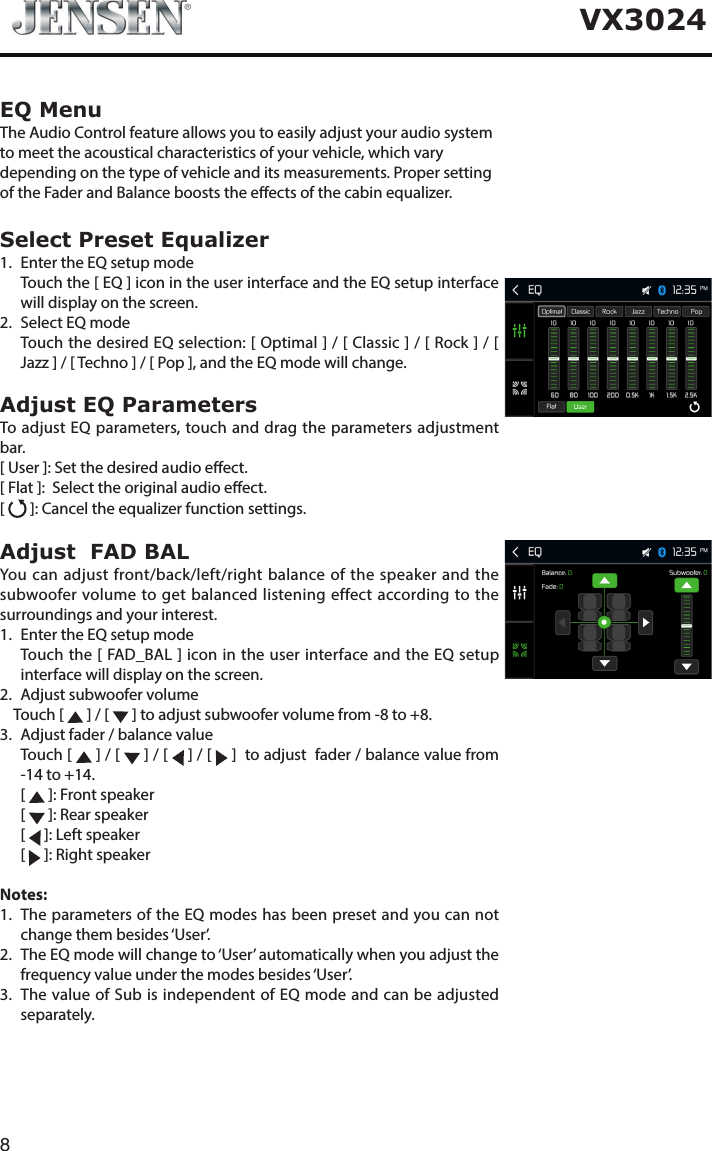

8VX3024EQ MenuThe Audio Control feature allows you to easily adjust your audio system to meet the acoustical characteristics of your vehicle, which vary depending on the type of vehicle and its measurements. Proper setting of the Fader and Balance boosts the eects of the cabin equalizer. Select Preset Equalizer1. Enter the EQ setup mode Touch the [ EQ ] icon in the user interface and the EQ setup interface will display on the screen.2. Select EQ mode Touch the desired EQ selection: [ Optimal ] / [ Classic ] / [ Rock ] / [ Jazz ] / [ Techno ] / [ Pop ], and the EQ mode will change.Adjust EQ ParametersTo adjust EQ parameters, touch and drag the parameters adjustment bar. [ User ]: Set the desired audio eect. [ Flat ]: Select the original audio eect.[ ]: Cancel the equalizer function settings.Adjust FAD BALYou can adjust front/back/left/right balance of the speaker and the subwoofer volume to get balanced listening effect according to the surroundings and your interest. 1. Enter the EQ setup mode Touch the [ FAD_BAL ] icon in the user interface and the EQ setup interface will display on the screen.2. Adjust subwoofer volume Touch [ ] / [ ] to adjust subwoofer volume from -8 to +8.3. Adjust fader / balance value Touch [ ] / [ ] / [ ] / [ ] to adjust fader / balance value from -14 to +14. [ ]: Front speaker [ ]: Rear speaker [ ]: Left speaker [ ]: Right speakerNotes:1. The parameters of the EQ modes has been preset and you can not change them besides ‘User’.2. The EQ mode will change to ‘User’ automatically when you adjust the frequency value under the modes besides ‘User’.3. The value of Sub is independent of EQ mode and can be adjusted separately.

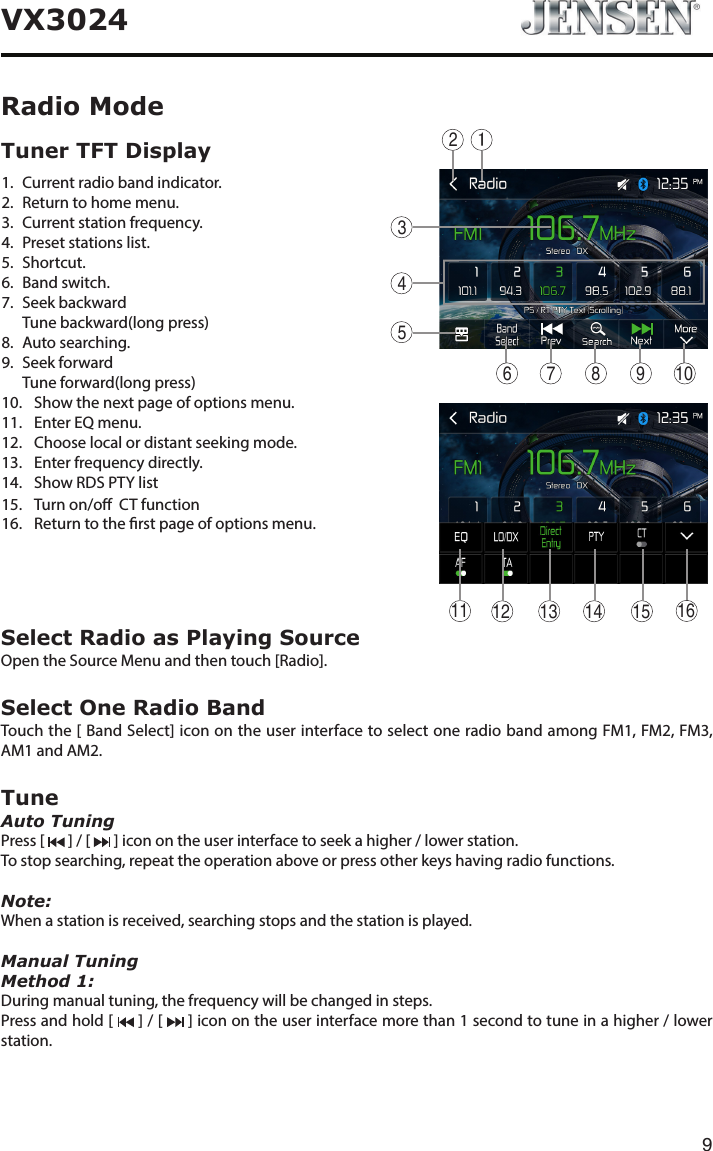

9VX3024Select Radio as Playing SourceOpen the Source Menu and then touch [Radio].Select One Radio BandTouch the [ Band Select] icon on the user interface to select one radio band among FM1, FM2, FM3, AM1 and AM2.TuneAuto TuningPress [ ] / [ ] icon on the user interface to seek a higher / lower station.To stop searching, repeat the operation above or press other keys having radio functions.Note:When a station is received, searching stops and the station is played.Manual TuningMethod 1:During manual tuning, the frequency will be changed in steps.Press and hold [ ] / [ ] icon on the user interface more than 1 second to tune in a higher / lower station.Radio Mode1. Current radio band indicator.2. Return to home menu.3. Current station frequency.4. Preset stations list.5. Shortcut.6. Band switch.7. Seek backward Tune backward(long press)8. Auto searching.9. Seek forward Tune forward(long press)10. Show the next page of options menu.11. Enter EQ menu.12. Choose local or distant seeking mode.13. Enter frequency directly.14. Show RDS PTY list15. Turn on/o CT function16. Return to the rst page of options menu.Tuner TFT Display 143256 7 8 10912 13 14 15 1611

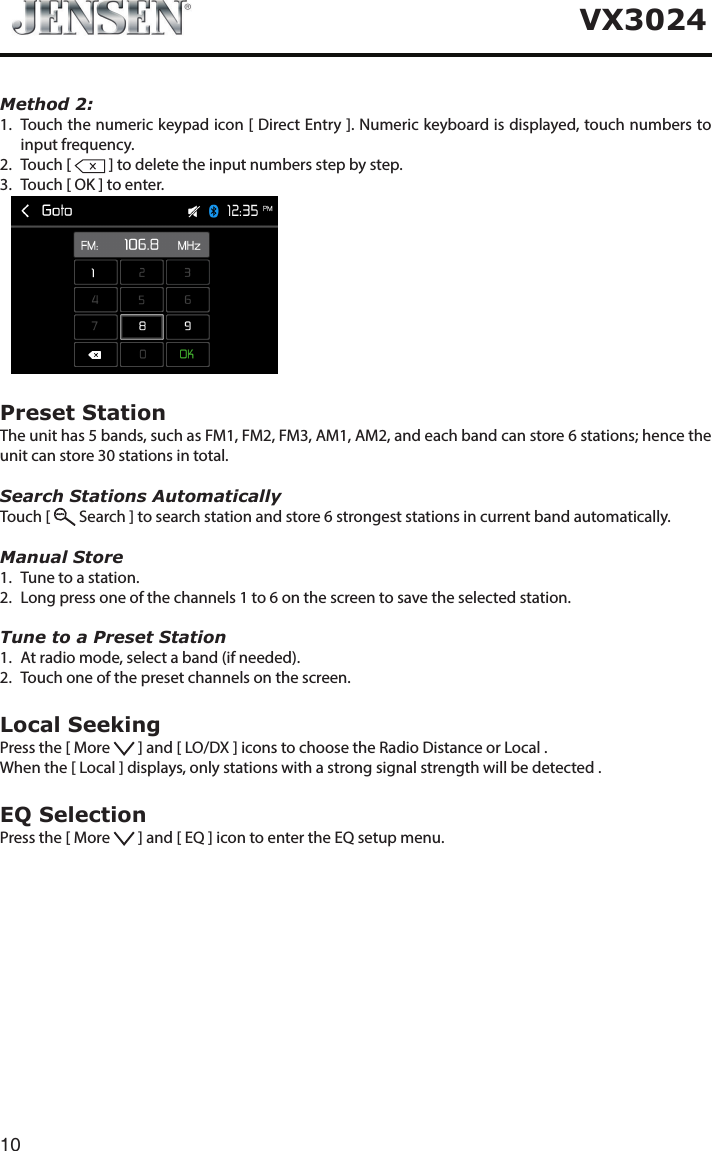

10VX3024Method 2: 1. Touch the numeric keypad icon [ Direct Entry ]. Numeric keyboard is displayed, touch numbers to input frequency.2. Touch [ ] to delete the input numbers step by step.3. Touch [ OK ] to enter. Preset StationThe unit has 5 bands, such as FM1, FM2, FM3, AM1, AM2, and each band can store 6 stations; hence the unit can store 30 stations in total.Search Stations AutomaticallyTouch [ Search ] to search station and store 6 strongest stations in current band automatically.Manual Store1. Tune to a station.2. Long press one of the channels 1 to 6 on the screen to save the selected station.Tune to a Preset Station1. At radio mode, select a band (if needed).2. Touch one of the preset channels on the screen.Local SeekingPress the [ More ] and [ LO/DX ] icons to choose the Radio Distance or Local .When the [ Local ] displays, only stations with a strong signal strength will be detected . EQ SelectionPress the [ More ] and [ EQ ] icon to enter the EQ setup menu.
11VX3024RBDSRBDS (Radio Broadcast Data System) transmits data to the radio which displays information such as station identication, song artist, and song title.RBDS service availability varies with areas. If RBDS service is not available in your area, the following service is not available.CT (Clock Time)Some stations broadcast the time and date within the encoded RBDS signal. The clock time is automatically adjusted when ‘CT’ is set to ‘ON’.NOTE: Stations broadcasting close to time zones may not broadcast the correct time in your particular area. In this case, turn CT O and manually set the time.PTY Function PTY is the abbreviation for Program Type which is a code dening the type of program being broadcast (e.g. News or Rock). Then PTY options will display on the screen. To view more PTY options, touch the scroll bar and arrows on the screen. When one PTY option is touched (e.g. News), auto search for next available PTY by increasing tuning frequency until the PTY of the next station matches the current. If no matched PTY has been found, the unit will return to the original radio frequency.

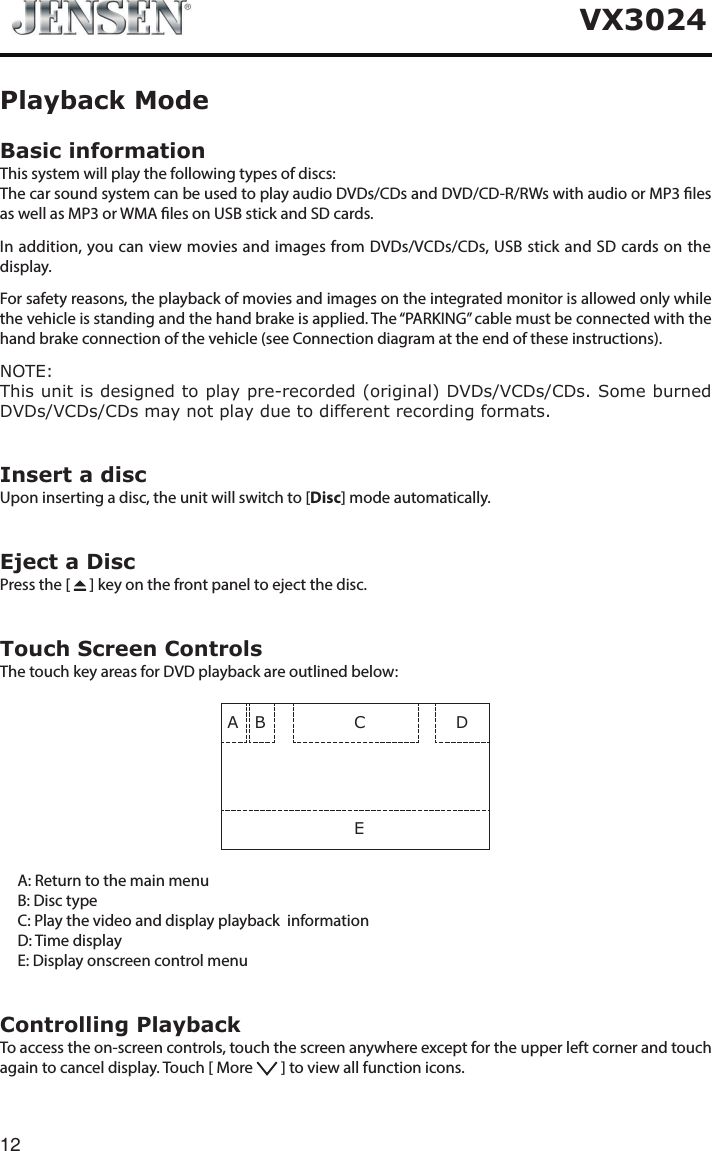

12VX3024Basic informationThis system will play the following types of discs:The car sound system can be used to play audio DVDs/CDs and DVD/CD-R/RWs with audio or MP3 les as well as MP3 or WMA les on USB stick and SD cards.In addition, you can view movies and images from DVDs/VCDs/CDs, USB stick and SD cards on the display.For safety reasons, the playback of movies and images on the integrated monitor is allowed only while the vehicle is standing and the hand brake is applied. The “PARKING” cable must be connected with the hand brake connection of the vehicle (see Connection diagram at the end of these instructions).NOTE:This unit is designed to play pre-recorded (original) DVDs/VCDs/CDs. Some burned DVDs/VCDs/CDs may not play due to different recording formats. Insert a discUpon inserting a disc, the unit will switch to [Disc] mode automatically.Eject a DiscPress the [ ] key on the front panel to eject the disc.Touch Screen ControlsThe touch key areas for DVD playback are outlined below:A B CED A: Return to the main menu B: Disc type C: Play the video and display playback information D: Time display E: Display onscreen control menuControlling PlaybackTo access the on-screen controls, touch the screen anywhere except for the upper left corner and touch again to cancel display. Touch [ More ] to view all function icons.Playback Mode

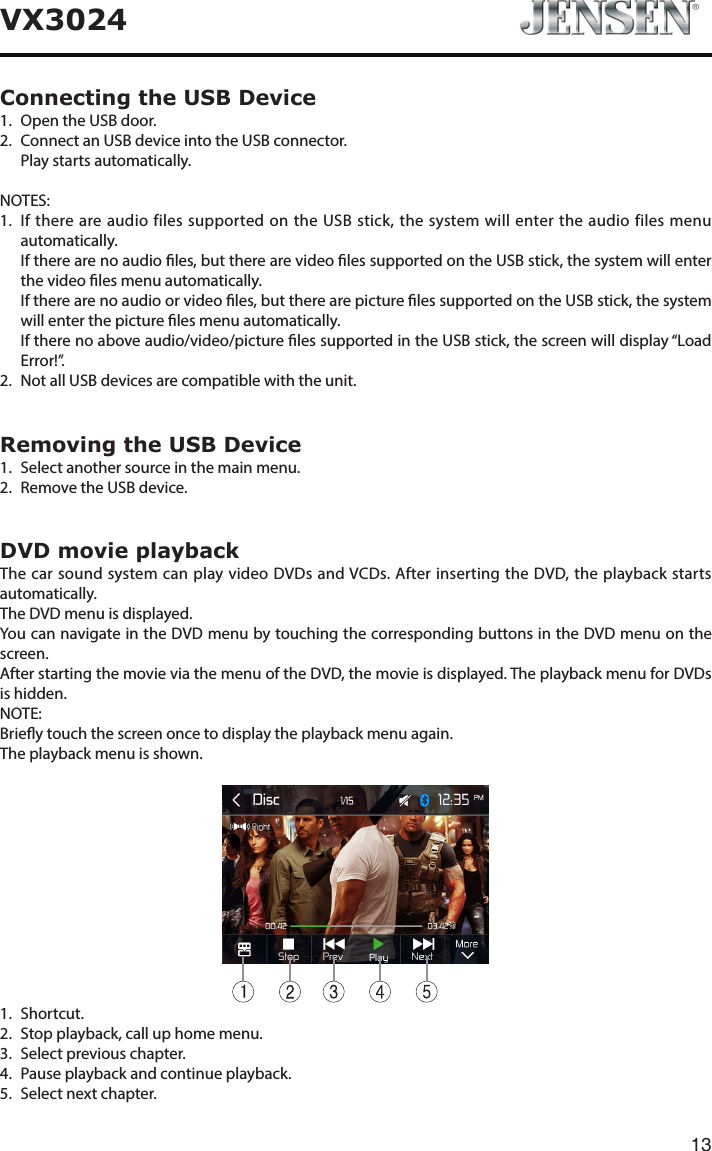

13VX3024Connecting the USB Device1. Open the USB door.2. Connect an USB device into the USB connector. Play starts automatically.NOTES:1. If there are audio files supported on the USB stick, the system will enter the audio files menu automatically. If there are no audio les, but there are video les supported on the USB stick, the system will enter the video les menu automatically. If there are no audio or video les, but there are picture les supported on the USB stick, the system will enter the picture les menu automatically. If there no above audio/video/picture les supported in the USB stick, the screen will display “Load Error!”.2. Not all USB devices are compatible with the unit.Removing the USB Device1. Select another source in the main menu.2. Remove the USB device.DVD movie playbackThe car sound system can play video DVDs and VCDs. After inserting the DVD, the playback starts automatically.The DVD menu is displayed.You can navigate in the DVD menu by touching the corresponding buttons in the DVD menu on the screen.After starting the movie via the menu of the DVD, the movie is displayed. The playback menu for DVDs is hidden.NOTE:Briey touch the screen once to display the playback menu again.The playback menu is shown.11. Shortcut.2. Stop playback, call up home menu.3. Select previous chapter.4. Pause playback and continue playback.5. Select next chapter.

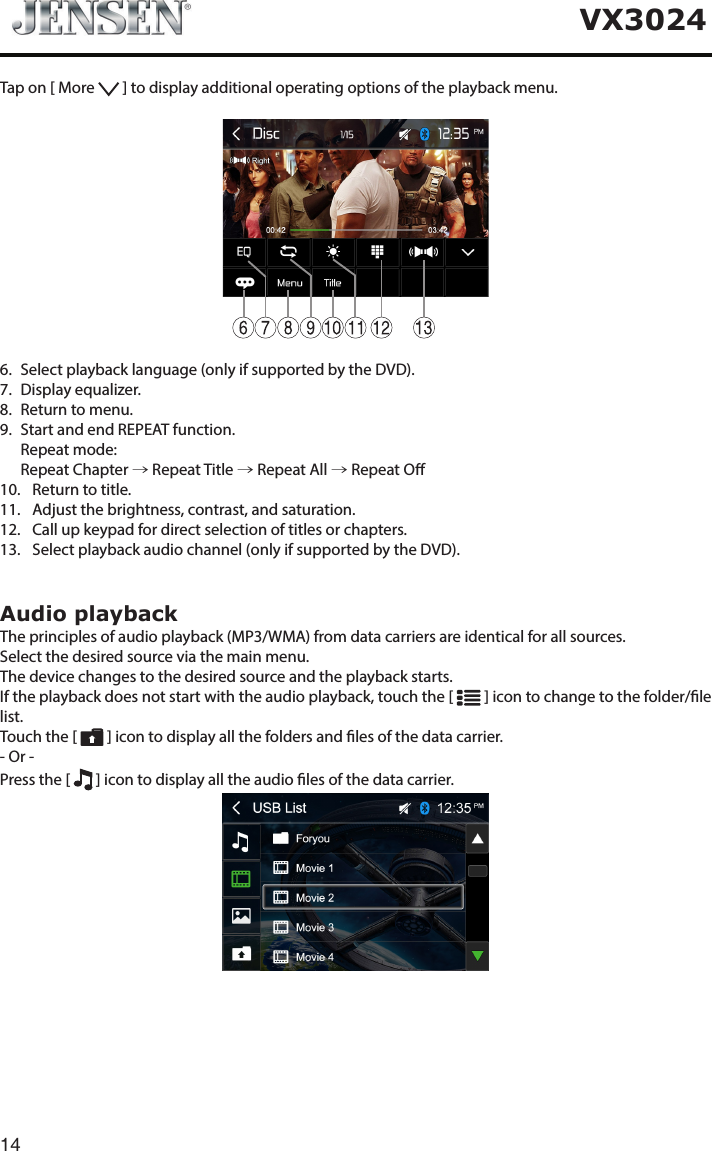

14VX3024Tap on [ More ] to display additional operating options of the playback menu.6. Select playback language (only if supported by the DVD).7. Display equalizer.8. Return to menu.9. Start and end REPEAT function. Repeat mode: Repeat Chapter → Repeat Title → Repeat All → Repeat O10. Return to title.11. Adjust the brightness, contrast, and saturation.12. Call up keypad for direct selection of titles or chapters.13. Select playback audio channel (only if supported by the DVD).Audio playbackThe principles of audio playback (MP3/WMA) from data carriers are identical for all sources.Select the desired source via the main menu.The device changes to the desired source and the playback starts.If the playback does not start with the audio playback, touch the [ ] icon to change to the folder/le list.Touch the [ ] icon to display all the folders and les of the data carrier.- Or -Press the [ ] icon to display all the audio les of the data carrier.

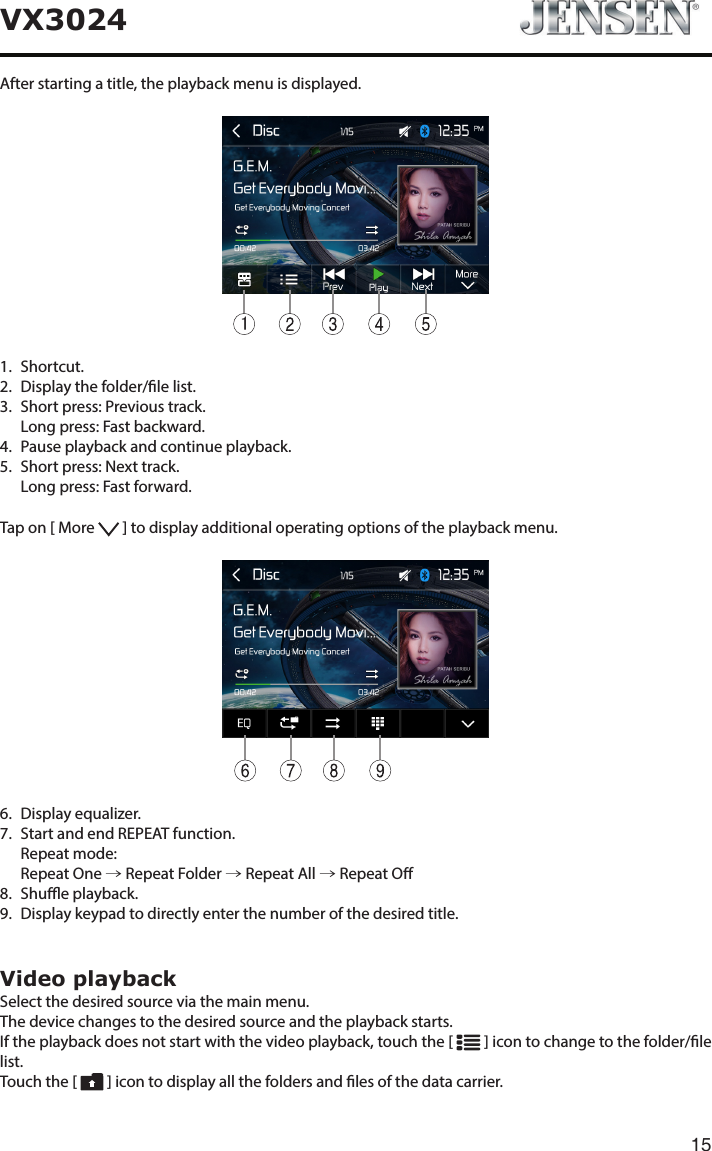

15VX3024After starting a title, the playback menu is displayed.11. Shortcut.2. Display the folder/le list.3. Short press: Previous track. Long press: Fast backward.4. Pause playback and continue playback.5. Short press: Next track. Long press: Fast forward.Tap on [ More ] to display additional operating options of the playback menu.6. Display equalizer.7. Start and end REPEAT function. Repeat mode: Repeat One → Repeat Folder → Repeat All → Repeat O8. Shue playback.9. Display keypad to directly enter the number of the desired title.Video playbackSelect the desired source via the main menu.The device changes to the desired source and the playback starts.If the playback does not start with the video playback, touch the [ ] icon to change to the folder/le list.Touch the [ ] icon to display all the folders and les of the data carrier.

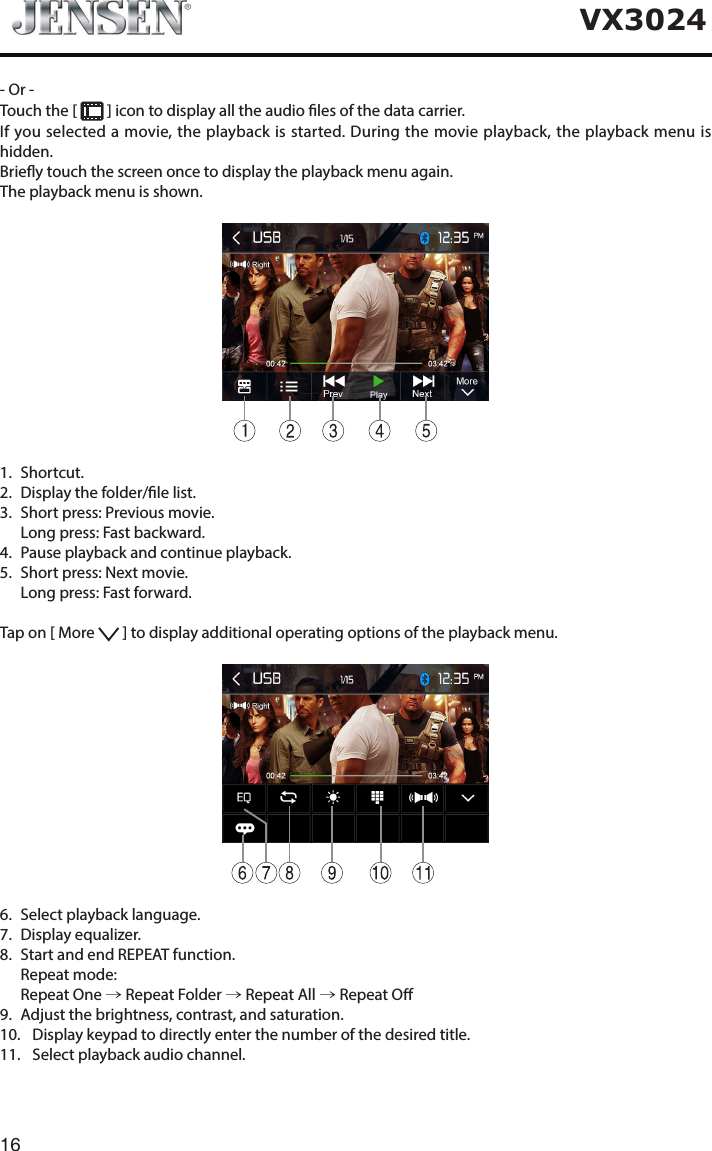

16VX3024- Or -Touch the [ ] icon to display all the audio les of the data carrier.If you selected a movie, the playback is started. During the movie playback, the playback menu is hidden.Briey touch the screen once to display the playback menu again.The playback menu is shown.11. Shortcut.2. Display the folder/le list.3. Short press: Previous movie. Long press: Fast backward.4. Pause playback and continue playback.5. Short press: Next movie. Long press: Fast forward.Tap on [ More ] to display additional operating options of the playback menu.6. Select playback language.7. Display equalizer.8. Start and end REPEAT function. Repeat mode: Repeat One → Repeat Folder → Repeat All → Repeat O9. Adjust the brightness, contrast, and saturation.10. Display keypad to directly enter the number of the desired title.11. Select playback audio channel.

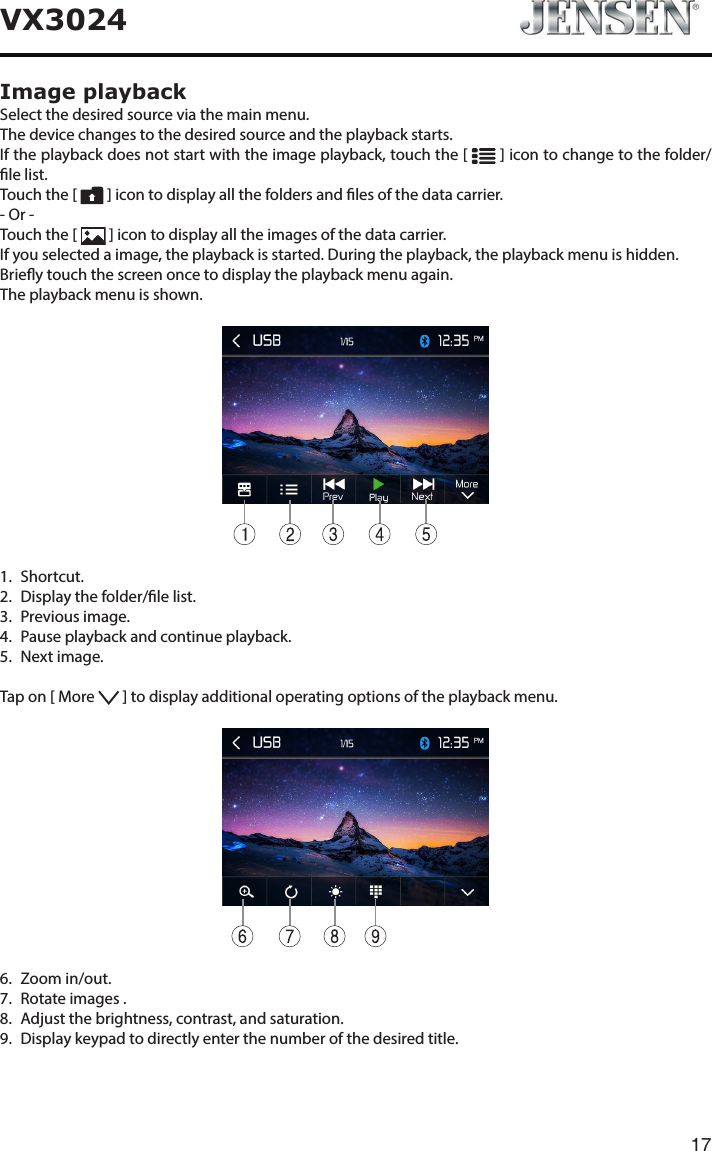

17VX3024Image playbackSelect the desired source via the main menu.The device changes to the desired source and the playback starts.If the playback does not start with the image playback, touch the [ ] icon to change to the folder/le list.Touch the [ ] icon to display all the folders and les of the data carrier.- Or -Touch the [ ] icon to display all the images of the data carrier.If you selected a image, the playback is started. During the playback, the playback menu is hidden.Briey touch the screen once to display the playback menu again.The playback menu is shown.11. Shortcut.2. Display the folder/le list.3. Previous image.4. Pause playback and continue playback.5. Next image.Tap on [ More ] to display additional operating options of the playback menu.6. Zoom in/out.7. Rotate images .8. Adjust the brightness, contrast, and saturation.9. Display keypad to directly enter the number of the desired title.

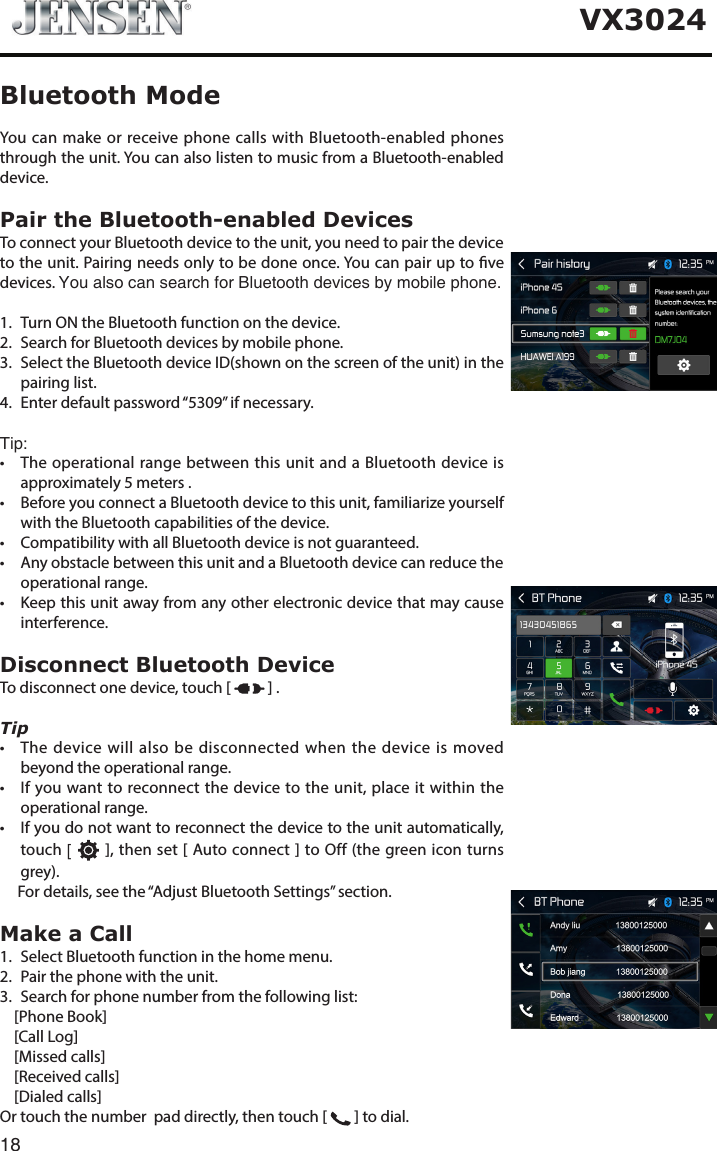

18VX3024You can make or receive phone calls with Bluetooth-enabled phones through the unit. You can also listen to music from a Bluetooth-enabled device.Pair the Bluetooth-enabled DevicesTo connect your Bluetooth device to the unit, you need to pair the device to the unit. Pairing needs only to be done once. You can pair up to ve devices. You also can search for Bluetooth devices by mobile phone.1. Turn ON the Bluetooth function on the device.2. Search for Bluetooth devices by mobile phone. 3. Select the Bluetooth device ID(shown on the screen of the unit) in the pairing list.4. Enter default password “5309” if necessary. Tip:• TheoperationalrangebetweenthisunitandaBluetoothdeviceisapproximately 5 meters .• BeforeyouconnectaBluetoothdevicetothisunit,familiarizeyourselfwith the Bluetooth capabilities of the device.• CompatibilitywithallBluetoothdeviceisnotguaranteed.• AnyobstaclebetweenthisunitandaBluetoothdevicecanreducetheoperational range.• Keepthisunitawayfromanyotherelectronicdevicethatmaycauseinterference.Disconnect Bluetooth DeviceTo disconnect one device, touch [ ] .Tip• Thedevicewillalsobedisconnectedwhenthedeviceismovedbeyond the operational range.• Ifyouwanttoreconnectthedevicetotheunit,placeitwithintheoperational range.• Ifyoudonotwanttoreconnectthedevicetotheunitautomatically,touch [ ], then set [ Auto connect ] to Off (the green icon turns grey). For details, see the “Adjust Bluetooth Settings” section.Make a Call1. Select Bluetooth function in the home menu.2. Pair the phone with the unit.3. Search for phone number from the following list: [Phone Book] [Call Log] [Missed calls] [Received calls] [Dialed calls]Or touch the number pad directly, then touch [ ] to dial.Bluetooth Mode

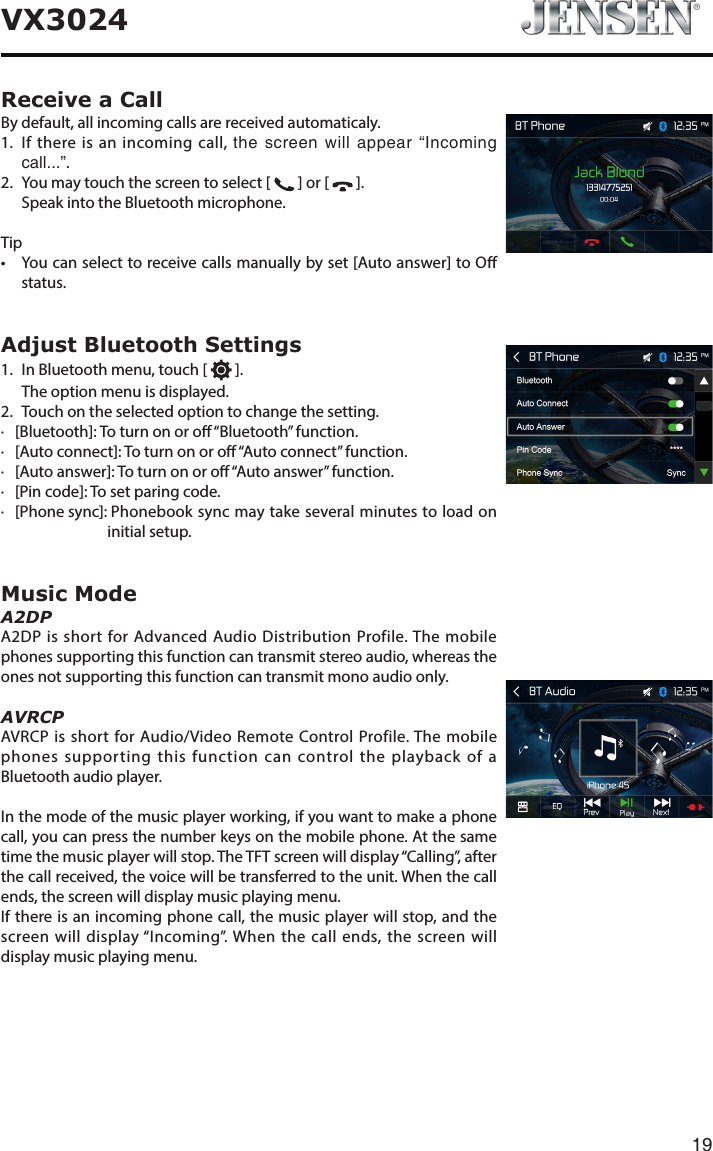

19VX3024Receive a CallBy default, all incoming calls are received automaticaly.1. If there is an incoming call, the screen will appear “Incoming call...”. 2. You may touch the screen to select [ ] or [ ]. Speak into the Bluetooth microphone.Tip• Youcanselecttoreceivecallsmanuallybyset[Autoanswer]toOstatus.Adjust Bluetooth Settings1. In Bluetooth menu, touch [ ]. The option menu is displayed.2. Touch on the selected option to change the setting.∙ [Bluetooth]: To turn on or o “Bluetooth” function.∙ [Auto connect]: To turn on or o “Auto connect” function.∙ [Auto answer]: To turn on or o “Auto answer” function.∙ [Pin code]: To set paring code.∙ [Phone sync]: Phonebook sync may take several minutes to load on initial setup.Music ModeA2DPA2DP is short for Advanced Audio Distribution Profile. The mobile phones supporting this function can transmit stereo audio, whereas the ones not supporting this function can transmit mono audio only.AVRCPAVRCP is short for Audio/Video Remote Control Profile. The mobile phones supporting this function can control the playback of a Bluetooth audio player.In the mode of the music player working, if you want to make a phone call, you can press the number keys on the mobile phone. At the same time the music player will stop. The TFT screen will display “Calling”, after the call received, the voice will be transferred to the unit. When the call ends, the screen will display music playing menu. If there is an incoming phone call, the music player will stop, and the screen will display “Incoming”. When the call ends, the screen will display music playing menu.

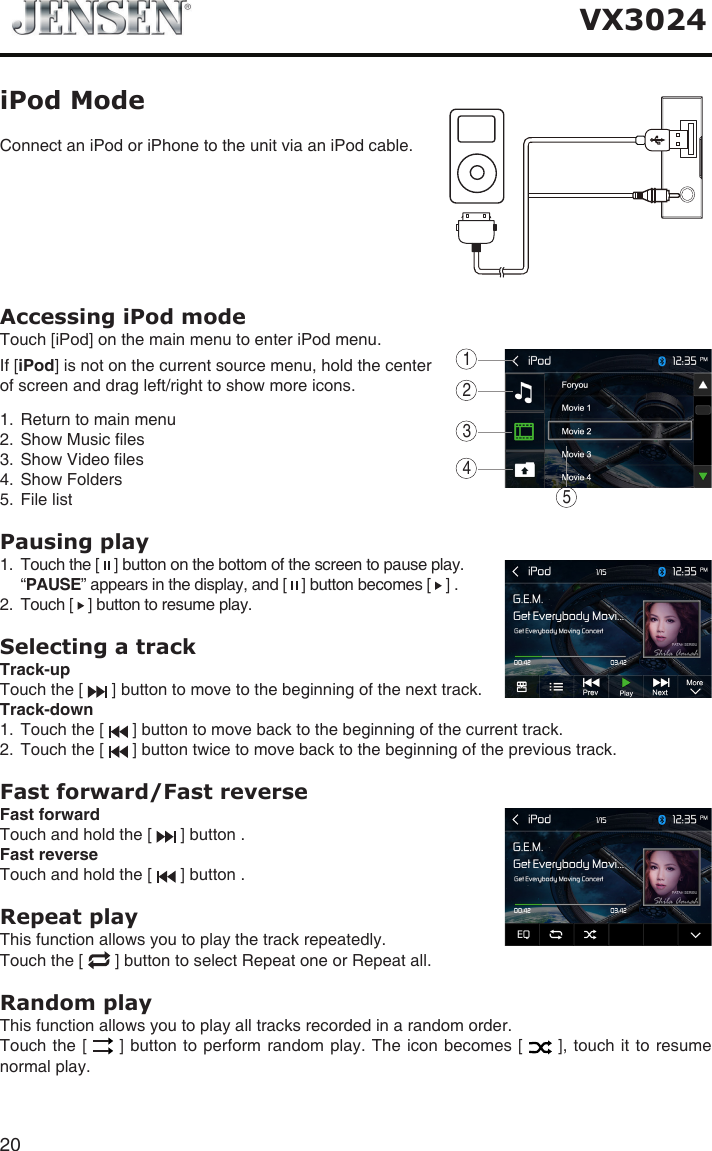

20VX3024Accessing iPod modeTouch [iPod] on the main menu to enter iPod menu.If [iPod] is not on the current source menu, hold the center of screen and drag left/right to show more icons.1. Return to main menu2. Show Music les3. Show Video les4. Show Folders5. File list Pausing play1. Touch the [ ] button on the bottom of the screen to pause play. “ PAUSE” appears in the display, and [ ] button becomes [ ] .2. Touch [ ] button to resume play.Selecting a trackTrack-up Touch the [ ] button to move to the beginning of the next track.Track-down1. Touch the [ ] button to move back to the beginning of the current track.2. Touch the [ ] button twice to move back to the beginning of the previous track.Fast forward/Fast reverseFast forwardTouch and hold the [ ] button .Fast reverse Touch and hold the [ ] button .Repeat playThis function allows you to play the track repeatedly.Touch the [ ] button to select Repeat one or Repeat all.Random playThis function allows you to play all tracks recorded in a random order.Touch the [ ] button to perform random play. The icon becomes [ ], touch it to resume normal play.Connect an iPod or iPhone to the unit via an iPod cable.iPod Mode12345

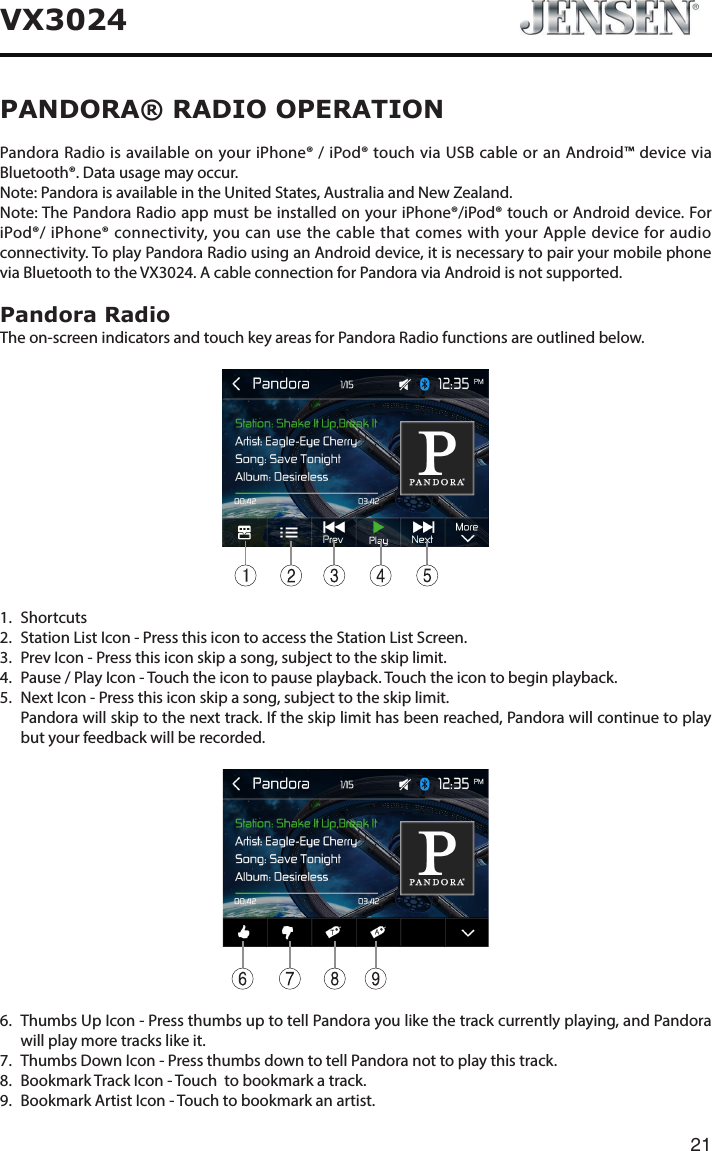

21VX3024PANDORA® RADIO OPERATIONPandora Radio is available on your iPhone® / iPod® touch via USB cable or an Android™ device via Bluetooth®. Data usage may occur.Note: Pandora is available in the United States, Australia and New Zealand.Note: The Pandora Radio app must be installed on your iPhone®/iPod® touch or Android device. For iPod®/ iPhone® connectivity, you can use the cable that comes with your Apple device for audio connectivity. To play Pandora Radio using an Android device, it is necessary to pair your mobile phone via Bluetooth to the VX3024. A cable connection for Pandora via Android is not supported.Pandora RadioThe on-screen indicators and touch key areas for Pandora Radio functions are outlined below.11. Shortcuts 2. Station List Icon - Press this icon to access the Station List Screen.3. Prev Icon - Press this icon skip a song, subject to the skip limit.4. Pause / Play Icon - Touch the icon to pause playback. Touch the icon to begin playback.5. Next Icon - Press this icon skip a song, subject to the skip limit. Pandora will skip to the next track. If the skip limit has been reached, Pandora will continue to play but your feedback will be recorded.6. Thumbs Up Icon - Press thumbs up to tell Pandora you like the track currently playing, and Pandora will play more tracks like it.7. Thumbs Down Icon - Press thumbs down to tell Pandora not to play this track.8. Bookmark Track Icon - Touch to bookmark a track.9. Bookmark Artist Icon - Touch to bookmark an artist.

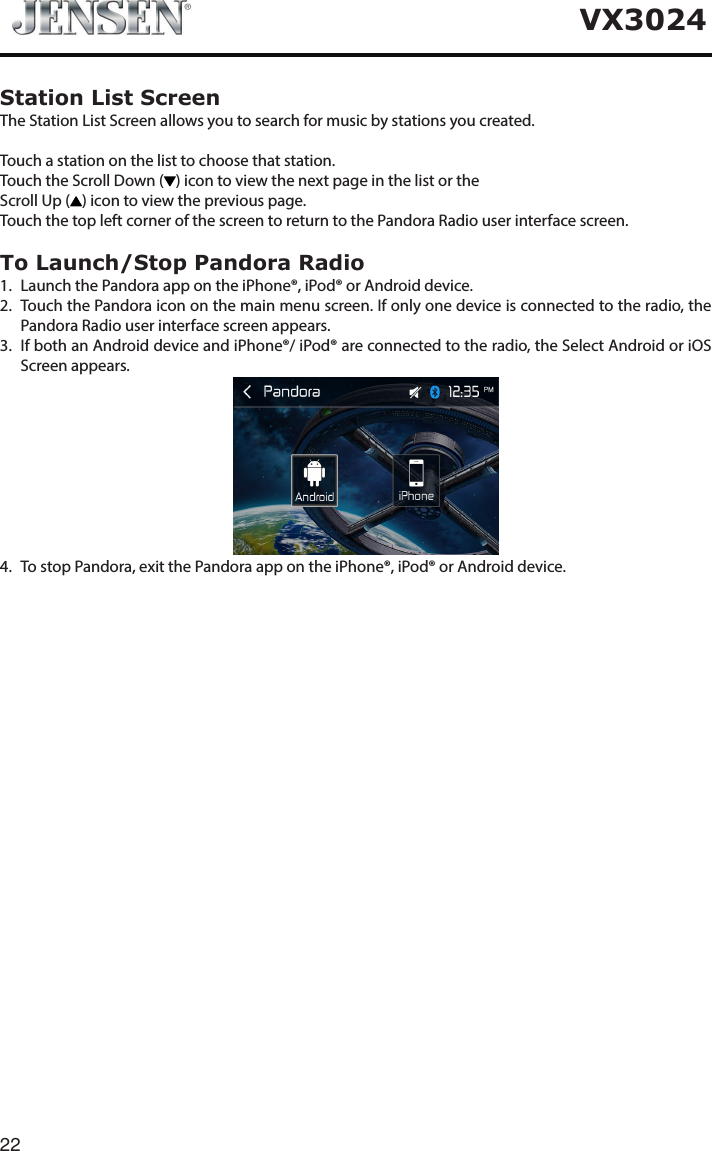

22VX3024Station List ScreenThe Station List Screen allows you to search for music by stations you created.Touch a station on the list to choose that station.Touch the Scroll Down ( ) icon to view the next page in the list or theScroll Up ( ) icon to view the previous page.Touch the top left corner of the screen to return to the Pandora Radio user interface screen.To Launch/Stop Pandora Radio1. Launch the Pandora app on the iPhone®, iPod® or Android device.2. Touch the Pandora icon on the main menu screen. If only one device is connected to the radio, the Pandora Radio user interface screen appears.3. If both an Android device and iPhone®/ iPod® are connected to the radio, the Select Android or iOS Screen appears. 4. To stop Pandora, exit the Pandora app on the iPhone®, iPod® or Android device.

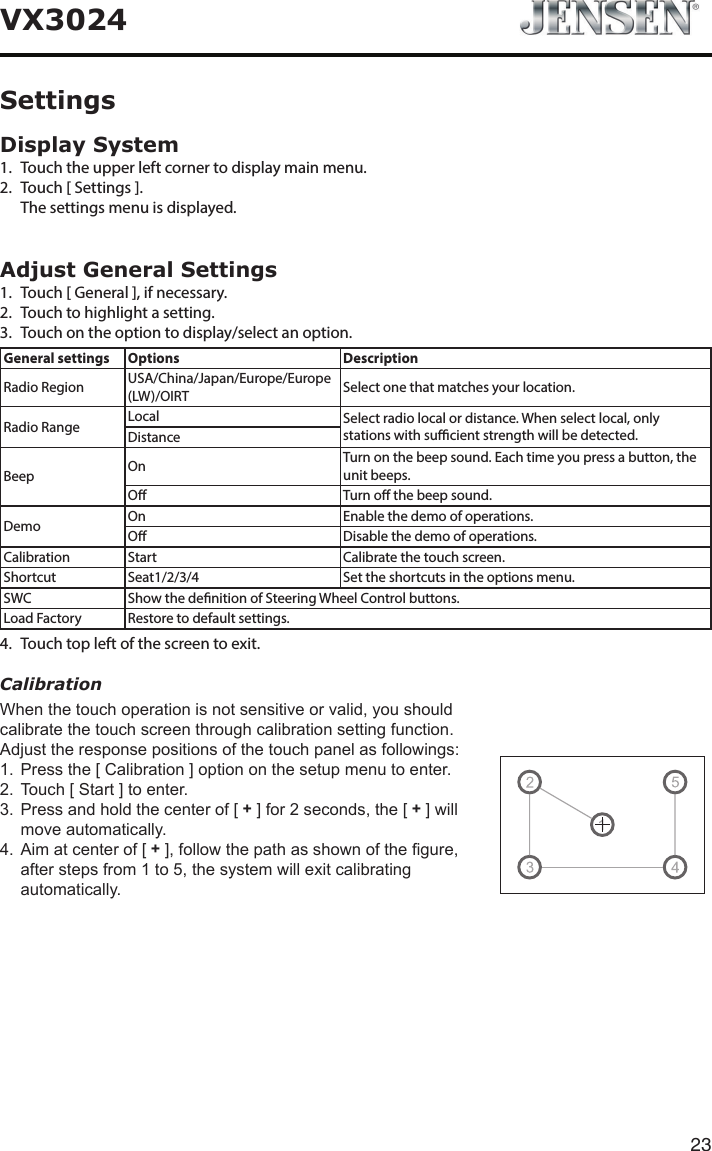

23VX3024Display System1. Touch the upper left corner to display main menu. 2. Touch [ Settings ]. The settings menu is displayed.Adjust General Settings1. Touch [ General ], if necessary.2. Touch to highlight a setting.3. Touch on the option to display/select an option.General settings Options DescriptionRadio Region USA/China/Japan/Europe/Europe (LW)/OIRT Select one that matches your location.Radio Range Local Select radio local or distance. When select local, only stations with sucient strength will be detected.DistanceBeep On Turn on the beep sound. Each time you press a button, the unit beeps.O Turn o the beep sound.Demo On Enable the demo of operations.O Disable the demo of operations.Calibration Start Calibrate the touch screen.Shortcut Seat1/2/3/4 Set the shortcuts in the options menu.SWC Show the denition of Steering Wheel Control buttons.Load Factory Restore to default settings.4. Touch top left of the screen to exit. CalibrationWhenthetouchoperationisnotsensitiveorvalid,youshouldcalibratethetouchscreenthroughcalibrationsettingfunction.Adjusttheresponsepositionsofthetouchpanelasfollowings:1. Pressthe[Calibration]optiononthesetupmenutoenter.2. Touch[Start]toenter.3. Pressandholdthecenterof[+]for2seconds,the[+]willmoveautomatically.4. Aimatcenterof[+],followthepathasshownofthegure,afterstepsfrom1to5,thesystemwillexitcalibratingautomatically.Settings

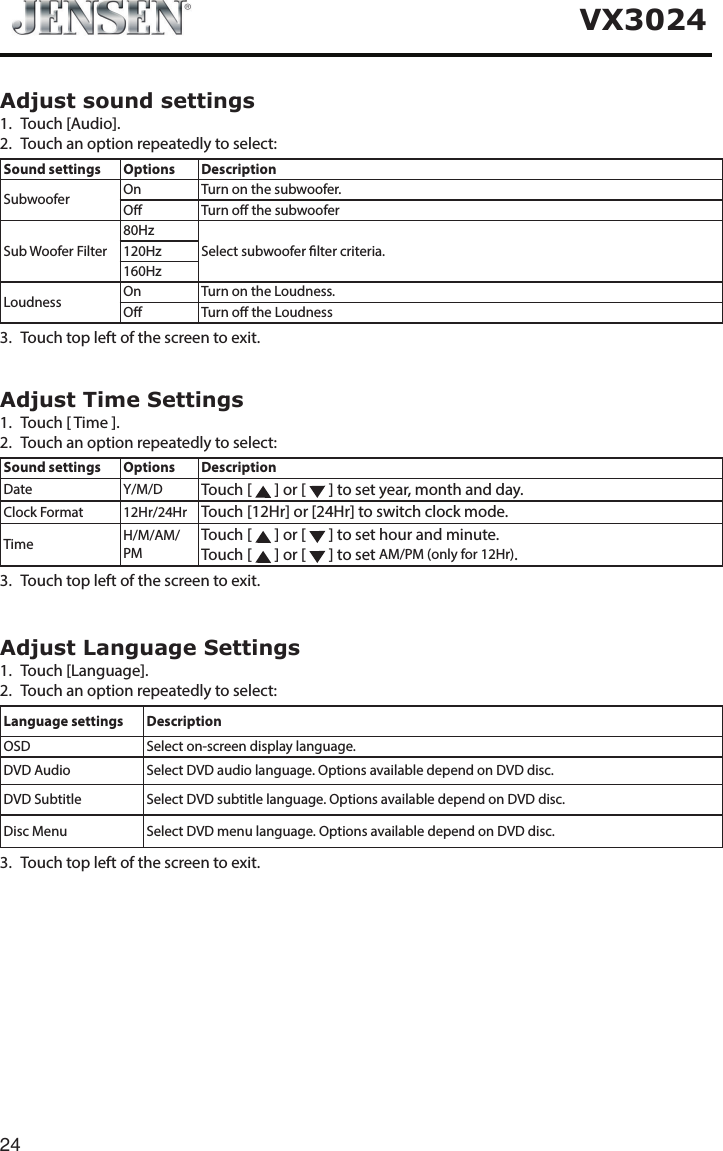

24VX3024Adjust sound settings1. Touch [Audio].2. Touch an option repeatedly to select:Sound settings Options DescriptionSubwoofer On Turn on the subwoofer.O Turn o the subwooferSub Woofer Filter80HzSelect subwoofer lter criteria.120Hz160HzLoudness On Turn on the Loudness.O Turn o the Loudness3. Touch top left of the screen to exit. Adjust Time Settings1. Touch [ Time ].2. Touch an option repeatedly to select:Sound settings Options DescriptionDate Y/M/D Touch [ ] or [ ] to set year, month and day.Clock Format 12Hr/24Hr Touch [12Hr] or [24Hr] to switch clock mode.Time H/M/AM/PMTouch [ ] or [ ] to set hour and minute.Touch [ ] or [ ] to set AM/PM (only for 12Hr).3. Touch top left of the screen to exit. Adjust Language Settings1. Touch [Language].2. Touch an option repeatedly to select:Language settings DescriptionOSD Select on-screen display language.DVD Audio Select DVD audio language. Options available depend on DVD disc.DVD Subtitle Select DVD subtitle language. Options available depend on DVD disc.Disc Menu Select DVD menu language. Options available depend on DVD disc.3. Touch top left of the screen to exit.

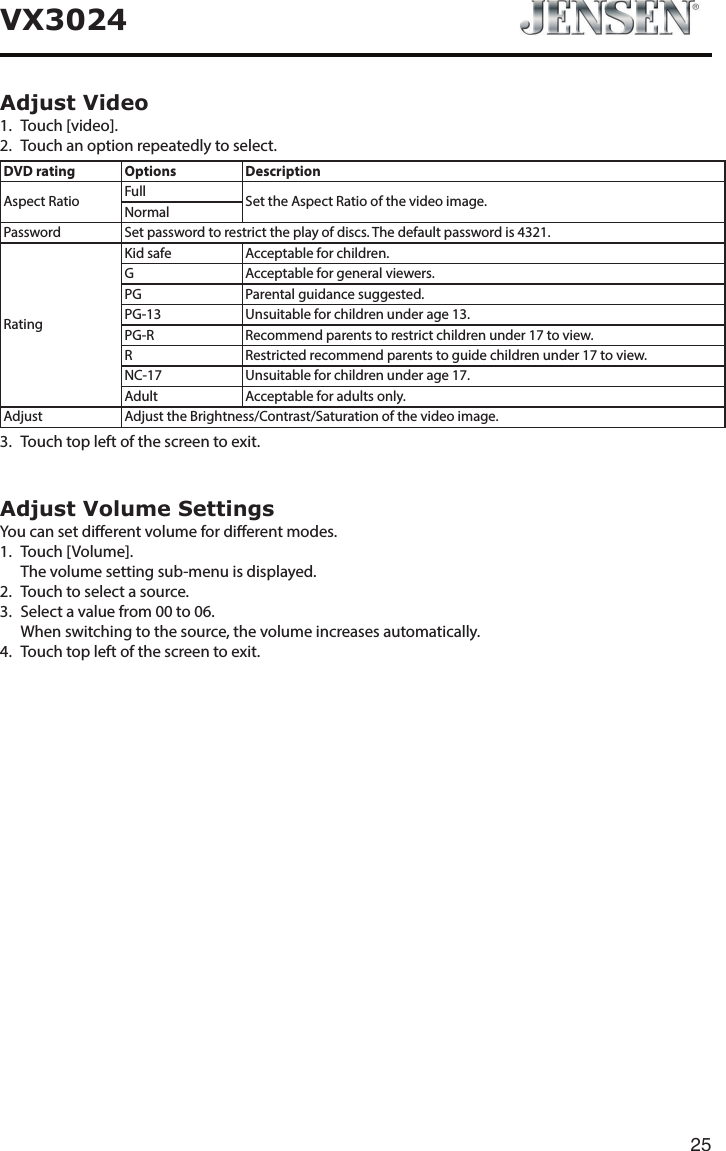

25VX3024Adjust Video1. Touch [video].2. Touch an option repeatedly to select.DVD rating Options DescriptionAspect Ratio Full Set the Aspect Ratio of the video image.NormalPassword Set password to restrict the play of discs. The default password is 4321.RatingKid safe Acceptable for children.G Acceptable for general viewers.PG Parental guidance suggested.PG-13 Unsuitable for children under age 13.PG-R Recommend parents to restrict children under 17 to view.R Restricted recommend parents to guide children under 17 to view.NC-17 Unsuitable for children under age 17.Adult Acceptable for adults only.Adjust Adjust the Brightness/Contrast/Saturation of the video image. 3. Touch top left of the screen to exit. Adjust Volume SettingsYou can set dierent volume for dierent modes. 1. Touch [Volume]. The volume setting sub-menu is displayed.2. Touch to select a source.3. Select a value from 00 to 06. When switching to the source, the volume increases automatically.4. Touch top left of the screen to exit.

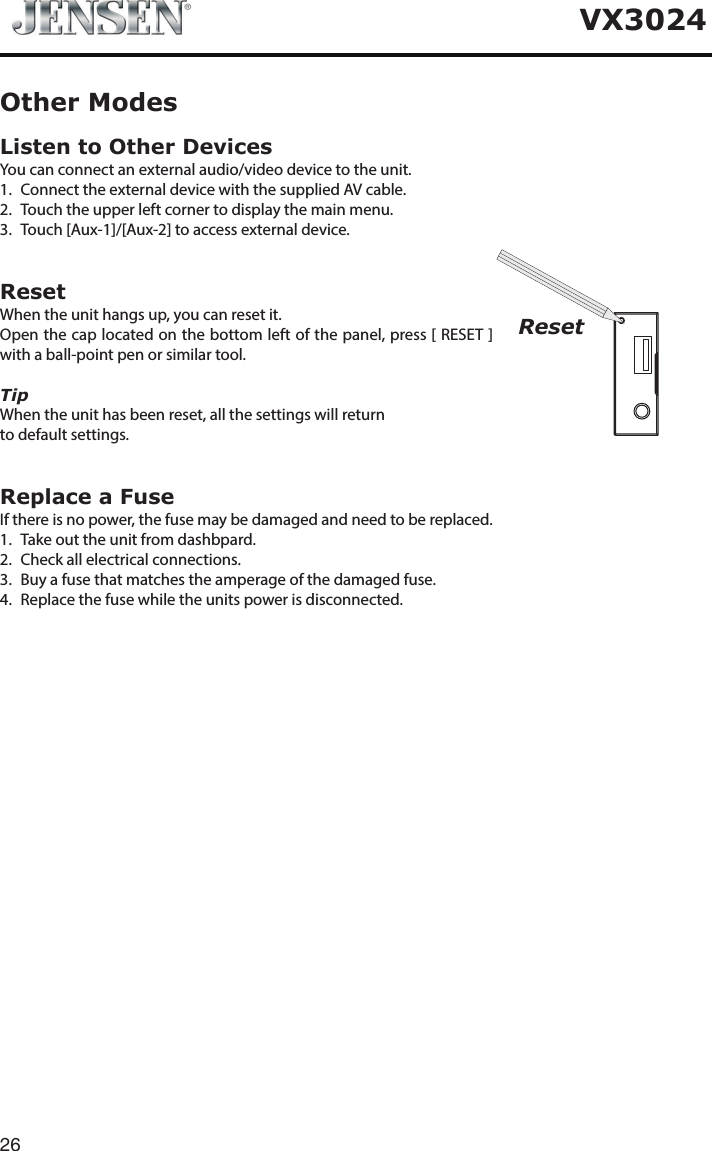

26VX3024Listen to Other DevicesYou can connect an external audio/video device to the unit.1. Connect the external device with the supplied AV cable.2. Touch the upper left corner to display the main menu.3. Touch [Aux-1]/[Aux-2] to access external device.ResetWhen the unit hangs up, you can reset it.Open the cap located on the bottom left of the panel, press [ RESET ] with a ball-point pen or similar tool.TipWhen the unit has been reset, all the settings will return to default settings.Replace a FuseIf there is no power, the fuse may be damaged and need to be replaced.1. Take out the unit from dashbpard.2. Check all electrical connections.3. Buy a fuse that matches the amperage of the damaged fuse.4. Replace the fuse while the units power is disconnected.Other ModesReset

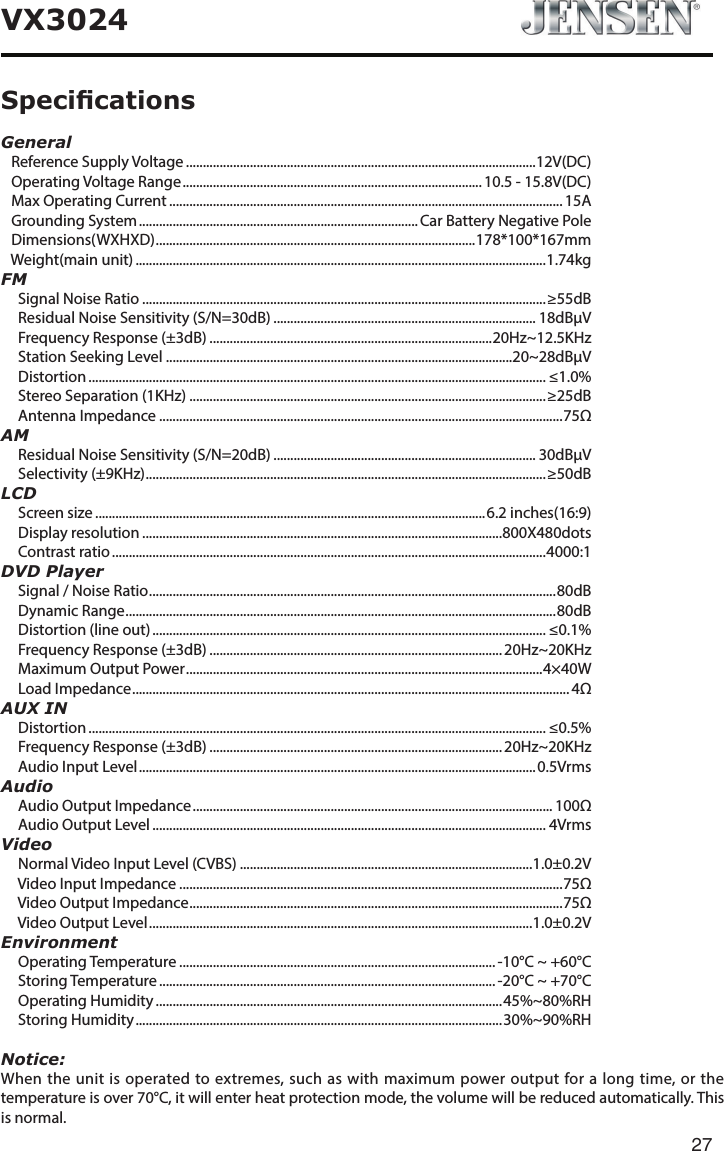

27VX3024General Reference Supply Voltage ........................................................................................................12V(DC) Operating Voltage Range ......................................................................................... 10.5 - 15.8V(DC) Max Operating Current .....................................................................................................................15A Grounding System ................................................................................... Car Battery Negative Pole Dimensions(WXHXD) ............................................................................................... 178*100*167mm Weight(main unit) ..........................................................................................................................1.74kgFM Signal Noise Ratio ........................................................................................................................≥55dB Residual Noise Sensitivity (S/N=30dB) .............................................................................. 18dBμV Frequency Response (±3dB) ....................................................................................20Hz~12.5KHz Station Seeking Level .......................................................................................................20~28dBμV Distortion ........................................................................................................................................ ≤1.0% Stereo Separation (1KHz) ..........................................................................................................≥25dB Antenna Impedance ........................................................................................................................75ΩAM Residual Noise Sensitivity (S/N=20dB) .............................................................................. 30dBμV Selectivity (±9KHz) .......................................................................................................................≥50dBLCD Screen size ....................................................................................................................6.2 inches(16:9) Display resolution ...........................................................................................................800X480dots Contrast ratio .................................................................................................................................4000:1DVD Player Signal / Noise Ratio ......................................................................................................................... 80dB Dynamic Range ................................................................................................................................80dB Distortion (line out) ..................................................................................................................... ≤0.1% Frequency Response (±3dB) ....................................................................................... 20Hz~20KHz Maximum Output Power .......................................................................................................... 4×40W Load Impedance .................................................................................................................................. 4ΩAUX IN Distortion ........................................................................................................................................ ≤0.5% Frequency Response (±3dB) ....................................................................................... 20Hz~20KHz Audio Input Level ...................................................................................................................... 0.5VrmsAudio Audio Output Impedance ........................................................................................................... 100Ω Audio Output Level ..................................................................................................................... 4VrmsVideo Normal Video Input Level (CVBS) .......................................................................................1.0±0.2V Video Input Impedance ..................................................................................................................75Ω Video Output Impedance ............................................................................................................... 75Ω Video Output Level ..................................................................................................................1.0±0.2VEnvironment Operating Temperature .............................................................................................. -10°C ~ +60°C Storing Temperature .................................................................................................... -20°C ~ +70°C Operating Humidity .......................................................................................................45%~80%RH Storing Humidity ............................................................................................................. 30%~90%RHNotice:When the unit is operated to extremes, such as with maximum power output for a long time, or the temperature is over 70°C, it will enter heat protection mode, the volume will be reduced automatically. This is normal. Specications

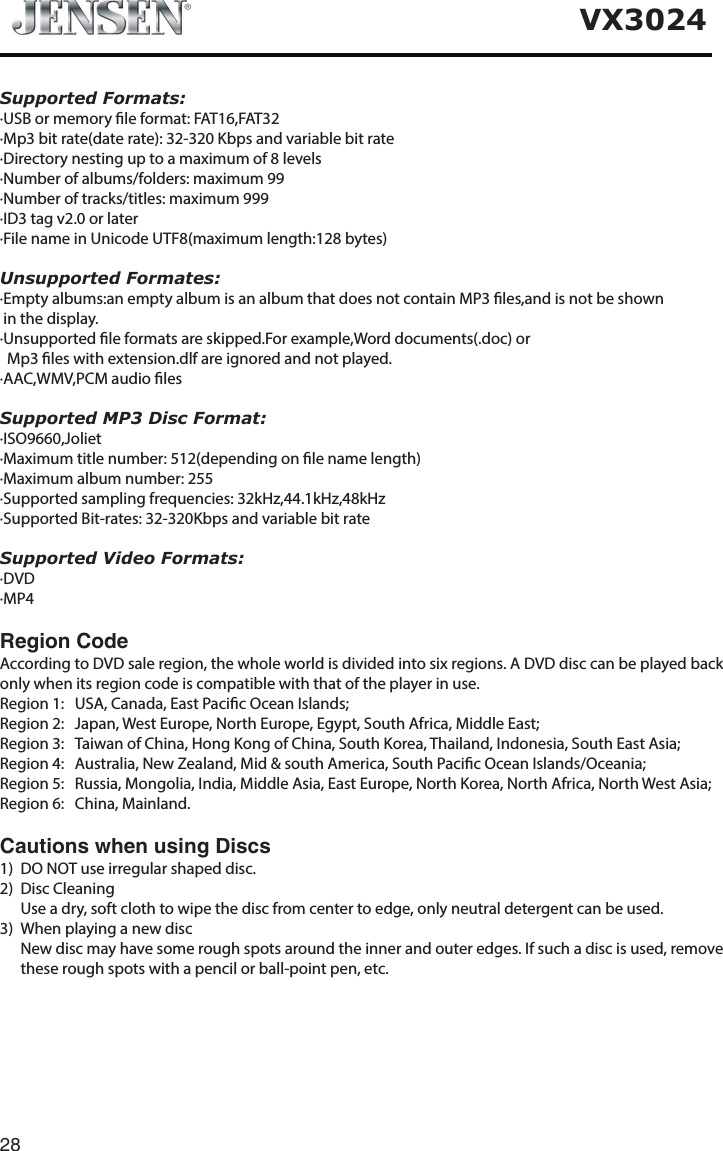

28VX3024Supported Formats:·USB or memory le format: FAT16,FAT32·Mp3 bit rate(date rate): 32-320 Kbps and variable bit rate·Directory nesting up to a maximum of 8 levels·Number of albums/folders: maximum 99·Number of tracks/titles: maximum 999·ID3 tag v2.0 or later·File name in Unicode UTF8(maximum length:128 bytes)Unsupported Formates:·Empty albums:an empty album is an album that does not contain MP3 les,and is not be shown in the display.·Unsupported le formats are skipped.For example,Word documents(.doc) or Mp3 les with extension.dlf are ignored and not played.·AAC,WMV,PCM audio lesSupported MP3 Disc Format:·ISO9660,Joliet·Maximum title number: 512(depending on le name length)·Maximum album number: 255·Supported sampling frequencies: 32kHz,44.1kHz,48kHz·Supported Bit-rates: 32-320Kbps and variable bit rateSupported Video Formats:·DVD·MP4Region Code According to DVD sale region, the whole world is divided into six regions. A DVD disc can be played back only when its region code is compatible with that of the player in use.Region 1: USA, Canada, East Pacic Ocean Islands; Region 2: Japan, West Europe, North Europe, Egypt, South Africa, Middle East;Region 3: Taiwan of China, Hong Kong of China, South Korea, Thailand, Indonesia, South East Asia;Region 4: Australia, New Zealand, Mid & south America, South Pacic Ocean Islands/Oceania;Region 5: Russia, Mongolia, India, Middle Asia, East Europe, North Korea, North Africa, North West Asia; Region 6: China, Mainland.Cautions when using Discs1) DO NOT use irregular shaped disc.2) Disc Cleaning Use a dry, soft cloth to wipe the disc from center to edge, only neutral detergent can be used.3) When playing a new disc New disc may have some rough spots around the inner and outer edges. If such a disc is used, remove these rough spots with a pencil or ball-point pen, etc.

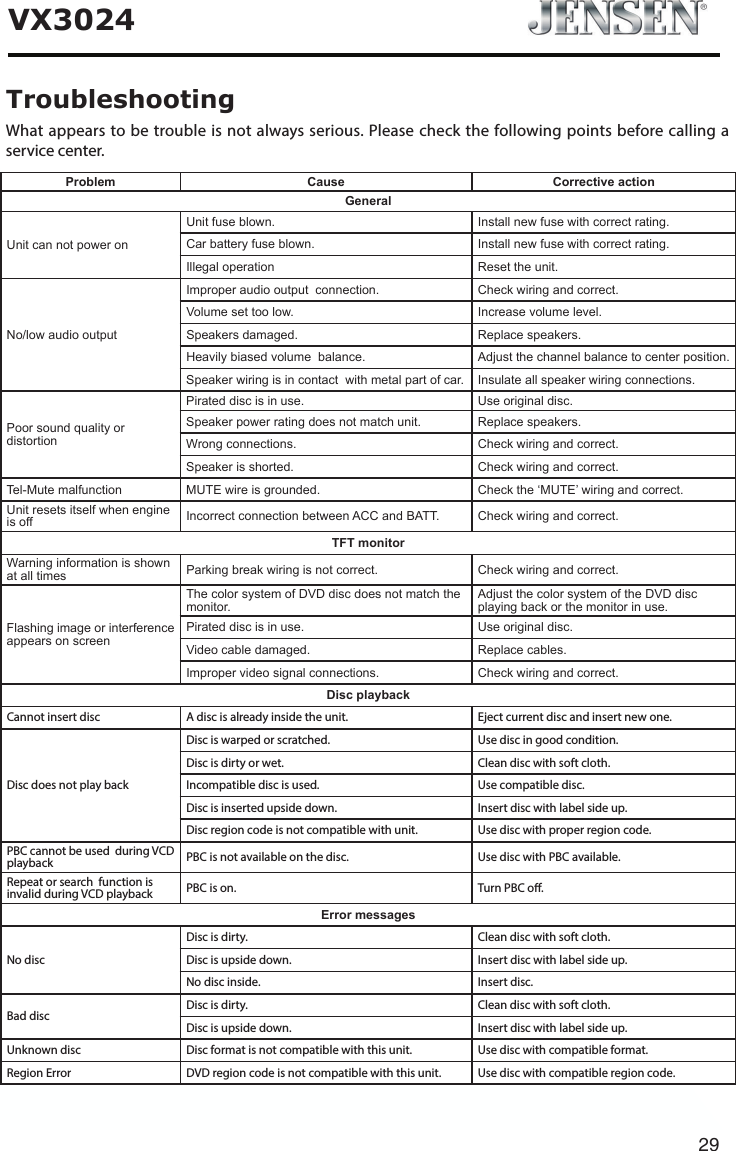

29VX3024TroubleshootingWhat appears to be trouble is not always serious. Please check the following points before calling a service center.Problem Cause Corrective actionGeneralUnitcannotpoweronUnitfuseblown. Installnewfusewithcorrectrating.Carbatteryfuseblown. Installnewfusewithcorrectrating.Illegaloperation Resettheunit.No/lowaudiooutputImproperaudiooutputconnection. Checkwiringandcorrect.Volumesettoolow. Increasevolumelevel.Speakersdamaged. Replacespeakers.Heavilybiasedvolumebalance. Adjustthechannelbalancetocenterposition.Speakerwiringisincontactwithmetalpartofcar. Insulateallspeakerwiringconnections.PoorsoundqualityordistortionPirateddiscisinuse. Useoriginaldisc.Speakerpowerratingdoesnotmatchunit. Replacespeakers.Wrongconnections. Checkwiringandcorrect.Speakerisshorted. Checkwiringandcorrect.Tel-Mutemalfunction MUTEwireisgrounded. Checkthe‘MUTE’wiringandcorrect.Unitresetsitselfwhenengineisoff IncorrectconnectionbetweenACCandBATT. Checkwiringandcorrect.TFT monitorWarninginformationisshownatalltimes Parkingbreakwiringisnotcorrect. Checkwiringandcorrect.FlashingimageorinterferenceappearsonscreenThecolorsystemofDVDdiscdoesnotmatchthemonitor.AdjustthecolorsystemoftheDVDdiscplayingbackorthemonitorinuse.Pirateddiscisinuse. Useoriginaldisc.Videocabledamaged. Replacecables.Impropervideosignalconnections. Checkwiringandcorrect.Disc playbackCannot insert disc A disc is already inside the unit. Eject current disc and insert new one.Disc does not play backDisc is warped or scratched. Use disc in good condition.Disc is dirty or wet. Clean disc with soft cloth.Incompatible disc is used. Use compatible disc.Disc is inserted upside down. Insert disc with label side up.Disc region code is not compatible with unit. Use disc with proper region code.PBC cannot be used during VCD playback PBC is not available on the disc. Use disc with PBC available.Repeat or search function is invalid during VCD playback PBC is on. Turn PBC o.Error messagesNo discDisc is dirty. Clean disc with soft cloth.Disc is upside down. Insert disc with label side up.No disc inside. Insert disc.Bad disc Disc is dirty. Clean disc with soft cloth.Disc is upside down. Insert disc with label side up.Unknown disc Disc format is not compatible with this unit. Use disc with compatible format.Region Error DVD region code is not compatible with this unit. Use disc with compatible region code.

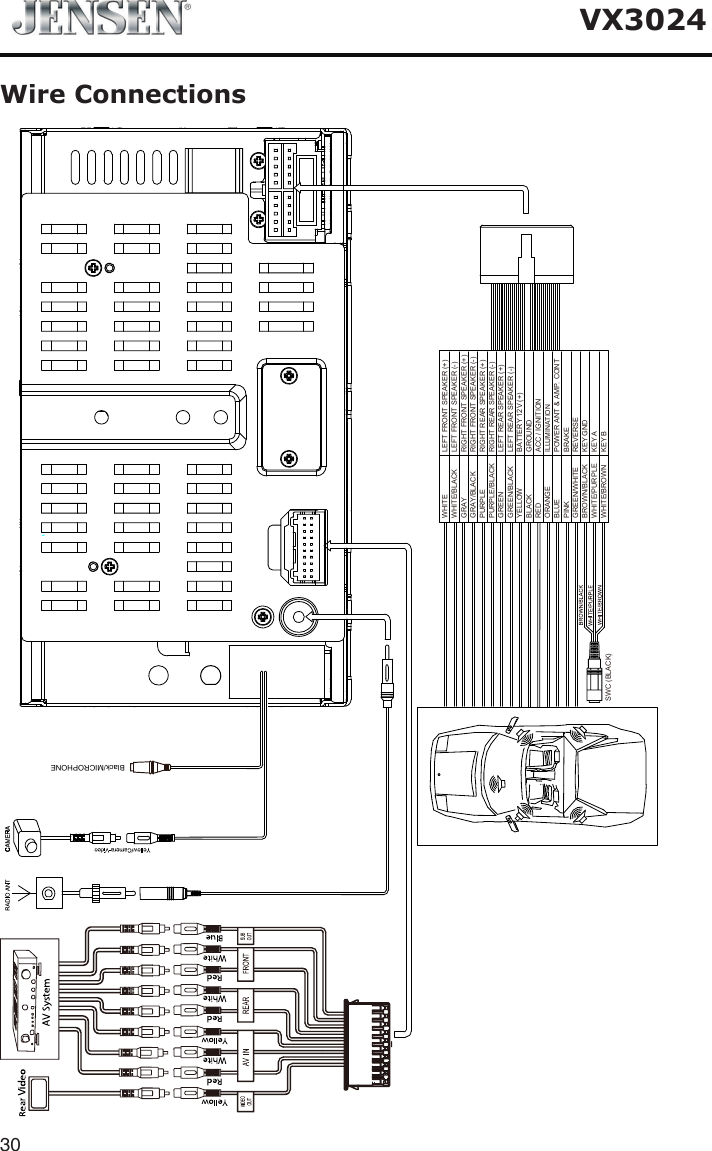

30VX3024Wire ConnectionsBlack/MICROPHONE)SPEAKER (-)SPEAKER (+)GROUNDBATTERY 12V (+)ACC / IGNITIONBRAKEREVERSEPOWER ANT & AMP. CONTILLUMINATIONLEFT FRONT SPEAKER (-)LEFT FRONT SPEAKER (+)RIGHT FRONT SPEAKER (-)RIGHT FRONT SPEAKER (+)LEFT REAR SPEAKER (-)LEFT REAR SPEAKER (+)RIGHT REAR SPEAKER (-)RIGHT REAR SPEAKER (+)BLACKYELLOWREDPINKGREEN/WHITEBLUEGRAY/BLACKGRAYGREEN/BLACKGREENPURPLE/BLACKORANGEPURPLEKEY AKEY BWHITE/PURPLEWHITE/BROWNKEY GNDBROWN/BLACKWHITE/BLACKWHITESWC (BLACK)
