User manual

DAEWOO IS Corp.
7F Namkwang Centlex Blde, 440-4 Cheongcheon2-dong
Bupyeong-gu Incheon 403858 Republic of Korea
AGC-1026AT
Infotainment system
Introduction....................................81
Radio .............................................85
Audio players.................................88

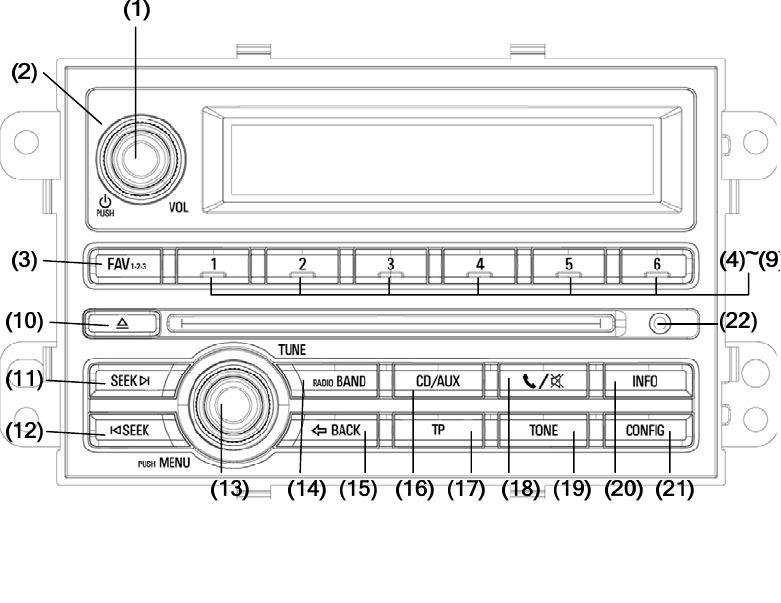

Overview
1. [POWER]
When the power is ON:
-.Short press: Audio mute on/off.
-.Long press: Turns on/off the radio.
When the power is OFF:
Pressing the power button turns the power ON.
2. [VOLUME]
Volume adjustment
3. [FAV]
Radio Mode
-.Short Press: Selection favorite page
- .Long Press: Auto-store function, Search and memory the best 12 stations.
4~9. [PRESET] #1~#6
Radio Mode
-.Short Press: Recall the pre-memorized station in the preset memory
-.Long Press: Store to preset memory
10. [EJECT]
Eject the disc from the CD deck.
11. [TUNE UP]
Radio mode
-Short Press: FM Memory Skipping Up
-.Long Press: Seek Up
CD mode
-.Short Press: Next track or file playback
-.Long Press: Fast-forward playback
12. [TUNE DOWN]
Radio mode
-.Short Press: FM Memory Skipping Down
-.Long Press: Seek Down
CD mode
-.Short Press: previous track or file playback
-.Long Press: Fast-reverse playback
13. [MENU]
Rotation in Primary Page
Radio mode
-.Clockwise Direction: Next Frequency
-.Anti-clockwise Direction: Previous Frequency
Playback mode like CD, USB iPod and so on
-.Clockwise Direction: Show track lists and next track
-.Anticlockwise Direction: Show track lists and previous track
Push on Primary Page
-.Entrance to each menu
Push on Sub-menu Page
-.selection
Rotation in Sub-menu Page
-.Clockwise Direction: Show track lists and next track
-.Anticlockwise Direction: Show track lists and previous track
14. [BAND]
Radio Mode selection
AM or FM radio band selection
15. [BACK]
Return to previous display or cancel
16. [CD/AUX]
Entrance to CD, Auxiliary Input and A2DP
17. [TP]
Traffic announcement reception on/off
Or TP station Search.
18. [PHONE/MUTE]
Case 1: without hands-free function
-.Audio mute on/off
Case 2: with hands-free function
-.Short press: Entrance to phone mode
-.Long press: Audio Mute on/off
19. [TONE]
Entrance to audio setting menu
20. [INFO]
Information display about current mode
21. [CONFIG]
Entrance to configuration menu
22. Aux Socket
Stereo Jack input
Operation Power On/Off
Power On F Press [POWER] to turn on the radio.
Power off Press [POWER] turn off the radio.
Audio Mute
Press [PHONE/MUTE] to make audio mute when the power is on.
Volume Adjustment
Turn the volume knob clockwise to increase the audio volume.
Turn the volume knob counter-clockwise to decrease the audio volume.

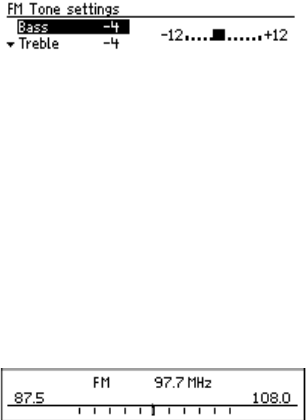

Audio Adjustment Bass Tone Adjustment
In the radio or playback mode, Press the [TONE] you can see the tone main menu.
Radio
AM-FM Radio Radio Mode Selection
Press the [BAND] to listen the radio from other mode.
Band Change
The band changes from AM to FM or FM to AM all times [BAND] pressed.
Manual Tune Up/Down
Seek Up/Down
Press [SEEK UP]/[SEEK DOWN] to find next/previous station automatically.
Favorite preset page
Each time push [FAV], Favorite Preset Page is increased
Favorite Page1, Favorite Page 2, …, Favorite Page6
The number of favorite page can adjust in configuration menu.
Favorite preset memory
It have 6 favorite pages and store up to 48 stations regardless of AM or FM band.
It can store current station by the following procedure
Step 1: Seek station or tune station manually you want.
Step 2: Select the favorite page by pressing [FAV/INFO].
Step 3: Press and hold [PRESET #] more than 1 second
By above procedure, the 48 stations are stored in the favorite preset memory.
Recall favorite preset
You can listen to the station stored in the favorite preset by the following procedure.
Step 1: Select the favorite page by pressing [FAV/INFO].
Step 2: press [PRESET #] which is stored the station you want to listen to.
Auto-store Function Auto-store
Press [FAV] more than 1 second, then radio starts auto-store function.
Traffic announcement reception
Press the [TP] to listen the traffic announcement from other station.
Traffic announcement reception cancel
Press the [TP/MENU] to cancel the traffic announcement reception the radio make the traffic announcement
disable.
Traffic station seek
Press the [TP/MENU] in the station don't have traffic information, the Infotainment system 87 radio search
the next station that have the traffic announcement.
Radio Reception
Radio reception may be disrupted by static, noise, distortion or loss of reception due to „ changes in distance
from thetransmitter,multi-path reception due to reflection andshadowing.
Audio players
CD Player
As each CD is inserted, the radio will appear on the display and as each CD is loading, File check will
appear on the display.
Once playback begins, the track and track number will appear on the display.
If the ignition or radio is turned off with a CD in the player, it will stay in the player. When a CD is in the
player and the ignition is turned on, the radio must be turned on before the current CD will start playback.
When the ignition and radio are turned on, the CD will start playing where it stopped, if it was the last
selected audio source.
The CD player can play the smaller 3 inch (8cm) single CDs with an adapter ring. Full-size CDs and the
smaller CDs are loaded in the same manner.
If playing a CD-R, the sound quality may be reduced due to CD-R quality, the method of recording, the
quality of the music that has been recorded, and the way the CD-R has been handled. There may be an
increase in skipping, difficulty in finding tracks, and/or difficulty in loading and ejecting. If these problems
occur, check the bottom surface of the CD. If the surface of the CD is damaged, such as cracked, broken, or
scratched, the CD will not play properly. If the surface of the CD is soiled, see Care of Your CDs for more
information.
If there is no apparent damage, try a known good CD.
Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal
computer and a description label is needed, try labeling the top of the recorded CD with a marking pen
instead.
Caution
If you add any label to a CD, insert more than one CD into the slot at a time, or attempt to play scratched or
damaged CDs, you could damage the CD player. When using the CD player, use only CDs in good condition
without any label, load one CD at a time, and keep the CD player and the loading slot free of foreign materials,
liquids, and debris.
Disc Insert
Insert a CD into a CD slot with CD label up, then the radio insert into the slot automatically and does
playback.
CD Playback Mode Selection
Insert a CD into CD deck, then the radio goes to the playback mode. Or press the [CD] to playback the
disc from other mode when CD is inserted.
Infotainment system 89 CD EJECT
Press the [EJECT], then the disc willbe ejected from the radio.Pull out the disc out of the radio.
Pause
Press [CD] to pause playback while a CD is playing back."PAUSE' will flash on the display.Press [CD] again
to start playback.
Next/Previous Track
Press [TUNE UP/TUNE DOWN], then the radio starts playback of the next/previous track.
Fast forward/Fast reverse
Press and hold [TUNE UP/TUNE DOWN], then the radio plays back fast forward/fast reverse.
Next/Previous Folder - only MP3/WMA disc
Press [SEEK UP/SEEK DOWN], then the radio start playback of the next/previous track.
RPT (Repeat)
Press [2 RPT], then radio plays back current track repeatedly. To cancel this function, press [2 RPT] again.
RDM (Random):
Press [3 RDM], then radio plays back tracks randomly.To cancel this function, press [3RDM] again.
INT (Intro-Scan):
Press [4 INT], then radio plays back just 10 seconds of the current track, jump to next track and do this
actionrepeatedly.To cancel this function, press [4 INT] again.
All/Directory Mode - only MP3/WMA disc
Repeat, intro-scan and random function operates in this folder when"all mode" is active.Press [1 DIR] then
radio operates inthe directory mode.To cancel this function, press [1 DIR] again.
ID3 Tag information display - only MP3/WMA disc
Press [FAV/INFO], the radio displays the ID3 tag information of the current files.
Auxiliary Devices USB playback mode USB Playback Mode Selection
Press the [USB] to change to play back the USB files from other mode.
USB memory insertion
Insert a USB memory into the USB socket, so the radio plays back the USB files automatically.
USB Extraction
Pull the USB memory from the USB socket by hand.
* Other functions are same with CD mode.
AUX mode
The radio has one auxiliary input jack(diameter 3.5mm) located on the lower right side of the faceplate.
This is not an audio output; do not plug the headphone set into the front auxiliary input jack.
You can however, connect an external audio device such as an iPod, laptop computer, MP3 player, CD
changer, or XM™‚ receiver, etc. to the auxiliary input jack for use as another source for audio listening.
AUX In Mode Selection
Press [AUX] in the other playback mode. If the auxiliary jack isn't detected for the presence of an output jack,
the aux mode will be prevented.
BLUETOOTH Mode
Pairing and connection.
1. Using Configuration.
Step 1. Press Config button.
Step 2. Choice Bluetooth Settings
Step 3. Choice Bluetooth
Step 4. Choice Pair device(Add device) -> “Waiting for Pairing [0000]“
Step 5. Try to pair with set by phone.
Step 6. If phone support auto connection, phone would be connected automatically after paring
with set.
If phone doesn’t support auto connection, you have to try to connect by using device lists.
2. Using Phone menu.
Step 1. Press phone button. (“No phone available”)
Step 2. Press phone button again. (“Enter number, Phonebook, Call lists, Bluetooth”)
Step 3. Choice Bluetooth Settings (By pressing menu button at Bluetooth settings)
Step 4. Choice Bluetooth (By pressing menu button at Bluetooth)
Step 5. Choice Pair device(Add device) -> “Waiting for Pairing [0000]“
Step 6. Try to pair with set by phone.
Make a call
Step 1 : Connect phone and set (refer to pairing and connection)
Step 2. Press phone button. (“Phone’s name”)
Step 3. Press phone button again. (“Enter number, Phonebook, Call lists, Bluetooth”)
Step 4 : Choice enter number (By pressing menu button at enter number)
Step 5 : Choice number that you want to make a call (By pressing menu button at number)
Step 6 : Make a call (By pressing menu button at number)
Phonebook Download (Only when phone support PBAP[Phone Book Access Profile])
Step 1 : Connect phone and set (refer to pairing and connection)
Step 2. Press phone button. (“Phone’s name”)
Step 3. Press phone button again. (“Enter number, Phonebook, Call lists, Bluetooth”)
Step 4 : Choice Phonebook (By pressing menu button at phonebook)
Step 5 : Choice Update (By pressing menu button at Update)
<At this time, Connection with phone and set will be disconnected>
Step 6 : Phonebook download.
Step 7 : Choice search (By pressing menu button at search)
Call list
(If phone send car audio call lists data, car audio will display cell phone’s call list, otherwise car audio
display call lists only after connection with car audio.)
Step 1 : Connect phone and set (refer to pairing and connection)
Step 2. Press phone button. (“Phone’s name”)
Step 3. Press phone button again. (“Enter number, Phonebook, Call lists, Bluetooth”)
Step 4 : Choice Call list (By pressing menu button at Call list)
Step 5 : Choice Incoming call (pressing menu button at Incoming call)
Step 5 : Choice Outgoing call (pressing menu button at Incoming call)
Step 5 : Choice missed call (pressing menu button at missed call)
Adjust Ring volume and Ring tone
(If phone send car audio phone’s ring tone, phone’s ring tone will be heard to user, in this case, user
can’t adjust ring volume by car audio, otherwise user can adjust ring tone and volume by car audio)
Step 1. Press phone button. (“Phone’s name” or “No phone available.)
Step 2. Choice Bluetooth Settings (By pressing menu button at Bluetooth settings)
Step 3. Choice Sound&Signals (By pressing menu button at Sound&Signals)
Step 4. Choice Ring volume (By pressing menu button at Ring volume)
Step 4. Choice Ring tone (By pressing menu button at Ring tone)
1. Adjust Ring volume
Ring volume means that let user know incoming call’s ringing.
Ring volume is louder toward 3
2. Adjust Ring Tone
User can choice incoming ring tone. The number of ring tone are 5.
Bluetooth factory restore
Step 1. Press phone or config button
Step 3. Choice Bluetooth Settings (By pressing menu button at Bluetooth settings)
Step 4. Choice Factory restore (By pressing menu button at Factory restore)
Step 5. Choice Ring volume (By pressing menu button at Ring volume)
Step 5. Choice Ring tone (By pressing menu button at Ring tone)
** While device is downloading phonebook, connection would be disconnected => After
downloading complete, device could be connected automatically**
Ö During download phonebook, our device doesn’t support Handsfree function.
** A2DP could not be played, if you don’t have tried to start to play music by phone after
connection.**
Steering wheel audio controls
[PWR]
Power on: Press this button. Power off: Press this button more than 1 second.
Audio mute: Press this button when the power is on.
[+]
Press [+] button to increase the audio volume. Press this button, then the radio increases the audio level. If
this button is pressed more than 1 second, then the radio increases the audio volume step by step.
[–]
Press [–] button to decrease the audio volume. Press this button, then the radio increases the audio volume.
If this
button is pressed more than 1 second, then the radio decrease the audio volume step by step.
[SEEK]
RADIO MODE
Press this button to move to next preset station. (Favorite preset #1→ #2→ #3→ #4...)
Press this button more than 1 second to search for the next station.
.
CDP MODE
Press this button to jump to the next track. (Track01→Track02→...) Press this button more than 1
second to play back the track fast forward.
[MODE]
The play mode will be change by following order whenever this button is pressed.
FM→AM→(CDP)→(USB)→(AUX )→FM... The radio skips the CDP mode if there is no disc in the radio. The
radio skips the USB mode if there is no USB memory on the radio. The radio skips the AUX mode if there is
aux jack in the socket on the radio.
General section
Power supply DC 14.4V Negative Ground
Speaker impedance 4 ohm
Max. Power 20Wrms per channel into 4 channels at Vbatt = 14.3 V with THD ≤ 5%.
Weight 2210 g
Dimension 226 x 101 x 180
Active Current Max 10A
MP3[WMA]/CD section
MP3
Variable Bit Rate (VBR)
8~320Kbps
Sample Rates : 16, 22, 32, 44.1, 48KHz
Channel : Mono, Stereo, Joint Stereo
Playlist Format (m3u, pls)
Support ID3 V1, v2X tag, ASCIIand Unicode.
WMA
Support for WMA 9 and over
Support Meta Data (ㅡ*.wax, *.asx (*.asf)…)
Presentation of the file system according to ISO file hierarchy and Flat file structure
incl. Joliet Extension
CD Optical Disc Format Support
CDDA, CDR, CDRW, CDROM, Mixed Mode CD, Open Session CD, "Book on Disc" audio content
FM/MW/LW Radio section
AM_RANGE
Range Name Lower Limit Upper Limit
AMRange1 530kHz 1710kHz
AMRange2 531kHz 1602kHz
AMRange3 530kHz 1710kHz
AMRange4 522kHz 1710kHz
AMRange5 522kHz 1629kHz
FM_RANGE
Range Name Lower Limit Upper Limit FM De-emphasis
FMRange1 87.7 MHz 107.9 MHz 75us
FMRange2 87.5 MHz 108.0 MHz 50us
FMRange3 88.0 MHz 108.0 MHz 75us
FMRange4 76.0 MHz 90.0 MHz 50us
FMRange5 87.0 MHz 108.0 MHz 50us
FMRange6 87.5 MHz 108.0 MHz 75us
Recommended Region Programming
Table 60: The Americas 1:
Region
Name AMRange
(kHz) AMStep AM
Manual
Tune
FMRange
(MHz) FMStep FM De-
emphasis RDS Option
Code
Anguil&FGE 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &UL4
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Antigua and
Barbuda 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Argentina 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &UL4
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Aruba 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &UL4
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Bahamas 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Barbados 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &UL4
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Belize 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &UL4
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Bermuda 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &UL4
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Boliva 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Brazil 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &UL4
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Canada 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us Yes $FGU
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1 Info
Cayman
Is&FGEnds 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &UL4
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Chile 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &UL4
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Columbia 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &UL4
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Costa Rica 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &UL4
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Cuba 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Dominica 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Dominican
Republic 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Ecuador 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Table 61: The Americas 2:
Region
Name AMRange
(kHz) AMStep AM
Manual
Tune
FMRange
(MHz) FMStep FM De-
emphasis RDS Option
Code
El Salvador 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Falk&FGEnd
Is&FGEnds 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
French Guiana 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Green&FGEnd 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Grenada 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Guadeloupe 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Guatema&FGE 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Guvana 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Haiti 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Honduras 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Jamaica 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Martinique 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Mexico 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us Yes $FGU
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1 Info
Montserrat 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Nether&FGEnds 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Nicaragua 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Panama 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Paraguay 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &UL4
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Table 62: The Americas 3:
Region
Name AMRange
(kHz) AMStep AM
Manual
Tune
FMRange
(MHz) FMStep FM De-
emphasis RDS Option
Code
Peru 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Puerto Rico 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Saint Kitts
and Nevis 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Saint Lucia 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
St Pierre and
Miquelon 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Suriname 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Trinidad and
Tobago 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Turks and
Caicos
Is&FGEnds
530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
USA 530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us YES $FGU
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1 Info
Uruguay 530 - 1710kHz 10khz 1kHz 87.7-107.9 200kHz 75us &FGE
AM_Range_1 AM_Step_2 AM_Step_2 FM_Range_1 FM_Step_1 FM_Range_1
Virgin
Is&FGEnds
(British)
530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us $FGU
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Virgin
Is&FGEnds
(USA)
530 - 1710kHz 10khz 10kHz 87.7-107.9 200kHz 75us $FGU
AM_Range_1 AM_Step_1 AM_Step_1 FM_Range_1 FM_Step_1 FM_Range_1
Table 63: Africa and Middle East 1:
Region
Name AMRange
(kHz) AMStep AM
Manual
Tune
FMRange
(MHz) FMStep FM De-
emphasis RDS Option
Code
Afghanistan 531-1602 9kHz 9kHz N/A N/A N/A &UL8
AM_Range_2 AM_Step_3 AM_Step_3
Algeria 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Angola 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us
&UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Benin 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Botswana 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Burkina
Faso 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Cameroon 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Central
African
Republic
531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Chad 531-1602 9kHz 1kHz 87.5-108.0 50kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_3 FM_Range_3
Comoros 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Congo 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Cote d'Ivoire 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Djibouti 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Egypt 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Ethiopia 531-1602 9kHz 9kHz N/A N/A N/A &UL8
AM_Range_2 AM_Step_3 AM_Step_3
Gabon 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Gambia 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Guinea-
Bissau 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Gulf
Cooperative
Council
531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Table 64: Africa and Middle East 2:
Region
Name AMRange
(kHz) AMStep AM
Manual
Tune
FMRange
(MHz) FMStep FM De-
emphasis RDS Option
Code
Iran 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Step_2
Iraq 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Kenya 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Lesotho 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Libya 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Madagascar 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Malawi 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Mali 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Mauritania 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Mauritius 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Mayotte 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Morocco 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Mozambique 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Namibia 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Niger 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Nigeria 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Republic of
Guinea 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Sao Tome &
Principe 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Table 65: Africa and Middle East 3:
Region
Name AMRange
(kHz) AMStep AM
Manual
Tune
FMRange
(MHz) FMStep FM De-
emphasis RDS Option
Code
Senegal 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Sierra 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Leone 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
South
Africa 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Sudan 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Swaziland 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Tanzania 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Togo 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Tunisia 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Uganda 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Range_2
Yemen 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Zaire 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Zambia 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &UL8
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Range_2
Table 66: Pacific and South Asia 1:
Region
Name AMRange
(kHz) AMStep AM
Manual
Tune
FMRange
(MHz) FMStep FM De-
emphasis RDS Option
Code
Australia 522-1710 9kHz 9kHz 87.5-108.0 100kHz 50us &UL1
AM_Range_4 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Bangladesh 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Brunei
Darussalam 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Cambodia 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Step_2
China 531-1602 9kHz 9kHz 87.0-108.0 100kHz 50us &FCN
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_5 FM_Step_2 FM_Step_2
Federated
States of
Micronesia
531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Fiji 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Guam 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
India 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Step_2
Indonesia 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Step_2
Japan 531-1602 9kHz 9kHz 76-90 100kHz 50us &UK1
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_4 FM_Step_2 FM_Step_2
Kiribati 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Laos 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Step_2
Macau 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Step_2
Malaysia 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Step_2
Maldives 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Myanmar 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Step_2
Nauru 531-1602 9kHz 9kHz N/A N/A 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Step_2
Nepal 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Table 67: Pacific and South Asia 2:
Region
Name AMRange
(kHz) AMStep AM
Manual
Tune
FMRange
(MHz) FMStep FM De-
emphasis RDS Option
Code
New
Caledonia 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
New
Zealand 522-1710 9kHz 9kHz 87.5-108.0 100kHz 50us
&UL1
AM_Range_4 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
North Korea 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Northern
Mariana
Islands
531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Pakistan 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Step_2
Papus New
Guinea 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Philippines 522-1629kHz 9kHz 1kHz 87.5-108.0 100kHz 50us &FGF
AM_Range_5 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Step_2
Singapore N/A N/A N/A 87.5-108.0 100kHz 50us &FGA
FM_Range_2 FM_Step_2 FM_Step_2
Solomon
Islands 531-1602 9kHz 9kHz N/A N/A 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Step_2
South Korea 531-1602 9kHz 9kHz 87.5-108.0 100kHz 75us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_6 FM_Step_2 FM_Step_2
Sri Lanka 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Taiwan 531-1602 9kHz 9kHz 87.7-107.9 200kHz 50us &FGD
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_1 FM_Step_1 FM_Step_2
Thailand 531-1602 9kHz 9kHz 87.5-108.0 50kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_3 FM_Step_2
Tonga 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Vanuatu 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_3 AM_Step_3 FM_Range_2 FM_Step_2 FM_Step_2
Vietnam 531-1602 9kHz 1kHz 87.5-108.0 100kHz 50us &FGA
AM_Range_2 AM_Step_4 AM_Step_4 FM_Range_2 FM_Step_2 FM_Step_2
Table 68: Europe and North Asia 1:
Regio
n
Name
AMRang
e (kHz) AMSte
p AM
Manua
l Tune
FMRang
e (MHz) FMSte
p FM De-
emphasi
s
RD
S TM
C Optio
n
Code
Albania 522-1629 9kHz 1kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_4 AM_Step_
4 FM_Range_2 FM_Step_2 FM_Range_2 Data
Austria 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Belgium 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Bosnia 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Bulgaria 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Canary
Islands 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2
Croatia 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Czech
Republic 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes Coming
soon &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Denmark 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Finland 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
France 522-1629 9kHz 1kHz 87.5-108.0 100kHz 50us Yes Yes &U2L
AM_Range_5 AM_Step_4 AM_Step_
4 FM_Range_2 FM_Step_2 FM_Range_2 Data
Germany 531-1602 9kHz 9kHz 87.5-108.0 100kHz 50us Yes Yes &U2L
AM_Range_2 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Greece 522-1629 9kHz 1kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_4 AM_Step_
4 FM_Range_2 FM_Step_2 FM_Range_2 Data
Hungry 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes Coming
soon &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Iceland 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Ireland 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Israel 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Italy
(Vatican
City)
522-1629 9kHz 1kHz 87.5-108.0 100kHz 50us Yes Yes &U2L
AM_Range_5 AM_Step_4 AM_Step_
4 FM_Range_2 FM_Step_2 FM_Range_2 Data
Jordan 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Table 69: Europe and North Asia 2:
Region
Name AMRang
e (kHz) AMSte
p AM
Manua
l Tune
FMRang
e (MHz) FMSte
p FM De-
emphasi
s
RD
S TM
C Optio
n
Code
Kazakhstan 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2
Lebanon 522-1629 9kHz 1kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_4 AM_Step_
4 FM_Range_2 FM_Step_2 FM_Range_2 Data
Lithuania 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Luxembour
g 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Macedonia 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Madeira 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2
Malta 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Moldova 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Monaco 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Morocco 522-1629 9kHz 1kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_4 AM_Step_
4 FM_Range_2 FM_Step_2 FM_Range_2 Data
Netherlands 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Norway 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Poland 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Portugal 522-1629 9kHz 1kHz 87.5-108.0 100kHz 50us Yes Coming
soon &U2L
AM_Range_5 AM_Step_4 AM_Step_
4 FM_Range_2 FM_Step_2 FM_Range_2 Data
Romania 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Russia 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Serbia 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Slovakia 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Slovenia 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Table 70: Europe and North Asia 3:
Region
Name AMRang
e (kHz) AMSte
p AM
Manua
l Tune
FMRang
e (MHz) FMSte
p FM De-
emphasi
s
RD
S TM
C Optio
n
Code
Spain 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Sweden 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Switzerlan
d 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
Syrian 522-1629 9kHz 1kHz 87.5-108.0 100kHz 50us &U2L
AM_Range_5 AM_Step_4 AM_Step_
4 FM_Range_2 FM_Step_2 FM_Range_2
Tunisia 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2
Turkey 522-1629 9kHz 1kHz 87.5-108.0 100kHz 50us Yes &U2L
AM_Range_5 AM_Step_4 AM_Step_
4 FM_Range_2 FM_Step_2 FM_Range_2 Data
Ukraine 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2
United
Kingdom 522-1629 9kHz 9kHz 87.5-108.0 100kHz 50us Yes Yes &U2L
AM_Range_5 AM_Step_3 AM_Step_
3 FM_Range_2 FM_Step_2 FM_Range_2 Data
FCC ID : YRN-AGC-1026AT
IC : 9209A-AGC1026AT
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. The user could lose
the authority to operate this equipment if an unauthorized change or modification is
made.
NOTE
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment may cause harmful inter- ference to radio communications, if it is not
installed and used in accordance with the instructions. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful inter- ference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IC (Industry Canada) Notice
Operation is subject to the following two conditions : (1) This device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device. The term “IC:” before the
certification/registration number only signifies that the Industry Canada technical
specification were met.
Caution
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
(1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.

Navigation menu
