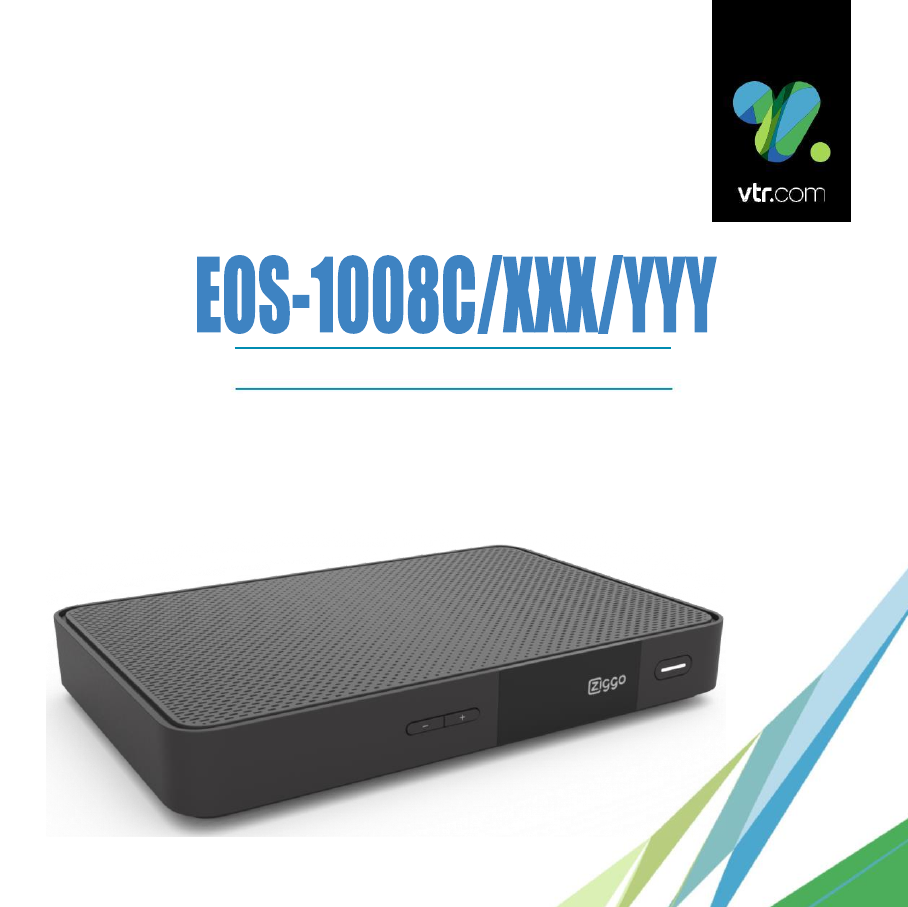

User Manual
USER MANUAL
This user manual is for common use
of EOS-1008C/XXX/PVR and EOS-1008C/XXX.
XXX refers to broadcasting brand and YYY refers to PVR.
Let’s get started
to enjoy new
experience of
watching TV.
Contents
1. What is the new d-BOX EOS
2. Get to know Remote Control
3. Use the Main Menu
4. How to Connect
5. Appendix
1. What is the new d-BOX EOS?
Meet the new generation of television offered by VTR through the new d-BOX EOS, where you
can experience a completely personalized entertainment service. The new d-BOX EOS is a state-
of the art service that offers you high definition television. With the new d-BOX EOS, you can
record up to 4 programs simultaneously while you are watching another channel, so you can enjoy
them whenever you want. The VTR On Demand (VOD) service with sensible and user-friendly
interface makes it easy to search content and recommends content according to what you have
seen and applications to use from your TV.
You can access these new features with your new remote control. Adopting RF technology and
supporting voice command, the new remote control allows you to manipulate the d-BOX EOS
conveniently.
1. What is the new d-
BOX EOS?
2. Get to Know Remote Control
2
4
6
5
7
9
10
8
15
11
14
12
16
13
18
21
19
20
17
1. Turn on or off d-BOX EOS.
2. Access the profiles.
3. Access the main menu.
4. Return to TV.
5. Select or confirm a menu.
6. Access voice commands.
7. Programme information.
8. Volume up and down.
9. Record programme.
10. Exit.
11. Mute.
12. Play or pause.
13. Rewind / Forward.
14. Change channels.
15. Return to the previous screen.
16. Navigation arrows
17. Access the recording list.
18. Turn on or off TV.
1
2
3
4
5
18
6
7
8
9
10
17
16
15
14
1
13
12
11
3. Use the Main Menu
You can find all the interface functions of your new d-BOX EOS in the
main menu.
Press the menu button to have access to the main menu
Press the arrow buttons to navigate the menu options.
Press the OK button to get the corresponding submenus.
Press the Back button to exit the main menu.
TV GUIDE
MOVIES &
SERIES
SAVED
APPS
You can access all available channels.
You can search content in linear channels, recorded recordings and VOD.
You can access recorded programmes.
You can access apps such as Netflix, Youtube and TV Shop.
4. How to Connect
4.
Socket
Cable Connection
Power Supply
Adaptor
Router
Ethernet Cable
Cable Connection
Power Supply
D-BOX EOS
HDMI Cable
Splitter
IEC Adaptor
1. Activate
Call us at 600 800 9000 to activate.
2. Connect d-BOX
Connect d-box to the electrical outlet
and turn it on.
Connect the HDMI cable between d-box
and TV.
3. Connect d-BOX to Internet
Connect d-box to the Internet through a
router or direct Internet access.
* With the Internet connection, you will fully
enjoy our services.
4. Connect TV
Connect d-box to your TV.
5. Appendix
Notice
Please read this user manual carefully to be able to safely install, use and
maintain the product at maximum performance. Keep this user manual next
to your product for future reference. The information in this guide is subject to
change without notice.
Copyright
Not to be copied, used or translated in part or whole without prior consent in
writing except approval of ownership of copyright and copyright law.
Warranty
The warranty does not cover parts which may become defective due to
misuse of the information contained in this manual.
‘WEEE’ Instructions
This product should not be disposed with other household wastes at the end
of its working life. Please separate this from other types of wastes and recycle
it responsibly to promote the sustainable reuse of material resources. This will
prevent possible harm to the environment or human health from uncontrolled
waste disposal.
Domestic users: Please contact either the retailer where you purchased this
product or their local government office for details of where and how they can
take this item for environmentally safe recycling.
Business users: Contact your supplier and check the terms and conditions
of the purchase contract. This product should not be mixed with other
commercial wastes for disposal.
Trademarks
Nagravision is a registered trademark of KUDELSKI S.A.
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby
Laboratories.
HDMI, the HDMI Logo, and High-Definition Multimedia interface are
trademarks and registered trademarks of HDMI Licensing LLC.
This item incorporates copy protection technology that is protected by
U.S. patents and other intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are prohibited.
For Your Safety
Safety Instructions
• Operate this product only from the type of power supply shown on the
marking label. If you do not know the type of power supplied to your home,
contact your local power company.
• Make sure that the wall outlet, extension cord and adapter have a sufficient
power rating for the appliance. If not, this can cause an electric fire shock.
• Do not expose this product to liquids. Do not put objects filled with liquid on
the product.
• Disconnect the product from the wall outlet before you clean it.
• Use a moist cloth to clean the product. Do not use solvents. Wipe the
surface gently with a soft cloth as it may get scratched.
• Make sure that the slots on the product are not blocked. It is necessary to
have a sufficient airflow into the unit.
• Do not put electronic equipment on the product.
• Do not put objects on the product. This will block the ventilation or cause
damage to the surface.
• Do not use any unsupported attachments as these may be hazardous or
cause damage to the product.
• Unplug the product from the wall outlet and disconnect the antenna during a
thunder storm or when left unattended and unused for long periods of time.
This will prevent damage to the unit due to lightning and power-surges.
• Do not insert anything through the openings in the unit, where they can
touch dangerous voltage points or damage parts.
• When replacement of parts is required, be sure the service technician uses
replacement parts specified by the manufacturer or those that have the same
characteristics as the original part. Unauthorized substitution may result in
additional damage to the unit.
• Disconnect the power supply before you connect or disconnect the cable
from the satellite dish/cable TV signal/aerial. If not, this can cause damage to
the LNB/cable TV line/aerial.
• Disconnect the power supply before you connect or disconnect the cable
from the TV. If not, this can cause damage to the TV.
• Earth the LNB cable to the system earth for the satellite dish.
• Place the product indoors to avoid exposure to lightning, rain or sun. Do not
place it near a radiator or heat register.
• Keep at least 10cm clearance from any other appliances susceptible to
electromagnetic influences such as a TV or a VCR.
• If you place the product on a rack or a bookcase, make sure that there is
adequate ventilation and that you have followed the manufacturer’s
instructions for mounting.
• Do not place the product on an unstable surface where it can fall. A falling
product can cause serious injury to a personnel and serious damage to the
appliance.
Cautions and Warnings
1. To avoid damage of the power cord or plug
• Do not modify or process the power cord or plug arbitrarily.
• Do not bend or twist the power cord.
• Make sure to disconnect the power cord while you hold the plug.
• Keep heating appliances as far as possible from the power cord to prevent
the cover vinyl from melting.
• The mains plug, as a disconnection device, shall remain readily accessible
by the user.
• All-pole main switch shall remain readily operable.
2. To avoid electrical shock
• Do not open the main body.
• Do not insert metal or inflammable objects inside the product.
• Do not touch the power plug with wet hands.
• Disconnect the power cord in case of lightning.
• Unplug the power cable before you install the antenna cable.
3. To avoid damage of product
• Do not use the product when it is out of order. If you continue to use the
product when defective, this may cause serious damage. Make sure to
contact the customer service centre if the product is out of order.
• Do not insert metal or alien substance into the slots for the modules or
Smartcards. It may cause damage to the product and reduce its life span.
• Do not overly pile objects on the product. It may cause cracks, deformation
and discoloration.
Important Safety Instructions
1. Read these instruction.
2. Keep these instruction.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15. Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
FCC CUSTOMER INFORMATION
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operations.
“CAUTION: Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for
human contact during normal operation. The antenna should not be
contacted during operation to avoid the possibility of exceeding the FCC radio
frequency exposure limit. The minimum separation distance of 20cm from the
antenna to the body of user required.”
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
WARNING
To reduce the risk of fire or electric shock, do not expose this product to rain
or moisture.
The apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
To prevent malfunction caused by temperature, do not use the product in a
closed space with less than 3 inches of clearance from the right/left/top of the
product.
Changes or modifications not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.
