USERS MANUAL

GIS-403

FORM AND BEHAVIOR

SPECIFICATION

FACEPLATE RADIO

INFOTAINMENT HMI

Release 1.7

April 2, 2014

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Revision History

Date Version Update Note Author

Jun. 21, 2013 V1.4 •Last Release from GMNA GMNA

Dec. 02, 2013 V1.5

•HMI QnA is applied. (GMK Info <-> Humax HMI/SW)

•SWC Key

•OnStar

•Vehicle Setting

•Menu Tree

•Apple Siri

•Driving School

Jin Kim (GM)

Jan. 29, 2014 V1.6

•Errors (# of 18) are cleared by DRE review.

•NGF Menu Tree(IA) is applied. (Appendix I)

•RBDS is applied. (Appendix II)

- RBDS is being the step of devolvement .

•Zoom Bubble is applied. (Appendix III)

•Revised the T.O.D mode display by QAP issue.

- Added the (Date) Format on the Set Date in the menu

•HMI QnA is applied. (GMK Info <-> Humax HMI/SW)

Jin Kim

Feb.27.2014 V1.61

•Temporary Release for solving the GMK/ESIM issues

- Chapter 5.19.13

PREVIOUS / FAST REVERSE TRANSPORT CONTROLS

: Changed the condition of Previous Song Play

(10sec  5sec)

- Chapter 12.4 CONNECTING TO ONSTAR

: Added the rule of text display

- Added the Arabic Layout Guide (Appendix III)

- Added the Volume Control

(1.1.7 Rotating power knob (Volume),

1.2 STEERING WHEEL CONTROL HARDWARE)

Jin Kim

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Revision History

Date Version Update Note Author

April. 2, 2014 V1.7

•Combined the document GIS-403 V1.4 and GIS-403 V1.61

- GIS-403 V1.4 had been made by GMNA

- GIS-403 V1.61 had been made by GMNA with Humax

•Marked the changed/added figure & description which is

V1.61 document as Red Color.

Jin Kim

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

1. HARDWARE

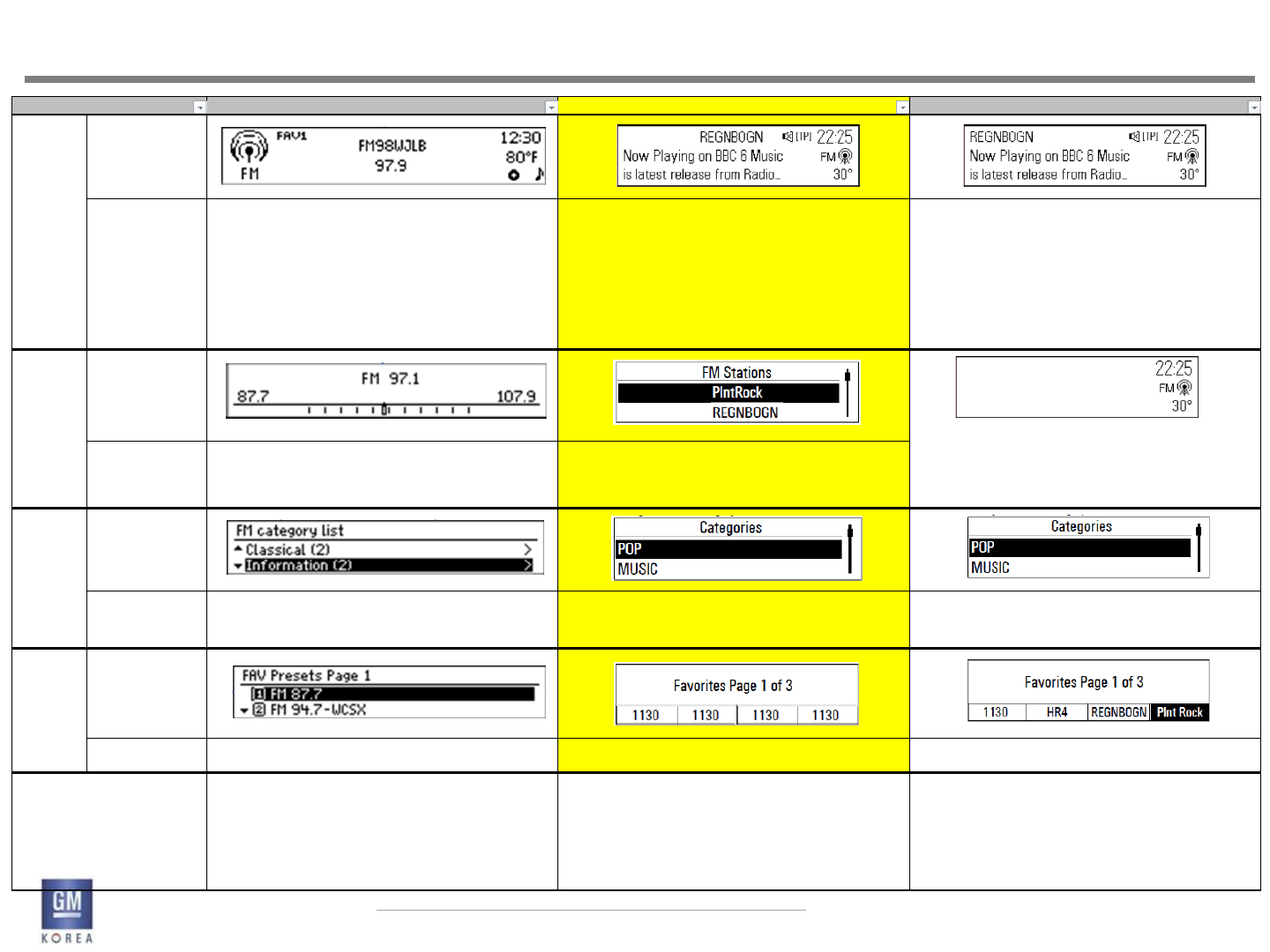

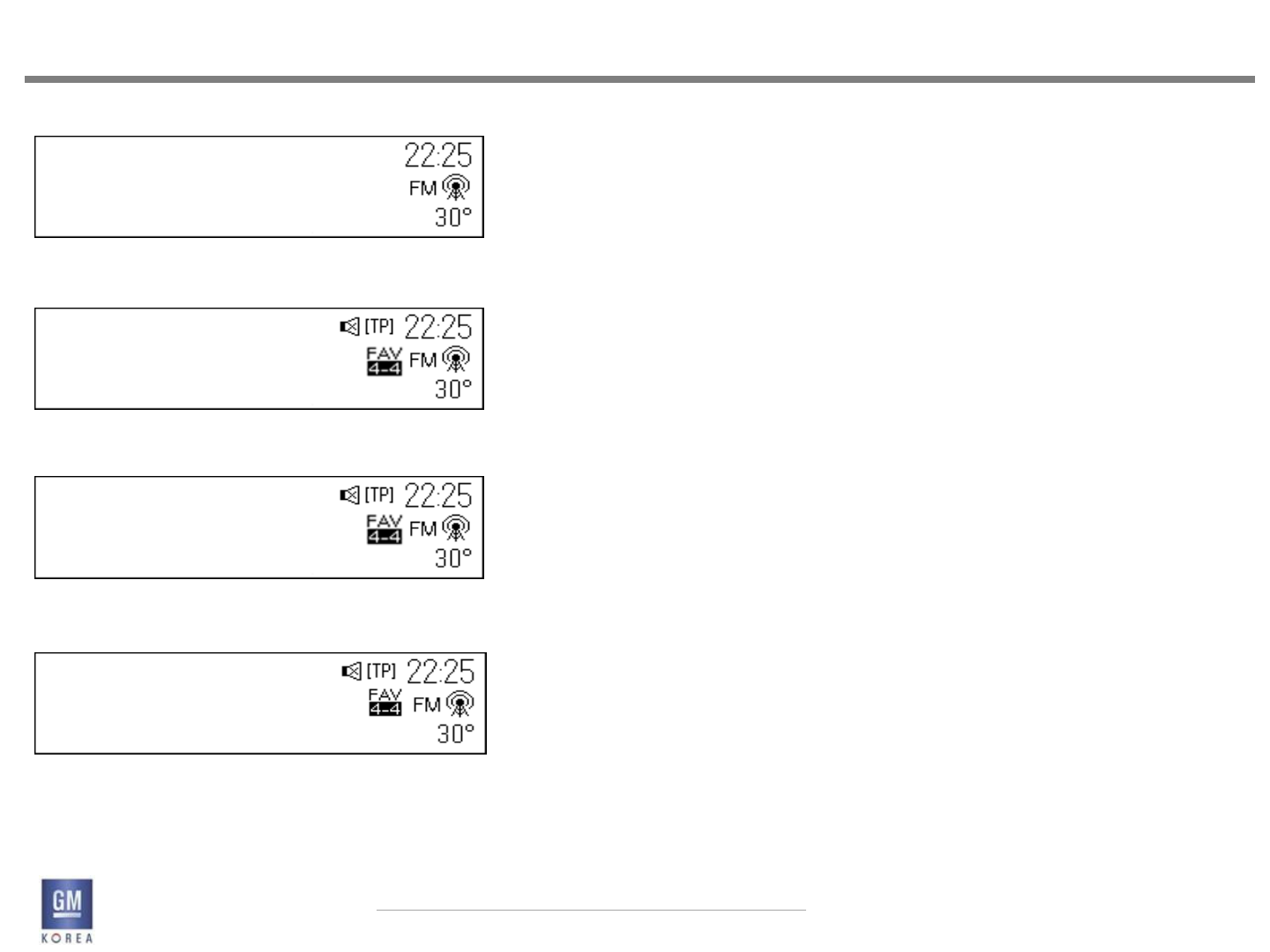

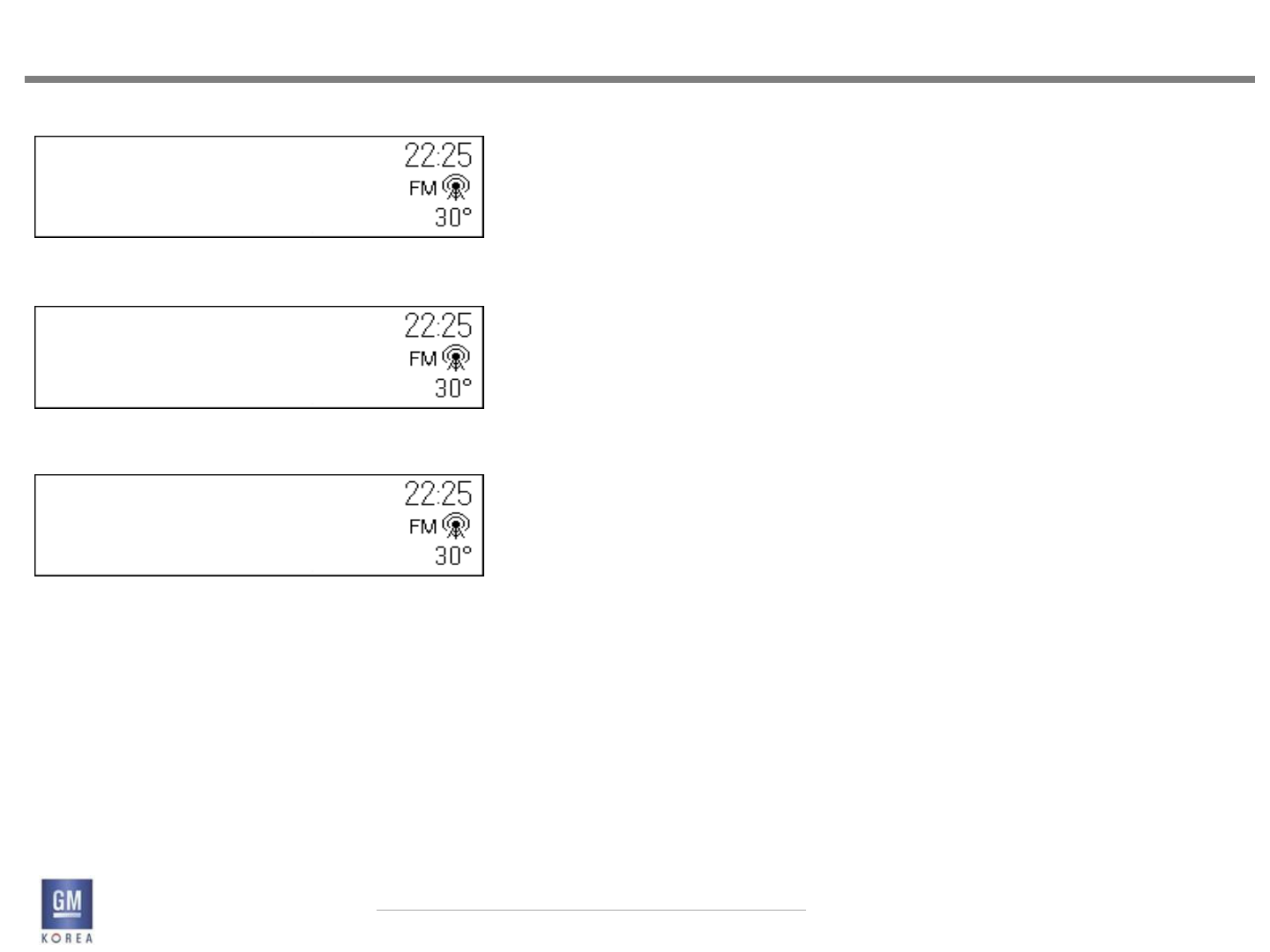

Figure 1.1.1 - FM Now Playing - uplevel faceplate configuration (example) 1.1 Overview

1.1.1 Radio

The Radio button cycles through the radio bands AM,

FM, and DAB in sequential order.

•Exceptions>

On the menu or FAV Page or Media/Phone Mode,

If the user presses the <RADIO>key,

system should be gone to the latest RADIO Band/Freq.

1.1.2 Media

The Media button cycles through the media sources

USB (mass storage device or media players such as an

iPod), SD, AUX, and Bluetooth Devices.

1.1.3 Seek Next/ Seek Previous

The arrows will perform seeking between strong stations

in broadcast sources and tracking next and previous

in media sources.

•Exceptions>

If the user presses the < - > key which means preset number

on the seeking, system should be recalled/tuned the preset

number.

1.1.4 Fav

Cycles through the users favorites in sets of four. This

button is located next to the preset buttons along the

bottom of the display.

1.1.5 Back

Allows the user to go back incrementally within a list

hierarchy or return to the Now Playing screen.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

1. HARDWARE

1.1.6 power

Turns the radio on and off.

•Power Key is operation as Mute On/Off when short pressing .

•Exceptions>

If Mute is On by Power Key,

this activation will be applied all of source(including TA) before

un-mute or volume-up by the user.

1.1.7 rotating power knob (Volume)

Adjusts the volume incrementally on the radio.

•Rotating power knob on the operating mode,

Volume is immediately decreased/increased per each step rotating.

•Exceptions >

During the Volume decrement changes in current Volume are

fundamentally possible by the User. However it is not allowed to

increment the volume above the calculated volume limit.

1.1.8 Menu

Enters in a source specific list of menu items from any

now playing screen. In list views, the menu button acts

as an enter press and selects items.

1.1.9 Rotating the menu knob

In broadcast now playing screens rotating the menu

knob will tune. In list screens rotating the menu knob

will scroll the highlight through list items.

EU radios will bring up a strong station list when the

menu knob is rotated.

1.1.10 Phone (2.1 F - uplevel system only)

Enters the user into the phone application screens.

1.1.11 Tone (2.0F - Base system only)

Enters the user into the tone settings screen.

Note: Only available in base faceplated radio version.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

1. HARDWARE

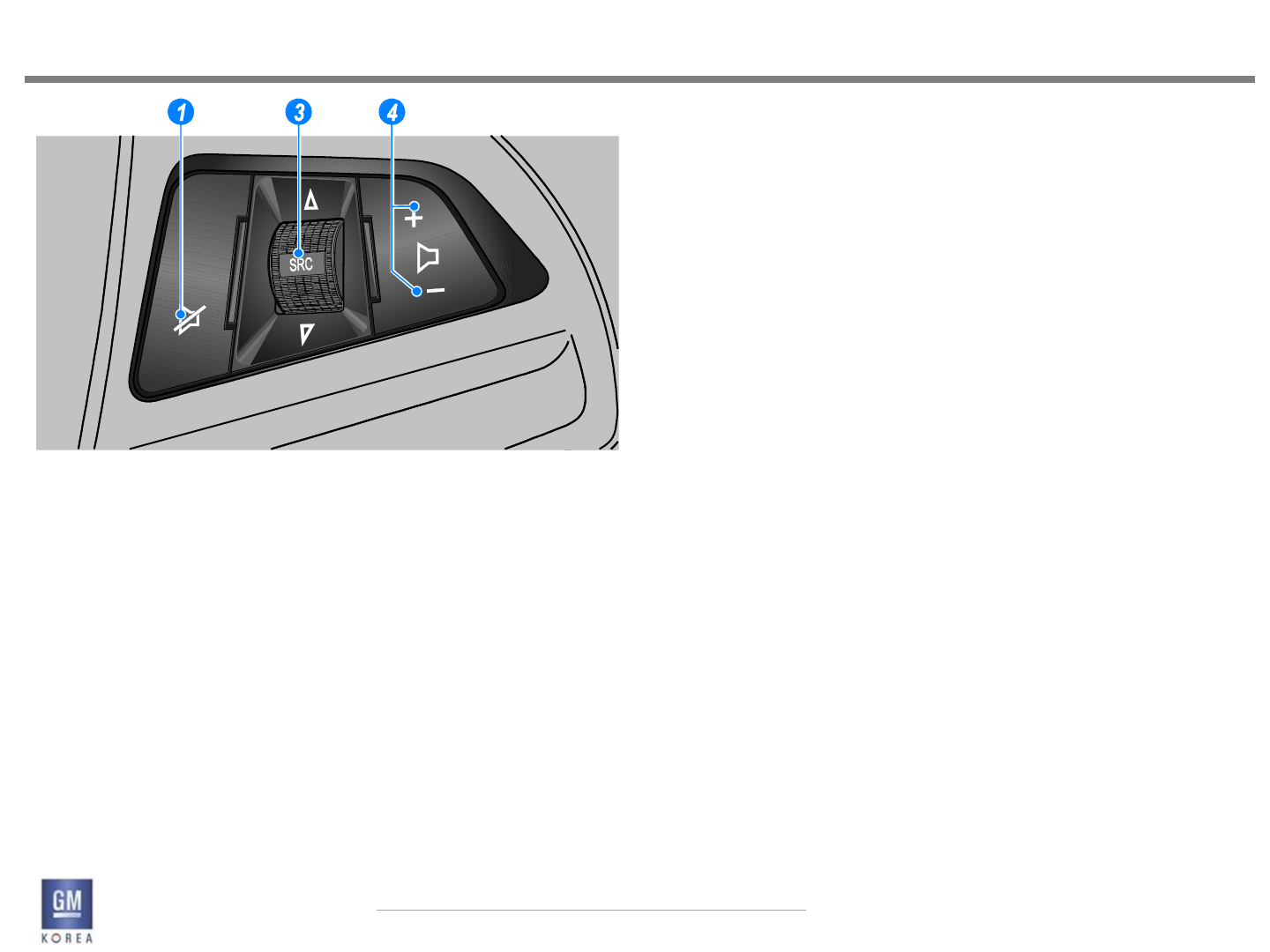

1.2 Steering Wheel Control Hardware

1.2.1 ACTION ON PRESS (Case1)

(1) Mute/Hang up button

•Press the button in any music play mode to turn the mute function on and off.

In engaged mode, you can press this button to reject calls to finish the call.

(3) Source [▽SRC△] button/dial (wheel)

•Press the button to select a sound play mode.

•Turn the dial to change the registered radio stations or change the music being

played.

(4) Volume buttons

•Press the + button to increase the volume, immediately.

•Press the - button to decrease the volume , immediately.

BUTTONS

1. Mute/Hang up button

3. Source [▽SRC△] button/dial (wheel)

4. Volume Up/ Down buttons

SWC (Case1)

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

1. HARDWARE

1.2 Steering Wheel Control Hardware

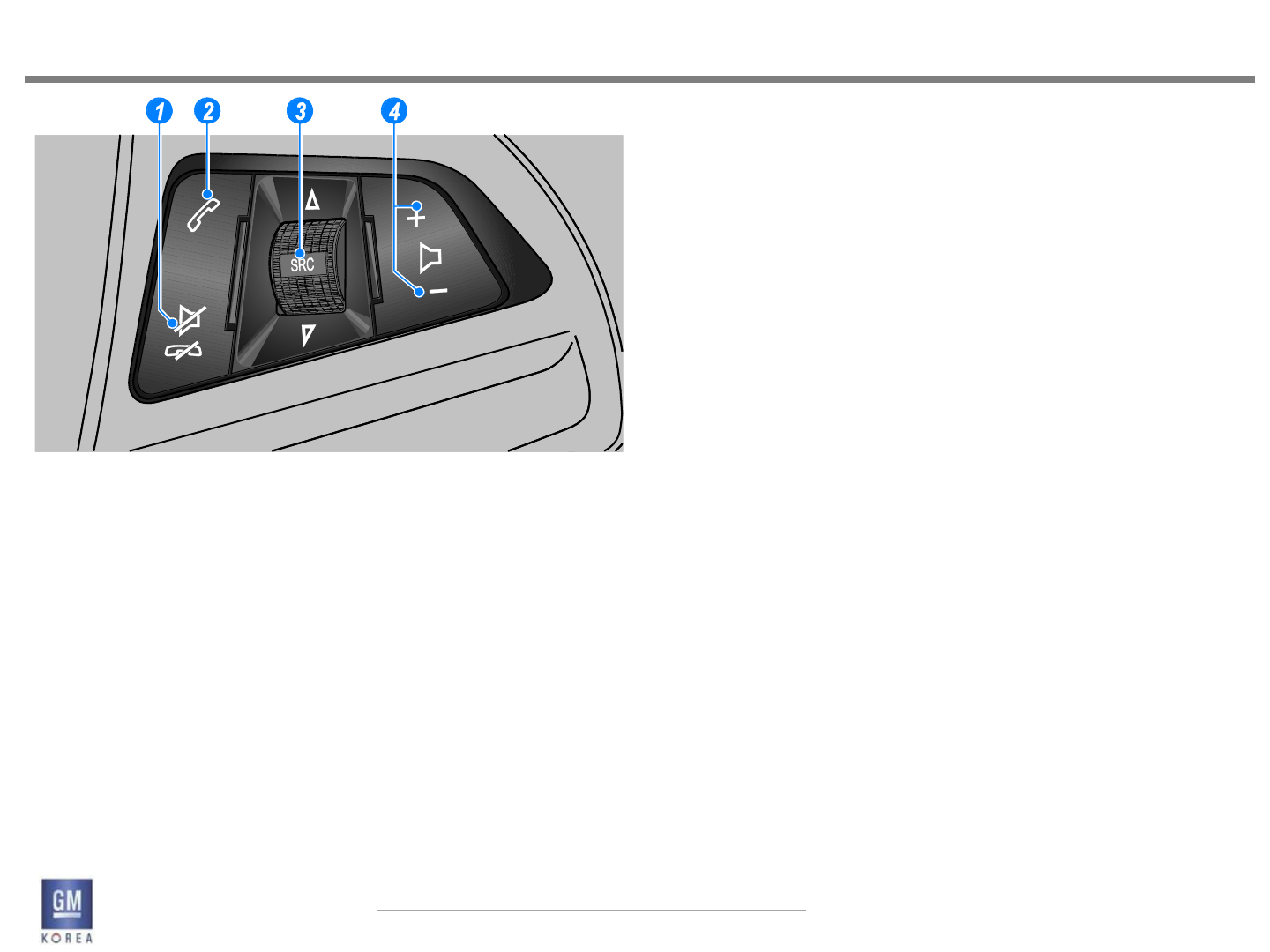

1.2.2 ACTION ON PRESS (Case2)

(1) Mute/Hang up button

•Press the button in any music play mode to turn the mute function on and off.

In engaged mode, you can press this button to reject calls to finish the call.

(2) Call Button

•Press the button to answer the call or enter the re-dial selection mode.

•Hold down the button to enter the dialed call log or to move back and forth from

hands-free mode and private call mode during a call.

(3) Source [▽SRC△] button/dial (wheel)

•Press the button to select a sound play mode.

•Turn the dial to change the registered radio stations or change the music being

played.

(4) Volume buttons

•Press the + button to increase the volume , immediately.

•Press the - button to decrease the volume , immediately.

SWC (Case2)

BUTTONS

1. Mute/Hang up button

2. Call button

3. Source [▽SRC△] button/dial (wheel)

4. Volume Up/ Down buttons

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

1. HARDWARE

1.2 Steering Wheel Control Hardware

1.2.3 ACTION ON PRESS (Case3)

(1) Mute/Hang up button

•Press the button in any music play mode to turn the mute function on and off. In

engaged mode, you can press this button to reject calls to finish the call.

•When Siri was activated,

this key (Short Press)should be cancel the Siri

(2) Phone and push to talk (PTT)

•Press the button to answer the call or enter the re-dial selection mode.

•Press and Hold the button to enter the siri (Voice Command))

(3) Source [▽SRC△] button/dial (wheel)

•Press the button to select a sound play mode.

•Turn the dial to change the registered radio stations or change the music being

played.

(4) Volume buttons

•Press the + button to increase the volume , immediately.

•Press the - button to decrease the volume , immediately.

SWC (Case3)

BUTTONS

1. Phone and push to talk (PTT)

2. Mute/Hang up button

3. Source [▽SRC△] button/dial (wheel)

4. Volume Up/ Down buttons

2 1 3 4

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

2. INTERACTIONS

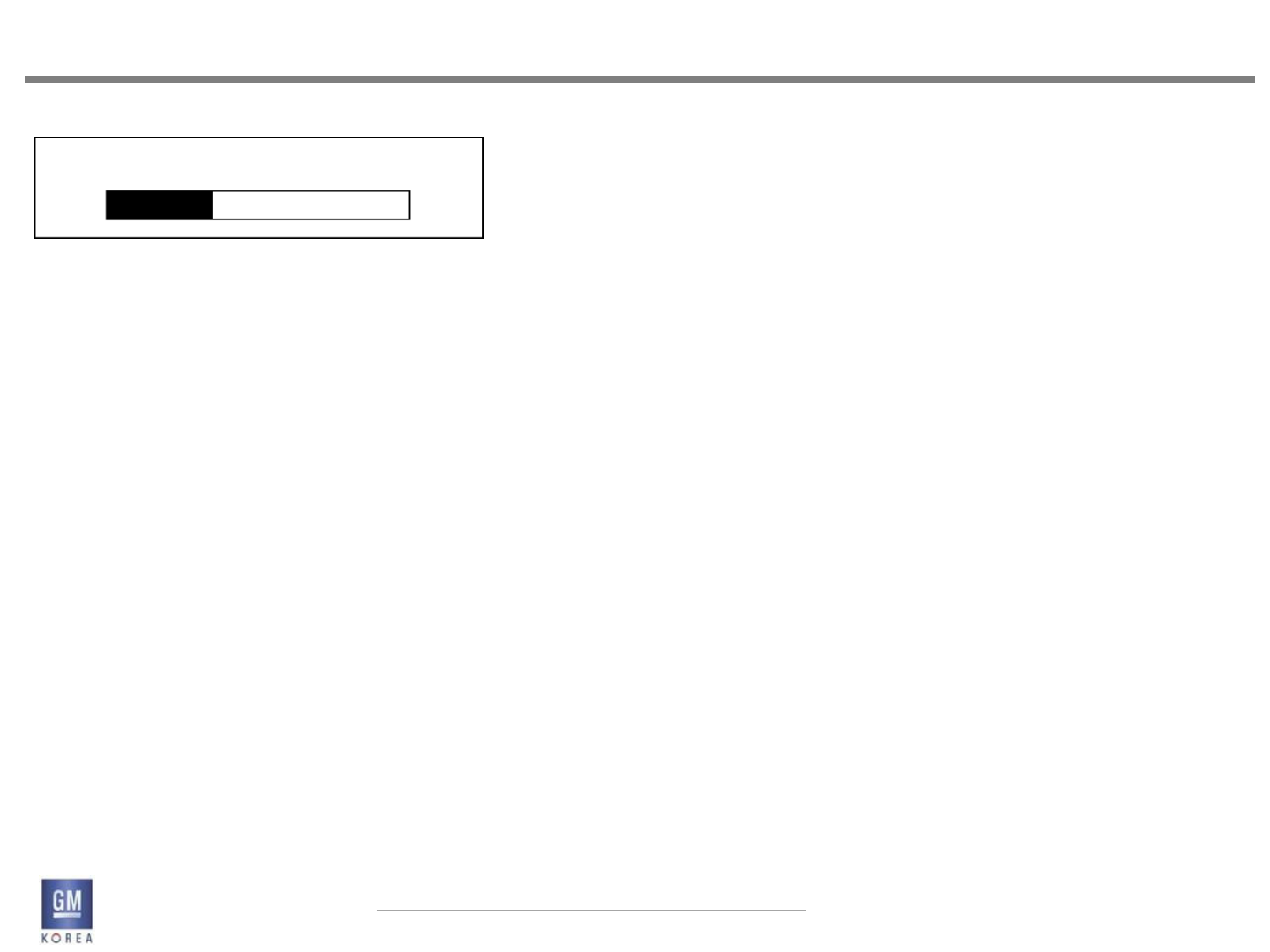

Figure 2.1.1 - Maximum Startup Volume setting screen 2.1.1 Press and Hold

Users can Press and Hold certain faceplate switches

elements to perform specific functions such as to store a

favorite or fast seek.

Details of Press and Hold gestures, including specific

hold durations for an action to be executed, are described

in the application sections where they are used.

A Press and Hold is performed by pressing a switch with

a finger and holding that location for longer than 1000-

1500 ms. The hold duration is calibratable with a default

setting of 1250 ms.

2.1.2 Rotate

Users can rotate the rotary-push knob to perform such

functions as tuning the radio or scrolling lists.

2.1.3 Volume

Users adjust the volume of the audio system, phone,

etc. by rotating the volume knob on the faceplate.

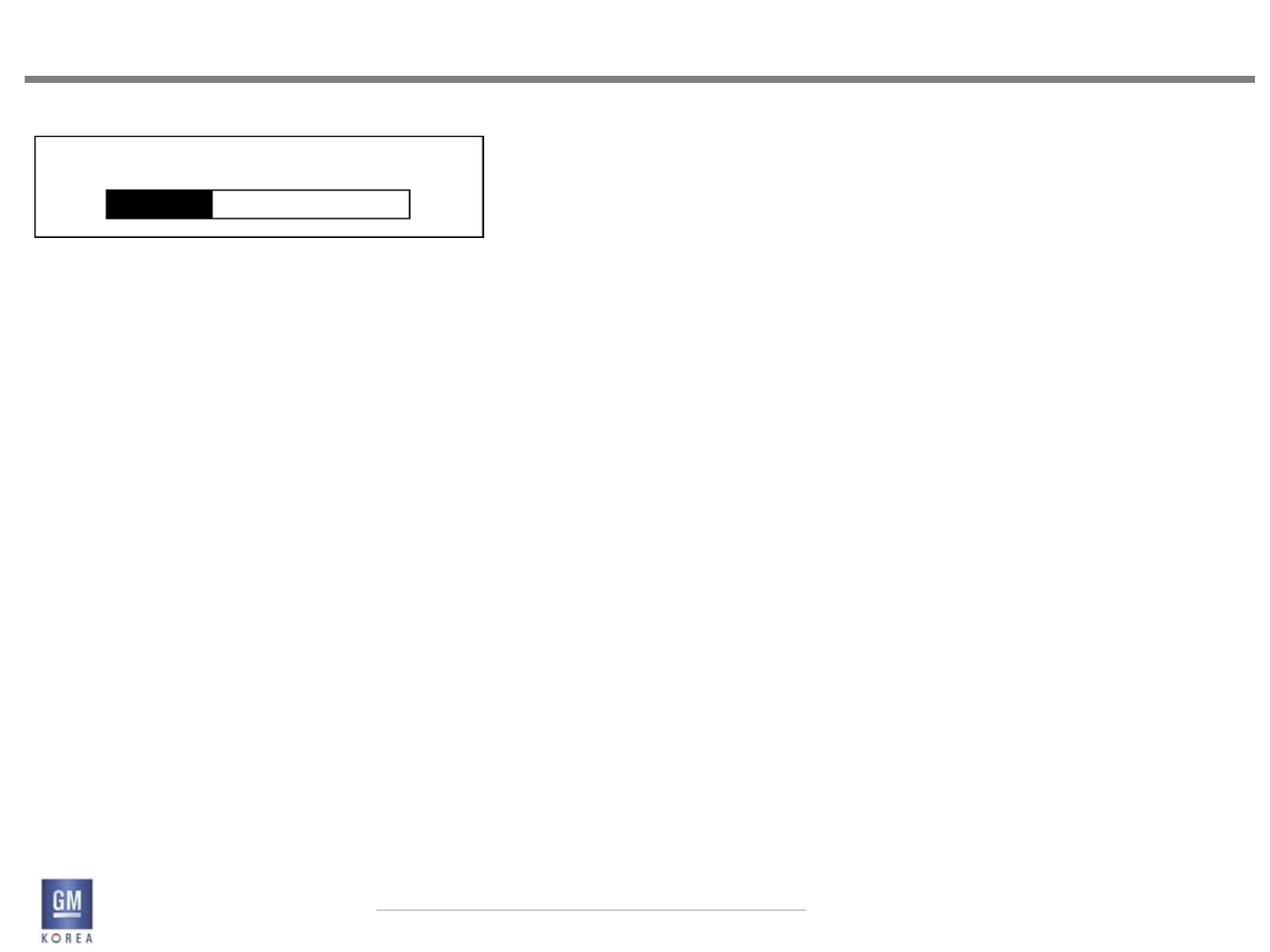

2.1.4 Maximum Startup Volume

This setting is found in the audio menus and titled

Maiu “tatup Volue.

The maximum startup volume is the volume

that the system will be decreased to at startup, if the

volume was above this set level at shutdown. If the volume

is at o elo this olue at shutdo, the uses

previously set volume level will be retained.

This setting is adjusted by using the tune knob while in

the max startup volume view as shown in Figure 2.1.1. It

will have a lower limit threshold as defined by the radio

calibrations..

Maximum Startup Volume

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

2. INTERACTIONS

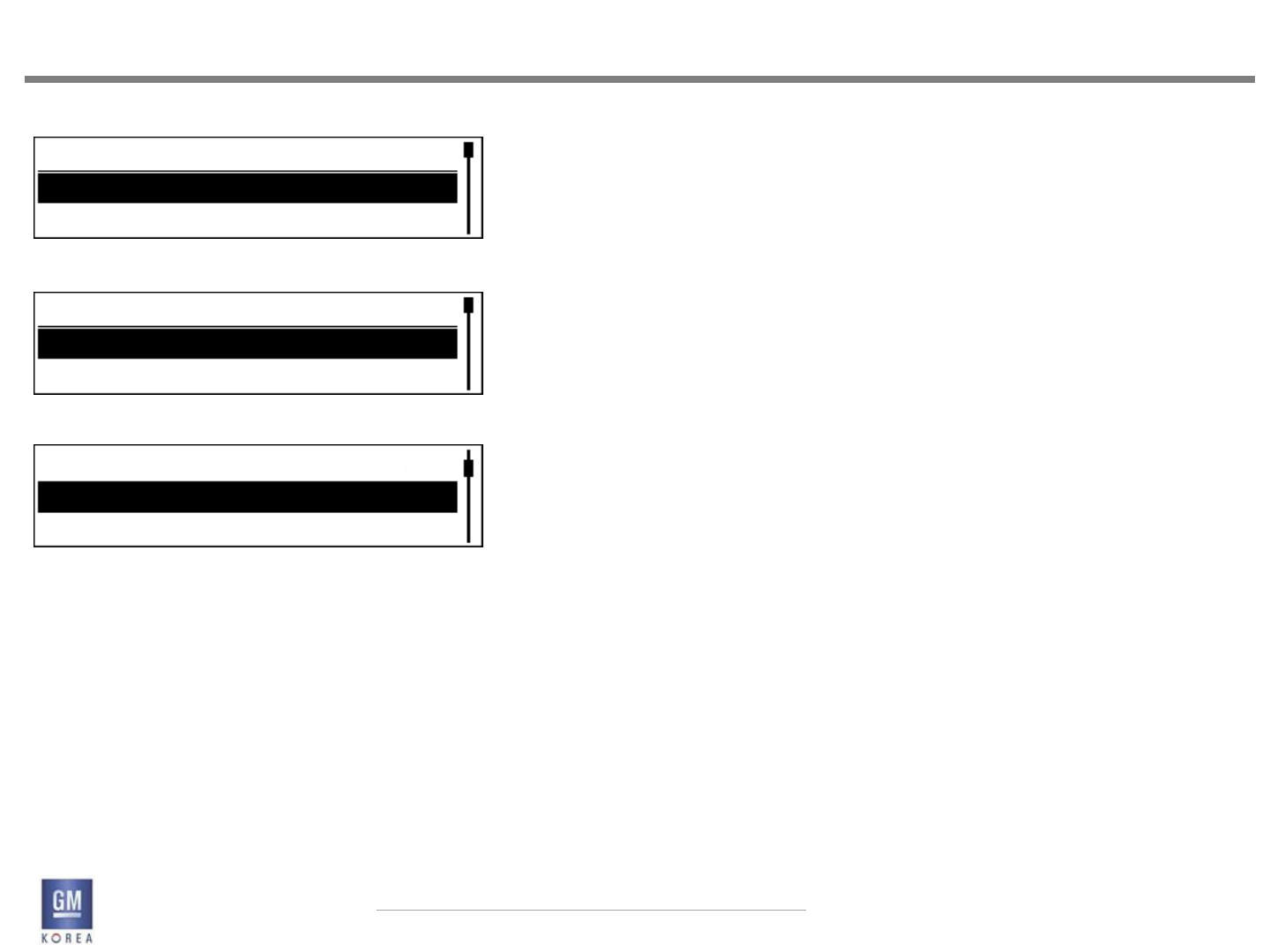

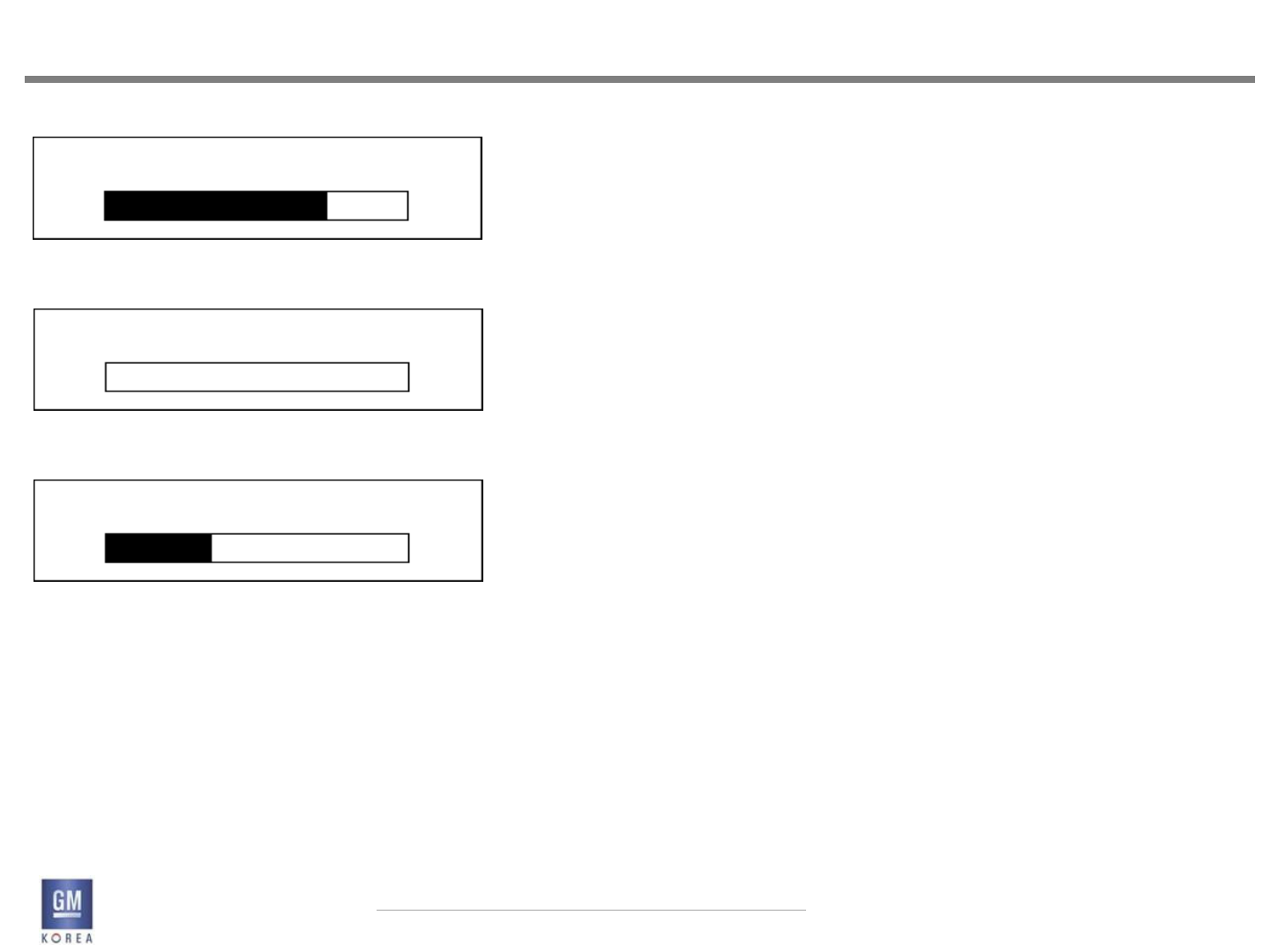

Figure 2.1.2 - Audio Playback Volume 2.1.5 Audio Playback Volume

The main audio channel plays broadcast audio and

media playback audio, referred to here as Audio

Playback Volume. Users can use the volume control on

the faceplate to adjust the Audio Volume through

the full range of volume settings from 0 to Max (e.g., 63

steps).

When the volume is set to zero, it is not considered as

equivalent to mute mode.

If the user attempts to adjust volume while the system

is muted, the view shown in Figure 2.1.3 is shown. The

details of placing the system in mute mode is found in

section 2.1.8.

2.1.6 Phone Volume

The phone audio channel plays the phone and advisor

phone audio. Users can use the volume control on the

faceplate to adjust the Phone Volume while in an active

phone call through the range of volume settings

from a zero to Max (e.g., through volume steps 0-63).

There is a minimum startup volume each time the

phone audio channel is sourced. The emergency phone

audio channel plays the emergency phone audio. This is

different from the normal phone audio channel in that

it has a defined minimum volume setting below which

the users can not go and its minimum startup volume

is different (i.e., greater than the phone audio channel

startup volume).

Audio Volume

Figure 2.1.2 - Audio Playback Volume

Audio Volume

MUTE

Figure 2.1.2 - Audio Playback Volume

Phone Volume

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

2. INTERACTIONS

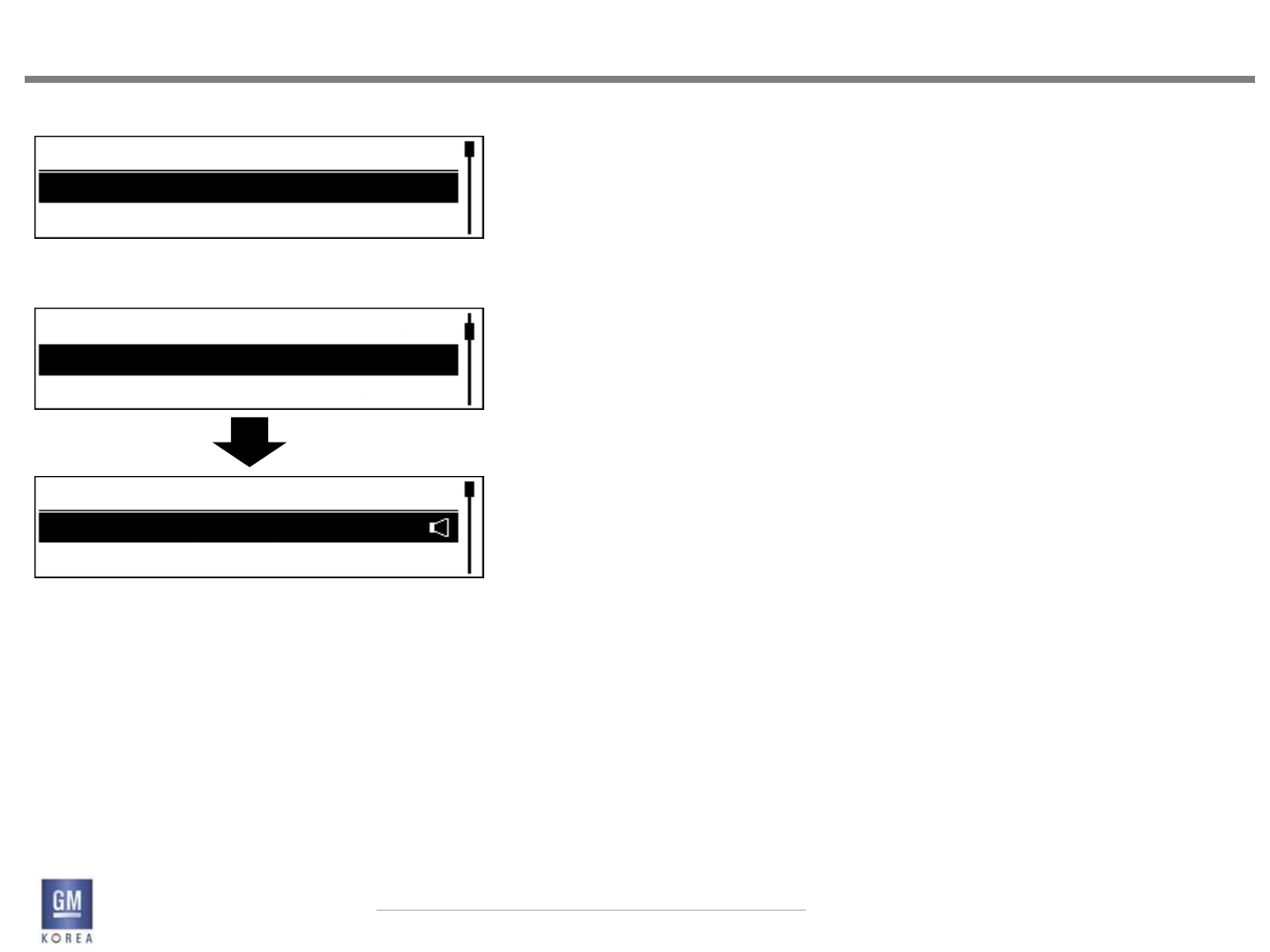

Figure 2.1.5 – System mute mode by short press of volume button 2.1.7 Ring Tone Volume

The Ring Tone audio channel plays the audio associated

with the following:

• ioig all ig toes.

Users can use the volume control on the faceplate to

adjust the Ring Tone Volume while the Ring Tone is being

played through the range of volume settings from a

defined minimum to Max.

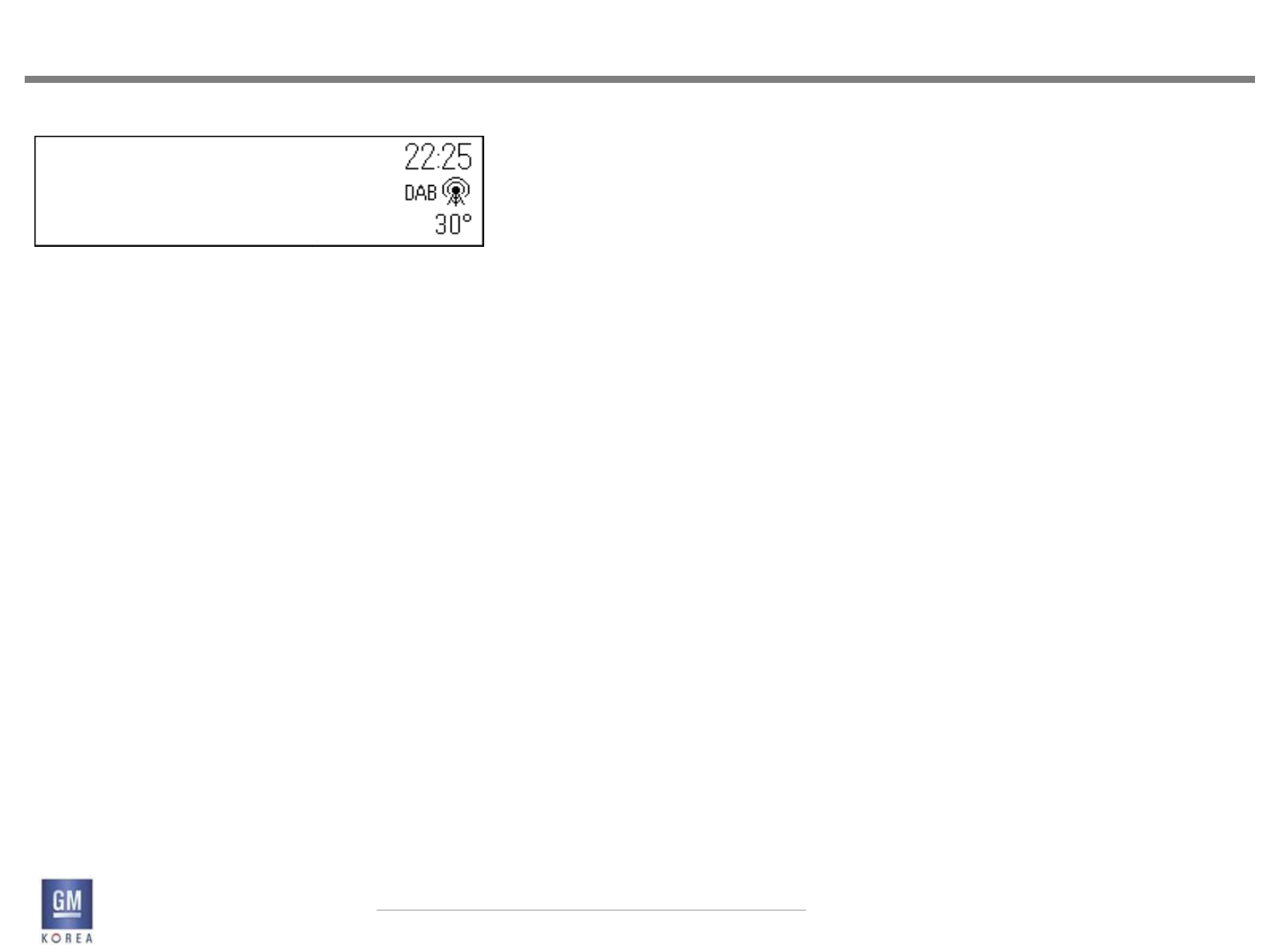

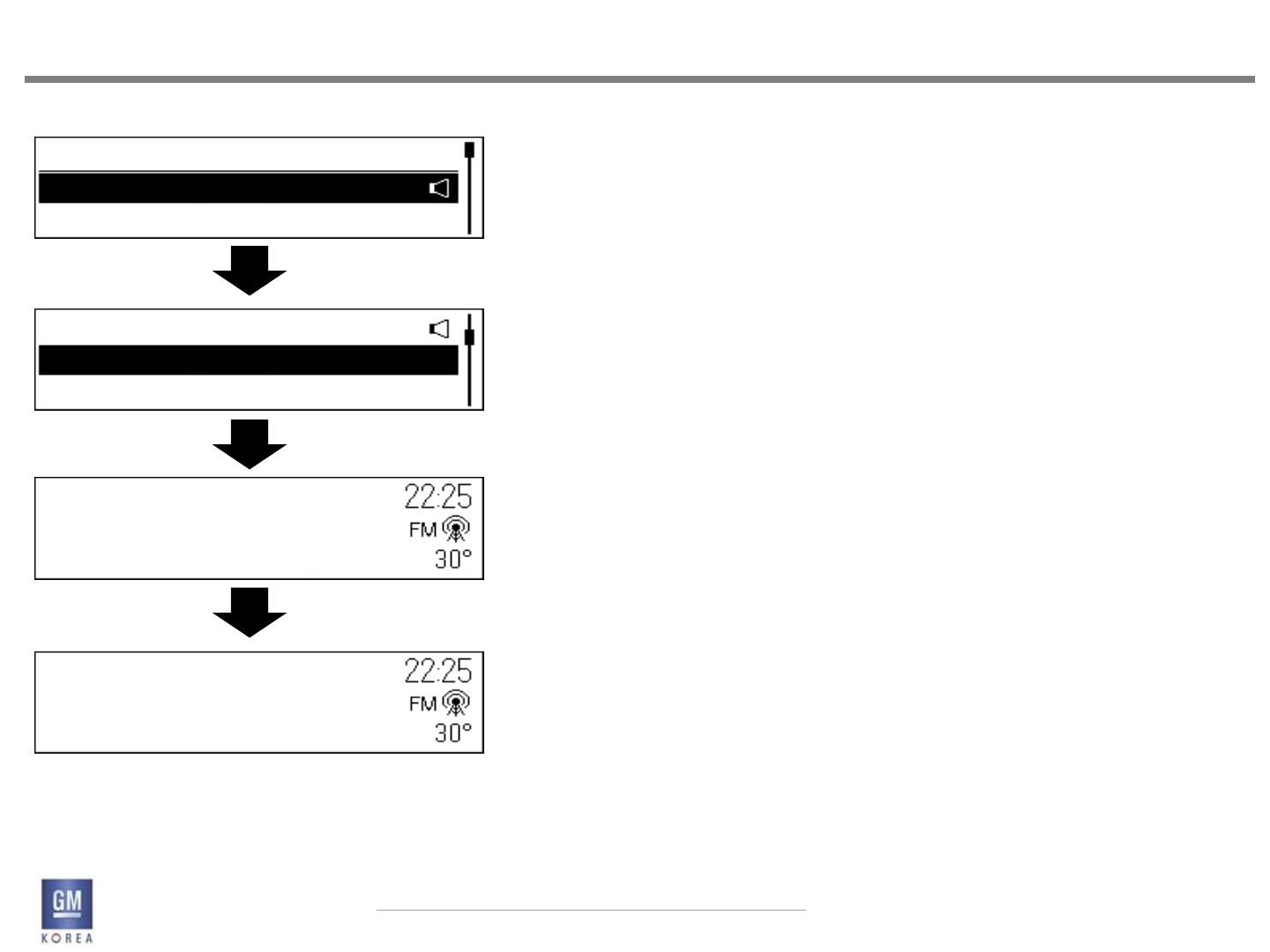

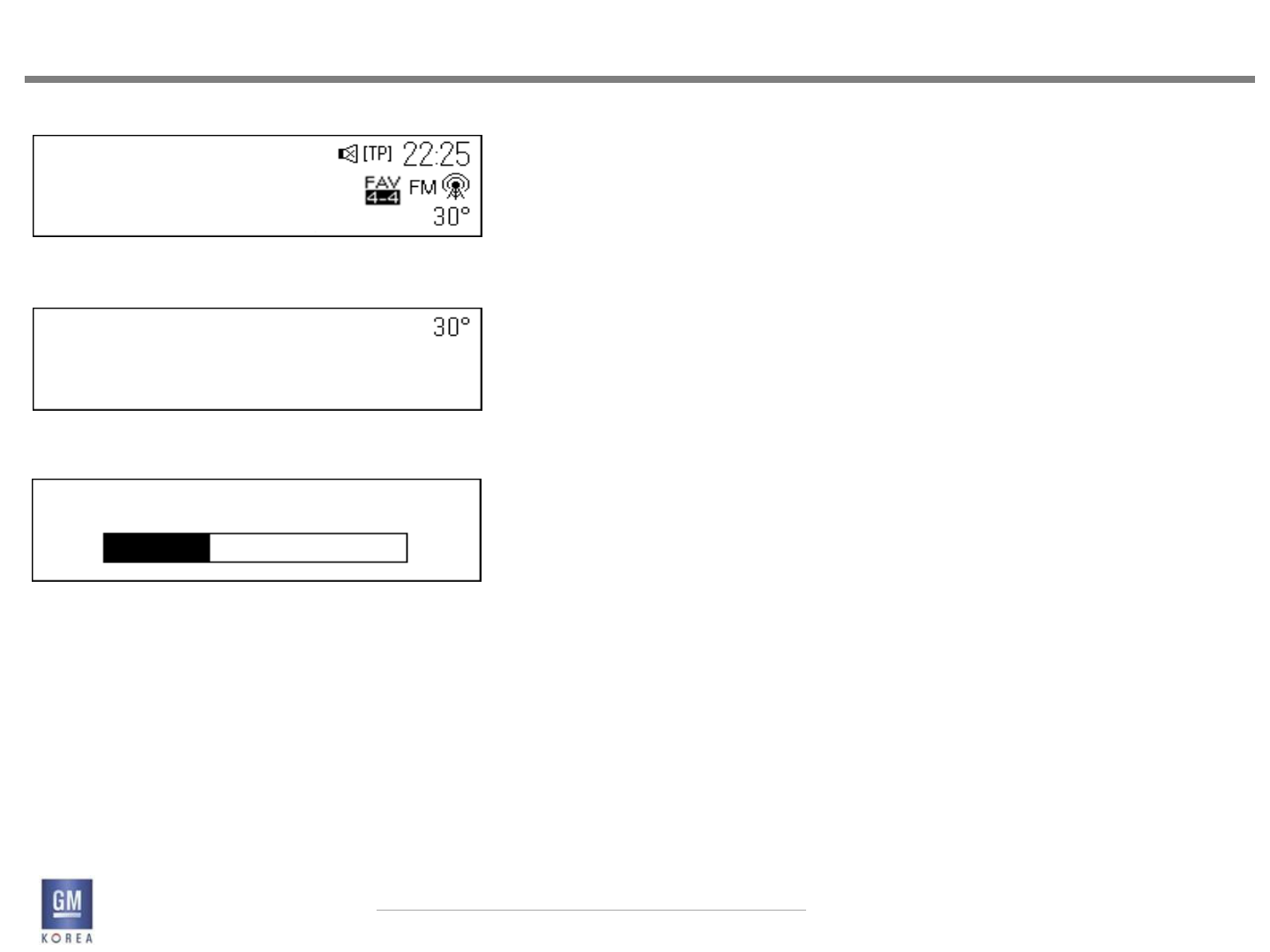

2.1.8 Power On/OFF Behavior

A single press of the power button will mute the audio

while displaying a mute symbol in the status area. A

press and hold will turn the system off and display the

clean screen as shown in the wireframe.

This full screen is shown when the user powers off the

Infotainment system (only shown when the vehicle is

powered on).

•T.O.D(Time of Date)

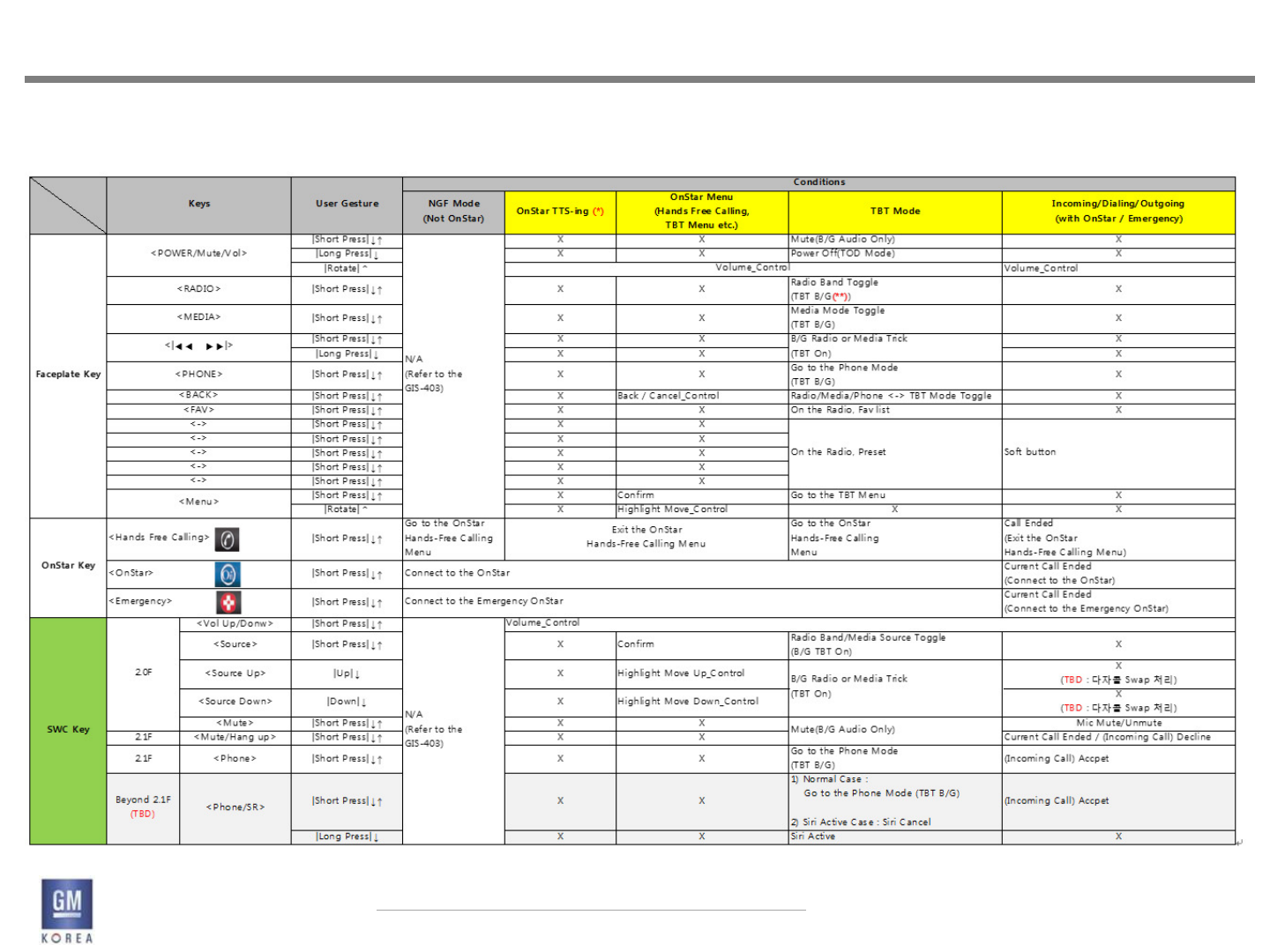

1) Key Input

If the user presses the <POWER>key, System should be ON.

it also should be operated by SWC : <Source> key

- Exception : If system is ON,

the status of mute(Volume) should be returned

to the un-mute .

2) Source Input (USB, SD, AUX, B/T)

If the some source is connected/inputted on the T.O.D,

System should be waked up/operated the mode

as plug and play.

But, If this connection/Input is un-connected/removed,

System should be gone to the T.O.D Mode.

(However, If the user operates to change the source/mode,

System should not be gone to the T.O.D Mode.)

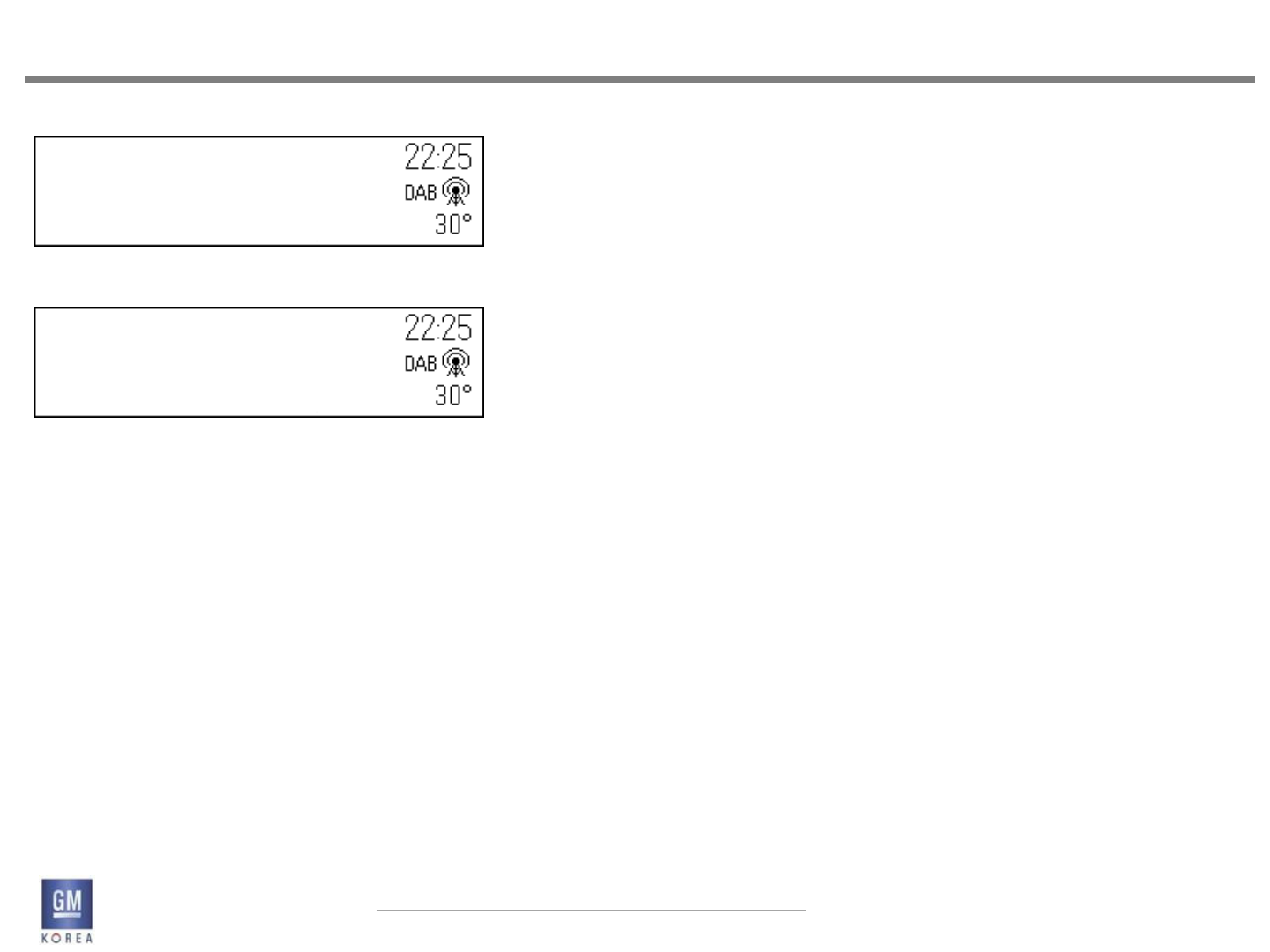

Figure 2.1.6 – Off Mode with clean Screen

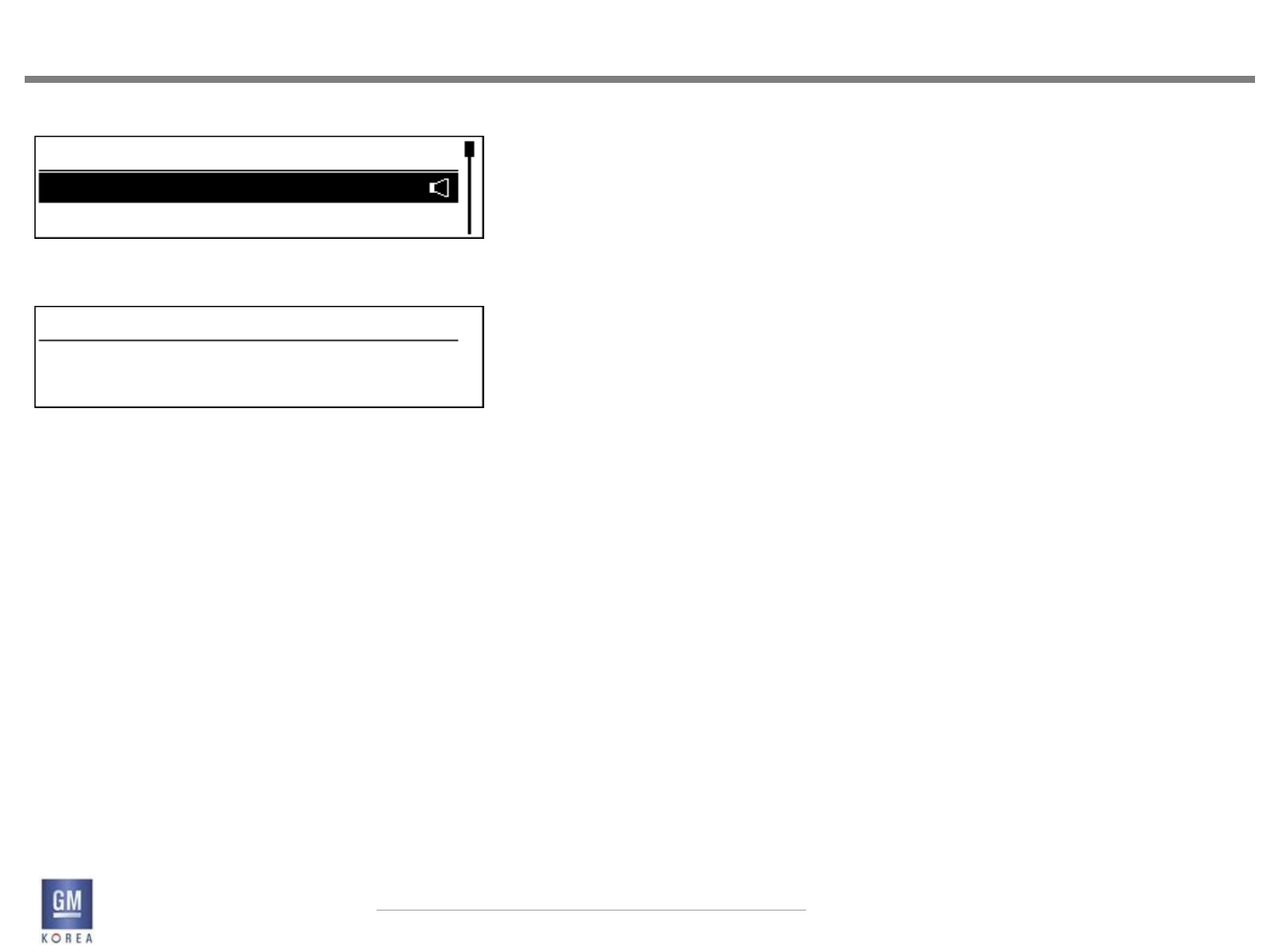

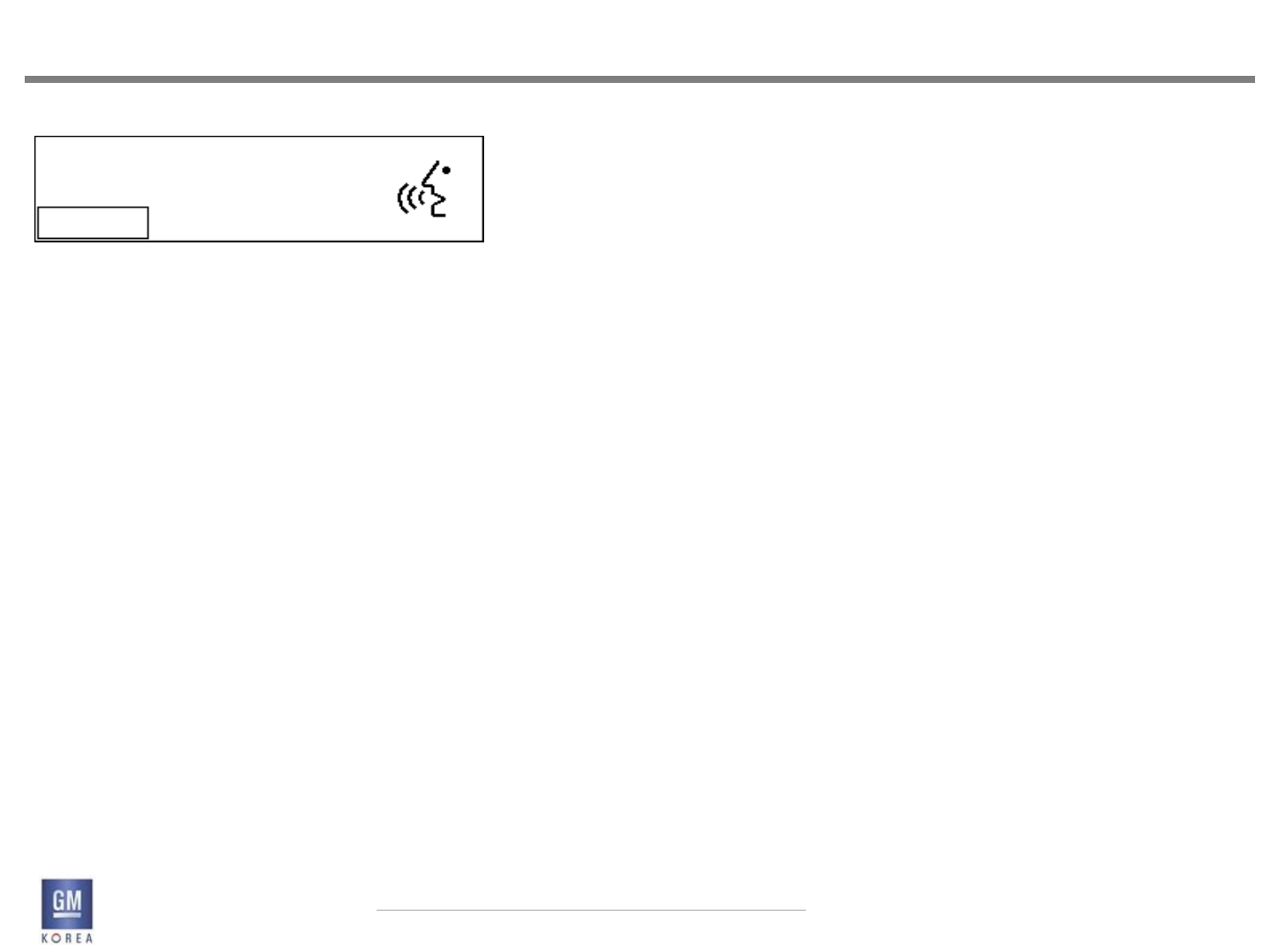

Figure 2.1.7 - Ring Tone Volume

2014.DEC.17

PlntRock

Now Playing on Planet

Rock is music from The …

12:30

Ring Tone Volume

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

2. INTERACTIONS

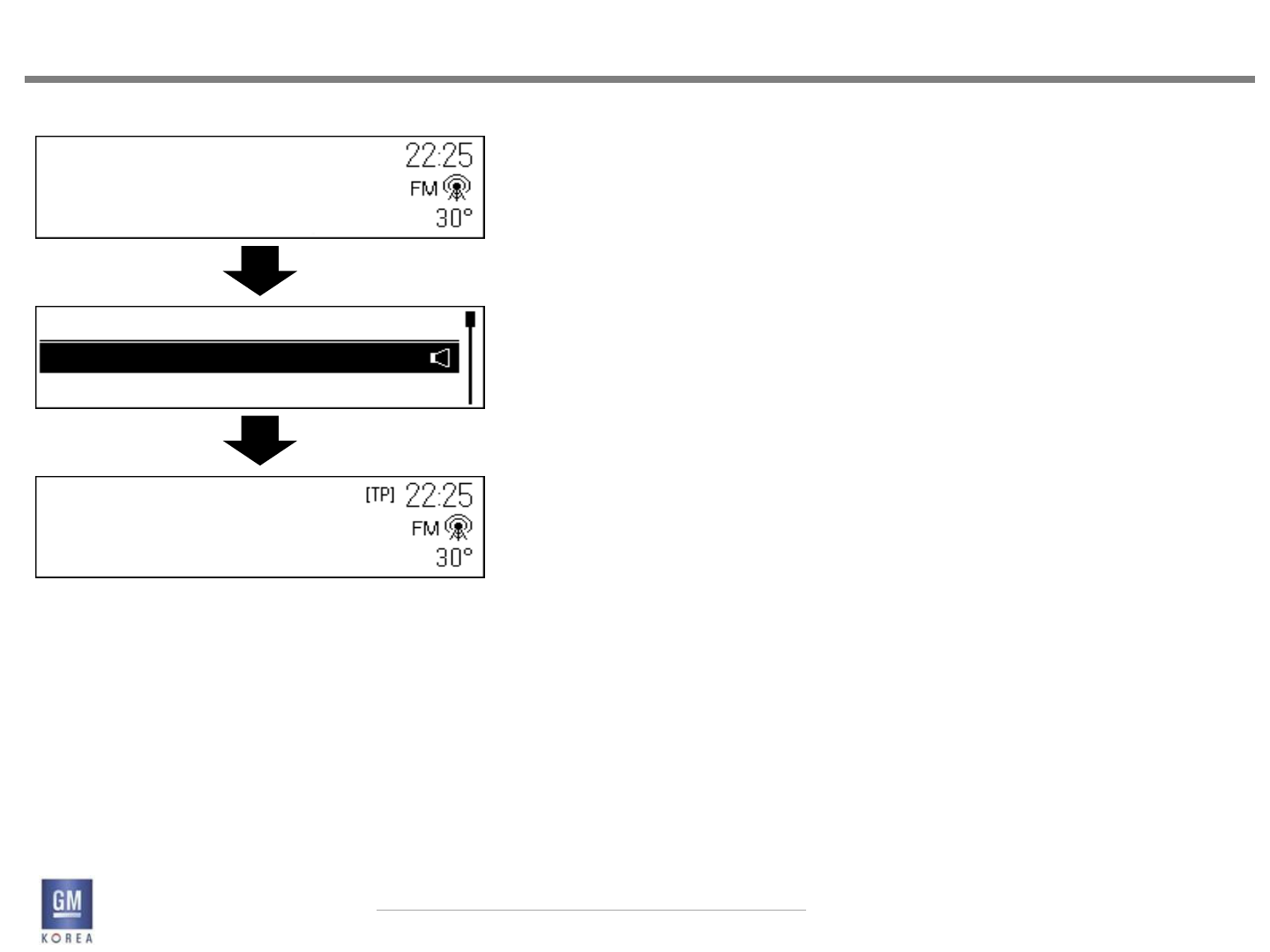

3) Interrupt B/T Phone, Message

When incoming(with text message), outgoing call is occurred,

System should be waked up/operated this interrupt action.

Also, if this interrupt action will be ended,

System should be gone to the T.O.D Mode.)

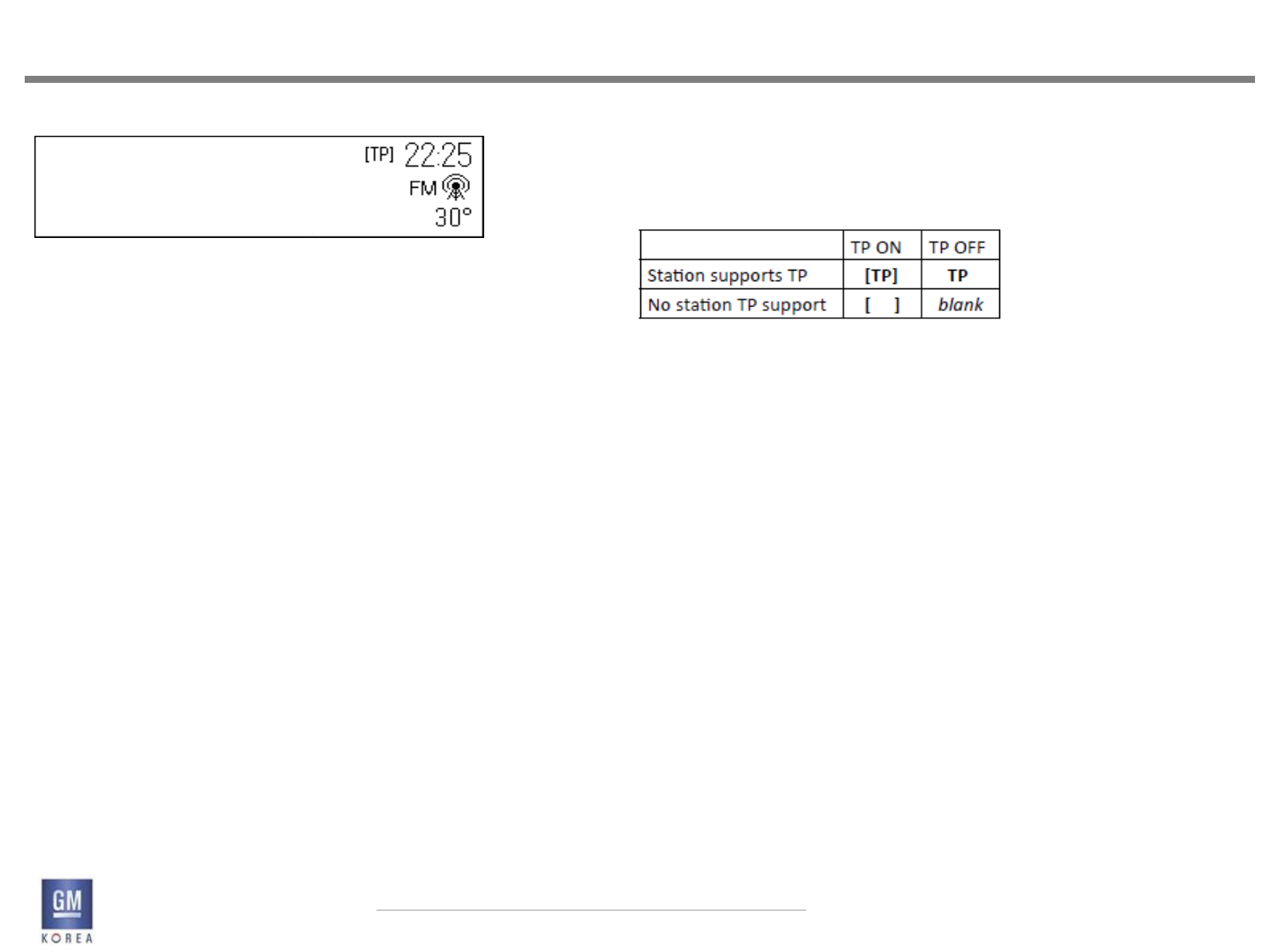

4) Traffic Alert

On the T.O.D Mode,

System ignores/does not process this Interrupt.

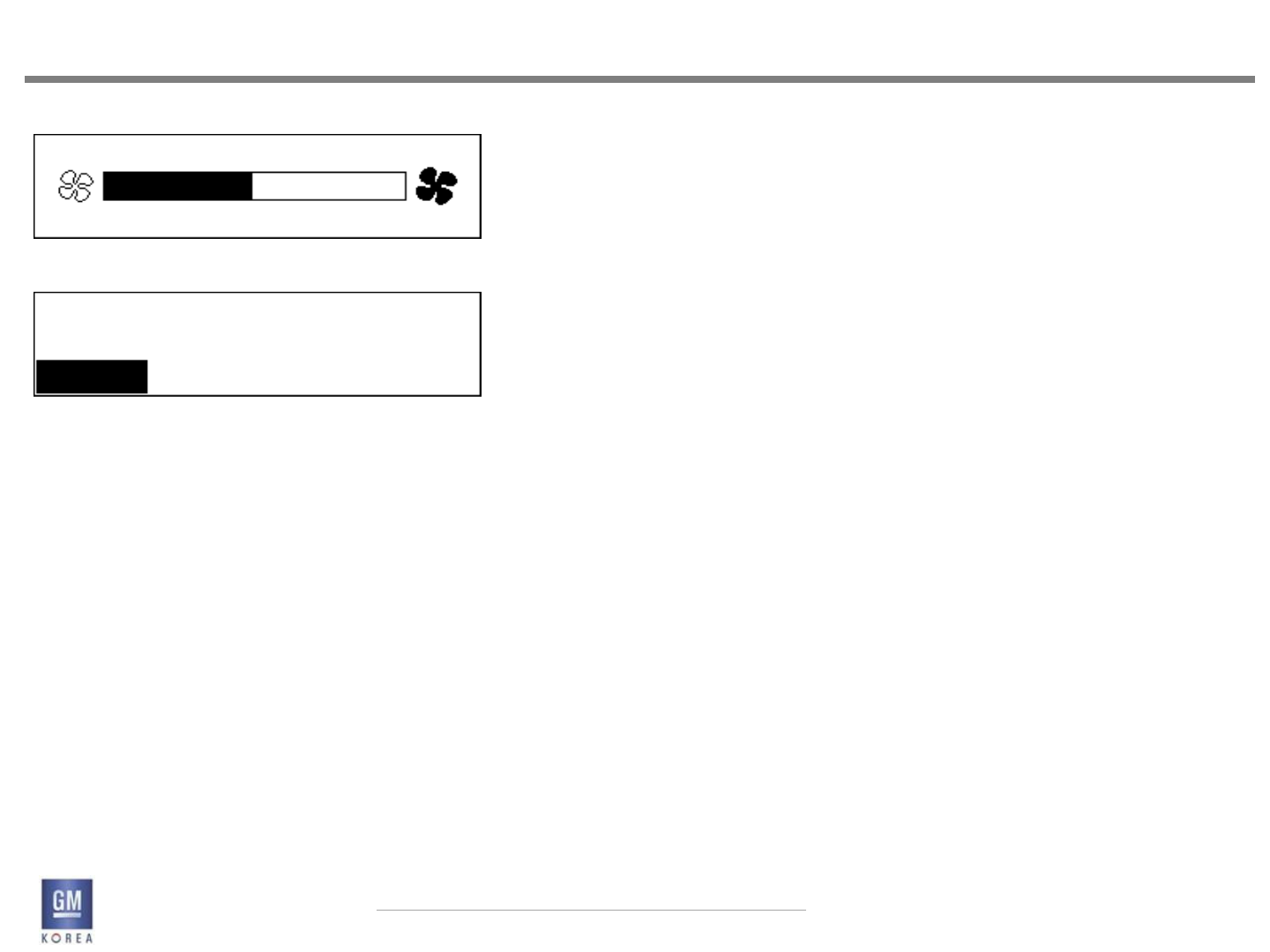

5) HVAC Control

If the user controls the HVAC, System should be

displayed/control the HVAC.

If o eet hih is uses otol is oued duig se,

System should be gone to the T.O.D Mode .

2.1.9 Font

•No Fonts

On the RDS/DAB Now Playing or Media Now playing or

Phonebook name/ address/etc.,

If sste does ot hae these odes eta dataUiode,

System should be displayed *.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

3. FAVORITES

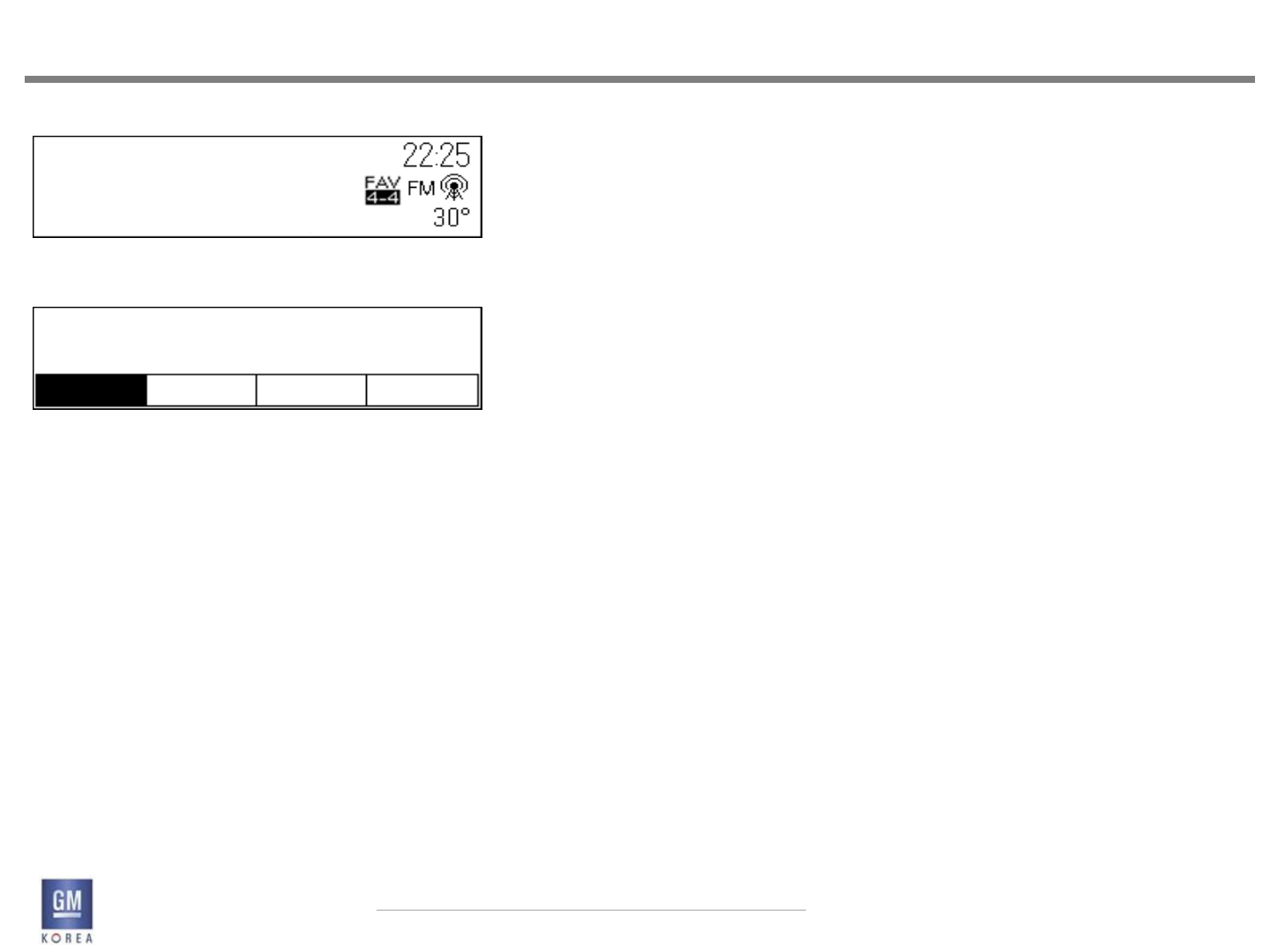

Figure 3.1.1 - Favorites inactive during now playing 3.1 Favorites Area Elements

The Favorites region contains all the Favorites that have

been stored by the user. The purpose of the Favorites

Area is for quick access to a user preset item by pressing

the desired Favorite buttons. The favorites are accessed

by pressing the FAV button on the faceplate.

3.1.1 Storage Limit

The maximum number of Favorites that a user can store

is 24.

3.1.2 Empty Favorites

Favorites spaces without stored information are shown

as outlined boxes with the number position of the Favorite

(1 through 24) indicating to the user that a Favorites

may be stored in that location.

The tuner Silverbox may have default Favorites calibrated

to it. When these defaults are calibrated to zero, the

Favorite for this location should be shown as empty.

3.1.3 Active Favorite Indication

An active Favorite will be shown as active through color

coding / shading.

3.1.4 Favorites Bar

The Favorites bar serves as the separation between

the Favorites region and the remaining display area.

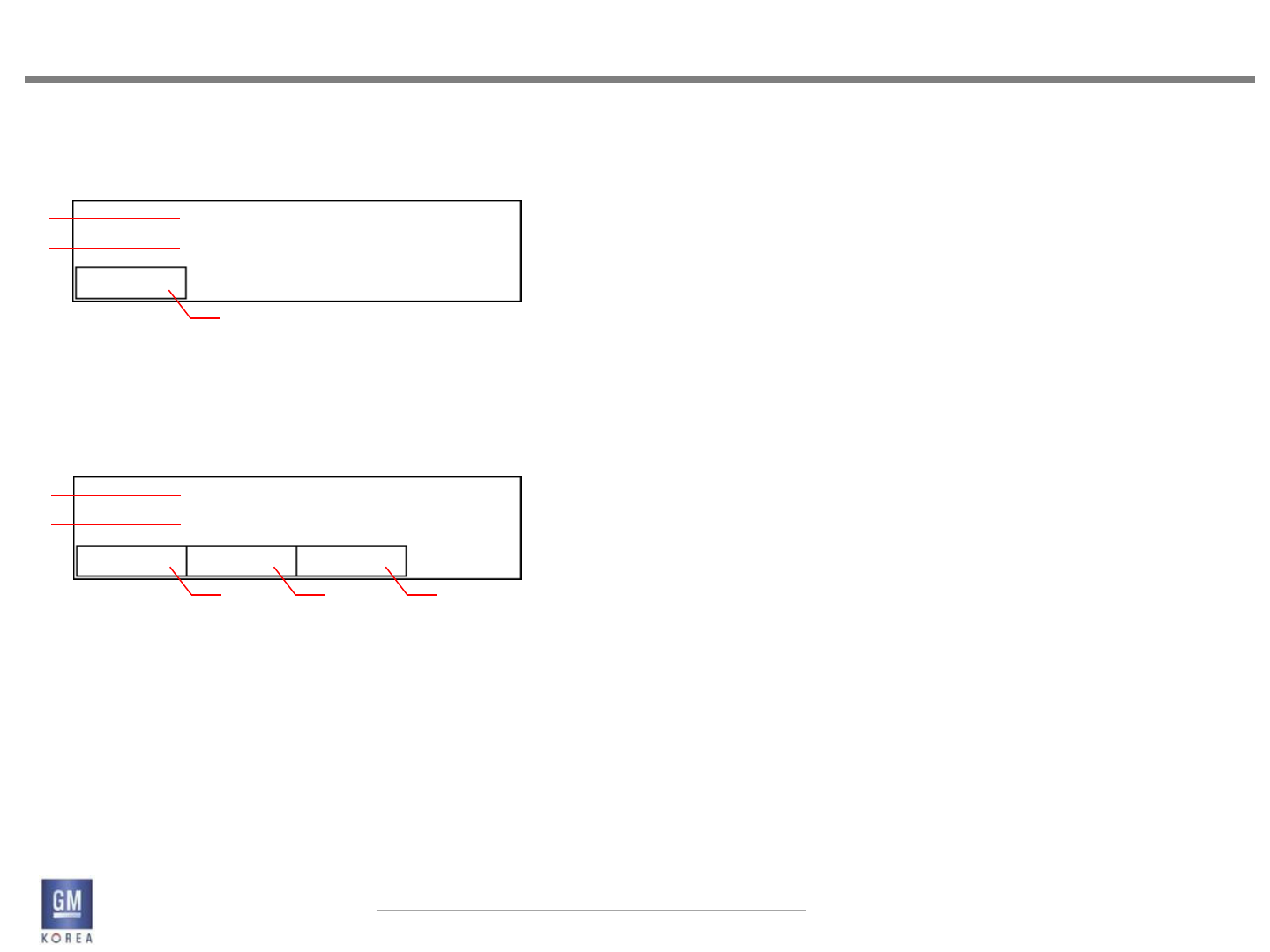

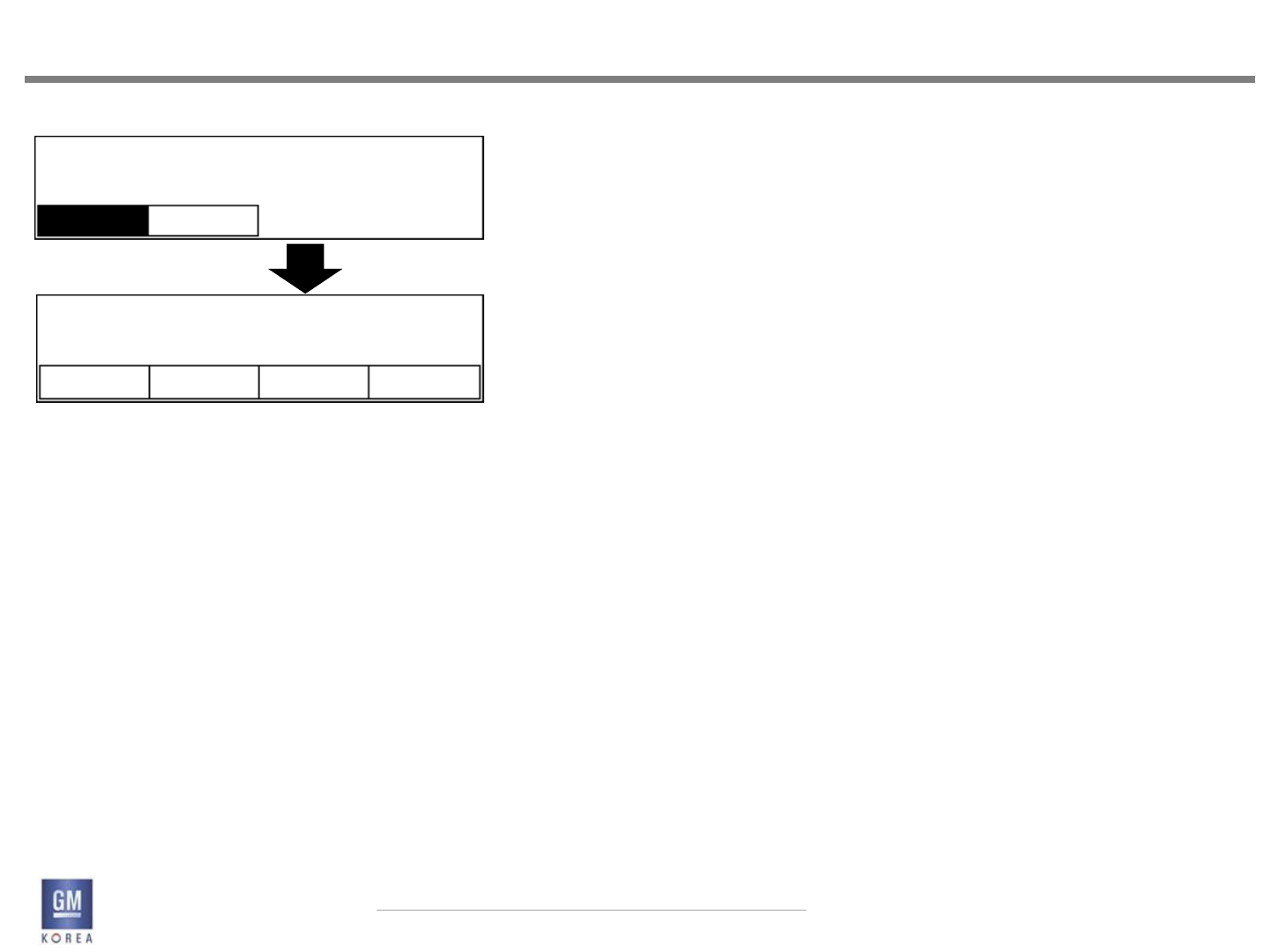

Figure 3.1.2 - Favorites revealed after FAV button pressed

2014.Mar.17

PlntRock

Now Playing on Planet

Rock Is music from The …

12:30

Favorites Page 1 of 3

1130 HR4 87.5 108.0

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

3. FAVORITES

Figure 3.1.3 - Favorites active view with favorite indication 3.1.5 Page Indicator

Since there may be many pages (up to 6) of stored

Favorites, a text indication is provided to indicate where

the current Favorites page is relative to the dynamic

total number of Favorites pages that the user has available.

The page indication is determined by the most

recently selected favorite. If this information is not available,

the favorites page view defaults to page 1.

3.1.6 Paging Through Additional Favorites

The user pages through all of their stored Favorites by

using the FAV button on the faceplate. When paging

forward and the end of the stored Favorites is reached,

a row of empty Favorites is displayed to allow the user

to save additional Favorites.

The next page forward by the user causes the list to

wrap to the beginning of the Favorites list. The user may

also set a fixed number of favorites pages to be visible

in the Settings, in which case, the favorites list will wrap

after the set favorite page number has been reached.

The favorite highlight can also be moved between favorite

pages by using the rotary menu knob.

For example, if the user rotates the menu knob, the

highlight oes fo Plt ‘ok o page  to  o

page2.

Note: by using the FAV button the faceplate there is no

highlight used unless the active station is on the selected

page or a user selects a new favorite for the page in

view.

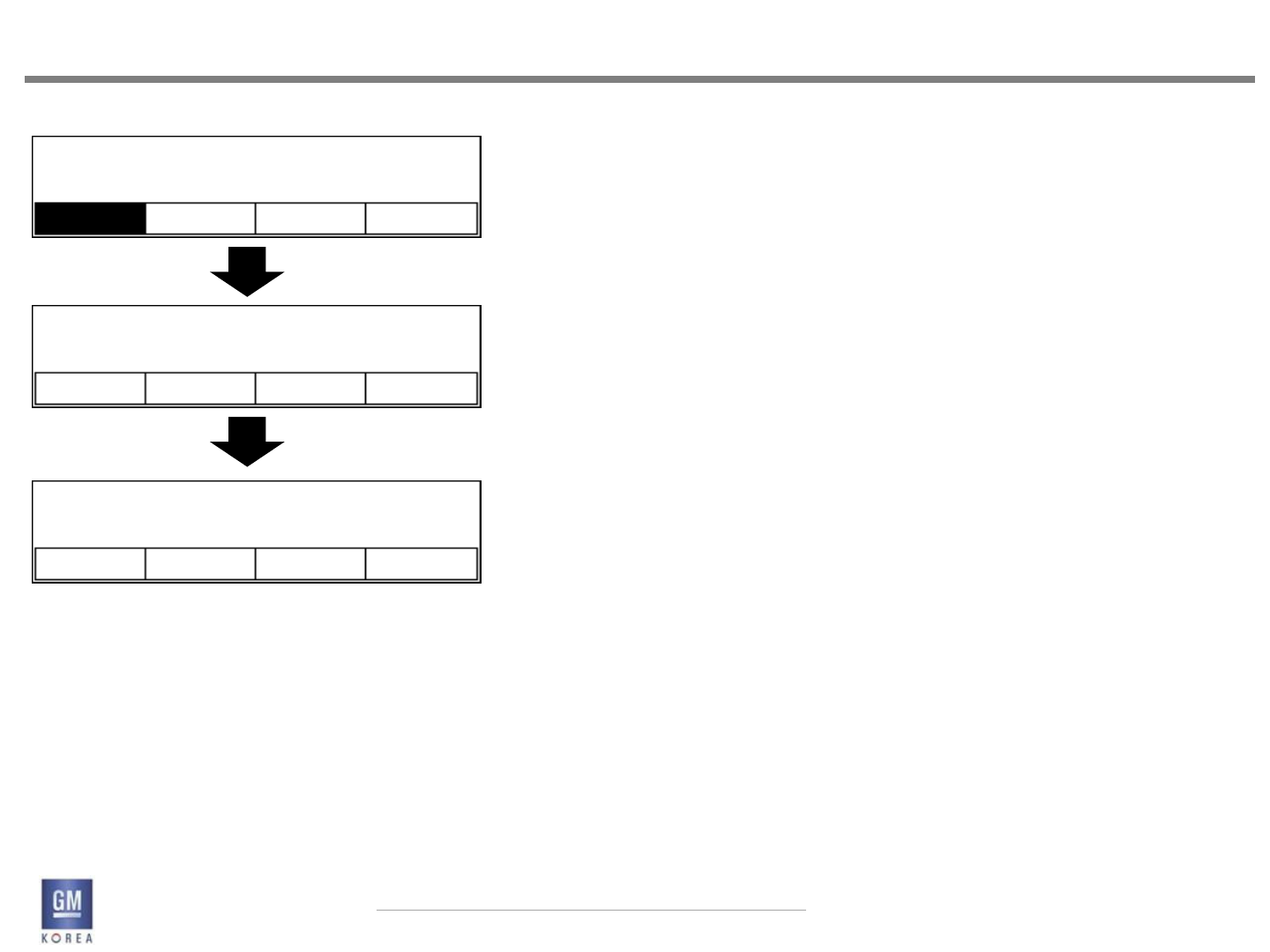

Figure 3.1.4

Figure 3.1.5

2014.Mar.17

12:30

Favorites Page 1 of 3

1130 HR4 87.5 108.0

Favorites Page 2 of 3

1560 HR3 94.7 98.9

Favorites Page 3 of 3

DAB-BW 760 102.5 Bayern1

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

3. FAVORITES

3.1.7 Favorites - Selecting

A Favorite is selected by tapping on the desired Favorite

button in the Favorites Area of the faceplate. The station

associated with that Favorite is then tuned. It is not

required to display the favorites under this scenario.

However, if the user is viewing the favorites screen and

selects a new station, the station selected is tuned and

the favorites view is still active for 5 seconds (calibrateable).

•A Favorite is selected by tapping on the desired Favorite

button in the Favorites Area of the faceplate. The station

associated with that Favorite is then tuned. It is not

required to display the favorites under this scenario.

However, if the user is viewing the favorites screen and

selects a new station, the station selected is directly tuned.

•On the Radio Now playing Mode,

If the user selects the < - > key which means preset number.

System should be tuned the preset number of

latest favorite page.

Exception > If system does not memorized the latest favorite page,

System should be tuned the preset number

of favorite 1st page by pressing the <-> Key.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

3. FAVORITES

3.1.8 REMOVED

3.1.9 Storing Favorites

Items can be stored as Favorites by press and holding for

the standard press and hold timing, on a desired Favorite

location within the Favorites region. Feedback is provided

to the user once the favorite is successfully stored

in the form of a beep.

If a Favorite already exists in this location, the new information

will overwrite the previously stored Favorite.

Performing a press and hold on the Favorites in a non-

Audio application or list view will do nothing.

If no selection is made, the favorites timeout after 5 seconds

(calibrateable). If a selection is made, the favorite

stored is highlighted and the favorites region minimizes

dismisses to the previous view after 5 seconds (calibrateable).

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

3. FAVORITES

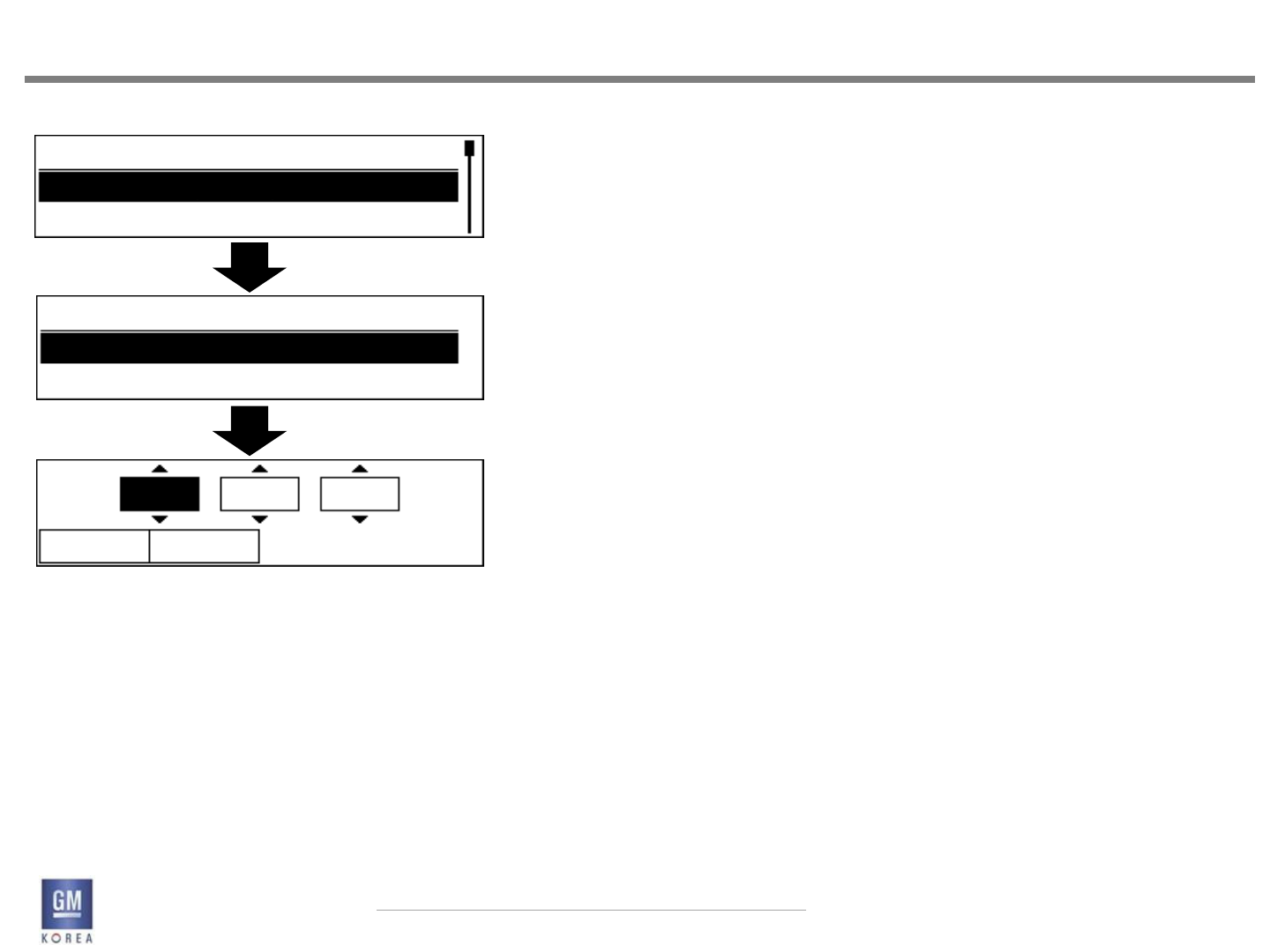

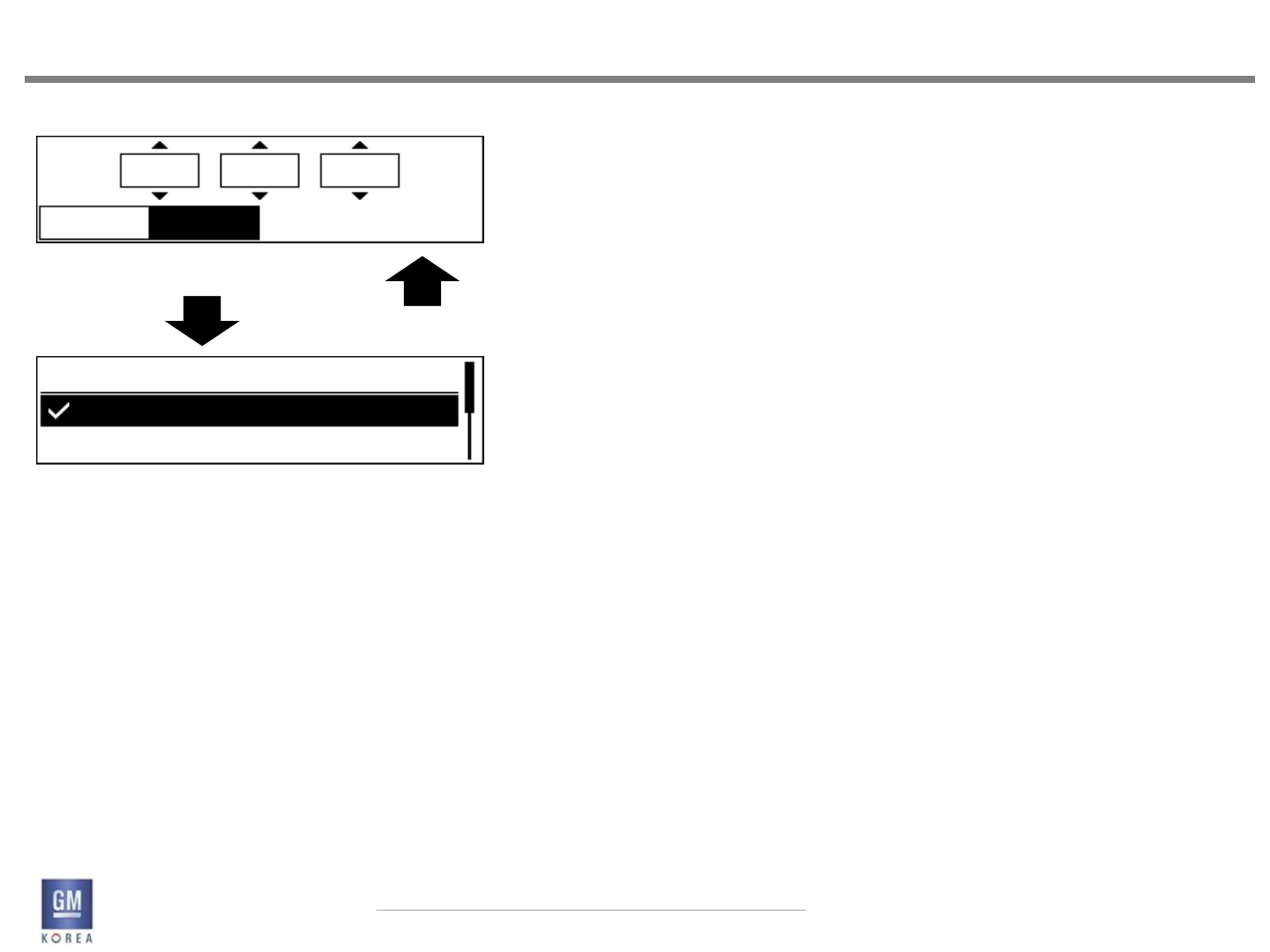

3.1.10 Setting The Number of Favorites Pages Shown

The user is able to set the number of Favorites pages

that are accessed through this setting. When selected

from the menu, a list of available pages to select via the

scroll knob is displayed.

This setting is reflected in the favorites page indication

text the next time the favorites are displayed as shown

in figure 3.1.3.

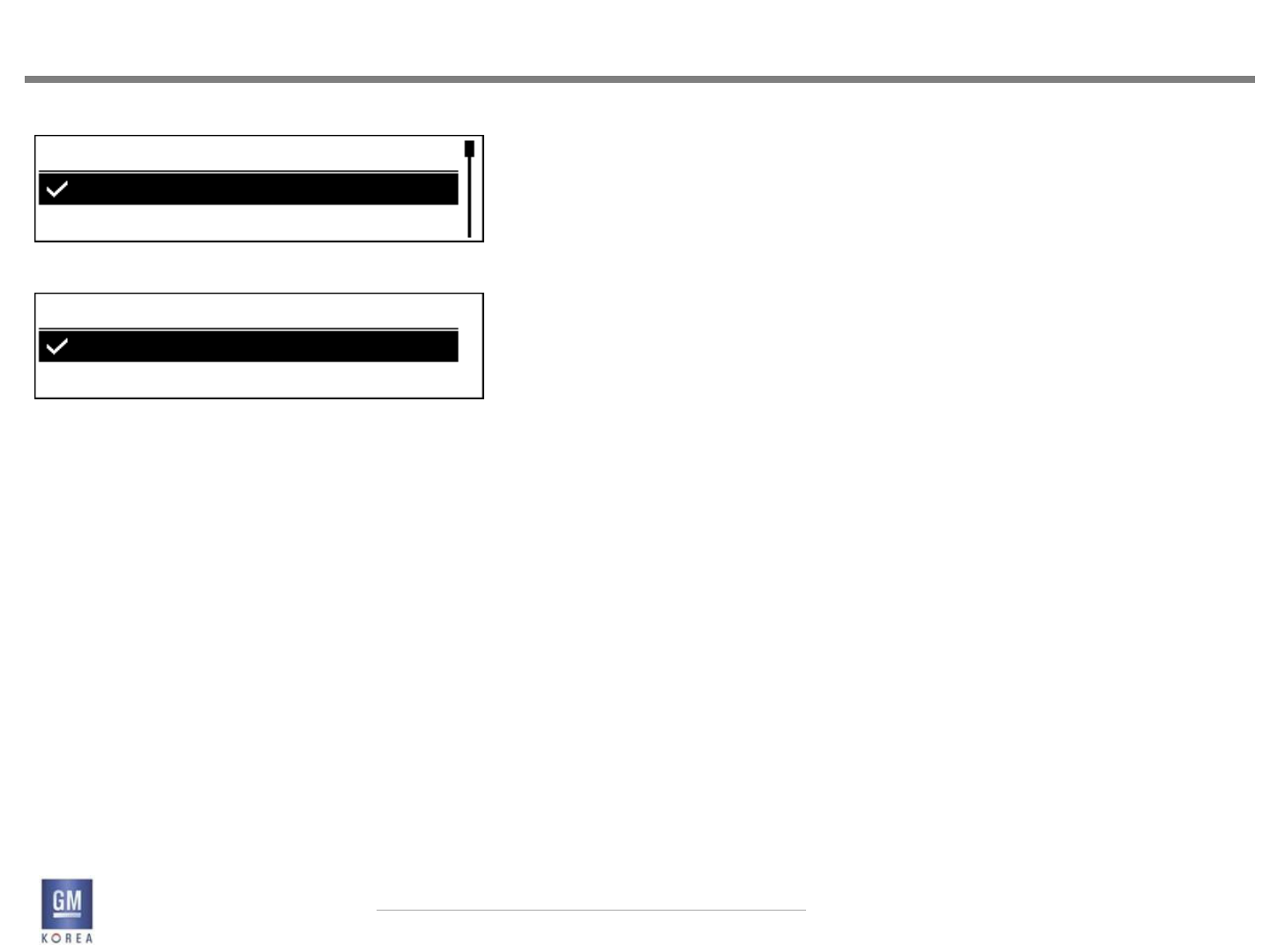

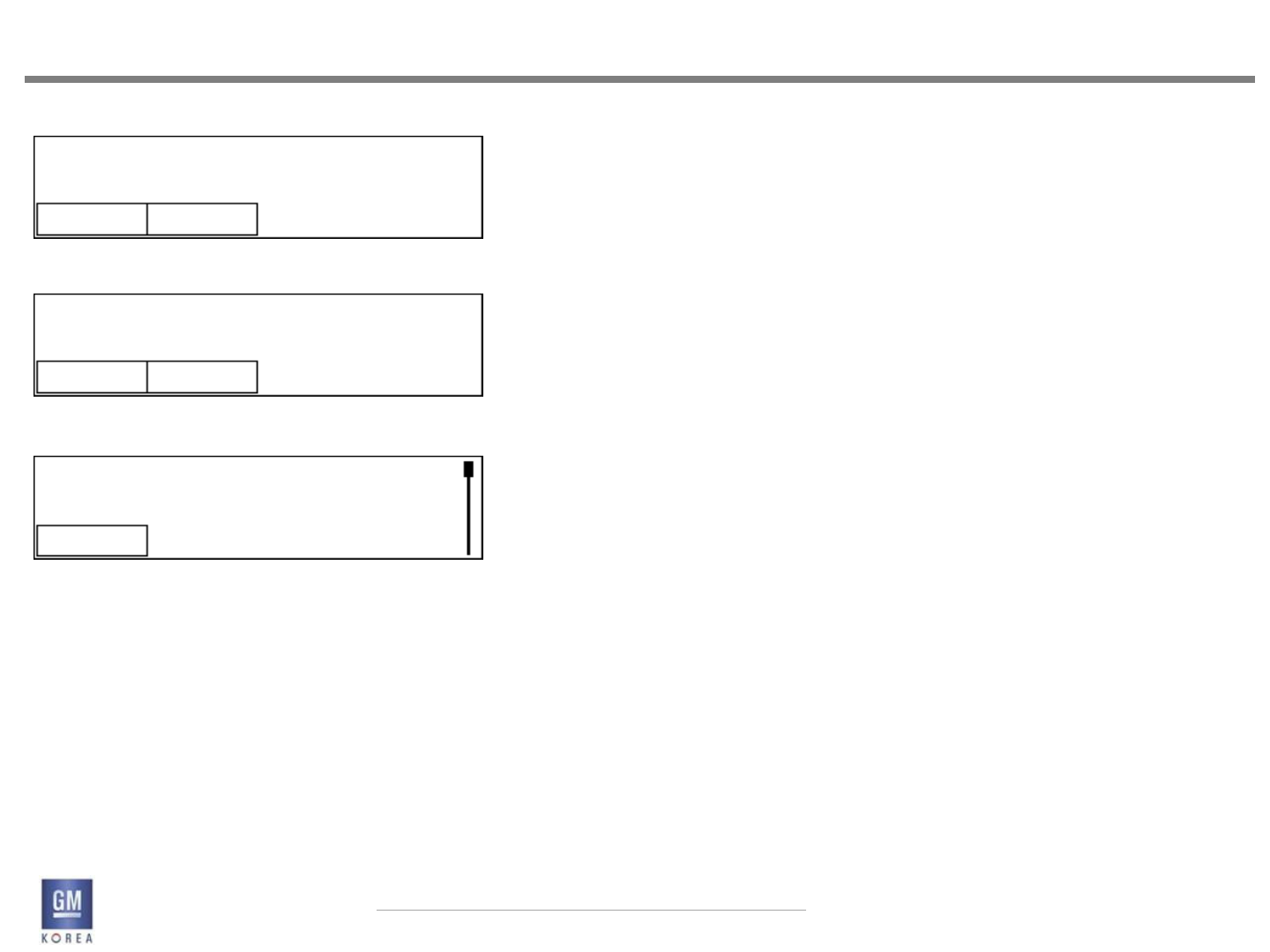

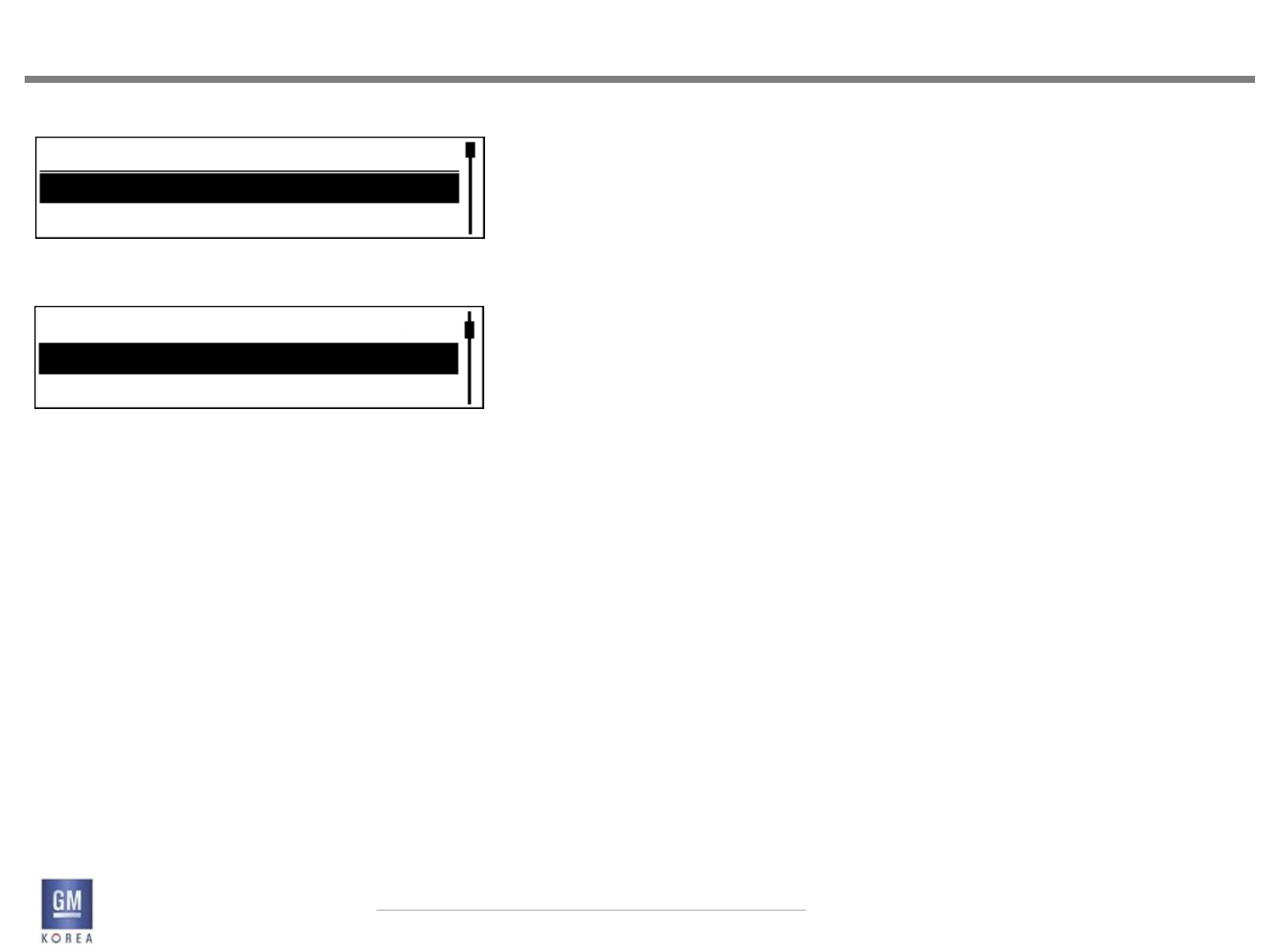

Figure 3.1.6

Figure 3.1.7

1130

Set Number of Favorites Page

1 Page

2 Pages

1 Page

2 Pages

3 Pages

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

4. LISTS

4.1 Lists

Users interact with Lists in a number of applications run

by the system. This section describes the major elements

and behaviors common in all Lists displayed by

the system. Elements and behaviors that are unique to

a speifi appliatios Lists ae desied i that appliatios

sections in this Form and Behavior Specification.

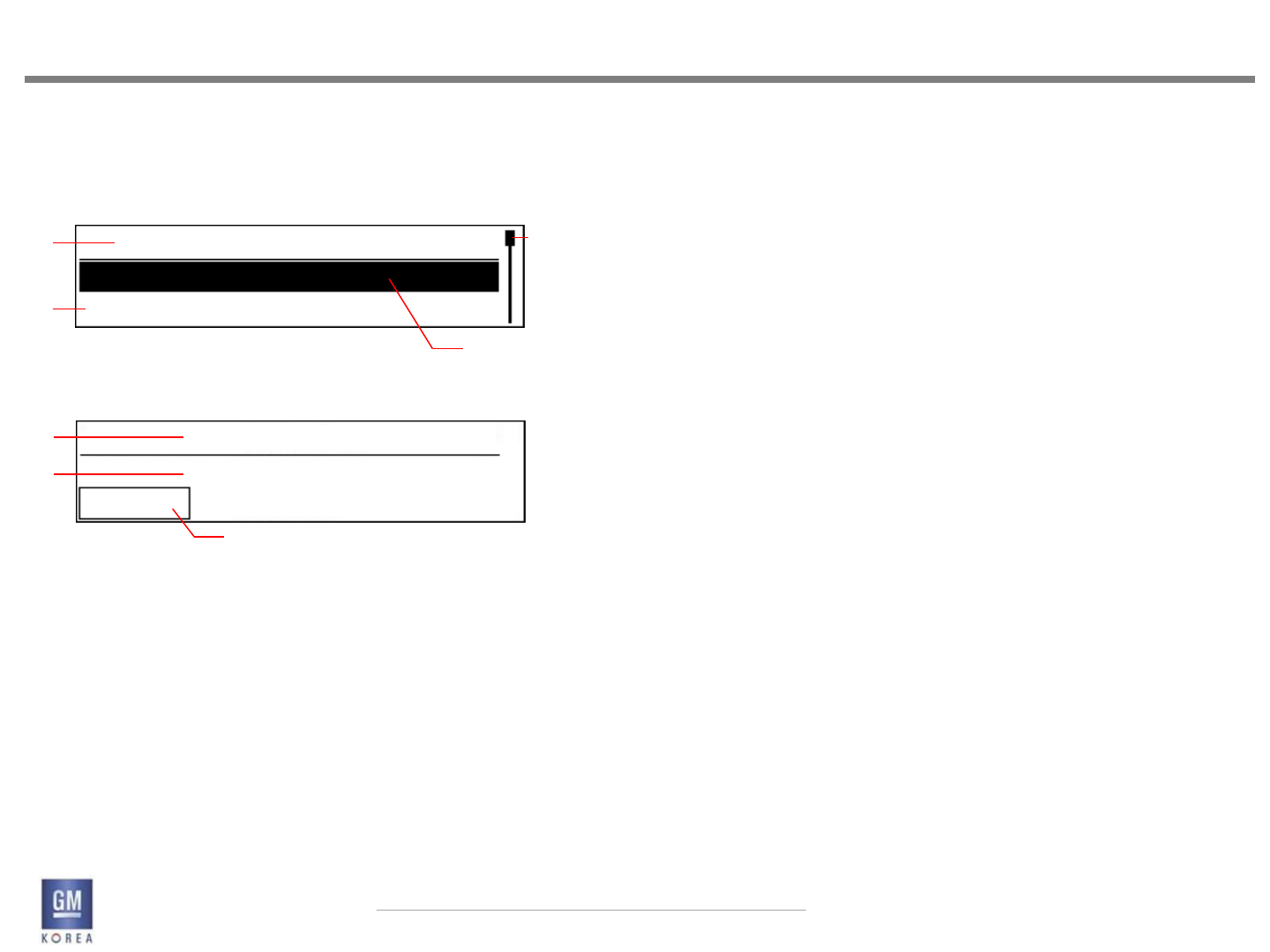

4.1.1 List Elements

The following describes the major elements that may or

may not be displayed as part of a List, depending on the

speifi appliatios use of Lists.

List elements include:

• List Heade

• List Ites

• “oll Ba/Positio Indicator

4.1.2 List Items

Each row in a list contains the List Item (e.g., contact

name; song title). A List Item can be a single line of

text. The number of List Items displays is dependent

on the content of the list/sub-list. For example, a single

List Item may be displayed when there is only a single

Album or Song associated with the higher-level List Item

selected. Hundreds or even thousands of List Items may

be displayed when there is such content for a given list

such as All Songs from a connected device.

List Items are selectable by highlighting the desired List

Item by rotating the knob on the faceplate. Tapping the

knob when a particular List Item is highlighted displays

the associated sub-list (e.g., list of songs associated with

the album name tapped) or performs an action associated

with the List Item selected (e.g., start playback of a

song; display an edit screen for the List Item; etc.). The

atio is pefoed o elease he tappig.

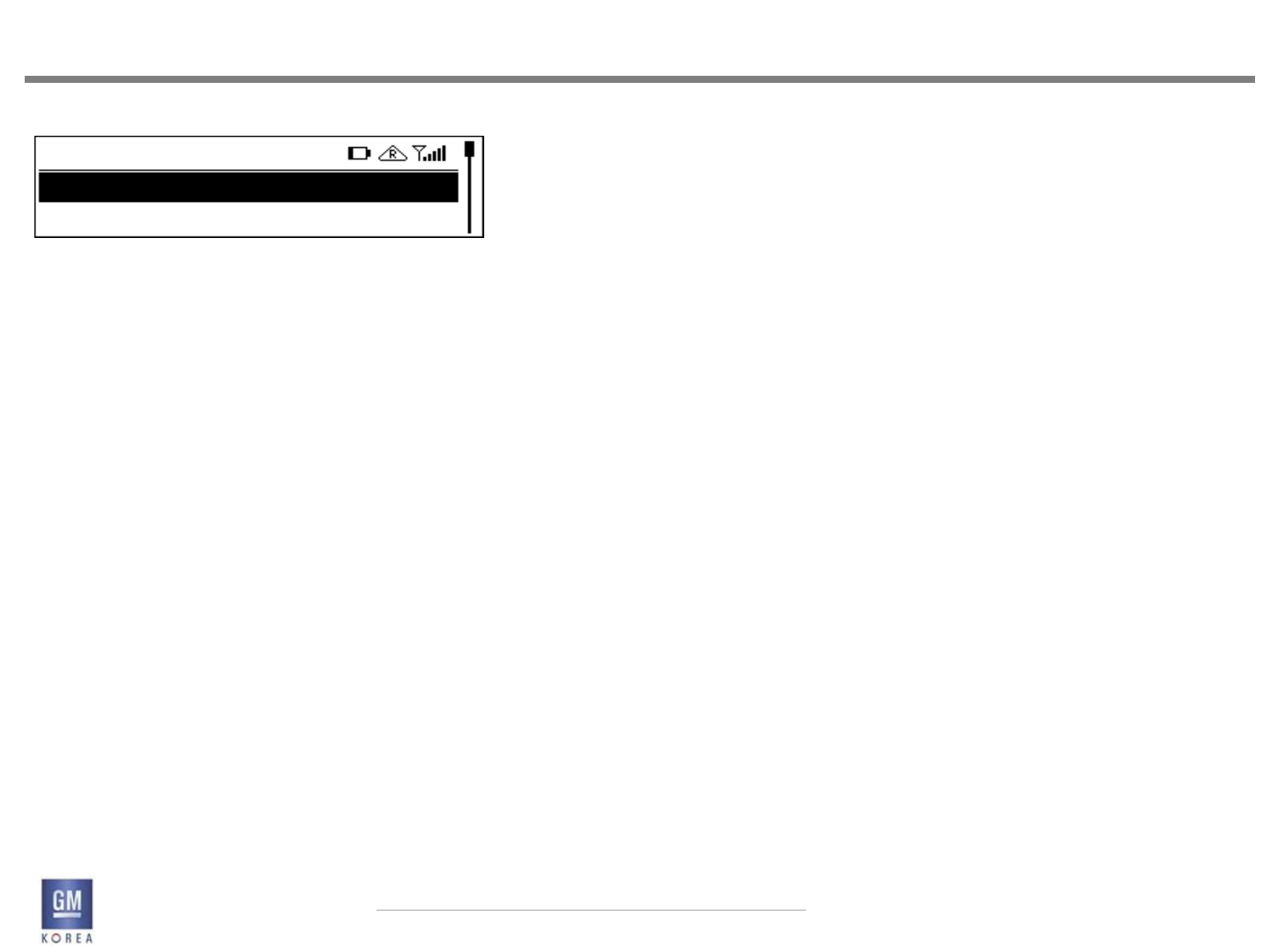

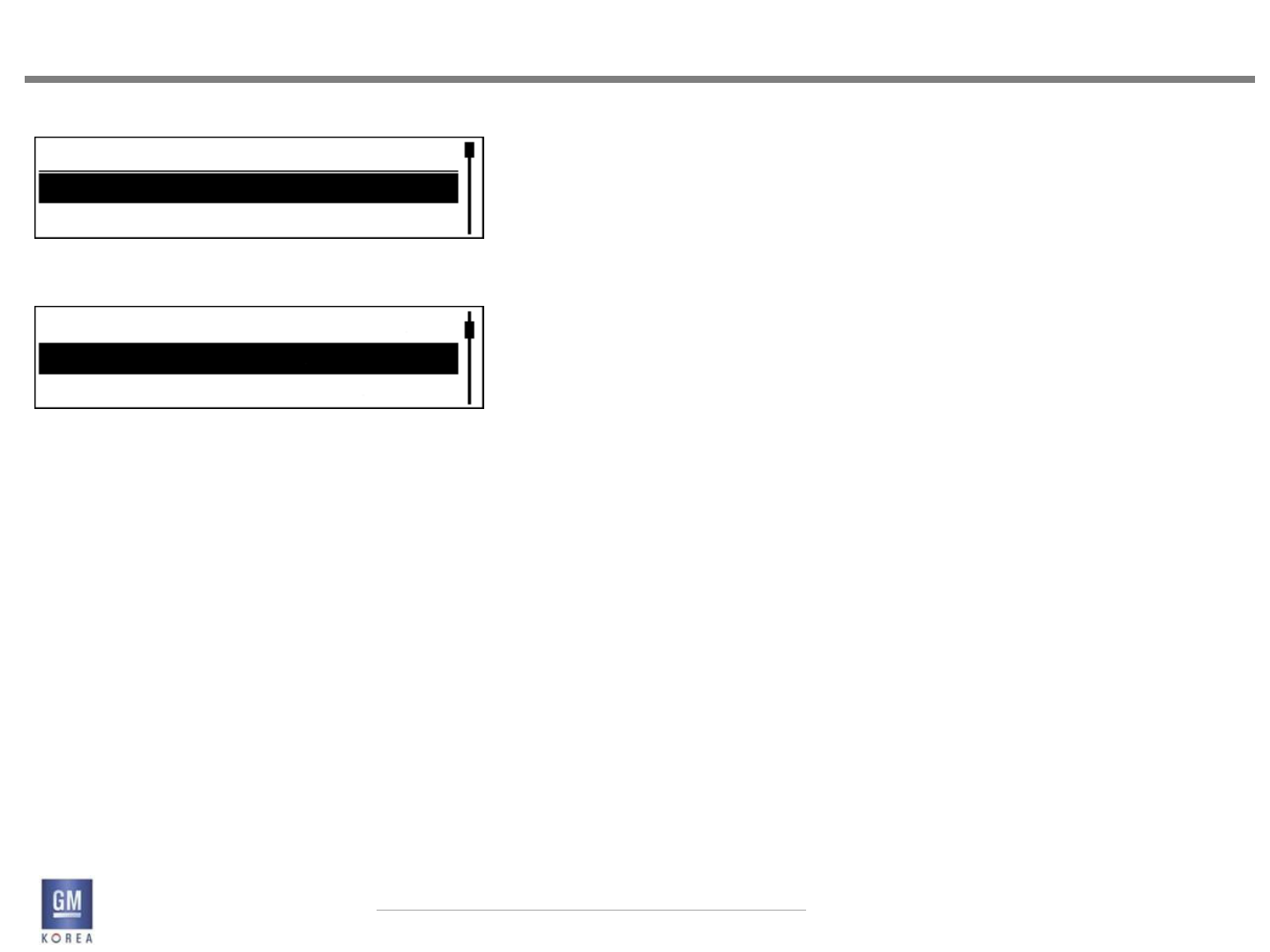

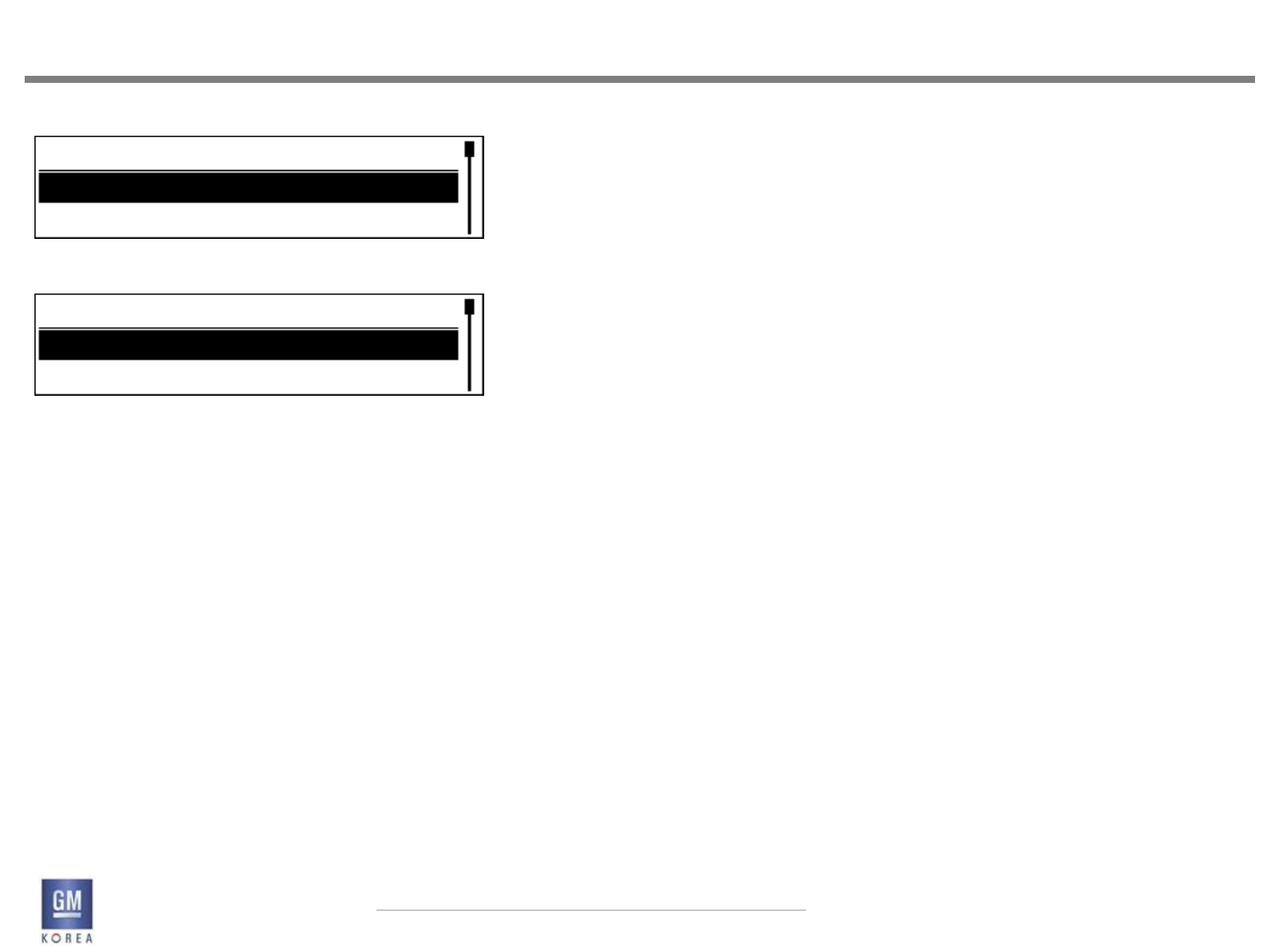

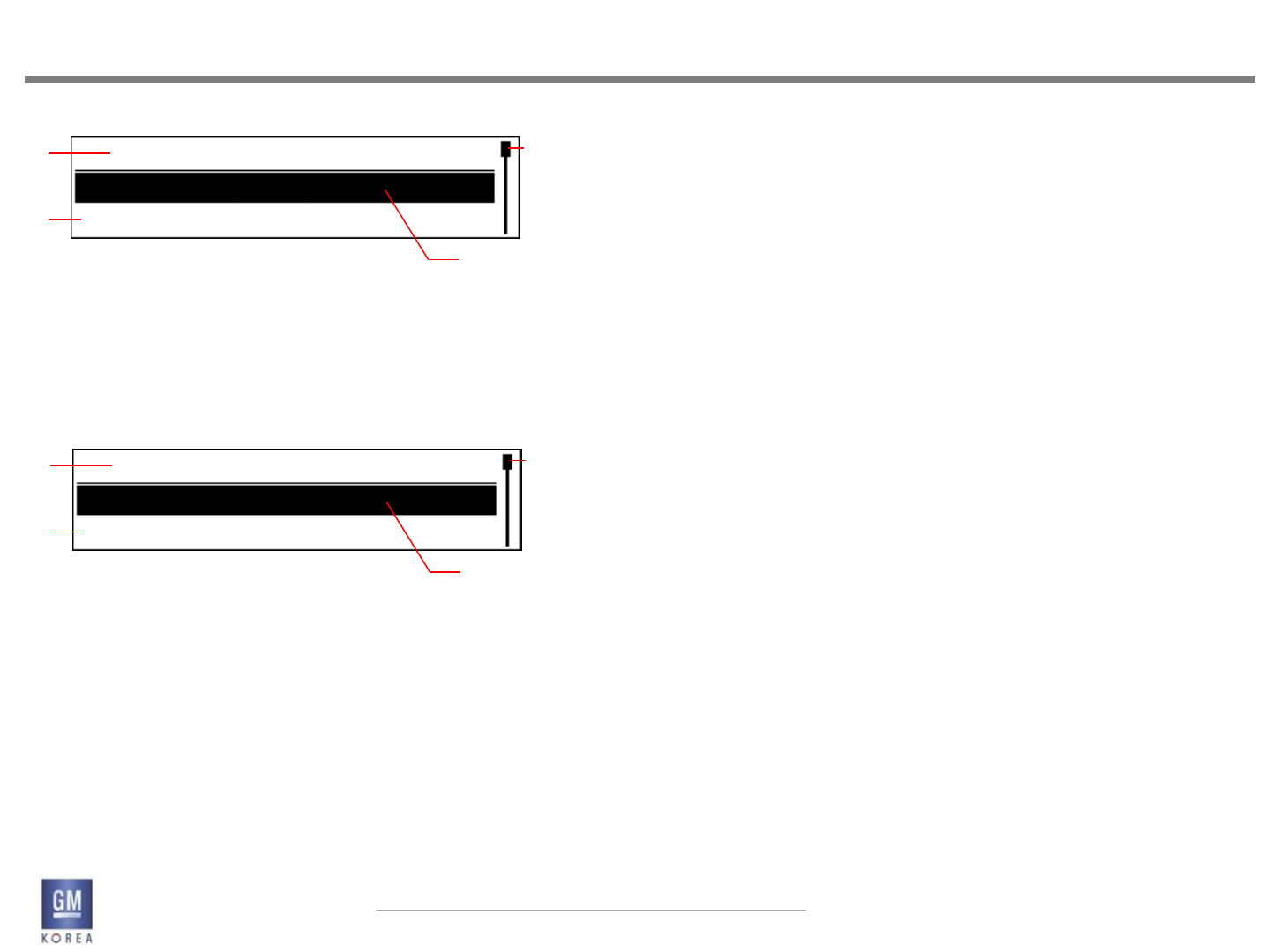

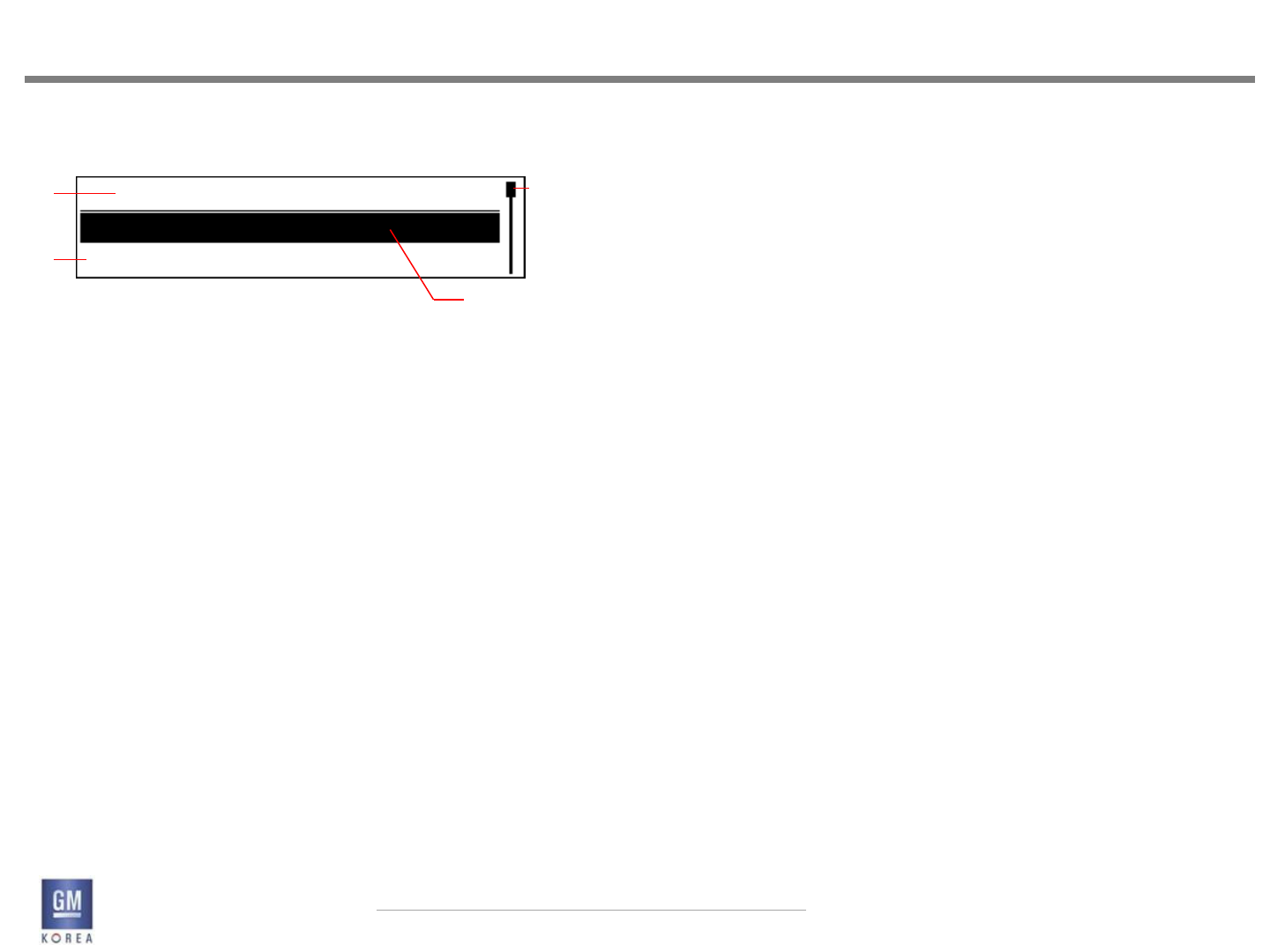

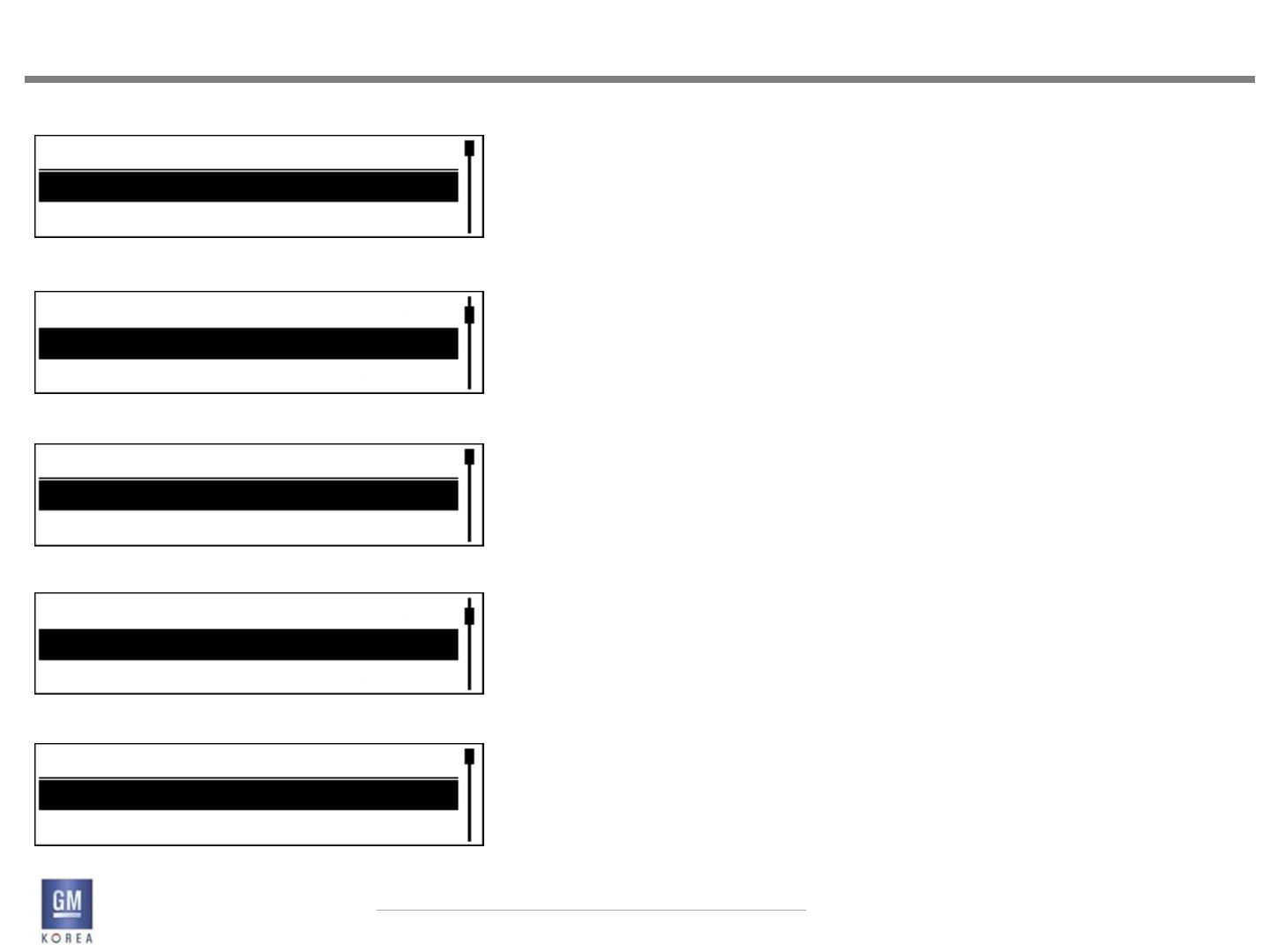

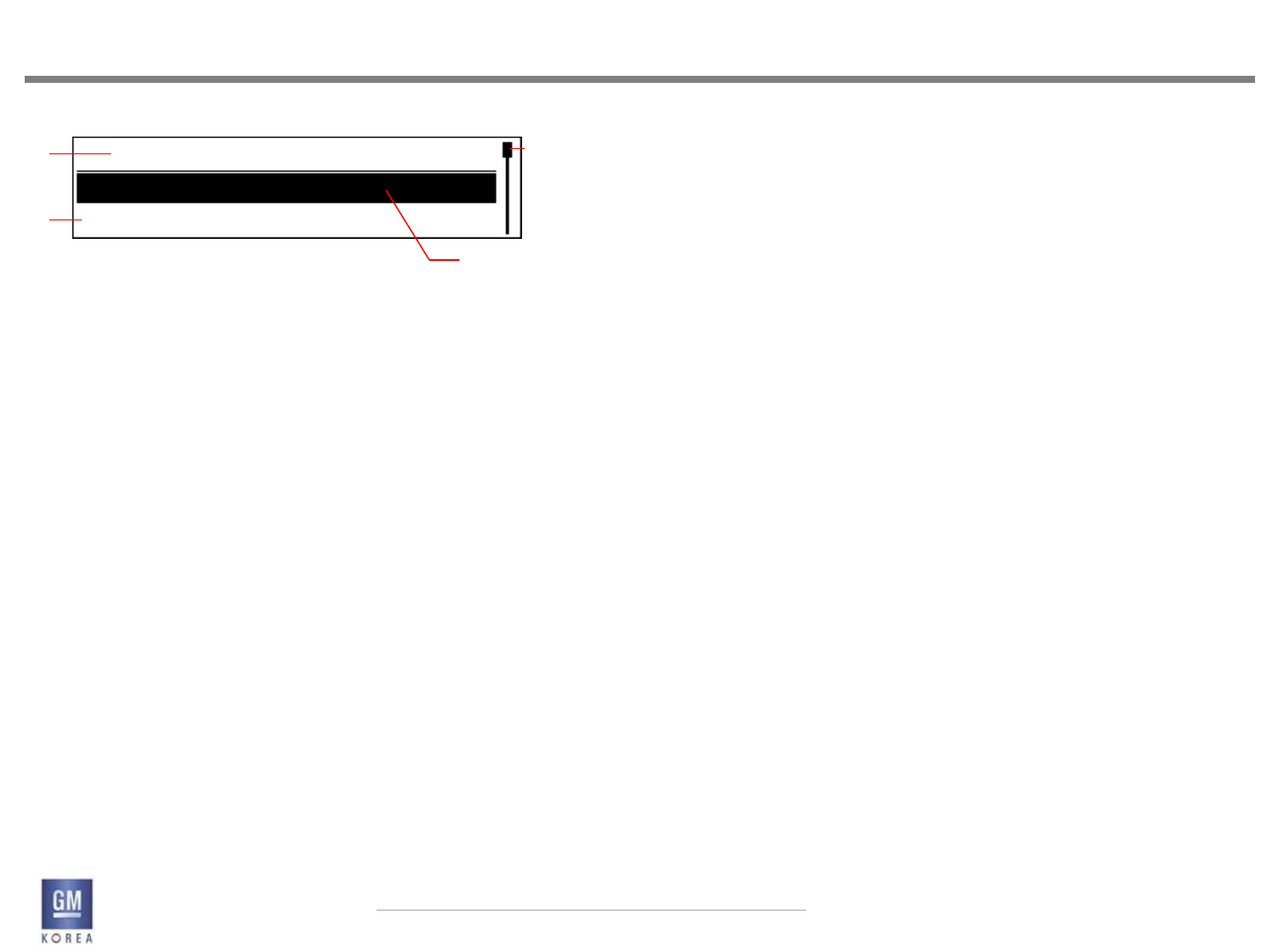

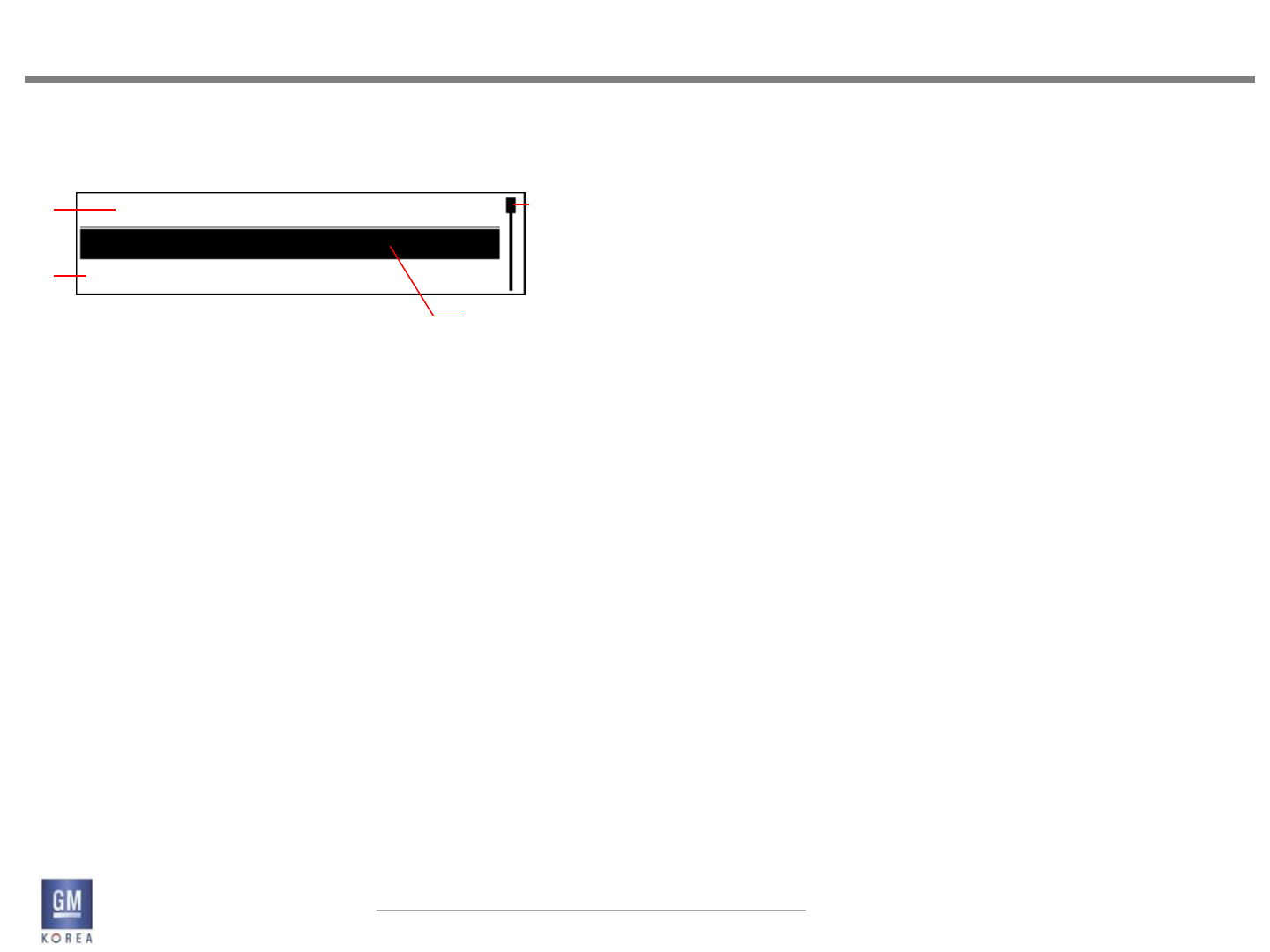

Figure 4.1.1 - Enter state of list view

Figure 4.1.2 - Scroll state of list view

1130

List Name

List Item 1

List Item 2

List Item 1

List Item 2

List Item 3

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

4. LISTS

4.1.3 Display of Long Text Information in List Items

When a List Item contains variable text that may be longer

than the available viewing area in a List Item, it does

the following:

• Tuatio - if the text string is too long to fit with

Smart Truncation in the viewable area, the text

string is truncated and ellipses (...) are added at the

point where the text string was cut off.

4.1.4 List header Behavior

The initial view shown for a list includes the list header

which essentially defines the type of list that is being

viewed (e.g. FM Stations). This is shown regardless of

whether the list is displayed from rotating the tune knob

(for EU station lists) or from a menu button press (eg.

Artists list)

Once the user begins turning the knob to interact with

the list, the header is removed and all three available

lines are used for the list items as shown in figures 4.1.1.

and 4.1.2.

If 2 or less items are available in a list, the header will

remain visible.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

4. LISTS

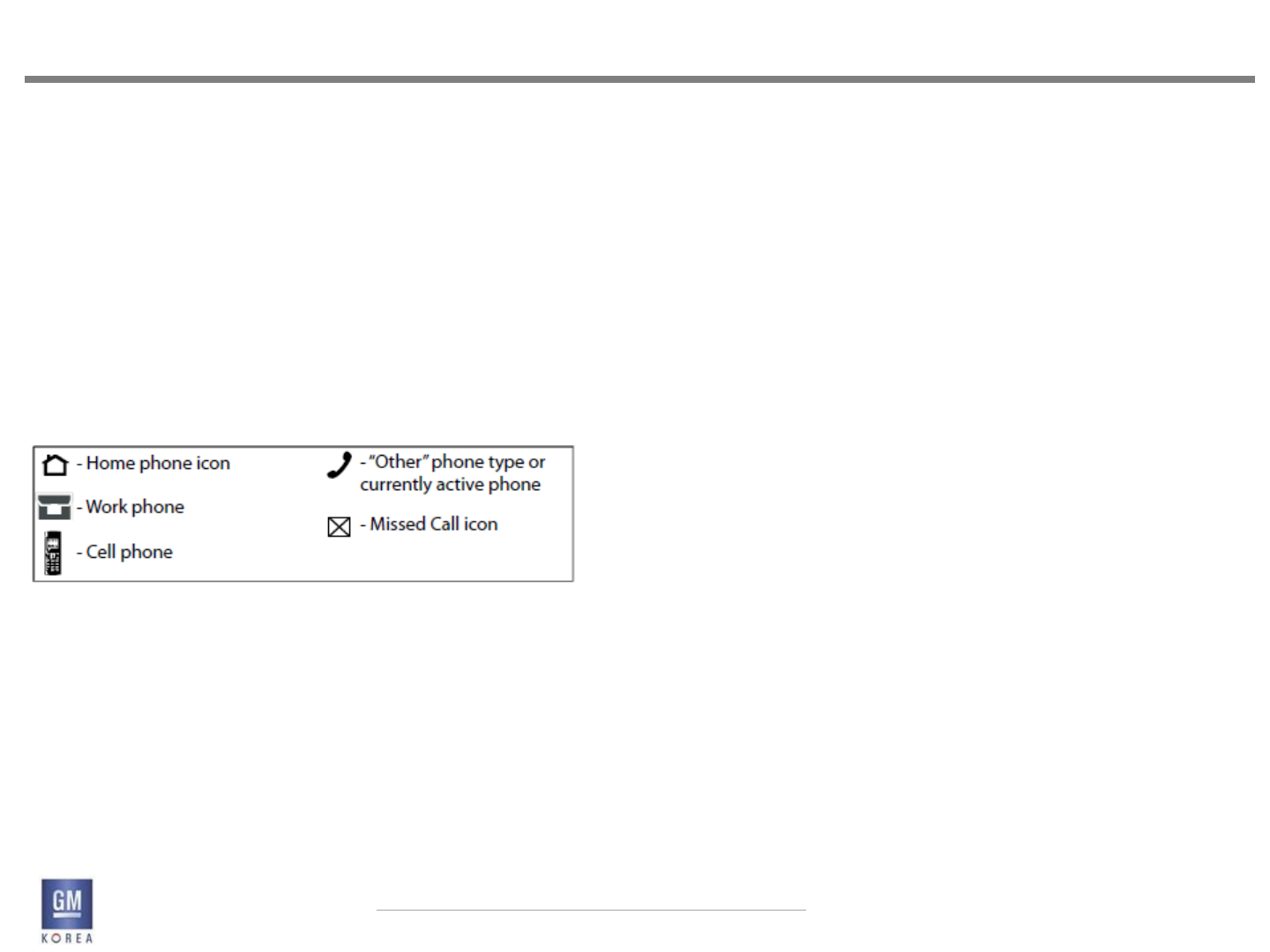

4.1.5 List Indicator Icons

Indicator Icons may be displayed on List Items; for

eaple, a No Plaig io shoig that a adio statio

in a list is currently tuned.

Indicator Icons are visible at all times when the list is

displayed.

4.1.6 No Content Available

If the user has selected a list that happens to be empty,

such as a media, intellitext, or contact list that has no

content or information available, the list is shown empty

ith a sigle list ite that sas No Cotet Aailale.

This list item cannot be highlighted or selected.

Figure 4.1.3 - List Indicator Icon example

Figure 4.1.4 - No Content Available

1130

FM Stations

PlntRock

REGNBOGN

List Name

No Content Available

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

4. LISTS

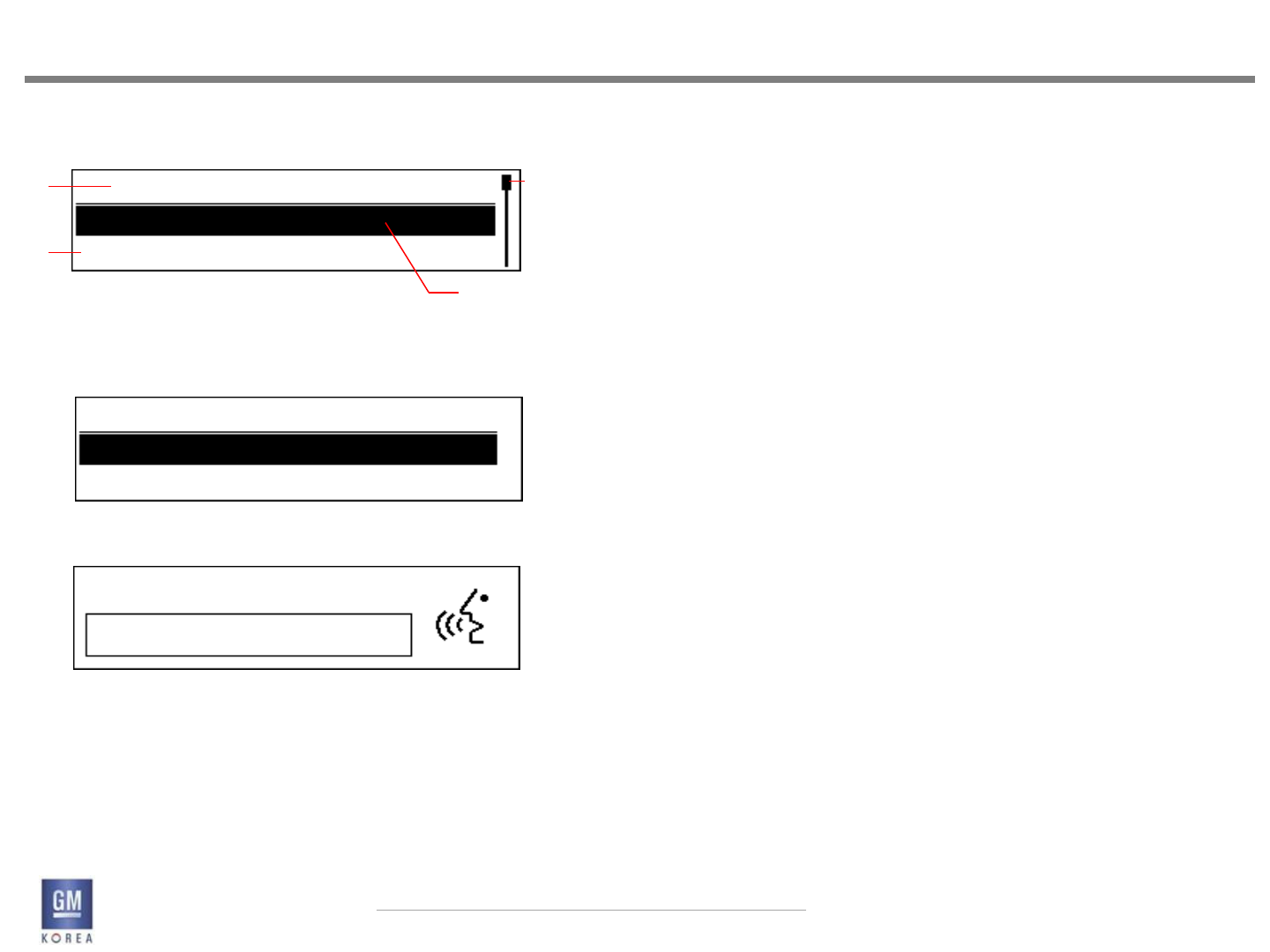

4.2 List Gestures

The following describes the gestures that may or may

not be operationalized as part of a list, depending on

the speifi appliatios use of lists.

List Gestures include:

• “oll

• Tap

• Pess ad Hold

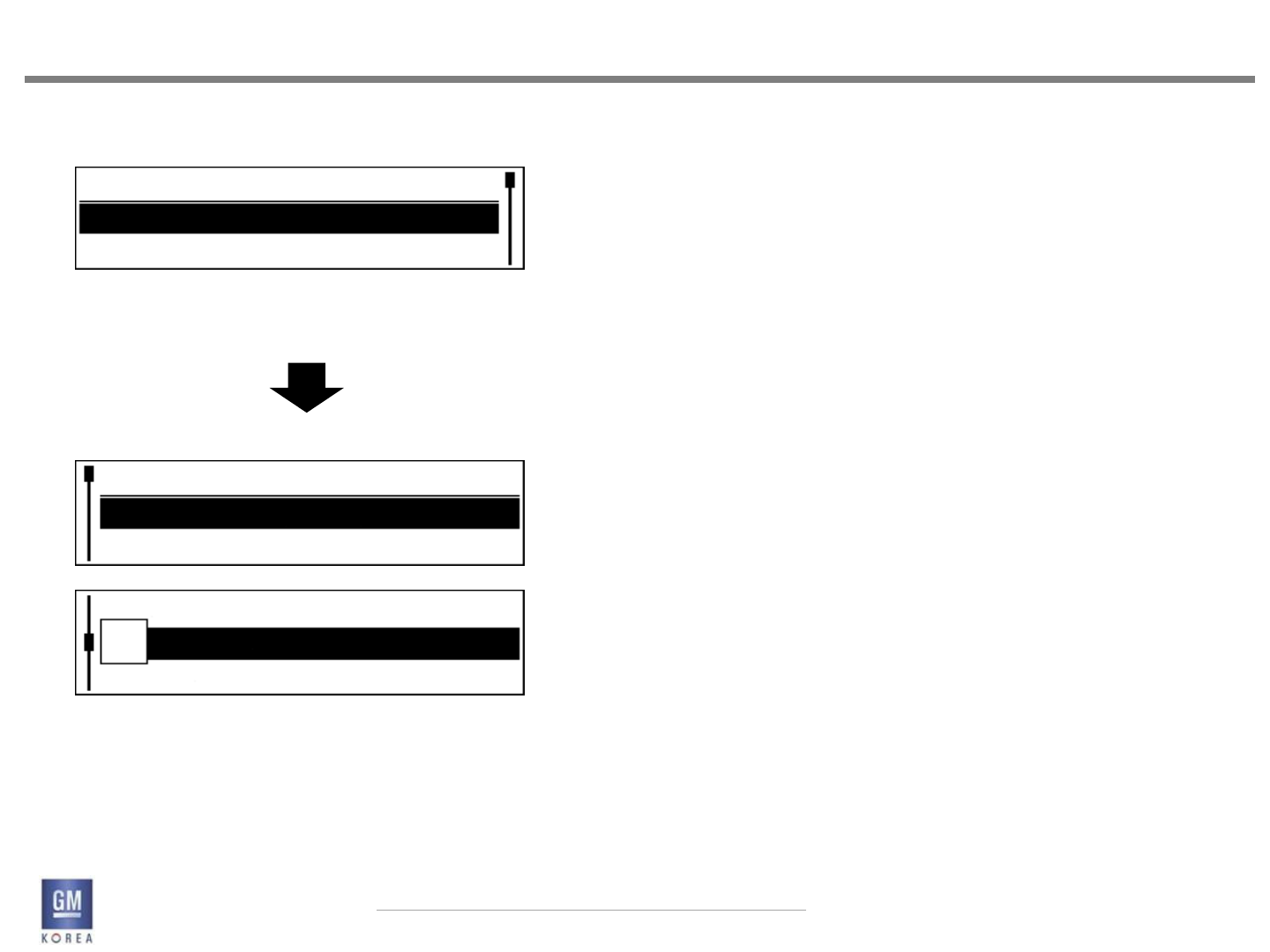

4.2.1 Scroll

Users rotate the rotary-push knob on the faceplate to

scroll List Items. The highlight bar moves down when

the knob is rotated clockwise and stops moving at the

last list item displayed and then the list scrolls

begins scrolling up behind the highlight bar until the

end of the list is reached.

When the list end is reached, the last list item is displayed

at the bottom of the list and the highlight bar

moves down to the bottom. An additional rotation of

the knob in the clockwise direction wraps the list to

the beginning and the highlight bar is now shown at

the top of the list. When rotating counter-clockwise,

the highlight bar stops at the list item at the top and

the list begins scrolling down until the start of the list is

reached. When the start of the list is reached, the first

list item is displayed at the top and the highlight bar is

in the top position. An additional rotation of the knob in

the counter-clockwise direction wraps the list to the end

and the highlight bar is shown at the bottom of the list.

Figure 4.2.1 -

Figure 4.2.2 -

Figure 4.2.3 -

list item x

list item y

list item z

list item x

list item y

list item z

List Header

list item a

list item b

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

4. LISTS

When reaching the end (or start) of the list while scrolling,

the highlight bar will pause for 1 sec (calibratable

between 250 msecs and 2000 msecs) ignoring additional

inputs from the rotary encoder and the system

will play an auditory alert / beep. After the pause duration

has elapsed, the system will register the next rotary

input in the same direction as the cue to animate the list

to the next page and move the highlight bar to top (or

bottom). During the list animation, any rotary encoder

inputs are ignored. When the animation is complete and

the highlight bar is positioned in its new start location,

rotary inputs are again responded to according to the

description above.

4.2.2 Tap

Users tap the rotary-push knob on the faceplate to

perform desired functions associated with the List Item

currently highlighted.

4.2.3 Press and Hold

Users can Press and Hold the rotary-push knob on the

faceplate to perform desired functions associated with

the List Item currently highlighted. Details of Press and

Hold gestures are described in the appropriate application

sections where they are used.

A Press and Hold is performed by pressing and holding

the rotary-push knob for longer than 1000-1500 ms.

The hold duration is calibratable and is defined in detail

in the application sections where such Press and Hold

gestures are enabled.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

4. LISTS

4.3 List Interaction Behaviors

The following describes the interaction behaviors that

may or may not be operationalized as part of a given list,

depedig o the speifi appliatios use of lists.

List Interaction Behaviors include:

• Wappig

• List Histo

• List Views

4.3.1 Wrapping

Lists can wrap from start to finish or vice versa. The

method for wrapping a list is to be at the end or start of

the list and continue rotating the knob in the direction

to wrap the list past the last item (or first item) in the

list. The scroll highlight will go to the top (or bottom

depending direction of wrap) and continue scrolling.

Lists wrap only when the list is longer than what can be

displayed on the single screen (e.g., more than 3 List

Items).

4.3.2 List History

When navigating list hierarchies or navigating between

sees ad lists, the sste aitais a histo of the

list position that was last displayed when the given list

as last ieed/displaed. The List Histo aids the

user in situations such as when backtracking up a station

or media search hierarchy; when returning to a station/

media list from a now playing screen; or when returning

to a Contacts List in the phone application from another

screen. The list history is cleared after ignition cycles.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

AM/FM Broadcast sources

The following section describes the data elements and

functions for AM/FM broadcast audio sources.

The Now Playing screens for these sources contain the data elements

dependent on the broadcast audio source.

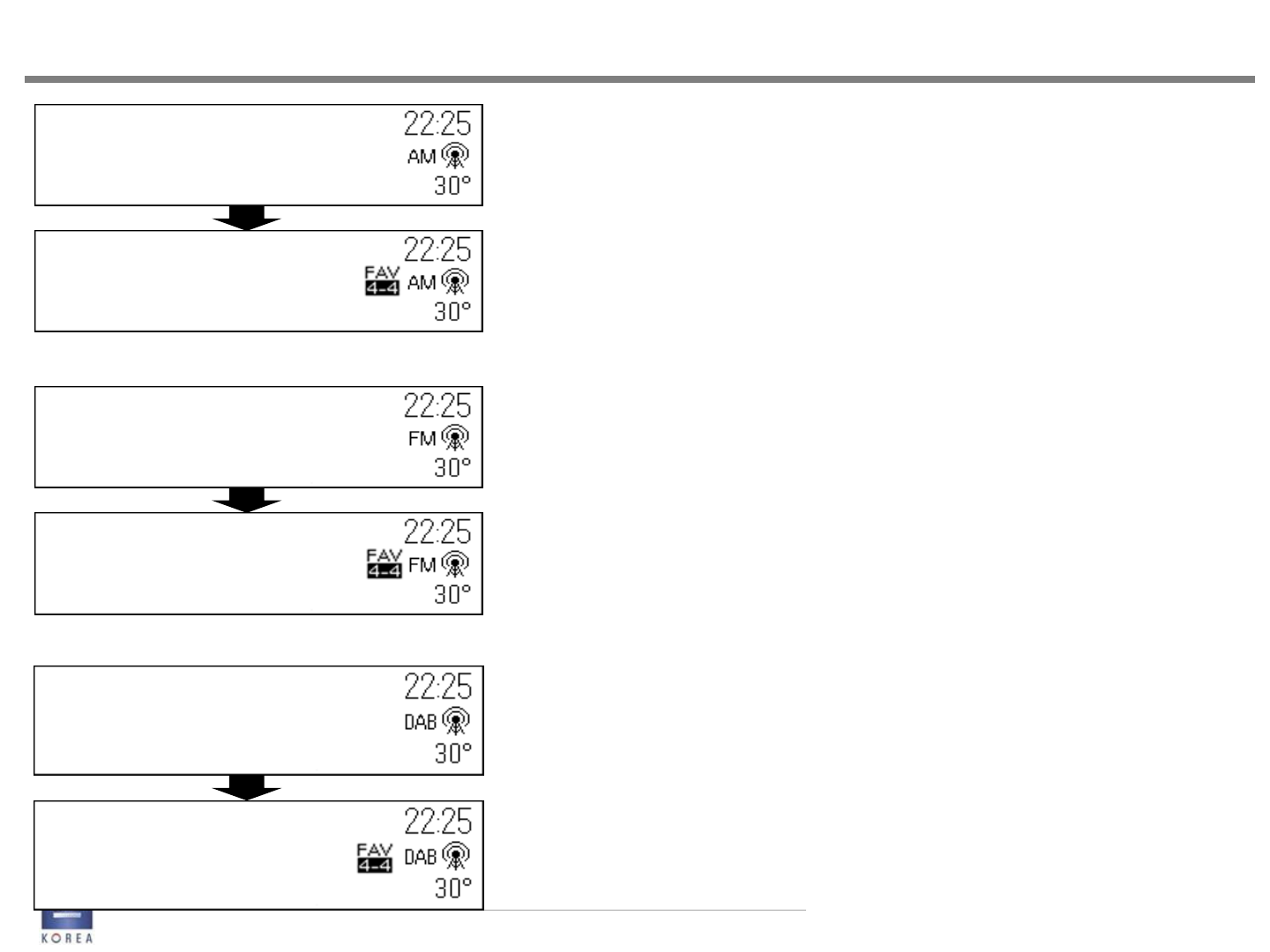

•When the user changes Radio mode/Band by pressing the <Radio>key,

system displays radio intro view firstly as left figure.

Figure 5-1. AM Radio Intro View

AM Radio

522

102.3

FM Radio

DAB

REGNBOGN HESSEN

Now Playing on BBC 6

Music is the latest relea…

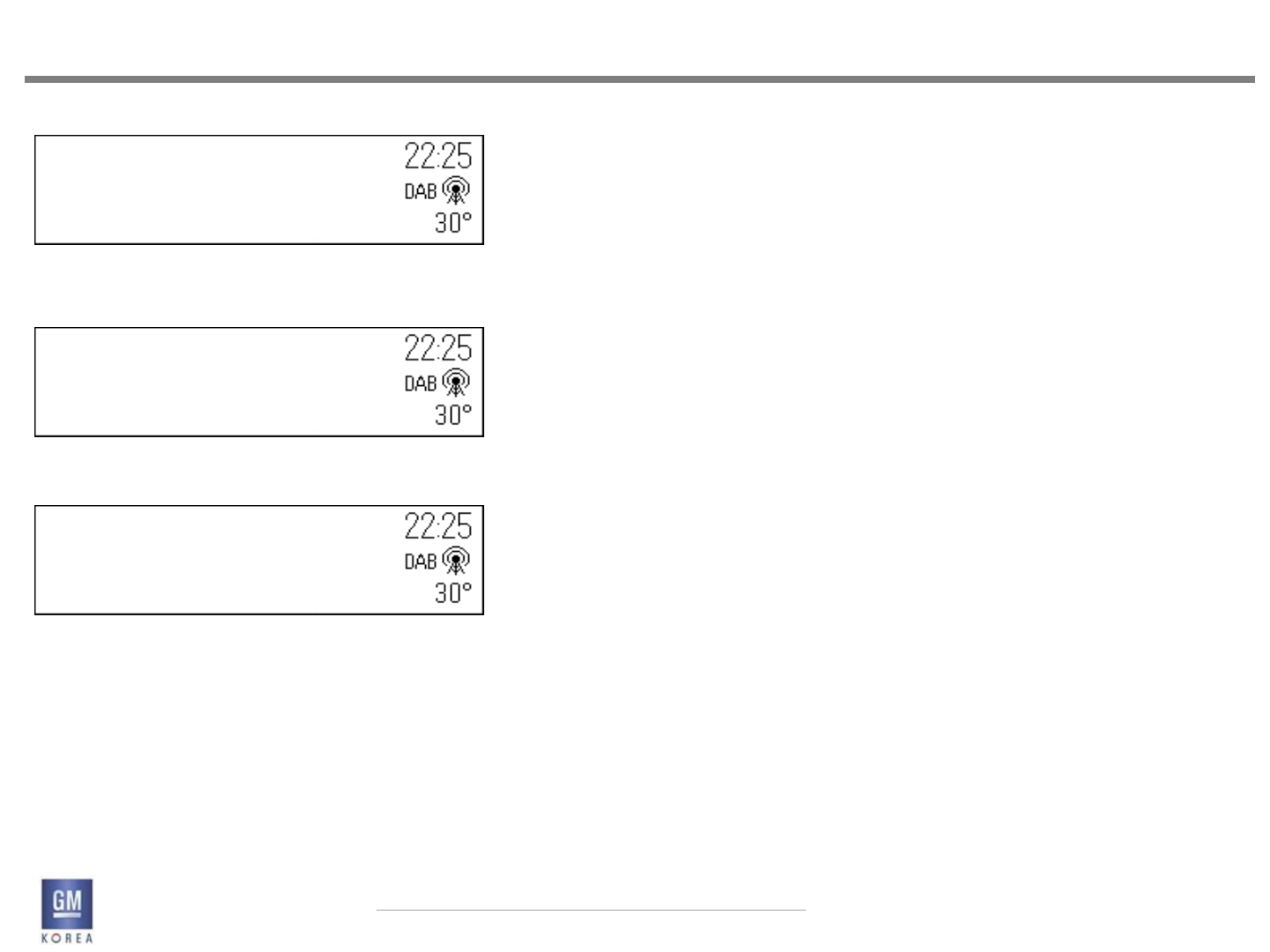

Figure 5-2. FM Radio Intro View

Figure 5-3. DAB Radio Intro View

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

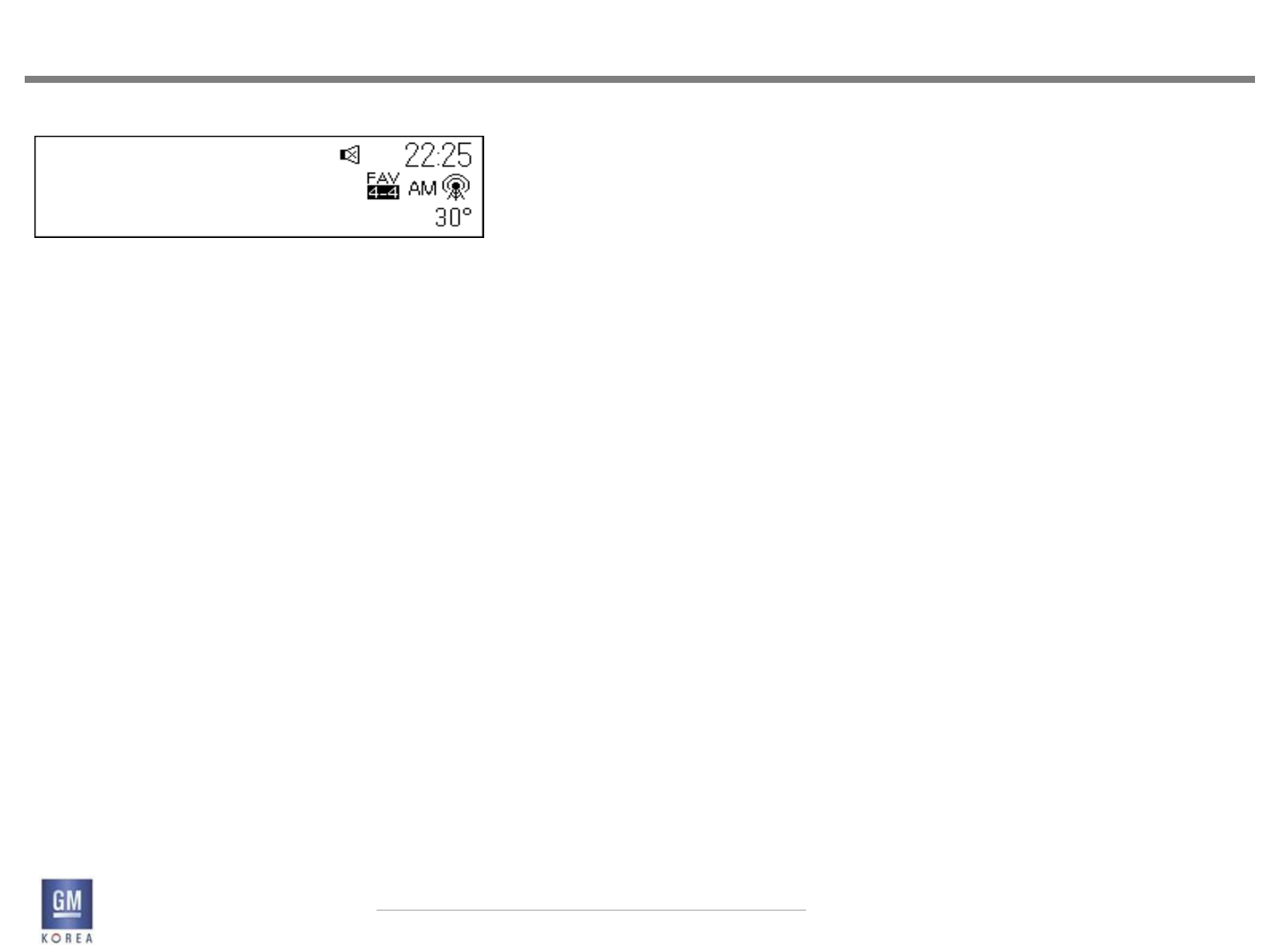

5.1 AM View

AM view should contain:

- AM icon

- Frequency (in larger font style)

- Time of Day and Outside Temperature

- FAV Label

- Mute icon

- Driving School

(If Driving School is on,

Speed is displayed on the location/instead of outside template.)

Figure 5.1.1 -

522

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

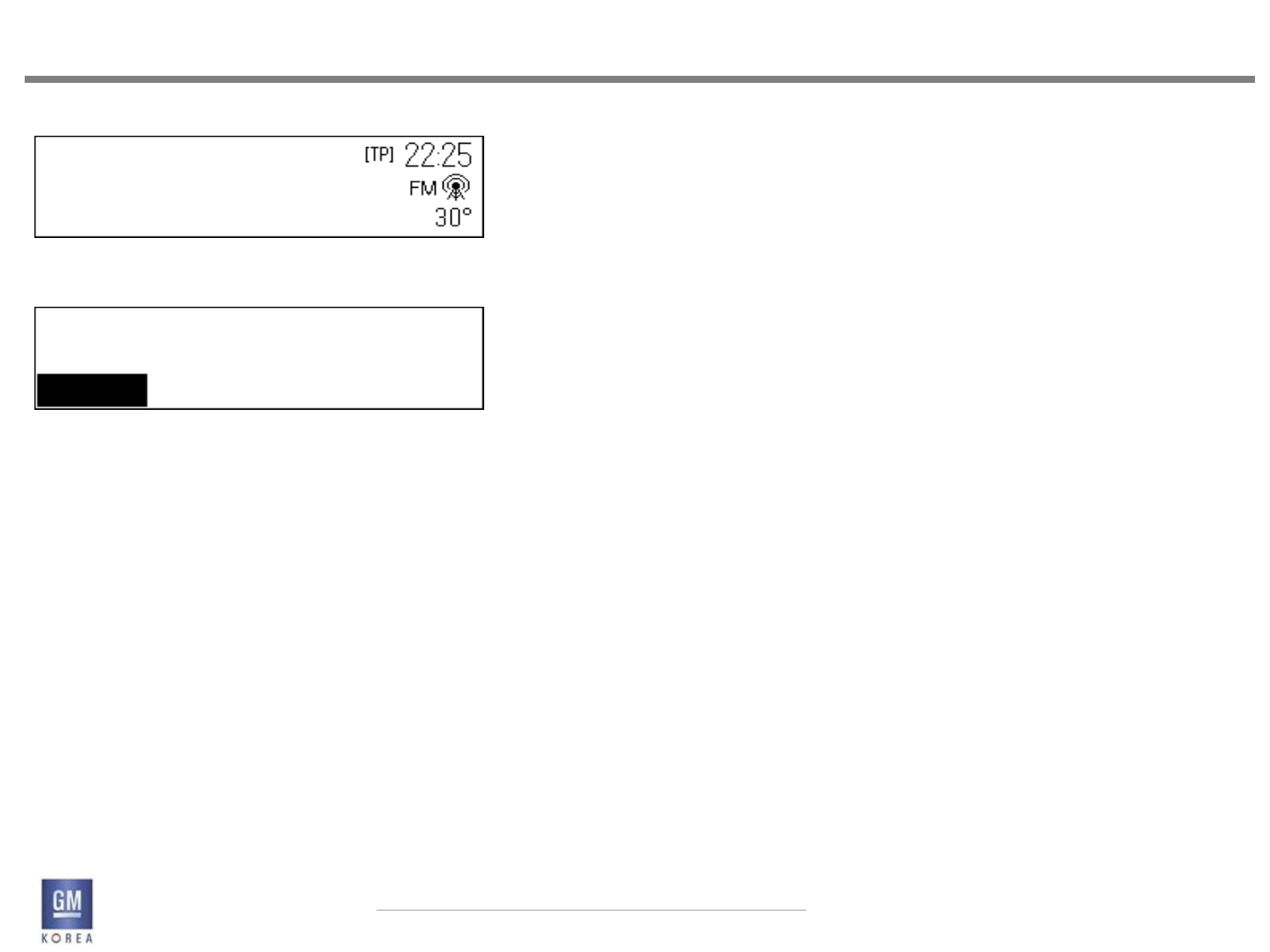

5.2 FM Now Playing Views

• P“N i lie  EU adios

• ‘D“ Tet i lie  ad  usig sat tuatio

• FM io

• Feue eteed ith lage fot o EU adios

• Tie of Da ad Outside Temperature

- FAV Label

- [TP] icon

- Mute icon

- Driving School

(If Driving School is on,

Speed is displayed on the location/instead of outside template.)

Euopea ‘D“ ipleetatios ill displa the statios

PSN without the frequency information in line 1. Otherwise,

the station frequency is displayed as shown in

figure 5.2.4.

If there is more content than will fit in the line field, the

information will page a single time at a rate of 5 seconds

per field. After the pagination is completed, the first

part of the text will be shown with ellipsis as shown in

the figure.

Lines 2 and 3 are for RDS text information. RDS text is

placed on Line 2 and, if necessary, wraps to Line 3 using

the smart truncation method as defined in the DAB

source section of this document.

If text overflows the space provided in Lines 2 and 3, the

information will page (clearing Lines 2 and 3), with the

overflow text starting again in Line 2.

If an RDS text update occurs during the paging, the

fields are cleared and the new information is displayed,

beginning in Line 2.

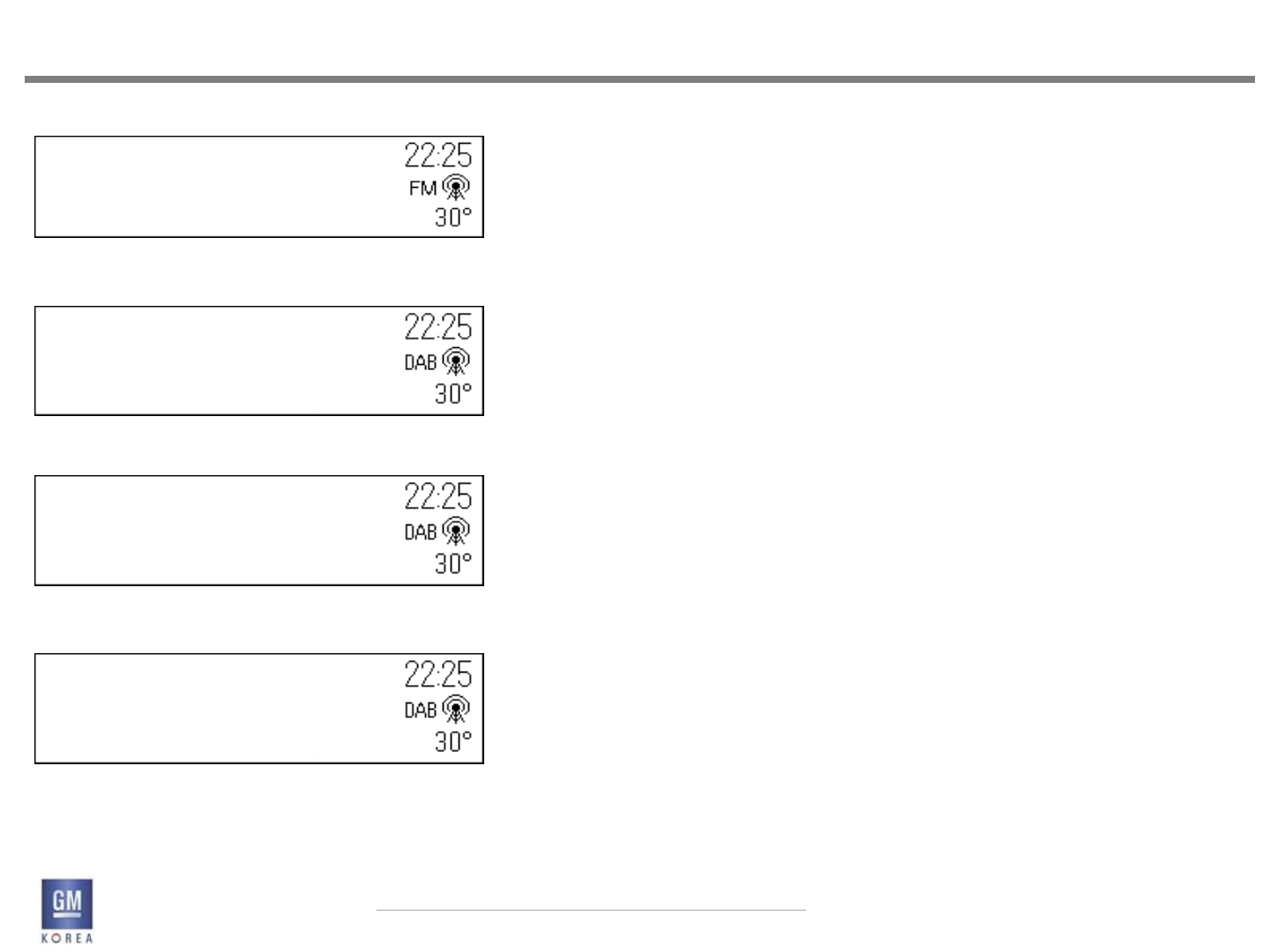

Figure 5.2.1 - generic RDS layout example

Figure 5.2.2 - EU RDS example

Figure 5.2.3 -

Figure 5.2.4 - FM w/o RDS now playing view

RDS PSN

RDS Text

RDS Text (Continued from line1)

REGNBOGN

Now Playing on

BBC 6 Music

REGNBOGN

Now Playing on BBC 6

Music is the latest relea…

102.3

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.3 Changing Audio Source Using Faceplate

The user may also press the RADIO or MEDIA buttons

on the faceplate multiple times to rotate through audio

sources. The audio source is immediately changed upon

each press of the faceplate button.

RADIO presses rotate the user through broadcast sources.

MEDIA presses rotate the user through available

media sources.

The order of rotation for broadcast sources is

AM ->FM ->DAB->AM...

The order of the media source flow is USB1->USB2->SD-

>BT->AUX->USB1...for 2.1F systems.

The order of the media source flow is USB -> AUX -> USB

for 2.0F systems.

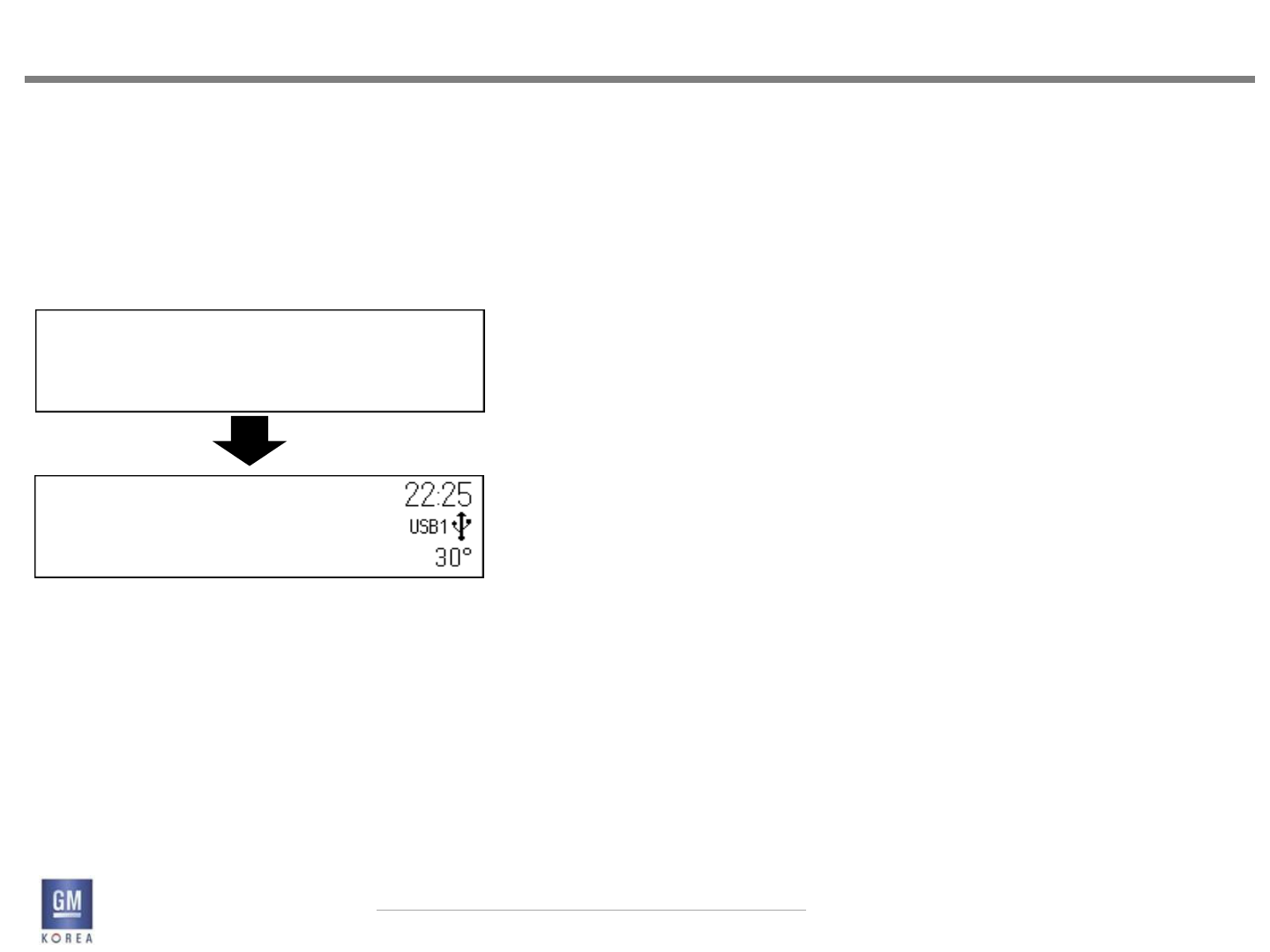

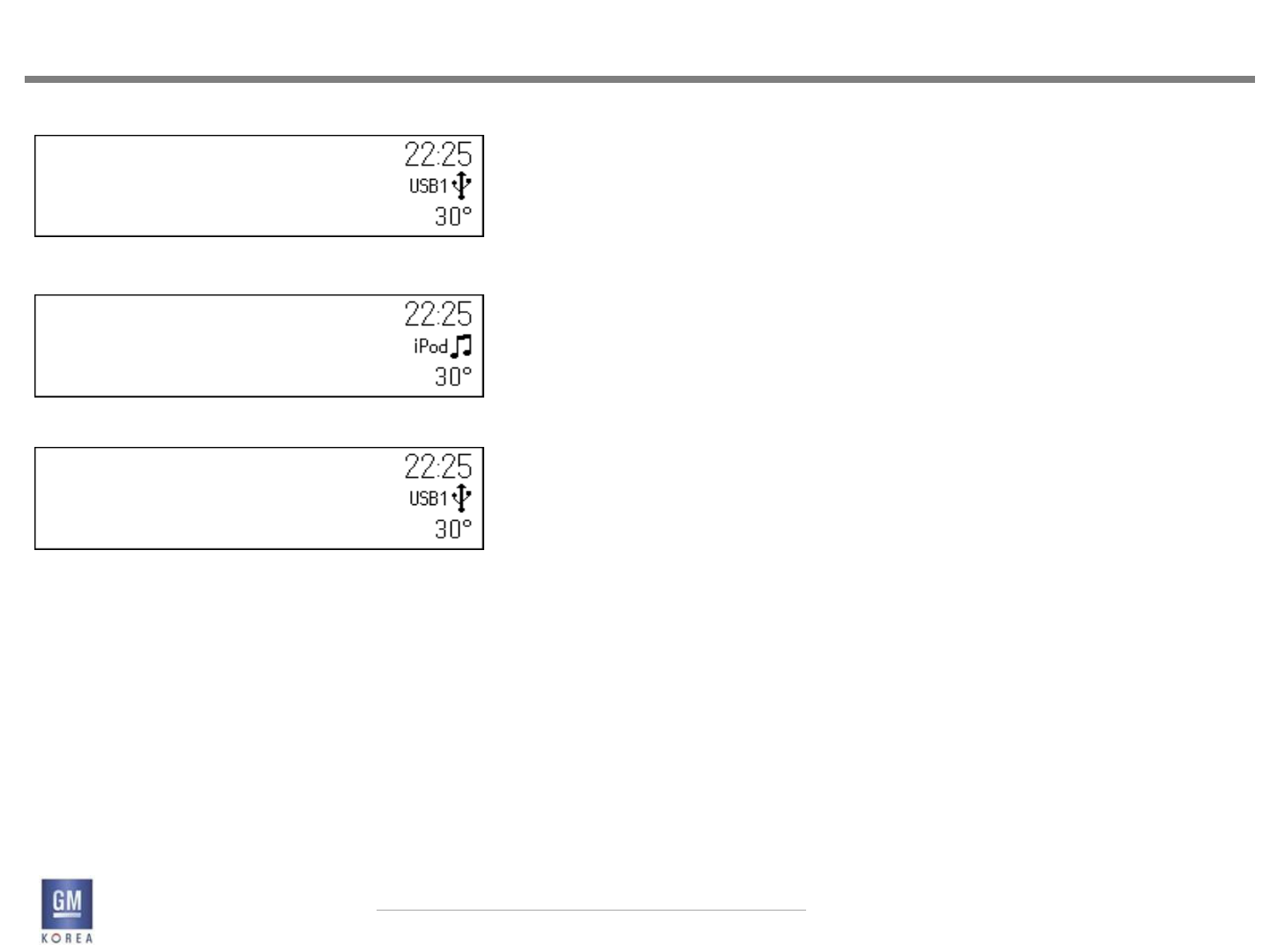

When the user selects a new media source, the display

will initially show the friendly device name in the text

field as shown . After a timeout of 5 seconds (calibrateable)

the display will be updated to reflect the applicable

metadata.

In situations where there is no friendly name, the system

displays Unknown Device as the device name and

then times out to the now playing view.

Figure 5.3.1 – Figure Removed

Figure 5.3.2 - Sourcing a media device (specific example)

Figure 5.3.3

Artist Name

Song Name

00:03:42

Reading USB…

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.3.1 Media Source Flow - Skipping Sources With No

Device Connected Or Disc Inserted

Sources that do not have a connected device will be

skipped as users press the MEDIA button provided there

are two or more media devices connected.

5.3.2 Media Button Behavior With No Available

Media Sources

Scenarios where there is no available media present will

display the pop-up shown in Figure 5.3.4 for the base

(2.0F) system when the user selects the MEDIA button

while in broadcast source mode. The currently sourced

audio will continue to be heard while this pop-up is

displayed.

The pop-up in figure 5.3.5 is shown for the uplevel (2.1F)

system and also provides options to pair or manage

Bluetooth devices as discussed in the phone section of

this document.

Figure 5.3.4 -

Figure 5.3.5 -

No Media Available

Dismiss

No Media Available

Dismiss Pair

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.3.3 Media Button Behavior With 1 Available Media Source

Scenarios where there is a single media source present

will display the pop-up shown in Figure 5.3.6 (or figure

5.3.7 for uplevel systems) when the user selects the MEDIA

button and is currently listening to the only media

source. The currently sourced media audio will continue

to be heard while this pop-up is displayed.

Pressing the MEDIA button from broadcast mode when

there is only 1 media source available will always take

the user to the only available media source.

If the single media source is disconnected while it is

the active screen, the screens defined in figures 5.3.8

through 5.3.10 will be shown for the appropriate source

mode. For instance, if an AUX device is ejected, the No

Device Connected screen would be displayed until the

user selects another source or inserts another device.

5.3.4 Disconnecting Active Sources

When the active media source is disconnected in situations

where there are 2 or more media sources present,

the system will display the screens shown in figures

5.3.8 through 5.3.10 and keep the user in that mode

until they reconnect.

Figure 5.3.6 - Base Faceplate

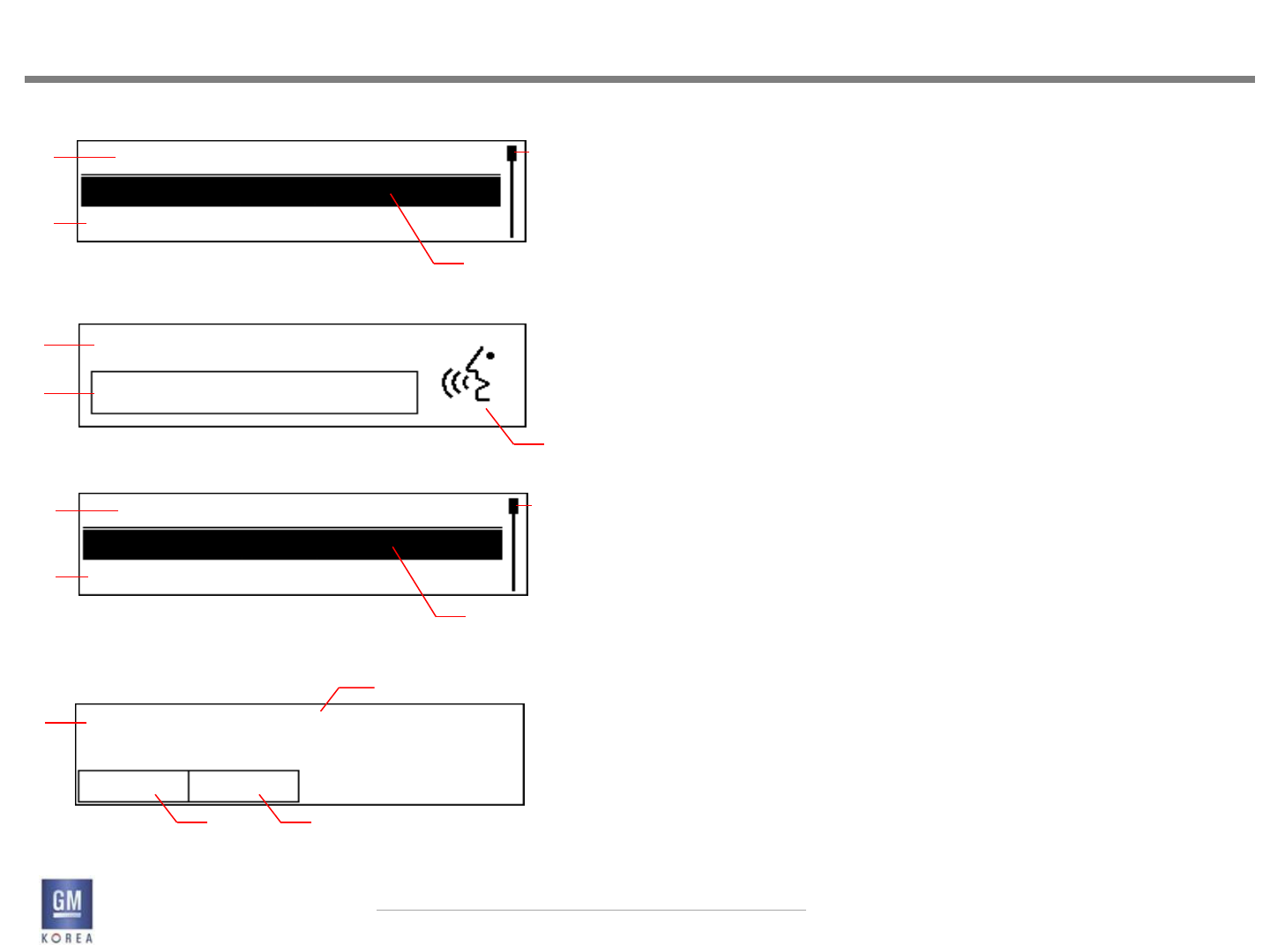

Figure 5.3.7 - Uplevel faceplate view

Figure 5.3.8 - US B/SD sources

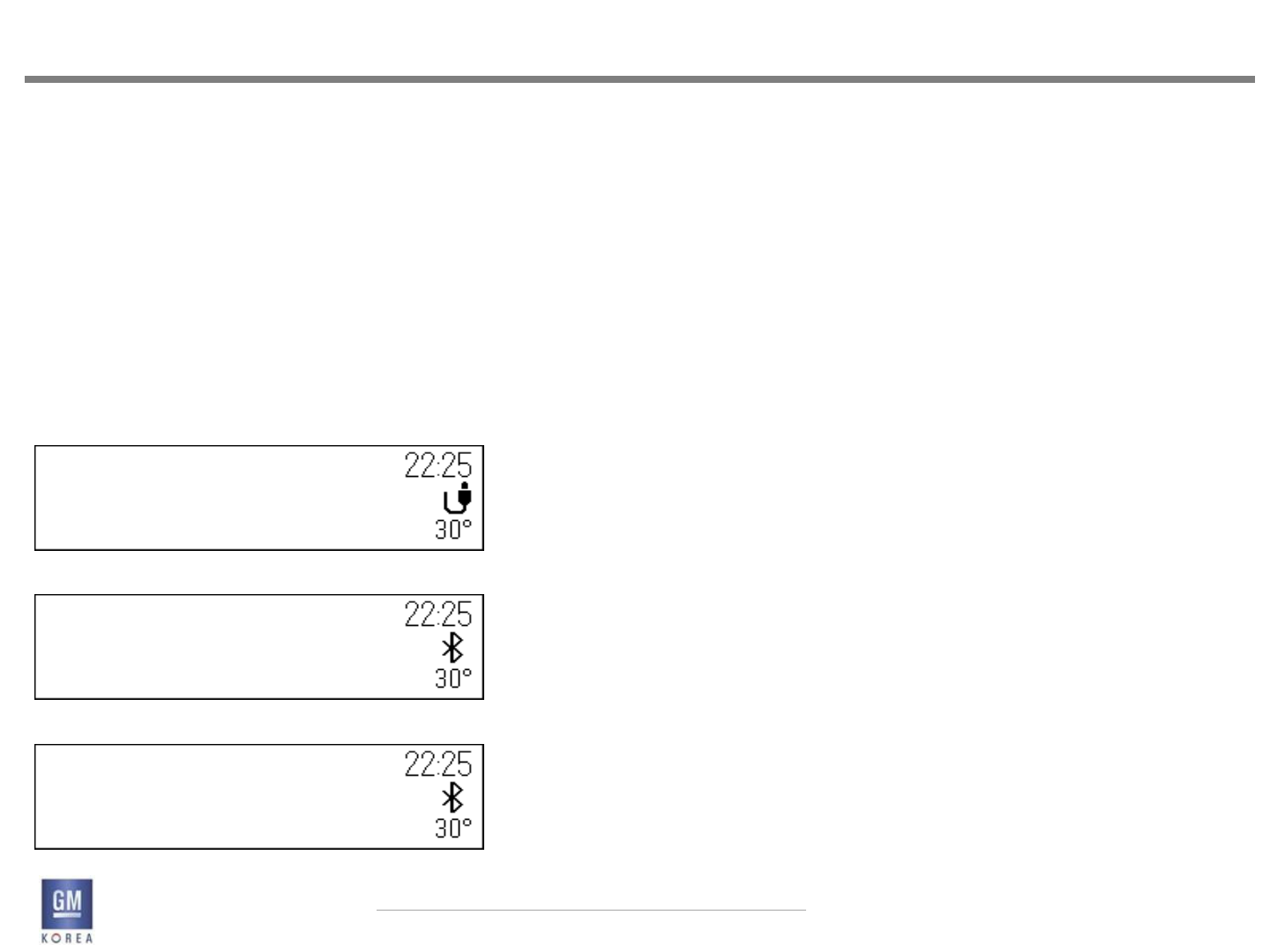

Figure 5.3.9 - AUX Input devices

Figure 5.3.10 - Bluetooth devices

No Other Media Available

Dismiss

No Other Media Available

Dismiss Pair

No Media Found

No Device Connected

Pair

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

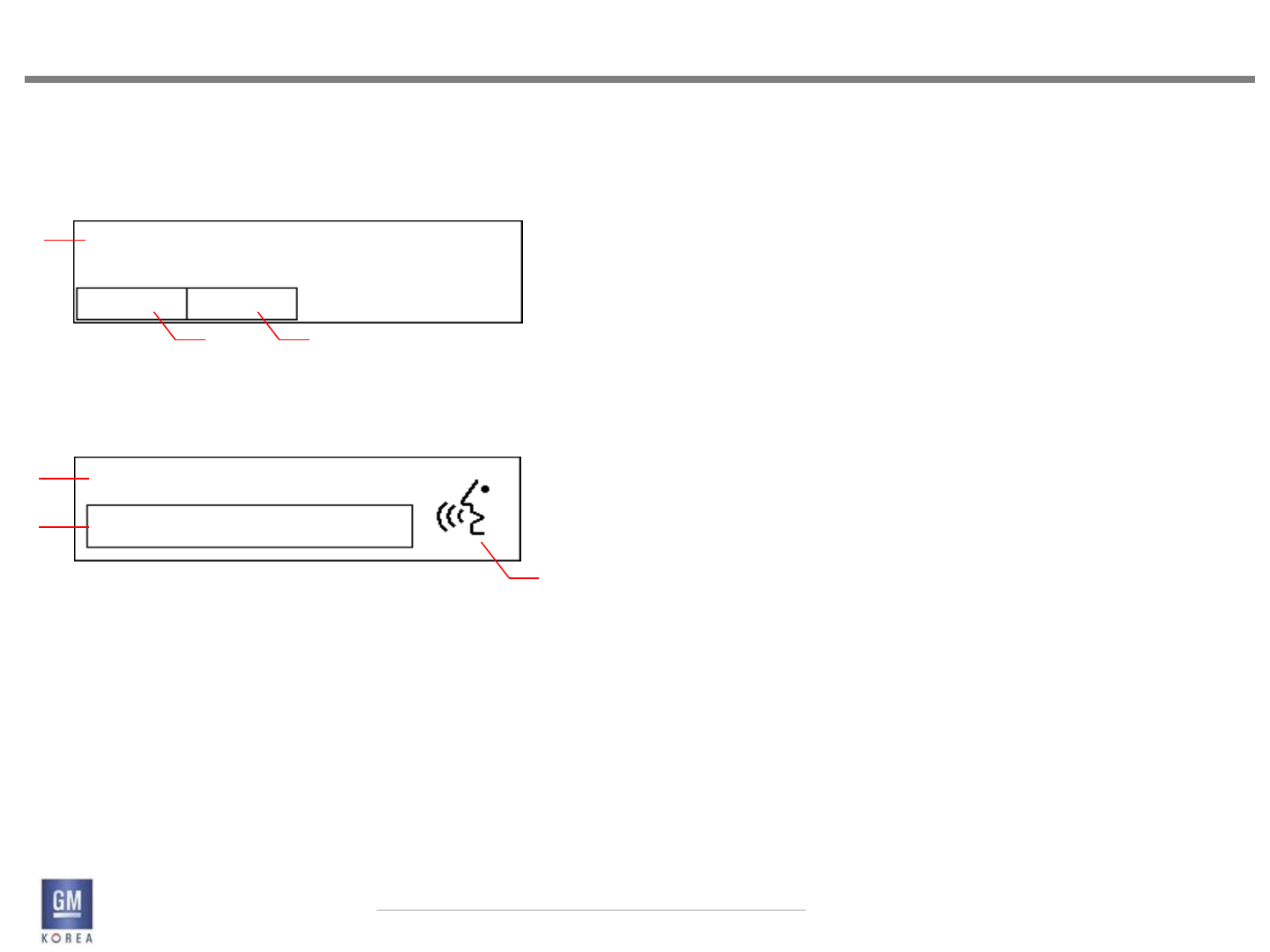

5.3.5 Soft Key Behavior in No Media Pop-ups

The soft-keys associated with the no media views behave

as follows:

Dismiss -> this option returns the user to the previously

viewed screen

Pair -> this option takes the user to the Bluetooth pairing

screens as defined in phone section 6.1.7.

If the user elects to add a device via the Pair soft-key

and press the BACK button, the view in Figure 5.3.10 will

be displayed.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.4 Broadcast Seek Up/Down

The faceplate contains two switches for seeking to the

next or previous station or channel in broadcast modes.

5.4.1 AM/FM Seek

In AM/FM audio sources, tapping on the Seek Up

or Down switch tunes the radio to the next or previous

stog sigal statio as deteied  the tue. The

frequency field is updated during this process until the

tuner has found an acceptably strong station. This applies

to non-RDS based systems.

5.4.2 Fast Seek (AM/FM)

If the user presses and holds on either Seek Up or Down

button, the display shows the frequency/channel/

PSN changing at a rate of 5 frequency steps/channels/

PSN per second until they release their finger. After the

release, the system stops on the current channel or

frequency (if a strong signal station only) displayed or

tunes to the next strong signal station in the direction of

the fast seeking.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.4.3 Seek Operation With One Strong Station

If the user is tuned to the only available strong station

in the broadcast band and the user performs a seek

operation, the tuner will scan the entire band. If no

other strong stations are found the tuner will perform a

second pass of the band at a lower signal threshold. The

frequency information on the display will continue to

update as the tuner performs the seek function.

5.4.4 Seek Operation With Zero Strong Stations

If the user is tuned to a broadcast band with no strong

signal stations available and the user performs a seek

operation, the tuner will scan the entire band. If no

strong stations are found the tuner will perform a second

pass of the band at a lower signal threshold. The

frequency information on the display will continue to

update as the tuner performs the seek function.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.4.5 EU FM RDS Seek

In the FM RDS source for single tuner EU radios, tapping

on the Seek Up or Down switch initially will display

a Tuning screen for 2 seconds (calibrateable) while the

next station available in the FM memory is tuned. The

tet Tuig is displaed i lie  of the etadata duig

this time.

Once the available station is tuned in, the display is updated

with the FM now playing view.

If the user tunes to an RDS station for which the PSN is

unavailable, the display will show the frequency for that

station until the PSN is available.

5.4.6 EU FM RDS Seek Behavior with TP On

When TP is ON in the menu, seeks will only include TP

supported stations or stations with EON-TA support.

When TP is OFF in the menu, seeks will include all available

stations from the tuner.

Figure 5.4.1 -

Figure 5.4.2 -

Figure 5.4.3 -

REGNBOGN

Now Playing Rumour Has

lt by Adele on RADIO RE…

Tuning…

PlntRock

Now Playing on Planet

Rock Is music from The…

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.4.8 EU RDS - TP Off to On interaction

If TP is currently set to OFF in the vehicle and the user

switches TP to ON from the FM menu, then the system

will initiate a TP search in order to tune to the strongest

available TP station. This search is initiated only if the

user is not tuned a TP supported station.

Essentially, once the user has turned TP ON, audio

is muted, and a search is enabled. An intermediate

screen will be shown during a search with the words

TP seah i the etadata field. Afte the statio is

tuned, audio is restored and the RDS now playing view is

shown.

If the TP setting is toggled ON from a source menu other

than FM, the tuner will perform a background scan for

a TP supported station while remaining in the current

source mode. Please refer to the RDS TP Status section

which describes the remaining details for handling traffic

alerts while in other source modes.

If the tuner discovers a traffic alert already in progress

after the user toggles TP to the ON state from a non-FM

source menu, the alert will be ignored.

Figure 5.4.4 -

Figure 5.4.5 -

Figure 5.4.6 -

REGNBOGN

Now Playing Rumour Has

lt by Adele on RADIO RE…

TP Search…

PlntRock

Now Playing on Planet

Rock Is music from The…

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.5 Broadcast Manual Tuning

The faceplate contains a rotary-push knob that is used

for a multitude of functions associated with the Infotainment

system.

When listening to a broadcast audio source, rotating the

knob tunes to a different frequency or station for AM/

FM.

FM RDS and DAB tuning in EU radios via the tune knob is

handled in a later section.

 If user rotates the <Menu>knob,

system acts as below.

1) AM : Act to tune the freq. as manual tune.

2) FM

3) DAM : Act the station list

5.5.1 AM/FM Tuning

In the AM/FM sources when the Now Playing screen is

displayed, rotating the knob tunes the radio one frequency

or channel/station step up or down for each

detent of rotation. When the end of the frequency/

channel spectrum is reached, the tuning wraps to the

beginning or end of the frequency spectrum depending

on the direction of tuning.

without

RDS/RBDS

With RDS With RBDS

Freq. Tune

(Manual Tune)

Station List Station List

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

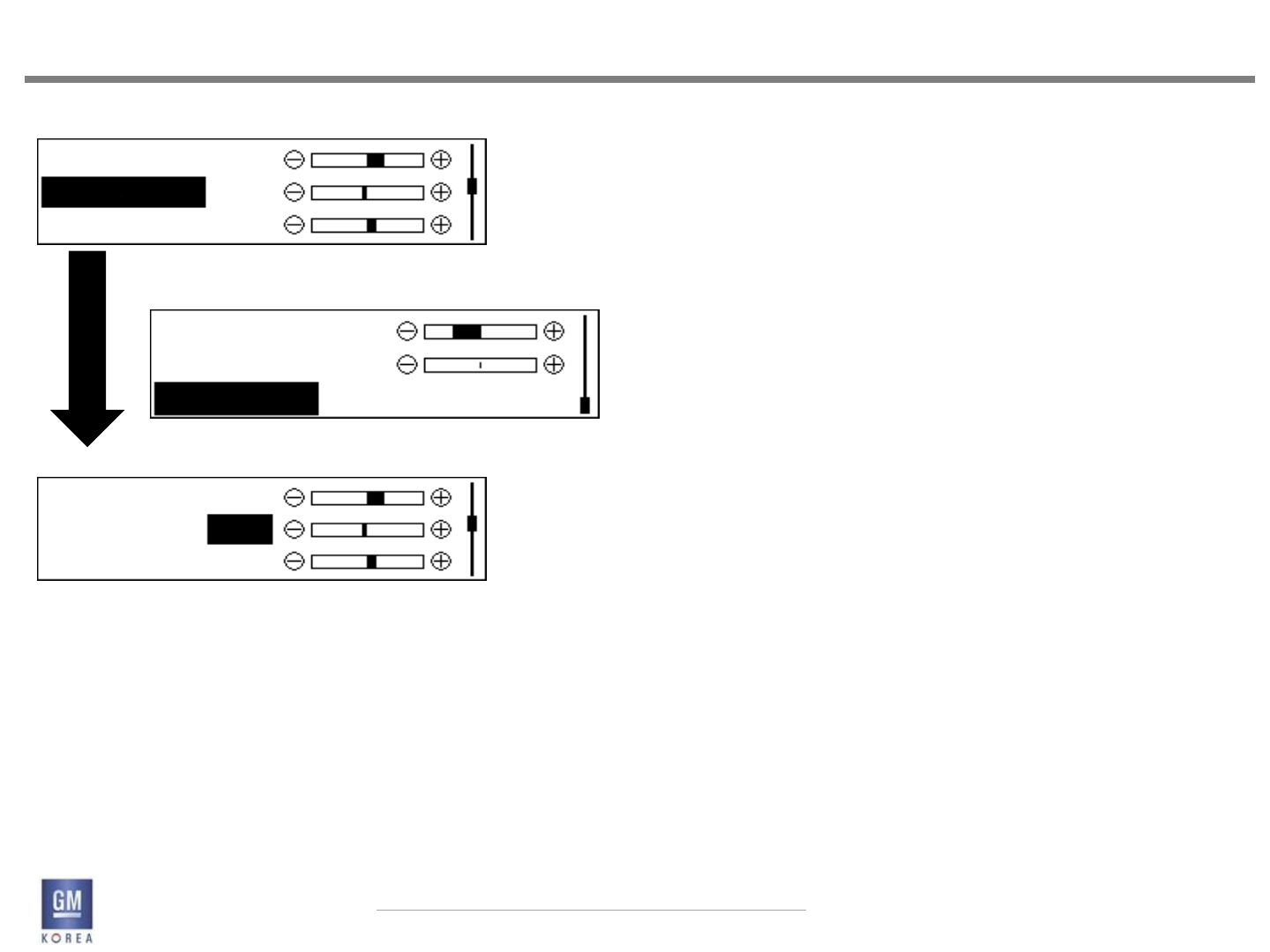

5.6 RDS Traffic Volume Setting

Traffic alert volume can be adjusted by simply turning

the volume up or down while the alert is playing. The

system will store this setting for future traffic alerts.

The default traffic volume will be set according to GIS

302.

If the user is currently listening to a source at a higher

volume than the TA volume setting, then the TA will play

back at the current source volume setting.

If the user is currently listening to a source at a lower

volume than the TA volume setting, then the TA will play

at the volume set by the user for traffic.

Once an alert is completed, the system volume returns

to its previously set level prior to the traffic alert.

If the user sets the traffic alert volume to zero during

an alert, the next traffic alert will arrive at the minimum

connection volume level as defined in GIS 302.

If the user selects a station that supports Traffic Programming

and a Traffic Announcement is already in

progress, then the radio will not increase the volume for

this traffic announcement.

The same process will apply to DAB Announcements.

•During TA the audio mode is switch to vocal frequency range

(VOICE)

- user is still allowed to change TONE settings during TA,

but next upcoming TA shall be played with ATC VOICE again

Figure 5.6.1 -

Traffic Volume

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

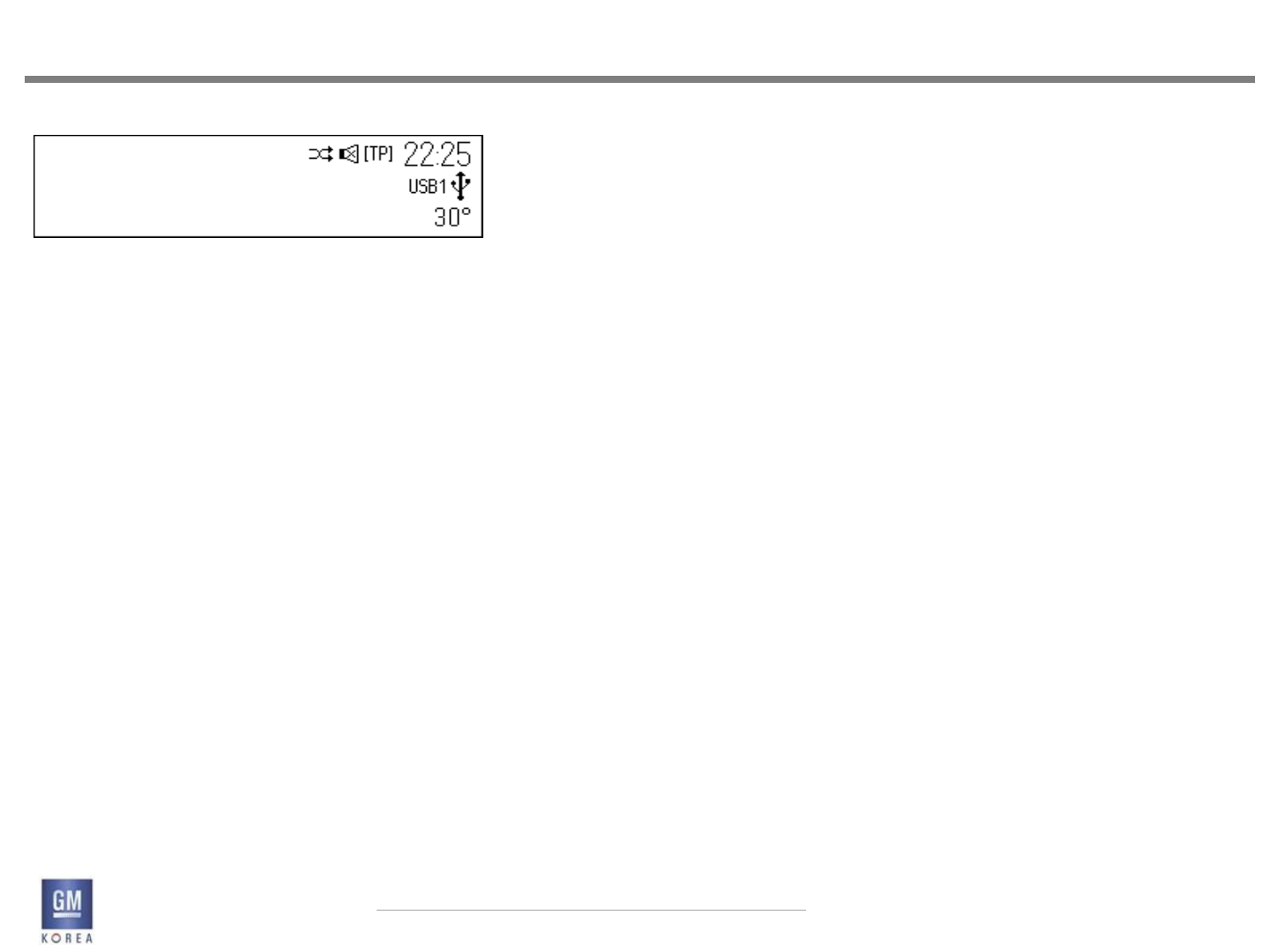

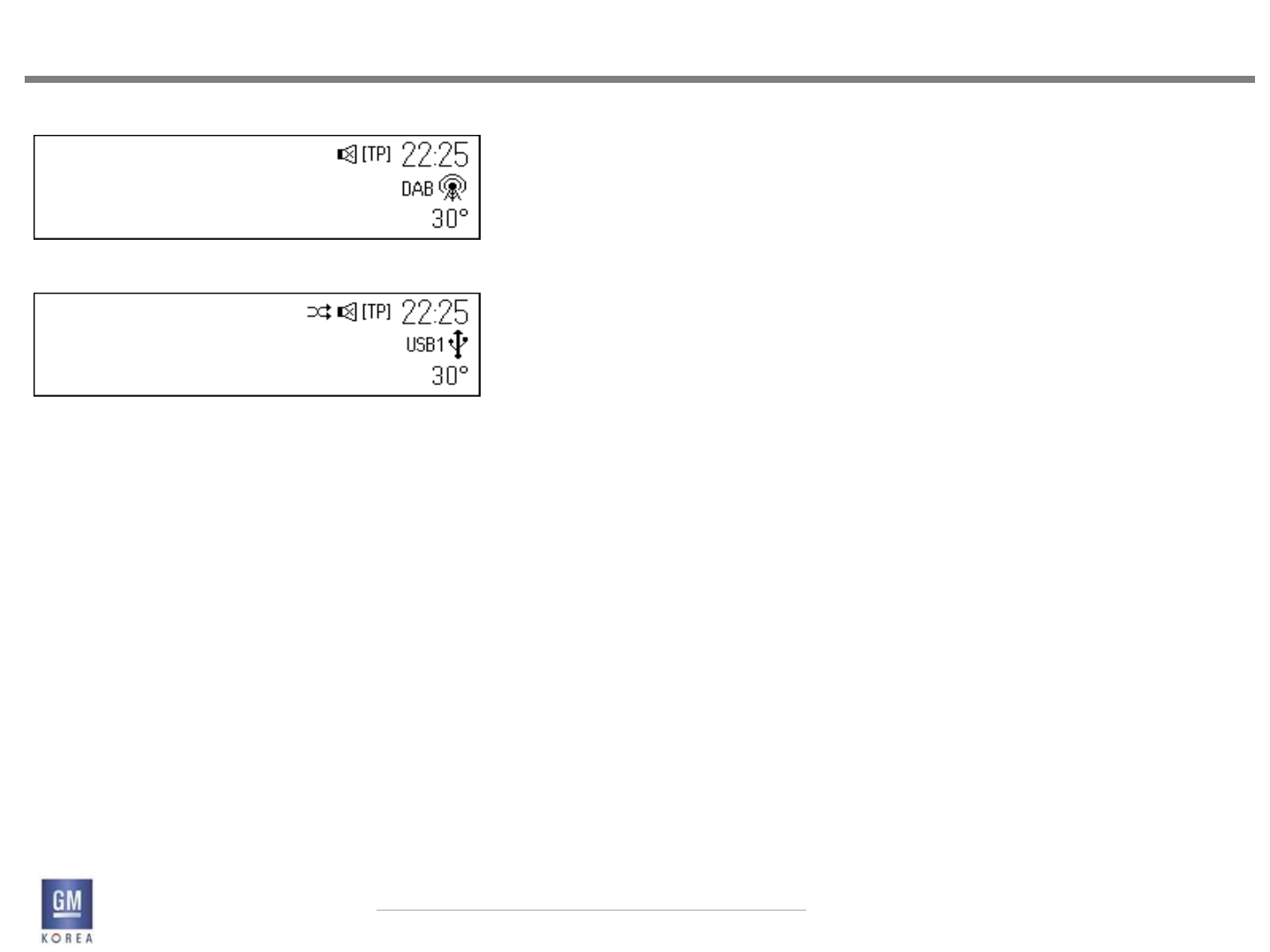

5.6.1 RDS Traffic Program (TP) Status

In FM-RDS broadcast mode or any other audio source

mode, the Traffic Program status indicator can be shown

in one of four different states depending on whether the

user has TP set On or Off and whether or not a station

supports Traffic Programming.

As shown in the flow to the left, the user has TP set to

ON and the station supports Traffic Programming. When

the tuner detects a traffic alert, the Traffic Alert will

show while the traffic announcement begins playing and

the user can choose to dismiss it.

If the user was in a source other than FM, the Traffic

Alert would display as the alert begins playing. Playback

will be paused and the audio will change to the

traffic message. Once the traffic alert is completed or

dismissed by the user during playback, the audio will

switch back to the previous source mode.

If the user switches stations or sources during a Traffic

Alert, the current TA will be cancelled and the system

will respond to the user interaction.

Users that have RDS ON/OFF set to OFF will be automatically

placed in RDS ON mode if they configure TP on.

Figure 5.6.2 -

PlntRock

Now Playing on Planet

Rock Is music from The…

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.6.2 RDS Traffic Alert Pop-Up

If the user has set Traffic Programming to the ON state

in the FM menu, the user will receive Traffic Alert Pop-

Ups during audio listening in any mode.

As the flow on the left shows, the pop-up will occupy

the full screen with a Dismiss option highlighted by default

for the alert.

Please see the pop-up widget for further pop-up framework

details.

If the user is currently tuned to a TP station, all traffic

alerts will be initiated from the current station and not

from other TP supported stations. Users must be tuned

to a TP station or a non-TP statio that suppots EONTAs

to receive traffic alerts.

If the user tunes to the middle of an active TA (e.g.

vehicle startup), the Traffic Alert pop-up should not be

displayed. Additionally, if the tuner detects a TA already

in progress and the active source is not FM, then the TA

is ignored.

Exceptions>

- On TA,

If user inserts the USB/SD device to the media box,

system ignores to reading the USB/SD.

In other words, system should be act TA continuously.

If the user changes the TA Status to the media mode,

System should cancel to operate TA on this TA event.

- On TA,

If the phone which means incoming/outgoing call

is occurred, system should act call.

If the above phone event is ended,

system should go back latest radio mode.

(This means that TA event is canceled.)

Figure 5.6.3

Figure 5.6.4

PlntRock

Now Playing on Planet

Rock Is music from The…

Traffic Alert

REGNBOGN

Dismiss

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.6.3 RDS PTY 31 Alert Pop-Up

PTY 31 alerts are high priority broadcast pop-ups that

are to be handled in the same manner as normal RDS

traffic alert pop-ups.

However, these alert pop-ups will always be played regardless

of the TP ON/OFF setting.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.7 Broadcast Audio Menu

The rotary-push knob is also used to call up and operate

specific broadcast audio source menus. When listening

to a oadast audio soue ith the No Plaig

screen displayed, pressing the knob displays a menu list

tailored to the current broadcast audio source. Menu

options are highlighted by rotating the knob and selected

by pressing the knob.

Access to vehicle settings is also available from all

menus.

The system remembers the last menu option selected

or highlighted (within each source) and highlights that

menu option upon recall of that menu.

5.7.1 AM Audio Menu

Pessig the ko hile the AM No Plaig see

is displayed shows the AM Menu list in the following

order:

• Tie & Date

• Toe “ettigs

• “tatio List

• Auto Volue

• Update “tatio List

• Set Number of Favorites Page

• Maiu “tatup Volue

• Vehile “ettigs

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.7.2 FM Audio Menu (Non RDS Regions)

Pessig the ko hile the FM No Plaig see

is displayed shows the FM Menu list in the following

order:

• Tie & Date

• Toe “ettigs

• “tatio List

• Auto Volue

• Update “tatio List

• Set Number of Favorites Page

• Maximum Startup Volume

• Vehile Settings

5.7.3 FM Audio Menu (EU Radios)

Pessig the ko hile the FM No Plaig see is

displayed shows the FM Menu list for european radios

in the following order:

• Tie & Date

• Toe “ettigs

• Taffi Poga TP - On/Off Toggle

• Update “tatio List

• Auto Volue

• Maual Tuig

• ‘D“ - On/Off

• ‘egio - On/Off Toggle

• Categoies

• Set Number of Favorites Page

• Maximum Startup Volume

• Vehile “ettigs

Figure 5.7.1

Figure 5.7.2

Figure 5.7.3

Figure 5.7.4

Figure 5.7.5

1130

FM Menu

Time & Date

Tone Settings

Time & Date

Tone Settings

Station List

Time & Date

Tone Settings

Station List

Tone Settings

Station List

Auto Volume

Station List

Auto Volume

Update Station List

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.8 FM Manual Tuning Option (EU Radios)

When users select the Manual Tuning option from the

FM menu, they will be presented a list of all the FM

station frequencies from lowest to highest frequency as

shown in figures 5.10.3 and 5.10.4.

5.9 Multiple Digits After Decimal Point

For regions that broadcast stations with more than one

digit after the decimal point (e.g. - Thailand), the display

will behave as follows:

When the tuned station contains a zero in the hundredths

column (e.g. 97.10), the display should read

97.1.

When the tune station contains a non-zero number in

the hundredths column, the display should show both

digits (e.g. 97.15).

5.10 Station List & Categories

A list of strong stations as determined by the tuner is

displaed he uses selet the “tatio List optio

from broadcast audio menu.

When categories is selected from the FM menu, the list

contains category names associated with the broadcast

source. Selecting a given category name displays a list of

stations associated with that category. Selecting a station

from the list and pressing the knob tunes the radio

to that frequency and returns to the corresponding

No Plaig see.

Figure 5.10.1 - strong station list

Figure 5.10.2 - strog statio list cot’d

Figure 5.10.3 - manual tuning list

Figure 5.10.4 - aual tuig list cot’d

Figure 5.10.5 - Category View

1130

FM Stations

88.7

92.3

88.7

92.3

101.1

All FM Stations

99.5

99.6

99.5

99.6

99.7

Categories

POP

MUSIC

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

The list header for category based stations is

the category name followed by the word stations

(e.g. Rock Stations). The list header for

All Strong Stations will be shown as either FM

Stations or AM Stations as shown.

The system remembers the last category name

selected or highlighted and highlights that category

name upon recall of the Category List.

For EU radios, the PSN can be dynamically

updated in the station list as provided by the

broadcast station as calibrated by the tuner.

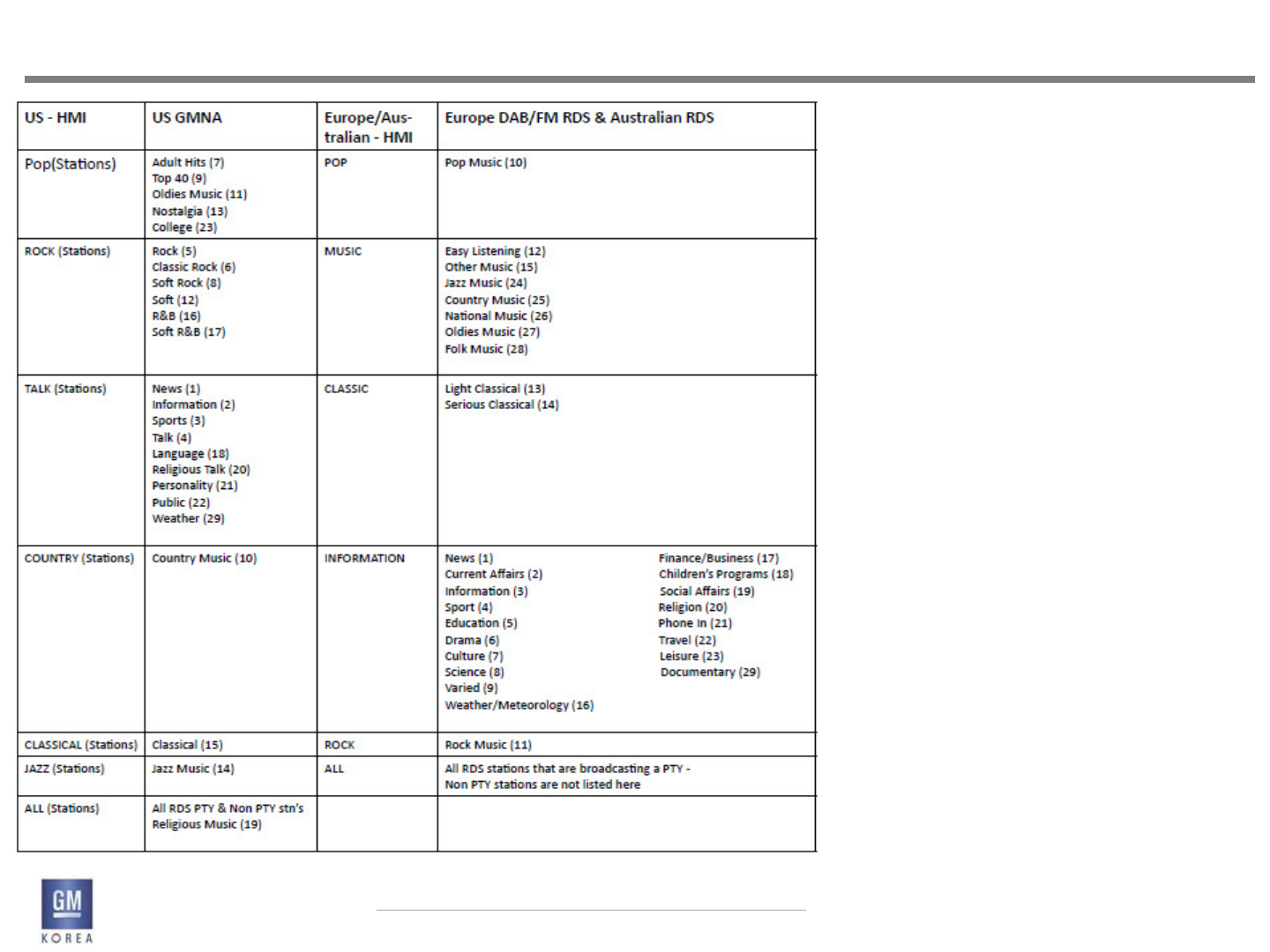

The categories to be presented to the user for

the European market RDS implementations

are as follows: Pop, Music, Classic, Information,

Rock, and All. The separate program

types that make up the supercategories for

both regions are defined in the PTY table as

shown.

For AM and FM, the category list is built by

scanning the band and building the list of categories

and associated

stations. This scan is done whenever the radio

is not tuned to an AM or FM audio source. The

scan can also be forced to happen while listening

to an AM or FM audio source by selecting

the Update “tatio List fo the eu.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.10.1 FM RDS EU Station List & Tuning

The FM RDS station list in European countries is generated

by the tuner using attibutes from the PI code. This

list is accessed by rotating the knob to display a list of

stations as provided by the tuner. In order to select a

station, the user presses the knob to tune the radio to

that station and the display returns to the corresponding

No Plaig see.

For single tuner radios, the intermediate tuning screen

is sho fo  seods pio to etuig to the No

Plaig ie.

The list is sorted by RDS stations in order of signal

strength and followed by non-RDS stations grouped at

the end of the list. The exact ordering of the list with

respect to signal strength and other RDS attributes is

determined by the tuner.

For EU radios, the PSN can be dynamically updated in

the station list as provided by the broadcast station as

calibrated by the tuner.

Stations that support traffic programming are denoted

with the letters TP at the far right of the list entry regardless

of the TP on/off menu setting. In addition, non-

TP stations that support EON-TA are also denoted with a

TP in the list. In cases where the currently playing icon

and TP station indicator are both applicable, the TP indicator

will take precedence and be displayed.

Figure 5.10.6

Figure 5.10.7

Figure 5.10.8

Figure 5.10.9

user turns knob one detent

user presses to select station

1130

FM Stations

PlntRock

REGNBOGN

PlntRock

REGNBOGN

Bayern 1

Tuning…

REGNBOGN

Now Playing on BBC 6

Music is the latest rele…

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

Any station can be selected from the list regardless of

whether TP is on or off. The TP status for the station

selected is shown in the status region.

When a selection is made from

a station list or favorite, the user will see the intermediate

Tuig see fo  seods as defied peiousl.

If the tuner cannot find the station, a search of the AF

list is first done followed by a band scan at which time a

station list update is also performed. In this scenario, audio

is muted and the PSN or frequency is shown in line 1

ad Tuig is sho i lie . A ael utto soft-key

is also made available at this point of the process.

After the tuner performs the band scan and the station

is still not available, it is tuned, the frequency is displayed

and the user hears static. For either system, the

user will have to select another station manually when

they receive an unavailable station.

- In case that system has the station info(RDS PS),

The Figure 5.10.12 is displayed when tuning.

- In case of else,

the Figure 5.10.8 is displayed when tuning.

Figure 5.10.10

Figure 5.10.11

Figure 5.10.12

REGNBOGN

Now Playing on BBC 6

Music is the latest relea…

FM Stations

PlntRock

REGNBOGN

PlntRock

Tuning…

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.10.2 Update Station List

Users can select the Update Station List option from the

More menu to enable a station list refresh thus adding

all available stations and/or DAB multicasts to the

list. Categories are added during this scan as well. This

update can take anywhere from 2 -5 minutes in general,

therefore the system will allow the user to cancel out of

an update while it is processing.

During a station list update, the user can use the media

sources in the system. If the user selects a broadcast

source during the update, the wireframe shown in Figure

5.10.13 will be shown.

The seek/tune button functionality and menu button

will be inactive and the cancel soft-key replaces the

favorites for AM/FM/DAB sources.

When users press any inactive buttons in this mode, the

system will display the pop-up, Atio ot suppoted

during station list update.

To stop the station list update, the user can press the

cancel button soft-key. If the user is in a media source

view and presses the RADIO button, they will be returned

to the Updating Station List view shown in Figure

5.10.13 if the station list update is still active. Otherwise,

they will be taken to the Now Playing view for the last

tuned station of the last active broadcast source mode.

Exception>

If user presses the <Cancel>key,

System recover the previous station DB and display previous

viewing mode(latest Radio now playing)

Figure 5.10.13

Updating Station List…

Cancel

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.10.3 Returning From A Station List Update

After a manual station list update is completed, the user

is returned to the last selected station prior to the user

selecting the update option from the menu.

If the user is listening to another source mode when

the station list update has completed, they will not be

returned to the AM or FM broadcast mode.

5.10.4 RDS Off Behavior For EU Radios

When RDS is turned OFF from the menu on an EU radio,

the system applies this setting to the currently tuned

station only. This will cause the RDS text to be switched

off, the alternate frequency feature will not function,

and the frequency will be displayed in place of the PSN.

Hoee, P“Ns ill still e applied he the use selets

the station list browser.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.11 Tone Settings

The following tone settings are displayed when users

selet the Toe “ettigs optio fo a audio soue

menu:

• Bass

• Midage

• Tele

• Fade

• Balae

• EQ e.g., ‘ok, Pop, et.)

Once tone settings are made, they are globally set

across all different sources.

For tone settings there is no imtermediate header for

this list. Uses highlight the desied toe settig optio

and press the knob to be able to change its current

value. Turning the knob will change the tone setting

value and be reflected on the display in the bar graphic.

When the user has finished adjusting a setting, he/she

presses the knob to store the new setting and return to

the Tone Settings option list.

The range of all tone settings are from -12 to +12 detent

settings.

Figure 5.11.1

Figure 5.11.2

Figure 5.11.3

Midrange

Treble

-1

Fade

Bass 5

Midrange

Treble

-1

Bass 5

Balance

EQ Rock

-5

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

The EQ option allows users to select from predefined

tone settings and will cycle through the following types

as users adjust the setting by turning the knob:

Pop

Rock

Country

Jazz

Talk

Classical

Custom

The tone settings are also visually depicted in the x-y

coordinate graphic to the right of the individual settings

as shown in the wireframes.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.12 Auto Volume

Auto Volume adjusts the volume of the audio based on

the speed or ambient noise of the vehicle. The following

Auto Volume settings are displayed when users

selet the Auto Volue optio:

• Off

• Lo

• Mediu-Low

• Mediu

• Mediu-High

• High

The current Auto Volume setting is shown as active in

the list (e.g., a check mark, etc.).

Alternatively, certain vehicles may be equipped with the

Bose AudioPilot system. In these cases, the Auto Volume

main menu item is replaced with the Bose AudioPilot

setting. This is an on/off toggle list entry.

When Off is seleted, Auto Volue does ot futio.

Whe Lo is seleted, Auto Volue uses a loe

range volume curve to adjust volume with vehicle speed

changes.

Whe Mediu is seleted, a iddle age olue

curve is used to adjust the audio volume with changes in

vehicle speed.

Whe High is seleted, a oe aggessie olue

curve is used to adjust the audio volume with changes in

vehicle speed.

Medium-Low and Medium-High will adjust Auto Volume

to approximately the range between low to medium and

medium to high respectively.

Figure 5.12.1

Figure 5.12.2

Auto Volume

Off

Low

Off

Low

Medium

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.13 DA B Now Playing View

The following information is shown on the DAB now

playing view:

• “tatio Lael eg, BBC  Musi - listed first in line 1

• Esele Lael eg, BBC NATL

• Gaphi

• DAB Tet - Program Information

An 8 character service label and an 8 character ensemble

label will be used.

- FAV Label

- [TP] icon

- Mute icon

- Driving School

(If Driving School is on,

Speed is displayed on the location/instead of outside template.)

5.13.1 DA B Metadata

The DAB radio fields are shown in the following order

and if there is more content than will fit in the area of

lines 2 and 3, they page a single time at a rate of 5 seconds

per field:

Line 1: DAB Station Label and Ensemble Label

Line 2: Dynamic Label Text

Line 3: Dynamic Label Text continued

For dynamic label plus scenarios, lines 2 and 3 are displayed

as follows when available from broadcast:

Line 2: Artist Info

Line 3: Song Info

When DAB signal information has been detected, the

metadata fields will be updated on the display to show

the information. The information and formatting displayed

with dynamic label text will vary based on the

oadastes poided ifoatio ad foattig.

DAB text should not be displayed until is received in its

entirety.

Figure 5.13.1

Figure 5.13.2

REGNBOGN HESSEN

Iron Maiden

The Man Who Would Be…

REGNBOGN HESSEN

Now Playing on BBC 6

Music is the latest relea…

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

When tuned to a DAB + station, the default text displayed

for the user will be the dynamic label plus variant

for artist and song only. No other variations of DL+ will

be displayed. When this is not available from the broadcaster,

the text fields will be populated with the standard

dynamic label text.

5.13.2 Paging And Truncation of DA B Text

The three wireframes shown to the left describe how

the text fields of lines 2 and 3 of the metadata should

be paged using smart truncation (i.e. not breaking up

words in the middle between line 2 and 3) when there is

more information than can be fit in the alotted space.

For example, if the complete broadcasted text were the

phase, No Plaig o BBC  Musi is the latest elease

from Radiohead entitled Give Up The Ghost from

the alu The Kig Of Lis, the ifoatio ould

page a single time as shown. The final view after pagination

is shown in figure 5.1.13.5.

5.13.3 DA B Graphics

The graphics region will contain a graphic with the letters

DAB or DAB+ incorporated into the graphics region

based on the broadcast mode. For DMB broadcasts, the

DMB logo will be shown in the graphics field.

Figure 5.13.3

Figure 5.13.4

Figure 5.13.5

REGNBOGN HESSEN

Now Playing on REGNBO

GEN is the latest relea…

REGNBOGN HESSEN

entitled Give Up The Gho

st from the album The …

REGNBOGN HESSEN

Now Playing on BBC 6

Music is the latest relea…

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.13.4 DA B Views without Station or Ensemble Labels

Instances where there is either no station label, no ensemble

label, or neither station and ensemble labels will

be handled as follows:

When there is no station information available but the

ensemble is known, the station field will be replaced with

the tet No Lael as sho.

When there is no ensemble information available but the

station label is known, the ensemble field will be replaced

ith the tet No Lael as sho.

When there is no station or ensemble information available,

the display will show the block number and frequency

in the now playing view as shown in Figure 5.13.9

Figure 5.13.6

Figure 5.13.7

Figure 5.13.8

Figure 5.13.9 - no station label or ensemble label view

REGNBOGN

Now Playing Rumour Has

lt by Adele on RADIO …

No Label HESSEN

Iron Maiden

The Man Who Would Be …

REGNBOGN No Label

Iron Maiden

The Man Who Would Be …

10C 213.360

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.14 Seeking In DA B

The Now Playing screen supports the ability to seek up

and down to the next available DAB station - as stored in

the tue stog statio list.

5.14.1 Seek Mode

In DAB, tapping on the Seek Up or Down button tunes

the radio to the next or previous station of the current

ensemble when available - based on the tuner supplied

DAB strong station list. The updated metadata is then

reflected on the display without any intermediate tuning

screen.

If the next or previous station is located in another

ensemble, then the first or last receivable strong station

of that ensemble is tuned, regardless of whether the

ensemble and its associated services were part of the

original strong station list. If intermediate strong ensembles

are located, then they are added to the strong

station list along with their services.

In this use case, a tuning message is displayed for a

minimum of 2 seconds (calibrateable) as shown in the

wireframe flow to the left.

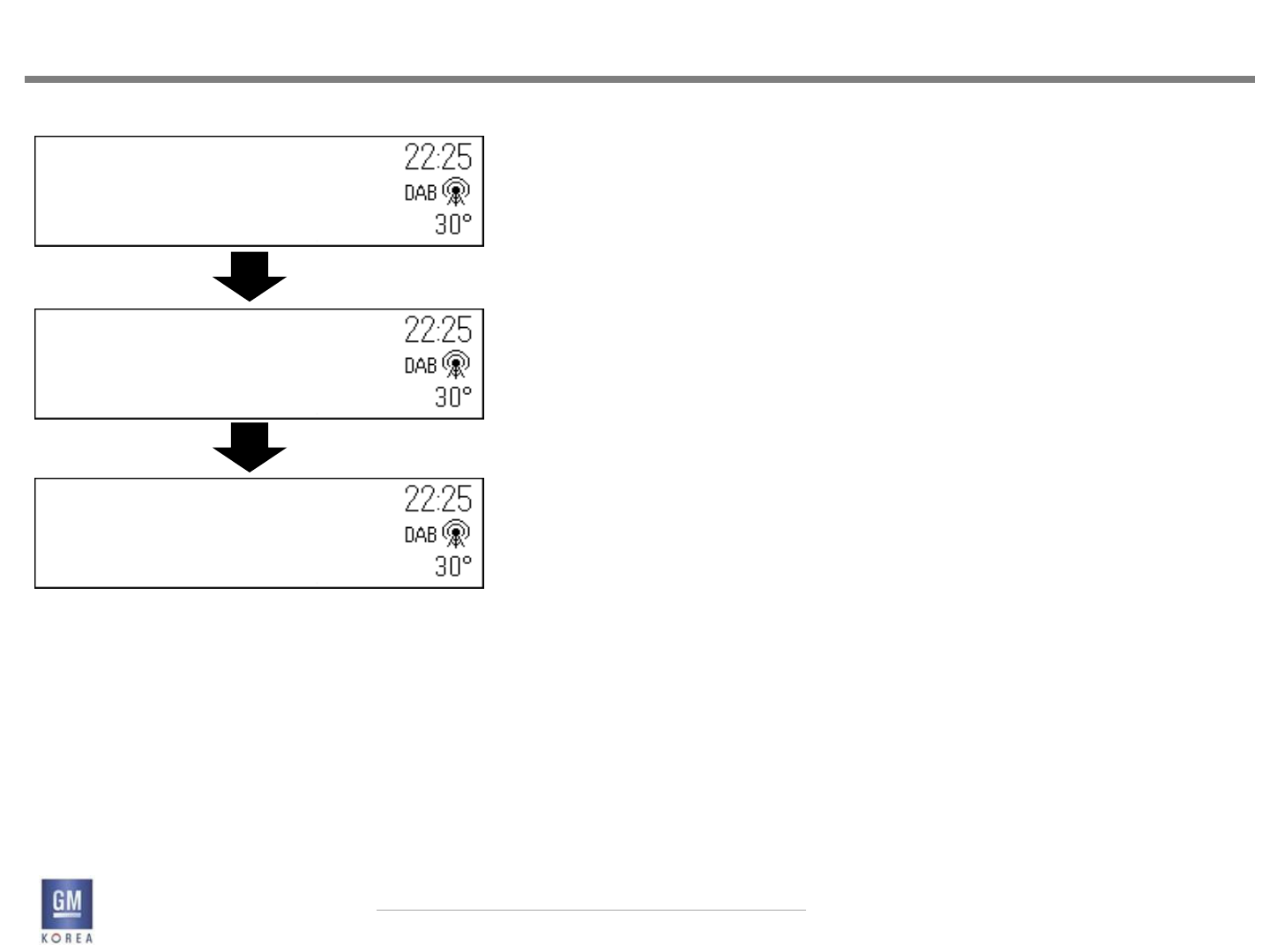

Figure 5.14.1

Figure 5.14.2 - tuning screen used when changing ensembles

(also known as the intermediate tuning screen)

Figure 5.14.3

PlntRock Digital1

Now Playing on REGNB

OGEN is the latest relea…

Tuning…

BBC Rad4 BBCNatl

Now playing on BBC4 is

the New album from Mu…

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.14.2 Press and Hold Seek Button

When the user presses and holds on either seek arrow

button, audio is muted and the metadata changes to

show the station and ensemble labels changing at a rate

of 3 steps per second (calibrateable) until they release

their finger. After the release, the system stops on the

next strong signal station in the direction of the fast

seeking and the DAB text will be updated.

Once the button is released and the tuner has to tune

to the next receivable ensemble to find a strong station,

HMI will display the intermediate tuning screen for a

minimum of 2 seconds (calibrateable).

5.14.3 Seek Operation With One Strong Station

If the user is tuned to the only available station in the

tues statio list ad pefos a “EEK opeatio, the

tuner will scan the entire band and be returned to the

original station currently tuned. The intermediate tuning

screen will be shown during the search.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.14.4 Seek Operation With Zero Strong Stations

If the user is in the DAB source mode and there are no

strong signal stations available, the tuner will scan the

entire band a single time on a SEEK operation and be returned

to the original station currently tuned. The intermediate

tuning screen will be shown during the search.

Once the scan is completed, the display will show No

DAB Stations Available in the metadata field.

Figure 5.14.4 - No DA B Stations Available

No DAB Stations Available

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

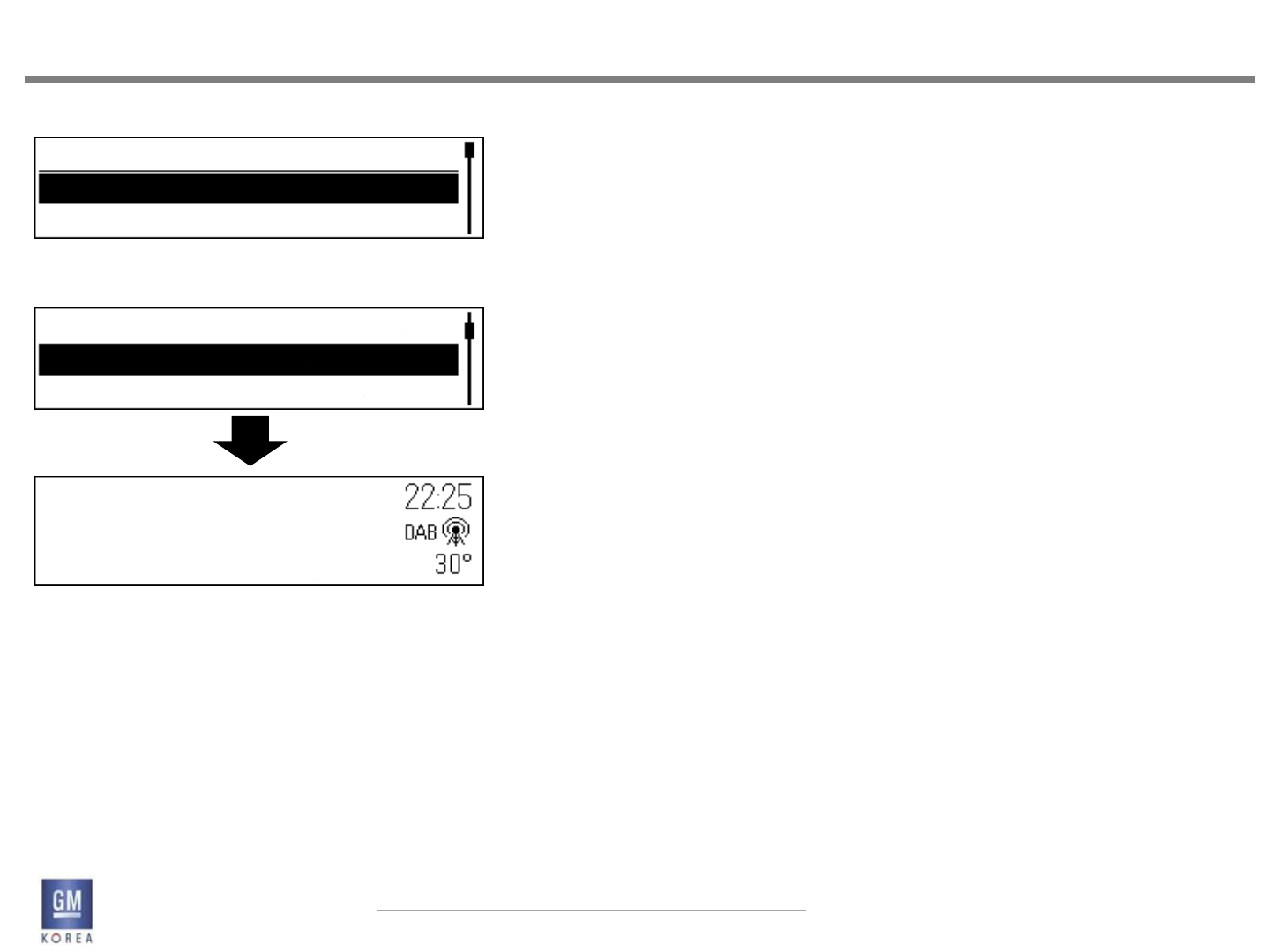

5.15 DA B Station Lists

The station list is accessed by turning the tune knob on

the faceplate. A list of strong DAB stations will appear

with the currently tuned station visually indicated in

the station list. Please refer to the list widget section for

further list handling details.

5.15.1 Information Displayed

The list shown is provided to the HMI by the tuner. Two

pieces of information are shown for each line item. An 8

character service label and an 8 character ensemble label

will be used. Based on character sizes, some services

or ensemble labels could be truncated within their text

entry box templates. These labels can be dynamically

updated in the station list as provided by broadcast as

calibrated by the tuner.

5.15.2 Selecting New Station

Once the desired station is found in the list, the user can

press the menu/tune knob to tune to that station and

be returned to the now playing view.

When the beginning or end of the station list is reached,

the tuning wraps to the beginning or end of the list depending

on the direction of tuning.

Figure 5.15.1

Figure 5.15.2

Figure 5.15.3

DAB Stations

REGNBOGN

D-RADIO

HESSEN

REGNBOGN

D-RADIO

Bayern 1

HESSEN

BAYERN

D-RADIO HESSEN

Mumford & Sons

Ghosts That We Knew

User selects station from list

using enter button on tune knob

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.15.3 Selecting An Unavailable Station

When a station that is selected from either variant of

the station list is not available, the user returns to the

now playing view and the first line of dynamic label text

will show Station Not Available and the second line will

be blank. The station and ensemble selected will be

shown in the top line of the metadata field. If a selection

was made from the manual tuning list, the channel label

and frequency will be shown in top line of the metadata.

When the user selects a station that is not available

from a favorite preset, the now playing view is updated

with the station and ensemble label selected shown

in line 1 of the metadata and Station Not Available is

shown in line 2.

Figure 5.15.4 - Station Not Available view

REGNBOGN HESSEN

Station Not Available

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.15.4 Manual Tuning (See DA B Menu)

The Manual Tuning list entry in the DAB Menu can be

selected to provide the user access to the internal tuner

station list. The tuner internal station list (i.e., all theoretically

available stations) is arranged in order of channel

labels (i.e. 5A, 5B,...13D and LA, LB,...LP if L-Band set to

ON mode).

Once the desired frequency is found in the list, the user

can press the menu/tune knob to tune to that frequency

and return to the now playing view. If an active ensemble

is available on that frequency, all metadata will

be updated on the now playing view. The next time the

user accesses the manual tuning list (by going back into

the menu and selecting manual tuning from the list), the

stations available for the selected ensemble will expand

out and be displayed in the list in the location formerly

populated by the channel label and frequency.

In the example wireframes shown, the user has selected

ensemble 11C. Figure 5.15.7 shows the result the next

time the manual tuning list is selected from the DAB

menu and displayed. In this case, ensemble 11C has

updated to esele lael Digital ad the assoiated

station labels are also shown.

Figure 5.15.5 -

Figure 5.15.6 -

Figure 5.15.7 -

All DAB Frequencies

BBC Rad3

BBC Rad4

BBC NATL

BBC Rad3

BBC Rad4

220.352

BBC NATL

11C

All DAB Frequencies

PlntRock

222.064

Digital1

11D

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.16 DA B Categories

If the user selects Categories from the DAB Menu, they

will be taken to the categories list for DAB. The list

contains category names associated with DAB stations.

Selecting a given category name displays a list of stations

for that category. Selecting a station from the list

tunes the radio to that station and returns the display to

the No Plaig ie.

DAB categories behave exactly as defined for FM-RDS

categories except for the information presented in the

category station list. In DAB, the station label and ensemble

label will be shown in the list.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.17 DA B Menu

When the user presses the faceplate menu button, the

list of settings or additional features for DAB are shown.

Users can browse the list by turning the rotary knob and

select an item by pressing the knob.

The contents and order of the DAB menu are as follows:

• Tie & Date

• Toe “ettigs

• Taffi Poga TP - On/Off Toggle

• Update “tatio List

• Auto Volue

• Maual Tuig

• Categoies

• DAB Aoueets

• DAB to DAB Likig - On/Off Toggle

• DAB to FM Likig - On/Off Toggle

• L Bad - On/Off Toggle

• Itellitet

• “et Nue of Favorite Pages

• Maiu “tatup Volue

• Vehile “ettigs

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.17.1 DA B to DA B linking

When users have DAB to DAB linking set to the ON state

and the currently tuned DAB station weakens and falls

below a certain threshold, the tuner will attempt to link

to the same station if it is available on another ensemble.

During this process an intermediate screen is shown to

inform the user that DAB to DAB linking is taking place.

Once completed, the screen updates to the Now Playing

view for the new ensemble.

If the tuner is unable to find the DAB station on another

ensemble after searching the entire band a single time,

it will attempt a DAB to FM link. If this is unsuccessful,

the dynamic label information will be replaced with Station

Not Available.

Figure 5.17.1

DAB to DAB Linking…

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.17.2 DA B to FM linking

When users have DAB to FM linking set to the ON state

and the currently tuned DAB station weakens and falls

below a certain threshold, the tuner will attempt to link

to the FM variant of the service provided DAB to DAB

linking is either OFF or has failed.

Once the linking is completed, the screen updates to the

Now Playing screen with the FM metadata for the tuned

station and the ensemble label field is replaced with the

tet DAB - FM as sho i Figue .. to idiate

DAB to FM following is active.

Note that there is no switching by the tuner to FM

source mode for this feature. Therefore, should the user

perform a SEEK operation, the tuner will perform this

operation in terms of the DAB source mode as defined.

When DAB to FM linking is active and the FM RDS station

weakens and the pi code is undeterminable, the

tuner switches back to the DAB metadata for the tuned

station and Station Not Available is displayed in line 2 of

the metadata.

In cases where DAB-FM is active and the broadcaster

changes the content such that it does not match the

original DAB broadcast, the system will behave based on

the RDS region setting. If the user has region set to ON,

then stay with the current broadcast content. If region is

OFF, then allow switching to occur which means a different

broadcast may be heard.

Figure 5.17.2

Figure 5.17.3

REGNBOGN HESSEN

Iron Maiden

The Man Who Would Be …

REGNBOGN DAB-FM

Now Playing is the latest

release from iron Maiden…

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.17.3 L Band - On/Off Toggle

When users toggle the L Band to the ON state, DAB will

broaden its seek/tune and station list functionality to

include the LA to LW frequency blocks.

5.17.4 DA B Announcements

The user can select DAB Announcements from the

menu to select which types of announcements that they

would like to hear while in the vehicle. This is accomplished

by pressing the list entry of interest to toggle it

on or off.

DAB announcements are only provided when in DAB

mode and only occur from any station in the currently

tuned ensemble.

DAB Announcements are presented to the user as

shown in Figure 5.17.4. Dismissing the announcement

will either tune back to the station the user was listening

to prior to the announcement or simply clear the

pop-up and remain tuned to the station broadcasting

the announcement.

The DAB alarm announcement is set to ON by default

and is not user selectable from the announcements

menu.

If a DAB alarm type announcement occurs, any other

pending or current announcements are interrupted and

the DAB alarm is presented.

A PTY 31 RDS alert shall not be cancelled by any DAB

announcement.

Figure 5.17.4

DAB Announcement

Sports

Dismiss

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.17.5 Intellitext

The intellitext feature is selected from the DAB menu.

This feature allows the user to see specially broadcast

text providing information such as sports scores, headline

news, and others.

The basic broadcast format for intellitext is a Menu

to Submenu to Data format. This section provides an

example of how the user interface should function and

appear to the user.

Once the user selects intellitext from the menu, they

will be shown the main intellitext menu which provides

the main categories the user can select for viewing as

shown in Figure 5.17.5.

In the example shown, the user selects football and is

provided standings and results for the football category

in a list format as shown.

In this example, Football serves as the Menu and Premium

League Table and Results serve as the Submenu

items. The data is represented under each submenu in

an indented manner. This is determined from the information

poided though the oadastes dai

label text.

By pressing the back button, the user can return to the

main Intellitext menu and select the news category or

press back again to return to the DAB menu.

Figure 5.17.5

Figure 5.17.6

Figure 5.17.7

Figure 5.17.8

Figure 5.17.9

Intellitext

Football

News

Football

Premium League Table

1. Manchester United

Premium League Table

1. Manchester United

2. Sunderham

1. Manchester United

2. Sunderham

Results

2. Sunderham

Results

Arsenal 0, Wigan 3

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

Exceptions>

If there is no intellitext info when user selects some info,

system displays the pop-upNo ‘eeied Itellitet

as the figure 5.17.10 and then go to the latest Radio Now Playing.

No Received Intellitext

Figure 5.17.10

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.18 Broadcast Audio Favorites

Broadcast audio stations for AM, FM, and DAB can be

stored as Favorites. Users must first tune to a desired

frequency or channel. Next, they press and hold the

desired Favorites button (1-4) on the faceplate to store

that station in the selected location on the Favorites

Page displayed.

For AM/FM favorites, the system stores and displays the

frequency in the selected Favorites tab.

FM RDS and DAB stations in Europe will store the station

PSN or service label in the favorites tab. If PSN or station

label is not available, the frequency is stored for RDS

and the block number (eg. 12B) is stored for DAB.

The favorite names are blind truncated per the favorites

widget of this document.

When a Favorites button is tapped for a broadcast

Favorite, the system tunes to that station or channel

ad the displa shos the oespodig No Plaig

screen unless specified otherwise elsewhere in this

document.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.19 Media Sources

The following section describes the data elements and

functions for media-based audio sources for the base

and uplevel faceplated radios.

5.19.1 Media Now Playing Screen

The Now Playing screens for media-based audio contain

the following data elements, depending on the media

source.

5.19.2 Removed

5.19.3 AUX Now Playing

• AUX Iput

• AUX Graphic

5.19.4 Bluetooth Audio Now Playing

• Bluetooth Musi (i.e., for AVRCP 1.0)

• BT Gaphi

• Atist Nae i.e., fo AV‘CP . ad highe

• “og Title i.e., fo AV‘CP . ad highe

• BT Graphic

Figure 5.19.1 -figure removed

Figure 5.19.2 - figure removed

Figure 5.19.3 - Aux Input Now playing view

Figure 5.19.4 - Bluetooth AVRC P 1.0 Now playing view

Figure 5.19.5 - BT AVRC P 1.3 Now playing view

Aux Input

Bluetooth Music

Artist Name

Song Name

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.19.5 US B/SD Now Playing

• Atist Nae if Metadata aailale

• “og Title if Metadata aailale

• Folde Nae / File Nae if Metadata ot aailale

• U“B/“D Graphic

5.19.6 iPod (US B connection)

• Atist Nae

• “og Title

• iPod Graphic

5.19.7 Removed

5.19.8 Audiobook Now Playing

• Audioook Nae

• Chapte Title

• Gaphi

5.19.9 Podcast Now Playing

• Podast Nae if Metadata aailale

• Podast Episode Nae if Metadata aailale

• Gaphi

Figure 5.19.6 - USB/SD now playing view

Figure 5.19.7 - iPod now playing view

Figure 5.19.8 - folder/file view

Artist Name

Song Name

00:03:42

Artist Name

Song Name

00:03:42

Folder Name

File Name

00:03:42

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.19.10 Handling of Non-Metadata Cases

In cases where there is no available metadata for the

selected artist for indexed sources, the artist field will be

populated ith No Atist Ifo. I ases hee thee is

no song info, the filename will be displayed in the song

field.

5.19.11 List Handling of Incomplete ID 3 Tags

If the uses deie otais ioplete ID tag ifoatio

for a music type file (e.g. - missing album or genre

metadata), the system will first attempt to determine

the missing metadata from the filename. After this step,

the filename will be used in the songs filter mode list

alphabetically. Podcasts and audiobooks will also attempt

to use the filename for the relevant metadata

information. If this fails, the system should use the

filename alphabetically in the applicable filter mode

category.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.19.12 Next / Fast Forward Transport Controls

Tapping the Seek Up switch on the faceplate skips to the

next track/song in playback order.

A long press on the same key causes playback of the

song to fast forward at the rate of 5-15x playback (TBD,

calibratable). Fast-forward playback can continue into

the next track/song in playback order.

During press and hold, the fast forward function stops

when the user releases their finger from the soft-key

button and playback resumes.

5.19.13 Previous / Fast Reverse Transport Controls

Tapping the Seek Down switch on the faceplate skips to

the beginning of the current track/song. However, if less

than 5 seconds has elapsed since the start of the current

track/song, the system skips to the beginning of the

previous track/song in playback order.

A long press on the same key causes playback of the

song to fast reverse at the rate of 5-15x playback (TBD,

calibratable). Fast-reverse playback can continue into

the next track/song in playback order.

Fast-reverse playback can continue into the previous

track/song in playback order. During press and hold,

the fast reverse function stops when the user releases

their finger from the soft-key button and playback resumes.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.19.14 Shuffle

Shuffle mode can be initiated via an on/off toggle from

any media source menu that supports this mode.

Shuffle is not globally set across all sources when activated.

In USB, SD, or iPod playback, Shuffle functionality is

dependent on the filter mode for song playback (e.g.,

album, artist, genre). As filter modes change for the

present source, the shuffle setting is retained.

Returning to the menu and selecting

shuffle to the OFF setting exits Shuffle mode and the

tracks/songs are played in normal playback order based

on the filter mode.

Enabling Shuffle continues playing the current song

selection through its completion versus performing an

immediate shuffle advance. The same applies for disabling

Shuffle.

When shuffle is enabled, the now playing view contains

a shuffle status icon as shown in Figure 5.19.9. Please

see status widget section for ordering of all status icons.

Shuffle Off Cases

(1) Selected the Shuffle OFF in the menu.

(2) Removed/Disconnected the media source

which is shuffle on.

(3) Selected(press the menu knob)

a song which is not current song on the playlist

Figure 5.19.9 - shuffle icon

Dawes

From A Window Seat

Stories Don’t End

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

When in shuffle mode, a song will not repeat until all

songs for the selected filter mode have been played

back provided there are no more than 128 songs available.

When the media associated with a filter has been

completed, shuffle playback will repeat for that filter

mode.

For larger media lists, a minimum of 128 songs must be

played back before a duplicate song can be replayed in

shuffle mode. The shuffle mode setting in the vehicle is

to be retained whenever mass storage or database type

devices are left in the vehicle over ignition cycles.

If USB/SD mass storage devices are removed from the

vehicle, the shuffle setting is cleared. If database type

deies suh as iPods ae eoed, the shuffle settig

of the device when returned to vehicle is to be used

upon reconnect.

5.19.15 Unsupported Media

In scenarios where the connected device(s) contains

only unsupported file formats or only invalid media, the

system displays the pop-up, No suppoted data foud

o deie.

Unsupported files are never shown in media lists.

For example, if there are playable files on the device,

then the unsupported files are not shown along with the

playable content.

Otherwise, the No Media Found message as shown in

figure 5.3.8 in the metadata is displayed for USB/SD

sources when no media or files are found on the connected

device.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.20 Tune knob behavior in media modes

When listening to certain media sources, rotating the

knob on the faceplate displays the filtered media list for

that source.

For instance,

When the user rotates the <Menu> Knob on media now playing,

System filters down from current play folder/category.

The currently playing media is graphically

highlighted in the list.

Users highlight a desired media item by rotating the

knob and select the media to begin playback by pressing

the knob. The system begins playback of the selected

media and the system returns to the Now Playing

screen.

These lists are persistent views, so the user must press

the select knob once more on the highlighted track or

pess the ak utto to etu to the No Plaig

screen.

The following list defines the behavior for each source:

AUX -- no action taken

USB/SD/iPod -- media list or folder view based on

latest filter

BT use case 1 -- no action taken

BT use case 2 -- no action taken

BT use case 3 -- media list based on latest filter

(reference section 5.24.3 for details)

BT use case 4 -- display folder structure of device

(reference section 5.24.4 - 5.24.6 for details)

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

Exceptions>

If the user presses the <SEEK>key on the Playlist,

system plays a previous/next song

from current song on the Playlist.

- Order of playlist : System sorts the ascending power

of ABC song name

Also,

Highlight and Now Playing icon are dynamically located to

the new selected file by <SEEK>key at same time.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.21 Media Menu

The rotary-push knob is also used to call up and operate

specific media source menus. When listening to

a media-ased audio soue ith the No Plaig

screen displayed, pressing the knob displays a menu list

tailored to the current media source. Menu options are

highlighted by rotating the knob and selected by pressing

the knob.

The system remembers the last menu option selected or

highlighted and highlights that menu option upon recall

of that menu.

Access to the vehicle settings menus is also provided

from the media menus.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.21.1 Removed

5.21.2 AUX Media Menu

Pessig the ko hile the AUX No Plaig see

is displayed shows the AUX Menu list:

• Tie & Date

• Toe “ettigs

• Taffi Poga TP - On/Off Toggle (EU)

• Auto Volue

• Maiu “tatup Volue

• Vehile Settings

5.21.3 Bluetooth Audio Media Menu

Pessig the ko hile the Bluetooth Audio No

Plaig see is displaed shos the Bluetooth Audio

Menu list:

• Tie & Date

• Bose Deie Fiedl Nae BT AV‘CP . ol

• “huffle - On/Off (if supported by device)

• Maage Bluetooth Deies

• Toe “ettigs

• Taffi Poga TP - On/Off Toggle (EU)

• Auto Volue

• Maiu “tatup Volue

• Vehile “ettigs

No browse option required in menu for 1.0 and 1.3

AVRCP devices

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.21.4 US B/SD Media Menu (2.1F MCR System)

Pessig the ko hile the U“B/“D No Plaig

screen is displayed shows the USB Menu list:

• Tie & Date

• Bose Deie Fiedl Nae

• Folde Vie ot appliale fo edia plaes, suh

as iPod)

• “huffle - On/Off

• Toe “ettigs

• Taffi Poga TP - On/Off Toggle (EU)

• Auto Volue

• Maiu “tatup Volue

• Vehile Settings

5.21.5 iPod Media Menu

Pessig the ko hile the iPod No Plaig see

is displayed shows the iPod Menu list:

• Tie & Date

• Bose Deie Fiedl Nae

• “huffle - On/Off

• Toe “ettigs

• Taffi Poga TP - On/Off Toggle (EU)

• Auto Volue

• Maiu “tatup Volue

• Vehile “ettigs

For all applicable media device menus, the device

friendly name will be used along with the Browse list

entry as shown in the wireframes.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.21.6 US B/SD Media Menu (2.0F - US R System)

Pessig the ko hile the U“B/“D No Plaig

screen is displayed shows the USB Menu list:

• Tie & Date

• Bose Deie Fiedl Nae - when selected for

the USR system, the directory structure of the device

is shown since this system does not support indexing

• “huffle - On/Off

• Toe “ettigs

• Taffi Poga TP - On/Off Toggle (EU)

• Auto Volue

• Maiu “tatup Volue

• Vehile “ettigs

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.22 Browse Media

A list of browse names (e.g., Genre, Artist, Album, Song,

Playlist, etc.) (depending on MCR or USR option)is displayed

he uses selet the Bose Deie Fiedl Nae

option from a USB, SD, or iPod media source

menu. Selecting a given name displays a list of additional

browse names and/or songs associated with

that search name. Selecting a song from the list starts

playback of that song and returns to the corresponding

No Plaig see. Uses highlight the desied

browse name or song by rotating the knob and select it

by pressing the knob.

A long press of the knob when highlighting a browse

name begins playback of songs associated with the

browse name selected. For example, if the browse name

as the atist ‘ollig “toes, a log pess of the ko

he ‘ollig “toes as highlighted ould egi

playback of songs by the Rolling Stones and the system

ould displa the No Plaig see. This sae

functionality can be achieved by selecting the All option

at the top of a media list. Playback of a filtered media

list is to be repeated when the filter has played back all

of its selections regardless of the starting point in the filtered

list (e.g. when a playlist is started from the middle

of its list of tracks). The filter list is retained over ignition

cycles.

When pressing the MENU button (i.e., knob) from the

No Plaig see, the use ill egi fo the top

level media menu as shown in Figure 5.22.1.

Figure 5.22.1

Figure 5.22.2 - user selected artists filter

Figure 5.22.3 - user browsing artists filter

Browse “Device Friendly Name”

Playlist

Artists

Artist Name A

Artist Name B

Artist Name A

Artist Name B

Artist Name C

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

When the user selects the Browse option from the

menu, each of the previously selected filters for the

currently playing content will highlight as the user drills

down through the sub-menus. So if Artists was selected

at the top level menu, the next entry into Browse Device

Friendly Name would have artists highlighted as well as

each of the previously selected sub-menus.

Re-entering the browse media mode should show the

users currently playing item in its current filter mode.

These filters should be held over source changes and

ignition cycles. If the device is removed these filters

should be erased. If no previous browse history exists

folder should be chosen as the default.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.22.1 Browse Media - Indexed Sources (2.1F MCR)

Some media sources have an accessible media index on

the uses deie e.g., iPod ad the .F MC‘ optio adios

can index certain devices (e.g., USB memory stick, SD card,

AVRCP 1.4+ device, etc.). For these media sources, users

browse the content via a typical filter list:

Playlists

• Plalist Naes

• “og Titles

Artists

• Atist Naes

• Alu Naes

• “og Titles

Albums

• Alu Naes

• “og Titles

Songs

• “og Titles

Genres

• Gee Naes

• Atist Naes

• Alu Naes

• “og Titles

Podcasts

• Podast Titles

• Episode Titles

Audio Books

• AudioBook Titles

• Chapte Titles / Tak Titles

Composers

• Copose Naes

• Alu Naes

• “og Titles

Videos (audio playback only)

• Video Titles

• Video Episode Titles

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

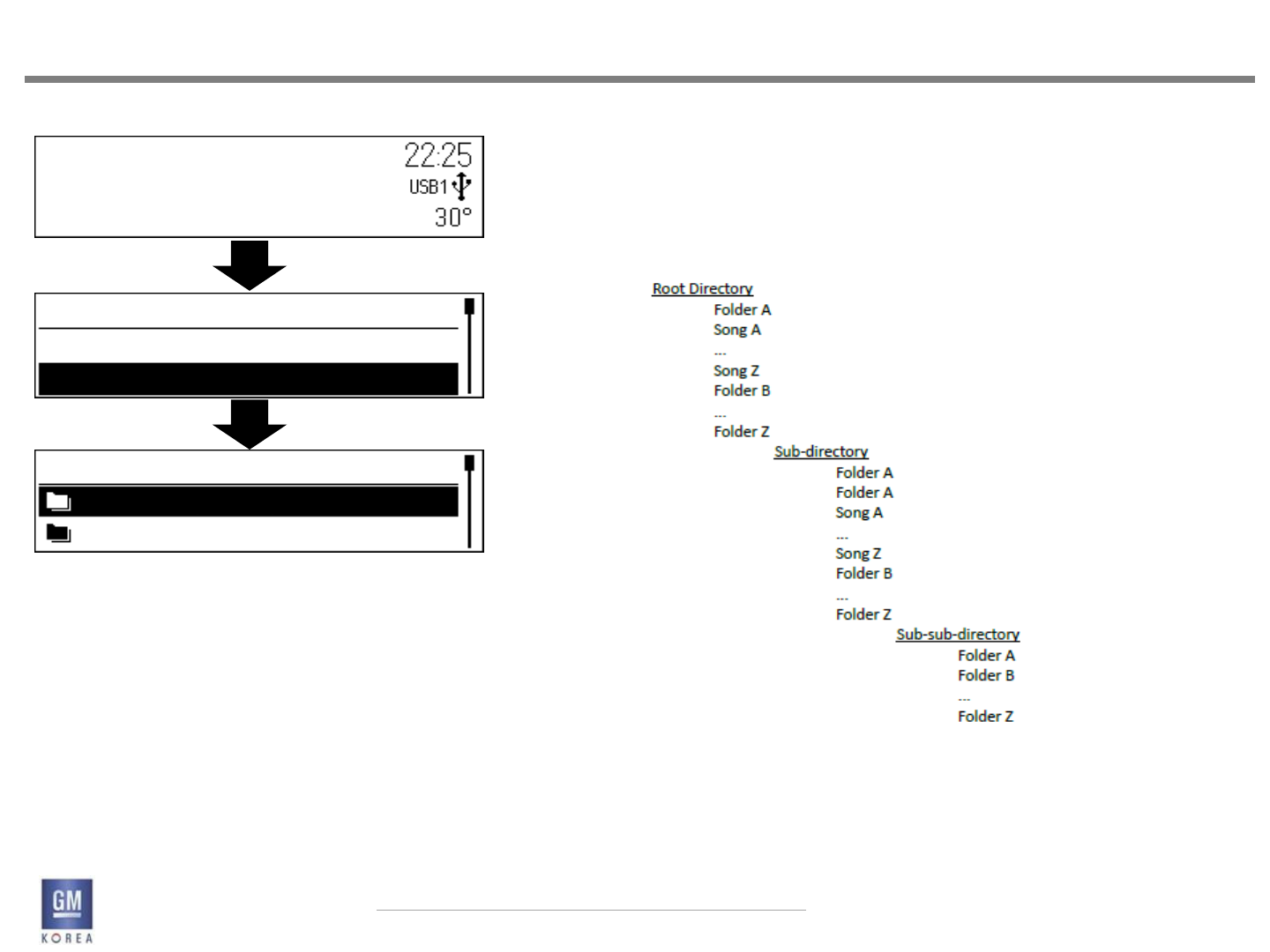

5.22.5 Browse Media - Non-Indexed Sources (2.0F USR)

Some media sources have their files arranged in a

directory structure that will not be indexed (e.g., USB

memory stick; SD memory card; ). For these media

sources, users navigate the content via the devices

dieto stutue  seletig the Bose Fiedl

Deie Nae eu optio - the system is not required

to alphabetize the list.

The system supports up to TBD directories deep. Pressing

the BACK button moves up one level in the in the

directory hierarchy. A long press of BACK returns to the

top level in the directory hierarchy (i.e., Root).

Figure 5.22.4

Figure 5.22.5

Figure 5.22.6

Artist Name

Song Name

00:03:42

USB Menu

Time & Date

Browse “Device Friendly Name”

Folder Name A

Folder Name B

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.23 Media Indexing (MCR Option)

Indexing may supported for a maximum of 6,000 songs.

Upon insertion of a brand new USB or SD card, the radio

will determine the number of files on the connected

device as well as establish a folder view of the directory

structure of the device as it is indexing. A device i.d. will

also be established to be used in recalculating checksums

when devices are removed and/or re-inserted.

As shown in the wireframe flow to the left, if the user

plugs in a new device while they are in the No Media

Found ie of the atie soue, the hadae deteies

the first available file for playback while the figure 5.23.1

‘eadig U“B… ie is sho.

The now playing view with complete Artist/Song

metadata for the first file found is then displayed as that

taks audio egis plaig.

It is also applied MTP Device Inserted.

Feedback during indexing is provided to the user in the

elapsed time field. The elapsed time text field will state

Deie Ideig.... ith the tailig ellipsis tuig o

and off to indicate that indexing is occurring and processing.

Once indexing is complete, the elapsed time is

shown from that point forward.

Figure 5.23.1

Figure 5.23.2

Figure 5.23.3

No Media Found

Reading USB…

Artist Name

Song Name

00:00:01

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

In most scenarios, however, users will first have to

source newly connected devices since they will be transitioning

from a different source mode. Therefore, they

will always be shown the now playing view with the

metadata (Artist/Song/Album info) for the first available

file after the device friendly name view. Please see wireframe

flow in figures 5.23.4 through 5.23.6.

Figure 5.23.4

Figure 5.23.5

Figure 5.23.6

102.5

Reading USB…

Artist Name

Song Name

00:00:01

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

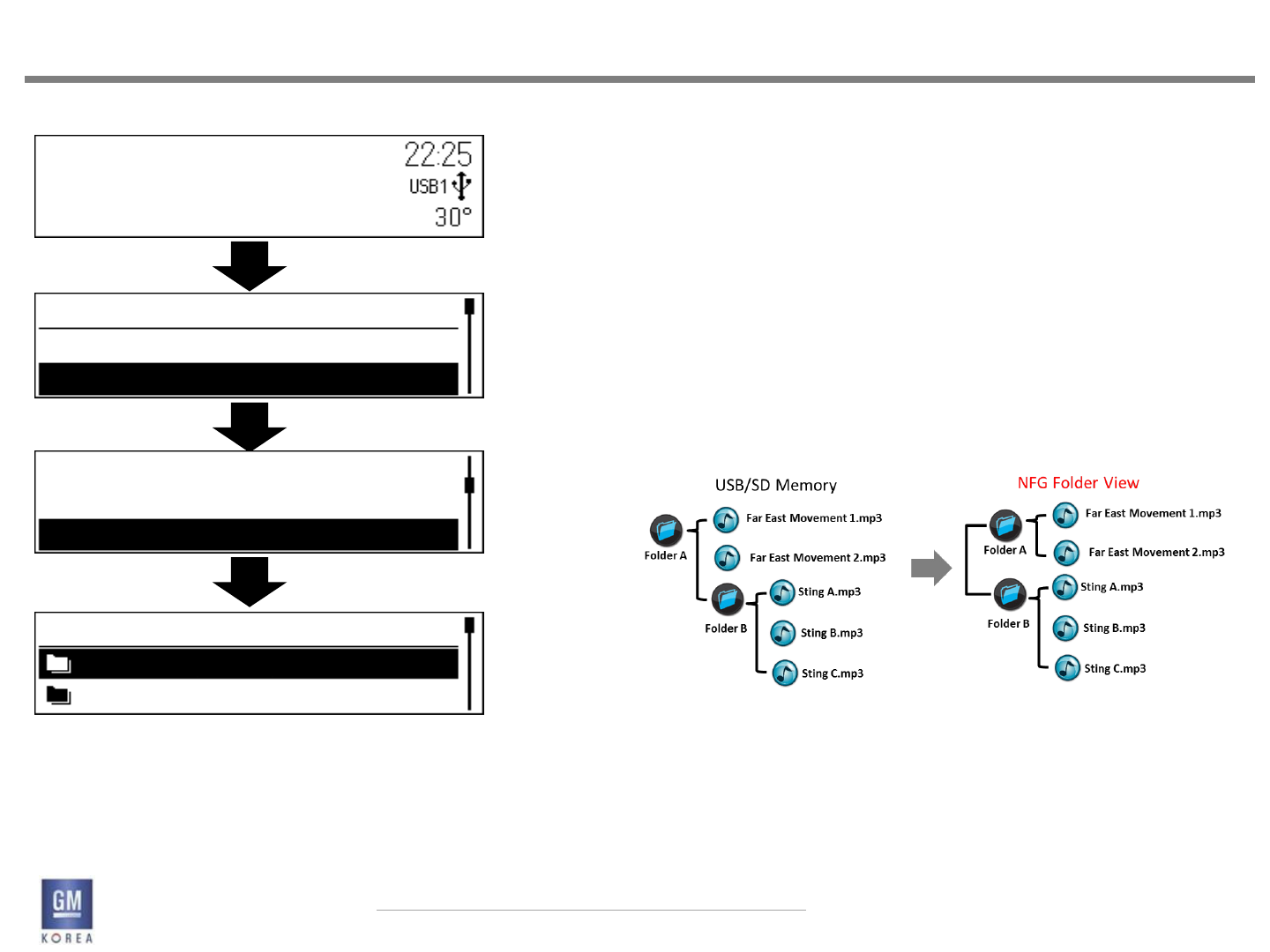

5.23.1 Folder View

The folder view is shown when selected from the menu

for the selected media source. Folder view represents

the directory structure of the connected device. It is

always available for any connected device regardless of

the media indexing limit.

This list is updated in real-time every 15 seconds (calibrateable)

while this view is being displayed and the

hardware is processing the directory structure of the

connected device.

Users may select content that already appears in the list

for playback from this view while it continues to update.

Define > Folder DB Hierarchy : 1depth folder structure

Figure 5.23.7

Figure 5.23.8

Figure 5.23.9

Figure 5.23.10

Artist Name

Song Name

00:03:42

USB Menu

Time & Date

Browse “Device Friendly Name”

Folder View

Folder Name A

Folder Name B

Time & Date

Browse “Device Friendly Name”

Folder View

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.23.2 Browsing Device Not Available Until Indexing Completed

Browsing is not supported until indexing is completed

for the connected device.

If the user selects browse from the menu, a pop-up will

be displayed informing them that the feature is not currently

aailale. Please see figue .. fo this popups

details.

After the pop-up times out or is dismissed, the now

playing view is shown.

Figure 5.23.11

Feature not supported during Indexing

Use folder view to browse contents

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.23.3 Media Indexing Limit Reached

The pop-up shown in figure 5.23.12 is required when

the user attempts to connect devices which cause the

indexing memory to be exceeded. For example, if two

devices are connected presently, and content from a

third device causes the index limit to be exceeded, this

pop-up will be displayed the next time Browse device

is selected from the menu provided the directory structure

has been processed and the content that could be

indexed is completed for the device.

This also applies when a single device with greater than

6,000 songs is connected.

This pop-up is shown a single time only. If a device is

removed and the memory limit is no longer exceeded,

the next unique occurrence of the indexing limit being

full will cause the pop-up to be displayed again.

Figure 5.23.12

Media indexing memory full Use

folder view or remove other devices

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.23.4 Other Media Indexing Use Cases

6,000 songs will be indexed in a first-in, first-out basis

across 2 USB ports and 1 SD port.

If less than the 6,000 song total exists across all 3 devices,

the the idiidual deie ids should e eeeed

such that if the device is modified and reconnected,

it can be quickly re-indexed. If another device

is connected prior to re-connecting the old device, that

deies eo ifo ill e lost ad ill e osideed

a new device next time it is connected.

However, if all 3 devices are not changed and reconnected

they should not be re-indexed.

If a fourth stick is connected and the indexing limit is not

full, then the device is indexed and added to memory.

If one of the original three devices is connected under

these circumstances, it should not have to be re-indexed.

For new devices connected that cause the indexing limit

to be reached, the entire folder view can still be used

for such a device. The system should attempt to partially

index the connected device by order of the file structure

of the device.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.24 Bluetooth Devices

There are a number of Bluetooth devices in the field

that do not support all Bluetooth features possible

based on the level of AVRCP supported. Because of this

issue, this specification will breakdown three separate

use cases for Bluetooth audio streaming.

Use cases where there are two bluetooth audio players

connected to the system, the system will always play

the last used device. When a new device is paired to the

system, playback should continue from the last known

location the device was in prior to pairing to the vehicle.

There will be certain AVRCP 1.0 and 1.3 devices that

require the user to start playback from the device itself

when they are first sourced to the system. For all Bluetooth

audio players, if the user shuts the device

off, the system will stay in Bluetooth source mode

until the users connects another BT device or changes

applications or sources.

- BT AVRCP Ver 1.0 : Now Playing view is displayed as Bluetooth Musi

- BT AVRCP Ver 1.0 Over : Now playing View is displayed

ID3tag – Artist name and song name Only.

5.24.1 Use Case 1 - No Metadata Support

AVRCP 1.0 Bluetooth devices do not support metadata.

Not all devices in this scenario will be able to support all

possible transport controls. A fully supported device will

allow for previous and next track functionality via the

faceplate controls.

In the event the user presses on a non active transport

button on the faceplate, the system will be unable to respond

to the user input and the system will display the

pop-up essage, Atio ot suppoted  this deie.

Media indexing will not be possible in this scenario.

Users must also pick up the device itself to search audio

content in this case.

Figure 5.24.1 - BT AVRC P 1.0 Now Playing View

Bluetooth Music

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.24.2 Use Case 2 - Metadata Support for Current

Bluetooth AVRCP 1.3 Bluetooth devices support metadata

for the current track selection only. Media indexing

will not be possible in this scenario. Not all devices in

this scenario will be able to support all possible transport

controls or the elapsed time. A fully supported

device will enable previous track, next track, and shuffle.

In the event the user taps on a non active transport button,

the system will display the pop-up essage, Atio

not supported by this device.

5.24.3 Use Case 3 - Metadata and Transport Control

Support AVRCP 1.4 Bluetooth devices will support metadata

and transport control availability. Media indexing is

supported under these Bluetooth protocols.

The above use cases should be determined by what the

Bluetooth manager reports to the connectivity module

such as transport controls available.

5.24.4 Bluetooth Use Case 4

Certain 1.4 devices can be further defined as database

unaware and database aware devices and the system

handling of these devices is discussed in this section.

5.24.5 Database Unaware Players

For 1.4 devices that are database unaware players, the

system will treat these exactly as use case 2/AVRCP 1.3

players.

Figure 5.24.2 - BT AVRC P 1.3 Now Playing View

Artist Name

Song Name

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

5. BROADCAST SOURCES

5.24.6 Database Aware Players

For 1.4 devices that are database aware players, the

system supports the browsing feature of these devices.

The browsing capability of these devices is exactly like a

MP3 CD. The system will not index these devices, but users

ill e ale to aigate the otet ia the deies

directory structure.

5.24.7 Transport Control Handling For under AVRCP 1.4

Under AVRCP 1.4 devices are not able to control the <Menu>knob

as showing the playlist .

In case of above,

the sste ill displa the Atio ot suppoted 

this deie pop-up.

Figure 5.24.3 - Action not supported by device pop-up

Action not supported by device

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.1 Phone Home Screen

The phoe appliatio has a hoe see hee uses

access the different Bluetooth phone functions. To

access the Phone Home screen users press the Phone

button on the faceplate. When viewing the Phone

Home Screen, the user can select the various functions

of the phone screen by scrolling and selecting with the

rotary knob.

6.2 Faceplate Controls

When a call is not active, pressing the Phone button on

the faceplate displays the Phone Home Screen. If the

Phone Home view is already displayed, pressing Phone

button on the faceplate does not change the display.

When a call is active and any other screen than the Active

Call screen is displayed, pressing the Phone button

on the faceplate displays the Active Call screen.

When the Active Call view is shown, pressing the Phone

button on the faceplate displays the Phone Home

Screen. The user can press the back button or the Phone

button to return to the active call screen from the Phone

Home view.

When there is an incoming call, user can answer the

phone by pressing the Phone button on the faceplate.

The Active Call view is then displayed.

Figure 6.2.1 - Phone Home View

Frank T. User’s iPhone

Recent Calls

Contacts

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.2.1 Phone Functions List

The Phone Home Screen displays all available phone

functions shown in the following list.

• ‘eet Calls

• Cotats

• Kepad

• Bluetooth Devices

The list is dynamic depending on the capabilities of the

connected phone. For example, if contacts list is not supported

or available, it is removed from the function list.

6.2.2 Phone Status Information

The Phone Home screen has a title bar at the top that

displays phone status information. The status information

includes:

• deie fiedl ae of the outgoig soue Uko

if device friendly name from device is blank),

• atte stegth of the outgoig soue - the icon

will have six different states ranging from level 0 for

minimum battery charge to level 5 for maximum battery

charge,

• sigal stegth of the outgoig soue - the icon will

have six different states ranging from level 0 for no

reception to level 5 for maximum reception.,

• oaig status of the outgoig soue, ad

Figure 6.2.2 - Phone Home View

Frank T. User’s iPhone

Recent Calls

Contacts

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

When no phone source is connected, the status region

displas No Phoe Coeted i plae of outgoig

source name and no phone status icons. When a Bluetooth

phone device is not connected, no icon is shown.

A single list item called Bluetooth Devices is shown in

this scenario. This allows users to access the paired

phones list.

6.2.3 No Bluetooth Phone Device Paired

When a Bluetooth phone has not been paired to the

vehicle and the user accesses the Phone Home page, the

Bluetooth source view is shown with No Devices Paired

shown. The user may to a new Bluetooth device.

Figure 6.2.3 - Phone view with no phones connected

Figure 6.2.4 - Phone view with no phones paired

No Devices Paired

Pair

No Phone Connected

Bluetooth Devices

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.3 Recent Calls

The user may select Recent Calls from the phone function

list for the Recent Calls list to be displayed. When

phonebook is not available from the current Bluetooth

device, recent calls list is not available so the Recent

Calls button is not available in the phone function list.

6.3.1 Recent Calls View

Whe uses selet ‘eet Calls fo the Phoe Hoe

Screen, the Recent Calls list is a submenu displayed in

order of Missed, Received, and Sent calls as shown in

section 6.3.4

Once an option is selected, each call listed contains the

following informational elements:

• the fist ae ad last ae of the alle, if aailale

from the Contact List, else the phone number for the

incoming or outgoing call:

• a io idiatig hih phoe the all as ade to o

received from (if available from the Contact List). Subscripts

are used when more than 1 phone is associated

with that type of phone, where supported by the phone)

The date is shown for all calls. The date is

provided by the Bluetooth device and in the same

format as the Bluetooth device. When the date is not

provided by the Bluetooth device, the date is not shown

for each call.

Figure 6.3.1 - Figure Removed

Figure 6.3.2 - Figure Removed

Figure 6.3.3 - phone icons legend - reference only

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

If the phone number is unknown (i.e. restricted, unknown,

unavailable), the word Unavailable is shown.

6.3.2 Initiating Call from Recent Calls

The user rotates the knob on the faceplate to highlight

the desired call. The user presses the knob to begin

calling that number. While making the connection, the

sste displas the Atie Call see ith Callig

indication until the call is connected then the active call

view is shown. The initiation of the call to the current

outgoing sourced Bluetooth phone will be delayed 3 seconds

(calibratible) time to give the user a chance to end

the call in the case it was inadvertently initiated.

When the call is ended, the recent calls view is shown

and is updated with this outgoing call at the top of the

list. The recent calls list will be dynamically updated with

any calls that are incoming, outgoing, or missed. For

example, if the user is in a call and ignores a call waiting

alert, this list is updated with the missed call.

6.3.3 Unavailable Number from Recent Calls

An unavailable recent call can not be called since the

phone number is unknown. If the user attempts to call

from an unavailable number, a message is displayed.

Extension > Unavailable Number from Phone

On the contacts,

If contacts dose not have any phone number, name and etc.,

it should not be displayed.

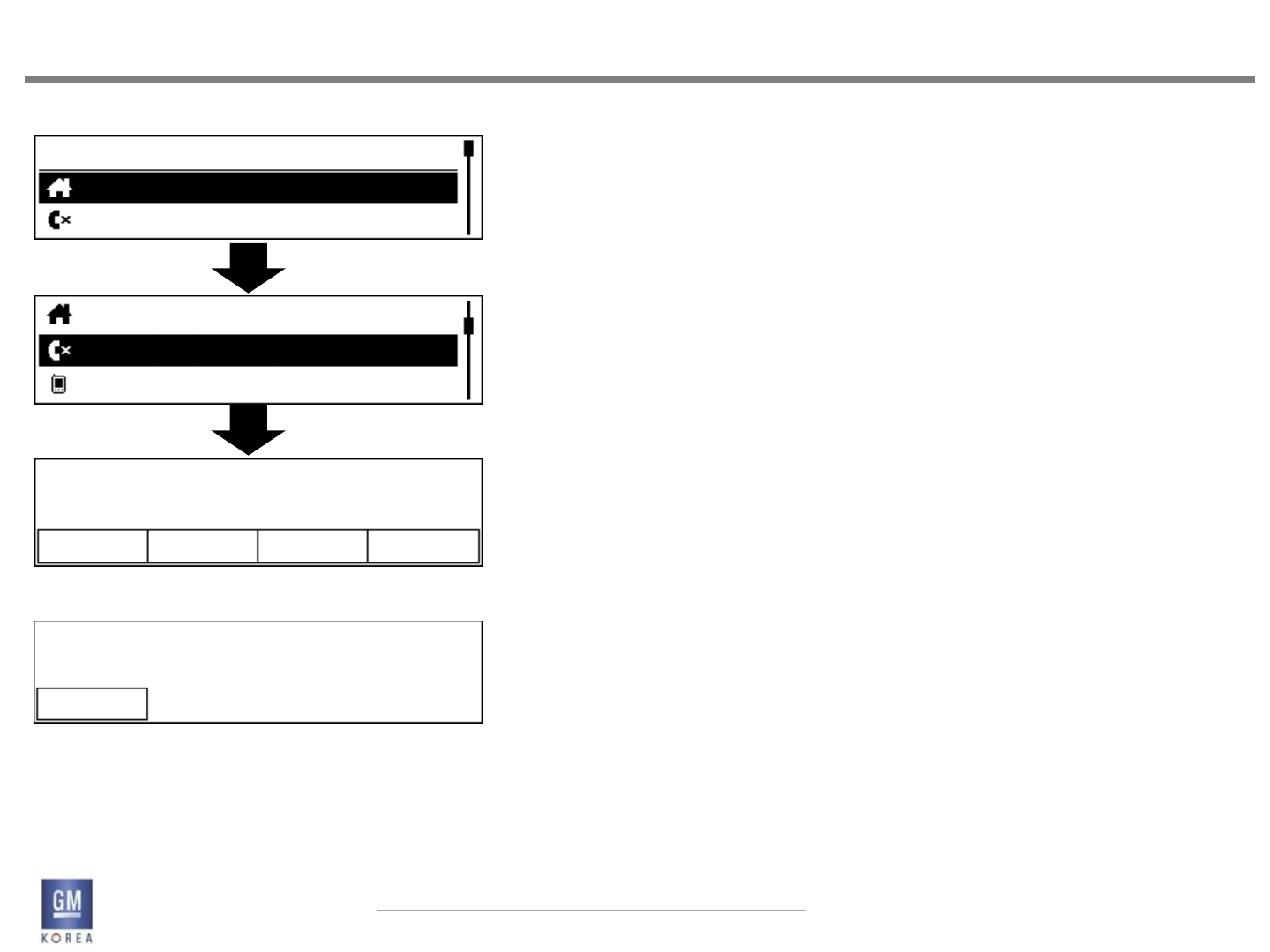

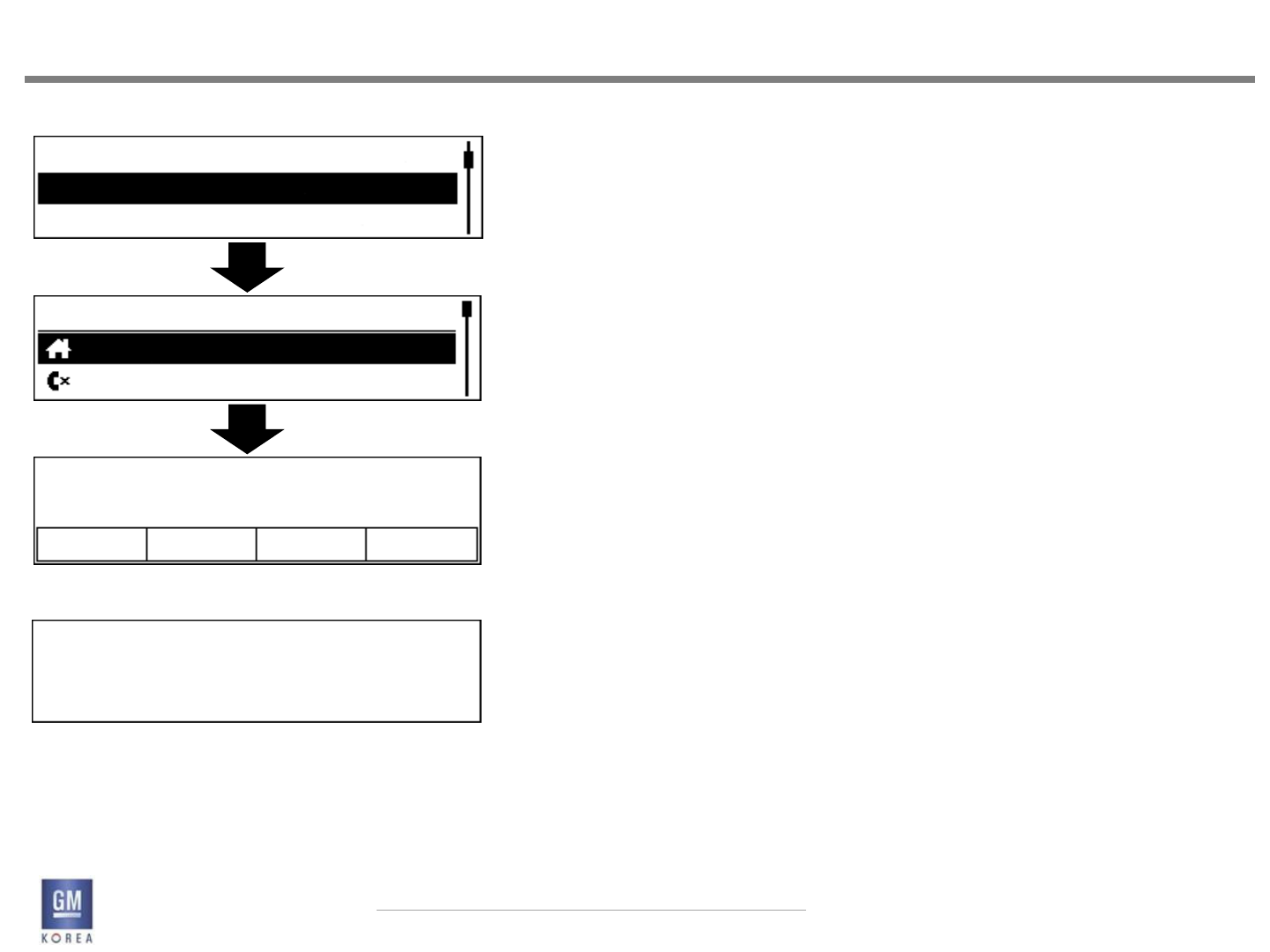

Figure 6.3.4

Figure 6.3.5

Figure 6.3.6

Figure 6.3.7

Received Calls

Mom

866-297-1212

Mom

866-297-1212

Cathy Thomason

Calling

Cathy Thomason

End Mute Handset Keypad

The recent call is an unavailable

phone number that cannot be dialed.

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.3.4 Recent Calls Combined List Not Available from

Source

A Bluetooth device may not provide a combined recent

calls list. In this case, the recent calls list displays an intermediate

menu containing missed calls, received calls,

and sent calls.

The header title states the type of recent call list

(missed, received, sent) once selected.

6.3.5 Missed Icon Not Required in Missed Calls List

If the missed calls option is selected from the recent

calls list, the missed call icon is not required in this list

view.

Figure 6.3.8

Figure 6.3.9

Recent Calls

Missed

Received

Missed Calls

866-297-1212

Cathy Thomason

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.4 Contacts

6.4.1 Contacts List View

Whe uses selet Cotats fo the Phoe Hoe

Screen, the Contacts list for the connected phone is

displayed. The contact list shown reflects the contact

information in the current outgoing phone source sorted

the same as in the Bluetooth device if known, otherwise,

in alphabetical order by first name. Typically, the

contact or POI name is shown in the list but if a name

has not been entered, it will be the first data entered for

the contact.

If there are no contacts for that contact source or

phonebook is not available from the current Bluetooth

deie, the lak list ith No Cotet Aailale tet

shown in the first position of the list under the header

as defined in the Lists section.

6.4.2 Initiate Call from Contact List

The user rotates the knob on the faceplate to highlight

the desired contact. The user presses and holds the

knob to begin calling that contact. If that contact has

more than one number stored, the preferred number is

called. If that contact does not have a preferred number,

the first phone number populated is called.

While making the connection, the system displays the

Callig Atie Call see. The iitiatio of the all to

the current outgoing sourced Bluetooth phone will be

delayed 3 seconds (calibrate-able) time to give the user

a chance to end the call in the case it was inadvertently

initiated.

Figure 6.4.1

Figure 6.4.2

Figure 6.4.3

Contacts

Anna

Billy Jean

Cathy Thomason

Cameron Worf

Calling

Cathy Thomason

End Mute Handset Keypad

100

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.4.3 View Contact Details from Contact List

The user rotates the knob on the faceplate to highlight

the desired contact. The user presses the knob (short

press) to view the details for that contact. The Contact

Details view is shown.

6.4.4 Contacts Detail

The user may select a contact from the contacts list view

for the contact details to be displayed.

The contact details display the v-card data for that contact.

The name is shown in the title . The phone numbers

are listed in the following order:

1. Preferred (maximum of one)

2. Mobile (maximum of two)

3. Home (maximum of two)

4. Work (maximum of two)

5. Other (maximum of two)

Each line may be truncated based upon the region size

and font size. The user may return to the contacts list by

pressing the Back button on the faceplate.

6.4.5 Initiate Call from Contact Details

The user rotates the knob on the faceplate to highlight

the desired phone number to call. The user presses the

knob to initiate the call. While making the connection,

the sste displas the Callig Atie Call see.

6.4.6 Intermediate Contacts Download in Process

In edge cases where the contacts list is not immediately

available from the device, an intermediate screen may

be displayed informing the user that the contact list is

being generated. See figure 6.4.7 for details.

Figure 6.4.4

Figure 6.4.5

Figure 6.4.6

Figure 6.4.7

Calling

Cathy Thomason

End Mute Handset Keypad

Billy Jean

Cathy Thomason

Cameron Worf

Cathy Thomason

XXX-XXX-XXXX

Downloading contact list…

101

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.5 Keypad View

Whe uses selet Kepad fo the Phoe Hoe

Screen, a phone dialer keypad is displayed. Users rotate

the knob to highlight the desired digit to dial and press

the knob to select it. As the user continues to rotate

the knob when the end of the keypad is reached, it continues

full circle around the keypad.

Digits are displayed in the digit field as they are entered.

The call key is not active until the user has input a digit.

Once user has entered the desired phone number, the

user presses the soft key corresponding to Call to begin

calling that number. While making the connection, the

system displays the Active Call screen.

Should users make a mistake while entering a phone

number, they rotate the knob to highlight the Delete

function and press the knob to delete the last digit entered.

Pressing and holding the knob for the standard time

while the Delete function is highlighted clears the entire

digit field.

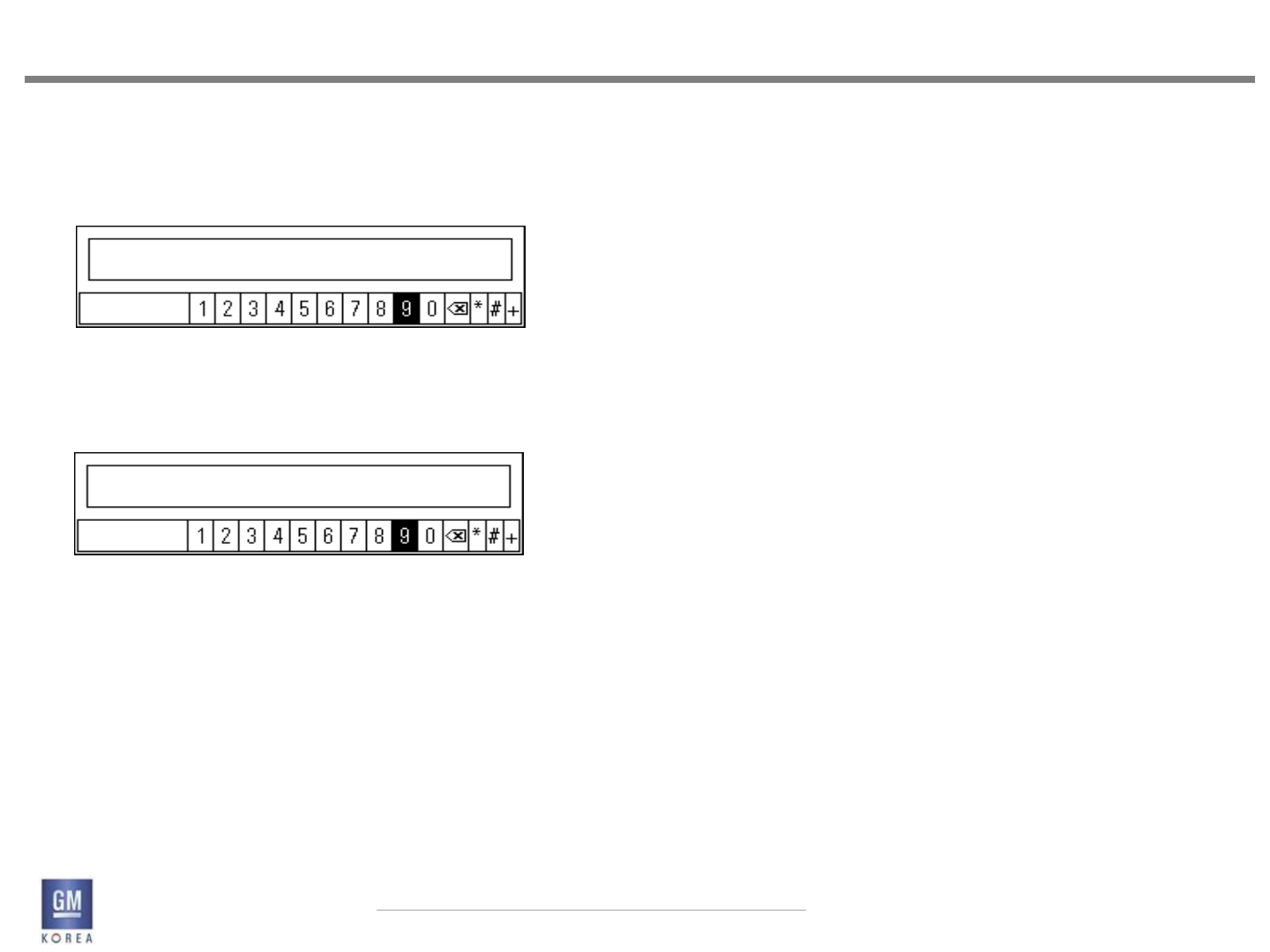

Figure 6.5.1

Figure 6.5.2

Figure 6.5.3

Call

586-79

Calling

Cathy Thomason

End Mute Handset Keypad

102

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

If the user has entered digits and presses the Back button

on the faceplate, the entered digits are cleared and

the Phone Home Page is shown.

The initiation of the call to the current outgoing sourced

Bluetooth phone will be delayed 3 seconds (calibratible)

time to give the user a chance to end the call in the case

it was inadvertently initiated.

When the call is ended, the keypad view is shown with

the digits entry field cleared. The digits entry field is

also cleared with ignition cycle and if the user enters

digits then initiates the call by other means such as recent

call or contacts.

103

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.6 Active Call View

The Active Call Screen displays information relevant to

an active phone call. This information includes:

• the fist ae ad last ae of the alle if aailale

from the Contact List); or the phone number for the

incoming or outgoing call (unless unavailable); and

• a io idiatig hih phoe the all as ade to

or received from (if available from the Contact List);and

• the all tie shoig the elapsed tie fo the

call in the format of HH:MM:SS as provided by the

Phone

• futios, otolled  the faeplate soft ke uttos,

for End, Mute / Unmute Microphone. Handset / handsfree,

and Keypad. When the call has been initiated prior

to the Bluetooth device being connected to the vehicle,

the Call Timer value as provided by the Phone is from

the time the Bluetooth device has been connected to

the vehicle. The Phone provides indication that the call

was in process so the Call Timer value is displayed with

an indicator that the call time has been longer (i.e., plus

sign).

6.6.1 Connecting Call

When the user initiates a call by any means (i.e. recent

call list, contact list, etc.), the Active Call Screen shows

that the phone is in the process of connecting the call.

Once the connection is made as determined with the

Bluetooth deie all setup suessful tigge, this Callig...

indication is no longer displayed and the call timer

is shown.

Figure 6.6.1 - active call

Figure 6.6.2 - connecting call view

Calling

Cathy Thomason

End Mute Handset Keypad

Cathy Thomason

586-791-1327

End Mute Handset Keypad

00:13:01

104

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

If there is no network service, a popup is displayed to

notify the user at the time of initiating a call. The user is

not able to make a call but can view recent calls,

contacts, and sources.

A popup is displayed when an outgoing call is initiated

by the user but is interrupted, cancelled, or timed out.

6.6.2 Ending Call

When a current call ends while the Active Call Screen is

displayed, the Active Call Screen shows that the call has

ended while continuing to be displayed for 3 seconds.

The Call Timer stops and flashes at the rate of 4Hz. After

the 3 seconds has elapsed, the system returns to the

previous screen displayed prior to displaying the Active

Call Screen (e.g., the Contact Details screen or the Now

Playing screen).

6.6.3 End Button

Users end an active phone call by tapping the soft-key

(i.e., the Favorites button) directly below the display

laeled Ed. Whe a all is eded, the sste etus

to displaying the screen prior to making the call or answering

an incoming call.

Figure 6.6.3

Call Ended

Cathy Thomason

Redial Dismiss

00:13:01

105

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.6.4 Mute / Unmute Button

Users mute the vehicle microphone while in an active

call by tapping the soft-key (i.e., the Favorites button)

dietl elo the displa laeled Mute. If the

iophoe is uted, the lael hages to Uute

and tapping the soft-ke uutes the ehiles

microphone.

6.6.5 Handset / Hands-free Button

Users can switch from hands-free mode to the phone

handset by tapping the soft-key (i.e., the Favorites button)

dietl elo the displa laeled Hadset. If the

phone call for the active phone source is taking place on

the hadset, the lael hages to Hads-fee. Tappig

the soft-key now returns the phone conversation

to hands-free mode. Handsfree is default when a call is

initiated.

If there is an issue and the call is not transferred to

handsfree or handset as the user requested, a message

is displayed notifying the user that the transfer did not

occur. The user may tap Retry to attempt the transfer

again.

6.6.6 Hold Button

TBD

106

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.6.7 Initiating a Call from Bluetooth Device

The user may initiate a call from the Bluetooth device.

If the current view is not the phone application, there

are no changes to the display. If the current view is the

phone application or the user selects the phone application

after the call is initiated through the Bluetooth

device, the In Call View is shown. The user may switch

the call to handsfree from this view.

107

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.7 Bluetooth Devices View

Whe uses selet Deies fo the Phoe Hoe

Screen, the Bluetooth Device list is displayed.

6.7.1 Bluetooth Device List

The list contains the device friendly name of all Bluetooth

devices that have been paired with the system. If

the device friendly name received is blank, Unknown

is displayed.

The Bluetooth Device list is divided into devices that are

connected to the system and the remaining devices that

are not currently connected to the system. There is a

visual indicator showing the outgoing source for making

calls.

Only the connected phone is capable of receiving calls

using the system. Phones that are not connected are

unable to make or receive calls using the system until

the hae ee oeted.

6.7.2 Bluetooth Device Functions

The Bluetooth Device List view provides the user the

ability to add (pair) a device, delete a device, and connect

a device.

Figure 6.7.1

Add Connect Delete

Mike’s iPhone

DroidX2

108

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.7.3 Maximum Bluetooth Devices

The vehicle is limited to having five Bluetooth devices

paired to it. If the vehicle already has five devices paired

and the user requests to add a device, the device that

has not been used for the longest time will be unpair

and the newly added device will be connected.

Please see figure 6.7.2 for view required for this scenario.

6.7.4 Removed

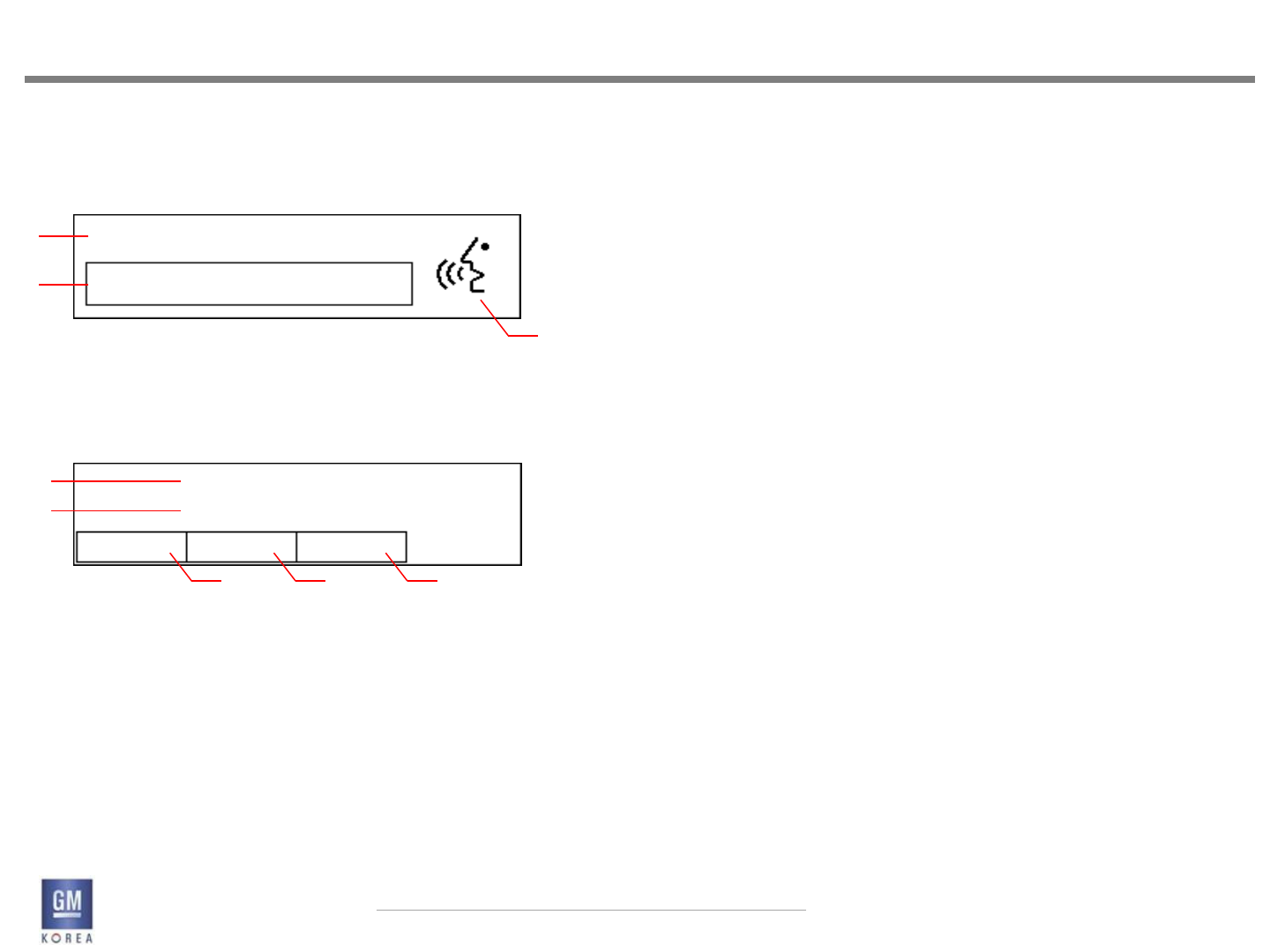

Figure 6.7.2

Unpair Manage Cancel

Maximum number of devices paired

OK to Remove “Friendly Device Name”?

109

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.7.5 Connect an in Vehicle Paired But Not Connected

Device

The user may want an in vehicle not currently connected

device to be connected. To connect an in vehicle not

connected device, the user rotates the knob on the faceplate

to highlight the desired device to be connected.

The device must be in the vehicle. When the desired

device is highlighted, the user presses the soft key on the

faceplate labeled Connect.

The newly connected device becomes the outgoing phone

source if it is a phone device.

If the Bluetooth device is unable to be connected, a

message is displayed as shown in figure 6.7.3. The user

may cancel or retry connecting to that device. If the user

taps retry, the device source list is shown until the device

is connected. If the user takes no action, the pop-up will

auto dismiss and the user will be returned to the Bluetooth

devices list view.

Figure 6.7.3

Unable to connect to

“Friendly Device Name”

Retry Cancel

110

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.8 Adding a New Bluetooth Device

The user may pair a Bluetooth device to the vehicle

as long as there is not an active phone call. There is no

action upon pressing the Add button in the phone list

view during a call.

The user taps the soft-key (i.e., the Favorites button)

dietl elo the displa laeled Add to add a e

bluetooth device as shown in figure 6.8.1.

The vehicle enters a discoverable mode for a Bluetooth

device to find it. The display provides basic instructions

for the user to initiate pairing on the Bluetooth device

and provides the Vehicle Friendly Name.

The user may tap the soft-key (i.e., the Favorites button)

dietl elo the displa laeled Cael to aot the

pairing process and return to the Bluetooth Devices list.

For Legacy method devices that require PIN entry prior

to being able to determine the pairing method, this view

is shown all through the pairing process until pairing is

successful, or pairing unsuccessful, or connection is lost.

At this point, the appropriate message is shown.

Figure 6.8.1

Figure 6.8.2 - Pairing discoverable mode

Add Connect Delete

Mike’s iPhone

DroidX2

Start Bluetooth pairing on device and find

your vehicle. Enter PIN xxxx if required.

Cancel

111

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.8.1 For Legacy Pairing Method

Once the pairing process is initiated on the Bluetooth

device and the device communicates that it is using

legacy pairing method, the device friendly name and

the PIN is shown. The user enters the PIN on the Bluetooth

device. The activity indicator (denoted as in media

indexing with ellipsis that turn on and off) is shown until

the pairing process is complete (successful or aborted).

The user has the option to abort the pairing process

by pressing the soft-key labeled Cancel and the display

returns to the Bluetooth device list.

The user may press the soft-key labeled Retry to return

to the previous view.

6.8.2 For Secure Simple Pairing - Numeric Comparison Method

Once the pairing process is initiated on the Bluetooth

device and it is secure simple pairing numeric comparison

method, the device friendly name and the PIN is

shown. The user compares the PIN displayed in this view

with the PIN displayed on the Bluetooth device. If it

matches, the user presses the soft-key directly

below the display labeled Pair. This view, without the

match question and Pair button is displayed until

the pairing is completed successfully.

If it does not match, the user presses the soft-key directly

below the display labeled Cancel. The pairing process

is cancelled. The Bluetooth Device list view is shown.

The user may re-initiate the pairing process.

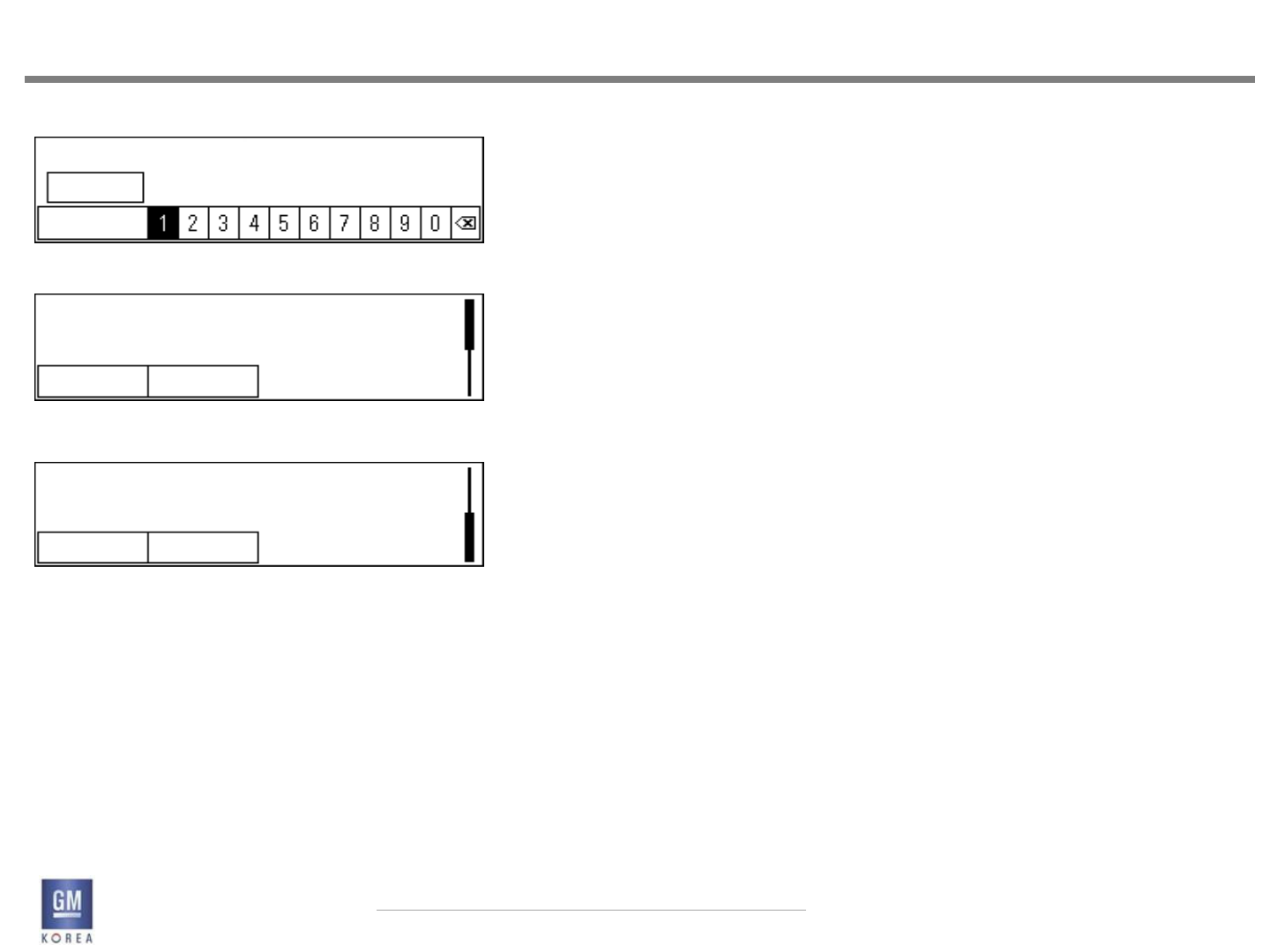

Figure 6.8.3 - pairing in process pop-up

Figure 6.8.4 - scrolled down view of pairing pop-up

Pairing in process…

Pairing to “Device Name” with PIN xxxx

New Pin Cancel

Tip: if pairing device does not have

Capability to enter PIN, enter PIN 0000

New Pin Cancel

112

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.8.3 For Secure Simple Pairing - Just Works Method

Once the pairing process is initiated on the Bluetooth

device and it is secure simple pairing just works method,

the device friendly name is shown. A view to confirm

the pairing with the device friendly name is displayed.

The user may tap Pair to initiate the pairing.

The device friendly name is shown until the pairing

process is complete. The user may press the soft-key

dietl elo the displa laeled Cael to aot the

pairing process and return to the Bluetooth Device List.

6.8.4 Pairing Completed Successfully

Once the Bluetooth device is successfully paired, notification

is displayed on the view the user may press soft

key labeled OK or press faceplate menu knob or press

faceplate Back button. The Device List view, is shown

with the newly paired device in the list. The device is automatically

connected and becomes the outgoing phone

source, when it is a phone.

6.8.5 Removed

6.8.6 Removed

6.8.7 Removed

6.8.8 Removed

6.8.9 Removed

6.8.10 Removed

113

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.8.11 Bluetooth Device Pairing Timeout

When a Bluetooth device is not detected within a

certain amount of time, a message is displayed. The user

may retry (reconfigurable preset) and the system will go

to discoverable mode again. The user may press cancel,

to return to the Bluetooth Device List view.

6.8.12 Bluetooth Device Connection Lost

When a Bluetooth device connection is lost during the

pairing process, a message is displayed. The user may

retry (reconfigurable preset) and the system will go

discoverable mode again. The user may press cancel, to

return to the Bluetooth Device List view.

6.8.13 Bluetooth Device Pairing Unsuccessful

When a Bluetooth device pairing process is unsuccessful

due to an authentication error or incorrect PIN, or

key missing, a message is displayed. The user may retry

(reconfigurable preset) and, for secure simple pairing,

the system will go to discoverable mode again. For

legacy pairing method, tapping retry goes to enter PIN

view. The user may tap cancel, to return to add new

device view.

114

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.8.11 Bluetooth Device Pairing Timeout

When a Bluetooth device is not detected within a

certain amount of time, a message is displayed. The user

may retry (reconfigurable preset) and the system will go

to discoverable mode again. The user may press cancel,

to return to the Bluetooth Device List view.

6.8.12 Bluetooth Device Connection Lost

When a Bluetooth device connection is lost during the

pairing process, a message is displayed. The user may

retry (reconfigurable preset) and the system will go

discoverable mode again. The user may press cancel, to

return to the Bluetooth Device List view.

6.8.13 Bluetooth Device Pairing Unsuccessful

When a Bluetooth device pairing process is unsuccessful

due to an authentication error or incorrect PIN, or

key missing, a message is displayed. The user may retry

(reconfigurable preset) and, for secure simple pairing,

the system will go to discoverable mode again. For

legacy pairing method, tapping retry goes to enter PIN

view. The user may tap cancel, to return to add new

device view.

115

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.9 Deleting a Paired Bluetooth Phone

The user deletes (i.e., unpairs) any paired phone in the

list by rotating the knob on the faceplate to highlight the

desired device to be the deleted (unpaired).

The user then presses the soft-key (i.e., the Favorites

utto dietl elo the displa laeled Delete.

A message is displayed for users to confirm or cancel deletion

of the phone source. If deletion is confirmed, the

deleted phone source is removed from the list and the

Bluetooth Phone Source list is updated accordingly.

6.9.1 Deleting Connected Device

The user may delete a currently connected device, if the

device has no active call. If there is another device in the

vehicle but not connected, the system will automatically

connect that device and become the outgoing phone

soue if its a phoe. If thee is oe tha oe deie

in the vehicle that is not connected, the same type of

device that was most recently used will be connected

else, the most recently used (not the same type device)

will be connected.

6.9.2 Removed

6.9.3 Removed

Figure 6.9.1 – delete device confirmation pop-up

“Device Name” will be deleted. Device

Will need to be paired again for use.

Delete Cancel

116

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.9.4 Outgoing Phone Source Last Mode

The phone source that was the last outgoing phone

source is retained so that the next ignition cycle, if that

phone device is connected, it is the outgoing phone

source. If that phone device is not connected, the next

most recently used phone that is connected is the outgoing

phone source.

117

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.10 Incoming Call Alerts

An Incoming Call Alert message is displayed whenever

there is an incoming call on a connected phone. There

are two type of Incoming Call Alerts: (1) Incoming Call

(user is not on an active call) and (2) Call Waiting Call

(user is on an active call). The alert replaces whatever

screen was previously displayed.

6.10.1 Incoming Call Information

The Bluetooth device will pass the incoming call phone

number and the HMI checks if the phone number

matches a contacts in the contacts list. If the incoming

call is from a phone number stored in the Contact List

for the connected phone, the first and last name is

displayed. If the incoming call is from a phone number

that is not in the Contact List, only the phone number

is displayed. If the incoming call is from an unknown,

restricted, or unavailable phone number, Unknown is

displayed.

6.10.2 Answer / Switch To Button

Users answer an incoming call by tapping the soft-key

(i.e., the Favorites button) directly below the display

laeled Ase o “ith. Aseig a all this a

extinguishes the alert, stops the ringtone, and displays

the Active Call Screen.

Figure 6.10.1

Figure 6.10.2 - Active call view

Incoming Call

Cathy Thomason

Answer Ignore

Cathy Thomason

586-791-1327

End Mute Handset Keypad

00:00:03

118

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.10.3 Ignore Button

Users can ignore an incoming call by tapping the soft-key

(i.e., the Favorites button) directly below the display

laeled Igoe. A igoed all is set to oie ail,

ringtone stops, and the alert is extinguished, returning

the display to the previous screen prior to the alert.

6.10.4 Removed

6.10.5 Incoming Call Ended

When the user accepts an incoming call, the phone full

view is displayed. If the phone full view is still displayed

when the call is ended, it is displayed for a calibratible

length of time and then reverts to the display that was

active when the incoming call was received.

6.10.6 No Action with Incoming Call

If the call is not ignored or answered prior to transferring

to voice mail, the alert will extinguish returning to

previous view prior to the alert and ringtone stops.

119

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.10.7 Audio with Incoming Call Alert

With an incoming call alert, the ringtone is played .

The ringtone continues until the call is answered, ignored,

or goes to voice mail. If the request for the ringtone is

denied, an alert tone is requested. With a call waiting

alert from the same phone device, the network alert

tone indicating call waiting is played and will direct the

user to the visual alert on the display. With call waiting

alert from another connected phone device, since

another call is active on the phone audio channel, an

alert tone is played to direct the user to the visual alert

on the display.

6.10.8 Incoming Call Alert when OnStar Call Active

(If Equipped with OnStar)

When an OnStar call is active and there is an incoming

call on the Bluetooth device, an alert is shown. The user

may answer the incoming call through the vehicle but it

will hang up the OnStar call. The user may also tap ignore,

take no action, or answer on the Bluetooth device

handset as with other incoming or call waiting alert.

6.10.9 Incoming Call when Call Waiting Active

If two calls are already active (call waiting mode), a call

waiting alert is not displayed. The call will show up as a

missed call.

6.10.10 REMOVED

120

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.10.11 Incoming OnStar Personal Call (If Equipped

with OnStar)

With an OnStar incoming call, the information is shown

as a message and the audio channel switches to the

OnStar ringtone. The message shows the incoming caller

information that is available along with the OnStar icon.

The OnStar symbol (calibratible) may be different based

upon the region. If there is no symbol for a region, a generic

icon is used. The user may select ignore or answer

for the incoming call. If there is an active Bluetooth call

when the OnStar personal call is incoming, if the OnStar

call is answered, the Bluetooth call is transferred to private

mode on the handset.

If ignore is chosen, the ringtone stops and the alert is extinguished.

If answer is chosen, the alert is extinguished

and the On-Star Active Call view is shown. If the user

performs no action, the alert extinguishes after the call

is hung up by OnStar and the ringtone stops.

121

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.10.12 Incoming OnStar Advisor Call(If Equipped

with OnStar)

With an OnStar incoming call from an advisor, the

information is shown as a message and the audio channel

switches to the OnStar ringtone. The alert shows the

incoming call is from the OnStar Advisor along with the

OnStar icon. The OnStar symbol (calibratible) may be different

based upon the region. If there is no symbol for a

region, a generic icon is used. The user may dismiss the

alert or it will autodismiss.

122

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.10.13 Call Ended Alert

When in an active phone call, if call is ended while the

system is displaying any other view than the Active Call

screen, the Call Ended message is displayed. The call

may be ended by the person on the other end of the line

hangs up, through the Bluetooth handheld device, or

service connection is lost . The message replaces whatever

screen was being displayed. Call Information is

displayed along with a stopped, flashing Call Timer for 3

seconds (calibratable) and then the system displays the

previous screen. Screen returns to the display to the

previous screen prior to the message after 5 seconds.

Users can re-dial the caller (e.g., if the phone call was

dropped) before the time out by tapping the soft-key

(i.e., the Favorites button) directly below the display

laeled ‘edial. “iilal, a all eded essage is

shown when an OnStar call is ended, if OnStar is

equipped. Please see figure 6.10.3.

6.10.14 Call Not Connected

A message is displayed when an outgoing call is initiated

by the user but is interrupted, canceled, or timed out.

The user may redial the phone number by pressing

redial soft key. This will return to the same calling view

(with recent calls list, contacts, keypad, etc) that was

shown when call was originally initiated. The message

will dismiss to the previous screen in 5 seconds. This

message is also displayed when an outgoing OnStar

personal call is initiated by the user but is interrupted,

canceled, or timed out.

Figure 6.10.3

Call Ended

Cathy Thomason

Redial Dismiss

00:13:01

123

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.11.2 OnStar Call Active and Incoming Bluetooth

Call - Interaction from Center Stack (If Equipped

with OnStar)

When Onstar has a current call active and a connected

Bluetooth phone has an incoming call, the incoming call

alert is displayed. Users can accept the incoming Bluetooth

phone call through the center stack display and

controls, and the OnStar call will be ended.

Users can ignore the incoming Bluetooth phone call

through the center stack display and controls, and the

OnStar call will continue. If the call is not ignored or answered

prior to transferring to voice mail, the display is

returned to its previous screen; the OnStar call is continued.

6.11.3 Bluetooth Phone Call Active and OnStar

Requests Emergency Call or Auto Accepted OnStar

Advisor Call (If Equipped with OnStar)

When the Bluetooth phone has an active, hands-free

call and OnStar requests an emergency call (e.g., airbag

is deployed) or an automatically accepted OnStar

Advisor call, the Bluetooth phone call is transferred to

private mode on the handset and the emergency call

/ auto accepted OnStar Advisor call is initiated. If the

Bluetooth call is still active in private mode when the

OnStar Emergency Call or Auto Accepted OnStar Advisor

Call has ended, the Bluetooth call is transferred back

to handsfree mode.

124

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

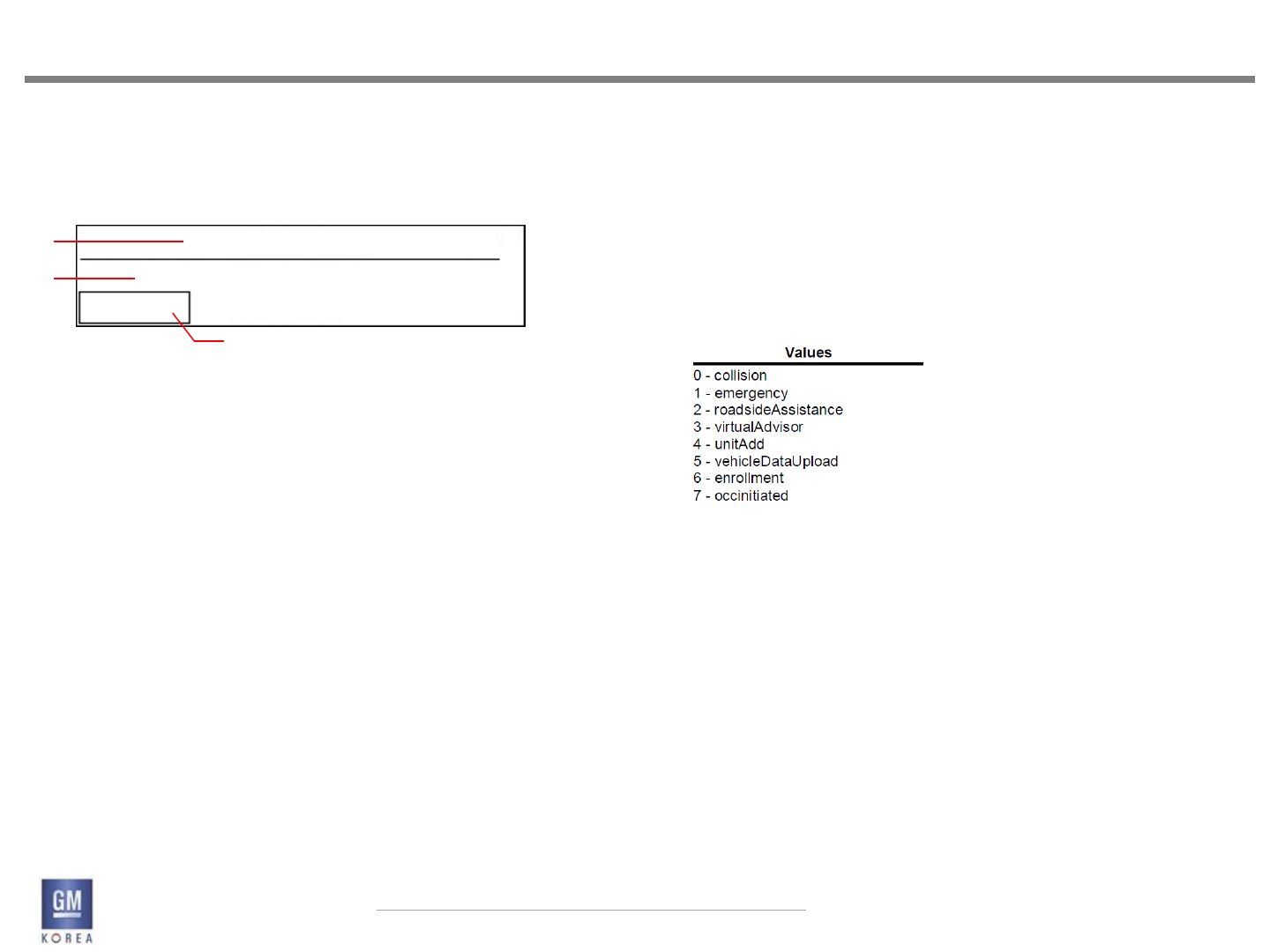

6.11.4 OnStar and Bluetooth Phone Interactions (If

Equipped with OnStar)

OnStar and Bluetooth Phone interactions are based

upon the state of an OnStar call and a Bluetooth Phone

call as described in the following sub paragraphs.

When an OnStar call is active, the OnStar Active Call

view is shown when in the phone section. The phone

number and remaining minutes are shown. This may be

blank until the information is provided. The OnStar icon

will be shown for level 2, 3 and 4. The OnStar icon will

not be shown for level 1.

The end soft-key allows the user to end the active call.

When this is pressed, the active call will disconnect

and call ended will be displayed as described in the Call

Ended section.

6.11.5 OnStar Call Active (If Equipped with OnStar)

When OnStar has a current call active or an emergency

call active or an advisor call active, the Bluetooth phone

is only available in private mode from the handset for

making a call. A Bluetooth phone call can not be initiated

through the system interface. OnStar Call Active is

shown in the phone status region of phone screens

125

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.11.6 Bluetooth Phone Call Active and OnStar Personal

Call or Advisor Call is Requested (If Equipped

with OnStar)

When the Bluetooth phone has an active, hands-free

call and users request an OnStar Personal Call or Advisor

Call by pressing the OnStar buttons, the Bluetooth call

is transferred to private mode and OnStar personal call

or advisory call is initiated. If the Bluetooth call is still

active in private mode when the OnStar personal call or

advisory call has ended, the Bluetooth call is transferred

back to handsfree mode.

6.11.7 Bluetooth Phone Call Active and Incoming

OnStar Call (If Equipped with OnStar)

When the Bluetooth phone has an active, hands-free

call and OnStar has an incoming non-emergency phone

call, the OnStar incoming call message is displayed. Users

can accept the incoming OnStar call and the Bluetooth

phone call is transferred to private mode on the

handset or users can ignore the incoming OnStar call

and the Bluetooth phone is continued. If the call is not

ignored or answered, the message time out returning

the display to its previous screen. If the Bluetooth call

is still active in private mode when the OnStar personal

call or advisory call has ended, the Bluetooth call is

transferred back to handsfree mode.

126

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.11.8 OnStar Call Active with Incoming Bluetooth

Call - Interaction from Bluetooth Phone Handset

(If Equipped with OnStar)

When OnStar has a current call active and Bluetooth

phone has an incoming call, the user may use the Bluetooth

phone to accept or ignore the call. If the call is

accepted or ignored on the Bluetooth handset, the message

is no longer displayed and the OnStar call continues

in vehicle. If the user accepted the call on the Bluetooth

handset, it is only available in private mode from the

handset.

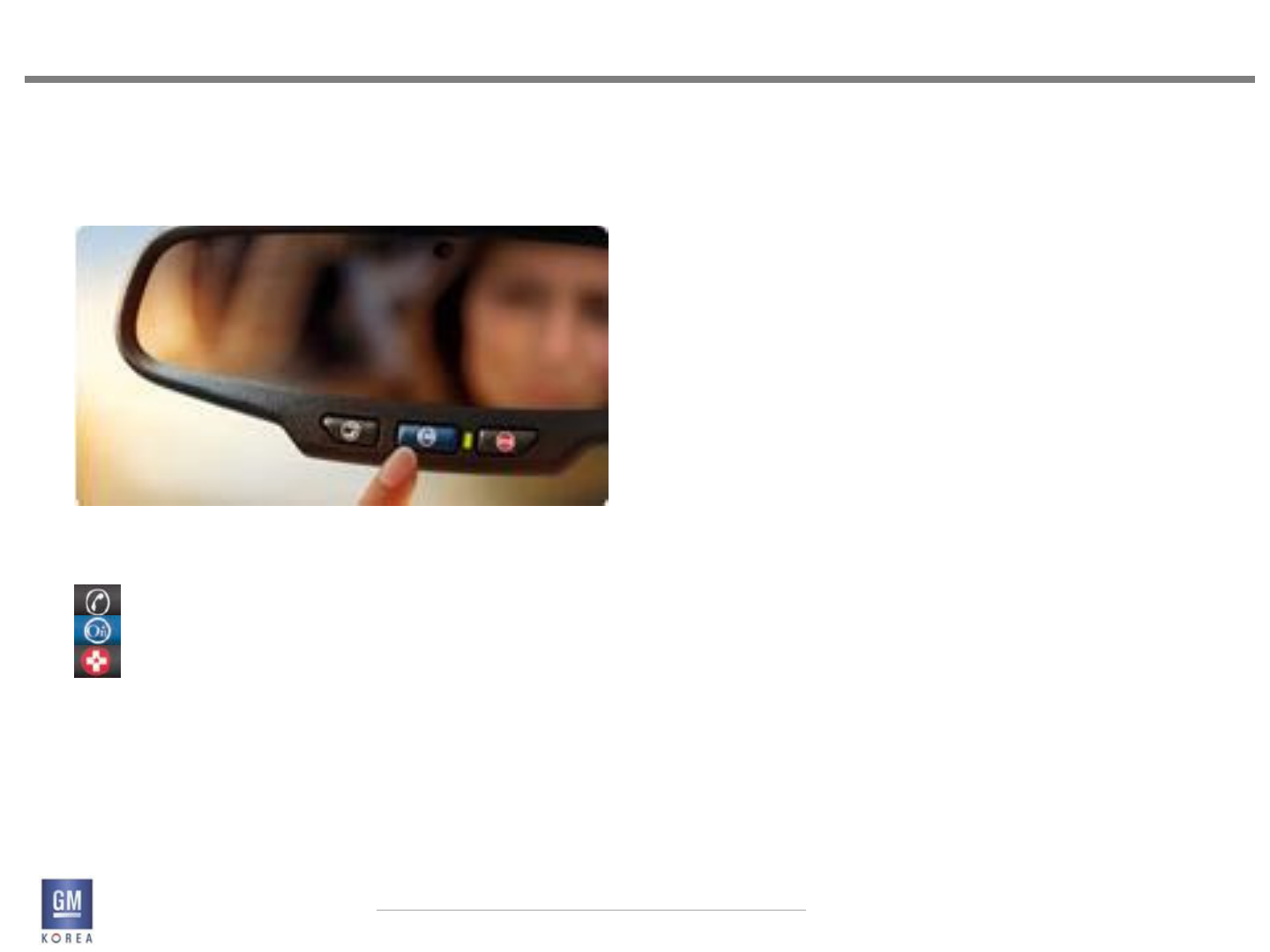

6.11.9 OnStar Emergency Call View

An Onstar Emergency Call is initiated from a crash or

from the user pressing the red cross button. There is

an indication when it is connecting and then when it is

connected. There is not a means for the user to end an

OnStar Emergency Call that was initiated from a crash.

The End button is shown when the emergency call was

initiated by the user pressing the red cross button. If a

Bluetooth call is active at the time of an Emergency Call

Connecting, the Bluetooth call is transferred to handset.

6.11.10 OnStar Advisor Call View (If Equipped with

OnStar)

An Onstar Advisor Call is initiated from the user pressing

the blue button. There is an indication when it is connecting

and then when it is connected. The user may

end the call by pressing the End soft key.

127

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.11.11 Emergency Call Not Connected (If Equipped

with OnStar)

A message is displayed when an Emergency call is initiated

by the user using the red cross button but is interrupted,

canceled, or timed out. The message will timeout

after 5 seconds. The user may redial the Emergency

call by tapping the redial button. This will return to the

Emergency Call Connecting view.

6.11.12 OnStar Advisor Call Not Connected

A message is displayed when an OnStar advisor call is

initiated by the user but is interrupted, canceled, or

timed out. The message will timeout after 5s. The user

may redial the OnStar advisor call by tapping the redial

button. This will return to the OnStar Advisor Call connecting

view.

6.11.13 Display a Phone Number

A phone number is displayed in the case of Redial. The

Number is shown and the OnStar regional brand text

string calibration is used where OnStar is shown in wireframe.

6.11.14 Phone Calling Unavailable

When initiating a phone call is unavailable due to an

unconnected Bluetooth phone source or Local Phone

system state has expired after ignition off, the phone

screens will visually show which features are not available

to the user.

128

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.11.15 Removed

6.11.16 Removed

6.11.17 Removed

129

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.12 Entering / Exiting Vehicle with Bluetooth

6.12.1 Entering Vehicle with Active Bluetooth

Phone Call

When the user starts the vehicle (ignition on) with an

active call on a previously paired Bluetooth device, the

vehicle connects the Bluetooth device and shows a

message to the user that the call may be switched to

handsfree. When the phone is connected and able to

be switched to handsfree, a message is displayed. The

Bluetooth device has to be connected and the speakers

and microphone active prior to allowing the switch to

handsfree.

The user may press the softkey on the faceplate labeled

Hadsfee to sith to hadsfee ode. The use a

press the softkey button on the faceplate labeled dismiss

to do nothing and remain in privacy mode. The message

times out after 5s.

130

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.12.2 Exiting Vehicle with Active Bluetooth Phone

Call

The user may switch to handset upon exiting the vehicle.

When the user turns off ignition with an active Bluetooth

phone call, the display changes to the active call

view as long as there has been no inputs by the user

on the current view for TBD time (calibratible). Otherwise,

the In Call view is delayed until no activity for TBD

time (calibratible). If the user will be exiting the vehicle

with an active Bluetooth phone call, the user may tap

handset to transfer the call to private mode. The user

can continue the call on the handset and exit the vehicle.

If the user exits the vehicle with the Bluetooth device

without transferring the call to handset, the call will

automatically be switched to handset (private mode)

once the Bluetooth device is out of range and no longer

connected.

6.12.3 User Remains in Vehicle with Ignition Off

Door Opens

The user may turn ignition off, remain in vehicle, and

on the handsfree active phone call. With ignition off,

the active call view is displayed as described in previous

section. The user may tap the Switch to Handset Now.

When user taps the Switch to Handset, the switching to

handset message is shown until the transfer is complete.

Then the active call view is displayed, with Handsfree

not available. This view is displayed until the Local

Phone system state expires.

131

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.12.4 Bluetooth Available Through OnStar Only

Bluetooth phone may not be available in some vehicle

configurations except through OnStar. In this case, there

is only phone call capability on the Bluetooth device.

132

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.13 Phone Number Format By Region

The phone number format throughout the Form and

Behavior is based upon North America. The following

define the phone number format by region.

6.13.1 North America

For North America region, the following strategy is used

when displaying a phone number:

When there are seven digits, the format is XXX-XXXX.

When there is ten digits, the format is XXX-XXX-XXXX

Whe thee is elee digits ad the fist digit is a ,

the format is 1-XXX-XXX-XXXX When there is eleven

digits ad the fist digit is ot a , the phoe ue

is displayed with no hyphens. When there are less then

seven digits, or there are eight or nine digits, or there

are more than eleven digits, the phone number is displayed

with no hyphens.

6.13.2 Korea

For Korea, the following strategy is used when displaying

a phone number.

If first digit is not a 0 and number of digits is greater

than four, then one hyphen prior to last four: XXX-XXXX

If first digit is not a 0 and number of digits is four or less,

then no hyphens: XXXX, XXX, XX, X

If first digit is a 0 and the second digit is not a 2 and

number of digits is at least eight, then one hyphen prior

to last four digits and one hyphen after the first three

digits: 0XX-XXXX-XXXX or 0XX-XXX-XXXX or 0XX-XX-XXXX

or 0XX-X-XXXX

133

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

If first digit is a 0 and the second digits is not a 2 and

number of digits is less than eight and more than three,

then one hyphen after the first three digits: 0XX-XXXX,

0XX-XXX, 0XX-XX, 0XX-X. If first digit is a 0 and the second

digit is not a 2 and the number of digits is three, no

hyphens: 0XX If first two digits are 02 and the number

of digits is at least seven, then one hyphen prior to last

four digits and one hyphen after the first two digits (02):

02-XXXXXXXX or 02-XXX-XXXX or 02-XX-XXXX or 02-XXXXX.

If first two digits are 02 and the number of digits

is less than seven and more than two, then one hyphen

after the first two digits (02): 02-XXXX, 02-XXX, 02-XX,

02-X. If the first digit is a 0 and the number of digits is

two or less, no hyphens: 0X

6.13.3 All Other Regions

For all other regions such as China, Europe, and Middle

East, there are no hyphens shown when displaying a

phone number. These regions have an open numbering

plan so a common strategy for placement of hyphens is

not possible.

134

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.14 Incoming Text Messages

An Incoming Text Message Alert is displayed whenever

there is a new text message from a connected phone

and text message alerts are turned on in settings.

When the incoming text is from a phone number in the

Contacts list, the first and last name are displayed.

When the incoming text is from a phone number that is

not in the Contact lists, the phone number is displayed.

Upon notification of the incoming text, all information

may not be immediately available so the alert is displayed

at the time all the information is available.

6.14.1 View Button

Users can view the entire message by tapping the softkey

(i.e., the Favorites button) directly below the display

laeled Vie. The detail essage see is o

displayed.

6.14.2 Dismiss Button

Users can dismiss the new text alert by tapping the softkey

(i.e., the Favorites button) directly below the display

laeled Disiss. Disissig the alet etus the

display to the previous screen prior to the text alert.

Figure 6.14.1 - Incoming Text View

Figure 6.14.2 - Incoming Text no contact info

Figure 6.14.3 - viewing a selected text message

New Text

First name Last name

View Dismiss

New Text

XXX-XXX-XXXX

View Dismiss

Done

Will meet you for lunch at the Harbor

Center Plaza at 1pm.OK? After, we can

135

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.14.3 No Action or Responded To From SWC

If no soft-key is selected before the alert time-outs, the

alert is extinguished returning the display to its previous

screen.

If the alert is responded to using the steering wheel

controls and cluster display, the alert is extinguished

returning the center stack display to its previous screen.

Note: this feature is only supported where the architecture

supports messaging for the cluster buttons.

6.14.4 Audio with new text alerts

With a New Text Message alert, the Text Message alert

audio is played. The audio alert is played until the user

either presses view, dismiss, or the alert times out.

The alert tone is provided if the device receiving the text

can support the tone using A2DP.

6.14.5 Done Button

When the user is finished viewing a text message, the

DONE button can be pressed and the user will be returned

to the previous screen prior to receiving the text.

136

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

6. PHONE

6.14.6 Text Messages Option In Phone Home Screen (Removed)

137

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Vehicle Setting Menu Tree is displayed by CAL DATA.

Menu Tree naming has 2cases.

-Case1 > US English and the other languages

-Case2 > UK English and the other languages

This is also selected by CAL DATA as left table.

CAL

Supported Lang.

CAL

Supported Lang.

$01 = North America

$07 = China

Canadian French

Chinese

Spanish

$09 = Korea

$02 = Europe

German

Korean

Italian

$0A = India

Swedish

$0B = Singapore

French

Chinese

Spanish

$0C = Malaysia

Dutch

$0D = Taiwan

Chinese

Portuguese

Norwegian

$0E = Mexico

Finnish

Maxican Spanish

Danish

$0F = Russia

German

Greek

Italian

Polish

Swedish

Turkish

French

Spanish

Russian

Dutch

Bulgarian

Portuguese

Croatian

Norwegian

Czech

Finnish

Hungarian

Danish

Rumanian

Greek

Slovak

Polish

Slovenian

Turkish

Ukrainian

Serbian

Russian

Uzbek

Bulgarian

$03 = Latin America

Croatian

Spanish

Czech

Maxican Spanish

Hungarian

Brazilian

Rumanian

$04 = Africa

Slovak

Slovenian

French

Ukrainian

$05 = Middle East

Serbian

Arabic

Uzbek

06 = Australia/New Zealand

$10 = Thailiand

thai

Table 7. CAL List

138

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Depth1

Depth 2 - NGF US(Case1) Depth 2 - NGF UK(Case2) Setting Value - NGF US(Case1)

Setting Value - NGF UK(Case2)

Climate and Air Quality

Auto Fan Max Speed

Low

Medium

High

Air Conditioning Mode

Climate control mode

Off

Last Setting

Air Quailty Sensor

Automatic Air Recirculation

Off

Low Sensitivity

High Sensitivity

Pollution Control

Off

Auto Compartment Zone Temp

Temperature Zone at start

Single Zone

Dual Zone

Last Setting

Auto Cooled Seats

Off

Auto Heated Heats

Off

Rear Zone Temp

Rear zone temperature

Rear Off

Rear Zone off

Rear Mimic Front

Rear climate zone linked

Rear Last Known

Rear zone last setting

Auto Defog

Auto Demist

Off

Auto Rear Defog

Auto Rear Demist

Off

Elevated Idle

Off

Engine Assisted Heating

At Colde Outside Temperatures

At Very Cold Outside Temp

At Very Cold Outside Temperatures

Engine Assisted Heating Plugged In

Off

Ionizer

Off

Auto Air Distribution

Direct Airflow

Diffuse Airflow

Table 7. 2 Menu Tree(1)

139

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Depth1

Depth 2 - NGF US(Case1) Depth 2 - NGF UK(Case2) Setting Value - NGF US(Case1)

Setting Value - NGF UK(Case2)

Collision / Detection System

Pedestrian Friendly Alert

Off

Alert Type

Beeps

Safety Alert Seat

Forward Collision Alert

Off

Auto Collision Preparation

Collision Preparation

Off

Alert

Alert and Brake

Park assist

Off

Park assist

Off

On With Towbar Attached

On with towbar attached

Rear Cross Traffic Alert

Off

Go Notifier

Resume Cruise Alert

Off

Side Blind Zone Alert

Off

24GHz Radars

24 GHz radars

Off

Lane Change Alert

Off

Seat Belt Tightening

Seat Belt Pre

-tightening

Low

Normal

Performance

Locked

Driver Drowsiness Detection

Off

Table 7. 2 Menu Tree(2)

140

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Depth1

Depth 2 - NGF US(Case1) Depth 2 - NGF UK(Case2) Setting Value - NGF US(Case1)

Setting Value - NGF UK(Case2)

Comfort and Convenience

Auto Memory Recall

Off

Auto Memory Recall

Off

- Driver Door Open

- At Ingnition On

Easy Exit Driver Seat

Off

Easy Exit Steering Column

Off

- Column Up

Column Up

Easy Exit Steering Column

Off

- Column In

Column In

- Column Up

Column Up

- Column In and Up

Column In and Up

Easy Exit Options

Off

Chime Volume

Chime volume

Reverse Tilt Mirror

Auto mirror tilt in reverse

Off

- Driver and Passenger

Reverse Tilt Mirror

Auto mirror tilt in reverse

Off

- Driver and Passenger

- Driver

- Passenger

Auto Mirror Folding

Comf. closing mirror fold

Off

Personalization by Driver

Off

Rain Sense Wipers

Disabled

Enabled

Auto Wipe in Reverse Gear

Rear auto wipe in reverse

Off

Table 7. 2 Menu Tree(3)

141

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Depth1

Depth 2 - NGF US(Case1)

Depth 2 - NGF UK(Case2)

Setting Value

NGF US(Case1)

Setting Value

NGF UK(Case2)

Driving Mode

Steering

Auto

City

Suspention

Auto

City

Traction

Auto

City

Energy

Charge Port Door Release Pop

-up

Charge Port Door Release Pop

-up

Off

Energy Summary Pop

-up

Energy Summary Pop

-up

Off

Charge Status Feedback

Off

Horn Chirps

Charge Cord Theft Alert

Off

Charge Power Loss Alert

Off

ECO Indicator

Off

Table 7. 2 Menu Tree(4)

142

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Depth1

Depth 2 - NGF US(Case1)

Depth 2 - NGF UK(Case2)

Setting Value

NGF US(Case1)

Setting Value

NGF UK(Case2)

Lighting

Vehicle Locator Lights

Exterior lighting by unlocking

Off

Exit Lighting

Duration upon exit of vehicle

Off

30 Seconds

60 Seconds

120 Seconds

Left or Right Hand Traffic

Left Hand Traffic

Right Hand Traffic

Left or Right Hand Traffic

Left Hand Traffic

Right Hand Traffic

Automatic(GPS)

Auto High Beam

Off

Auto High Beam

Off

Normal Sensitivity

Low Sensitivity

Adapter High Beam

Off

Adapter High Beam

Off

Normal Sensitivity

Low Sensitivity

Adapter Forward Lighting

Off

Corner and Curve Lighting

Adapter Forward Lighting

Off

Corner and Curve Lighting

Inteligent Light Distribution

Adapter Forward Lighting

Off

Corner and Curve Lighting

Inteligent Light Distribution

GPS Assistance

Daytime Tail Lights

Off

Table 7. 2 Menu Tree(5)

143

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Depth1

Depth 2 - NGF US(Case1)

Depth 2 - NGF UK(Case2)

Setting Value

NGF US(Case1)

Setting Value

NGF UK(Case2)

Power Door Locks

Unlocked Door Anti Lock Out

Stop door lock if door open

Off

Auto door lock

Auto Door Lock

Off

Auto door unlock

Off

Driver Door

Driver door

All Doors

Auto door unlock

Off

Driver Door

Driver door

All Doors

Delayed Door Lock

Off

Table 7. 2 Menu Tree(6)

144

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Depth1

Depth 2 - NGF US(Case1) Depth 2 - NGF UK(Case2) Setting Value - NGF US(Case1)

Setting Value - NGF UK(Case2)

Remote Lock, Unlock, Start

Remote Unlock Light Feedback

Remote Unlock Feedback

Off

Flash Lights

Remote Lock Feedback

Remote lock feedback

Lights Only

Lights only

Lights and Horn

Horn Only

Off

Remote Door Unlock

Driver Door

Driver door

All Doors

Remote Start

Vehicle Remote Start

Off

Remote Start Auto Cool Seats

Off

Remote Start Auto Cool Seats

Off

- Driver and Passenger

- Driver

Remote Start Auto Heat Seats

Warm seats at remote start

Off

Remote Start Auto Heat Seats

Warm seats at remote start

Off

- Driver and Passenger

- Driver

Remote Window Operation

Off

Passive Door Unlock

Driver Door Only

All Doors

Passive Door Lock

Off

On With Horn Chirp

Horn On Passive door Lock

Remote Left in Vehicle Reminder

Remote Left in Vehicle Alarm

Off

Sliding Door Selection

Unlock Sliding Door

Courtesy

Security

Table 7. 2 Menu Tree(7)

145

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Depth1

Depth 2 - NGF US(Case1)

Depth 2 - NGF UK(Case2)

Setting Value

NGF US(Case1)

Setting Value

NGF UK(Case2)

Sport Mode Setting

HVAC Remote Start Setting

Automatic

Last Setting

Sport Mode Back Lighting

Swap backlight colour main instr.

Off

Powertrain Performance

Sport powertrain performance

Normal Off

Sport

Speed Scale Illumination

Full

Partial

Return to Factory Settings

Valet Mode

Exceptions>

Driving School is located on the vehicle settings.

But this is displayed by CAL DATA (D2XX Model / some region only supported)

The user selects the driving school On/Off.

If the driving school is set On, All of Now playing viewing is displayed the vehicle speed as below image.

(the speed unit (mph or Km/h) is also chosen by CAL DATA.)

Table 7. 2 Menu Tree(8)

REGNBOGN HESSEN

Now Playing on BBC 6 Mu

sic is the latest release… 248 mph

REGNBOGN HESSEN

Now Playing on BBC 6

Music is the lates… 248 km/h

146

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.1 Main Settings View

The vehicle settings submenus can be accessed from

most menus in the system. It is located at the bottom of

every menu, such as the FM menu.

When selected from a source menu, a list of vehicle settings

is displayed.

The Settings Application contains global settings for the

vehicle. The various settings consist of the following

areas in the following order as detailed in this chapter:

Climate & Air Quality

Collision/Detection System

Comfort & Convenience

Driving Mode

Energy

Languages

Lighting

Power Door Locks

Remote Lock, Unlock, & Start

Return to Factory Settings

Software Information

Time & Date (also shown in all audio menus)

Valet Mode

Time & Date, Bluetooth, and Radio Settings are found

under the main menu of the appropriate source modes.

Figure 7.1.1 - Vehicle Settings menu

Vehicle Settings

Climate & Air Quality

Collision/Detection Systems

147

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.2 Vehicle Settings Menus

The Vehicle Settings are structured in a menu-list structure.

Menu options are highlighted by rotating the faceplate

knob and selected by pressing the knob. Pressing

the BACK switch on the faceplate will bring the user up

one level in the Settings menu.

7.3 Vehicle Settings Category Items

The top level within the Vehicle Settings menu is the

main vehicle categories.

Each category contains groups of settings with related

functionality. The category and settings structures are

intended to be compatible with the Global A vehicle

electrical architecture.

7.4 Vehicle Settings Menu Items

Within each vehicle category the individually related

settigs ites ae gouped togethe, as sho i Figue

...

Individual settings are selected by rotating

the faceplate knob and selected by pressing the knob.

Selecting an individual setting will present the setting

selection screen specific to that setting.

Figure 7.4.1 - Vehicle Settings menu

Figure 7.4.2 - Vehicle Settings menu

Figure 7.4.3

Vehicle Settings

Climate & Air Quality

Collision/Detection Systems

Climate & Air Quality

Collision/Detection Systems

Comfort & Convenience

Power Door Locks

Unlocked Door Anti Lock Out

Auto Door Lock

148

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.5 Setting Selection Screen

Every available vehicle setting will have its own setting

selection screen, with the options listed for that setting,

as provided by the Global A FU Class Interface for vehicle

modules with customization options.

Options that only have an ON / OFF option still have a

settig seletio see. Eaples ae sho i Figue

7.6.1 and 7.6.2.

A setting is made by rotating the faceplate knob and set

by pressing the knob. The set indicator moves to indicate

the newly selected setting. The system remains in

the current setting selection screen until the user selects

a different screen from the faceplate.

7.6 Unused Category Labels

In the case where a category has no available sub-items

due to vehicle configuration (e.g. Driving Mode, Sport

Mode, Hybrid, etc.), the category label should be dynamically

removed from the list view.

Figure 7.6.1 - Settings Selection

Figure 7.6.2 -

Auto Door Unlock

Off

All Doors

Auto Mirror Folding

Off

149

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.7 Valet Mode

Valet Mode within the Settings application provides the

user the option to lock out the Infotainment system and

place other vehicle systems into Valet Mode, using a

user-set 4-digit combination, functioning similar to a

hotel safe.

Pressing the BACK switch on the faceplate will

bring the user back to the Settings menu and clear any

digits in the entry field.

7.7.1 Valet Mode Combination Entry Screen (lock)

When Valet Mode is selected from the settings menu

list, the screen displays a numeric entry prompting the

user to select a 4-digit valet mode code. The user enters

a 4-digit code of their choosing using the rotary control

and selects digits by pressing the knob. The user selects

ENTE‘ he oplete ia the ota ko o soft-key.

Selecting DEL duig et deletes oe digit o pessig

ad holdig DEL fo the stadad pess ad hold

timing to clear all entered digits.

If fewer than four digits are entered and ENTER is selected,

a pop-up will be presented to the user describing

the need for four digits, with the options to DISMISS the

pop-up or EXIT the Valet Mode entry screen.

Figure 7.7.1 - Valet mode entry screen

Figure 7.7.2 - valet mode insufficient digits pop-up

Figure 7.7.3 - valet mode insufficient digits pop-up (continued)

Valet Mode: Enter a 4-digit number to lock

5 9 _ _

Enter

Valet mode requires a 4-digit code.

Select 4 digits by rotating the knob and

Dismiss Exit

press the knob to select a digit.

When done, select “ENTER”

Dismiss Exit

150

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

To confirm that the user has correctly entered the code

of their choosing, the system then displays a code confirmation

screen, requiring the user to enter their code

a seod tie, ad pess LOCK he oplete. The

user is again able to use the backspace in the confirmation

to delete one digit (press) or to clear all digits

(hold).

If the user does not enter the same code in the code

confirmation screen, the system presents the user with

the Codes Do Not Math popup see Figue 7.7.5.

Pessig ‘et fo this popup ill take the use to

the code confirmation screen. Pressing OK will take the

user to the Settings Menu showing the Valet Mode option,

allowing the user to start over.

Upon successfully entering a 4-digit code and choosing

LOCK, the oiatio ill flash the oiatio fo 

seconds at a 1 hertz rate and then switch to the System

Locked display.

Figure 7.7.4 - Valet mode confirmation

Figure 7.7.5 - valet lock codes do not match pop-up

Re-enter 4-digit number to lock system

5 9 _ _

Lock

The lock codes that you entered do not

match. Please try to re-enter lock code.

OK Retry

151

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.7.2 Valet Mode System Locked Screen

When the system is locked in Valet Mode,

the screen displays the locked Viewing as figure 7.7.6

If the user presses/rotates any key/knob,

the screen displays a numeric entry prompting the user to enter

the 4-digit valet mode unlock code.

The user enters a 4-digit code of their choosing using the wrap-around

rotary control and selects digits by pressing the knob.

The use selets Ulok he oplete ia the ota

knob or soft-ke. “eletig DEL duig et deletes

oe digit o pessig ad holdig DEL fo the stadad

press and hold timing to clear all entered digits.

If fewer than four digits are entered or the incorrect

combination is entered, a pop-up will be presented to

the user detailing the error, with the option to DISMISS

the pop-up.

Upon successfully entering the 4-digit code and choosing

UNLOCK, the sste ill elease Valet Mode ad

return the user to the last used screen. For the case

where a user has locked the system and does not remember

their lock code, there is a CPID provided such

that a dealer is able to override the lock code and unlock

the system.

When the System Locked screen is displayed, all functions

(other than the rotary knob and UNLOCK soft-key)

are locked out (this includes the visual screens, as well

as the main audio). All Alerts and Pop-ups should be

suppressed when Valet Mode is enabled. Vehicle chime

functions remain enabled.

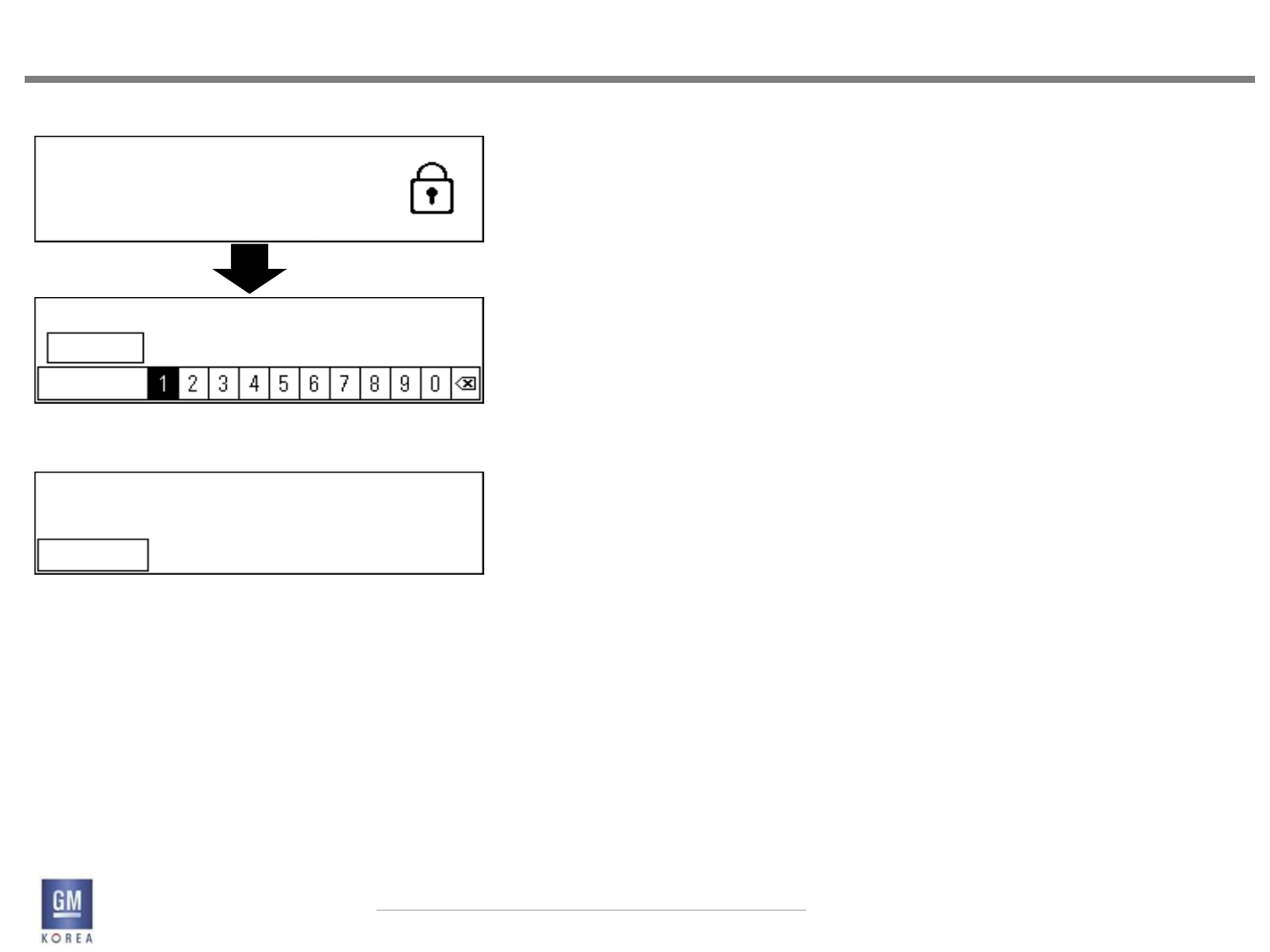

Figure 7.7.6 - Valet mode Active

Figure 7.7.7 - valet lock codes do not match pop-up

Enter 4-digit number to unlock

5 9 _ _

Unlock

The code you have entered is incorrect.

Enter the digits used to set valet mode.

Dismiss

Valet Mode Active

152

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

The HVAC fan speed pop-up and OnStar advisor audio

functions (if equipped) are not disabled and may be

displayed.

When in Valet Mode the volume control can still be

adjusted by the user for OnStar phone (VG_PHONE) and

OnStar emergency phone (VG_EMERGENCY_

PHONE) usage, if applicable.

Additionally, when valet mode is turned on, the system

will shut down Bluetooth and disconnect all devices.

When valet mode is successfully turned off, the system

will enable Bluetooth and reconnect all previously connected

devices.

153

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.8 Time And Date Settings

The Time and Date Setting within the Settings application

provides a method for setting the clock shown in

the CenterStack display. Pressing the BACK switch on

the faceplate will bring the user back to the Settings

menu.

7.8.1 Set Time Screen

The Set Time screen has individual entries for HOURS,

MINUTES, and AM/PM. Each of the entries is adjusted

by rotating the faceplate knob when the desired entry

is selected (clockwise increments, counter-clockwise

decrements). The actual system time does not update

until this screen is exited.

When entering the Set Time screen, the HOURS setting

is selected. The user is able to advance to the next entry

by pressing the knob--after the AM/PM entry is selected

and the user presses the knob, the system time is updated

and the user is returned to the Settings menu. If

the vehicle is calibrated to a 24 hour clock, the AM/PM

setting option is not shown and the screen exits after

pressing the knob on the set MINUTES. (The user is able

to toggle between 12 and 24 hour mode via the 12-24

HR mode softkey.)

The user is able to exit the Set Time screen through multiple

methods: BACK button, pressing the knob on the

AM/PM entry, or any other valid button on the faceplate

that invokes a screen change. Regardless of the exit

method, the system time is updated to whatever the

user has adjusted in the Set Time screen.

Figure 7.8.1 -

Figure 7.8.2 -

Figure 7.8.3 -

FM Menu

Time & Date

Tone Settings

Time & Date

Set Time

Set Date

4 45 PM

Auto Set 12-24 HR

154

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

All regions will display AM/PM (English characters) in

the Set Time screen if 12-hour mode is selected, regardless

of Language Selection.

All egios ill displa a olo : fo the iute/hou

separator in both 12 and 24 hour mode. No leading

zeroes should be shown in the hours field in both 12 and

24 hour mode (minutes field should show leading zero,

when appropriate).

The system is able to provide Auto Set functionality for

the Time. The system indicates Auto Set On by displaying

the Auto Set indicator soft-key as the selected state.

Tapping on the Auto Set button will bring up the Auto

Set menu where the user can select an Auto Set On

source or manually turn Auto Set Off. The menu should

display only those sources calibrated as available.

The user is able to manually set a time, regardless if

Auto Set is enabled or disabled, however, If Auto Set

was enabled and the user adjusts the time, the system

will be set to Manual mode (Note: In this case, the system

must first change the system time mode to Manual

and then send the time set by the user).

Figure 7.8.4 -

Auto Set

Off (Manual)

On – Cell Network

155

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.8.2 Set Date Screen

The Set Date screen has individual entries for MONTHS,

DAYS, and YEARS. Each of the entries is adjusted by

rotating the faceplate knob when the desired entry

is selected (clockwise increments, counter-clockwise

decrements). The actual system date does not update

until this screen is exited. When entering the Set Date

screen, the MONTH setting is selected. The user is able

to advance to the next entry by pressing the knob--after

the YEARS entry is selected and the user presses the

knob, the system date is updated and the user is returned

to the Settings menu.

The user is able to exit the Set Date screen through multiple

methods: BACK button, pressing the knob on the

YEARS entry, or any other valid button on the faceplate

that invokes a screen change. Regardless of the exit

method, the system date is updated to whatever the

user has adjusted in the Set Date screen. The system is

able to provide Auto Set functionality for the Date.

The system indicates Auto Set On by displaying the

Auto Set indicator soft-key as the selected state. Tapping

on the Auto Set button will bring up the Auto Set menu

where the user can select an Auto Set On source or manually turn Auto Set Off.

The menu should display only those sources calibrated as available.

The user is able to manually set a date, regardless if

Auto Set is enabled or disabled, however, If Auto Set

was enabled and the user adjusts the date, the system

will be set to Manual mode

(Note: In this case, the system must first change the system date mode

to Manual and then send the date set by the user).

•Date Format List : If the user presses the <Format>Key.

MMDDYYYY

DDMMYYYY

YYYYMMDD

Figure 7.8.5 -

Jan 26 2012

Auto Set Format

Date Format

MMDDYYYY

DDMMYYYY

Select the <Format>

Press the <Back>

156

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

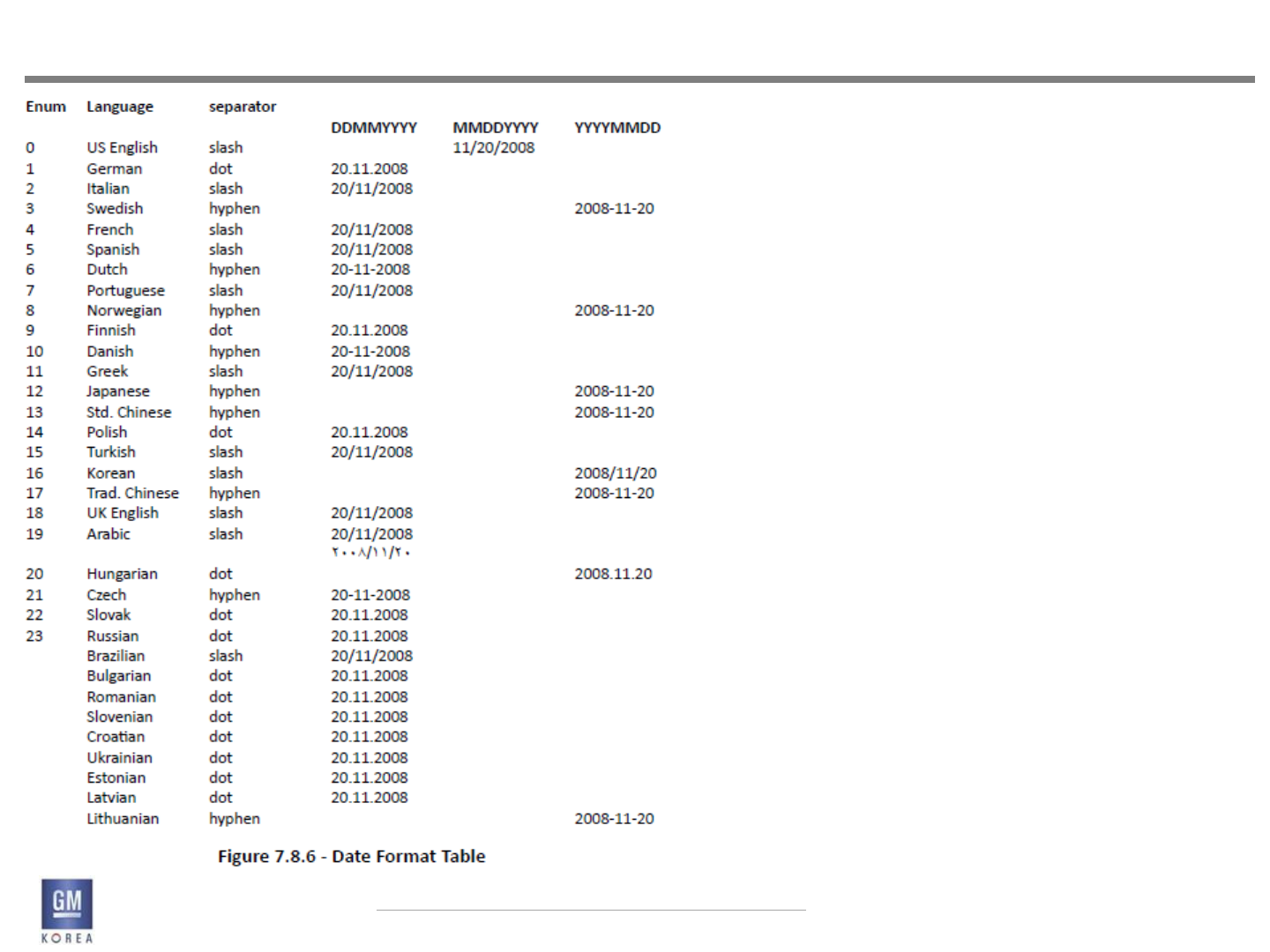

7.8.3 Date Format

The user set language setting for the system will determine

the date format that will be displayed, including

both the separator character (slash, dot or hyphen)

and the MONTH / DAY / YEAR ordering. The date is

displayed according to the blue highlighted information

sho i Figue ...

A leading zero for month and day shall be used for the

numeric version for all languages even though some

countries do not use this as standard. This is to reduce

complexity. The year shall always be four digits to reduce

ambiguity.

Note: For Arabic, the date format is the Little Endian

form (DDMMYYYY), as shown in the table. However,

due to the direction of the Arabic text, the DD starts on

the Right and ends with the YYYY on the left. The correctly

displayed translated view is shown in the table.

157

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.9 Settings Menus for Vehicle Settings

The following lists depicts the superset of Settings

for vehicle settings found in faceplate radio systems.

The information reflects the desired order and preferred

text to be shown on the display.

Not all settings apply to all system levels and vehicle

configurations.

For system configurations (vehicle and Infotainment)

that do not support a listed feature, the menu item/

sub-menu should not be shown.

While this represents the superset of features, with

preferred order and text, the system should be

architected such that items can easily be removed

(hidden) from the menu structure, placed in a different

location within the menu, and renamed, based

on usability testing during development.

7.9.1 Vehicle Settings Spec Format

For each of the following sections, the main section

number (eg, 7.9.2) will represent the main option

under the vehicle settings menu. Listed under each

of these sections will be the submenu list items

available for those main vehicle settings. Please refer

to sections 7.2 through 7.5 for wireframe examples.

Duplicate items in a settings menu are noted as

ased o aliatio to idiate oe o the othe

is presented in the menu depending on the vehicle

calibrations file.

158

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.9.2 Driving Mode Menus

Engine Sound Management (Menu Header)

- Auto

- City

- Off

Steering

- Auto (mode selector)

- Eco

- City

159

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.9.3 Climate and Air Quality Settings

Auto Fan Max Speed (Menu Header)

- Low

- Medium

- High

Air Conditioning Mode

- Off

- On

- Last Setting

Air Quality Sensor

- Off

- Low Sensitivity

- High Sensitivity

Pollution Control

- Off

- On

Auto Compartment Zone Temp

- Single Zone

- Dual Zone

- Last Setting

Auto Cooled Seats

- Off

- On

Auto Heated Seats

- Off

- On

160

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Rear Zone Temp

- Rear Off

- Rear Mimic Front

- Rear Last Known

Auto Defog

- Off

- On

Auto Rear Defog

- Off

- On

Elevated Idle

- Off

- On

Engine Assisted Heating

- At Cold Outside Temperatures

- At Very Cold Outside Temperatures

Engine Assisted Heating Plugged In

- Off

- On

161

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.9.4 Collision/Detection Systems

Pedestrian Friendly Alert

- Off

- On

Alert Type

- Beeps

- Safety Alert Seat

Forward Collision Alert

- Off

- On

Auto Collision Preparation

- Off

- Alert

- Alert & Brake

Park Assist

- Off

- On

Rear Cross Traffic Alert

- Off

- On

Go Notifier

- Off

- On

162

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Side Blind Zone Alert

- Off

- On

Lane Change Alert

- Off

- On

Seat Belt Tightening

- Low

- Normal

- Performance

- Locked

163

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.9.5 Comfort and Convenience

Auto Memory Recall

- Off

- On

Easy Exit Driver Seat (shown when EXIT button NOT available)

- Off

- On

Easy Exit Steering Column (shown when EXIT button NOT available

for tilt/telescoping steering wheel)

- Off

- On - Column In

- On - Column Up

- On - Column In & Up

Easy Exit Steering Column (shown when EXIT button NOT available

for tilt steering wheel)

- Off

- On - Column Up

Chime Volume

- Variable Volume Setting

Note: The variable volume setting selection is on a 63-level

volume curve. Minimum and Maximum thresholds.

Reverse Tilt Mirror

- Off

- On

164

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Auto Mirror Folding

- Off

- On

Personalization by Driver

- Off

- On

Rain Sense Wipers

- Disabled

- Enabled

Auto Wipe in Reverse Gear

- Off

- On

165

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.9.6 Energy

Charge Port Door Release Pop-up

- Off

- On

Energy Summary Pop-up

- Off

- On

Charge Status Feedback

- Off

- Horn Chirps

Charge Cord Theft Alert

- Off

- On

Charge Power Loss Alert

- Off

- On

ECO Indicator

- Off

- On

166

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.9.7 Lighting

Vehicle Locator Lights

- Off

- On

Exit Lighting

- Off

- 30 Seconds

- 60 Seconds

- 120 Seconds

Left or Right Hand Traffic (Note: default for Left hand

Traffic country of sale)

- Left Hand Traffic

- Right Hand Traffic

Auto High Beam (based on calibration)

- Off

- On

Auto High Beam (based on calibration)

- Off

- Normal Sensitivity

- Low Sensitivity

Daytime Tail Lights

- Off

- On

167

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.9.8 Power Door Locks

Unlocked Door Anti Lock Out

- Off

- On

Auto Door Lock

- Off

- On

Auto Door Unlock

- Off

- All Doors

- Driver Door

Delayed Door Lock

- Off

- On

168

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.9.9 Remote Lock, Unlock, Start

Remote Unlock Light Feedback

- Off

- Flash Lights

Remote Lock Feedback

- Off

- Lights and Horn

- Lights Only

- Horn Only

Remote Door Unlock

- All Doors

- Driver Door

Relock Remotely Unlocked Doors

- Off

- On

Remote Start

- Off

- On

Remote Start Auto Cool Seats (based on calibration)

- Off

- On

Remote Start Auto Cool Seats (based on calibration)

- Off

- On - Driver & Passenger

- On - Driver

169

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

Remote Start Auto Heat Seats (based on calibration)

- Off

- On

Remote Start Auto Heat Seats (based on calibration)

- Off

- On - Driver & Passenger

- On - Driver

Remote Window Operation

- Off

- On

Passive Door Unlock

- All Doors

- Driver Door Only

Passive Door Lock

- On

- On with Horn Chirp

- On

Remote Left in Vehicle Reminder

- Off

- On

170

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

7. VEHICLE SETTINGS

7.9.10 Languages

The Language Setting from the main Settings Menu

level allows the user to set the Language for the system.

The languages displayed to the customer are calibrated

to show only those languages available for the region

where the vehicle is sold.

The list of available languages shown are the available

Display Languages (for the given region as defined

within the component specific CTS). The system only

shows a single language list and selection. When the

user selects a language, the system internally sets this

seleted laguage fo the displas laguage.

Note: The Laguage list seletio i the ai settigs

list and the list header in the Language setting appears

in the chosen display language followed by the English

fo Laguage e.g. he set to Feh the sste

displas Lague Laguage. Whe set to Eglish, the

sste ill sho Laguage Laguage.

For the displayed system languages, each language is

always shown in its mother tongue, regardless of display

language chosen (e.g. when set to English, the system

still displas “paish as Español. This is aoplished

entirely within the text translation tables.

7.9.11 Unable to Render Fonts

If the font cannot be rendered by the system, the use of

asterisks is acceptable.

Figure 7.9.1 -

Languages (Language)

English

French

171

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

8. POP-UP WIDGET

8.1 Pop-up Widget

The Pop-ups Widget in the Base system is used to present:

• Tie itial, ashoous ifoatio to the

user that requires attention or input from the user

• Ifoatio to the use i espose to soe iteatio

that the user has just performed

Unless specified differently in an application, Pop-ups

are presented to the user as a full screen information

window. When present, Pop-ups take screen priority,

with the exception of Safety displays (e.g. Rear Vision

Camera).

The Pop-up window will have no transparency,

allowing no underlying information to be visible.

Pop-ups contain at least one dismiss soft-key, but may

have several dismiss options, based on the pop-up. Typically,

the leftmost soft-key will be highlighted by default.

For pop-up messages where only one soft-key is used,

the soft-key is highlighted by default.

These dismiss options are defined within the individual

application sections of this document.

Refer to individual application sections for more details.

Figure 8.1.1 -

Figure 8.1.2 -

Figure 8.1.3 -

No Media Available

Dismiss

No Media Available

Dismiss Pair

Feature not supported during indexing

Use folder view to browse contents

172

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

8. POP-UP WIDGET

8.1.1 Auto Dismiss

Pop-ups are always set to auto-dismiss to avoid forcing

the user to respond to the given information. In order

to offer the user time to read the presented information,

pop-ups will auto-dismiss in 10 seconds (calibratable),

if not explicitly dismissed by the user. In certain cases, a

pop-up may remain persistent when an outside stimulus

is present and immediately dismiss when the stimulus

is removed (e.g., if Incoming Phone Call rolls into voicemail,

RDS Traffic Announcement (Europe only), or PTY31

Alert (Europe only)).

8.1.2 User Interaction Outside of Pop-up Soft-Keys

Whenever a pop-up o alet is displaed i the .

display, all faceplate and steering wheel control inputs

are ignored (including the Favorite softkeys that are not

associated with the pop-up/alert actions) with the following

exceptions:

1. The Volume controls (both from the faceplate and

the SWC) are allowed; the pop-up/alert continues to

be displayed and the volume is adjusted in the background

without showing a volume status pane.

2. The Power button on the faceplate is allowed and

ill ute the sste ith a shot pess ad poe

do the sste ith a log pess i.e,. go to

lea see.

173

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

8. POP-UP WIDGET

3. The Mute button on the SWC is allowed and will

mute/unmute the system; the pop-up/alert continues

to be displayed.

4. The TUNE/MENU Rotary-push knob allows the remainder

of the pop-up to be scrolled if it does not fit

in the 2 lines of text assigned. A scroll bar is present in

these scenarios and each detent of rotation of the rotary

knob moves one line down the pop-up for clockwise

rotation and one line up in the counter clockwise direction.

8.1.3 Back button behavior in pop-ups

The back button may be used to dismiss a popup.

When the popup appears, the user may press the BACK

button on the faceplate. The popup is dismissed and

acts the same as if it was auto dismissed. If there is a

popup defined in an application without auto dismiss

capability, the BACK button has no functionality and the

button input is ignored.

Figure 8.1.4 -

Figure 8.1.5 -

Pairing in process…

Pairing to “Device Name” with PIN xxxx

New Pin Cancel

Pairing to “Device Name” with PIN xxxx

Tip: if pairing device does not have

New Pin Cancel

174

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

8. POP-UP WIDGET

8.1.4 Delayed Dismiss Soft-Key Presentation

When a pop-up is activated for the display, the Pop-up

Title and Pop-up Detail will immediately be displayed

with the Pop-up Audio Prompt. The display of the

dismissal buttons is suspended for 1500 msec (calibratable)

to prevent the user from inadvertently dismissing

the pop-up in an unintended fashion.

8.1.5 Pop-up Queuing

If a pop-up is currently displayed and a pop-up of the

same or lower priority is triggered, the newly triggered

pop-up display will be queued for presenting to the user

once the higher priority pop-up(s) is dismissed.

If a pop-up is currently displayed and a pop-up higher

priority is triggered, the newly triggered, higher priority

pop-up display and audio will be immediately conveyed

to the user. The previously displayed pop-up becomes

queued for display again after the higher priority display

is dismissed. The auto dismiss timer is reset when the

original pop-up is again displayed.

Multiple pop-ups can become queued. If this happens,

they are presented to the user in the following sorted

sequence: pop-up priority (high to low) then pop-up

trigger sequence (oldest to newest).

175

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

9. STATUS WIDGET

9.1.1 Status Widget

The Status widget is shown across the upper portion of

every screen in the interface with the exception of a list

view, when the system is powered on.

This information resides to the left of the time status.

For AUDIO sources, the following status icons could be

displayed depending on system settings or user actions:

TP status (excluding AM)

Audio muted

Shuffle mode active (Media sources only)

---------------------------------------------------------------------------

For PHONE sources, the following status icons could be

displayed depending on system settings or user actions:

Bluetooth status

Battery strength of the outgoing source

Signal strength of the outgoing source

Roaming status of the outgoing source

Please see the phone section for more detailed usage of

these icons.

Audio source icons are not required in phone views.

Phone icons are not required in audio views.

Figure 9.1.1 - FM and DA B Status Area

Figure 9.1.2 - Media Sources Status Area

REGNBOGN HESSEN

Now Playing on BBC 6

Music is the latest rele…

Edward Sharpe & T…

Desert Song

Up From Below

176

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

10. CLIMATE CONTROLS

10.1.1 Fan Speed Pop-up

If the HVAC faceplate does not contain visual feedback

of the fan speed, a pop-up showing the fan speed can be

displayed. This pop-up can calibrated on or off as needed

by vehicle platform.

10.1.2 HVAC System Off Pop-up

The pop-up shown in figure 10.1.2 is to be displayed

when users have turned off the HVAC system via the

faceplate controls.

Figure 10.1.1 - Fan Speed Pop-up

Figure 10.1.2 - Climate System OFF Pop-up

Climate System Off

Dismiss

177

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

Voice Command Popup

11.1 CONNECTING

•When there's the PTT press-and-Hold interaction on the SWC or

the HOME button on the iPhone is press- and hold, Siri will be

activated.

•After Siri is activated, then Siri pop up will be displayed.

•The Siri "double ring" must be heard whenever a Siri session is

initiated except RVC, OnStar or incoming call mode. During the

RVC mode, Siri is activated with only beep sound without the

activated popup. When RVC mode is finished, then Siri activated

popup should be displayed on previous mode screen.

•Siri mode is terminated in such cases;

- When tapping the cancel button on the siri operation

popup

- When pressing the mute key on the SWC

- In case of pressing the home button on the iPhone

Voice Command

Dismiss

178

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

1) Main Menu at the Hands-Free Calling Menu in OnStar

Conditions Mode 1depth 2depth 3depth 4depth 5depth GUI Elements Option Values

[Say the Nametag]

(Enter Number

(Said Nametag Number)

Pop-up)

Action Item

Cancel Action Item

New Number (Enter Number Pop-up) Action Item

Cancel Action Item

List Action Item

Store (Enter Number Pop-up) Action Item

[Say the Nametag] Action Item

Delete All Nametags (Selective Pop-up) Message Item Yes, No

Cancel Action Item

Delete All Nametags (Selective Pop-up) Message Item Yes, No

Store Last Number (Enter Number Pop-up) Action Item

Cancel Action Item

Redial

(Enter Number(Redial)

Pop-up)

Action Item

Store (Enter Number Pop-up) Action Item

Verify Action Item

Add Action Item

Cancel Action Item

OnStar Main Menu

Normal

Delete

Hands-Free Calling

Call

Call Nametag

Directory

Minutes

(Continue)

179

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

Conditions Mode 1depth 2depth 3depth 4depth 5depth GUI Elements Option Values

Plan Route [Say the nametag] Action Item

Cancel Action Item

Directory List Action Item

Store Action Item

[Say the Nametag] Action Item

Delete All Nametags (Selective Pop-up) Message Item Yes, No

Cancel Action Item

Delete All Nametags (Selective Pop-up) Message Item Yes, No

Cancel Action Item

Store Destination Action Item

Cancel Action Item

Messages Action Item

Verify Action Item

Add Action Item

Cancel Action Item

My Number

(Enter Number

(My Number)

Pop-up)

Action Item

Cancel Action Item

Virtual Advisor Action Item

Cancel Action Item

Normal

Connnecting to Onstar Action Item

Normal

Connnecting to

Onstar Emergency

Action Item

OnStar Main Menu

Normal

Delete

Turn-by-Turn Directions

OnStar Info

Minutes

1) Main Menu at the Hands-Free Calling Menu in OnStar

180

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

2) On TBT Mode, If the end-user presses the <Menu> Knob

Conditions Mode 1depth 2depth 3depth 4depth 5depth GUI Elements Option Values

Repeat Action Item

Route Preview Action Item

Destination Information Action Item

Cancel Route Directions Action Item

Mute Directions Selective Item OFF, ON

Turn-by-Turn Menu

TBT Mode,

<Menu>Knob

3) On TBT Mode, If the end-user presses the <Hands-Free Calling> Key and goes to the Turn by Turn Directions

Conditions Mode 1depth 2depth 3depth 4depth 5depth GUI Elements Option Values

Cancel Route Action Item

Get My Destination Action Item

Route Preview Action Item

Mute Directions Action Item

(Mute/Unmute)

Store Destination Action Item

Cancel Action Item

Turn-by-Turn Menu

TBT Mode,

<Hands-Free

Calling> Key

181

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

(*) TTS-ing : text to speech on the OnStar Menu Triggering / (**) B/G : Background Playing

GM NGF Entry Radio Features – OnStar Only (End-user’s View)

182

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

BUTTONS

1. Hands-Free Calling

2. OnStar

3. Emergency

OnStar Buttons

12.1 BUTTON BEHAVIOR

12.1.1 Room Mirror (OnStar Module) Input Key

(1) Hands-Free Calling Button

Hands-Free Calling, Turn By Turn Directions, OnStar Info, Cancel

(2) OnStar Button

Contact to the OnStar Advisor.(The OnStar Advisor will service their

feature plan.)

(3) Emergency Button

Contact to the OnStar Emergency Advisor.

12.1.2 Room Mirror (OnStar Module) Status LED- 1EA

(1) Solid Green

The OnStar system is ready to make calls

(2) Flashing Green (1times)

When the end-user is on a call.

(3) Red

Indicates a problem

(4) No Light

Indicates your OnStar subscription is not active or has expired and is

not functional.

12.1.3 MIC(Input)/Speaker(Output)

(1) Speech Recognition

By pressing the OnStar Module <Hands-Free Calling>key, the end-

user can operate the OnStar features.

(2) Speech synthesis (TTS)

The OnStar Module services/provides system reaction(with user

interaction) by speech synthesis

183

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

OnStar Main Menu

12.2 OnStar MAIN MENU

12.2.1. LAYOUT

When the end-user press the OnStar Module <Hand-Free Calling>

Key, The Radio System displays this Graphic Layout.

•A – Title is displaed the fied ae o the top lie.

•B – “oll Ba

•C – Highlight

•D – List Ite has to lies o thee lies hih is aiale tet.

12.2.1. EXCEPTIONS

•If the USB Memory/AUX Input is inserted or the Bluetooth is

connected on the OnStar Main Menu Mode, The Radio and

OnStar System continuously operate as OnStar Main Menu Mode.

•However, When the OnStar Main Menu Mode is exited, the Radio

system should be operated by the latest triggering.

OnStar Main Menu

Hands-Free Calling

Turn-by-Turn Directions

184

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

(*) TTS-ing : text to speech on the OnStar Menu Triggering / (**) B/G : Background Playing

12.2.3 OnStar MAIN MENU KEY FUNCTION

Interfaces User Gesture System Reaction

OnStar Module

Key

<Hands

Free Calling>

Key |Short Press|↓↑

Case

1> Radio/Multimedia/TOD/Settings Mode

: Go to the OnStar Main Menu Mode.

Case

2> OnStar Main Menu Mode

: Go to the previous Mode. (Exit the OnStar Main Menu Mode.)

<OnStar> Key |Short Press|↓↑

Case>

OnStar Main Menu Mode (Any Hierarchy)

: Go to the Connecting to OnStar Mode.

<Emergency> Key |Short Press|↓↑

Case>

OnStar Main Menu Mode (Any Hierarchy)

: Go to the Connecting to OnStar Emergency Mode.

Radio

Faceplate

Key

<Volume> Knob |Rotate|

Case>

OnStar Main Menu Mode (Any Hierarchy)

: The Volume OSD is dynamically displayed/adjusted. (Tim-Out = 2~3sec)

<Menu/Tune> Knob

|Rotate|

Case>

OnStar Main Menu Mode (Any Hierarchy)

: The Highlight is moved by rotating the knob.

<Menu/Tune> Key |Short Press|↓↑

Case>

OnStar Main Menu Mode (Any Hierarchy)

: The focused List Item is entered to the sub-hierarchy.

Or the focused Action Item is acted.

<Back> Key |Short Press|↓↑

Case

1> OnStar Main Menu Mode (Top Menu)

: Go to the previous Mode. (Exit the OnStar Main Menu Mode.)

Case

2> OnStar Main Menu Mode (Sub-hierarchy Menu)

: Go to the previous menu or depend on OnStar Module System.

Case

3> OnStar Main Menu Mode (When some of Hands-Free function is acted)

: Depended on OnStar Module System.

(Continue)

185

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.3 OnStar MAIN MENU KEY FUNCTION

Interfaces User Gesture System Reaction

Steering

Wheel

Control

2.0F

|Short Press|↓↑

Case>

OnStar Main Menu Mode (Any Hierarchy)

: The Volume OSD is dynamically

displayed/adjus

ted

. (Tim-Out = 2~3sec)

|Long Press|↓

<Source> |Short Press|↓↑

Confirm(OK)

on the OnStar Menu list

<Source Up/Down> |Push Up/Down|↓↑

Highlight

Move Once Up/Down on the OnStar

list

<Source Up/Down> |Long Push Up/Down|↓

Highlight

Move Once Up/Down every 250ms on

the

OnStar

<Mute> |Short Press|↓↑

N/A

2.1F <Mute/Hang Up> |Short Press|↓↑

N/A

<Phone> |Short Press|↓↑

N/A

Beyond

2.1F <Phone/SR> |Short Press|↓↑

N/A

|Long Press|↓

N/A

Speech

Command Voice

Out

of Range

(Refer

to the web site : https://www.onstar.

com/we

b/portal/howtouseonstar

)

186

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

Hans- Free Calling

12.2.4 HANDS-FREE CALLING

12.2.4.1. LAYOUT

When the end-user press the OnStar Module <Hand-Free Calling>

Key, The Radio System displays this Graphic Layout.

•Index A – Title is displaed the fied ae o the top lie.

•Index B – “oll Ba

•Index C – Highlight

•Index D – List Ite has to lies o thee lies hih is aiale

text.

12.2.4.2 CALL

•Index A – Title is displaed the fied ae o the top lie.

•Index B – “oll Ba

•Index C – Highlight

•Index D – List Ite has to lies o thee lies hih is aiale

text.

If the end-use selets the Cael o sas Cael, “ste goes to

the OnStar Main Menu.

Call

Hands-Free Calling Menu

Call

Directory

Please choose:

Call Nametag

New Number

187

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.4.2.1 CALL NAMETAG

•If the end-user says the corrective some word which is stored the

phone number nametag in the OnStar Module(System), the radio

should dial to the aetags phoe. (After Action, refer to the

folloig Callig, Coeted ad Call Eded

•If the end-use selets the Cael o sas Cael, “ste goes

to the OnStar Main Menu.

Call Nametag

Reaction of [Say the nametag]

Call which Nametag?

[Say the nametag]

Cancel

Call which Nametag?

[say the nametag]

Cancel

Enter Number

793 4012 789

188

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.4.2.1.1 CALLING

•When the end-user call someone by the some actions(say the

name tag, new number, redial), the calling OSD is displayed and

dialing by the OnStar 3G Module.

Index A – Title is displaed the fied ae o the top

line.

Index B – Ifo Ite is “poke Iputted Nue

Index C – “oft Butto is Hag Up

•When the OnStar 3G Module is dialing, this Graphic Layout is

displayed.

•The end-user can hang up this calling by the soft button –Index

C.(If the hang up is done, OnStar is exited and system shows and

plays the latest system mode.)

•If the calling is connected, system displays et Coeted

menu and connect the target number.

12.2.4.2.1.2 CONNECTED

•If the calling is connected, the connected OSD is displayed

•When the OnStar 3G Module is connected, the above - Graphic

Layout is displayed.

• The end-user can hang up this calling by the soft button –Index C.

(If the hang up is done, OnStar is exited and system shows and

plays the latest system mode.) Then end-user can change the

Keypad Mode by the soft button – Index D. (Refer to Kepad

menu)

•The end-user can do the toggling – which is MIC mute <-> MIC

un-mute – by the soft button – Index E.

Calling

Connected

Calling

3 116 777 2541

Hang up

Hang up Keypad Mute

Connected

3 116 777 2541

D E

189

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.4.2.1.3 KEYPAD

12.2.4.2.1.4 CALL ENDED

•If the hang up is done, OnStar is exited and system shows and

plays the latest system mode.

Multi-dial keypad

Only Keypad

586-79

Call

586-79

Back

190

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.4.2.2 NEW NUMBER

•The OnStar System recognize the spoken number for dialing.

12.2.4.2.2.1 CONNECTED

•If the calling is connected, the connected OSD is displayed.

•When the OnStar 3G Module is connected, the bottom - Graphic

Layout is displayed.

• The end-user can hang up this calling by the soft button – Index

C. (If the hang up is done, OnStar is exited and system shows and

plays the latest system mode.)

• Then end-user can change the Keypad Mode by the soft button –

Index D. (Refer to the folloig Kepad eu

• The end-user can do the toggling – which is MIC mute <-> MIC

un-mute – by the soft button – Index E.

12.2.4.2.2.2 KEYPAD

•‘efe to the 12.3.2.1.3 KEYPAD (TBD o the peious page.

12.2.4.2.2.3 CALL ENDED

•If the hang up is done, OnStar is exited and system shows and

plays the latest system mode.

Connected

New Number

Enter Number

731

Hang up Keypad Mute

Connected

3 116 777 2541

D E

191

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.4.3 DIRECTORY

12.2.4.3.1 LIST

•If the end-use selets the [List] o sas List, the “ste speaks

the stored nametags.

12.2.4.3.2 STORE

•The OnStar System recognizes the spoken number and save the

nametag for voicing.(If the Store is completed, the system go to

the OnStar Main Menu.)

12.2.4.3.3 DELETE

12.2.4.3.3.1 SAY THE NAME TAG

•If the end-user says the corrective some words which are stored

the phone number nametag in the OnStar Module(System), the

system asks the end-use aout the aetags ue fo

deleting as below.

•[Selective Message]

The end-user can delete the nametag number by the

[Yes] utto o Voie Yes.

The end-user can cancel to delete the nametag

ue  the [No] utto o Voie No.

The action - which is [Yes] or [No] – is completed, the

system go to the OnStar Main Menu.

Directory

Delete

Store

Selective Message

Hands-Free Directory

List

Store

Enter Number

731

Delete which Nametag?

[Say the nametag]

Delete ALL Nametags

Delete: 372 123 1234

Yes No

192

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.4.3.3.2 DELETE ALL NAMETAGS

•The end-user can delete the nametag number by the [Yes] button

o Voie Yes.

•The end-user can cancel to delete the nametag number by the

[No] utto o Voie No.

•The action - which is [Yes] or [No] – is completed, the system go

to the OnStar Main Menu.

12.2.4.3.3.3 STORE LAST NUMBER

•The OnStar/Radio System display the last number for storing.

(The end-user should say the nametag for save the last number.)

• The action is completed, the system go to the OnStar Main Menu.

12.2.4.3.3.4 CANCEL

Delete ALL Nametags

Store Last Number

Delete ALL Nametag?

Yes No

Enter Number

731 4012 789

193

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.4.4 REDIAL

•The OnStar/Radio System display the last number for re-dialing.

12.2.4.4.1 CONNECTED

•When the OnStar 3G Module is connected, the above - Graphic

Layout is displayed.

• The end-user can hang up this calling by the soft button – Index

C.(If the hang up is done, OnStar is exited and system shows and

plays the latest system mode.)

•Then end-user can change the Keypad Mode by the soft button –

Index D.(Refer to the folloig Kepad eu

•The end-user can do the toggling – which is MIC mute <-> MIC

un-mute – by the soft button – Index E.

12.2.4.4.2 KEYPAD

12.2.4.4.3 CALL ENDED

•If the hang up is done, OnStar is exited and system shows and

plays the latest system mode.

Redial

Connected

Enter Number

731 4012 789

Hang up Keypad Mute

Connected

3 116 777 2541

D E

194

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.4.5 STORE

•The OnStar System recognizes the spoken number and save the

nametag for voicing.(If the Store is completed, the system go to

the OnStar Main Menu.)

12.2.4.6 MINUTES

•This function is for verifying(checking)/adding the right of Onstar

service

12.2.4.6.1 VERIFY

•After Speak Speech synthesis (TTS), System goes to the OnStar

Main Menu.

12.2.4.6.2 ADD

•The end-user can hang up this calling by the soft button – Index C.

(If the hang up is done, OnStar is exited and system shows and

plays the latest system mode.)

12.2.4.6.3 CANCEL

•If the end-use selets the [Cael] o sas Cael, “ste goes

to the OnStar Main Menu.

12.2.4.7 CANCEL

•If the end-use selets the [Cael] o sas Cael, “ste goes

to the OnStar Main Menu.

Minutes

Add

Minutes

Verify

Add

Connecting to

Onstar UniAdd Call

Hang up

195

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.5 TURN-BY-TURN DIRECTIONS

•The OnStar System recognizes the spoken number and save the

nametag for voicing.(If the Store is completed, the system go to

the OnStar Main Menu.)

12.2.5.1 PLAN ROUTE

•If the end-user speaks the corrective nametag which is saved on

the OnStar System, the system displays the bottom Graphic

Layout-1> Selective Message.

• If the end-use selets the [Cael] o sas Cael, “ste goes

to the OnStar Main Menu.

•[Selective Message ]

The end-user can set the plan route by the [Yes] button

o Voie Yes.

After Yes, System starts to calculate the TBT

data and show the next below Graphic Layout -

2> Calculation.

The end-user can cancel the plan route by the [No]

utto o Voie No.

After No, the system cancels the plan route and

then goes to the OnStar Main Menu.

Turn-by- turn Menu

Plan Route

Selective Message

Turn-by-Turn Menu

Plan Route

Directory

Call which Nametag?

[say the nametag]

Cancel

Plan a route to: 575 W BIG BEAVER RD

Yes No

196

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

•[Calculation]

After the calculation is completed, System starts the TBT

mode(Refer to the Chapter 3.2.1.1 TBT Mode)

If the end-user selects the [Cancel], System goes to the

OnStar Main Menu.

Calculation

575 W BIG BEAVER RD

Cancel

197

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.5.2 DIRECTORY

12.2.5.2.1 LIST

•If the end-use selets the [List] o sas List, the “ste speaks

the stored nametags.

12.2.5.2.2 STORE

•This store function is for save the nametag which is the set plan

outes addess. (If there does not have the set plan route which

had been lastly set by OnStar Service Center, the end-user can

not set this function)

•If the end-use selets the [“toe] o sas “toe, the System

speaks the stored address which had been lastly set by OnStar

Service Center And then System displays the below Graphic

Layout-1> Selective Message, after the end-user say the nametag

•[Selective Message]

The end-user can set the store by the [Yes] button or

Voie Yes.

After Yes, System save the nametag and go to

the OnStar Main Menu.

The end-user can cancel the store by the [No] button or

Voie No.

After No, the system cancels to save the

nametag and then go to the OnStar Main Menu.

12.2.5.2.3 DELETE

Directory

Selective Message

Turn-by-Turn Directory

List

Store

Store: 575 W BIG BEAVER RD

Yes No

198

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.5.2.3.1 [SAY THE NAMETAG]

•If the end-user says the corrective some words which are stored

the address nametag in the OnStar Module(System), the system

asks the end-use aout the aetags ue fo deleting.

•The end-user can delete the nametag Address by the [Yes]

utto o Voie Yes.

•The end-user can cancel to delete the nametag Address by the

[No] utto o Voie No.

• The action - which is [Yes] or [No] – is completed, the system go

to the OnStar Main Menu.

12.2.5.2.3.2 DELETE ALL NAMETAGS

12.2.5.2.3.3 CANCEL

12.2.5.2.4 DELETE ALL NAMETAGS

12.2.5.2.5 CANCEL

12.2.5.3 STORE DESTINATION

12.2.5.4 CANCEL

If the end-use selets the [Cael] o sas Cael, “ste goes to

the OnStar Main Menu.

Delete

Delete Destination:

[Say the nametag]

Delete ALL Nametags

199

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.6 ONSTAR INFO

12.2.6.1 MESSAGE

12.2.6.2 MINUTES

12.2.6.3 MY NUMBER

•The OnStar/Radio System display the My Car Phone Number for

knowing to the end-user.

12.2.6.4 CANCEL

•If the end-use selets the [Cael] o sas Cael, “ste goes to the O“ta

Main Menu.

OnStar Info

OnStar Info Menu

Message

Minutes

200

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.2.7 VIRTUAL ADVISOR

•The end-user can hang up this calling by the soft button – Index C.

(If the hang up is done, OnStar is exited and system shows and

plays the latest system mode.)

•Index B – text is displayed a variable by OnStar Module(Hardware)

as below.

- Osta & O“ta Value ID & Call

- OnStar Value ID

- for example,

If OnStar Value ID = 1,

Ide B is displaed as Osta ollisio Call

12.2.8 CANCEL

•If the end-use selets the [Cael] o sas Cael, “ste goes

to the OnStar Main Menu.

Virtual OnStar Info

Connecting to

Onstar VirtualAdvisor Call

Hang up

201

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.3 TBT MODE

•When the TBT mode is operated, the background Radio/Media is

also streamed/played.(When the TBT voice event-guide is spoken

every event, TBT voice should be more upper volume level than

the background audio.)

• The Index A is not always displayed.(By the OnStar system, it is

displayed to need)

• The Index C, D is displayed by OnStar System.(Additionally, the

Index D is not always displayed. It is also displayed to need by the

OnStar System.)

• The Index D – measures(Km or Miles) is chose  the ehiles

calibration data.

•The table of the next page describes the key function on this

mode or on the related situations.

•It is depended on the H/W audio tuning. (This is for end-uses

ear recognition regarding TBT voice event-guide.)

12.3.1 EXCEPTIONS

•If the USB Memory/AUX Input is inserted or the Bluetooth is

connected on the TBT Mode, the Radio system should do the

plug&play as background playing.

•The incoming call / Outgoing Call should be called on TBT Mode.

However, TBT Voice event-guide should be spoken/guided as

mixed.

• hen the incoming call / Outgoing Call is active, the faceplate

<Back> key is not operated as Toggle Mode (Phone Mode <-> TBT

Mode). At this situation, <Back> Key should be operated as GIS-

403 Phone Mode.

• If the ehile is off -> O o the foad o akgoud TBT

Mode, TBT Mode should be operated continuously.

TBT Mode

Text

### yds

A C

202

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.3.2 OnStar TBT Mode KEY FUNCTION

(Continue)

Interfaces User Gesture System Reaction

OnStar Modu

le Key

<Hands

Free Cal

ling>

Key

|Short Press|↓↑

Case

1> Radio/Multimedia/TOD/Settings Mode

: Go to the OnStar Main Menu Mode.

Case

2> TBT Mode

: Go to the OnStar Main Menu Mode.

Case

3> OnStar Main Menu Mode

: Exit the OnStar Main Menu(Any Hierarchy) / Go to the latest Mode

(TBT Mode or Radio/Multimedia/TOD/Setting Mode)

<OnStar> Key |Short Press|↓↑

Case

1> Radio/Multimedia/TOD/Settings Mode

: Go to the connecting to OnStar (with B/G TBT)

Case

2> TBT Mode

: Go to the connecting to OnStar (with B/G TBT)

Case>

Connecting/Connected to OnStar

: N/A

<Emergency> Ke

y |Short Press|↓↑

Case

1> Radio/Multimedia/TOD/Settings Mode

: Go to the connecting to OnStar Emergency(with B/G TBT)

Case

2> TBT Mode

: Go to the connecting to OnStar Emergency(with B/G TBT)

Case>

Connecting/Connected to OnStar Emergency

: N/A

203

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

Interfaces User Gesture System Reaction

Radio

Faceplate

Key

<Volume> Kn

ob |Rotate|

Case>

TBT Mode (with B/G Radio/Media)

: The Volume OSD is dynamically displayed/adjusted

both B/G Radio/Media and TBT Voice event-guide. (Tim-Out = 2~3sec)

<Menu/Tune

> Knob |Rotate|

Case

1> TBT Mode : N/A

Case

2> TBT Menu Mode / OnStar Main Menu Mode : Move the highlight

<Menu/Tune

> Key |Short Press|↓↑

Case

1> TBT Mode

: Go to the TBT Menu

Case

2> TBT Menu Mode / OnStar Main Menu Mode

: Confirm(OK)

<Back> Key

|Short Press|↓↑

Case

1> Forward TBT Mode, Background Radio/Media Mode

: The background Radio/Media Mode should be forward. / The background

shoul

be TBT Mode

(If the background mode is TOD, N/A(Continuously TBT Mode))

Case

2> Forward Radio/Media Mode, Background TBT

: The background TBT Mode should be forward. / The background should be

Radi

o/Media

Mode

Case

3> OnStar Main Menu Mode (Top Menu)

: Go to the previous Mode. (Exit the OnStar Main Menu Mode.)

Case

4> OnStar Main Menu Mode (Sub-hierarchy Menu)

: Go to the previous menu or depend on OnStar Module System.

Case

5> OnStar Main Menu Mode (When some of Hands-Free function is acted)

: Depended on OnStar Module System.

12.3.2 OnStar TBT Mode KEY FUNCTION

(Continue)

204

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.3.2 OnStar TBT Mode KEY FUNCTION

(Continue)

Interfaces User Gesture System Reaction

Steering

Wheel

Control

2.0F

|Short Press|↓↑

Case>

TBT Mode (with B/G Radio/Media)

: The Volume OSD is dynamically displayed/adjusted

both B/G Radio/Media and TBT Voice event-guide. (Tim-Out = 2~3sec)

|Long Press|↓

<Source> |Short Press|↓↑

Case

1> TBT Mode (with B/G Radio/Media)

Change the B/G Radio Band or Media Source (Refer to the GIS-403)

Case

2> TBT Menu Mode / OnStar Main Menu Mode

: Confirm(OK)

<Source Up/Do

wn> |Push Up/Down|↓↑

Case

1> TBT Mode (with B/G Radio/Media)

: Trick the B/G Radio station or Media file (Refer to the GIS-403)

Case

2> TBT Menu Mode / OnStar Main Menu Mode

: Highlight Move Once Up/Down on the OnStar Menu list

<Source Up/Do

wn> |Long Push Up/Down|↓

Case

1> TBT Mode (with B/G Radio/Media)

: Trick the B/G Radio station or Media file (Refer to the GIS-403)

Case

2> TBT Menu Mode / OnStar Main Menu Mode

: Highlight Move Once Up/Down every 250ms on the OnStar Menu

<Mute> |Short Press|↓↑

Case

1> Forward TBT Mode, Background Radio/Media Mode

: Mute the Radio/Media Audio Only

Case

2> Forward Radio/Media Mode, Background TBT Mode

: Mute the Radio/Media Audio Only

Case

3> TBT Menu Mode / OnStar Main Menu Mode : N/A

205

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

Interfaces User Gesture System Reaction

2.1F

|Short Press|↓↑

Case

1> Forward TBT Mode, Background Radio/Media Mode

: Mute the Radio/Media Audio Only

Case

2> Forward Radio/Media Mode, Background TBT Mode

: Mute the Radio/Media Audio Only

Case

3> Incoming Call/Connected Call (with B/G TBT)

: Decline/Hang-up a Call

Case

4> TBT Menu Mode / OnStar Main Menu Mode : N/A

<Phone> |Short Press|↓↑

Case

> TBT Mode

: Go to the Phone Menu with B/G TBT (Refer to the GIS-403)

Case

2> Incoming Call (with B/G TBT)

: Accept a Call

Case

3> TBT Menu Mode / OnStar Main Menu Mode : N/A

Beyond

2.1F <Phone/SR>

|Short Press|↓↑

Case

> TBT Mode

: Go to the Phone Menu with B/G TBT (Refer to the GIS-403)

Case

2> Incoming Call (with B/G TBT)

: Accept a Call

Case

3> TBT Menu Mode / OnStar Main Menu Mode : N/A

|Long Press|↓

Case

1> TBT Mode

: If Siri(Over iOS 4S) is connected, Siri is Active.

Case

2> TBT Menu Mode / OnStar Main Menu Mode : N/A

12.3.2 OnStar TBT Mode KEY FUNCTION

206

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

Conditions Mode 1depth 2depth 3depth 4depth 5depth GUI Elements Option Values

Repeat Action Item

Route Preview Action Item

Destination Information Action Item

Cancel Route Directions Action Item

Mute Directions Selective Item OFF, ON

Turn-by-Turn Menu

TBT Mode,

<Menu>Knob

Conditions Mode 1depth 2depth 3depth 4depth 5depth GUI Elements Option Values

Cancel Route Action Item

Get My Destination Action Item

Route Preview Action Item

Mute Directions Action Item

(Mute/Unmute)

Store Destination Action Item

Cancel Action Item

Turn-by-Turn Menu

TBT Mode,

<Hands-Free

Calling> Key

12.3.3 TBT MENU

TBT Menu #1 (By Pressing the <Menu> Knob)

•If the end-user pressing the <Menu> Knob on the TBT Mode, TBT Menu #1 is displayed as the below table

TBT Menu #2 (By pressing the <Hands-Free Calling> key and going to the Turn by Turn Directions)

•If the end-user pressing the <Hands-Free Calling> key and going to the Turn by Turn Directions on the TBT Mode, TBT Menu #2 is displayed as the below table

207

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.4 CONNECTING TO ONSTAR

•The end-user can hang up this calling by the soft button – Index C.

(If the hang up is done, OnStar is exited and system shows and

plays the latest system mode.)

• The table on the next page describes the key function on this

mode or on the related situations.

•Index B – text is displayed a variable by OnStar Module(Hardware)

: OnStar or OnStar Emergency

12.4.1 EXCEPTIONS

•If the USB Memory/AUX Input is inserted or the Bluetooth is

connected on the OnStar Main Menu Mode, The Radio and

OnStar System continuously operate as OnStar Main Menu Mode.

•However, When the OnStar Main Menu Mode is exited, the Radio

system should be operated by the latest triggering

Connecting to OnStar

Connecting to

OnStar

Hang up

208

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.4.2 CONNECTING TO ONSTAR KEY FUNCTION

Interfaces User Gesture System Reaction

OnStar Modu

le Key

<Hands

Free Calli

ng>

Key

|Short Press|↓↑

Case>

Connecting/Connected to OnStar

: End of Call and Go to the previous mode.

<OnStar> Key |Short Press|↓↑

Case>

Connecting/Connected to OnStar

N/A

<Emergency> Key

|Short Press|↓↑

Case>

Connecting/Connected to OnStar

: N/A

Radio

Faceplate

Key

<Volume> Knob

|Rotate|

Case>

Connecting/Connected to OnStar

: The Volume OSD is dynamically displayed/adjusted. (Tim-Out = 2~3sec)

<Menu/Tune> Kn

ob |Rotate|

Case>

Connecting/Connected to OnStar

: N/A

<Menu/Tune> Ke

y |Short Press|↓↑

Case>

Connecting/Connected to OnStar

: N/A

<Back> Key |Short Press|↓↑

Case>

Connecting/Connected to OnStar

: N/A

Steering

Wheel

Control

2.0F

<Vol Up/

Down>

|Short Press|↓↑

Case>

Connecting/Connected to OnStar

: The Volume OSD is dynamically displayed/adjusted. (Tim-Out = 2~3sec) |Long Press|↓

|Short Press|↓↑

Case>

Connecting/Connected to OnStar

:N/A

<Source

Up/Dow

|Push Up/Down|↓↑

<Source

Up/Dow

|Long Push Up/Down|↓

<Mute>

|Short Press|↓↑

N/A

2.1F

<Mute/H

ang Up>

|Short Press|↓↑

Case>

Connecting/Connected to OnStar

:Hang-up

<Phone>

|Short Press|↓↑

N/A

Beyond

2.1F

<Phone/

SR>

|Short Press|↓↑

N/A

|Long Press|↓

N/A

209

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.4.2 CONNECTING TO ONSTAR KEY FUNCTION

Interfaces User Gesture System Reaction

OnStar Modu

le Key

<Hands

Free Calli

ng>

Key

|Short Press|↓↑

Case>

Connecting/Connected to OnStar

: End of Call and Go to the previous mode.

<OnStar> Key |Short Press|↓↑

Case>

Connecting/Connected to OnStar

N/A

<Emergency> Key

|Short Press|↓↑

Case>

Connecting/Connected to OnStar

: N/A

Radio

Faceplate

Key

<Volume> Knob

|Rotate|

Case>

Connecting/Connected to OnStar

: The Volume OSD is dynamically displayed/adjusted. (Tim-Out = 2~3sec)

<Menu/Tune> Kn

ob |Rotate|

Case>

Connecting/Connected to OnStar

: N/A

<Menu/Tune> Ke

y |Short Press|↓↑

Case>

Connecting/Connected to OnStar

: N/A

<Back> Key |Short Press|↓↑

Case>

Connecting/Connected to OnStar

: N/A

Steering

Wheel

Control

2.0F

<Vol Up/

Down>

|Short Press|↓↑

Case>

Connecting/Connected to OnStar

: The Volume OSD is dynamically displayed/adjusted. (Tim-Out = 2~3sec) |Long Press|↓

|Short Press|↓↑

Case>

Connecting/Connected to OnStar

:N/A

<Source

Up/Dow

|Push Up/Down|↓↑

<Source

Up/Dow

|Long Push Up/Down|↓

<Mute>

|Short Press|↓↑

N/A

2.1F

<Mute/H

ang Up>

|Short Press|↓↑

Case>

Connecting/Connected to OnStar

:Hang-up

<Phone>

|Short Press|↓↑

N/A

Beyond

2.1F

<Phone/

SR>

|Short Press|↓↑

N/A

|Long Press|↓

N/A

210

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.5 CONNECTING TO ONSTAR EMERGENCY

•The end-user can hang up this calling by the soft button – Index C.

(If the hang up is done, OnStar is exited and system shows and

plays the latest system mode.)

• The table of next page describes the key function on this mode

or on the related situations.

Connecting to OnStar Emergency

Connecting to

OnStar Emergency

Hang up

211

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

11. SIRI

12.5.1 CONNECTING TO ONSTAR EMERGENCY KEY FUNCTION

Interfaces User Gesture System Reaction

OnStar Modu

le Key

<Hands

Free Calling>

Key |Short Press|↓↑

Case>

Connecting/Connected to OnStar Emergency

: End of Call and Go to the previous mode.

<OnStar> Key |Short Press|↓↑

Case>

Connecting/Connected to OnStar Emergency

N/A

<Emergency> Key |Short Press|↓↑

Case>

Connecting/Connected to OnStar Emergency

: N/A

Radio

Faceplate

Key

<Volume> Knob |Rotate|

Case>

Connecting/Connected to OnStar Emergency

: The Volume OSD is dynamically displayed/adjusted. (Tim-Out = 2~3

ec)

<Menu/Tune> Knob

|Rotate|

Case>

Connecting/Connected to OnStar Emergency

: N/A

<Menu/Tune> Key |Short Press|↓↑

Case>

Connecting/Connected to OnStar Emergency

: N/A

<Back> Key |Short Press|↓↑

Case>

Connecting/Connected to OnStar Emergency

: N/A

Steerin

Wheel

Control

SWC

Case1

<Vol Up/Down

|Short Press|↓↑

Case>

Connecting/Connected to OnStar Emergency

: The Volume OSD is dynamically displayed/adjusted. (Tim-Out = 2~3

ec)

|Long Press|↓

<Source> |Short Press|↓↑

Case>

Connecting/Connected to OnStar Emergency

:N/A

<Source Up/D

own> |Push Up/Down|↓↑

<Source Up/D

own> |Long Push Up/Down|↓

<Mute> |Short Press|↓↑

N/A

SWC

Case2

<Mute/Hang U

p> |Short Press|↓↑

Case>

Connecting/Connected to OnStar Emergency

:Hang-up

<Phone> |Short Press|↓↑

N/A

SWC

Case3 <Phone/SR>

|Short Press|↓↑

N/A

|Long Press|↓

N/A

212

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Appendix I - NGF

Appendix I

(NGF Menu Tree)

213

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Appendix I - NGF

FM Radio(1)

Menu Depth

Menu No

Depth 1st Depth 2nd Depth 3rd Depth 4th Option Value Default Value

Traffic Program (TP)

On, Off

Off

Update Stations List

Cancel

Manual Tuning

87.5 ~ 108.0

93.5

RDS

On, Off

Region

On, Off

Off

Categories

POP

MUSIC

Pop Music (10)

Easy Listening (12)

Other Music (15)

Jazz Music (24)

Country Music (25)

National Music (26)

Oldies Music (27)

CLASSICAL

Folk Music (28)

Light Classical (13)

INFORMATION

Serious Classical (14)

News (1)

Current Affairs (2)

Information (3)

Sport (4)

Education (5)

Drama (6)

Culture (7)

Science (8)

Varied (9)

Weather/Meteorology (16)

Finance/Business (17)

Children’s Programs (18)

Social Affairs (19)

Religion (20)

Phone In (21)

Travel (22)

Leisure (23)

ROCK

Documentary (29)

ALL

Rock Music (11)

Set Number of Favorites Pages

1Page

6pages

2Pages

3Pages

4Pages

5Pages

6Pages

In case of vehicle menu,

See the chapter 7. Vehicle Menu Tree

214

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Appendix I - NGF

FM Radio(2)

Menu Depth

Menu No

Depth 1st Depth 2nd Depth 3rd Depth 4th Option Value Default Value

Configure

Time & Date

Set Time

Set time

(01 ~ 12) : (00 ~ 59) : (AM or PM)

12:00 AM

(00 ~ 23) : (00 : 59)

Auto Set

Off (Manual)

-Cell Network

-RDS

-24 HR

12hr or 24hr

12hr

Set Date

Set date

(Jan ~ Dec ) (1 ~31) (2012 ~2099)

Apr 19 2013

Auto Set

Off (Manual)

-Cell Network

-RDS

Format

MMDDYYYY

DDMMYYYY

YYYYMMDD

Tone Settings

Bass

12~+12 Level Control)

Midrange

12~+12 Level Control)

Treble

12~+12 Level Control)

Fade

12~+12 Level Control)

Balance

12~+12 Level Control)

Custom

Pop

Rock

Country

Jazz

Talk

Classical

Auto Volume

Off

Low

Medium

-Low

Medium

-High

High

Maximum Startup Volume

17 ~ 51

In case of vehicle menu,

See the chapter 7. Vehicle Menu Tree

215

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Appendix I - NGF

AM Radio

Menu Depth

Menu No

Depth 1st Depth 2nd Depth 3rd Depth 4th Option Value Default Value

Stations List

522

Update Stations List

Update AM station list

Cancel

Set Number Of Favorites Pages

1Page

6Pages

2Pages

3Pages

4Pages

5Pages

6Pages

Configure

Time & Date

Set Time

Set time

(01 ~ 12) : (00 ~ 59) : (AM or PM)

12:00 AM

(00 ~ 23) : (00 : 59)

Auto Set

Off (Manual)

-Cell Network

-RDS

-24 HR

12hr or 24hr

12hr

Set Date

Set date

(Jan ~ Dec ) (1 ~31) (2012 ~2099)

Apr 19 2013

Auto Set

Off (Manual)

-Cell Network

-RDS

Format

MMDDYYYY

DDMMYYYY

YYYYMMDD

Tone Settings

Bass

12~+12 Level Control)

Midrange

12~+12 Level Control)

Treble

12~+12 Level Control)

Fade

12~+12 Level Control)

Balance

12~+12 Level Control)

Pop

Custom

Rock

Country

Jazz

Talk

Classical

Custom

Auto Volume Control

Off

Low

Medium

-Low

Medium

-High

High

Maximum Startup Volume

17~51

In case of vehicle menu,

See the chapter 7. Vehicle Menu Tree

216

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Appendix I - NGF

DAB

Menu Depth

Menu No

Depth 1st Depth 2nd Depth 3rd Depth 4th Option Value Default Value

DAB

Traffic Program (TP)

On, Off

Off

Update Stations List

Manual Tuning

Categories

Information

Pop

Rock

Classical

Music

All

DAB Announcements

News

Weather

Sports

Finance

Travel

Event

Special

Radio info

Warning

Traffic

Alarm

DAB to DAB Linking

On, Off

DAB to FM Linking

On, Off

L Band

On, Off

Intellitext

Set Number Of Audio Favorites Pages

1Page

6Pages

2Pages

3Pages

4Pages

5Pages

6Pages

Configure

Time and Date

Set Time

Set time

(01 ~ 12) : (00 ~ 59) : (AM or PM)

12:00 AM

(00 ~ 23) : (00 : 59)

Auto Set

Off (Manual)

-Cell Network

-RDS

-24 HR

12hr or 24hr

12hr

Set Date

Set date

(Jan ~ Dec ) (1 ~31) (2012 ~2099)

Apr 19 2013

Auto Set

Off (Manual)

-Cell Network

-RDS

Format

MMDDYYYY

DDMMYYYY

YYYYMMDD

Tone Settings

Bass

12~+12 Level Control)

Midrange

12~+12 Level Control)

Treble

12~+12 Level Control)

Fade

12~+12 Level Control)

Balance

12~+12 Level Control)

Pop

Custom

Rock

Country

Jazz

Talk

Classical

Custom

Auto Volume Control

Off

Low

Medium

-Low

Medium

-High

High

Maximum Startup Volume

17~51

In case of vehicle menu,

See the chapter 7. Vehicle Menu Tree

217

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Appendix I - NGF

USB/iPod

Menu Depth

Menu No

Depth 1st Depth 2nd Depth 3rd Depth 4th Option Value Default Value

USB/iPod

Browse Device Friendly Name

Playlists

Playlist Names

Artists

Artist Names

Albums

Album Names

Songs

Song Titles

Genres

Genre Names

Podcasts

Podcast Titles

Audio Books

AudioBook Titles

Composers

Composer Names

Shuffle Songs

Off, On

Off

Traffic Program (TP)

On, Off

Off

Configure

Time & Date

Set Time

Set time

(01 ~ 12) : (00 ~ 59) : (AM or PM)

12:00 AM

(00 ~ 23) : (00 : 59)

Auto Set

Off (Manual)

-Cell Network

-RDS

-24 HR

12hr or 24hr

12hr

Set Date

Set date

(Jan ~ Dec ) (1 ~31) (2012 ~2099)

Apr 19 2013

Auto Set

Off (Manual)

-Cell Network

-RDS

Format

MMDDYYYY

DDMMYYYY

YYYYMMDD

Tone Settings

Bass

12~+12 Level Control)

Midrange

12~+12 Level Control)

Treble

12~+12 Level Control)

Fade

12~+12 Level Control)

Balance

12~+12 Level Control)

Pop

Custom

Rock

Country

Jazz

Talk

Classical

Custom

Auto Volume

Off

Low

Medium

-Low

Medium

-High

High

Maximum Startup Volume

17~51

In case of vehicle menu,

See the chapter 7. Vehicle Menu Tree

218

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Appendix I - NGF

AUX

Menu Depth

Menu No

Depth 1st Depth 2nd Depth 3rd Depth 4th Option Value Default Value

AUX

Traffic Program (TP)

On, Off

Off

Configure

Time & Date

Set Time

Set time

(01 ~ 12) : (00 ~ 59) : (AM or PM)

12:00 AM

(00 ~ 23) : (00 : 59)

Auto Set

Off (Manual)

-Cell Network

-RDS

-24 HR

12hr or 24hr

12hr

Set Date

Set date

(Jan ~ Dec ) (1 ~31) (2012 ~2099)

Apr 19 2013

Auto Set

Off (Manual)

-Cell Network

-RDS

Format

MMDDYYYY

DDMMYYYY

YYYYMMDD

Tone Settings

Bass

12~+12 Level Control)

Midrange

12~+12 Level Control)

Treble

12~+12 Level Control)

Fade

12~+12 Level Control)

Balance

12~+12 Level Control)

Pop

Custom

Rock

Country

Jazz

Talk

Classical

Custom

Auto Volume

Off

Low

Medium

-Low

Medium

-High

High

Maximum Startup Volume

17~51

In case of vehicle menu,

See the chapter 7. Vehicle Menu Tree

219

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Appendix I - NGF

Bluetooth Music

Menu Depth

Menu No

Depth 1st Depth 2nd Depth 3rd Depth 4th Option Value Default Value

Bluetooth Music

Shuffle songs

Off, On

Manage Bluetooth Devices

Bluetooth Devices List

Add

New Pin

0~9

0000

Cancel

Disconnect or Connect

Delete

Delete or cancel

Traffic Program (TP)

On, Off

Off

Configure

Time & Date

Set Time

Set time

(01 ~ 12) : (00 ~ 59) : (AM or PM)

12:00 AM

(00 ~ 23) : (00 : 59)

Auto Set

Off (Manual)

-Cell Network

-RDS

-24 HR

12hr or 24hr

12hr

Set Date

Set date

(Jan ~ Dec ) (1 ~31) (2012 ~2099)

Apr 19 2013

Auto Set

Off (Manual)

-Cell Network

-RDS

Format

MMDDYYYY

DDMMYYYY

YYYYMMDD

Tone Settings

Bass

12~+12 Level Control)

Midrange

12~+12 Level Control)

Treble

12~+12 Level Control)

Fade

12~+12 Level Control)

Balance

12~+12 Level Control)

Pop

Custom

Rock

Country

Jazz

Talk

Classical

Custom

Auto Volume

Off

Low

Medium

-Low

Medium

-High

High

Maximum Startup Volume

17~51

In case of vehicle menu,

See the chapter 7. Vehicle Menu Tree

220

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Appendix I - NGF

Bluetooth Phone

In case of vehicle menu,

See the chapter 7. Vehicle Menu Tree

Menu Depth

Menu No

Depth 1st Depth 2nd Depth 3rd Depth 4th Option Value Default Value

Phone Connected

Recent Calls

Missed

Received

Sent

Contacts

Keypad

Bluetooth Devices

Bluetooth Devices List

Add

New pin

0~9

0000

Cancel

Disconnect

Delete

Delete or cancel

Phone Disconnected

Bluetooth Devices

Bluetooth Devices List

Add

New pin

0~9

0000

Cancel

Connect

Delete

Delete or cancel

221

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Appendix I - NGF

RBDS

Menu Depth

Menu No

Depth 1st Depth 2nd Depth 3rd Depth 4th Option Value Default Value

RBDS

(North America)

Stations

List

Update Stations List

Categories

Rock

Information

Talk

Country

Classical

Jazz

ALL FM

Set Number Of Audio Favorites Pages

1Page

6Pages

2Pages

3Pages

4Pages

5Pages

6Pages

Configure

Time and Date

Set time

Auto Set

Off (Manual)

-Cell Network

-24 HR

12hr or 24hr

12hr

Set time

(01 ~ 12) : (00 ~ 59) : (AM or PM)

12:00 AM

(00 ~ 23) : (00 : 59)

Set Date

Set date

(Jan ~ Dec ) (1 ~31) (2012 ~2099)

Apr 19 2013

Auto Set

Off (Manual)

-Cell Network

Format

MMDDYYYY

DDMMYYYY

YYYYMMDD

Tone Settings

Bass

12~+12 Level Control)

Midrange

12~+12 Level Control)

Treble

12~+12 Level Control)

Fade

12~+12 Level Control)

Balance

12~+12 Level Control)

Pop

Custom

Rock

Country

Jazz

Talk

Classical

Custom

Auto Volume Control

Off

Low

Medium

-Low

Medium

-High

High

Maximum Startup Volume

17~51

In case of vehicle menu,

See the chapter 7. Vehicle Menu Tree

222

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Appendix II - RBDS

Appendix II

(RBDS)

223

RELEASE VER 1.7

April 02, 2014

GIS-403-FACEPLATE RADIO FORM AND BEHAVIOR SPECIFICATION

FACEPLATE NGF RADIO

Appendix II - RBDS

GSV - RBDS (As Is) NGF - RBDS (To Be) Remark : NGF RDS

HMI

Supported Features

(RBDS/RDS)

* PS Name : 8 characters with Frequency Label

* RBDS Meta Data : Toggling by the <Info>key

* Frequency Label + PS Name : 8 characters

(If the RBDS SI does not have the info of PS Name,

NGF displays only the Frequency Label.)

* RBDS Meta Data : 2lines

* PS Name : 8 characters Only

* RDS Meta Data : 2lines

* {TP}icon

* Pop-up

1) TP Update

2) Traffic Alert

HMI

Supported Features

(RBDS/RDS)

* Dynamic Tune (Freq.)

* Frequency Label + PS Name : 8 characters

(If the RBDS SI does not have the info of PS Name,

NGF displays only the Frequency Label.)

HMI

Supported Features

(RBDS/RDS)

* 1depth Hierarchy

Category List : Rock, Talk, Country, Classical, Jazz, All FM

* 1depth Hierarchy

Category List : Rock, Talk, Country, Classical, Jazz, All FM

* 2depth Hierarchy

Category List : See the GIS-403 V1.4 Page 44

HMI

Supported Features

(RBDS/RDS)

* Frequency Label with PS Name * Frequency Label Only * Frequency Label OR PS Name

* PS Name

* RBDS Meta Data

* Category List

* PS Name

* RBDS Meta Data

* Category List

* PS Name

* RDS Meta Data

* Category List

* AF (Region)

* TP / TP Search

* TA

* RDS Time

Remark

(Total Supported Features)

Now Playing

Rotate

<Enter>

Knob

Humax HAGM1006 Car Audio User Manual USERS MANUAL

Humax Automotive Co., Ltd. Car Audio USERS MANUAL

USERS MANUAL

Navigation menu

Namespaces

Views

Navigation
