English (HSMM30GB) 10/30/02 10:06 AM Page 53
![](asset-2.png)
Contents
Safety ................................................................... GB1
Copyright ............................................................. GB2
Glossary .............................................................. GB3
Reference ............................................................ GB4 ~ GB5
STB Connections ................................................. GB6 ~ GB10
Remote Control Unit ............................................ GB11 ~ GB12
Guide of Functions .............................................. GB13 ~ GB15
Guide of Main Menu ............................................ GB16 ~ GB38
Motorised System ................................................ GB39 ~ GB43
Troubleshooting Guide ......................................... GB44

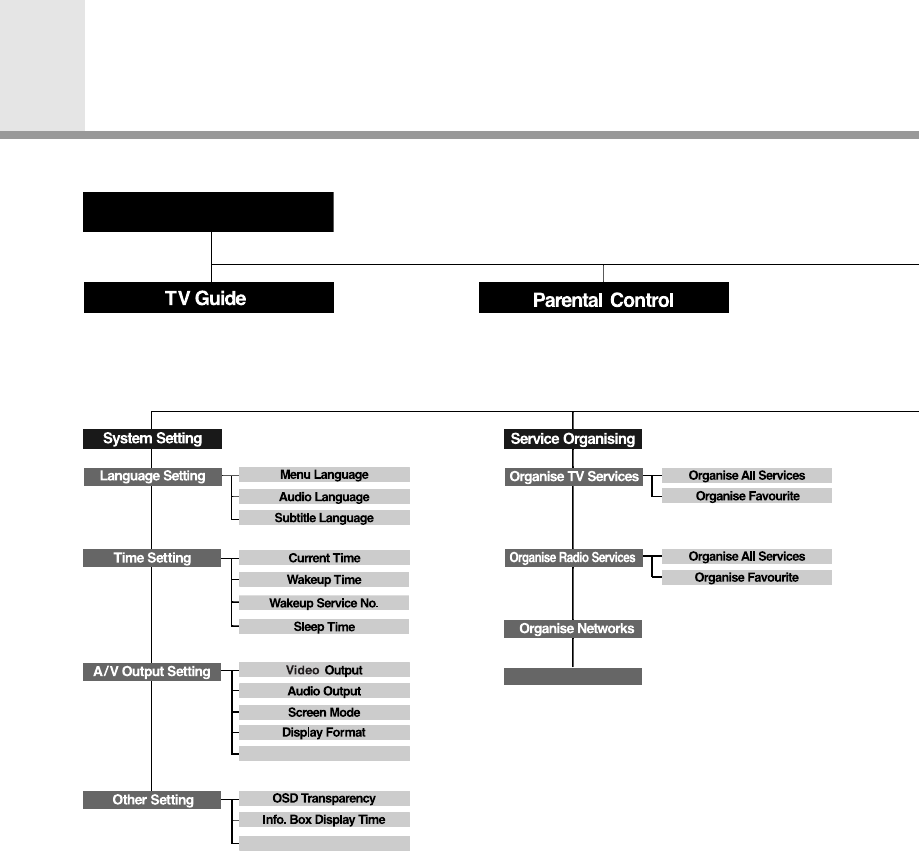

Menu Map ............................................................ GB45 ~ GB46
Specification ........................................................ GB47 ~ GB48
English (HSMM30GB) 10/30/02 10:05 AM Page 3
![](asset-3.png)

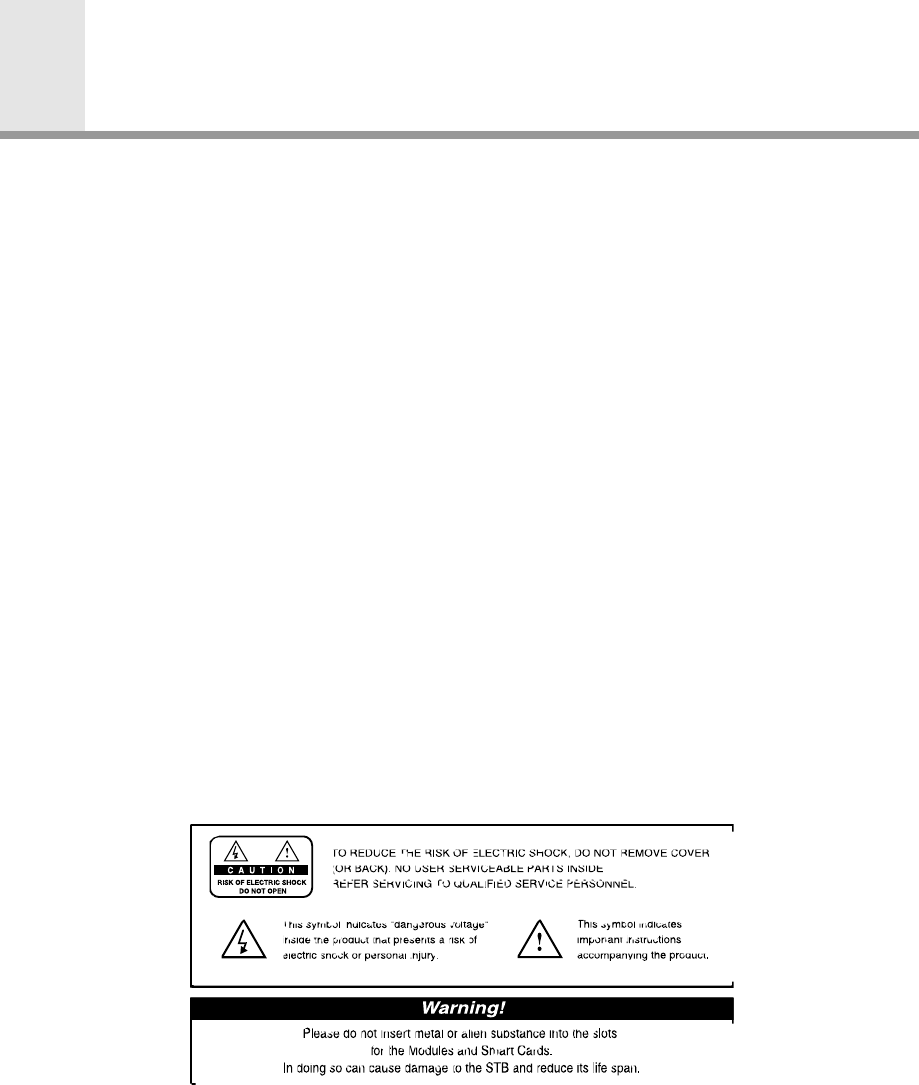

Safety
GB1
This STB has been manufactured to satisfy the international safety standards.
Please read the following safety precautions carefully.
MAINS SUPPLY :90 - 250V AC 50/60Hz
OVERLOADING :Do not overload a wall outlet, extension cord or adapter as this may result in fire
electric shock.
LIQUIDS :The STB shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as base, shall be placed on the apparatus.
CLEANING :Disconnect the STB from the wall outlet before cleaning.
Use a light damp cloth(no solvents) to dust the STB.
VENTILATION :The slots on top of the STB must be left uncovered to allow proper airflow to the
unit. Do not stand the STB on soft furnishings or carpets.
Do not expose the STB to direct sunlight or do not place it near a heater.
Do not stack electronic equipments on top of the STB.
ATTACHMENTS :Do not use any unrecommended attachments as these may cause hazard or
damage the STB.
CONNECTION TO THE SATELLITE DISH LNB
:Disconnect the STB from the mains before connecting or disconnecting the
cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE LNB.
CONNECTION TO THE TV
:Disconnect the STB from the mains before connecting or disconnecting the
cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE TV.
EARTHING :The LNB cable MUST BE EARTHED.
The earthing system must comply with SABS 061.
LOCATION :Place the STB indoor in order not to expose to lightening, rain or sunlight.
English (HSMM30GB) 10/30/02 10:05 AM Page 4
![](asset-4.png)
Copyright
• VIACCESSTM is a trademark of France Telecom.
• CryptoWorks(TM) is a trademark of Philips Electronics N.V.
• Irdeto is a trademark of Mindport BV.
• Nagravision is a registered trademark of Kudelski S.A.
• Conax is a trademark of Telenor Conax AS.
HUMAX cannot be held responsible for any kind of problems caused by the use
of unofficial software. The use of software versions other than HUMAX official
software will void the manufacturer’s warranty.
It is advised that only the formal software released from HUMAX should be used in
all HUMAX product range.
To watch Pay Per View programmes, be sure to inform your STB dealer of the STB’s
and Smart card’s serial numbers. So that they can pair your STB with your Smart card.
Otherwise, you cannot watch the programmes because they are scrambled.
When the changed Network Information is sent, Nagravision realizes that the appropriate
satellite/cable service information has been changed. And it will re-organize the service
information based on the sent Network Information. The message “Network Information
updated...” appears on the screen. It is automatically done when changing NIT.
The manufacturer can’t change it because it is provided by Nagravision.
When the user watches it, the message may suddenly appear during AV playback and
simultaneously updating will proceed. (This happens about once a year.)
Since this is not an error in operating, do not turn off the power.
• Information for TV-Cabo subscriber
When user searchs channels, the channel numbers from 001 to 100 are defined
automatically for Nagravision by service provider.
Other channels have the number from 101 in sequence as the receiver searchs
the signal.
• Specifications are for NA-FOX models.
Copyright
Warning
Note
Caution
GB2
English (HSMM30GB) 10/30/02 10:05 AM Page 5
![](asset-5.png)
Glossary
GB3
•
Antenna
A device that collects and radiates electromagnetic waves. Includes a satellite dish and
abroadband antenna.
•
Forward Error Correction(FEC)
A system of error control for data transmission.
•
Frequency
The number of cycles or events per one second, which is expressed in the unit of Hertz(Hz).
•
Intermediate Frequency(IF)
A frequency to which a carrier frequency is shifted as an intermediate step in transmission or
reception.
•
Low Noise Block(LNB) Downconverter
A low noise microwave amplifier and converter which downconverts a range of frequencies
to IF range.
•
Packet Identifier(PID)
A set of numbers that idenitifies transport stream packets containing data from a single data stream.
•
Polarisation
Characteristic of an electromagnetic wave determined by the orientation of the electricfield vector.
•
Quaternary Phase Shift Keying(QPSK)
Phase-shift keying in which four different phase angles are used.
•
Service
A channel to which a decoder or TV is tuned.
•
Transponder
An automatic device that receives, amplifies and retransmits a signal on a different frequency.
Glossary
English (HSMM30GB) 10/30/02 10:05 AM Page 6
![](asset-6.png)
All our receivers are designed to be DiSEqC 1.0 compatible. This allows multiple antennas
to be connected to the STB simultaneously.
If you have two or more fixed antennas or LNBs, you can use a DiSEqC 1.0 switch.
1. Connect the coaxial cable from the first LNB to the LNB 1 or LNB A input connector of
the DiSEqC switch.
2. Connect the coaxial cable from the second LNB to the LNB 2 or LNB B input connector
of the DiSEqC switch.
3. Do the same for other LNBs.
4. Connect one end of a Coaxial cable to the RF output connector of the DiSEqC switch
and the other end to the LNB IN socket on the STB.
Please refer to page GB39.
The Locking Time might take longer than expected during the initial boot if the motorised
system is set “enable” mode.
To the digital receiver, you can connect either a single satellite antenna directly or
through converter box several antennas or LNB of multi-feed equipment.
You can connect a further Sat-receiver(for example analogue), with the receiver of
common antenna equipment that has satellite signals.
If you have another analogue or digital STB and you wish to use the same LNB then you
can connect it via the loop through. Connect one end of a Coaxial cable to the LNB OUT
on the STB and connect the other end to the LNB IN on your second STB.
• F1-FOX models are not applicable.
1. Connect DiSEqC 1.0
2. Connect DiSEqC 1.2
3. Connect a Satellite antenna
4. Loop Through
GB4
Reference
English (HSMM30GB) 10/30/02 10:05 AM Page 7
![](asset-7.png)
Reference
GB5
HUMAX digital set-top box is a highly sophisticated product - incorporating one of the best
software applications.
Whenever a problem is found with this software or, in fact, extra functions or enhanced
applications are added, the software in the equipment has to be upgraded.
In order to maintain proper performance of the product, it is essential to have the most
up to date software. The latest news and release of software versions may be found at
HUMAX website - http://www.humaxdigital.com.
It is recommended that users register to HCSA(HUMAX Customer Service Area) and
periodically check for the availability of software upgrade.
There are three methods to upgrade the software:
(a) set-top box to set-top box download(copies the software of the main unit into slave unit);
(b) pc to set-top box download(downloads the software directly from pc to the model
requiring upgrade);
(c) OTA over-the-air(downloads the software where the manufacturer reserves the right to
decide when and where to release through satellite system).
Over The Air(OTA) is simply another alternative for downloading software versions.
However, the manufacturer reserves the right to decide when and where this software
upgrade can take place by "beaming" latest software versions over the air via satellite
systems. Note that OTA is only limited to certain geographical regions mainly due to
different satellites having different footprints(area where the signal can be received).
SUSS(TM) is an official trademark and logo for HUMAX loader software to perform OTA.
The software upgrade via satellite system will only occur under the following circumstances:
1) the equipment should have appropriate loader software;
2) the manufacturer decides to release software downloading via a designated satellite
system;
3) the equipment must be "tuned" properly to the same satellite that the manufacturer uses.
• Note :
CR-FOX complies with the OTA type of CryptoWorks.
5. Software Upgrade
English (HSMM30GB) 10/30/02 10:05 AM Page 8
![](asset-8.png)
F1-FOX
Free-To-Air
VA-FOX
1 Smart card
CR-FOX
1 Smart card
Front Panel
GB6
STB Connections
English (HSMM30GB) 10/30/02 10:06 AM Page 9
![](asset-9.png)

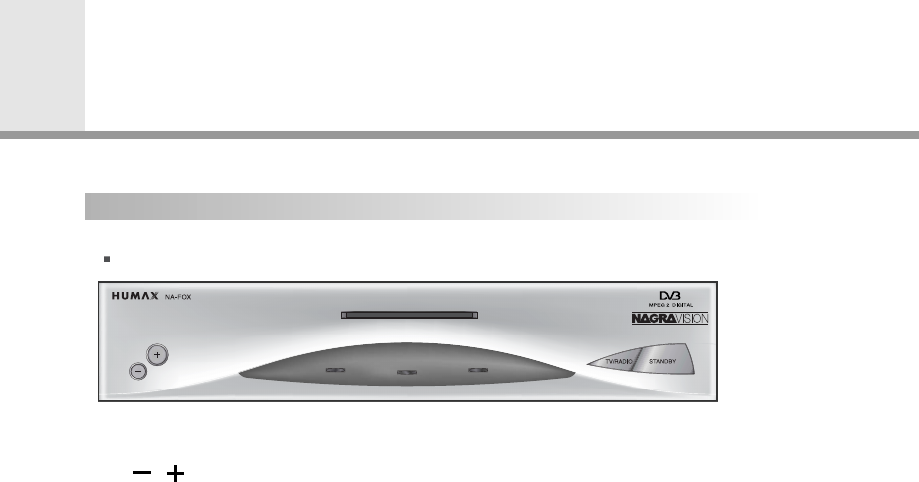

STB Connections
GB7
• ,
Press to change services down and up.
• SMART CARD SLOT
Insert a smart card in the slot with the gold chip facing up.
Otherwise, it will not operate properly.
• ERROR LED(AMBER)
Indicates that the STB has an error.
• STANDBY LED(RED)
Indicates that the STB is under standby.
• OPERATING LED(GREEN)
Indicates that the STB is operating.
• TV/RADIO
Press to switch between TV and Radio modes.
• STANDBY
Press to switch between Operation and Standby modes.
NA-FOX
1 Smart card
Front Panel
English (HSMM30GB) 10/30/02 10:06 AM Page 10
![](asset-a.png)
F1-FOX
VA-FOX, CR-FOX, NA-FOX
Rear Panel
• LNB IN
Use to connect an antenna.
• LNB OUT
Use it when connecting to another STB.
• RS-232C
Use it when connecting to your PC.
•
TV SCART
For the audio/video input of the TV.
•
VCR SCART
For the VCR.
•
AUDIO OUTPUT
Audio signal from your STB to Hi-Fi system.
GB8
English (HSMM30GB) 10/30/02 10:06 AM Page 11
![](asset-b.png)
STB Connections
1. Connect one end of a 21-pin SCART cable to the TV SCART connector on the STB
and the other end to a SCART socket on your TV.
2. Connect the coaxial cable from the LNB to the LNB IN socket on the STB.
1. Connect one end of a 21-pin SCART cable to the TV SCART connector on the STB
and the other end to a SCART socket on your TV.
2. Connect one end of a 21-pin SCART cable to the VCR SCART connector on the STB
and the other end to a SCART socket on your VCR.
3. Connect the coaxial cable from the LNB to the LNB IN socket on the STB.
1. Connect an RCA/Cinch stereo cable from the AUDIO L,R sockets on the back of the
STB to the LINE, AUX, SPARE OR EXTRA input sockets on your Hi-Fi system.
There are several ways of connecting the STB to your existing Audio/TV system.
We recommend using one of the following set-up for best results:
TV only
TV with VCR
With Hi-Fi System
• The specifications of Rear panel are based on VA-FOX.
GB9
English (HSMM30GB) 10/30/02 10:06 AM Page 12
![](asset-c.png)
TV with VCR and Motorised System(DiSEqC 1.2)
1. Connect one end of a 21-pin SCART cable to the TV SCART connector on the STB
and the other end to a SCART socket on your TV.
2. Connect one end of a 21-pin SCART cable to the VCR SCART connector on the STB
and the other end to a SCART socket on your VCR.
3. Connect the coaxial cable from the LNB of your motorised system(DiSEqC 1.2 Motor)
to the LNB IN socket on the STB.
• The specifications of Rear panel are based on VA-FOX.
GB10
English (HSMM30GB) 10/30/02 10:06 AM Page 13
![](asset-d.png)
Remote Control Unit
GB11
English (HSMM30GB) 10/30/02 10:06 AM Page 14
![](asset-e.png)
NUMERIC BUTTONS
Press to select a service, enter your PIN code
or Numerics on the menu.
INFORMATION(RED)
Press to display the programme information box
on the screen. This button functions same as
the RED button on the menus.
SOUNDTRACK(GREEN)
Press to display the soundtrack list for the current
service. And this button functions same as the
GREEN button on the menus.
SUBTITLE(YELLOW)
Press to display the subtitle language list for the
current service. And this button functions same as
the YELLOW button on the menus.
UHF(BLUE)
Option button.
TIME(WHITE)
Press to display the current time on the screen.
Press to reserve services on the Information box
or EPG. And this button functions same as the
WHITE button on the menus.
EXIT
Press to return to the previous menu and screen.
V+/V-
Volume up/down buttons.
Press to increase or decrease the volume.
STANDBY
Press to switch between Operation and Standby
modes.
TV/SAT
Press to select the TV/SAT mode.
TV/RADIO
Press to switch between TV and RADIO modes.
MUTE
Press to temporarily cut off the sound.
MENU
Press to display the Main Menu on the screen
or return to the screen from a sub menu screen.
CURSOR
Press to move the highlight bar for selecting
options on the menus. And this button is used to
change services(up/down) and increase or
decrease the audio volume.
OK
Press to display the service list.
This button is used to select the item on the
menus.
P+/P-
Programme up/down buttons.
Press to tune to the next or previous service.
Press to move up or down pages on the menus.
HELP
Press to display the help box on the screen.
EPG
Electronic Programme Guide button displays
the TV/RADIO programme guide.
RCL(Recall)
Press to select the service that was previously
viewed.
1
11
12
13
14
15
16
17
18
19
2
3
4
5
6
7
8
9
10
• Please note :The design of Remote Control Unit may be changed without notice in advance.
GB12
English (HSMM30GB) 10/30/02 10:06 AM Page 15
![](asset-f.png)

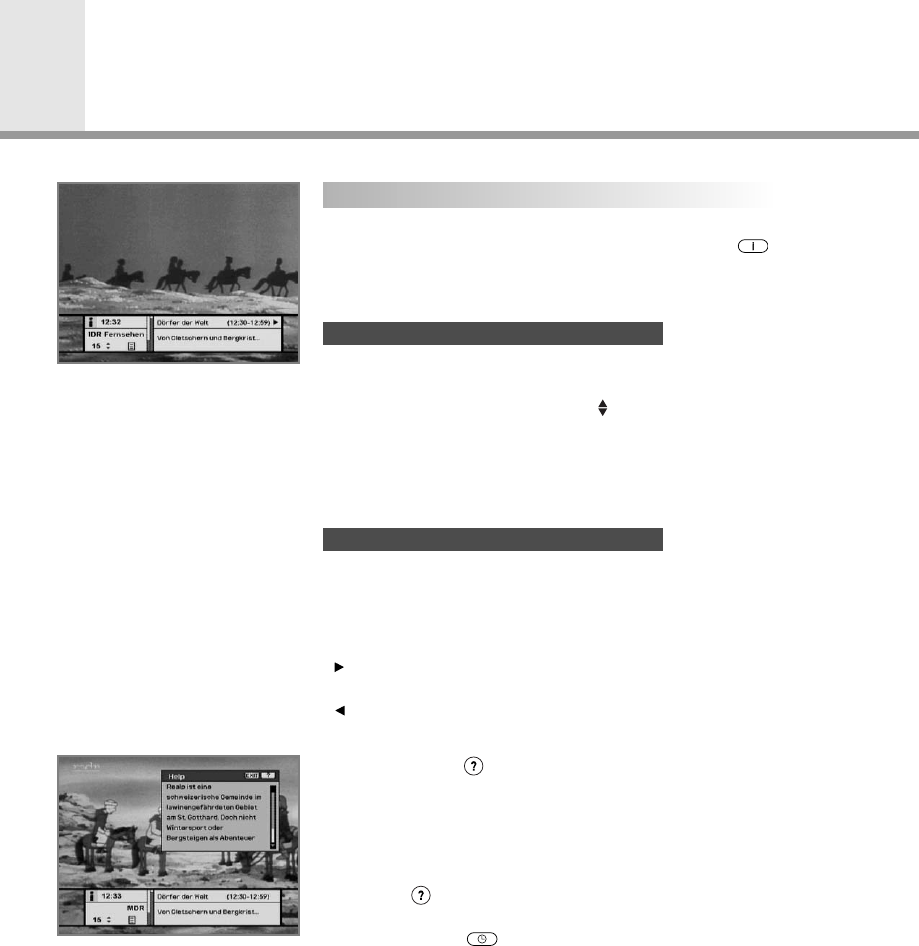

Guide of Functions
The details of service part and event part are automatically
displayed on the I-Plate when pressing the i button( ) or
changing services.
I-Plate is divided into service part and event part.
SERVICE PART consists of the following items:
• I-Plate icon, Current time
• Service name, Service number, icons
• Subtitle, Teletext, Scrambling service symbol
(These are automatically displayed when the broadcasting
station provides appropriate information.)
• Signal level and Signal quality bar
EVENT PART consists of the following items:
• Event name, Event duration time
• Description text of event, State of reserved event
Event part shows the current and next event information.
button : Use to move from the current event information to
the next event information.
button : Use to move from the next event information to
the current event information.
When the HELP( )button is pressed under I-Plate display and
there are no detailed event informations in the I-Plate,
the Help window will appear on the screen.
The Help window shows the current Network information, including:
Satellite Name, Frequency, Polarisation, Symbol Rate, FEC...
The detailed information for the event can be displayed by pressing
the HELP( )button in the I-Plate with event data displaying mode.
You can reserve the programme in the event data display mode by
using the WHITE( )button.
You can reset timer programme Once, Daily or Weekly mode.
When you release the timer programme mode, then you will be
asked to confirm the action.
Information Box(I-Plate)
SERVICE-PART(Left side of the box)
EVENT-PART(Right side of the box)
GB13
English (HSMM30GB) 10/30/02 10:06 AM Page 16
![](asset-10.png)
To change services, do in the following sequence:
1. Press the NUMERIC buttons(0~9) on the remote control unit.
2. Press the buttons or buttons.
Or press the RECALL( ), Service-list(OK), EPG( )mode
button. To switch between TV and Radio services, press the
TV/Radio( )button. To select the previous viewed service,
press the RECALL( )button.
To adjust the volume level, use the buttons or buttons.
To temporarily stop the volume, press the MUTE( )button.
To cancel mute, press the MUTE( )button again or press the
buttons or buttons.
When you want to change the audio language of current service,
press the GREEN( )button firstly.
The on-screen menu is displayed on the top to left side of the screen.
To change the audio language:
1. buttons : Use to select the audio on the left, right or both.
2. buttons : Use to select the audio language you want.
3. OK, EXIT button : When this button is pressed, the Soundtrack OSD
will disappear keeping the selected Soundtrack
language constant.
When the current service is switched, the audio language returns
to the audio language that was selected in previous service. If the
returned audio language is invalid, the audio language that you select-
ed from the audio language menu has the priority of playback.
When the current broadcasting programme provides subtitle, press
the SUBTITLE( )button to see the current subtitle language list.
To change the subtitle language:
Use the buttons to select a Subtitle language you want.
Press the OK button and the selected language is highlighted and
then the Subtitle language you want is displayed on the screen.
Press the EXIT button to cancel the Subtitle mode.
Changing Services
Volume Control
Soundtrack
Subtitle
GB14
English (HSMM30GB) 10/30/02 10:06 AM Page 17
![](asset-11.png)

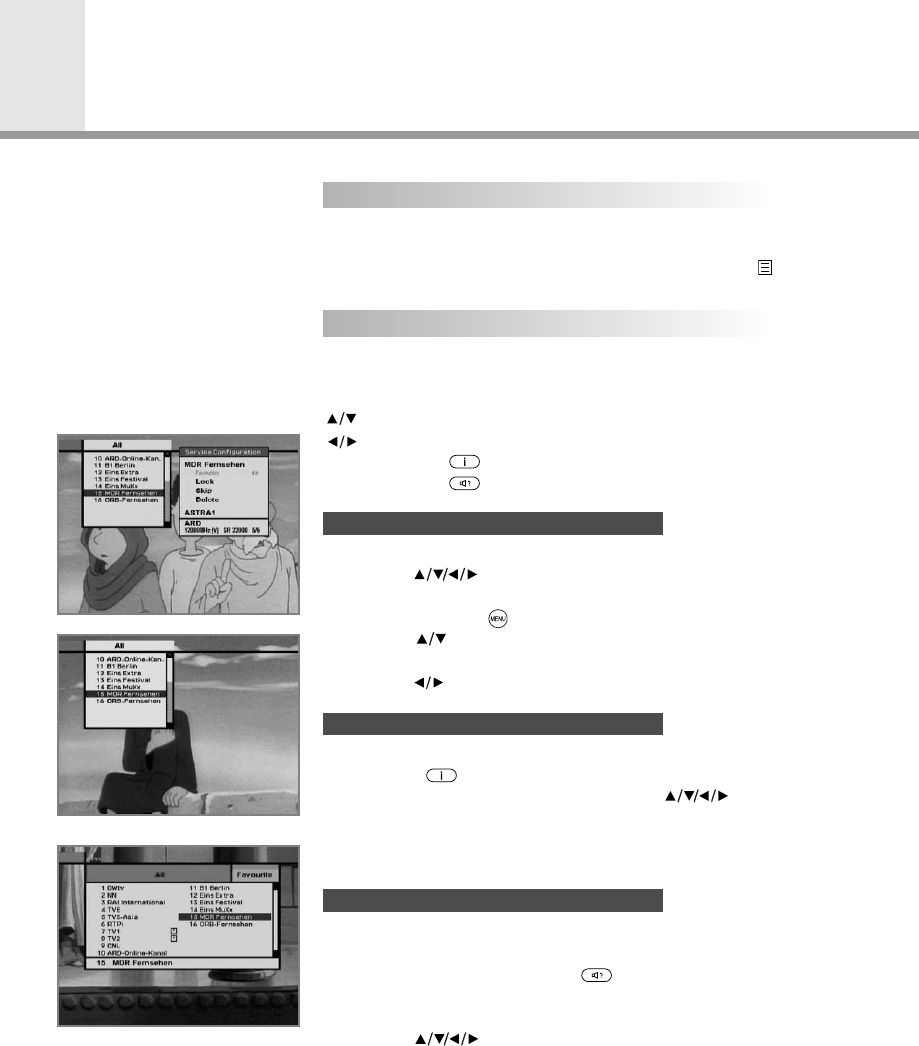

Guide of Functions
Use your TV remote control unit to control the Teletext service.
The teletext button doesn’t exist on the STB remote control unit.
When the service supports Teletext, the Teletext icon( ) is
displayed on the I-plate.
The Service List consists of Service All and Service Favourite.
On the service list, you can change the attributes of a service
though the Service Configuration.
button : Use to move to the previous or next service
button : Use to move to the forward or backward service
RED button ( ) : Service All
GREEN button( ) : Service Favourite
To change the attributes of a service
1. Use the buttons to move a service you want to change
in the service list.
2. Press the MENU( )button.
3. Use the buttons to move to an item(such as Favourite,
Lock, Skip, Delete) you want on the Service Configuration screen.
4. Use the buttons to select. Press the OK button to complete.
1. To display the service list, press the OK button.
Use RED( )button to select the Service All list.
2. Select the desired service by using the buttons.
3. Press the OK button to view the selected service.
The right side scroll-bar of the screen displays the location
of the selected service in relation to All services.
1. To add the services to the Service Favourite, use the Service
Configuration at Service All or Service Organising menu.
2. When you press the GREEN( )button in the service list,
the favourite service list will be displayed on the screen.
3. When you want to see the services added to the favourite group,
use the buttons.
Teletext
Service List
Service Configuration
Service All
Service Favourite
GB15
English (HSMM30GB) 10/30/02 10:06 AM Page 18
![](asset-12.png)
Guide of Main Menu
Your STB has an Electronic Programme Guide(EPG) to help you
navigate through all the possible viewing options.
The TV Guide supplies information such as programme listings
and start and end times for all available services.
In addition, detailed information about the programme listings and
start and end times for all available services.
In addition, detailed information about the programme is often
available in the EPG(the availability and amount of these
programme details will vary, depending on the particular
broadcaster).
Access to services and programmes is controlled by a PIN code
(i.e., a 4-digit secret code that is defined by the user).
The very first time you attempt to lock all services(or lock
programmes by ratings), the on-screen menu will instruct you to
assign a PIN code(Later on, if necessary, you can change it).
The Installation mode allows you to have the information of setting
services and newly set services(language, time, organise, search,..)
Furthermore, you can recognise the states of hardware and
software versions and signals from your STB.
This menu provides Calendar and Biorhythm.
1. TV Guide
2. Parental Control
3. Installation
4. Utility
GB16
English (HSMM30GB) 10/30/02 10:06 AM Page 19
![](asset-13.png)

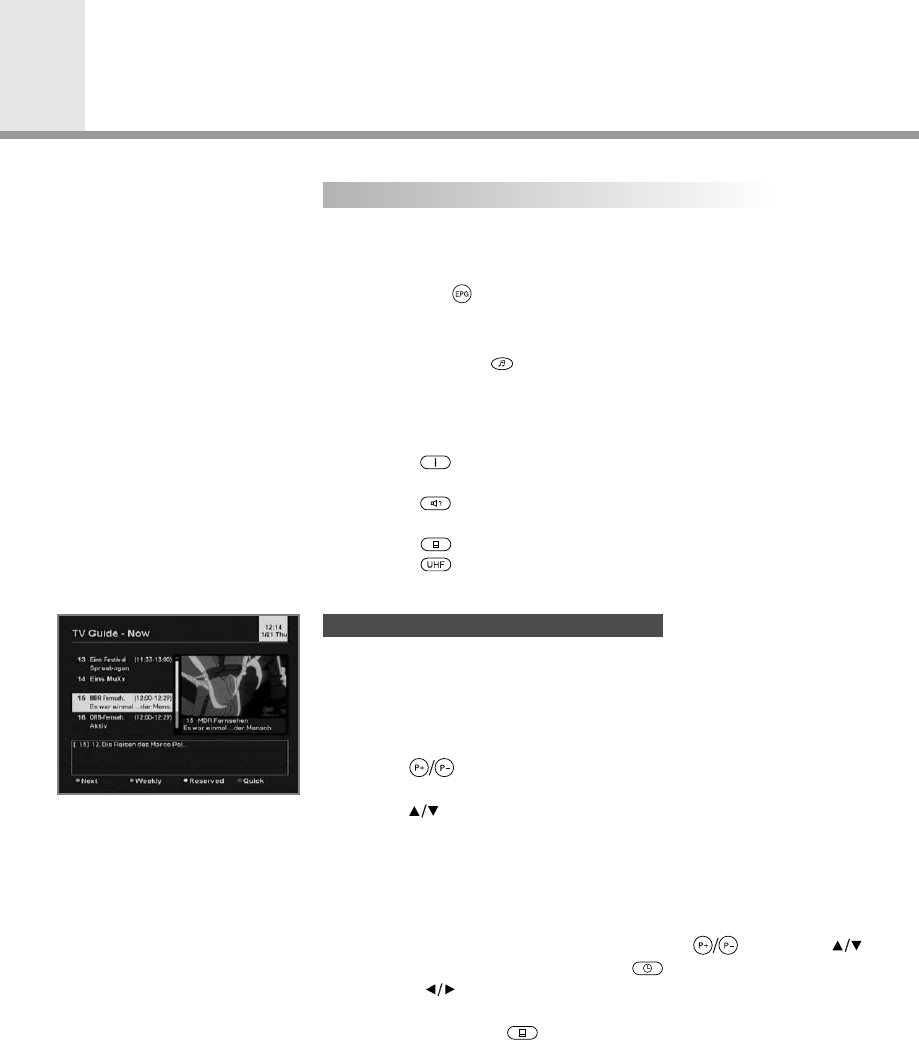

Guide of Main Menu
You can watch a programme being shown and reserve it in the
TV Guide mode.
To enter the TV Guide mode
Press the EPG( )button on the remote control unit or select the
TV Guide on the Main Menu.
To select the TV/Radio Guide
Press the TV/Radio( )button on the remote control unit and
TV Guide will be switched to the Radio Guide.
TV Guide mode includes four different modes.
To select each mode, use the following buttons:
• RED ( )button : Use to display the current or next
programme list.
• GREEN ( )button : Use to display the programme list for
one-week.
• YELLOW( )button : Use to display the reserved programme list.
• BLUE ( )button : Use to display the simple TV Guide list.
(Quick mode)
Show the informations of the programmes that are played now or
will be played next time.
This mode consists of the service name, event name,
event duration time, current time and on-screen-display window.
To watch a programme you want through the display window:
• Use the buttons to select a programme you want.
The selected service will appear on the right display window.
• Use the buttons to select a programme you want.
And then press the OK button on the remote control unit.
The selected service will appear on the right display window.
The selected OSD will be highlighted every time the cursor
moves.
To reserve a programme you want:
• Select a programme you want by using the buttons or
buttons. And then press the WHITE( )button.
Press the buttons to watch the programme of previous page
or the programme of next page.
Press the YELLOW( )button to watch the reserved
programme list.
1. TV Guide
Now/Next mode
GB17
English (HSMM30GB) 10/30/02 10:06 AM Page 20
![](asset-14.png)

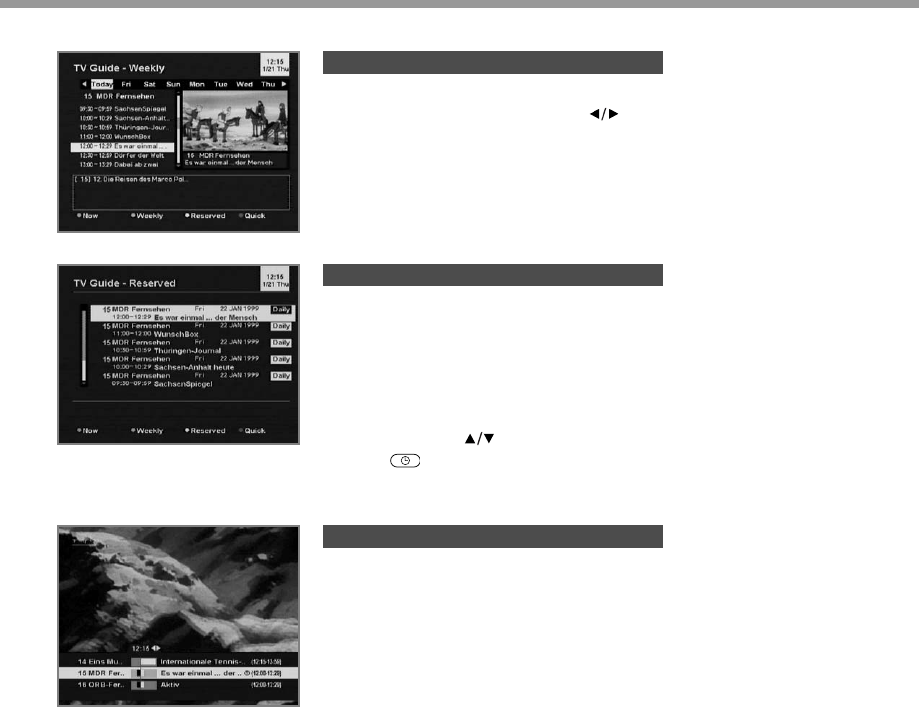

Shows the information of programmes that will be played for a week.
Select a day you want using the buttons.
To watch and reserve a programme you want, do the same steps
with the Now/Next mode.
Shows the programme lists that you have already reserved on the
TV Guide or Information Box.
Maximum twenty programmes can be reserved.
This programme list includes service name, date, duration time,
reservation mode and event name.
To cancel the Reserved service, select a programme you want to
cancel using the buttons and then press the
WHITE( )button.
Shows a simple TV Guide like an Information box.
This mode shows in the A/V playback mode.
• Blue vertical line : Indicates the current time.
• Black/white bar : Shows the proceeding state of programme.
• Time range of bar : This consists of three blocks by 30 minutes
per block.
Weekly mode
Reserved mode
Quick mode
GB18
English (HSMM30GB) 10/30/02 10:06 AM Page 21
![](asset-15.png)
Guide of Main Menu
You can set a parental guidance rating to each programme
in this mode.
1. When the OK button is pressed after selecting the highlighted
parental control on the initial menu screen, a display window
for entering the PIN code will appear on the centre of screen.
** The default PIN code is .
2. Enter the PIN code on the display window.
(If any problem occurs when entering a PIN code, you cannot
switch to the next mode.)
3. Set the parental guidance rating of highlighted censorship
classification. The parental level is given as age-based numbers
:no block, 6, 10, 14, 18 and total block.
Enter the PIN code to unlock or lock programmes.
4. To change your PIN code:
• Select the highlighted Old PIN code using the buttons
and then enter your Old PIN code.
•Enter a New PIN code in the highlighted New PIN code
using the buttons.
• To verify the New PIN code, re-enter a New PIN code in the
highlighted Verify Changed PIN code.
5. When the entered PIN code is correct, then all settings are
completed.
(If the PIN code is wrong, the message “PIN code mismatch”
will be displayed on the display window. When the OK button
is pressed at this time, the Old PIN code is valid and the
cursor is located in the first position of this menu.)
This mode allows you to customise, add a new service and displays
the state of the STB. Enter the submenus after selecting the
Installation mode in the Main Menu.
3-1. System Setting
The System Setting mode supports the STB internal settings
according to the connection of the receiver and external units.
This mode includes Language Setting, Time Setting,
A/V Output Setting and Other Setting.
2. Parental Control
0000
3. Installation
GB19
English (HSMM30GB) 10/30/02 10:06 AM Page 22
![](asset-16.png)

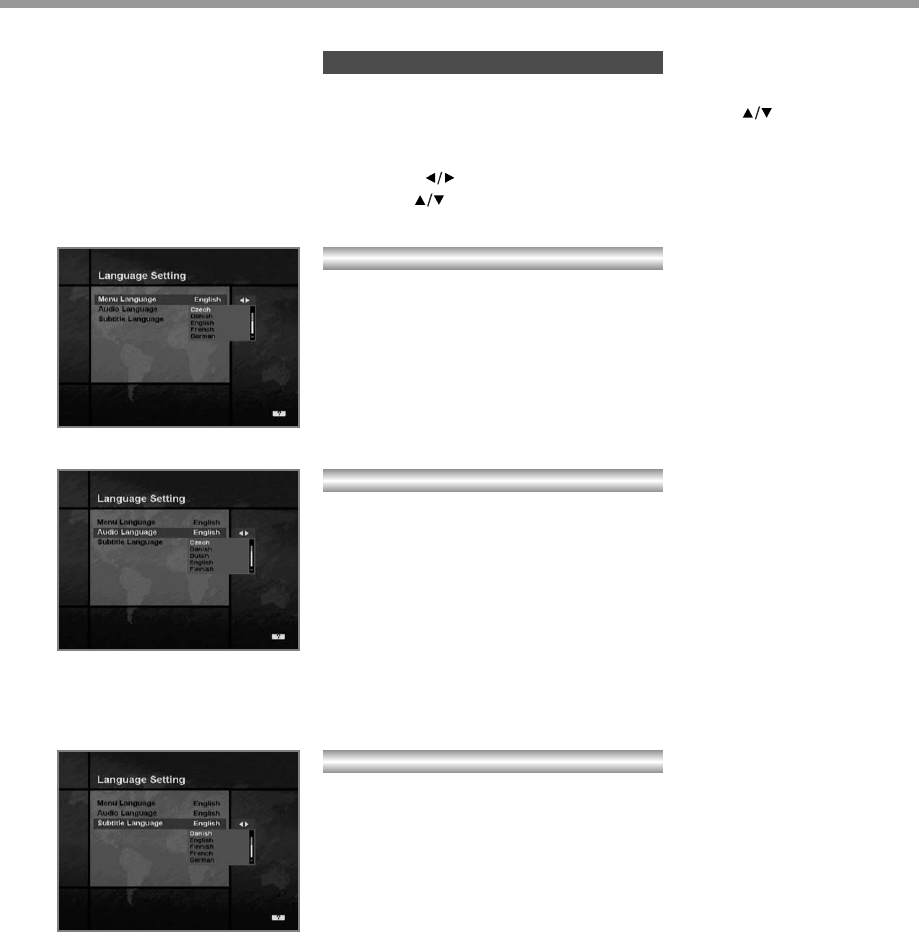

Select the language for menu, audio or subtitle.
1. Select the highlighted language setting using the buttons
in the system setting mode and then press the OK button.
2. Select the highlighted Menu(or Audio, Subtitle) Language and
press the buttons and the language list will be displayed.
3. Use the buttons to move to a language you want and then
press the OK button to finish setting.
We support the various menu languages of Europe & Middle East
areas. For Europe areas, there are Czech, Danish, English, French,
German, Hungarian, Italian, Portuguese, Russian, Spanish,
Swedish, Turkish and more.
Also, it includes Arabic, English, French, German, Italian, Persian,
Russian, Turkish for Middle East areas.
• The kind of languages can be changed depending on the country.
Languages are subject to change without prior notice.
Select the default language for audio when changing services.
If you change the current service, your STB will initially select
the previously memorised Audio Language. If the Audio Language
of current service is not provided, at this time, you should reselect
a language on the Audio Language menu.
Languages provided:
Czech, Danish, Dutch, English, Finnish, French, German, Greek,
Hungarian, Italian, Norwegian, Portuguese, Rumanian, Russian,
Spanish, Swedish Turkish and more.
If no language is provided, then the default language of current
service will be automatically selected.
Select the default language for subtitle when changing services.
Language provided: Danish, English, Finnish, French, German,
Greek, Hungarian, Italian, Norwegian, Portuguese, Spanish,
Swedish and more.
Language Setting
Menu Language
Audio Language
Subtitle Language
GB20
English (HSMM30GB) 10/30/02 10:06 AM Page 23
![](asset-17.png)
Guide of Main Menu

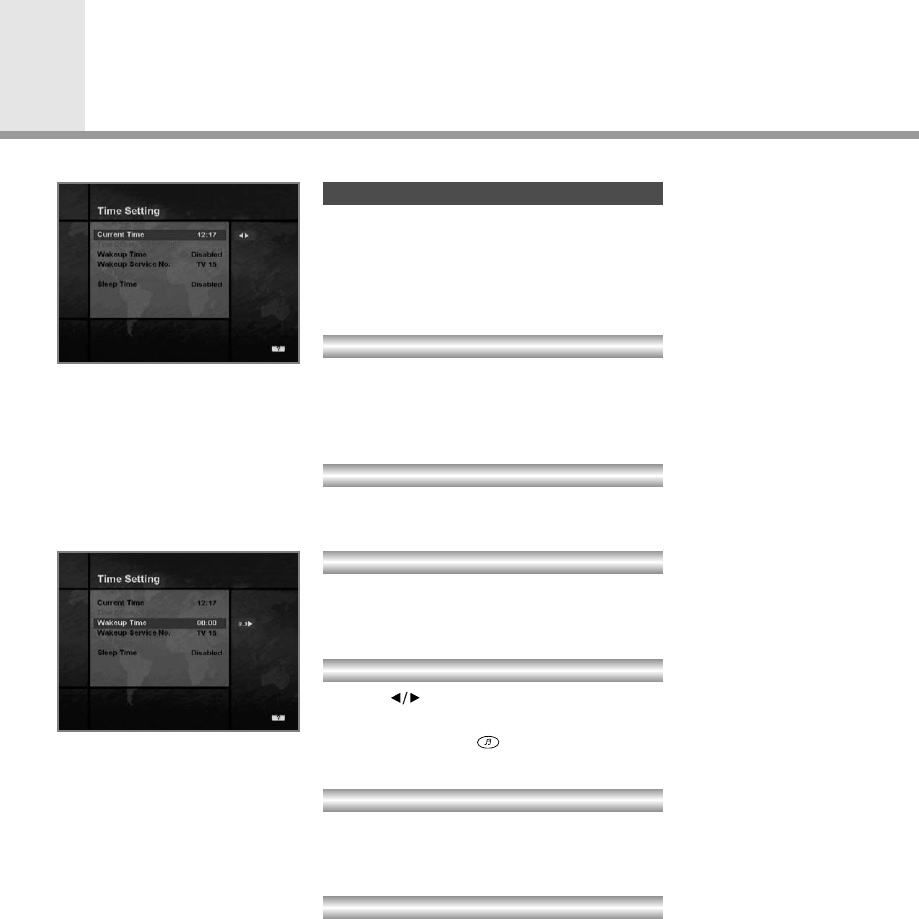

You can set the Current Time and Wakeup Time in this mode.
Furthermore, the Service Number in the Wakeup Time mode and
Sleep Time(standby mode) can be set.
When a VCR is connected, recording can be automatically done
according to Wakeup/Sleep Time Setting.
To set the Current Time, enter the Offset value using the
standardised information of current service area.
The time setting will be used as the standardised time for the
I-Plate, TV Guide, Wakeup and Sleep Timer.
Current Time is based on TDT(Time and Data Table) at the stream
of the current service.
Select the time when STB is turned on.
Use the Numeric buttons(0~9) on the remote control unit to enter
your Wakeup Time.
Use the buttons to set the service number provided for the set
Wakeup Time.
Use the TV/Radio( )button on the remote control unit to toggle
TV/Radio service.
The Service Name that has been determined by the Wakeup
Service No. will be shown.
Depending on Time Setting, select the time when STB is turned off.
Time Setting
Current Time
Time Offset
Wakeup Time
Wakeup Service No.
Service Name
Sleep Time
GB21
English (HSMM30GB) 10/30/02 10:06 AM Page 24
![](asset-18.png)
Set the video mode for the TV SCART output.
Set the audio mode which is output from the TV SCART and
RCA/Cinch Jack.(Stereo/Mono)
Select the aspect ratio of TV which is connected to STB
(4:3 or 16:9).
Select the format which the video is to be displayed on screen.
When your TV set is 4:3 and video source is 16:9,
STB will display in Letter-box or Centre mode as selected.
When your TV set is 16:9 and video source is 4:3,
STB will display in the Pillar-box or Full mode as selected.
Adjust this value between 3.58 and 4.43 if your TV displays the
video only in black and white color. Normally NTSC 3.58 mode is
used worldwide, but some TV sets can support only NTSC 4.43
mode.
A/V Output Setting
Video Output(CVBS/S-Video/RGB)
Audio Output
Screen Mode
Display Format
NTSC Mode
GB22
English (HSMM30GB) 10/30/02 10:06 AM Page 25
![](asset-19.png)
Guide of Main Menu

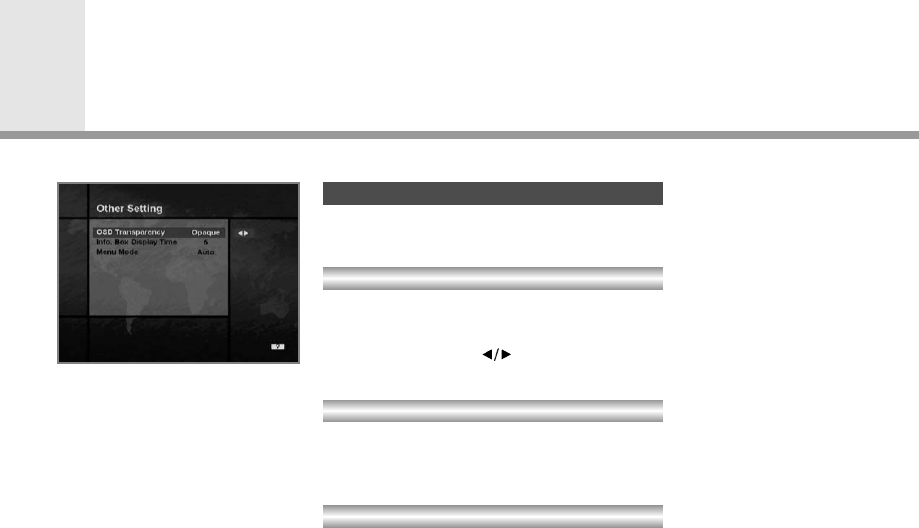

Select the OSD Transparency and Information Box Display Time.
Select the OSD Transparent type. It affects Information box,
Soundtrack, Subtitle, Service list, Time and Quick mode of
TV Guide. Use the buttons to toggle transparent and opaque.
Set the display duration of information box displayed on the screen
after changing services. The time ranges from 0 to 20 seconds.
Select NTSC, PAL, AUTO according to your TV type.
In AUTO mode, the menu is automatically selected as NTSC or PAL
according to the service played before the Menu mode is entered.
Other Setting
OSD Transparency
Info. Box Display Time
Menu Mode
GB23
English (HSMM30GB) 10/30/02 10:06 AM Page 26
![](asset-1a.png)

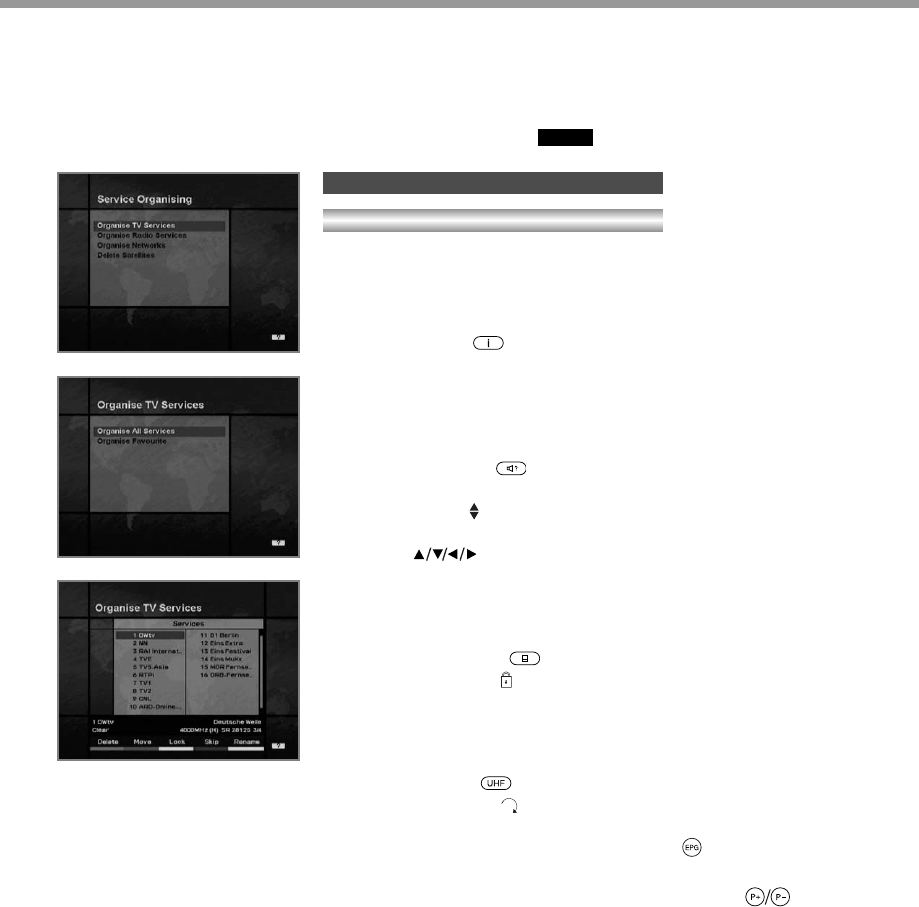

3-2. Service Organising
This menu gives users access to options that allow them to
organise their Networks, TV Services and Radio Services.
** The default PIN code is .
This mode allows users to Delete, Move, Lock, Skip and Rename
TV Services.
• Delete
1. Press the RED( )button to delete unwanted services.
2. Highlight the services that you want to delete in grey.
3. Press the OK button to confirm.
4. Press the EXIT button to cancel the deletion.
• Move
1. Press the GREEN( )button to move the service to where you
want to locate.
Then, the icon( ) will be displayed in front of the service
number.
2. Use the buttons to select a new location.
3. Press the OK button to fix the location.
4. Press the EXIT button to return to the original location.
• Lock
1. Press the YELLOW( )button to lock services.
Then, the symbol “ ” will be displayed at the right side of the
service name.
2. Enter the PIN code to view the locked services.
• Skip
1. Press the BLUE( )button to skip services.
Then, the symbol “ ” will be displayed at the right side of the
service name.
2. Use Numeric buttons, service list or EPG( )button to view the
skipped services when selecting channels.
Note :You can’t view the skipped services by using buttons.
Organise TV Services
Organise All Services
0000
GB24
English (HSMM30GB) 10/30/02 10:06 AM Page 27
![](asset-1b.png)
Guide of Main Menu
• Rename
1. Press the WHITE( )button to change the service name.
Then, the keyboard image will be displayed on the screen.
2. Key in the new service name.
You can use the four direction keys to move or select the
services.
:to move the previous service
:to move the next service
:to move back by services
:to move forwards by services
Note :The box between service list and the description of the
colour buttons offers the brief information of a service
where the cursor is located.
This mode service to add and delete services to and from the
favourite group.
To add services into Favourites, locate the cursor to the desired
service and press the OK button.
The function of the colour button is the same as Organise All
Services, except for the following differences.
When you delete a service in the Favourites window, the service
is excluded from the favourite group and the service is still
stored in services window.
You can move the service only within Favourites window.
• To group the services into Favourites;
1. Use the button to move the cursor to “Services”-plate(right).
2. Select the service you want to group into Favourites.
3. Press the OK button.
4. Use the button to move the cursor to “Favourites”-plate(left).
5. Press the OK button to save the selected group.
Note :1. Use the buttons to move the cursor.
2. Use the buttons to select the previous or
next page.
Organise Favourite Services
GB25
English (HSMM30GB) 10/30/02 10:06 AM Page 28
![](asset-1c.png)
The Organise Radio Services functions same as TV Services
except that it uses Radio Services.
You can delete or move Radio Services and change the attributes
of them.
The Organise All Services lets the user Delete, Move, Look, Skip
or Rename Radio Services on the All Radio Services list.
The Organise Favourite Radio Services lets the user Delete, Move,
Lock, Skip or Rename Radio Services from the Favourite Radio
Services and group into a new Favourite Radio Services.
The Radio Services are grouped into a Favourite in the same way
as the TV Services(refer to page GB25).
You can edit services using the network unit.
• The provider names are displayed on the left side of screen
and the TV/Radio Services included in the highlighted
Network are displayed on the right side of screen.
Only the Delete, Rename function can be used in this mode.
• When TV/Radio Services are too many to be displayed, use
the button to move the cursor to the right window and use
the and buttons to move the cursor to the next list.
When the number of services is under 10, the scroll bar is not
displayed. In Radio Service icon( ) is marked in front of service
number.
1. Press the buttons to move to the satellite,
Tp, or ALL you want to delete.
2. Press the RED( ) button to select the item you want to delete.
3. Press the OK button to delete.
Press the EXIT button to cancel.
Organise Radio Services
Organise Networks
Organise All Services
Organise Favourite Services
GB26
Delete Satellites
English (HSMM30GB) 10/30/02 10:06 AM Page 29
![](asset-1d.png)
Guide of Main Menu
3-3. Service Searching
Enter the PIN code to access the Service Searching menu as you
access the Parental Control or Service Organising menu.
Press the OK button to start Service Search after setting the
parameters.
** The default PIN code is .
Selects the antenna and LNB settings for service search.
As you can change the settings for 22KHz Tone and DiSEqC switch,
there are 32 possible Antenna Setting for use.
The values that are set in this menu will be available for selection in
other service searching menus.
There are 32 antenna alternatives, each one can have different
combinations of settings for 22KHz Tone and DiSEqC switch.
Selects the Satellite Name that corresponds to the value of the
Antenna Alternative.
1. Press the buttons to display the satellite list box.
2. Select the wanted Satellite Name.
3. If the desired Satellite Name is not listed then select User
Defined.
4. The keyboard will appear and you can type the Satellite Name
directly.
The selected Satellite Name can help you select the Antenna
Alternative in the searching menu, but it is possible to change or
select the Satellite Name only in the Antenna Setting menu.
Note :In case the selected satellite is used as OTA target satellite,
automatic detection of the OTA target satellite might not work
properly if you change or edit the name of the satellite.
5. Satellite Name is listed in alphabetical order and the order can
be changed according to Menu Language.
6. When inputting the Satellite Name, there is a 14 character limit.
0000
Antenna Setting
Antenna Alternative
Satellite Name
GB27
English (HSMM30GB) 10/30/02 10:06 AM Page 30
![](asset-1e.png)
1. Select the L.O. Frequency that is set to antenna.
2. Use the buttons to select the LNB frequency(Universal, 5150,
9750, 10600, 10750, 11475MHz or 0, 1, ......., 9).
3. If the required LNB Frequency is not available, then select “0”
and enter the frequency manually using the NUMERIC buttons
(0~9).
4. When you select Universal, both 9750 and 10600MHz are
supported at the same time.
The 22KHz Tone setting is unnecessary. (Disabled)
When you use a dual LNB or two antennas connected to a 22KHz
Tone switch box, make 22KHz Tone switch Enable or Disable to
select LNB or antenna.
According to the option and position of DiSEqC switch,
select Disabled, Tone Burst A to B and DiSEqC A to D.
After setting the above mentioned value, press the OK button to
move to the Manual Search menu.
The Motorised System is used to set the DiSEqC 1.2 motor by
Eutelsat specification.
If you wish to use this system, please refer to page GB39.
LNB Frequency
22KHz Tone
DiSEqC Input
Motorised System
GB28
English (HSMM30GB) 10/30/02 10:06 AM Page 31
![](asset-1f.png)
Guide of Main Menu

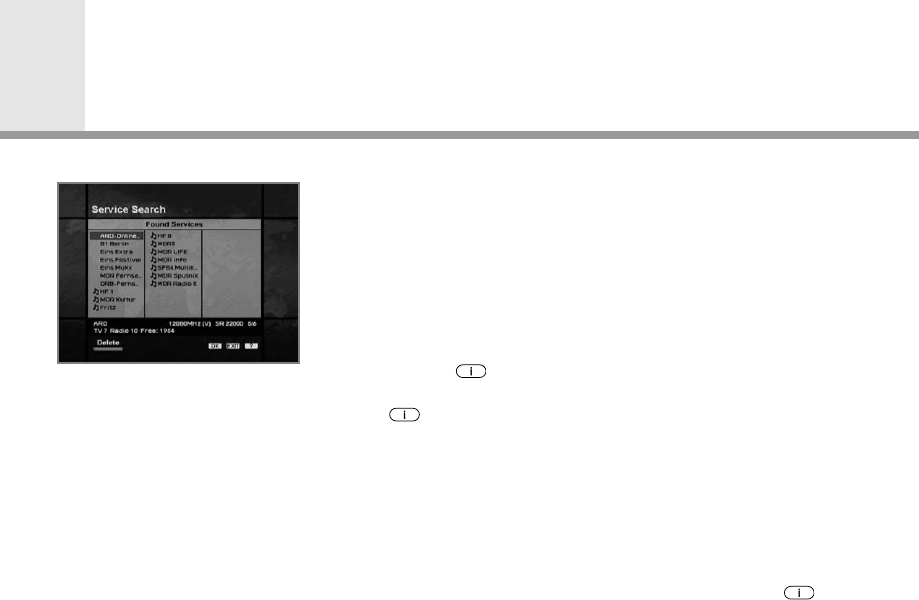

• Service Search OSD
1. If you press the EXIT button during the search, then Service
Search stops and the searching menu will appear again.
2. When you find all the services, the following picture appears.
3. Before saving it, you can select the services you want to delete.
• Found services OSD
1. The picture above shows services that are found after Manual
Search.
2. Use the RED( )button to mark the services that you want to
delete. To unmark a service, select the service and press the
RED( )button again.
3. Press the OK button to save or press the EXIT button to exit
without saving.
4. Then Service Search menu appears again. When you exit
from all menus, the first service of the found service list is
played.
In the bottom of found service picture, network, the information of
transponder and the number of found service that the services
belong to are displayed. The deleted service by the RED( )
button is excepted from counting of the number of services.
The deleted service is not included in this number.
“Free” applies to the empty space of the memory.
It will be used to store future services.
GB29
English (HSMM30GB) 10/30/02 10:06 AM Page 32
![](asset-20.png)
GB30
Set the search parameters(Frequency, Symbol Rate, etc.) to
manually find the services that you have selected in the
transponder.
The bar on bottom of the submenu shows the signal level and
signal quality(BER) of the entered parameters.
Select the target antenna for Manual Search.
The Satellite Name helps you select antenna alternatives.
This is only for reference and cannot be changed on this menu.
Antenna Alternative 16 is fixed for SMATV.
Use the NUMERIC buttons(0~9) on the remote control unit.
Use the buttons to select the Polarisation of the transponder.
(Auto, Horizontal, Vertical)
• Horizontal : 18 V are output through LNB line
• Vertical : 13.5 V are output through LNB line
Inputs the Symbol Rate of the transponder you want to find.
Use the buttons or NUMERIC buttons(0~9) on the
remote control unit.
Use the buttons to select the Forward Error Correction of the
transponder. You can select the value of Auto, 1/2, 2/3, 3/4, 5/6
and 7/8.
Manual Search
Antenna Alternative
Frequency
Polarisation
Symbol Rate
FEC(Forward Error Correction)
English (HSMM30GB) 10/30/02 10:06 AM Page 33
![](asset-21.png)
Guide of Main Menu
• You can select Yes or No. When you select “Yes”, you can find
more transponders using the home network.
•As it refers to NIT during searching, if there is the frequency
information of other transponder, it searches the other
transponders besides the transponder that the user inputs.
• You can select Yes or No. When you select “Yes”, the search
will skip all scrambled services.
• When the found services are scrambled during searching,
they are not listed up.
Refer to descriptor of PMT whether it is scrambled or not.
Performs a manual search with the ability to enter PID(Video/Audio/
PCR) values. This mode is necessary when you search for the
signal that has abnormal service Information tables.
The setting of the sub items is the same as Manual Search.
• Video PID/Audio PID/PCR PID
You can set PID to search for services.
1. Use the buttons to select PID input mode.
2. Use the NUMERIC buttons(0~9) on the remote control unit to
enter a decimal PID value.
3. In the hexadecimal input mode, press one of the NUMERIC
buttons(0~9) to display a hexadecimal keyboard.
4. Enter a hexadecimal PID value.
Note :If no PID is input(Auto is displayed), the Advanced Search
functions same as Manual Search.
5. After the above mentioned value is set, press the OK button to
start Service Search.
Note :The picture and the found service list during Advanced
Search are identical with the ones during Manual Search.
Network Search
Automatic Skip
Advanced...
GB31
English (HSMM30GB) 10/30/02 10:06 AM Page 34
![](asset-22.png)
GB32

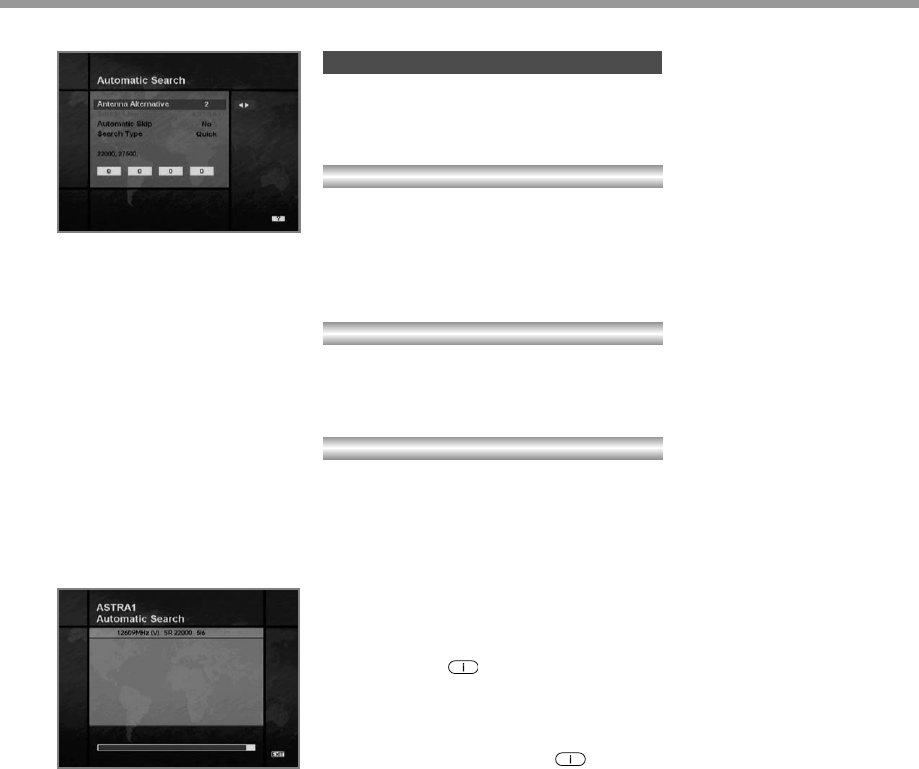

Automatic Search
When you enter the Satellite Name that is set in Antenna Setting
menu, search all of the selected satellite without inputting the extra
frequency.
Select the target antenna for Automatic Service Search.
The attribute of this antenna alternative number is already set in
Antenna Setting menu and the Satellite Name is helpful in the
selection of the antenna, but in this menu you cannot change the
Satellite Name.
Option to search only Free-To-Air services.
The picture on the right tries to search with varying Frequency,
Symbol Rate and FEC etc.
• You can select one of two modes(Quick or Detail).
• When you select Quick mode, it searches the service by search
parameters that is preset.
• When you select Detail mode, it searches the service through all
field of tuner(950 - 2150MHz).
Detail Mode
The pre-fixed symbol rate list is changed according to Antenna
Alternative and Satellite Name. If you want to add or change it,
press the RED( )button.
** The value of Pre-fixed symbol rates can not be editable.
(22000, 27500)
The picture of the Symbol Rate Add/Change mode is as follows:
1. When you press the RED( )button after entered to detail
mode from search type, yellow box will be trimmed with red
edges meaning edit is possible.
2. You can easily put optional value with using
NUMERIC buttons(0~9).
Antenna Alternative
Automatic Skip
Search Type
English (HSMM30GB) 10/30/02 10:06 AM Page 35
![](asset-23.png)
Guide of Main Menu
3. Press the RED( )button for confirmation, and you will
successfully exit from input mode.
If press the OK button at symbol rate value input mode,
the value will be confirmed, and if you moves left or right
column use the buttons, you can differ values of
symbol rate to input. Then press the EXIT and the
RED( )button to exit from input mode.
To delete a Symbol Rate in the above list, press the
0(Numeric button) in the selected position and then the symbol rate
disappears. The range of Symbol Rate that is input additionally is
16-30Ms/s.
Note :The user should select the Satellite name in Antenna
Setting menu. When the user types the Satellite Name
separately, the search type is fixed to the Detail mode.
Press the OK button anywhere to start Automatic Search.
The picture during searching is as follows.
The picture searches with varying frequency, Symbol Rate and
FEC etc. Satellite Name is the name that the user selects to
correspond with Antenna Alternative of Antenna Setting.
The progress bar(%) appears on bottom of the picture.
During the search, services that are found are displayed as follows:
1. Press the EXIT button during Automatic Search to stop search.
2. After the search is finished, the appearite message appears.
3. Press the OK button to return Service Search menu.
GB33
English (HSMM30GB) 10/30/02 10:06 AM Page 36
![](asset-24.png)
GB34
3-4. Status
Displays the information of H/W Version, S/W Version, Loader
Version and so on.
Shows the Signal Level(AGC level) and Signal Quality(BER) of the
current service and is help to the initial antenna setting.
You can download and upgrade the software of this STB via
ASTRA1 satellite when the software of new version is released.
Do not turn off the STB during downloading.
When the power is switched OFF, turn on the STB and the process
will be continued.
• CR-FOX models are not applicable.
STB Status
Signal Detection
STB Upgrade
English (HSMM30GB) 10/30/02 10:06 AM Page 37
![](asset-25.png)
Guide of Main Menu
3-5. Conditional Access
This menu allows the user to view the information on the Smart
Card and Viaccess conditional access system such as general
Smart Card Information, Service List, Change Maturity Rating,
Change PIN code.
You can see the Unique Address, so user Address, Current Maturity
Rating of the Smart Card.
Services or Bouquets are encrypted by Viaccess and operators
name, like TPS or ABsat, are displayed on the TV screen.
To get more detailed information of viewing rights of services or
Bouquets, press OK button.
The STB is required by Viaccess to include a parental control
facility for the viewing of restricted services.
This can be set to “No block” or for ages ranging from 4 to 18.
The correct PIN code is required to change this option.
When you buy a new Smart Card, the initial PIN code is set to
“NULL”. Therefore, it is recommended that this PIN code should be
changed.
This PIN code is available only on Conditional Access Menu.
Enter this PIN code to see the blocked Viacces Service.
• Specifications are for VA-FOX models.
For Viaccess Embedded
General Smart Card Information
Service List
Change Maturity Rating
Change PIN code
GB35
English (HSMM30GB) 10/30/02 10:06 AM Page 38
![](asset-26.png)
GB36
This menu allows the user to view and change information on
the Smart Cards such as available entitlements, Maturity Rating
and PIN Code. Besides, you can view the mails from programme
providers.
Card label will be displayed as issuer’s name on the TV screen.
Programmes or Bouquets which are encrypted by only
CryptoWorks(TM) and distributor labels are displayed on the TV
screen.
To get more detailed information of viewing rights of channels or
bouquets, press the OK button.
• Smart Card details
You can see smart card address, the validity date and current
maturity rating.
The user will select a single programme provider by selecting
its distributor label and you can get the information of available
entitlements.
• Subscription
You can see the valid period of each service.
• PPV(Pay Per View)
If You purchased events in advance, the entitlements of
Pay Per View events will be displayed.
• IPPV(Impulse Pay Per View)
You can purchase an event during the active broadcast of the
event without pre-ordering. The entitlements of Impulse
Pay Per View events will be displayed. In this menu you
need PIN code.
The STB is required by CryptoWorks(TM) to include a Parental
Control facility for the viewing of restricted programmes.
This can be set to “Disable MR” or PG(Parental Guide) to over 18.
The correct PIN Code is required to change this option.
For CryptoWorks Embedded
General Smart Card Information
Available Entitlements
Maturity Rating
English (HSMM30GB) 10/30/02 10:06 AM Page 39
![](asset-27.png)
Guide of Main Menu
In this menu you can make PIN Code enabled, disabled or changed.
• Enable PIN Code
You can enable the PIN Code.
• Disable PIN Code
You can disable the PIN Code.
• Modify PIN Code
You can change the PIN Code by using the NUMERIC
buttons(0~9) on the RCU. You will need to enter the old PIN Code
before you can enter new PIN Code.
The STB can receive maximum 10 mails from programme providers.
To check and see the mails press the OK button.
In the Mail list you can view or delete the mails.
If you store 10 mails and a new mail arrives, the oldest mail will be
erased and the new mail will be stored.
• Specifications are for CR-FOX models.
This menu allows the user to view the information on the
Smart card and Nagravision Conditional Access system such as
version and serial number of Smart card.
If you perchased events in advance, the entitlements of Pay Per
View events will be displayed.(ID, event name, service name,
start time, status and cost)
Displays the Credit information. (ID, credit and status)
Displays the System information.
(Smart card serial number, IRD serial number, Smart card version,
Smart card revision, Conditional Access software version and
Conditional Access software revision.)
• Specifications are for NA-FOX models.
PIN Code
Mail Box
GB37
For Nagravision Embedded
PPV purchase list
Credit information
System information
English (HSMM30GB) 10/30/02 10:06 AM Page 40
![](asset-28.png)

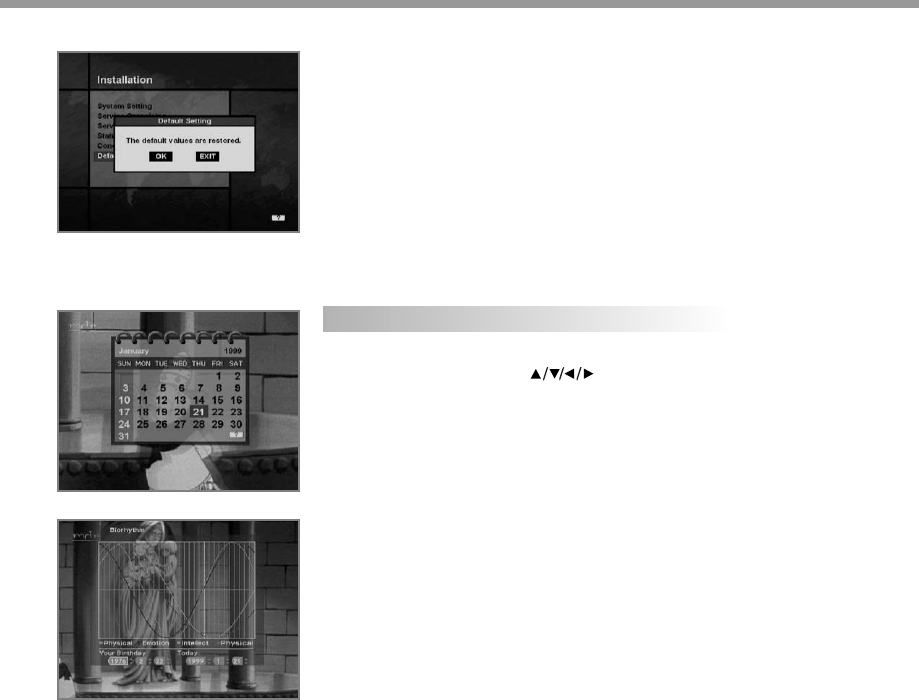

GB38
3-6. Default setting
When you press the OK button at the screen, the data of system
setting will be changed into the default values and some Free-To-Air
services of ASTRA1 will be stored in replacement of all services
found. If you press the EXIT button, the function will be cancelled
and return the Installation menu.
STB supports additional functions such as Calendar and Biorhythm.
At the Biorhythm use the buttons to adjust your birth year
and date to see your current biorhythm status.
4. Utility
English (HSMM30GB) 10/30/02 10:06 AM Page 41
![](asset-29.png)
Guide of Main Menu
GB39
DiSEqC 1.2 User Instructions
If you have a DiSEqC 1.2 motorised system, then you can use the DiSEqC 1.2 functions available.
The following instruction describes how to use the DiSEqC 1.2 functions to store the positions of the
satellites and to search for the services(STAB Rotor Sat motor recommended).
When DiSEqC Motorised System is Enabled in the Antenna Setting, a new menu is available for
configuring the motor. This menu is called Satellite Setting and is accessed by pressing the OK
button while the option Antenna Alternative is highlighted in the Manual Search menu.
The following options are available on the Satellite Setting menu.
Satellite Name
A selection of satellite names that can be used to identify a motor position. If the satellite name you
require is not available, please use other. In installer mode the Satellite Name Reference refers to the
0 position of the motor.
Movement
In user mode this is used to fine-tune the position of the motor for better reception.
In Installer mode this is used to search for the position of a satellite manually.
Motor Control
• Search : Searches for services on the chosen transponder.
• Goto : Moves the motor to the stored position of the selected satellite name.
• Store : Stores the current position of the motor for the selected satellite name.
• Reset : Resets all stored positions of the motor relative to the 0 position.(Installer mode only)
DiSEqC Command Mode
Changes the current mode between Installer and User.
You must set your receiver up so that it is ready to use DiSEqC 1.2. To do so, do as follows
1. Press the MENU( )button, to display the Main Menu.
2. Select Service Searching option and press OK button,
to display the Service Searching menu.
3. Select Antenna Setting option and press OK button,
to display the Antenna Setting menu.
4. You must set up a separate antenna alternative for each
satellite position required.
5. Select the name of the satellite you wish to use.
6. Select the correct LNB frequency for the LNB you are using.
7. Set the Motorised System to Enable using the buttons.
8. The option DiSEqC Input Selection should now be disabled. This option is used for DiSEqC 1.0 and
cannot be used in conjunction with DiSEqC 1.2. Your receiver is now ready to use
DiSEqC 1.2. To return to the Main Menu, use the EXIT button until you are at the Main menu.
2. Setting your Receiver for DiSEqC 1.2
1. Satellite Setting Menu Options
English (HSMM30GB) 10/30/02 10:06 AM Page 42
![](asset-2a.png)

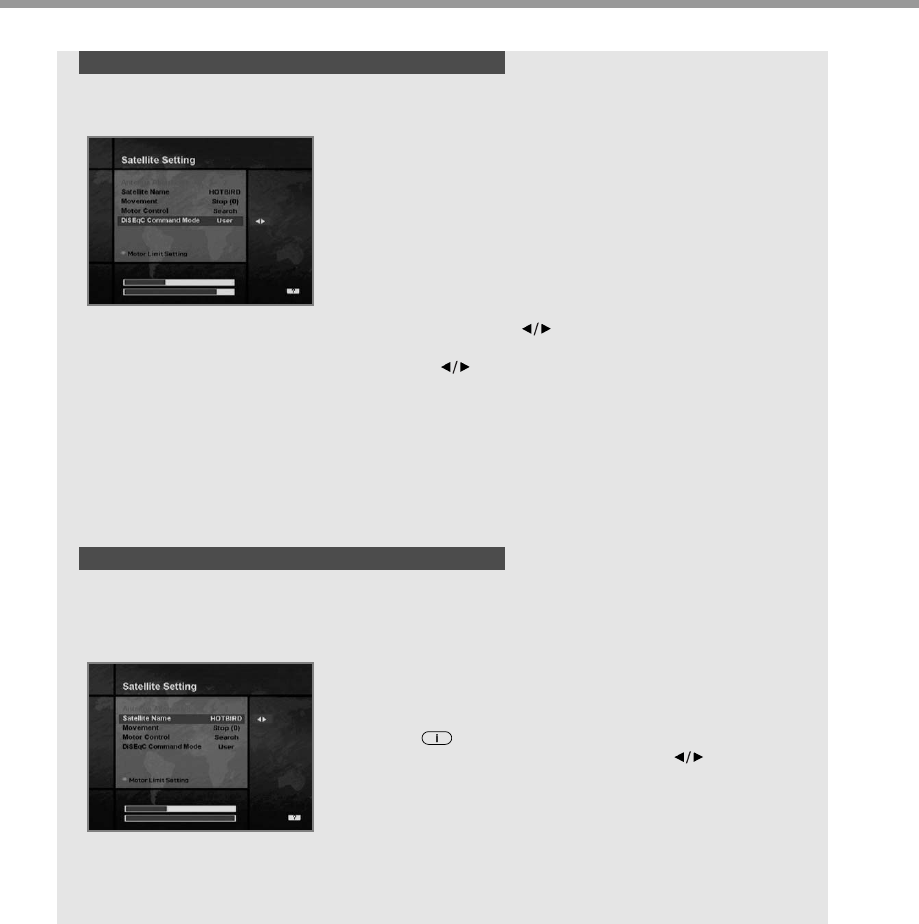

GB40
3. Initial Satellite Position Search
This is required when you first set your receiver up to use DiSEqC 1.2 and sets the positions of all
pre-programmed satellites.
1. Make sure your motor is installed correctly with the calibrations
adjusted for the region you are situated.
(Please consult the user manual for your motor.)
2. Make sure your receiver is set up to use DiSEqC 1.2.
(see section 2 above).
3. On the Main Menu, select Service Searching option and press
the OK button, you should now see the Service Searching
menu.
4. Highlight the option Antenna Alternative and press the OK
button to display the Satellite Setting menu.
5. Highlight the DiSEqC Command Mode option and use the buttons to change the value to
Installer and press the OK button.
6. Highlight the Motor Control option and use the buttons to change the value to reset and
press the OK button.
7. You will now see a warning message, press the OK button to continue. All motor positions of the
pre-programmed satellites should now be correct. If you have any other make or model of
DiSEqC 1.2 motor then you may need to store the satellite positions in yourself(Please refer to
the user manual for your motor).
8. Highlight the DiSEqC Command Mode option and use the buttons to change the value to User and
press the OK button.
9. You should now be ready to start storing services for the various satellites(see 5 onwards).
Use this option to set the East and West limits of the motor. This should be used to prevent your dish
from hitting anything that may be obstructing the path of the dish.
1. On the Main menu, select Service Searching option and press the OK button.
You should now see the Service Searching menu.
2. Select Manual Search option and press the OK button, you
should now see the Manual Search menu.
3. Highlight the Antenna Alternative option and press the
OK button. You should now be in the Satellite Settings menu.
4. Press the button to access the Motor Limit Setting menu.
5. Highlight the Limit Setting option and use the buttons to
disable this.(Warning:When this option is disabled your motor
will be able to move beyond any limits that have been
stored - please take care in case there are anything obstructing
the path of your dish.)
4. Motor Limit Setting
English (HSMM30GB) 10/30/02 10:06 AM Page 43
![](asset-2b.png)

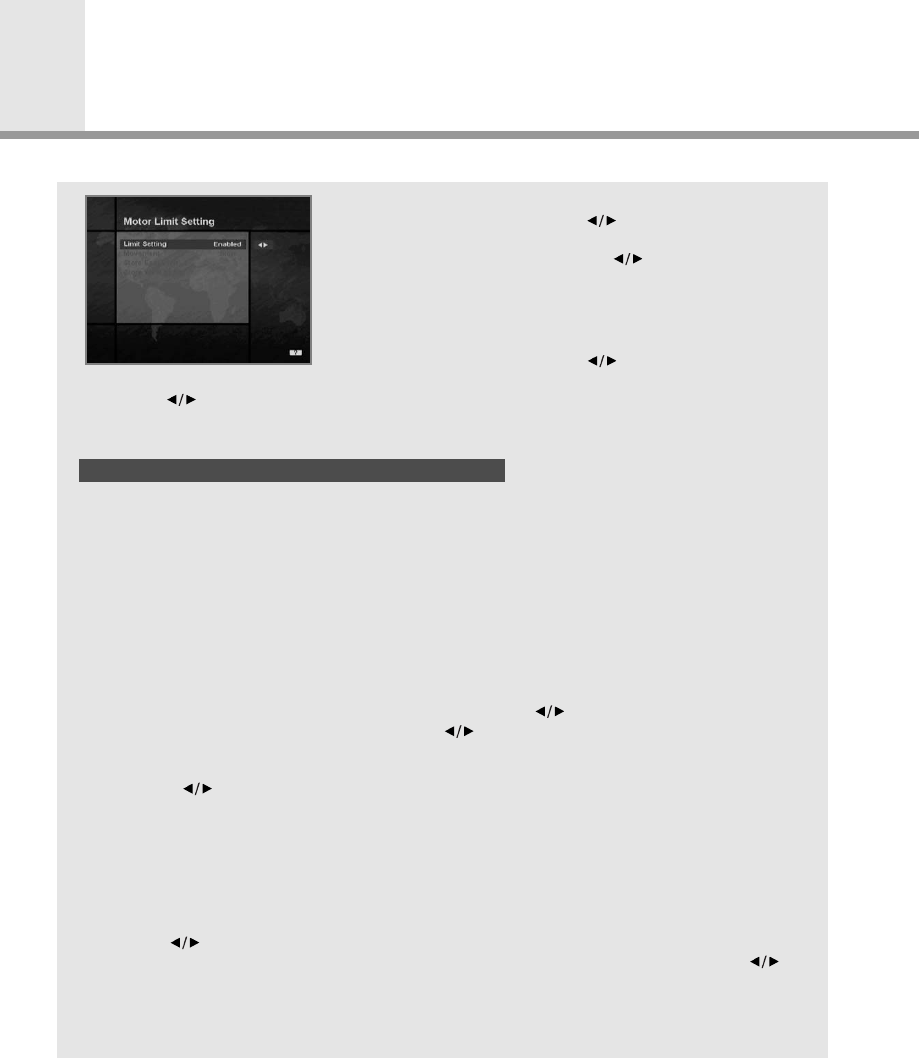

Motorised System
GB41
6. To set the East Limit:
a) Select Movement and use the buttons to move your
motor East or West until the motor is at the position you wish
to use as your East Limit. Use the buttons to stop the
motor at the correct position.
b) Highlight the Store East Limit option and press the OK button
to store the current position as your East Limit.
To set the West Limit:
a) Select Movement and use the buttons to move your
motor East or West until the motor is at the position you wish to use as your West Limit.
Use the buttons to stop the motor at the correct position.
b) Highlight the Store West Limit option and press the OK button to store the current position as your
West Limit.
The purpose of this is to set the motor position for each satellite manually.
This is useful if the satellite you require is not available from the pre-programmed list(see 3 above).
To do this, you must access the Satellite Settings menu. Do as follows ;
1. Select Service Searching from the main menu and press the OK button, to display the Service
Searching menu.
2. Select the Manual Search option and press the OK button, to display the Manual Search menu.
Select the relevant Antenna Alternative that you are using for this satellite.
3. Enter the Frequency, Polarisation, Symbol Rate and FEC of a transponder on the satellite you wish
to find. This transponder information should be unique to this satellite.
4. Select the Antenna Alternative option and press the OK button, to display the Satellite Settings
menu.
5. Highlight the option DiSEqC Command Mode and using the buttons change this to Installer.
6. Highlight the option Satellite name and use the buttons to select the satellite you want to find,
use others if the name of the satellite you want does not appear.
7. When you have selected the satellite you wish to find, go down to the Movement option and again
using the buttons to start the motor moving.
8. You should move the motor as far west as possible and the move it east so that you cover the
complete movement range of the motor.
9. During the move from west to east the Signal Quality bar should register a signal once.
This is the position of the satellite. If there are two or more different positions which registers a
signal, then you must choose another frequency that is unique to the satellite you want.
10. Use the Signal level and Strength Quality bar at the bottom of the screen to judge the best
position of the dish.
11. Use the buttons to stop the motor when required.
12. When you have the best position of the dish go to the Motor Control option and using the
buttons select store and press the OK button. The position of the satellite should now be stored.
13. If you do not store this position, it will be lost when you exit the menu.
14. Repeat the process for each satellite if required, remembering to use a different antenna
alternative for each satellite.
5. Manual Satellite Search
English (HSMM30GB) 10/30/02 10:06 AM Page 44
![](asset-2c.png)

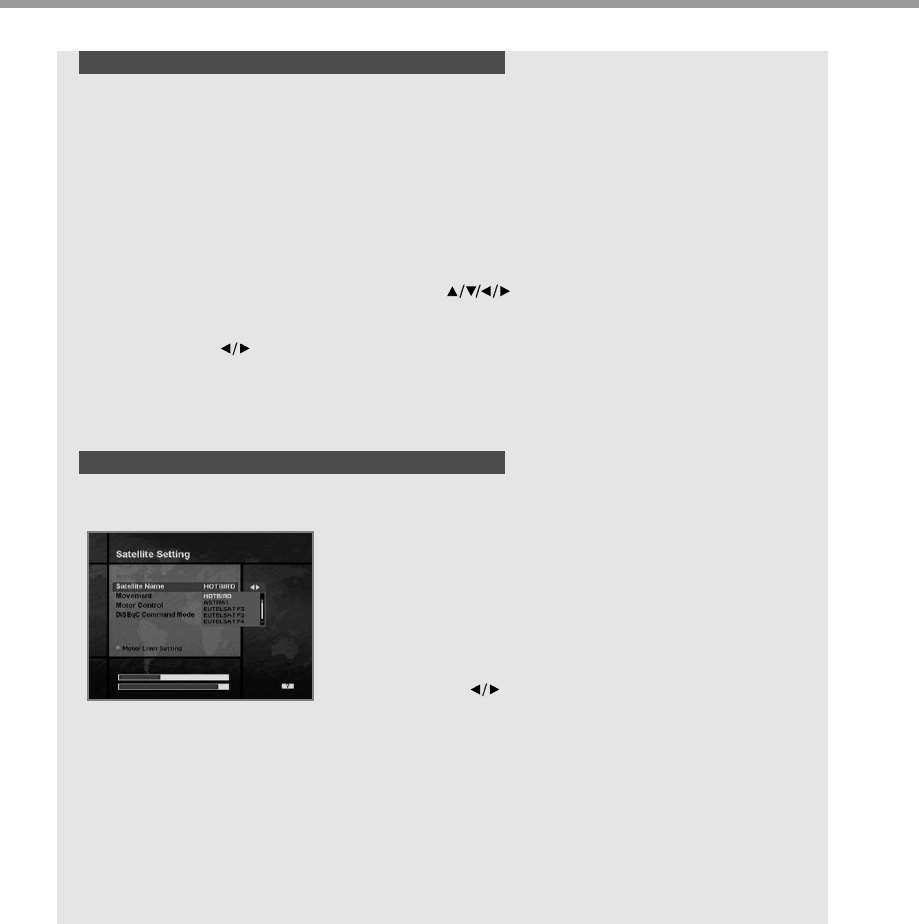

GB42
Once you have stored the positions of the satellites you want(see left below) you can now search for
the services transmitted from them. Before you can do this, you must move the motor to the
position of the satellite you wish to search. To do this, you must access the Satellite Settings menu.
Do as follows ;
1. Select Service Searching from the Main Menu and press the OK button, to display the Service
Searching menu.
2. Select the Manual Search option and press the OK button, to display the Manual Search menu.
3. Select the Antenna Alternative option and press the OK button, to display the Satellite Settings
menu.
4. In the Satellite Settings menu ensure that you have DiSEqC Command Mode option set to User.
5. Highlight the option Satellite Name and use the buttons to select the satellite you want
to view.
6. When you have selected the satellite you wish to view, go down to the Motor Control option and
again using the buttons select go to and press the OK button.
7. The motor will now move to the position of the selected satellite.
8. The Movement option is used to fine-tune the position of the motor.
9. When using the Movement option for fine-tuning, you must remember to store the changes you
have made or else these will be lost.
Once you have moved the motor into position, you can search for the channels transmitted from the
relevant satellite. To search for services on your new selected satellite, Do as follows ;
1. Move the motor to the position of the satellite you wish to
search.(see section 6 above)
2. Select the service searching from the Main Menu and press the
OK button. To display the Service Searching menu.
3. Select the manual search option and press the OK button to dis-
play the Manual Search menu.
4. Now enter the Frequency and Symbol Rate using the
NUMERIC buttons(0~9). Next enter the Polarisation and FEC
values using the buttons.
5. When you have entered all these details in, press the OK button
and the search will begin.
6. When the search has finished, press the OK button to view.
7. Repeat the process for all the transponders you want from this
satellite.
6. Moving to a pre-set satellite
7. Searching for services on your selected Satellite
English (HSMM30GB) 10/30/02 10:06 AM Page 45
![](asset-2d.png)
Motorised System
GB43
It is possible to use automatic search using the DiSEqC 1.2 motorised system.
1. Ensure that the positions for the satellite you want to search is correct.(see Section 3 and 5
above)
2. In the Main Menu, select the option channel searching and press the OK button.
3. In the Service Searching menu, select the Antenna Alternative that you have set for this
satellite.
4. When you search new services, please refer to Automatic Search of page GB32.
5. When the search has finished, press the OK button to store and view the services.
Now that you have stored all the positions of the satellites and searched for all the services you
want, you can now use your receiver as normal. When you change to a service that is being
transmitted from a different satellite, you will have to wait a few seconds to allow the motor to move
into position to receive the new service.
8. Automatic Search
English (HSMM30GB) 10/30/02 10:06 AM Page 46
![](asset-2e.png)

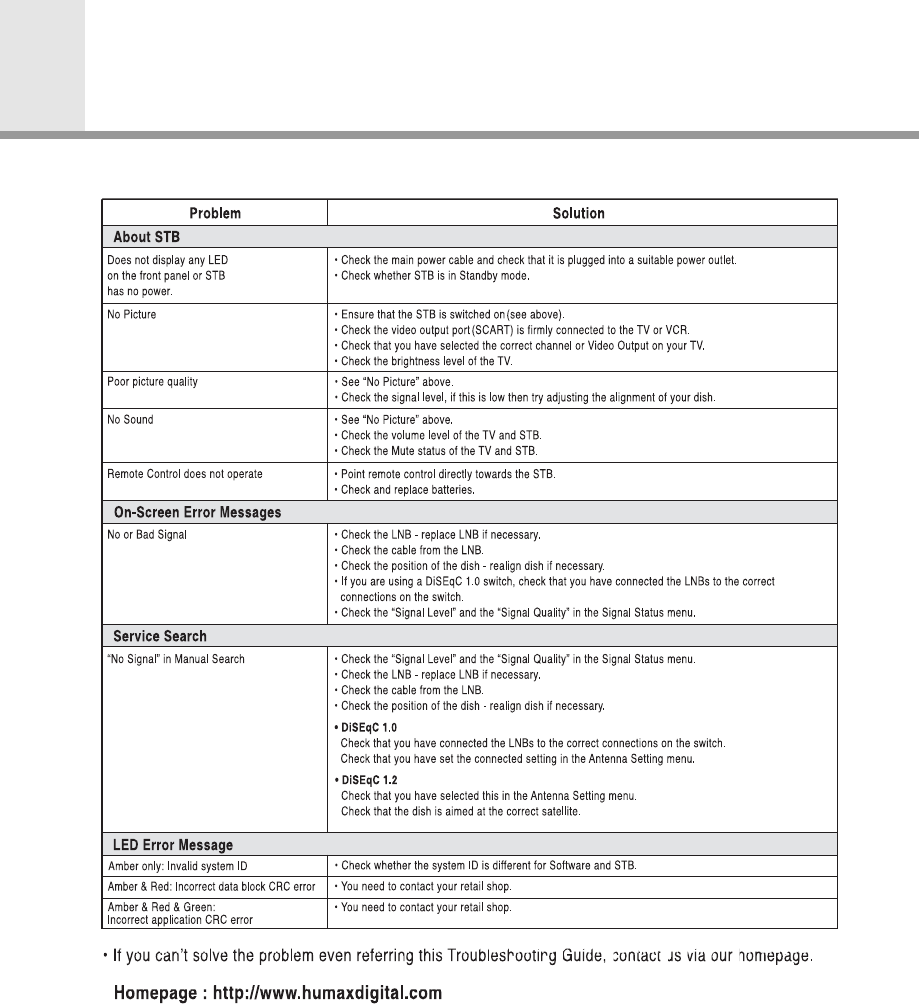

Troubleshooting Guide
GB44
English (HSMM30GB) 10/30/02 10:06 AM Page 47
![](asset-2f.png)
Menu Map
MAIN MENU
NTSC Mode
Menu Mode
Delete Satellite
GB45
English (HSMM30GB) 10/30/02 10:06 AM Page 48
![](asset-30.png)
Note 1
Note 1 : Refer to the instructions on the appropriate menu.
Note 2 : F1-FOX models are not applicable.
Note 2
GB46
English (HSMM30GB) 10/30/02 10:06 AM Page 49
![](asset-31.png)
Specification
Tuner & Channel
MPEG Transport Stream A/V Decoding
Memory
Input Connector
Frequency Range
Input Impedance
Signal Level
IF
IF Band width
LNB Power &
Polarisation
22 KHz Tone
DiSEqC Control
Demodulation
Input Symbol Rate
FEC Decode
Transport Stream
Profile Level
Input Rate
Aspect Ratio
Video Resolution
Audio Decoding
Audio Mode
Sampling
Main Processor
Flash Memory
Graphic(MPEG) &
System DRAM
TMIPS R3930(81 MHz)
2 Mbyte
4 Mbyte
3 Mbyte(Smart card)
4 Mbyte(Smart card)
MPEG-2 ISO/IEC 13818
Transport stream specification
MPEG-2 MP@ML
60 Mbit/s Max
4:3, 16:9
720 x 576
MPEG/MusiCam Layer I & II
Single channel/Dual channel/Joint stereo/Stereo
32, 44.1 and 48 KHz
F-type, IEC 169-24, Female
950 MHz to 2150 MHz
75Ωunbalanced
-25 to -65 dBm
480 MHz
36 MHz
Vertical : +13.5 V
Horizontal : +18 V
Current : 500 mA Max. Overload Protection
Frequency : 22 ± 4 KHz Amplitude : 0.6 ± 0.2 V
Version 1.0/1.2 Compatible
QPSK
2-31Ms/s
Convolutional Code Rate 1/2, 2/3, 3/4, 5/6 and 7/8
with Constraint Length K=7
• Please note :The specification of the STB may be changed without notice in
advance.
GB47
English (HSMM30GB) 10/30/02 10:06 AM Page 50
![](asset-32.png)
A/V & Data In/Out
TV SCART
VCR SCART
AUDIO R/L
RS-232C
Video Output(CVBS, RGB, S-Video)
Audio Output
(Resolution : 20 bits DAC, Max. 2 Vrms)
Video Output(CVBS)
Video Input(CVBS, RGB, S-Video)
Audio Output(Resolution : 20 bits DAC, Max. 2 Vrms(fixed))
RCA/Cinch Volume and Mute Control
(Resolution : 20 bits DAC, Max. 2 Vrms)
Transfer rate 115,200 bps, 9pin D-sub Type
Physical Specification
Size (W x H x D)
Weight (Net)
Operating Temp
Storage Temp
Storage Humidity
260
x
50
x
180 mm
Around 1.3 kg
0°C to + 45°C
-10°C to + 70°C
5% ~ 95% RH(Non-Condensing)
Power Supply
Input Voltage
Type
Power Consumption
Standby Power
Protection
90 - 250V AC, 50/60 Hz
SMPS
Max. 30 W
≤8 W
Separate internal fuse. The input shall have lightening Protection
• Yo u can use a special antenna switch with DiSEqC commands.
When changing ASTRA1 to EUTELSAT for example, a DiSEqC command is sent
with the 22KHz tone through the antenna cable. The antenna switch will change
ASTRA1 to EUTELSAT. The concept of DiSEqC is a protective trademark of
EUTELSAT.
• Data rate decides the picture quality of digital TV programmes.
Data rate of about 5-6 Mbit/s coincides with the picture quality of a analog
TV programme.
GB48
English (HSMM30GB) 10/30/02 10:06 AM Page 51
![](asset-33.png)
English (HSMM30GB) 10/30/02 10:06 AM Page 52
