Notice
Please read this quick start guide carefully to be able to safely install, use and
maintain the product at maximum performance. Keep this quick start guide
next to your product for future reference. The information in this quick start
guide is subject to change without notice.
Copyright
Not to be copied, used or translated in part or whole without Time Warner
Cable’s prior consent in writing except approval of ownership of copyright and
copyright law.
Meaning of Symbols
To reduce the risk of electric shock, do not remove cover (or back).
No user serviceable parts inside. Refer servicing to qualified service
personnel.
This symbol indicates dangerous voltage inside the product that
presents a risk of electric shock or personal injury.
This symbol indicates important instructions accompanying the
product.
Warnings, Cautions and Notes
Throughout the whole manual, pay special attention to the following marks
that indicate hazardous situations.
Warning
Indicates a hazardous situation which could result in serious injury
Caution
Indicates a situation which could damage the equipment or other apparatus
Note
Indicates additional information to make the user aware of possible problems
and information of any importance to help understand, use and maintain the
installation.
Warranty
The warranty does not cover parts which may become defective due to misuse of
the information contained in this manual.
‘WEEE’ Instructions
This product should not be disposed with other household wastes at the end
of its working life. Please separate this from other types of wastes and recycle
it responsibly to promote the sustainable reuse of material resources. This will
prevent possible harm to the environment or human health from uncontrolled
waste disposal.
Domestic users:
Please contact either the retailer where you purchased this product or their
local government office for details of where and how they can take this item for
environmentally safe recycling.
Business users:
Contact your supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
Trademarks
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI Logo, and High-Definition Multimedia interface are
trademarks and registered trademarks of HDMI Licensing LLC.
This item incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. Reverse
engineering and disassembly are prohibited.
Notice
GB2
For Your Safety
Safety Instructions
1. POWER SUPPLY
• Operatethisproductonlyfromthetypeofpower
supply shown on the marking label. If you do not
know the type of power supplied to your home,
contact your local power company.
• Disconnectthepowersupplybeforeyoustartany
maintenance or installation procedures.
2. OVERLOADING
• Makesurethatthewalloutlet,extensioncord
and adapter have a sucient power rating for the
appliance. If not, this can cause an electric re shock.
3. LIQUID
• Donotexposethisproducttoliquids.Donotput
objects lled with liquid on the product.
4. CLEANING
• Disconnecttheproductfromthewalloutletbefore
you clean it.
• Useamoistclothtocleantheproduct.Donotuse
solvents. Wipe the surface gently with a soft cloth as
it may get scratched.
5. VENTILATION
• Makesurethattheslotsontopoftheproductare
not blocked. It is necessary to have a sucient
airow into the unit.
• Donotputelectronicequipmentontheproduct.
• Donotputobjectsontheproduct.Thiswillblock
the ventilation or cause damage to the surface.
6. ATTACHMENTS
• Donotuseanyunsupportedattachmentsasthese
may be hazardous or cause damage to the product.
7. LIGHTNING, STORM OR NOT IN USE
• Unplugtheproductfromthewalloutletand
disconnect the antenna during a thunderstorm or
when left unattended and unused for long periods
of time. This will prevent damage to the unit due to
lightning and power-surges.
8. EXTRANEOUS OBJECTS
• Donotinsertanythingthroughtheopeningsin
the unit, where they can touch dangerous voltage
points or damage parts.
9. REPLACEMENT OF PARTS
• Whenreplacementofpartsisrequired,besurethe
service technician uses replacement parts specied
by the manufacturer or those that have the same
characteristics as the original part. Unauthorised
substitution may result in additional damage to the
unit.
10. CONNECTION TO THE SATELLITE DISH LNB/CABLE TV
SIGNAL/AERIAL
• Disconnectthepowersupplybeforeyouconnect
or disconnect the cable from the satellite dish/cable
TV signal/aerial. If not, this can cause damage to the
LNB/cable TV line/aerial.
11. CONNECTION TO THE TV
• Disconnectthepowersupplybeforeyouconnect
or disconnect the cable from the TV. If not, this
can cause damage to the TV.
12. EARTHING (satellite only)
• EarththeLNBcabletothesystemearthforthe
satellite dish.
13. LOCATION
• Placetheproductindoorstoavoidexposure
to lightning, rain or sun. Do not place it near a
radiator or heat register.
• Keepatleast10cmclearancefromanyother
appliances susceptible to electromagnetic
inuences such as a TV or a VCR.
• Ifyouplacetheproductonarackorabookcase,
make sure that there is adequate ventilation
and that you have followed the manufacturer’s
instructions for mounting.
• Donotplacetheproductonanunstablesurface
where it can fall. A falling product can cause
serious injury to a personnel and serious damage
to the appliance.
14. Environment
•Attentionshouldbedrawntotheenvironmental
aspects of battery disposal.
•Careisrequiredfortheuseofthisapparatusin
tropical and/or moderate climates.
Cautions and Warnings
1. To avoid damage of the power cord or plug
• Donotmodifyorprocessthepowercordorplug
arbitrarily.
• Donotbendortwistthepowercord.
• Makesuretodisconnectthepowercordwhileyou
hold the plug.
• Keepheatingappliancesasfaraspossiblefromthe
power cord to prevent the cover vinyl from melting.
• Themainsplug,asadisconnectiondevice,shall
remain readily accessible by the user.
2. To avoid electrical shock
• Donotopenthemainbody.
• Donotinsertmetalorinammableobjectsinsidethe
product.
• Donottouchthepowerplugwithwethands.
• Disconnectthepowercordincaseoflightning.
• Unplugthepowercablebeforeyouinstallthe
antenna cable.
3. To avoid damage of product
• Donotusetheproductwhenitisoutoforder.Ifyou
continue to use the product when defective, this
may cause serious damage. Make sure to contact the
customer service centre if the product is out of order.
• Donotinsertmetaloraliensubstanceintotheslots
for the modules or Smartcards. It may cause damage
to the product and reduce its life span.
4. To avoid damage of the hard disk drive (PVR only)
• Donotmovetheproductorturnthepowero
suddenly while the hard disk drive is running.
• Thecompanyshallnotbeliableforanycorruption
of data on the hard disk drive caused by
carelessness or misuse of the user.
For Your Safety
GB3
Important Safety Instructions
1. Readtheseinstruction.
2. Keep these instruction.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A plozrized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an delctrician for
replacement of the obsolete outlet.
10.Protectthepowercordfrombeingwalkedonorpinchedparticularly
at plugs, convenience receptacles, and the point where they exit
from the apparatus.
11.Onlyuseattachments/accessoriesspecifiedbythemanufacturer.
12.Useonlywiththecart,stand,tripod,bracket,ortablespecifiedby
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13.Unplugthisapparatusduringlightningstormsorwhenunusedfor
long periods of time
14.Referallservicingtoqualifiedservicepersonnel.Servicingisrequired
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
Safety
INFORMATIONTOTHEUSER
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe
following two conditions:
(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust
accept any interference received, including interference that may cause
undesired operations.
WARNING
Changes or modifications not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.
“CAUTION:ExposuretoRadioFrequencyRadiation.
Antenna shall be mounted in such a manner to minimize the potential for hu-
man contact during normal operation. The antenna should not be contacted
during operation to avoid the possibility of exceeding the FCC radio frequency
exposurelimit.Theminimumseparationdistanceof20cmfromtheantennato
the body of user required.”
WARNING
To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
The apparatus shall not be exposed to dripping or splashing and no objects filled
with liquids, such as vases, shall be placed on the apparatus.
To prevent malfunction caused by temperature, do not use the product in a
closed space with less than 3 inches of clearance from the right/left/top of the
product.
GB4
Rear
Note: The image may differ from the actual product.

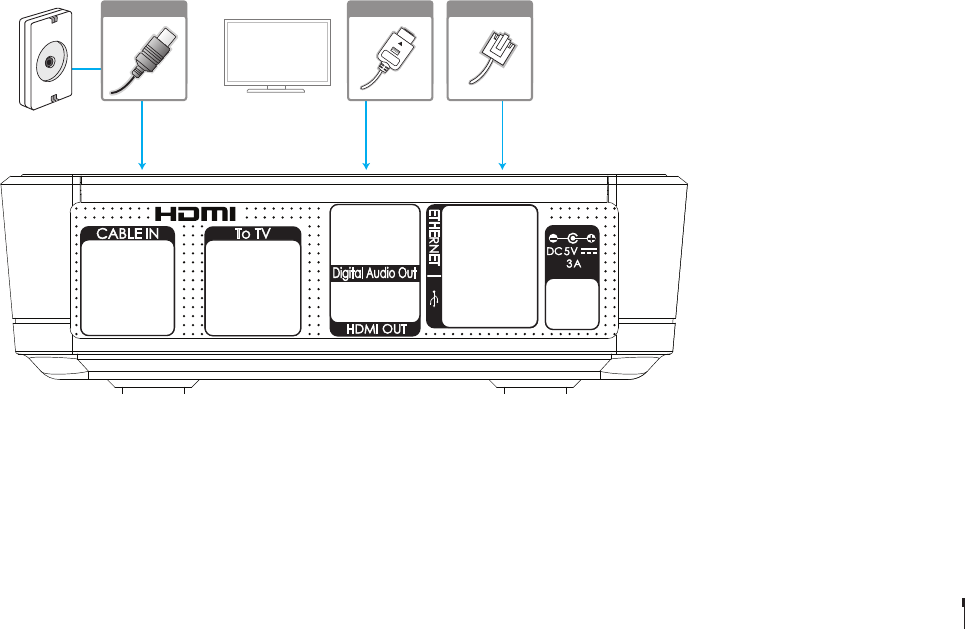

1CABLE IN: Connect to a coaxial cable from your service provider.
2To TV: Connect a coaxial cable to send analog signals to the TV.
3Digital Audio Out: Use an SPDIF cable to connect to the audio system.
4HDMI OUT: Use an HDMI cable to connect to the high definition TV.
5USB: Connect a USB storage device.
6ETHERNET: Connect a LAN cable.
7DC: Use the AC adaptor to connect to the power supply.
Front
Note: The image may differ from the actual product.
1Power: Switches between operation and standby modes.
Note: The product information label is on the bottom of the product.
Quick Start Guide
11 2 4 5 73 6
GB5
Connections
This section describes how to connect your product to match your particular devices and to gain optimum signal quality.
Warning: Connect all devices before you plug any power cords into the wall outlet. Always turn off the product, TV and other devices before you connect or disconnect any
cables.
Note: Make sure you use an adapter approved by UL.
Quick Start Guide
Ethernet
TV
Coaxial HDMI
GB6
Connecting the Antenna
Connect a coaxial cable to the Cable In.
Connecting the TV
Using an HDMI cable
For the best picture quality, use an HDMI cable to connect to the TV.
Connecting the Network
Connecting to the LAN
Use the Ethernet cable to connect the product and the router.
Quick Start Guide
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the
following two conditions :
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try
correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is
connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
“CAUTION : Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human
contact during normal operation. The antenna should not be contacted during operation
to avoid the possibility of exceeding the FCC radio frequency exposure limit.

Navigation menu
