Appendix I: Manual
Please refer to the following pages.
1 of 8
Form 6754-T, 05-15
Supersedes Form 6754-T, 12-13
SETUP INSTRUCTIONS FOR
REMOTE CONTROL 146-57-1 & 146-59-1
This procedure should be performed only by an authorized factory representative.
This document provides information for installation and setup of the XF remote controller. Second generation
remotes require a different procedure to set the wireless channel.

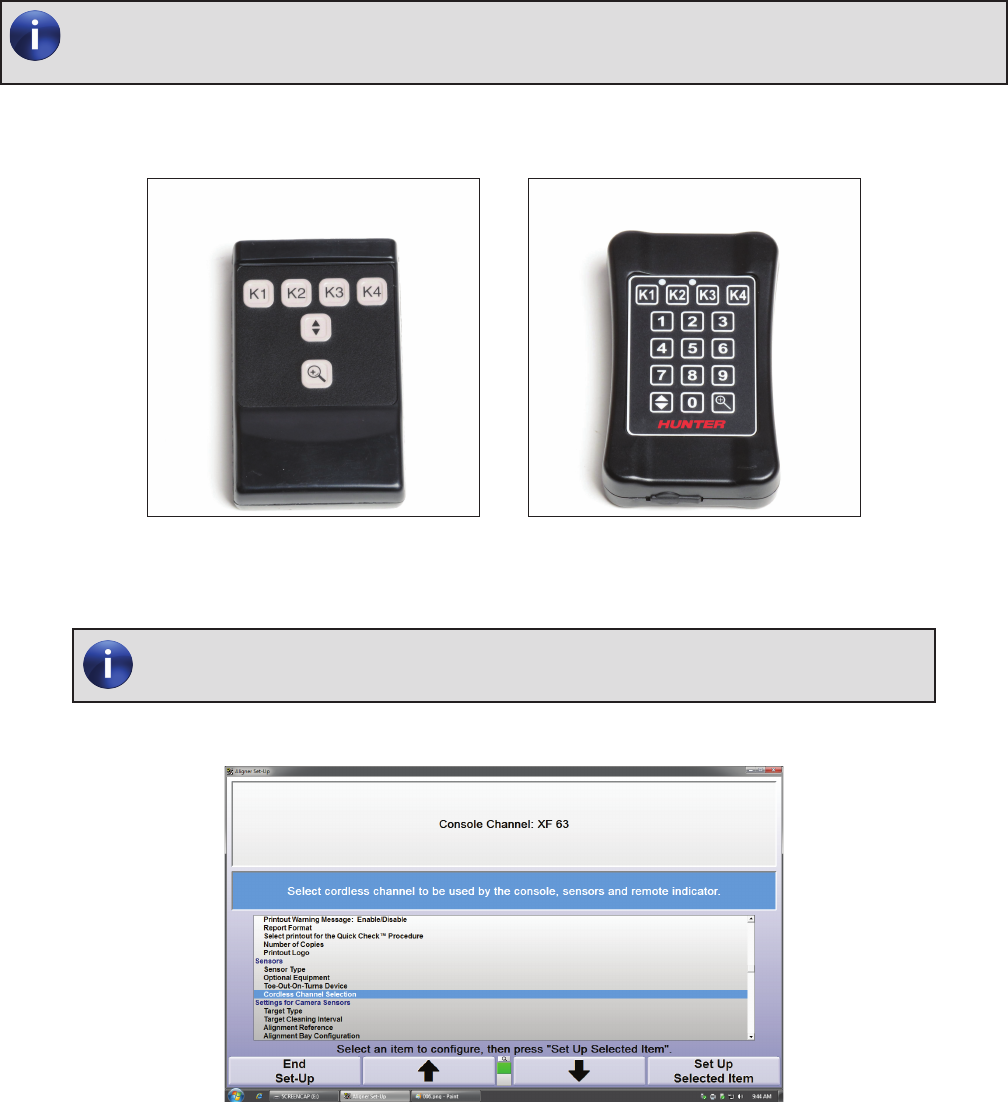

146-57-1
146-59-1
Figure 1.
CONSOLE CHANNEL SELECTION
In most cases, the wireless channels should be correctly set from the factory. Use this
procedure if there is a wireless channel conflict.
1. From the setup menu, under “Sensors”, select “Cordless Channel Selection”.
Figure 2.
2

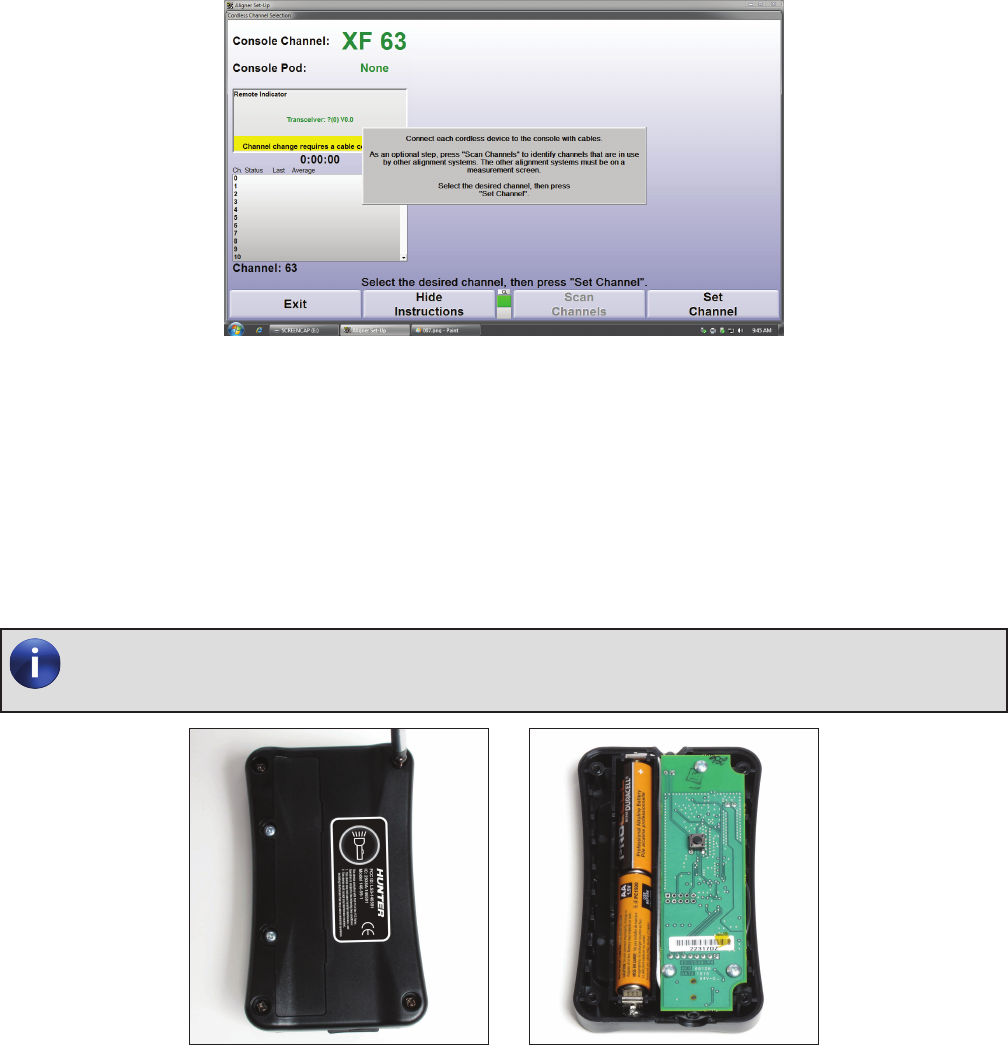

2. Wireless channels in use will be displayed. Press “Scan Channels” to identify channels that are in use. Select
the desired channel, then select “Set Channel”.
Figure 3.
Set the channel of the remote if necessary as follows.
SECOND DESIGN (146-59-1)
SETTING THE REMOTE CHANNEL
The wireless channel is selected using a set of dip switches on the main board. To set the wireless channel,
remove the four screws securing the back cover of the device, then remove the back cover.
Be careful not to lose the black rubber plug over the data port.
Figure 4.

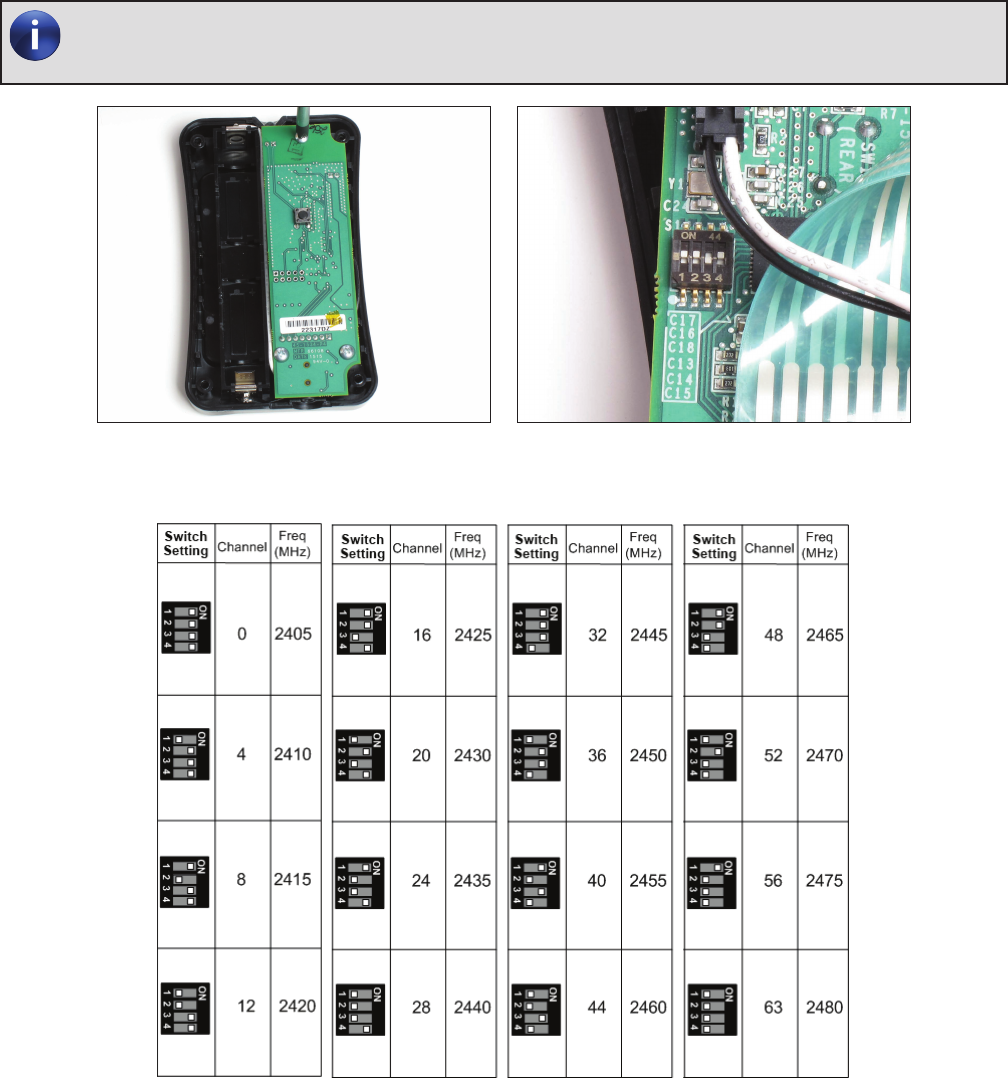

Remove the batteries from the device, then remove the three screws securing the main board.
3
Leave the ribbon cable and power wires connected, the dip switches can be accessed without
disconnecting them.
Figure 5.
Set the dip switches in sequence for the desired channel using the table below.
Figure 6.
4

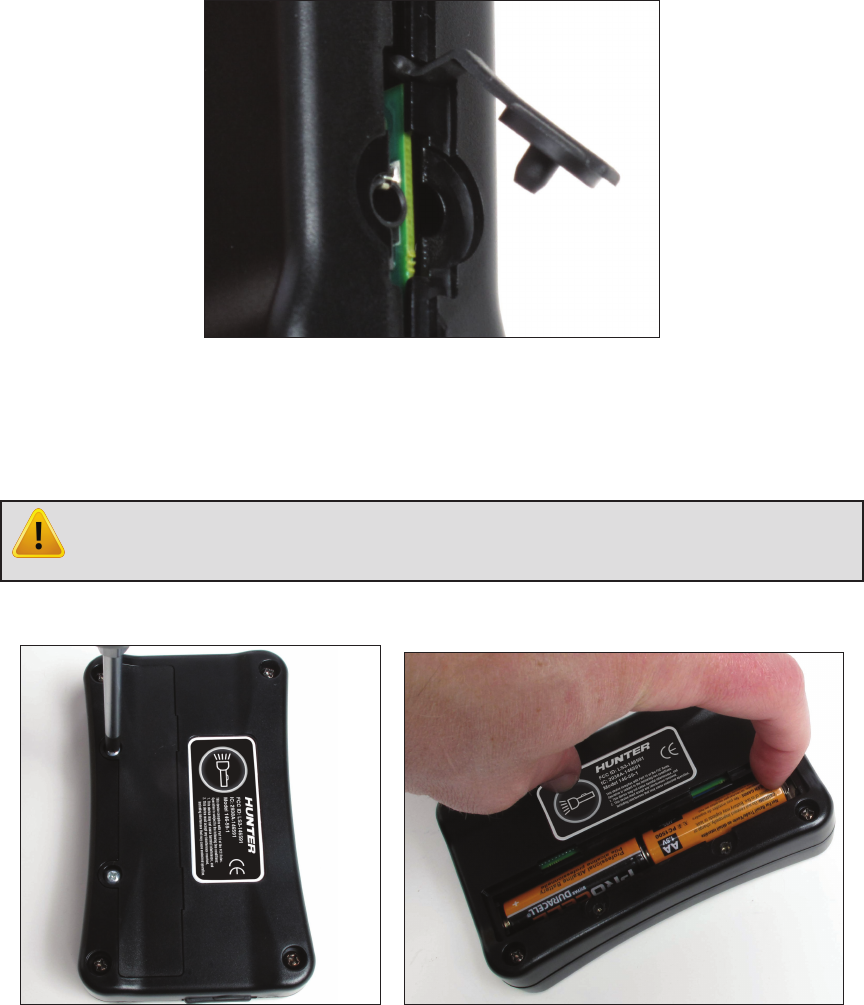

Re-install the board, install the batteries, then install the back cover. Make sure the data port plug is in place
while assembling the case halves.
Figure 7.
Check the remote for proper operation.
BATTERY REPLACEMENT
The port on the bottom is not a charging port, it is a data connection for future devices.
Do not connect any charging adaptors to this port.
To replace the batteries, remove the two screws securing the battery cover then gently pry off the cover.
Figure 8.
Replace the batteries with two new “AA” size batteries, making sure to observe the correct polarity.
Replace the the battery cover and reinstall the two cover screws.
5
FIRST DESIGN (146-57-1)
CHANNEL SELECTION
To connect the wireless remote with the XF Pod or receiver board hold the “K1” + “Zoom” + “Menu” buttons on
the remote for 5 seconds. This will cycle the remote until an available channel is found. This can take up to 10
seconds. If successful, the remote will now operate with the WinAlign program.
If multiple WinAlign consoles are running, it may take several retries to find the correct channel.
BATTERY REPLACEMENT

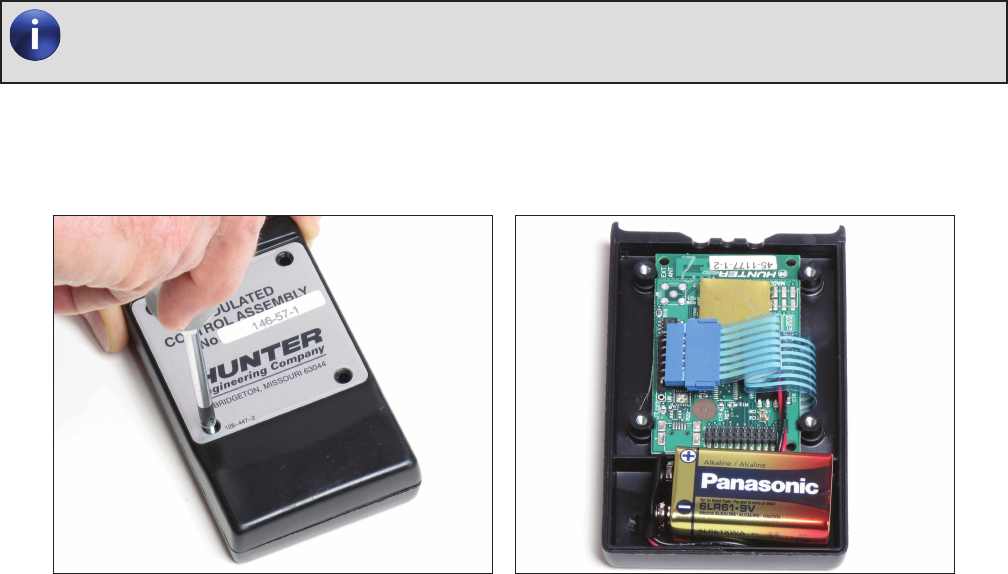

Remove the four screws securing the back cover, then remove the back cover to expose the battery.
Figure 9.
Replace the battery with a new 9-volt, making sure to observe the correct polarity.
Reinstall the cover and the four retaining screws.
If necessary, connect the remote to the console as outlined earlier. Refer to “Channel Selection,” on page 5
for detailed instructions.
TROUBLESHOOTING
If the remote is still not connecting to the WinAlign console after several retries, refer to the steps below to
possibly identify a problem.
1. Verify XF pod or receiver board is connected to the PC. There should be a indicator light on the pod showing
that they are receiving power from the console.
2. Check to make sure that the remote control channel setting is set to “A,0” in “Remote Control Channel
Identification” under the “Aligner Equipment” heading in setup.
3. If the remote is still not connecting, it may be necessary to power down and unplug nearby WinAlign consoles
to remove interfering channels.
4. The batteries on the remote indicator may be dead and need to be replaced.
6
COMPLIANCE STATEMENTS
FCC ID: LS3-146591
IC: 2938A-146591
Model 146-59-1
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate
the equipment.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne
doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
7
TCF #: 2015071TCF
Declaration of Conformity
We, the undersigned,
Company Hunter Engineering Company
Address, City 11250 Hunter Drive
Country USA
Phone number 314 731 0000
Fax number 314 716 1260
certify and declare under our sole responsibility that the following equipment:
Product description /
Intended use RF Remote Control for use on Hunter Wheel Alignment Consoles
EU / EFTA member states
intended for use
EU: Austria, Belgium, Belarus, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, The Netherlands, Poland, Portugal, Slovak Republic, Slovenia, Spain,
Sweden, United Kingdom
EFTA: Switzerland, Iceland, Lichtenstein, Norway
Member states with
restrictive use N/A
Manufacturer Hunter Engineering Company
Brand Hunter Engineering Company
Type (Model) 146-59-1
is tested to and conforms with the essential requirements for protection of health and the safety of the user and any other person and Electromagnetic
Compatibility, as included in following standards:
Standard Issue date
EN 60950-1
EN 301 489-1
EN 301 489-3
2006 + A11:2009 + A12:2011 + A1:2010 + A2:2013
2011-09
2013-06
and is tested to and conforms with the essential radio test suites so that it eectively uses the frequency spectrum allocated to terrestrial/space radio
communication and orbital resources so to as to avoid harmful interference, as included in following standards:
Standard Issue date
EN 300 440-2 2010-08
and therefore complies with the essential requirements and provisions of the Directive 1999/5/EC of the European Parliament and of the council
of March 9, 1999 on Radio equipment and Telecommunications Terminal Equipment and the mutual recognition of their conformity and with the
provisions of Annex IV (Conformity Assessment procedure referred to in article 10).
The technical documentation as required by the Conformity Assessment procedure is kept at the following address:
Company Hunter Engineering Company
Address, City 11250 Hunter Drive Bridgeton, Missouri 63044
Country USA
Phone number 314 731 0000
Fax number 314 716 1260
TCF/TF reference nr. 2015071TCF
Drawn up in Herndon, VA
Date 7 / 1 / 2015
Name and position James McClenahan R&D Manager Electronics
8
Česky
