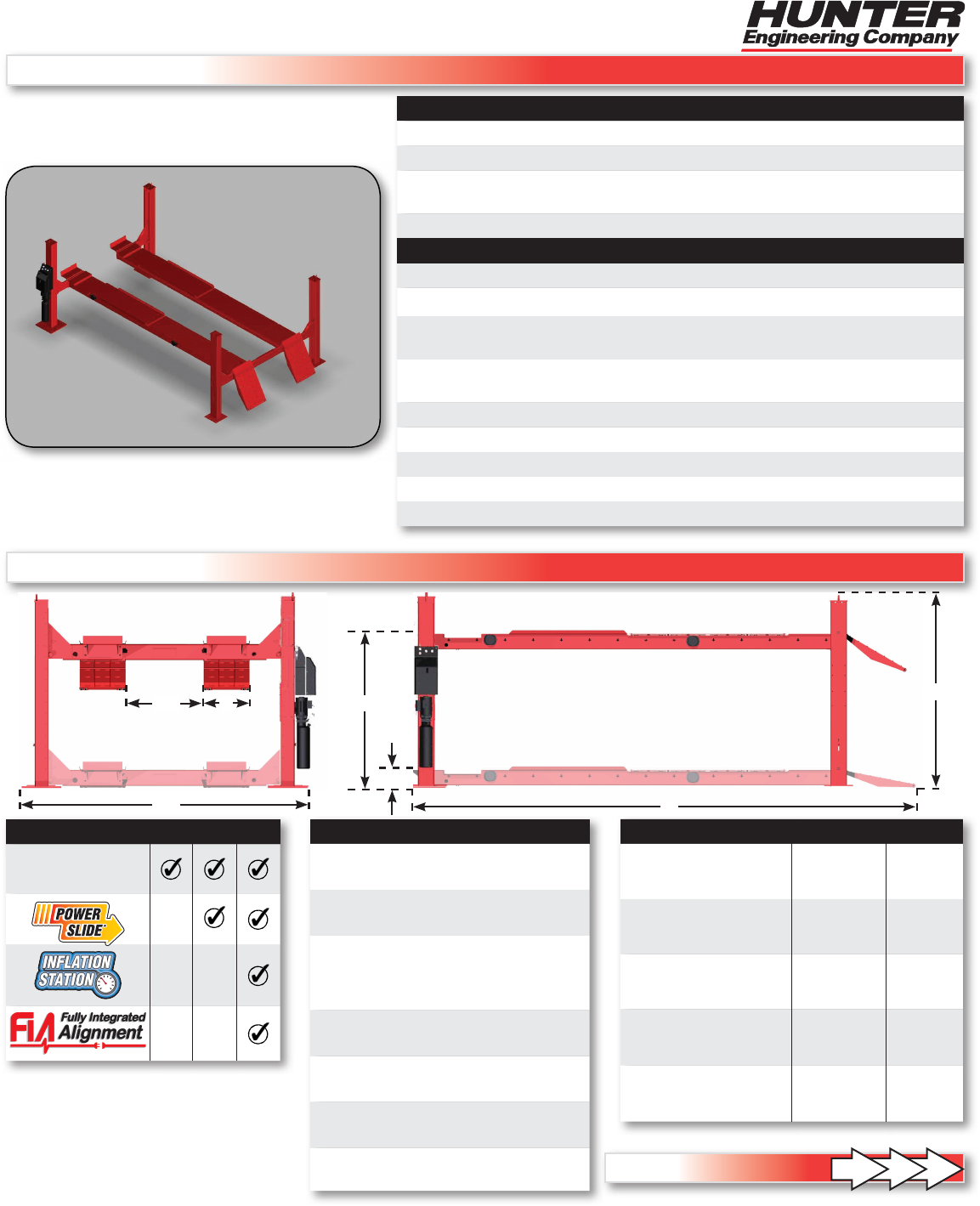

SPECIFICATIONS
L451/451L
Open Front 4-Post Lift Rack
Site Specications
Power Requirements 208-230 VAC, single phase power, 26 Amp
Air Supply Requirements 90-150 PSI (6.2-10.3 bar)
Minimum Concrete Spec. 4 in. (102 mm) thick,
3000 PSI (20,700kPA) rating
Maximum Floor Variation 3 in. (76 mm) between any two posts
Product Specications
Max. Vehicle Weight 18,000 lbs. (8164 kg)
Max. Wheelbase
General Service L451: 193 in. (4902 mm)
L451L: 227 in. (5766mm)
Two-Wheel Alignment L451: 177 in.* (4496 mm)
L451L: 211 in.* (5360 mm)
Four-Wheel Alignment 158 in. (4013 mm)
Alignment Height Any of 16 lock positions
Min. Four-Wheel Alignment 88 in. (2235 mm)
Lifting Speed 64 seconds
Lowering Speed 40 seconds
MODEL FEATURES / DIMENSIONS / OPTIONS
Features JT T-PS T-IS
9000-lb Swing
Air Jacks (2)

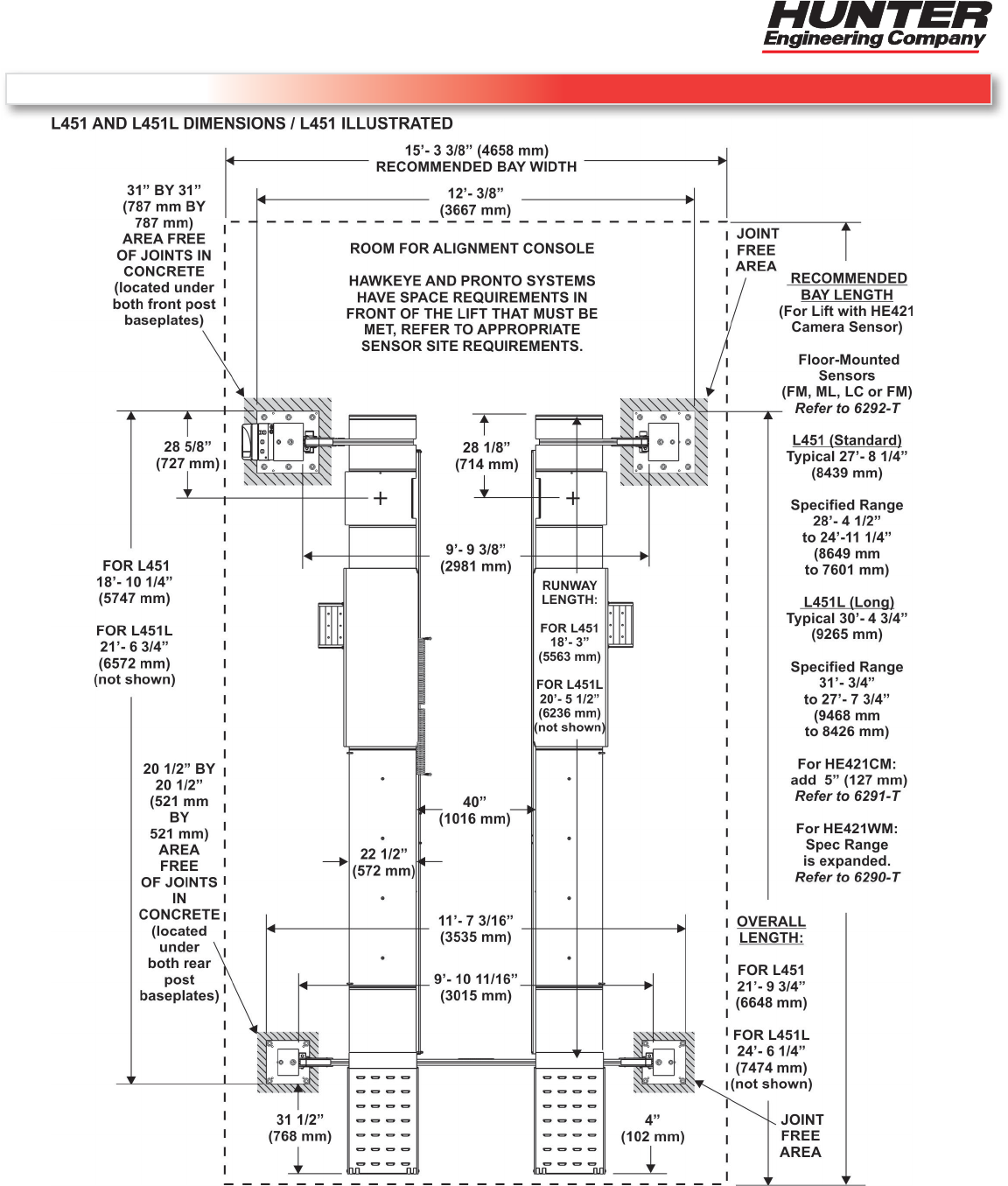

Dimensions
Width (W1)144.5 in.
3670 mm
Inside Width (W2)40 in.
1016 mm
L451 Length
(L)
L451L Length
257.75 in.
6547 mm
290.25 in.
7372 mm
Runway Width (R)22.5 in.
572 mm
Runway Height (H1)75 in.
1905 mm
Stack Height (H2)8.75 in.
222 mm
Post Height (H3)98 in.
2489 mm
Options Add. Length Kit #
Approach Ramp
Extension
17.5 in.
445 mm
20-1365-1
Extended Approach
Ramp Extension
40 in.
1016 mm
20-2033-1
Drive Thru Kit 38 in.
965 mm
20-2682-1
Front Mount Power
Unit Bracket - 20-3072-1
Rack Lighting - 20-2993-1
Continued on Page 2
W1
W2 R
L
H2
H3
H1
For lift rack information visit:
www.hunter.com/rack
For general inquiries visit:
www.hunter.com
or call
800-448-6848
For local contact visit:
www.hunter.com/company/ndrep.cfm
6879-T, 10-14a
Copyright © 2014, Hunter Engineering Company
L451 Open Front 4 Post Lift
* Jacking compensation may be required to align some long wheelbase vehicles.
6879-T, 10-14a
Copyright © 2014, Hunter Engineering Company
