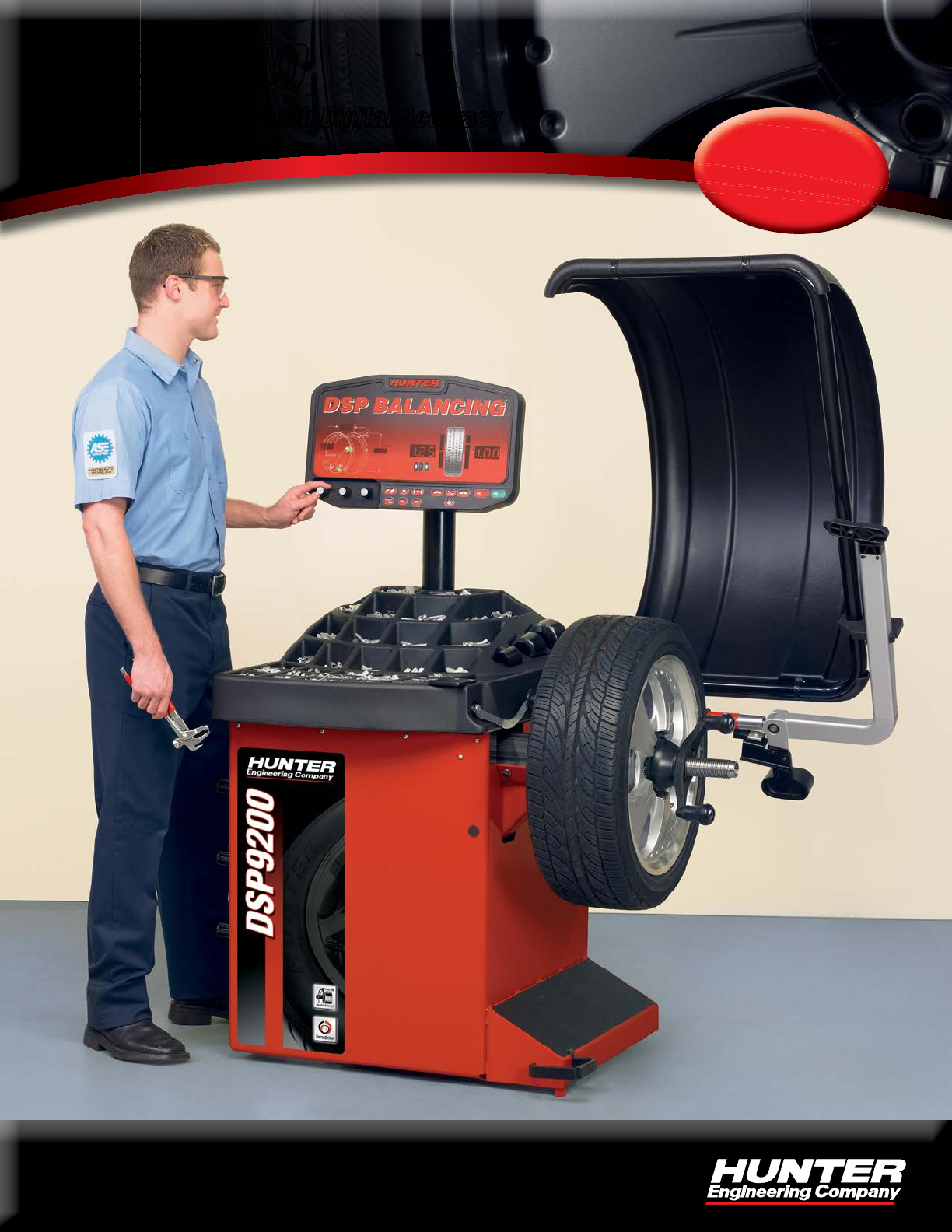

DSP9200
Wheel Balancer with Digital Accuracy
Balance
Wheels Faster
with Patented
ServoDrive
™

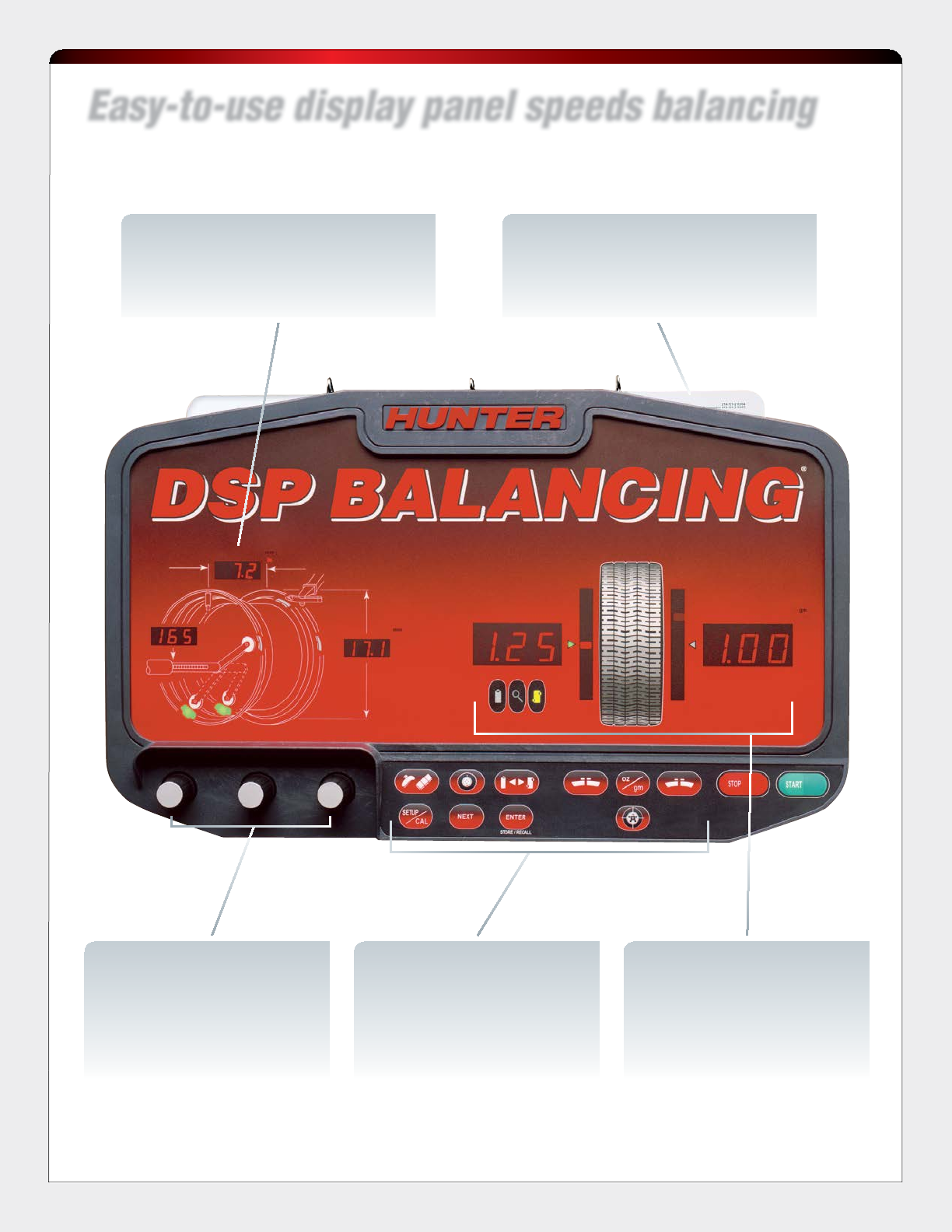

Easy-to-use display panel speeds balancing
Balancing Input Display
✓
Displays wheel dimensions and weight
mode in an easy-to-understand interface
Operations Placard
✓
Convenient operational instructions help
new employees get up to speed quickly
Wheel Dimension Entry
✓
Enables quick entry of wheel
width, diameter and offset
Soft Key Controls
✓
Provides easy navigation
through balancing procedures
with simple icon-based buttons
Weight Placement Display
✓
Shows the amount of weight
needed and exact placement
on the wheel

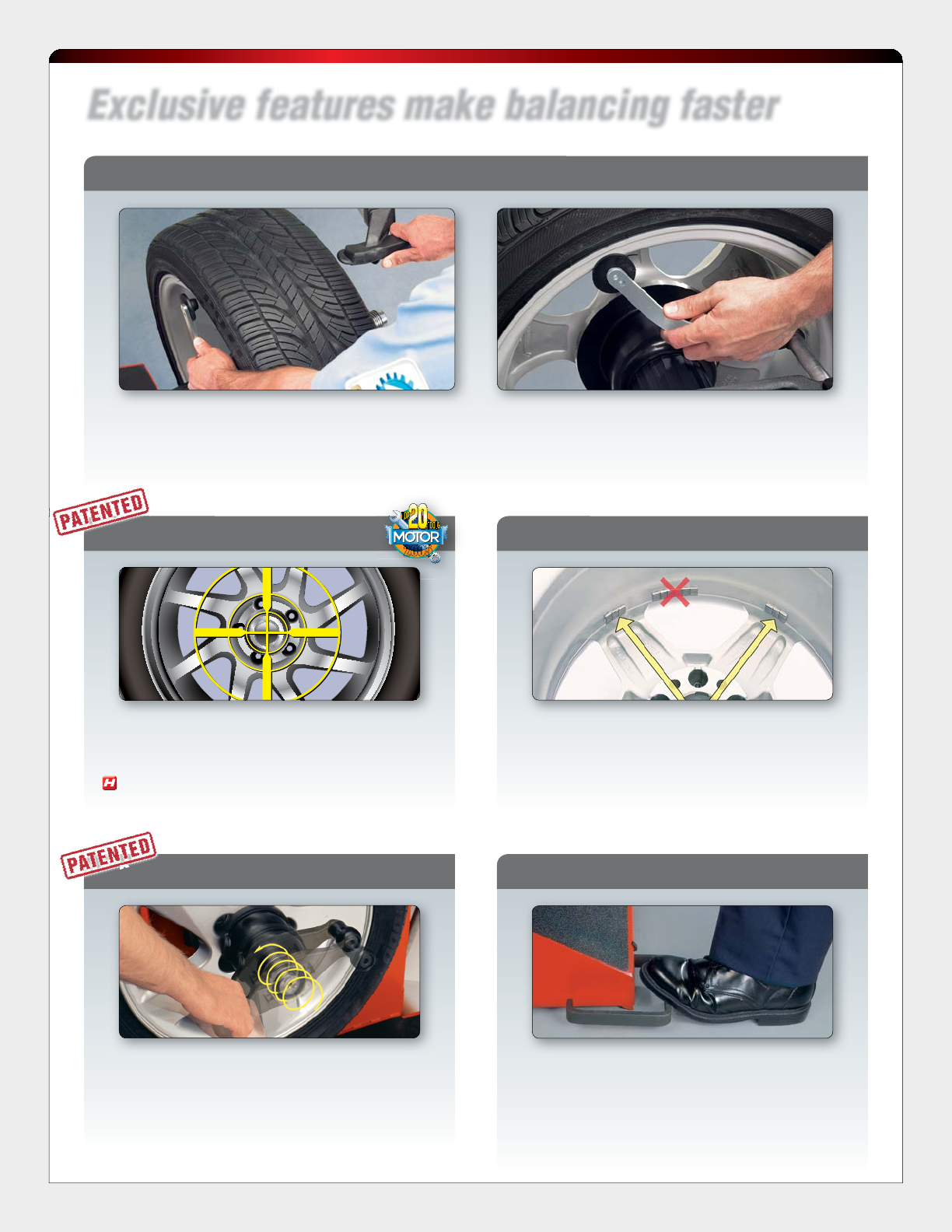

Exclusive features make balancing faster
Quick-Thread™ Auto-Clamping
Quick-Thread
Quick-Thread
✓ Automatically takes up any unused
spindle threads
✓ Eliminates wing nut hand cranking
Spindle-Lok® Brake Feature
✓ Foot pedal brake activates entry and
storage of wheel data
✓ Foot pedal locks spindle for easy
tightening and loosening of wing nut
Split Spoke® & Split Weight Modes*
✓ Offers multiple weight choices
✓ Automatically locates the best out-of-
sight position on custom wheels
Automatic Double Dataset® Arms
✓ Inner Dataset Arm determines exact
weight placement
✓ Speed entry of wheel data and placement
of weights while increasing accuracy and
allowing more single-spin balances
CenteringCheck® Verification
✓ Balancer tells you if the wheel is properly
centered before you proceed with the work
Eliminates the #1 cause of comebacks
2005
Copyright © 2012 Hunter Engineering Company Form 5428-T, 10/12
Supersedes 5428-T, 09/11
1012IAP3M.35
DSP9200

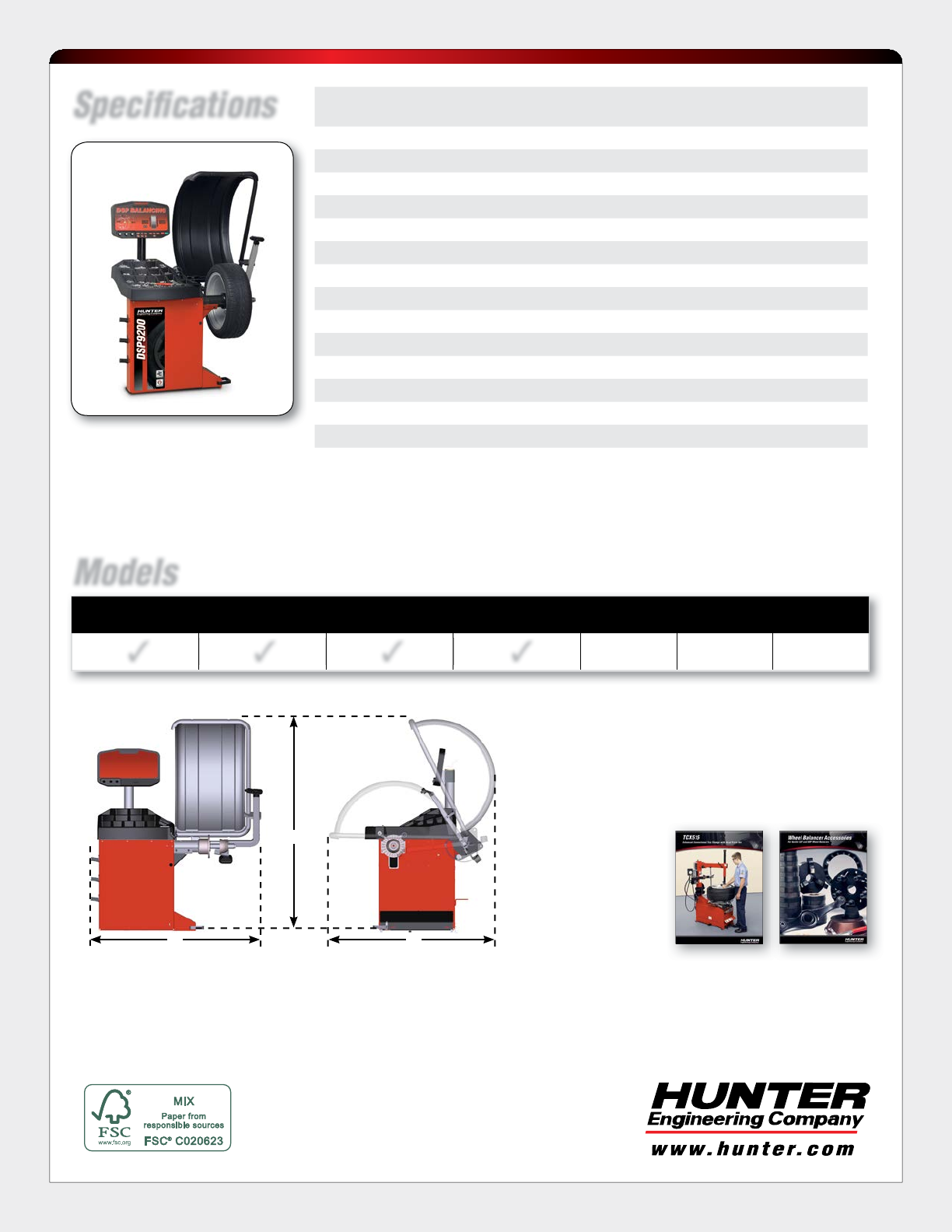

Specifi cations
Models
Because of continuing technological
advancements, specifications, models and
options are subject to change without notice.
Power Requirements 196-256V, 3 amp, 50/60 Hz, 1 ph
(Power cable includes: NEMA 20 amp plug, L6-20P)
Air Supply Requirements n/a
Capacity
Rim Width 1.5 in to 20 in (38 mm to 508 mm)
Rim Diameter 10 in to 24.5 in (254 mm to 622 mm)
ALU 7.5 in to 38 in (191 mm to 965 mm)
Automatic Inner Dataset® Range 10 in to 28 in (254 mm to 711 mm)
Max. Tire Diameter 38 in (965 mm)
Max. Tire Width 20 in (508 mm)
Max. Tire Weight 150 lbs (68 kg)
Imbalance Resolution ± 0.05 oz (1.0 g)
Placement Accuracy 512 positions, ± 0.35°
Balancing Speed 150 rpm
Motor Programmable drive system and DC motor
Shipping Weight 475 lbs (215 kg)
Split Spoke® & Split
Weight Modes
Automatic Double
Dataset® Arms
Quick-Thread™
Auto-Clamping
Servo Stop Drive
Control Width (W) Height (H) Depth (D)
52.5 in
(1334 mm)
70.5 in
(1785 mm)
55 in
(1397 mm)
W D
H
✓ ✓ ✓ ✓
