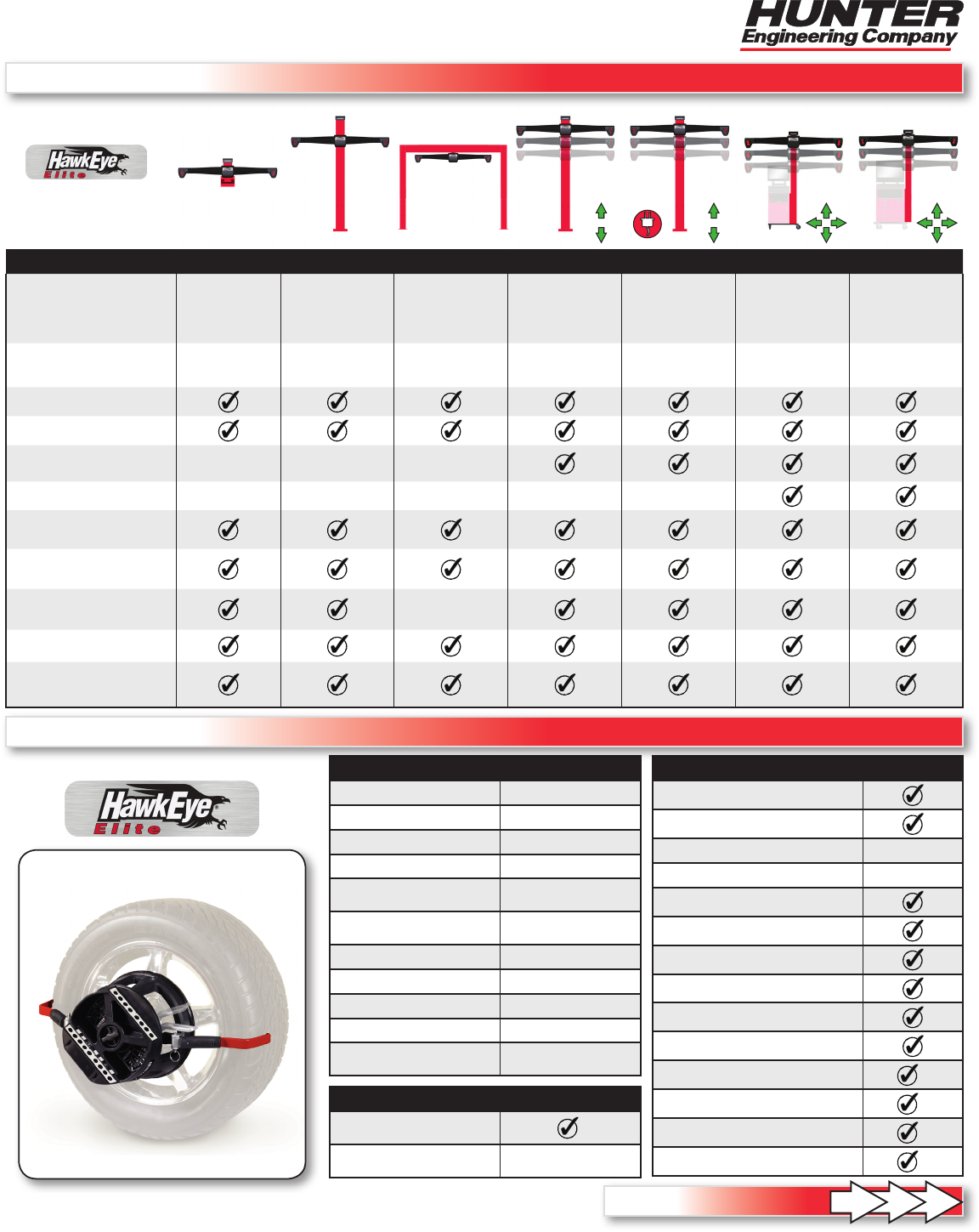

HawkEye Elite™

HE421 Series Sensors

HE421WM HE421FC HE421FM HE421ML HE421LC HE421CM3 HE421CM4

Sensor Mount Type Wall / Ceiling

Mount

Fixed Single

Column Floor

Mount

Fixed Dual

Column Floor

Mount

Manually Ad-

justable Single

Column Floor

Mount

Electrically

Adjustable

Single Column

Floor Mount

Manually

Adjustable Mo-

bile Cabinet

Mount

Manually

Adjustable Mo-

bile Cabinet

Mount

Power Requirements Supplied by

console

Supplied by

console

Supplied by

console

Supplied by

console

120/240V 2

amp, 1 ph

Supplied by

console

Supplied by

console

TD Targets

QuickGrip Adaptors

Vertical Camera

Adjustment

Mobile - Bay-to-Bay

QuickComp

High Resolution

Cameras

Customizable

Lighted Sign

FIA Compatible

Multiple Target Stor-

age Congurations

SPECIFICATIONS

Metal on Metal Contact Non-Contact

Weight of Target 6 lbs

Prole of Target 9 in.

Installation Time 5 seconds

Rolling Compensation

Style Forward

Camera Resolution 2,608 x 1,952

20,000,000 px

Track Width 80 in.

Wheel Base 210 in.

Distance to Wall 66 - 107 in.

Suggested Distance 99 in.

Short Bay Distance

(see site info) 66 in.

MEASUREMENTS

S.A.I. & Included Angle

Set Back

Max Steering Angle To Lock*

Live Ride Height Standard **

Wheelbase Difference

Track Width Difference

Tread Width Difference

Lateral Offset

Rear Set Back

Axle Offset

SBDA **

Body Angle **

Body Wheel Offset & Setback **

Body Roll **

ADJUSTMENTS

Way Up Way Out

WinToe *

Wheel-Off Adjustment

(WinAlign® 9 & Up) Optional

Copyright © 2011, Hunter Engineering Company

Form 6370-T, 09-11

Supersedes Form 6370-T, 07-11

Continued on Page 2

STANDARD FEATURES and ACCESSORIES

SPECIFICATIONS / MEASUREMENTS / ADJUSTMENTS

* Requires standard wide-angle target extensions.

** Requires Ride Height targets. Standard with WA400 consoles. Optional with WA300 consoles.

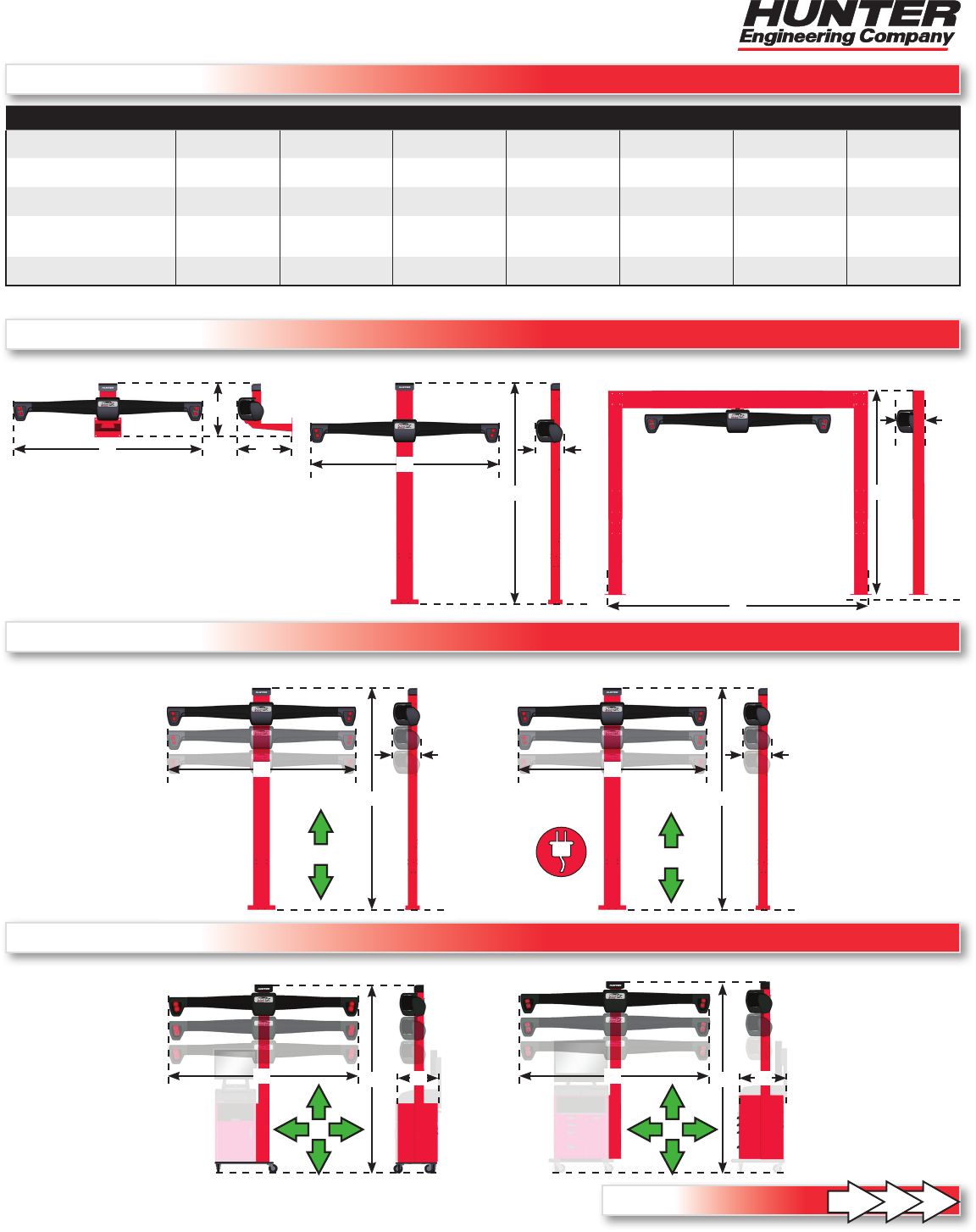

DIMENSIONS / WEIGHTS

FIXED POSITION CAMERA SENSORS

VERTICALLY ADJUSTABLE CAMERA SENSORS

VERTICALLY ADJUSTABLE MOBILE CABINET CAMERA SENSORS

HawkEye Elite™

HE421 Series Sensors

HE421WM HE421FC HE421FM HE421ML HE421LC HE421CM3 HE421CM4

Width (W)105 in.

2667 mm

105 in.

2667 mm

162.5 - 205.5 in.

4128 - 5220 mm

105 in.

2667 mm

105 in.

2667 mm

105 in.

2667 mm

105 in.

2667 mm

Height (H)30 in.

762 mm

122.5 in.

3112 mm

85 - 114.5 in.

2159 - 2908 mm

122.5 in.

3112 mm

122.5 in.

3112 mm

105.5 in.

2680 mm

105.5 in.

2680 mm

Depth (D)15 - 30 in.*

381 - 762 mm*

15 in.

381 mm

18 in.

457 mm

15 in.

381 mm

15 in.

381 mm

23 in.

584 mm

30 in.

762 mm

Vertical Camera

Movement Range N/A N/A N/A 56 - 113.5 in.

1422 - 2883 mm

(from oor)

56 - 113.5 in.

1422 - 2883 mm

(from oor)

60 - 95.5 in.

1524 - 2426 mm

(from oor)

60 - 95.5 in.

1524 - 2426 mm

(from oor)

Shipping Weight 316 lbs 442 lbs 832 lbs 527 lbs 465 lbs 545 lbs 510 lbs

Because of continuing technological advancements, specications, models and

options are subject to change without notice.

* Use of Wall Mount Extenion Kit adds additional 27 - 45 in. to depth.

HE421WM

H

W D

HE421FC

H

WD

HE421CM3

H

WD

HE421CM4

H

WD

HE421FM

H

W

D

HE421ML

H

WD

HE421LC

H

WD

Continued on Page 3

Copyright © 2011, Hunter Engineering Company

Form 6370-T, 09-11

Supersedes Form 6370-T, 07-11

HawkEye Elite™

HE421 Series Sensors

Because of continuing technological advancements, specications, models and

options are subject to change without notice.

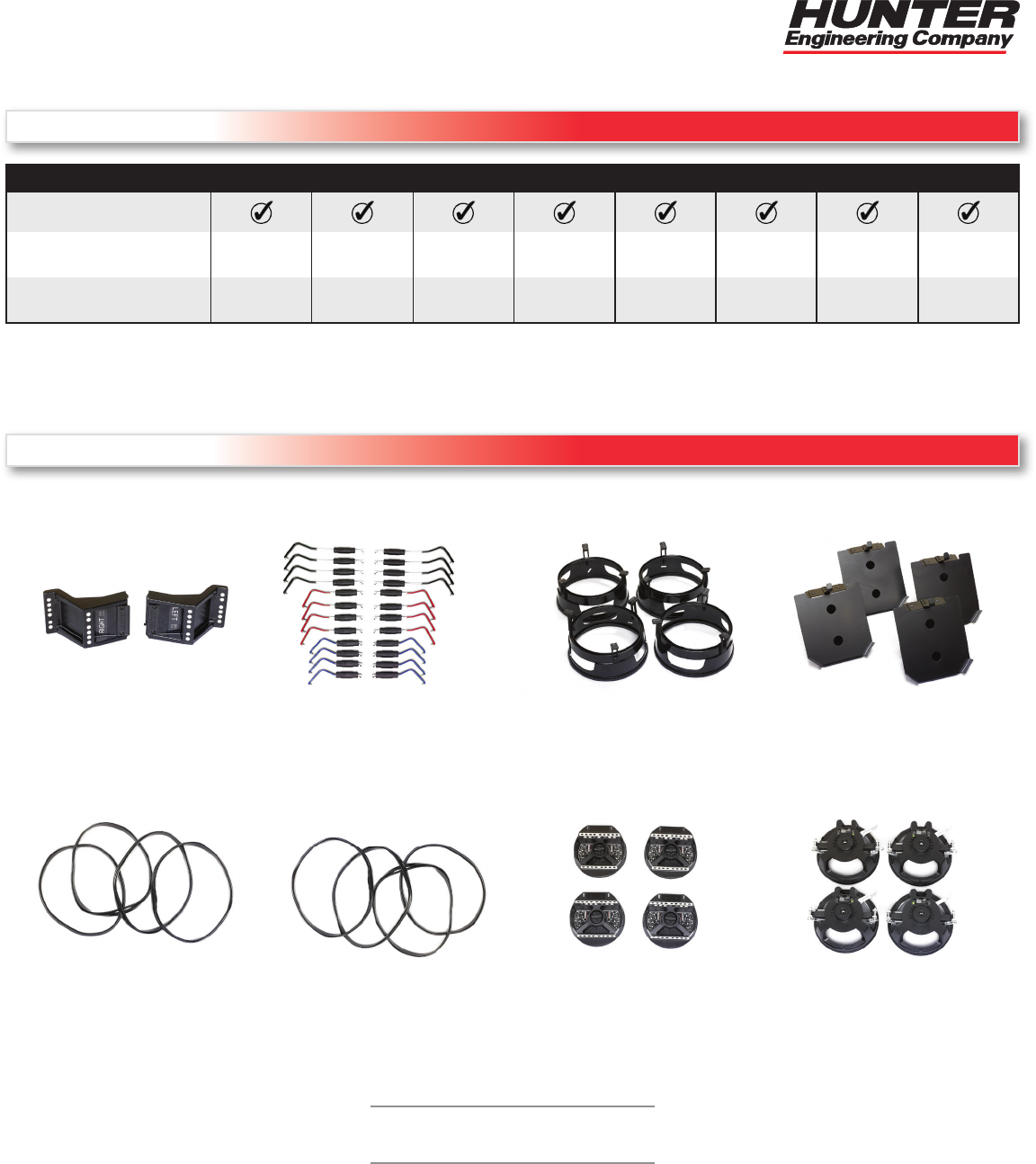

INCLUDED WITH ALL HE421 SENSORS

Wide-Angle Targets

Protective Rings for Deep

Wheel Extensions

Protective Rings for Quick-

Grip Adaptors

Quick-Change Arms Deep-Wheel Extensions

TD Targets QuickGrip Adaptors

Target Storage Brackets

For aligner information visit:

www.hunter.com/alignment

For local contact visit:

www.hunter.com/company/ndrep.cfm

For general inquiries visit:

www.hunter.com or call 800-448-6848

WA400 WT400 WA300 WT300 WA200 WT200 WA100 WT100

HE421 Sensors

WinAlign

®

Version Required V12.0 /

V12.1

V12.0 /

V12.1 V12.1 V12.1 V12.1 V12.1 V12.1 V12.1

Additional Plus Key Required No Additional

Key Required

No Additional

Key Required

Kit 20-2005-1

(448-1016 V2)

Kit 20-2005-1

(448-1016 V2)

No Additional

Key Required

No Additional

Key Required

Kit 20-2005-1

(448-1016 V2)

Kit 20-2005-1

(448-1016 V2)

CONSOLE COMPATIBILITY
