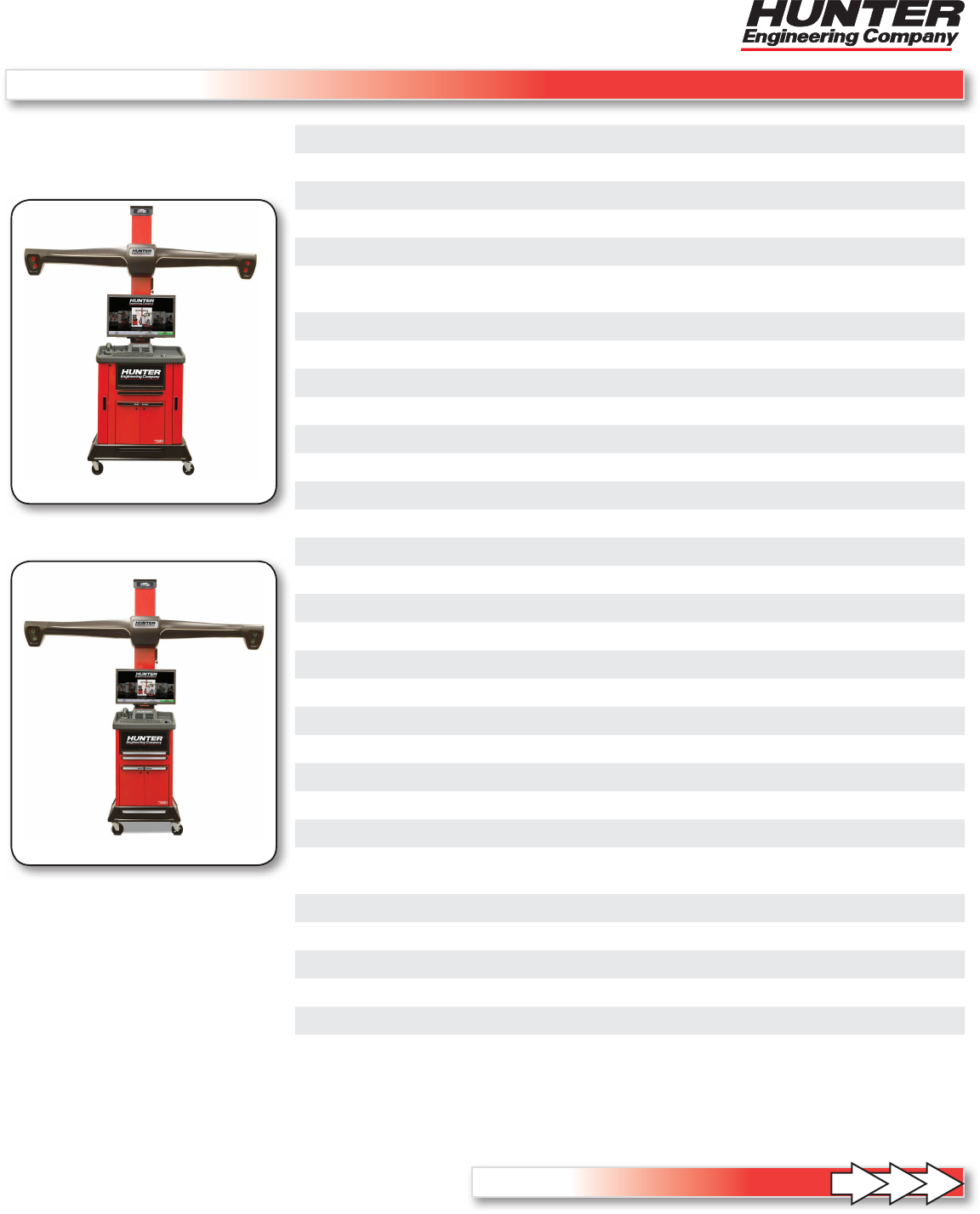

HARDWARE / SPECIFICATIONS / FEATURES / ACCESSORIES
WinAlign®
WA48X / WA47X Console Congurations
* Amperage shown is minimal circuit rating † Isolated Ground Recommended
Power Requirements 115/230V, 15 amp*, 50/60 Hz, 1 ph †
Processor Intel® Core™ i3 - 3.1Ghz (or greater)
Memory 4 GB of DDR3 SDRAM
Hard Drive 120.0 GB SSD (or greater)
DVD-RW/CD-RW Drive Yes - Standard
Monitor Class 24” Widescreen or 27” Widescreen LCD
(32” available on large console)
Wireless Network Module Yes - Standard
Operating System Windows® 7
Supports TD Targets Yes - Standard
Supports HD Targets Yes - Standard
Console-top Storage and Charging Yes - Standard
Color Ink Jet Printer Yes - Standard
Award-Winning WinAlign® Software Yes - Standard
Vehicle Specications (30 plus years) Yes - Standard - 2 Years Free Updates
CodeLink® Steering System Reset Yes - Standard
VIN Barcode Reader Yes - Standard
Complete TPMS Reset Database Yes - Standard
Live Ride Height Adjustment Yes - Standard
Fully Integrated Alignment Yes (FIA Equipped Rack Required)
Modied Vehicle Alignment Yes - Standard with WinAlign Tuner™
Vehicle Inspection with Photos Yes - Standard
Tools and Kits - Basic Catalog Yes - Standard
Tools and Kits - Video and Photos Yes - Standard
Equipment Video Help / Assistance Yes - Standard
HunterNet featuring WebSpecs®Yes - 2 Years Free Standard
Training and Productivity Aids 4,000+ Photos, 1,600+ Illustrations, 400+ Videos
and Animations
Supports TouchRemote Yes - Standard
Steering Wheel Holder Yes - Standard
Brake Pedal Depressor Yes - Standard
Wireless Remote Yes - Standard
Power Line Filter Yes - Standard
Drive-on Camera Compatible Yes - Standard
Copyright © 2013, Hunter Engineering Company
Form 6756-T, 12-13a
Continued on Reverse
Because of continuing technological advancements, specications,
models and options are subject to change without notice.
Large Premium Console
WA48X Series
WA47X Series
Compact Premium Console

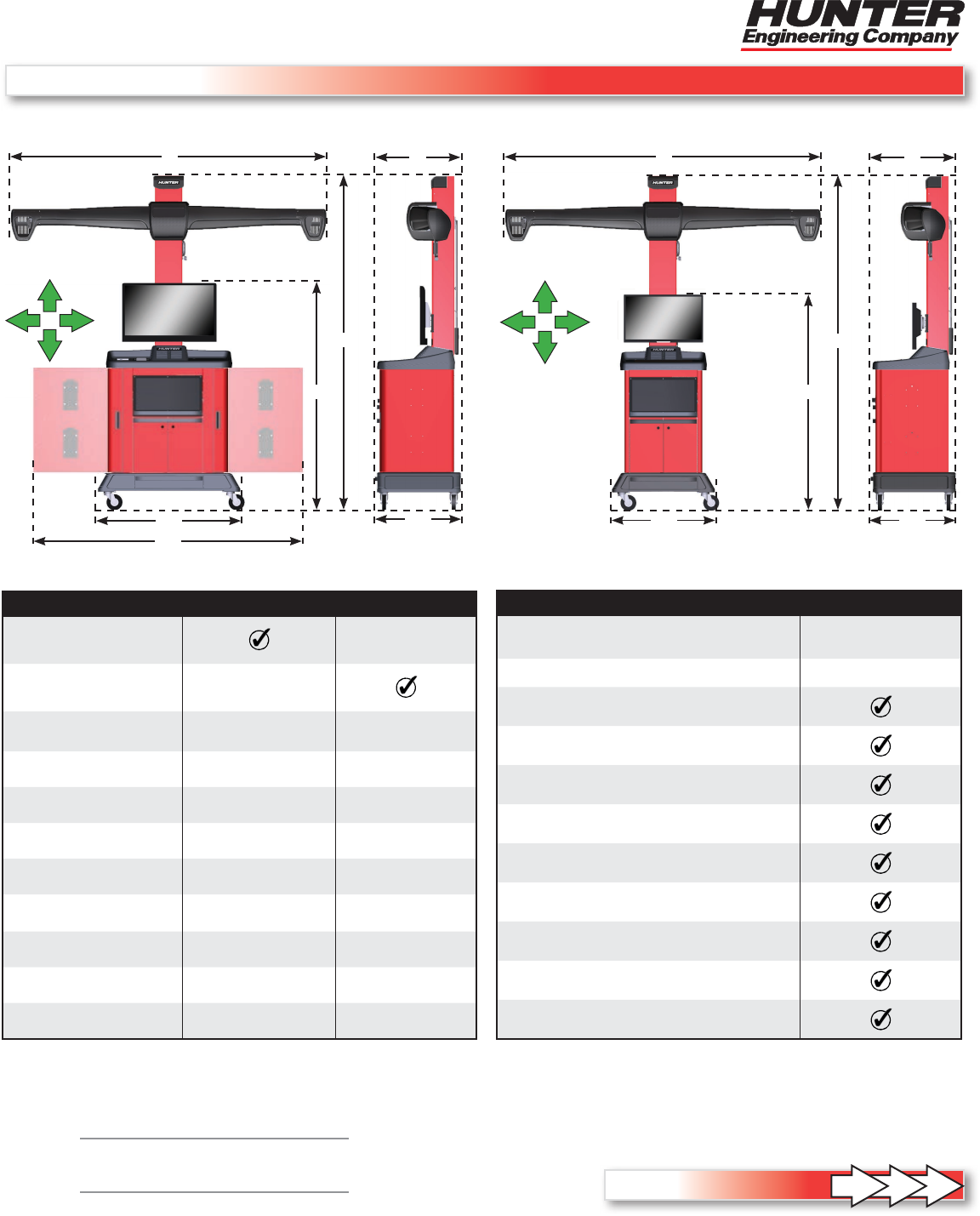

CONSOLE CONFIGURATIONS
Space consideration for storage of accessories: For large and compact consoles, add 10 inches to depth for accessories.
WA48X-CM WA47X-CM
Large Premium
Console-top Storage/Charging,
Storage Drawers
Compact Premium
Console-top Storage/Charging,
Printer Drawer
LCD Monitor
With Swivel Mount Support*
24 in. / 27 in. / 32 in.
Wide-screen
24 in. / 27 in.
Wide-screen
Width (W)105 in.
2667 mm
105 in.
2667 mm
Height (H)108 in.
2743 mm
108 in.
2743 mm
Depth (D)23.5 in.
597 mm
23.5 in.
597 mm
Cabinet Width (W1)44 in.
1117 mm
32 in.
813 mm
Cabinet Width (W2)
Side Storage Doors Open
79.5 in.
2019 mm
-
Cabinet Height (H1)67.5 - 75.5 in.
1715 - 1918 mm
65 - 71 in.
1651 - 1803 mm
Cabinet Depth (D1)23.5 in.
597 mm
23.5 in.
597 mm
Shipping Weight 550 lbs.
249 kg
460 lbs.
209 kg
WinAlign®
WA48X / WA47X Console Congurations
Because of continuing technological advancements, specications,
models and options are subject to change without notice.
For aligner information visit:
www.hunter.com/alignment
For local contact visit:
www.hunter.com/company/ndrep.cfm
For general inquiries visit:
www.hunter.com or call 800-448-6848 Copyright © 2013, Hunter Engineering Company
Form 6756-T, 12-13a
Large Console
D
H
W
HE421CM
Sensor Mount Type Manually Adjustable
Mobile Cabinet Mount
Power Requirements Supplied by console
TD Targets
QuickGrip Adaptors
Vertical Camera Adjustment
Mobile - Bay-to-Bay
QuickComp
High Resolution Cameras
CustomizableLighted Sign
FIA Compatible
Multiple Target Storage Congurations
Continued on Page 3
Compact Console
D
H
W
*Swivel mount support not available for 32” monitor
W1
W2
D1
H1 H1
D1
W1
WinAlign®
WA48X / WA47X Console Congurations

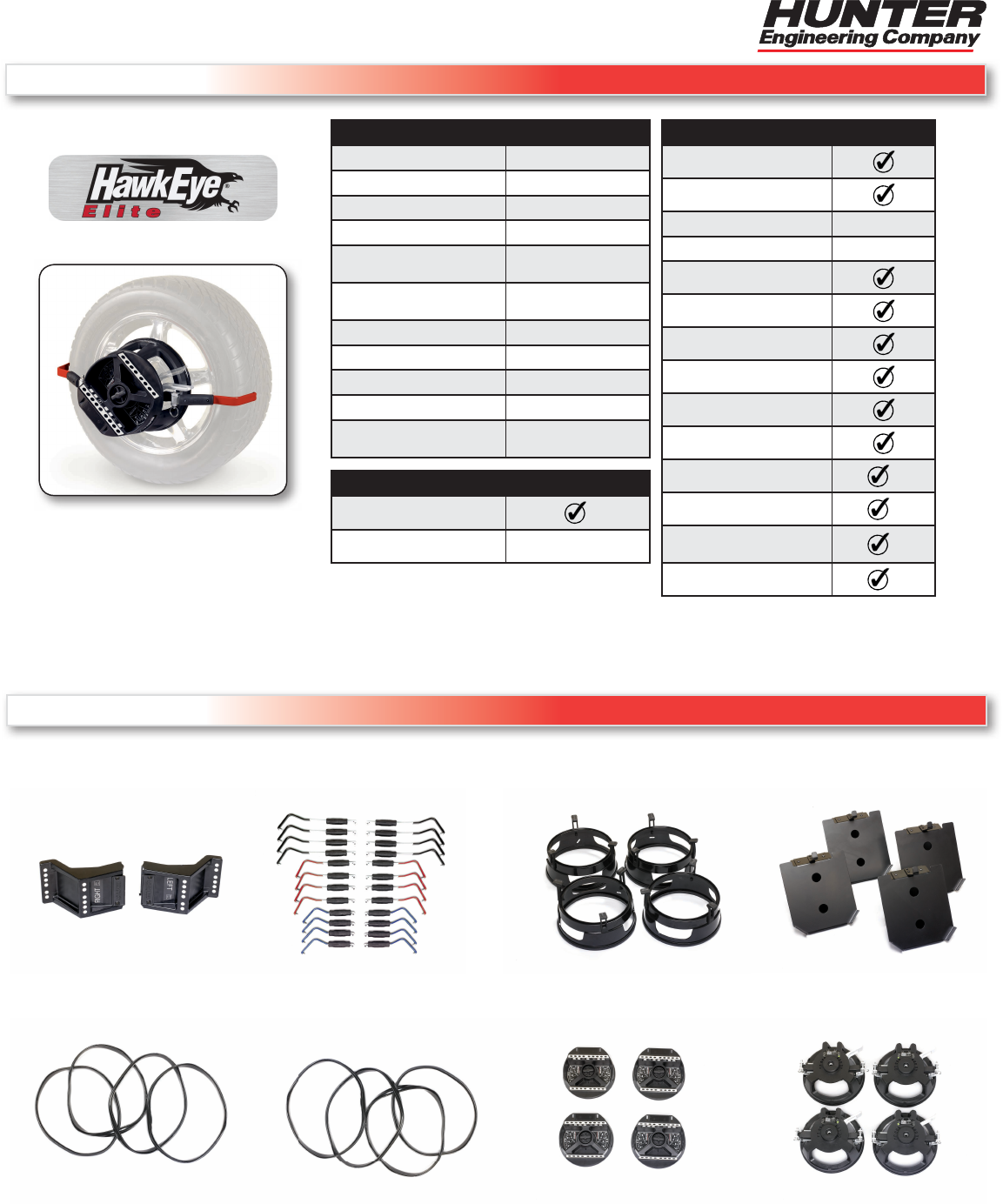

SPECIFICATIONS
Metal on Metal Contact Non-Contact
Weight of Target 6 lbs
Prole of Target 9 in.
Installation Time 5 seconds
Rolling Compensation
Style Forward
Camera Resolution 2,608 x 1,952
20,000,000 px
Track Width 80 in.
Wheel Base 210 in.
Distance to Wall 66 - 107 in.
Suggested Distance 99 in.
Short Bay Distance
(see site info) 66 in.
MEASUREMENTS
S.A.I. & Included Angle
Set Back
Max Steering Angle To Lock*
Live Ride Height Standard **
Wheelbase Difference
Track Width Difference
Tread Width Difference
Lateral Offset
Rear Set Back
Axle Offset
SBDA **
Body Angle **
Body Wheel Offset &
Setback **
Body Roll **
ADJUSTMENTS
Way Up Way Out
WinToe *
Wheel-Off Adjustment
(WinAlign® 9 & Up) Optional
Copyright © 2013, Hunter Engineering Company
Form 6756-T, 12-13a
SPECIFICATIONS / ADJUSTMENTS / MEASUREMENTS
* Requires standard wide-angle target extensions.
** Requires Ride Height targets. Standard with WA400 consoles. Optional with WA300 consoles.
INCLUDED WITH ALL HE421 SENSORS
Wide-Angle Targets
Protective Rings for Deep
Wheel Extensions
Protective Rings for Quick-
Grip Adaptors
Quick-Change Arms Deep-Wheel Extensions
TD Targets QuickGrip Adaptors
Target Storage Brackets
HE421CM sensors are compatible with WA48X and WA47X cabinets with WinAlign version 14.1 software only.
Because of continuing technological advancements, specications,
models and options are subject to change without notice.
