HARDWARE / SPECIFICATIONS / FEATURES
QC31 / QC32 / QC33
Quick Check® System
HARDWARE
Power Requirements 115/230V, 15 amp*, 50/60 Hz, 1 ph †
Processor 3.06 Ghz Intel® Core™ i3
Memory 4 GB of DDR3 SDRAM
Hard Drive 120 GB Solid State Hard Drive (or greater)
DVD-RW/CD-RW Drive Standard
Monitor Class 24” Widescreen LCD
Wireless Network Module Yes - Standard
Operating System Windows® 7 - 64 Bit
Compact Console with Open Printer Standard
Printer HP Color Printer
Wireless Remote Standard
Power Line Filter Standard
Drive-on Camera Compatible Yes
PRODUCTIVITY TOOLS
Hunter QuickCheck® Software Standard
Vehicle Specications (30 plus years) Standard - 2 Years Free Updates
Real-Time Specs Delivered by Web WebSpecs®
VIN Barcode Reader Standard
HunterNet®3 Years Free Access for 1 User
QC Alignment Printout 3 Available Options
Continued on Reverse
Because of continuing technological advancements, specications, models and options are
subject to change without notice.
For aligner information visit:
www.hunter.com/inspection
For local contact visit:
www.hunter.com/company/ndrep.cfm
For general inquiries visit:
www.hunter.com or call 800-448-6848
QC32

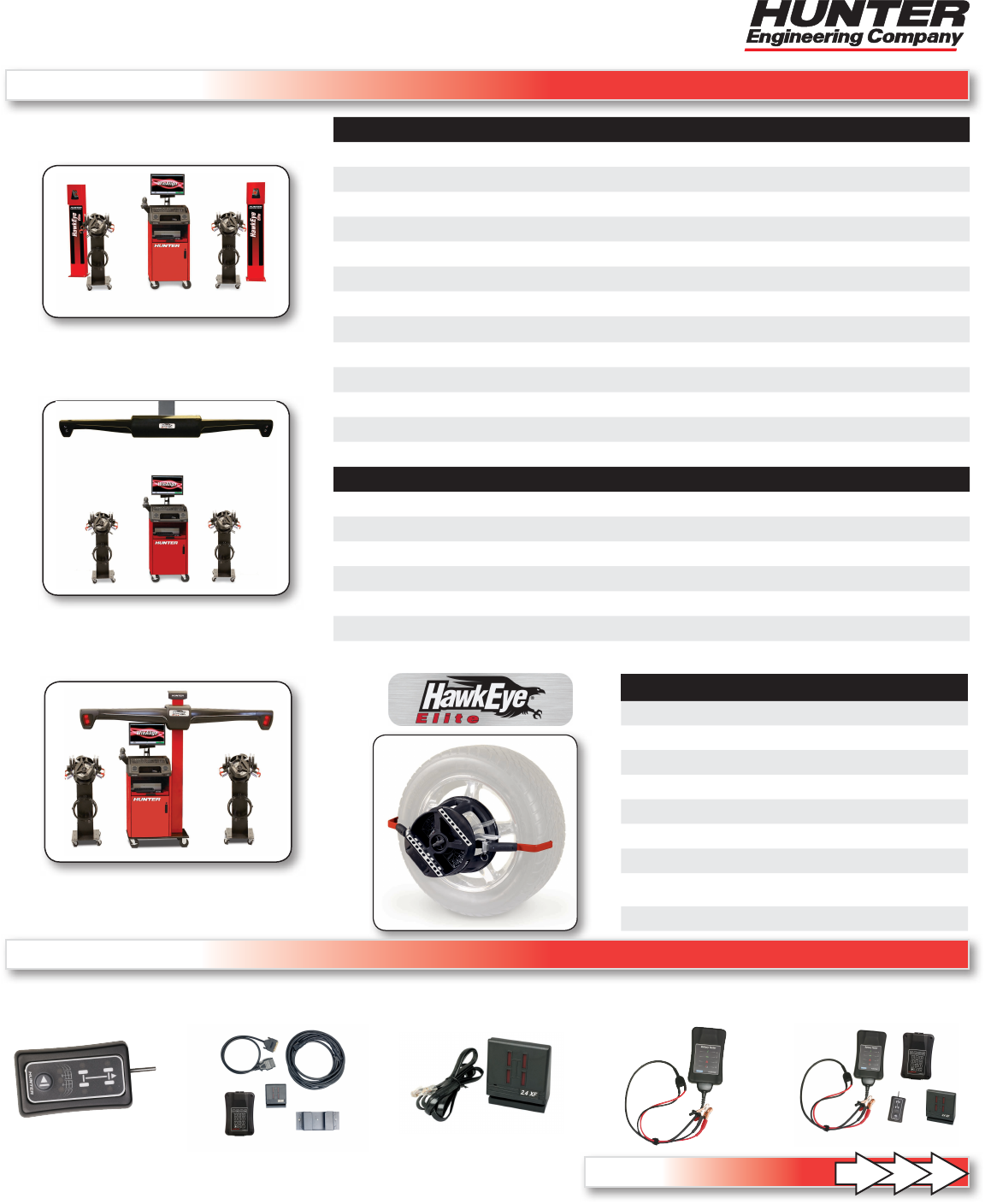

SPECIFICATIONS
Metal on Metal Contact Non-Contact
Weight of Target 6 lbs
Prole of Target 9 in.
Installation Time 5 seconds
Wheel Assembly Range 40 in.
Rolling Compensation Style Forward
Mobile Storage Carts 2
Camera Resolution 2,608 x 1,952
20,000,000 px
Reccomended Bay Length 25 ft.
QC31
QC33
OPTIONS / ACCESSORIES
Copyright © 2013 - 2015, Hunter Engineering Company
Form 6666-T, 10-13a
Supersedes Form 6666-T, 06-13
CodeLink® 2 w/ Pod
20-2785-1
Tread Depth Tool
20-2782-1*
XF-2 Pod
20-2072-1
Battery Tester
20-2781-1*
Accessory Bundle
20-2796-1
*20-2072-1 XF-2 Pod Required if kit 20-2785-1 or 20-2796-1 not purchased
*Amperage shown is minimal circuit rating. † Isolated Ground Recommended.
CONSOLE CONFIGURATIONS
QC31 QC31A QC31B QC32 QC32A QC32B QC33 QC33A QC33B
Battery Tester
20-2781-3
Tread Depth Tool
20-2782-1
CodeLink 2 w/ Pod
20-2785-1
Brake Plates
B424-01-PNT
Drive Thru Sensors
Drive Under Sensors
Cabinet Mount Sensors
QC31 / QC32 / QC33
Quick Check® System
Copyright © 2013 - 2015, Hunter Engineering Company
Form 6666-T, 10-13a
Supersedes Form 6666-T, 06-13
W
H
D

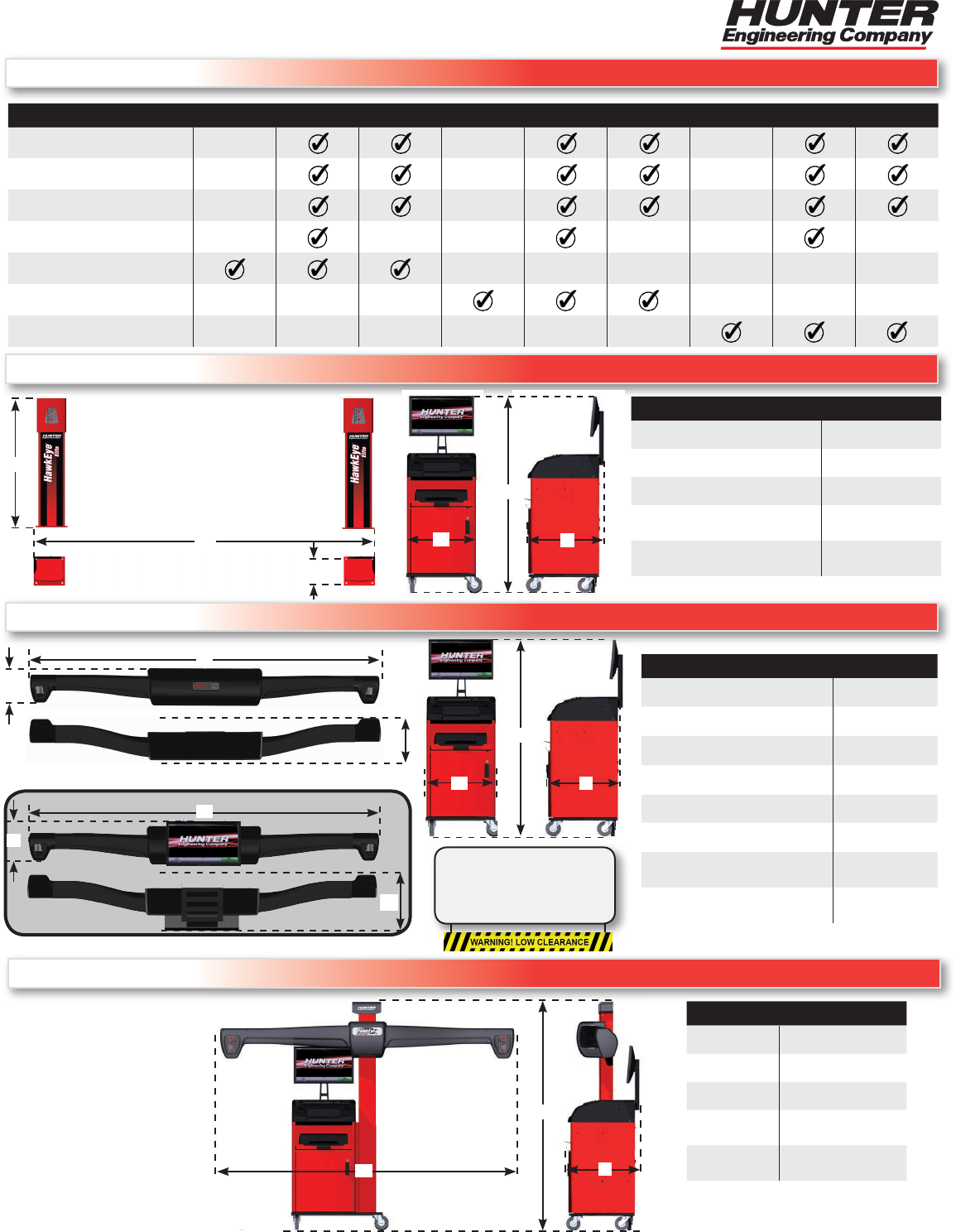

QC31 - DRIVE THRU DIMENSIONS
WD
H
WD
H
QC32 - DRIVE UNDER DIMENSIONS
QC33 - CABINET MOUNT DIMENSIONS
QC Cabinet QC31
Width (W)23 in.
584 mm
132 in.
3353 mm
Height (H)65 in.
1651 mm
50 in.
1270 mm
Depth (D)23 in.
584 mm
11 in.
279 mm
Sensor
Range
-
78 to 106 in.
1981 to 2692 mm
Shipping
Weight
215 lbs
98 kg
742 lbs
337 kg
QC Cabinet QC32
Width (W)23 in.
584 mm
135 in.
3429 mm
Width (W)
(With Monitor Kit)
23 in.
584 mm
135 in.
3429 mm
Height (H)65 in.
1651 mm
15in.
381 mm
Height (H)
(With Monitor Kit)
65 in.
1651 mm
18 in.
457 mm
Depth (D)23 in.
584 mm
16 in.
406 mm
Depth (D)
(With Monitor Kit)
23 in.
584 mm
22 in.
559 mm
Sensor
Range
-
119 in.
3023 mm
Shipping
Weight
215 lbs
98 kg
689 lbs
298 kg
QC33
Width (W)96 in.
2438 mm
Height (H)82.5 in.
2096 mm
Depth (D)23 in.
584 mm
Sensor
Range
102 to 126 in.
2591 to 3200 mm
Shipping
Weight
889 lbs
403 kg
D
H
W
W
H
D
W
H
D
It is recommended that a
clearance warning be hung at
the entrance of Drive Under
Quick Check® bays.
Because of continuing technological
advancements, specications,
models and options are subject to
change without notice.
