Form# 41783-01

20110610

©2011 Hunter Fan Co.

English

PermaLifePermaLifePermaLife

Owner’s Manual

Models

30023

30026

30041

30043

Air Purier

41783-01 06/10/2011 2 © 2011 Hunter Fan Company

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING

THIS AIR PURIFIER AND SAVE THESE

IMPORTANT INSTRUCTIONS

1. ALWAYS place this Air Purier on a rm, level surface. ALWAYS place the Air

Purier at least six (6) inches away from walls and heat sources such as

stoves, radiators or heaters. This Air Purier may not work properly on an uneven

surface.

2. Place the Air Purier in an area that is out of the reach of children.

3. Before using the Air Purier, extend the cord and inspect for any signs of damage.

DO NOT use the product if the cord has been damaged.

4. This product has a polarized plug (one blade is wider than the other) as a safety

feature. This plug will t into a polarized outlet only one way. If the plug does not

t fully into the outlet, reverse the plug. If it still does not t, contact a qualied

electrician. DO NOT attempt to defeat or override this safety feature.

5. ALWAYS UNPLUG the Air Purier when it is not in operation, while the lter is

being changed, and while it is being cleaned.

6. DO NOT tilt or move the Air Purier while it is in operation. Shut off and unplug

before moving.

7. DO NOT immerse the Air Purier in water as permanent damage will occur. Refer

to and follow the CLEANING AND FILTER REPLACEMENT instructions.

Introduction

Thank you for purchasing the PermaLife™ Air Purication System from Hunter Fan

Company. You have purchased the latest development in portable Air Purication

Systems. This system has been developed to improve the quality of the air you

breathe.

Your PermaLife™ Air Purication System outperforms other air purication systems

by removing dust, smoke, and pollen particles as small as .1 microns in size. Room

air is pulled in through the front grill and cleaned across the activated carbon pre-lter

and the PermaLife™ system lter. Clean air is then released out the top grill in order

to avoid stirring up settled particles.

Model 30023 includes an Ionizer

Using the ionizer improves the quality of air in the room. Negative ions are released

into the air, and positively charged particles cling to the negative ions. These particles

settle out of the air and can be vacuumed up during normal cleaning. These particles

are also more easily trapped in the PermaLife™ system lter as they pass through

the PermaLife™ Air Purication System.

Figure 1

Power Control - Choose Hi, Med, or

Lo speed. The red light will be illumi-

nated when the power is ‘ON’.

Ionizer - Allows you to turn the ionizer

‘ON’. The green light will be illumi-

nated when the ionizer is ‘ON’.

PERMALIFE™

FILTER

FRONT

GRILL

WASHABLE

PRE-FILTER

COLOR CODED

FILTER CHART

RELEASE BUTTON

(On each side) POWER

CONTROL

IONIZER

Air Purier Parts

How the PermaLife™ System Works

Below is an illustration of how the PermaLife™ air purication system works. Dust,

pollen and other allergens are pulled into the air purication system and cleaned

through the PermaLife™ Filter. Clean, puried air is then released into the room.

Dust & Irritants Pollen & Allergens Odors Bacteria Pet Hair & Dander

Cleanable

Pre-lter

Sub-Micron

Filter

Ionizer

41783-01 06/10/2011 3 © 2011 Hunter Fan Company

Using Your Air Purier

1. Place your PermaLife™ Air Purication System on a hard, at surface. We rec-

ommend placing it on a table top in order to achieve the best air circulation for

the room.

2. Plug the unit into a 120V electrical outlet.

3. Select a speed by sliding the speed selector to the appropriate location. The red

power light will be illuminated when you have selected a speed.

4. Turn the ionizer ‘on’, by sliding the ionizer switch to the ‘on’ position. The green

light will be illuminated when the ionizer is ‘on’.

NOTE: The ionizer can release negative ions when the fan is not blowing. If it

is used consistently without the fan, the dust particles that are attracted to the

negative ions may deposit on your walls and oors. To minimize these deposits,

we recommend that you use the ionizer only when the fan is blowing (when the

unit is on LO, MED, or HI speed).

Cleaning Your Air Purier

Proper maintenance of your Hunter Air Purier will help ensure years of trouble free

service.

Follow these steps to properly maintain your air purier:

1. Approximately every 90 days, the outside of the unit should be cleaned with a

soft, damp cloth.

2. If needed, the front grill can be removed from the unit and cleaned with soapy

water. Simply remove the pre-lter before exposing the grill to water.

3. Follow the instructions in the Cleaning the Filter and Pre-Filter section to deter-

mine when to clean the lters.

NOTES:

• The air purier must be unplugged during the cleaning process.

• Be sure the unit is completely dry before plugging in and using.

• Never immerse unit in water.

Cleaning the Filter and Pre-Filter

The PermaLife™ Filtration System uses a cleanable lter that never has to be changed,

only cleaned. The proper time to clean the lter depends on usage and the environ-

ment. Use the following list to help determine if the lter should be cleaned:

• Compare the color of the lter to the color coded chart on the inside of the hous-

ing. If the lter color matches the darkest color on the chart, you should clean the

lter.

• If you notice a decrease in air output or an increase in noise at any time during

normal operation, the lter may be clogged. Clean the lter to return to normal

operation.

41783-01 06/10/2011 4 © 2011 Hunter Fan Company

To clean the lter and pre-lter:

1. First, turn off and unplug the air purier.

2. Next, remove the front grill. Press the buttons that are on each side of the front

grill. Refer to Figure 1. When they are pressed inward, you will be able to pull

the front grill forward, opening the unit.

3. Gently pull on the lter to remove it from the unit. While removing the lter, note

the directional arrows printed on the top of the lter. The lter will be reinstalled

with the same orientation. Refer to Figure 2.

4. The label on the top side of the lter points to the side that should be cleaned.

Refer to Figure 2. With a vacuum cleaner and upholstery brush attachment, clean

the lter until all particles are removed. Do not use water or liquids to clean.

5. Install the lter with arrows pointing towards the unit. Refer to Fig. 2. Press the

lter rmly into the air purier. To avoid damaging the lter media, you should

press on the frame of the lter only.

6. When you remove the front grill to clean it, you should also remove the pre-lter

from the front grill and gently wash it in soapy water. Washing the pre-lter can

reduce the frequency of cleaning your PermaLife™ lter. Please make sure that

the pre-lter is completely dry before reinstalling in the unit. If not, any moisture

could damage the unit or affect performance.

7. Close the front cover by once again pressing the buttons and allowing the front

cover to slip into place over the buttons. The unit is now ready for normal opera-

tion.

8. Plug in the unit.

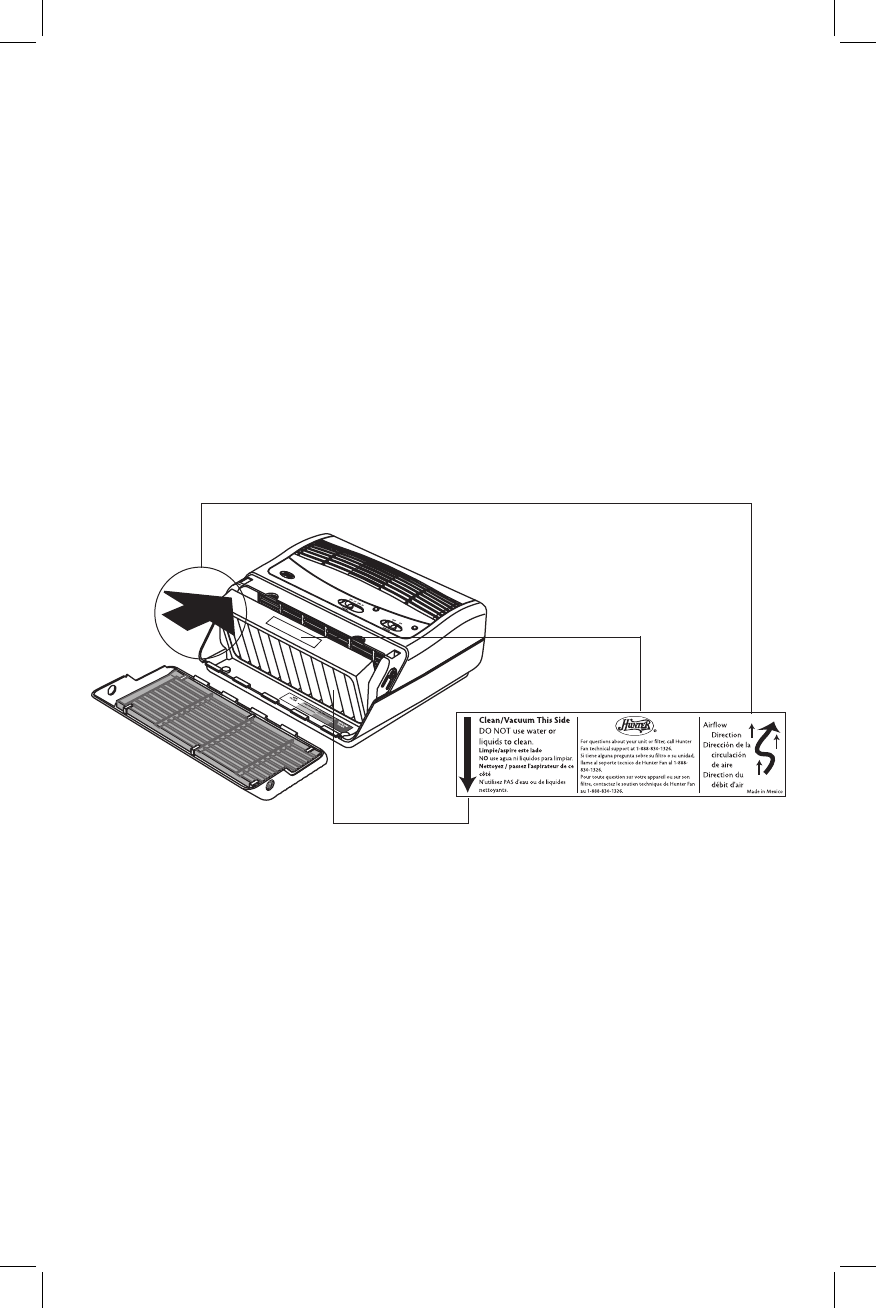

Figure 2

Filter label

Reinstall lter with airow direction

arrows pointing toward unit.

Clean/Vacuum this

side of lter

41783-01 06/10/2011 5 © 2011 Hunter Fan Company

Replacement Parts

To obtain a replacement part for your Air Purier, contact custom-

er service at 1-888-830-1326 (US), 1-888-855-8300 (Canada),

or e-mail us at TechSupport@hunterfanhq.com. Please be pre-

pared to tell the operator the model number of your air purier

and the name of the part you need to replace. Refer to gure 1

for part names.

41783-01 06/10/2011 6 © 2011 Hunter Fan Company

Hunter Fan Company

PermaLife™ Air Purication System

5 YEAR LIMITED WARRANTY

The Hunter Fan Company makes the following limited warranty to the original residential user

or consumer purchaser of the PermaLife™ Air Purication System:

If any part of your PermaLife™ Air Purication System (“Air Purier”) motor fails during the rst

ve (5) years from the date of installation to you due to a defect in material or workmanship,

we will provide a replacement Air Purier free of charge. Installation is deemed to occur at the

date if purchase.

If the Air Purier cord, ionizer, or front grill fails any time within one (1) year after installation

due to a defect in material or workmanship, we will replace or, at our option, repair the unit

free of charge at our Service Department in Memphis, Tennessee. You will be responsible for

all parts and labour costs after this one-year period.

USE OF A NON-HUNTER FILTER WILL INVALIDATE THIS WARRANTY. IF THE ORIGINAL

RESIDENTIAL USER OR CONSUMER PURCHASER CEASES TO OWN THE AIR PURIFIER,

THIS WARRANTY AND ANY IMPLIED WARRANTY WHICH THEN REMAINS IN EFFECT,

INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE, ARE VOIDED.

NO WARRANTY, EXPRESSED OR IMPLIED , INCLUDING ANY WARRANTY OF MERCHANT-

ABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS MADE IN RESPECT TO THE

FILTER MATERIAL OR CARBON FILTER.

THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE DURATION OF

ANY IMPLIED WARRANTY INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IN RESPECT TO

THE MOTOR IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY

SET FORTH ABOVE.

This warranty is voided if the air purier is not purchased and used in the USA or Canada.

This warranty excludes and does not cover defects, malfunctions or failures of the Air Purier

which were caused by repairs by persons not authorized by us, use of parts or accessories

not authorized by us, mishandling, modications, or damage to the Air Purier while in your

possession, or unreasonable use, including failure to provide reasonable and necessary main-

tenance. This warranty does not cover Air Puriers used in commercial applications. There are

no express or implied warranties as to commercial purchasers or users.

To obtain service, contact the Hunter Fan Company Service Department, 2500 Frisco Avenue,

Memphis, Tennessee 38114, 1-888-830-1326. You will be responsible for insurance and freight

or other transportation to our factory service center. We will return the Air Purier freight pre-

paid. The Air Purier should be properly packaged to avoid damage in transit since we will not

be responsible for any such damage. Proof of purchase is required when requesting warranty

service. The purchaser must present sales receipt or other document that establishes proof

of purchase.

IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR DIRECT, INDIRECT, SPE-

CIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES IN EXCESS OF THE PURCHASE

PRICE OF THE AIR PURIFIER. YOUR SOLE REMEDY WILL BE REPAIR OR REPLACEMENT

AS PROVIDED ABOVE.

SOME AMERICAN STATES AND CANADIAN PROVINCES DO NOT ALLOW:

• LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS;

• THE EXCLUSION OR LIMITATION OF DIRECT, INDIRECT SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES;

SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE

OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

41783-01 06/10/2011 7 © 2011 Hunter Fan Company

HUNTER FAN COMPANY

7130 Goodlett Farms Pkwy suite 400,

Memphis, TN 38016, USA
