Owner’s Manual

Model

44372

44377

Form# 44040-01

20100511

English

7 Day Programmable

I N S T A L L A T I O N

5 MINUTE

M T WT F S S

44040-01 • 05/11/2010

Table Of Contents

At A Glance

Know Your ermostat ....................................................3

Setup

Setting Day and Time .....................................................10

Scheduling

Scheduling Introduction ..................................................12

Personal Scheduling Charts ...............................................13

Setting Your Schedule .....................................................14

Temporary Temperature Change ..........................................20

Turning Oﬀ Scheduling ...................................................22

Home Today ..............................................................24

Save Away .................................................................26

Features

Alerts .....................................................................28

Menu Options ............................................................32

Energy Saver Bar ...........................................................38

Additional Features .......................................................40

ermostat Assistance

Troubleshooting and Support .............................................41

Technical Support .........................................................43

Warranty

1 Year Guarantee ..........................................................44

Your thermostat has been pre-programmed from the factory with no programming necessary.

We recommend using these pre-programmed settings for a few days before altering them as

they offer maximum energy saving benets. If you do decide to alter your programs, use the

charts on page 13 to write out your scheduled times and temperatures. After you have recorded

your preferences, follow the instructions on page 14 to alter your temperature settings.

There is no need to program the thermosat at the wall it is mounted to! Remove the thermostat

from the backplate by gripping the sides rmly and pulling it straight off. This allows you to

program the thermostat in comfort.

After you have programmed your thermostat, no other setting changes are necessary unless you

wish to browse through the menu to see how you may further adjust the independent settings of

your thermostat to meet your lifestyle. The features section starting on page 32 of this manual will

describe these settings. Most setting have been preset for optimal performance.

If you need any assistance with installion or setup of your new Hunter Thermostat, please call us,

our technical support staff are ready to help!

USA: 1-888-830-1326

Canada: 1-866-268-1936

Hours of operation are from 7:00 am to 7:00 pm Monday - Friday and 8:00 am to 5:00 pm on

Saturday, Central Time. You may also contact us over the Internet at:

www.hunterfan.com

3Know Your ermostat

At A Glance

44040-01 • 05/11/2010

At A Glance

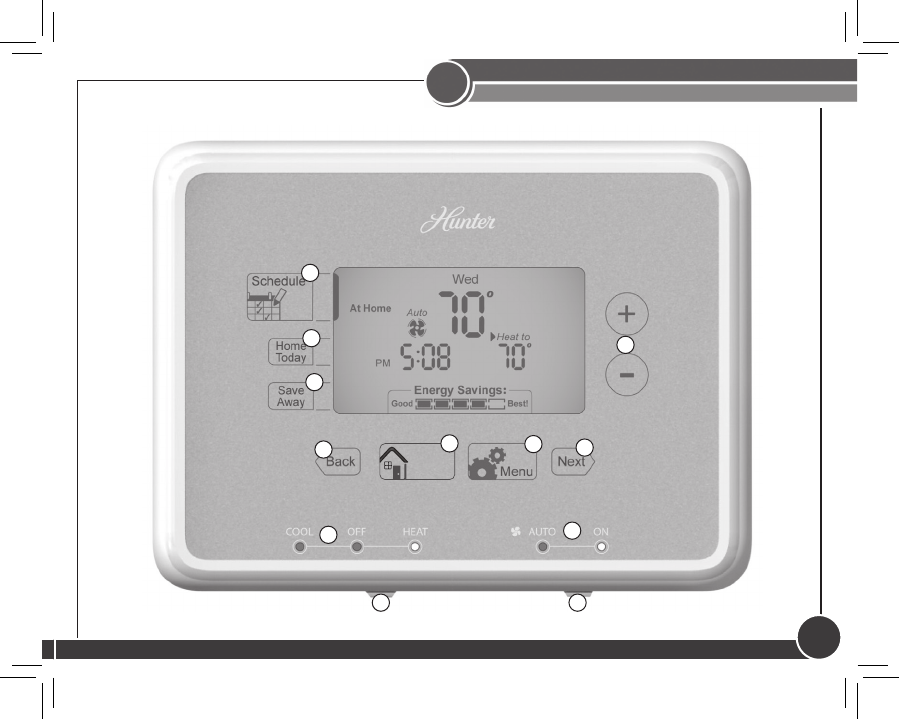

1. Enters Schedule Setup for altering scheduled programs.

2. Sets the Home Today feature for when you are home during a regularly scheduled Away

period.

3. Sets the Save Away feature for when you will not be home during a regularly programmed

time.

4. Conrms completion of an action or returns you to the Home screen.

5. Allows access to the advanced features of the thermostat.

6. Moves you forward or backward while setting up features or schedules.

7. Adjusts time and temperature settings as well as moving up or down menu lists.

8. Indicates whether the system is set to Heat, Cool, or Off.

9. Shows if the fan is set to Auto or On modes.

10. Allows you to switch between Heat, Cool, and Off modes.

11. Allows you to switch between fan Auto and On modes.

Know Your ermostat

At A Glance

3Know Your ermostat

one

44040-01 • 05/11/2010

1. Holds 2 “AA” Batteries.

2. HE/HG Switch - allows you to set your furnace to Gas/Oil or Electric, based on the type of

system you have.

3. Conventional/Heat Pump System Switch - Allows your thermostat to operate your HVAC

system properly by selecting the system type that you have.

* Conventional System: Uses a condensing unit for cooling and a seperate

furnace system for heating.

* Heat Pump System: Uses the condensing unit for both heating and cooling.

NOTE: If you are unsure of your system type it may be necessary to contact our

technical support department, your HVAC manufacturer, or a local HVAC technician

to determine this. Improper selection of your system type could cause the thermostat to

not operate your system properly.

At A Glance

Know Your ermostat

At A Glance

3Know Your ermostat

44040-01 • 05/11/2010

At A Glance

1. Shows the current day of the week or weekend.

2. Indicates the thermostat is running in schedule mode.

3. Flashes when the furnace lter should be checked for replacement.

4. On when the current schedule period is running.

5. Shows the current mode of the fan: Auto or On.

6. C will display when in Celsius mode. Nothing will display when set to Fahrenheit.

7. Indicates the current active schedule period.

8. Shows the system fan is running.

9. Indicates the current room temperature.

10. Indicates your Heat Pumps Auxiliary Heat is running.

11. Shows when the Home Today feature is running.

12. On when the current operating mode, heat or cool, is running.

13. Current operating mode, heat or cool.

14. Low battery warning, indicates you need to replace the batteries in the thermostat.

15. Indicates the current time in am or pm .

16. Current Set temperature the thermostat is scheduled to run.

17. Indicates the Thermostat is running in save away mode.

18. Will show when your heat pump or system is reporting a problem to the Thermostat.

19. Indicates in hours or days how long the Save Away period is set for.

20. Energy saver bar helps you make decisions on conserving energy.

21. Indicates the thermostat is locked and will not accept input.

Know Your ermostat

At A Glance

3Know Your ermostat

At Home Auto

Check H.P.!

Hours

Aux Em.

Energy Savings:

Good Best! Lock

Mon

Filter

Heat to

20 21

44040-01 • 05/11/2010

Setup

Setting Day and Time

Once you install the batteries, the thermostat will prompt you to set the current day

and time.

1. You will notice that “Mon” will be ashing at the top left of your screen. Use the

or buttons to move to your current day of the week and press the Next button to

advance to the next step.

2. Use the or button to change between am and pm. Choose Next to advance.

3. Next you will select your current hour by using the or buttons. The Next button

advances you to the next step.

4. Set your minutes using the or and press Done/

Home to nish or Back if you need to

make a correction to a previous step.

5. When nished, the thermostat will show “Updated!” to conrm your settings are

saved.

6. Your thermostat will next prompt you to set your programming, see page 14 step 2 if

you wish to alter your programs at this time.

4Setting Day and Time

Setup

Done/

Home

Back Next

Schedule

Save

Away

Home

Today

1-2

Mon

Done/

Home

Back

Schedule

Save

Away

Home

Today

Updated!

Done/

Home

Back Next

Schedule

Save

Away

Home

Today

Mon

Done/

Home

Back Next

Schedule

Save

Away

Home

Today

Mon

44040-01 • 05/11/2010

* The schedule time can be set in 15 minute increments, and remains the same for both Heat

and Cool programs.

* The scheduled temperature can be set in increments of 1°F (1°C).

* After 15 minute without a key press, the thermostat will return to the home display screen.

* When setting the schedule time, note the AM / PM indicator.

* At any stage during your scheduling, you can use the Back or Next buttons to move forward or

backwards through the steps. Done/

Home will save any changes, even if you have not scheduled or

altered all settings.

* Arrows beside each schedule mode and beside heat/cool modes will indicate which ones are

active.

Read the scheduling section thoroughly to ensure you understand your scheduling options and

which will best t with your lifestyle. The following notes should help you with scheduling:

Scheduling

Scheduling Introduction

This thermostat has been pre-programmed to provide optimal energy savings. No

programming is necessary. We recommend you run these programs for a few days before

adjusting your programming. If it is necessary to change these settings, use the scheduling

table on the next page to record your new settings. You will also nd the default schedule there

as well.

5Personal Scheduling Charts

Scheduling

Day Away Asleep Home

Monday-Friday

Start Time: 8:00am

End Time: 4:00pm

Heat Temp: 60OF (16OC)

Cool Temp: 85OF (29OC)

Start Time: 10:00pm

End Time: 6:00am

Heat Temp: 60OF (16OC)

Cool Temp: 82OF (28OC)

Heat Temp: 68OF (20OC)

Cool Temp: 78OF (26OC)

Saturday

Start Time: 8:00am

End Time: 4:00pm

Heat Temp: 60OF (16OC)

Cool Temp: 85OF (29OC)

Start Time: 10:00pm

End Time: 6:00am

Heat Temp: 60OF (16OC)

Cool Temp: 82OF (28OC)

Heat Temp: 68OF (20OC)

Cool Temp: 78OF (26OC)

Sunday

Start Time: 8:00am

End Time: 4:00pm

Heat Temp: 60OF (16OC)

Cool Temp: 85OF (29OC)

Start Time: 10:00pm

End Time: 6:00am

Heat Temp: 60OF (16OC)

Cool Temp: 82OF (28OC)

Heat Temp: 68OF (20OC)

Cool Temp: 78OF (26OC)

Default Schedule

Note: Use a pencil so these records may be changed at a later time if necessary.

Day Away Asleep Home

Monday-Friday

Start Time:

End Time:

Heat Temp:

Cool Temp:

Start Time:

End Time:

Heat Temp:

Cool Temp:

Heat Temp:

Cool Temp:

Saturday

Start Time:

End Time:

Heat Temp:

Cool Temp:

Start Time:

End Time:

Heat Temp:

Cool Temp:

Heat Temp:

Cool Temp:

Sunday

Start Time:

End Time:

Heat Temp:

Cool Temp:

Start Time:

End Time:

Heat Temp:

Cool Temp:

Heat Temp:

Cool Temp:

Alternate Schedule

* The Home schedule automatically calculates the remaining times from Away and Asleep and assigns them

the Home temperature.

44040-01 • 05/11/2010

Scheduling

Setting Your Schedule

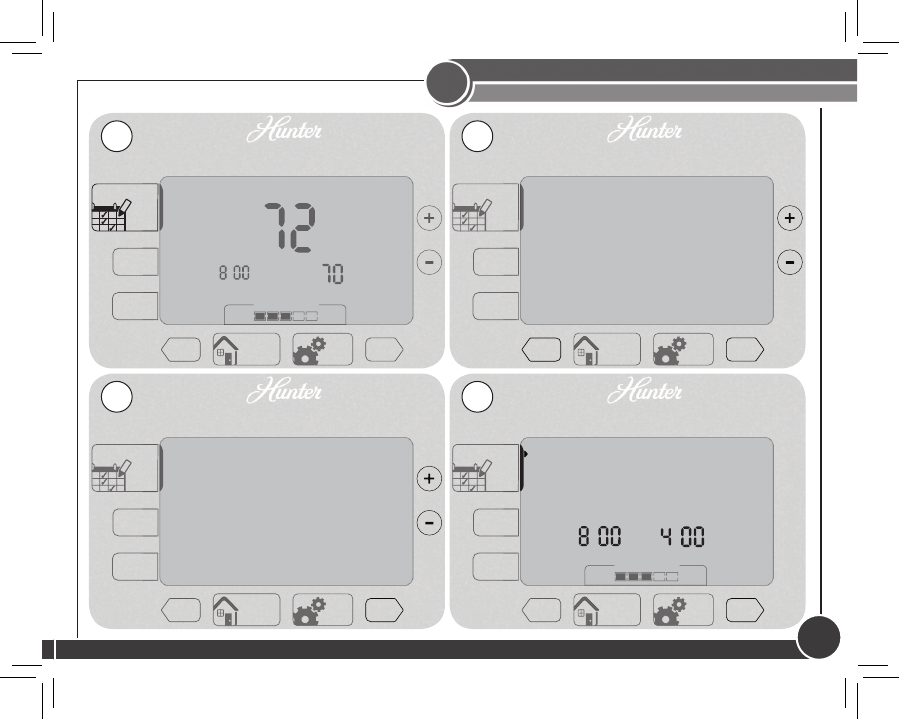

1. Press the Schedule Button to enter Scheduling mode.

2. Use the or buttons to select “On” and then Next to move forward to Scheduling.

Note: If you do not wish to use the scheduling option on your thermostat, refer to page 22, step 2.

3. Monday will be ashing on the screen, to proceed with scheduling, press Next . If you wish

to start programming another day, press the or button until it shows at the top of the

screen and press Next .

4. By default “Away” will be ashing on screen to start your scheduling. Use the Next button to

proceed to the next step.

5. Use the or buttons to adjust the start time on the left of the screen for the period and

press Next . Again you will use the or buttons to adjust the end time on the right of the

screen for this scheduled period. Press Next again.

5Setting Your Schedule

Scheduling

Done/

Home

Back

Schedule

Save

Away

Home

Today

Sun

Sat

Fri

Thu

Wed

Tues

Mon

Done/

Home

Back Next

Schedule

Save

Away

Home

Today

Off

Schedule

Done/

Home

Back

Schedule

Save

Away

Home

Today

4-5

Away

Asleep

At Home

Energy Savings:

Good Best!

Mon

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good

Best!

44040-01 • 05/11/2010

6. Set the temperature for your heating cycle as indicated by the ashing ”Heat to” icon on

your screen. Use the and buttons to change the temperature and press Next . You will

be asked to set your cooling cycle, indicated by the ashing “Cool to”. Set this temperature

with your or buttons and hit Next .

7. The thermostat will start this process again for “Asleep”. Repeat steps 1-5 to schedule the

time and set the temperature for your sleep period. When nished pressed Next to get to “At

Home”

8. When setting “At Home”, you will only be asked to set a temperature. The thermostat

calculates your “At Home” time by what remains unscheduled from your “Away” and

“Asleep” periods. Set your “Heat To” temperature rst and press Next , then Set your “Cool

To” temp and press Next To nish Scheduling your current day.

9. When you have completed scheduling your day, the screen will ash “Schedule Updated!”

and return you to the day select screen.

Scheduling

Setting Your Schedule

5Setting Your Schedule

Scheduling

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

Away

Asleep

At Home

Cool to

Heat to

Energy Savings:

Good Best!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

Schedule

Updated!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

Away

Asleep

At Home

Cool to

Heat to

Energy Savings:

Good Best!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

Away

Asleep

At Home

Cool to

Heat to

Energy Savings:

Good Best!

44040-01 • 05/11/2010

Scheduling

Setting Your Schedule

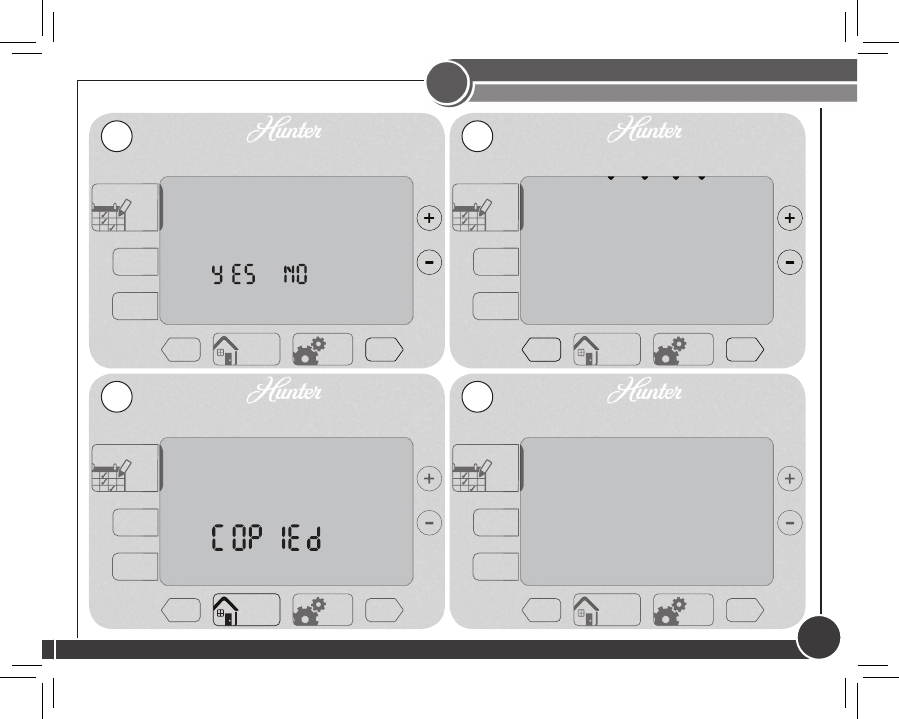

10. The day select screen will now show “Copy Day” and ask you if you wish to copy the day

you just scheduled to any other days. Select “YES” and Next or see step 13 for selecting

“NO”.

11. Select each day you wish to copy the schedule to by using the or buttons to turn days

on or off and the Next or Back buttons to scroll through the days. An arrow above each

day will indicate it has been selected.

Note: The original day you schedule will not show on the screen as it is the one being

copied.

12. Select Done/

Home and the screen will show the days that now have the same schedule

and ash “COPIED”. You will be taken back to the day select screen to schedule

your remaining days. Repeat steps 3-12 to nish scheduling.

Note: If you select “NO” and then Next you will be asked to select the next day to

schedule, bypassing the “Copy” function. Repeat steps 3-11 for each day you

wish to schedule seperately.

13. When all days have been scheduled, whether using the copy function or not, the

screen will ash “Schedule Updated!” along with all the days, and eturn you to the

home screen.

Note: To go back and edit schedules, you will follow the same process as outlined

above.

5Setting Your Schedule

Scheduling

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

Copy Day

Done/

Home

Back Next

Schedule

Save

Away

Home

Today

SunSat

FriThu

WedTues

Done/

Home

Back

Schedule

Save

Away

Home

Today

FriThuWedTuesMon

Done/

Home

Back

Schedule

Save

Away

Home

Today

Schedule

Updated!

44040-01 • 05/11/2010

Scheduling

Temporary Temperature Change

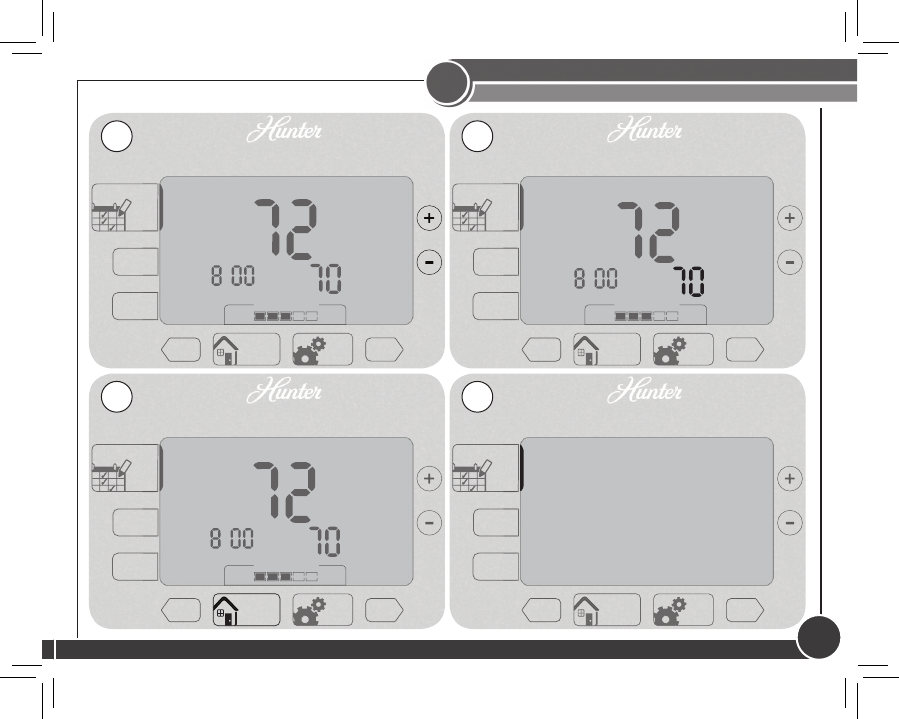

With Temporary Temperature Change you have the ability to alter the temperature for

only the current running schedule for one day.

1. Press the or button once to activate the screen, the backlight will come on.

2. Use the or buttons again to select a new temperature.

3. Press the Done/

Home button to save changes.

Note: Temporary Temperature Change is not a permanent setting. Your thermostat

will only run the new temperature until the next scheduled period change.

After your thermostat changes to a new schedule set, your thermostat will

forget the temporary setting and resume your existing schedule.

4. To escape Temporary Temperature Change, press the Done/

Home button. The screen will

ash “Schedule ON” to indicate the thermostat has resumed your regular schedule.

5Temporary Schedule Change

Scheduling

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good

Best!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Schedule On

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good

Best!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good

Best!

44040-01 • 05/11/2010

Scheduling

Turning Oﬀ Scheduling

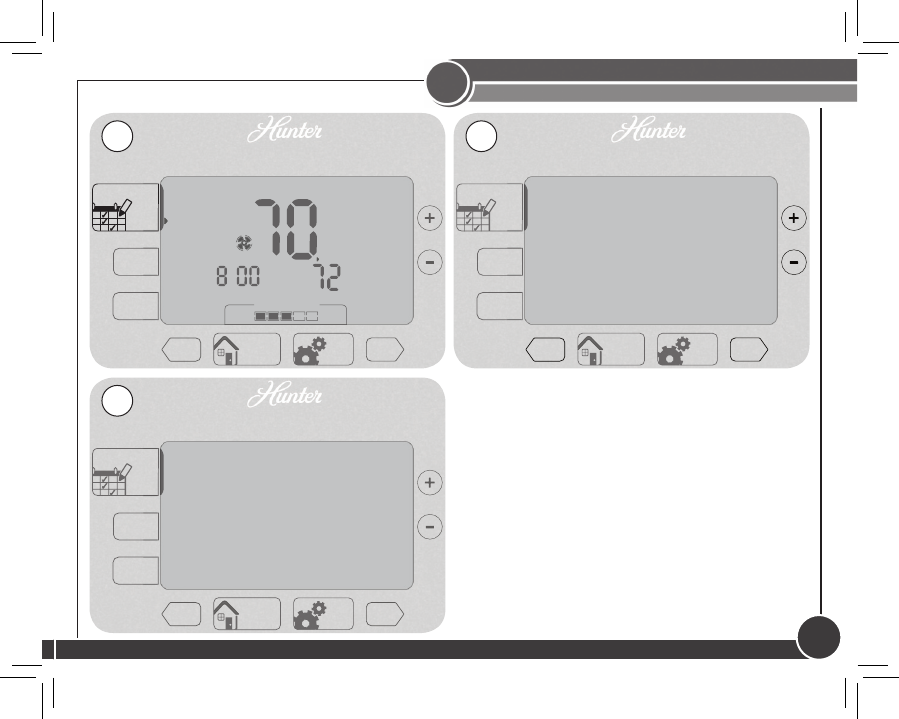

To turn off your schedule and have the thermostat permanently set to one temperature:

1. Press the Schedule button once.

2. Use the or button to switch to Off and select Done/

Home .

3. The screen will show “Updated!” and return you to the home screen.

Note: You will notice the black bar on the screen beside the Schedule button is not

displayed anymore. This indicates, no schedule is set to run. You can see the

difference between gure 1 and 4.

4. From the home screen, use the or buttons to adjust your temperature.

The system will now ignore all schedules and run at the temperature set by you on the

home screen.

5. If at anytime you wish to change the temperature, just use the or buttons.

6. If you wish to reactivate your schedules, press the Schedule button, use the or

buttons to select “ON” and then press Done/

Home .

5Turning Oﬀ Scheduling

Scheduling

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good Best!

Done/

Home

Back Next

Schedule

Save

Away

Home

Today

Off

Schedule

Done/

Home

Back

Schedule

Save

Away

Home

Today

Updated!

44040-01 • 05/11/2010

Scheduling

Home Today

The Home Today feature allows you to override your schedule for 1 day. It can be used

for example if you are home on a day when you would normally have the thermostat‘s

“Away” mode active. When used, the Home Today feature will select your At Home

temperature to run at for the course of the day until your scheduled Asleep time starts,

then revert back to running your normal schedule. To activate:

1. Press the Home

Today button.

2. The current “At Home” temperature will be defaulted on the screen.

3. Press the Done/

Home button and the screen will ash “Updated!”. The bar beside the Home

Today

button will indicate it is active.

5Home Today

Scheduling

Done/

Home

Back

Schedule

Save

Away

Home

Today

Heat to

Energy Savings:

Good Best!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Updated!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good

Best!

44040-01 • 05/11/2010

Scheduling

Save Away

The Save Away feature allows you to set a lower or higher temperature for the time you

will be away from your home outside of your normal Away schedule. This can include

days you will be away for vacation, or a few hours away from your home.

The Save Away feature can be set for as little as 1 hour or as much as 30 days. To set

the save away feature:

1. Press the Save

Away button.

2. You will see the number of hours or days ashing on the screen, use the or to

adjust the amount of time you will be away. Press the Next button to advance to your

temperature setting. By default, the “Away” temperature will be selected. You can

use the or to adjust the degrees if you do not want to run this temperature .

Note: Up to 12 hours can be set before changing to day increments.

3. Press the Done/

Home button to nish save away settings. The screen will show “Update!”

and return to the home screen.

Note: You will notice the bar will be active beside the Save Away button to indicate

it is running. Also, the screen displays the number of hours or days the Save

Away feature is set for. See gure 4.

Note: To escape Save Away mode, press the Schedule button and select “ON” using the

or buttons.Press Done/

Home to resume your schedules.

5Save Away

Scheduling

Done/

Home

Back

Schedule

Save

Away

Home

Today

Heat to

Hours

Energy Savings:

Good Best!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Updated!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good

Best!

44040-01 • 05/11/2010

Features

Alerts

This chapter will outline the various alerts the thermostat will report to you and how to

respond to them.

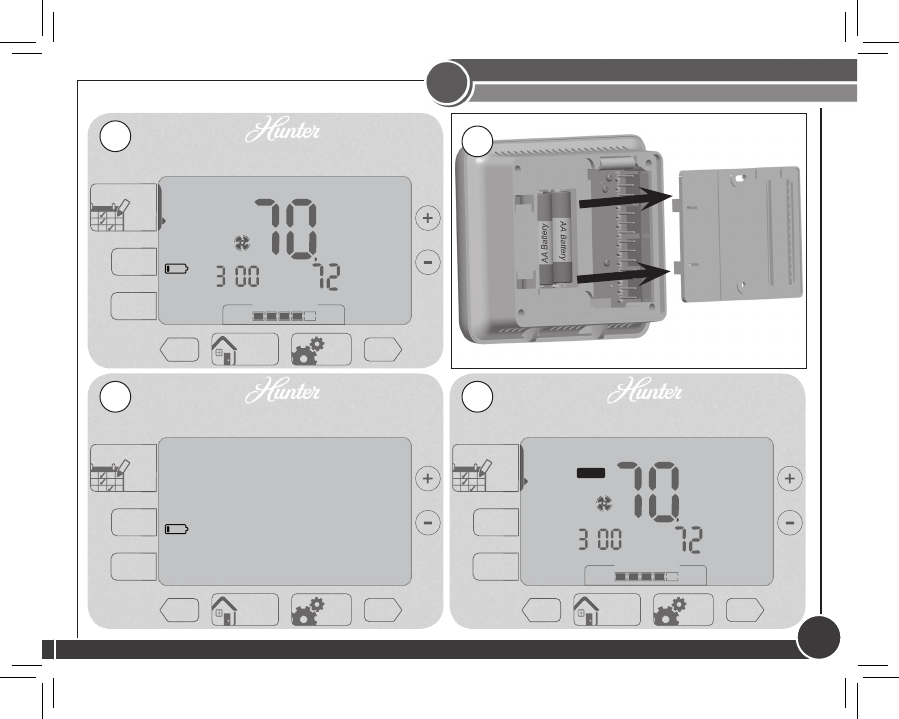

1. Low Battery: This icon will appear when your batteries are starting to run low

on power and should be changed to avoid system interruptions, (Figure 1) Change

the batteries by gripping the sides of the thermostat rmly and pulling straight

back, (Figure 1a). The batteries are located in the backside of the thermostat. The

thermostat requires 2 (AA) alkaline batteries to operate. If you do not replace the

batteries in a timely manner, the screen will go blank except for the low battery

warning, (Figure 1b). Your system will shut down and will not operate until you

replace the batteries. Replacing the batteries will clear this alert.

Note: Settings will not be lost while replacing the batteries. They are stored in the

thermostat’s memory.

2. Filter Change: When this icon appears on the screen, it indicates you should

check your furnace lter to see if it needs to be replaced. To reset this counter see

page 32.

6Alerts

Features

Done/

Home

Back

Schedule

Save

Away

Home

Today

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good Best!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Filter

Heat to

Energy Savings:

Good Best!

44040-01 • 05/11/2010

3. Auxiliary Heat: On multi-stage heat pumps this alert indicates your second

stage heat is running.

4. Check System: Some heat pump systems are equipped with the ability to check

system performance, indicated by the presence of an “L” wire attached to the

mounting plate. This icon will ash on screen to alert the user that the heat pump

is reporting a problem with the system. It may be necessary to have the heat pump

checked or serviced by an HVAC technician.

Features

Alerts

6Alerts

Features

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good Best!

Aux Em.

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good Best!

Check H.P.!

44040-01 • 05/11/2010

Features

Menu Options

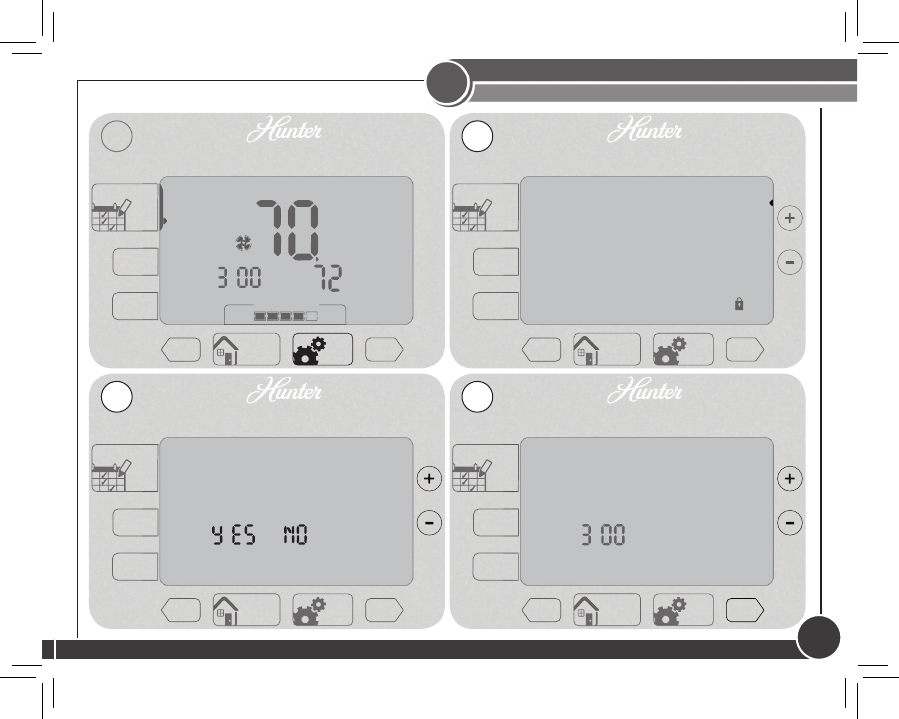

Under your menu options you have the ability to reset your lter counter, change your

day/time , span settings, temperature measurement, as well as locking the thermostat.

After making changes to each menu option, the thermostat will show “Updated” and

save your changes.

To access these options:

1. Press the Menu button.

2. Once in the menu options list, use the or buttons to scroll through the menu

items. The Next button will take you into the selected menu item. To escape menu

options, press Done/

Home .

3. RESET FILTER: If the lter indicator is ashing on the home screen you can reset it

here. Use the or buttons to select “Yes”. If “No” is selected, the lter alert will

not be reset, and will continue to ash on the home screen. Press Next , the screen

will ash “Updated” and return to menu options or Done/

Home to return the home screen.

4. CHANGE DATE/TIME: Next you are given the option of changing your day/time.

You will use the same instructions as on page 10 to change these settings. The and

buttons change the day of week, am/pm, hour, and minutes. The Next or Back

buttons browse through each option. Press Next after setting the minutes, the screen

will ash “Updated” and return to menu options or Done/

Home to return the the home

screen.

6Menu Options

Features

Done/

Home

Back

Schedule

Save

Away

Home

Today

Reset Filter

Set Day/Time

Span 1

Span 2

Span 3

Temp F/C

Lock

Done/

Home

Back

Schedule

Save

Away

Home

Today

Reset Filter

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good Best!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

Set Day/Time

44040-01 • 05/11/2010

5. SPAN 1: The next menu option is to set your thermostats primary span. Use the

or buttons to adjust between 1, 2, or, 3 degrees. Press Next , the screen will ash

“Updated” and return to menu options or press Done/

Home to return to the home screen.

The span setting regulates when and how long your system will run. The span has

been set at the factory to 1 which will allow the system to turn on .5OF (.05OC)

above or below the set temperature and run for .5 OF (.05OC) above or below the

set temperature.

Example: If your thermostat is set to turn on at 72O in heat mode, with a span setting

of 2, your thermostat will activate your furnace at 71Oand shut it down when it reaches

73O. For cooling at 72O with a span of 2, your air conditioner will activate at 73O

and shut down at 71O. This setting can be changed to 1, 2, or 3. 1 will shorten your

running time while 3 will lengthen it.

6. SPAN 2 & 3: Unless you have a multi-stage conventional or heat pump system,

there is no need to change the second or third stage span. If you do, use the

or buttons to adjust between 1, 2, or, 3 degrees. Press Done/

Home once this has been

changed or if you need to make no changes. Second and third stage spans act the

same as your primary, but it determines when and how long your second or third

stage heat runs.

7. TEMP F/C: The thermostat can change your temperature reading between

Fahrenheit and Celcius. Use the or buttons to switch between Fahrenheit

(F) and Celsius (C) Press Next , the screen will ash “Updated” and return to menu

options or press Done/

Home to return the the home screen.

Features

Menu Options

6Menu Options

Features

Done/

Home

Back

Schedule

Save

Away

Home

Today

Span 1

Done/

Home

Back

Schedule

Save

Away

Home

Today

Span 2

Done/

Home

Back

Schedule

Save

Away

Home

Today

Span 3

Done/

Home

Back

Schedule

Save

Away

Home

Today

Temp F/C

44040-01 • 05/11/2010

Features

Menu Options

1. LOCK/UNLOCK: Allows you to lock the thermostat so random keypress’ will not

change your settings. Use the or buttons to change between “YES” and “NO”.

Choose “YES” to lock the thermostat or “NO” to keep the thermostat unlocked.

Press Next , the screen will ash “Updated” and return to menu options or press Done/

Home

to return the home screen.

2. When locked, the thermostat will disable all keys except the Menu key. If any other

key is pressed, the word “Lock” will appear with the lock icon and ash 3 times

to indicate the thermostat is in locked mode.

3. To unlock the thermostat, Press the Menu button and use the or buttons to select

“ UnLock” and hit Next .

4. Use the or buttons to select “YES” to unlock the thermostat, or “NO” ot leave

it locked. Press Next , the screen will ash “Updated” and return to menu options or

press Done/

Home to return the home screen.

6Menu Options

Features

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Lock

Energy Savings:

Good Best!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Lock

Done/

Home

Back

Schedule

Save

Away

Home

Today

Reset Filter

Set Day/Time

Span 1

Span 2

Span 3

Temp F/C

Lock

Done/

Home

Back

Schedule

Save

Away

Home

Today

Lock

44040-01 • 05/11/2010

Features

Energy Saver Bar

The Energy Saver Bar indicates estimated energy savings. The preset schedules in

the thermostat have been designed to give you optimal energy savings, ve bars.

Altering these schedules has a direct impact on the energy saver indicator. Altering

the temperatures and/or times that the schedules run could decrease the estimated

energy savings.

1. Example one shows the thermostat running the default schedules in the thermostat.

2. Example two shows the thermostat running altered schedules. This example

could indicate the “At Home” schedule running for a longer time frame, or the

temperatures may have been altered to where there is less of a gap between the

“At Home” and “away” or “Asleep” temperatures.

Note: The Energy Saver Bar is only to be used as a guide to potential energy savings.

Due to varied energy consumption costs, regional temperatures, and personal

comfort levels, this bar cannot be equated into actual dollar or energy amounts.

6Energy Saver Bar

Features

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good Best!

Done/

Home

Back

Schedule

Save

Away

Home

Today

Mon

At Home

Auto

Heat to

Energy Savings:

Good Best!

44040-01 • 05/11/2010

Features

Additional Features

There is no need to stand at the wall where the thermostat is mounted while programming

or changing settings. Simply remove the thermostat from the wall and make the

necessary changes in the comfort of a chair. You can also set your programming and

settings before you even install the thermostat.

Armchair Programming

Your thermostat has a blue LED lamp that backlights the display for easy viewing in the

dark. When any key is pressed, the backlight will be activated. The display will stay

illuminated for 15 seconds after the last key is pressed.

Blue Backlight

In the event that power is lost, the batteries will act as backup, saving your settings

and programs.

Power Failure Protection

To protect your system from cycling, system turning on and off rapidly, your thermostat

will prevent your system from turning back on for up to 4 minutes after it has been

shut down.

System Protection

In situations where your thermostat may not seem to be operating properly or if you

just want to reset and start over, press and hold the and buttons for 5 seconds until

the screen ashes “Updated!”. This will restore the thermostat to factory condition.

Reset

7Troubleshooting and Support

ermostat Assistance

Problem:

No display.

Solution:

1. Check battery position and battery life.

Problem:

Program does not change at desired setting.

Solution:

1. Check the time in all programs for proper am/pm time.

2. Ensure thermostat is not in “Save Away” mode.

3. Make sure the thermostat is set to the proper day.

Problem:

Auto / Fan does not turn on.

Solution:

1. Move HG/HE switch to opposite position.

2. Check the fan setting and make sure that it is not set to off.

44040-01 • 05/11/2010

Problem:

Fan runs continuously.

Solution:

1. Check fan setting to see if it is set to on.

2. Move HG/HE switch to opposite position.

Problem:

Heating or cooling does not turn on or off.

Solution:

1. Check the system is in the right mode (heat or cool).

3. Be sure to wait up to 4 minutes for system protection if your system was just on.

4. Check breakers to make sure power is getting to your system

5. Replace the batteries.

ermostat Assistance

Troubleshooting and Support

7Troubleshooting and Support

ermostat Assistance

If you need any assistance with installion or setup of your new Hunter Thermostat,

please call us, our technical support staff is ready to help!

USA: 1-888-830-1326

Canada: 1-866-268-1936

Hours of operation are from 7:00 am to 7:00 pm Monday - Friday and 8:00 am to

5:00 pm on Saturday, Central Time. You may also contact us over the Internet at www.

hunterfan.com.

Technical Support

44040-01 • 05/11/2010

Warranty

1 Year Guarantee

Hunter Fan Company

Thermostats

LIMITED WARRANTY

The Hunter Fan Company warrants your Hunter Thermostat to be free from defects in

material or workmanship for a period of one year from the date of sale to the original

user or consumer purchaser. If your Hunter Thermostat malfunctions or fails within the

warranty period because of a defect in material or workmanship, we will replace it.

THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE DURATION

OF ANY IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,

IN RESPECT TO YOUR HUNTER THERMOSTAT IS LIMITED TO THE PERIOD OF THE

EXPRESS WARRANTY SET FORTH ABOVE.

This warranty is voided if your Hunter Thermostat is not purchased and used in the

USA. This warranty excludes and does not cover defects, malfunctions or failures or

your Hunter Thermostat which were caused by repairs by persons not authorized by us,

mishandling, improper installation, modications or damage to the Hunter Thermostat

while in your possession, or unreasonable use, including failure to provide reasonable

and necessary maintenance.

This warranty neither applies to batteries nor to deterioration of, nor damage to the

product caused by the use of faulty batteries. Return your product, along with proof of

purchase to Hunter Fan Company Service Department, 7130 Goodlett Farms Pkwy

Suite 400, Memphis, TN 38016. You will be responsible for all insurance and freight

or other transportation charges to our factory. We will return your Hunter Thermostat

freight prepaid. Your Hunter Thermostat should be properly packed to avoid damage

in transit since we will not be responsible for any such damage. Proof of purchase is

required when requesting warranty service.

IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR CONSEQUENTIAL

OR INCIDENTAL DAMAGES.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATION MAY NOT APPLY TO

YOU.

THE WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE

OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

81 Year Guarantee

Warranty

Hunter Fan 44377 Owners Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
