Hunter Fan TX16 Ceiling fan and lamp remote control. User Manual 41114 qf
Hunter Fan Company Ceiling fan and lamp remote control. 41114 qf
Users Manual
© 2001 Hunter Fan Company 1 41521-01 9-4-2001
Hunter Fan Company
Remote Ceiling Fan &
Light Control
Transmitter Model: 84592
Transmitter Battery: 12 V, Type 23A, MN-21 or equivalent
Receiver Model: 85068
Ratings: 120 VAC, 60 Hz, 1.0 Amp Fan
300 Watts incandescent light
Read and Save these Instructions
Caution: Risk of Electrical Shock!
All wiring must be performed in accordance with national and
local electrical codes. If you are unfamiliar with the wiring
codes, you should use a qualified electrician.
To avoid over heating and possible damage to other equipment,
do not install to control a receptacle, fluorescent light fixture,
motor operated appliance, or transformer-supplied appliance.
Use only to control one paddle-blade ceiling fan and
incandescent light fixture.
Notes:
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
2. This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Note: Any changes or modifications to the transmitter or
receiver not expressly approved by Hunter Fan Company
may void one’s authority to operate this remote control.
3. For use only with electrically reversible ceiling fans rated
at 1.0 amp or less, and fan incandescent light kits rated at
300 watts or less.
4. Not for use with shaded-pole or nonreversible motors. Not
recommended for use with the Hunter Original®.
Before Installing the Control:
1. Use the pull-chain switch to set the fan speed to the HIGH
position before installation.
Note: Do not use the pull-chain to change the fan speed
after installation, as damage to your ceiling fan or control
may result. The speed of the fan should only be changed
by the control.
2. Set the ceiling fan light kit to the ON position before
installation. The light level should only be changed by the
control.
Receiver Installation:
1. Disconnect the power to the ceiling fan and light kit at the
main electric panel. Remove fuse or move circuit breaker
to the OFF position. Turn off wall switch.
2. IMPORTANT! Before installing this control, change the
factory default jumper switch settings to your own unique
code. Refer to Figure 1. Using small pliers or tweezers,
pull out one or more of the three jumper switches by
clamping on the small metal strip. Place the jumper
switches in the desire spots. Be sure the jumper switch
positions of the transmitter and receiver match, or the
ceiling fan will not function. Select different combinations
of jumper switches to prevent misoperation due to other
remote control fans, garage door openers, etc.

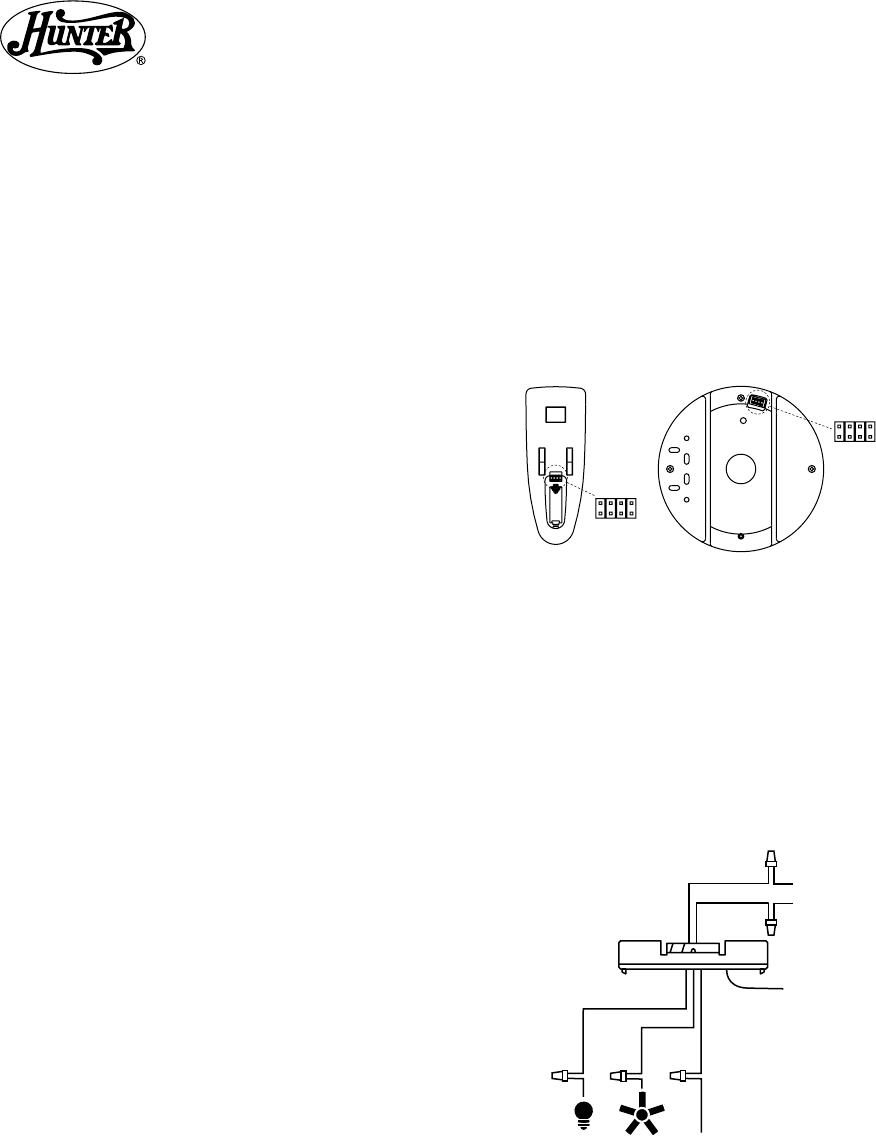

Figure 1 - Jumper Switches
3. Install the ceiling fan according to its instructions, up to
the point of making the electrical connections.
Note: When installing this remote control on the fan, be
sure to cut and strip the fan leadwires to leave 6 1/2”
outside of the hanger pipe.
4. Use the two large wire nuts supplied to connect the receiver
and house wiring, then use the three small wire nuts
supplied to connect the receiver and ceiling fan wiring.
Refer to the Wiring Diagram in Figure 2.
Figure 2 - Wiring Diagram
5. Install receiver as shown in Figure 3. Line up the slots on
the receiver with the ceiling plate. Be sure to push wire
connections from the ceiling back up through the hole in
the ceiling plate. Wires attaching from the ceiling plate to
the fan should be placed inside the canopy under the
Transmitter
Back
Jumper
Switch
Jumper
Switch
Receiver
Back
Light
Kit
Fan Common
Antenna
120 V AC
Power In
Black Main
White Main
WhiteBlackBlack/
White
41521-01 9-4-2001 2 © 2001 Hunter Fan Company
receiver. Once the receiver is installed, continue with the
appropriate instructions from the fan installation manual
to finish installing the fan.

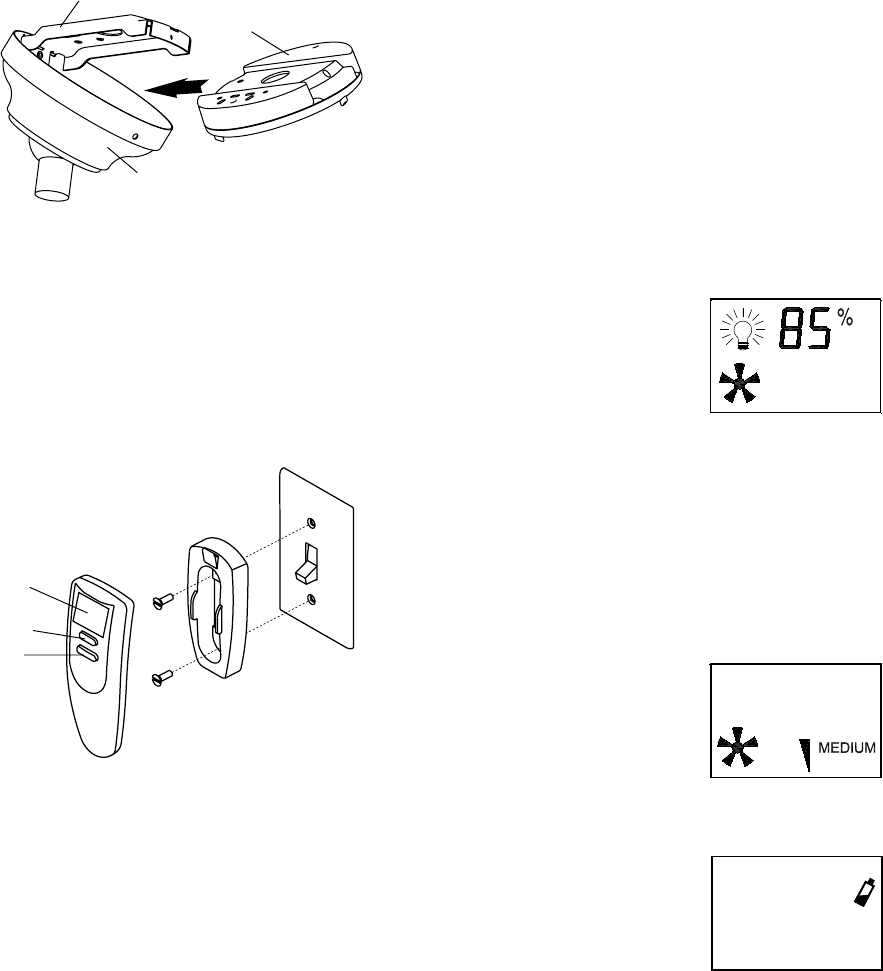

Figure 3 - Installing Receiver
Transmitter Installation:
1. Install a 12 volt alkaline battery inside the hand-held
transmitter after setting the jumper switches to match the
jumper switches in the receiver.
2. Mount the remote holder over the ceiling fan’s wall switch
using the existing wall plate screws. Refer to Figure 4.
3. The transmitter can be placed on the remote holder for
convenience or safekeeping.
Figure 4 - Remote Holder Assembly
Testing the Control:
Warning!
• Do not use the pull chain to operate the light. Pulling the
chain while power is applied can damage the receiver. It
is recommended to shorten the pull chain(s) to prevent
accidental use.
• Do not use the pull chain switch to change speeds. Pulling
the chain while power is applied can damage the receiver
or ceiling fan.
1. When the installation is complete, restore power at the
main electrical panel. Then, turn on the wall switch. The
light kit should turn ON. If the light remains OFF, turn off
the power at the wall switch. Pull the light kit’s pull chain
to turn the light ON. Turn the wall switch back ON.
2. Press the remote control’s fan speed button (refer to Figure
4). The fan should start and reach it’s maximum speed. If
the fan does not start or is turning too slow, turn off the
power at the wall switch. Pull the fan’s pull chain to change
speed. Reapply power and try HIGH speed again. Repeat
this procedure until you have confirmed that the fan’s pull
chain is set to HIGH speed.
Operation:
1. Turn ON the wall switch, the light will turn ON at maximum
brightness and the fan will be off.
2. Standby Mode:
• To save battery power, if no button on the remote is
pressed for one minute, the remote LCD will go into
standby mode.
• During standby mode, all LCD icons are turned OFF.
• The LCD will resume original display when any button
is pressed. The button function is not performed but
acts as a wake up key.
3. Light Operation:
•ON and OFF: Press and
quickly release the light
button on the hand-held
remote to turn the light OFF
and ON.
•Dimmer: Press and hold
the light button for more
than one second to dim or brighten the light. If
brightness is initially at 100%, then the brightness will
decrease to 95% and so forth by 5% increments as
long as the light button is pressed. When the minimum
brightness of 25% is reached, the setting will pause
and then begin to increase by 5% increments as long
as the light button is pressed.
•Auto Resume: The light button has an auto resume,
so the brightness will stay the same as the last time it
was turned OFF.
4. Fan Operation:
•ON, OFF, and Speed
Setting: Press the fan
button to turn ON the ceiling
fan at HIGH speed. Press
again to change the speed
to MEDIUM, then again to
LOW, and then again to turn
the fan OFF.
5. Low Battery Detection:
• The low-battery warning
icon will flash when the
battery needs to be
changed. If there is a low-
battery, it will also flash
during standby mode.
• Replace the battery when
the low-battery warning icon begins to flash.
Ceiling Plate
Canopy
Receiver
Light
Fan
LCD Display
© 2001 Hunter Fan Company 3 41521-01 9-4-2001
Troubleshooting
Symptom Possible Causes Solution
1. No functions operate.
2. Operates only at close range.
3. Inconsistent operation.
Main Power not restored. Replace fuse. Turn ON circuit breaker. Turn
ON wall switch.
Fan pull chain not set to HIGH. Turn OFF power at wall switch or main
electric panel. Set fan to HIGH speed.
Light pull chain not set to ON. Set light kit to ON.
Receiver wiring incorrect. Verify wiring connections.
Transmitter and receiver jumper switches do
not match.
Set transmitter and receiver to same jumper
switch setting.
Battery too weak. Replace with new, alkaline battery.
Signal blocked from reaching receiver. Extend antenna into ceiling box, or move it
for better reception.
Battery too weak. Replace with new, alkaline battery.
Signal partially blocked from reaching receiver. Extend antenna into ceiling box, or move it
for better reception.
RF interference. Turn OFF wall switch for 5 seconds, then
turn back ON.
Continuing RF interference. Change dip switch settings to a different
code in both Transmitter and Receiver.
41521-01 9-4-2001 4 © 2001 Hunter Fan Company
