Owner’s Guide and
Installation Manual
Hand-Held Remote and Wall Cradle
2
41316-01 • 06/25/10 • Hunter Fan Company
1 • Welcome
Table of Contents
1 • Welcome ..............................................................2
2 • Installation Preparation ............................... 3
3 • DIP Switch Settings ........................................ 4
4 • Receiver Installation ......................................5
5 • Transmitter Installation ...............................8
6 • Operation ............................................................9
7 • Troubleshooting ........................................... 10
8 • Warranty ........................................................... 11
© 2010 Hunter Fan Company
Read and Save these Instructions
Caution: Risk of Electrical Shock!
All wiring must be performed in accordance with
national and local electrical codes. If you are
unfamiliar with the wiring codes, you should use a
qualied electrician.
To avoid overheating and possible damage to other
equipment, do not install to control a receptacle,
uorescent light xture, motor operated appliance, or
transformer-supplied appliance. Use only to control
one ceiling fan with or without a light xture.
Ratings: 120 VAC, 60 Hz,1.0 Amp Fan Receiver Weight: 6 oz.
300 Watts incandescent light
3
41316-01 • 06/25/10 • Hunter Fan Company
2 • Installation Preparation
Notes:
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2. This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from the one the
receiver is connected to.
• Consult the dealer or an experienced radio/TV technician for help.
3. For use only with electrically reversible ceiling fans rated at 1.0 amp or less,
and fan incandescent light kits rated at 300 watts or less.
4. Not for use with shaded-pole motors, Hunter 42” Low Prole fans, and
Hunter Baseball fans. Not recommended for use with the Hunter Original®.
For Hunter Original® series fans, use Hunter control model numbers 27187,
22691, or 27189.
5. Medium and Low fan speeds are determined by the control and thus may vary
from the factory settings due to normal motor variations.
6. For use with Hunter Hanging Systems (excludes Hunter Original) on at
ceilings or angled ceilings with a pitch up to 34°.
7. Not for use in applications where the fan does not have a wall switch.
Any changes or modications to this equipment not expressly
approved by Hunter Fan Company will void the user’s authority to
operate the equipment.
4
41316-01 • 06/25/10 • Hunter Fan Company
3 • DIP Switch Settings
BEFORE INSTALLING THE CONTROL:
1. Use the pull chain switch to set the fan speed to the HIGH position before
installation. Do not use the pull chain to change the fan speed after
installation, as damage to your ceiling fan or universal control may result.
The speed of the fan should only be changed by the Hunter control.
2. Set the ceiling fan light kit to the ON position before installation. The light
level should only be changed by the Hunter control.
Installation Instructions:
1. Disconnect power to the ceiling fan and light kit at the main electrical panel. Remove fuse or move
circuit breaker to the OFF position.

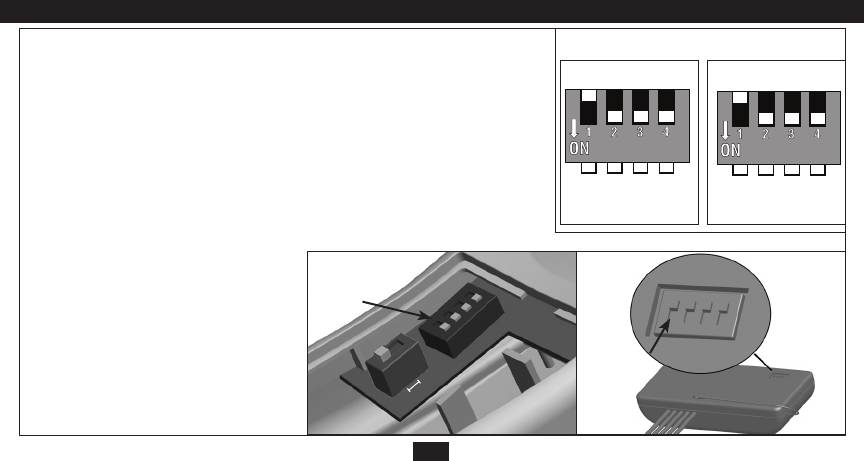

2. IMPORTANT! Before installing this control, check the factory default DIP switch settings. Refer
to Figure 1. Be sure the DIP switch positions of the transmitters and receiver match, or the ceiling
fan will not function. Select different combinations of
dip switches to prevent mis-operation due to other
remote control fans.
3. IMPORTANT! If your ceiling fan light kit is using
incandescent bulbs, then slide the CFL / INC switch
to the INC position. If your ceiling fan light kit is using
compact uorescent light bulbs (CFL), then slide the
CFL / INC switch to the CFL position. NOTE: When
the switch is in the CFL position, the dimming feature
is disabled, and you will not be able to dim the light
bulbs. This feature is to protect both your bulbs and
your receiver as CFL bulbs are not able to dim and
will malfunction if dimming is attempted.
Dip Switches
Set to 01110
Dip Switches
Set to 01001
Dip Switches
Set to 01110
Dip Switches
Set to 01001
Receiver Transmitter
Example DIP Switch Settings
DIP Switches
Set to 0111
DIP Switches
Set to 0111
Figure 1
Transmitter DIP
Switches
CFL INC
Figure 2
Receiver DIP
Switches
Figure 3
5
41316-01 • 06/25/10 • Hunter Fan Company
4 • Receiver Installation
4. Install the ceiling fan according to its instructions, up to the point of making
the electrical connections. Connect receiver to ceiling fan according to the
mounting types shown on the next page. Determine your ceiling fan mounting
type from the images on Pages 5-6. Most installations will be one of these
ve types.
5. If the fan is already installed, turn the power OFF at the main electrical panel.
Reverse the installation procedure according to the fan instructions, to the
point of disconnecting the fan wiring. Connect the receiver to the ceiling fan
according to the mounting type as shown on Pages 5-6.
NOTE: Some fans may have considerable excess lead wire. For easier
canopy installation, cut the excess wire leaving a minimum of 6 inches
remaining. Restrip the fan lead wires 1/2 inch. Place remaining excess wire into
the ceiling electrical box as needed.

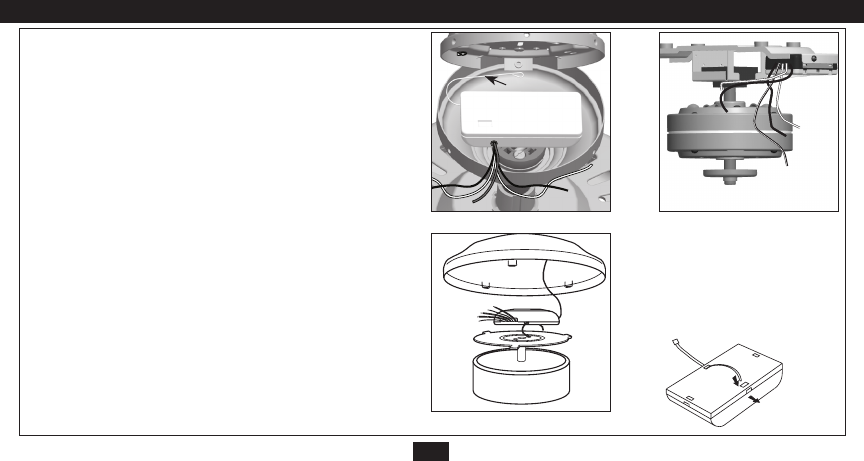

Canopy Hanger (Figure 4): Place receiver in canopy. Connect wiring as
shown in Figure 4. Extend antenna through one of the ceiling plate openings
(approximately 3–6˝).
Low Prole Style I (Figure 5): Secure receiver to the fan plate
above the motor with UL listed cable ties (not included). Connect wiring as
shown in Figure 5. Extend antenna through one of the ceiling plate openings
(approximately 3–6˝).
Low Prole Style II (Figure 6): Secure receiver to the ceiling mounting
bracket with UL listed cable ties (not included). Connect wiring as shown in
Figure 6. Extend antenna above the ceiling mounting bracket (approximately
3–6˝).
Cable Tie Routing for Low Prole
Fans (Figs.5-6): Insert cable tie through
openings as shown. DO NOT insert the cable
tie through the inside of the receiver. The
cable tie can be placed across the length or
width of the receiver to best match your fan
installation type.
Low
Prole
Style 1
Canopy
Antenna
Figure 4 Figure 5
Low
Prole
Style 2
Figure 6
6
41316-01 • 06/25/10 • Hunter Fan Company
Hands
Free
Bracket
Hanger
NOTE: Some fans may have considerable excess lead wire.
For easier canopy installation, cut the excess wire leaving
a minimum of 6 inches remaining. Restrip the fan lead
wires 1/2 inch. Place remaining excess wire into the ceiling
electrical box as needed.

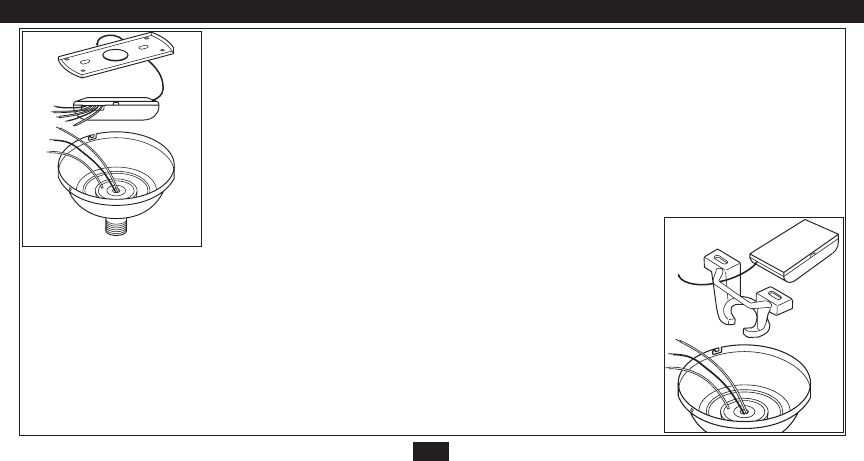

Hunter Hands-Free™ Canopy: Connect wiring
as shown in Figure 7. Place receiver inside mounting
bracket. Extend antenna above the ceiling mounting bracket
(approximately 3–6˝).
Bracket Hanger: Starting with the antenna wire, slide
receiver inside mounting bracket. If a ground wire mounting
screw prevents the receiver from sliding into the bracket,
move ground wire and screw to an unused hole at the top
of the bracket or secure with a canopy mounting screw. The
bracket must remain properly grounded. Connect wiring
as shown in Figure 8. Extend antenna above the receiver
(approximately 5–8˝).
Figure 7
Figure 8
4 • Receiver Installation
7
41316-01 • 06/25/10 • Hunter Fan Company
4 • Receiver Installation

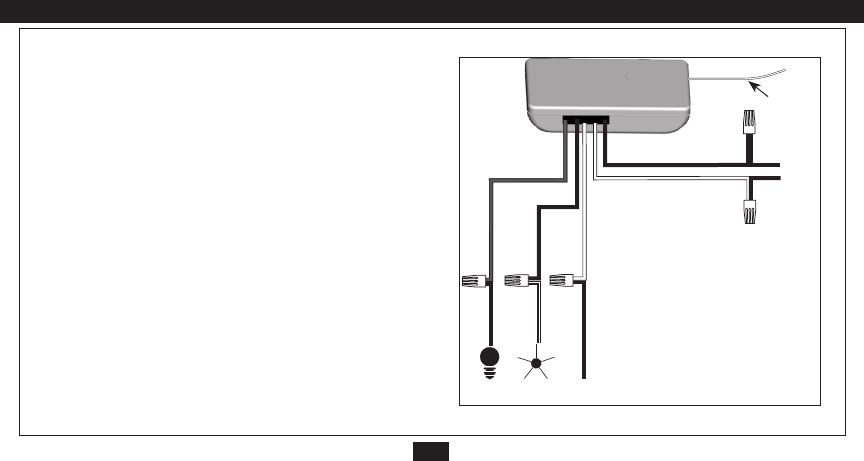

6. Use the 2 large (orange) wire connectors supplied to connect
the receiver and house wiring, then use the 3 small (blue) wire
connectors supplied to connect the receiver and ceiling fan
wiring. Refer to the Wiring Diagram in Figure 9.
7. Be sure the antenna is positioned securely, so it can not
interfere with the ceiling fan motor. Refer to Figure 9. Do not
modify or damage the antenna wire, as control performance
may be reduced. After securing the receiver, antenna,
and wiring, nish hanging the ceiling fan according to its
instructions.
Red
Antenna
AC
Power
In
WhiteBlack
Common
Fan
Light
Black/Hot (marked “LIVE
IN on red label)
White/Neutral (marked
“COMMON IN” on red
label
Figure 9
8
41316-01 • 06/25/10 • Hunter Fan Company
5 • Transmitter Installation
1. Install the 9 Volt alkaline battery inside the hand-held transmitter, after
setting the DIP switches to match the DIP switches in the receiver.

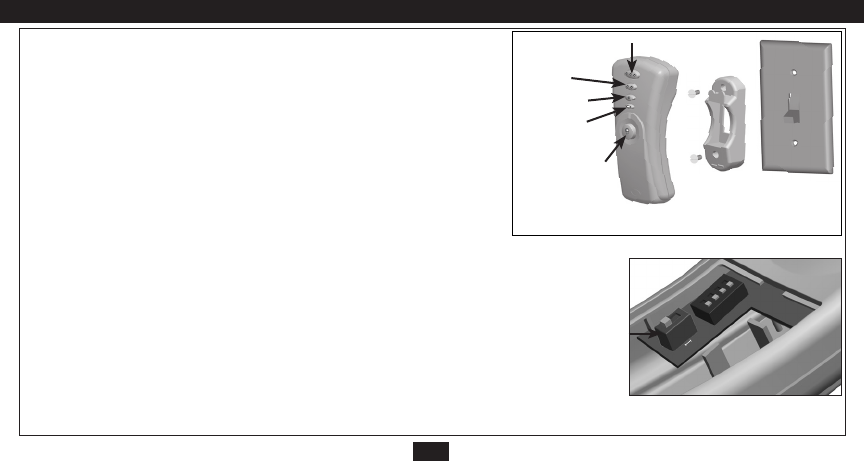

2. Mount the remote holder over the ceiling fan’s wall switch using the
existing wall plate screws. Refer to Figure 10.
3. e transmitter can be placed on the remote holder for convenience or
safekeeping.
4.
ere is a toggle switch beside the DIP switches on the transmitter. Move
the toggle switch toward the side that reads “CFL” if you are going to
operate the fan with CFL bulbs. Move the switch to the “INC” side if you
are going to use incandescent bulbs.
NOTE: Once the transmitter is installed, any household power switches
connected to the fan will no longer operate the fan.
Fan Light
Fan Speed High
Fan Speed
Medium
Fan Speed
Low
Fan O
Figure 10
Toggle Switch
CFL INC
Figure 11
9
41316-01 • 06/25/10 • Hunter Fan Company
6 • Operation

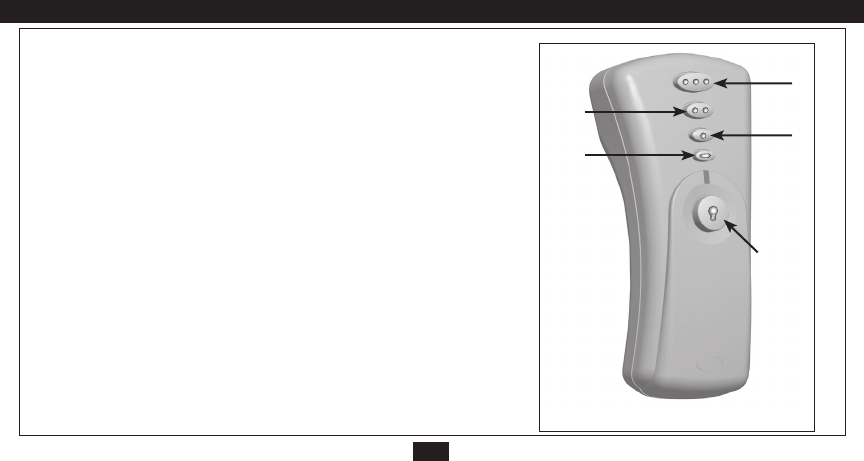

Light Operation:
• Turn ON wall switch. The light will turn ON at maximum brightness.
• Press and quickly release the light button on the hand held remote or wall transmitter to turn
the light OFF or ON. The light will come ON at maximum brightness. (After a power outage,
the light will turn off and remain off after power is restored. Press and quickly release the light
button once to turn the light back on after a power outage.)
• Press and hold the light button for more than 1 second to turn the light ON and decrease from
maximum brightness to OFF.
• Release the light button when the desired light level is reached.
• Continue to hold the light button to repeat the cycle. (Maximum–light level decrease–OFF)
• While the light is ON, holding the light button will decrease the light brightness.
• Turning the light OFF resets the dimming function. The next press of the light button will start
at maximum brightness.
2. Fan Operation:
• Press the High, Medium, or Low speed buttons to turn the ceiling fan ON at the desired speed.
• Press the fan OFF key to turn the ceiling fan OFF.
For best fan operation: Start the fan on High, and then select the desired speed.
Fan Light
Fan Speed
High
Fan Speed
Medium
Fan Speed
Low
Fan O
Figure 12
10
41316-01 • 06/25/10 • Hunter Fan Company
7 • Troubleshooting
Symptom Possible Causes Solution
1.No functions operate. Main Power not restored. Replace fuse. Turn ON circuit breaker. Turn ON wall switch.
Fan pull chain not set to High. Set fan pull chain to High speed.
Light pull chain not set to ON. Set light kit to ON.
Receiver wiring incorrect. Verify wiring connections.
Transmitter and receiver DIP
switches do not match.
Set transmitter and receiver to same DIP switch setting.
Battery too weak. Replace with new, 9 Volt alkaline battery. Refer to
“Transmitter Installation”, Section 6.
2.Operates only at close range. Signal blocked from reaching
receiver.
Extend antenna into ceiling box, or move it for better
reception.
Battery too weak. Replace with new, 9 Volt alkaline battery. Refer to
“Transmitter Installation”, Section 6.
Interference Change the DIP switch settings on the remote receiver and
transmitter,
3.Inconsistent operation. Signal partially blocked from
reaching receiver.
Extend antenna into ceiling box, or move it for better
reception.
RF interference. Turn OFF wall switch for 5 seconds, then turn back ON.
Continuing RF interference. Change DIP switch settings to a different code in both
transmitter and receiver.
11
41316-01 • 06/25/10 • Hunter Fan Company
8 • Warranty
The Hunter Fan Company makes the following limited warranty to the original purchaser of the Control (“Control”): Your Control is
warranted to be free from defects in material and workmanship for a period of one year from the date of sale. If the Control malfunc-
tions or fails within the warranty period due to a defect in material or workmanship we will replace it free of charge. IF THE ORIGINAL
PURCHASER CEASES TO OWN THE CONTROL, THIS WARRANTY AND ANY IMPLIED WARRANTY, INCLUDING BUT NOT LIM-
ITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE VOIDED. THIS
WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IN
RESPECT TO ANY CONTROL, IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE
FOR SUCH CONTROL. This warranty excludes malfunctions or failures which were caused by repairs by persons not authorized
by us, mishandling, improper installation, modications, or damage to the Control while in your possession, or unreasonable use.
This warranty does not apply to batteries or to deterioration or damage to the product caused by the use of faulty batteries. To obtain
a replacement, return your Control postage prepaid along with proof of purchase to Hunter Fan Company Service Department at
7130 Goodlett Farms Pkwy. #400, Memphis, Tennessee 38016. IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS OR THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
If you need parts or service assistance, please
call 888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
7130 Goodlett Farms Parkway #400
Memphis, Tennessee 38016
Printed in China
