Hunter Fan Company Remote control for ceiling fan Owners manual
Owners manual
Universal Fan and
Light Remote Control
Universal Fan and
Light Remote Control
Universal Fan and
Light Remote Control
Form# 44092-01
20101011
©2010 Hunter Fan Co.
English
Owner’s Guide and
Installation Manual
Hand-Held Remote and Wall Cradle
41797-01 • 10/11/10 • Hunter Fan Company
2
1 • Welcome
Table of Contents
1 • Welcome ..............................................................2
2 • Installation Preparation ............................... 3
3 • Programming Your Remote ......................4
4 • Receiver Installation ......................................5
5 • Transmitter Installation ...............................7
6 • Operation ............................................................8
7 • Troubleshooting ........................................... 10
8 • Warranty ........................................................... 11
© 2010 Hunter Fan Company
Read and Save these Instructions
Caution: Risk of Electrical Shock!
All wiring must be performed in accordance with
national and local electrical codes. If you are
unfamiliar with the wiring codes, you should use a
qualied electrician.
To avoid overheating and possible damage to other
equipment, do not install to control a receptacle,
motor operated appliance, or transformer-supplied
appliance. Use only to control one ceiling fan with or
without a light xture.
Ratings: 120 VAC, 60 Hz,1.0 Amp Fan Receiver Weight: 6 oz.
300 Watts incandescent light
41797-01 • 10/11/10 • Hunter Fan Company
3
2 • Installation Preparation
Notes:
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
2. This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from the one the
receiver is connected to.
• Consult the dealer or an experienced radio/TV technician for help.
3. For use only with electrically reversible ceiling fans rated at 1.0 amp or less,
and fan incandescent light kits rated at 300 watts or less.
4. Not for use with shaded-pole motors, Hunter 42” Low Prole fans, and
Hunter Baseball fans. Not recommended for use with the Hunter Original®.
For Hunter Original® series fans, use Hunter control model numbers 27187,
22691, or 27189.
5. Medium and Low fan speeds are determined by the control and thus may
vary from the factory settings due to normal motor variations.
6. For use with Hunter Hanging Systems (excludes Hunter Original) on at
ceilings or angled ceilings with a pitch up to 34°.
7. Not for use in applications where the fan does not have a wall switch.
Any changes or modications to this equipment not expressly
approved by Hunter Fan Company will void the user’s authority
to operate the equipment.
BEFORE YOU INSTALL THIS CONTROL:
USE THE PULL CHAIN SWITCH TO SET THE FAN SPEED
TO THE HIGH POSITION BEFORE INSTALLATION. DO
NOT USE THE PULL CHAIN TO CHANGE THE FAN SPEED
AFTER INSTALLATION, AS DAMAGE TO YOUR FAN OR
REMOTE MAY RESULT. THE SPEED OF THE FAN SHOULD
ONLY BE CHANGED BY THE HUNTER CONTROL!!
41797-01 • 10/11/10 • Hunter Fan Company
4
3 • Programming Your Remote
BEFORE INSTALLING THE CONTROL:
1. USE THE PULL CHAIN SWITCH TO SET THE FAN SPEED TO THE HIGH POSITION BEFORE
INSTALLATION. DO NOT USE THE PULL CHAIN TO CHANGE THE FAN SPEED AFTER
INSTALLATION, AS DAMAGE TO YOUR CEILING FAN OR UNIVERSAL CONTROL MAY RESULT.
THE SPEED OF THE FAN SHOULD ONLY BE CHANGED BY THE HUNTER CONTROL!!
2. Set the ceiling fan light kit to the ON position before installation.
Installation Instructions:
1. Install the ceiling fan according to its instructions, up to the point of making the electrical connections. Connect receiver to
ceiling fan according to the mounting types shown on the next page. Determine your ceiling fan mounting type from the
images on Pages 5-6. Most installations will be one of these ve types.
2. If the fan is already installed, turn the power OFF at the main electrical panel. Reverse the installation procedure according
to the fan instructions, to the point of disconnecting the fan wiring. Connect the receiver to the ceiling fan according to the
mounting type as shown on Pages 5-6.

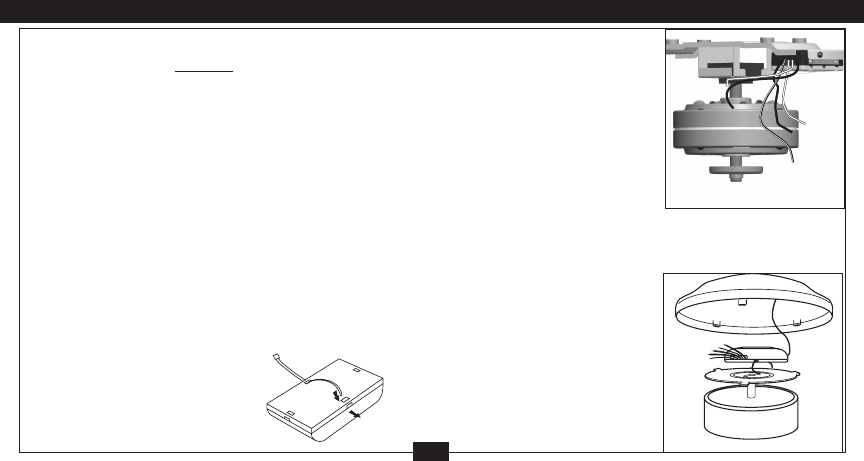

Low Prole Style I (Figure 1): Secure receiver to the fan plate above the motor with UL-listed cable ties (not included).
Connect wiring as shown in Figure 6. Extend antenna through one of the ceiling plate openings (approximately 3–6˝).
Low Prole Style II (Figure 2): Secure receiver to the ceiling mounting bracket with UL-listed cable ties (not included).
Connect wiring as shown in Figure 6. Extend antenna above the ceiling mounting bracket (approximately 3–6˝).
Cable Tie Routing for Low Prole
Fans (Figs.5-6): Insert cable tie through
openings as shown. DO NOT insert the cable
tie through the inside of the receiver. The
cable tie can be placed across the length or
width of the receiver to best match your fan
installation type.
Low
Prole
Style 1
Figure 1
Low
Prole
Style 2
Figure 2
NOTE: Some fans may have considerable
excess lead wire. For easier canopy installation,
cut the excess wire leaving a minimum of 6
inches remaining. Restrip the fan lead wires 1/2
inch. Place remaining excess wire into the ceiling
electrical box as needed.
41797-01 • 10/11/10 • Hunter Fan Company
5

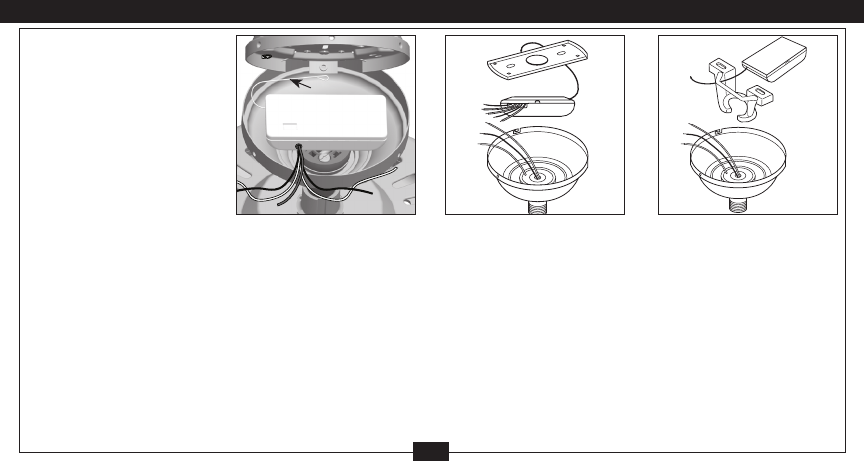

Hunter Hands-Free™
Canopy: Connect wiring as
shown in Figure 6. Place receiver
inside mounting bracket. Extend
antenna above the ceiling
mounting bracket (approximately
3–6˝).
Hands
Free
Figure 4
Bracket Hanger: Starting
with the antenna wire, slide
receiver inside mounting bracket.
If a ground wire mounting screw
prevents the receiver from sliding
into the bracket, move ground wire
and screw to an unused hole at
the top of the bracket or secure
with a canopy mounting screw.
The bracket must remain properly
grounded. Connect wiring as
shown in Figure 6. Extend antenna
above the receiver (approximately
3 – 6˝).
Bracket
Hanger
Figure 5
4 • Receiver Installation
NOTE: Some fans may have
considerable excess lead wire. For
easier canopy installation, cut the
excess wire leaving a minimum
of 6 inches remaining. Restrip
the fan lead wires 1/2 inch. Place
remaining excess wire into the
ceiling electrical box as needed.
Canopy Hanger (Fig. 3):
Place receiver in canopy. Connect
wiring as shown in Figure 6.
Extend antenna through one
of the ceiling plate openings
(approximately 3–6˝).
Canopy
Antenna
Fig.
3
41797-01 • 10/11/10 • Hunter Fan Company
6
4 • Receiver Installation
1. Use the 2 large (orange) wire connectors supplied to connect the receiver and
house wiring, then use the 3 small (blue) wire connectors supplied to connect
the receiver and ceiling fan wiring. Refer to the Wiring Diagram in Figure 6.
If you are installing the remote with a Hunter Fan, the wire colors in the fan
will be as follows:
Light Power = Black with a White Stripe
Fan Power = Black
Common = White
*These are only the Hunter fan wire colors. Other
brands may use different colors.
2. Be sure the antenna is positioned securely, so it does not interfere with the
ceiling fan motor. Do not modify or damage the antenna wire, as control
performance may be reduced. After securing the receiver, antenna, and
wiring, nish hanging the ceiling fan according to its instructions.
3. Restore power at main electrical panel.
Antenna
AC
Power
In
Common Fan Light
Black/Hot (marked “LIVE
IN” on red label)
White/Neutral (marked
“NEUTRAL IN” on red
label)

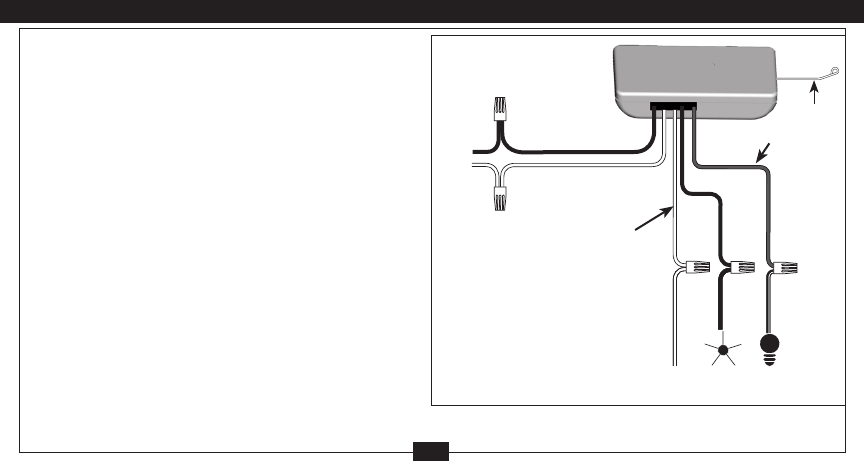

Figure 6
Wiring Diagram
White (marked
“COMMON OUT” on
white label)
Black
(“FAN
OUT”)
Red
(“LIGHT
OUT”)
Black*
Black
&
White*
White*
41797-01 • 10/11/10 • Hunter Fan Company
7

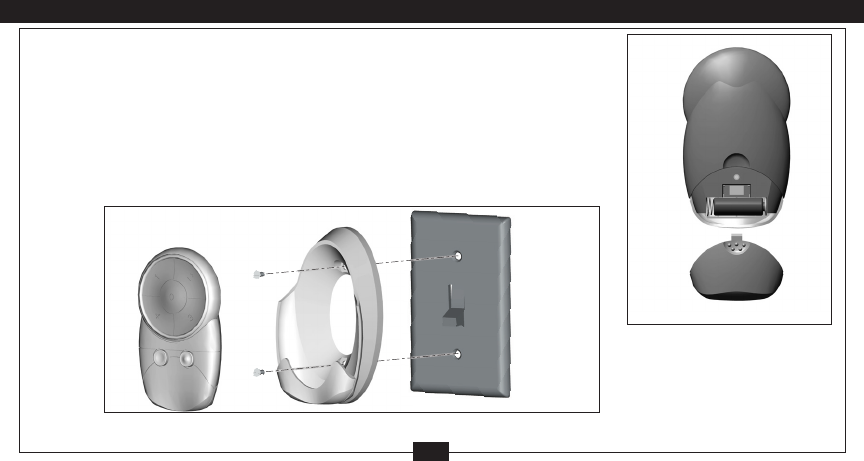

5 • Transmitter Installation
1. Install the included 12-Volt alkaline battery (A23 or equivalent) inside the handheld transmitter, after setting the
jumpers to match the DIP switches in the receiver. Refer to Figure 7.
2. Mount the remote holder over the ceiling fan’s wall switch using the existing wall plate screws. Refer to Figure 8.
3. The transmitter can be placed on the remote holder for convenience or safekeeping.
Figure 7
Figure 8
41797-01 • 10/11/10 • Hunter Fan Company
8
6 • Operation
Programming the Remote:
The remote transmitter and remote receiver should already be programmed to work together.
• If you want the remote to control a second fan, or you want to re-progam remote:
1. Turn the power to the second fan OFF at the wall switch.
2. Within 30 seconds, press the 1 (Fan Low) and 3 (Fan High) buttons on the transmitter
together and hold them down for 5 seconds. The LED light on the transmitter will blink 3
times to conrm.
3. The fan’s light will turn on and the fan will turn on at low speed to further conrm the
programming has taken effect.
4. Repeat this process to correct interference with other devices, or to program additional fans
to this remote.
• If there is any fan in your home you do NOT want programmed to this remote, make sure the power
to that fan is turned OFF at its wall switch while programming the remote.

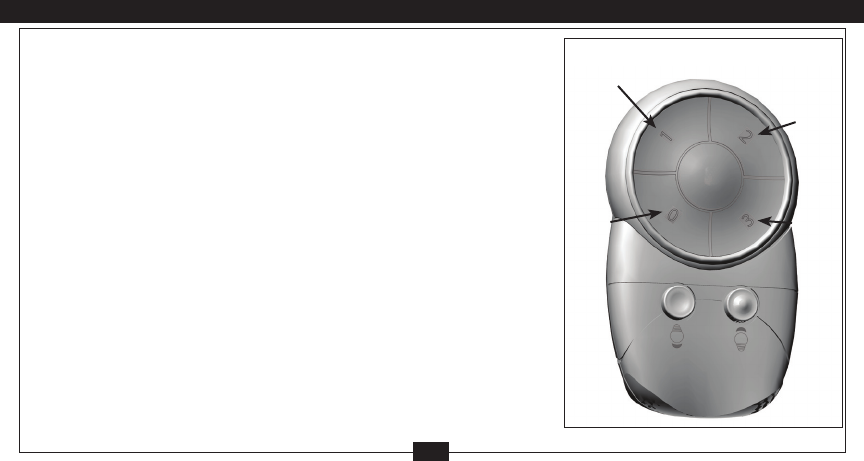

Fan Operation:
For best fan operation: Start the fan on High (3), and then select the
desired speed.
• Press the High (3), Medium (2), or Low (1) speed buttons to turn the ceiling fan ON at the desired
speed.
• Press the fan “0” key to turn the ceiling fan OFF.
*Hold down fan speed
buttons 1 & 3 together for
5 seconds to program the
remote control
Fan High
Fan Low
Fan
Medium
Fan Off
Figure 9
41797-01 • 10/11/10 • Hunter Fan Company
9

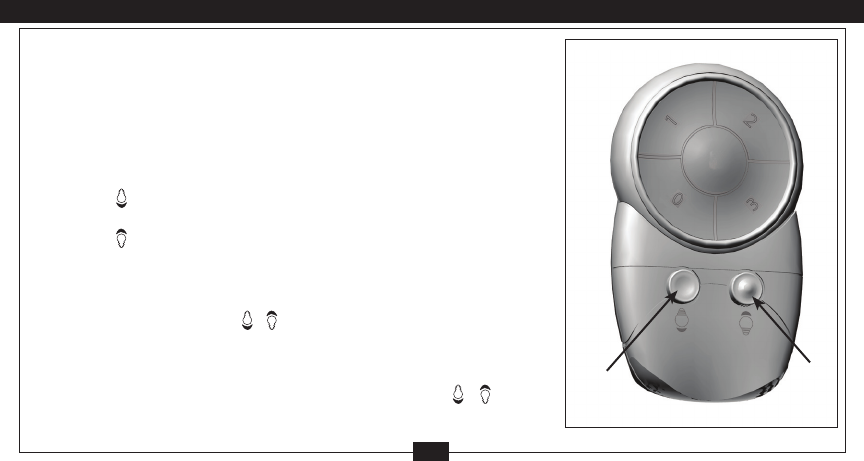

Light Operation:
• Turn ON wall switch. The light will turn ON at maximum brightness.
• Press and quickly release either light button on the hand held remote to turn the light OFF or ON. The
light will come ON at maximum brightness.
• After a power outage, the light will turn ON when power is restored. Press and quickly release one of
the light buttons once to turn the light back off after a power outage.
• Press and hold either light button for more than 1 second to activate the dimming cycle.
• Press to turn the light ON at the maximum level and continue holding down to dim the
light.
• Press to turn the light ON at a low level and continue holding down to brighten the light.
• Continue to hold the light button to repeat the cycle.
• Release the light button when the desired light level is reached.
To turn the light OFF:
• Press both of the light buttons & together to gradually dim the light down to OFF. The
LED light on the transmitter will blink 4 times to let you know it’s turning the light off. The
light will slowly dim down until it’s completely off within 30 seconds. This “Safe Exit” feature
provides you with enough light to leave the room safely.
• To turn the light off instantly, press and quickly release either light button or once.
• When the light is turned on again, it will “remember” the brightness level it was at before it
was turned off and resume at that level again.
Up
Dimmer
Down
Dimmer
6 • Operation
41797-01 • 10/11/10 • Hunter Fan Company
10
7 • Troubleshooting
Symptom Possible Causes Solution
1.No functions operate. Main Power not restored. Replace fuse. Turn ON circuit breaker. Turn ON wall switch.
Fan pull chain not set to High. Set fan pull chain to High speed.
Light pull chain not set to ON. Set light kit to ON.
Receiver wiring incorrect. Verify wiring connections.
Transmitter not programmed to
receiver in fan.
Re-program the remote. Refer to “Programming the Remote,” Page 8.
Battery too weak. Replace with new, 12-Volt alkaline battery. Refer to “Transmitter Installation”, Section 5.
2.Fan clicks when remote buttons
pushed, but blades do not move.
Fan pull chain not set to High. Set fan pull chain to High speed.
3.Fan clicks when remote buttons
pushed, but light does not work.
Light pull chain not set to ON. Pull light chain to turn ON.
4.Operates only at close range. Signal blocked from reaching
receiver.
Extend antenna into ceiling box, or move it for better reception.
Battery too weak. Replace with new, 12-Volt alkaline battery. Refer to “Transmitter Installation”, Section 5.
Interference Re-program the remote to a different frequency by pressing and holding fan speed
buttons 1 & 3 together for 5 seconds. Light on transmitter will blink 3 times. Light will
come on and fan will turn on at low speed to conrm programming is complete.
5.Inconsistent operation. Signal partially blocked from
reaching receiver.
Extend antenna into ceiling box, or move it for better reception.
RF interference. Turn OFF wall switch for 5 seconds, then turn back ON.
Continuing RF interference. Re-program the remote. Refer to “Programming the Remote,” Page 8.
41797-01 • 10/11/10 • Hunter Fan Company
11
8 • Warranty
HUNTER FAN COMPANY CONTROL LIMITED WARRANTY
The Hunter Fan Company makes the following limited warranty to the original purchaser of the Control (“Control”): Your
Control is warranted to be free from defects in material and workmanship for a period of one year from the date of sale. If
the Control malfunctions or fails within the warranty period due to a defect in material or workmanship we will replace it free
of charge. IF THE ORIGINAL PURCHASER CEASES TO OWN THE CONTROL, THIS WARRANTY AND ANY IMPLIED
WARRANTY, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE VOIDED. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES.
THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IN RESPECT TO ANY CONTROL, IS EXPRESSLY
LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE FOR SUCH CONTROL. This warranty
excludes malfunctions or failures which were caused by repairs by persons not authorized by us, mishandling, improper
installation, modications, or damage to the Control while in your possession, or unreasonable use. This warranty does
not apply to batteries or to deterioration or damage to the product caused by the use of faulty batteries. To obtain a
replacement, return your Control postage prepaid along with proof of purchase to Hunter Fan Company Service Department
at 7130 Goodlett Farms Pkwy. #400, Memphis, Tennessee 38016. IN NO EVENT SHALL HUNTER FAN COMPANY BE
LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATIONS
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE.
If you need parts or service assistance, please
call 888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
7130 Goodlett Farms Parkway #400
Memphis, Tennessee 38016
Printed in China
